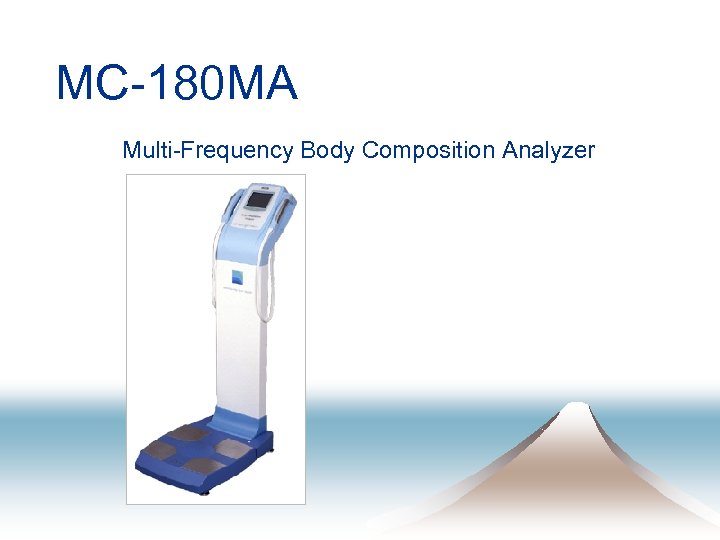

MC-180 MA Multi-Frequency Body Composition Analyzer MC-180

MC-180 MA Multi-Frequency Body Composition Analyzer

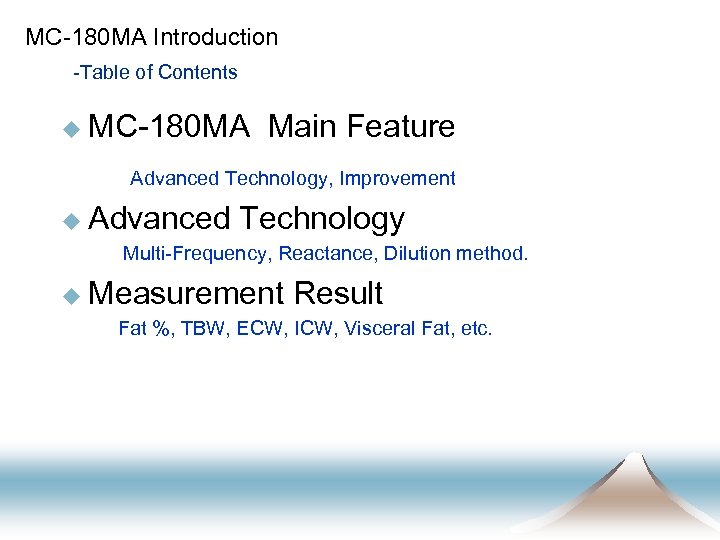

MC-180 MA Introduction -Table of Contents u MC-180 MA Main Feature 　　 Advanced Technology, Improvement u Advanced Technology 　　　 Multi-Frequency, Reactance, Dilution method. u Measurement Result 　　　 Fat %, TBW, ECW, ICW, Visceral Fat, etc.

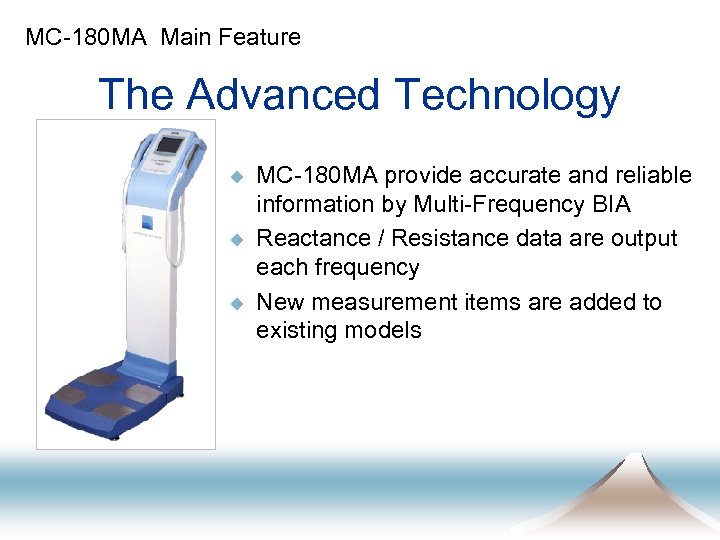

MC-180 MA Main Feature The Advanced Technology u u u MC-180 MA provide accurate and reliable information by Multi-Frequency BIA Reactance / Resistance data are output each frequency New measurement items are added to existing models

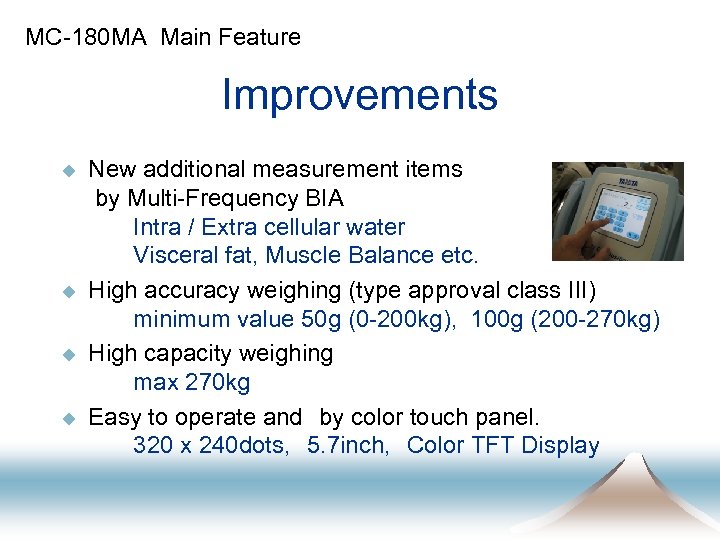

MC-180 MA Main Feature Improvements u u New additional measurement items by Multi-Frequency BIA Intra / Extra cellular water Visceral fat, Muscle Balance etc. High accuracy weighing (type approval class III) minimum value 50 g (0 -200 kg), 100 g (200 -270 kg) High capacity weighing max 270 kg Easy to operate and　by color touch panel. 320 x 240 dots, 　5. 7 inch, 　Color TFT Display

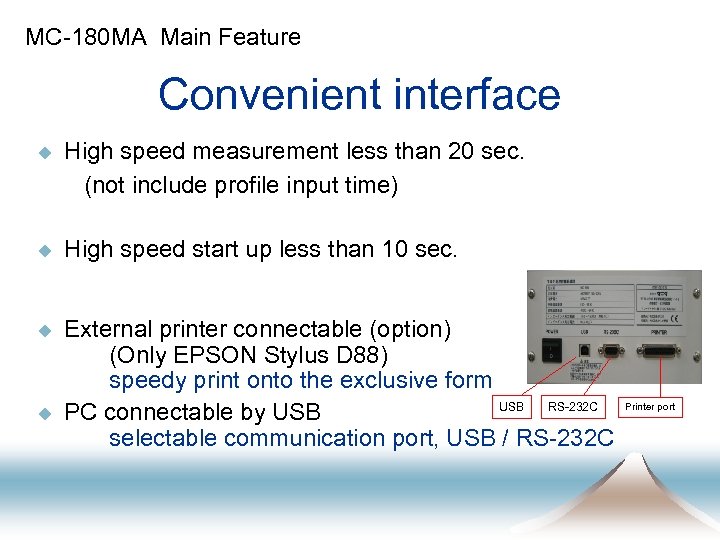

MC-180 MA Main Feature Convenient interface u u High speed measurement less than 20 sec. (not include profile input time) 　 High speed start up less than 10 sec. 　　 u u External printer connectable (option) (Only EPSON Stylus D 88) speedy print onto the exclusive form USB RS-232 C PC connectable by USB selectable communication port, USB / RS-232 C Printer port

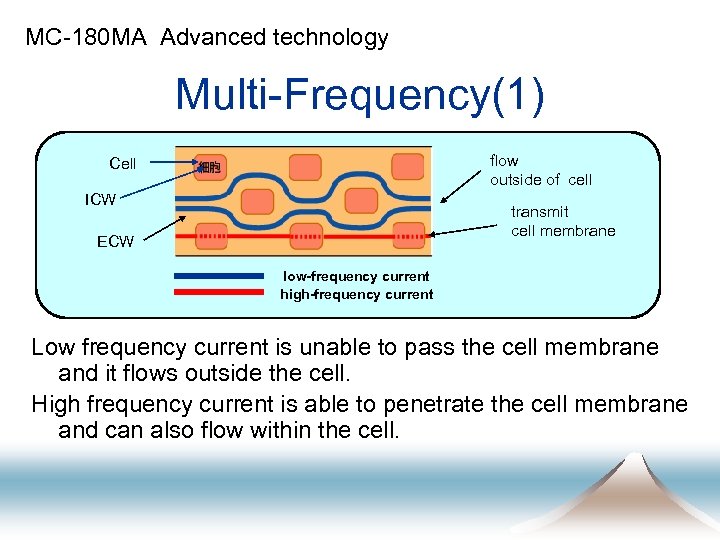

MC-180 MA Advanced technology Multi-Frequency(1) flow outside of cell Cell ICW transmit cell membrane ECW low-frequency current high-frequency current Low frequency current is unable to pass the cell membrane and it flows outside the cell. High frequency current is able to penetrate the cell membrane and can also flow within the cell.

MC-180 MA Advanced technology Multi-Frequency(2) ICW Resistance f=0 f= ECW Resistance Cell membrane capacitor

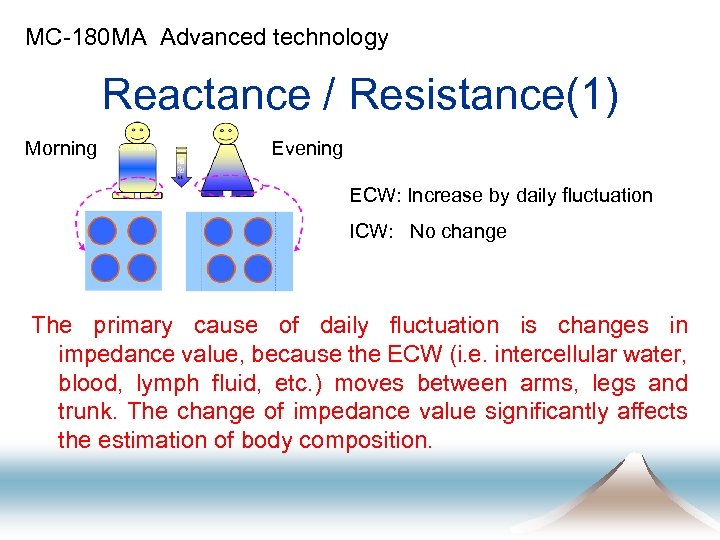

MC-180 MA Advanced technology Reactance / Resistance(1) Morning Evening ECW: Increase by daily fluctuation ICW: No change The primary cause of daily fluctuation is changes in impedance value, because the ECW (i. e. intercellular water, blood, lymph fluid, etc. ) moves between arms, legs and trunk. The change of impedance value significantly affects the estimation of body composition.

MC-180 MA Advanced technology Reactance / Resistance(2) MC-180 MA not only uses impedance values in the conventional way, but also adopts reactance values that can be acquired by breaking down impedance values under a regression formula to reduce daily fluctuation.

MC-180 MA Advanced technology Dilution method(1) er k ar M Body Water Marker TBW : D 2 O ECW : Na. Br Total body water (TBW) and Extra cellular water (ECW) are measured by correlations of dilution method and BIA. A known concentration of marker is administered to the body, and the total water content of the body is calculated from the degree of dilution.

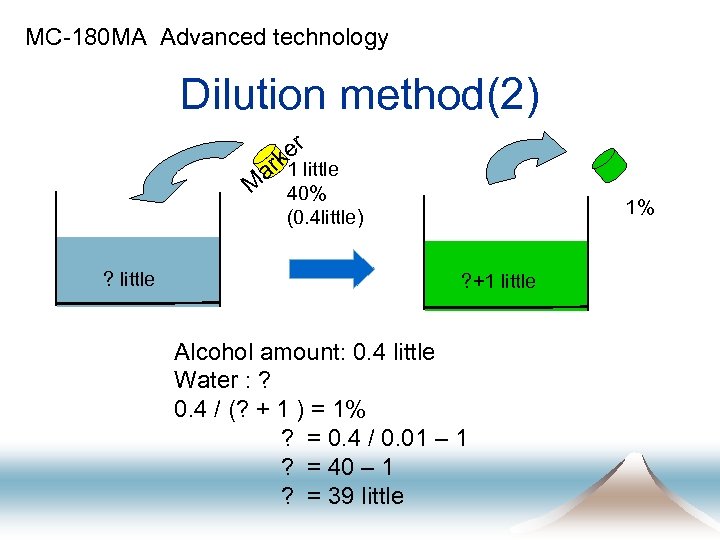

MC-180 MA Advanced technology Dilution method(2) er k ar 1 little M 40% 1% (0. 4 little) ? little ? +1 little Alcohol amount: 0. 4 little Water : ? 0. 4 / (? + 1 ) = 1% ? = 0. 4 / 0. 01 – 1 ? = 40 – 1 ? = 39 little

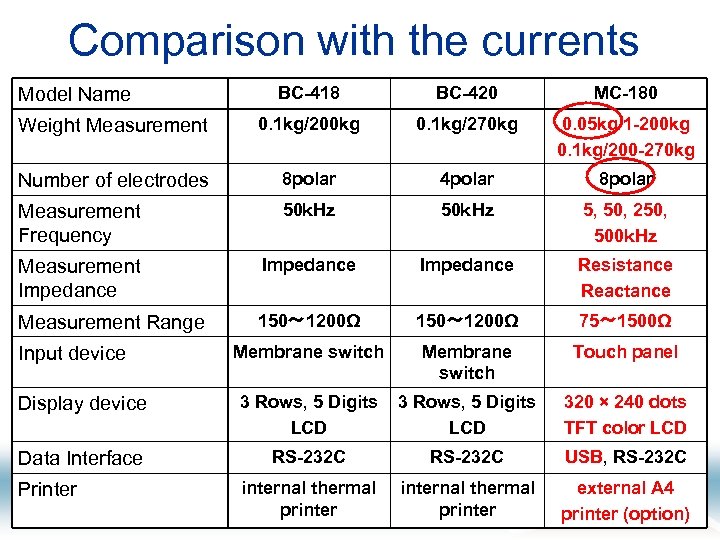

Comparison with the currents BC-418 BC-420 MC-180 Weight Measurement 0. 1 kg/200 kg 0. 1 kg/270 kg 0. 05 kg/1 -200 kg 0. 1 kg/200 -270 kg Number of electrodes 8 polar 4 polar 8 polar Measurement Frequency 50ｋHz 5, 50, 250, 500ｋHz Measurement Impedance Resistance Reactance Measurement Range 150～ 1200Ω 75～ 1500Ω Membrane switch Touch panel Display device 3 Rows, 5 Digits LCD 320 × 240 dots TFT color LCD Data Interface RS-232 C USB, RS-232 C internal thermal printer external A 4 printer (option) Model Name Input device Printer

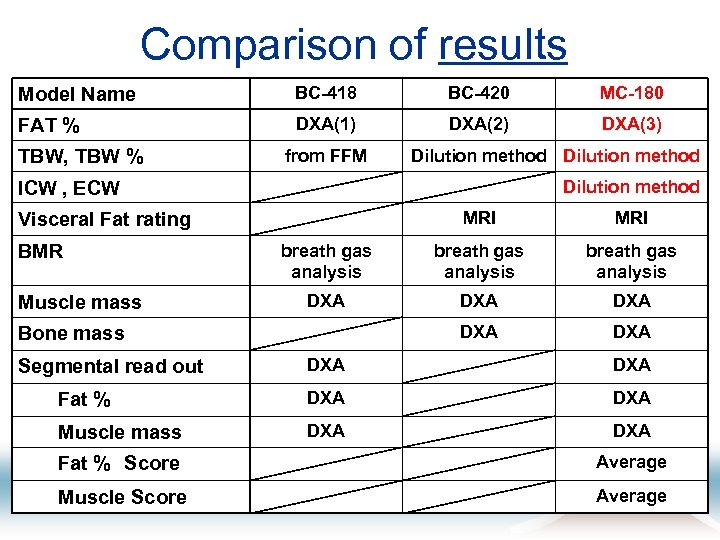

Comparison of results Model Name BC-418 BC-420 MC-180 FAT % DXA(1) DXA(2) DXA(3) TBW, TBW % from FFM Dilution method ICW , ECW MRI breath gas analysis DXA DXA DXA Visceral Fat rating BMR Muscle mass Bone mass Segmental read out DXA 　　　Fat % DXA 　　　Muscle mass DXA 　　　Fat %　Score Average 　　　Muscle Score Average

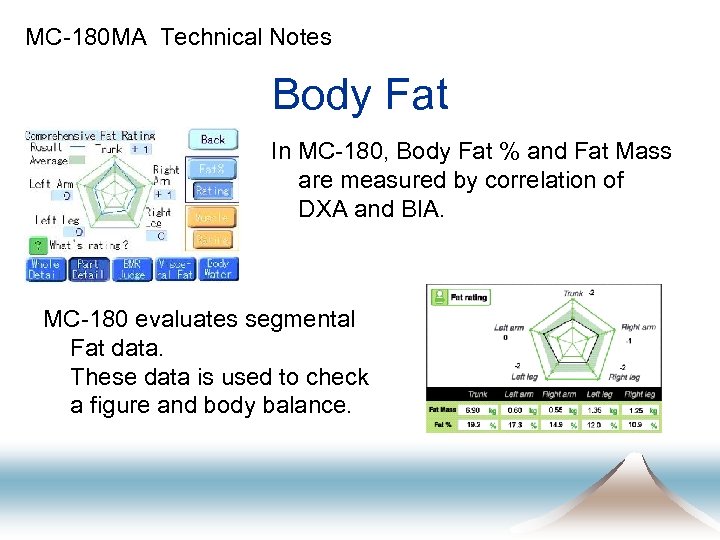

MC-180 MA Technical Notes Body Fat In MC-180, Body Fat % and Fat Mass are measured by correlation of DXA and BIA. MC-180 evaluates segmental Fat data. These data is used to check a figure and body balance.

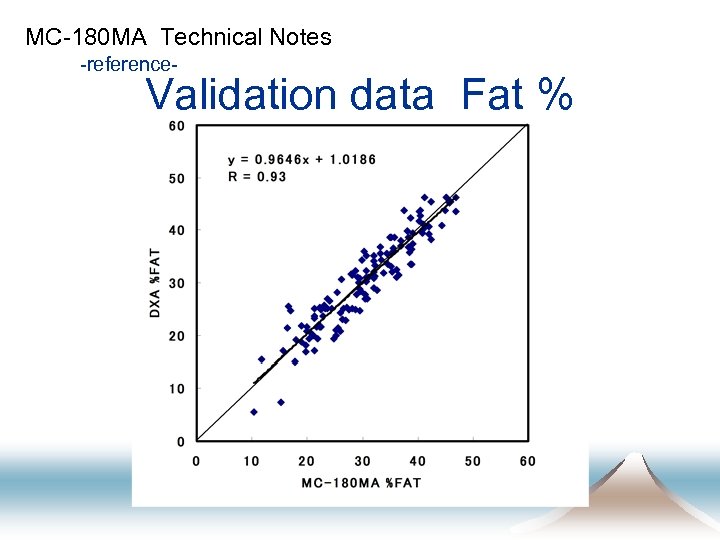

MC-180 MA Technical Notes -reference- Validation data Fat %

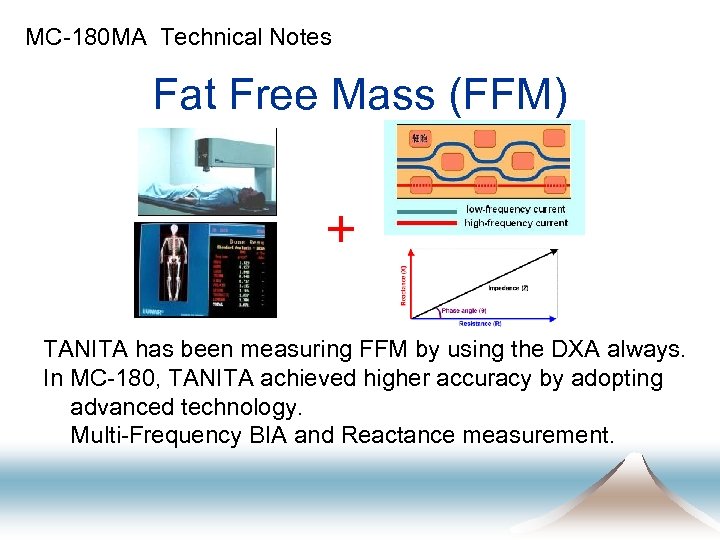

MC-180 MA Technical Notes Fat Free Mass (FFM) + TANITA has been measuring FFM by using the DXA always. In MC-180, TANITA achieved higher accuracy by adopting advanced technology. Multi-Frequency BIA and Reactance measurement.

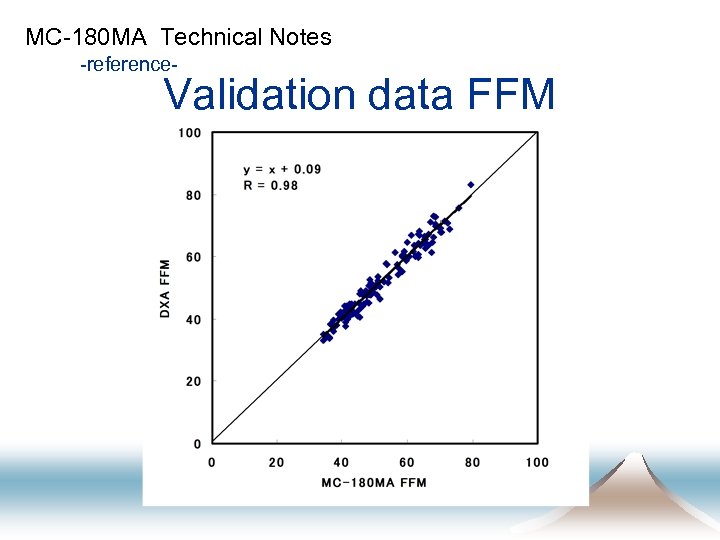

MC-180 MA Technical Notes -reference- Validation data FFM

MC-180 MA Technical Notes Total Body Water, Intra / Extra Water TBW (45 -65%) ECW (30 -50%) fat, protein, mineral etc. ICW TBW ECW and ICW including blood and lymph ECW consists interstitial fluid, blood plasma, lymph etc. Edema is the state that interstitial fluid has increased. ICW the fluid that exists in the cell ICW tends to increase to the muscular person because muscle tissue contains a lot of water.

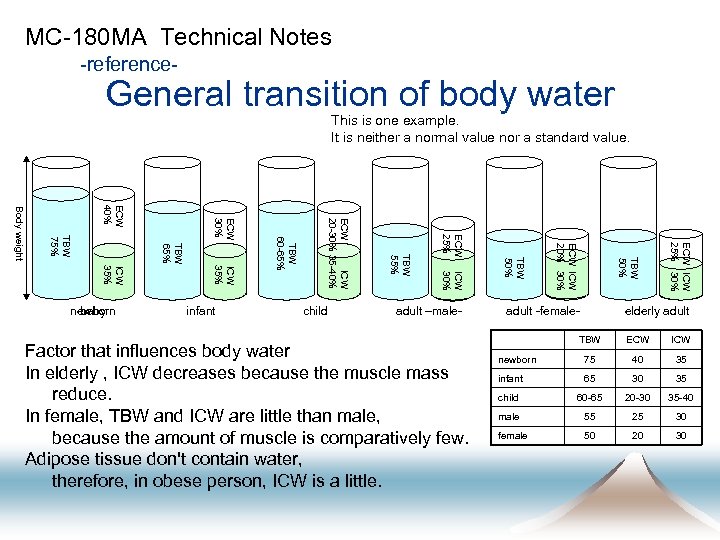

MC-180 MA Technical Notes -reference- General transition of body water This is one example. It is neither a normal value nor a standard value. adult -female- ECW ICW 25% 30% TBW 50% Factor that influences body water In elderly , ICW decreases because the muscle mass reduce. In female, TBW and ICW are little than male, because the amount of muscle is comparatively few. Adipose tissue don't contain water, therefore, in obese person, ICW is a little. ECW ICW 20% 30% ICW 30% adult –male- TBW 50% ECW 25% child TBW 55% ICW 35% ECW ICW 20 -30% 35 -40% TBW 65% ICW 35% infant TBW 60 -65% ECW 30% ECW 40% TBW 75% Body weight newborn baby elderly adult TBW ECW ICW newborn 75 40 35 infant 65 30 35 child 60 -65 20 -30 35 -40 male 55 25 30 female 50 20 30

MC-180 MA Technical Notes -reference- Validation data TBW

MC-180 MA Technical Notes Visceral Fat Rating Visceral fat is accumulated when becoming aged. TANITA has been researching the method of measuring the visceral BMI 25 fat, and established the method (Age 27 Male) (Age 61 Male) to estimate it from BIA. In TANITA body composition analyzer, visceral fat rating is evaluated by correlations of the Visceral Adipose Tissue area in MRI and BIA. Rating from 1 - 12 Indicates you have a healthy level of visceral fat. Continue monitoring your rating to ensure that it stays within the healthy range. Rating from 13 – Indicates you have an excess level of visceral fat. Consider making changes in your lifestyle possibly through diet.

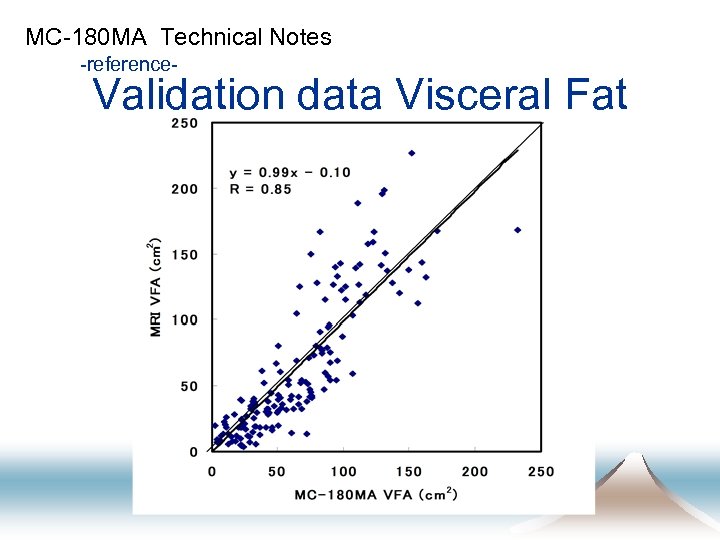

MC-180 MA Technical Notes -reference- Validation data Visceral Fat

MC-180 MA Technical Notes Basal Metabolic Rate (BMR) The BMR is more determined by the Fat Free Mass (FFM) than by the body weight. In MC-180, the BMR is estimated by the correlation of Breath Gas analysis and FFM. Of course, FFM is measured by the BIA method.

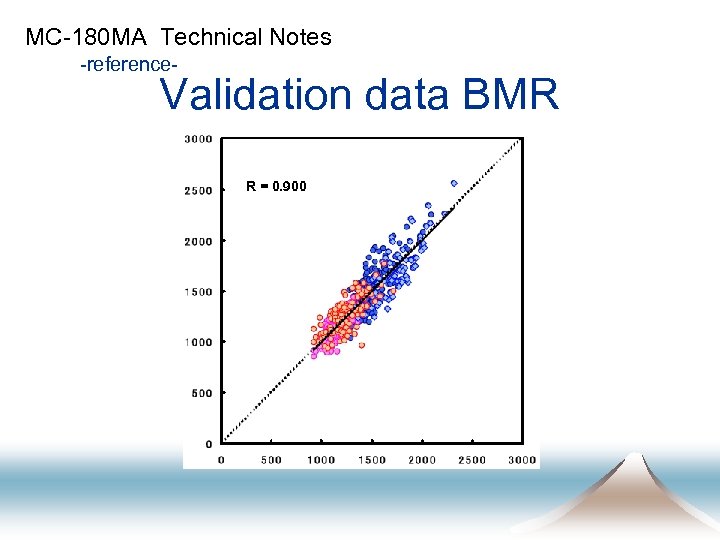

MC-180 MA Technical Notes -reference- Validation data BMR R = 0. 900

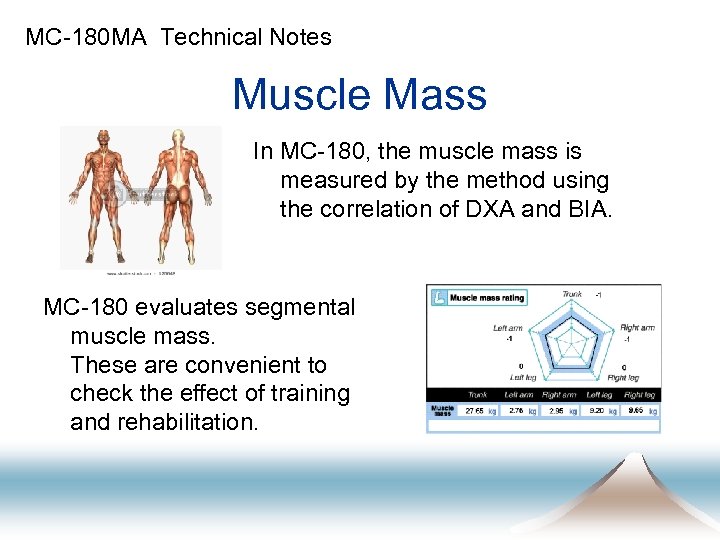

MC-180 MA Technical Notes Muscle Mass In MC-180, the muscle mass is measured by the method using the correlation of DXA and BIA. MC-180 evaluates segmental muscle mass. These are convenient to check the effect of training and rehabilitation.

MC-180 MA Technical Notes -reference- Validation data Muscle Mass

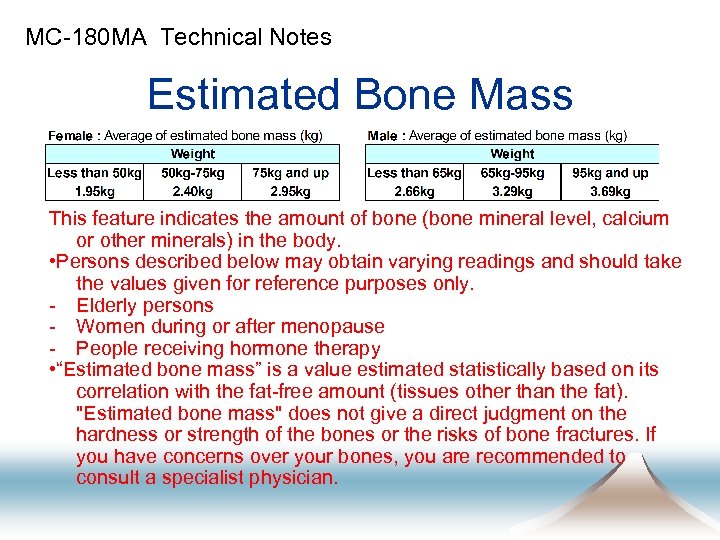

MC-180 MA Technical Notes Estimated Bone Mass This feature indicates the amount of bone (bone mineral level, calcium or other minerals) in the body. • Persons described below may obtain varying readings and should take the values given for reference purposes only. - Elderly persons - Women during or after menopause - People receiving hormone therapy • “Estimated bone mass” is a value estimated statistically based on its correlation with the fat-free amount (tissues other than the fat). "Estimated bone mass" does not give a direct judgment on the hardness or strength of the bones or the risks of bone fractures. If you have concerns over your bones, you are recommended to consult a specialist physician.

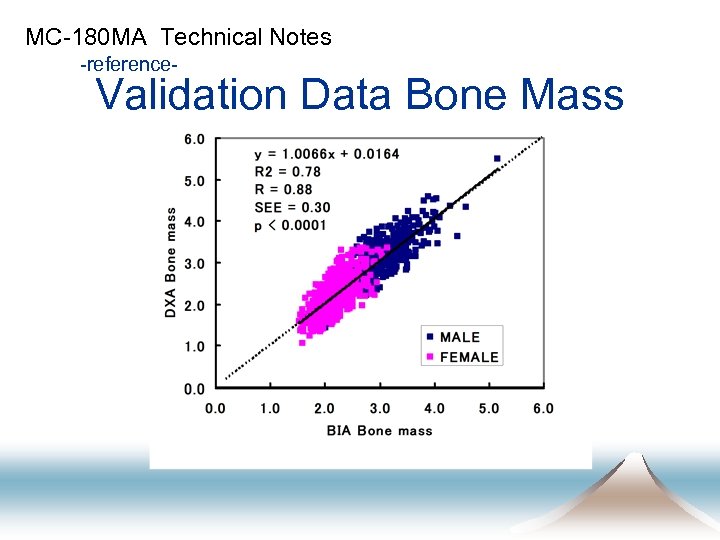

MC-180 MA Technical Notes -reference- Validation Data Bone Mass

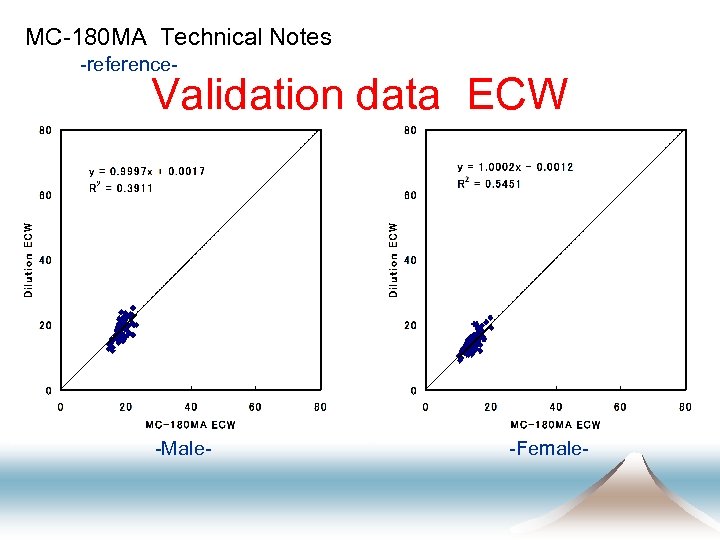

MC-180 MA Technical Notes -reference- Validation data ECW -Male- -Female-
