MAURITIUS STANDARDS BUREAU Presentation on Upcoming Regulations on

MAURITIUS STANDARDS BUREAU Presentation on Upcoming Regulations on Safety Testing of Household and Similar Electrical Appliances and Accessories Information Session – MCCI, Port-Louis 24 September 2015 Balram Cunniah

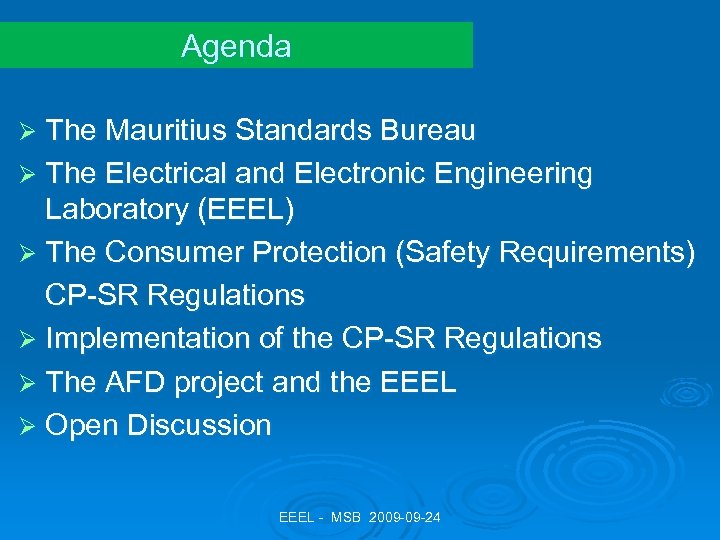

Agenda Ø The Mauritius Standards Bureau Ø The Electrical and Electronic Engineering Laboratory (EEEL) Ø The Consumer Protection (Safety Requirements) CP-SR Regulations Ø Implementation of the CP-SR Regulations Ø The AFD project and the EEEL Ø Open Discussion EEEL - MSB 2009 -09 -24

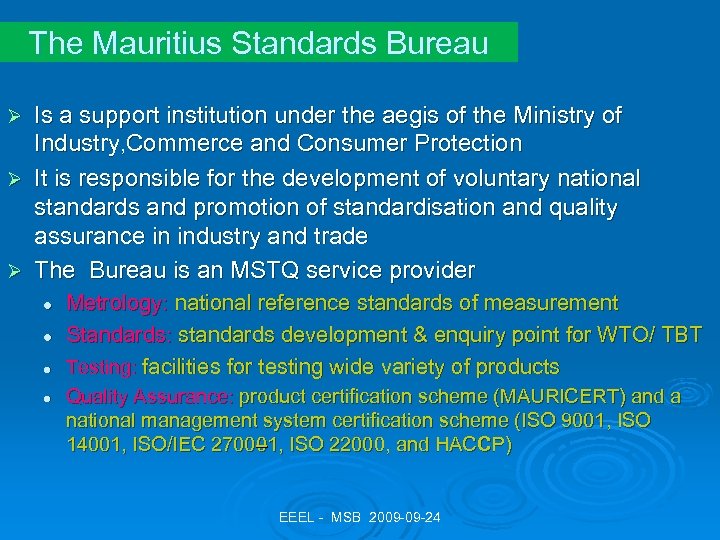

The Mauritius Standards Bureau Is a support institution under the aegis of the Ministry of Industry, Commerce and Consumer Protection Ø It is responsible for the development of voluntary national standards and promotion of standardisation and quality assurance in industry and trade Ø The Bureau is an MSTQ service provider Ø l l Metrology: national reference standards of measurement Standards: standards development & enquiry point for WTO/ TBT Testing: facilities for testing wide variety of products Quality Assurance: product certification scheme (MAURICERT) and a national management system certification scheme (ISO 9001, ISO 14001, ISO/IEC 270001, ISO 22000, and HACCP) EEEL - MSB 2009 -09 -24

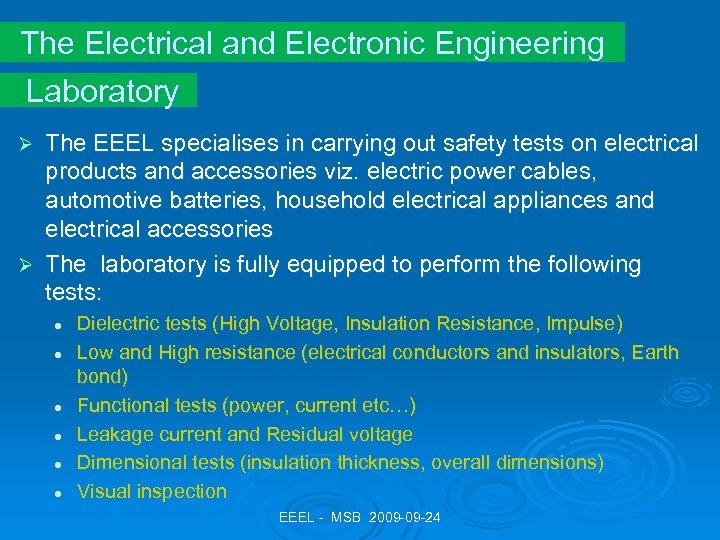

The Electrical and Electronic Engineering Laboratory The EEEL specialises in carrying out safety tests on electrical products and accessories viz. electric power cables, automotive batteries, household electrical appliances and electrical accessories Ø The laboratory is fully equipped to perform the following tests: Ø l l l Dielectric tests (High Voltage, Insulation Resistance, Impulse) Low and High resistance (electrical conductors and insulators, Earth bond) Functional tests (power, current etc…) Leakage current and Residual voltage Dimensional tests (insulation thickness, overall dimensions) Visual inspection EEEL - MSB 2009 -09 -24

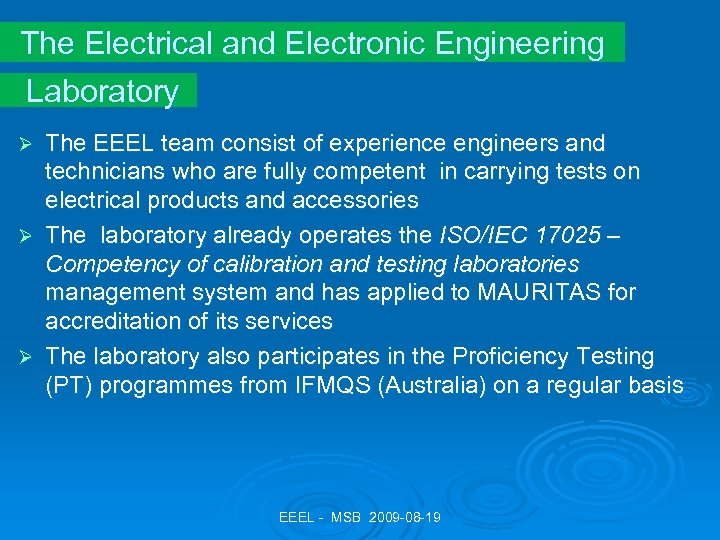

The Electrical and Electronic Engineering Laboratory The EEEL team consist of experience engineers and technicians who are fully competent in carrying tests on electrical products and accessories Ø The laboratory already operates the ISO/IEC 17025 – Competency of calibration and testing laboratories management system and has applied to MAURITAS for accreditation of its services Ø The laboratory also participates in the Proficiency Testing (PT) programmes from IFMQS (Australia) on a regular basis Ø EEEL - MSB 2009 -08 -19

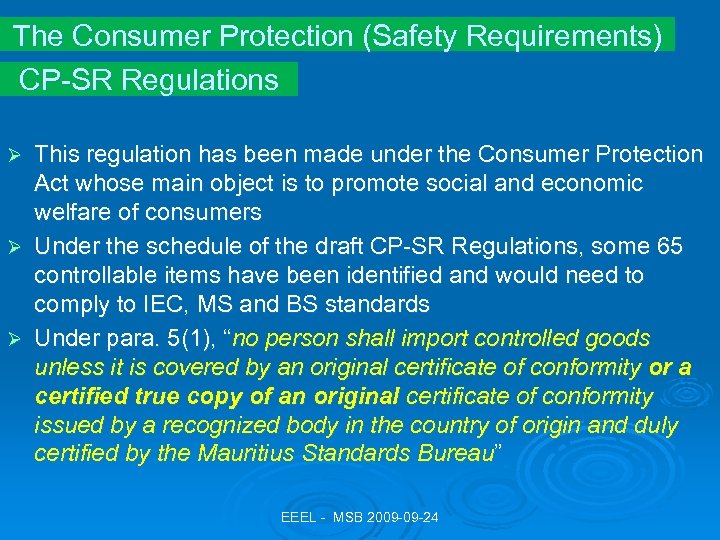

The Consumer Protection (Safety Requirements) CP-SR Regulations This regulation has been made under the Consumer Protection Act whose main object is to promote social and economic welfare of consumers Ø Under the schedule of the draft CP-SR Regulations, some 65 controllable items have been identified and would need to comply to IEC, MS and BS standards Ø Under para. 5(1), “no person shall import controlled goods unless it is covered by an original certificate of conformity or a certified true copy of an original certificate of conformity issued by a recognized body in the country of origin and duly certified by the Mauritius Standards Bureau” Ø EEEL - MSB 2009 -09 -24

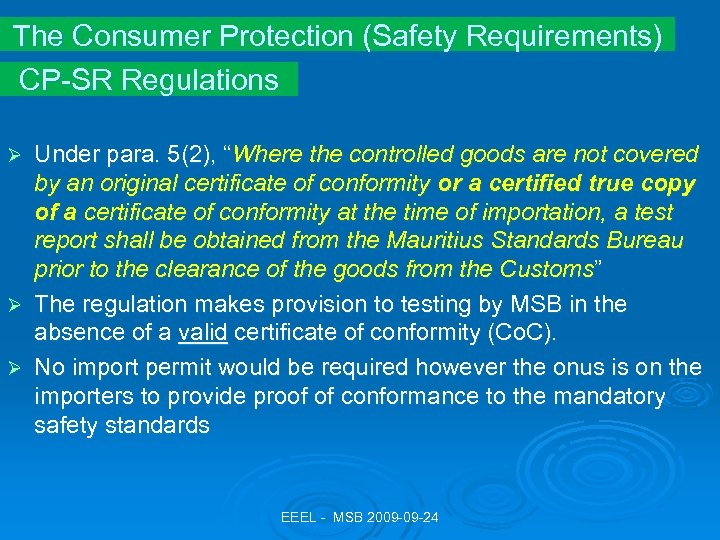

The Consumer Protection (Safety Requirements) CP-SR Regulations Under para. 5(2), “Where the controlled goods are not covered by an original certificate of conformity or a certified true copy of a certificate of conformity at the time of importation, a test report shall be obtained from the Mauritius Standards Bureau prior to the clearance of the goods from the Customs” Ø The regulation makes provision to testing by MSB in the absence of a valid certificate of conformity (Co. C). Ø No import permit would be required however the onus is on the importers to provide proof of conformance to the mandatory safety standards Ø EEEL - MSB 2009 -09 -24

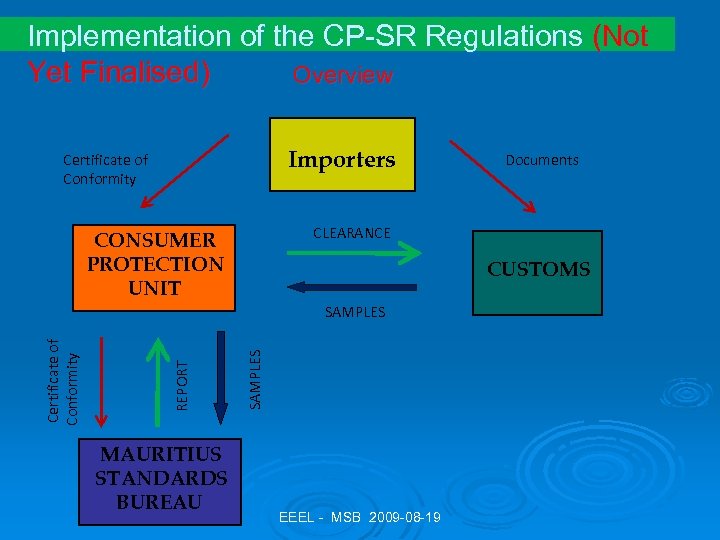

Implementation of the CP-SR Regulations (Not Yet Finalised) Overview Importers Certificate of Conformity CLEARANCE CONSUMER PROTECTION UNIT CUSTOMS SAMPLES REPORT Certificate of Conformity SAMPLES MAURITIUS STANDARDS BUREAU Documents EEEL - MSB 2009 -08 -19

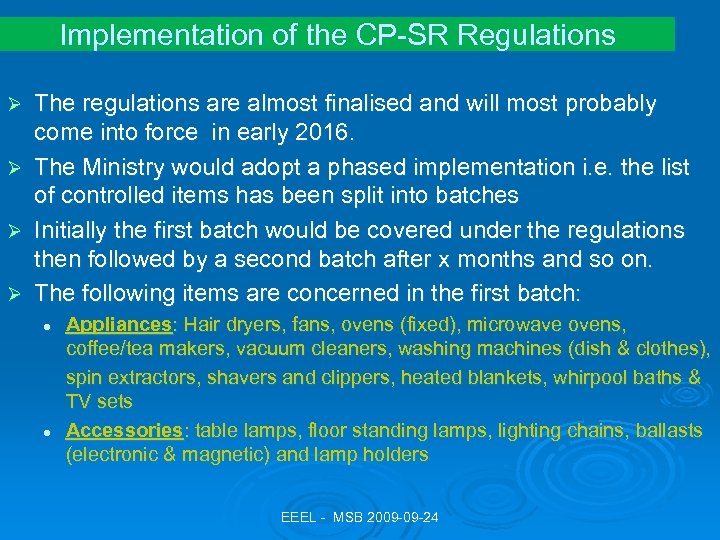

Implementation of the CP-SR Regulations The regulations are almost finalised and will most probably come into force in early 2016. Ø The Ministry would adopt a phased implementation i. e. the list of controlled items has been split into batches Ø Initially the first batch would be covered under the regulations then followed by a second batch after x months and so on. Ø The following items are concerned in the first batch: Ø l l Appliances: Hair dryers, fans, ovens (fixed), microwave ovens, coffee/tea makers, vacuum cleaners, washing machines (dish & clothes), spin extractors, shavers and clippers, heated blankets, whirpool baths & TV sets Accessories: table lamps, floor standing lamps, lighting chains, ballasts (electronic & magnetic) and lamp holders EEEL - MSB 2009 -09 -24

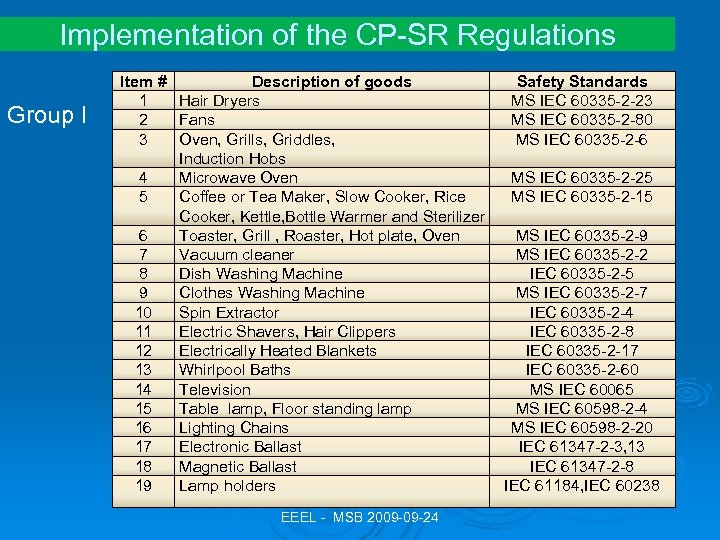

Implementation of the CP-SR Regulations Group I Item # Description of goods 1 Hair Dryers 2 Fans 3 Oven, Grills, Griddles, Induction Hobs 4 Microwave Oven 5 Coffee or Tea Maker, Slow Cooker, Rice Cooker, Kettle, Bottle Warmer and Sterilizer 6 Toaster, Grill , Roaster, Hot plate, Oven 7 Vacuum cleaner 8 Dish Washing Machine 9 Clothes Washing Machine 10 Spin Extractor 11 Electric Shavers, Hair Clippers 12 Electrically Heated Blankets 13 Whirlpool Baths 14 Television 15 Table lamp, Floor standing lamp 16 Lighting Chains 17 Electronic Ballast 18 Magnetic Ballast 19 Lamp holders EEEL - MSB 2009 -09 -24 Safety Standards MS IEC 60335 -2 -23 MS IEC 60335 -2 -80 MS IEC 60335 -2 -6 MS IEC 60335 -2 -25 MS IEC 60335 -2 -15 MS IEC 60335 -2 -9 MS IEC 60335 -2 -2 IEC 60335 -2 -5 MS IEC 60335 -2 -7 IEC 60335 -2 -4 IEC 60335 -2 -8 IEC 60335 -2 -17 IEC 60335 -2 -60 MS IEC 60065 MS IEC 60598 -2 -4 MS IEC 60598 -2 -20 IEC 61347 -2 -3, 13 IEC 61347 -2 -8 IEC 61184, IEC 60238

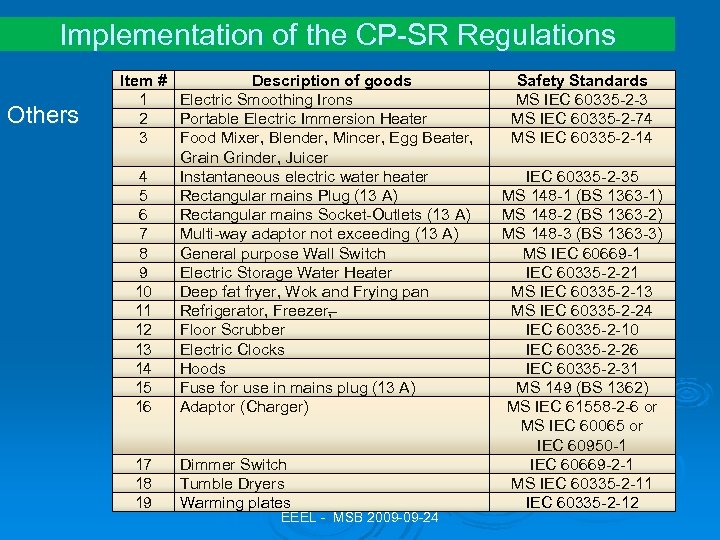

Implementation of the CP-SR Regulations Others Item # Description of goods 1 Electric Smoothing Irons 2 Portable Electric Immersion Heater 3 Food Mixer, Blender, Mincer, Egg Beater, Grain Grinder, Juicer 4 Instantaneous electric water heater 5 Rectangular mains Plug (13 A) 6 Rectangular mains Socket-Outlets (13 A) 7 Multi-way adaptor not exceeding (13 A) 8 General purpose Wall Switch 9 Electric Storage Water Heater 10 Deep fat fryer, Wok and Frying pan 11 Refrigerator, Freezer, 12 Floor Scrubber 13 Electric Clocks 14 Hoods 15 Fuse for use in mains plug (13 A) 16 Adaptor (Charger) 17 18 19 Dimmer Switch Tumble Dryers Warming plates EEEL - MSB 2009 -09 -24 Safety Standards MS IEC 60335 -2 -3 MS IEC 60335 -2 -74 MS IEC 60335 -2 -14 IEC 60335 -2 -35 MS 148 -1 (BS 1363 -1) MS 148 -2 (BS 1363 -2) MS 148 -3 (BS 1363 -3) MS IEC 60669 -1 IEC 60335 -2 -21 MS IEC 60335 -2 -13 MS IEC 60335 -2 -24 IEC 60335 -2 -10 IEC 60335 -2 -26 IEC 60335 -2 -31 MS 149 (BS 1362) MS IEC 61558 -2 -6 or MS IEC 60065 or IEC 60950 -1 IEC 60669 -2 -1 MS IEC 60335 -2 -11 IEC 60335 -2 -12

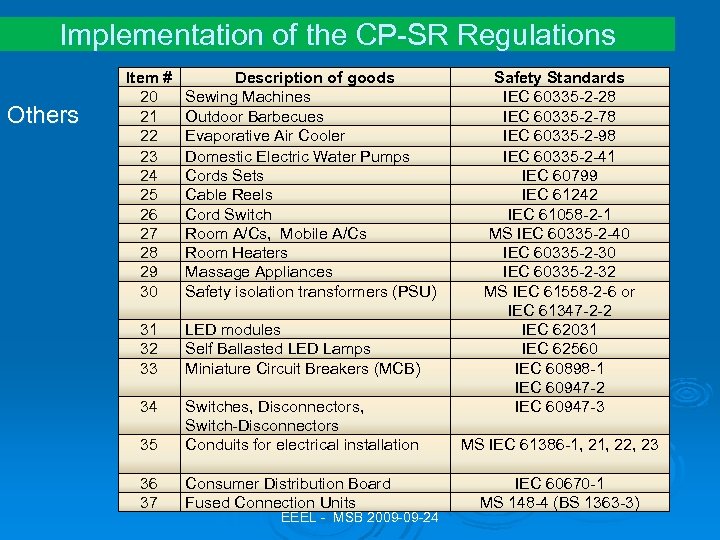

Implementation of the CP-SR Regulations Others Item # 20 21 22 23 24 25 26 27 28 29 30 Description of goods Sewing Machines Outdoor Barbecues Evaporative Air Cooler Domestic Electric Water Pumps Cords Sets Cable Reels Cord Switch Room A/Cs, Mobile A/Cs Room Heaters Massage Appliances Safety isolation transformers (PSU) 31 32 33 LED modules Self Ballasted LED Lamps Miniature Circuit Breakers (MCB) 34 35 Switches, Disconnectors, Switch-Disconnectors Conduits for electrical installation 36 37 Consumer Distribution Board Fused Connection Units EEEL - MSB 2009 -09 -24 Safety Standards IEC 60335 -2 -28 IEC 60335 -2 -78 IEC 60335 -2 -98 IEC 60335 -2 -41 IEC 60799 IEC 61242 IEC 61058 -2 -1 MS IEC 60335 -2 -40 IEC 60335 -2 -32 MS IEC 61558 -2 -6 or IEC 61347 -2 -2 IEC 62031 IEC 62560 IEC 60898 -1 IEC 60947 -2 IEC 60947 -3 MS IEC 61386 -1, 22, 23 IEC 60670 -1 MS 148 -4 (BS 1363 -3)

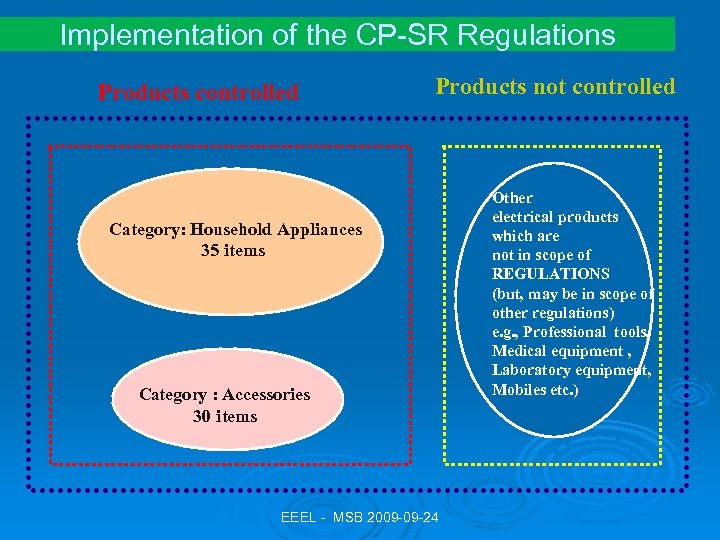

Implementation of the CP-SR Regulations Products controlled Products not controlled Category: Household Appliances 35 items Category : Accessories 30 items EEEL - MSB 2009 -09 -24 Other electrical products which are not in scope of REGULATIONS (but, may be in scope of other regulations) e. g. , Professional tools, Medical equipment , Laboratory equipment, Mobiles etc. )

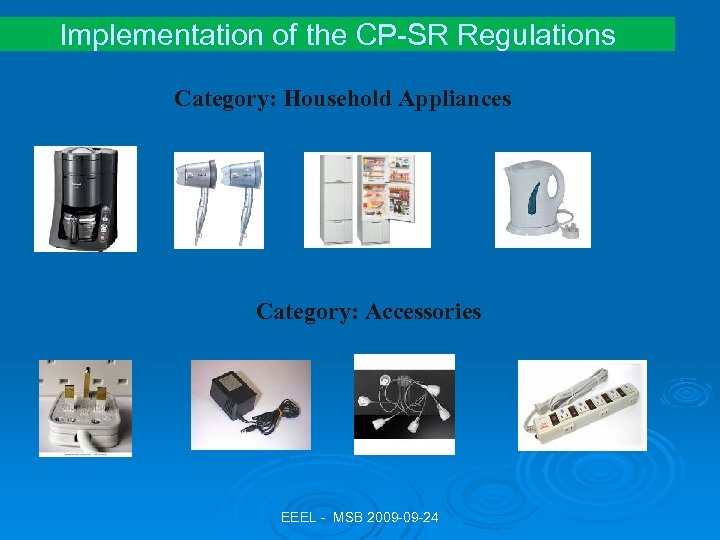

Implementation of the CP-SR Regulations Category: Household Appliances Category: Accessories EEEL - MSB 2009 -09 -24

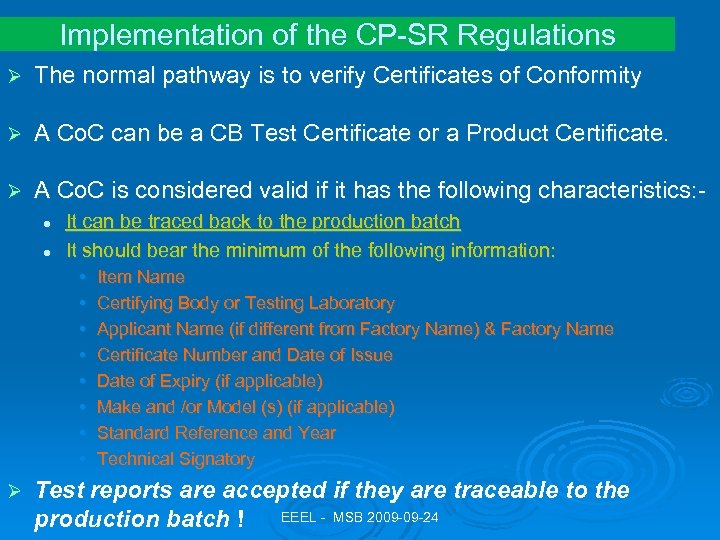

Implementation of the CP-SR Regulations Ø The normal pathway is to verify Certificates of Conformity Ø A Co. C can be a CB Test Certificate or a Product Certificate. Ø A Co. C is considered valid if it has the following characteristics: l l It can be traced back to the production batch It should bear the minimum of the following information: • • Ø Item Name Certifying Body or Testing Laboratory Applicant Name (if different from Factory Name) & Factory Name Certificate Number and Date of Issue Date of Expiry (if applicable) Make and /or Model (s) (if applicable) Standard Reference and Year Technical Signatory Test reports are accepted if they are traceable to the EEEL - MSB 2009 -09 -24 production batch !

Implementation of the CP-SR Regulations Ø Testing by the MSB will be done in case invalid Co. C Ø Testing will be done on a risk based approach i. e performing the pertinent safety tests of the relevant standard(s) Ø Examples of applicable safety tests: l l l Ø Visual incl. classification, marking/ labeling, rating, classification Electrical incl. insulation, electric strength, earth resistance, functional Mechanical incl. heating, strength Full testing may be performed upon failure on one of the pertinent safety tests EEEL - MSB 2009 -09 -24

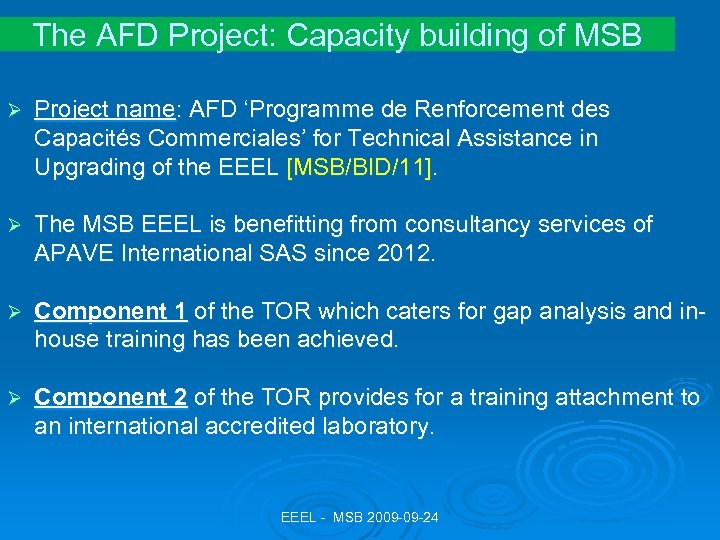

The AFD Project: Capacity building of MSB Ø Project name: AFD ‘Programme de Renforcement des Capacités Commerciales’ for Technical Assistance in Upgrading of the EEEL [MSB/BID/11]. Ø The MSB EEEL is benefitting from consultancy services of APAVE International SAS since 2012. Ø Component 1 of the TOR which caters for gap analysis and inhouse training has been achieved. Ø Component 2 of the TOR provides for a training attachment to an international accredited laboratory. EEEL - MSB 2009 -09 -24

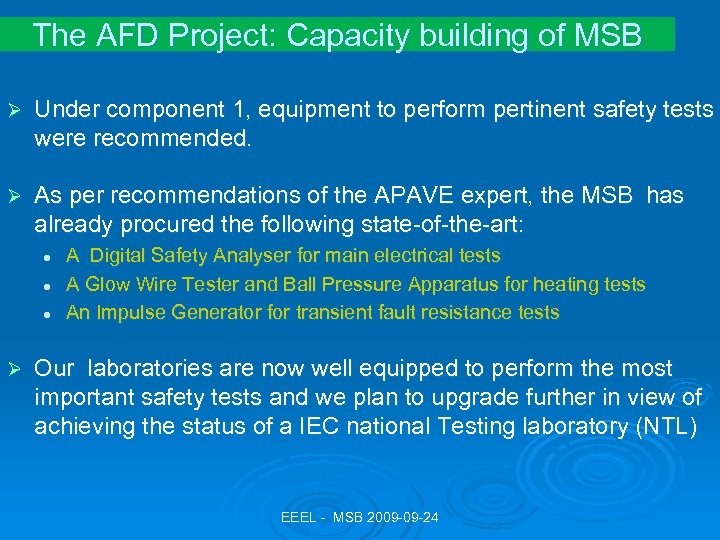

The AFD Project: Capacity building of MSB Ø Under component 1, equipment to perform pertinent safety tests were recommended. Ø As per recommendations of the APAVE expert, the MSB has already procured the following state-of-the-art: l l l Ø A Digital Safety Analyser for main electrical tests A Glow Wire Tester and Ball Pressure Apparatus for heating tests An Impulse Generator for transient fault resistance tests Our laboratories are now well equipped to perform the most important safety tests and we plan to upgrade further in view of achieving the status of a IEC national Testing laboratory (NTL) EEEL - MSB 2009 -09 -24

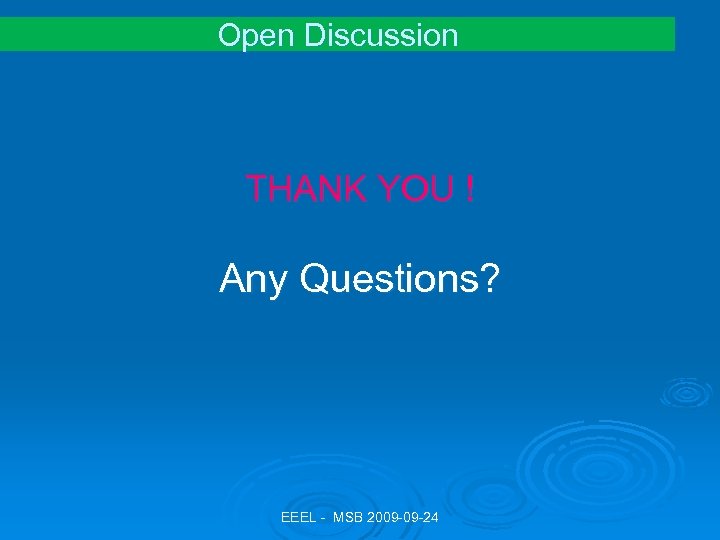

Open Discussion THANK YOU ! Any Questions? EEEL - MSB 2009 -09 -24
