MAS 500 Migration Troubleshooting Darrick Coles Development Manager MAS 500 MAS 500 Migration Troubleshooting Darrick Coles Development Manager MAS 500

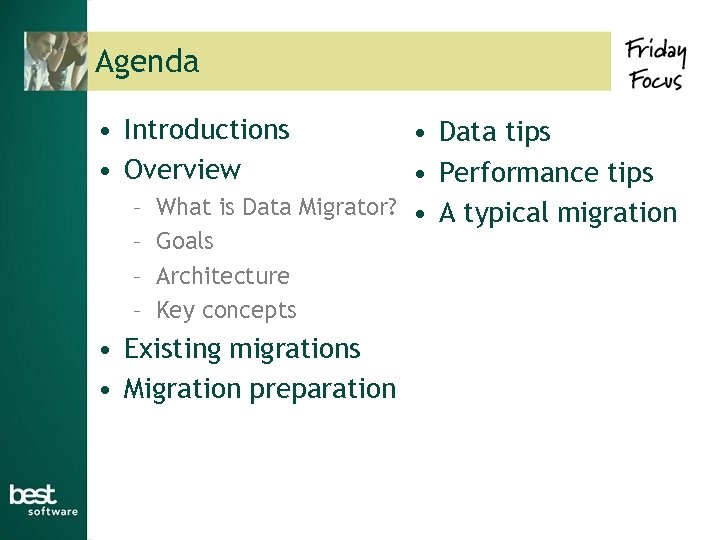

Agenda • Introductions • Overview • Data tips • Performance tips – What is Agenda • Introductions • Overview • Data tips • Performance tips – What is Data Migrator? • A typical migration – Goals – Architecture – Key concepts • Existing migrations • Migration preparation

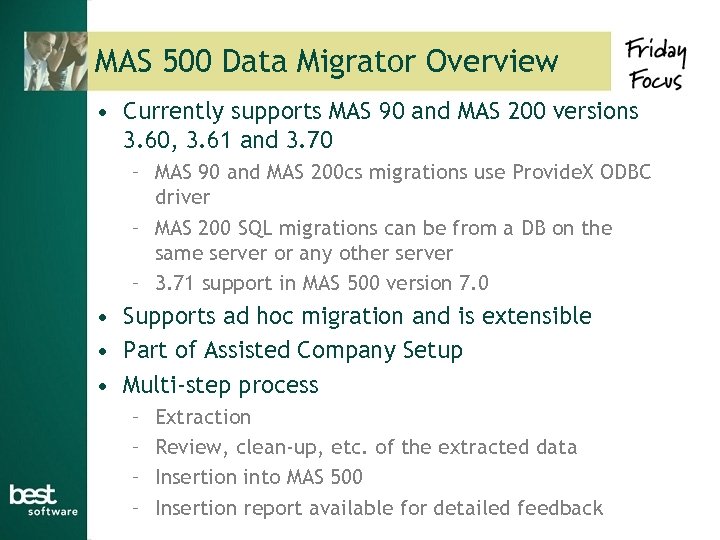

MAS 500 Data Migrator Overview • Currently supports MAS 90 and MAS 200 versions MAS 500 Data Migrator Overview • Currently supports MAS 90 and MAS 200 versions 3. 60, 3. 61 and 3. 70 – MAS 90 and MAS 200 cs migrations use Provide. X ODBC driver – MAS 200 SQL migrations can be from a DB on the same server or any other server – 3. 71 support in MAS 500 version 7. 0 • Supports ad hoc migration and is extensible • Part of Assisted Company Setup • Multi-step process – – Extraction Review, clean-up, etc. of the extracted data Insertion into MAS 500 Insertion report available for detailed feedback

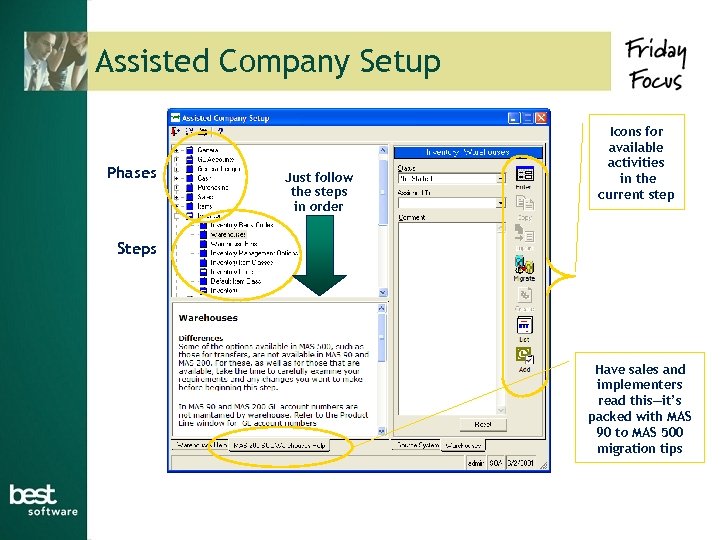

Assisted Company Setup Phases Just follow the steps in order Icons for available activities Assisted Company Setup Phases Just follow the steps in order Icons for available activities in the current step Steps Have sales and implementers read this—it’s packed with MAS 90 to MAS 500 migration tips

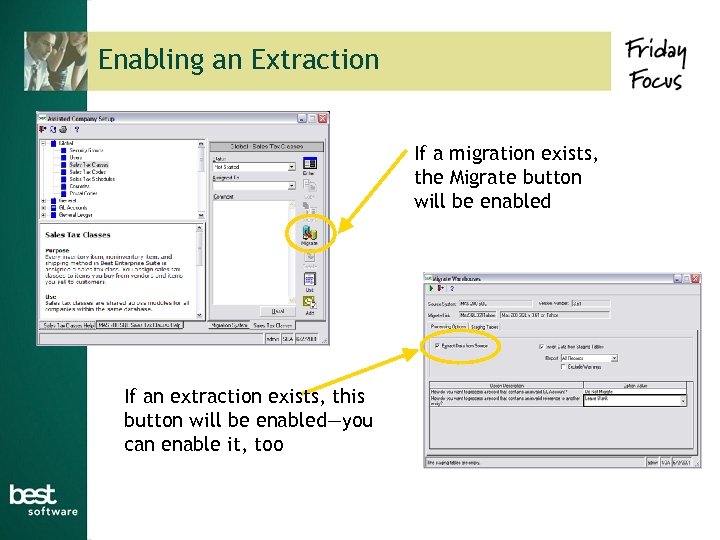

Enabling an Extraction If a migration exists, the Migrate button will be enabled If Enabling an Extraction If a migration exists, the Migrate button will be enabled If an extraction exists, this button will be enabled—you can enable it, too

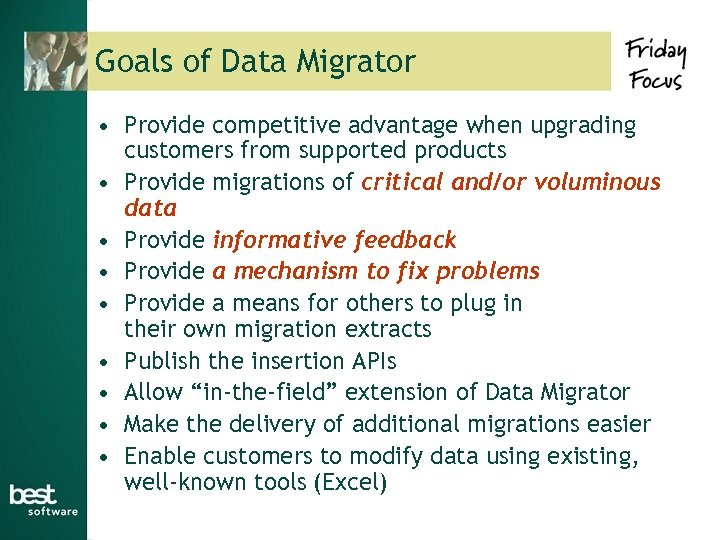

Goals of Data Migrator • Provide competitive advantage when upgrading customers from supported products Goals of Data Migrator • Provide competitive advantage when upgrading customers from supported products • Provide migrations of critical and/or voluminous data • Provide informative feedback • Provide a mechanism to fix problems • Provide a means for others to plug in their own migration extracts • Publish the insertion APIs • Allow “in-the-field” extension of Data Migrator • Make the delivery of additional migrations easier • Enable customers to modify data using existing, well-known tools (Excel)

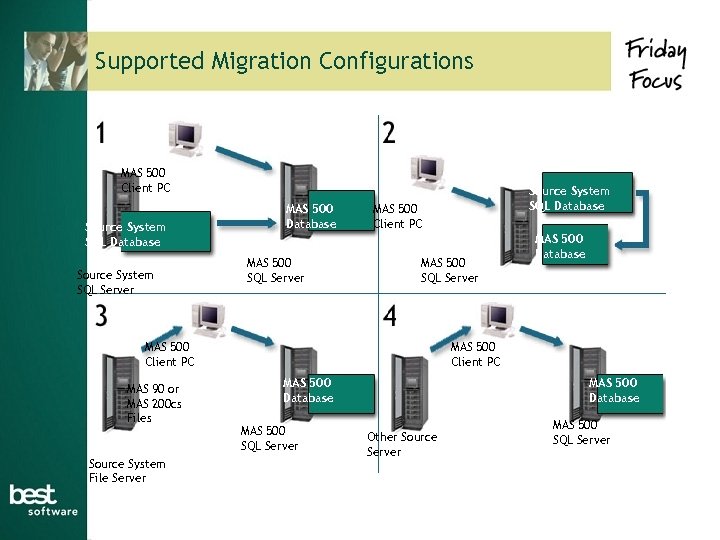

Supported Migration Configurations MAS 500 Client PC Source System SQL Database Source System SQL Supported Migration Configurations MAS 500 Client PC Source System SQL Database Source System SQL Server MAS 500 Database MAS 500 SQL Server MAS 500 Client PC MAS 90 or MAS 200 cs Files Source System File Server Source System SQL Database MAS 500 Client PC MAS 500 Database MAS 500 SQL Server MAS 500 Database Other Source Server MAS 500 SQL Server

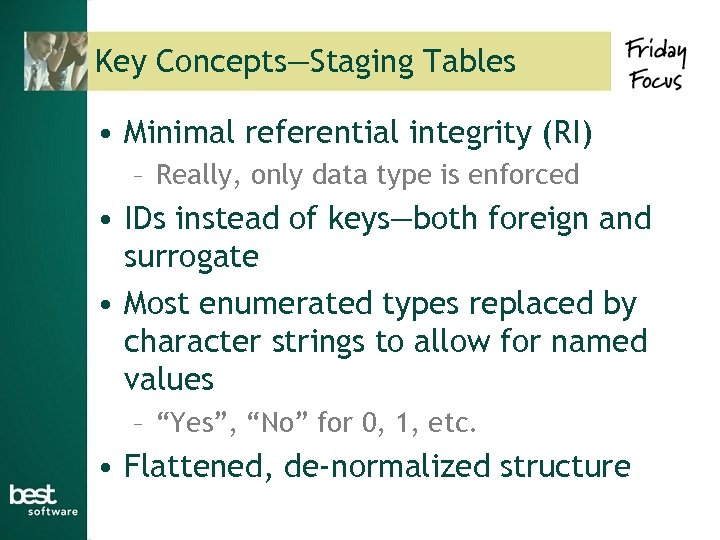

Key Concepts—Staging Tables • Minimal referential integrity (RI) – Really, only data type is Key Concepts—Staging Tables • Minimal referential integrity (RI) – Really, only data type is enforced • IDs instead of keys—both foreign and surrogate • Most enumerated types replaced by character strings to allow for named values – “Yes”, “No” for 0, 1, etc. • Flattened, de-normalized structure

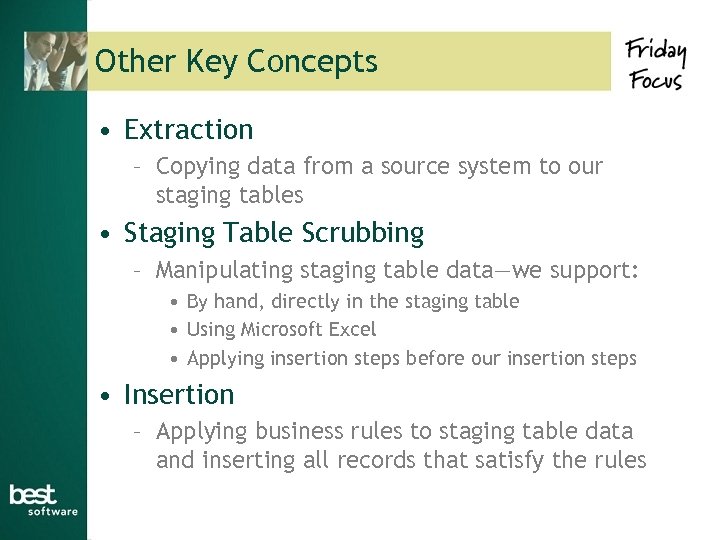

Other Key Concepts • Extraction – Copying data from a source system to our Other Key Concepts • Extraction – Copying data from a source system to our staging tables • Staging Table Scrubbing – Manipulating staging table data—we support: • By hand, directly in the staging table • Using Microsoft Excel • Applying insertion steps before our insertion steps • Insertion – Applying business rules to staging table data and inserting all records that satisfy the rules

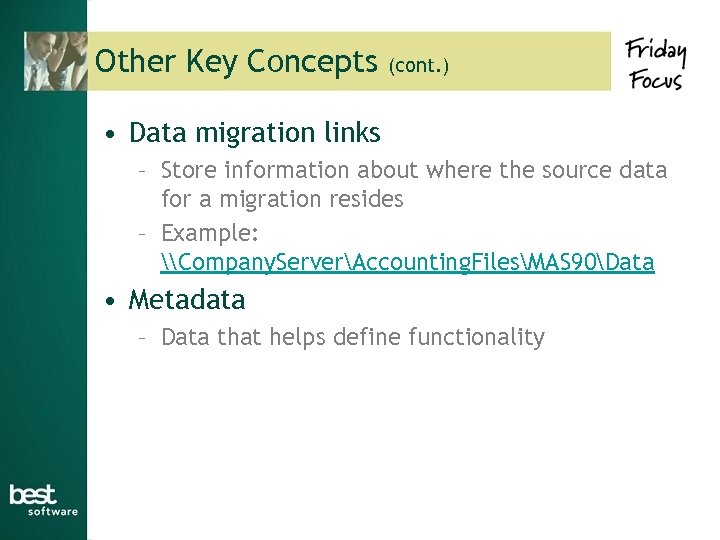

Other Key Concepts (cont. ) • Data migration links – Store information about where Other Key Concepts (cont. ) • Data migration links – Store information about where the source data for a migration resides – Example: \Company. ServerAccounting. FilesMAS 90Data • Metadata – Data that helps define functionality

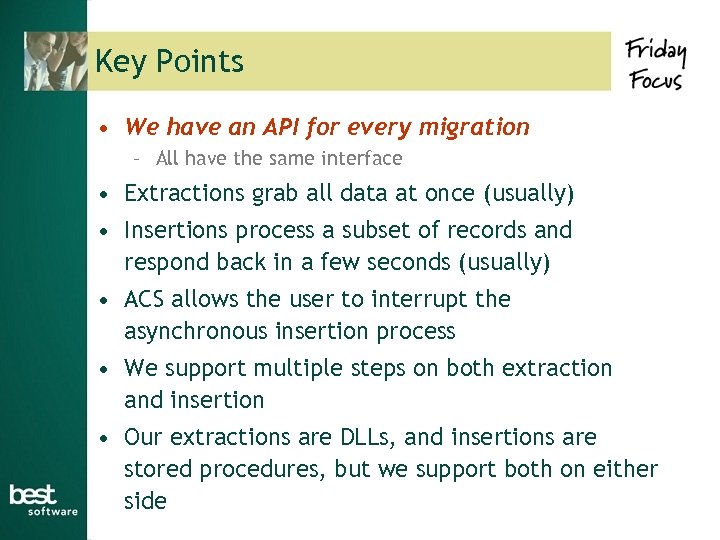

Key Points • We have an API for every migration – All have the Key Points • We have an API for every migration – All have the same interface • Extractions grab all data at once (usually) • Insertions process a subset of records and respond back in a few seconds (usually) • ACS allows the user to interrupt the asynchronous insertion process • We support multiple steps on both extraction and insertion • Our extractions are DLLs, and insertions are stored procedures, but we support both on either side

So, What Do You Actually Migrate? So, What Do You Actually Migrate?

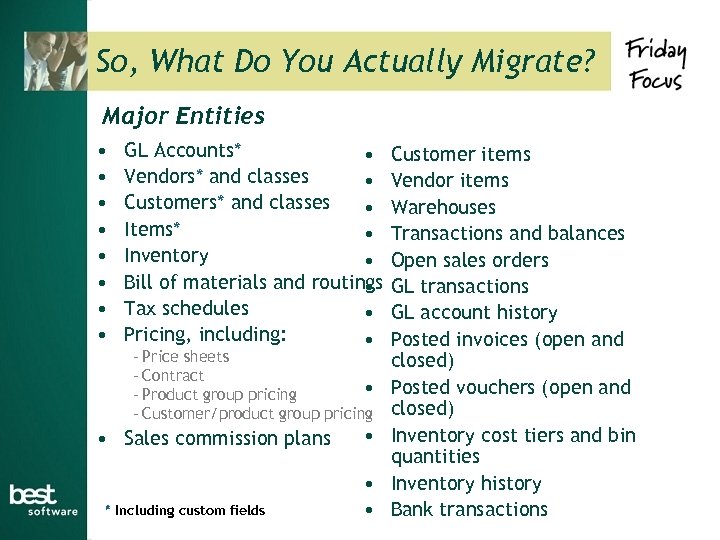

So, What Do You Actually Migrate? Major Entities • • GL Accounts* • Vendors* So, What Do You Actually Migrate? Major Entities • • GL Accounts* • Vendors* and classes • Customers* and classes • Items* • Inventory • Bill of materials and routings • Tax schedules • Pricing, including: • – Price sheets – Contract • – Product group pricing – Customer/product group pricing • Sales commission plans * Including custom fields • • • Customer items Vendor items Warehouses Transactions and balances Open sales orders GL transactions GL account history Posted invoices (open and closed) Posted vouchers (open and closed) Inventory cost tiers and bin quantities Inventory history Bank transactions

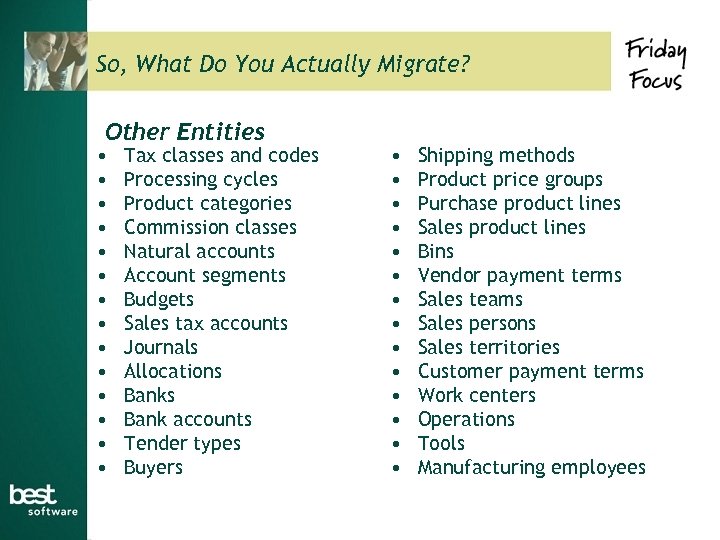

So, What Do You Actually Migrate? Other Entities • • • • Tax classes So, What Do You Actually Migrate? Other Entities • • • • Tax classes and codes Processing cycles Product categories Commission classes Natural accounts Account segments Budgets Sales tax accounts Journals Allocations Bank accounts Tender types Buyers • • • • Shipping methods Product price groups Purchase product lines Sales product lines Bins Vendor payment terms Sales teams Sales persons Sales territories Customer payment terms Work centers Operations Tools Manufacturing employees

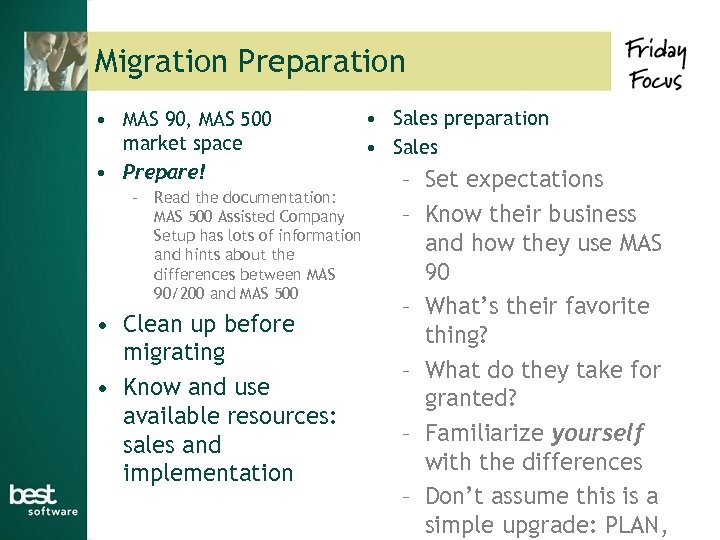

Migration Preparation • MAS 90, MAS 500 market space • Prepare! – Read the Migration Preparation • MAS 90, MAS 500 market space • Prepare! – Read the documentation: MAS 500 Assisted Company Setup has lots of information and hints about the differences between MAS 90/200 and MAS 500 • Clean up before migrating • Know and use available resources: sales and implementation • Sales preparation • Sales – Set expectations – Know their business and how they use MAS 90 – What’s their favorite thing? – What do they take for granted? – Familiarize yourself with the differences – Don’t assume this is a simple upgrade: PLAN,

Preparation: The Differences Preparation: The Differences

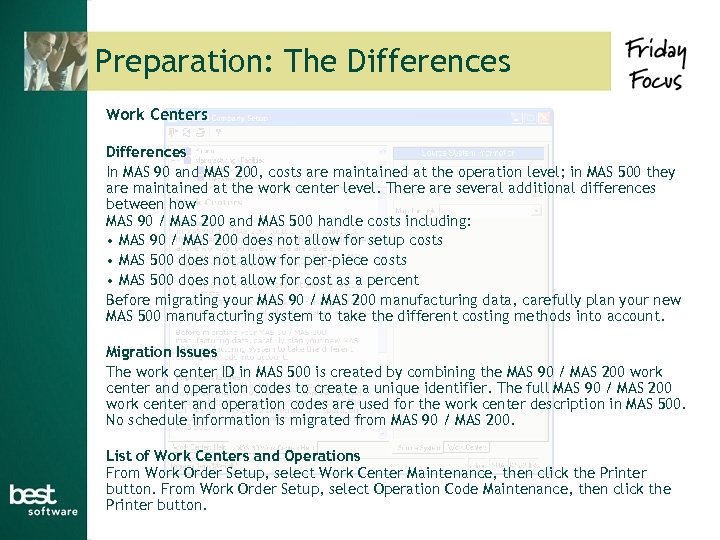

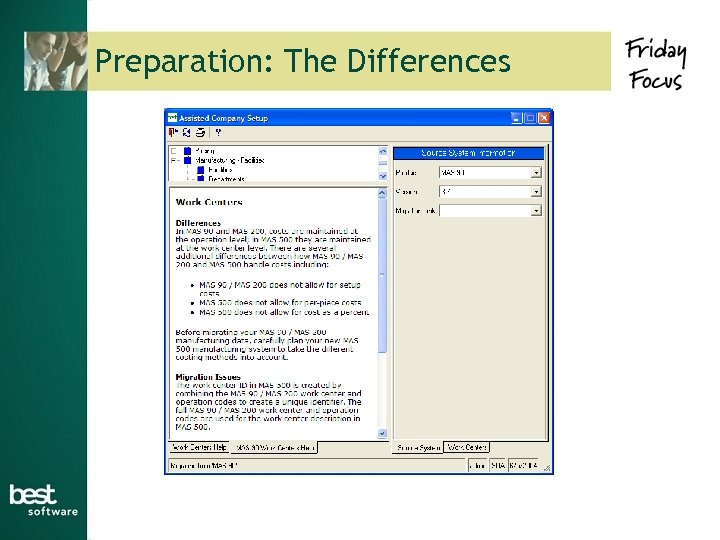

Preparation: The Differences Work Centers Differences In MAS 90 and MAS 200, costs are Preparation: The Differences Work Centers Differences In MAS 90 and MAS 200, costs are maintained at the operation level; in MAS 500 they are maintained at the work center level. There are several additional differences between how MAS 90 / MAS 200 and MAS 500 handle costs including: • MAS 90 / MAS 200 does not allow for setup costs • MAS 500 does not allow for per-piece costs • MAS 500 does not allow for cost as a percent Before migrating your MAS 90 / MAS 200 manufacturing data, carefully plan your new MAS 500 manufacturing system to take the different costing methods into account. Migration Issues The work center ID in MAS 500 is created by combining the MAS 90 / MAS 200 work center and operation codes to create a unique identifier. The full MAS 90 / MAS 200 work center and operation codes are used for the work center description in MAS 500. No schedule information is migrated from MAS 90 / MAS 200. List of Work Centers and Operations From Work Order Setup, select Work Center Maintenance, then click the Printer button. From Work Order Setup, select Operation Code Maintenance, then click the Printer button.

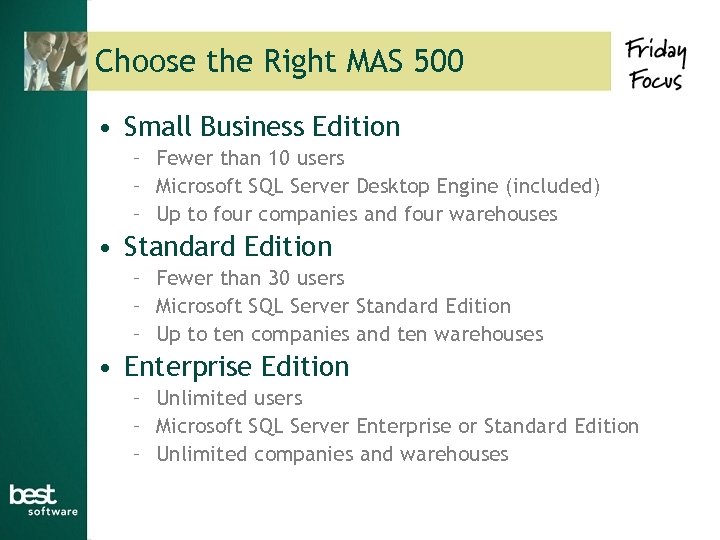

Choose the Right MAS 500 • Small Business Edition – Fewer than 10 users Choose the Right MAS 500 • Small Business Edition – Fewer than 10 users – Microsoft SQL Server Desktop Engine (included) – Up to four companies and four warehouses • Standard Edition – Fewer than 30 users – Microsoft SQL Server Standard Edition – Up to ten companies and ten warehouses • Enterprise Edition – Unlimited users – Microsoft SQL Server Enterprise or Standard Edition – Unlimited companies and warehouses

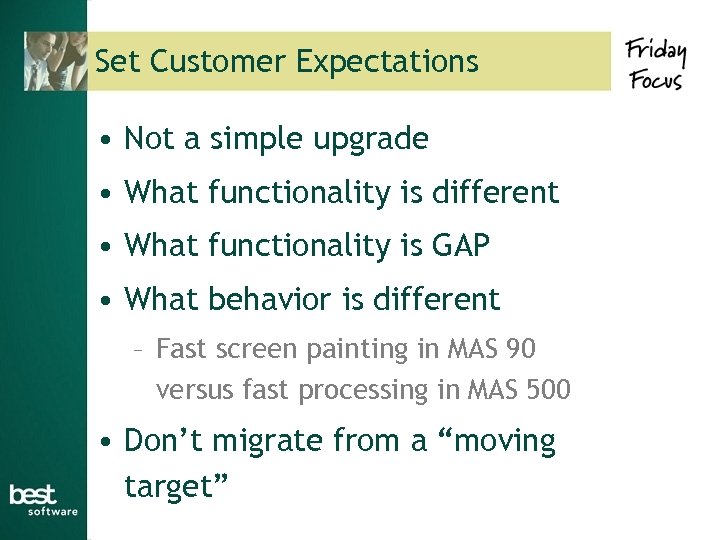

Set Customer Expectations • Not a simple upgrade • What functionality is different • Set Customer Expectations • Not a simple upgrade • What functionality is different • What functionality is GAP • What behavior is different – Fast screen painting in MAS 90 versus fast processing in MAS 500 • Don’t migrate from a “moving target”

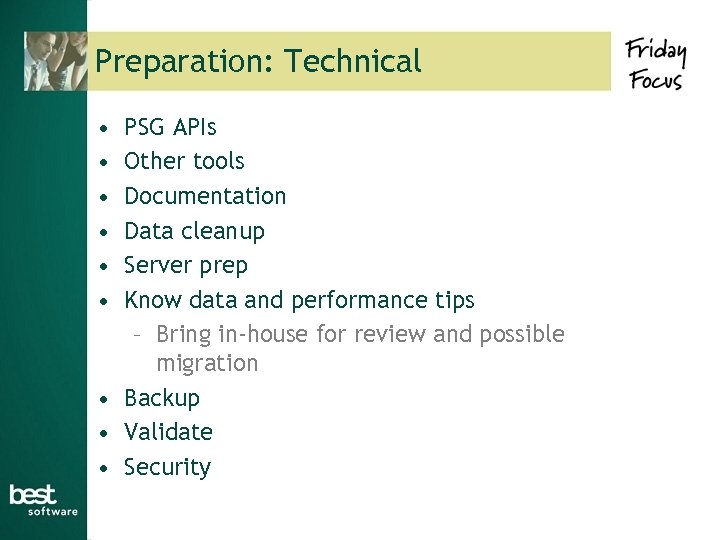

Preparation: Technical • • • PSG APIs Other tools Documentation Data cleanup Server prep Preparation: Technical • • • PSG APIs Other tools Documentation Data cleanup Server prep Know data and performance tips – Bring in-house for review and possible migration • Backup • Validate • Security

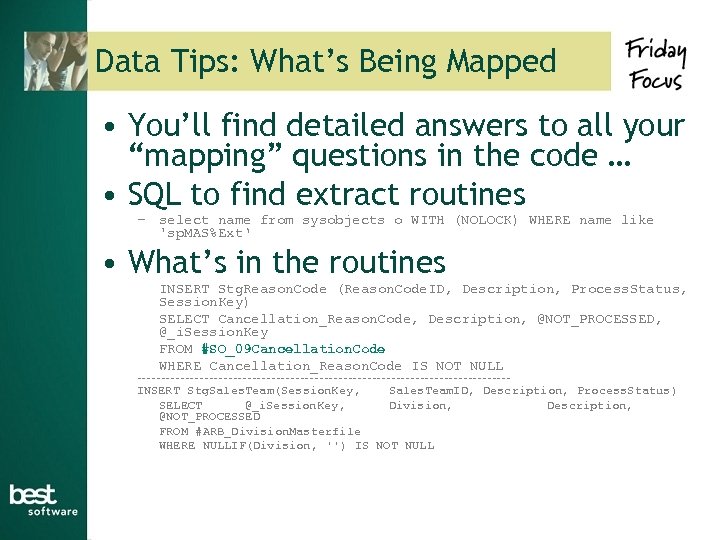

Data Tips: What’s Being Mapped • You’ll find detailed answers to all your “mapping” Data Tips: What’s Being Mapped • You’ll find detailed answers to all your “mapping” questions in the code … • SQL to find extract routines – select name from sysobjects o WITH (NOLOCK) WHERE name like 'sp. MAS%Ext‘ • What’s in the routines INSERT Stg. Reason. Code (Reason. Code. ID, Description, Process. Status, Session. Key) SELECT Cancellation_Reason. Code, Description, @NOT_PROCESSED, @_i. Session. Key FROM #SO_09 Cancellation. Code WHERE Cancellation_Reason. Code IS NOT NULL --------------------------------------- INSERT Stg. Sales. Team(Session. Key, Sales. Team. ID, Description, Process. Status) SELECT @_i. Session. Key, Division, Description, @NOT_PROCESSED FROM #ARB_Division. Masterfile WHERE NULLIF(Division, '') IS NOT NULL

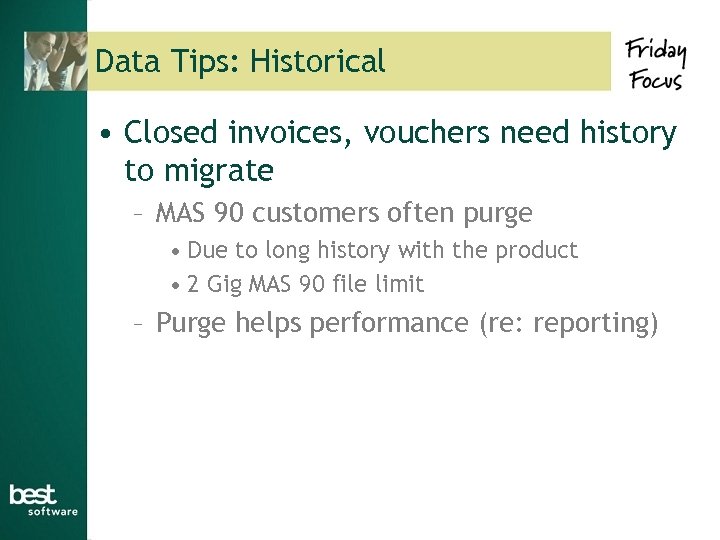

Data Tips: Historical • Closed invoices, vouchers need history to migrate – MAS 90 Data Tips: Historical • Closed invoices, vouchers need history to migrate – MAS 90 customers often purge • Due to long history with the product • 2 Gig MAS 90 file limit – Purge helps performance (re: reporting)

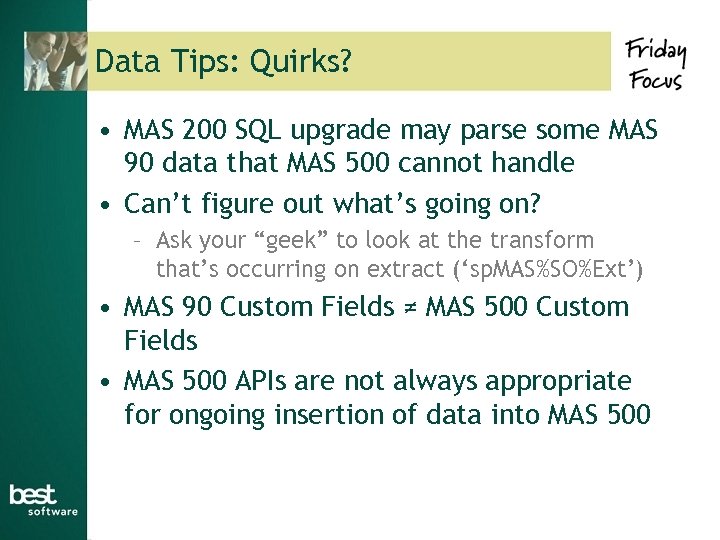

Data Tips: Quirks? • MAS 200 SQL upgrade may parse some MAS 90 data Data Tips: Quirks? • MAS 200 SQL upgrade may parse some MAS 90 data that MAS 500 cannot handle • Can’t figure out what’s going on? – Ask your “geek” to look at the transform that’s occurring on extract (‘sp. MAS%SO%Ext’) • MAS 90 Custom Fields ≠ MAS 500 Custom Fields • MAS 500 APIs are not always appropriate for ongoing insertion of data into MAS 500

Hey, I Heard that Migrations Are Slow… . . . is that true? Hey, I Heard that Migrations Are Slow… . . . is that true?

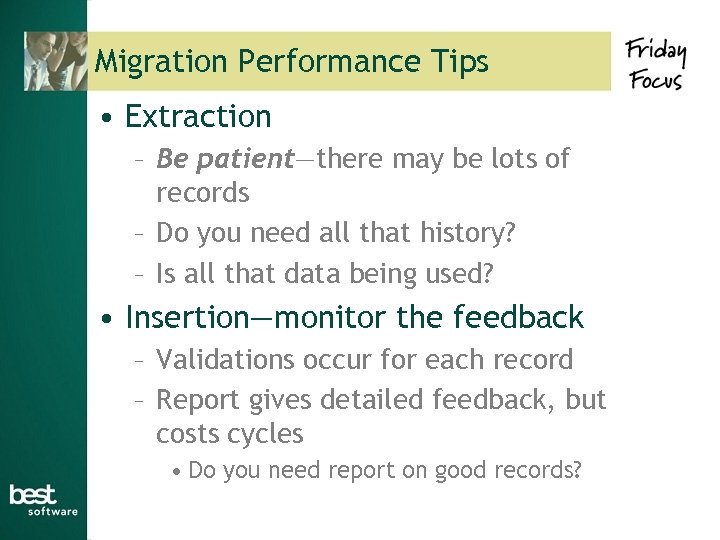

Migration Performance Tips • Extraction – Be patient—there may be lots of records – Migration Performance Tips • Extraction – Be patient—there may be lots of records – Do you need all that history? – Is all that data being used? • Insertion—monitor the feedback – Validations occur for each record – Report gives detailed feedback, but costs cycles • Do you need report on good records?

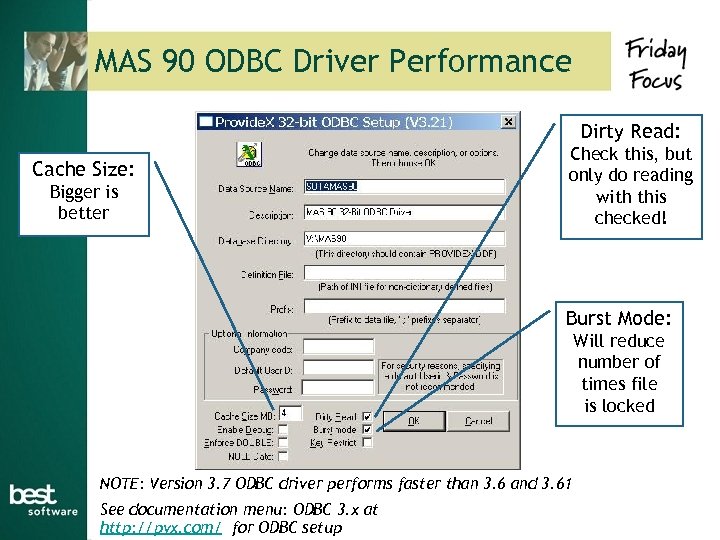

MAS 90 ODBC Driver Performance Dirty Read: Cache Size: Bigger is better Check this, MAS 90 ODBC Driver Performance Dirty Read: Cache Size: Bigger is better Check this, but only do reading with this checked! Burst Mode: Will reduce number of times file is locked NOTE: Version 3. 7 ODBC driver performs faster than 3. 6 and 3. 61 See documentation menu: ODBC 3. x at http: //pvx. com/ for ODBC setup

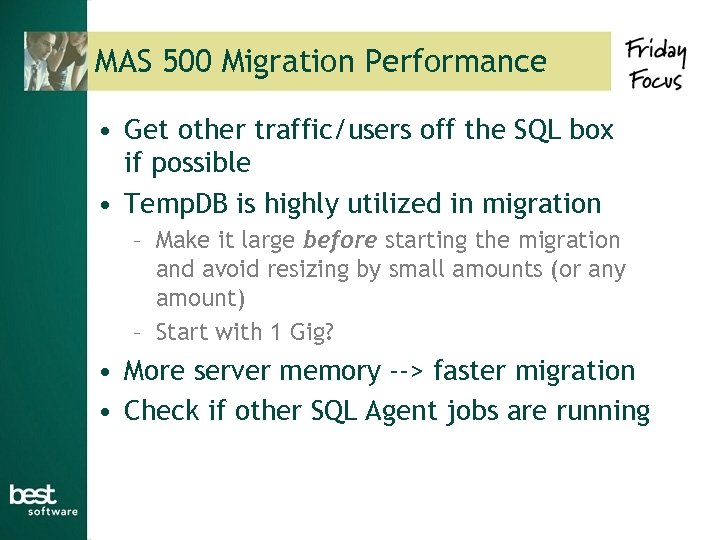

MAS 500 Migration Performance • Get other traffic/users off the SQL box if possible MAS 500 Migration Performance • Get other traffic/users off the SQL box if possible • Temp. DB is highly utilized in migration – Make it large before starting the migration and avoid resizing by small amounts (or any amount) – Start with 1 Gig? • More server memory --> faster migration • Check if other SQL Agent jobs are running

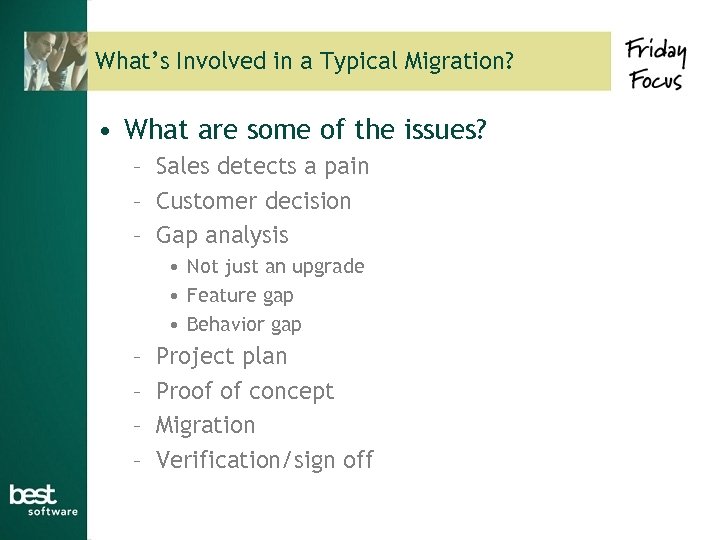

What’s Involved in a Typical Migration? • What are some of the issues? – What’s Involved in a Typical Migration? • What are some of the issues? – Sales detects a pain – Customer decision – Gap analysis • Not just an upgrade • Feature gap • Behavior gap – – Project plan Proof of concept Migration Verification/sign off

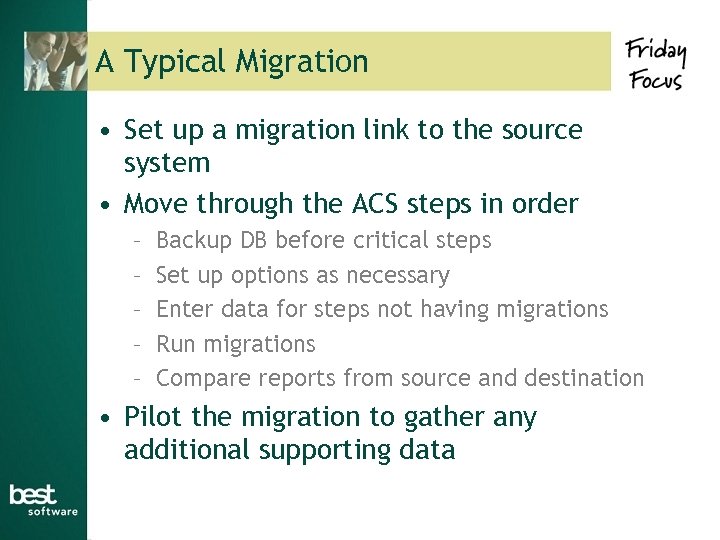

A Typical Migration • Set up a migration link to the source system • A Typical Migration • Set up a migration link to the source system • Move through the ACS steps in order – – – Backup DB before critical steps Set up options as necessary Enter data for steps not having migrations Run migrations Compare reports from source and destination • Pilot the migration to gather any additional supporting data

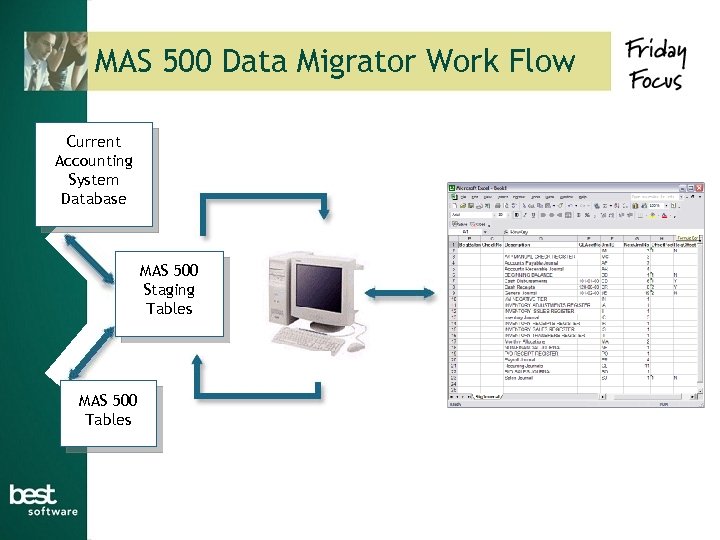

MAS 500 Data Migrator Work Flow Current Accounting System Database MAS 500 Staging Tables MAS 500 Data Migrator Work Flow Current Accounting System Database MAS 500 Staging Tables MAS 500 Tables

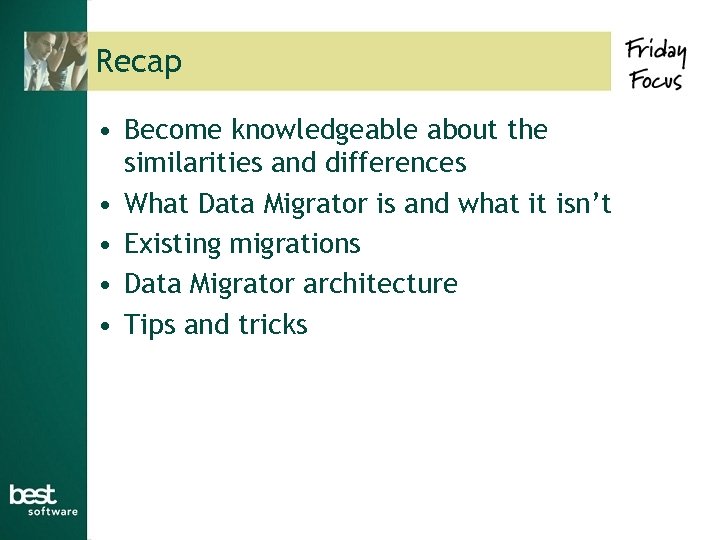

Recap • Become knowledgeable about the similarities and differences • What Data Migrator is Recap • Become knowledgeable about the similarities and differences • What Data Migrator is and what it isn’t • Existing migrations • Data Migrator architecture • Tips and tricks

DDRK IIS TCP/IP OLTP HTTP VB SDK MMC ODBC DLL BIOS ASP QA C++ DDRK IIS TCP/IP OLTP HTTP VB SDK MMC ODBC DLL BIOS ASP QA C++ . Net SCSI ROLAP VM Mouse WBS SNTP DML ERD XP SQL QOS COM OOP VGA DDL AIS OLE DB LDAP FTP ASCII ANSI Win 32 ADSI Win. Sock USB SMTP OLAP UML IE Net. BIOS
