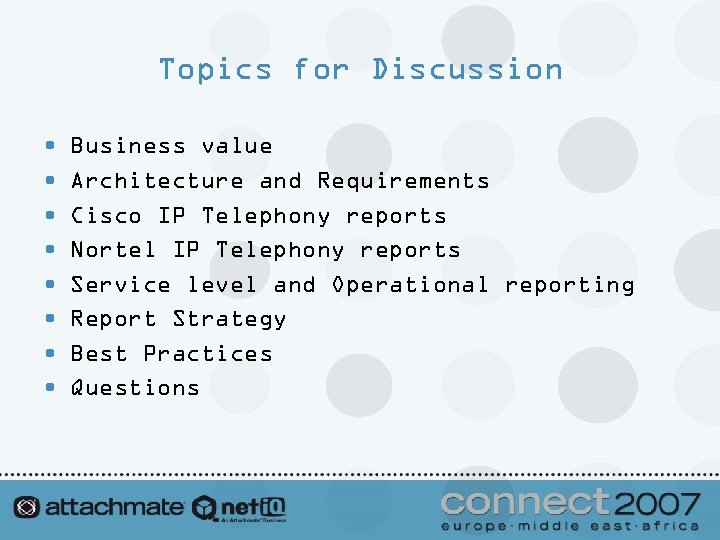

Topics for Discussion • • Business value Architecture and Requirements Cisco IP Telephony reports Nortel IP Telephony reports Service level and Operational reporting Report Strategy Best Practices Questions

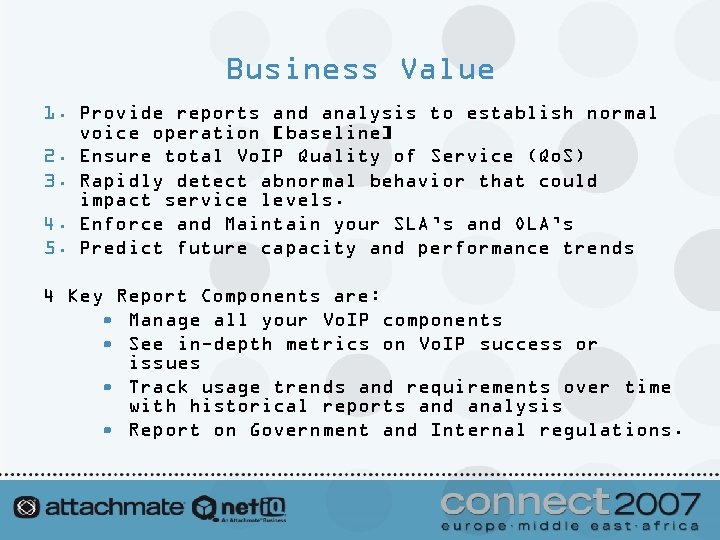

Business Value 1. Provide reports and analysis to establish normal voice operation [baseline] 2. Ensure total Vo. IP Quality of Service (Qo. S) 3. Rapidly detect abnormal behavior that could impact service levels. 4. Enforce and Maintain your SLA’s and OLA’s 5. Predict future capacity and performance trends 4 Key Report Components are: • Manage all your Vo. IP components • See in-depth metrics on Vo. IP success or issues • Track usage trends and requirements over time with historical reports and analysis • Report on Government and Internal regulations.

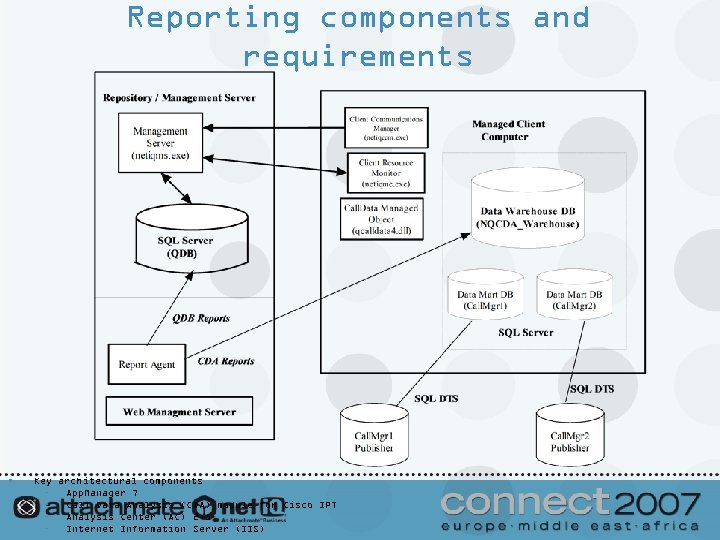

Reporting components and requirements • Key architectural components – App. Manager 7 – Call Data Analysis (CDA) module for Cisco IPT – Analysis Center (AC) 2. 5 – Internet Information Server (IIS)

Cisco IP Telephony reporting • Cisco standard reports are built-in to App. Manager – These are to be configured to provide daily, weekly, and a running month end report (30 day business close) – These reports are configured for Call. Manager and Unity • Call Data Analysis (CDA) module – Our CDA module is a “Steroid injection” for reporting – CDA Module provides invaluable insight into the Cisco Call. Manager Call Detail Records (a. k. a. CDRs). • Analysis Center – The engine for quarterly reports covering Service Level, Operational, reports, and Capacity Planning reporting (statistics for metrics greater than 30 days)

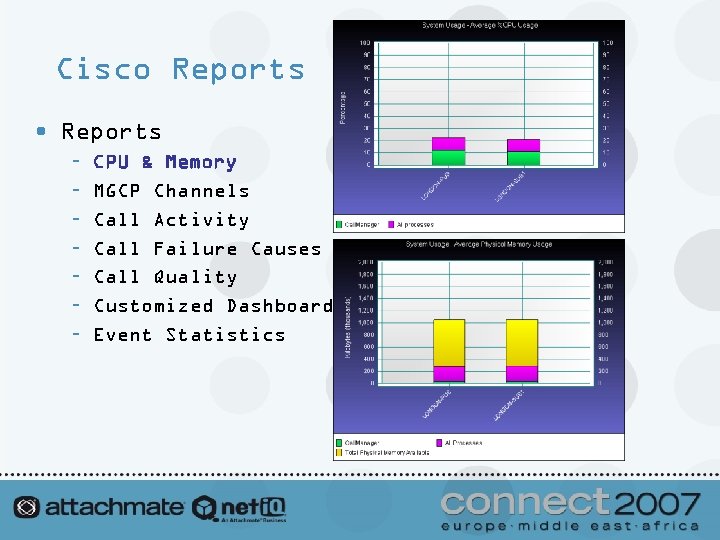

Cisco Reports • Reports – – – – CPU & Memory MGCP Channels Call Activity Call Failure Causes Call Quality Customized Dashboard Event Statistics

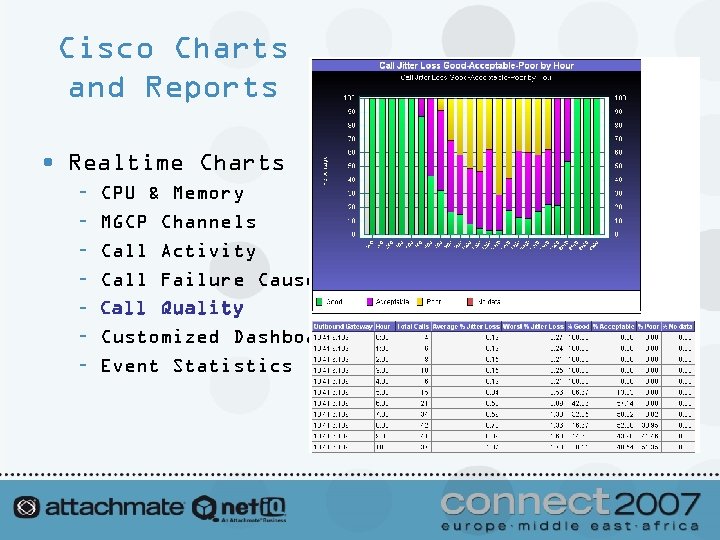

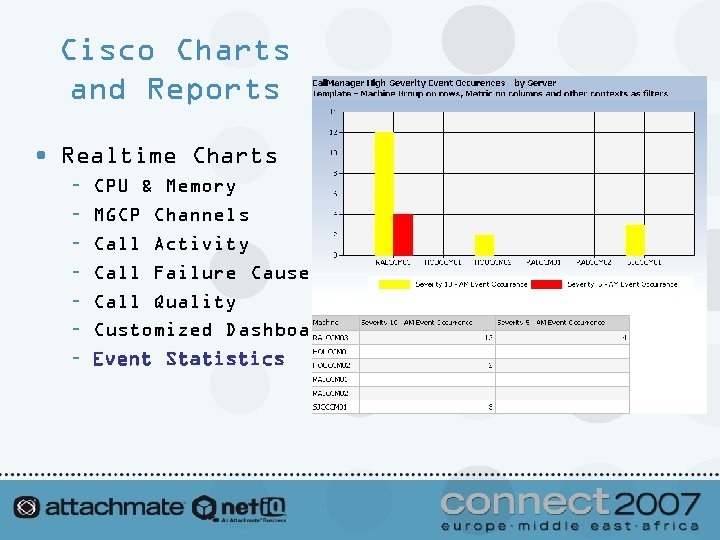

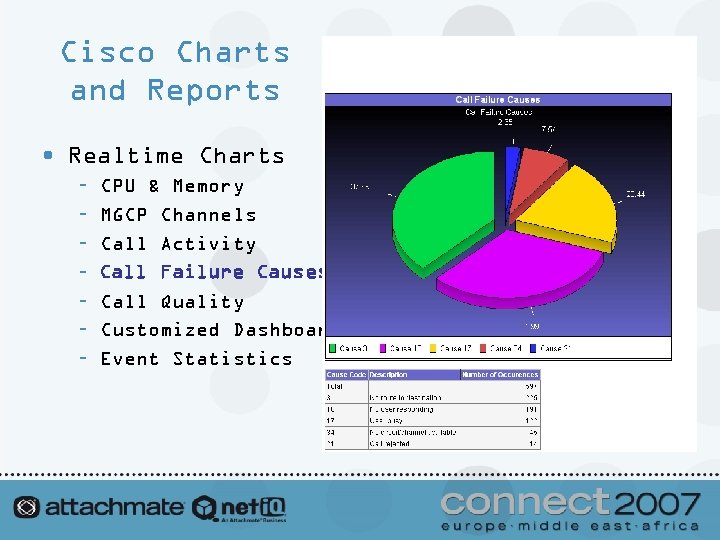

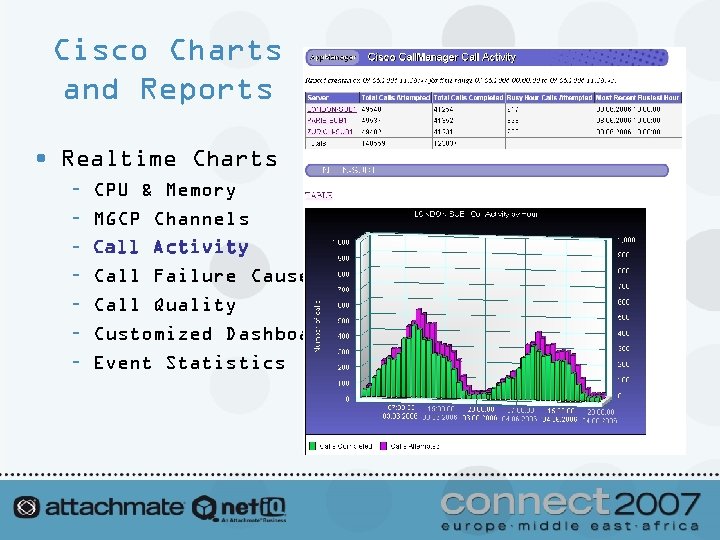

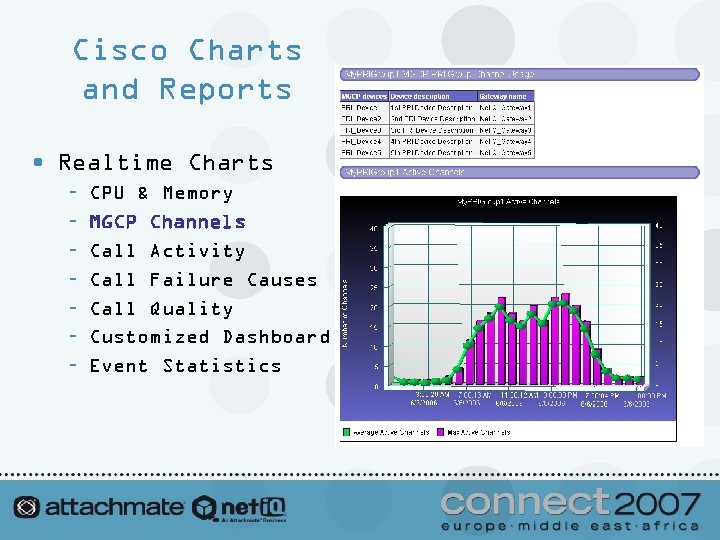

Cisco Charts and Reports • Realtime Charts – – – – CPU & Memory MGCP Channels Call Activity Call Failure Causes Call Quality Customized Dashboard Event Statistics

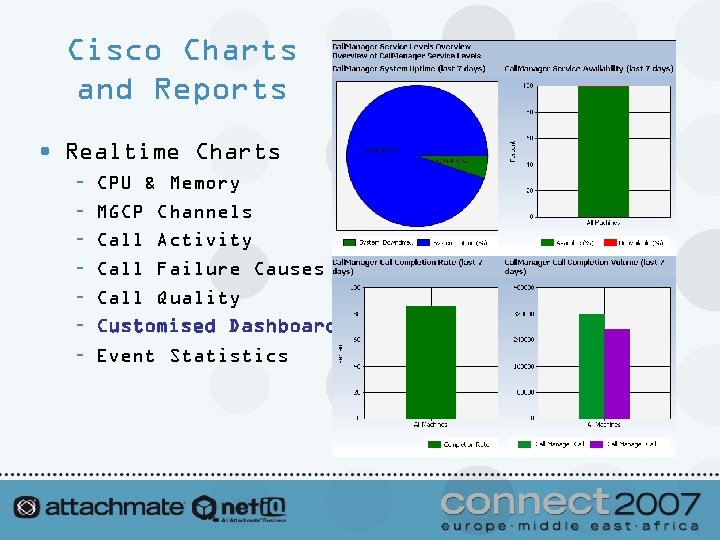

Cisco Charts and Reports • Realtime Charts – – – – CPU & Memory MGCP Channels Call Activity Call Failure Causes Call Quality Customised Dashboard Event Statistics

Cisco Charts and Reports • Realtime Charts – – – – CPU & Memory MGCP Channels Call Activity Call Failure Causes Call Quality Customized Dashboard Event Statistics

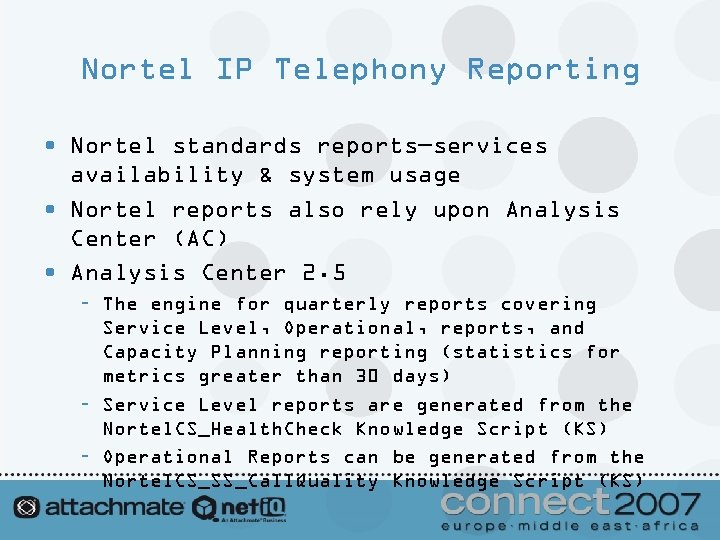

Nortel IP Telephony Reporting • Nortel standards reports—services availability & system usage • Nortel reports also rely upon Analysis Center (AC) • Analysis Center 2. 5 – The engine for quarterly reports covering Service Level, Operational, reports, and Capacity Planning reporting (statistics for metrics greater than 30 days) – Service Level reports are generated from the Nortel. CS_Health. Check Knowledge Script (KS) – Operational Reports can be generated from the Nortel. CS_SS_Call. Quality Knowledge Script (KS)

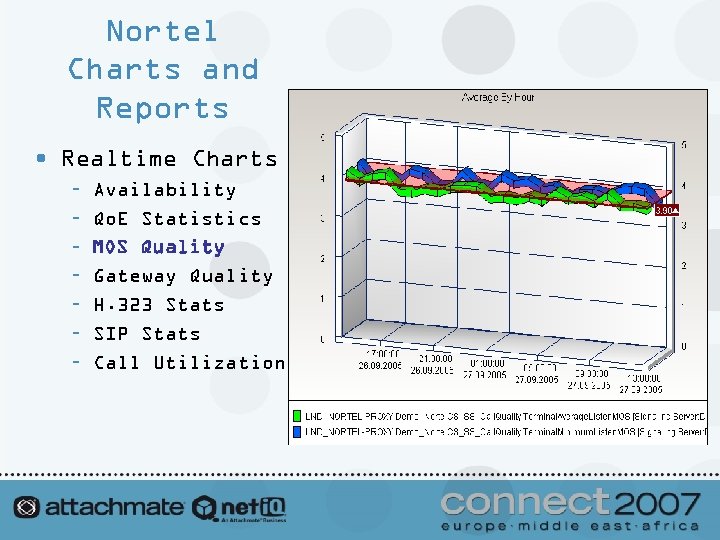

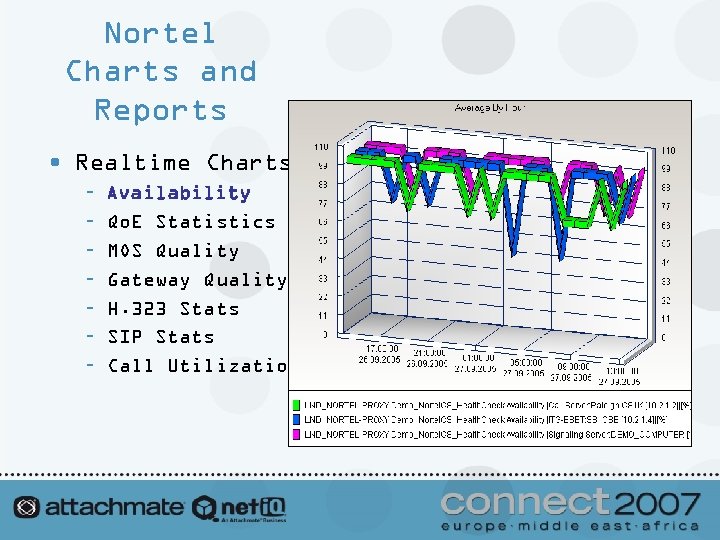

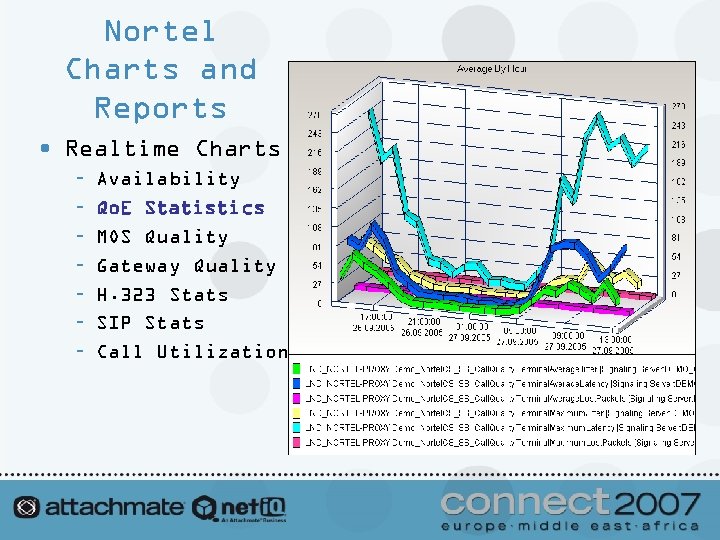

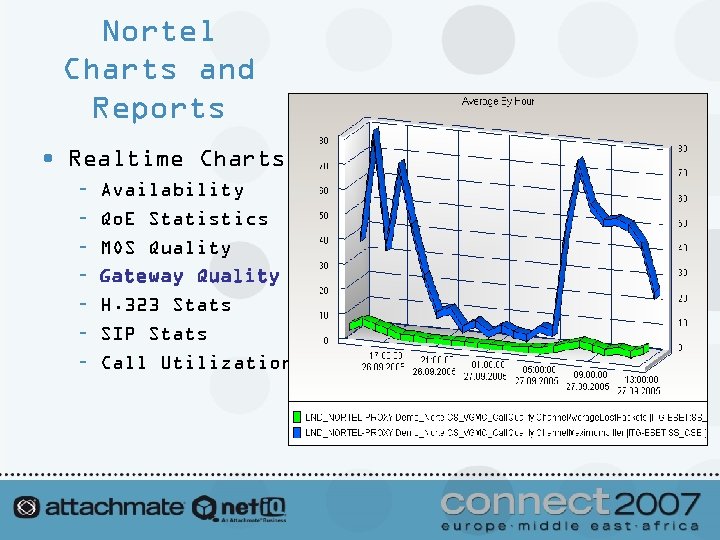

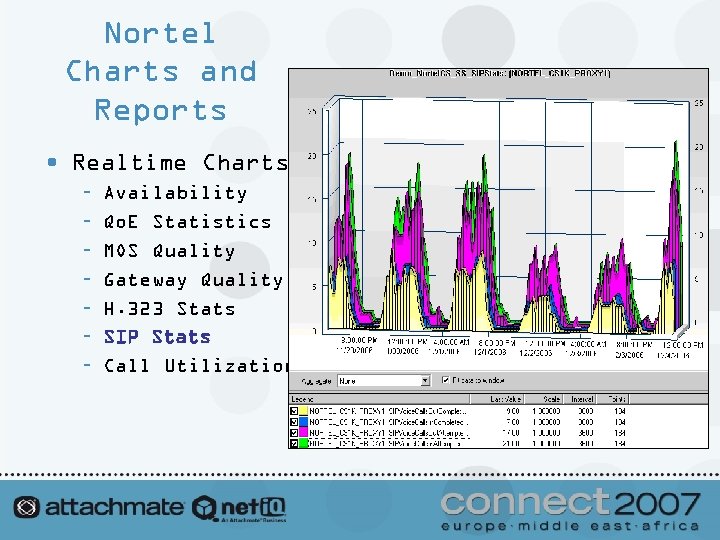

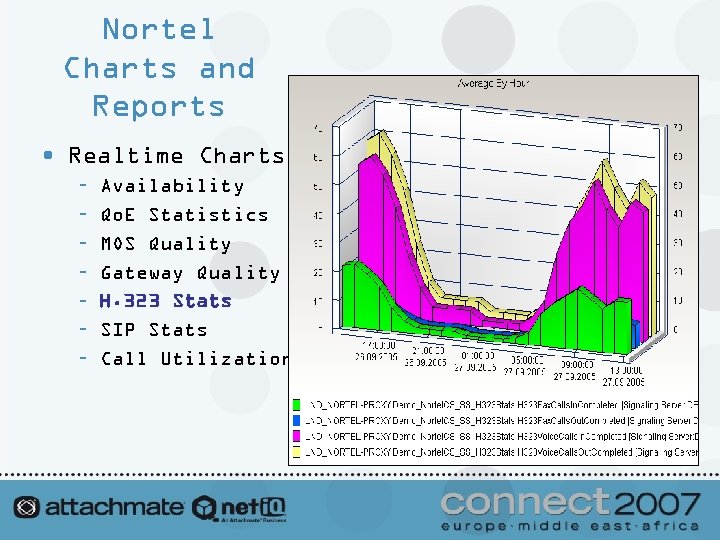

Nortel Charts and Reports • Realtime Charts – – – – Availability Qo. E Statistics MOS Quality Gateway Quality H. 323 Stats SIP Stats Call Utilization

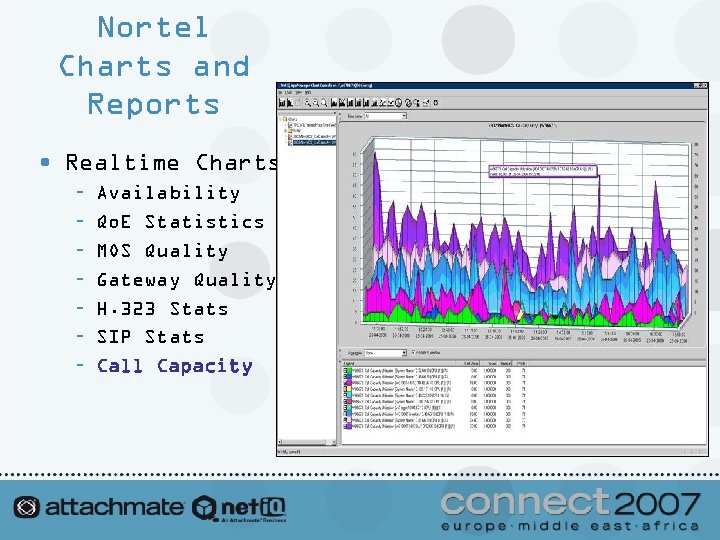

Nortel Charts and Reports • Realtime Charts – – – – Availability Qo. E Statistics MOS Quality Gateway Quality H. 323 Stats SIP Stats Call Capacity

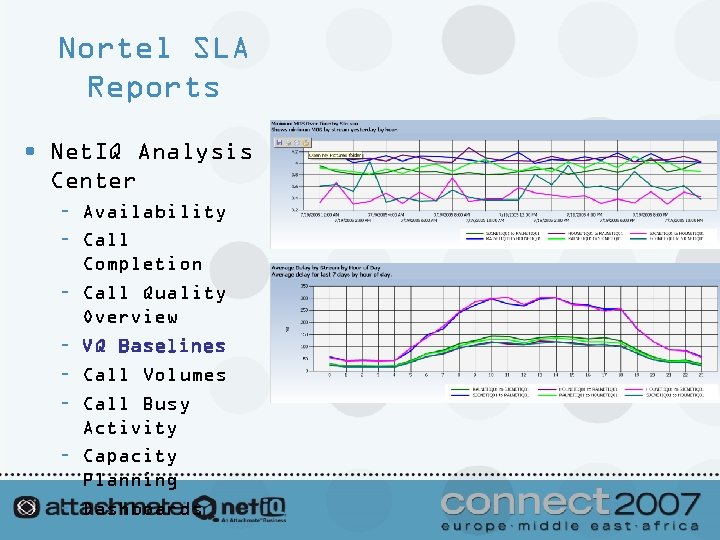

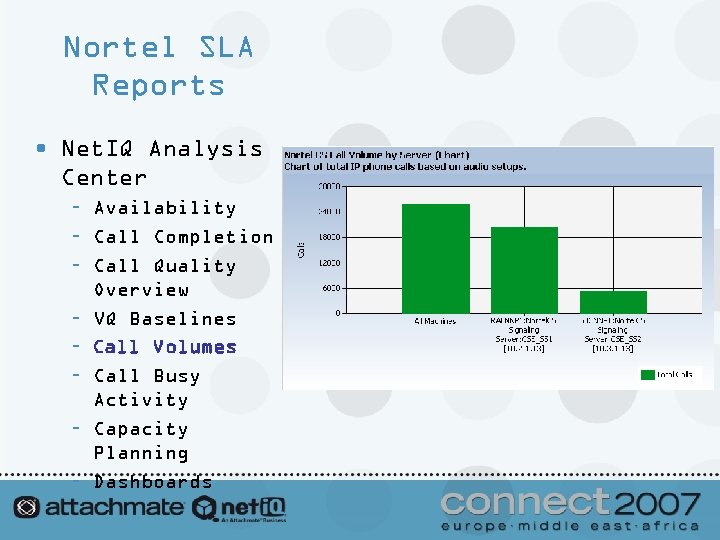

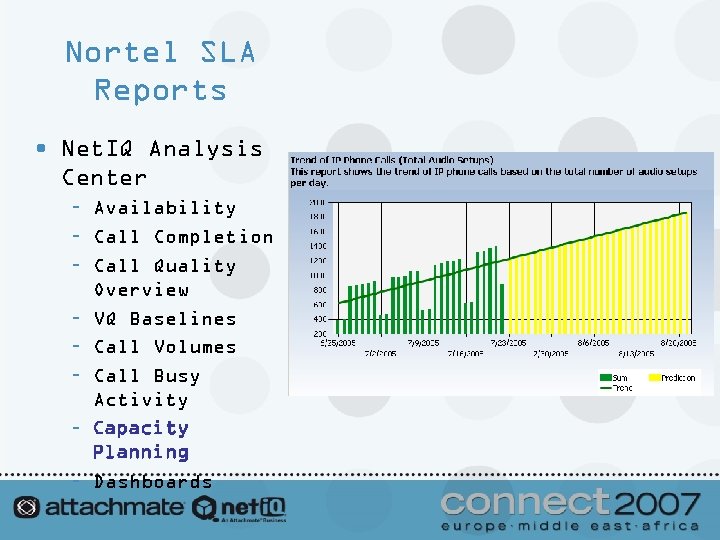

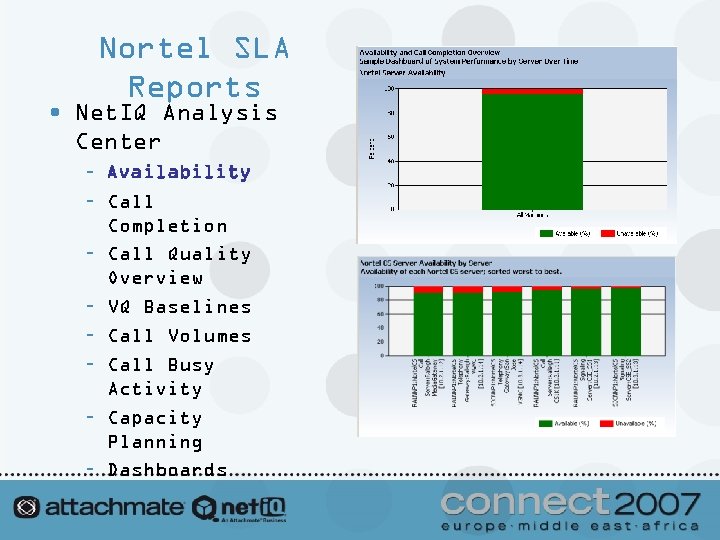

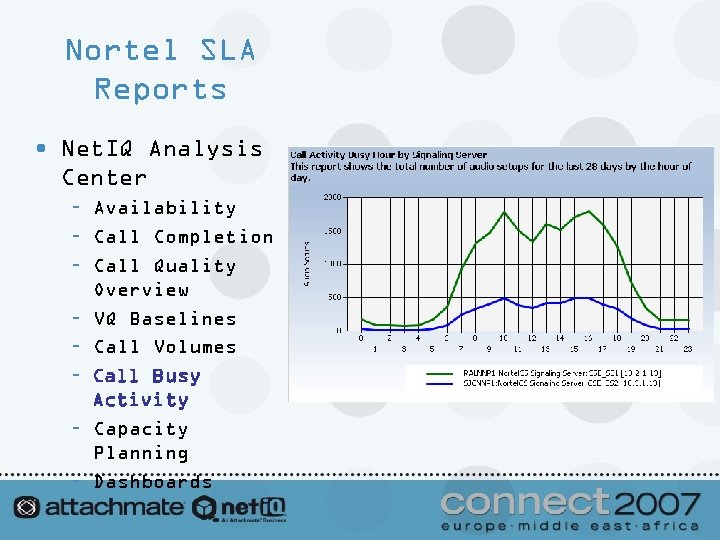

Nortel SLA Reports • Net. IQ Analysis Center – Availability – Call Completion – Call Quality Overview – VQ Baselines – Call Volumes – Call Busy Activity – Capacity Planning – Dashboards

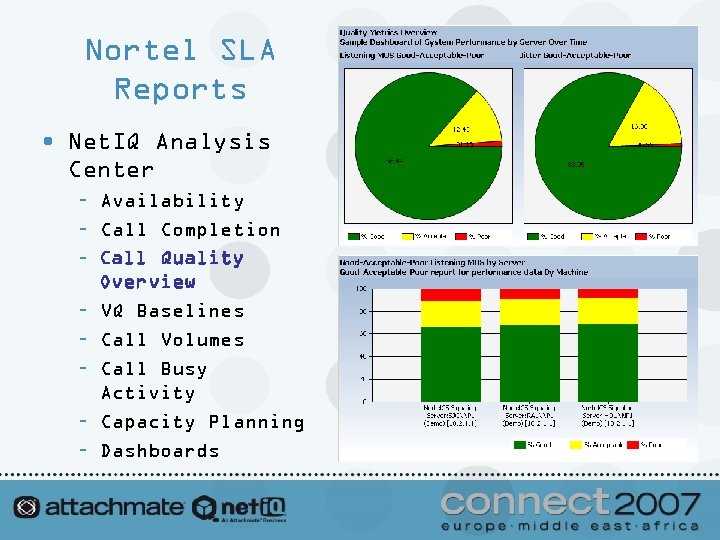

Nortel SLA Reports • Net. IQ Analysis Center – Availability – Call Completion – Call Quality Overview – Call Volumes – Call Busy Activity – Capacity Planning – Dashboards

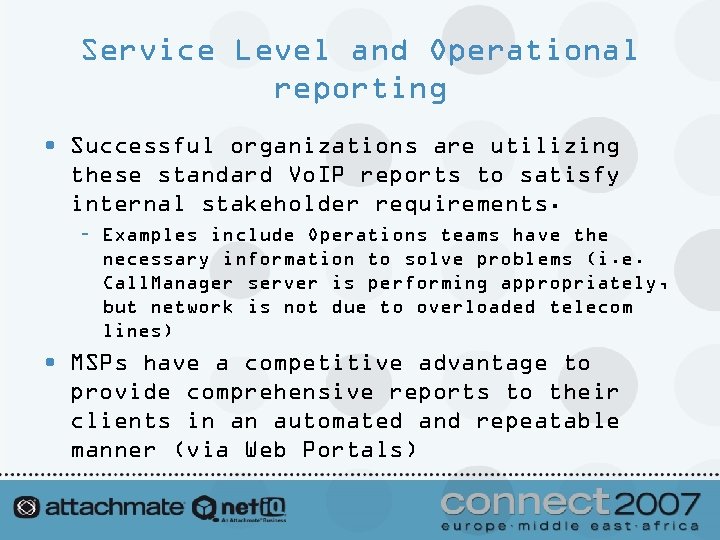

Service Level and Operational reporting • Successful organizations are utilizing these standard Vo. IP reports to satisfy internal stakeholder requirements. – Examples include Operations teams have the necessary information to solve problems (i. e. Call. Manager server is performing appropriately, but network is not due to overloaded telecom lines) • MSPs have a competitive advantage to provide comprehensive reports to their clients in an automated and repeatable manner (via Web Portals)

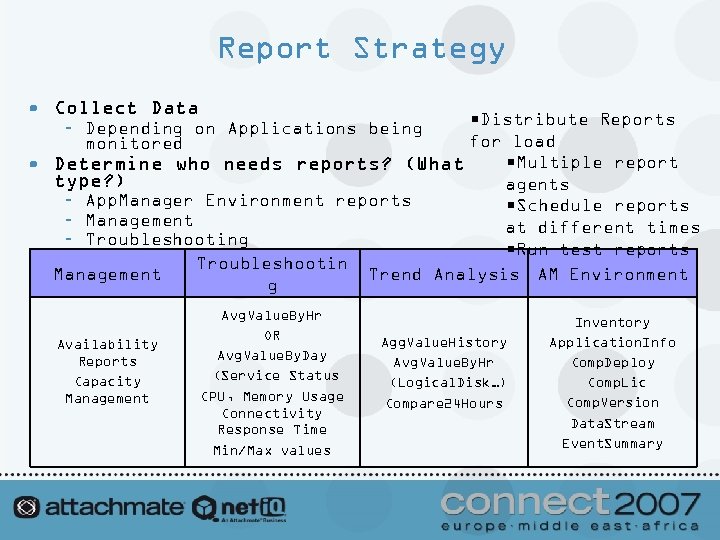

Report Strategy • Collect Data • Distribute Reports for load • Multiple report • Determine who needs reports? (What type? ) agents – App. Manager Environment reports • Schedule reports – Management at different times – Troubleshooting • Run test reports – Trend Analysis Troubleshootin Management Trend Analysis AM Environment g – Depending on Applications being monitored Availability Reports Capacity Management Avg. Value. By. Hr OR Avg. Value. By. Day (Service Status CPU, Memory Usage Connectivity Response Time Min/Max values Agg. Value. History Avg. Value. By. Hr (Logical. Disk…) Compare 24 Hours Inventory Application. Info Comp. Deploy Comp. Lic Comp. Version Data. Stream Event. Summary

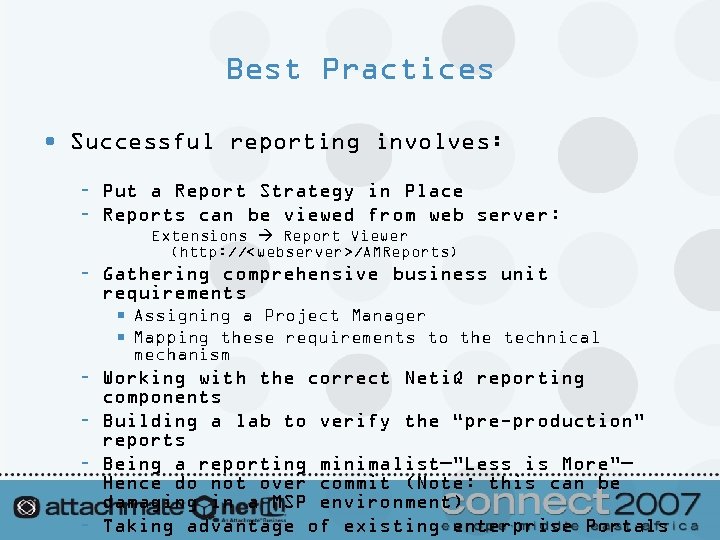

Best Practices • Successful reporting involves: – Put a Report Strategy in Place – Reports can be viewed from web server: Extensions Report Viewer (http: ///AMReports) – Gathering comprehensive business unit requirements • Assigning a Project Manager • Mapping these requirements to the technical mechanism – Working with the correct Neti. Q reporting components – Building a lab to verify the “pre-production” reports – Being a reporting minimalist—”Less is More”— Hence do not over commit (Note: this can be damaging in a MSP environment) – Taking advantage of existing enterprise Portals

Thank you

Vo. IP Update Martin Anwyll Product Line Specialist, Vo. IP Solutions (EMEA) Martin. Anwyll@attachmate. com +44 7825 239 776

Vivinet Assessor 3. 3 § Support for SQL 2005 § User Interface Performance Enhancements § Ethernet Port Discovery § SNMP v 3 support

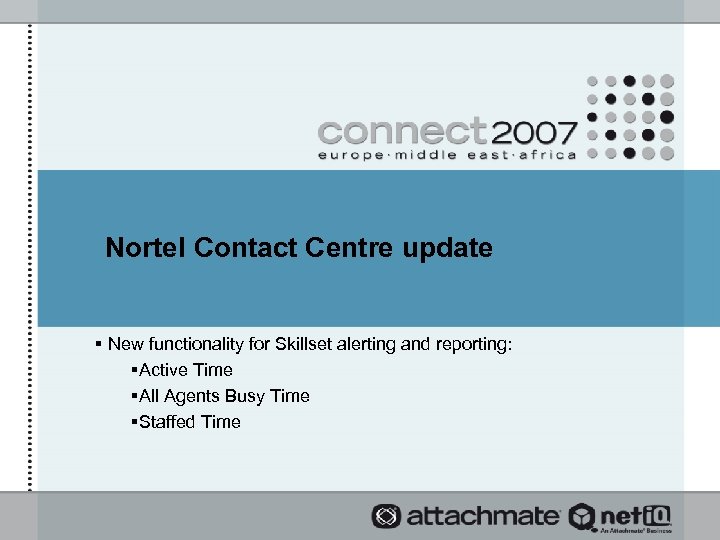

Nortel Contact Centre update § New functionality for Skillset alerting and reporting: §Active Time §All Agents Busy Time §Staffed Time

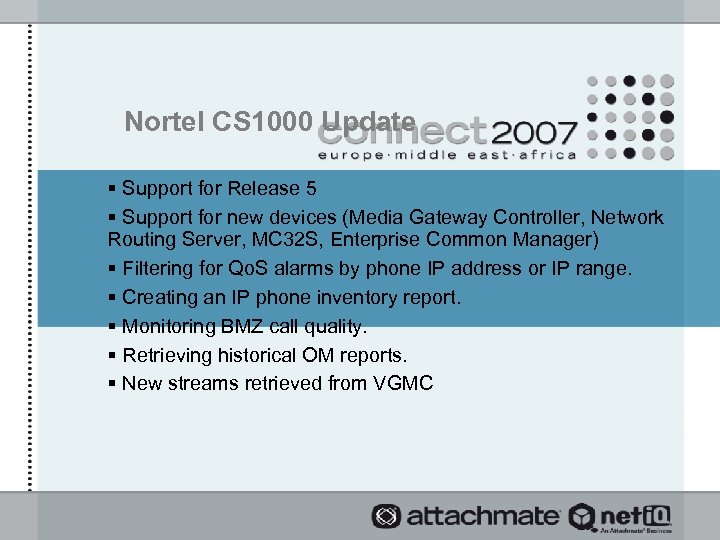

Nortel CS 1000 Update § Support for Release 5 § Support for new devices (Media Gateway Controller, Network Routing Server, MC 32 S, Enterprise Common Manager) § Filtering for Qo. S alarms by phone IP address or IP range. § Creating an IP phone inventory report. § Monitoring BMZ call quality. § Retrieving historical OM reports. § New streams retrieved from VGMC

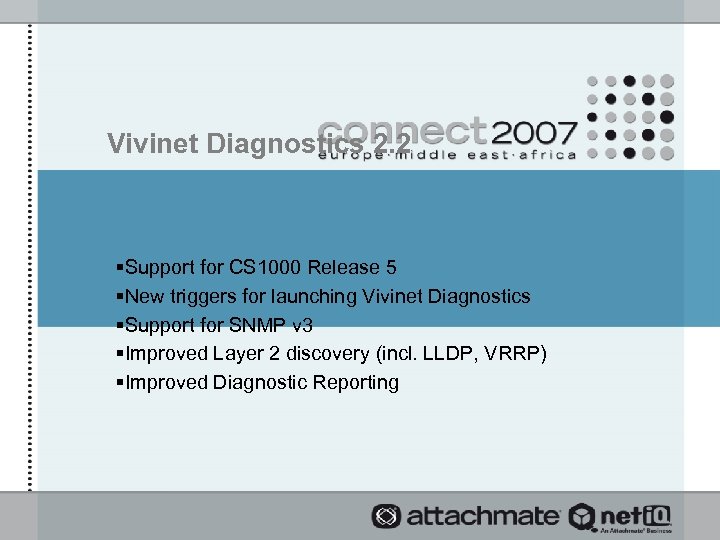

Vivinet Diagnostics 2. 2 §Support for CS 1000 Release 5 §New triggers for launching Vivinet Diagnostics §Support for SNMP v 3 §Improved Layer 2 discovery (incl. LLDP, VRRP) §Improved Diagnostic Reporting
