March 2009 doc IEEE 802 15 -08

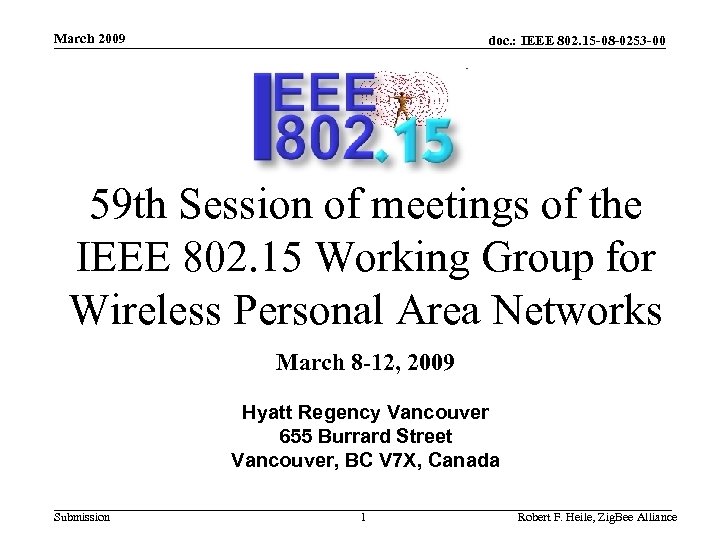

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 59 th Session of meetings of the IEEE 802. 15 Working Group for Wireless Personal Area Networks March 8 -12, 2009 Hyatt Regency Vancouver 655 Burrard Street Vancouver, BC V 7 X, Canada Submission 1 Robert F. Heile, Zig. Bee Alliance

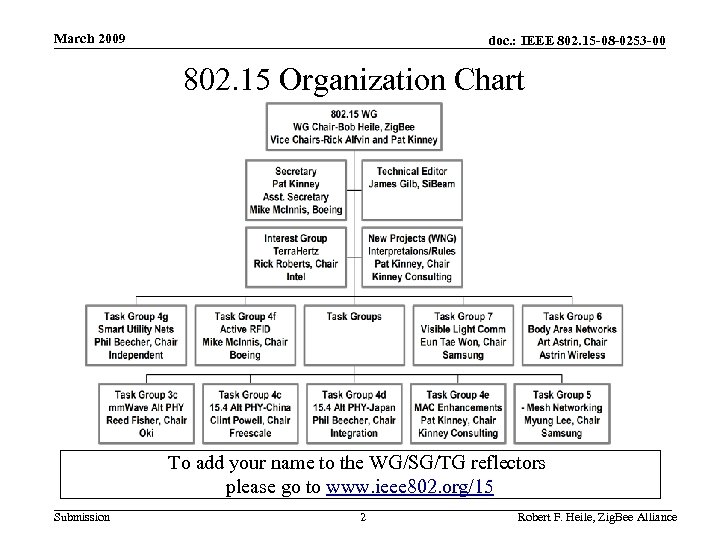

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 802. 15 Organization Chart To add your name to the WG/SG/TG reflectors please go to www. ieee 802. org/15 Submission 2 Robert F. Heile, Zig. Bee Alliance

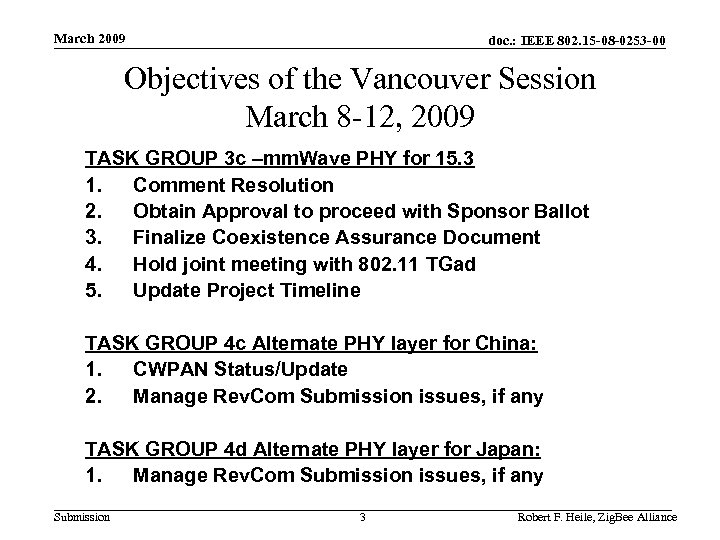

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Objectives of the Vancouver Session March 8 -12, 2009 TASK GROUP 3 c –mm. Wave PHY for 15. 3 1. Comment Resolution 2. Obtain Approval to proceed with Sponsor Ballot 3. Finalize Coexistence Assurance Document 4. Hold joint meeting with 802. 11 TGad 5. Update Project Timeline TASK GROUP 4 c Alternate PHY layer for China: 1. CWPAN Status/Update 2. Manage Rev. Com Submission issues, if any TASK GROUP 4 d Alternate PHY layer for Japan: 1. Manage Rev. Com Submission issues, if any Submission 3 Robert F. Heile, Zig. Bee Alliance

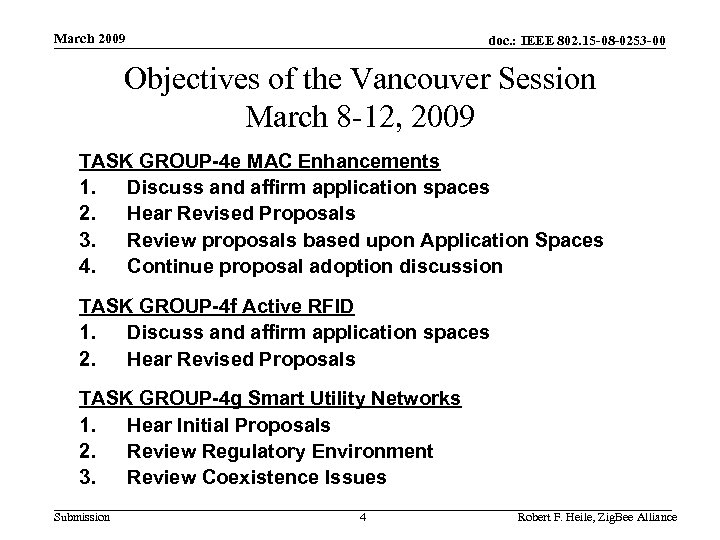

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Objectives of the Vancouver Session March 8 -12, 2009 TASK GROUP-4 e MAC Enhancements 1. Discuss and affirm application spaces 2. Hear Revised Proposals 3. Review proposals based upon Application Spaces 4. Continue proposal adoption discussion TASK GROUP-4 f Active RFID 1. Discuss and affirm application spaces 2. Hear Revised Proposals TASK GROUP-4 g Smart Utility Networks 1. Hear Initial Proposals 2. Review Regulatory Environment 3. Review Coexistence Issues Submission 4 Robert F. Heile, Zig. Bee Alliance

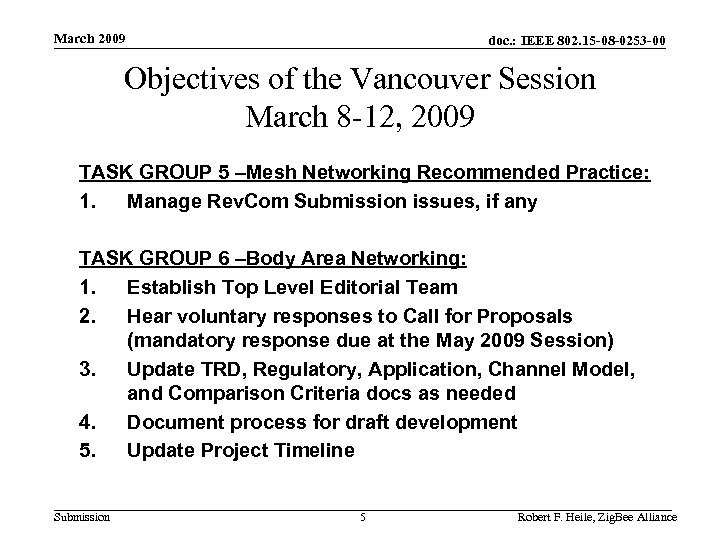

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Objectives of the Vancouver Session March 8 -12, 2009 TASK GROUP 5 –Mesh Networking Recommended Practice: 1. Manage Rev. Com Submission issues, if any TASK GROUP 6 –Body Area Networking: 1. Establish Top Level Editorial Team 2. Hear voluntary responses to Call for Proposals (mandatory response due at the May 2009 Session) 3. Update TRD, Regulatory, Application, Channel Model, and Comparison Criteria docs as needed 4. Document process for draft development 5. Update Project Timeline Submission 5 Robert F. Heile, Zig. Bee Alliance

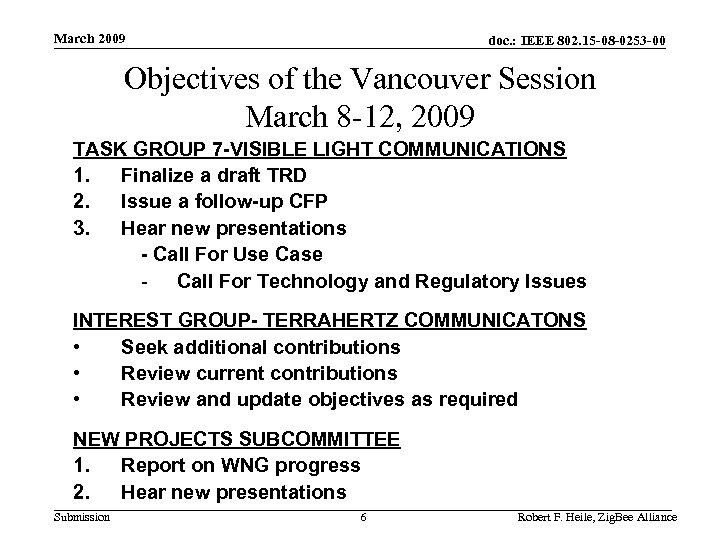

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Objectives of the Vancouver Session March 8 -12, 2009 TASK GROUP 7 -VISIBLE LIGHT COMMUNICATIONS 1. Finalize a draft TRD 2. Issue a follow-up CFP 3. Hear new presentations - Call For Use Case - Call For Technology and Regulatory Issues INTEREST GROUP- TERRAHERTZ COMMUNICATONS • Seek additional contributions • Review current contributions • Review and update objectives as required NEW PROJECTS SUBCOMMITTEE 1. Report on WNG progress 2. Hear new presentations Submission 6 Robert F. Heile, Zig. Bee Alliance

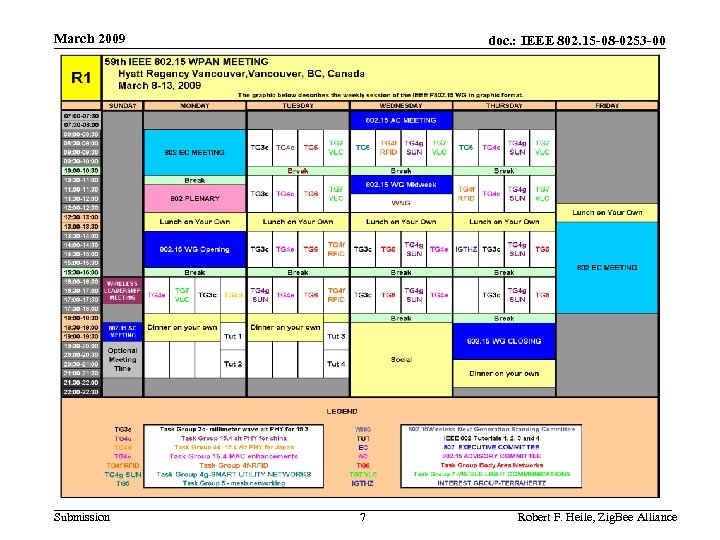

March 2009 Submission doc. : IEEE 802. 15 -08 -0253 -00 7 Robert F. Heile, Zig. Bee Alliance

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Vancouver Session Results for Submission 8 Robert F. Heile, Zig. Bee Alliance

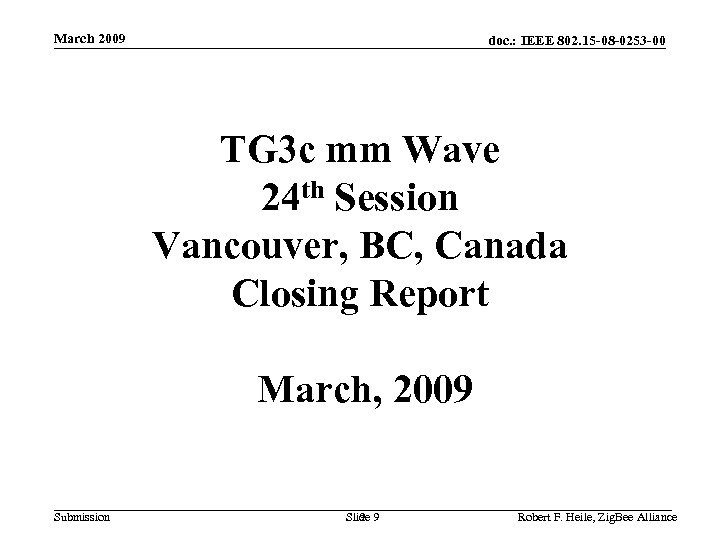

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 TG 3 c mm Wave 24 th Session Vancouver, BC, Canada Closing Report March, 2009 Submission Slide 9 9 Robert F. Heile, Zig. Bee Alliance

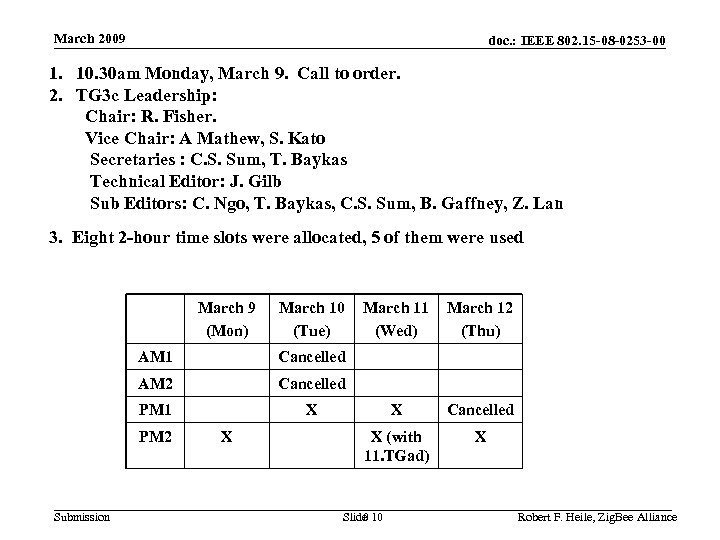

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 1. 10. 30 am Monday, March 9. Call to order. 2. TG 3 c Leadership: Chair: R. Fisher. Vice Chair: A Mathew, S. Kato Secretaries : C. S. Sum, T. Baykas Technical Editor: J. Gilb Sub Editors: C. Ngo, T. Baykas, C. S. Sum, B. Gaffney, Z. Lan 3. Eight 2 -hour time slots were allocated, 5 of them were used March 9 (Mon) March 10 (Tue) X (with 11. TGad) X PM 2 Submission X Cancelled PM 1 Cancelled AM 2 March 12 (Thu) X AM 1 March 11 (Wed) X Slide 10 10 Robert F. Heile, Zig. Bee Alliance

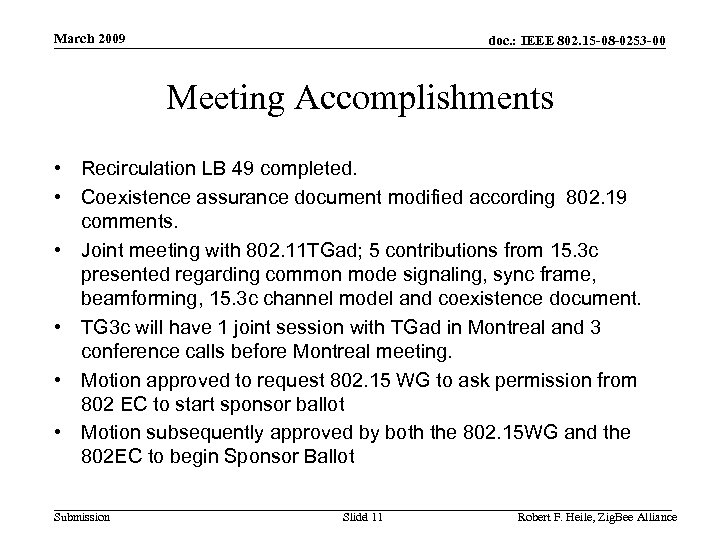

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Meeting Accomplishments • Recirculation LB 49 completed. • Coexistence assurance document modified according 802. 19 comments. • Joint meeting with 802. 11 TGad; 5 contributions from 15. 3 c presented regarding common mode signaling, sync frame, beamforming, 15. 3 c channel model and coexistence document. • TG 3 c will have 1 joint session with TGad in Montreal and 3 conference calls before Montreal meeting. • Motion approved to request 802. 15 WG to ask permission from 802 EC to start sponsor ballot • Motion subsequently approved by both the 802. 15 WG and the 802 EC to begin Sponsor Ballot Submission Slide 11 11 Robert F. Heile, Zig. Bee Alliance

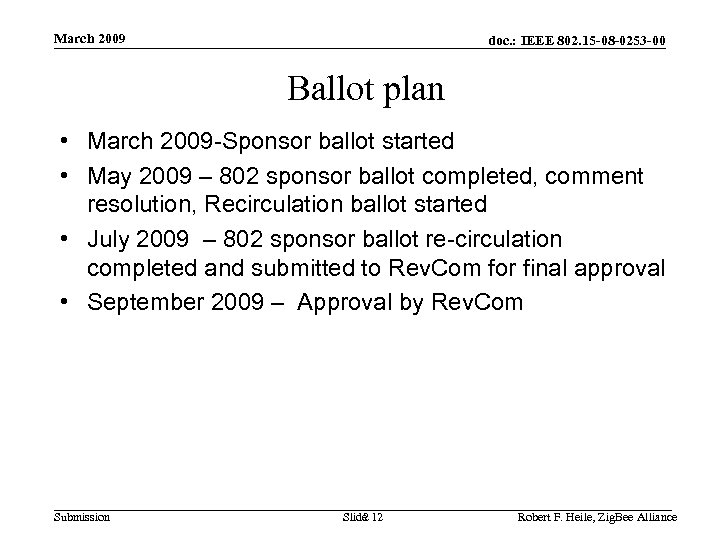

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Ballot plan • March 2009 -Sponsor ballot started • May 2009 – 802 sponsor ballot completed, comment resolution, Recirculation ballot started • July 2009 – 802 sponsor ballot re-circulation completed and submitted to Rev. Com for final approval • September 2009 – Approval by Rev. Com Submission Slide 12 12 Robert F. Heile, Zig. Bee Alliance

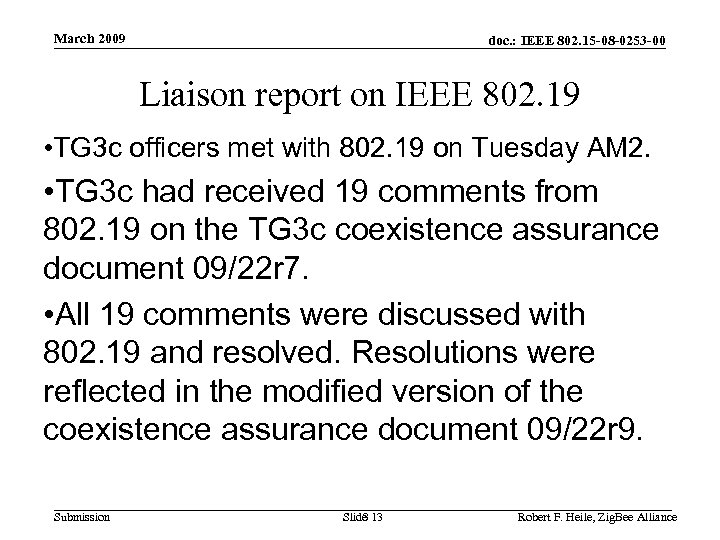

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Liaison report on IEEE 802. 19 • TG 3 c officers met with 802. 19 on Tuesday AM 2. • TG 3 c had received 19 comments from 802. 19 on the TG 3 c coexistence assurance document 09/22 r 7. • All 19 comments were discussed with 802. 19 and resolved. Resolutions were reflected in the modified version of the coexistence assurance document 09/22 r 9. Submission Slide 13 13 Robert F. Heile, Zig. Bee Alliance

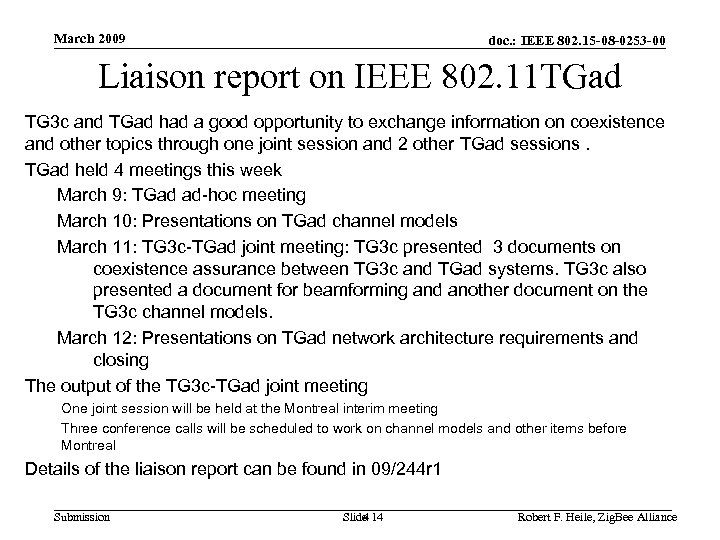

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Liaison report on IEEE 802. 11 TGad TG 3 c and TGad had a good opportunity to exchange information on coexistence and other topics through one joint session and 2 other TGad sessions. TGad held 4 meetings this week March 9: TGad ad-hoc meeting March 10: Presentations on TGad channel models March 11: TG 3 c-TGad joint meeting: TG 3 c presented 3 documents on coexistence assurance between TG 3 c and TGad systems. TG 3 c also presented a document for beamforming and another document on the TG 3 c channel models. March 12: Presentations on TGad network architecture requirements and closing The output of the TG 3 c-TGad joint meeting One joint session will be held at the Montreal interim meeting Three conference calls will be scheduled to work on channel models and other items before Montreal Details of the liaison report can be found in 09/244 r 1 Submission Slide 14 14 Robert F. Heile, Zig. Bee Alliance

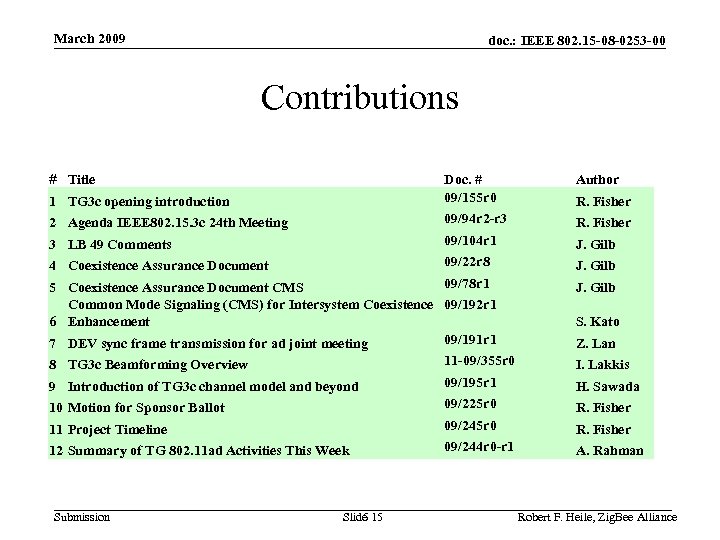

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Contributions # Title Doc. # 09/155 r 0 1 TG 3 c opening introduction Author 　 R. Fisher 3 LB 49 Comments 09/94 r 2 -r 3 　 09/104 r 1 　 4 Coexistence Assurance Document 09/22 r 8 J. Gilb 2 Agenda IEEE 802. 15. 3 c 24 th Meeting 09/78 r 1 5 Coexistence Assurance Document CMS Common Mode Signaling (CMS) for Intersystem Coexistence 09/192 r 1 6 Enhancement 09/191 r 1 7 DEV sync frame transmission for ad joint meeting J. Gilb S. Kato Z. Lan 8 TG 3 c Beamforming Overview 11 -09/355 r 0 I. Lakkis 9 Introduction of TG 3 c channel model and beyond 09/195 r 1 H. Sawada 10 Motion for Sponsor Ballot 09/225 r 0 R. Fisher 11 Project Timeline 09/245 r 0 R. Fisher 12 Summary of TG 802. 11 ad Activities This Week 09/244 r 0 -r 1 A. Rahman Submission Slide 15 15 Robert F. Heile, Zig. Bee Alliance

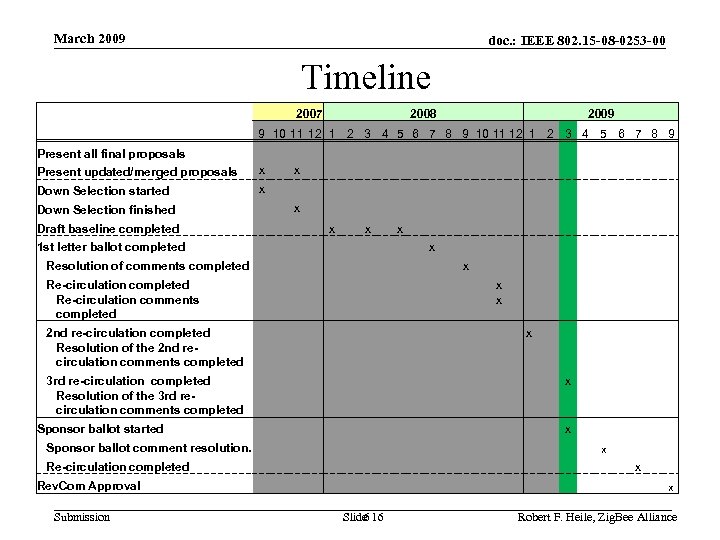

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Timeline 2007 　 2008 2009 　 9 10 11 12 1 2 3 4 5 6 7 8 9 Present all final proposals 　 　 　 　 x 　 　 　 　 　 Present updated/merged proposals Down Selection started Down Selection finished 　 　 　 　 　 　 　 x 　 x 　 　 　 x 1 st letter ballot completed Resolution of comments completed 　 　 　 　 Re-circulation completed Re-circulation comments 　 　 completed 　 　 　 　 2 nd re-circulation completed Resolution of the 2 nd re　 　 circulation comments completed 　 　 　 　 3 rd re-circulation completed Resolution of the 3 rd re　 　 circulation comments completed 　 　 　 　 Sponsor ballot started Draft baseline completed 　 　 　 　 　 　 　 　 x 　 　 　 　 　 x　 　 　 　 　 x 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 x Sponsor ballot comment resolution. 　 　 Re-circulation completed Rev. Com Approval Submission Slide 16 16 Robert F. Heile, Zig. Bee Alliance

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 TG 4 c- PHY Amendment to 15. 4 to Support 780 MHz Band in China Clint Powell, Freescale, Chair Vancouver, BC, Canada March, 2009 Group did not Meet-Draft on Rev. Com Agenda for Approval March 17 Submission Slide 17 17 Robert F. Heile, Zig. Bee Alliance

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 TG 4 d- PHY Amendment to 15. 4 to Support 950 MHz Band in Japan Phil Beecher, Beecher Consulting, Chair Vancouver, BC, Canada March, 2009 Group did not Meet-Draft on Rev. Com Agenda for Approval March 17 Submission Slide 18 18 Robert F. Heile, Zig. Bee Alliance

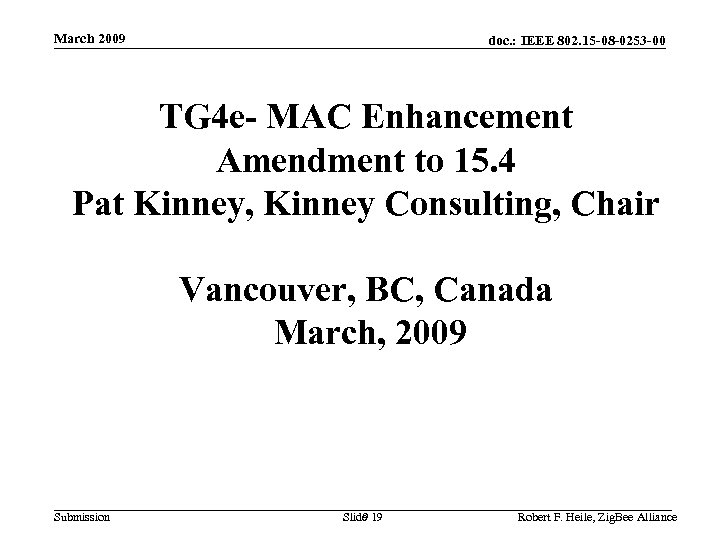

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 TG 4 e- MAC Enhancement Amendment to 15. 4 Pat Kinney, Kinney Consulting, Chair Vancouver, BC, Canada March, 2009 Submission Slide 19 19 Robert F. Heile, Zig. Bee Alliance

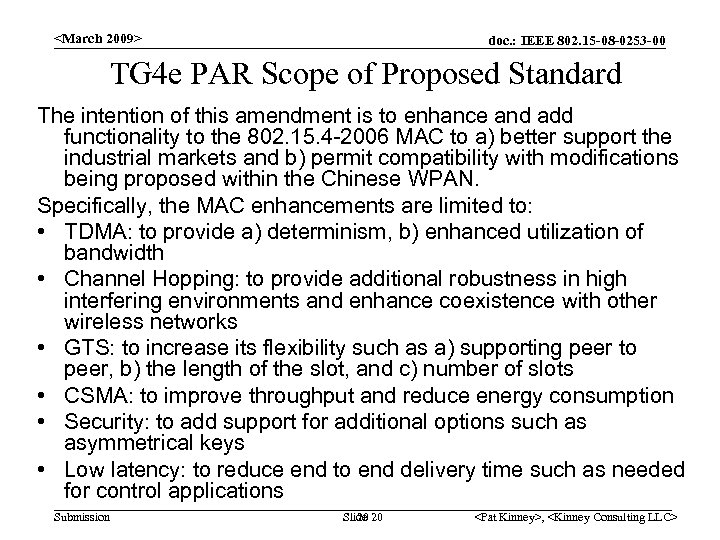

doc. : IEEE 802. 15 -08 -0253 -00 TG 4 e PAR Scope of Proposed Standard The intention of this amendment is to enhance and add functionality to the 802. 15. 4 -2006 MAC to a) better support the industrial markets and b) permit compatibility with modifications being proposed within the Chinese WPAN. Specifically, the MAC enhancements are limited to: • TDMA: to provide a) determinism, b) enhanced utilization of bandwidth • Channel Hopping: to provide additional robustness in high interfering environments and enhance coexistence with other wireless networks • GTS: to increase its flexibility such as a) supporting peer to peer, b) the length of the slot, and c) number of slots • CSMA: to improve throughput and reduce energy consumption • Security: to add support for additional options such as asymmetrical keys • Low latency: to reduce end to end delivery time such as needed for control applications Submission Slide 20 20 ,

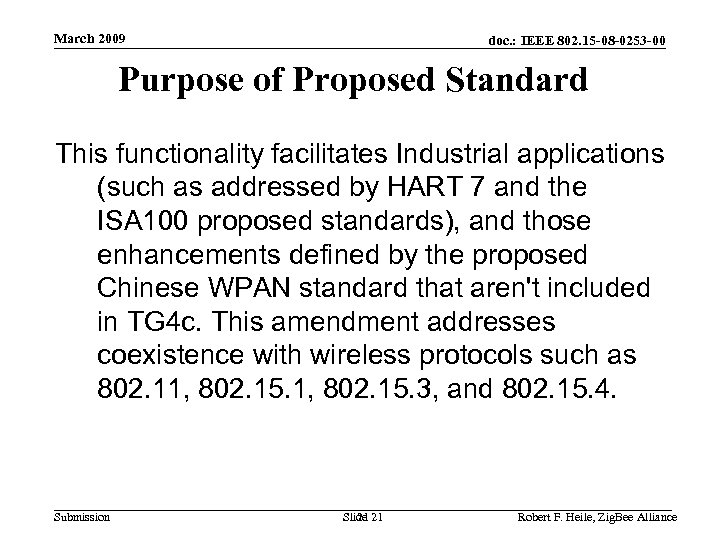

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Purpose of Proposed Standard This functionality facilitates Industrial applications (such as addressed by HART 7 and the ISA 100 proposed standards), and those enhancements defined by the proposed Chinese WPAN standard that aren't included in TG 4 c. This amendment addresses coexistence with wireless protocols such as 802. 11, 802. 15. 3, and 802. 15. 4. Submission Slide 21 21 Robert F. Heile, Zig. Bee Alliance

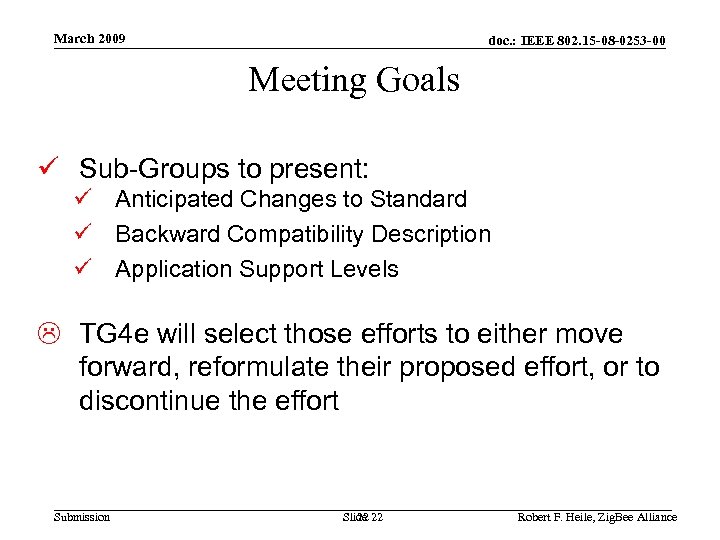

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Meeting Goals Sub-Groups to present: Anticipated Changes to Standard Backward Compatibility Description Application Support Levels L TG 4 e will select those efforts to either move forward, reformulate their proposed effort, or to discontinue the effort Submission Slide 22 22 Robert F. Heile, Zig. Bee Alliance

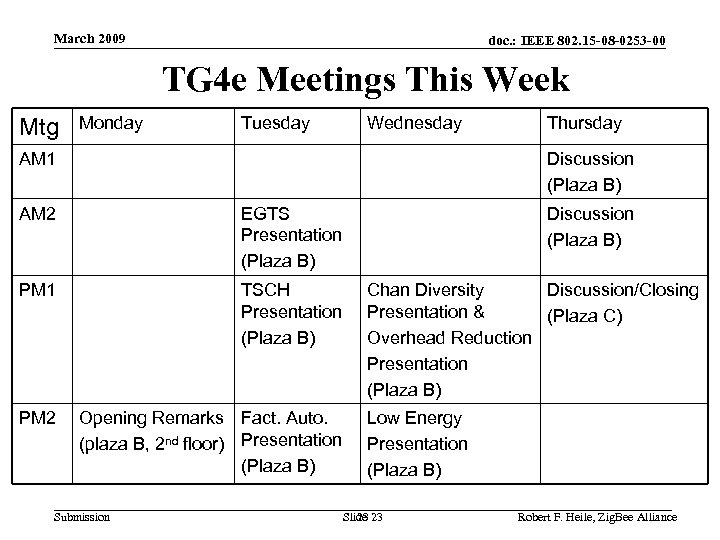

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 TG 4 e Meetings This Week Mtg Monday Tuesday Wednesday AM 1 Thursday Discussion (Plaza B) AM 2 EGTS Presentation (Plaza B) PM 1 TSCH Presentation (Plaza B) PM 2 Opening Remarks Fact. Auto. (plaza B, 2 nd floor) Presentation (Plaza B) Submission Discussion (Plaza B) Chan Diversity Discussion/Closing Presentation & (Plaza C) Overhead Reduction Presentation (Plaza B) Low Energy Presentation (Plaza B) Slide 23 23 Robert F. Heile, Zig. Bee Alliance

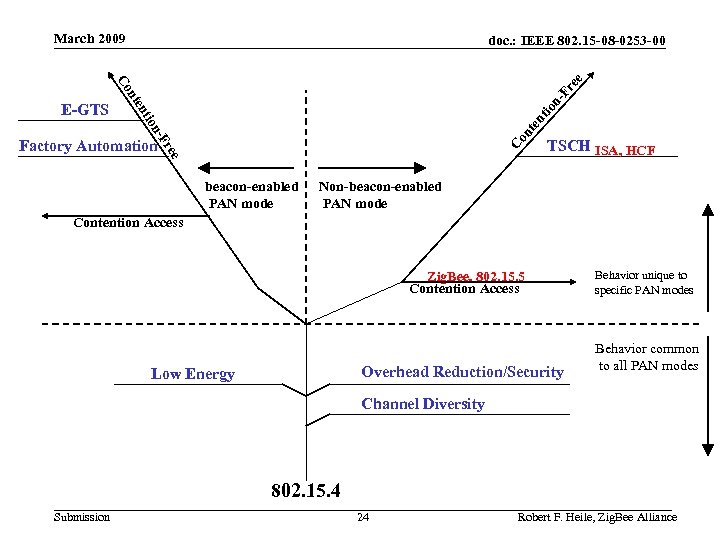

March 2009 nnt n- en t io tio en E-GTS nt Co Fr ee doc. : IEEE 802. 15 -08 -0253 -00 ee Fr Co Factory Automation beacon-enabled PAN mode TSCH ISA, HCF Non-beacon-enabled PAN mode Contention Access Zig. Bee, 802. 15. 5 Contention Access Overhead Reduction/Security Low Energy Behavior unique to specific PAN modes Behavior common to all PAN modes Channel Diversity 802. 15. 4 Submission 24 Robert F. Heile, Zig. Bee Alliance

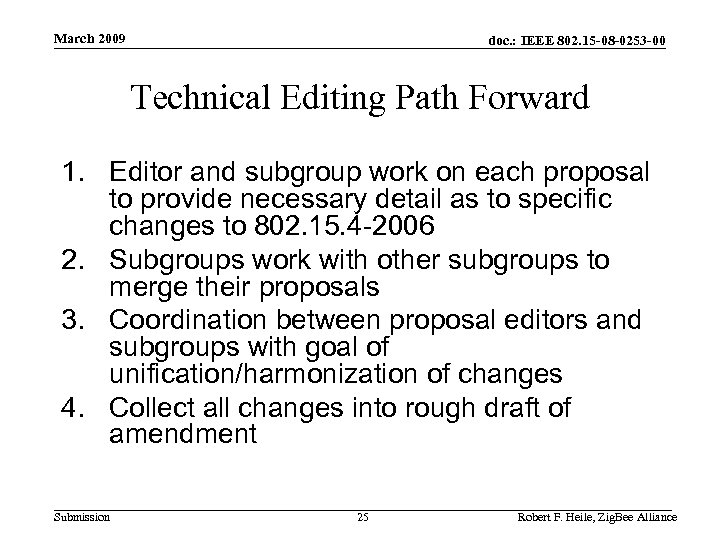

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Technical Editing Path Forward 1. Editor and subgroup work on each proposal to provide necessary detail as to specific changes to 802. 15. 4 -2006 2. Subgroups work with other subgroups to merge their proposals 3. Coordination between proposal editors and subgroups with goal of unification/harmonization of changes 4. Collect all changes into rough draft of amendment Submission 25 Robert F. Heile, Zig. Bee Alliance

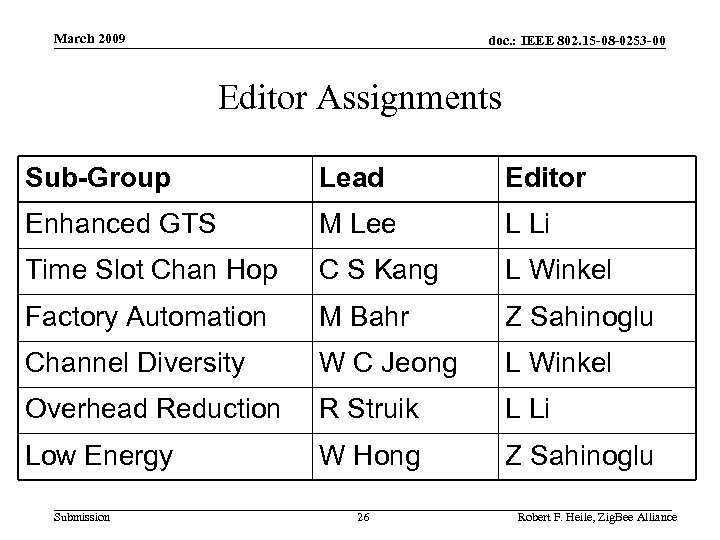

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Editor Assignments Sub-Group Lead Editor Enhanced GTS M Lee L Li Time Slot Chan Hop C S Kang L Winkel Factory Automation M Bahr Z Sahinoglu Channel Diversity W C Jeong L Winkel Overhead Reduction R Struik L Li Low Energy W Hong Z Sahinoglu Submission 26 Robert F. Heile, Zig. Bee Alliance

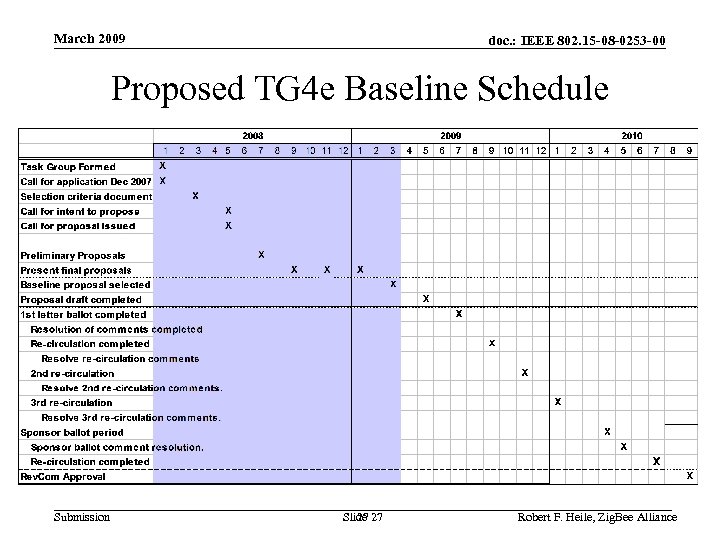

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Proposed TG 4 e Baseline Schedule Submission Slide 27 27 Robert F. Heile, Zig. Bee Alliance

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 IEEE 802. 15. 4 f Active RFID Closing Report 2 nd Meeting as a Task Group Vancouver, BC Canada March 12, 2009 Submission 28 Robert F. Heile, Zig. Bee Alliance

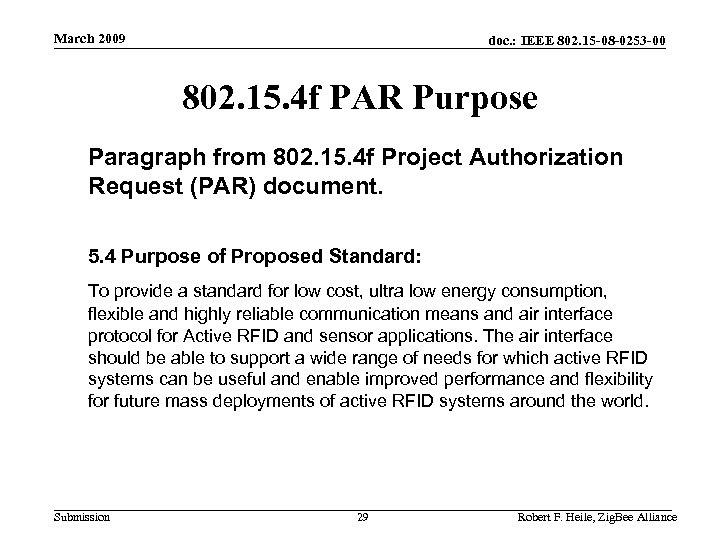

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 802. 15. 4 f PAR Purpose Paragraph from 802. 15. 4 f Project Authorization Request (PAR) document. 5. 4 Purpose of Proposed Standard: To provide a standard for low cost, ultra low energy consumption, flexible and highly reliable communication means and air interface protocol for Active RFID and sensor applications. The air interface should be able to support a wide range of needs for which active RFID systems can be useful and enable improved performance and flexibility for future mass deployments of active RFID systems around the world. Submission 29 Robert F. Heile, Zig. Bee Alliance

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 IEEE 802. 15. 4 f Active RFID Meeting Overview 1. Chair: Mike Mc. Innis Secretary: George Cavage 2. Initially four each meeting time slots were allocated during this session. 1. However we expanded the number meeting time slots to seven. 3. Relative Documents during this meeting session: 0150 -01 -Agenda-Mar-2009. xls 0151 -03 -Opening-Introduction-Mar-2009. ppt 0239 -00 -Active-RFID-Minutes-Vancouver-Mar-2009. doc 4. Presentations during this meeting session: 0174 -00 -Applications for Active RFID Systems 0198 -00 -Ubisense Case Studies 0200 -00 -EPCglobal RFID Supply Chain and Operations Improvements 0203 -03 -TG 4 f Draft Key Applications and Requirements Summary 0219 -01 -Active RFID Problems to Solve Submission 30 Robert F. Heile, Zig. Bee Alliance

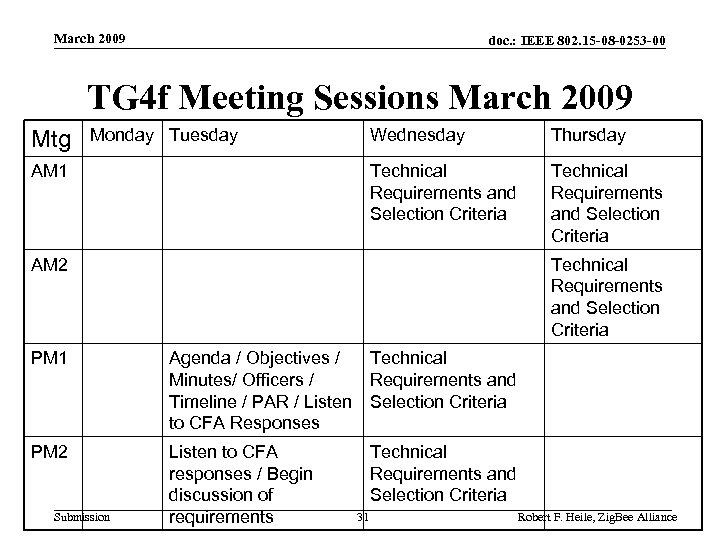

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 TG 4 f Meeting Sessions March 2009 Mtg Monday Tuesday Wednesday Technical Requirements and Selection Criteria AM 1 Thursday Technical Requirements and Selection Criteria AM 2 Technical Requirements and Selection Criteria PM 1 Agenda / Objectives / Minutes/ Officers / Timeline / PAR / Listen to CFA Responses Technical Requirements and Selection Criteria PM 2 Listen to CFA responses / Begin discussion of requirements Technical Requirements and Selection Criteria Submission 31 Robert F. Heile, Zig. Bee Alliance

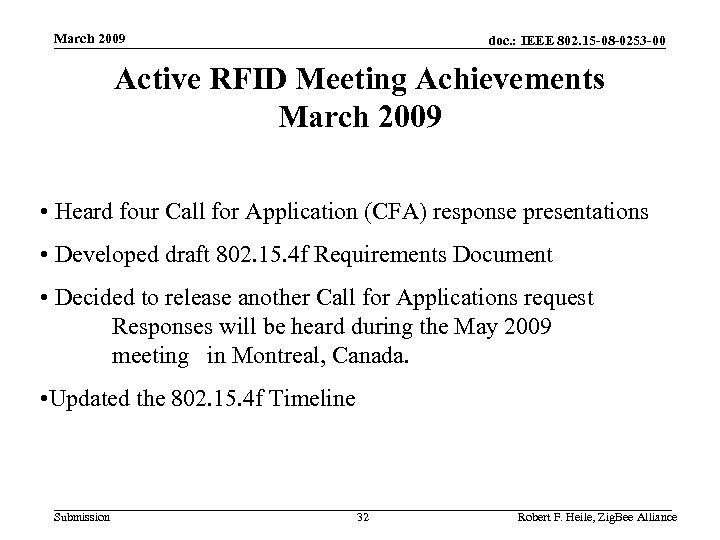

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Active RFID Meeting Achievements March 2009 • Heard four Call for Application (CFA) response presentations • Developed draft 802. 15. 4 f Requirements Document • Decided to release another Call for Applications request Responses will be heard during the May 2009 meeting in Montreal, Canada. • Updated the 802. 15. 4 f Timeline Submission 32 Robert F. Heile, Zig. Bee Alliance

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Next Meeting Goals and Agenda May 2009 in Montreal, Canada • Hear Call For Application responses to March 2009 CFA release • Continue discussion and development of technical requirements documentation • Develop Selection criteria documentation • Develop proposal down selection method • Discuss coexistence criteria. • Determine need for, suitability of, channel models • Write and release Call for Intent (CFI) to propose and/or Call for Proposal (CFP) release(s). Submission 33 Robert F. Heile, Zig. Bee Alliance

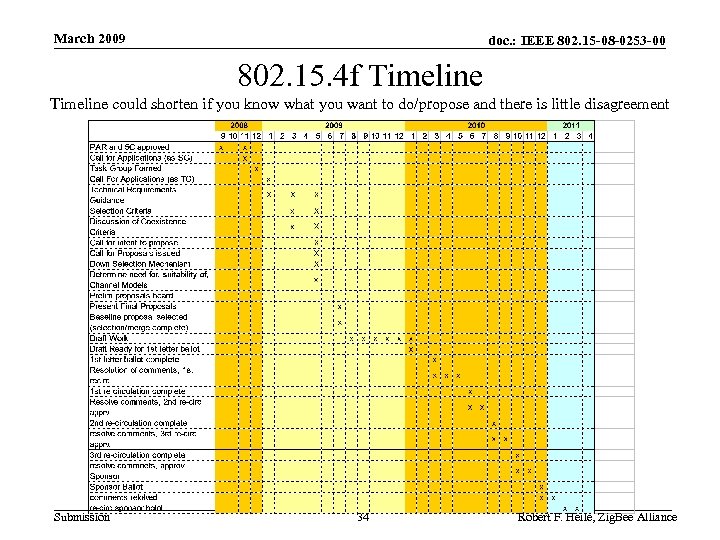

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 802. 15. 4 f Timeline could shorten if you know what you want to do/propose and there is little disagreement Submission 34 Robert F. Heile, Zig. Bee Alliance

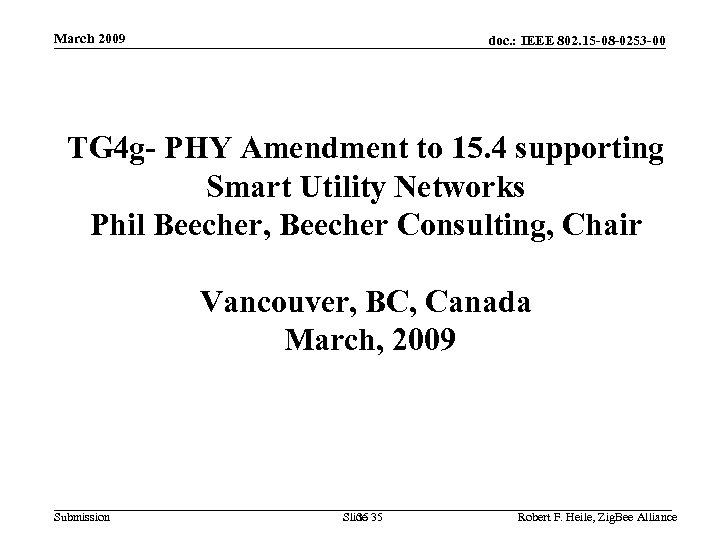

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 TG 4 g- PHY Amendment to 15. 4 supporting Smart Utility Networks Phil Beecher, Beecher Consulting, Chair Vancouver, BC, Canada March, 2009 Submission Slide 35 35 Robert F. Heile, Zig. Bee Alliance

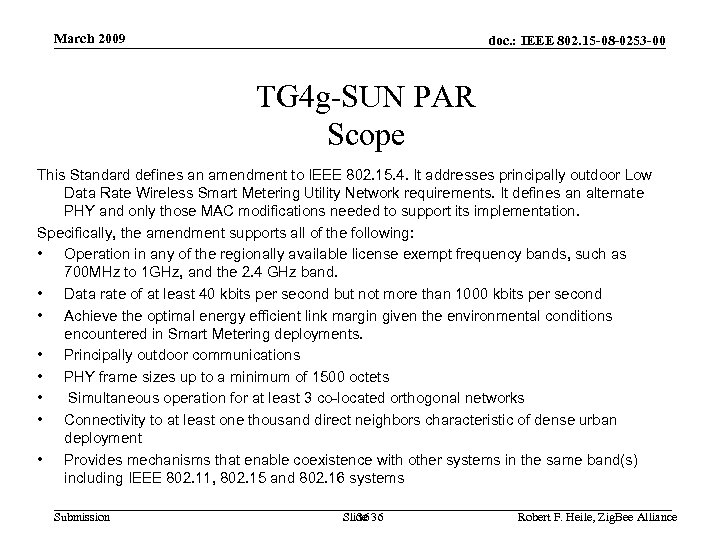

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 TG 4 g-SUN PAR Scope This Standard defines an amendment to IEEE 802. 15. 4. It addresses principally outdoor Low Data Rate Wireless Smart Metering Utility Network requirements. It defines an alternate PHY and only those MAC modifications needed to support its implementation. Specifically, the amendment supports all of the following: • Operation in any of the regionally available license exempt frequency bands, such as 700 MHz to 1 GHz, and the 2. 4 GHz band. • Data rate of at least 40 kbits per second but not more than 1000 kbits per second • Achieve the optimal energy efficient link margin given the environmental conditions encountered in Smart Metering deployments. • Principally outdoor communications • PHY frame sizes up to a minimum of 1500 octets • Simultaneous operation for at least 3 co-located orthogonal networks • Connectivity to at least one thousand direct neighbors characteristic of dense urban deployment • Provides mechanisms that enable coexistence with other systems in the same band(s) including IEEE 802. 11, 802. 15 and 802. 16 systems Submission Slide 36 36 Robert F. Heile, Zig. Bee Alliance

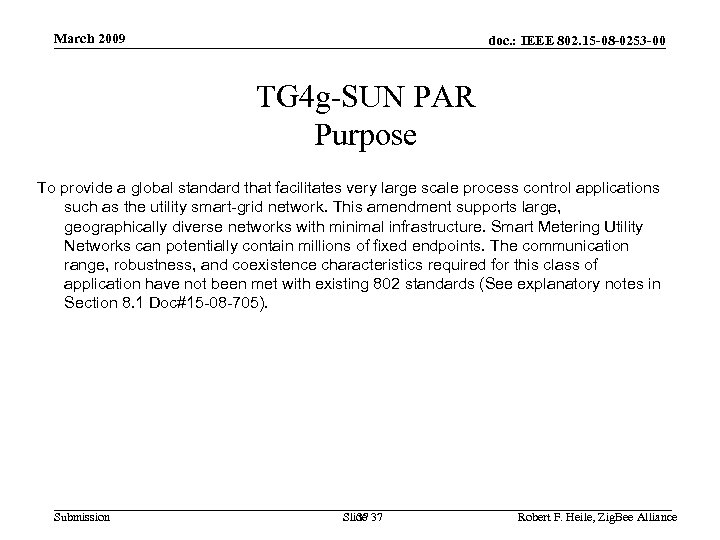

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 TG 4 g-SUN PAR Purpose To provide a global standard that facilitates very large scale process control applications such as the utility smart-grid network. This amendment supports large, geographically diverse networks with minimal infrastructure. Smart Metering Utility Networks can potentially contain millions of fixed endpoints. The communication range, robustness, and coexistence characteristics required for this class of application have not been met with existing 802 standards (See explanatory notes in Section 8. 1 Doc#15 -08 -705). Submission Slide 37 37 Robert F. Heile, Zig. Bee Alliance

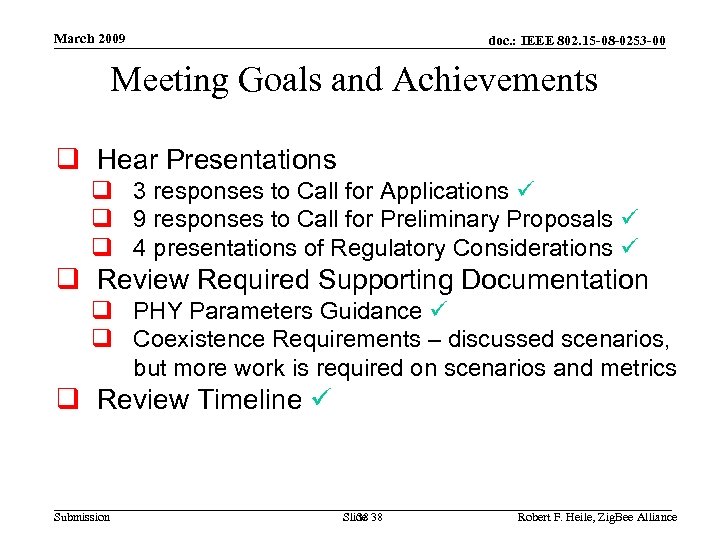

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Meeting Goals and Achievements q Hear Presentations q 3 responses to Call for Applications q 9 responses to Call for Preliminary Proposals q 4 presentations of Regulatory Considerations q Review Required Supporting Documentation q PHY Parameters Guidance q Coexistence Requirements – discussed scenarios, but more work is required on scenarios and metrics q Review Timeline Submission Slide 38 38 Robert F. Heile, Zig. Bee Alliance

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 SG 4 g-SUN Meetings This Week Mtg Monday Tuesday Wednesday Presentations (prelim proposals) AM 2 Open, Presentations (apps) PM 1 PM 2 Presentations (apps & prelim proposals) Presentations (prelim proposals) Midweek Plenary Presentations (prelim proposals) AM 1 Thursday Presentations (regulatory) Coexistence (joint meeting with 802. 19) Discussion of proposals + Next Steps Closing Plenary Evening Submission Slide 39 39 Robert F. Heile, Zig. Bee Alliance

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Presentations heard 15 -09 -0113 -00 -004 g-battery-operated-applications. ppt 15 -09 -0114 -01 -004 g-trends-in-sun-capacity. ppt 15 -09 -0118 -03 -004 g-narrow-band-phy-preliminary-proposal. ppt 15 -09 -0120 -02 -004 g-coronis-ft-preliminary-proposal. ppt 15 -09 -0121 -01 -004 g-market-potential-of-sun. ppt 15 -09 -0124 -02 -004 g-multi-rate-phy-proposal. ppt 15 -09 -0126 -01 -004 g-signal-processing-options. ppt 15 -09 -0127 -02 -004 g-smart-grid-communications-preliminary-proposal. ppt 15 -09 -0128 -01 -004 g-ultra-link-processing-preliminary-proposal-to-tg 4 g. ppt 15 -09 -0129 -01 -004 g-battery-operated-sensing-device-requirements-for-802 -15 -4 g. ppt 15 -09 -0131 -00 -004 g-design-considerations-for-the-sun-network. ppt 15 -09 -0135 -01 -004 g-preliminary-proposal-for-a-multi-regional-sub-ghz-phy-for-802 -154 g. ppt 15 -09 -0175 -01 -004 g-european-regularity-considerations. ppt 15 -09 -0189 -00 -004 g-korean-regulatory-considerations. ppt 15 -09 -0193 -01 -004 g-802 -15 nan-phy-considerations. ppt 15 -09 -0207 -00 -004 g-spectruminchinalicenseexempt-pdf. xls 15 -09 -0208 -00 -004 g-chinaregsummary 0309. ppt 15 -09 -0235 -01 -004 g-technical-requirements-of-japanese-regulation-for-950 mhz-low-poweractive-radio-systems. ppt Submission Slide 40 40 Robert F. Heile, Zig. Bee Alliance

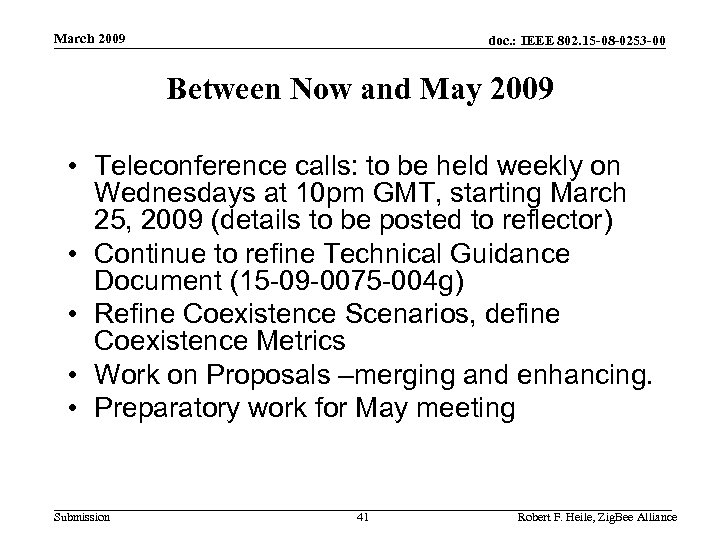

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Between Now and May 2009 • Teleconference calls: to be held weekly on Wednesdays at 10 pm GMT, starting March 25, 2009 (details to be posted to reflector) • Continue to refine Technical Guidance Document (15 -09 -0075 -004 g) • Refine Coexistence Scenarios, define Coexistence Metrics • Work on Proposals –merging and enhancing. • Preparatory work for May meeting Submission 41 Robert F. Heile, Zig. Bee Alliance

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 • Next Steps – Sign up for 802. 15. 4 f Active RFID e-mail reflector • http: //grouper. ieee. org/groups/802/15/pub/Subscribe. html • STDS-802 -15 -4 f@listserv. ieee. org • Next Meeting – May 10 -15, 2009 in Montreal, Canada. • Fairmont The Queen Elizabeth Hotel – Register for next meeting at: • http: //ieee 802. facetofaceevents. com/sessions/56/index. php Submission 42 Robert F. Heile, Zig. Bee Alliance

March 2009 Submission doc. : IEEE 802. 15 -08 -0253 -00 43 Robert F. Heile, Zig. Bee Alliance

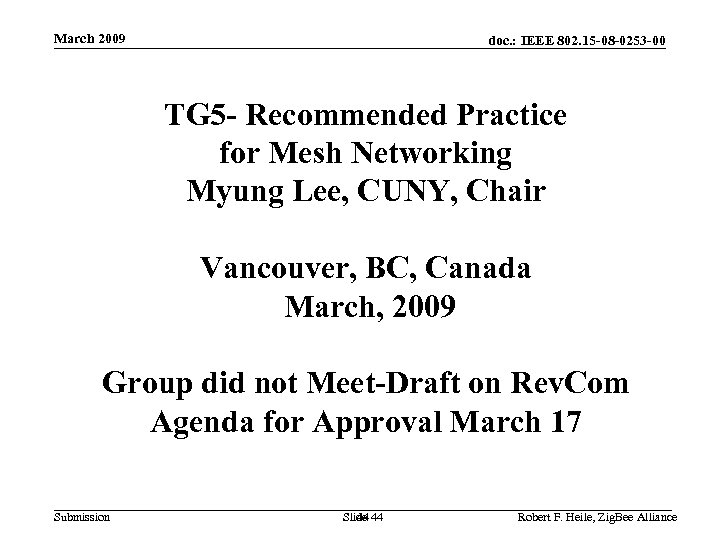

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 TG 5 - Recommended Practice for Mesh Networking Myung Lee, CUNY, Chair Vancouver, BC, Canada March, 2009 Group did not Meet-Draft on Rev. Com Agenda for Approval March 17 Submission Slide 44 44 Robert F. Heile, Zig. Bee Alliance

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 IEEE 802. 15 TG 6 Body Area Network Closing Report 8 th Meeting as a Task Group 6 Vancouver, BC March 12, 2009 Submission Slide 45 45 Robert F. Heile, Zig. Bee Alliance

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Purpose of Proposed Standard (PAR 07 -0575) The purpose of the proposed standard it to provide an international standard for a short range (ie about human body range), low power and highly reliable wireless communication for use in close proximity to, or inside, a human body. Data rates, typically up to 10 Mbps, will be offered to satisfy an evolutionary set of entertainment and healthcare services. Current PANs do not meet the medical (proximity to human tissue) and relevant communication regulations for some application environments. They also do not support the combination of reliability (Qo. S), low power, data rate and noninterference required to broadly address the breadth of body area network applications. Submission Slide 46 46 Robert F. Heile, Zig. Bee Alliance

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Need for the Project (PAR 07 -0575) There is a need for a standard optimized for ultra low power devices and operation on, in or around the human body to serve a variety of applications including medical and personal entertainment. Examples of the applications served by the proposed standard are: EEG, ECG, EMG, vital signals monitoring (temperature (wearable thermometer), respiratory, wearable heart rate monitor, wearable pulse oximeter, wearable blood pressure monitor, oxygen, p. H value , wearable glucose sensor, implanted glucose sensor, cardiac arrhythmia), wireless capsule endoscope (gastrointestinal), wireless capsule for drug delivery, deep brain stimulator, cortical stimulator (visual neuro-stimulator, audio neuro stimulator, Parkinson’s disease, etc…), remote control of medical devices such as pacemaker, actuators, insulin pump, hearing aid (wearable and implanted), retina implants, disability assistance, such as muscle tension sensing and stimulation, wearable weighing scale, fall detection, aiding sport training. This will include body-centric solutions for future wearable computers. In a similar vein, the same technology can provide effective solutions for personal entertainment as well. The existence of a body area network standard will provide opportunities to expand these product features, better healthcare and well being for the users. It will therefore result in economic opportunity for technology component suppliers and equipment manufacturers. Submission Slide 47 47 Robert F. Heile, Zig. Bee Alliance

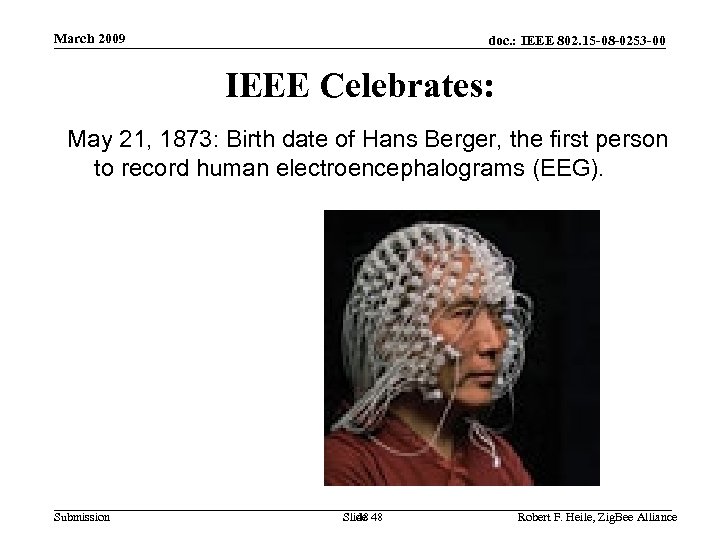

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 IEEE Celebrates: May 21, 1873: Birth date of Hans Berger, the first person to record human electroencephalograms (EEG). Submission Slide 48 48 Robert F. Heile, Zig. Bee Alliance

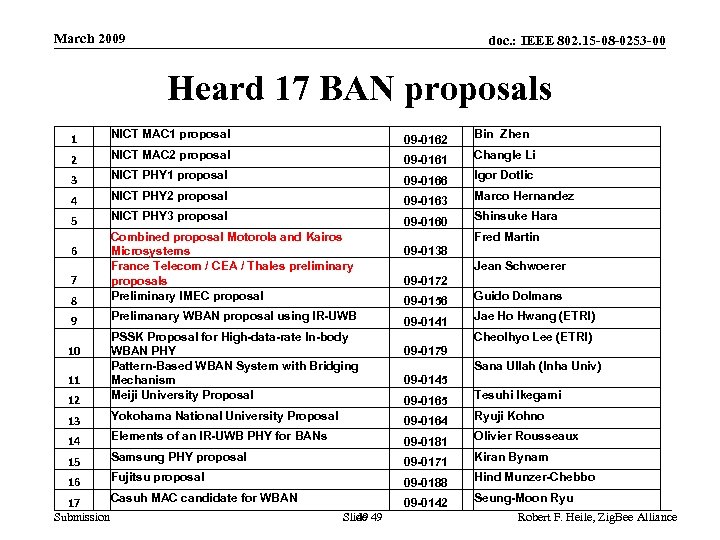

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Heard 17 BAN proposals 1 NICT MAC 1 proposal 09 -0162 Bin Zhen 2 NICT MAC 2 proposal 09 -0161 Changle Li 3 NICT PHY 1 proposal 09 -0166 Igor Dotlic 4 NICT PHY 2 proposal 09 -0163 Marco Hernandez 5 NICT PHY 3 proposal 09 -0160 Shinsuke Hara 8 Combined proposal Motorola and Kairos Microsystems France Telecom / CEA / Thales preliminary proposals Preliminary IMEC proposal 9 Prelimanary WBAN proposal using IR-UWB 6 7 12 PSSK Proposal for High-data-rate In-body WBAN PHY Pattern-Based WBAN System with Bridging Mechanism Meiji University Proposal 13 10 11 Fred Martin 09 -0138 Jean Schwoerer 09 -0172 09 -0156 Guido Dolmans 09 -0141 Jae Ho Hwang (ETRI) Cheolhyo Lee (ETRI) 09 -0179 Sana Ullah (Inha Univ) 09 -0145 09 -0165 Tesuhi Ikegami Yokohama National University Proposal 09 -0164 Ryuji Kohno 14 Elements of an IR-UWB PHY for BANs 09 -0181 Olivier Rousseaux 15 Samsung PHY proposal 09 -0171 Kiran Bynam 16 Fujitsu proposal 09 -0188 Hind Munzer-Chebbo 09 -0142 Seung-Moon Ryu Casuh MAC candidate for WBAN 17 Submission Slide 49 49 Robert F. Heile, Zig. Bee Alliance

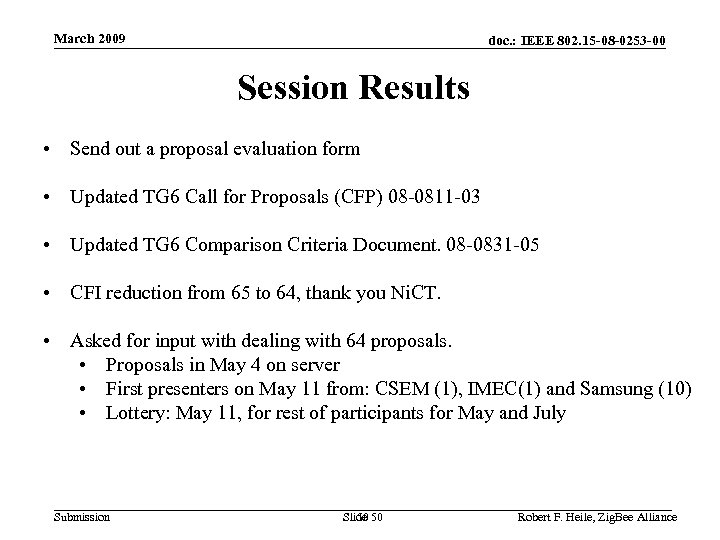

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Session Results • Send out a proposal evaluation form • Updated TG 6 Call for Proposals (CFP) 08 -0811 -03 • Updated TG 6 Comparison Criteria Document. 08 -0831 -05 • CFI reduction from 65 to 64, thank you Ni. CT. • Asked for input with dealing with 64 proposals. • Proposals in May 4 on server • First presenters on May 11 from: CSEM (1), IMEC(1) and Samsung (10) • Lottery: May 11, for rest of participants for May and July Submission Slide 50 50 Robert F. Heile, Zig. Bee Alliance

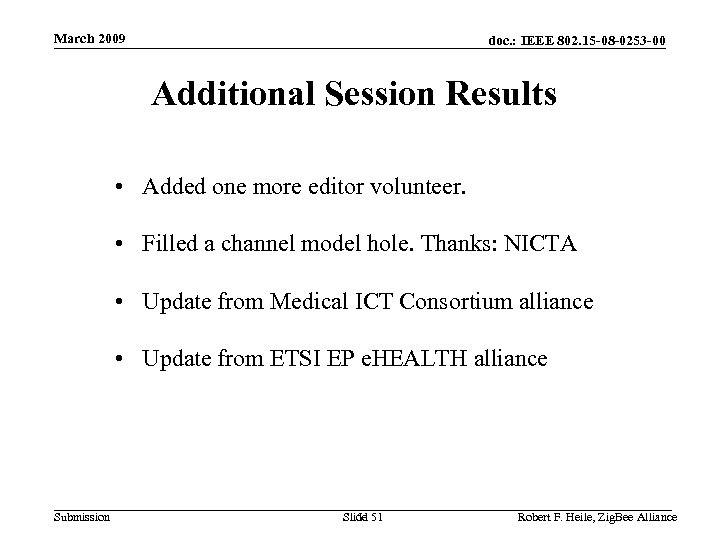

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Additional Session Results • Added one more editor volunteer. • Filled a channel model hole. Thanks: NICTA • Update from Medical ICT Consortium alliance • Update from ETSI EP e. HEALTH alliance Submission Slide 51 51 Robert F. Heile, Zig. Bee Alliance

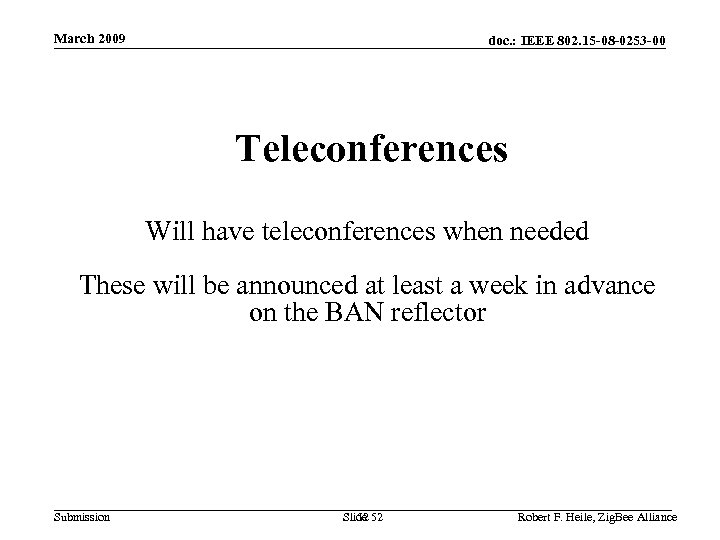

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Teleconferences Will have teleconferences when needed These will be announced at least a week in advance on the BAN reflector Submission Slide 52 52 Robert F. Heile, Zig. Bee Alliance

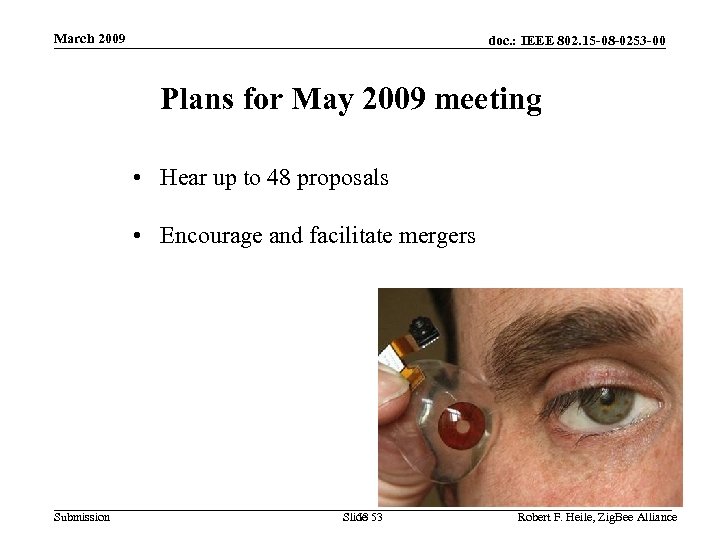

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Plans for May 2009 meeting • Hear up to 48 proposals • Encourage and facilitate mergers Submission Slide 53 53 Robert F. Heile, Zig. Bee Alliance

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Timeline 09 2009 1 2 3 4 5 6 7 8 9 10 11 12 Issue CFP (Call for Proposals) v Hear Proposals > > ^ > > Base line ^ > > > ^ > > > > Close CFP (Call for Proposals) Technical editorial team in place Technical Comments Resolution Draft ready for Letter Ballot Letter Ballot (#1) Recirculation Letter Ballot (#2) Draft ready for Sponsor Ballot Sponsor Ballot Recirculation WG/SEC approval REVCOM approval Submission Slide 54 54 Robert F. Heile, Zig. Bee Alliance

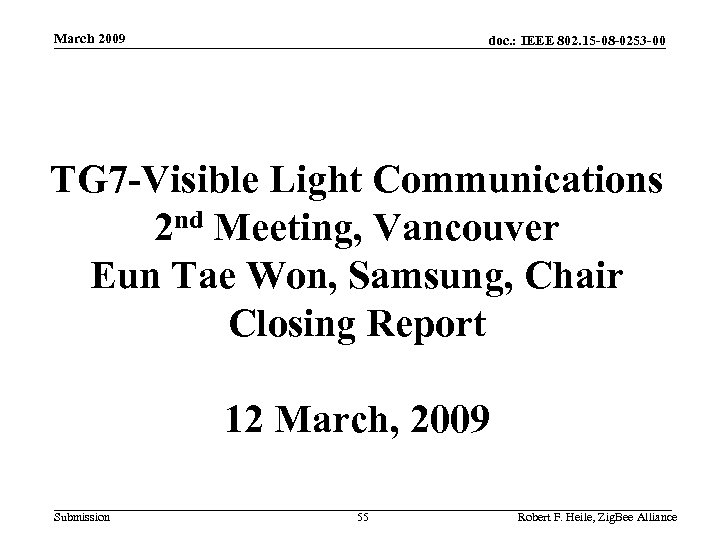

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 TG 7 -Visible Light Communications 2 nd Meeting, Vancouver Eun Tae Won, Samsung, Chair Closing Report 12 March, 2009 Submission 55 Robert F. Heile, Zig. Bee Alliance

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Objectives of Meeting • Call for presentation of VLC • Hearing for presentation of VLC issues • Hearing from subcommittee – VLC Applications – VLC Regulation – Technical Requirement Document Submission Slide 56 56 Robert F. Heile, Zig. Bee Alliance

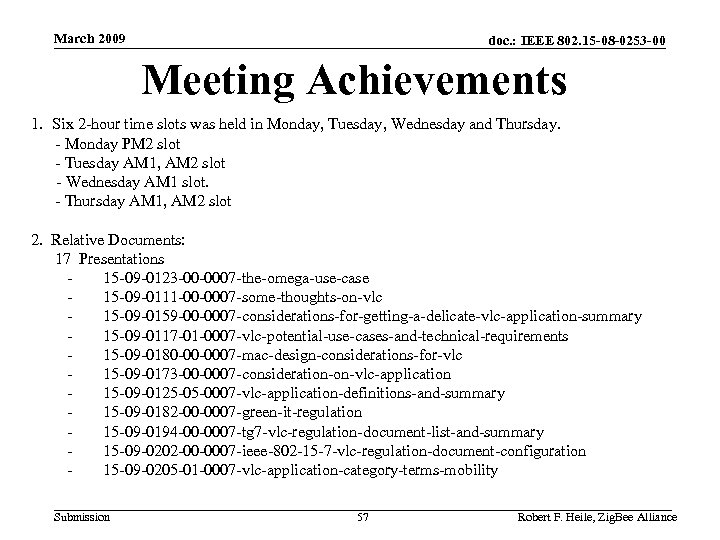

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Meeting Achievements 1. Six 2 -hour time slots was held in Monday, Tuesday, Wednesday and Thursday. - Monday PM 2 slot - Tuesday AM 1, AM 2 slot - Wednesday AM 1 slot. - Thursday AM 1, AM 2 slot 2. Relative Documents: 17 Presentations 15 -09 -0123 -00 -0007 -the-omega-use-case 15 -09 -0111 -00 -0007 -some-thoughts-on-vlc 15 -09 -0159 -00 -0007 -considerations-for-getting-a-delicate-vlc-application-summary 15 -09 -0117 -01 -0007 -vlc-potential-use-cases-and-technical-requirements 15 -09 -0180 -00 -0007 -mac-design-considerations-for-vlc 15 -09 -0173 -00 -0007 -consideration-on-vlc-application 15 -09 -0125 -05 -0007 -vlc-application-definitions-and-summary 15 -09 -0182 -00 -0007 -green-it-regulation 15 -09 -0194 -00 -0007 -tg 7 -vlc-regulation-document-list-and-summary 15 -09 -0202 -00 -0007 -ieee-802 -15 -7 -vlc-regulation-document-configuration 15 -09 -0205 -01 -0007 -vlc-application-category-terms-mobility Submission 57 Robert F. Heile, Zig. Bee Alliance

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Meeting Achievements 2. Relative Documents: 17 Presentations 15 -09 -0209 -00 -0007 -technical-requirements-for-vlc-applications 15 -09 -0218 -00 -0007 -vlc-device-classification-and-mobility-considerations 15 -09 -0221 -01 -0007 -consideration-for-minimum-phy-data-rate-requirement-for-trd 15 -09 -0226 -00 -0007 -vlc-experimental-test-and-results-ii 15 -09 -0204 -00 -0007 -a-standardized-led-infrastructure-lighting-interface 15 -09 -0136 -00 -0007 -qualitative-spectral-analysis-of-common-household-light-sources 3. Subcommittee achievement: - VLC Applications * Draft of application summary document . Terminology / application matrix - VLC Regulation * Draft of application summary document . Call for volunteer about spectrum frequency each contry or continent - Technical Requirement Document * Draft of application summary document . Hearing comment about VLC channel modeling and contents of TRD Submission 58 Robert F. Heile, Zig. Bee Alliance

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Plans for May Meeting • • Presentation of “Call for Application” response Completion of application summary document Presentation of “Call for Technology” response Presentation of “Call for Regulatory” response Submission Slide 59 59 Robert F. Heile, Zig. Bee Alliance

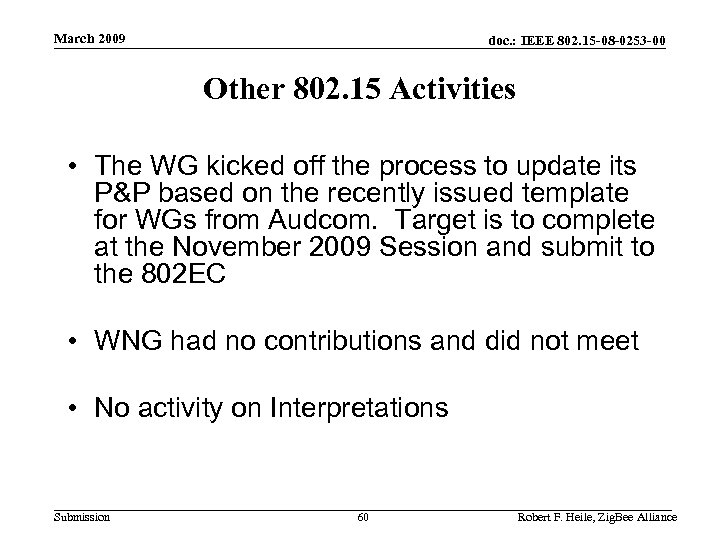

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Other 802. 15 Activities • The WG kicked off the process to update its P&P based on the recently issued template for WGs from Audcom. Target is to complete at the November 2009 Session and submit to the 802 EC • WNG had no contributions and did not meet • No activity on Interpretations Submission 60 Robert F. Heile, Zig. Bee Alliance

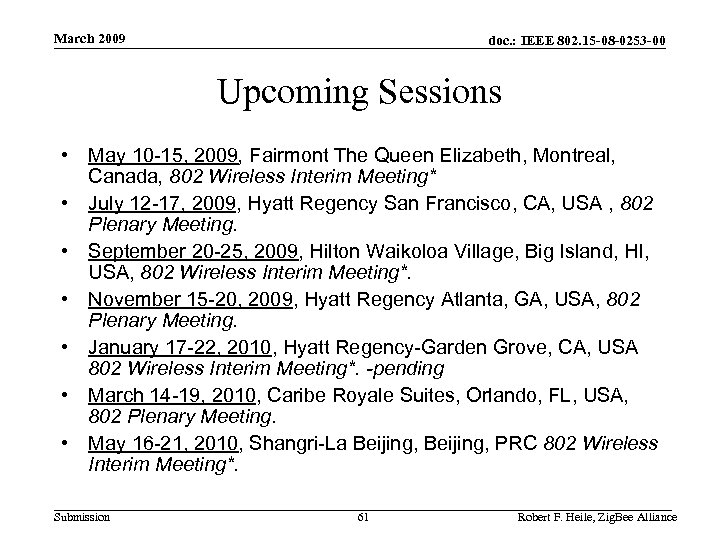

March 2009 doc. : IEEE 802. 15 -08 -0253 -00 Upcoming Sessions • May 10 -15, 2009, Fairmont The Queen Elizabeth, Montreal, Canada, 802 Wireless Interim Meeting* • July 12 -17, 2009, Hyatt Regency San Francisco, CA, USA , 802 Plenary Meeting. • September 20 -25, 2009, Hilton Waikoloa Village, Big Island, HI, USA, 802 Wireless Interim Meeting*. • November 15 -20, 2009, Hyatt Regency Atlanta, GA, USA, 802 Plenary Meeting. • January 17 -22, 2010, Hyatt Regency-Garden Grove, CA, USA 802 Wireless Interim Meeting*. -pending • March 14 -19, 2010, Caribe Royale Suites, Orlando, FL, USA, 802 Plenary Meeting. • May 16 -21, 2010, Shangri-La Beijing, PRC 802 Wireless Interim Meeting*. Submission 61 Robert F. Heile, Zig. Bee Alliance
