Managing Vietnam Forestry with GIS Solutions: Enhancements in Inventory, Harvesting, Conservation and Sustainability Hoang Kim Quang MBA. ANTHI VIETNAM COMPANY LIMITED Cell: 090 420 1111 – E-mail: quanghk@anthi. com. vn

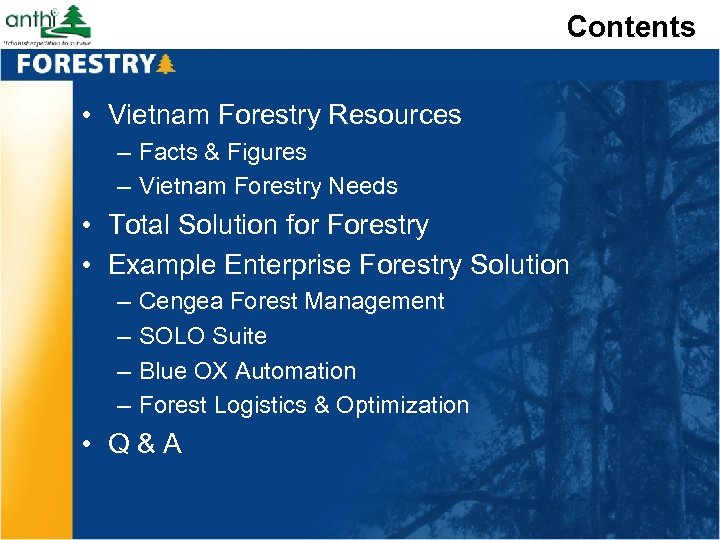

Contents • Vietnam Forestry Resources – Facts & Figures – Vietnam Forestry Needs • Total Solution for Forestry • Example Enterprise Forestry Solution – – Cengea Forest Management SOLO Suite Blue OX Automation Forest Logistics & Optimization • Q&A

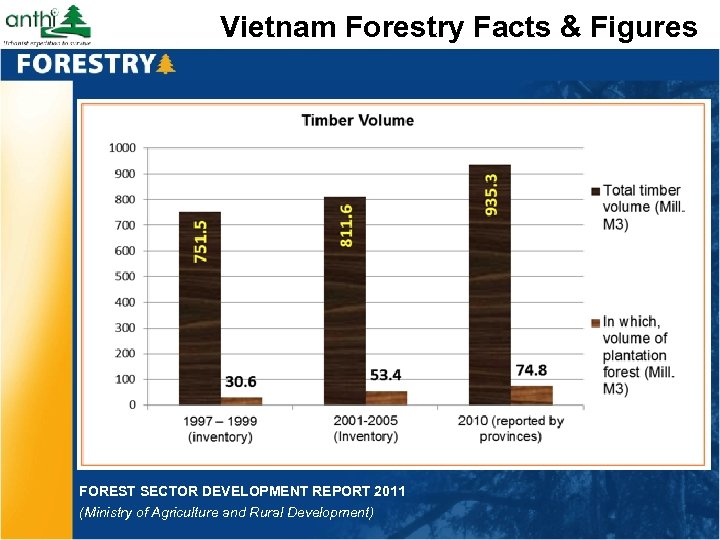

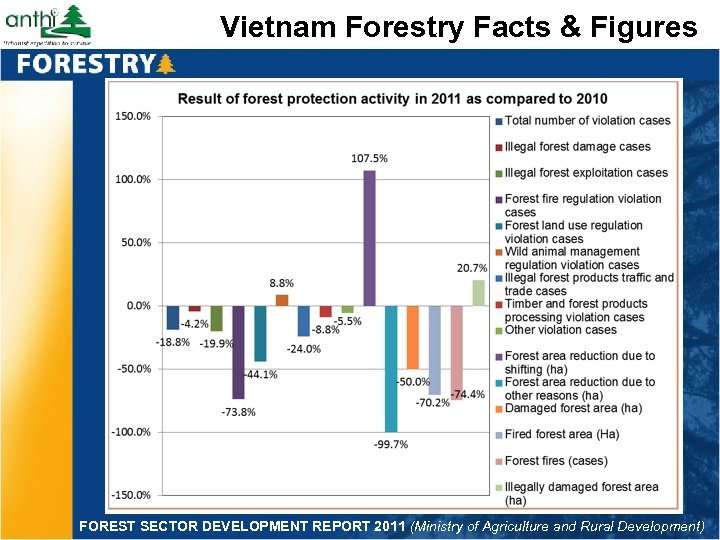

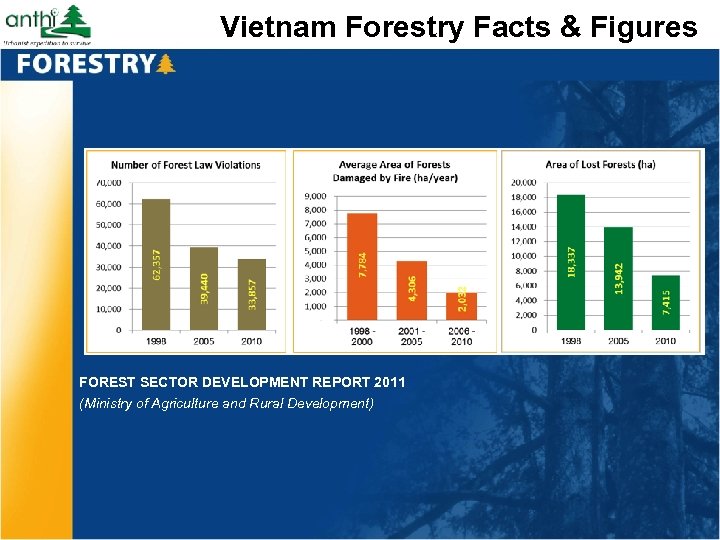

Vietnam Forestry Facts & Figures FOREST SECTOR DEVELOPMENT REPORT 2011 (Ministry of Agriculture and Rural Development)

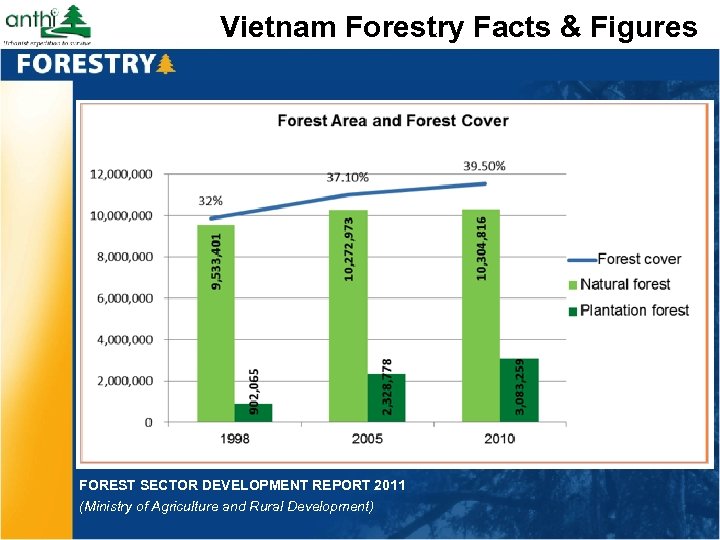

Vietnam Forestry Facts & Figures FOREST SECTOR DEVELOPMENT REPORT 2011 (Ministry of Agriculture and Rural Development)

Vietnam Forestry Facts & Figures FOREST SECTOR DEVELOPMENT REPORT 2011 (Ministry of Agriculture and Rural Development)

Vietnam Forestry Facts & Figures FOREST SECTOR DEVELOPMENT REPORT 2011 (Ministry of Agriculture and Rural Development)

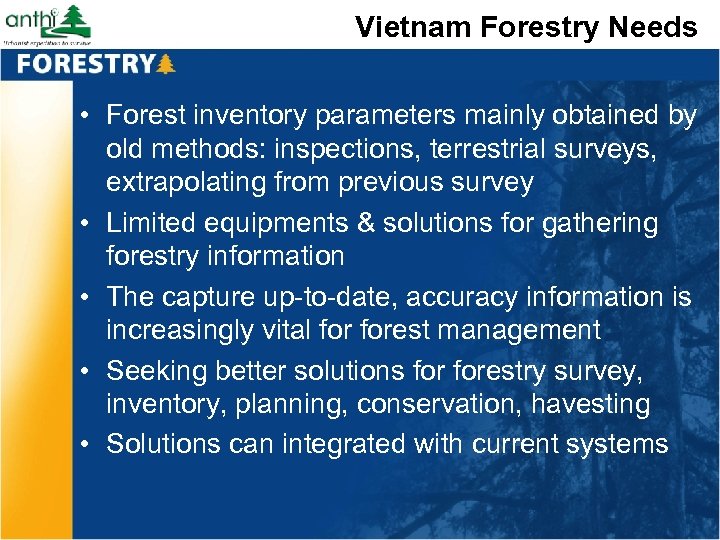

Vietnam Forestry Needs • Forest inventory parameters mainly obtained by old methods: inspections, terrestrial surveys, extrapolating from previous survey • Limited equipments & solutions for gathering forestry information • The capture up-to-date, accuracy information is increasingly vital forest management • Seeking better solutions forestry survey, inventory, planning, conservation, havesting • Solutions can integrated with current systems

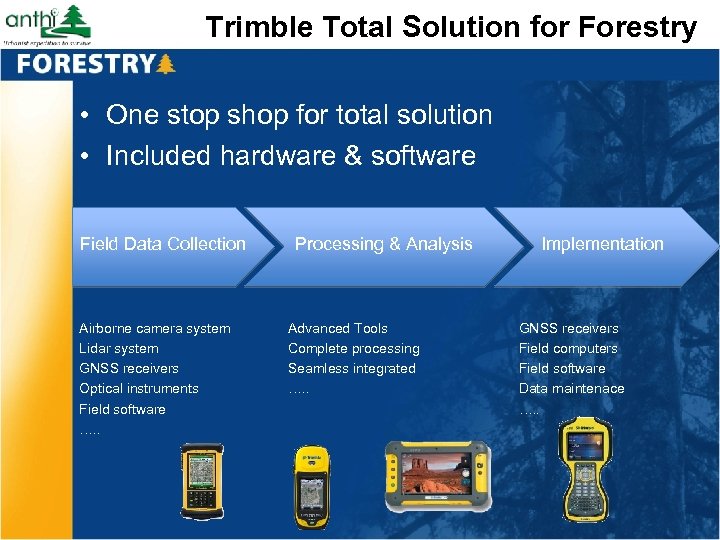

Trimble Total Solution for Forestry • One stop shop for total solution • Included hardware & software Field Data Collection Airborne camera system Lidar system GNSS receivers Optical instruments Field software …. . Processing & Analysis Advanced Tools Complete processing Seamless integrated …. . Implementation GNSS receivers Field computers Field software Data maintenace …. .

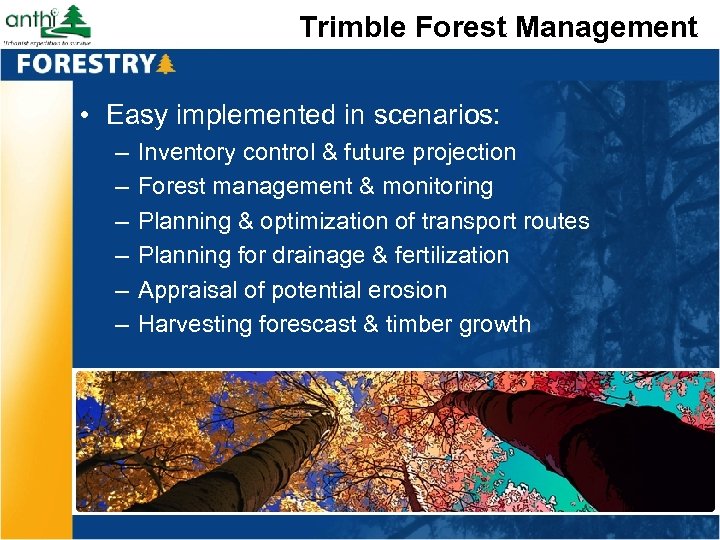

Trimble Forest Management • Easy implemented in scenarios: – – – Inventory control & future projection Forest management & monitoring Planning & optimization of transport routes Planning for drainage & fertilization Appraisal of potential erosion Harvesting forescast & timber growth

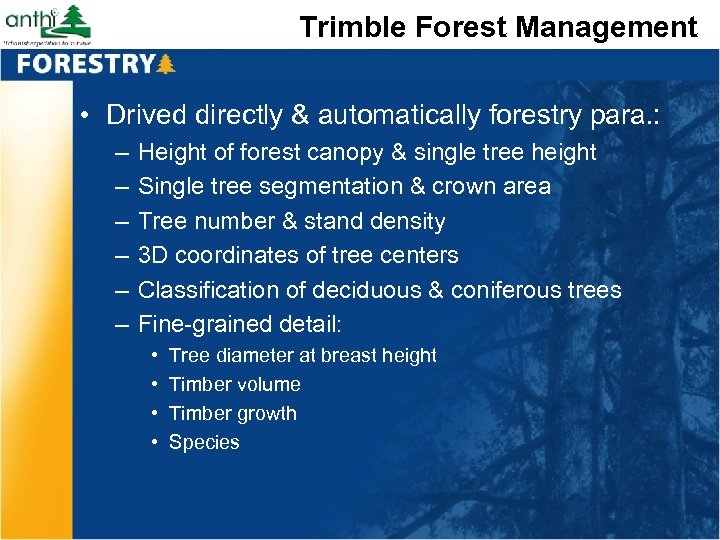

Trimble Forest Management • Drived directly & automatically forestry para. : – – – Height of forest canopy & single tree height Single tree segmentation & crown area Tree number & stand density 3 D coordinates of tree centers Classification of deciduous & coniferous trees Fine-grained detail: • • Tree diameter at breast height Timber volume Timber growth Species

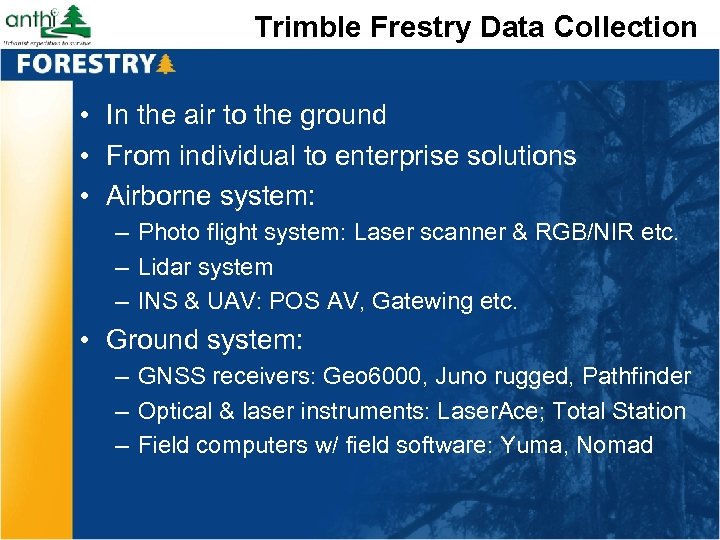

Trimble Frestry Data Collection • In the air to the ground • From individual to enterprise solutions • Airborne system: – Photo flight system: Laser scanner & RGB/NIR etc. – Lidar system – INS & UAV: POS AV, Gatewing etc. • Ground system: – GNSS receivers: Geo 6000, Juno rugged, Pathfinder – Optical & laser instruments: Laser. Ace; Total Station – Field computers w/ field software: Yuma, Nomad

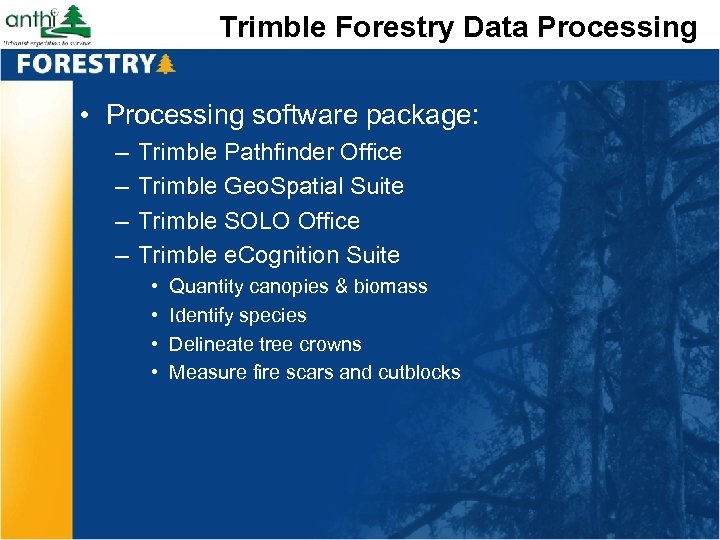

Trimble Forestry Data Processing • Processing software package: – – Trimble Pathfinder Office Trimble Geo. Spatial Suite Trimble SOLO Office Trimble e. Cognition Suite • • Quantity canopies & biomass Identify species Delineate tree crowns Measure fire scars and cutblocks

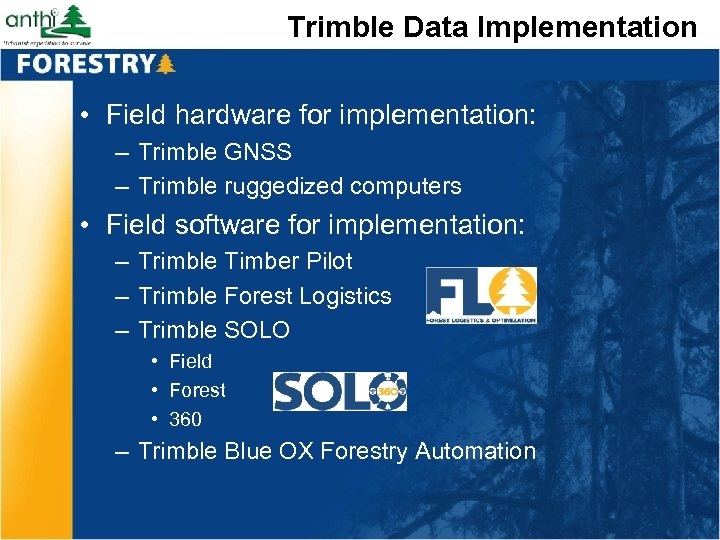

Trimble Data Implementation • Field hardware for implementation: – Trimble GNSS – Trimble ruggedized computers • Field software for implementation: – Trimble Timber Pilot – Trimble Forest Logistics – Trimble SOLO • Field • Forest • 360 – Trimble Blue OX Forestry Automation

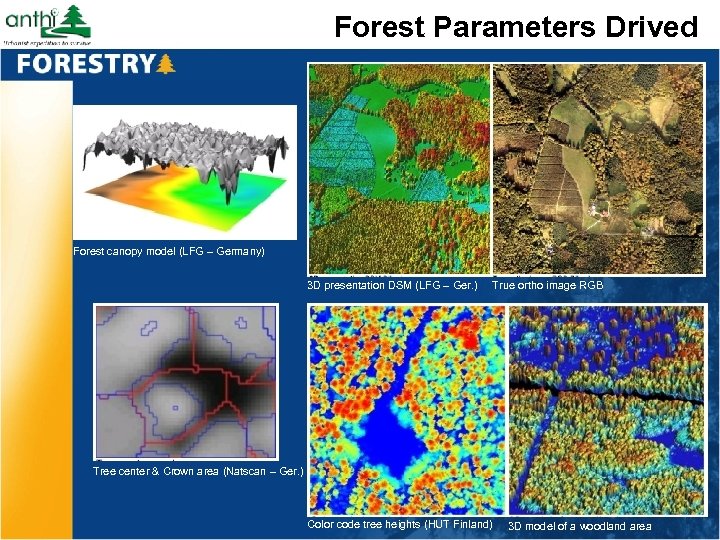

Forest Parameters Drived Forest canopy model (LFG – Germany) 3 D presentation DSM (LFG – Ger. ) True ortho image RGB Tree center & Crown area (Natscan – Ger. ) Color code tree heights (HUT Finland) 3 D model of a woodland area

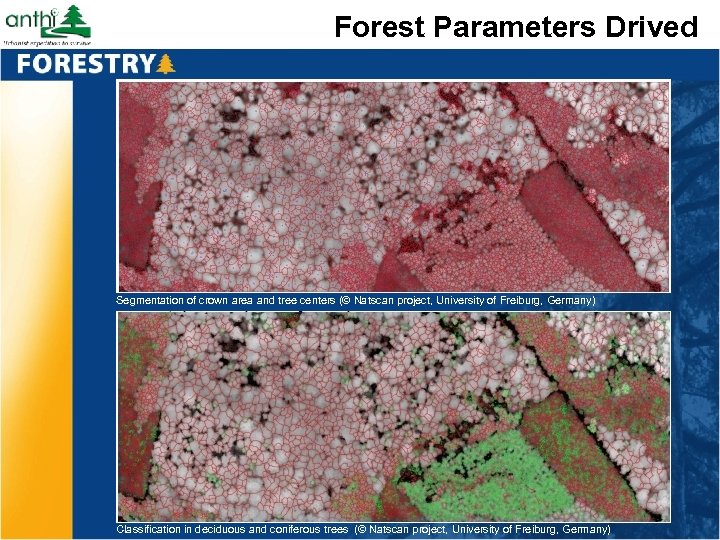

Forest Parameters Drived Segmentation of crown area and tree centers (© Natscan project, University of Freiburg, Germany) Classification in deciduous and coniferous trees (© Natscan project, University of Freiburg, Germany)

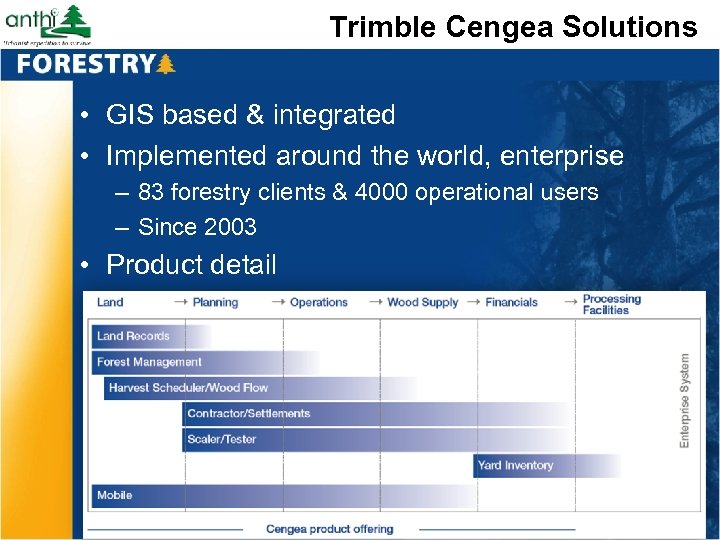

Trimble Cengea Solutions • GIS based & integrated • Implemented around the world, enterprise – 83 forestry clients & 4000 operational users – Since 2003 • Product detail

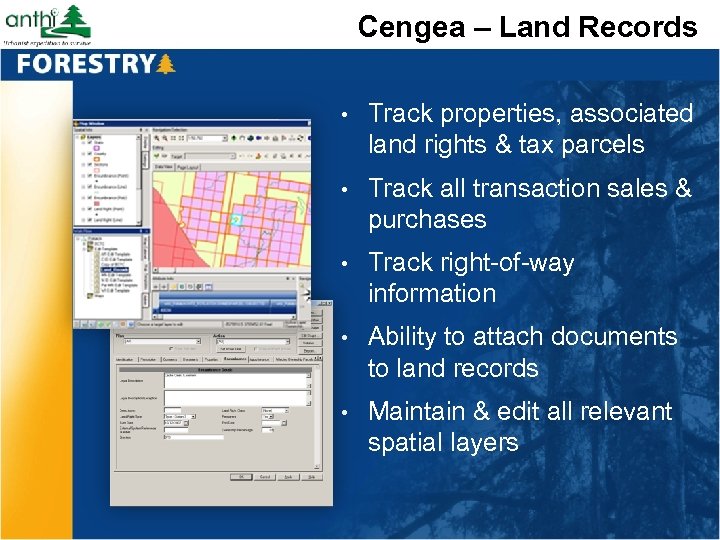

Cengea – Land Records • Track properties, associated land rights & tax parcels • Track all transaction sales & purchases • Track right-of-way information • Ability to attach documents to land records • Maintain & edit all relevant spatial layers

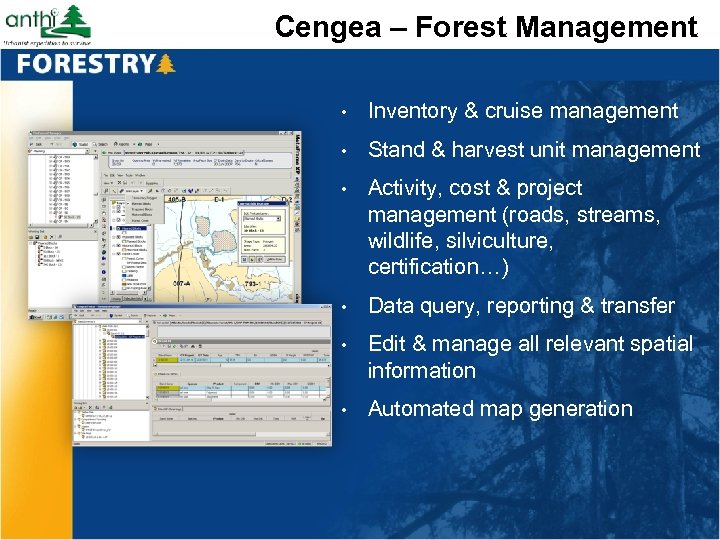

Cengea – Forest Management • Inventory & cruise management • Stand & harvest unit management • Activity, cost & project management (roads, streams, wildlife, silviculture, certification…) • Data query, reporting & transfer • Edit & manage all relevant spatial information • Automated map generation

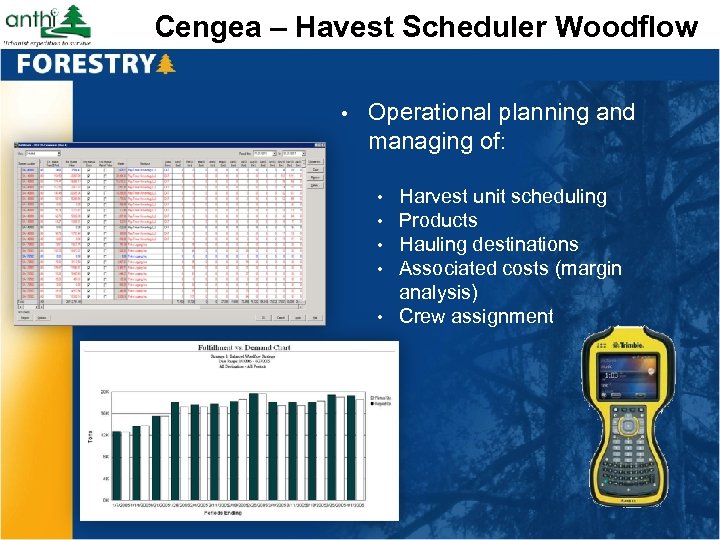

Cengea – Havest Scheduler Woodflow • Operational planning and managing of: • • • Harvest unit scheduling Products Hauling destinations Associated costs (margin analysis) Crew assignment

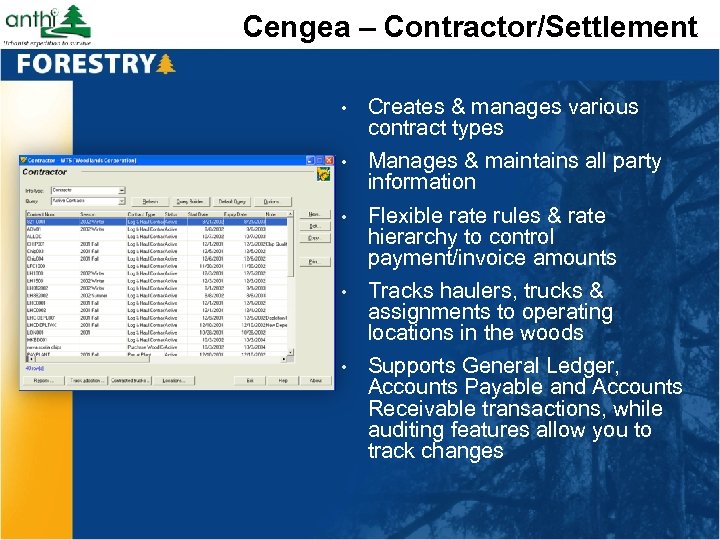

Cengea – Contractor/Settlement • Creates & manages various contract types • Manages & maintains all party information • Flexible rate rules & rate hierarchy to control payment/invoice amounts • Tracks haulers, trucks & assignments to operating locations in the woods • Supports General Ledger, Accounts Payable and Accounts Receivable transactions, while auditing features allow you to track changes

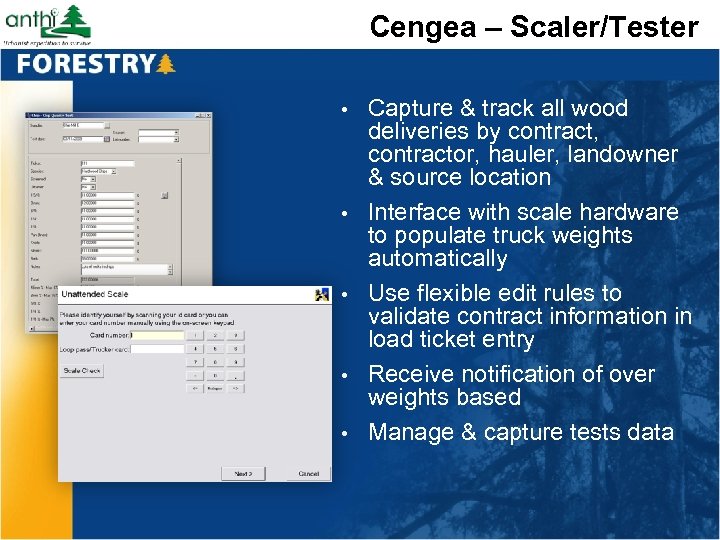

Cengea – Scaler/Tester • • • Capture & track all wood deliveries by contract, contractor, hauler, landowner & source location Interface with scale hardware to populate truck weights automatically Use flexible edit rules to validate contract information in load ticket entry Receive notification of over weights based Manage & capture tests data

Trimble SOLO Product Family • SOLO Office – Job setup, Data transfer, Image processing • SOLO Field / SOLO Forest – GPS/GIS data collection in the field • SOLO 360 – Data check out / check in extension for Arc. GIS to get data to SOLO Forest

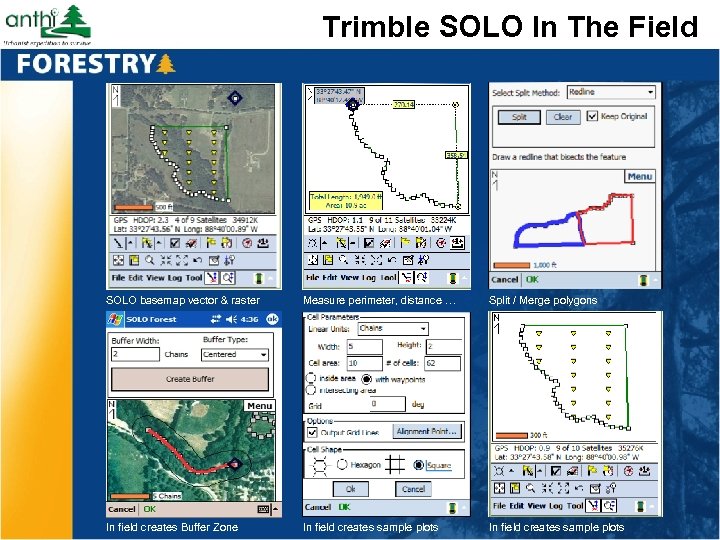

Trimble SOLO In The Field SOLO basemap vector & raster Measure perimeter, distance … Split / Merge polygons In field creates Buffer Zone In field creates sample plots

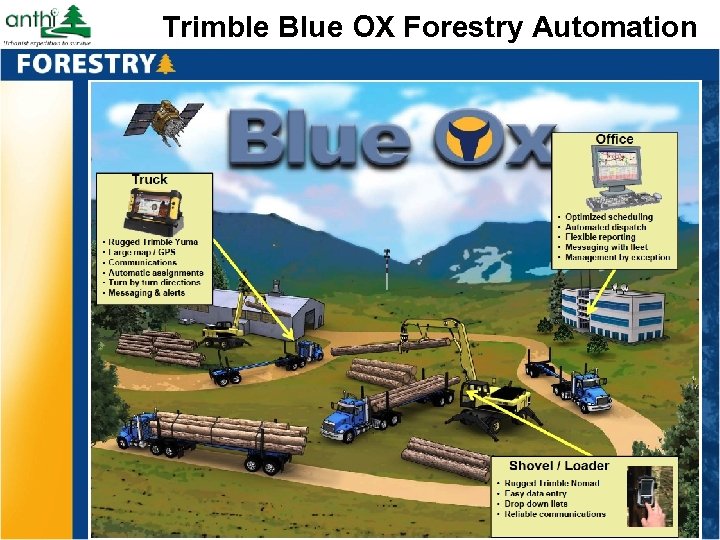

Trimble Blue OX Forestry Automation

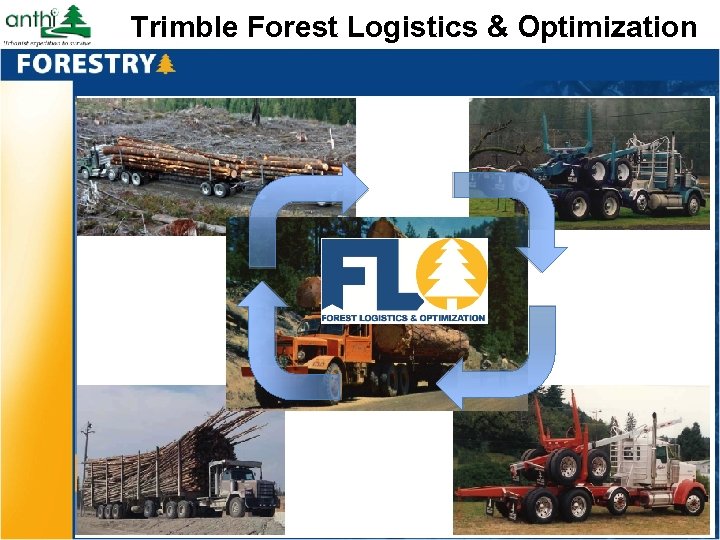

Trimble Forest Logistics & Optimization

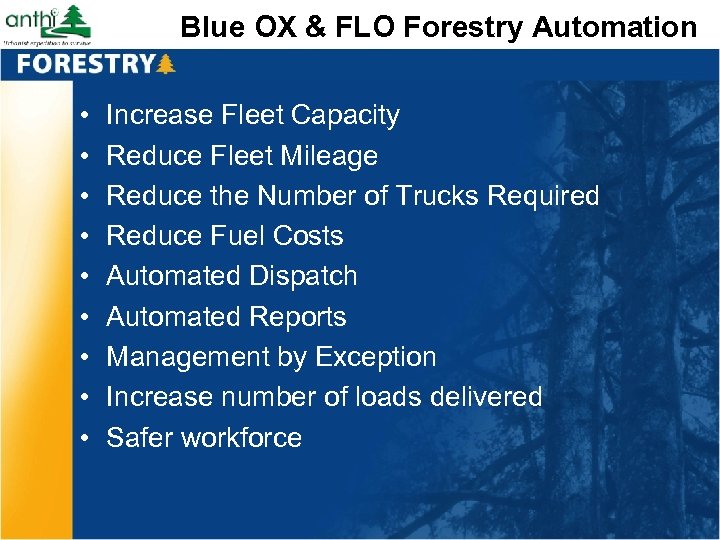

Blue OX & FLO Forestry Automation • • • Increase Fleet Capacity Reduce Fleet Mileage Reduce the Number of Trucks Required Reduce Fuel Costs Automated Dispatch Automated Reports Management by Exception Increase number of loads delivered Safer workforce

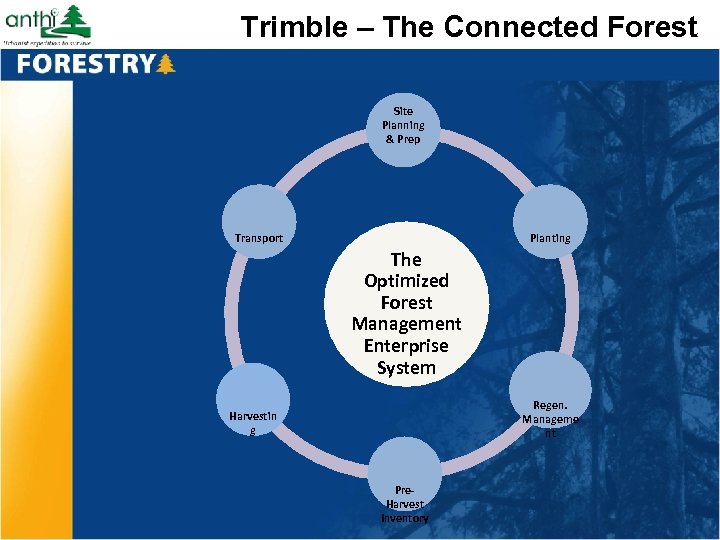

Trimble – The Connected Forest Site Planning & Prep Transport Planting The Optimized Forest Management Enterprise System Regen. Manageme nt Harvestin g Pre. Harvest Inventory

Q&A Thank you for your attention!
