Managing the Lifecycle of Hollywood Data Brian Olson, Chief Technology Officer Atempo Inc. February 2007

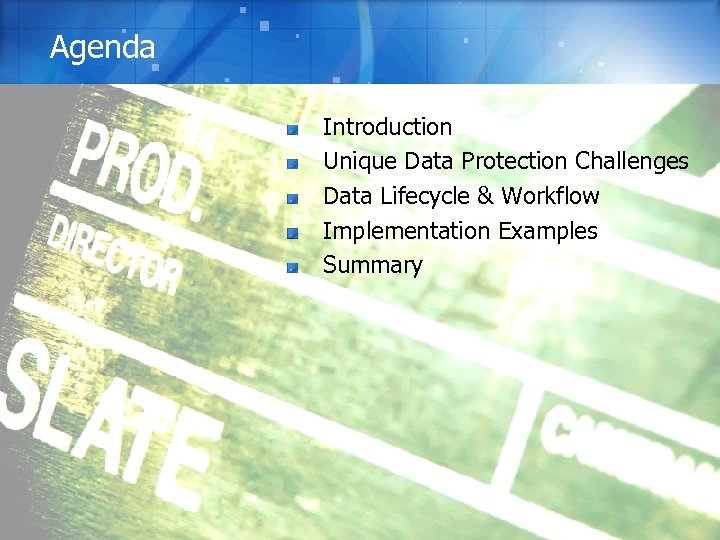

Agenda Introduction Unique Data Protection Challenges Data Lifecycle & Workflow Implementation Examples Summary 2
Introduction

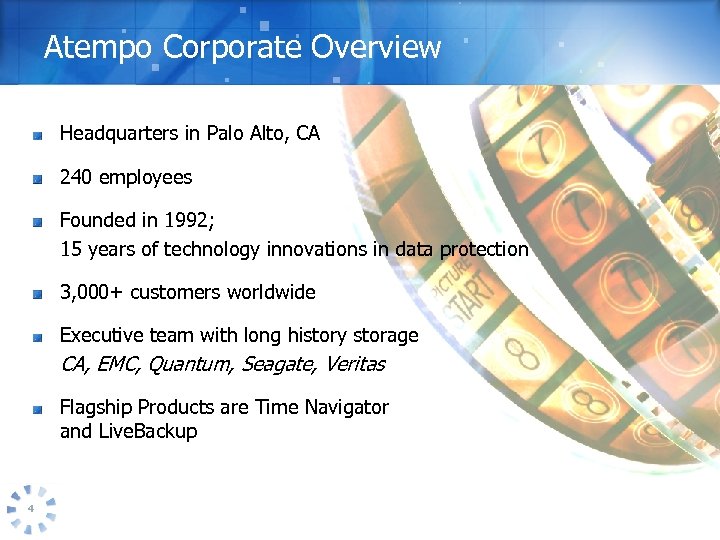

Atempo Corporate Overview Headquarters in Palo Alto, CA 240 employees Founded in 1992; 15 years of technology innovations in data protection 3, 000+ customers worldwide Executive team with long history storage CA, EMC, Quantum, Seagate, Veritas Flagship Products are Time Navigator and Live. Backup 4

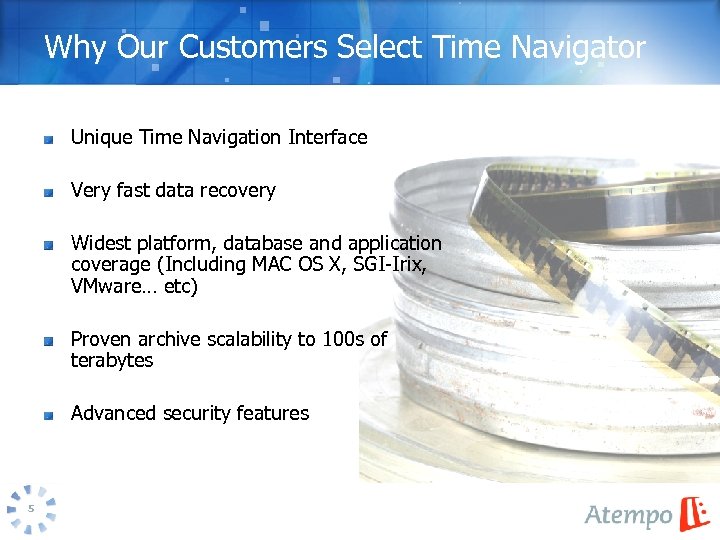

Why Our Customers Select Time Navigator Unique Time Navigation Interface Very fast data recovery Widest platform, database and application coverage (Including MAC OS X, SGI-Irix, VMware… etc) Proven archive scalability to 100 s of terabytes Advanced security features 5

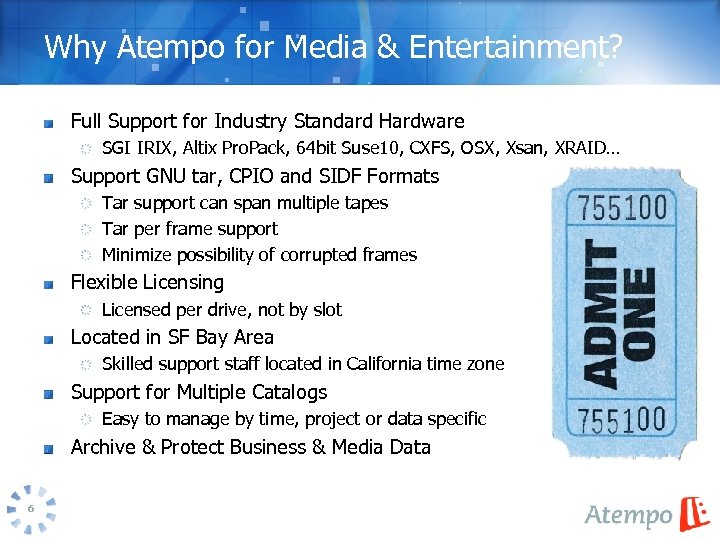

Why Atempo for Media & Entertainment? Full Support for Industry Standard Hardware SGI IRIX, Altix Pro. Pack, 64 bit Suse 10, CXFS, OSX, Xsan, XRAID… Support GNU tar, CPIO and SIDF Formats Tar support can span multiple tapes Tar per frame support Minimize possibility of corrupted frames Flexible Licensing Licensed per drive, not by slot Located in SF Bay Area Skilled support staff located in California time zone Support for Multiple Catalogs Easy to manage by time, project or data specific Archive & Protect Business & Media Data 6

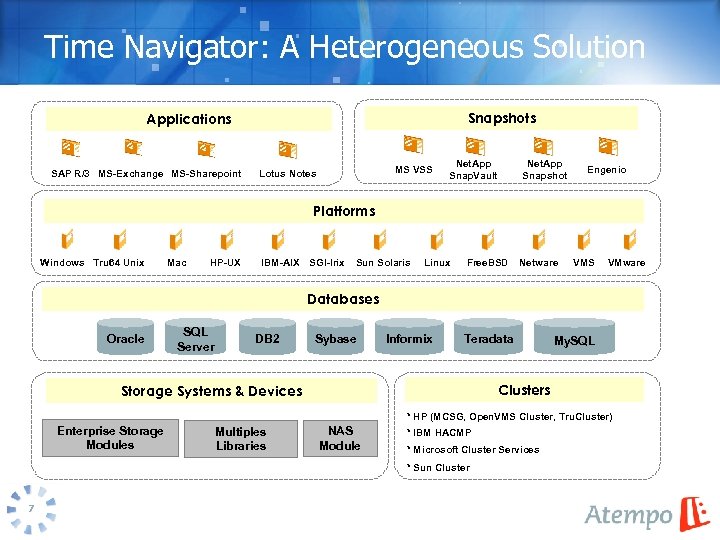

Time Navigator: A Heterogeneous Solution Snapshots Applications SAP R/3 MS-Exchange MS-Sharepoint MS VSS Lotus Notes Net. App Snap. Vault Net. App Snapshot Engenio Platforms Windows Tru 64 Unix Mac HP-UX IBM-AIX SGI-Irix Sun Solaris Linux Free. BSD Netware VMS VMware Databases Oracle SQL Server DB 2 Sybase Informix Teradata My. SQL Clusters Storage Systems & Devices * HP (MCSG, Open. VMS Cluster, Tru. Cluster) Enterprise Storage Modules Multiples Libraries NAS Module * IBM HACMP * Microsoft Cluster Services * Sun Cluster 7

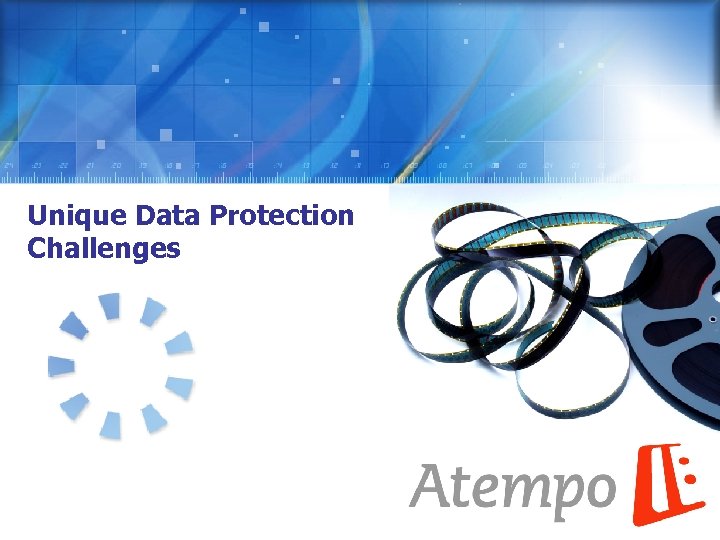

Unique Data Protection Challenges

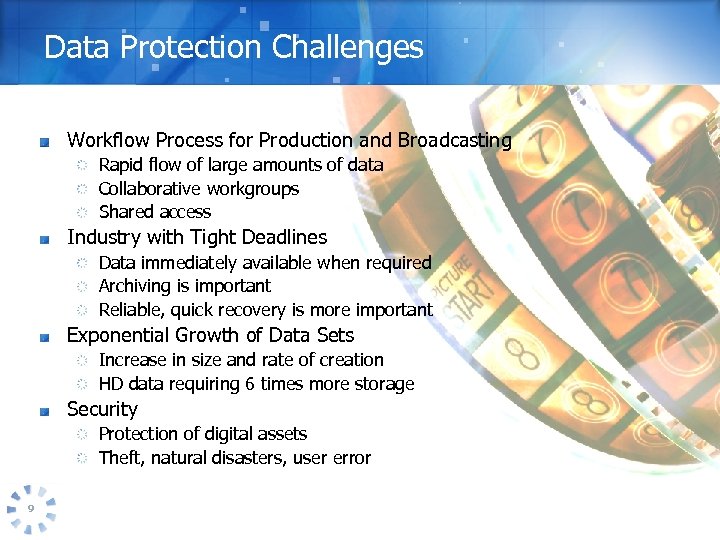

Data Protection Challenges Workflow Process for Production and Broadcasting Rapid flow of large amounts of data Collaborative workgroups Shared access Industry with Tight Deadlines Data immediately available when required Archiving is important Reliable, quick recovery is more important Exponential Growth of Data Sets Increase in size and rate of creation HD data requiring 6 times more storage Security Protection of digital assets Theft, natural disasters, user error 9
Data Lifecycle & Workflow
Data Workflow and Lifecycle Transparent and Continuous Access to Data created or ingested Data saved to disk Data archived to tape File is moved to archive Archive recovered from tape Start Time Minutes/hours Creation / Capture Days/Weeks/Months Delivery Years Initial Processing Short Term Archiving Editing/ Processing Various Formats Long Term Archiving Primary Storage Expensive disk 11 Tape Storage More affordable tape Disk Storage Expensive disk Tape Storage Cheap/Secure long term storage media

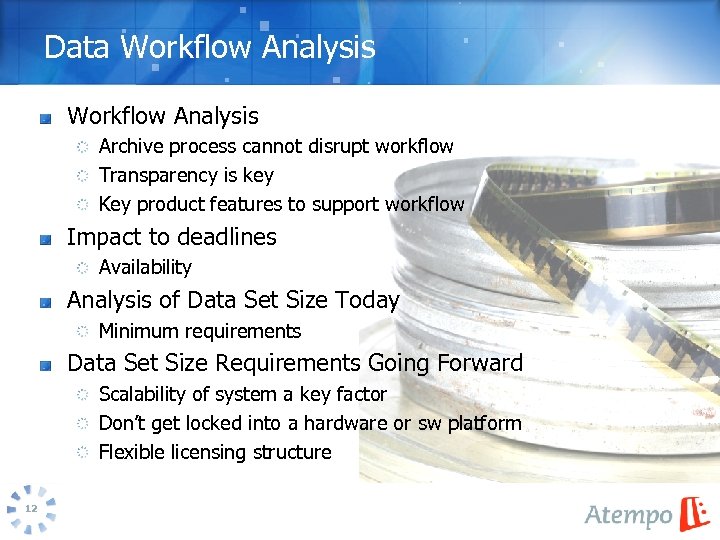

Data Workflow Analysis Archive process cannot disrupt workflow Transparency is key Key product features to support workflow Impact to deadlines Availability Analysis of Data Set Size Today Minimum requirements Data Set Size Requirements Going Forward Scalability of system a key factor Don’t get locked into a hardware or sw platform Flexible licensing structure 12
Implementation Examples

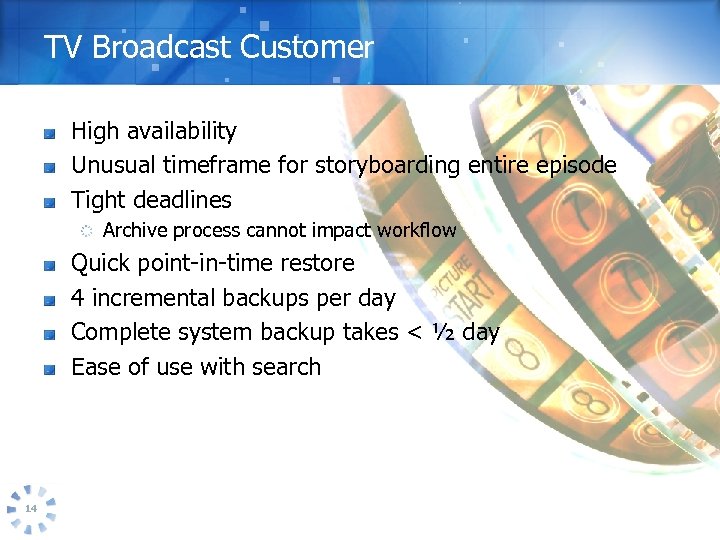

TV Broadcast Customer High availability Unusual timeframe for storyboarding entire episode Tight deadlines Archive process cannot impact workflow Quick point-in-time restore 4 incremental backups per day Complete system backup takes < ½ day Ease of use with search 14
Large Scale Digital Film Laboratory Short & Long Term Archiving Data ingested to SAN Migrated to tape (2 -3 weeks) Short Term Archive When editorial team is ready, data can be recovered quickly Minimal impact to production workflow Once finished, data archived to tape Long Term Archiving 15

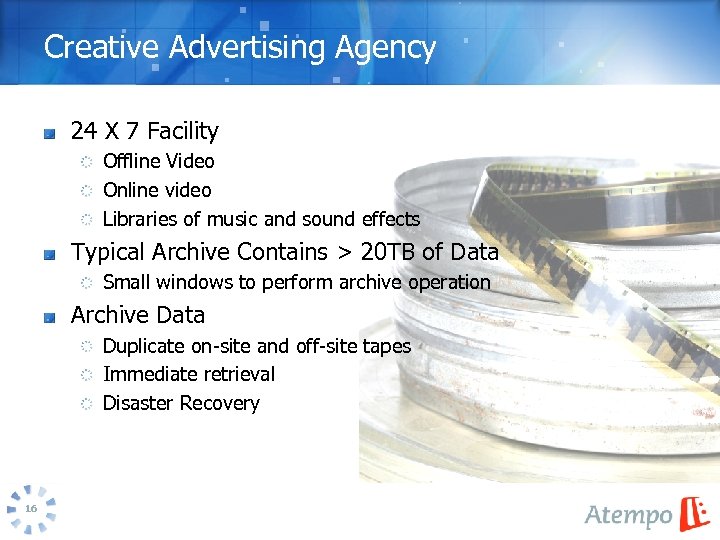

Creative Advertising Agency 24 X 7 Facility Offline Video Online video Libraries of music and sound effects Typical Archive Contains > 20 TB of Data Small windows to perform archive operation Archive Data Duplicate on-site and off-site tapes Immediate retrieval Disaster Recovery 16
Summary

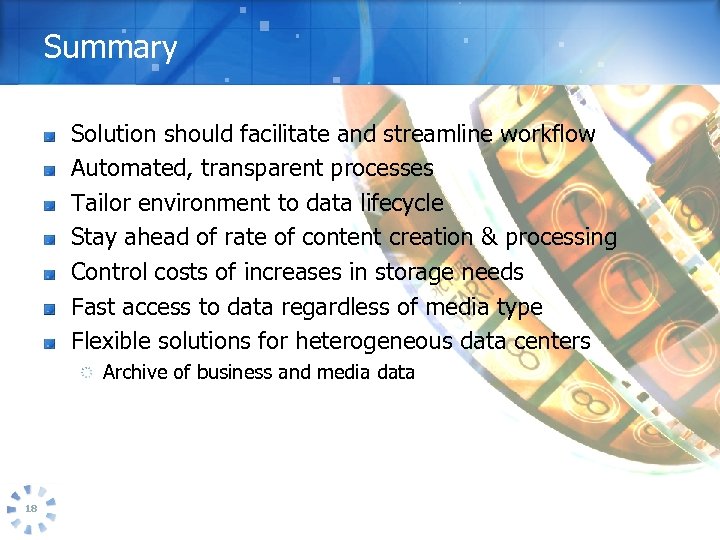

Summary Solution should facilitate and streamline workflow Automated, transparent processes Tailor environment to data lifecycle Stay ahead of rate of content creation & processing Control costs of increases in storage needs Fast access to data regardless of media type Flexible solutions for heterogeneous data centers Archive of business and media data 18
Thank You
