Magic Box Technical Training 10 11 2013 2013 Clear

© 2013 Clear. One Communications. Confidential and proprietary.

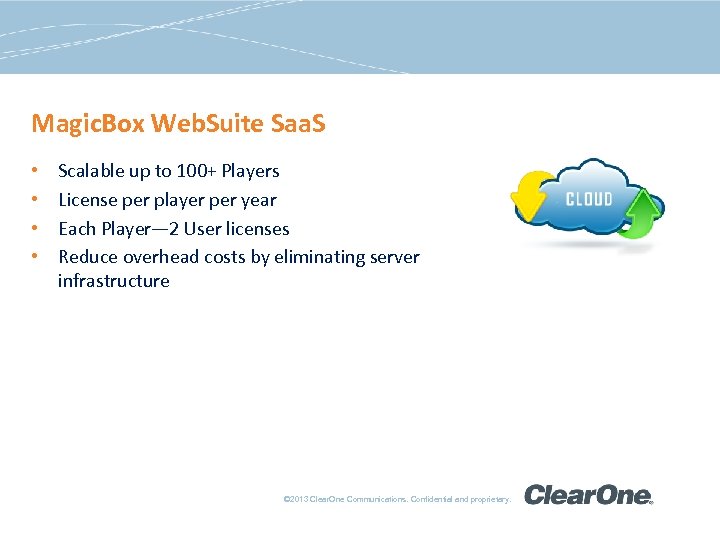

Magic. Box Web. Suite Saa. S • • Scalable up to 100+ Players License per player per year Each Player— 2 User licenses Reduce overhead costs by eliminating server infrastructure © 2013 Clear. One Communications. Confidential and proprietary.

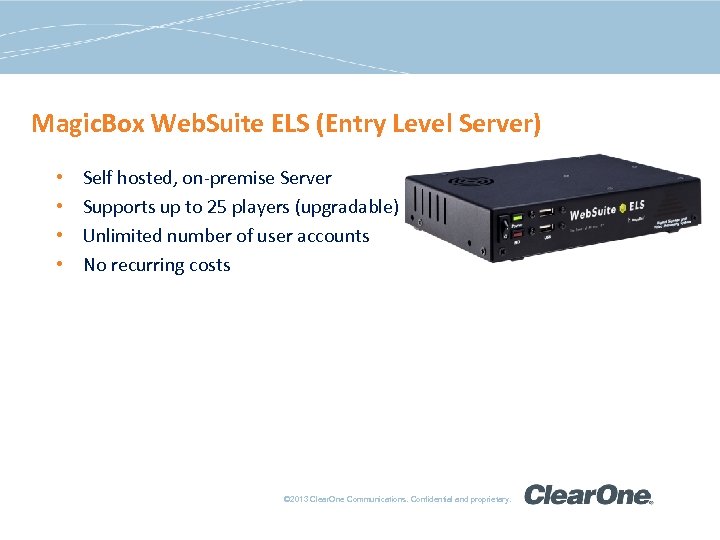

Magic. Box Web. Suite ELS (Entry Level Server) • • Self hosted, on-premise Server Supports up to 25 players (upgradable) Unlimited number of user accounts No recurring costs © 2013 Clear. One Communications. Confidential and proprietary.

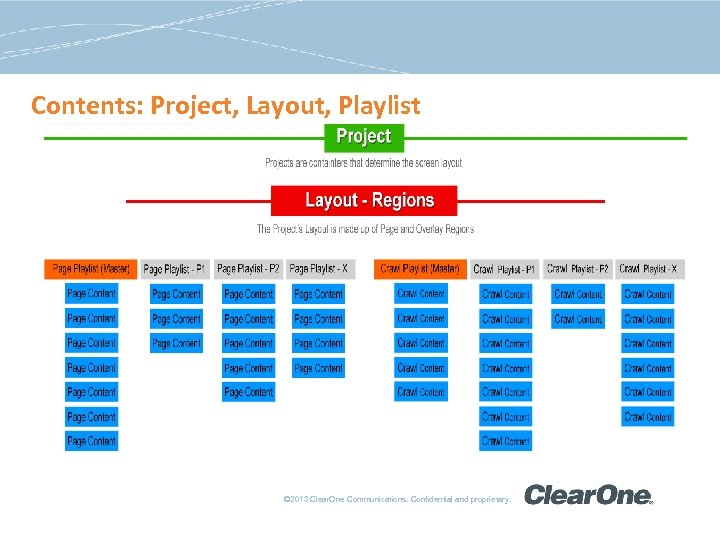

Contents: Project, Layout, Playlist © 2013 Clear. One Communications. Confidential and proprietary.

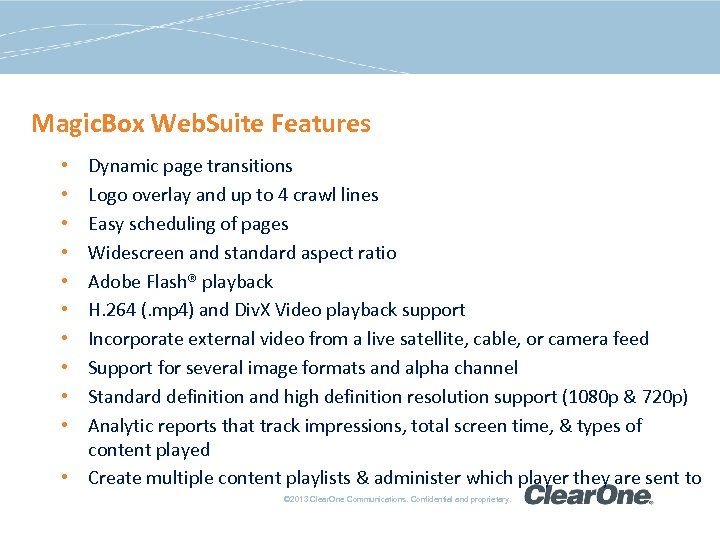

Magic. Box Web. Suite Features Dynamic page transitions Logo overlay and up to 4 crawl lines Easy scheduling of pages Widescreen and standard aspect ratio Adobe Flash® playback H. 264 (. mp 4) and Div. X Video playback support Incorporate external video from a live satellite, cable, or camera feed Support for several image formats and alpha channel Standard definition and high definition resolution support (1080 p & 720 p) Analytic reports that track impressions, total screen time, & types of content played • Create multiple content playlists & administer which player they are sent to • • • © 2013 Clear. One Communications. Confidential and proprietary.

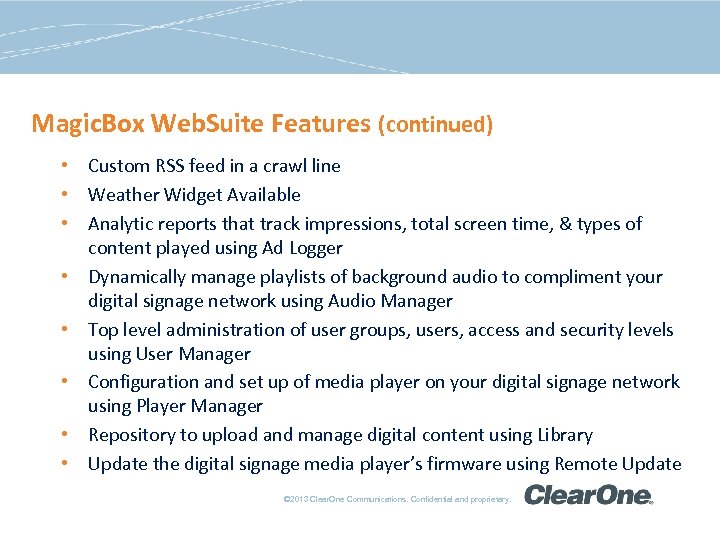

Magic. Box Web. Suite Features (continued) • Custom RSS feed in a crawl line • Weather Widget Available • Analytic reports that track impressions, total screen time, & types of content played using Ad Logger • Dynamically manage playlists of background audio to compliment your digital signage network using Audio Manager • Top level administration of user groups, users, access and security levels using User Manager • Configuration and set up of media player on your digital signage network using Player Manager • Repository to upload and manage digital content using Library • Update the digital signage media player’s firmware using Remote Update © 2013 Clear. One Communications. Confidential and proprietary.

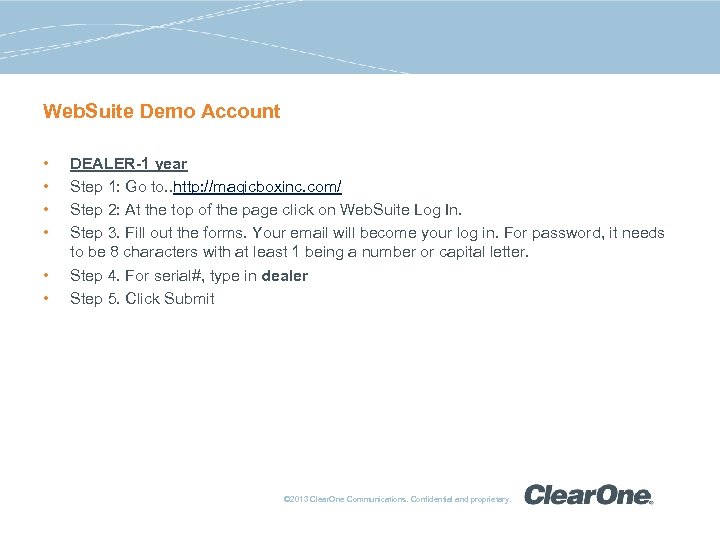

Web. Suite Demo Account • • • DEALER-1 year Step 1: Go to. . http: //magicboxinc. com/ Step 2: At the top of the page click on Web. Suite Log In. Step 3. Fill out the forms. Your email will become your log in. For password, it needs to be 8 characters with at least 1 being a number or capital letter. Step 4. For serial#, type in dealer Step 5. Click Submit © 2013 Clear. One Communications. Confidential and proprietary.

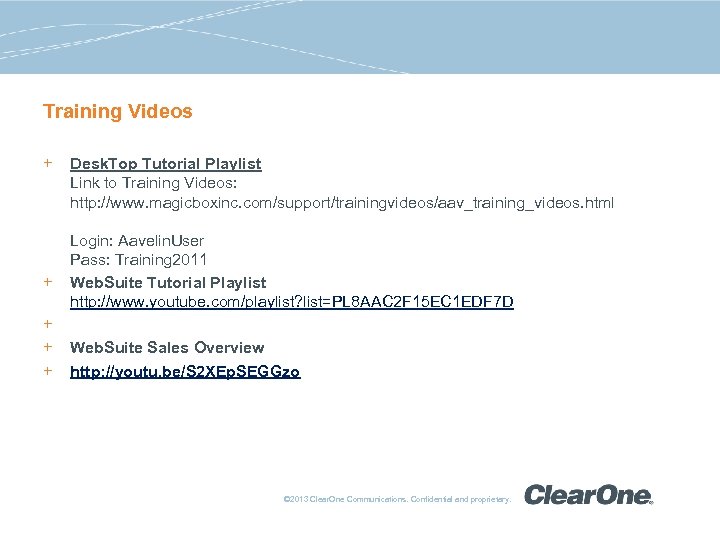

Training Videos + + + Desk. Top Tutorial Playlist Link to Training Videos: http: //www. magicboxinc. com/support/trainingvideos/aav_training_videos. html Login: Aavelin. User Pass: Training 2011 Web. Suite Tutorial Playlist http: //www. youtube. com/playlist? list=PL 8 AAC 2 F 15 EC 1 EDF 7 D Web. Suite Sales Overview http: //youtu. be/S 2 XEp. SEGGzo © 2013 Clear. One Communications. Confidential and proprietary.

Tools • Software for video encoding: Video Mastering Works 5 ($100) http: //tmpgenc. pegasys-inc.

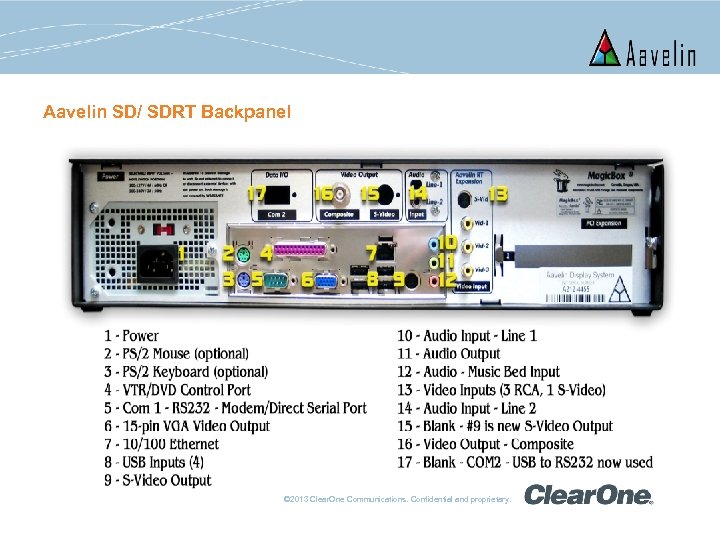

Aavelin SD/ SDRT Backpanel © 2013 Clear. One Communications. Confidential and proprietary.

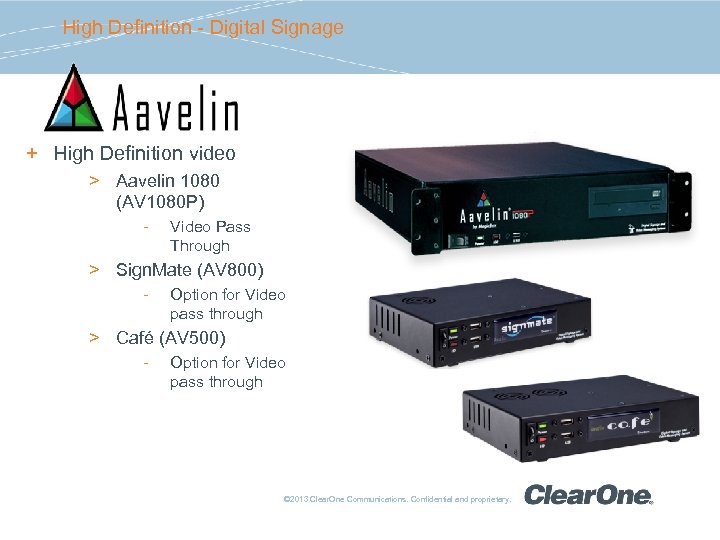

High Definition - Digital Signage + High Definition video > Aavelin 1080 (AV 1080 P) - Video Pass Through > Sign. Mate (AV 800) - Option for Video pass through > Café (AV 500) - Option for Video pass through © 2013 Clear. One Communications. Confidential and proprietary.

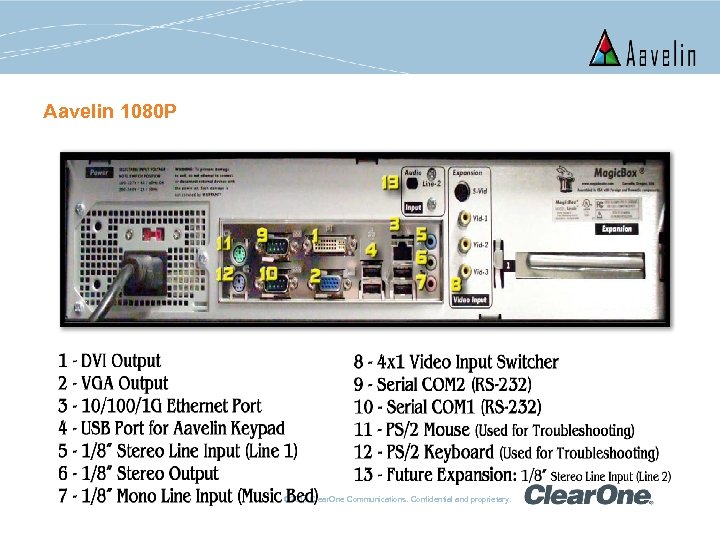

Aavelin 1080 P © 2013 Clear. One Communications. Confidential and proprietary.

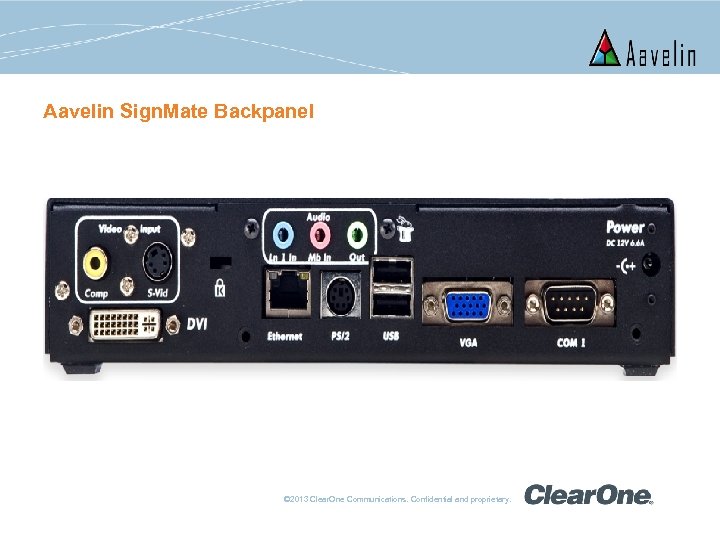

Aavelin Sign. Mate Backpanel © 2013 Clear. One Communications. Confidential and proprietary.

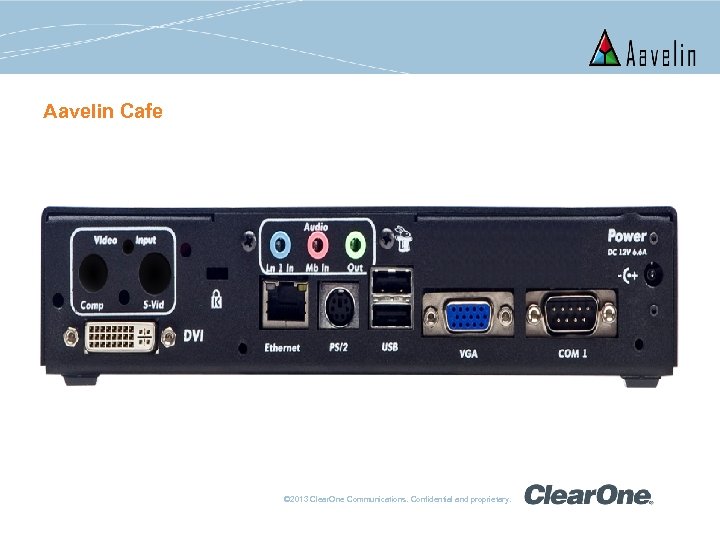

Aavelin Cafe © 2013 Clear. One Communications. Confidential and proprietary.

Aavelin Unit Set Up On Screen Menu IP Addressable © 2013 Clear. One Communications.

EZ Stream & Room. Roster Fully-Automated Room Scheduling Solution 3/19/2018 © 2013 Clear. One

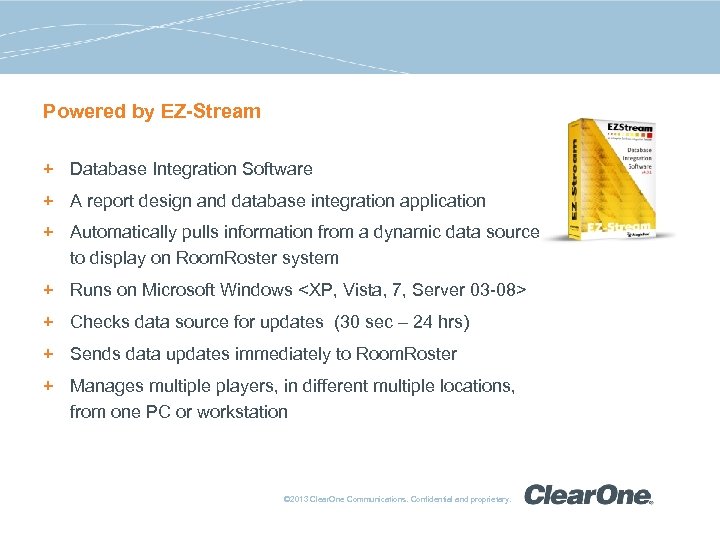

Powered by EZ-Stream + Database Integration Software + A report design and database integration application + Automatically pulls information from a dynamic data source to display on Room. Roster system + Runs on Microsoft Windows <XP, Vista, 7, Server 03 -08> + Checks data source for updates (30 sec – 24 hrs) + Sends data updates immediately to Room. Roster + Manages multiple players, in different multiple locations, from one PC or workstation © 2013 Clear. One Communications. Confidential and proprietary.

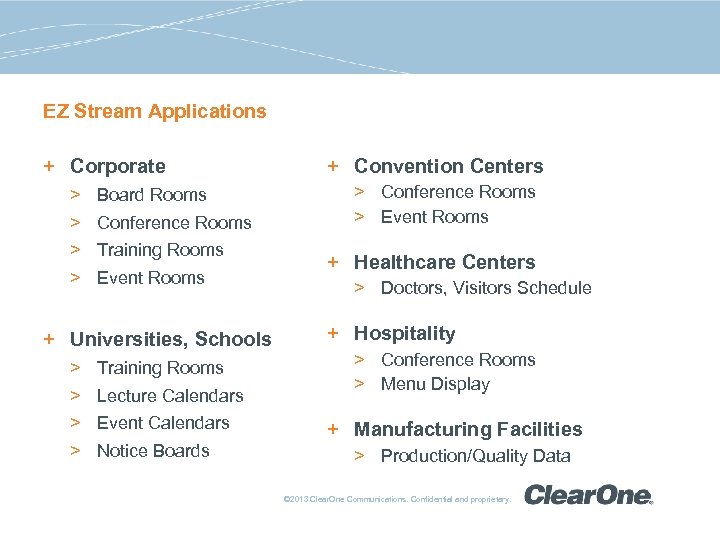

EZ Stream Applications + Corporate > > Board Rooms Conference Rooms Training Rooms Event Rooms + Universities, Schools > > Training Rooms Lecture Calendars Event Calendars Notice Boards + Convention Centers > Conference Rooms > Event Rooms + Healthcare Centers > Doctors, Visitors Schedule + Hospitality > Conference Rooms > Menu Display + Manufacturing Facilities > Production/Quality Data © 2013 Clear. One Communications. Confidential and proprietary.

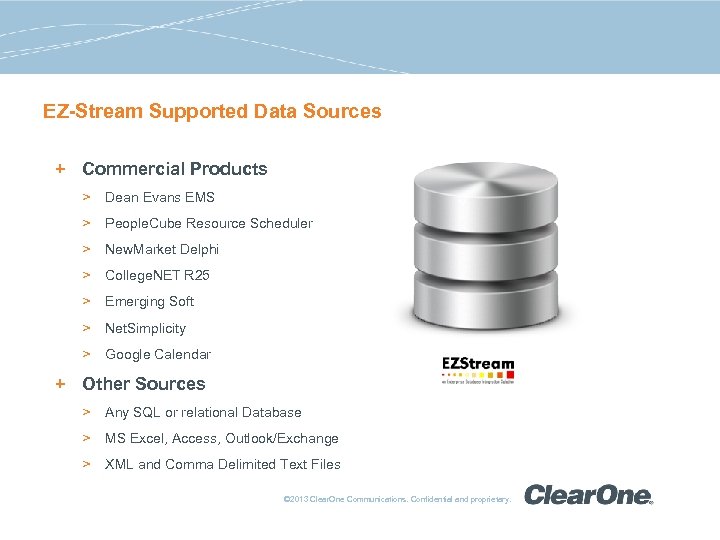

EZ-Stream Supported Data Sources + Commercial Products > Dean Evans EMS > People. Cube Resource Scheduler > New. Market Delphi > College. NET R 25 > Emerging Soft > Net. Simplicity > Google Calendar + Other Sources > Any SQL or relational Database > MS Excel, Access, Outlook/Exchange > XML and Comma Delimited Text Files © 2013 Clear. One Communications. Confidential and proprietary.

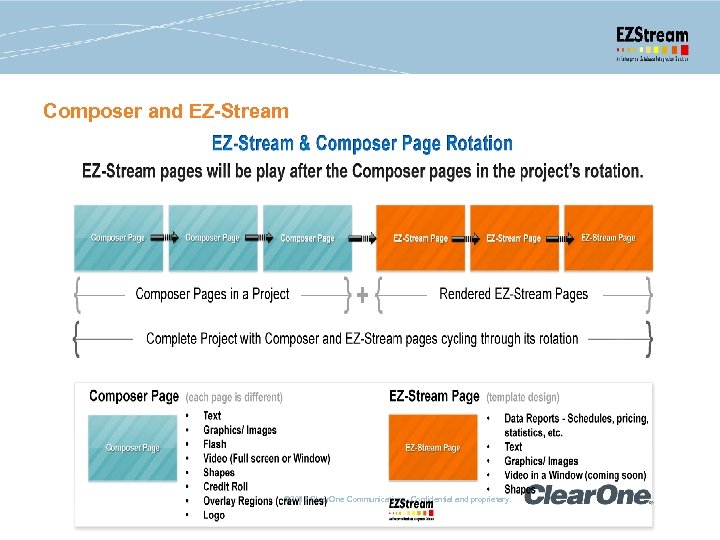

Composer and EZ-Stream © 2013 Clear. One Communications. Confidential and proprietary.

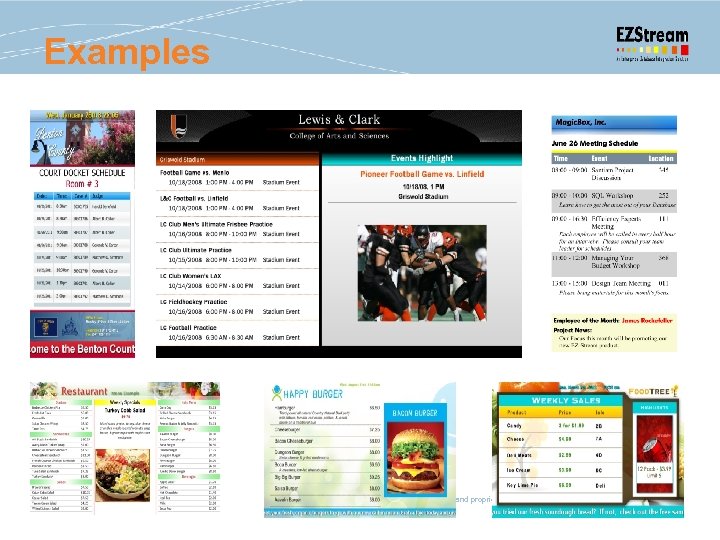

Examples © 2013 Clear. One Communications. Confidential and proprietary.

Examples: Corporate Lobby © 2013 Clear. One Communications. Confidential and proprietary.

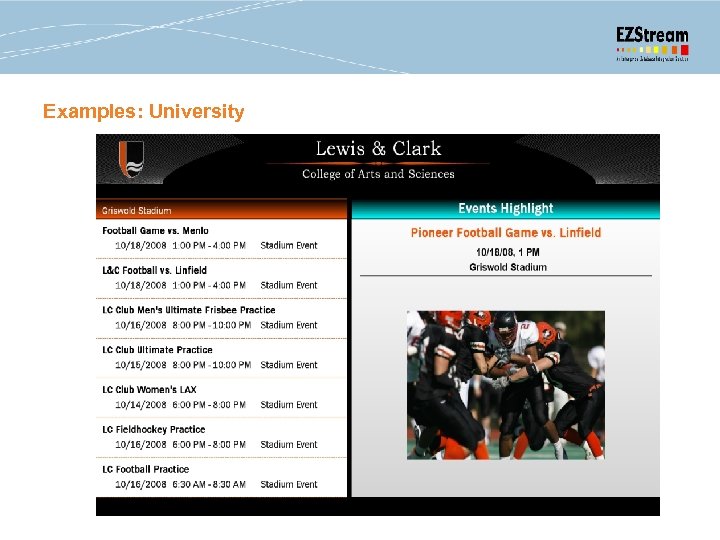

Examples: University © 2013 Clear. One Communications. Confidential and proprietary.

Examples: Grocery/Retail © 2013 Clear. One Communications. Confidential and proprietary.

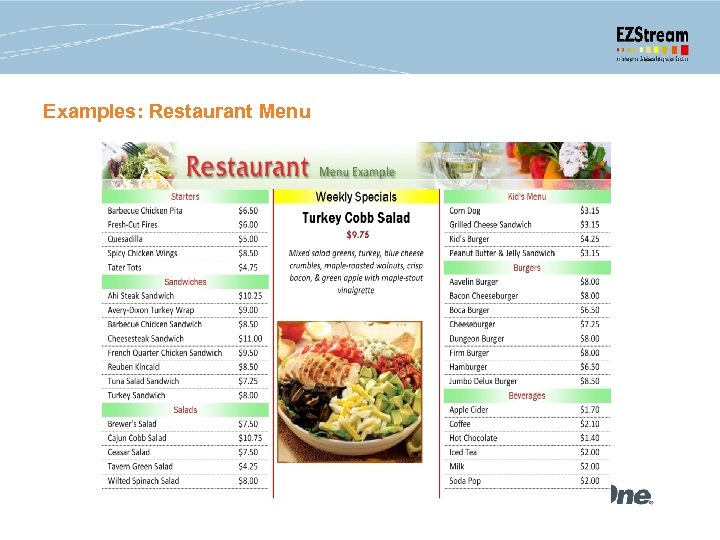

Examples: Restaurant Menu © 2013 Clear. One Communications. Confidential and proprietary.

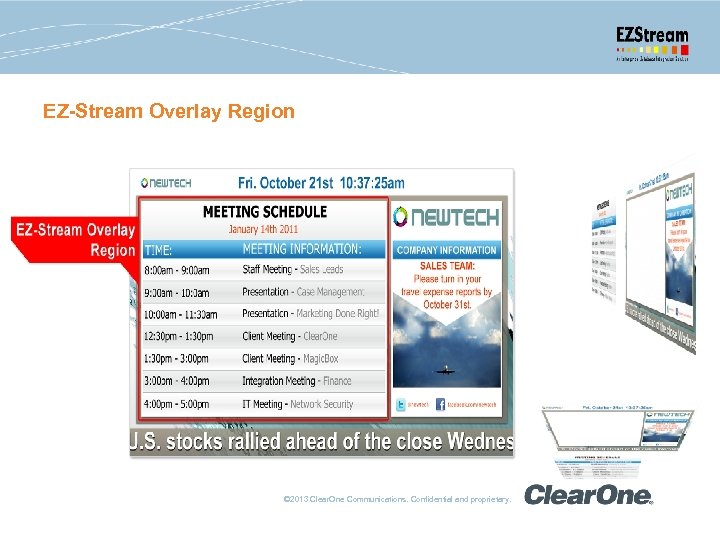

EZ-Stream Overlay Region © 2013 Clear. One Communications. Confidential and proprietary.

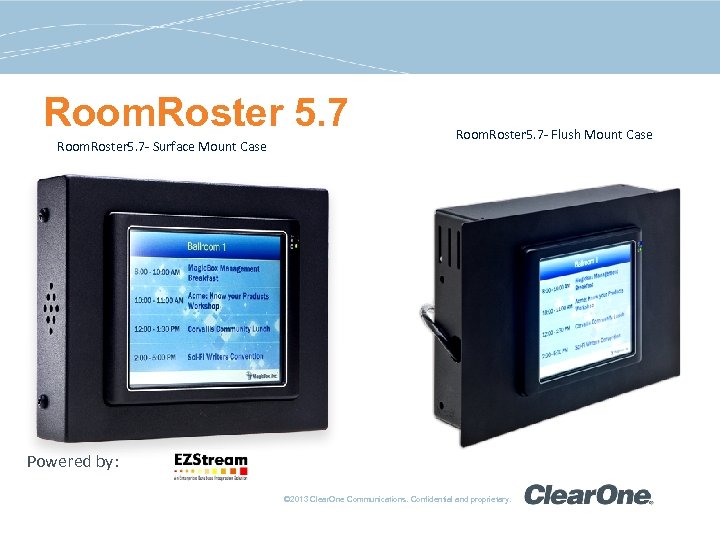

Room. Roster 5. 7 - Surface Mount Case Room. Roster 5. 7 - Flush

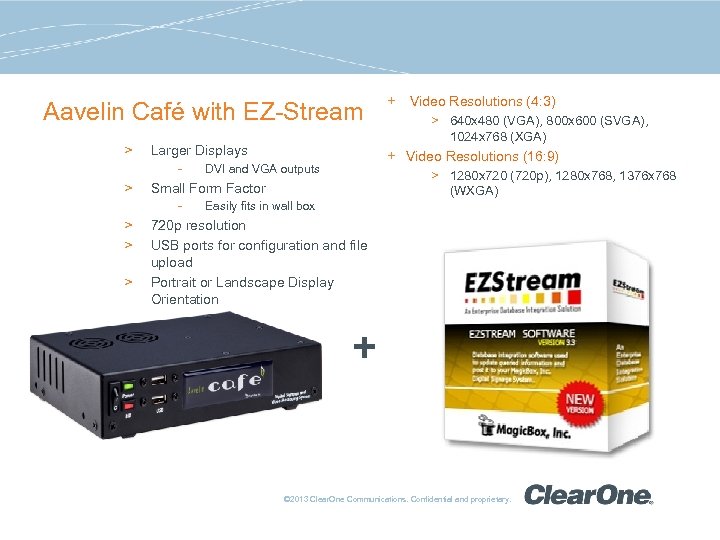

Aavelin Café with EZ-Stream > Larger Displays - > Small Form Factor - > > > DVI and VGA outputs + Video Resolutions (4: 3) > 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA) + Video Resolutions (16: 9) > 1280 x 720 (720 p), 1280 x 768, 1376 x 768 (WXGA) Easily fits in wall box 720 p resolution USB ports for configuration and file upload Portrait or Landscape Display Orientation + © 2013 Clear. One Communications. Confidential and proprietary.
