Machines for blowing of optical fibre cables into ducts Product presentation

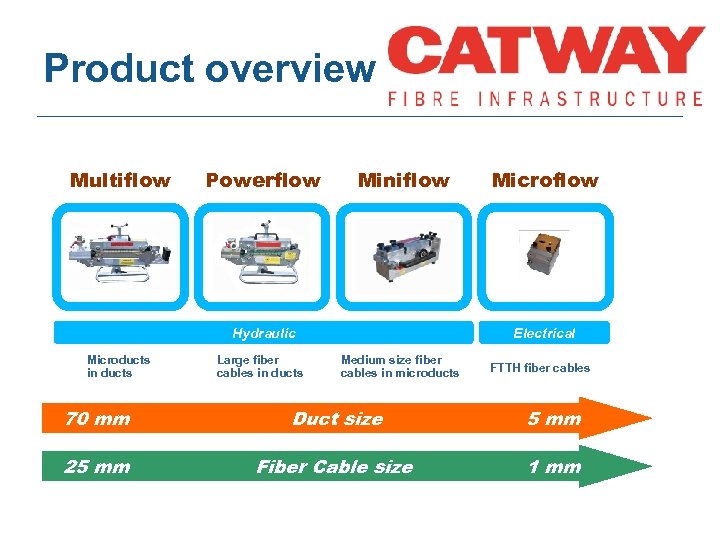

Product overview Multiflow Powerflow Miniflow Hydraulic Microducts in ducts Large fiber cables in ducts Microflow Electrical Medium size fiber cables in microducts FTTH fiber cables 70 mm Duct size 5 mm 25 mm Fiber Cable size 1 mm

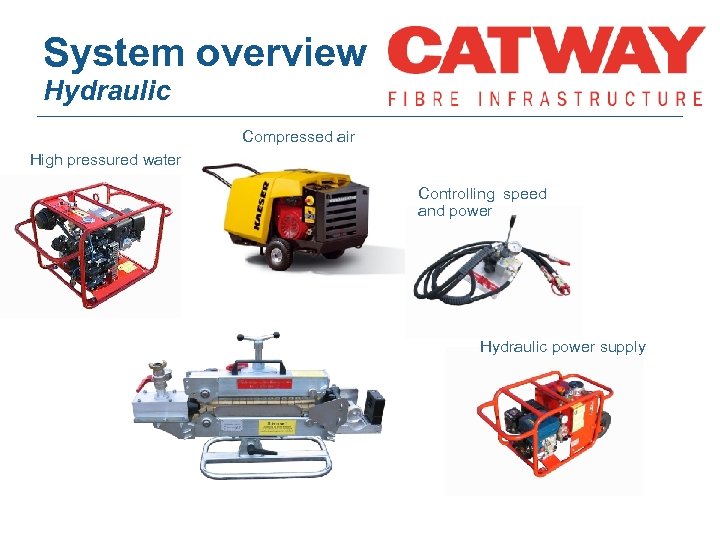

System overview Hydraulic Compressed air High pressured water Controlling speed and power Hydraulic power supply

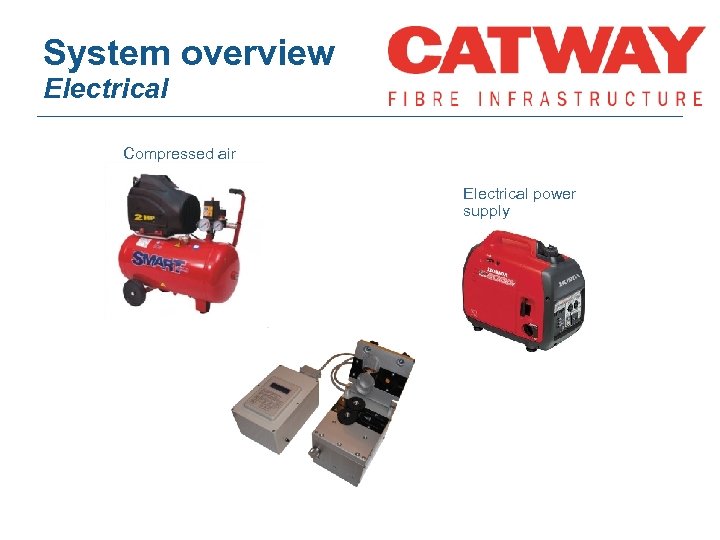

System overview Electrical Compressed air Electrical power supply
Multiflow
Multiflow Blowing Machine • • Simple and robust design, easy to use. Designed for use to blow multible microducts in duct (also suitable for blowing with large size single cables) Suitable for air- and water blowing. Very powerful hydraulic engines.

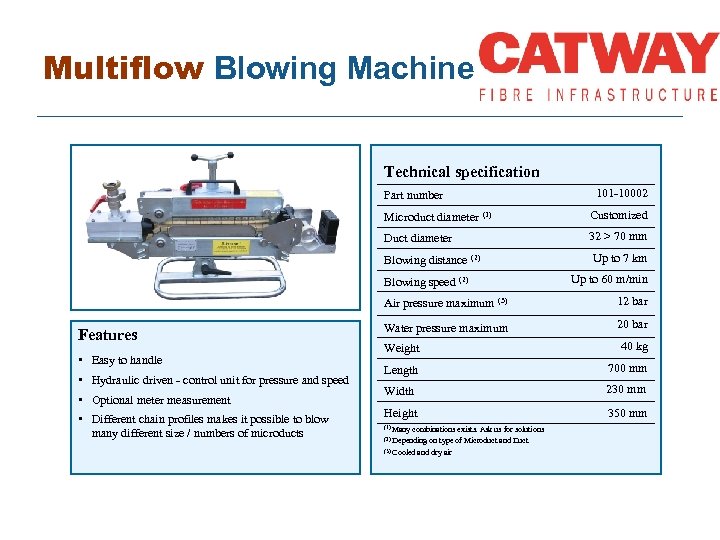

Multiflow Blowing Machine Technical specification Part number 101 -10002 Microduct diameter (1) Customized Duct diameter 32 > 70 mm Blowing distance (2) Blowing speed (2) Up to 7 km Up to 60 m/min Air pressure maximum (3) Features • Easy to handle • Hydraulic driven - control unit for pressure and speed • Optional meter measurement • Different chain profiles makes it possible to blow many different size / numbers of microducts 12 bar Water pressure maximum 20 bar Weight 40 kg Length 700 mm Width 230 mm Height 350 mm (1) Many combinations exists. Ask us for solutions (2) Depending on type of Microduct and Duct (3) Cooled and dry air

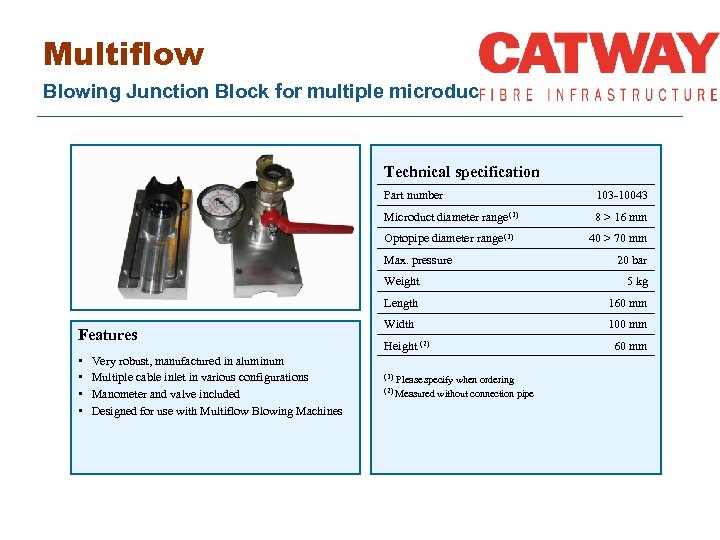

Multiflow Blowing Junction Block for multiple microducts Technical specification Part number 103 -10043 Microduct diameter range (1) 8 > 16 mm Optopipe diameter range (1) 40 > 70 mm Max. pressure 20 bar Weight Length Features • • Very robust, manufactured in aluminum Multiple cable inlet in various configurations Manometer and valve included Designed for use with Multiflow Blowing Machines 5 kg 160 mm Width 100 mm Height (2) (1) Please specify when ordering without connection pipe (2) Measured 60 mm
Powerflow
Powerflow Blowing Machine • • • Simple and robust design, easy to use, proven by satisfied customers for many years. Designed to blow single cables in ducts. Suitable for air- and water blowing.

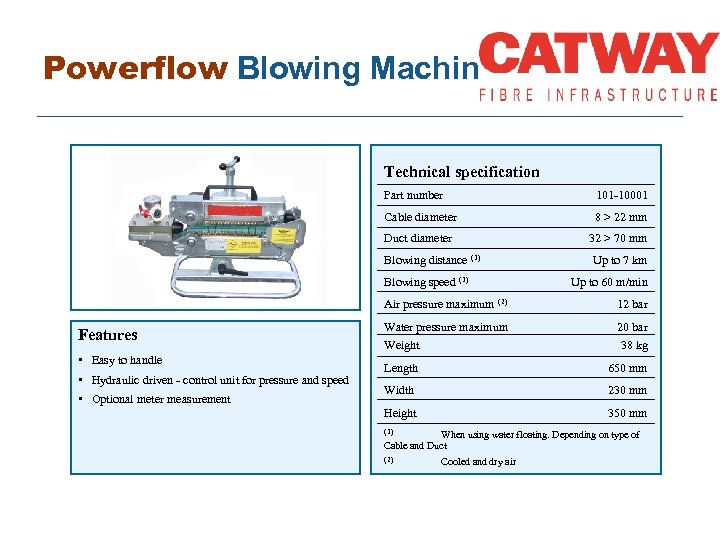

Powerflow Blowing Machine Technical specification Part number 101 -10001 Cable diameter 8 > 22 mm Duct diameter 32 > 70 mm Blowing distance (1) Blowing speed (1) Up to 7 km Up to 60 m/min Air pressure maximum (2) Features • Easy to handle • Hydraulic driven - control unit for pressure and speed • Optional meter measurement 12 bar Water pressure maximum 20 bar Weight 38 kg Length 650 mm Width 230 mm Height 350 mm (1) When using water floating. Depending on type of Cable and Duct (2) Cooled and dry air

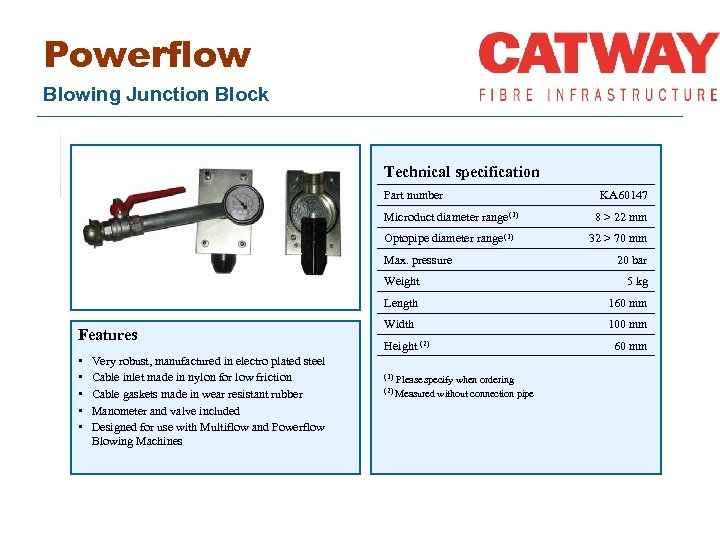

Powerflow Blowing Junction Block Technical specification Part number KA 60147 Microduct diameter range (1) 8 > 22 mm Optopipe diameter range (1) 32 > 70 mm Max. pressure 20 bar Weight Length Features • • • Very robust, manufactured in electro plated steel Cable inlet made in nylon for low friction Cable gaskets made in wear resistant rubber Manometer and valve included Designed for use with Multiflow and Powerflow Blowing Machines 5 kg 160 mm Width 100 mm Height (2) (1) Please specify when ordering without connection pipe (2) Measured 60 mm
Miniflow

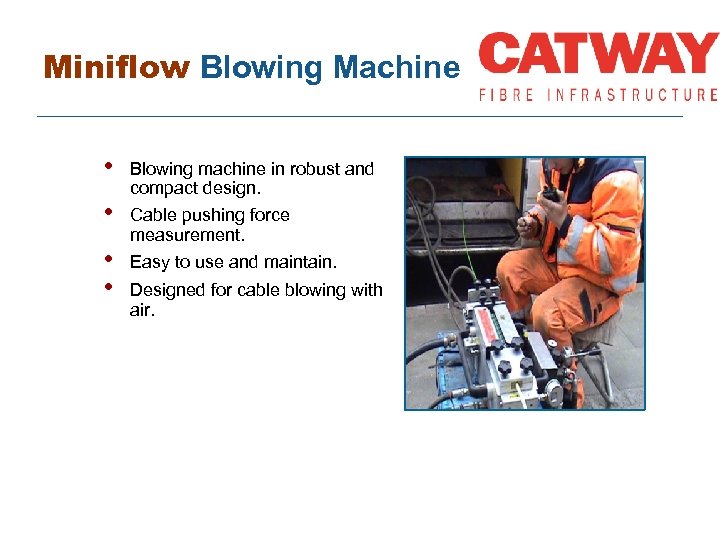

Miniflow Blowing Machine • • Blowing machine in robust and compact design. Cable pushing force measurement. Easy to use and maintain. Designed for cable blowing with air.

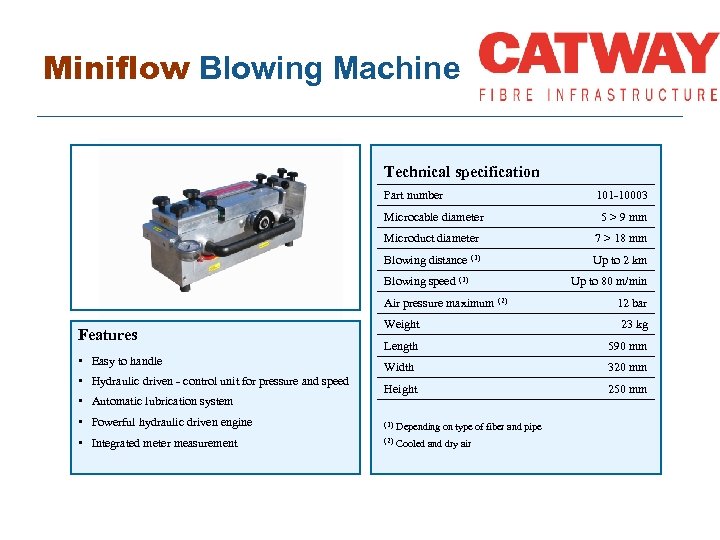

Miniflow Blowing Machine Technical specification Part number 101 -10003 Microcable diameter 5 > 9 mm Microduct diameter 7 > 18 mm Blowing distance (1) Up to 2 km Blowing speed (1) Up to 80 m/min Air pressure maximum (2) Features • Easy to handle • Hydraulic driven - control unit for pressure and speed • Automatic lubrication system 12 bar Weight 23 kg Length 590 mm Width 320 mm Height 250 mm • Powerful hydraulic driven engine (1) Depending on type of fiber and pipe • Integrated meter measurement (2) Cooled and dry air

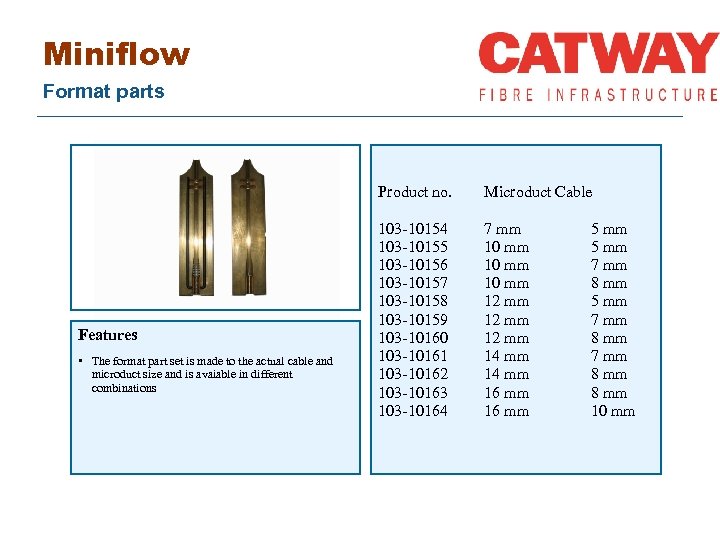

Miniflow Format parts Product no. Features • The format part set is made to the actual cable and microduct size and is avaiable in different combinations Microduct Cable 103 -10154 103 -10155 103 -10156 103 -10157 103 -10158 103 -10159 103 -10160 103 -10161 103 -10162 103 -10163 103 -10164 7 mm 10 mm 12 mm 14 mm 16 mm 5 mm 7 mm 8 mm 8 mm 10 mm
Microflow

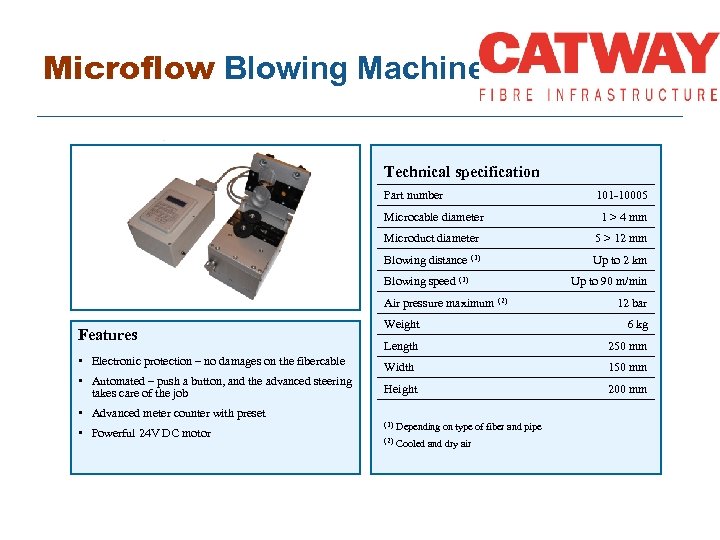

Microflow Blowing Machine Technical specification Part number 101 -10005 Microcable diameter 1 > 4 mm Microduct diameter 5 > 12 mm Blowing distance (1) Up to 2 km Blowing speed (1) Air pressure maximum (2) Features • Electronic protection – no damages on the fibercable • Automated – push a button, and the advanced steering takes care of the job 12 bar Weight 6 kg Length 250 mm Width 150 mm Height 200 mm • Advanced meter counter with preset • Powerful 24 V DC motor Up to 90 m/min (1) Depending on type of fiber and pipe (2) Cooled and dry air
Other equipment

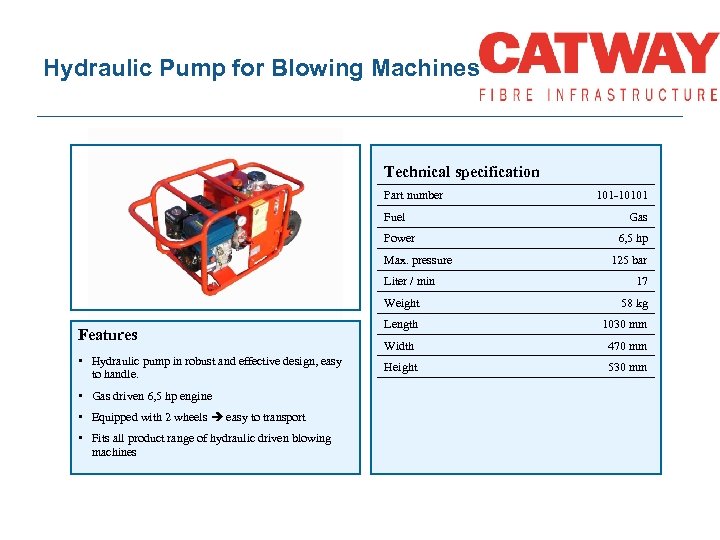

Hydraulic Pump for Blowing Machines Technical specification Part number Fuel Power Max. pressure Liter / min 101 -10101 Gas 6, 5 hp 125 bar 17 Weight Features • Hydraulic pump in robust and effective design, easy to handle. • Gas driven 6, 5 hp engine • Equipped with 2 wheels easy to transport • Fits all product range of hydraulic driven blowing machines 58 kg Length 1030 mm Width 470 mm Height 530 mm

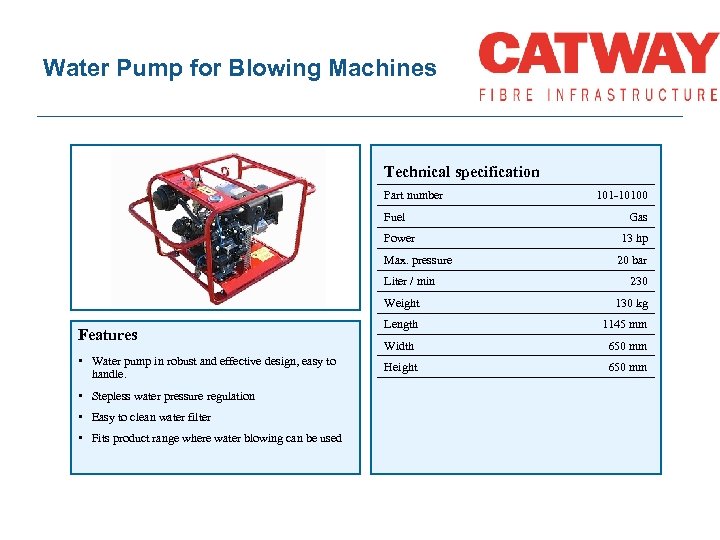

Water Pump for Blowing Machines Technical specification Part number Fuel 101 -10100 Gas Power 13 hp Max. pressure 20 bar Liter / min 230 Weight Features • Water pump in robust and effective design, easy to handle. • Stepless water pressure regulation • Easy to clean water filter • Fits product range where water blowing can be used 130 kg Length 1145 mm Width 650 mm Height 650 mm

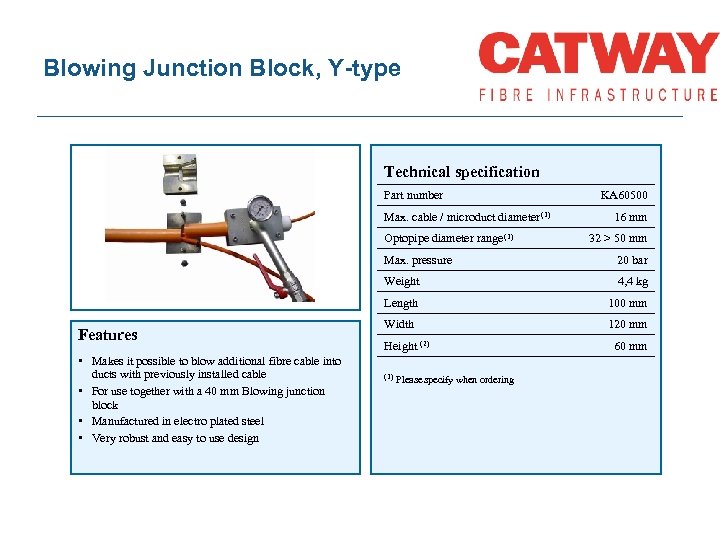

Blowing Junction Block, Y-type Technical specification Part number Max. cable / microduct diameter (1) Optopipe diameter range (1) KA 60500 16 mm 32 > 50 mm Max. pressure Weight • Makes it possible to blow additional fibre cable into ducts with previously installed cable • For use together with a 40 mm Blowing junction block • Manufactured in electro plated steel • Very robust and easy to use design 4, 4 kg Length Features 20 bar 100 mm Width 120 mm Height (2) (1) Please specify when ordering 60 mm
