Machine Translation using Tectogrammatics Zdeněk Žabokrtský IFAL, Charles University in Prague

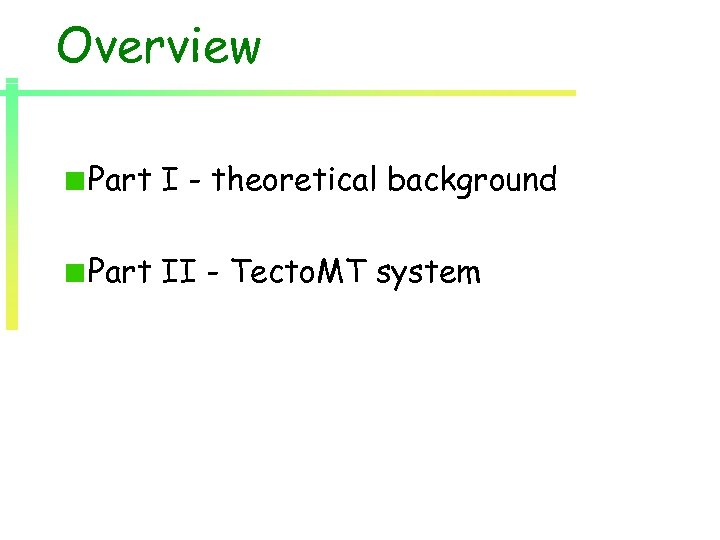

Overview Part I - theoretical background Part II - Tecto. MT system

MT pyramid (in terms of PDT) Key question in MT: optimal level of abstraction? Our answer: somewhere around tectogrammatics high generalization over different language characteristics, but still computationally (and mentally!) tractable

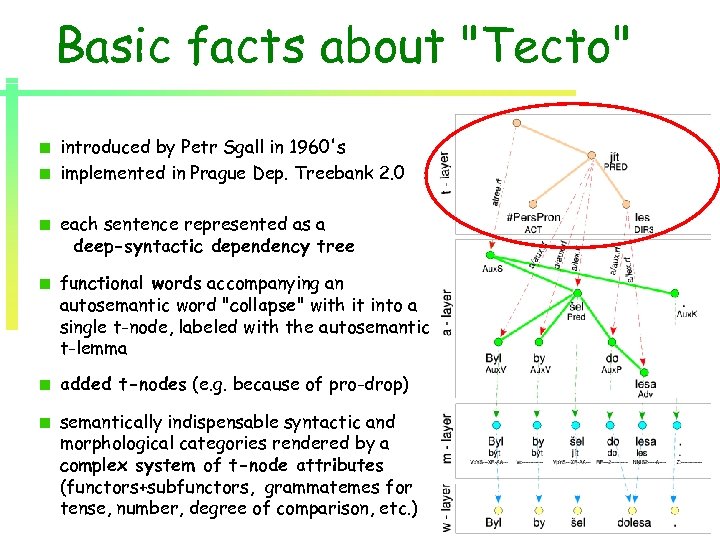

Basic facts about "Tecto" introduced by Petr Sgall in 1960's implemented in Prague Dep. Treebank 2. 0 each sentence represented as a deep-syntactic dependency tree functional words accompanying an autosemantic word "collapse" with it into a single t-node, labeled with the autosemantic t-lemma added t-nodes (e. g. because of pro-drop) semantically indispensable syntactic and morphological categories rendered by a complex system of t-node attributes (functors+subfunctors, grammatemes for tense, number, degree of comparison, etc. )

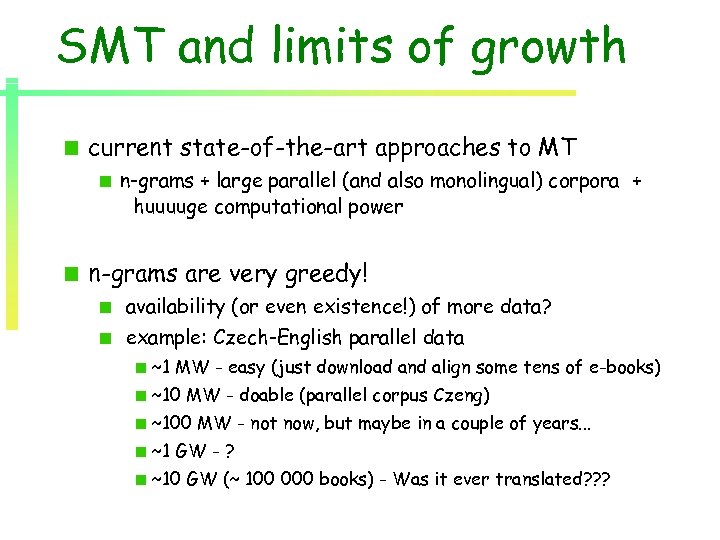

SMT and limits of growth current state-of-the-art approaches to MT n-grams + large parallel (and also monolingual) corpora + huuuuge computational power n-grams are very greedy! availability (or even existence!) of more data? example: Czech-English parallel data ~1 MW - easy (just download and align some tens of e-books) ~10 MW - doable (parallel corpus Czeng) ~100 MW - not now, but maybe in a couple of years. . . ~1 GW - ? ~10 GW (~ 100 000 books) - Was it ever translated? ? ?

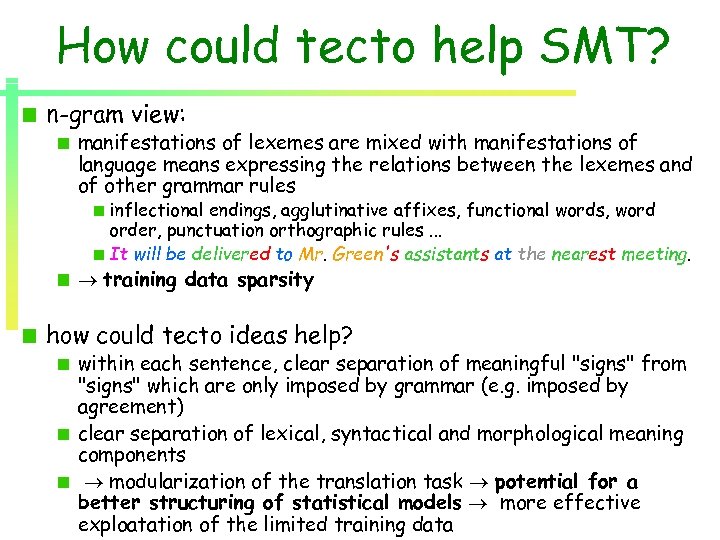

How could tecto help SMT? n-gram view: manifestations of lexemes are mixed with manifestations of language means expressing the relations between the lexemes and of other grammar rules inflectional endings, agglutinative affixes, functional words, word order, punctuation orthographic rules. . . It will be delivered to Mr. Green's assistants at the nearest meeting. training data sparsity how could tecto ideas help? within each sentence, clear separation of meaningful "signs" from "signs" which are only imposed by grammar (e. g. imposed by agreement) clear separation of lexical, syntactical and morphological meaning components modularization of the translation task potential for a better structuring of statistical models more effective exploatation of the limited training data

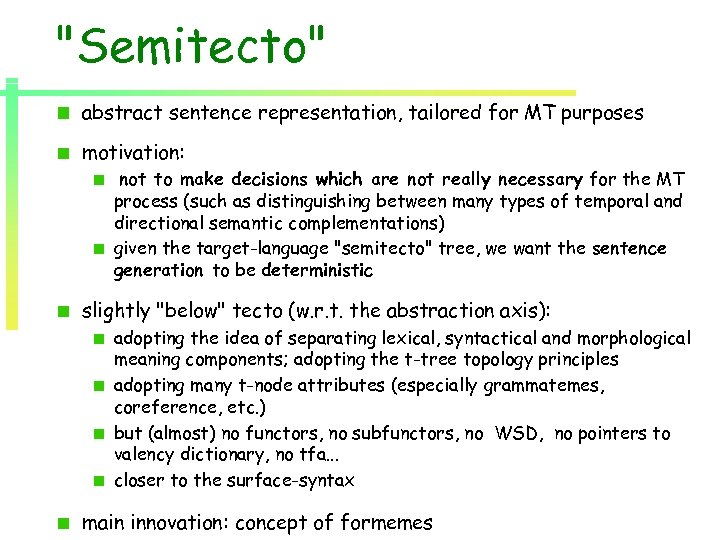

"Semitecto" abstract sentence representation, tailored for MT purposes motivation: not to make decisions which are not really necessary for the MT process (such as distinguishing between many types of temporal and directional semantic complementations) given the target-language "semitecto" tree, we want the sentence generation to be deterministic slightly "below" tecto (w. r. t. the abstraction axis): adopting the idea of separating lexical, syntactical and morphological meaning components; adopting the t-tree topology principles adopting many t-node attributes (especially grammatemes, coreference, etc. ) but (almost) no functors, no subfunctors, no WSD, no pointers to valency dictionary, no tfa. . . closer to the surface-syntax main innovation: concept of formemes

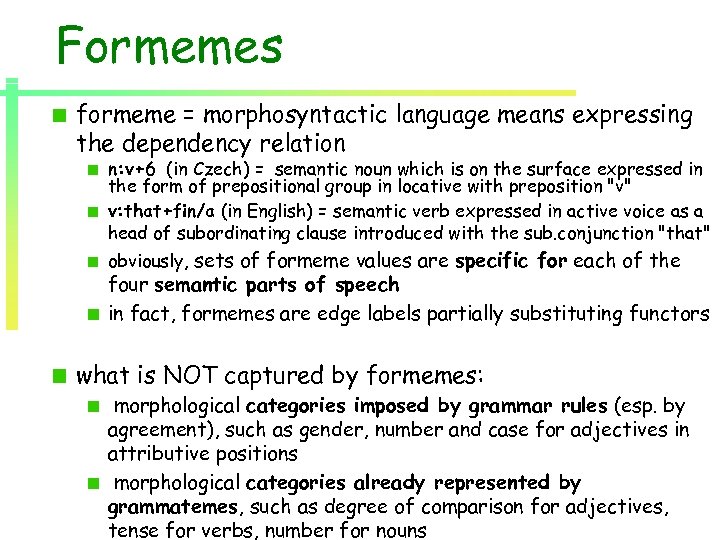

Formemes formeme = morphosyntactic language means expressing the dependency relation n: v+6 (in Czech) = semantic noun which is on the surface expressed in the form of prepositional group in locative with preposition "v" v: that+fin/a (in English) = semantic verb expressed in active voice as a head of subordinating clause introduced with the sub. conjunction "that" obviously, sets of formeme values are specific for each of the four semantic parts of speech in fact, formemes are edge labels partially substituting functors what is NOT captured by formemes: morphological categories imposed by grammar rules (esp. by agreement), such as gender, number and case for adjectives in attributive positions morphological categories already represented by grammatemes, such as degree of comparison for adjectives, tense for verbs, number for nouns

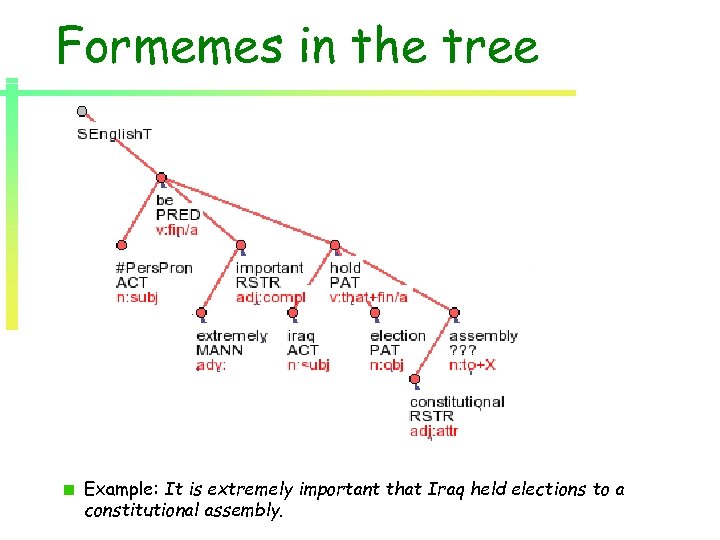

Formemes in the tree Example: It is extremely important that Iraq held elections to a constitutional assembly.

Some more examples of proposed formemes Czech 968 adj: attr 604 n: 1 552 n: 2 497 v: fin/a 308 n: 4 260 adv: 169 n: v+6 133 adj: compl 117 v: inf 104 n: poss 86 n: 7 82 v: že+fin/a 77 v: rc/a 63 n: s+7 53 n: k+3 53 n: attr 50 n: na+6 47 n: na+4 42 v: aby+fin/a English 661 adj: attr 568 n: attr 456 n: subj 413 n: obj 370 v: fin/a 273 n: of+X 238 adv: 160 n: poss 160 n: in+X 146 v: to+inf/a 92 adj: compl 91 n: to+X. . . 62 v: rc/a. . . 51 v: that+fin/a. . . 39 v: ger/a

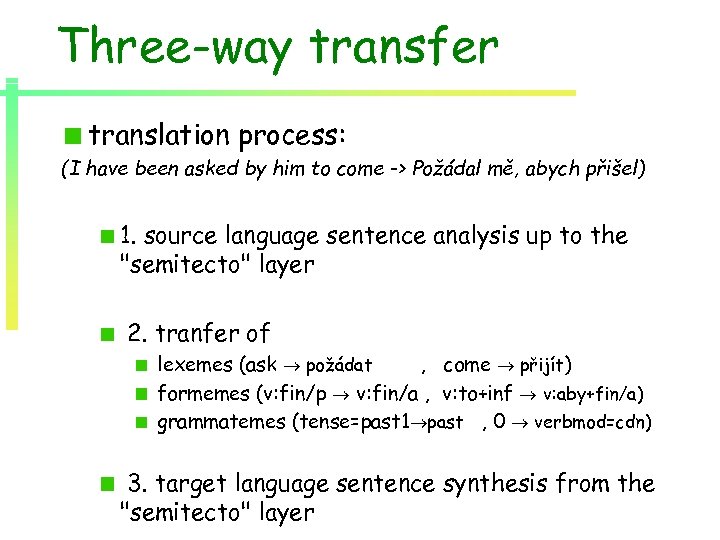

Three-way transfer translation process: (I have been asked by him to come -> Požádal mě, abych přišel) 1. source language sentence analysis up to the "semitecto" layer 2. tranfer of lexemes (ask požádat , come přijít) formemes (v: fin/p v: fin/a , v: to+inf v: aby+fin/a) grammatemes (tense=past 1 past , 0 verbmod=cdn) 3. target language sentence synthesis from the "semitecto" layer

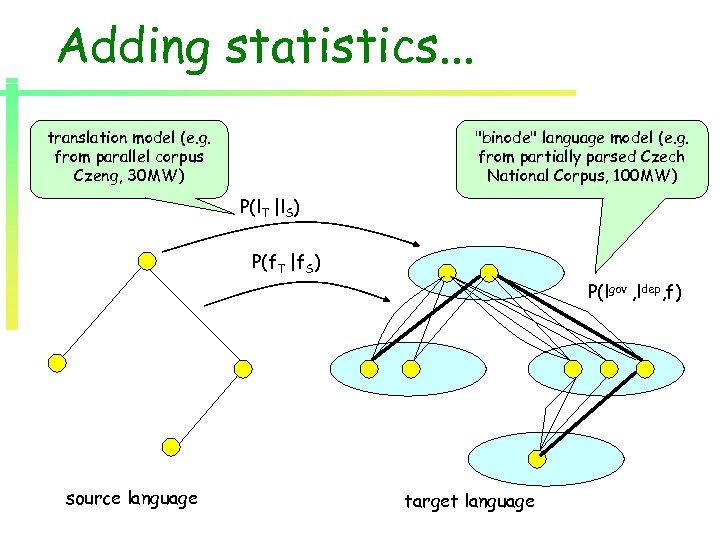

Adding statistics. . . translation model (e. g. from parallel corpus Czeng, 30 MW) "binode" language model (e. g. from partially parsed Czech National Corpus, 100 MW) P(l. T |l. S) P(f. T |f. S) P(lgov , ldep, f) source language target language

Part II Tecto. MT System

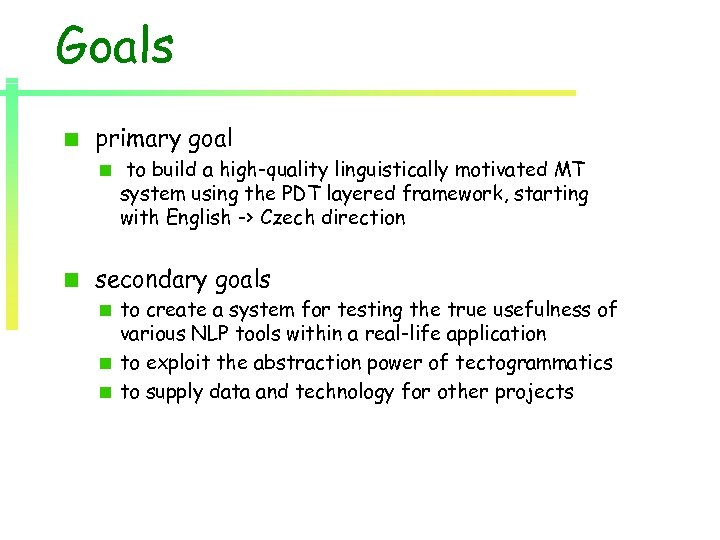

Goals primary goal to build a high-quality linguistically motivated MT system using the PDT layered framework, starting with English -> Czech direction secondary goals to create a system for testing the true usefulness of various NLP tools within a real-life application to exploit the abstraction power of tectogrammatics to supply data and technology for other projects

Main design decisions Linux + Perl set of well-defined, linguistically relevant levels of language representation neutral w. r. t. chosen methodology (e. g. rules vs. statistics) in-house OO architecture as the backbone, but easy incorporation of external tools (parsers, taggers, lemmatizers etc. ) accent on modularity: translation scenario as a sequence of translation blocks (modules corresponding to individual NLP subtasks) MT triangle: interlingua tectogram. surf. synt. morpho. raw text. source language target language

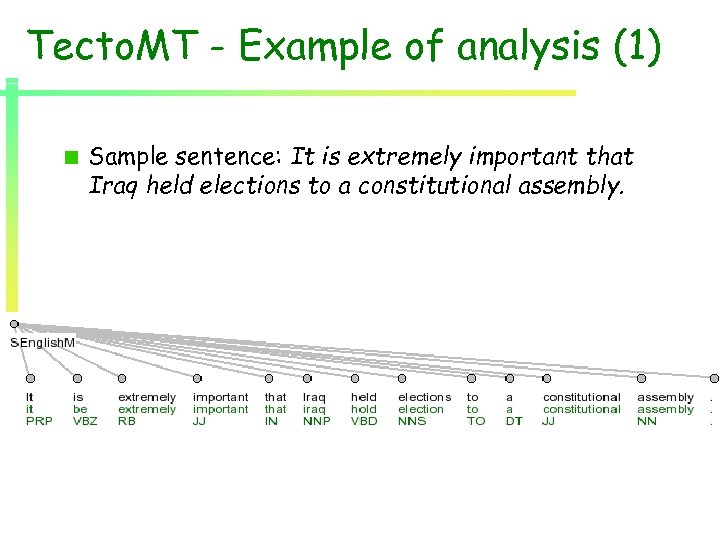

Tecto. MT - Example of analysis (1) Sample sentence: It is extremely important that Iraq held elections to a constitutional assembly.

Tecto. MT - example of analysis (2) phrase-structure tree:

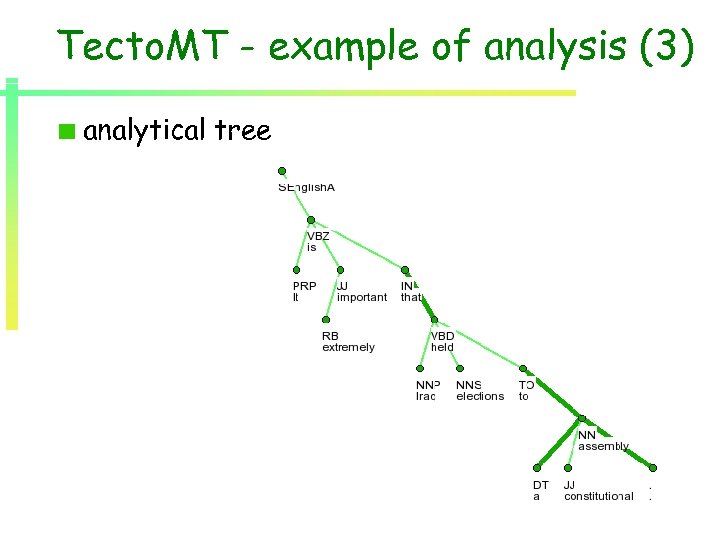

Tecto. MT - example of analysis (3) analytical tree

Tecto. MT - example of analysis (4) tectogrammatical tree (with formemes)

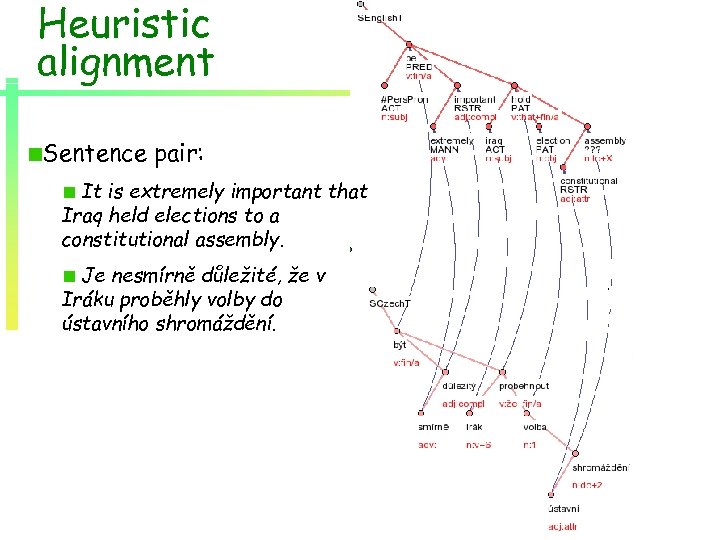

Heuristic alignment Sentence pair: It is extremely important that Iraq held elections to a constitutional assembly. Je nesmírně důležité, že v Iráku proběhly volby do ústavního shromáždění.

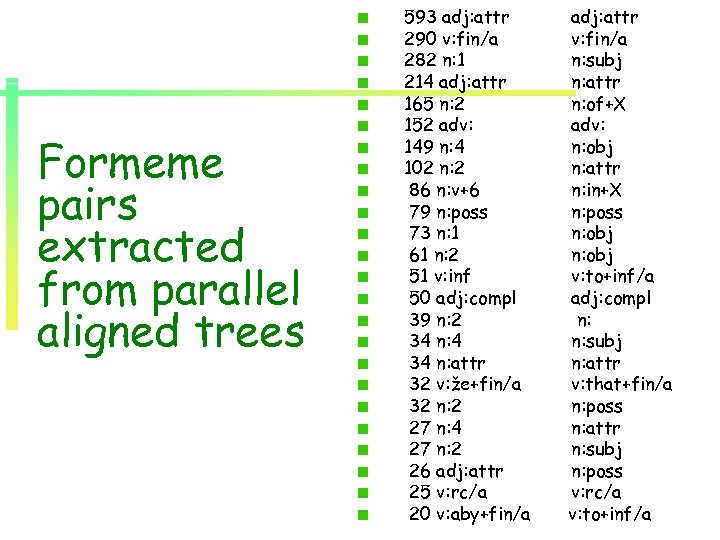

Formeme pairs extracted from parallel aligned trees 593 adj: attr 290 v: fin/a 282 n: 1 214 adj: attr 165 n: 2 152 adv: 149 n: 4 102 n: 2 86 n: v+6 79 n: poss 73 n: 1 61 n: 2 51 v: inf 50 adj: compl 39 n: 2 34 n: 4 34 n: attr 32 v: že+fin/a 32 n: 2 27 n: 4 27 n: 2 26 adj: attr 25 v: rc/a 20 v: aby+fin/a adj: attr v: fin/a n: subj n: attr n: of+X adv: n: obj n: attr n: in+X n: poss n: obj v: to+inf/a adj: compl n: n: subj n: attr v: that+fin/a n: poss n: attr n: subj n: poss v: rc/a v: to+inf/a

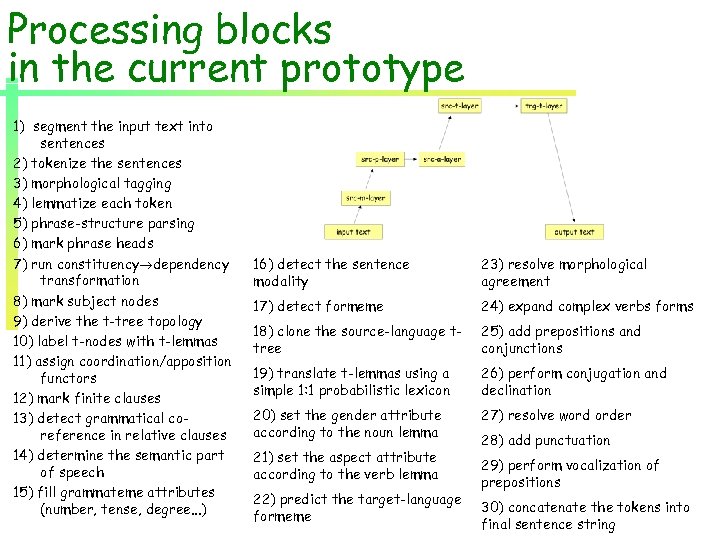

Processing blocks in the current prototype 1) segment the input text into sentences 2) tokenize the sentences 3) morphological tagging 4) lemmatize each token 5) phrase-structure parsing 6) mark phrase heads 7) run constituency dependency transformation 8) mark subject nodes 9) derive the t-tree topology 10) label t-nodes with t-lemmas 11) assign coordination/apposition functors 12) mark finite clauses 13) detect grammatical coreference in relative clauses 14) determine the semantic part of speech 15) fill grammateme attributes (number, tense, degree. . . ) 16) detect the sentence modality 23) resolve morphological agreement 17) detect formeme 24) expand complex verbs forms 18) clone the source-language ttree 25) add prepositions and conjunctions 19) translate t-lemmas using a simple 1: 1 probabilistic lexicon 26) perform conjugation and declination 20) set the gender attribute according to the noun lemma 27) resolve word order 21) set the aspect attribute according to the verb lemma 22) predict the target-language formeme 28) add punctuation 29) perform vocalization of prepositions 30) concatenate the tokens into final sentence string
