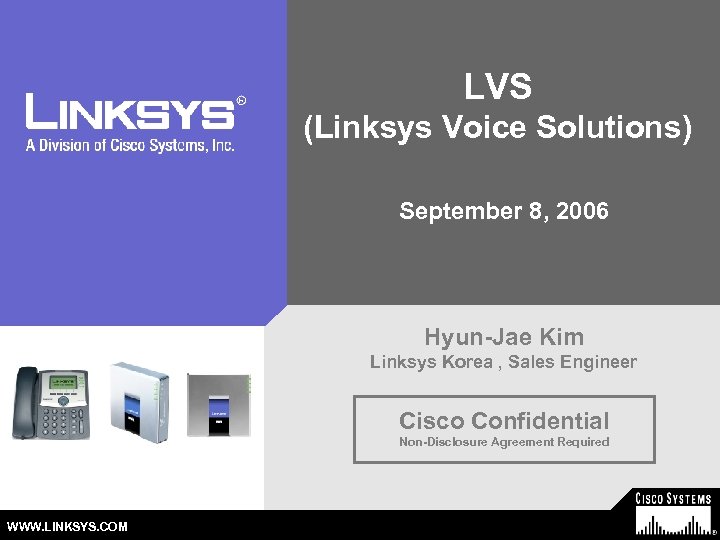

LVS (Linksys Voice Solutions) September 8, 2006 Hyun-Jae Kim Linksys Korea , Sales Engineer Cisco Confidential Non-Disclosure Agreement Required WWW. LINKSYS. COM © 2006 Cisco Systems, Inc. All Rights Reserved. Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

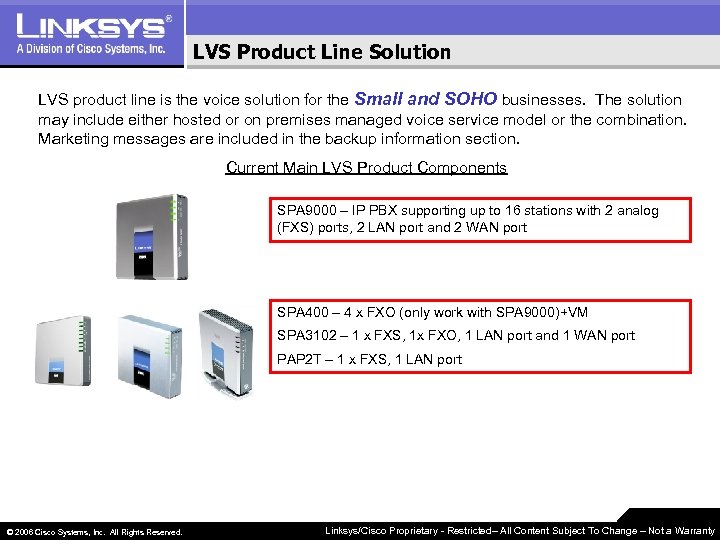

LVS Product Line Solution LVS product line is the voice solution for the Small and SOHO businesses. The solution may include either hosted or on premises managed voice service model or the combination. Marketing messages are included in the backup information section. Current Main LVS Product Components SPA 9000 – IP PBX supporting up to 16 stations with 2 analog (FXS) ports, 2 LAN port and 2 WAN port SPA 400 – 4 x FXO (only work with SPA 9000)+VM SPA 3102 – 1 x FXS, 1 x FXO, 1 LAN port and 1 WAN port PAP 2 T – 1 x FXS, 1 LAN port © 2006 Cisco Systems, Inc. All Rights Reserved. Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

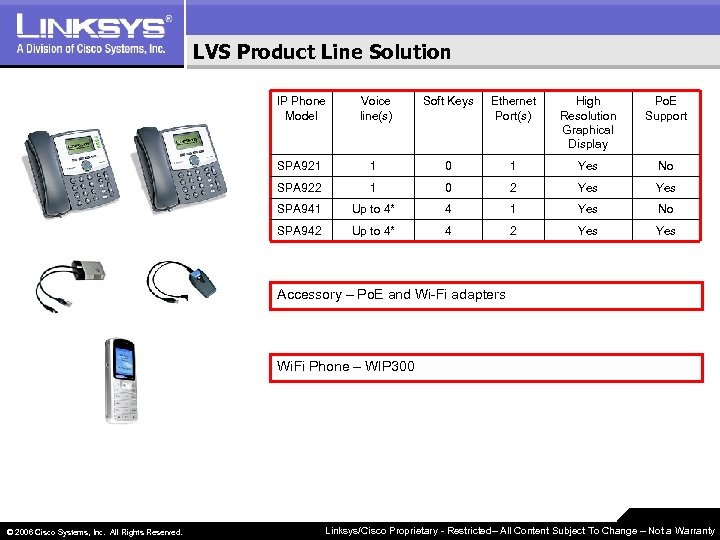

LVS Product Line Solution IP Phone Model Voice line(s) Soft Keys Ethernet Port(s) High Resolution Graphical Display Po. E Support SPA 921 1 0 1 Yes No SPA 922 1 0 2 Yes SPA 941 Up to 4* 4 1 Yes No SPA 942 Up to 4* 4 2 Yes Accessory – Po. E and Wi-Fi adapters Wi. Fi Phone – WIP 300 © 2006 Cisco Systems, Inc. All Rights Reserved. Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

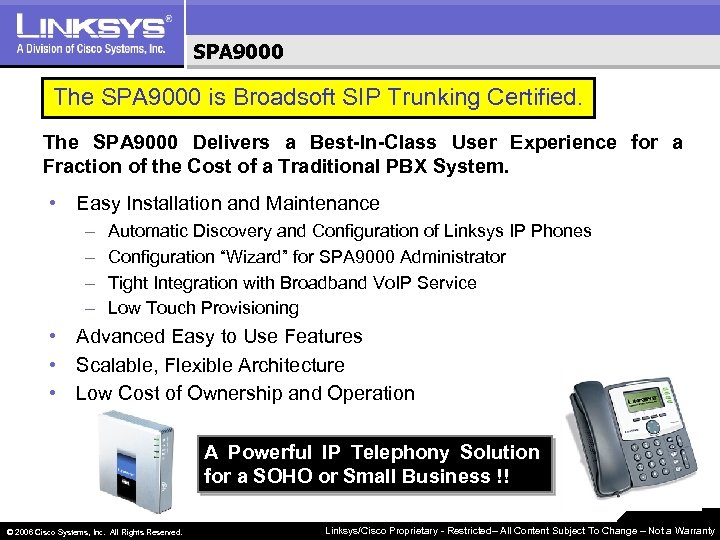

SPA 9000 The SPA 9000 is Broadsoft SIP Trunking Certified. The SPA 9000 Delivers a Best-In-Class User Experience for a Fraction of the Cost of a Traditional PBX System. • Easy Installation and Maintenance – – Automatic Discovery and Configuration of Linksys IP Phones Configuration “Wizard” for SPA 9000 Administrator Tight Integration with Broadband Vo. IP Service Low Touch Provisioning • Advanced Easy to Use Features • Scalable, Flexible Architecture • Low Cost of Ownership and Operation A Powerful IP Telephony Solution for a SOHO or Small Business !! © 2006 Cisco Systems, Inc. All Rights Reserved. Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

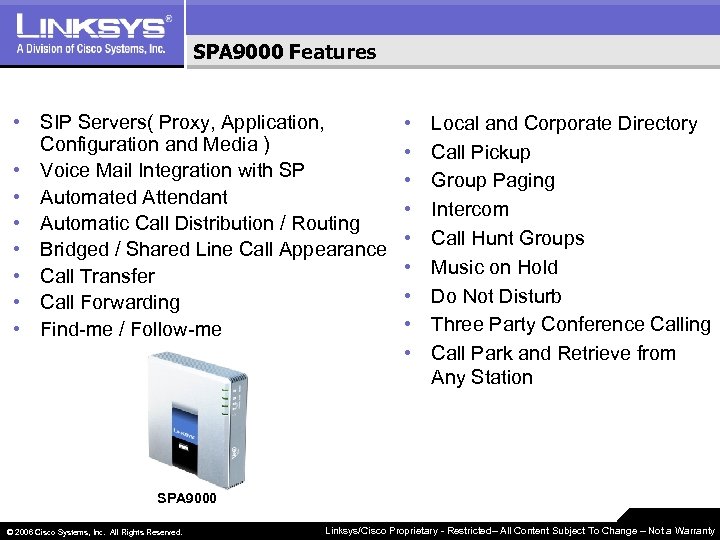

SPA 9000 Features • SIP Servers( Proxy, Application, Configuration and Media ) • Voice Mail Integration with SP • Automated Attendant • Automatic Call Distribution / Routing • Bridged / Shared Line Call Appearance • Call Transfer • Call Forwarding • Find-me / Follow-me • • • Local and Corporate Directory Call Pickup Group Paging Intercom Call Hunt Groups Music on Hold Do Not Disturb Three Party Conference Calling Call Park and Retrieve from Any Station SPA 9000 © 2006 Cisco Systems, Inc. All Rights Reserved. Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

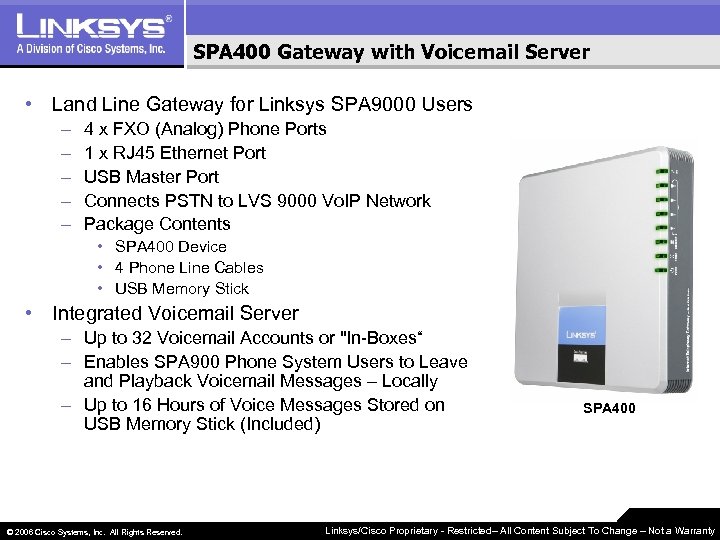

SPA 400 Gateway with Voicemail Server • Land Line Gateway for Linksys SPA 9000 Users – – – 4 x FXO (Analog) Phone Ports 1 x RJ 45 Ethernet Port USB Master Port Connects PSTN to LVS 9000 Vo. IP Network Package Contents • SPA 400 Device • 4 Phone Line Cables • USB Memory Stick • Integrated Voicemail Server – Up to 32 Voicemail Accounts or "In-Boxes“ – Enables SPA 900 Phone System Users to Leave and Playback Voicemail Messages – Locally – Up to 16 Hours of Voice Messages Stored on USB Memory Stick (Included) © 2006 Cisco Systems, Inc. All Rights Reserved. SPA 400 Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

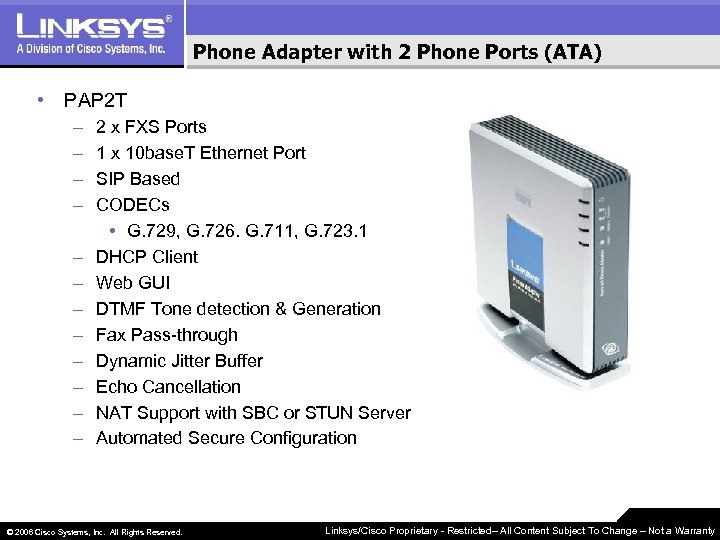

Phone Adapter with 2 Phone Ports (ATA) • PAP 2 T – – – 2 x FXS Ports 1 x 10 base. T Ethernet Port SIP Based CODECs • G. 729, G. 726. G. 711, G. 723. 1 DHCP Client Web GUI DTMF Tone detection & Generation Fax Pass-through Dynamic Jitter Buffer Echo Cancellation NAT Support with SBC or STUN Server Automated Secure Configuration © 2006 Cisco Systems, Inc. All Rights Reserved. Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

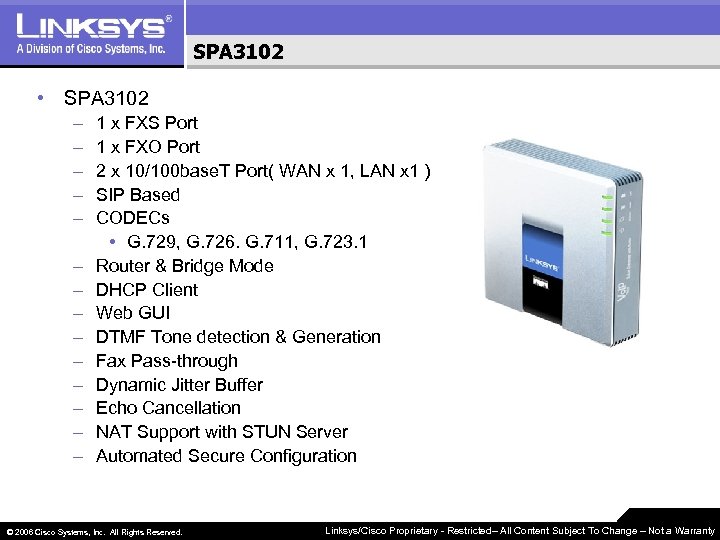

SPA 3102 • SPA 3102 – – – – 1 x FXS Port 1 x FXO Port 2 x 10/100 base. T Port( WAN x 1, LAN x 1 ) SIP Based CODECs • G. 729, G. 726. G. 711, G. 723. 1 Router & Bridge Mode DHCP Client Web GUI DTMF Tone detection & Generation Fax Pass-through Dynamic Jitter Buffer Echo Cancellation NAT Support with STUN Server Automated Secure Configuration © 2006 Cisco Systems, Inc. All Rights Reserved. Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

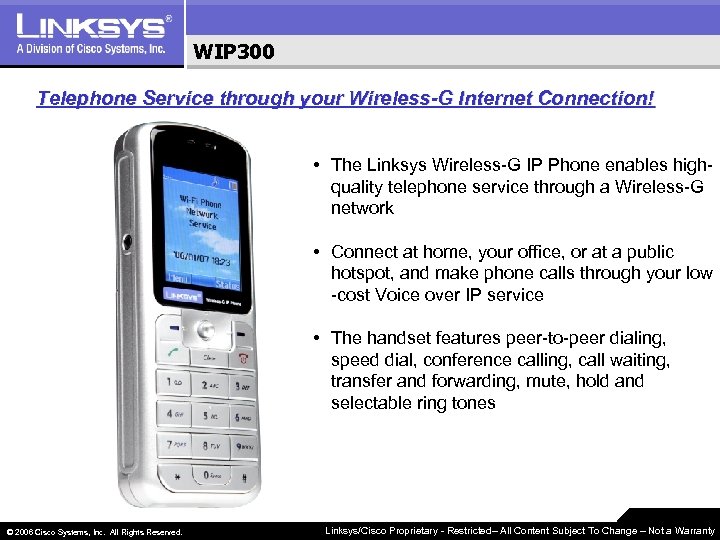

WIP 300 Telephone Service through your Wireless-G Internet Connection! • The Linksys Wireless-G IP Phone enables highquality telephone service through a Wireless-G network • Connect at home, your office, or at a public hotspot, and make phone calls through your low -cost Voice over IP service • The handset features peer-to-peer dialing, speed dial, conference calling, call waiting, transfer and forwarding, mute, hold and selectable ring tones © 2006 Cisco Systems, Inc. All Rights Reserved. Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

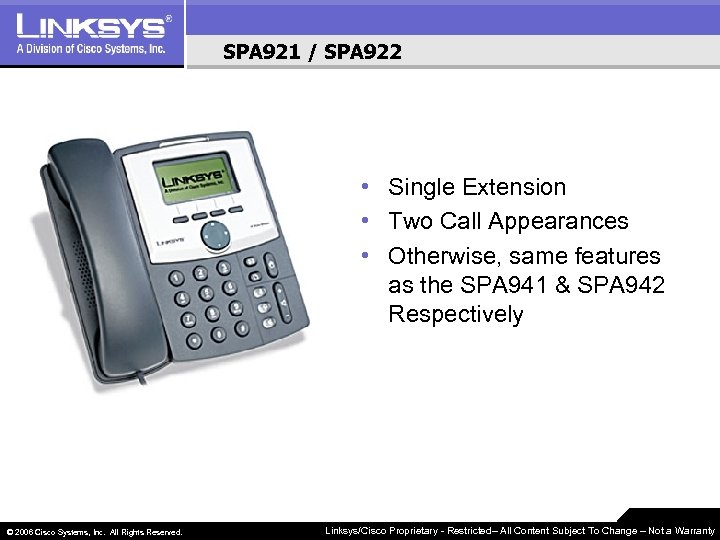

SPA 921 / SPA 922 • Single Extension • Two Call Appearances • Otherwise, same features as the SPA 941 & SPA 942 Respectively © 2006 Cisco Systems, Inc. All Rights Reserved. Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

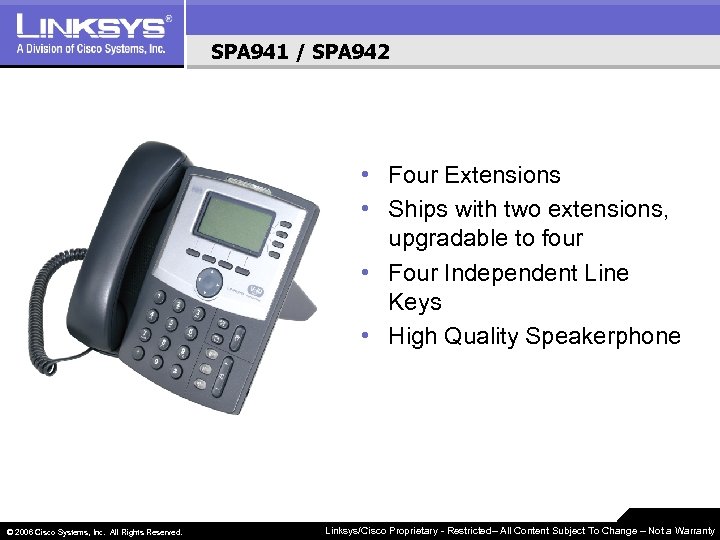

SPA 941 / SPA 942 • Four Extensions • Ships with two extensions, upgradable to four • Four Independent Line Keys • High Quality Speakerphone © 2006 Cisco Systems, Inc. All Rights Reserved. Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

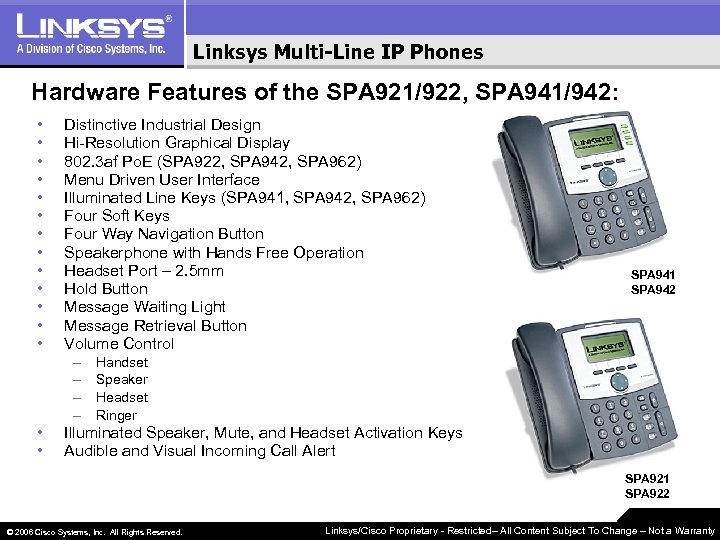

Linksys Multi-Line IP Phones Hardware Features of the SPA 921/922, SPA 941/942: • • • • Distinctive Industrial Design Hi-Resolution Graphical Display 802. 3 af Po. E (SPA 922, SPA 942, SPA 962) Menu Driven User Interface Illuminated Line Keys (SPA 941, SPA 942, SPA 962) Four Soft Keys Four Way Navigation Button Speakerphone with Hands Free Operation Headset Port – 2. 5 mm Hold Button Message Waiting Light Message Retrieval Button Volume Control – – • • SPA 941 SPA 942 Handset Speaker Headset Ringer Illuminated Speaker, Mute, and Headset Activation Keys Audible and Visual Incoming Call Alert SPA 921 SPA 922 © 2006 Cisco Systems, Inc. All Rights Reserved. Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

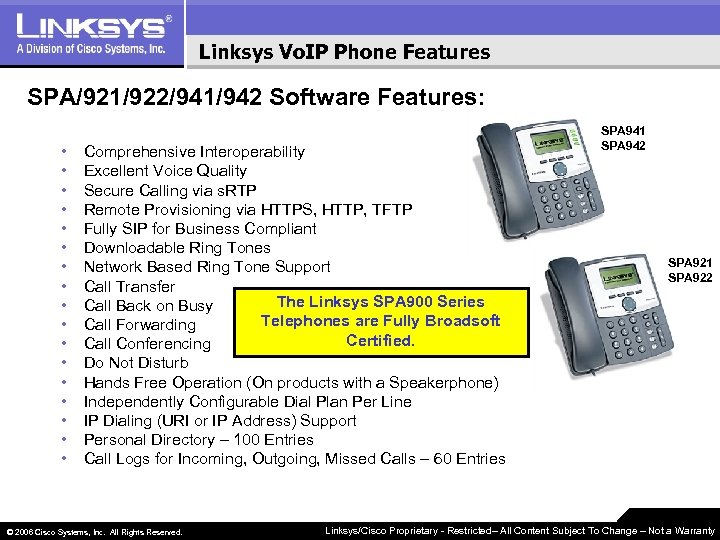

Linksys Vo. IP Phone Features SPA/921/922/941/942 Software Features: • • • • • Comprehensive Interoperability Excellent Voice Quality Secure Calling via s. RTP Remote Provisioning via HTTPS, HTTP, TFTP Fully SIP for Business Compliant Downloadable Ring Tones Network Based Ring Tone Support Call Transfer The Linksys SPA 900 Series Call Back on Busy Telephones are Fully Broadsoft Call Forwarding Certified. Call Conferencing Do Not Disturb Hands Free Operation (On products with a Speakerphone) Independently Configurable Dial Plan Per Line IP Dialing (URI or IP Address) Support Personal Directory – 100 Entries Call Logs for Incoming, Outgoing, Missed Calls – 60 Entries © 2006 Cisco Systems, Inc. All Rights Reserved. SPA 941 SPA 942 SPA 921 SPA 922 Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

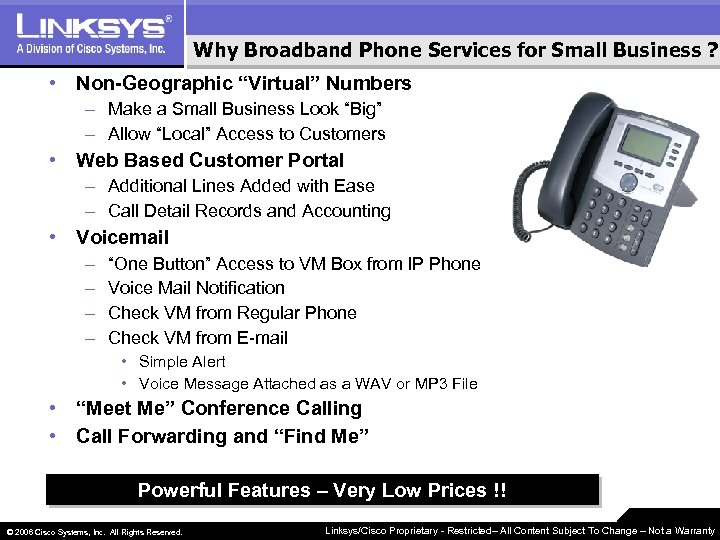

Why Broadband Phone Services for Small Business ? • Non-Geographic “Virtual” Numbers – Make a Small Business Look “Big” – Allow “Local” Access to Customers • Web Based Customer Portal – Additional Lines Added with Ease – Call Detail Records and Accounting • Voicemail – – “One Button” Access to VM Box from IP Phone Voice Mail Notification Check VM from Regular Phone Check VM from E-mail • Simple Alert • Voice Message Attached as a WAV or MP 3 File • “Meet Me” Conference Calling • Call Forwarding and “Find Me” Powerful Features – Very Low Prices !! © 2006 Cisco Systems, Inc. All Rights Reserved. Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

SPA 900 Series Telephone Accessories PA 100 • 5 Volt / 2 Amp Power Adapter • Clip System Allows EU, NA, AU and UK Variations • One Clip Is Included with Adapter • Not Included with Phones that Support Po. E POES 5 • Power Over Ethernet Splitter • Works with Linksys 5 Volt / 2 Amp Vo. IP Products • SPA ATAs and SPA IP Phones WBP 54 G • Wireless G Ethernet Bridge • Works with Linksys 5 Volt / 2 Amp Vo. IP Product • SPA ATAs and SPA IP Phones MB 100 • Wall Mount Bracket for ALL SPA 900 Series Phones • POES 5 and WBP 54 G Dongles Can Be Concealed Within © 2006 Cisco Systems, Inc. All Rights Reserved. Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

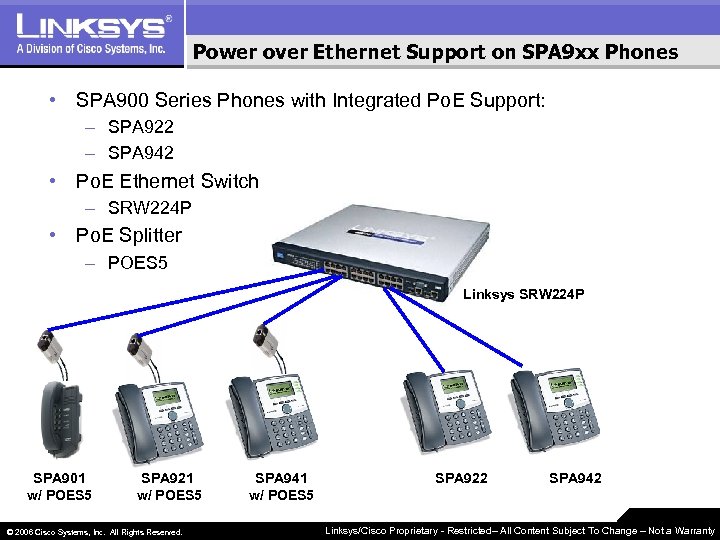

Power over Ethernet Support on SPA 9 xx Phones • SPA 900 Series Phones with Integrated Po. E Support: – SPA 922 – SPA 942 • Po. E Ethernet Switch – SRW 224 P • Po. E Splitter – POES 5 Linksys SRW 224 P SPA 901 w/ POES 5 SPA 921 w/ POES 5 © 2006 Cisco Systems, Inc. All Rights Reserved. SPA 941 w/ POES 5 SPA 922 SPA 942 Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

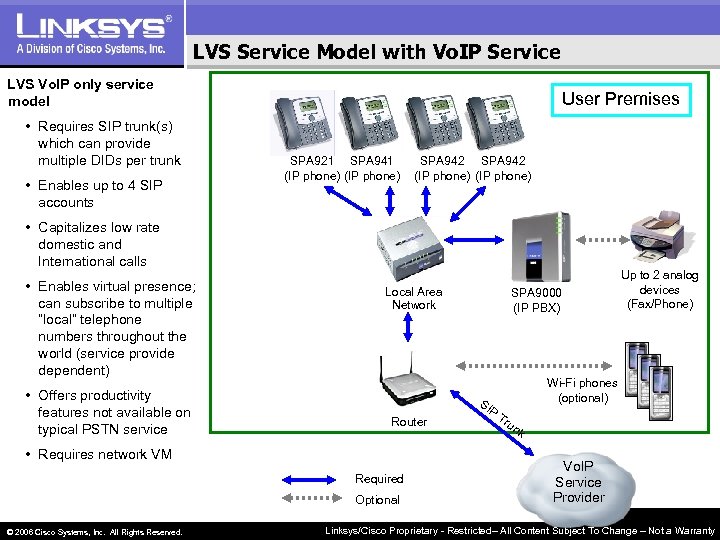

LVS Service Model with Vo. IP Service LVS Vo. IP only service model • Requires SIP trunk(s) which can provide multiple DIDs per trunk • Enables up to 4 SIP accounts User Premises SPA 921 SPA 941 (IP phone) SPA 942 (IP phone) • Capitalizes low rate domestic and International calls • Enables virtual presence; can subscribe to multiple “local” telephone numbers throughout the world (service provide dependent) • Offers productivity features not available on typical PSTN service Local Area Network SI Router • Requires network VM Required Optional © 2006 Cisco Systems, Inc. All Rights Reserved. SPA 9000 (IP PBX) P Up to 2 analog devices (Fax/Phone) Wi-Fi phones (optional) Tr un k Vo. IP Service Provider Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

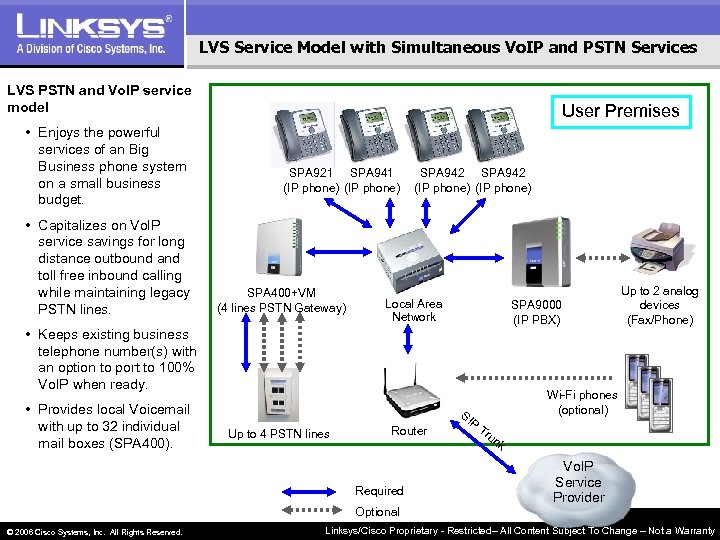

LVS Service Model with Simultaneous Vo. IP and PSTN Services LVS PSTN and Vo. IP service model • Enjoys the powerful services of an Big Business phone system on a small business budget. • Capitalizes on Vo. IP service savings for long distance outbound and toll free inbound calling while maintaining legacy PSTN lines. User Premises SPA 921 SPA 941 (IP phone) SPA 400+VM (4 lines PSTN Gateway) SPA 942 (IP phone) Local Area Network SPA 9000 (IP PBX) • Keeps existing business telephone number(s) with an option to port to 100% Vo. IP when ready. • Provides local Voicemail with up to 32 individual mail boxes (SPA 400). Up to 4 PSTN lines Router Required SI P Up to 2 analog devices (Fax/Phone) Wi-Fi phones (optional) Tr un k Vo. IP Service Provider Optional © 2006 Cisco Systems, Inc. All Rights Reserved. Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

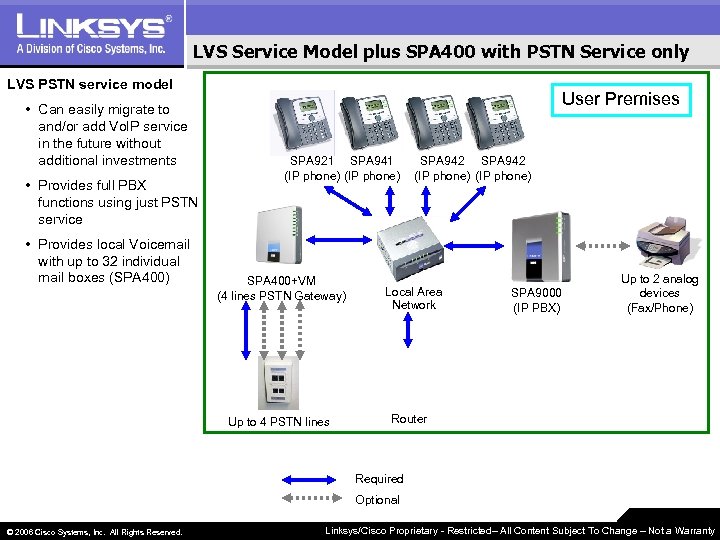

LVS Service Model plus SPA 400 with PSTN Service only LVS PSTN service model • Can easily migrate to and/or add Vo. IP service in the future without additional investments • Provides full PBX functions using just PSTN service • Provides local Voicemail with up to 32 individual mail boxes (SPA 400) User Premises SPA 921 SPA 941 (IP phone) SPA 400+VM (4 lines PSTN Gateway) Up to 4 PSTN lines SPA 942 (IP phone) Local Area Network SPA 9000 (IP PBX) Up to 2 analog devices (Fax/Phone) Router Required Optional © 2006 Cisco Systems, Inc. All Rights Reserved. Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

LVS Service Model with Hosted Vo. IP Service LVS hosted Vo. IP service model User Premises • Provides full network driven PBX functions • Does not need to configure PBX locally SPA 921 SPA 941 (IP phone) SPA 942 (IP phone) • Can manage and provision by the service provider remotely. SPA 3102 (1 line PSTN Gateway) PSTN line Local Area Network Router Wi-Fi phones (optional) Ho s te d Vo IP Se rv Required Optional © 2006 Cisco Systems, Inc. All Rights Reserved. ice Vo. IP Service Provider Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

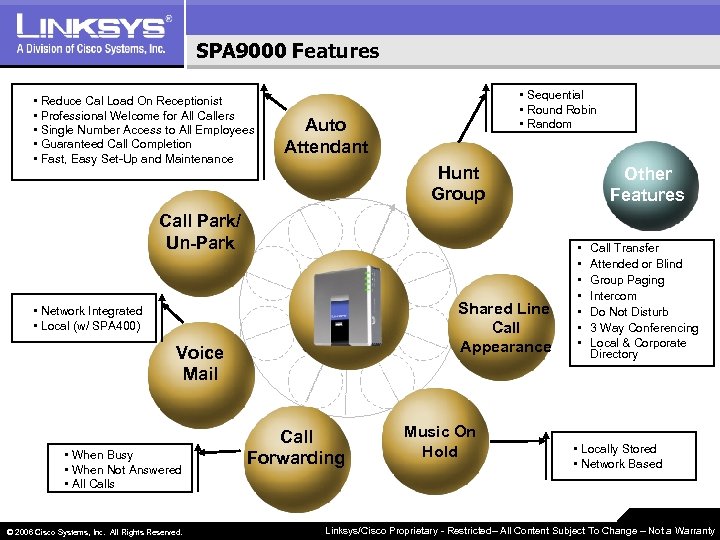

SPA 9000 Features • Reduce Cal Load On Receptionist • Professional Welcome for All Callers • Single Number Access to All Employees • Guaranteed Call Completion • Fast, Easy Set-Up and Maintenance • Sequential • Round Robin • Random Auto Attendant Hunt Group Call Park/ Un-Park Shared Line Call Appearance • Network Integrated • Local (w/ SPA 400) Voice Mail • When Busy • When Not Answered • All Calls © 2006 Cisco Systems, Inc. All Rights Reserved. Call Forwarding Music On Hold Other Features • • Call Transfer Attended or Blind Group Paging Intercom Do Not Disturb 3 Way Conferencing Local & Corporate Directory • Locally Stored • Network Based Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty

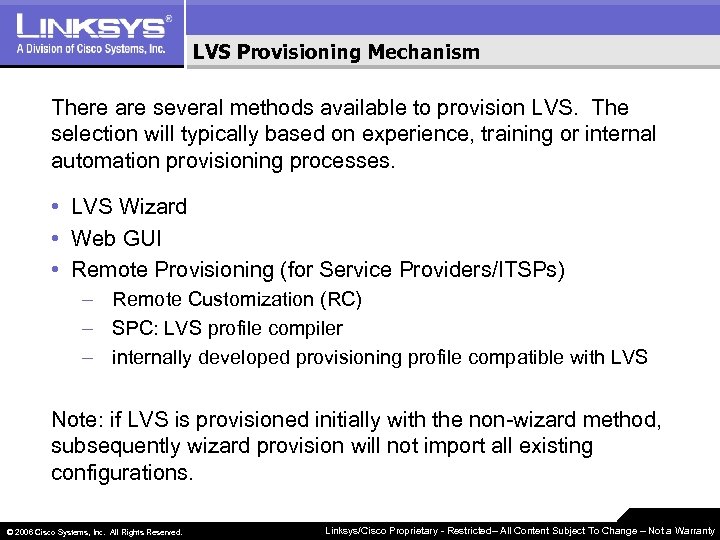

LVS Provisioning Mechanism There are several methods available to provision LVS. The selection will typically based on experience, training or internal automation provisioning processes. • LVS Wizard • Web GUI • Remote Provisioning (for Service Providers/ITSPs) – Remote Customization (RC) – SPC: LVS profile compiler – internally developed provisioning profile compatible with LVS Note: if LVS is provisioned initially with the non-wizard method, subsequently wizard provision will not import all existing configurations. © 2006 Cisco Systems, Inc. All Rights Reserved. Linksys/Cisco Proprietary - Restricted– All Content Subject To Change – Not a Warranty
