Luxline Plus Triphosphor Lamps TIM 1 Phase

Luxline Plus Triphosphor Lamps / TIM 1 Phase Out (TIM = Tertiary Implementation Measure)

What is being phased out?

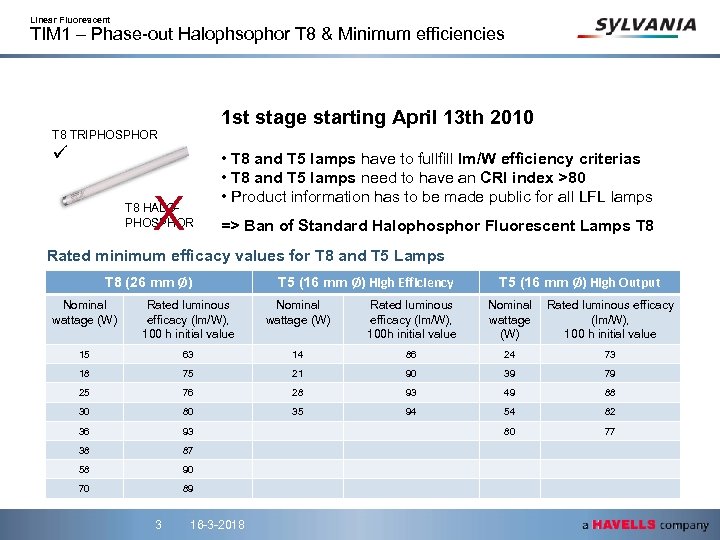

Linear Fluorescent TIM 1 – Phase-out Halophsophor T 8 & Minimum efficiencies 1 st stage starting April 13 th 2010 T 8 TRIPHOSPHOR ü X T 8 HALOPHOSPHOR • T 8 and T 5 lamps have to fullfill lm/W efficiency criterias • T 8 and T 5 lamps need to have an CRI index >80 • Product information has to be made public for all LFL lamps => Ban of Standard Halophosphor Fluorescent Lamps T 8 Rated minimum efficacy values for T 8 and T 5 Lamps T 8 (26 mm Ø) T 5 (16 mm Ø) High Efficiency T 5 (16 mm Ø) High Output Nominal wattage (W) Rated luminous efficacy (lm/W), 100 h initial value 15 63 14 86 24 73 18 75 21 90 39 79 25 76 28 93 49 88 30 80 35 94 54 82 36 93 80 77 38 87 58 90 70 89 3 16 -3 -2018

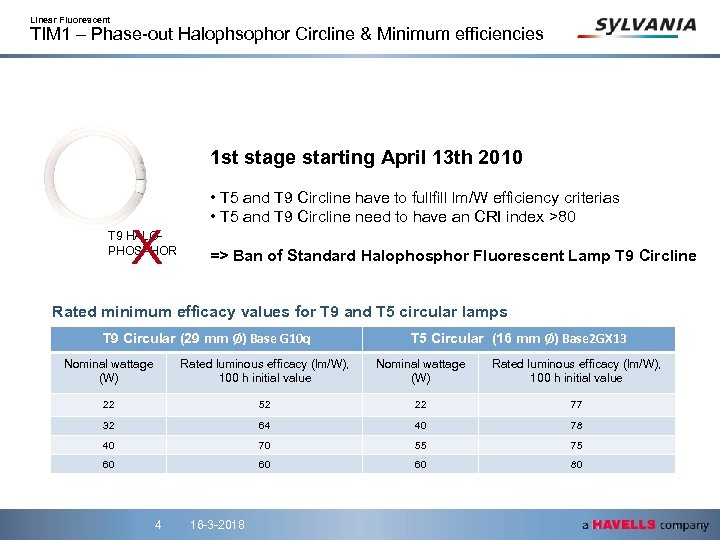

Linear Fluorescent TIM 1 – Phase-out Halophsophor Circline & Minimum efficiencies 1 st stage starting April 13 th 2010 X T 9 HALOPHOSPHOR • T 5 and T 9 Circline have to fullfill lm/W efficiency criterias • T 5 and T 9 Circline need to have an CRI index >80 => Ban of Standard Halophosphor Fluorescent Lamp T 9 Circline Rated minimum efficacy values for T 9 and T 5 circular lamps T 9 Circular (29 mm Ø) Base G 10 q T 5 Circular (16 mm Ø) Base 2 GX 13 Nominal wattage (W) Rated luminous efficacy (lm/W), 100 h initial value 22 52 22 77 32 64 40 78 40 70 55 75 60 60 60 80 4 16 -3 -2018

What is exempt?

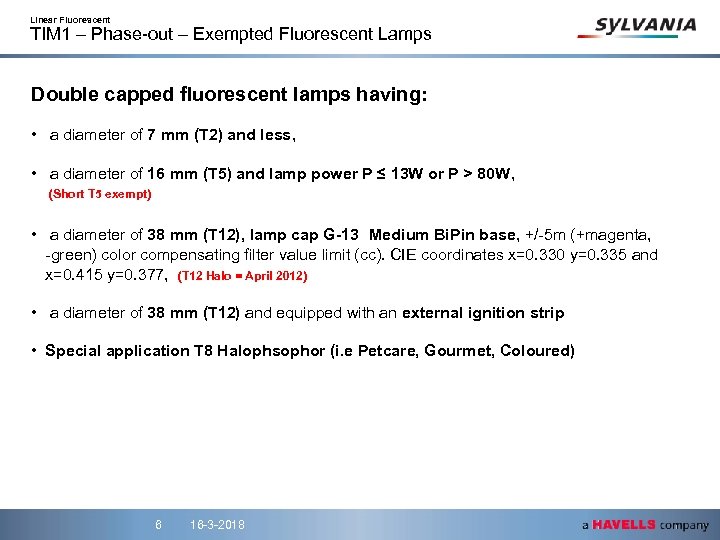

Linear Fluorescent TIM 1 – Phase-out – Exempted Fluorescent Lamps Double capped fluorescent lamps having: • a diameter of 7 mm (T 2) and less, • a diameter of 16 mm (T 5) and lamp power P ≤ 13 W or P > 80 W, (Short T 5 exempt) • a diameter of 38 mm (T 12), lamp cap G-13 Medium Bi. Pin base, +/-5 m (+magenta, -green) color compensating filter value limit (cc). CIE coordinates x=0. 330 y=0. 335 and x=0. 415 y=0. 377, (T 12 Halo = April 2012) • a diameter of 38 mm (T 12) and equipped with an external ignition strip • Special application T 8 Halophsophor (i. e Petcare, Gourmet, Coloured) 6 16 -3 -2018

What alternative lamps will be available?

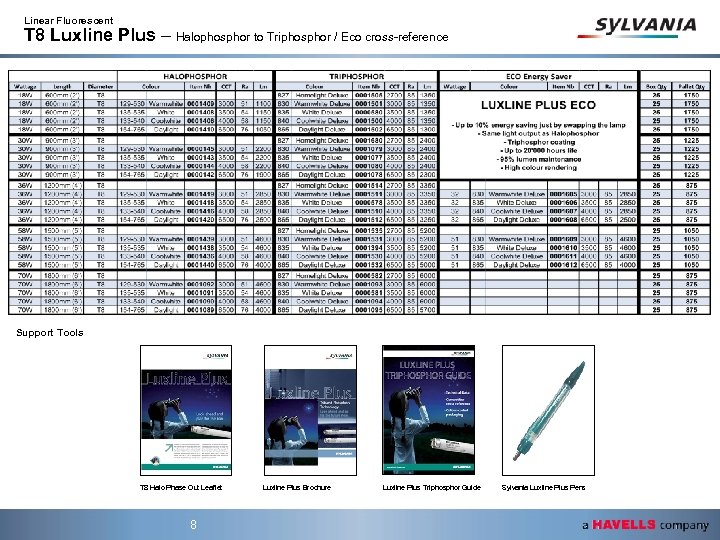

Linear Fluorescent T 8 Luxline Plus – Halophosphor to Triphosphor / Eco cross-reference Support Tools T 8 Halo Phase Out Leaflet 8 Luxline Plus Brochure Luxline Plus Triphosphor Guide Sylvania Luxline Plus Pens

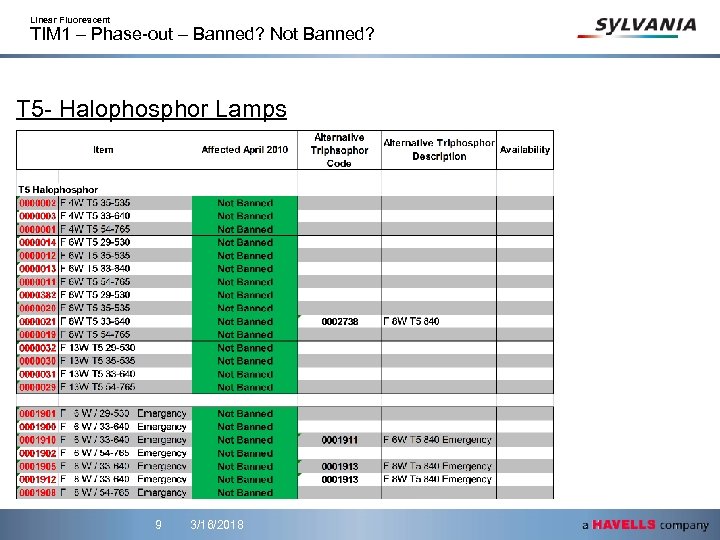

Linear Fluorescent TIM 1 – Phase-out – Banned? Not Banned? T 5 - Halophosphor Lamps 9 3/16/2018

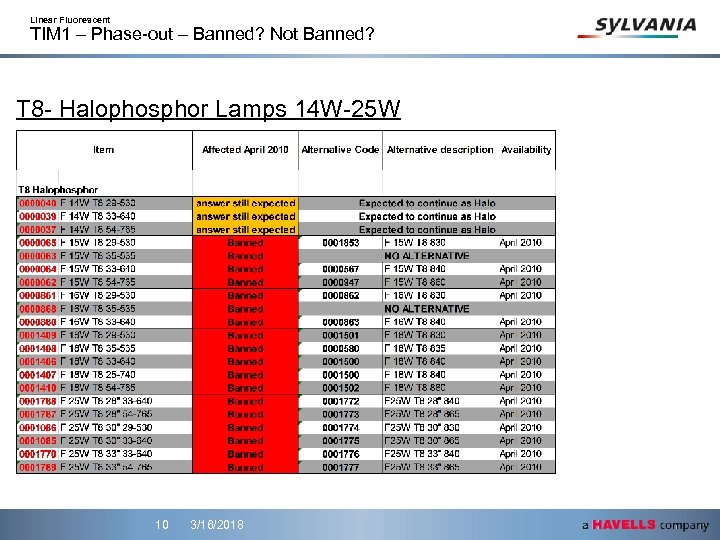

Linear Fluorescent TIM 1 – Phase-out – Banned? Not Banned? T 8 - Halophosphor Lamps 14 W-25 W 10 3/16/2018

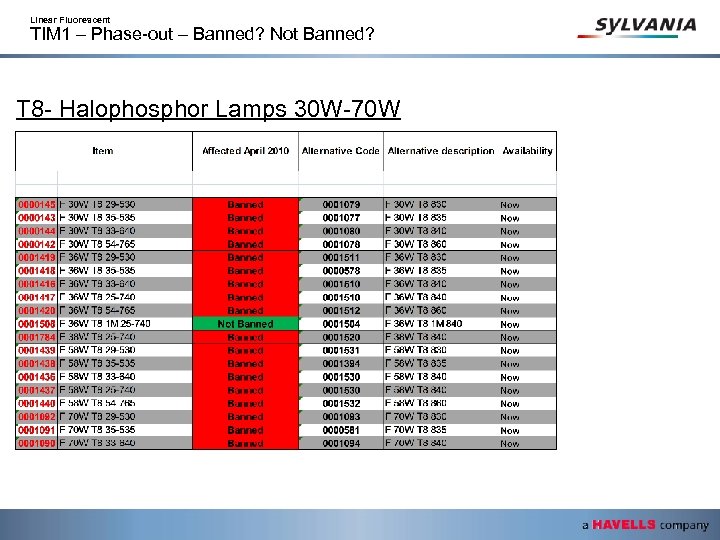

Linear Fluorescent TIM 1 – Phase-out – Banned? Not Banned? T 8 - Halophosphor Lamps 30 W-70 W

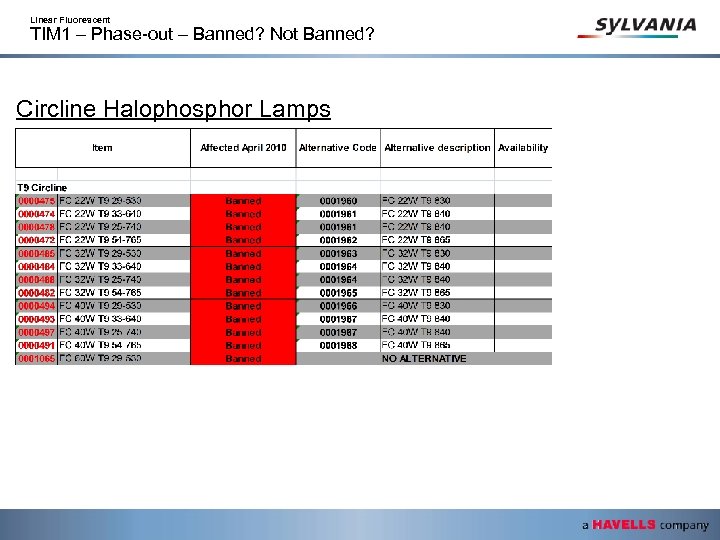

Linear Fluorescent TIM 1 – Phase-out – Banned? Not Banned? Circline Halophosphor Lamps

The benefits of Triphosphor

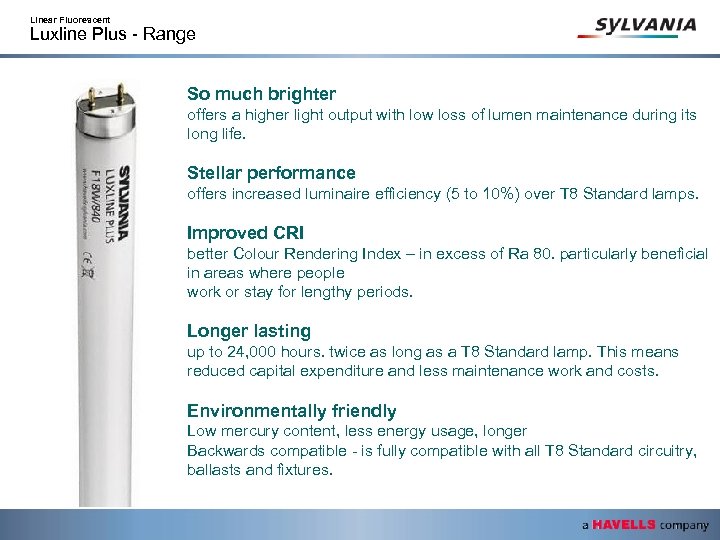

Linear Fluorescent Luxline Plus - Range So much brighter offers a higher light output with low loss of lumen maintenance during its long life. Stellar performance offers increased luminaire efficiency (5 to 10%) over T 8 Standard lamps. Improved CRI better Colour Rendering Index – in excess of Ra 80. particularly beneficial in areas where people work or stay for lengthy periods. Longer lasting up to 24, 000 hours. twice as long as a T 8 Standard lamp. This means reduced capital expenditure and less maintenance work and costs. Environmentally friendly Low mercury content, less energy usage, longer Backwards compatible - is fully compatible with all T 8 Standard circuitry, ballasts and fixtures.

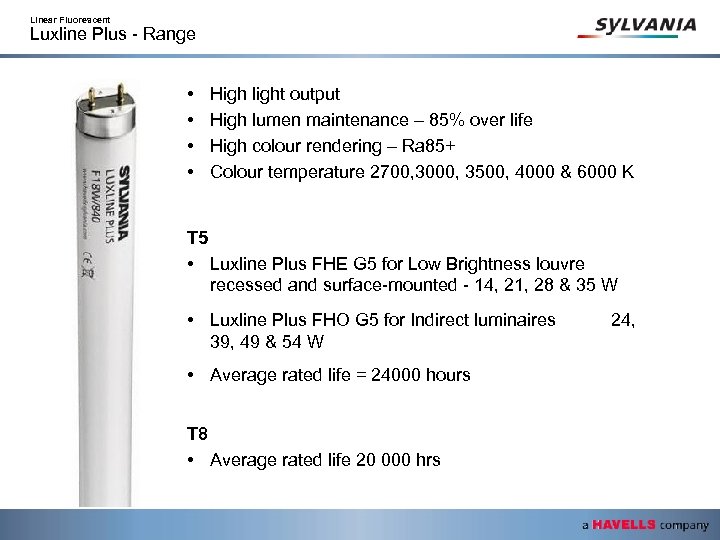

Linear Fluorescent Luxline Plus - Range • • High light output High lumen maintenance – 85% over life High colour rendering – Ra 85+ Colour temperature 2700, 3000, 3500, 4000 & 6000 K T 5 • Luxline Plus FHE G 5 for Low Brightness louvre recessed and surface-mounted - 14, 21, 28 & 35 W • Luxline Plus FHO G 5 for Indirect luminaires 39, 49 & 54 W • Average rated life = 24000 hours T 8 • Average rated life 20 000 hrs 24,

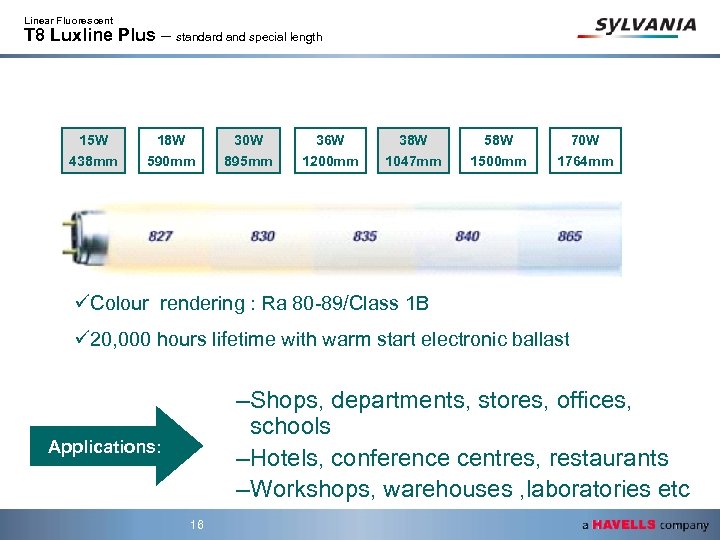

Linear Fluorescent T 8 Luxline Plus – standard and special length 15 W 438 mm 18 W 590 mm 30 W 895 mm 36 W 1200 mm 38 W 1047 mm 58 W 1500 mm 70 W 1764 mm üColour rendering : Ra 80 -89/Class 1 B ü 20, 000 hours lifetime with warm start electronic ballast –Shops, departments, stores, offices, schools –Hotels, conference centres, restaurants –Workshops, warehouses , laboratories etc Applications: 16

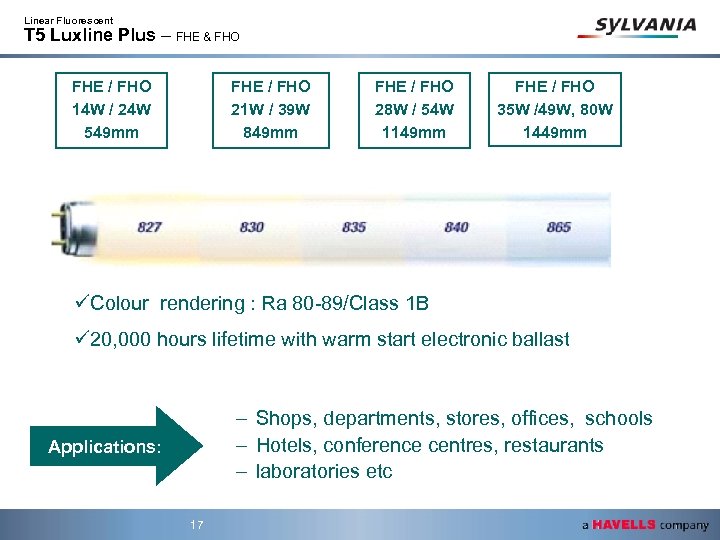

Linear Fluorescent T 5 Luxline Plus – FHE & FHO FHE / FHO 14 W / 24 W 549 mm FHE / FHO 21 W / 39 W 849 mm FHE / FHO 28 W / 54 W 1149 mm FHE / FHO 35 W /49 W, 80 W 1449 mm üColour rendering : Ra 80 -89/Class 1 B ü 20, 000 hours lifetime with warm start electronic ballast – Shops, departments, stores, offices, schools – Hotels, conference centres, restaurants – laboratories etc Applications: 17

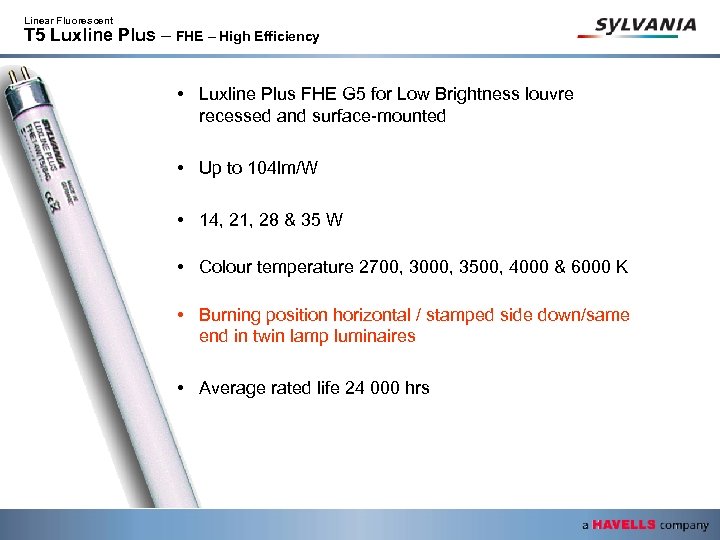

Linear Fluorescent T 5 Luxline Plus – FHE – High Efficiency • Luxline Plus FHE G 5 for Low Brightness louvre recessed and surface-mounted • Up to 104 lm/W • 14, 21, 28 & 35 W • Colour temperature 2700, 3000, 3500, 4000 & 6000 K • Burning position horizontal / stamped side down/same end in twin lamp luminaires • Average rated life 24 000 hrs

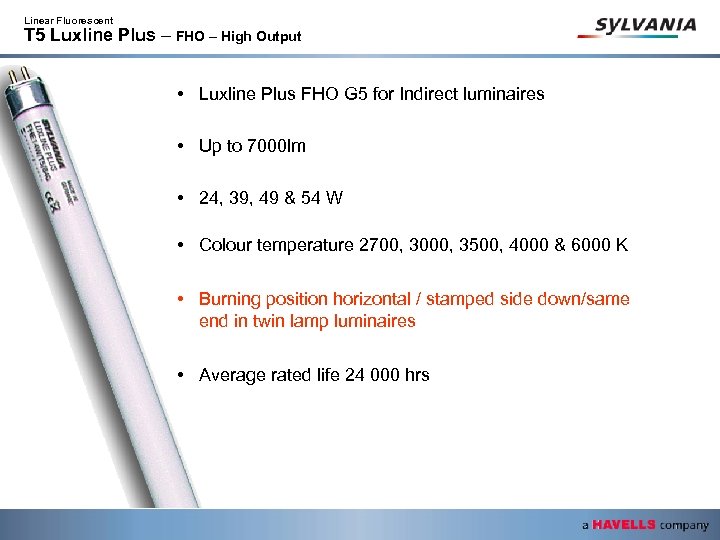

Linear Fluorescent T 5 Luxline Plus – FHO – High Output • Luxline Plus FHO G 5 for Indirect luminaires • Up to 7000 lm • 24, 39, 49 & 54 W • Colour temperature 2700, 3000, 3500, 4000 & 6000 K • Burning position horizontal / stamped side down/same end in twin lamp luminaires • Average rated life 24 000 hrs

Luxline ECO NEW

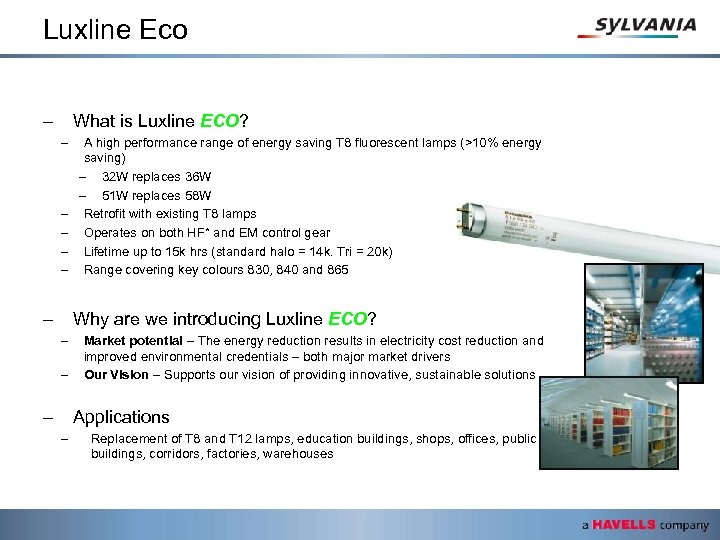

Luxline Eco – What is Luxline ECO? – – – A high performance range of energy saving T 8 fluorescent lamps (>10% energy saving) – 32 W replaces 36 W – 51 W replaces 58 W Retrofit with existing T 8 lamps Operates on both HF* and EM control gear Lifetime up to 15 k hrs (standard halo = 14 k. Tri = 20 k) Range covering key colours 830, 840 and 865 Why are we introducing Luxline ECO? – – – Market potential – The energy reduction results in electricity cost reduction and improved environmental credentials – both major market drivers Our Vision – Supports our vision of providing innovative, sustainable solutions Applications – Replacement of T 8 and T 12 lamps, education buildings, shops, offices, public buildings, corridors, factories, warehouses

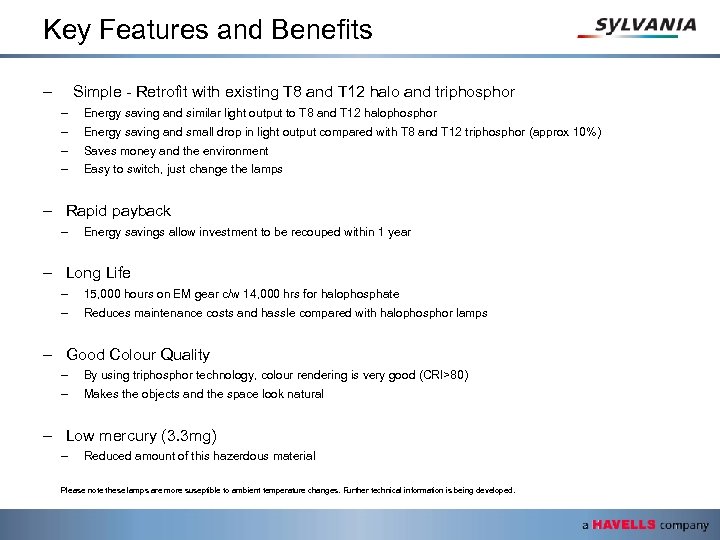

Key Features and Benefits – Simple - Retrofit with existing T 8 and T 12 halo and triphosphor – – Energy saving and similar light output to T 8 and T 12 halophosphor Energy saving and small drop in light output compared with T 8 and T 12 triphosphor (approx 10%) Saves money and the environment Easy to switch, just change the lamps – Rapid payback – Energy savings allow investment to be recouped within 1 year – Long Life – – 15, 000 hours on EM gear c/w 14, 000 hrs for halophosphate Reduces maintenance costs and hassle compared with halophosphor lamps – Good Colour Quality – – By using triphosphor technology, colour rendering is very good (CRI>80) Makes the objects and the space look natural – Low mercury (3. 3 mg) – Reduced amount of this hazerdous material Please note these lamps are more suseptible to ambient temperature changes. Further technical information is being developed.

Luxline Supercolour NEW

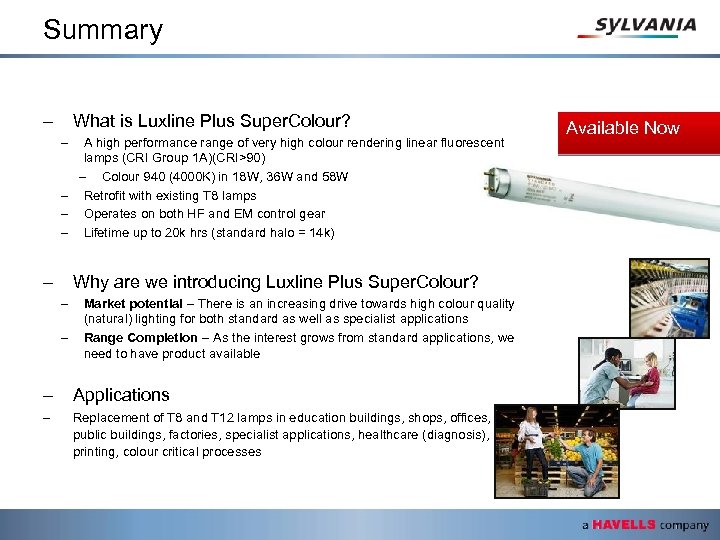

Summary – What is Luxline Plus Super. Colour? – A high performance range of very high colour rendering linear fluorescent lamps (CRI Group 1 A)(CRI>90) – Colour 940 (4000 K) in 18 W, 36 W and 58 W – Retrofit with existing T 8 lamps – Operates on both HF and EM control gear – Lifetime up to 20 k hrs (standard halo = 14 k) – Why are we introducing Luxline Plus Super. Colour? – – Market potential – There is an increasing drive towards high colour quality (natural) lighting for both standard as well as specialist applications Range Completion – As the interest grows from standard applications, we need to have product available – Applications – Replacement of T 8 and T 12 lamps in education buildings, shops, offices, public buildings, factories, specialist applications, healthcare (diagnosis), printing, colour critical processes Available Now

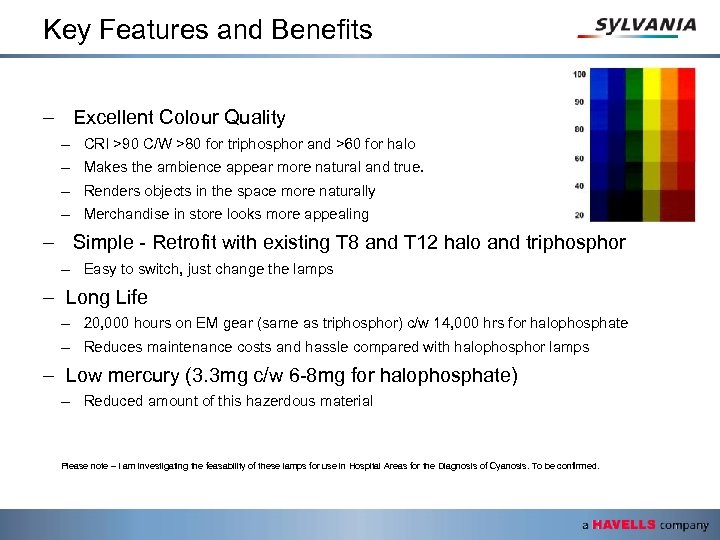

Key Features and Benefits – Excellent Colour Quality – CRI >90 C/W >80 for triphosphor and >60 for halo – Makes the ambience appear more natural and true. – Renders objects in the space more naturally – Merchandise in store looks more appealing – Simple - Retrofit with existing T 8 and T 12 halo and triphosphor – Easy to switch, just change the lamps – Long Life – 20, 000 hours on EM gear (same as triphosphor) c/w 14, 000 hrs for halophosphate – Reduces maintenance costs and hassle compared with halophosphor lamps – Low mercury (3. 3 mg c/w 6 -8 mg for halophosphate) – Reduced amount of this hazerdous material Please note – I am investigating the feasability of these lamps for use in Hospital Areas for the Diagnosis of Cyanosis. To be confirmed.
