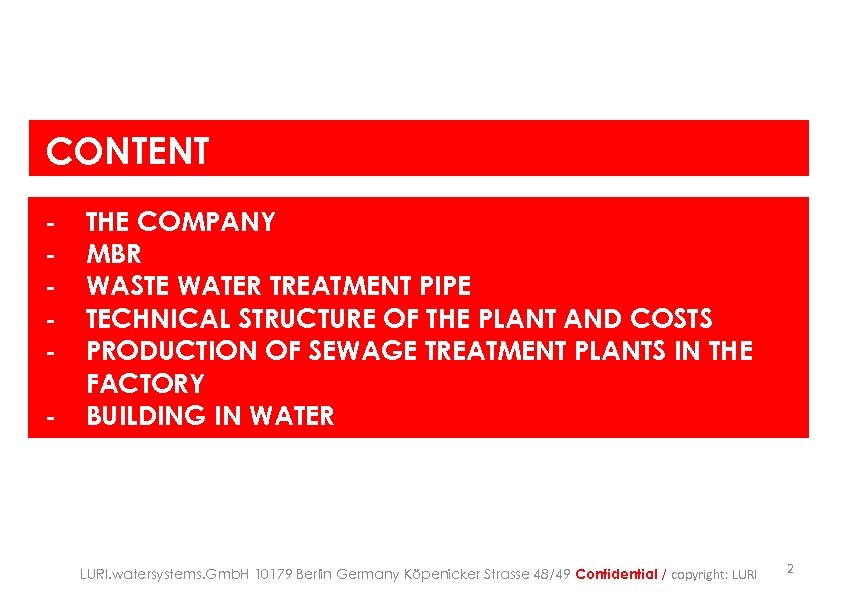

CONTENT - THE COMPANY MBR WASTE WATER TREATMENT PIPE TECHNICAL STRUCTURE OF THE PLANT AND COSTS PRODUCTION OF SEWAGE TREATMENT PLANTS IN THE FACTORY BUILDING IN WATER LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 2
THE COMPANY LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 3
Ralf Steeg - Dipl. Ing. Environment Engineering and Landscape Architecture. - Working in the sector of urban development since 1987. - Founder LURI. watersystems. Gmb. H - Called “The German Watermann“ in Urban water Managment for Spree River restoration project. - Adept at providing innovative solution to waste water management. - More the 600 press articles LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 4

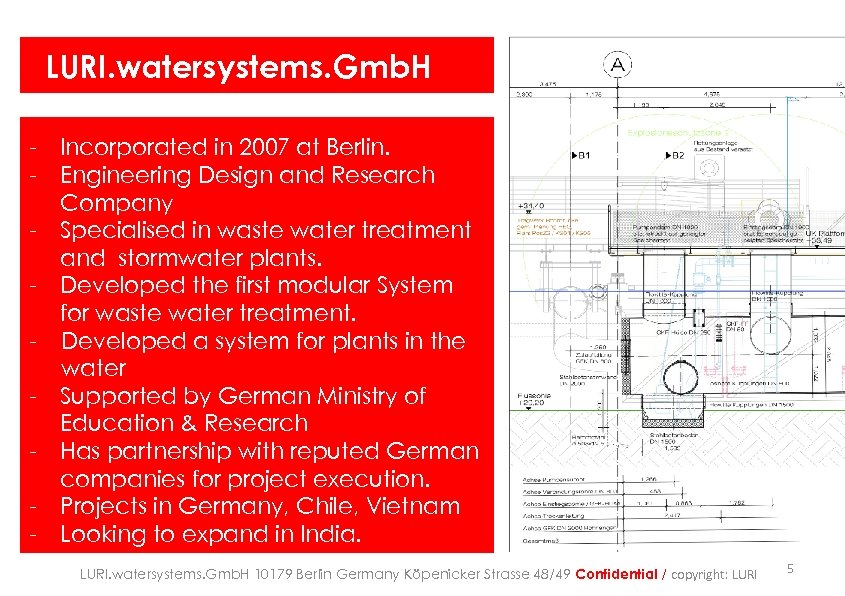

LURI. watersystems. Gmb. H - Incorporated in 2007 at Berlin. - Engineering Design and Research Company - Specialised in waste water treatment and stormwater plants. - Developed the first modular System for waste water treatment. - Developed a system for plants in the water - Supported by German Ministry of Education & Research - Has partnership with reputed German companies for project execution. - Projects in Germany, Chile, Vietnam - Looking to expand in India. LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 5

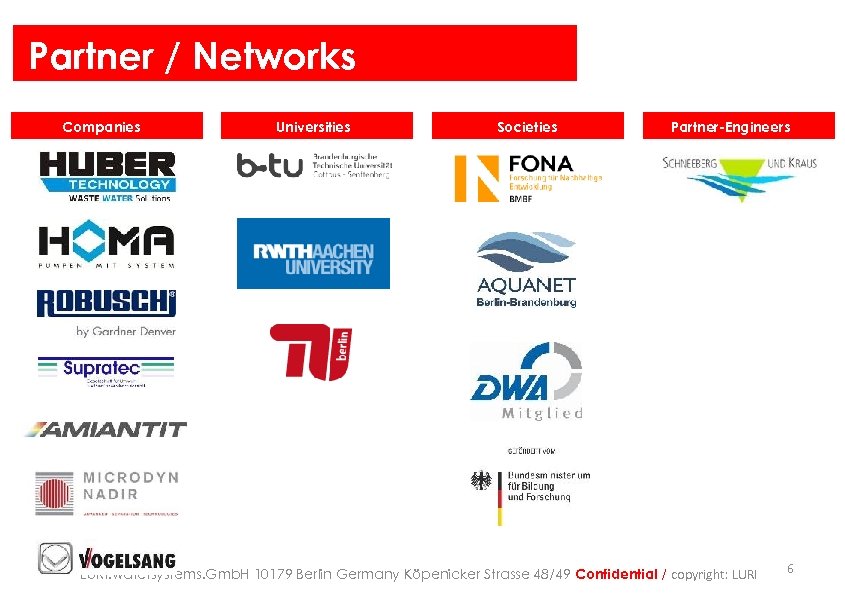

Partner / Networks Companies Universities Societies Partner-Engineers LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 6
German president is visiting LURI at EXPO Shanghai LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 7
LURI Office has >150 visitor groups from 32 countries in the last 3 years LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 8

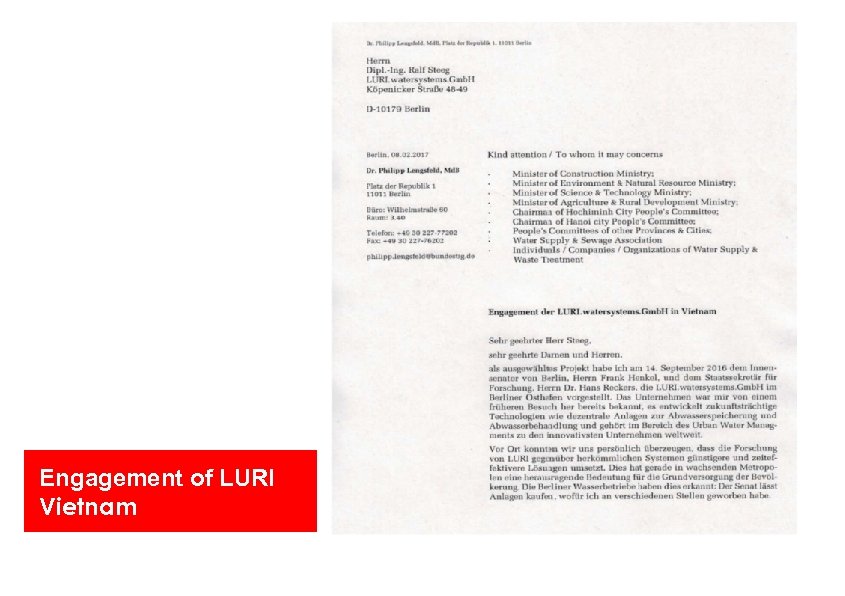

Engagement of LURI Vietnam
LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 10
Government of Germany Award for Sustainable Innovation LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 11

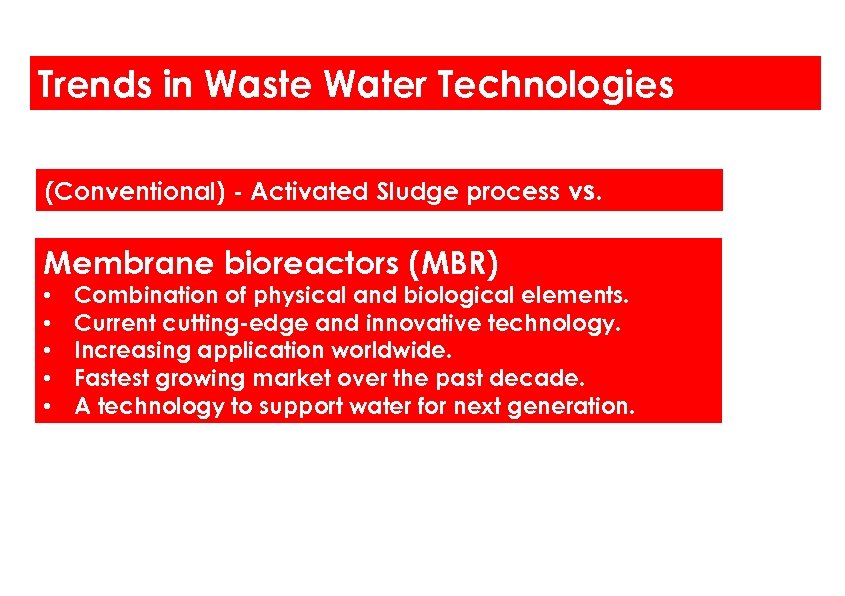

Trends in Waste Water Technologies (Conventional) - Activated Sludge process vs. Membrane bioreactors (MBR) • • • Combination of physical and biological elements. Current cutting-edge and innovative technology. Increasing application worldwide. Fastest growing market over the past decade. A technology to support water for next generation.

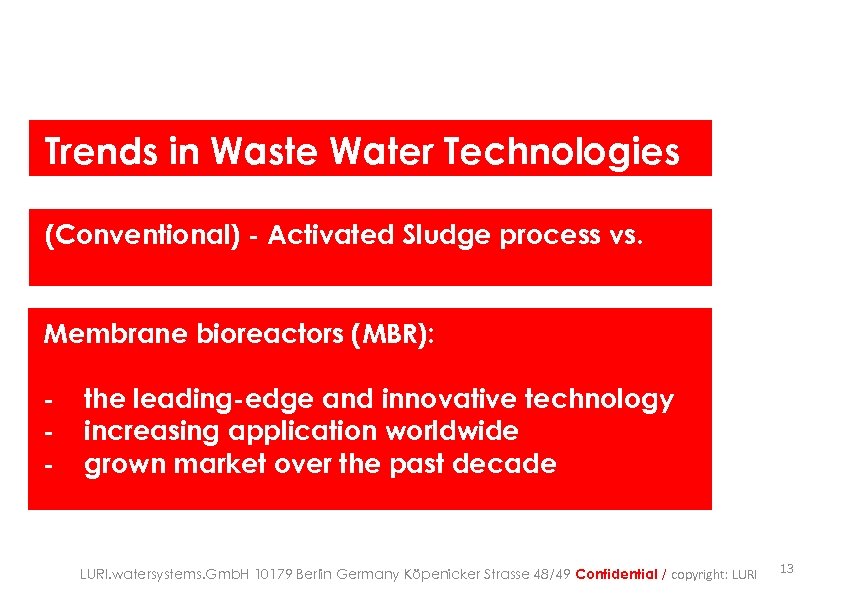

Trends in Waste Water Technologies (Conventional) - Activated Sludge process vs. Membrane bioreactors (MBR): - the leading-edge and innovative technology increasing application worldwide grown market over the past decade LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 13

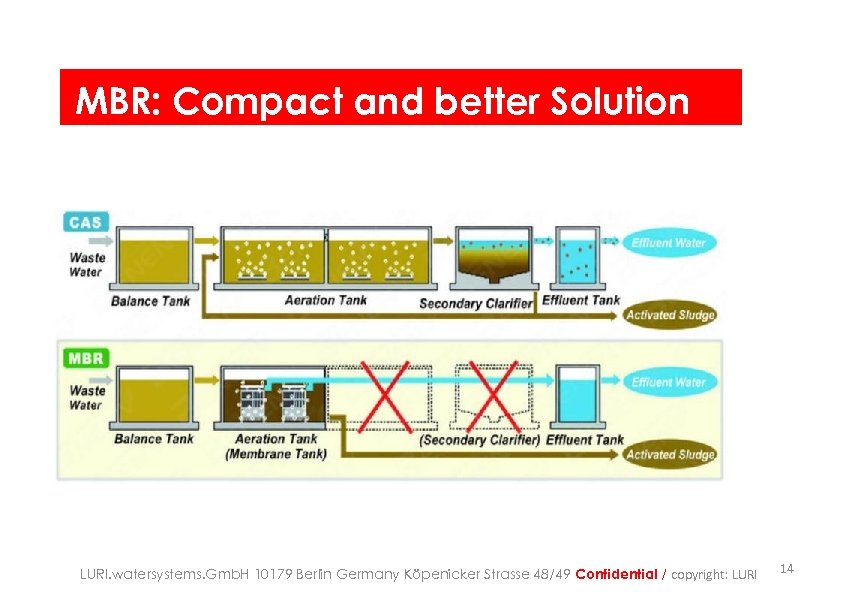

MBR: Compact and better Solution LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 14

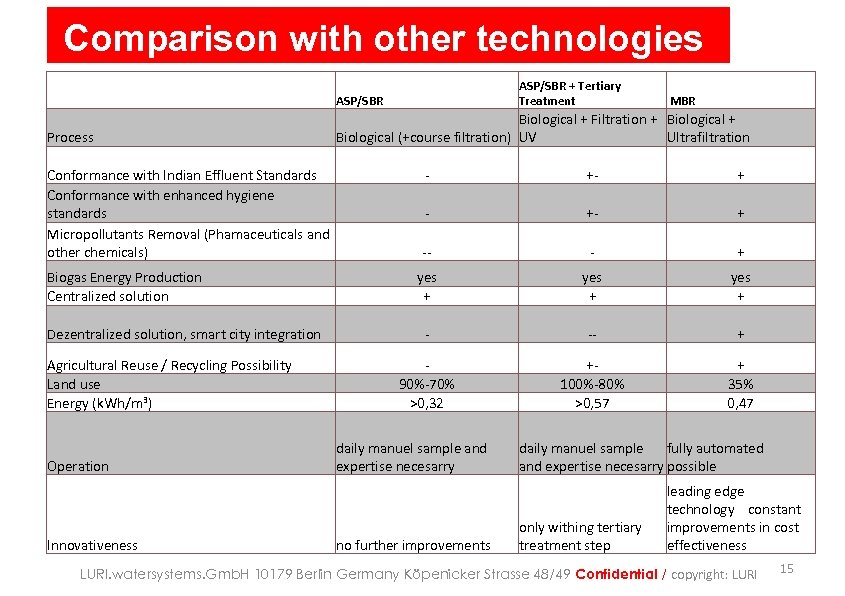

Comparison with other technologies ASP/SBR + Tertiary Treatment ASP/SBR Process Biological + Filtration + Biological (+course filtration) UV Ultrafiltration Conformance with Indian Effluent Standards Conformance with enhanced hygiene standards Micropollutants Removal (Phamaceuticals and other chemicals) Biogas Energy Production Centralized solution Dezentralized solution, smart city integration Agricultural Reuse / Recycling Possibility Land use Energy (k. Wh/m 3) Operation Innovativeness MBR - +- + -- - + yes + - -- + 90%-70% >0, 32 +100%-80% >0, 57 + 35% 0, 47 daily manuel sample and expertise necesarry no further improvements daily manuel sample fully automated and expertise necesarry possible only withing tertiary treatment step leading edge technology constant improvements in cost effectiveness LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 15
NEXT STEP: CONSTRUCTIONS WITH GRP LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 16

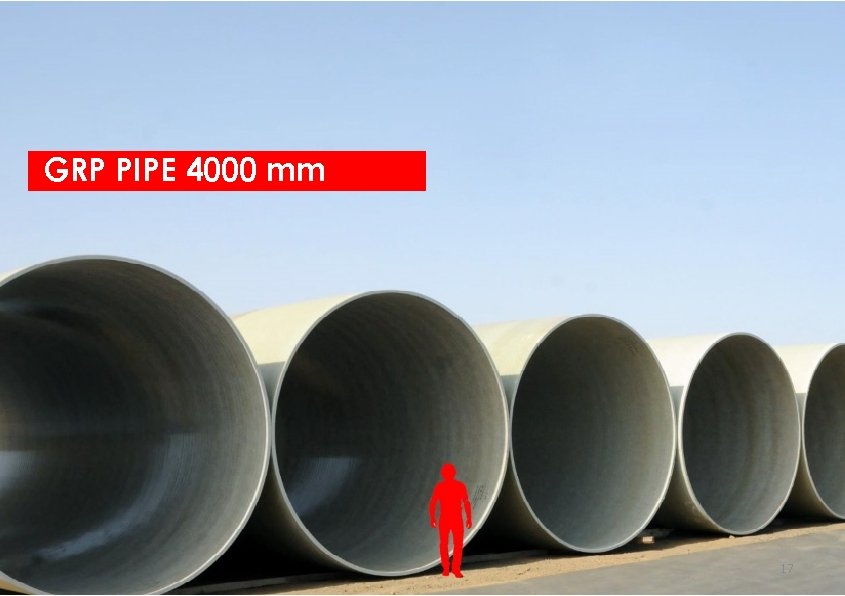

GRP PIPE 4000 mm 17

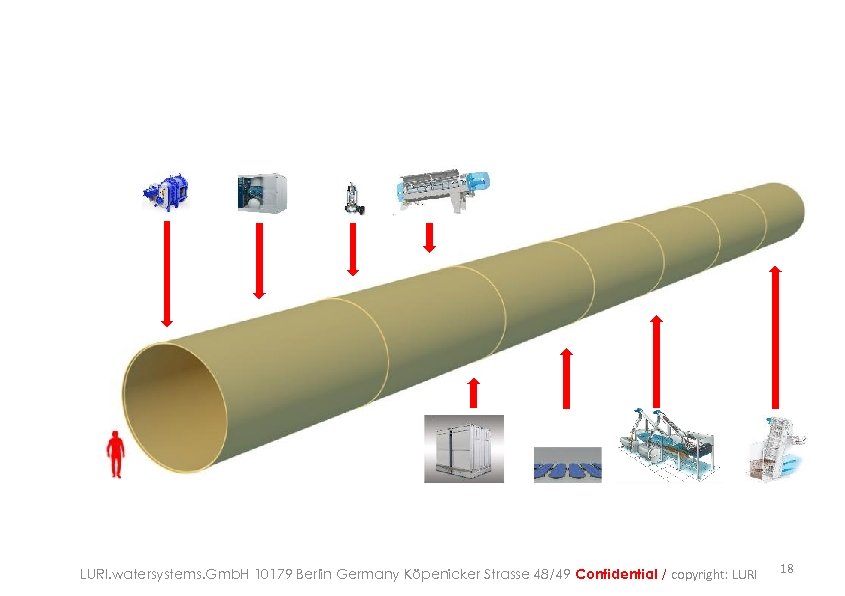

LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 18

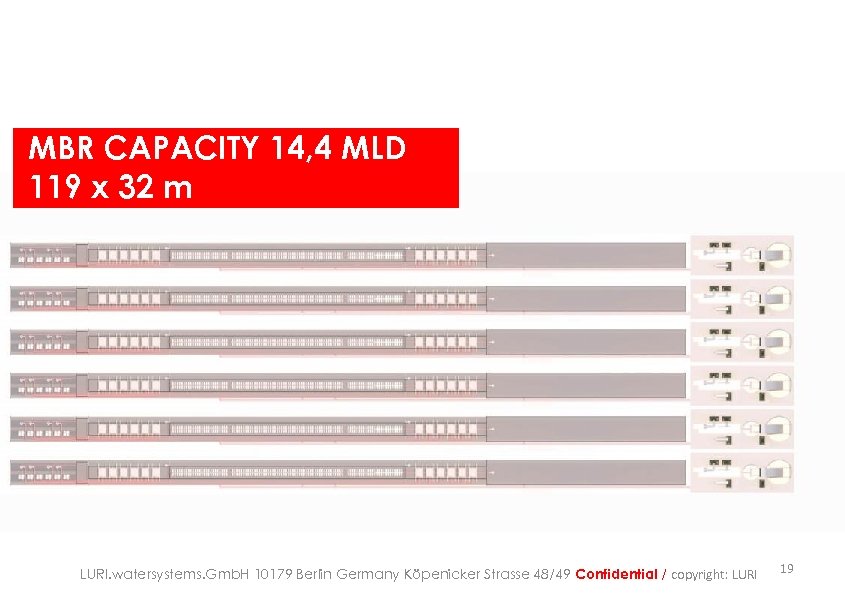

MBR CAPACITY 14, 4 MLD 119 x 32 m LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 19
LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI

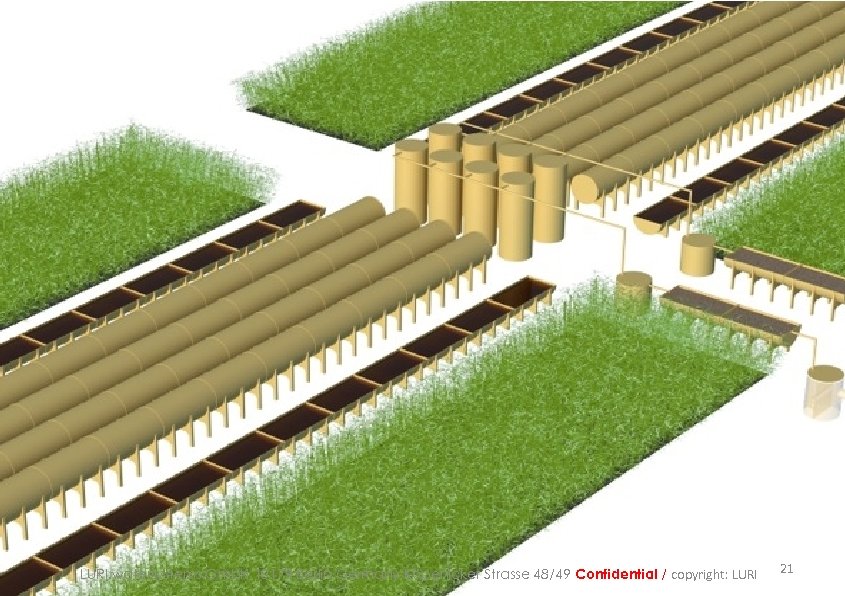

LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 21

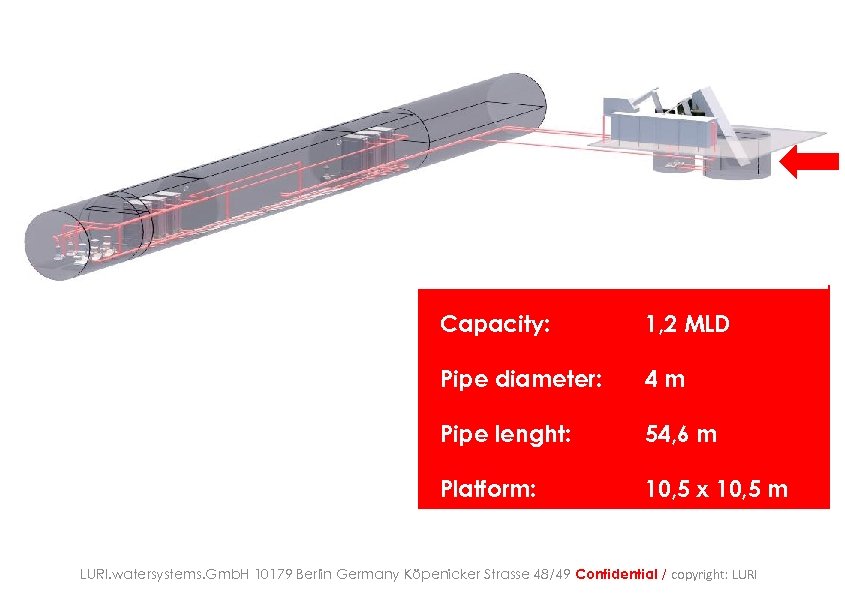

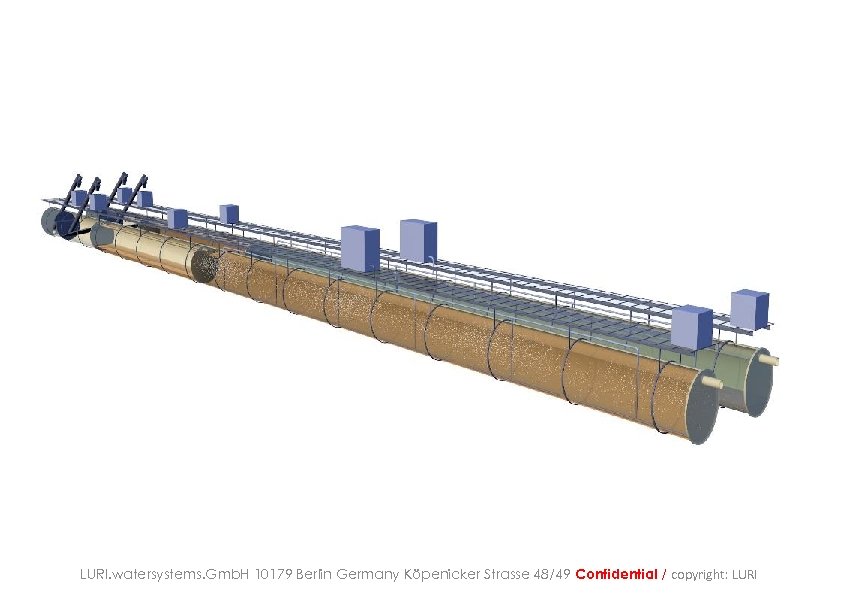

Plant dimensions: Capacity: 1, 2 MLD Pipe diameter: 4 m Pipe lenght: 54, 6 m Platform: 10, 5 x 10, 5 m LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI

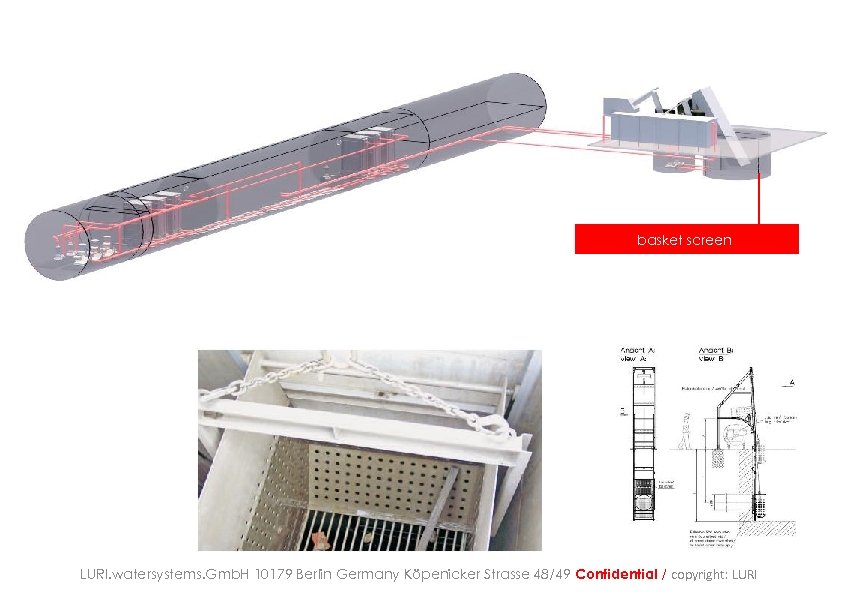

basket screen LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI
bar screen LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI

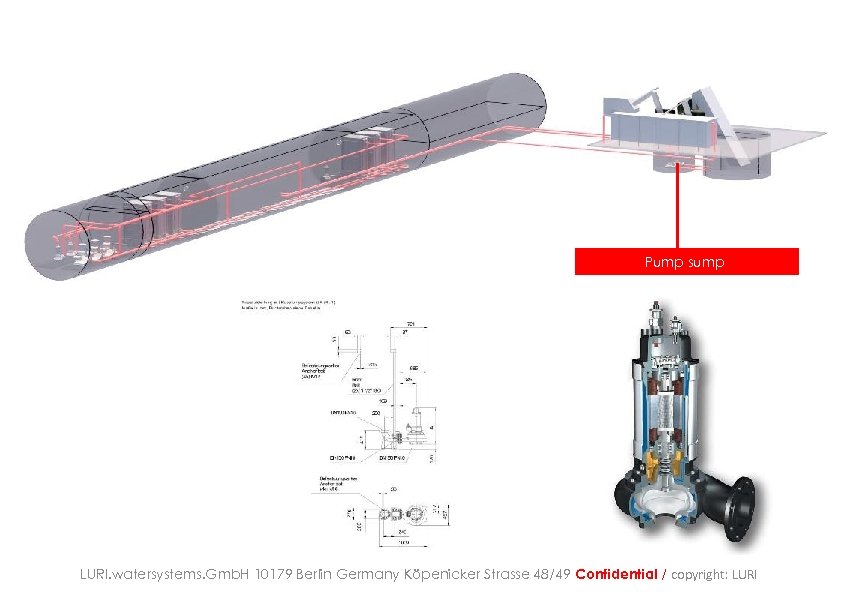

Pump sump LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI

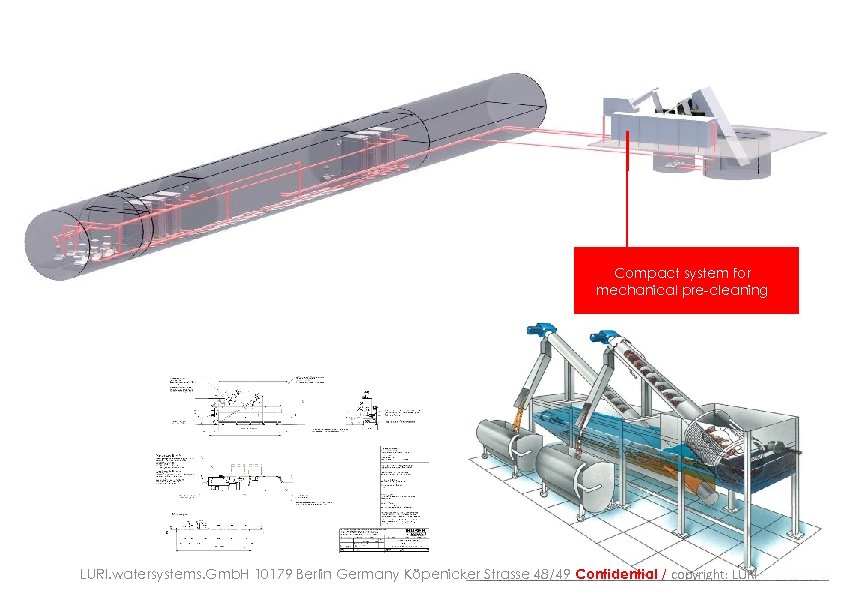

Compact system for mechanical pre-cleaning LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI

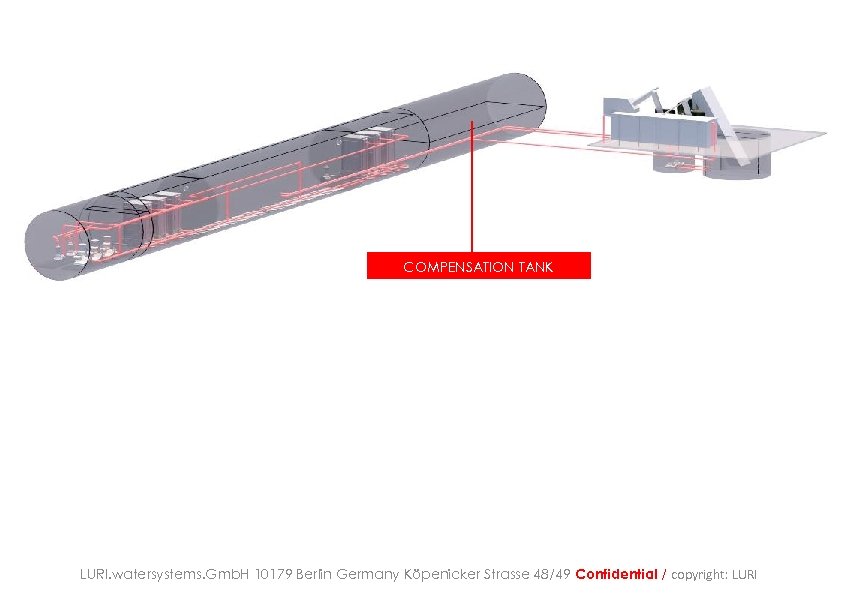

COMPENSATION TANK LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI

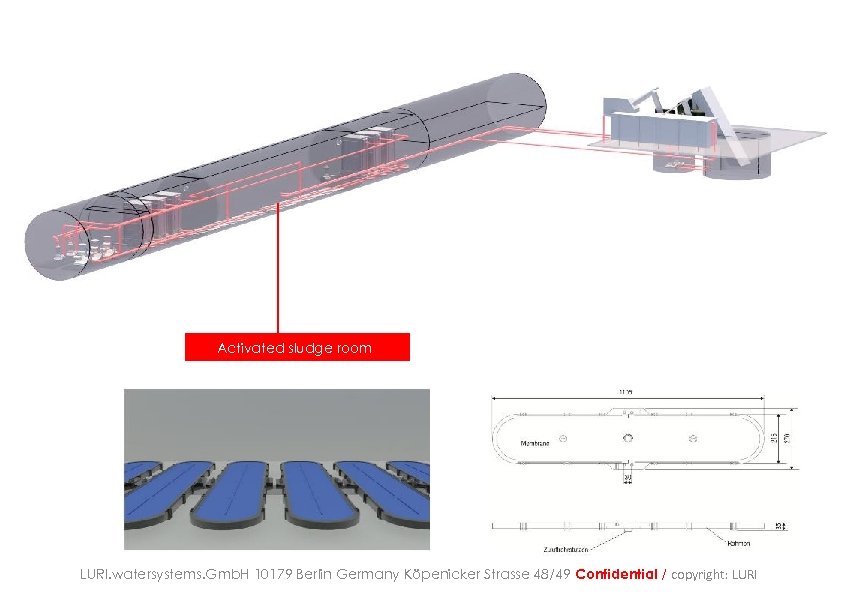

Activated sludge room LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI

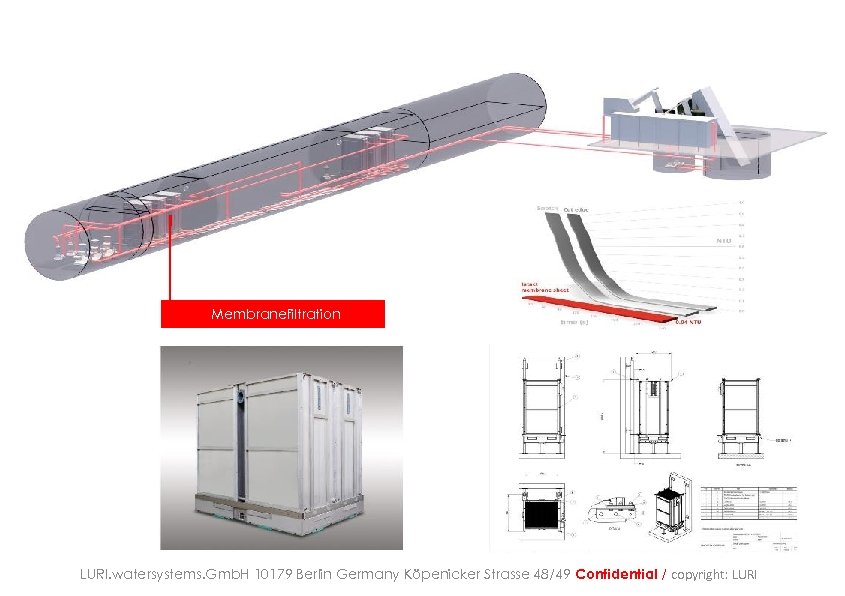

Membranefiltration LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI

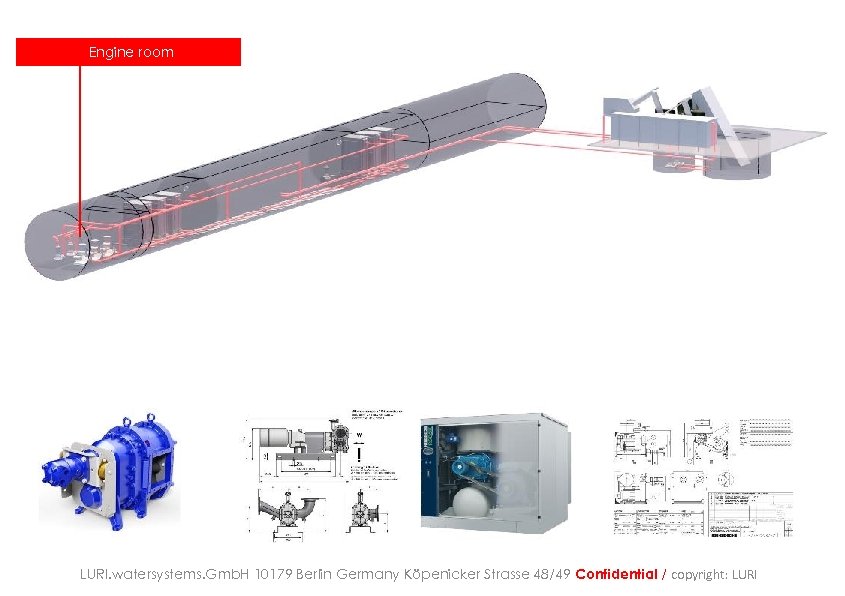

Engine room LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI

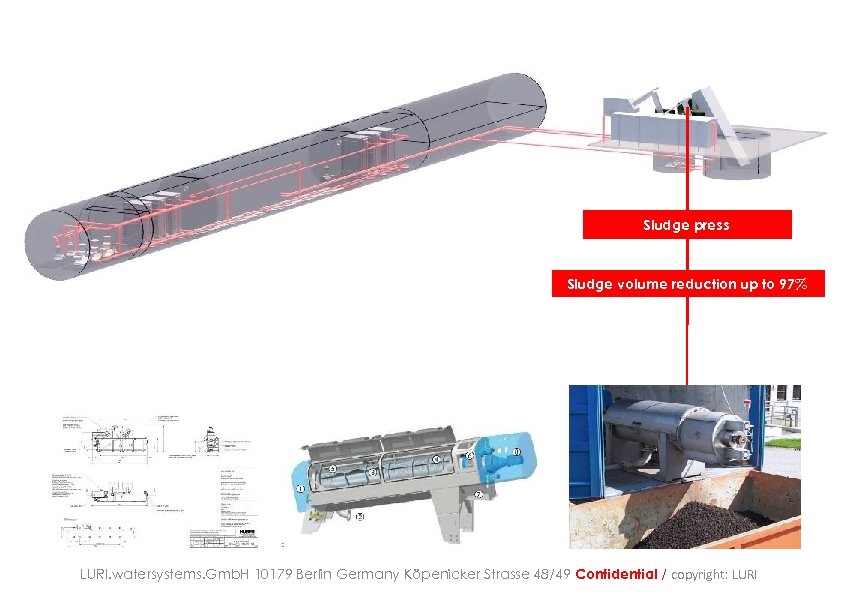

Sludge press Sludge volume reduction up to 97% LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI

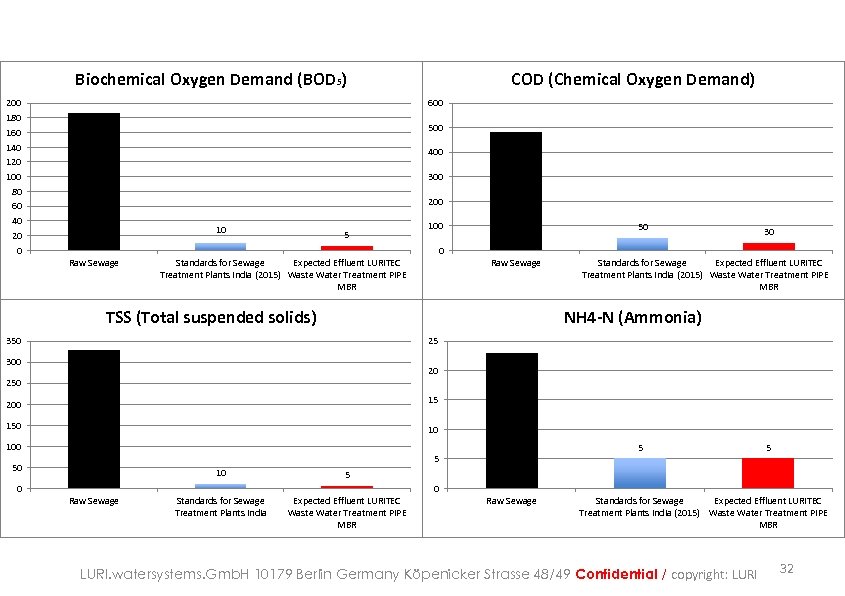

Biochemical Oxygen Demand (BOD 5) 200 180 160 140 120 100 80 60 40 20 0 COD (Chemical Oxygen Demand) 600 500 400 300 200 10 5 100 50 30 0 Raw Sewage Standards for Sewage Expected Effluent LURITEC Treatment Plants India (2015) Waste Water Treatment PIPE MBR Raw Sewage TSS (Total suspended solids) Standards for Sewage Expected Effluent LURITEC Treatment Plants India (2015) Waste Water Treatment PIPE MBR NH 4 -N (Ammonia) 350 25 300 20 250 200 15 150 10 100 5 5 50 10 5 Standards for Sewage Treatment Plants India Expected Effluent LURITEC Waste Water Treatment PIPE MBR 5 0 0 Raw Sewage Expected Effluent LURITEC Standards for Sewage Treatment Plants India (2015) Waste Water Treatment PIPE MBR LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 32

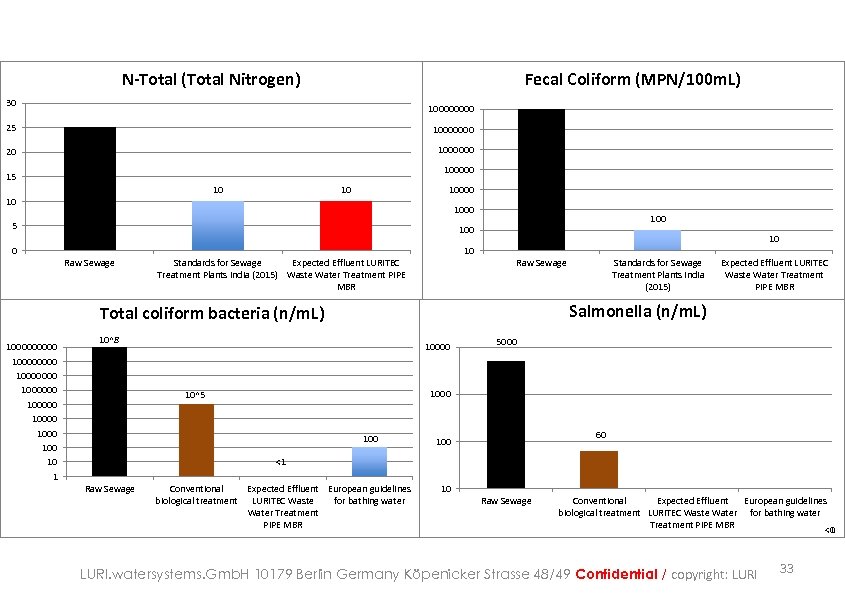

N-Total (Total Nitrogen) Fecal Coliform (MPN/100 m. L) 30 10000 25 10000000 20 100000 15 10 10000 1000 5 0 100 10 Raw Sewage Standards for Sewage Expected Effluent LURITEC Treatment Plants India (2015) Waste Water Treatment PIPE MBR 10 Raw Sewage Expected Effluent LURITEC Waste Water Treatment PIPE MBR Salmonella (n/m. L) Total coliform bacteria (n/m. L) 10000000 1000000 10000 100 10 1 Standards for Sewage Treatment Plants India (2015) 10^8 10000 5000 10^5 100 60 100 <1 Raw Sewage Conventional Expected Effluent European guidelines biological treatment LURITEC Waste for bathing water Water Treatment PIPE MBR 10 Raw Sewage Expected Effluent Conventional European guidelines biological treatment LURITEC Waste Water for bathing water Treatment PIPE MBR <1 0 LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 33

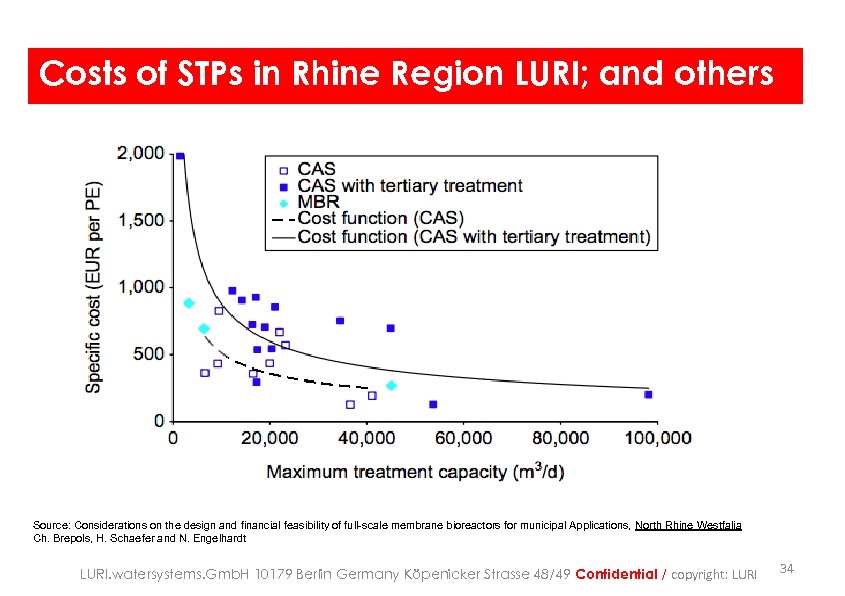

Costs of STPs in Rhine Region LURI; and others Source: Considerations on the design and financial feasibility of full-scale membrane bioreactors for municipal Applications, North Rhine Westfalia Ch. Brepols, H. Schaefer and N. Engelhardt LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 34
THE FUTURE LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 35
THE FUTURE BUILDING TREATMENT PLANTS IN THE FACTORY LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 36
THE STEP FROM MANIFACTORING TO INDUSTRIALISATION LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI

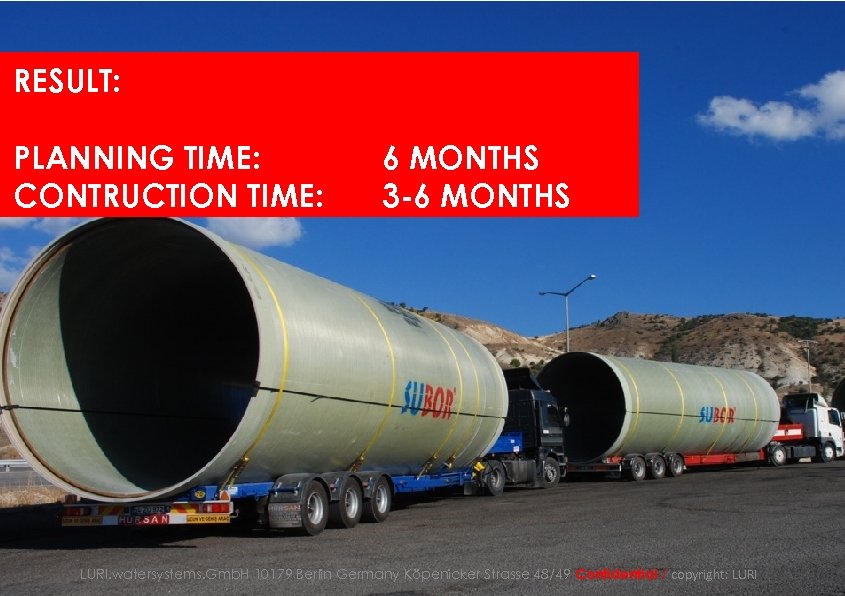

RESULT: PLANNING TIME: CONTRUCTION TIME: 6 MONTHS 3 -6 MONTHS LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI

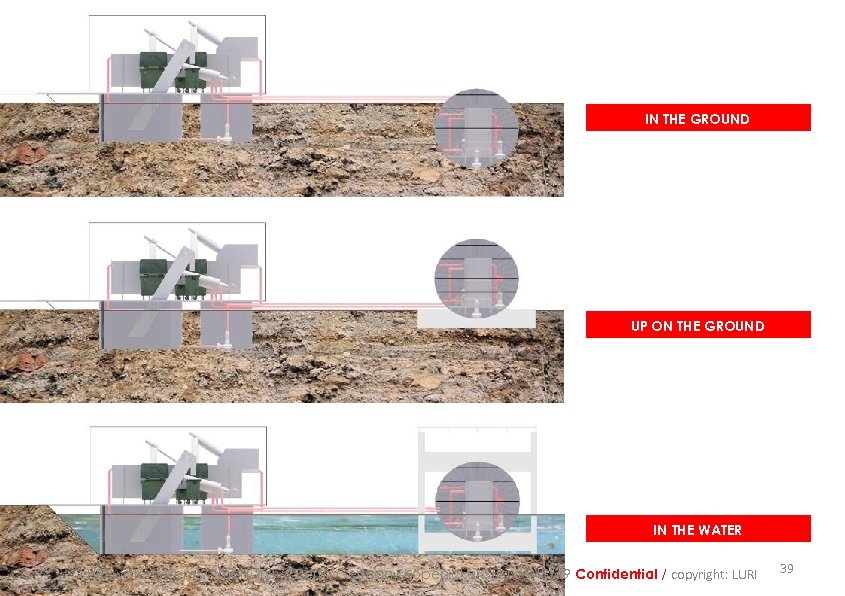

IN THE GROUND UP ON THE GROUND IN THE WATER LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 39
BUILDING IN WATER LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 40

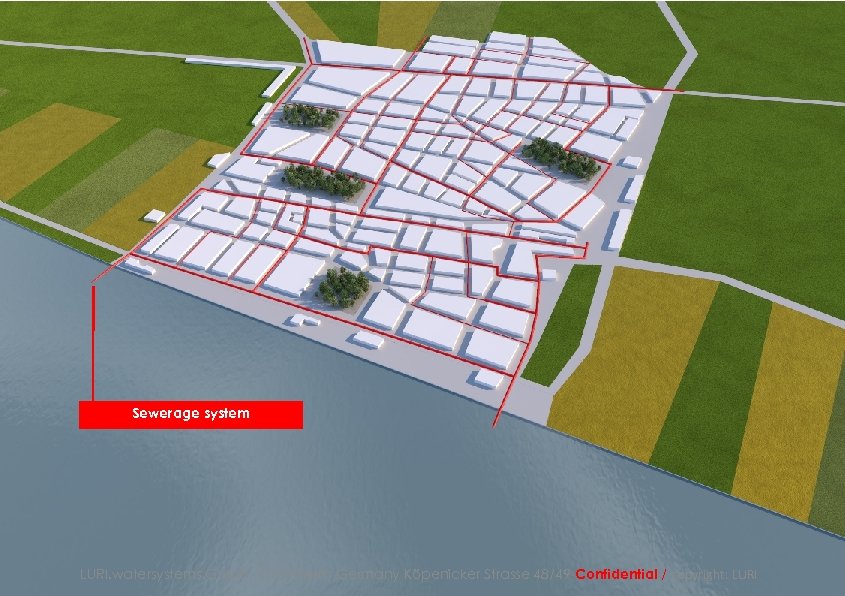

Sewerage system LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI

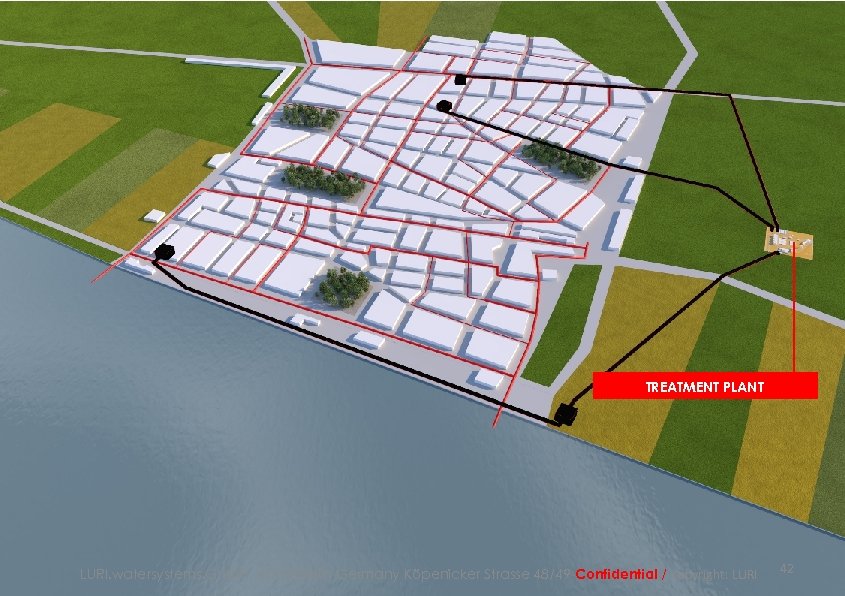

TREATMENT PLANT LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 42

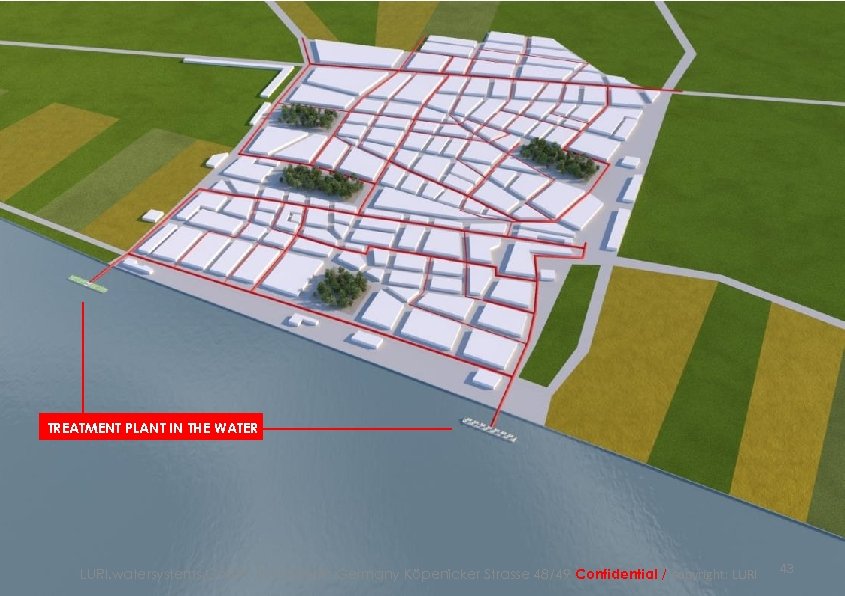

TREATMENT PLANT IN THE WATER LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 43

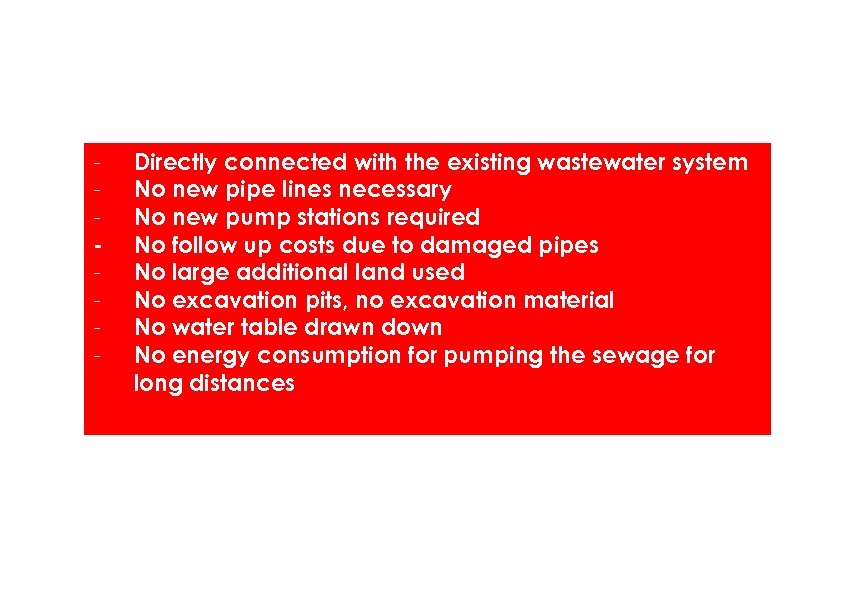

- Directly connected with the existing wastewater system No new pipe lines necessary No new pump stations required No follow up costs due to damaged pipes No large additional land used No excavation pits, no excavation material No water table drawn down No energy consumption for pumping the sewage for long distances
HO CHI MINH CITY LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 45

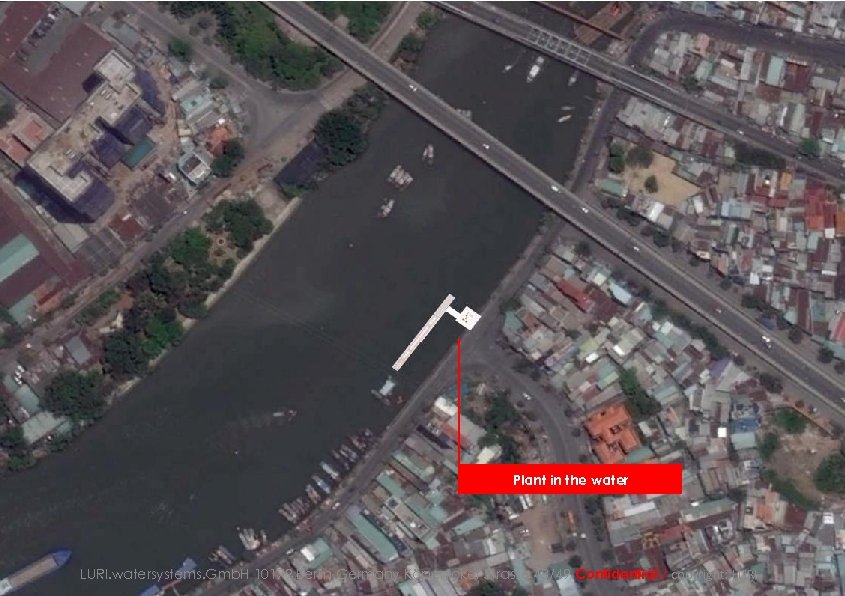

Plant in the water LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI

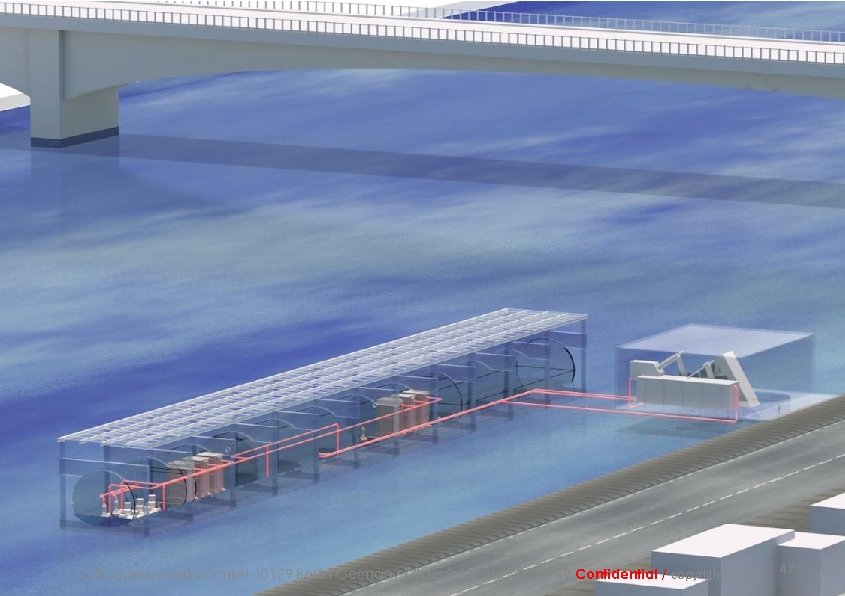

LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 47

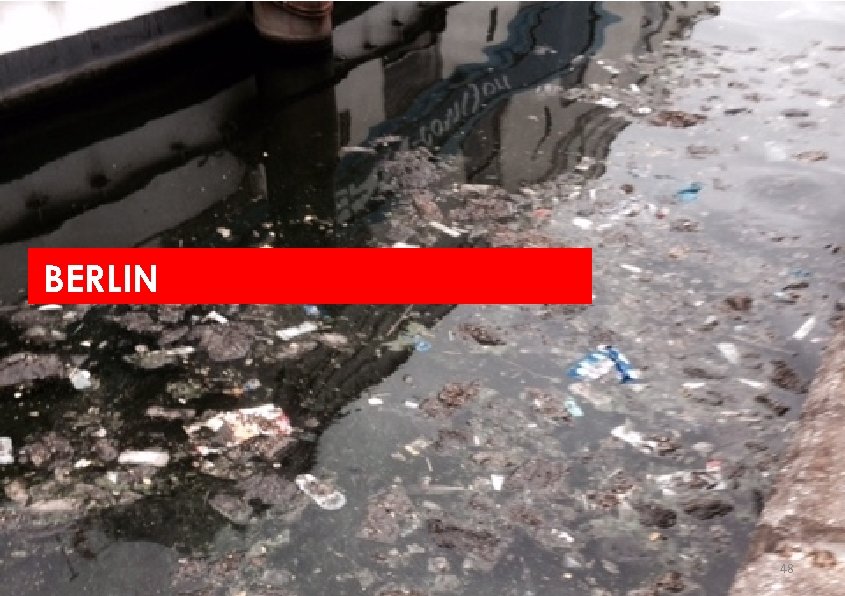

BERLIN 48

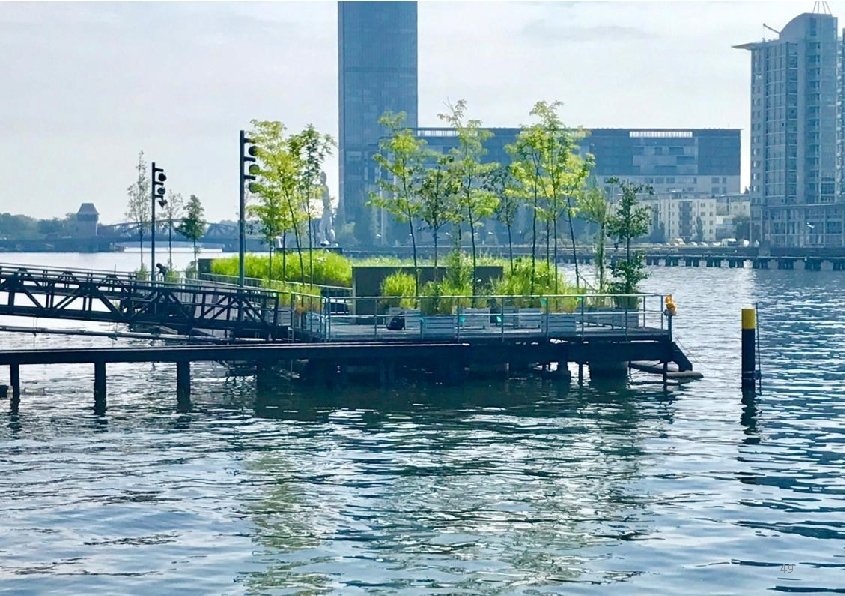

49

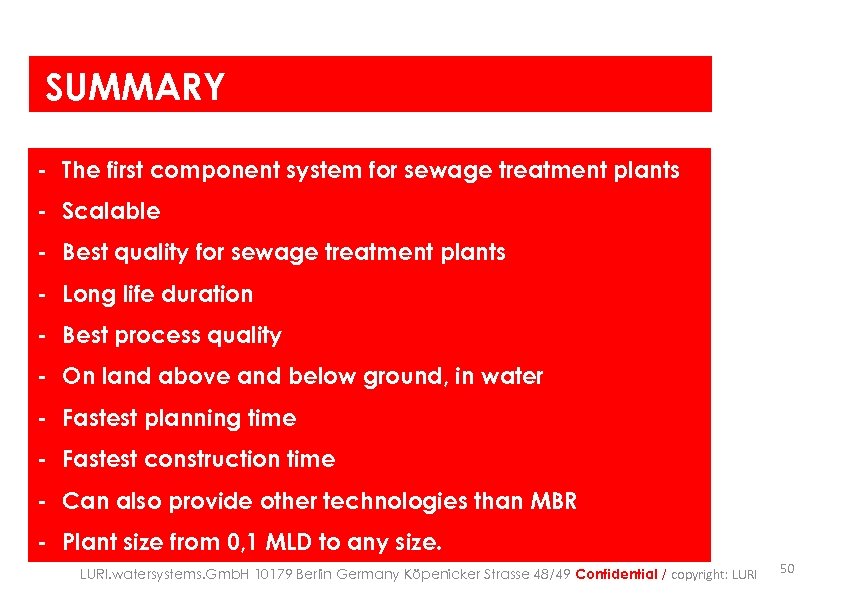

SUMMARY - The first component system for sewage treatment plants - Scalable - Best quality for sewage treatment plants - Long life duration - Best process quality - On land above and below ground, in water - Fastest planning time - Fastest construction time - Can also provide other technologies than MBR - Plant size from 0, 1 MLD to any size. LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 50
THANK YOU LURI. watersystems. Gmb. H 10179 Berlin Germany Köpenicker Strasse 48/49 Confidential / copyright: LURI 51

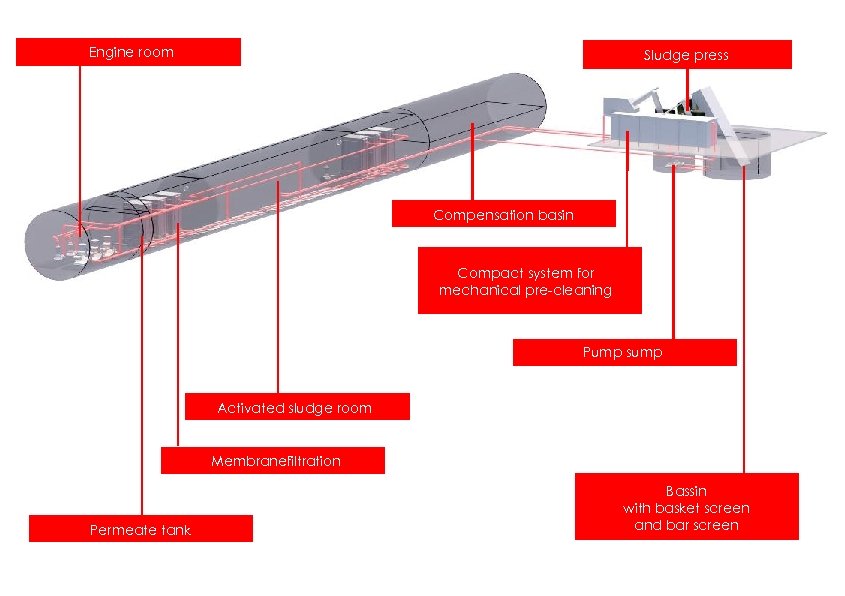

Engine room Sludge press Compensation basin Compact system for mechanical pre-cleaning Pump sump Activated sludge room Membranefiltration Permeate tank Bassin with basket screen and bar screen
