LRDSS an IT industry perspective Dr Siddhartha Sen

LRDSS an IT industry perspective Dr Siddhartha Sen. Gupta Tata Infotech Ltd Siddhartha. Sen. Gupta@Tata. Infotech. com 1

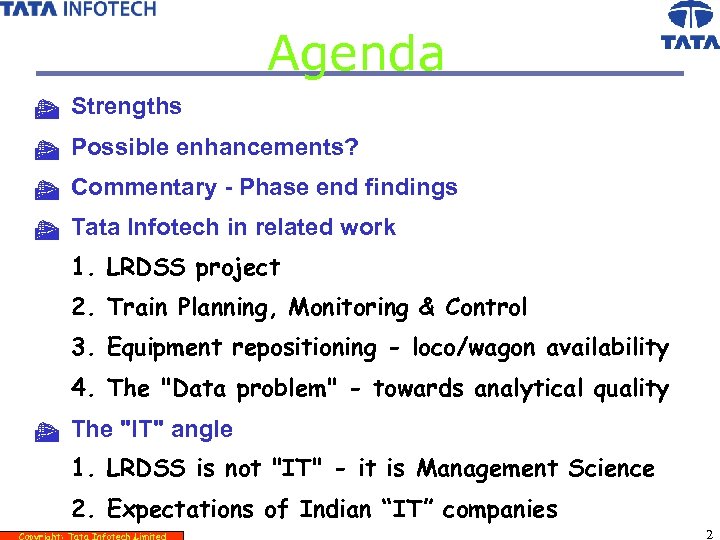

Agenda t Strengths t Possible enhancements? t Commentary - Phase end findings t Tata Infotech in related work 1. LRDSS project 2. Train Planning, Monitoring & Control 3. Equipment repositioning - loco/wagon availability 4. The "Data problem" - towards analytical quality t The "IT" angle 1. LRDSS is not "IT" - it is Management Science 2. Expectations of Indian “IT” companies Copyright: Tata Infotech Limited 2

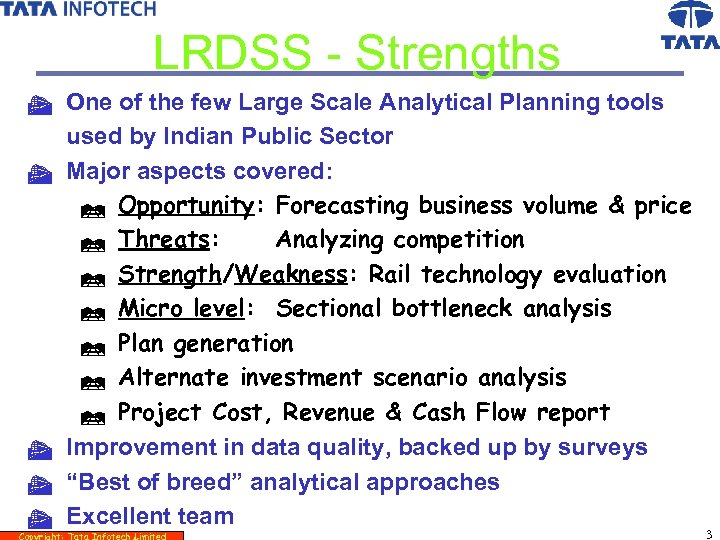

LRDSS - Strengths t One of the few Large Scale Analytical Planning tools used by Indian Public Sector t Major aspects covered: R Opportunity: Forecasting business volume & price R Threats: Analyzing competition R Strength/Weakness: Rail technology evaluation R Micro level: Sectional bottleneck analysis R Plan generation R Alternate investment scenario analysis R Project Cost, Revenue & Cash Flow report t Improvement in data quality, backed up by surveys t “Best of breed” analytical approaches t Excellent team Copyright: Tata Infotech Limited 3

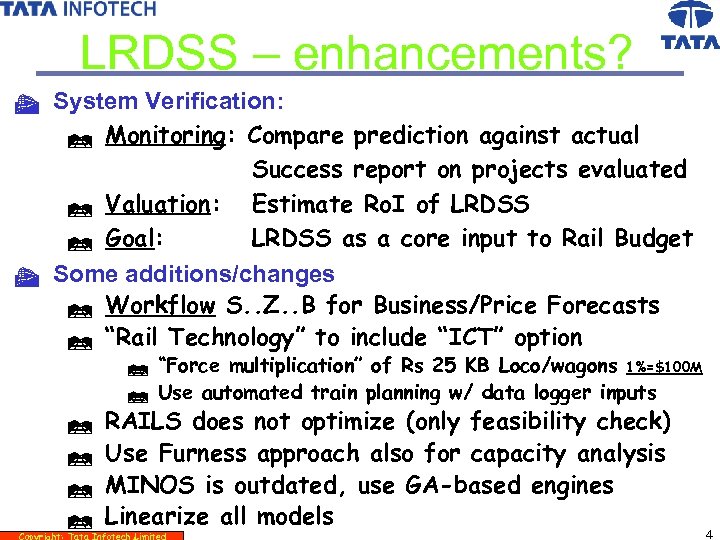

LRDSS – enhancements? t System Verification: R Monitoring: Compare prediction against actual Success report on projects evaluated R Valuation: Estimate Ro. I of LRDSS R Goal: LRDSS as a core input to Rail Budget t Some additions/changes R Workflow S. . Z. . B for Business/Price Forecasts R “Rail Technology” to include “ICT” option R “Force multiplication” of Rs 25 KB Loco/wagons 1%=$100 M R Use automated train planning w/ data logger inputs R R RAILS does not optimize (only feasibility check) Use Furness approach also for capacity analysis MINOS is outdated, use GA-based engines Linearize all models Copyright: Tata Infotech Limited 4

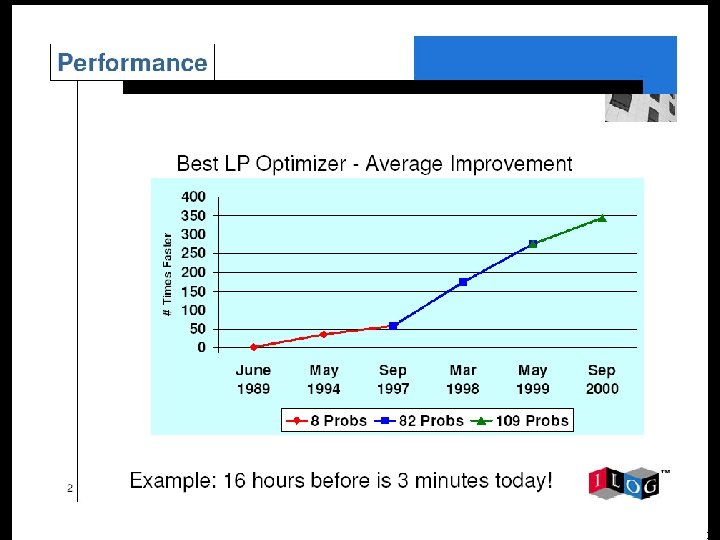

LP speed up Copyright: Tata Infotech Limited 5

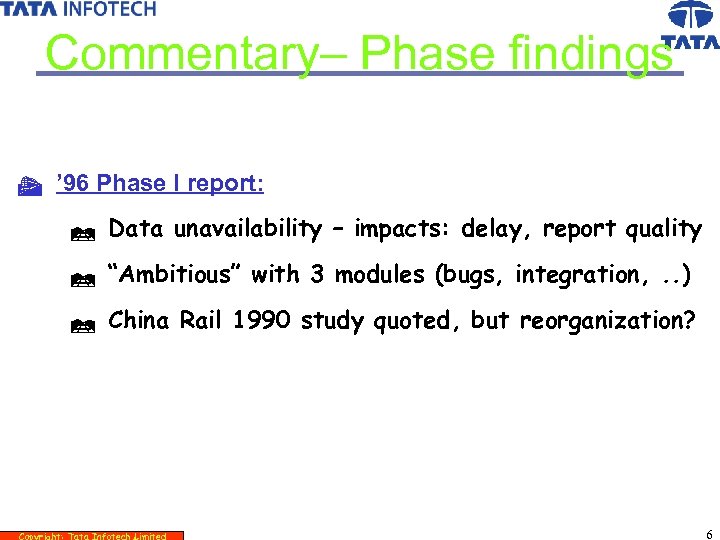

Commentary– Phase findings t ’ 96 Phase I report: R Data unavailability – impacts: delay, report quality R “Ambitious” with 3 modules (bugs, integration, . . ) R China Rail 1990 study quoted, but reorganization? Copyright: Tata Infotech Limited 6

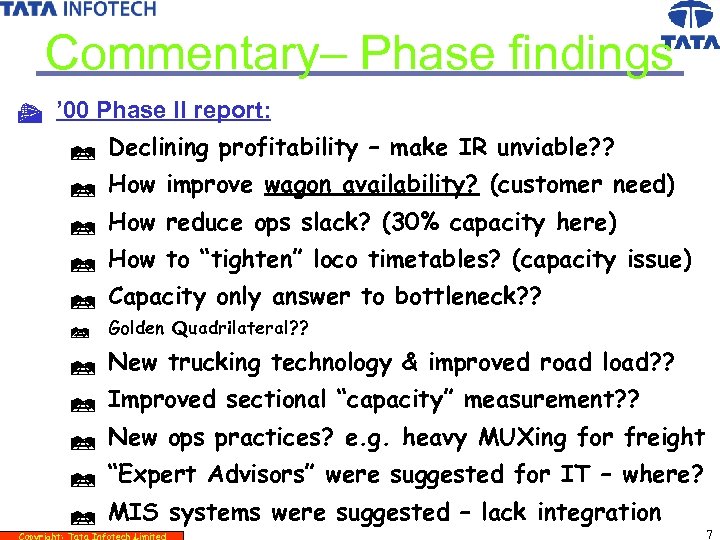

Commentary– Phase findings t ’ 00 Phase II report: R Declining profitability – make IR unviable? ? R How improve wagon availability? (customer need) R How reduce ops slack? (30% capacity here) R How to “tighten” loco timetables? (capacity issue) R Capacity only answer to bottleneck? ? R Golden Quadrilateral? ? R New trucking technology & improved road load? ? R Improved sectional “capacity” measurement? ? R New ops practices? e. g. heavy MUXing for freight R “Expert Advisors” were suggested for IT – where? R MIS systems were suggested – lack integration Copyright: Tata Infotech Limited 7

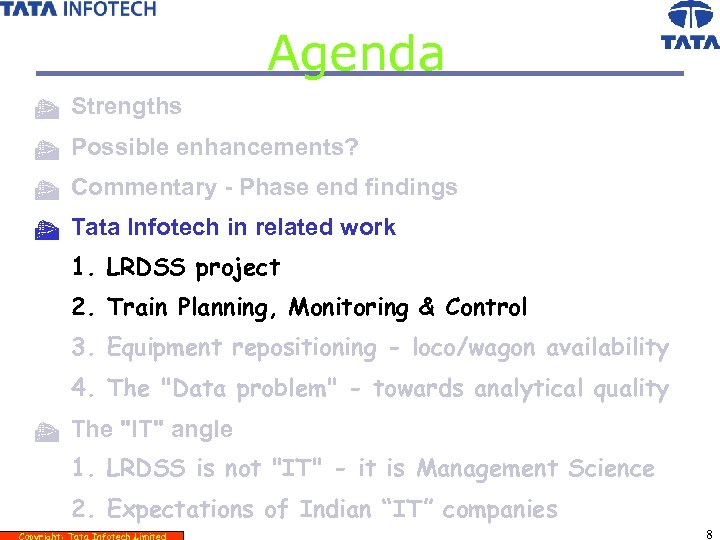

Agenda t Strengths t Possible enhancements? t Commentary - Phase end findings t Tata Infotech in related work 1. LRDSS project 2. Train Planning, Monitoring & Control 3. Equipment repositioning - loco/wagon availability 4. The "Data problem" - towards analytical quality t The "IT" angle 1. LRDSS is not "IT" - it is Management Science 2. Expectations of Indian “IT” companies Copyright: Tata Infotech Limited 8

Projects Oil Tanker Scheduling Copyright: Tata Infotech Limited Oil Coordination Committee INDIA 9

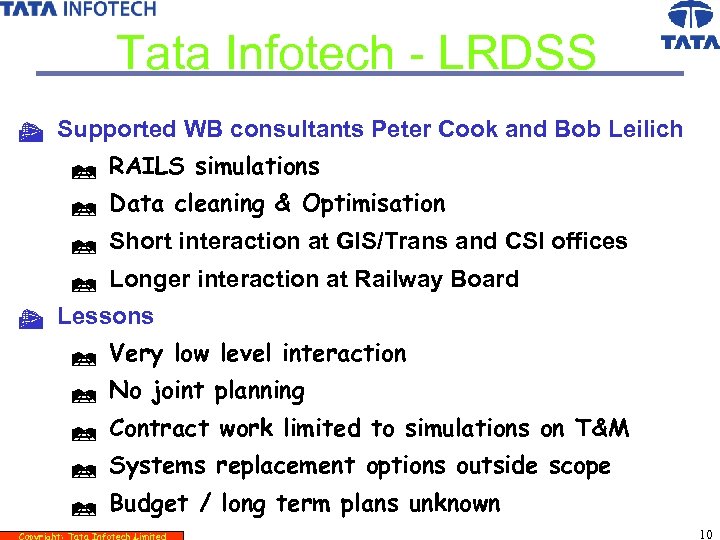

Tata Infotech - LRDSS t Supported WB consultants Peter Cook and Bob Leilich R RAILS simulations R Data cleaning & Optimisation R Short interaction at GIS/Trans and CSI offices R Longer interaction at Railway Board t Lessons R Very low level interaction R No joint planning R Contract work limited to simulations on T&M R Systems replacement options outside scope R Budget / long term plans unknown Copyright: Tata Infotech Limited 10

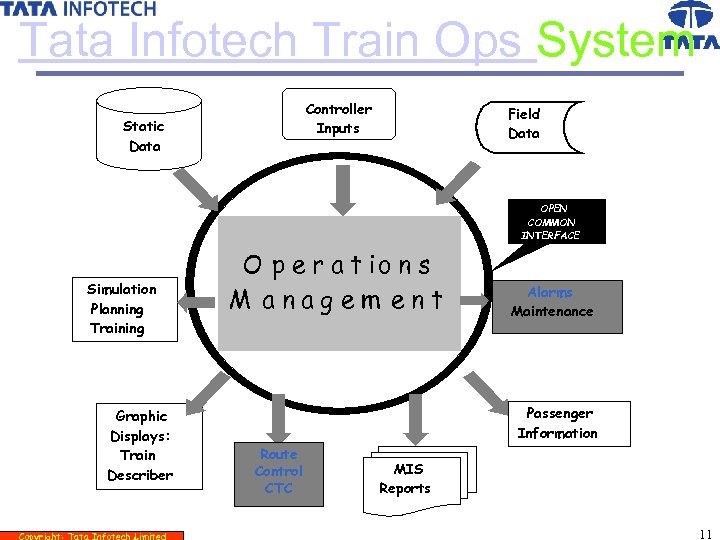

Tata Infotech Train Ops System Controller Inputs Static Data Field Data OPEN COMMON INTERFACE Simulation Planning Training Graphic Displays: Train Describer Copyright: Tata Infotech Limited O p e r a t io n s M anagem ent Alarms Maintenance Passenger Information Route Control CTC MIS Reports 11

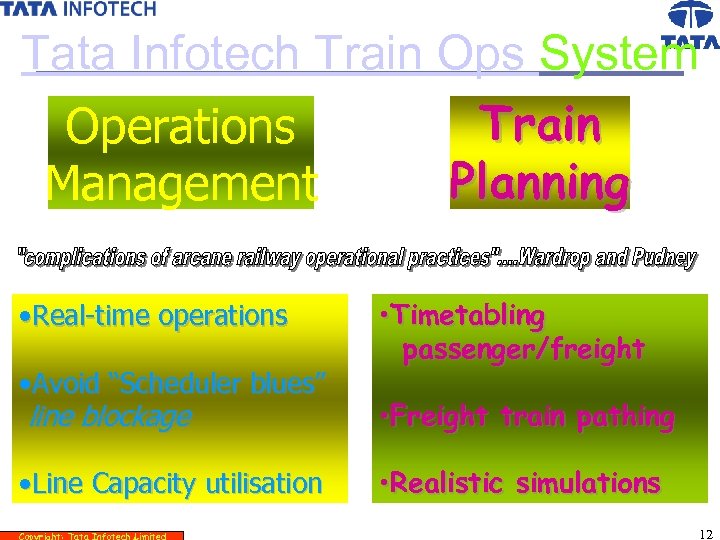

Tata Infotech Train Ops System Train Operations Planning Management • Real-time operations • Avoid “Scheduler blues” line blockage • Line Capacity utilisation Copyright: Tata Infotech Limited • Timetabling passenger/freight • Freight train pathing • Realistic simulations 12

The resources t. Timetabled passenger express…. commuter t. Pathed freight heavy…. empty §Medical / breakdown / tool vans §Light engine §Stabled loads §Motor, O/H equipment trolley §TTM machine §Gangman's trolley Copyright: Tata Infotech Limited RTracks mainly single, some double gradients, curvatures DStations passing loops, halt stations ½Signalling absolute block ÉSCADA interfaced to signal panel 13

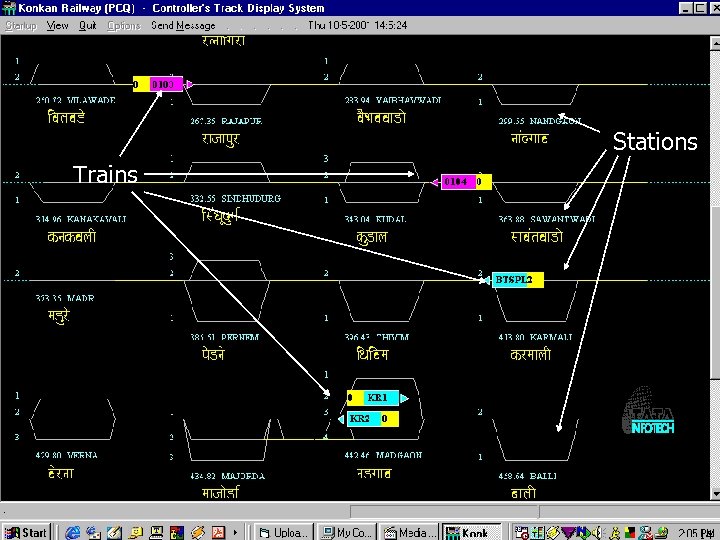

Stations Trains Copyright: Tata Infotech Limited 14

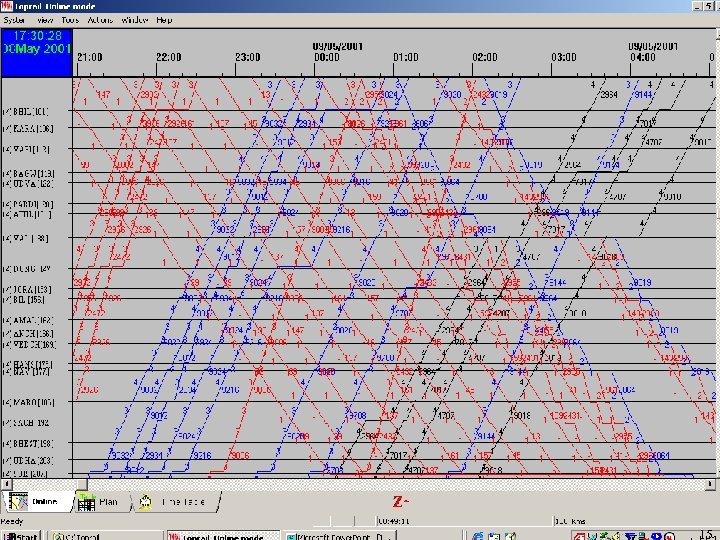

Copyright: Tata Infotech Limited 15

Sites Copyright: Tata Infotech Limited 16

Infrastructure Planning u Highly congested segment u Passenger & freight u “Double Conventional” line operation u “Absolute block” signaling u Operations Managers suggested R addition of 3 rd line u Signal Managers suggested ½ signaling upgradation to Automatic R extension of some station loops t Simulation objective: capacity increase by signaling change Copyright: Tata Infotech Limited 17

More tracks or signaling? station inter-station section station 5 Km Advanced starter Dist 2 Dist 1 Home Double Conventional line 1 Km Advanced starter Home Copyright: Tata Infotech Limited Home Double Conventional line 18

AUTO SIGNALING Simulation results Copyright: Tata Infotech Limited 19

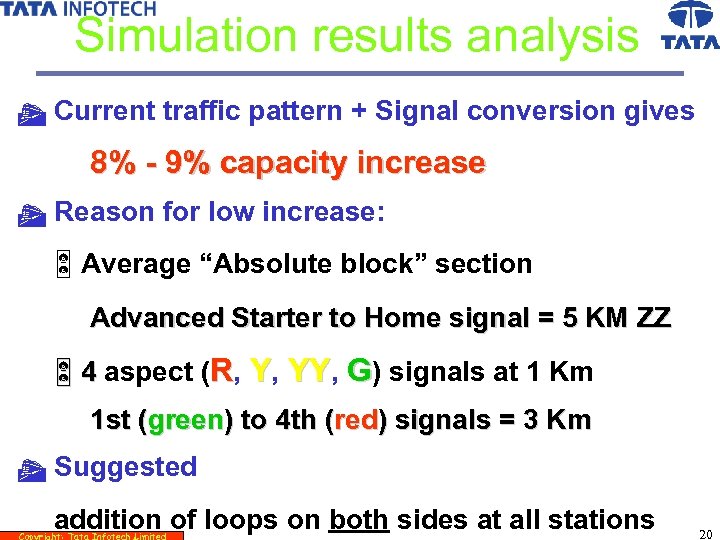

Simulation results analysis t Current traffic pattern + Signal conversion gives 8% - 9% capacity increase t Reason for low increase: ½ Average “Absolute block” section Advanced Starter to Home signal = 5 KM ZZ ½ 4 aspect (R, Y, YY, G) signals at 1 Km 1 st (green) to 4 th (red) signals = 3 Km t Suggested addition of loops on both sides at all stations Copyright: Tata Infotech Limited 20

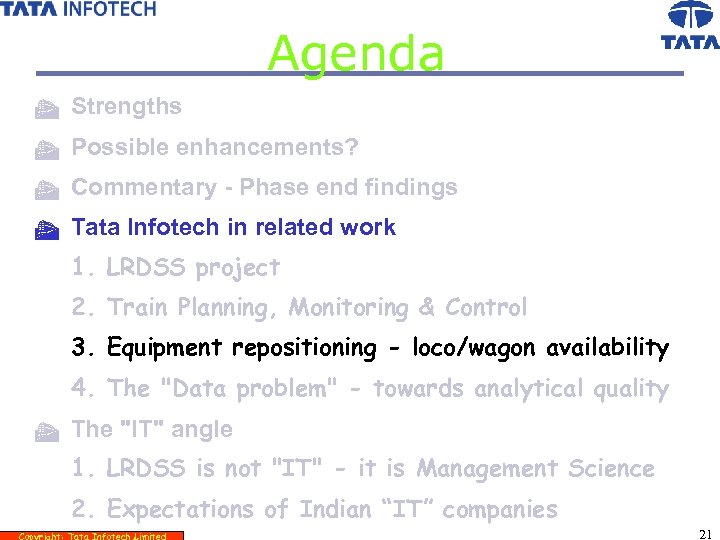

Agenda t Strengths t Possible enhancements? t Commentary - Phase end findings t Tata Infotech in related work 1. LRDSS project 2. Train Planning, Monitoring & Control 3. Equipment repositioning - loco/wagon availability 4. The "Data problem" - towards analytical quality t The "IT" angle 1. LRDSS is not "IT" - it is Management Science 2. Expectations of Indian “IT” companies Copyright: Tata Infotech Limited 21

Global Container Logistics Managing 3 PL business Forecasting & Planning, Empty Container Repositioning Copyright: Tata Infotech Limited 22

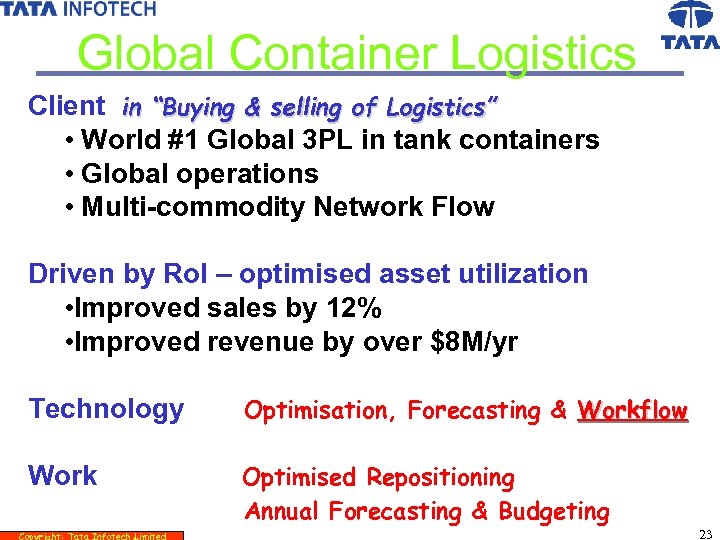

Global Container Logistics Client in “Buying & selling of Logistics” • World #1 Global 3 PL in tank containers • Global operations • Multi-commodity Network Flow Driven by Ro. I – optimised asset utilization • Improved sales by 12% • Improved revenue by over $8 M/yr Technology Optimisation, Forecasting & Workflow Work Optimised Repositioning Annual Forecasting & Budgeting Copyright: Tata Infotech Limited 23

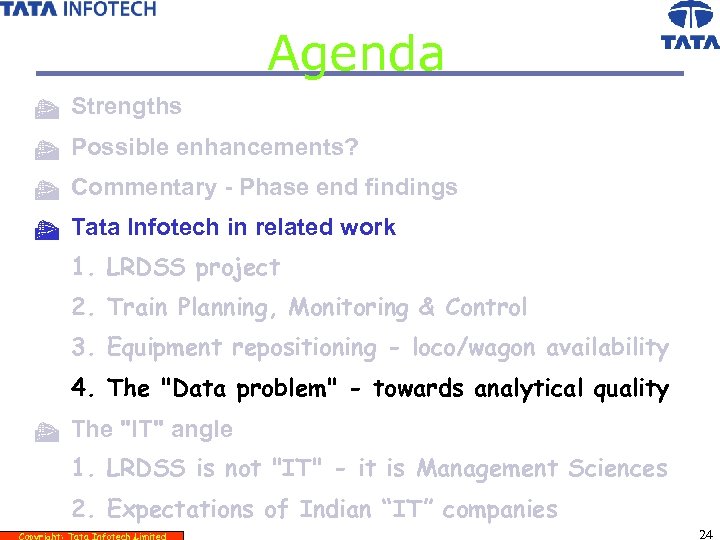

Agenda t Strengths t Possible enhancements? t Commentary - Phase end findings t Tata Infotech in related work 1. LRDSS project 2. Train Planning, Monitoring & Control 3. Equipment repositioning - loco/wagon availability 4. The "Data problem" - towards analytical quality t The "IT" angle 1. LRDSS is not "IT" - it is Management Sciences 2. Expectations of Indian “IT” companies Copyright: Tata Infotech Limited 24

Clean Analytical workbench Models, Parameters Analytical Functions Statistical Processing Optimisation Planner’s Workbench Other MIS ERP MIS Systems ETL Accounts & Sales Logistics Yield Mgmnt Analytical Data Marts Management & Accounts Global Sales Intranet Global Operations Copyright: Tata Infotech Limited Budgets Plans Pricing Business Interface 25

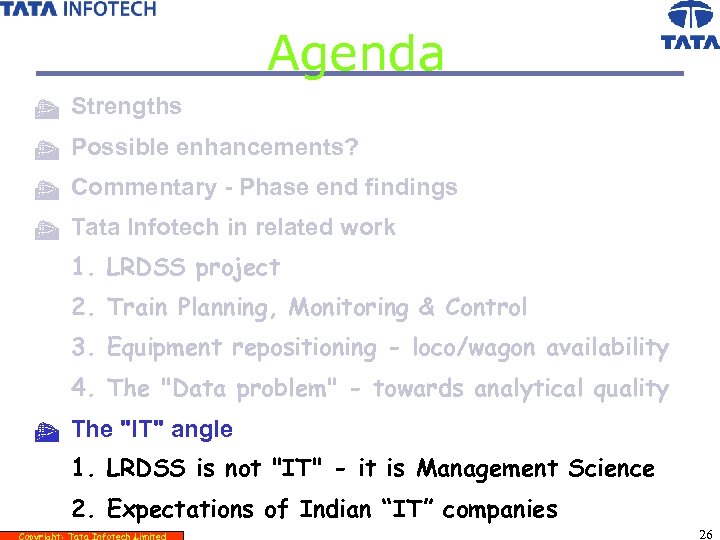

Agenda t Strengths t Possible enhancements? t Commentary - Phase end findings t Tata Infotech in related work 1. LRDSS project 2. Train Planning, Monitoring & Control 3. Equipment repositioning - loco/wagon availability 4. The "Data problem" - towards analytical quality t The "IT" angle 1. LRDSS is not "IT" - it is Management Science 2. Expectations of Indian “IT” companies Copyright: Tata Infotech Limited 26

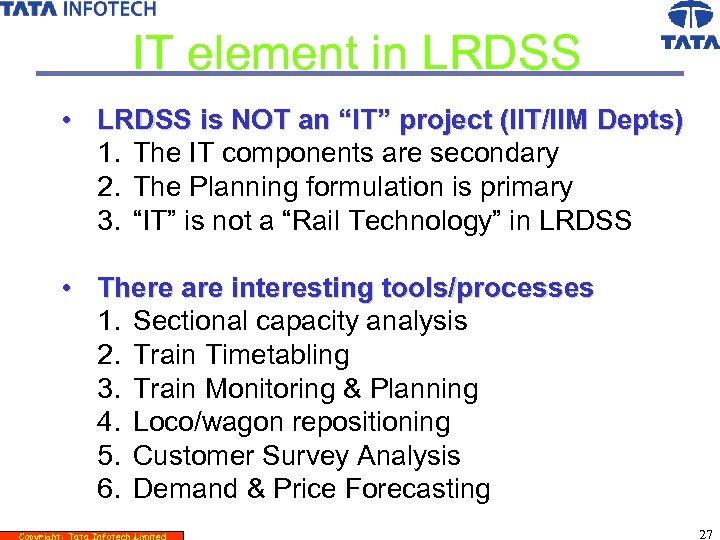

IT element in LRDSS • LRDSS is NOT an “IT” project (IIT/IIM Depts) 1. The IT components are secondary 2. The Planning formulation is primary 3. “IT” is not a “Rail Technology” in LRDSS • There are interesting tools/processes 1. Sectional capacity analysis 2. Train Timetabling 3. Train Monitoring & Planning 4. Loco/wagon repositioning 5. Customer Survey Analysis 6. Demand & Price Forecasting Copyright: Tata Infotech Limited 27

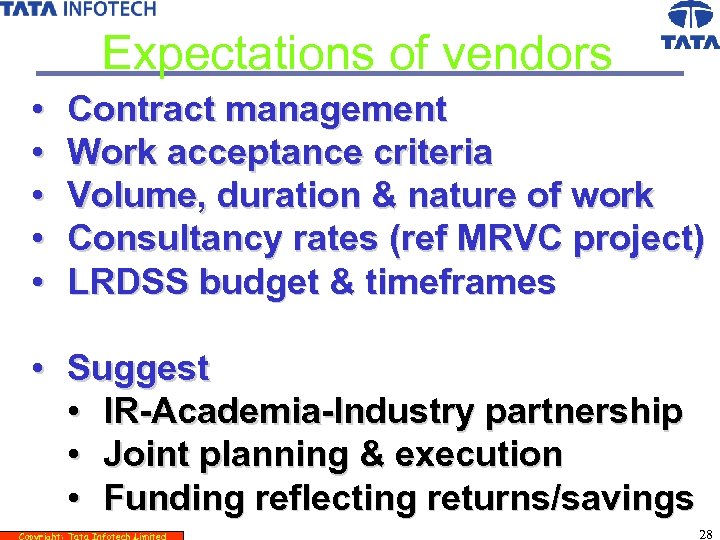

Expectations of vendors • • • Contract management Work acceptance criteria Volume, duration & nature of work Consultancy rates (ref MRVC project) LRDSS budget & timeframes • Suggest • IR-Academia-Industry partnership • Joint planning & execution • Funding reflecting returns/savings Copyright: Tata Infotech Limited 28

Tata Infotech Offerings Analytic Services using these Technologies • Data Analysis (Statistics, Data Mining) • Optimization (OR, Artificial Intelligence) • Rule Based Systems Types of projects • Small-to-mid size, Duration 1 month – 6 months • Innovative/ repetitive work Outsourcing modes • T&M with Tata Infotech Technical Management • T&M with Client Technical Management • Turnkey http: //www. tatainfotech. com/services/optimization/index. htm Copyright: Tata Infotech Limited 29 29
