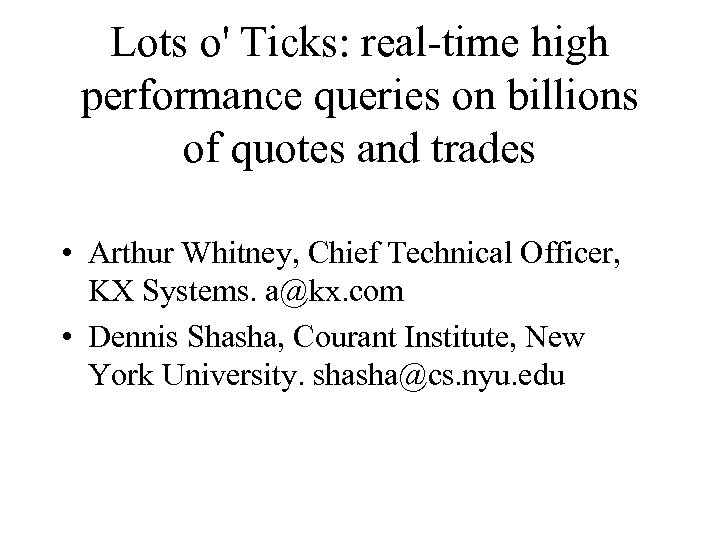

Lots o' Ticks: real-time high performance queries on billions of quotes and trades • Arthur Whitney, Chief Technical Officer, KX Systems. a@kx. com • Dennis Shasha, Courant Institute, New York University. shasha@cs. nyu. edu

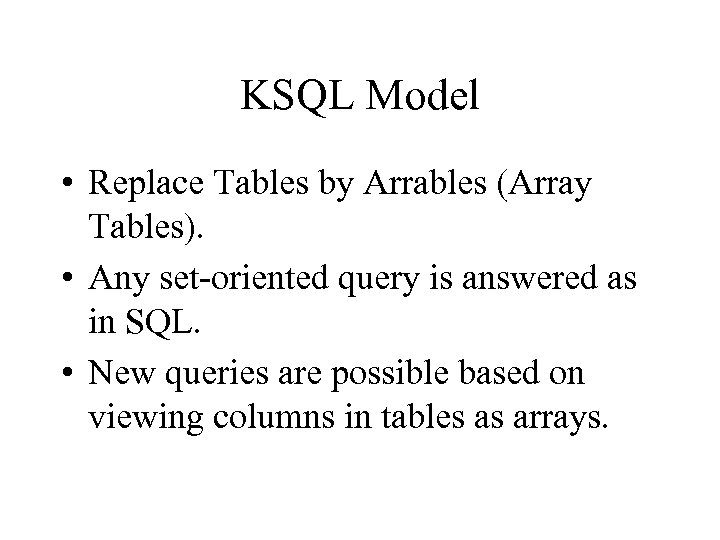

KSQL Model • Replace Tables by Arrables (Array Tables). • Any set-oriented query is answered as in SQL. • New queries are possible based on viewing columns in tables as arrays.

Demo Application: Stocks • 10, 000 securities from all the major markets. Entire quote and trade history. • Production application holds 10 years of data, about 1/2 terabyte, on a Linux cluster of up to 100 processors. • For demo: a few months on a single PC.

Example Query 1 • Find the 5 tick moving averages of each stock per month. trade is ordered by date. • select 5 avgs price by sym, date. month from trade • “avgs” produces an array for each stock, month pair. In SQL, aggregates can produce only a scalar for each group by result.

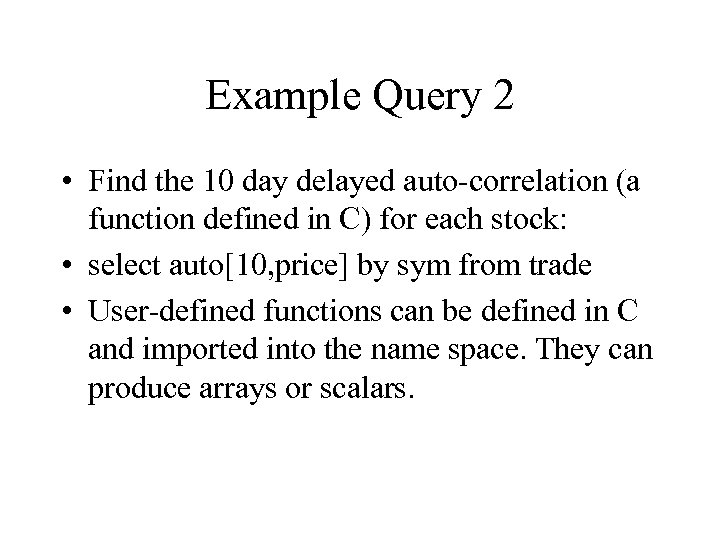

Example Query 2 • Find the 10 day delayed auto-correlation (a function defined in C) for each stock: • select auto[10, price] by sym from trade • User-defined functions can be defined in C and imported into the name space. They can produce arrays or scalars.

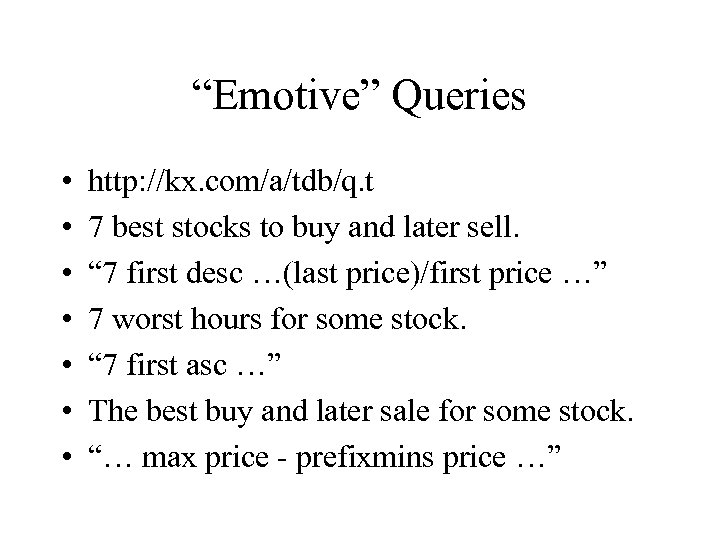

“Emotive” Queries • • http: //kx. com/a/tdb/q. t 7 best stocks to buy and later sell. “ 7 first desc …(last price)/first price …” 7 worst hours for some stock. “ 7 first asc …” The best buy and later sale for some stock. “… max price - prefixmins price …”

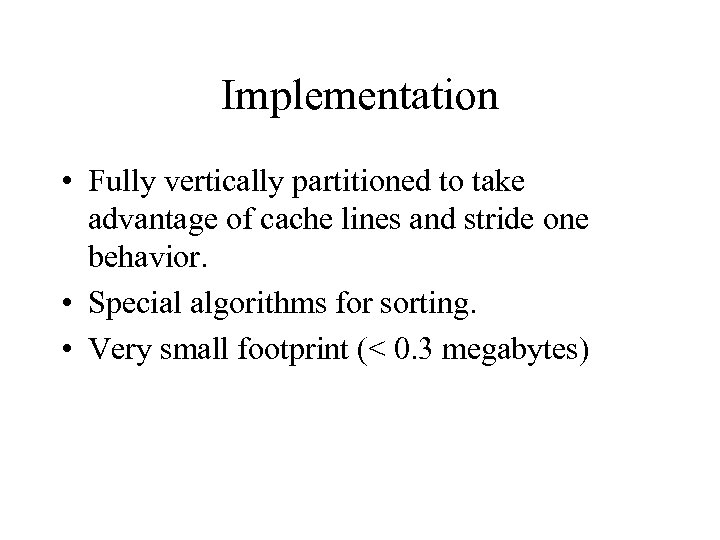

Implementation • Fully vertically partitioned to take advantage of cache lines and stride one behavior. • Special algorithms for sorting. • Very small footprint (< 0. 3 megabytes)

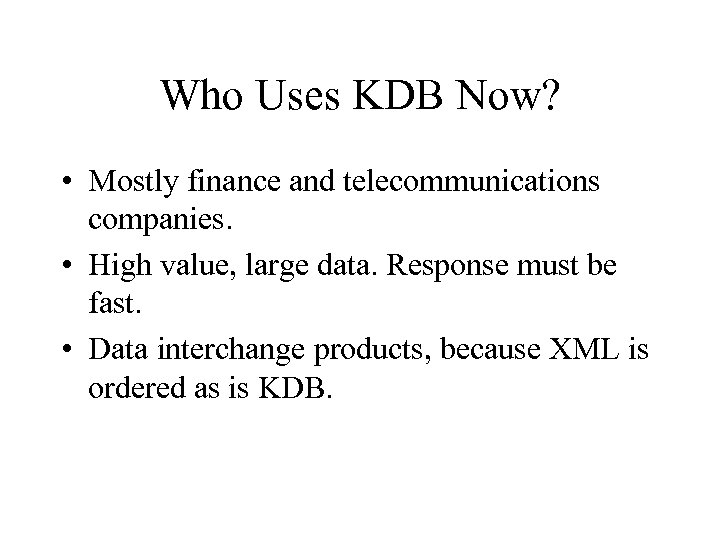

Who Uses KDB Now? • Mostly finance and telecommunications companies. • High value, large data. Response must be fast. • Data interchange products, because XML is ordered as is KDB.

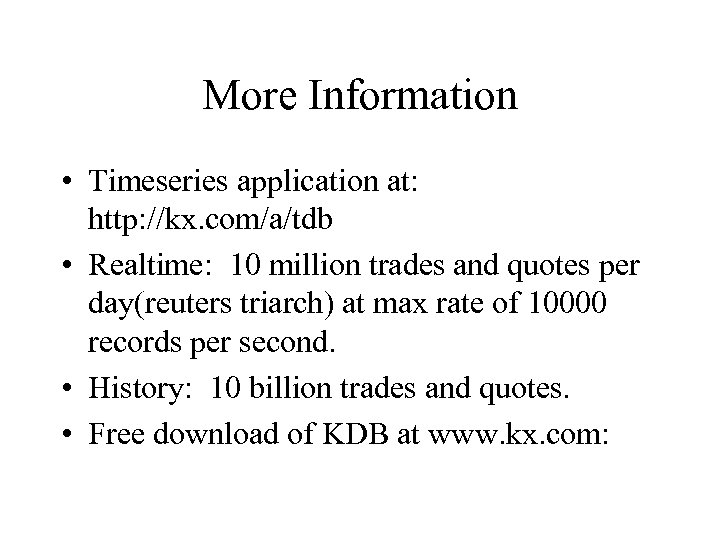

More Information • Timeseries application at: http: //kx. com/a/tdb • Realtime: 10 million trades and quotes per day(reuters triarch) at max rate of 10000 records per second. • History: 10 billion trades and quotes. • Free download of KDB at www. kx. com:
