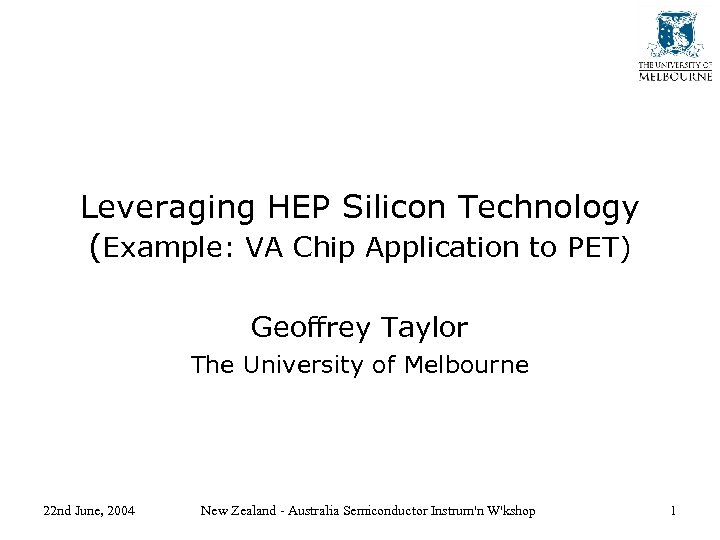

Leveraging HEP Silicon Technology (Example: VA Chip Application to PET) Geoffrey Taylor The University of Melbourne 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 1

HEP micro-strip technology • (2 -D detectors are still at cutting edge…) • 1 -D detectors/readout well established. – Single/double sided; various geometries; AC/DC coupled; … • Silicon Strip Detectors are very mature technology – several manufacturers • Readout Chips for Strip detectors mature technology, available, customized or off-the-shelf. – Many variants, much experience. • Applications of this technology are now widespread. – A lot can be done without in-house chip development. • Participation in HEP detector development provides a great jumping off point for such applications, ( BUT not essential for getting value out of this spin-off. ) 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 2

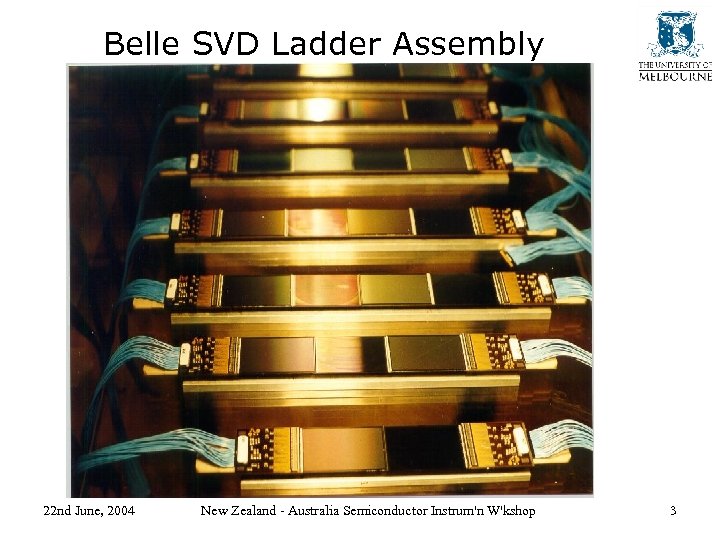

Belle SVD Ladder Assembly 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 3

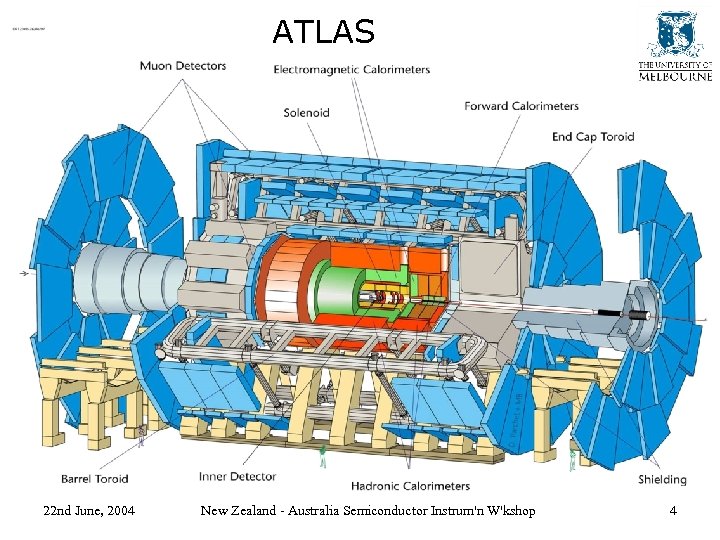

ATLAS 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 4

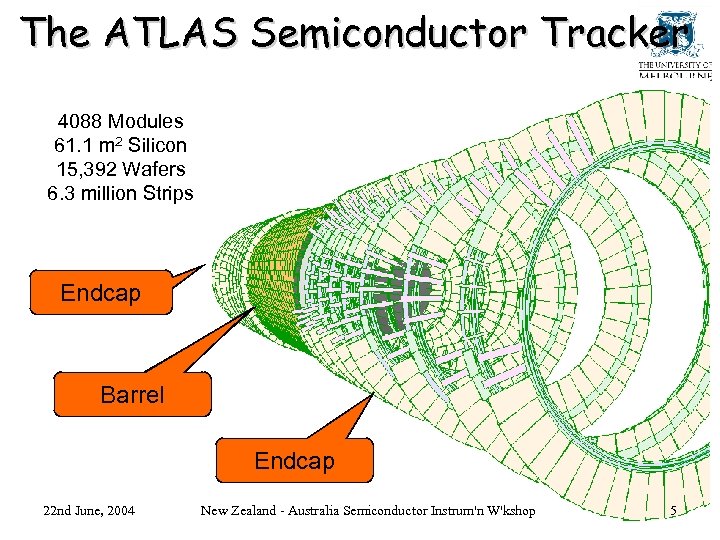

The ATLAS Semiconductor Tracker 4088 Modules 61. 1 m 2 Silicon 15, 392 Wafers 6. 3 million Strips Endcap Barrel Endcap 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 5

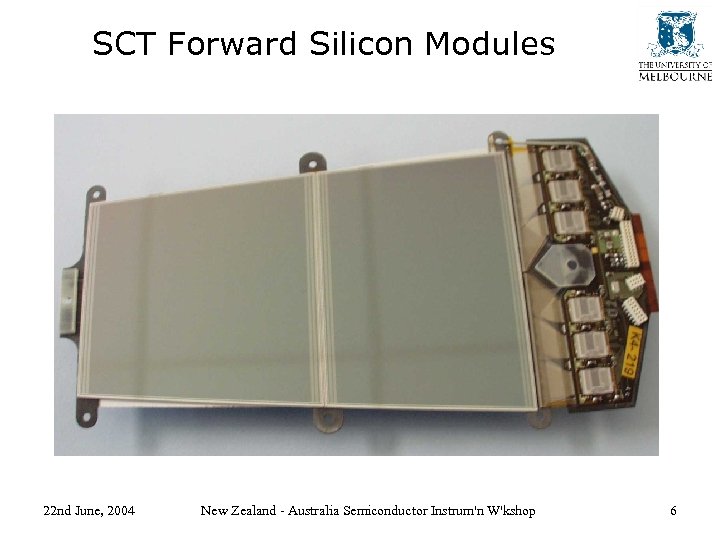

SCT Forward Silicon Modules 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 6

22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 7

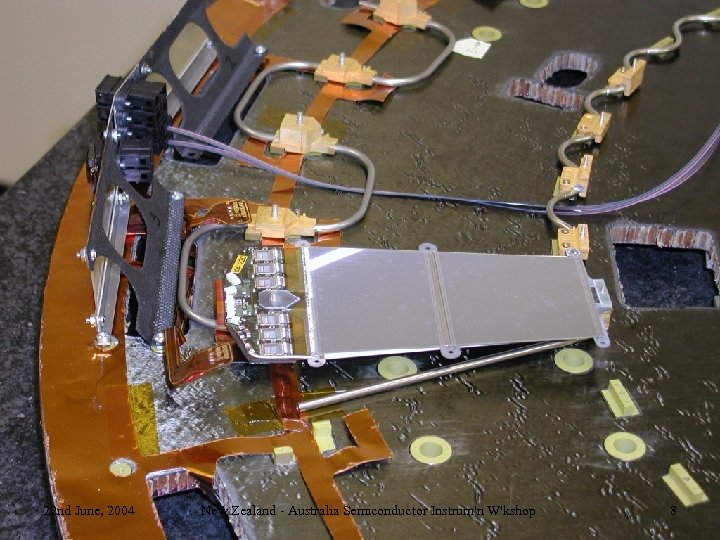

22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 8

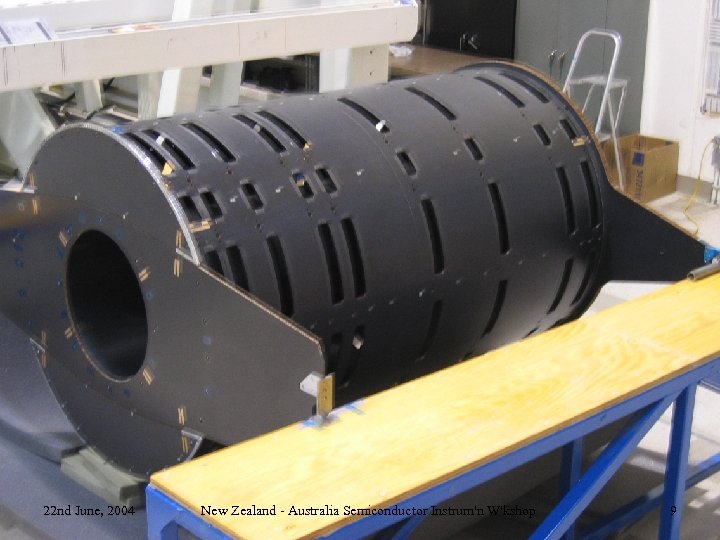

22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 9

22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 10

H 8 Setup – Barrel Sector Morpurgo magnet, not used 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 11

Infrastructure and Expertise • • Probe Station, IV, CV, equipment. Circuit design/prototype/construction. Precision assembly, measurement Wire Bonding Facilities DAQ systems (VME) Analysis Clean Room, Services 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 12

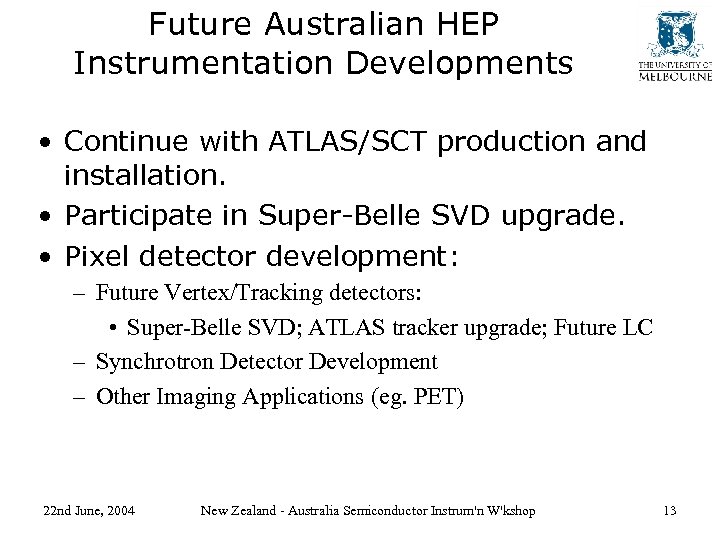

Future Australian HEP Instrumentation Developments • Continue with ATLAS/SCT production and installation. • Participate in Super-Belle SVD upgrade. • Pixel detector development: – Future Vertex/Tracking detectors: • Super-Belle SVD; ATLAS tracker upgrade; Future LC – Synchrotron Detector Development – Other Imaging Applications (eg. PET) 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 13

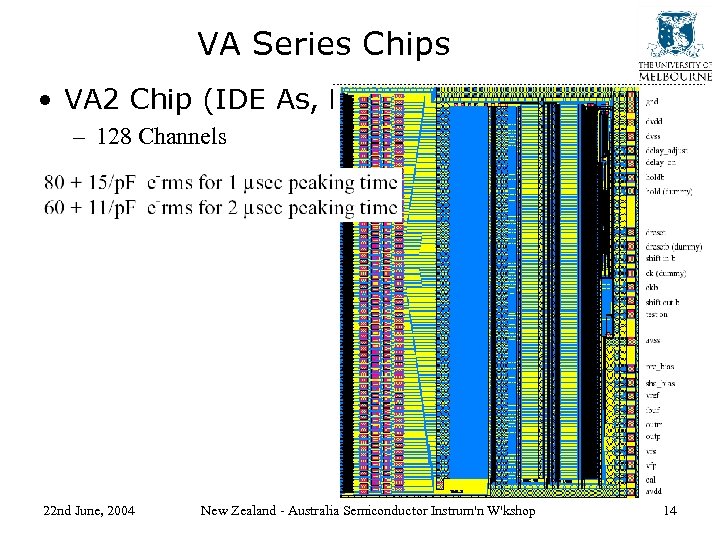

VA Series Chips • VA 2 Chip (IDE As, Norway) – 128 Channels 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 14

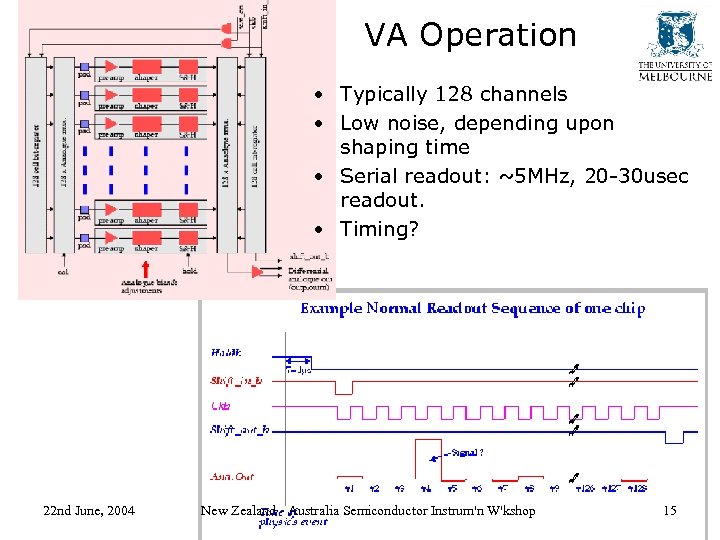

VA Operation • Typically 128 channels • Low noise, depending upon shaping time • Serial readout: ~5 MHz, 20 -30 usec readout. • Timing? 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 15

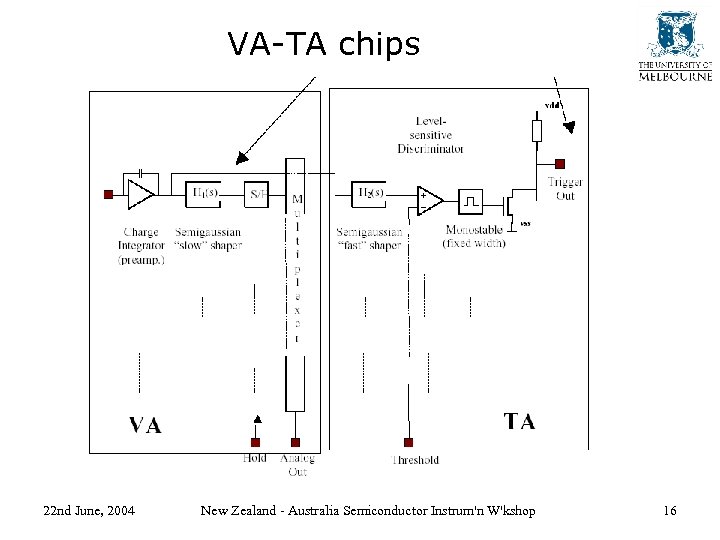

VA-TA chips 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 16

VA-TA Option • 75 nsec fast shaper • Upper and lower thresholds. • OR’ed output from entire chip • Can trigger readout of analog section. 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 17

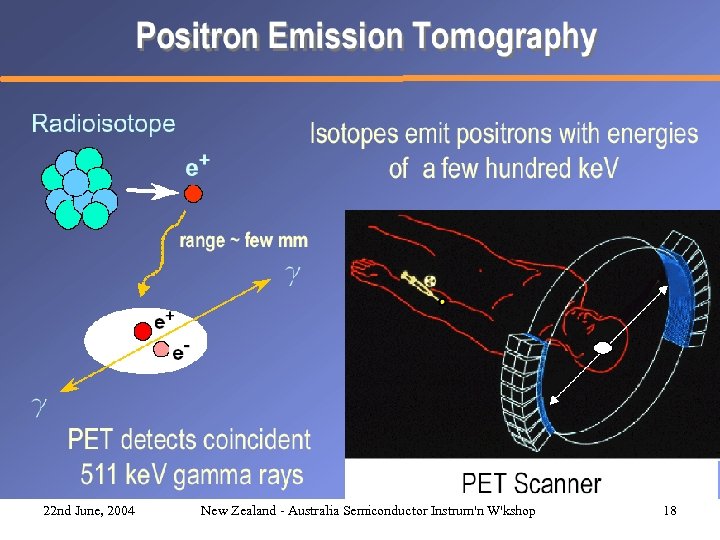

22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 18

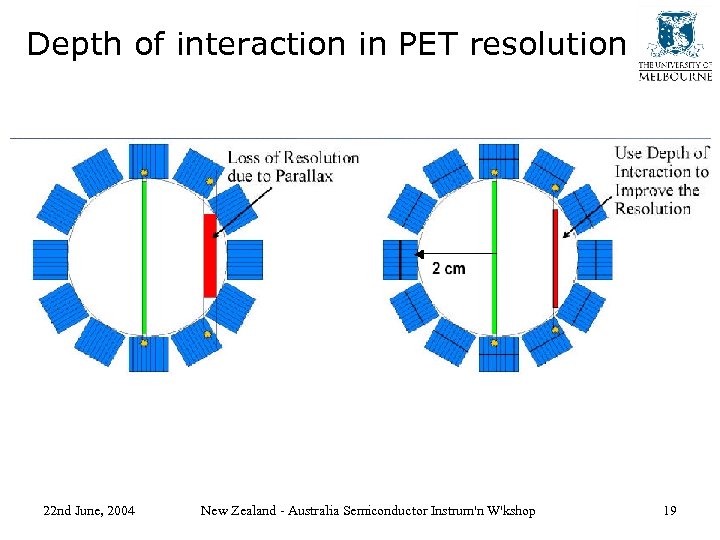

Depth of interaction in PET resolution 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 19

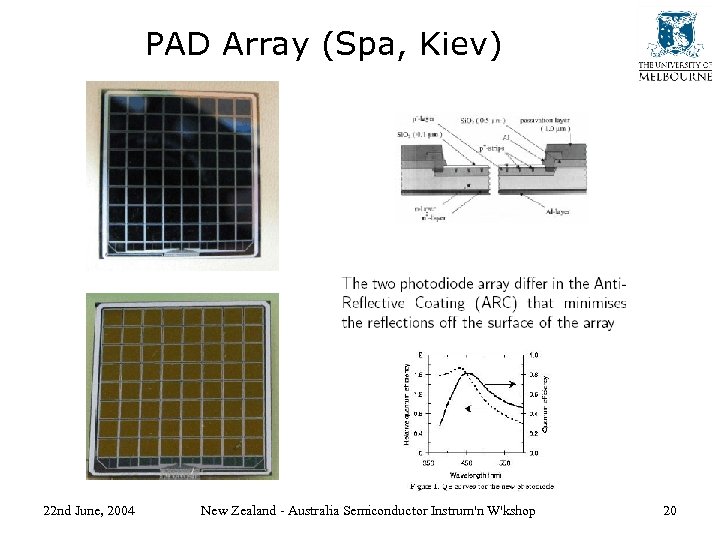

PAD Array (Spa, Kiev) 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 20

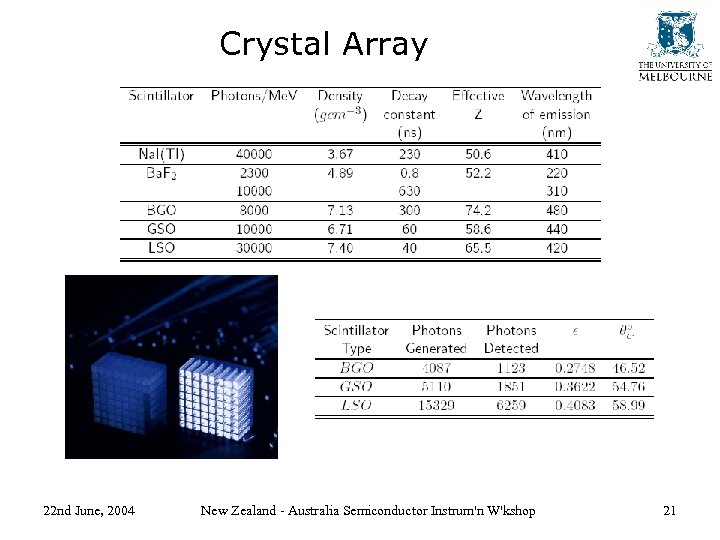

Crystal Array 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 21

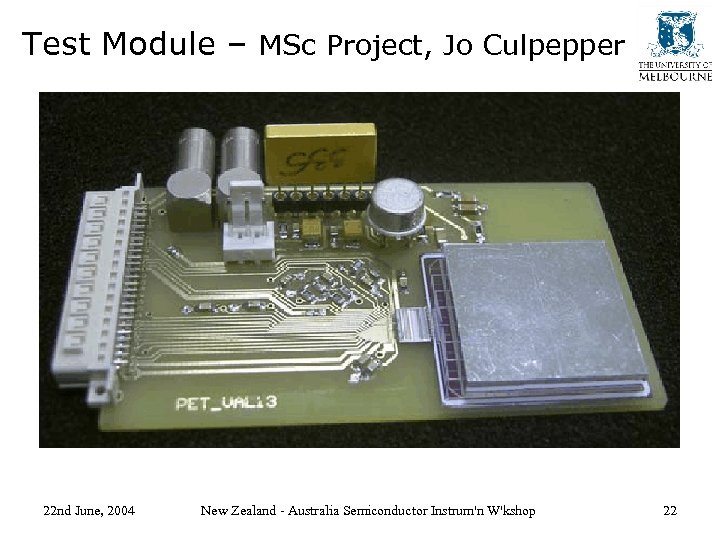

Test Module – MSc Project, Jo Culpepper 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 22

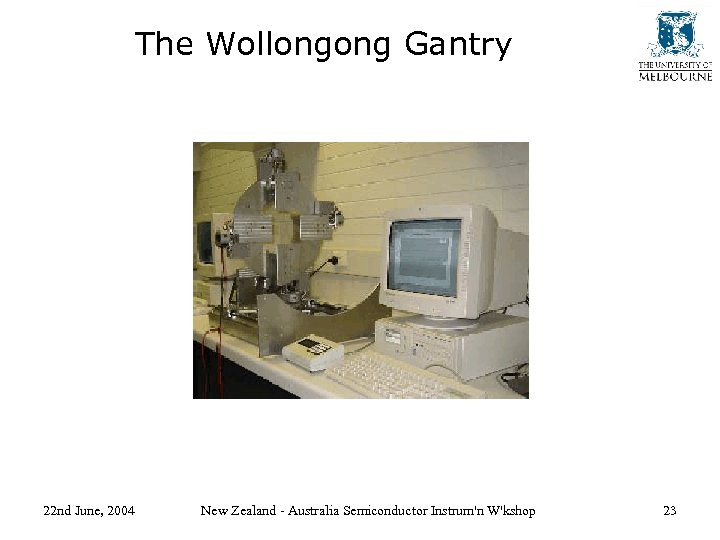

The Wollongong Gantry 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 23

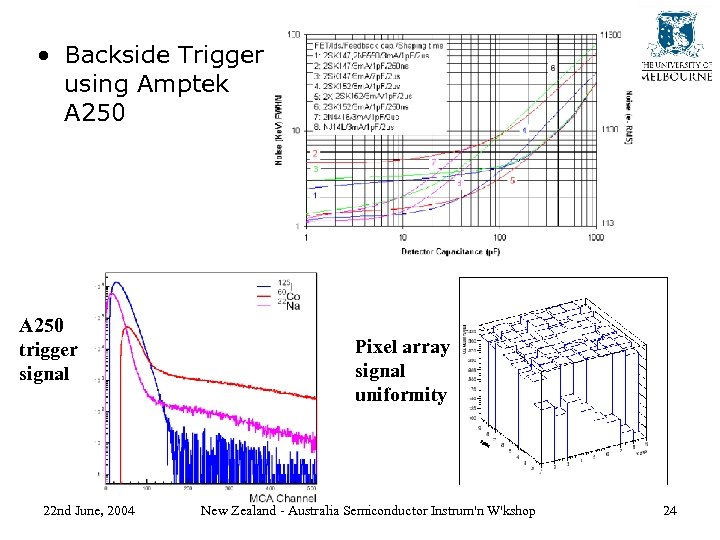

• Backside Trigger using Amptek A 250 trigger signal 22 nd June, 2004 Pixel array signal uniformity New Zealand - Australia Semiconductor Instrum'n W'kshop 24

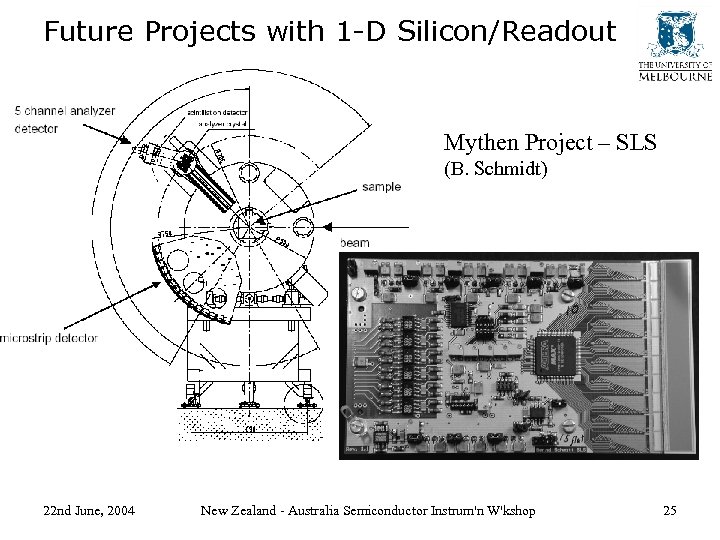

Future Projects with 1 -D Silicon/Readout • Mythen – Mythen Project – SLS (B. Schmidt) 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 25

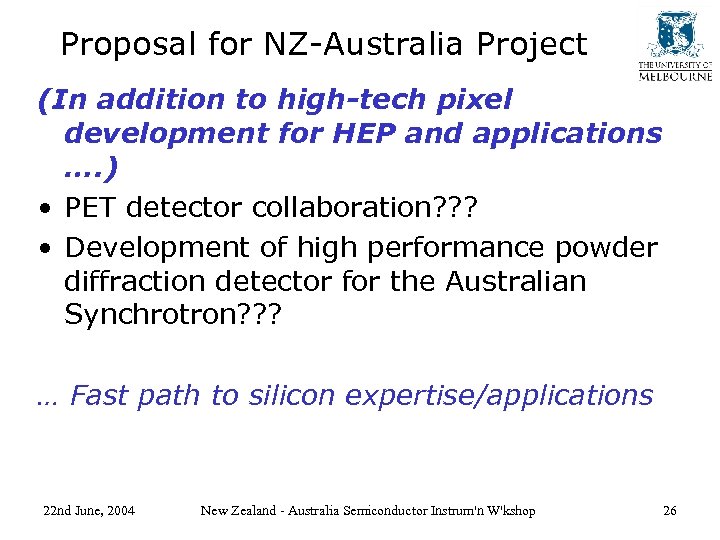

Proposal for NZ-Australia Project (In addition to high-tech pixel development for HEP and applications …. ) • PET detector collaboration? ? ? • Development of high performance powder diffraction detector for the Australian Synchrotron? ? ? … Fast path to silicon expertise/applications 22 nd June, 2004 New Zealand - Australia Semiconductor Instrum'n W'kshop 26
