Lesson 5: Navigation Instruments

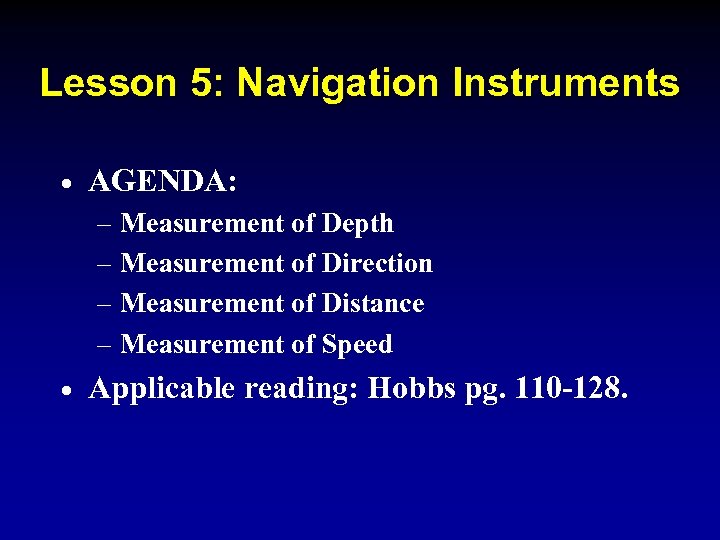

Lesson 5: Navigation Instruments · AGENDA: – Measurement of Depth – Measurement of Direction – Measurement of Distance – Measurement of Speed · Applicable reading: Hobbs pg. 110 -128.

Measurement of Depth · · Echo Sounder (fathometer) Hand leadline

Lead Line · · Manual method of determining depth Also allows for a sampling of the bottom type

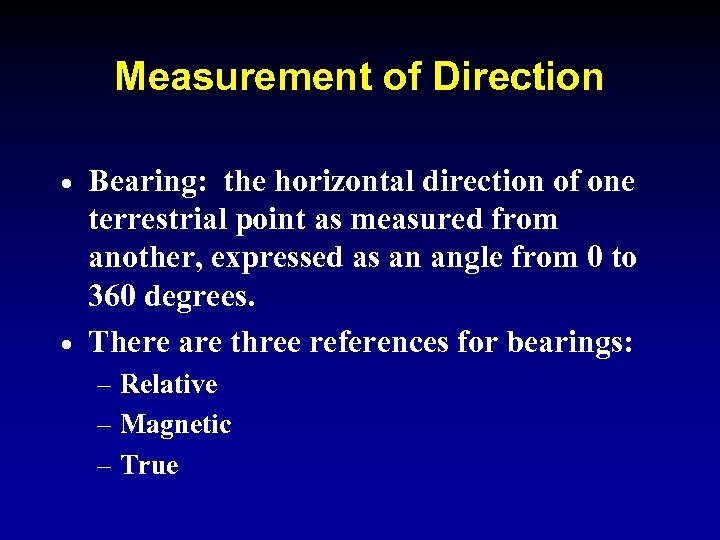

Measurement of Direction · · Bearing: the horizontal direction of one terrestrial point as measured from another, expressed as an angle from 0 to 360 degrees. There are three references for bearings: – Relative – Magnetic – True

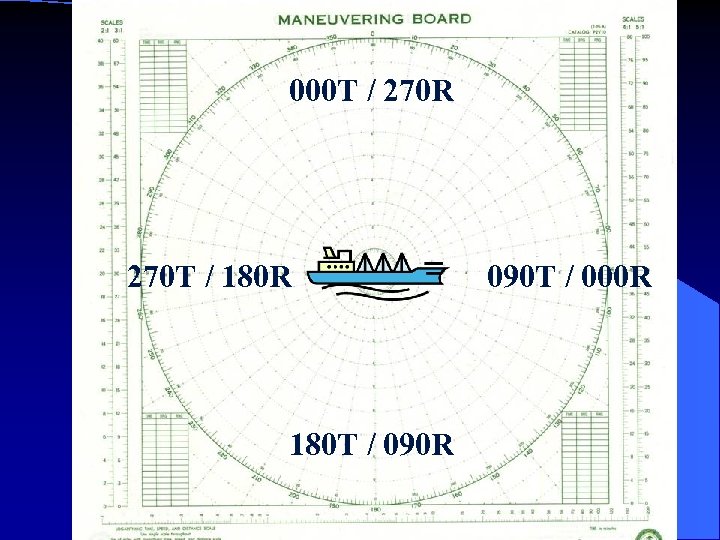

000 T / 270 R 270 T / 180 R 180 T / 090 R 090 T / 000 R

Measurement of Direction Visual Bearings can be measured in: 0 - Degrees Relative ( # # # R ) 0 - Degrees Magnetic ( # # # pstgc OR M ) 0 - Degrees True ( # # # T) The navigator must convert any of these types of bearings to True before they can be plotted on the chart.

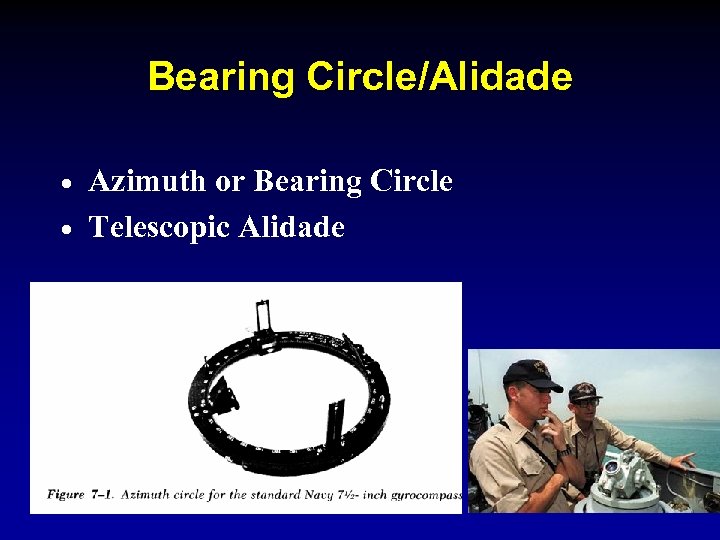

Bearing Circle/Alidade · · Azimuth or Bearing Circle Telescopic Alidade

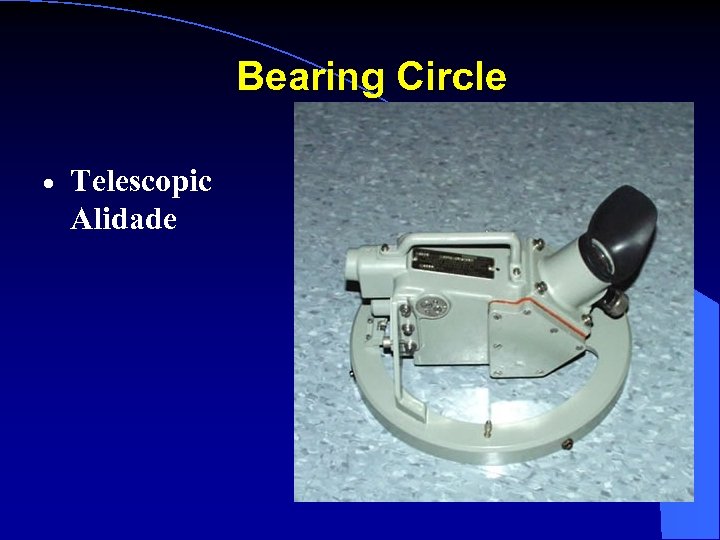

Bearing Circle · Telescopic Alidade

Measurement of Distance Radar - Distance is obtained by a radio wave that is transmitted into the air and returns as an echo. The time interval between transmission and return can be converted into a physical range. Used for distance (range) only!! Not normally used for bearings

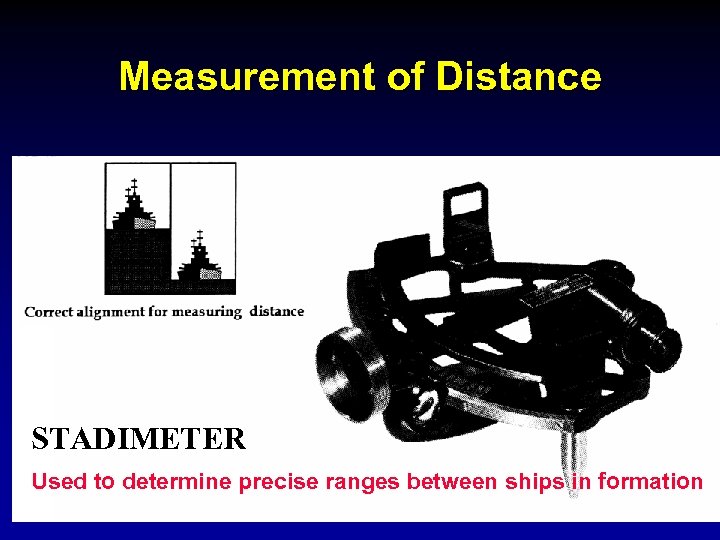

Measurement of Distance STADIMETER Used to determine precise ranges between ships in formation

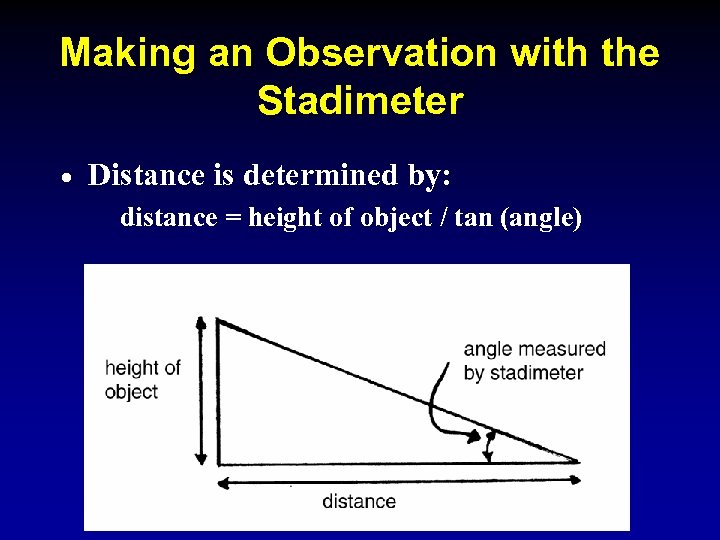

Making an Observation with the Stadimeter · Distance is determined by: distance = height of object / tan (angle)

Plotting Instruments Parallel Ruler

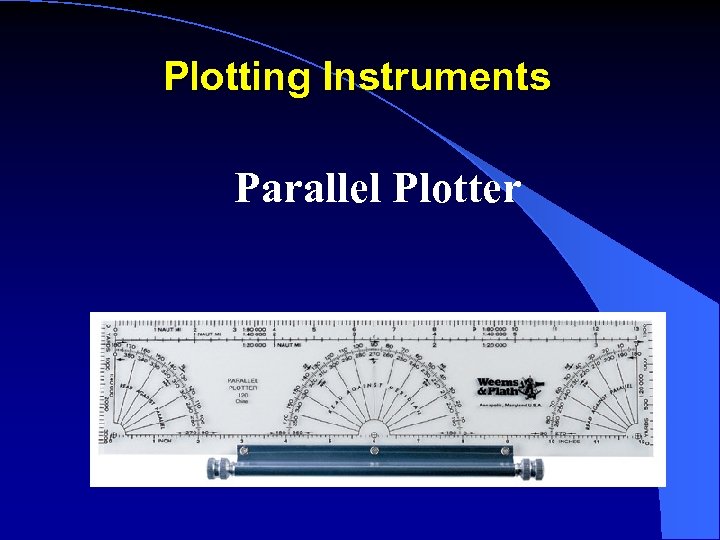

Plotting Instruments Parallel Plotter

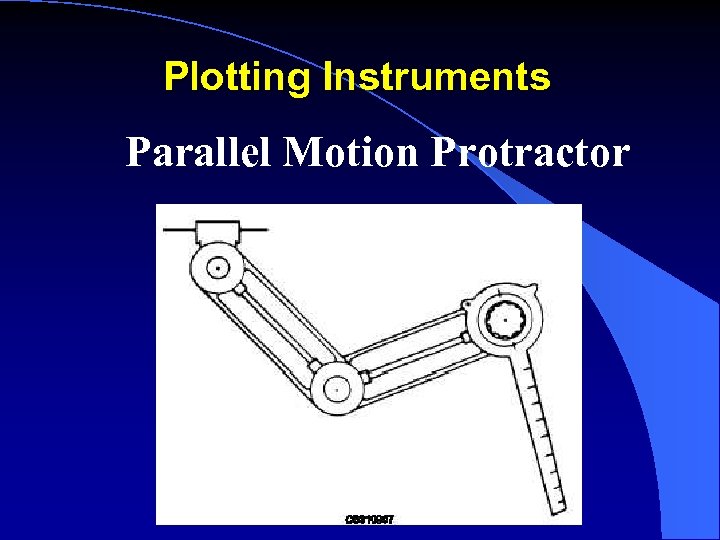

Plotting Instruments Parallel Motion Protractor

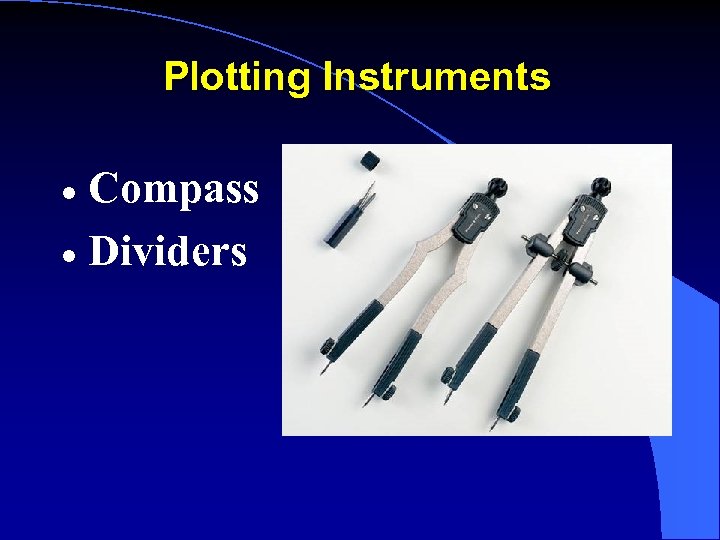

Plotting Instruments Compass · Dividers ·

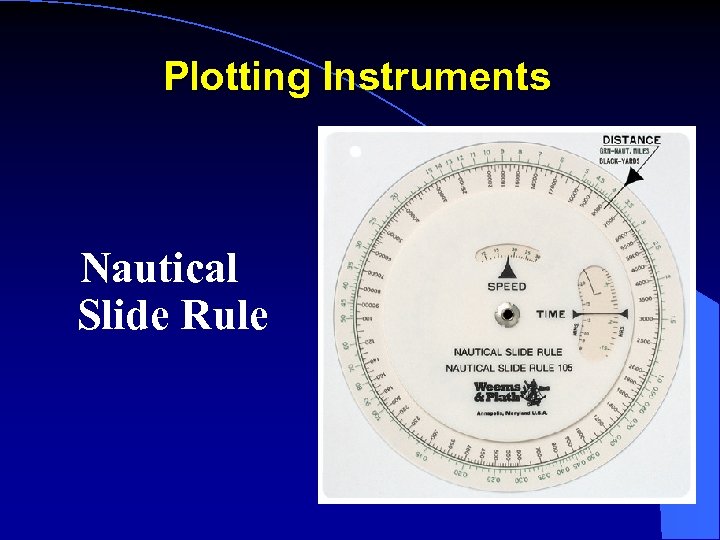

Plotting Instruments Nautical Slide Rule

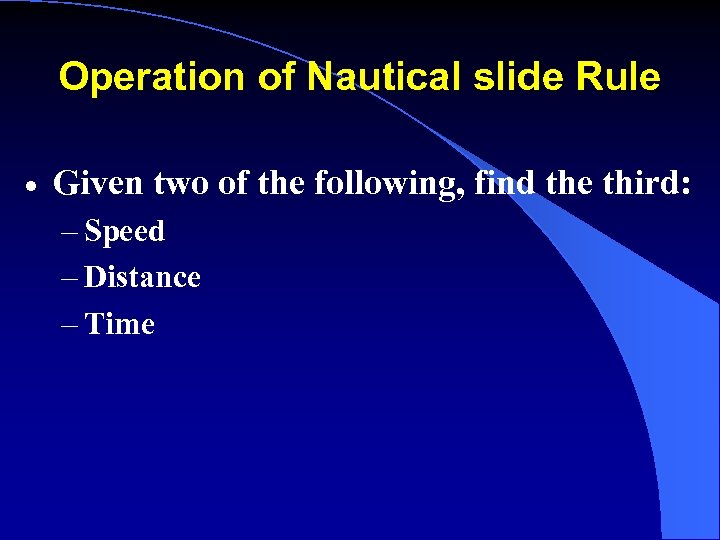

Operation of Nautical slide Rule · Given two of the following, find the third: – Speed – Distance – Time

Measurement of Speed · · Speed over Ground (SOG) = true speed Speed through the water SPEED OVER GROUND • Direct output of many electronic navigation systems (GPS, Loran) SPEED THROUGH WATER • Impeller Log • Pitotmeter Log • Doppler Speed Log • Shaft RPM

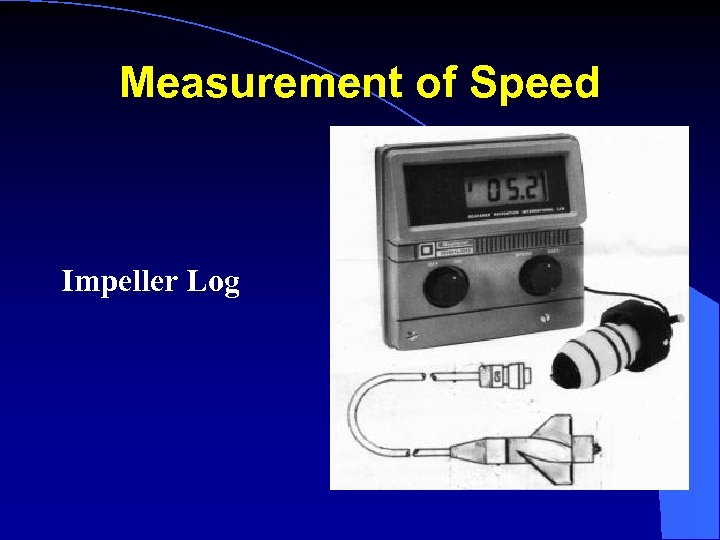

Measurement of Speed Impeller Log

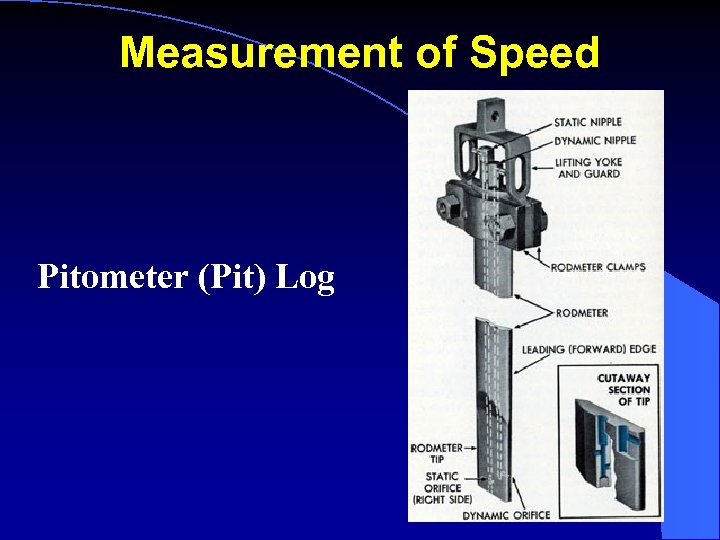

Measurement of Speed Pitometer (Pit) Log

Measurement of Speed Doppler Speed Log

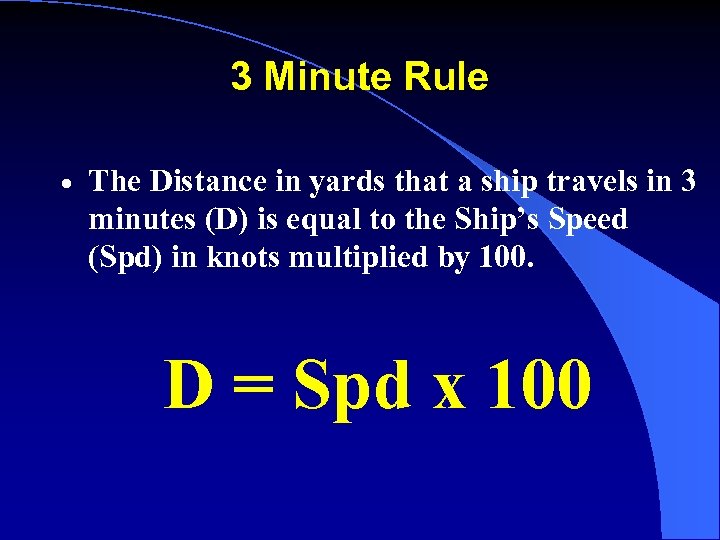

3 Minute Rule · The Distance in yards that a ship travels in 3 minutes (D) is equal to the Ship’s Speed (Spd) in knots multiplied by 100. D = Spd x 100

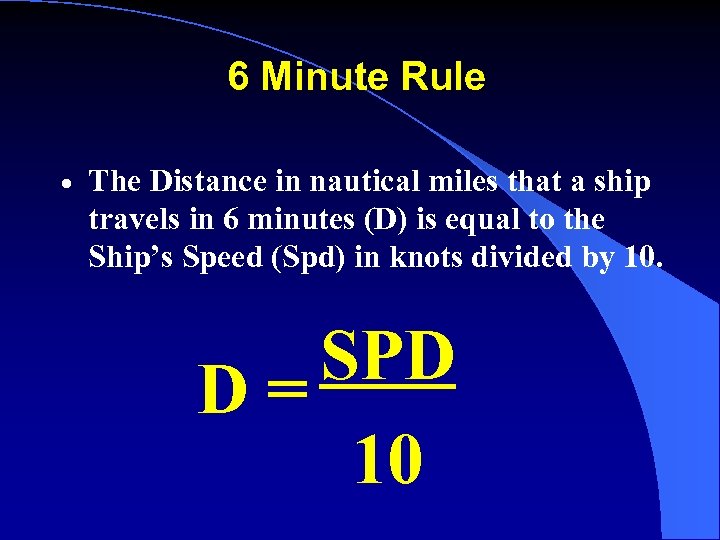

6 Minute Rule · The Distance in nautical miles that a ship travels in 6 minutes (D) is equal to the Ship’s Speed (Spd) in knots divided by 10. SPD D= 10

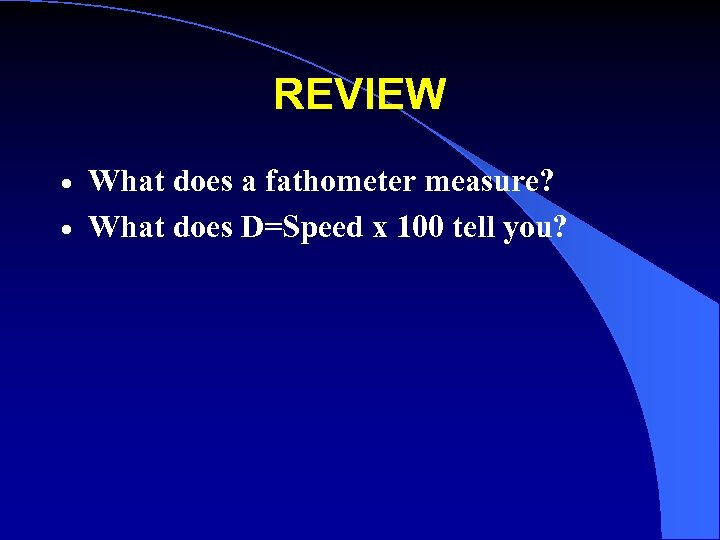

REVIEW · · What does a fathometer measure? What does D=Speed x 100 tell you?
