Leg Assessment and IPC Elaine Gibson BSc(Hons) Dip. N, RGN Aspen Medical Europe Tissue Leg Assessment and IPC Elaine Gibson BSc(Hons) Dip. N, RGN Aspen Medical Europe Tissue Viability Nurse Specialist East Kent University Hospitals Foundation Trust Dr Jon Evans BSc Ph. D MIET CEng Vascular Business Unit Manager Theresa Hanlon RN DIP HE Product Specialist Huntleigh Healthcare Jane Wigg RGN MSc Clinical Innovations Manager Haddenham Healthcare Trudie Young RGN MSc Facilitator Conference workshops in association with the Leg Club Industry Partners “Empowering patients through a unique collaboration with industry dedicated to lower limb conditions”

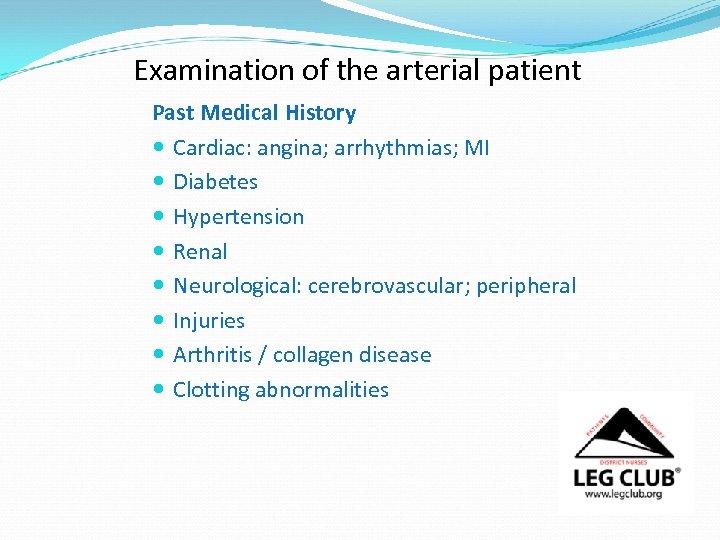

Examination of the arterial patient Past Medical History Cardiac: angina; arrhythmias; MI Diabetes Hypertension Examination of the arterial patient Past Medical History Cardiac: angina; arrhythmias; MI Diabetes Hypertension Renal Neurological: cerebrovascular; peripheral Injuries Arthritis / collagen disease Clotting abnormalities

Clinical features of the ischaemic foot • Cold • Pale colour • Glass like Clinical features of the ischaemic foot • Cold • Pale colour • Glass like skin • Little callous • Pulse less • Dependent rubor • Claudication • Rest pain • Ulcers on edges © copyright Cardiff and Vale Trust

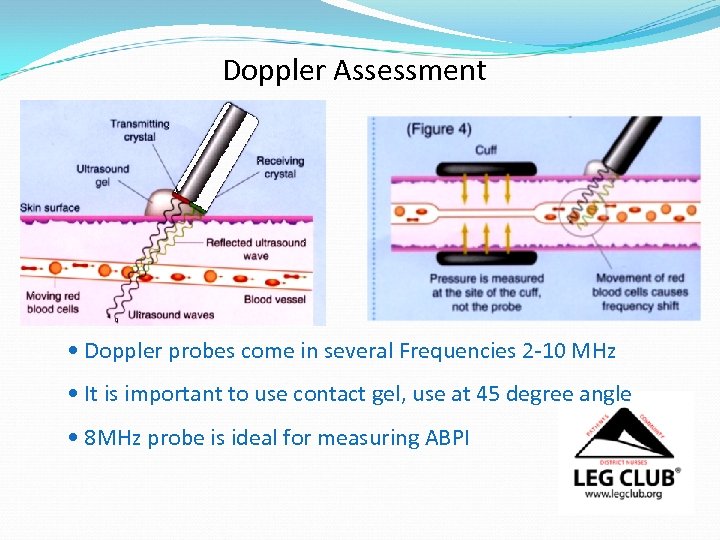

Doppler Assessment • Doppler probes come in several Frequencies 2 -10 MHz • It Doppler Assessment • Doppler probes come in several Frequencies 2 -10 MHz • It is important to use contact gel, use at 45 degree angle • 8 MHz probe is ideal for measuring ABPI

Doppler ABPI Measurements • Position patient supine and rest for 15 -20 minutes • Doppler ABPI Measurements • Position patient supine and rest for 15 -20 minutes • Measure both Brachial pressures • Measure two pedal pressures per foot • Calculate ABPI using highest ankle/highest brachial pressure ABPI > 1. 0 - 1. 3 Unlikely to be arterial in origin Apply compression therapy ABPI = 0. 8 - 1. 0 Mild peripheral Apply compression therapy with caution ABPI = 0. 5 - 0. 8 Moderate arterial disease ABPI < 0. 5 ABPI > 1. 3 Severe arterial disease Measure toe pressures or refer to specialist Do not compress - refer urgently to vascular specialist.

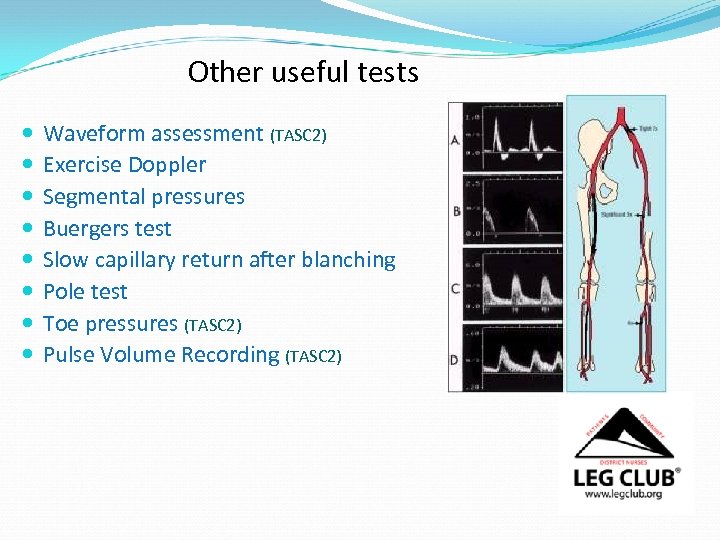

Other useful tests Waveform assessment (TASC 2) Exercise Doppler Segmental pressures Buergers test Slow Other useful tests Waveform assessment (TASC 2) Exercise Doppler Segmental pressures Buergers test Slow capillary return after blanching Pole test Toe pressures (TASC 2) Pulse Volume Recording (TASC 2)

Pole Test Pole test for measurement of ankle pressures in patients with calcified vessels: Pole Test Pole test for measurement of ankle pressures in patients with calcified vessels: the Doppler probe is placed over a patent pedal artery and the foot raised against a pole that is calibrated in mm Hg. The point at which the pedal signal disappears is taken as the ankle pressure

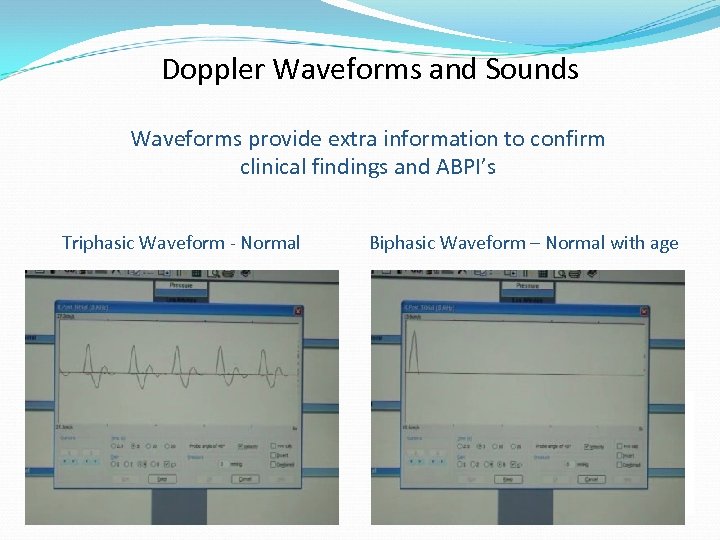

Doppler Waveforms and Sounds Waveforms provide extra information to confirm clinical findings and ABPI’s Doppler Waveforms and Sounds Waveforms provide extra information to confirm clinical findings and ABPI’s Triphasic Waveform - Normal Biphasic Waveform – Normal with age

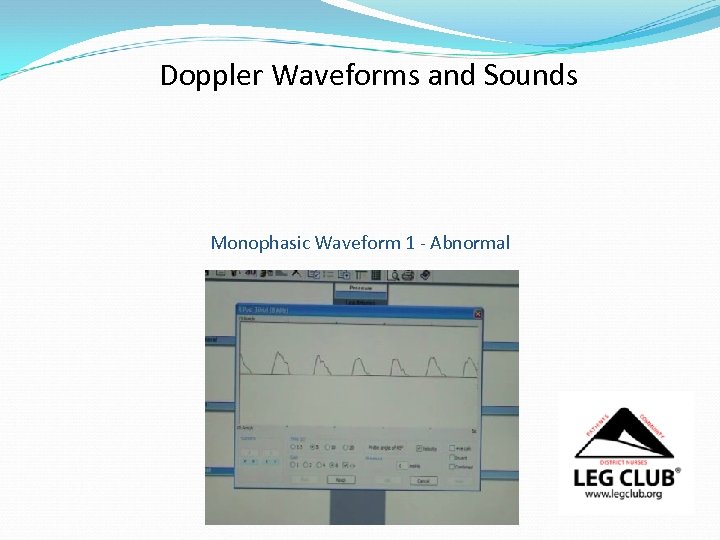

Doppler Waveforms and Sounds Monophasic Waveform 1 - Abnormal Doppler Waveforms and Sounds Monophasic Waveform 1 - Abnormal

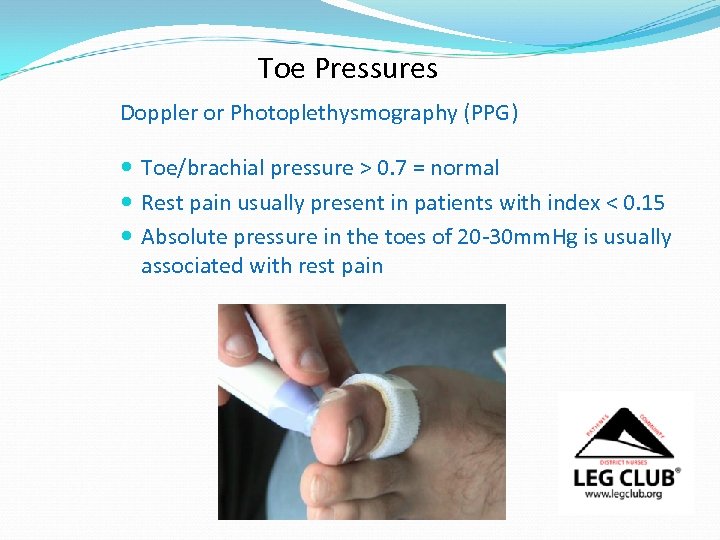

Toe Pressures Doppler or Photoplethysmography (PPG) Toe/brachial pressure > 0. 7 = normal Rest Toe Pressures Doppler or Photoplethysmography (PPG) Toe/brachial pressure > 0. 7 = normal Rest pain usually present in patients with index < 0. 15 Absolute pressure in the toes of 20 -30 mm. Hg is usually associated with rest pain

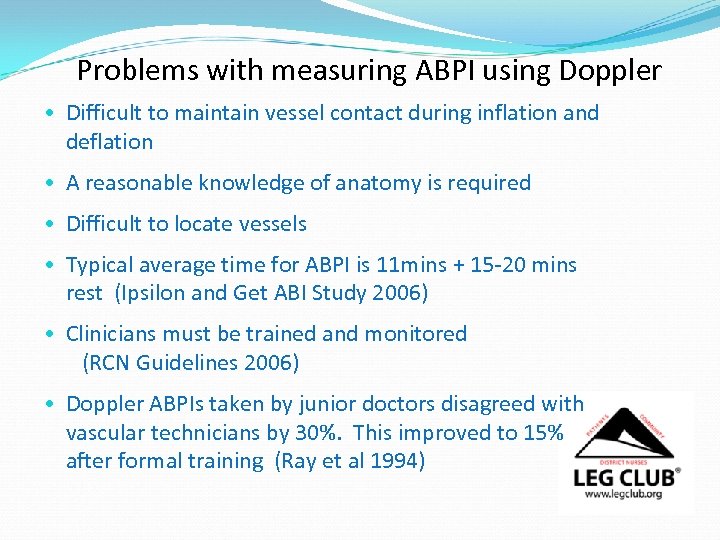

Problems with measuring ABPI using Doppler • Difficult to maintain vessel contact during inflation Problems with measuring ABPI using Doppler • Difficult to maintain vessel contact during inflation and deflation • A reasonable knowledge of anatomy is required • Difficult to locate vessels • Typical average time for ABPI is 11 mins + 15 -20 mins rest (Ipsilon and Get ABI Study 2006) • Clinicians must be trained and monitored (RCN Guidelines 2006) • Doppler ABPIs taken by junior doctors disagreed with vascular technicians by 30%. This improved to 15% after formal training (Ray et al 1994)

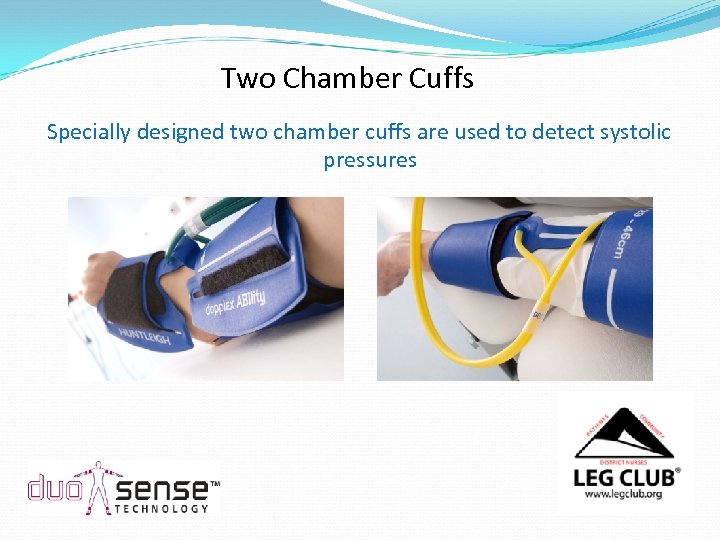

Two Chamber Cuffs Specially designed two chamber cuffs are used to detect systolic pressures Two Chamber Cuffs Specially designed two chamber cuffs are used to detect systolic pressures

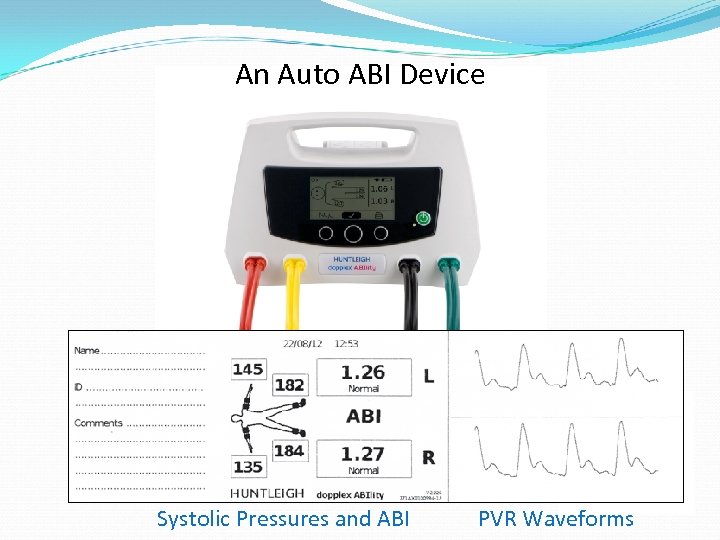

An Auto ABI Device Systolic Pressures and ABI PVR Waveforms An Auto ABI Device Systolic Pressures and ABI PVR Waveforms

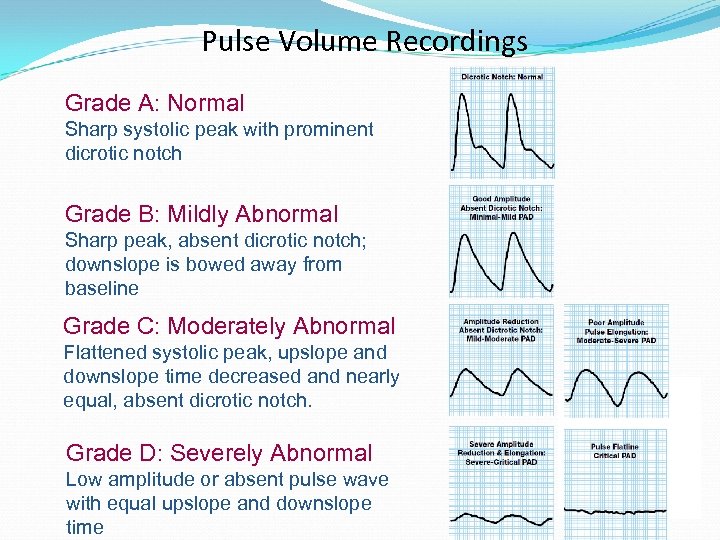

Pulse Volume Recordings Grade A: Normal Sharp systolic peak with prominent dicrotic notch Grade Pulse Volume Recordings Grade A: Normal Sharp systolic peak with prominent dicrotic notch Grade B: Mildly Abnormal Sharp peak, absent dicrotic notch; downslope is bowed away from baseline Grade C: Moderately Abnormal Flattened systolic peak, upslope and downslope time decreased and nearly equal, absent dicrotic notch. Grade D: Severely Abnormal Low amplitude or absent pulse wave with equal upslope and downslope time

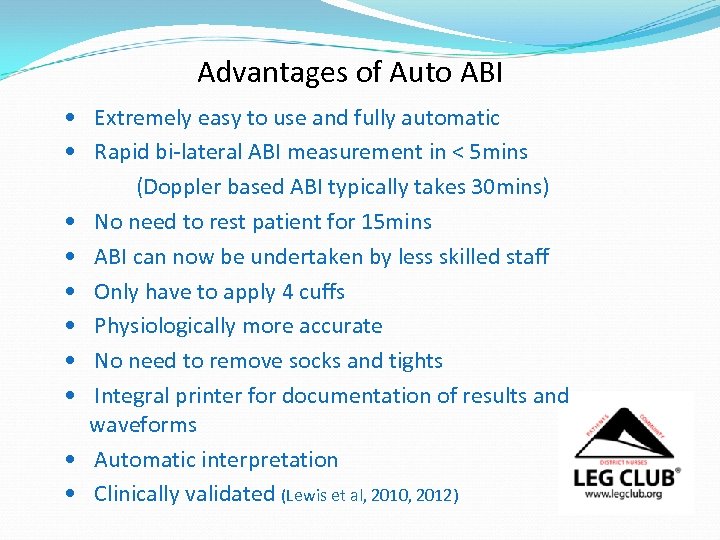

Advantages of Auto ABI • Extremely easy to use and fully automatic • Rapid Advantages of Auto ABI • Extremely easy to use and fully automatic • Rapid bi-lateral ABI measurement in < 5 mins (Doppler based ABI typically takes 30 mins) • No need to rest patient for 15 mins • ABI can now be undertaken by less skilled staff • Only have to apply 4 cuffs • Physiologically more accurate • No need to remove socks and tights • Integral printer for documentation of results and waveforms • Automatic interpretation • Clinically validated (Lewis et al, 2010, 2012)

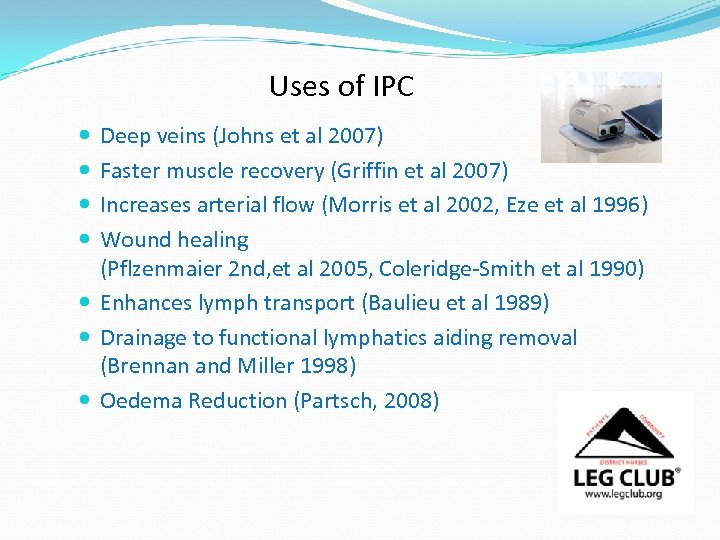

Uses of IPC Deep veins (Johns et al 2007) Faster muscle recovery (Griffin et Uses of IPC Deep veins (Johns et al 2007) Faster muscle recovery (Griffin et al 2007) Increases arterial flow (Morris et al 2002, Eze et al 1996) Wound healing (Pflzenmaier 2 nd, et al 2005, Coleridge-Smith et al 1990) Enhances lymph transport (Baulieu et al 1989) Drainage to functional lymphatics aiding removal (Brennan and Miller 1998) Oedema Reduction (Partsch, 2008)

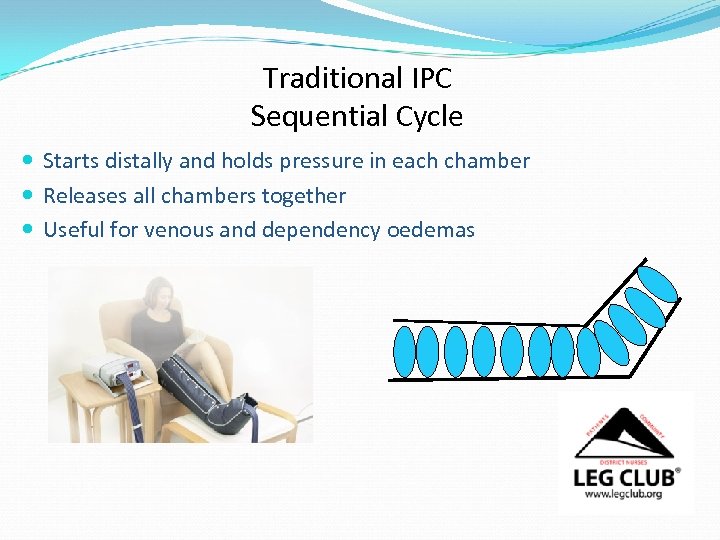

Traditional IPC Sequential Cycle Starts distally and holds pressure in each chamber Releases all Traditional IPC Sequential Cycle Starts distally and holds pressure in each chamber Releases all chambers together Useful for venous and dependency oedemas

Traditional IPC Sequential Cycle Starts distally and holds pressure in each chamber Releases all Traditional IPC Sequential Cycle Starts distally and holds pressure in each chamber Releases all chambers together Useful for venous and dependency oedemas

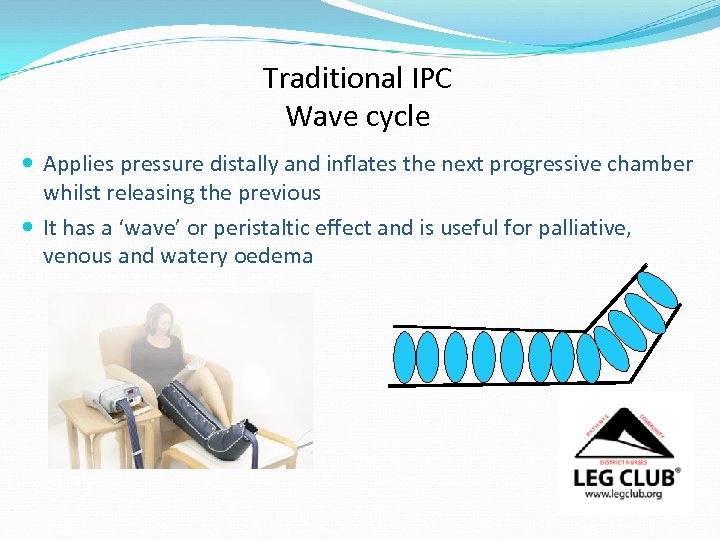

Traditional IPC Wave cycle Applies pressure distally and inflates the next progressive chamber whilst Traditional IPC Wave cycle Applies pressure distally and inflates the next progressive chamber whilst releasing the previous It has a ‘wave’ or peristaltic effect and is useful for palliative, venous and watery oedema

Traditional IPC Wave cycle Applies pressure distally and inflates the next progressive chamber whilst Traditional IPC Wave cycle Applies pressure distally and inflates the next progressive chamber whilst releasing the previous It has a ‘wave’ or peristaltic effect and is useful for palliative, venous and watery oedema

New machines ‘To date, no mechanical device has been designed to mimic the technique New machines ‘To date, no mechanical device has been designed to mimic the technique of manual lymphatic drainage, This would essentially consist of reverse sequential compression’ (Comerota and Aziz, JOL, 2009) Lymph. Assist (Flowtron Hydroven 12, developed 2006)

A 12 Chamber IPC System with Lymph. Assist cycle Designed for Lymphoedema only The A 12 Chamber IPC System with Lymph. Assist cycle Designed for Lymphoedema only The first 12 chamber (overlapping) retrograde pump with this unique cycle Retrograde flow/ commences proximally 5 pulses each chamber Based on MLD (Leduc) Maximum pressure 40 mm. Hg Completes each cycle Cycle 19. 6 mins (2 cycles equivalent to MLD)

Advantages Provides supervised self management/Home use Increased lymphatic drainage pathways (Furnival-Doran (2012) Treat the Advantages Provides supervised self management/Home use Increased lymphatic drainage pathways (Furnival-Doran (2012) Treat the whole /both limbs (full leg garment) Easy to use/ does not required trained therapist Cost effective/Time/ resource saving Improved healing times Problem solving Reduced risk Assists in longevity of role Good patient experience EFFECTIVE
