Lecture outline Database searches BLAST

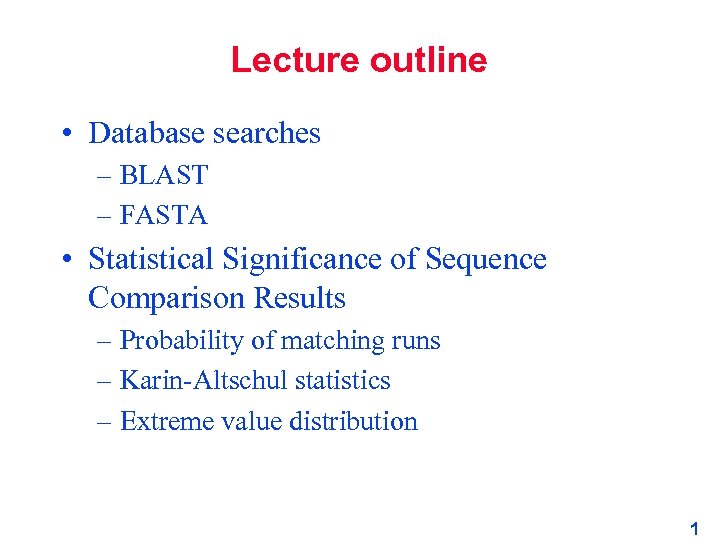

Lecture outline • Database searches – BLAST – FASTA • Statistical Significance of Sequence Comparison Results – Probability of matching runs – Karin-Altschul statistics – Extreme value distribution 1

The purpose of sequence alignment • Homology • Function identification – about 70% of the genes of M. jannaschii were assigned a function using sequence similarity (1997) 2

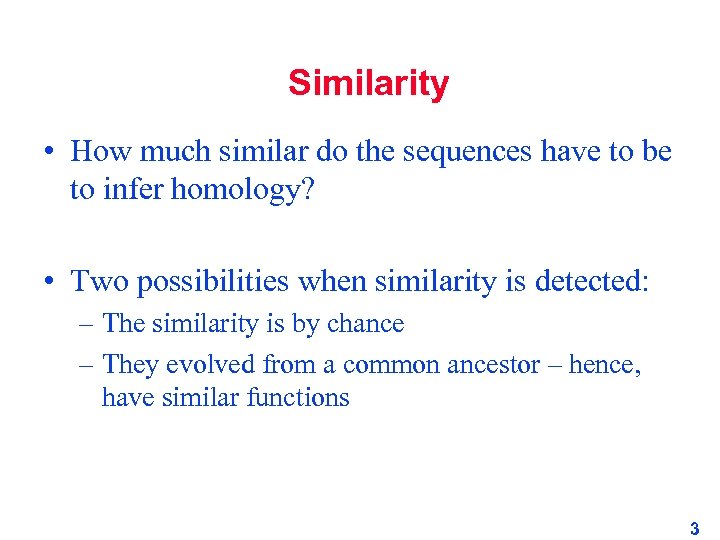

Similarity • How much similar do the sequences have to be to infer homology? • Two possibilities when similarity is detected: – The similarity is by chance – They evolved from a common ancestor – hence, have similar functions 3

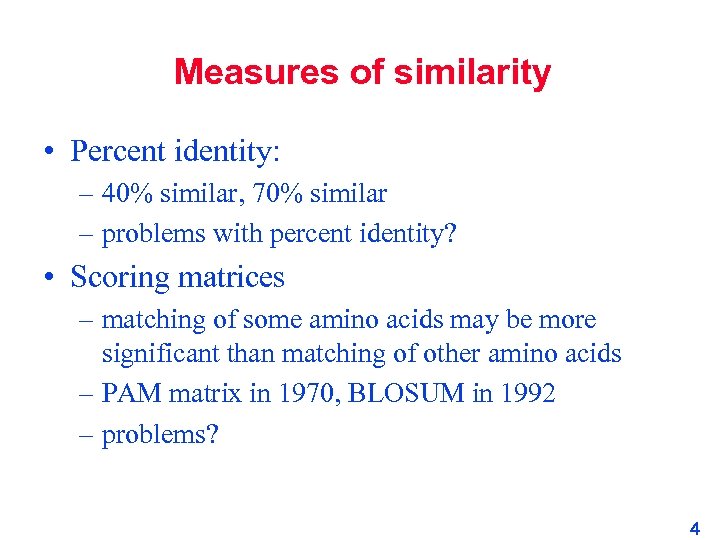

Measures of similarity • Percent identity: – 40% similar, 70% similar – problems with percent identity? • Scoring matrices – matching of some amino acids may be more significant than matching of other amino acids – PAM matrix in 1970, BLOSUM in 1992 – problems? 4

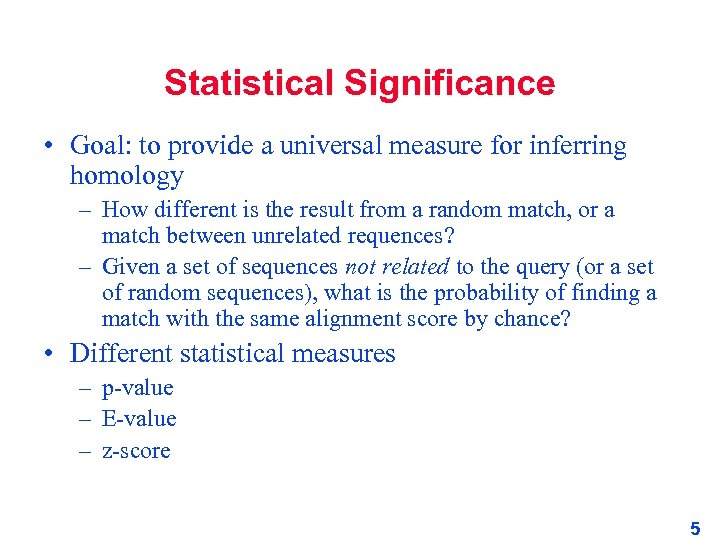

Statistical Significance • Goal: to provide a universal measure for inferring homology – How different is the result from a random match, or a match between unrelated requences? – Given a set of sequences not related to the query (or a set of random sequences), what is the probability of finding a match with the same alignment score by chance? • Different statistical measures – p-value – E-value – z-score 5

Statistical significance measures • p-value: the probability that at least one sequence will produce the same score by chance • E-value: expected number of sequences that will produce same or better score by chance • z-score: measures how much standard deviations above the mean of the score distribution 6

7

Search Significance Scores • A search will always return some hits. • How can we determine how “unusual” a particular alignment score is? – ORF’s • Assumptions 8

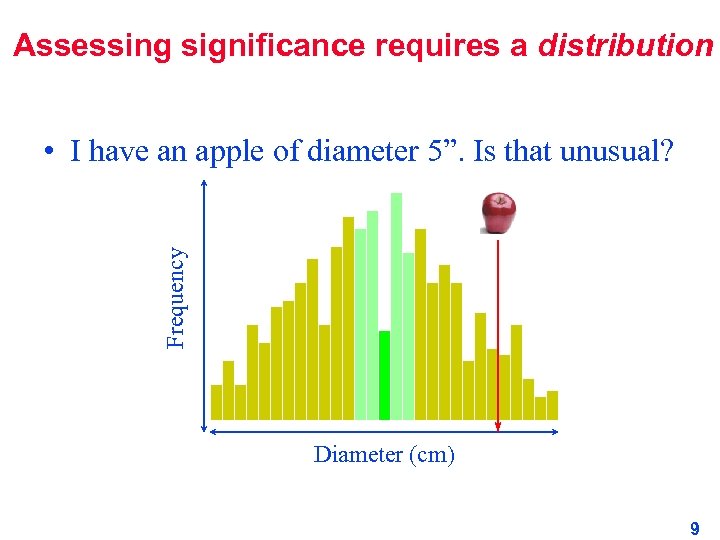

Assessing significance requires a distribution Frequency • I have an apple of diameter 5”. Is that unusual? Diameter (cm) 9

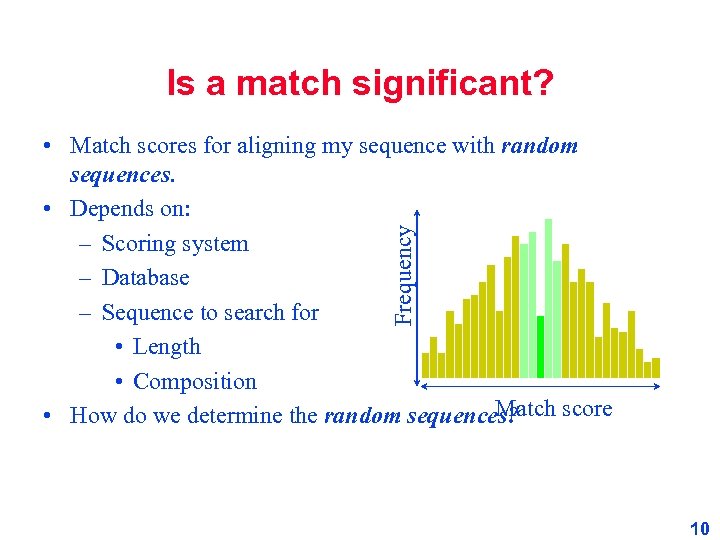

Is a match significant? Frequency • Match scores for aligning my sequence with random sequences. • Depends on: – Scoring system – Database – Sequence to search for • Length • Composition Match score • How do we determine the random sequences? 10

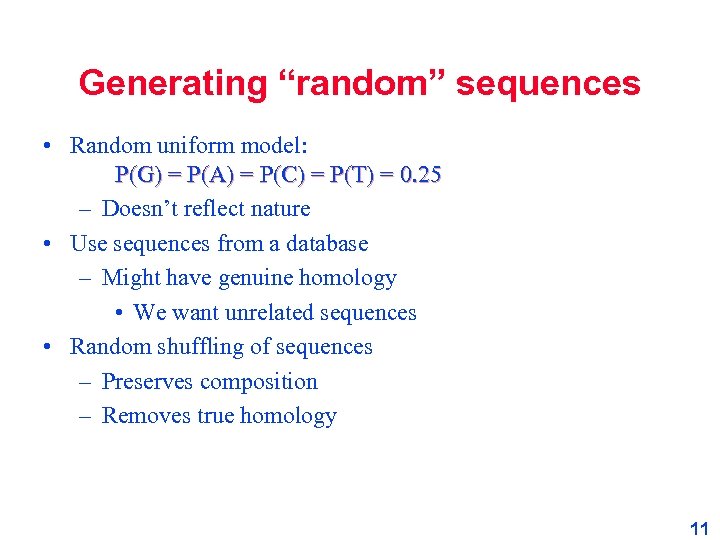

Generating “random” sequences • Random uniform model: P(G) = P(A) = P(C) = P(T) = 0. 25 – Doesn’t reflect nature • Use sequences from a database – Might have genuine homology • We want unrelated sequences • Random shuffling of sequences – Preserves composition – Removes true homology 11

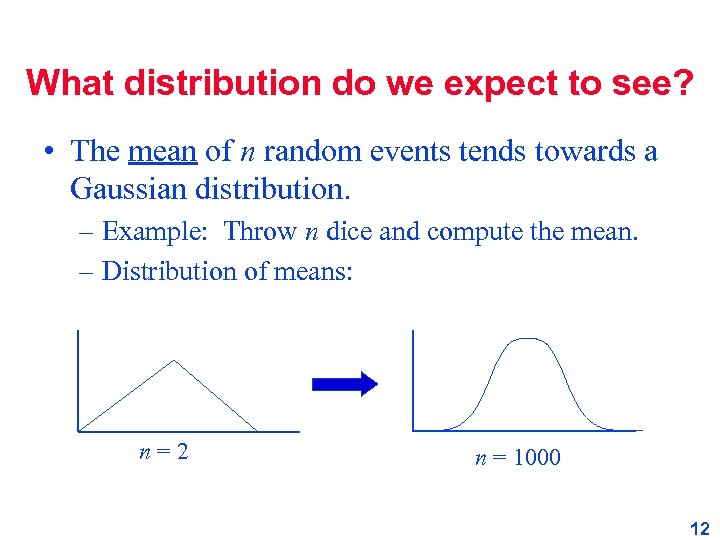

What distribution do we expect to see? • The mean of n random events tends towards a Gaussian distribution. – Example: Throw n dice and compute the mean. – Distribution of means: n=2 n = 1000 12

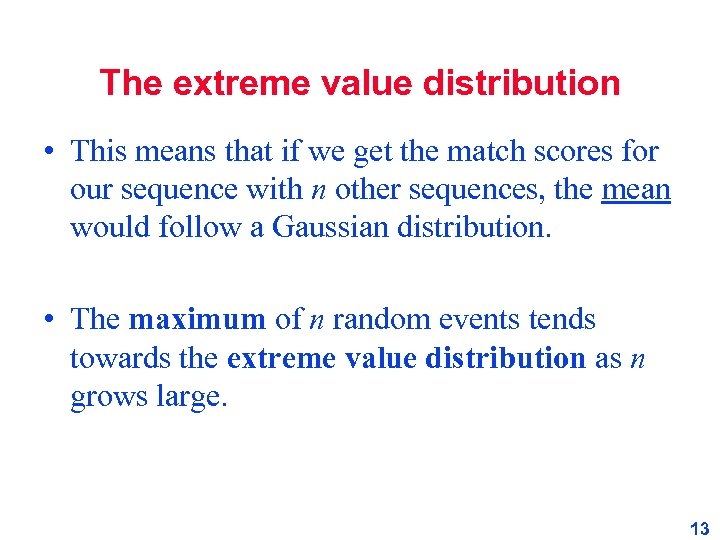

The extreme value distribution • This means that if we get the match scores for our sequence with n other sequences, the mean would follow a Gaussian distribution. • The maximum of n random events tends towards the extreme value distribution as n grows large. 13

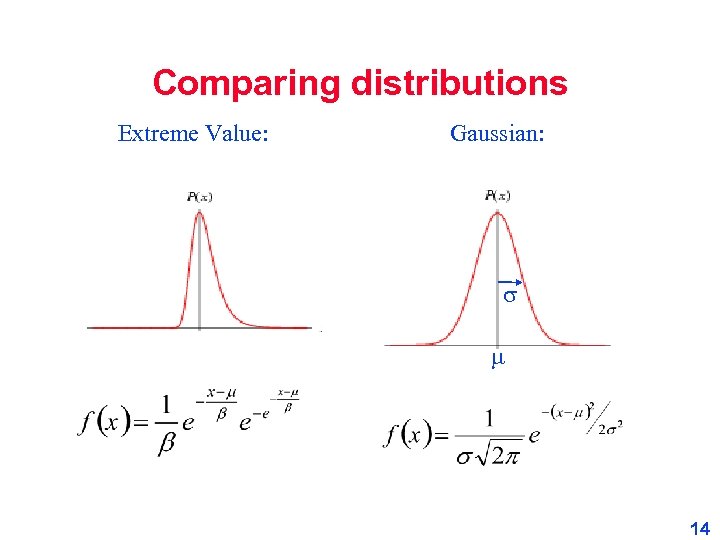

Comparing distributions Extreme Value: Gaussian: 14

How to compute statistical significance? • Significance of a match-run – Erdös-Renyí • Significance of local alignments without gaps – Karlin-Altschul statistics – Scoring matrices revisited • Significance of local alignments with gaps • Significance of global alignments 15

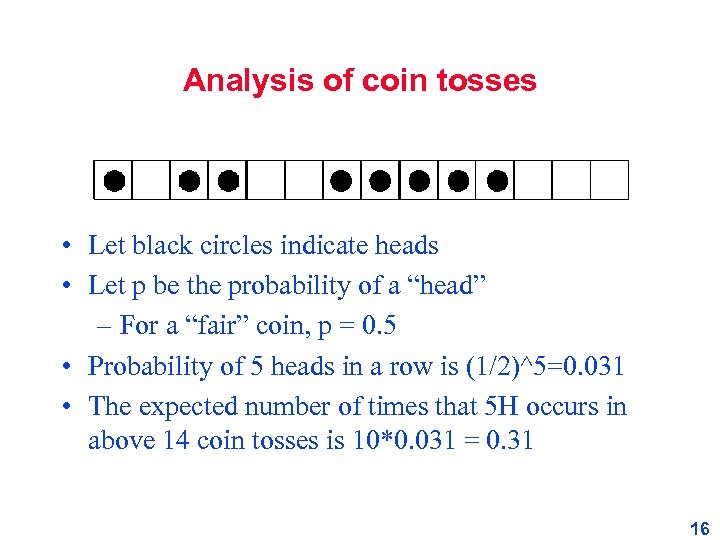

Analysis of coin tosses • Let black circles indicate heads • Let p be the probability of a “head” – For a “fair” coin, p = 0. 5 • Probability of 5 heads in a row is (1/2)^5=0. 031 • The expected number of times that 5 H occurs in above 14 coin tosses is 10*0. 031 = 0. 31 16

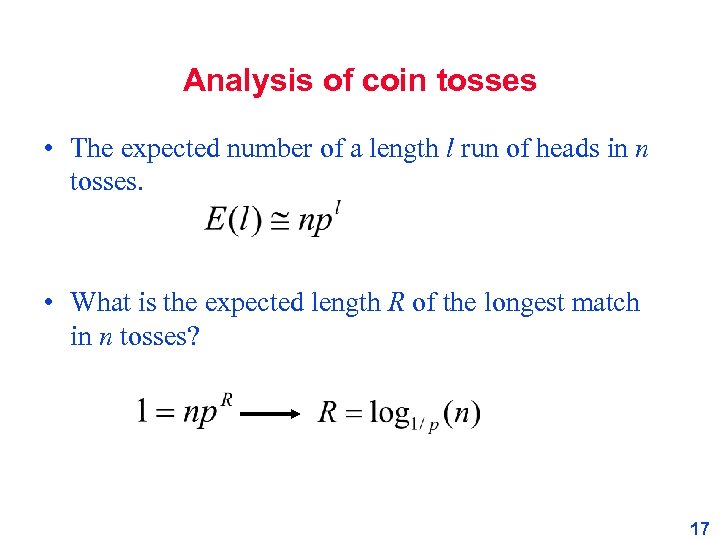

Analysis of coin tosses • The expected number of a length l run of heads in n tosses. • What is the expected length R of the longest match in n tosses? 17

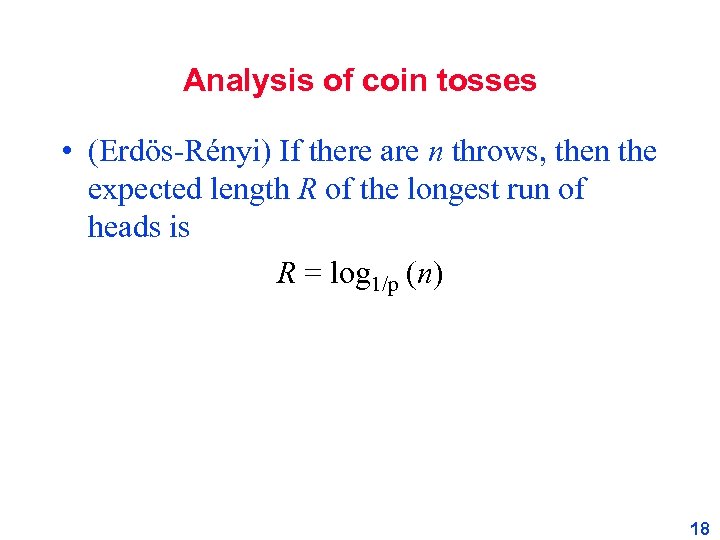

Analysis of coin tosses • (Erdös-Rényi) If there are n throws, then the expected length R of the longest run of heads is R = log 1/p (n) 18

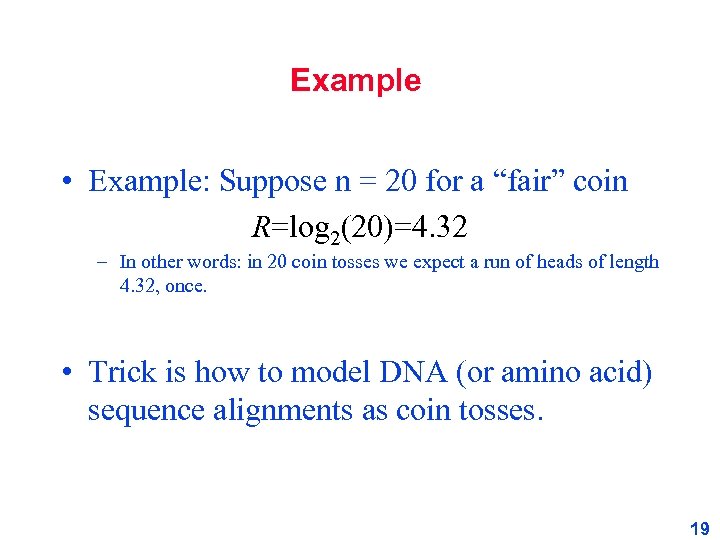

Example • Example: Suppose n = 20 for a “fair” coin R=log 2(20)=4. 32 – In other words: in 20 coin tosses we expect a run of heads of length 4. 32, once. • Trick is how to model DNA (or amino acid) sequence alignments as coin tosses. 19

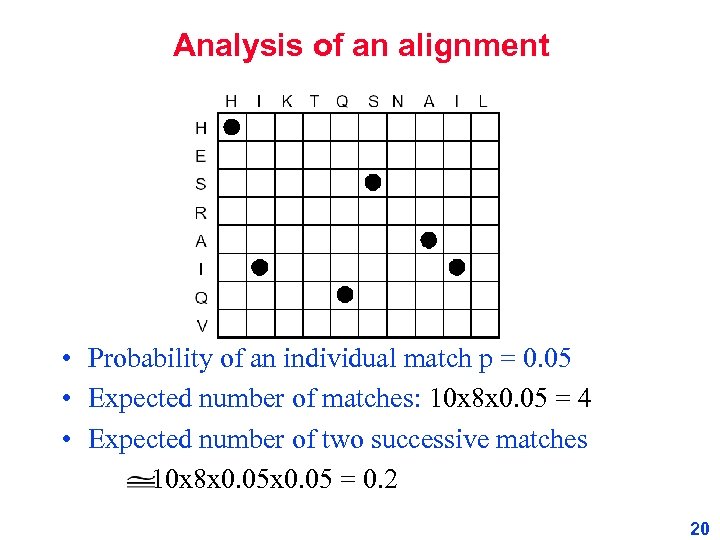

Analysis of an alignment • Probability of an individual match p = 0. 05 • Expected number of matches: 10 x 8 x 0. 05 = 4 • Expected number of two successive matches 10 x 8 x 0. 05 = 0. 2 20

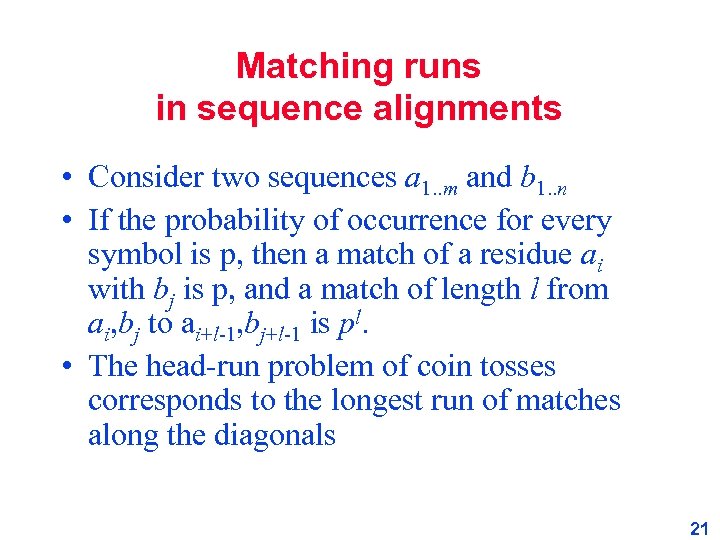

Matching runs in sequence alignments • Consider two sequences a 1. . m and b 1. . n • If the probability of occurrence for every symbol is p, then a match of a residue ai with bj is p, and a match of length l from ai, bj to ai+l-1, bj+l-1 is pl. • The head-run problem of coin tosses corresponds to the longest run of matches along the diagonals 21

Matching runs in sequence alignments • There are m-l+1 x n-l+1 places where the match could start • The expected length of the longest match can be approximated as R=log 1/p(mn) where m and n are the lengths of the two sequences. 22

Matching runs in sequence alignments • So suppose m = n = 10 and we’re looking at DNA sequences R=log 4(100)=3. 32 • This analysis makes assumptions about the base composition (uniform) and no gaps, but it’s a good estimate. 23

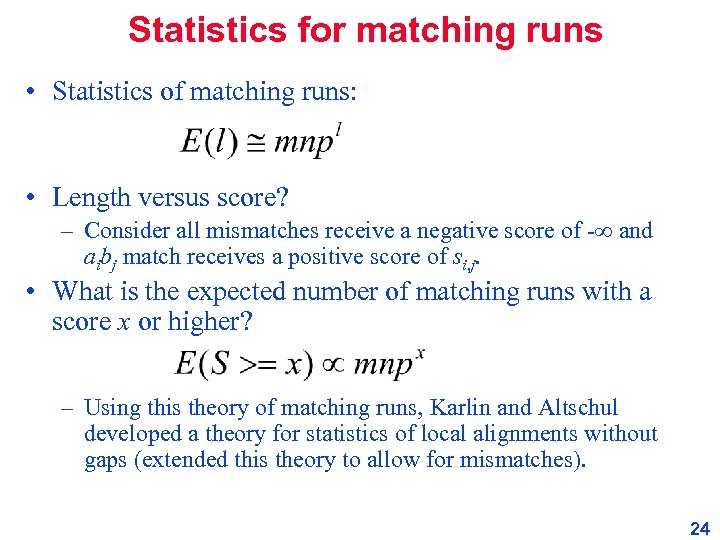

Statistics for matching runs • Statistics of matching runs: • Length versus score? – Consider all mismatches receive a negative score of -∞ and aibj match receives a positive score of si, j. • What is the expected number of matching runs with a score x or higher? – Using this theory of matching runs, Karlin and Altschul developed a theory for statistics of local alignments without gaps (extended this theory to allow for mismatches). 24

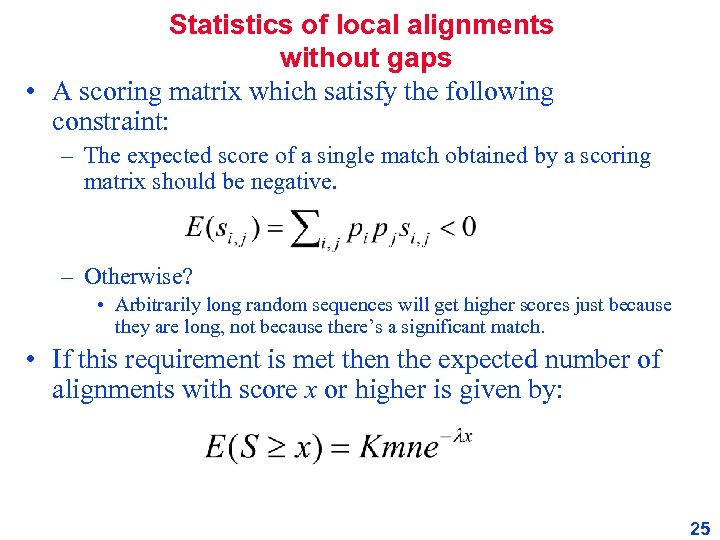

Statistics of local alignments without gaps • A scoring matrix which satisfy the following constraint: – The expected score of a single match obtained by a scoring matrix should be negative. – Otherwise? • Arbitrarily long random sequences will get higher scores just because they are long, not because there’s a significant match. • If this requirement is met then the expected number of alignments with score x or higher is given by: 25

Statistics of local alignments without gaps – K < 1 is a proportionality constant that corrects the mn “space factor” for the fact that there are not really mn independent places that could have produced score S ≥ x. – K has little effect on the statistical significance of a similarity score – λ is closely related to the scoring matrix used and it takes into account that the scoring matrices do not contain actual probabilities of co-occurence, but instead a scaled version of those values. To understand how λ is computed, we have to look at the construction of scoring matrices. 26

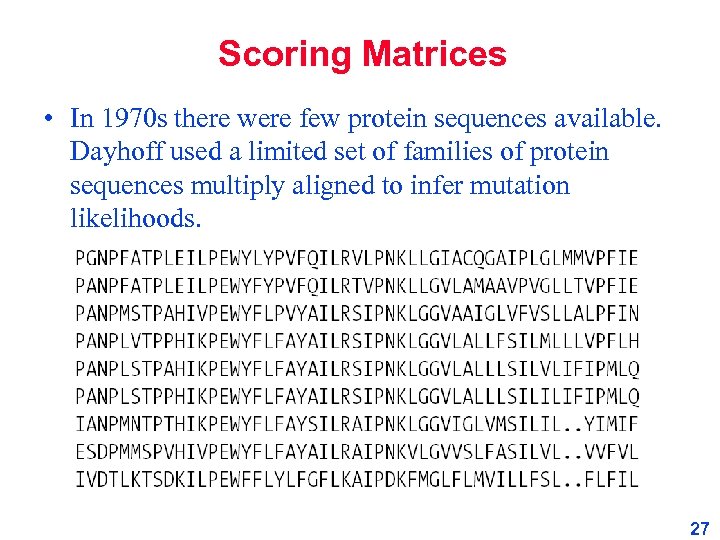

Scoring Matrices • In 1970 s there were few protein sequences available. Dayhoff used a limited set of families of protein sequences multiply aligned to infer mutation likelihoods. 27

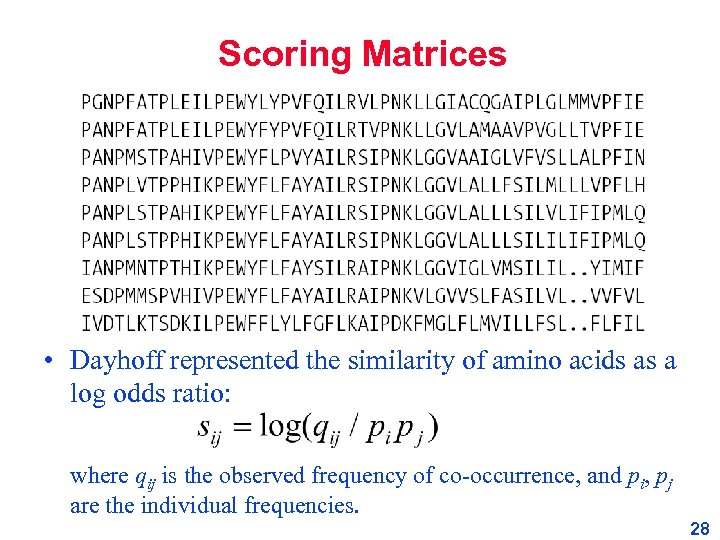

Scoring Matrices • Dayhoff represented the similarity of amino acids as a log odds ratio: where qij is the observed frequency of co-occurrence, and pi, pj are the individual frequencies. 28

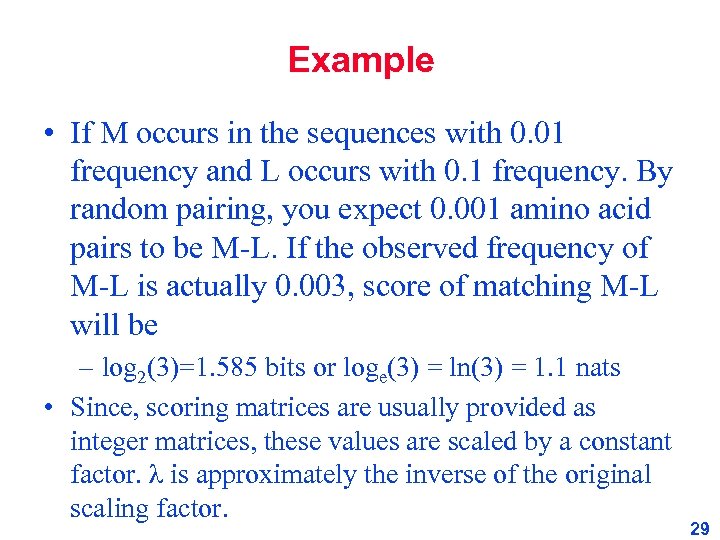

Example • If M occurs in the sequences with 0. 01 frequency and L occurs with 0. 1 frequency. By random pairing, you expect 0. 001 amino acid pairs to be M-L. If the observed frequency of M-L is actually 0. 003, score of matching M-L will be – log 2(3)=1. 585 bits or loge(3) = ln(3) = 1. 1 nats • Since, scoring matrices are usually provided as integer matrices, these values are scaled by a constant factor. λ is approximately the inverse of the original scaling factor. 29

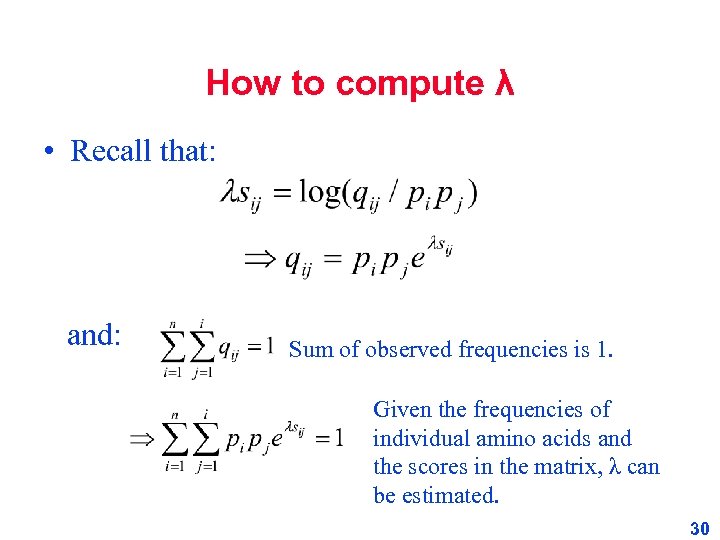

How to compute λ • Recall that: and: Sum of observed frequencies is 1. Given the frequencies of individual amino acids and the scores in the matrix, λ can be estimated. 30

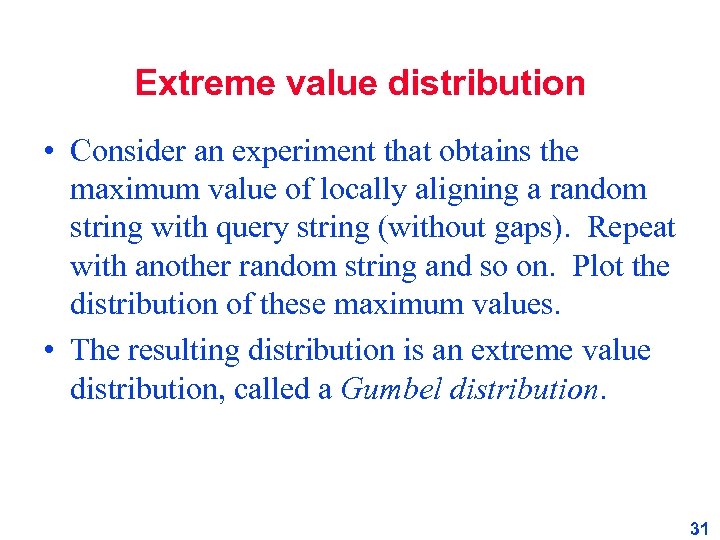

Extreme value distribution • Consider an experiment that obtains the maximum value of locally aligning a random string with query string (without gaps). Repeat with another random string and so on. Plot the distribution of these maximum values. • The resulting distribution is an extreme value distribution, called a Gumbel distribution. 31

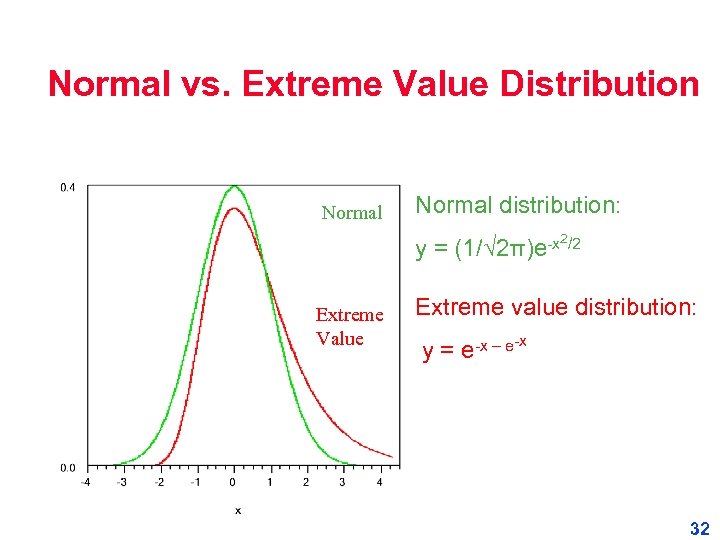

Normal vs. Extreme Value Distribution Normal distribution: y= Extreme Value -x 2/2 (1/√ 2π)e Extreme value distribution: y = e-x – e-x 32

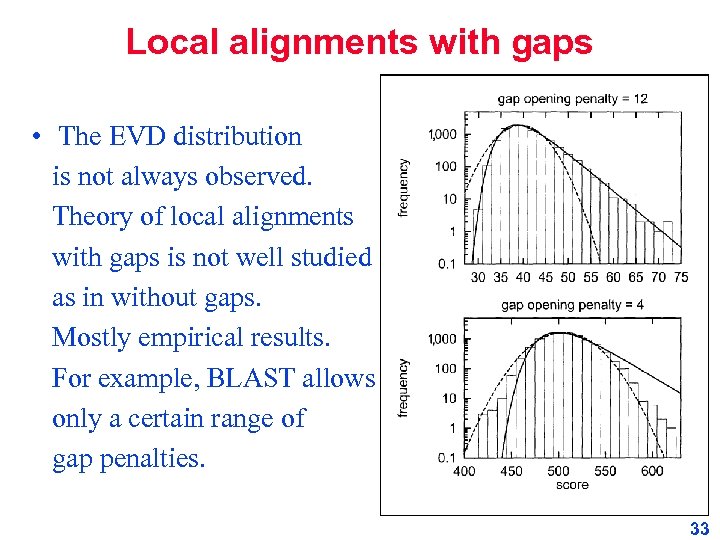

Local alignments with gaps • The EVD distribution is not always observed. Theory of local alignments with gaps is not well studied as in without gaps. Mostly empirical results. For example, BLAST allows only a certain range of gap penalties. 33

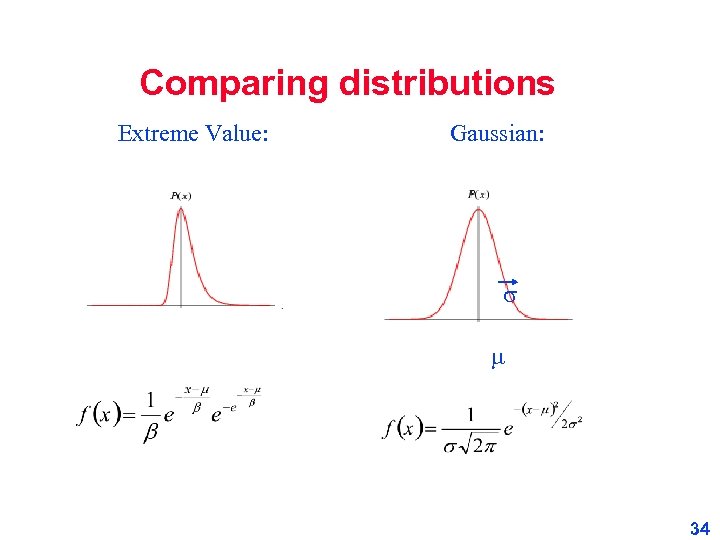

Comparing distributions Extreme Value: Gaussian: 34

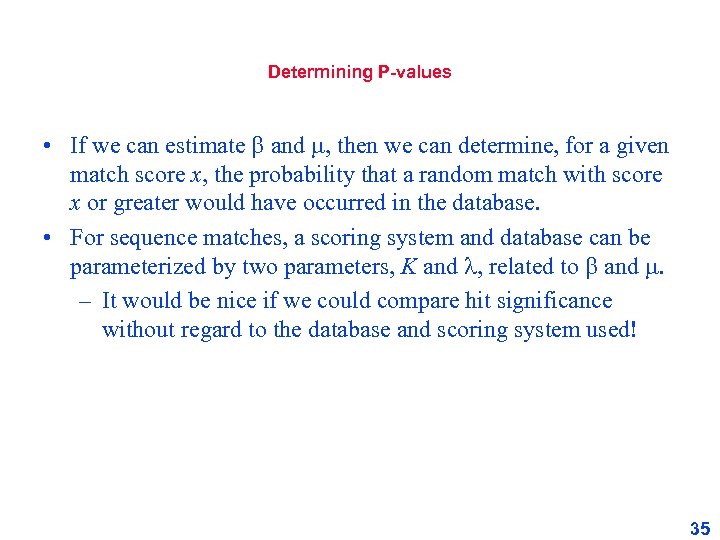

Determining P-values • If we can estimate and , then we can determine, for a given match score x, the probability that a random match with score x or greater would have occurred in the database. • For sequence matches, a scoring system and database can be parameterized by two parameters, K and , related to and . – It would be nice if we could compare hit significance without regard to the database and scoring system used! 35

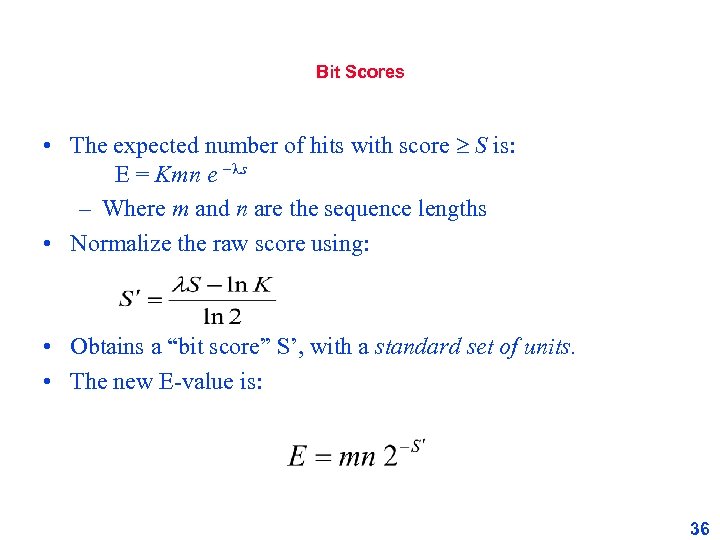

Bit Scores • The expected number of hits with score S is: E = Kmn e s – Where m and n are the sequence lengths • Normalize the raw score using: • Obtains a “bit score” S’, with a standard set of units. • The new E-value is: 36

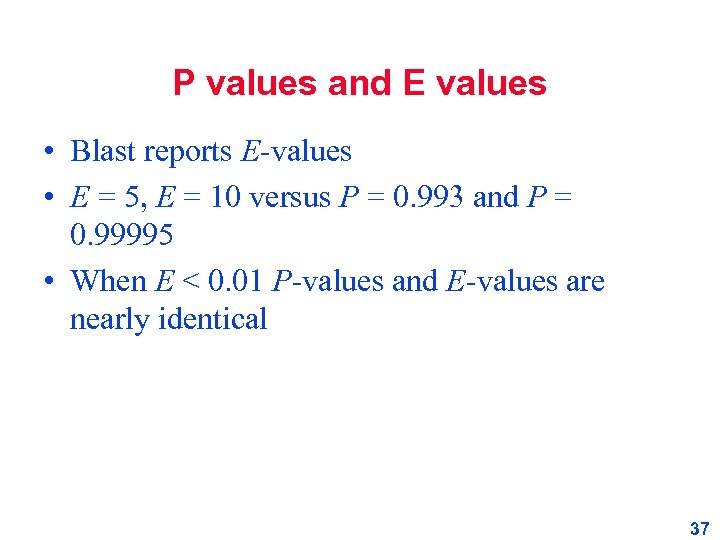

P values and E values • Blast reports E-values • E = 5, E = 10 versus P = 0. 993 and P = 0. 99995 • When E < 0. 01 P-values and E-values are nearly identical 37

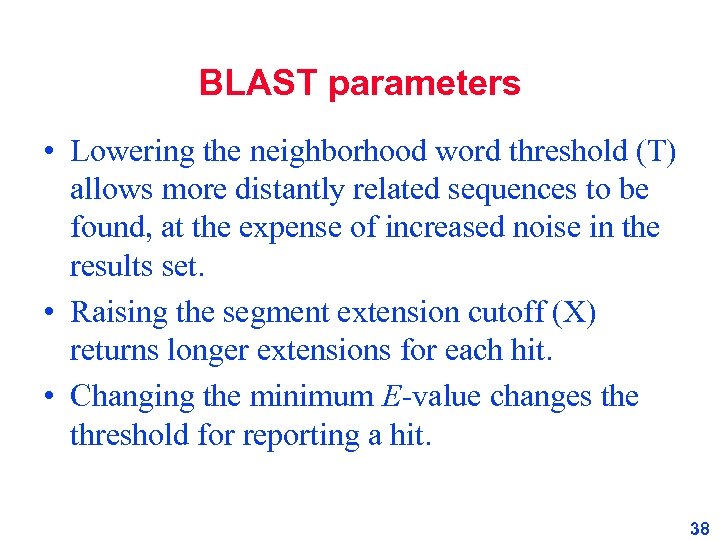

BLAST parameters • Lowering the neighborhood word threshold (T) allows more distantly related sequences to be found, at the expense of increased noise in the results set. • Raising the segment extension cutoff (X) returns longer extensions for each hit. • Changing the minimum E-value changes the threshold for reporting a hit. 38

BLAST statistics • Pre-computed λ and K values for different scoring matrices and gap penalties are used for faster computation. • Raw score is converted to bit score: • E-value is computed using • m is query size, n is database size and L is the typical length of maximal scoring alignment. 39

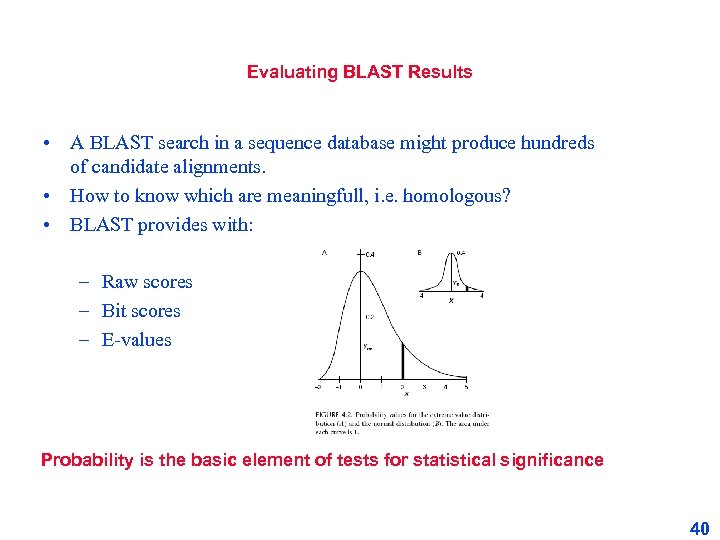

Evaluating BLAST Results • A BLAST search in a sequence database might produce hundreds of candidate alignments. • How to know which are meaningfull, i. e. homologous? • BLAST provides with: – Raw scores – Bit scores – E-values Probability is the basic element of tests for statistical significance 40

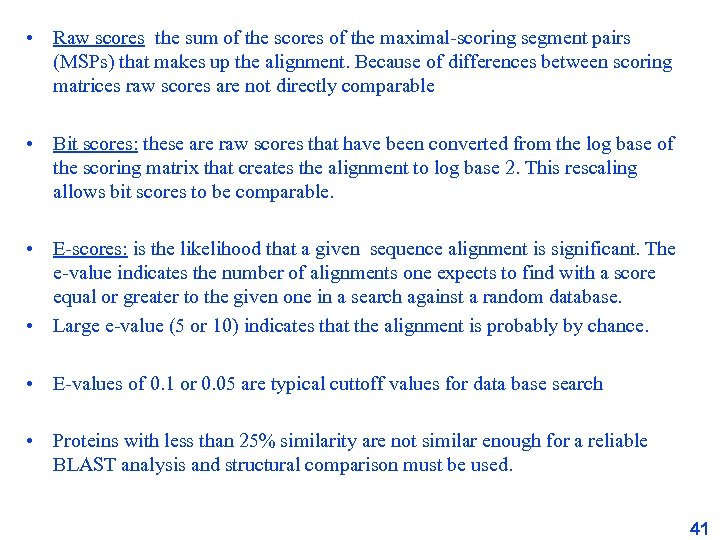

• Raw scores: the sum of the scores of the maximal-scoring segment pairs (MSPs) that makes up the alignment. Because of differences between scoring matrices raw scores are not directly comparable • Bit scores: these are raw scores that have been converted from the log base of the scoring matrix that creates the alignment to log base 2. This rescaling allows bit scores to be comparable. • E-scores: is the likelihood that a given sequence alignment is significant. The e-value indicates the number of alignments one expects to find with a score equal or greater to the given one in a search against a random database. • Large e-value (5 or 10) indicates that the alignment is probably by chance. • E-values of 0. 1 or 0. 05 are typical cuttoff values for data base search • Proteins with less than 25% similarity are not similar enough for a reliable BLAST analysis and structural comparison must be used. 41

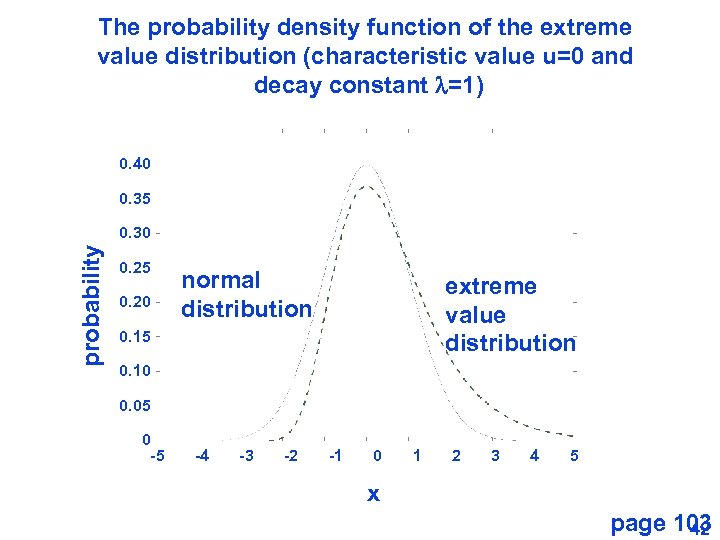

The probability density function of the extreme value distribution (characteristic value u=0 and decay constant l=1) 0. 40 0. 35 probability 0. 30 0. 25 0. 20 normal distribution extreme value distribution 0. 15 0. 10 0. 05 0 -5 -4 -3 -2 -1 0 1 2 3 4 5 x page 103 42

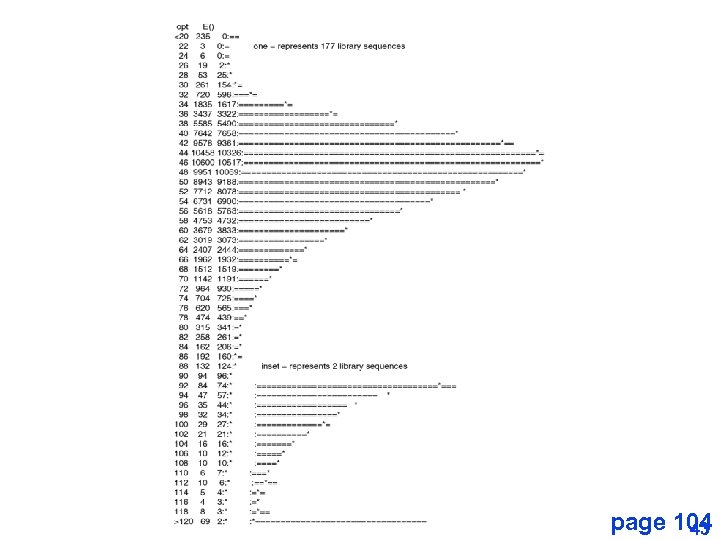

page 104 43

How to interpret a BLAST search: expect value The expect value E is the number of alignments with scores greater than or equal to score S that are expected to occur by chance in a database search. An E value is related to a probability value p. The key equation describing an E value is: E = Kmn e-l. S page 105 44

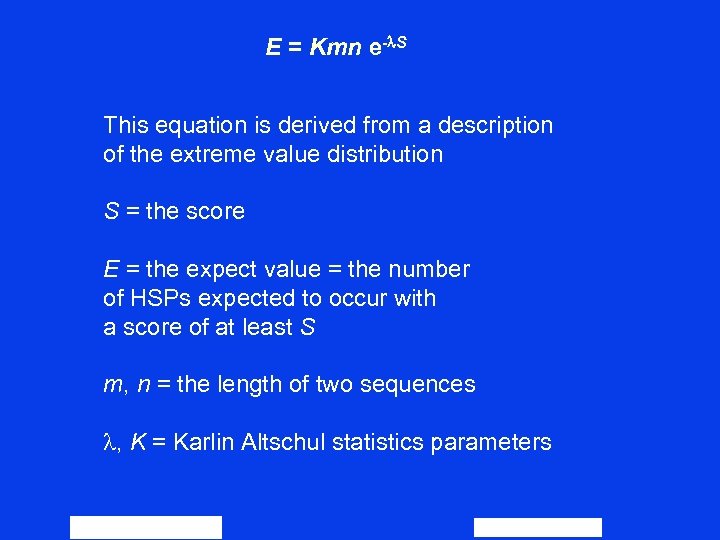

E = Kmn e-l. S This equation is derived from a description of the extreme value distribution S = the score E = the expect value = the number of HSPs expected to occur with a score of at least S m, n = the length of two sequences , K = Karlin Altschul statistics parameters 45

Some properties of the equation E = Kmn e-l. S • The value of E decreases exponentially with increasing S (higher S values correspond to better alignments). Very high scores correspond to very low E values. • The E value for aligning a pair of random sequences must be negative! Otherwise, long random alignments would acquire great scores • Parameter K describes the search space (database). • For E=1, one match with a similar score is expected to occur by chance. For a very much larger or smaller database, you would expect E to vary accordingly page 105 -106 46

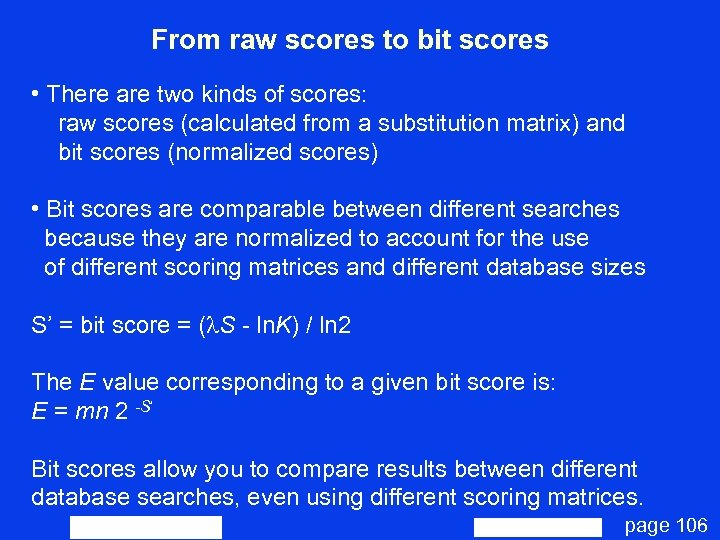

From raw scores to bit scores • There are two kinds of scores: raw scores (calculated from a substitution matrix) and bit scores (normalized scores) • Bit scores are comparable between different searches because they are normalized to account for the use of different scoring matrices and different database sizes S’ = bit score = ( S - ln. K) / ln 2 The E value corresponding to a given bit score is: E = mn 2 -S’ Bit scores allow you to compare results between different database searches, even using different scoring matrices. page 106 47

How to interpret BLAST: E values and p values The expect value E is the number of alignments with scores greater than or equal to score S that are expected to occur by chance in a database search. A p value is a different way of representing the significance of an alignment. p = 1 - e -E page 106 48

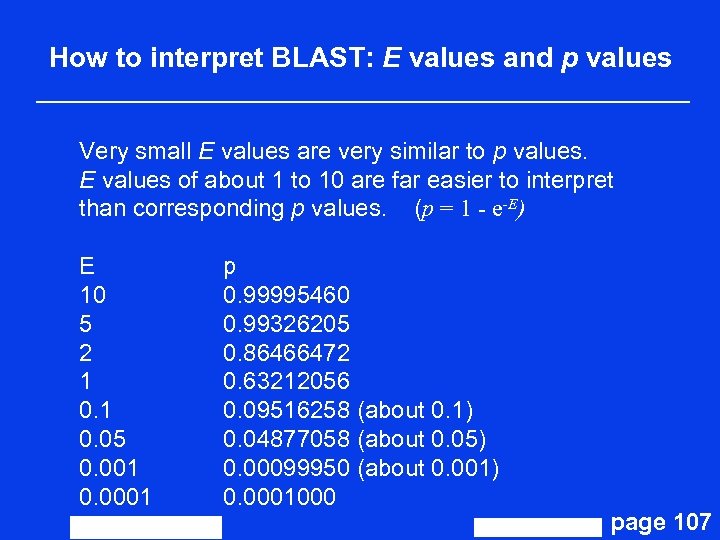

How to interpret BLAST: E values and p values Very small E values are very similar to p values. E values of about 1 to 10 are far easier to interpret than corresponding p values. (p = 1 - e-E) E 10 5 2 1 0. 05 0. 001 0. 0001 p 0. 99995460 0. 99326205 0. 86466472 0. 63212056 0. 09516258 (about 0. 1) 0. 04877058 (about 0. 05) 0. 00099950 (about 0. 001) 0. 0001000 page 107 49

How to interpret BLAST: getting to the bottom page 107 50

EVD parameters matrix gap penalties 10. 0 is the E value Effective search space = mn = length of query x db length threshold score = 11 cut-off parameters page 108 51

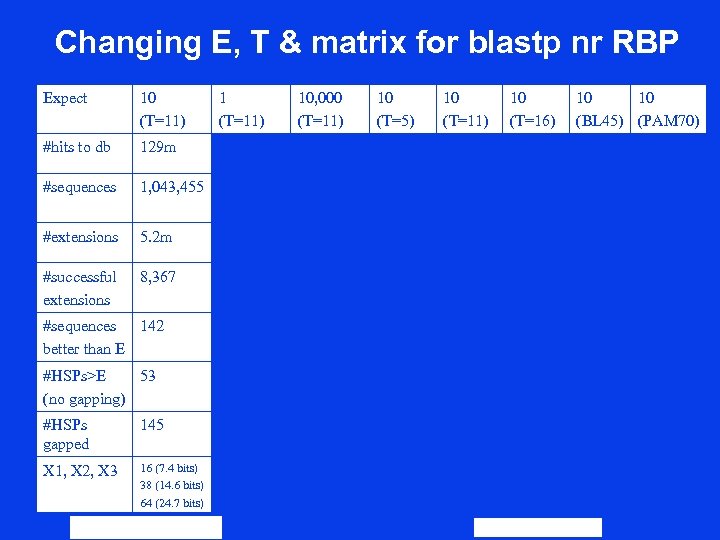

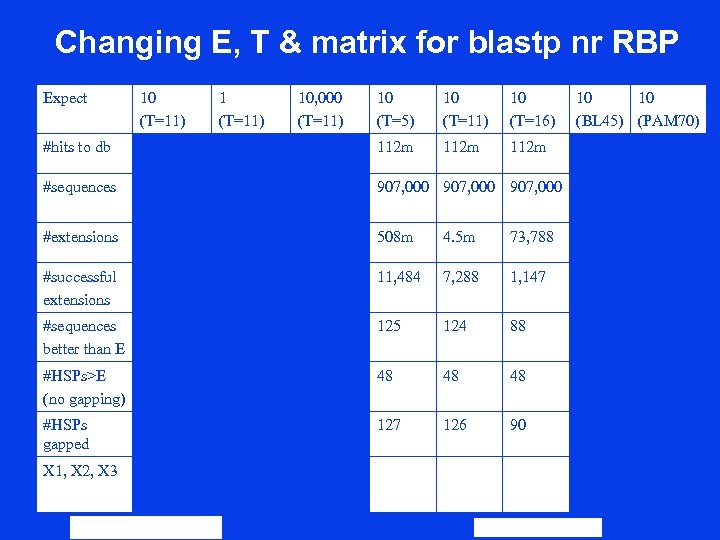

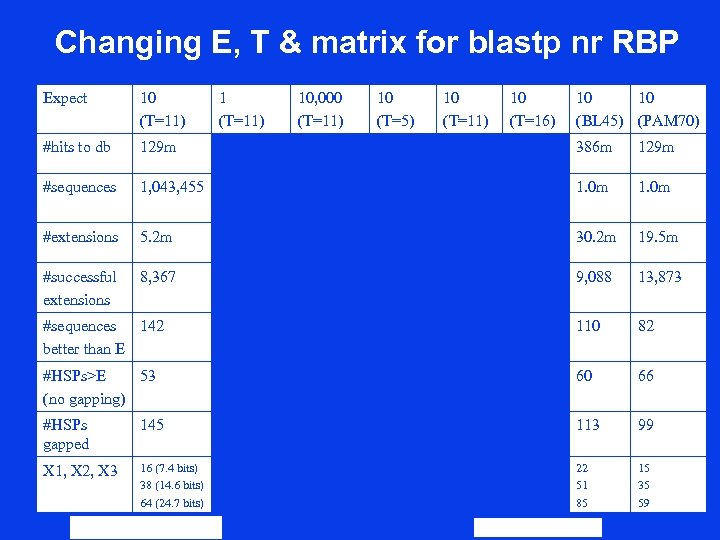

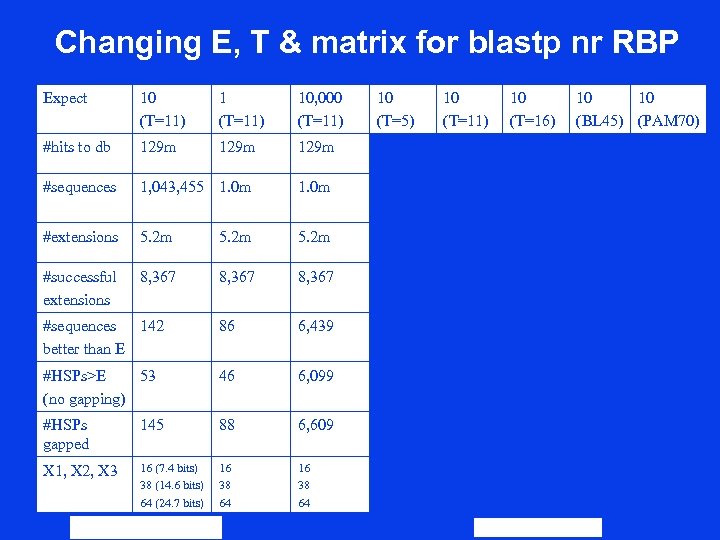

Changing E, T & matrix for blastp nr RBP Expect 10 (T=11) 10, 000 (T=11) 10 (T=5) 10 (T=11) 10 (T=16) 10 10 (BL 45) (PAM 70) #hits to db 129 m 112 m 386 m 129 m #sequences 1, 043, 455 1. 0 m 907, 000 1. 0 m #extensions 5. 2 m 508 m 4. 5 m 73, 788 30. 2 m 19. 5 m #successful extensions 8, 367 11, 484 7, 288 1, 147 9, 088 13, 873 #sequences 142 better than E 86 6, 439 125 124 88 110 82 #HSPs>E 53 (no gapping) 46 6, 099 48 48 48 60 66 #HSPs gapped 145 88 6, 609 127 126 90 113 99 X 1, X 2, X 3 16 (7. 4 bits) 38 (14. 6 bits) 64 (24. 7 bits) 16 38 64 22 51 85 15 35 59 52

Changing E, T & matrix for blastp nr RBP Expect 10 (T=11) 10, 000 (T=11) 10 (T=5) 10 (T=11) 10 (T=16) 10 10 (BL 45) (PAM 70) #hits to db 129 m 112 m 386 m 129 m #sequences 1, 043, 455 1. 0 m 907, 000 1. 0 m #extensions 5. 2 m 508 m 4. 5 m 73, 788 30. 2 m 19. 5 m #successful extensions 8, 367 11, 484 7, 288 1, 147 9, 088 13, 873 #sequences 142 better than E 86 6, 439 125 124 88 110 82 #HSPs>E 53 (no gapping) 46 6, 099 48 48 48 60 66 #HSPs gapped 145 88 6, 609 127 126 90 113 99 X 1, X 2, X 3 16 (7. 4 bits) 38 (14. 6 bits) 64 (24. 7 bits) 16 38 64 22 51 85 15 35 59 53

Changing E, T & matrix for blastp nr RBP Expect 10 (T=11) 10, 000 (T=11) 10 (T=5) 10 (T=11) 10 (T=16) 10 10 (BL 45) (PAM 70) #hits to db 129 m 112 m 386 m 129 m #sequences 1, 043, 455 1. 0 m 907, 000 1. 0 m #extensions 5. 2 m 508 m 4. 5 m 73, 788 30. 2 m 19. 5 m #successful extensions 8, 367 11, 484 7, 288 1, 147 9, 088 13, 873 #sequences 142 better than E 86 6, 439 125 124 88 110 82 #HSPs>E 53 (no gapping) 46 6, 099 48 48 48 60 66 #HSPs gapped 145 88 6, 609 127 126 90 113 99 X 1, X 2, X 3 16 (7. 4 bits) 38 (14. 6 bits) 64 (24. 7 bits) 16 38 64 22 51 85 15 35 59 54

Changing E, T & matrix for blastp nr RBP Expect 10 (T=11) 10, 000 (T=11) 10 (T=5) 10 (T=11) 10 (T=16) 10 10 (BL 45) (PAM 70) #hits to db 129 m 112 m 386 m 129 m #sequences 1, 043, 455 1. 0 m 907, 000 1. 0 m #extensions 5. 2 m 508 m 4. 5 m 73, 788 30. 2 m 19. 5 m #successful extensions 8, 367 11, 484 7, 288 1, 147 9, 088 13, 873 #sequences 142 better than E 86 6, 439 125 124 88 110 82 #HSPs>E 53 (no gapping) 46 6, 099 48 48 48 60 66 #HSPs gapped 145 88 6, 609 127 126 90 113 99 X 1, X 2, X 3 16 (7. 4 bits) 38 (14. 6 bits) 64 (24. 7 bits) 16 38 64 22 51 85 15 35 59 55

Changing E, T & matrix for blastp nr RBP Expect 10 (T=11) 10, 000 (T=11) 10 (T=5) 10 (T=11) 10 (T=16) 10 10 (BL 45) (PAM 70) #hits to db 129 m 112 m 386 m 129 m #sequences 1, 043, 455 1. 0 m 907, 000 1. 0 m #extensions 5. 2 m 508 m 4. 5 m 73, 788 30. 2 m 19. 5 m #successful extensions 8, 367 11, 484 7, 288 1, 147 9, 088 13, 873 #sequences 142 better than E 86 6, 439 125 124 88 110 82 #HSPs>E 53 (no gapping) 46 6, 099 48 48 48 60 66 #HSPs gapped 145 88 6, 609 127 126 90 113 99 X 1, X 2, X 3 16 (7. 4 bits) 38 (14. 6 bits) 64 (24. 7 bits) 16 38 64 22 51 85 15 35 59 56

Changing E, T & matrix for blastp nr RBP Expect 10 (T=11) 10, 000 (T=11) 10 (T=5) 10 (T=11) 10 (T=16) 10 10 (BL 45) (PAM 70) #hits to db 129 m 112 m 386 m 129 m #sequences 1, 043, 455 1. 0 m 907, 000 1. 0 m #extensions 5. 2 m 508 m 4. 5 m 73, 788 30. 2 m 19. 5 m #successful extensions 8, 367 11, 484 7, 288 1, 147 9, 088 13, 873 #sequences 142 better than E 86 6, 439 125 124 88 110 82 #HSPs>E 53 (no gapping) 46 6, 099 48 48 48 60 66 #HSPs gapped 145 88 6, 609 127 126 90 113 99 X 1, X 2, X 3 16 (7. 4 bits) 38 (14. 6 bits) 64 (24. 7 bits) 16 38 64 22 51 85 15 35 59 57

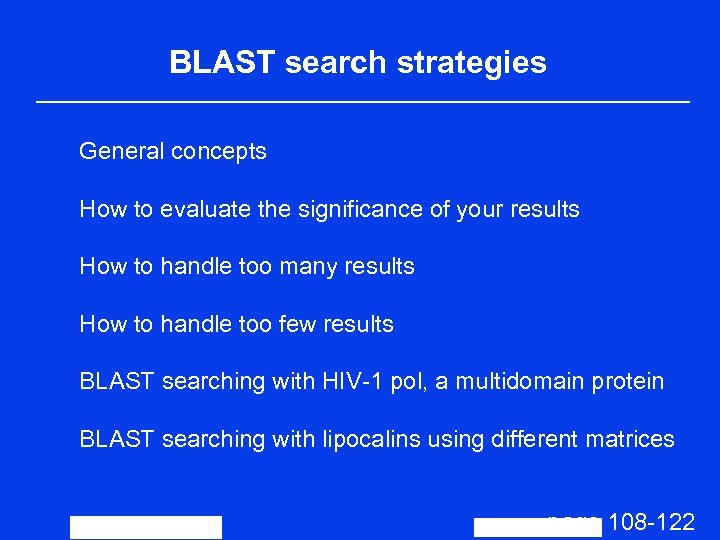

BLAST search strategies General concepts How to evaluate the significance of your results How to handle too many results How to handle too few results BLAST searching with HIV-1 pol, a multidomain protein BLAST searching with lipocalins using different matrices page 108 -122 58

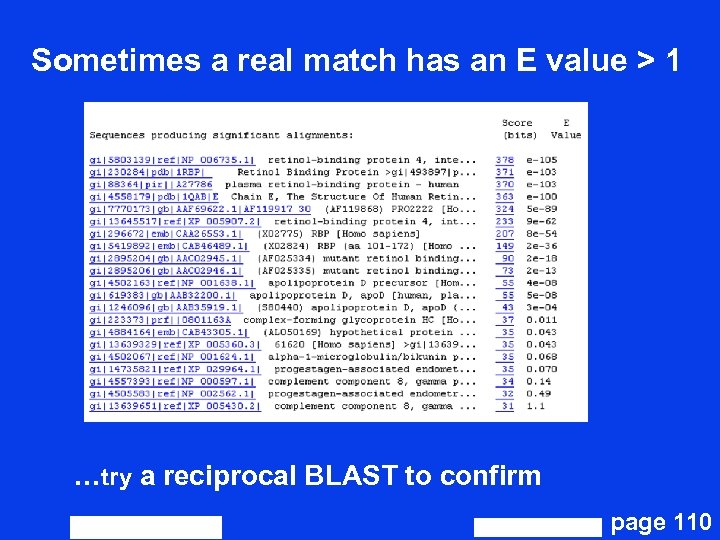

Sometimes a real match has an E value > 1 …try a reciprocal BLAST to confirm page 110 59

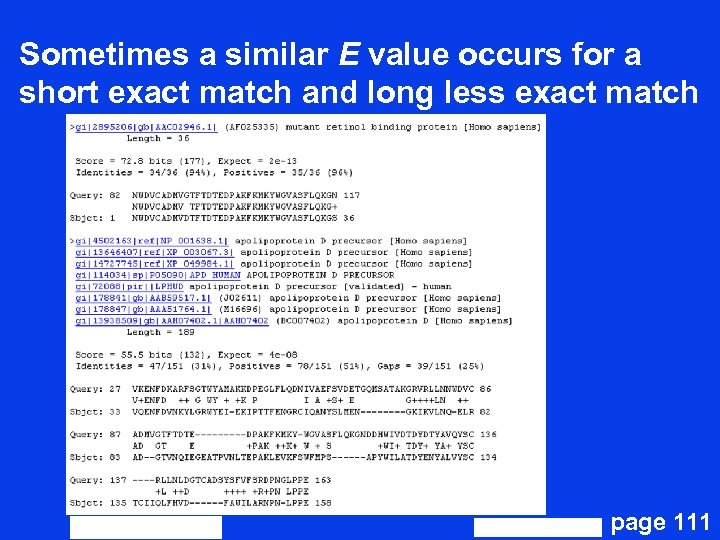

Sometimes a similar E value occurs for a short exact match and long less exact match page 111 60

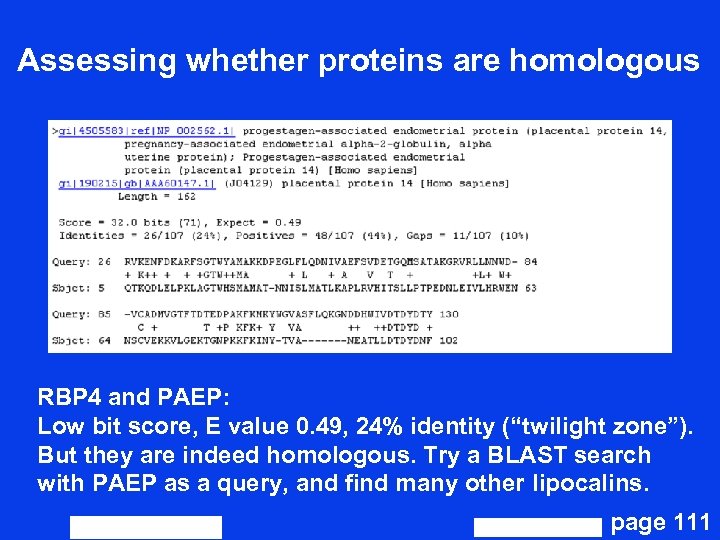

Assessing whether proteins are homologous RBP 4 and PAEP: Low bit score, E value 0. 49, 24% identity (“twilight zone”). But they are indeed homologous. Try a BLAST search with PAEP as a query, and find many other lipocalins. page 111 61

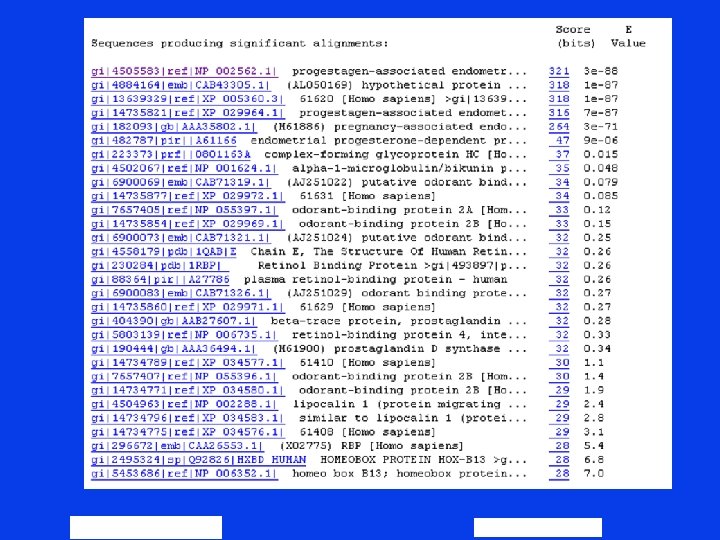

page 112 62

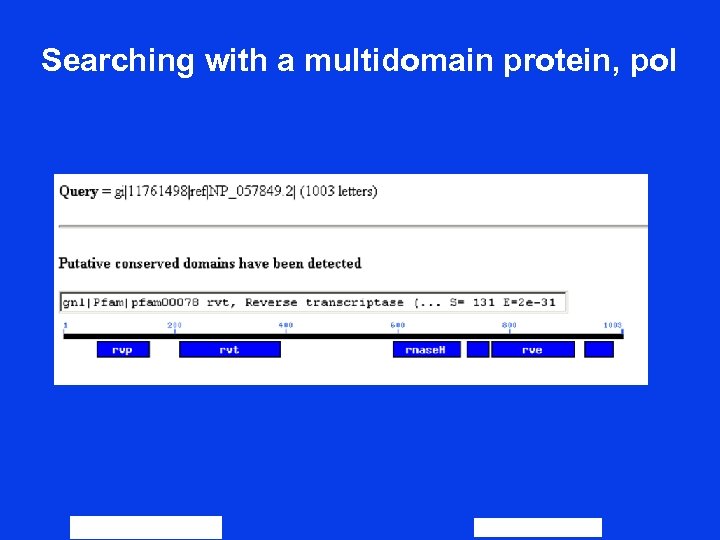

Searching with a multidomain protein, pol page 114 63

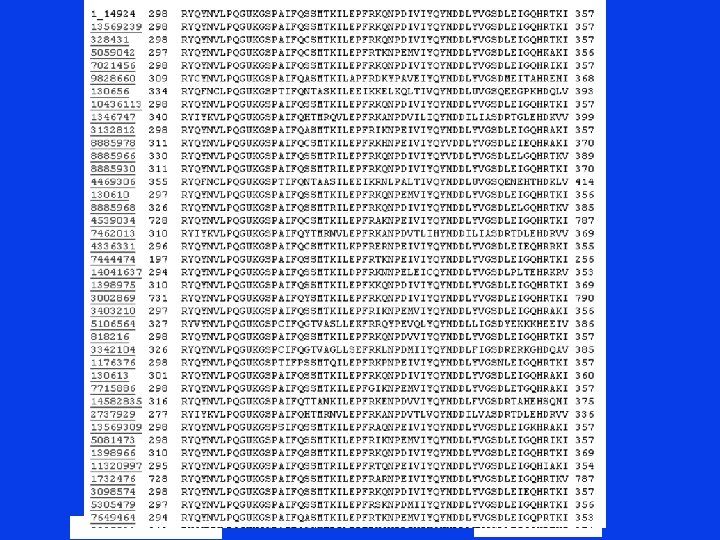

64

Searching bacterial sequences with pol 65

Protein sequence Motifs or Patterns 66
