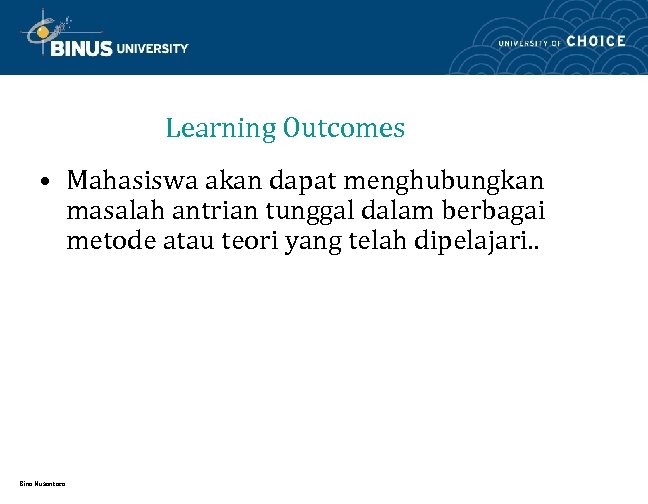

Learning Outcomes • Mahasiswa akan dapat menghubungkan masalah antrian tunggal dalam berbagai metode atau teori yang telah dipelajari. . Bina Nusantara

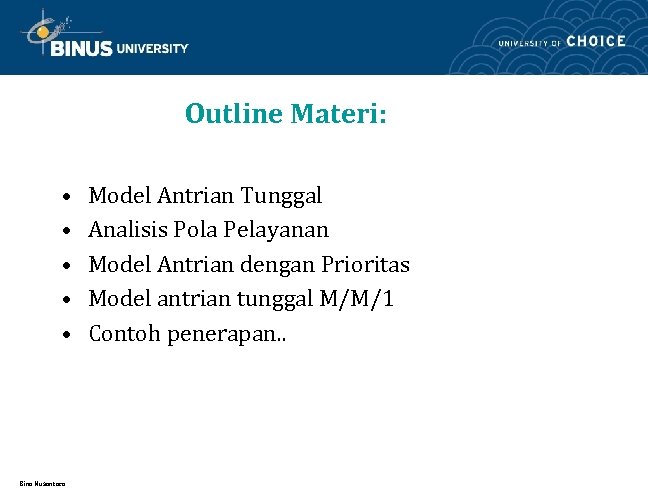

Outline Materi: • • • Bina Nusantara Model Antrian Tunggal Analisis Pola Pelayanan Model Antrian dengan Prioritas Model antrian tunggal M/M/1 Contoh penerapan. .
Types of Queuing Models • Simple (M/M/1). – Example: Information booth at mall. • Multi-channel (M/M/S). – Example: Airline ticket counter. • Constant Service (M/D/1). – Example: Automated car wash. • Limited Population. – Example: Department with only 7 drills that may break down and require service. Bina Nusantara

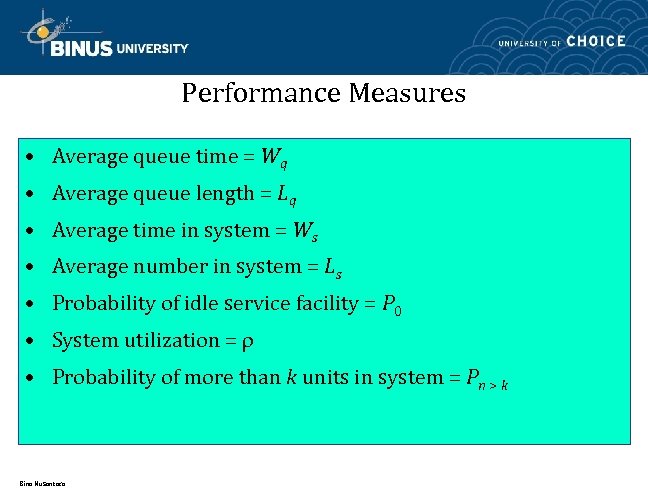

Performance Measures • Average queue time = Wq • Average queue length = Lq • Average time in system = Ws • Average number in system = Ls • Probability of idle service facility = P 0 • System utilization = • Probability of more than k units in system = Pn > k Bina Nusantara
General Queuing Equations = S 1 = W + W s q Ls = Lq + Lq = W q Ls = W s Bina Nusantara Given one of Ws , Wq , Ls, or Lq you can use these equations to find all the others.

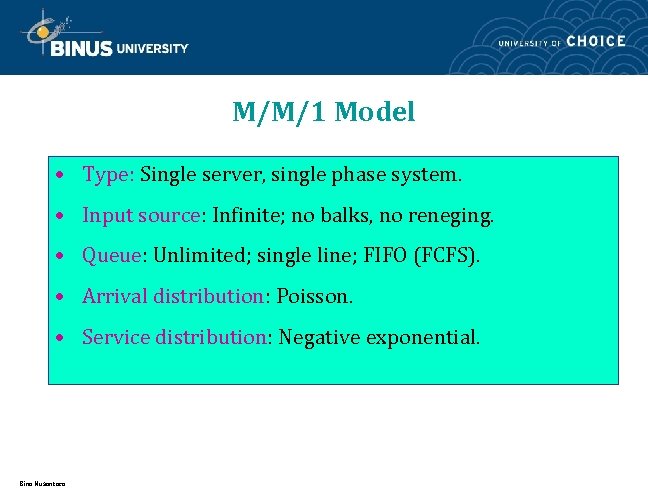

M/M/1 Model • Type: Single server, single phase system. • Input source: Infinite; no balks, no reneging. • Queue: Unlimited; single line; FIFO (FCFS). • Arrival distribution: Poisson. • Service distribution: Negative exponential. Bina Nusantara

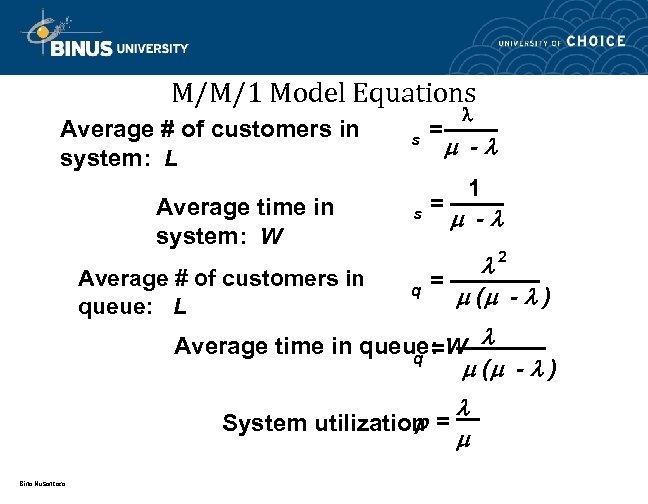

M/M/1 Model Equations Average # of customers in system: L Average time in system: W Average # of customers in queue: L s = - 1 - 2 q = ( - ) Average time in queue: W q = ( - ) System utilization = Bina Nusantara
M/M/1 Probability Equations Probability of 0 units in system, i. e. , system idle: P 0 = 1 - Probability of more than k units in system: P = n>k () k+1 This is also probability of k+1 or more units in sys Bina Nusantara

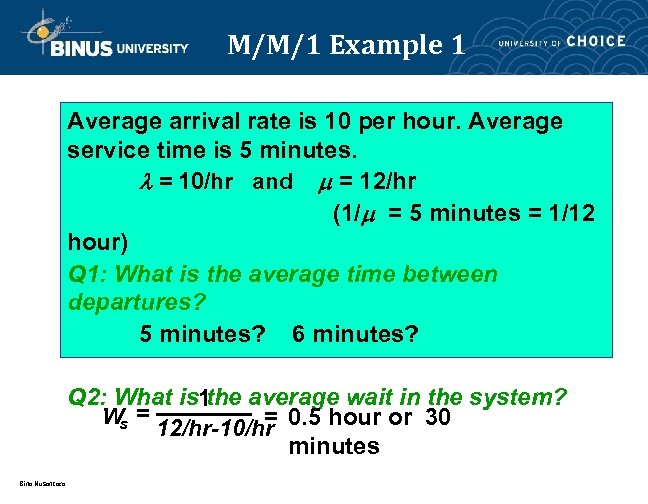

M/M/1 Example 1 Average arrival rate is 10 per hour. Average service time is 5 minutes. = 10/hr and = 12/hr (1/ = 5 minutes = 1/12 hour) Q 1: What is the average time between departures? 5 minutes? 6 minutes? Q 2: What is 1 the average wait in the system? W = = s 12/hr-10/hr 0. 5 hour or 30 minutes Bina Nusantara

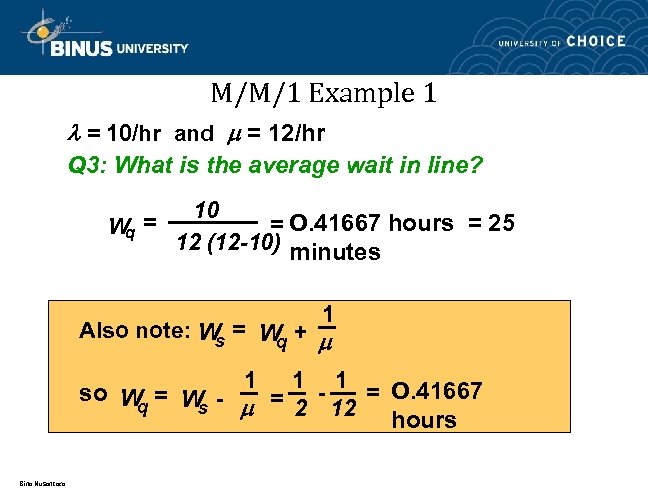

M/M/1 Example 1 = 10/hr and = 12/hr Q 3: What is the average wait in line? W = q 10 = O. 41667 hours = 25 12 (12 -10) minutes 1 Also note: W = W + s q 1 1 1 so W = 2 - 12 = O. 41667 q s hours Bina Nusantara

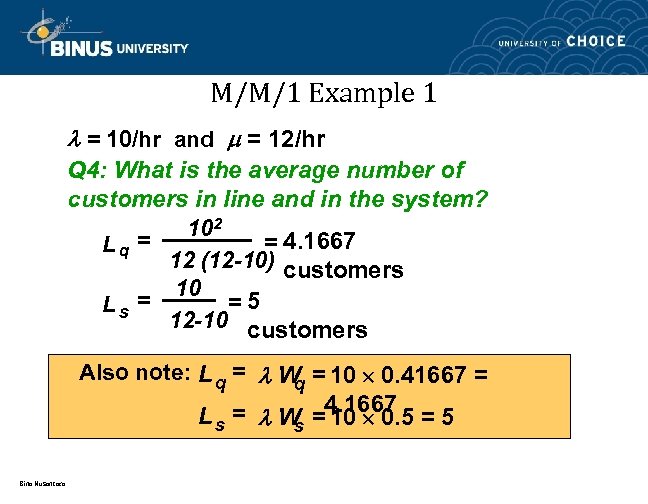

M/M/1 Example 1 = 10/hr and = 12/hr Q 4: What is the average number of customers in line and in the system? 102 = 4. 1667 Lq = 12 (12 -10) customers 10 = =5 Ls 12 -10 customers Also note: L q = W = 10 0. 41667 = q 4. 1667 L s = W = 10 0. 5 = 5 s Bina Nusantara

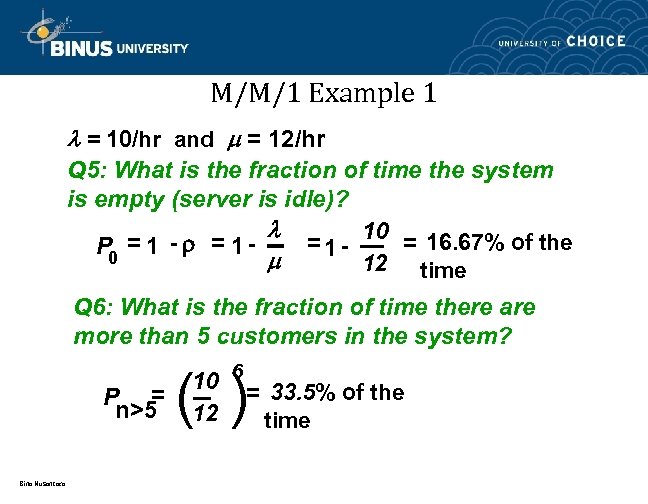

M/M/1 Example 1 = 10/hr and = 12/hr Q 5: What is the fraction of time the system is empty (server is idle)? = 1 - = 1= 1 - 10 = 16. 67% of the P 0 12 time Q 6: What is the fraction of time there are more than 5 customers in the system? P = n>5 Bina Nusantara 10 6 = 33. 5% of the 12 time ( )
More than 5 in the system. . . Note that “more than 5 in the system” is the same as: ¨ “more than 4 in line” ¨ “ 5 or more in line” ¨ “ 6 or more in the system”. n>5 All are P Bina Nusantara

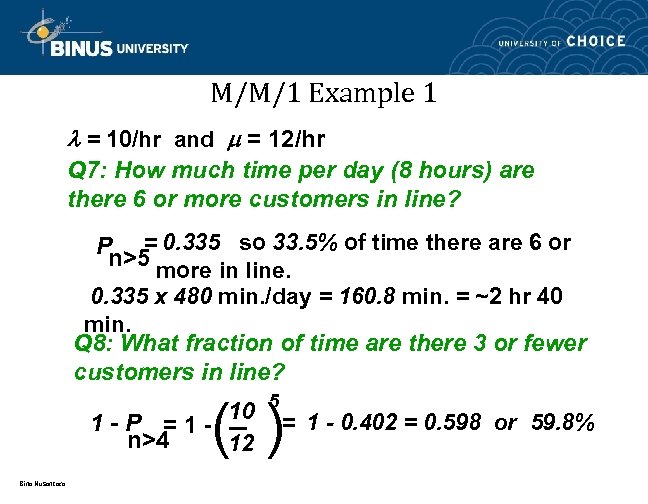

M/M/1 Example 1 = 10/hr and = 12/hr Q 7: How much time per day (8 hours) are there 6 or more customers in line? P = 0. 335 so 33. 5% of time there are 6 or n>5 more in line. 0. 335 x 480 min. /day = 160. 8 min. = ~2 hr 40 min. Q 8: What fraction of time are there 3 or fewer customers in line? 10 5 = 1 - 0. 402 = 0. 598 or 59. 8% 1 -P =1 n>4 12 ( ) Bina Nusantara
M/M/1 Example 2 Five copy machines break down at UM St. Louis per eight hour day on average. The average service time for repair is one hour and 15 minutes. = 5/day ( = 0. 625/hour) 1/ = 1. 25 hours = 0. 15625 days = 1 every 1. 25 hours = 6. 4/day Q 1: What is the number of “customers” in the 5/day = 3. 57 broken copiers system? LS = 6. 4/day-5/day Bina Nusantara

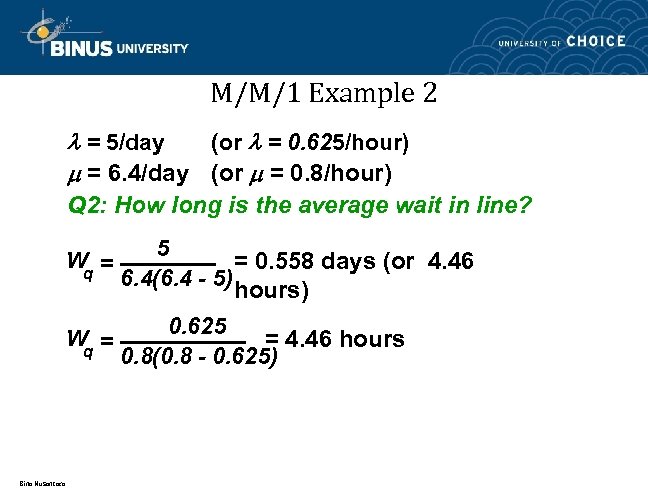

M/M/1 Example 2 = 5/day (or = 0. 625/hour) = 6. 4/day (or = 0. 8/hour) Q 2: How long is the average wait in line? W = q Bina Nusantara 5 = 0. 558 days (or 4. 46 6. 4(6. 4 - 5) hours) 0. 625 = 4. 46 hours 0. 8(0. 8 - 0. 625)

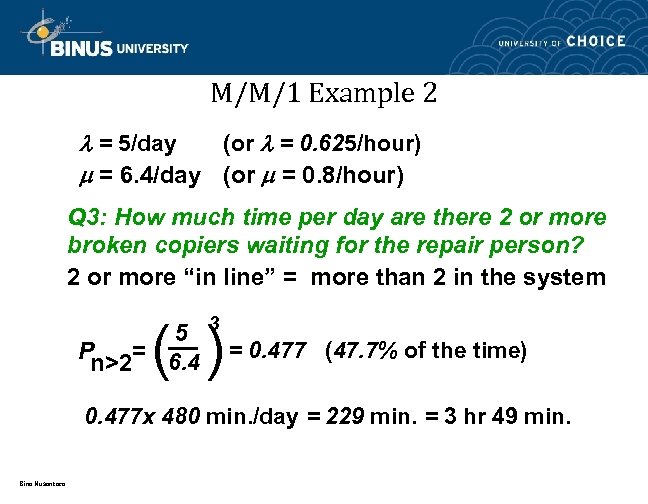

M/M/1 Example 2 = 5/day (or = 0. 625/hour) = 6. 4/day (or = 0. 8/hour) Q 3: How much time per day are there 2 or more broken copiers waiting for the repair person? 2 or more “in line” = more than 2 in the system 5 3 = 0. 477 (47. 7% of the time) P n>2= 6. 4 ( ) 0. 477 x 480 min. /day = 229 min. = 3 hr 49 min. Bina Nusantara
Bina Nusantara
