Learning Objectives Describe how speakers control frequency

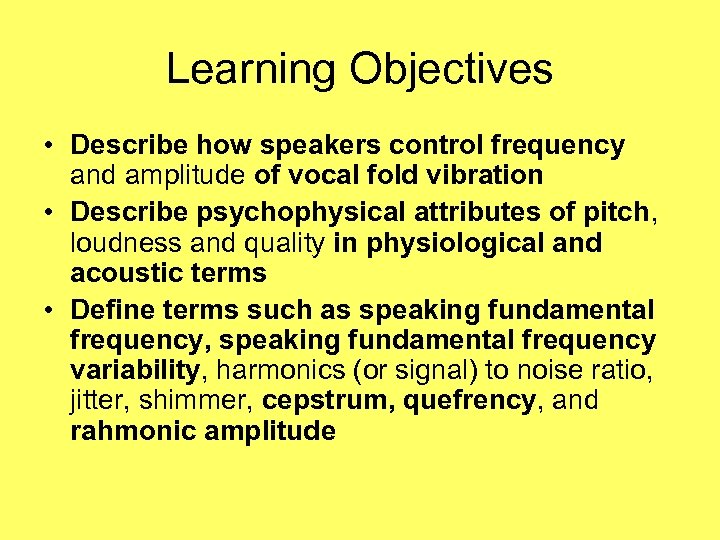

Learning Objectives • Describe how speakers control frequency and amplitude of vocal fold vibration • Describe psychophysical attributes of pitch, loudness and quality in physiological and acoustic terms • Define terms such as speaking fundamental frequency, speaking fundamental frequency variability, harmonics (or signal) to noise ratio, jitter, shimmer, cepstrum, quefrency, and rahmonic amplitude

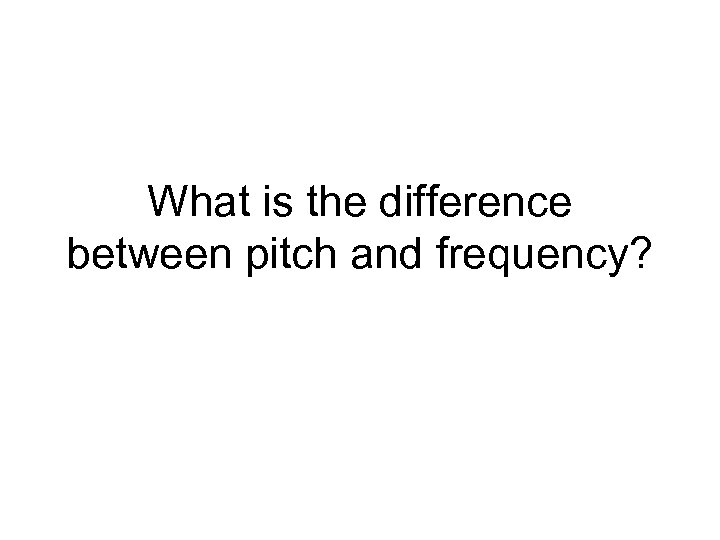

What is the difference between pitch and frequency?

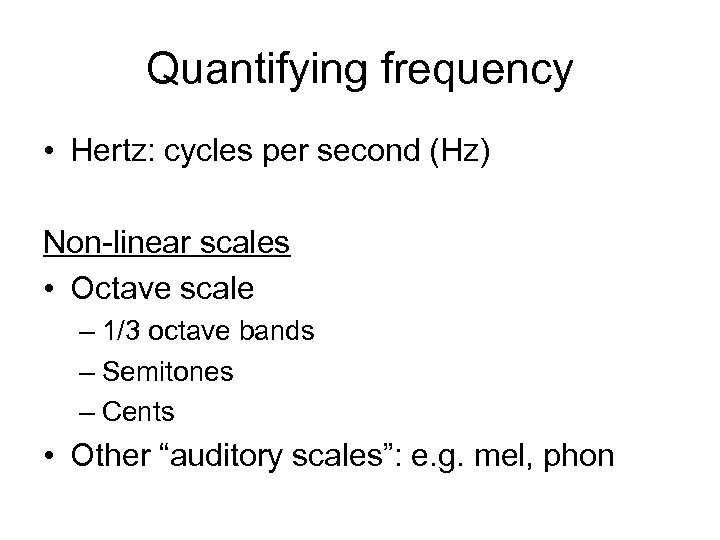

Quantifying frequency • Hertz: cycles per second (Hz) Non-linear scales • Octave scale – 1/3 octave bands – Semitones – Cents • Other “auditory scales”: e. g. mel, phon

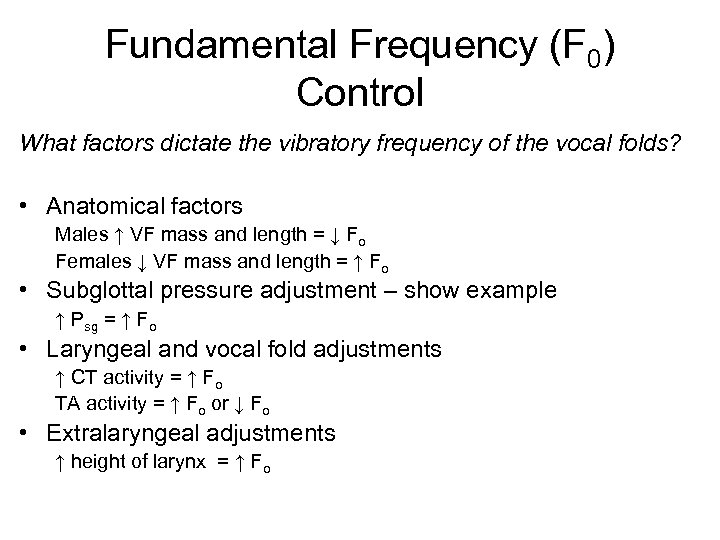

Fundamental Frequency (F 0) Control What factors dictate the vibratory frequency of the vocal folds? • Anatomical factors Males ↑ VF mass and length = ↓ Fo Females ↓ VF mass and length = ↑ Fo • Subglottal pressure adjustment – show example ↑ Psg = ↑ Fo • Laryngeal and vocal fold adjustments ↑ CT activity = ↑ Fo TA activity = ↑ Fo or ↓ Fo • Extralaryngeal adjustments ↑ height of larynx = ↑ Fo

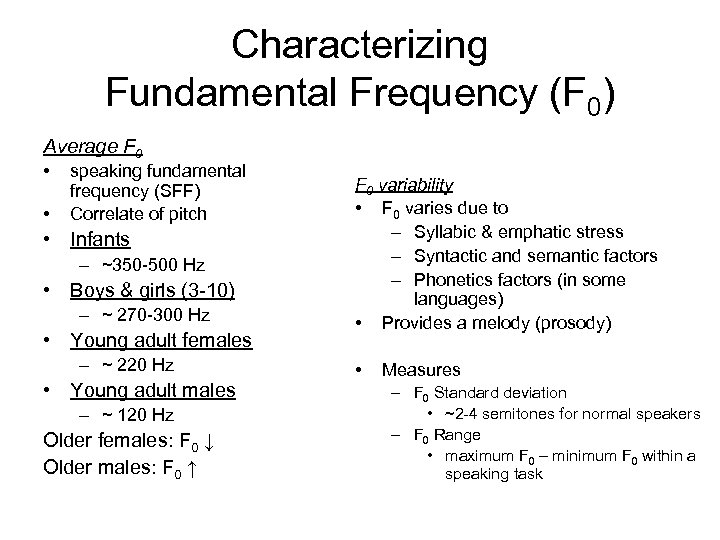

Characterizing Fundamental Frequency (F 0) Average F 0 • • speaking fundamental frequency (SFF) Correlate of pitch • Infants – ~350 -500 Hz • Boys & girls (3 -10) – ~ 270 -300 Hz • Young adult females – ~ 220 Hz • Young adult males – ~ 120 Hz Older females: F 0 ↓ Older males: F 0 ↑ F 0 variability • F 0 varies due to – Syllabic & emphatic stress – Syntactic and semantic factors – Phonetics factors (in some languages) • Provides a melody (prosody) • Measures – F 0 Standard deviation • ~2 -4 semitones for normal speakers – F 0 Range • maximum F 0 – minimum F 0 within a speaking task

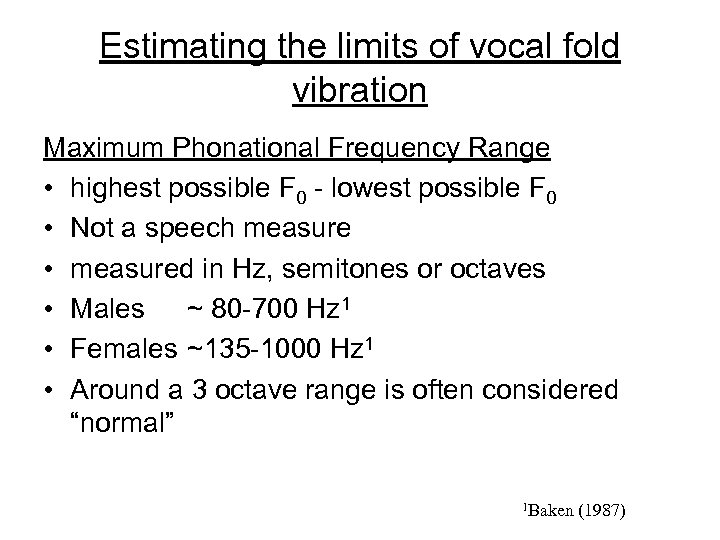

Estimating the limits of vocal fold vibration Maximum Phonational Frequency Range • highest possible F 0 - lowest possible F 0 • Not a speech measure • measured in Hz, semitones or octaves • Males ~ 80 -700 Hz 1 • Females ~135 -1000 Hz 1 • Around a 3 octave range is often considered “normal” 1 Baken (1987)

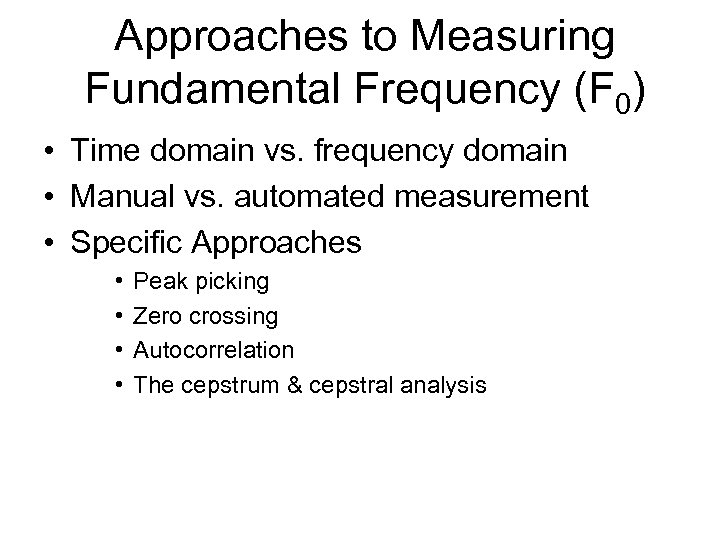

Approaches to Measuring Fundamental Frequency (F 0) • Time domain vs. frequency domain • Manual vs. automated measurement • Specific Approaches • • Peak picking Zero crossing Autocorrelation The cepstrum & cepstral analysis

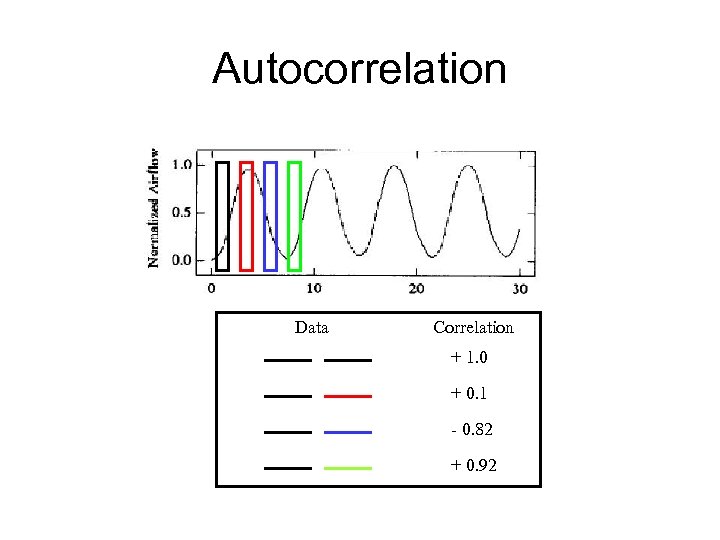

Autocorrelation Data Correlation + 1. 0 + 0. 1 - 0. 82 + 0. 92

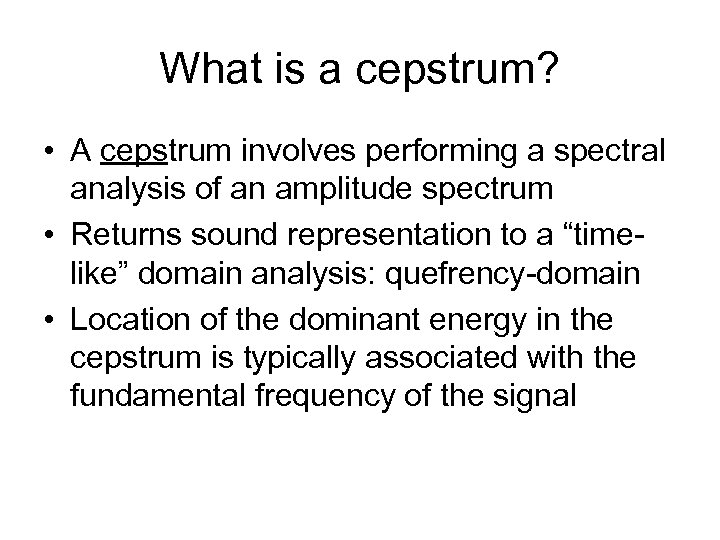

What is a cepstrum? • A cepstrum involves performing a spectral analysis of an amplitude spectrum • Returns sound representation to a “timelike” domain analysis: quefrency-domain • Location of the dominant energy in the cepstrum is typically associated with the fundamental frequency of the signal

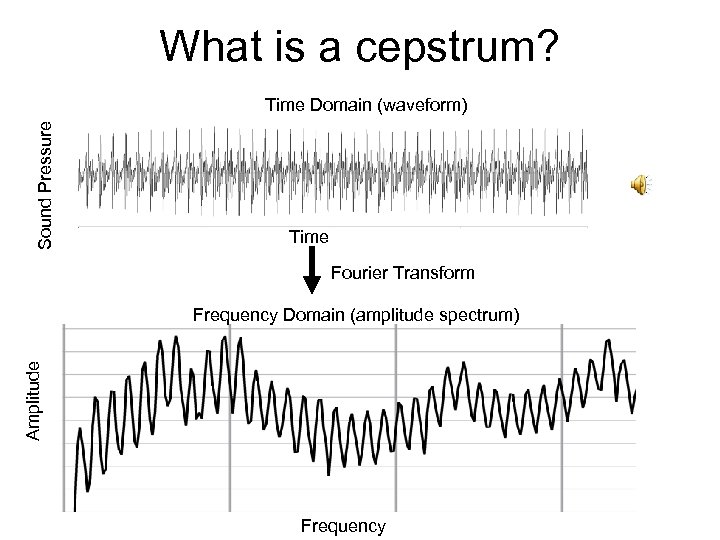

What is a cepstrum? Sound Pressure Time Domain (waveform) Time Fourier Transform Amplitude Frequency Domain (amplitude spectrum) Frequency

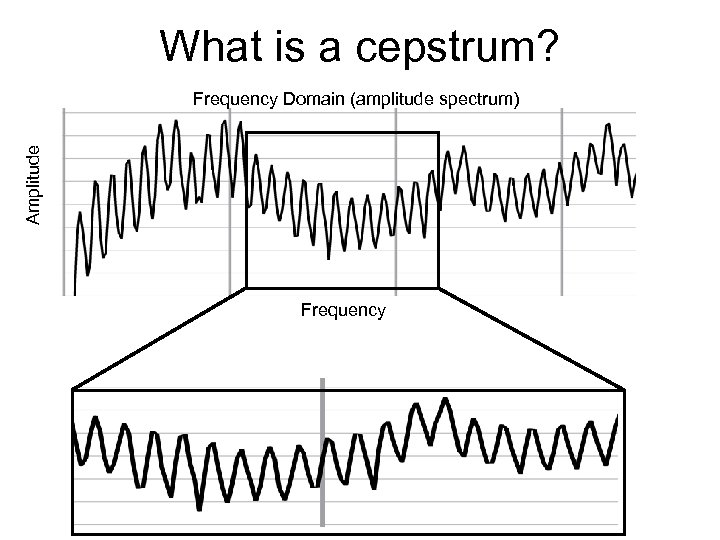

What is a cepstrum? Amplitude Frequency Domain (amplitude spectrum) Frequency

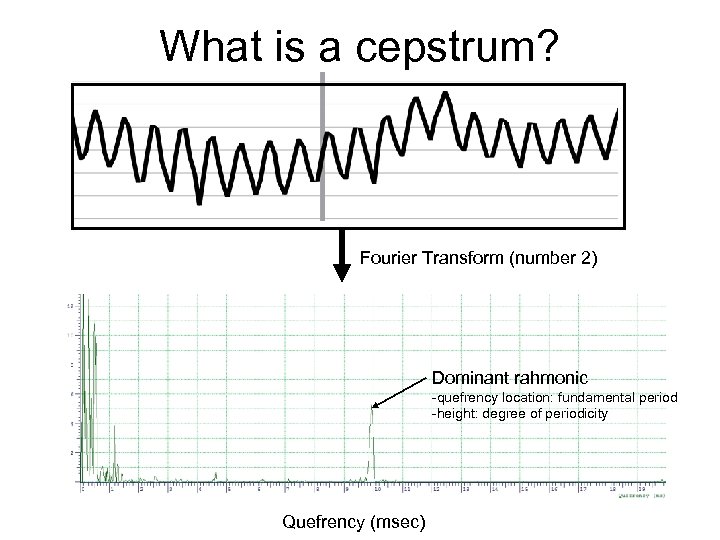

What is a cepstrum? Fourier Transform (number 2) Dominant rahmonic -quefrency location: fundamental period -height: degree of periodicity Quefrency (msec)

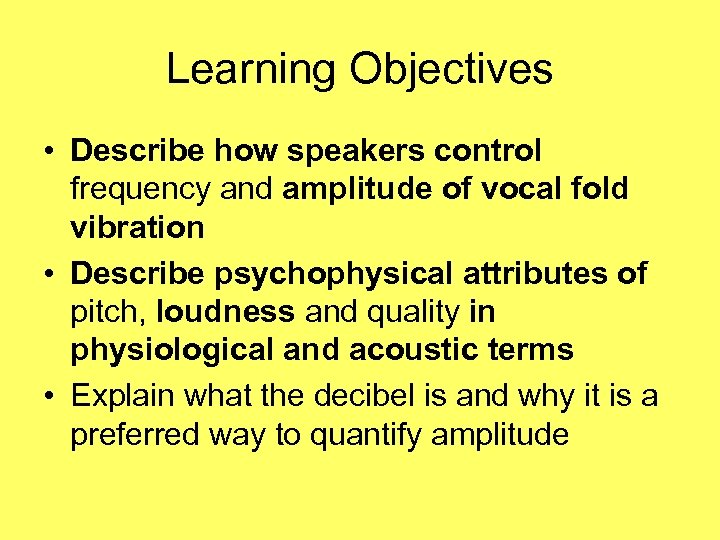

Learning Objectives • Describe how speakers control frequency and amplitude of vocal fold vibration • Describe psychophysical attributes of pitch, loudness and quality in physiological and acoustic terms • Explain what the decibel is and why it is a preferred way to quantify amplitude

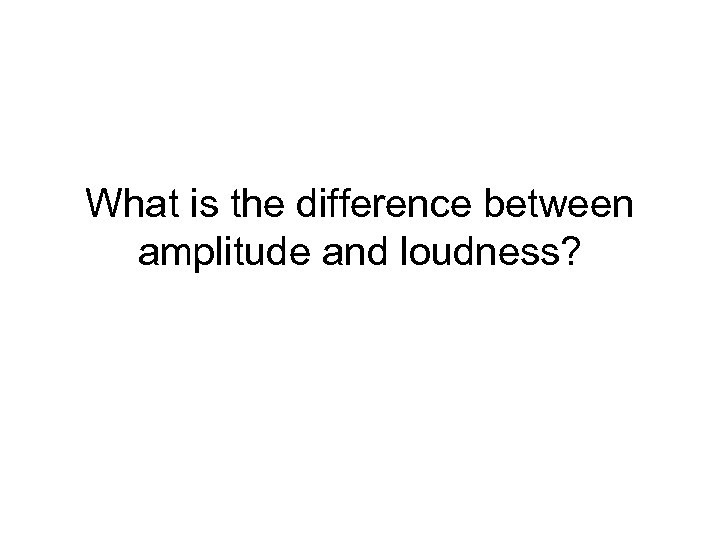

What is the difference between amplitude and loudness?

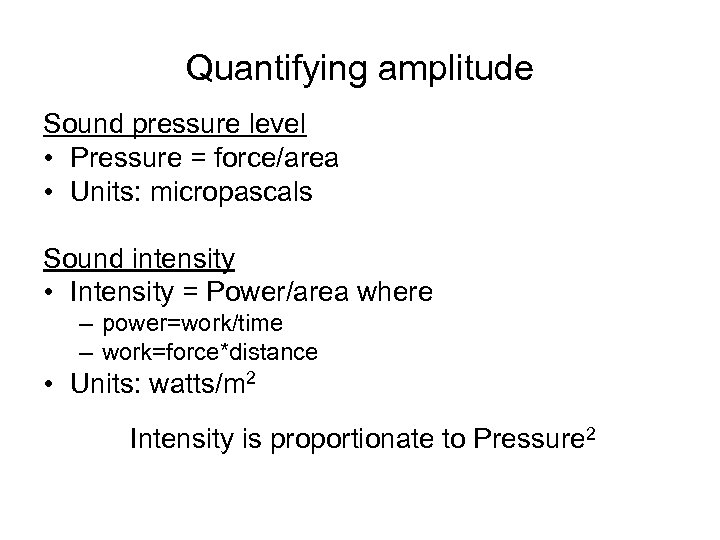

Quantifying amplitude Sound pressure level • Pressure = force/area • Units: micropascals Sound intensity • Intensity = Power/area where – power=work/time – work=force*distance • Units: watts/m 2 Intensity is proportionate to Pressure 2

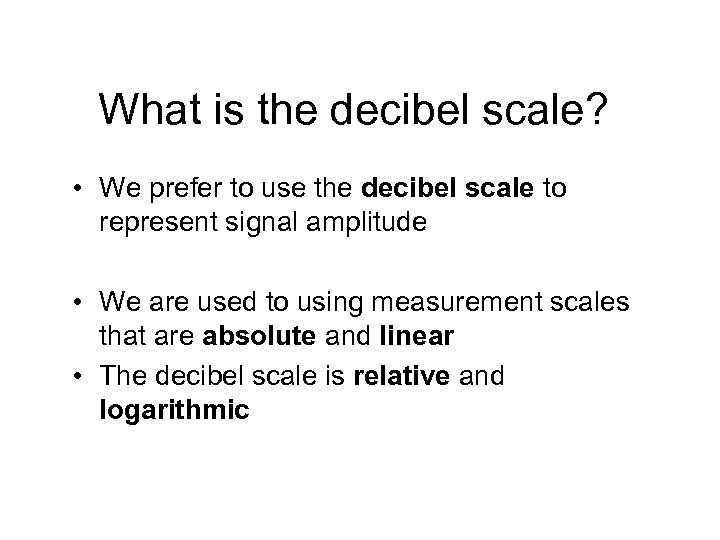

What is the decibel scale? • We prefer to use the decibel scale to represent signal amplitude • We are used to using measurement scales that are absolute and linear • The decibel scale is relative and logarithmic

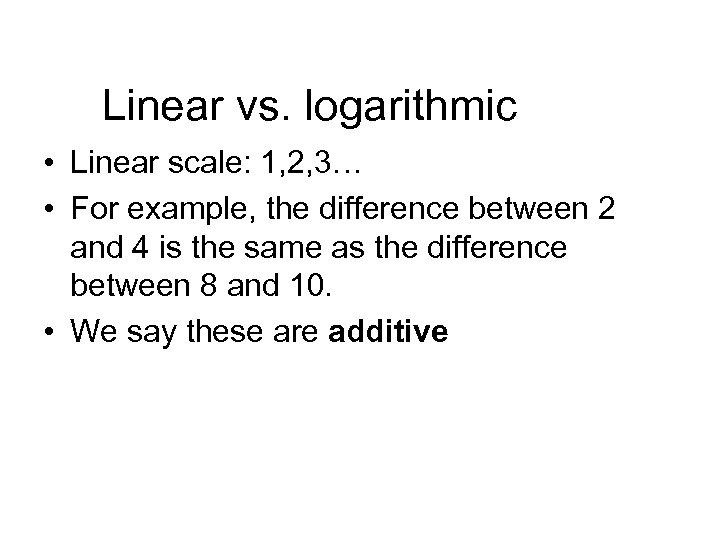

Linear vs. logarithmic • Linear scale: 1, 2, 3… • For example, the difference between 2 and 4 is the same as the difference between 8 and 10. • We say these are additive

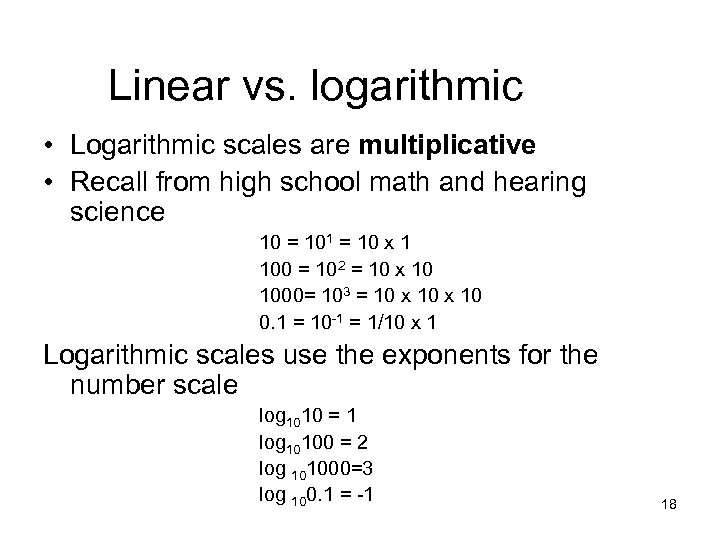

Linear vs. logarithmic • Logarithmic scales are multiplicative • Recall from high school math and hearing science 10 = 101 = 10 x 1 100 = 102 = 10 x 10 1000= 103 = 10 x 10 0. 1 = 10 -1 = 1/10 x 1 Logarithmic scales use the exponents for the number scale log 1010 = 1 log 10100 = 2 log 101000=3 log 100. 1 = -1 18

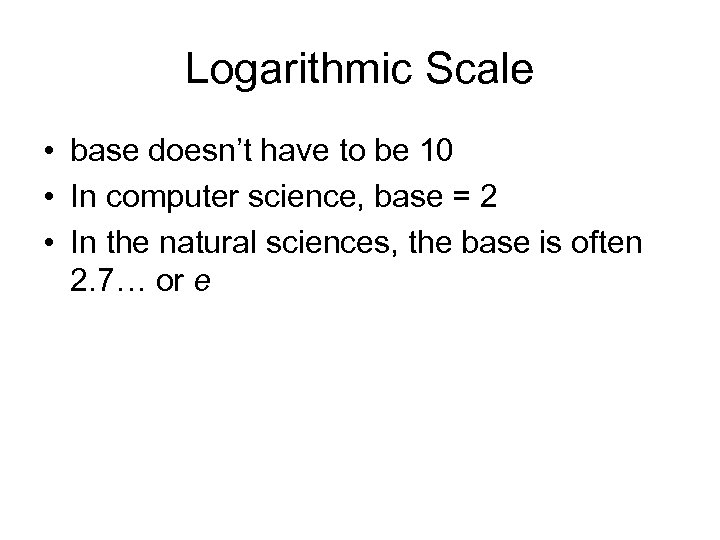

Logarithmic Scale • base doesn’t have to be 10 • In computer science, base = 2 • In the natural sciences, the base is often 2. 7… or e

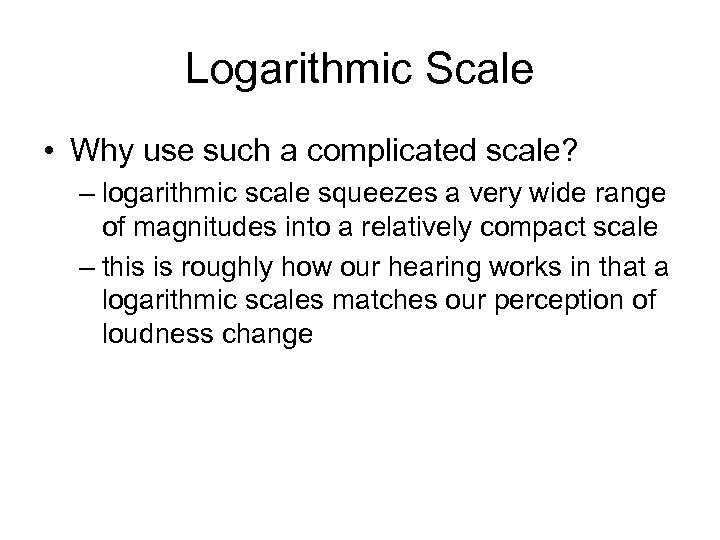

Logarithmic Scale • Why use such a complicated scale? – logarithmic scale squeezes a very wide range of magnitudes into a relatively compact scale – this is roughly how our hearing works in that a logarithmic scales matches our perception of loudness change

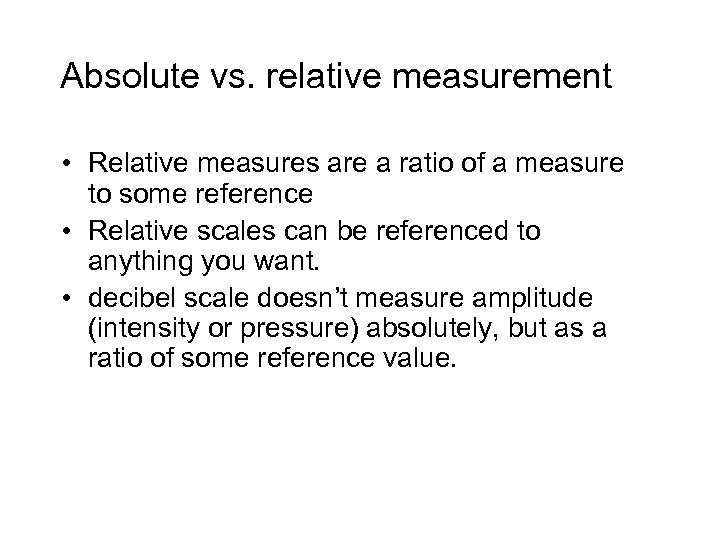

Absolute vs. relative measurement • Relative measures are a ratio of a measure to some reference • Relative scales can be referenced to anything you want. • decibel scale doesn’t measure amplitude (intensity or pressure) absolutely, but as a ratio of some reference value.

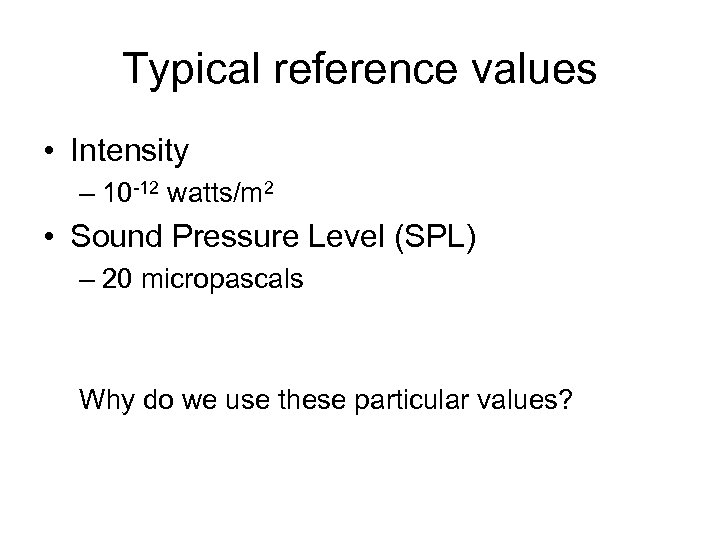

Typical reference values • Intensity – 10 -12 watts/m 2 • Sound Pressure Level (SPL) – 20 micropascals Why do we use these particular values?

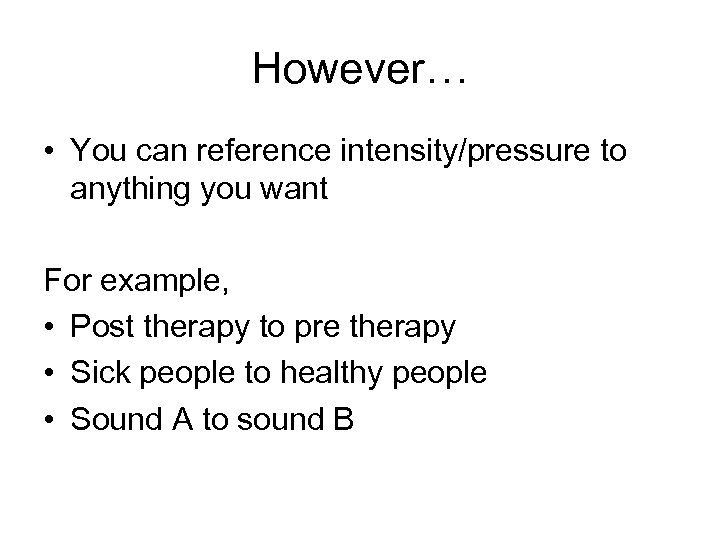

However… • You can reference intensity/pressure to anything you want For example, • Post therapy to pre therapy • Sick people to healthy people • Sound A to sound B

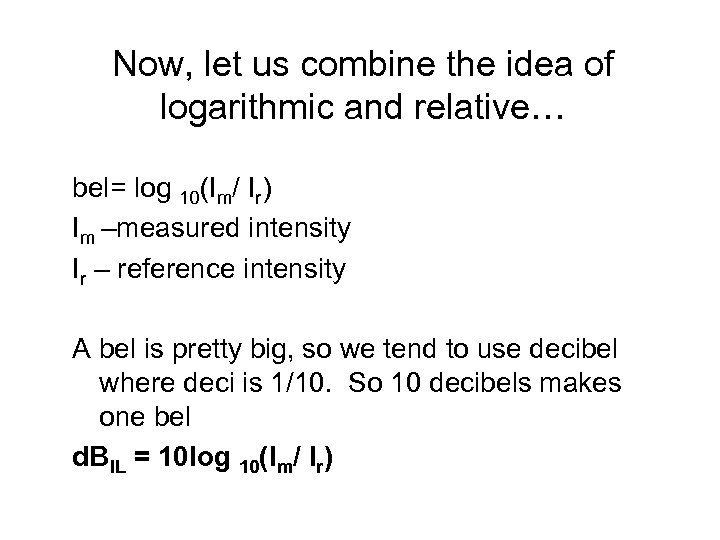

Now, let us combine the idea of logarithmic and relative… bel= log 10(Im/ Ir) Im –measured intensity Ir – reference intensity A bel is pretty big, so we tend to use decibel where deci is 1/10. So 10 decibels makes one bel d. BIL = 10 log 10(Im/ Ir)

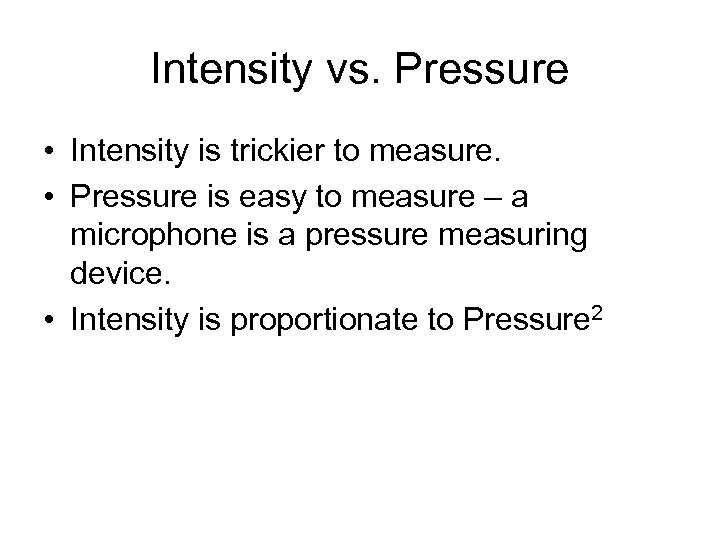

Intensity vs. Pressure • Intensity is trickier to measure. • Pressure is easy to measure – a microphone is a pressure measuring device. • Intensity is proportionate to Pressure 2

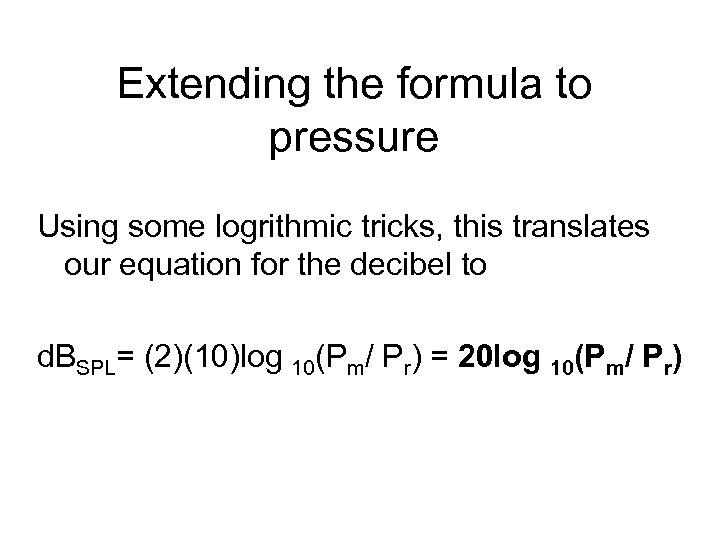

Extending the formula to pressure Using some logrithmic tricks, this translates our equation for the decibel to d. BSPL= (2)(10)log 10(Pm/ Pr) = 20 log 10(Pm/ Pr)

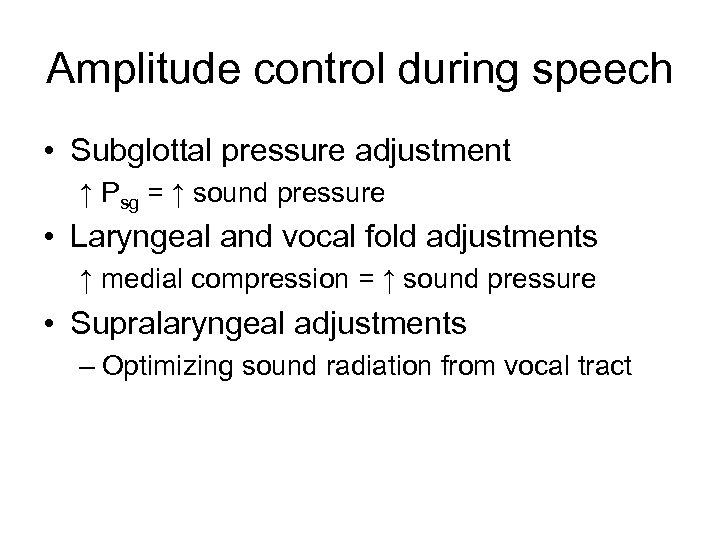

Amplitude control during speech • Subglottal pressure adjustment ↑ Psg = ↑ sound pressure • Laryngeal and vocal fold adjustments ↑ medial compression = ↑ sound pressure • Supralaryngeal adjustments – Optimizing sound radiation from vocal tract

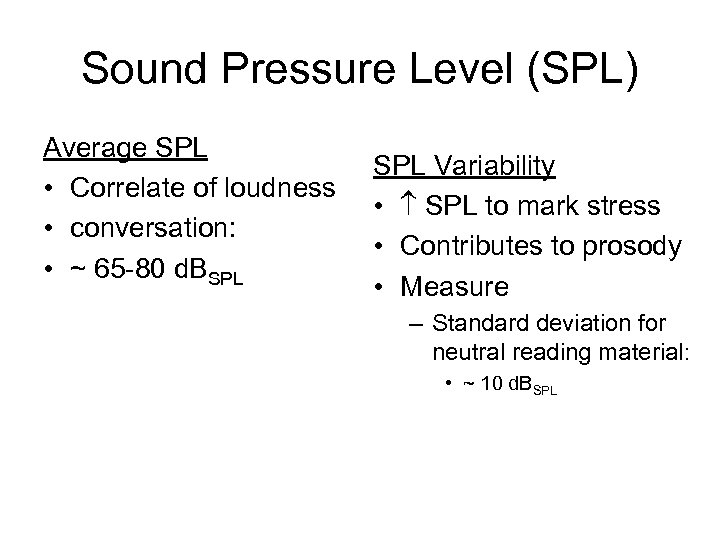

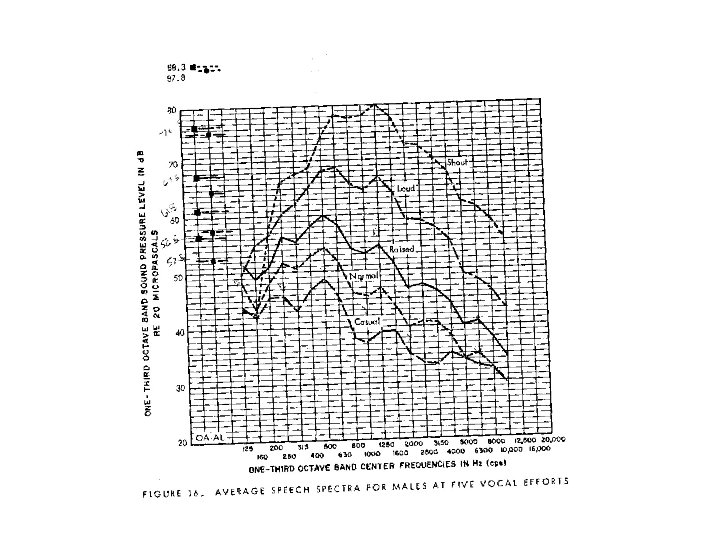

Sound Pressure Level (SPL) Average SPL • Correlate of loudness • conversation: • ~ 65 -80 d. BSPL Variability • SPL to mark stress • Contributes to prosody • Measure – Standard deviation for neutral reading material: • ~ 10 d. BSPL

Estimating the limits of sound pressure generation Dynamic Range • Amplitude analogue to maximum phonational frequency range • ~50 – 115 d. B SPL

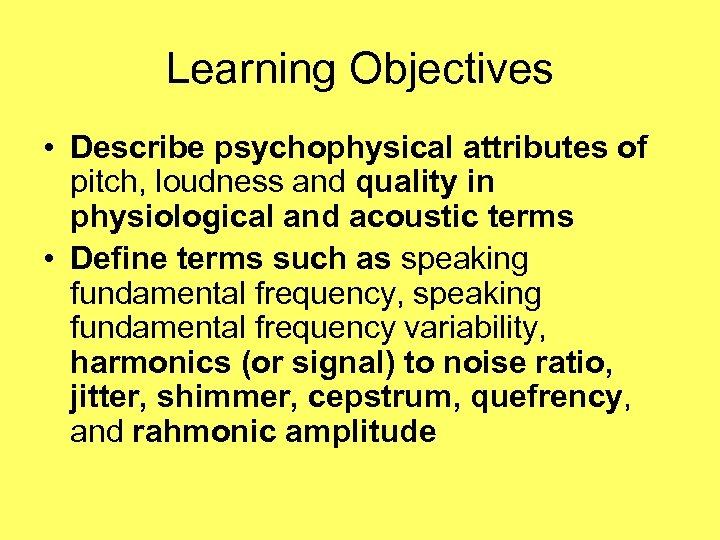

Learning Objectives • Describe psychophysical attributes of pitch, loudness and quality in physiological and acoustic terms • Define terms such as speaking fundamental frequency, speaking fundamental frequency variability, harmonics (or signal) to noise ratio, jitter, shimmer, cepstrum, quefrency, and rahmonic amplitude

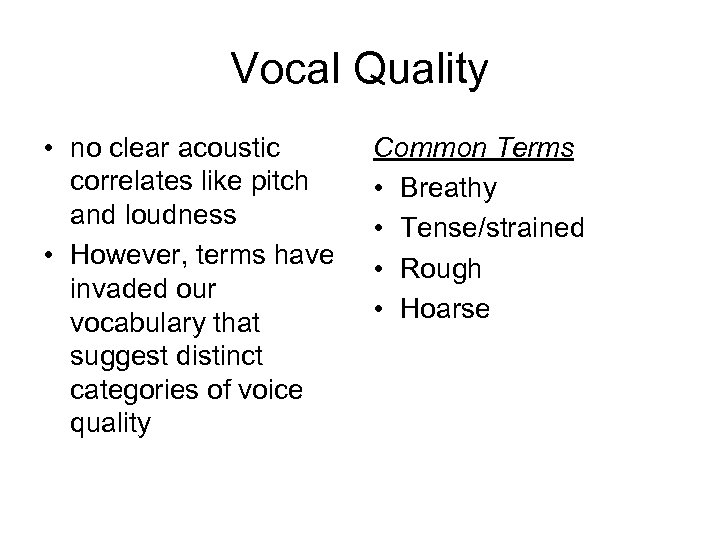

Vocal Quality • no clear acoustic correlates like pitch and loudness • However, terms have invaded our vocabulary that suggest distinct categories of voice quality Common Terms • Breathy • Tense/strained • Rough • Hoarse

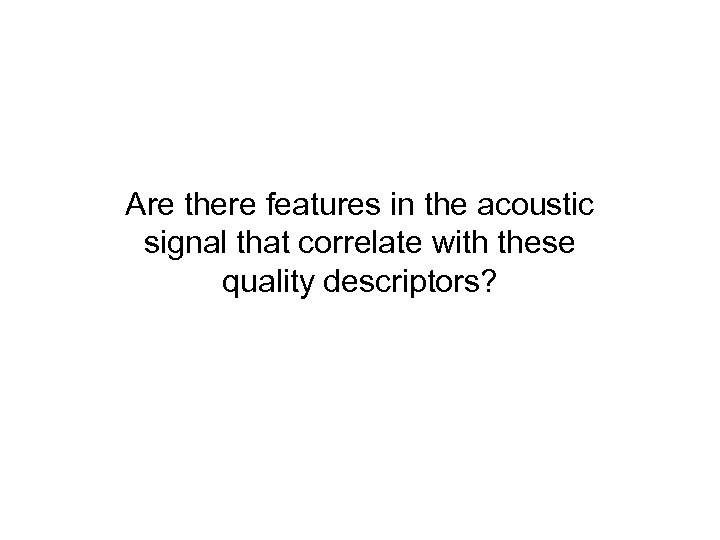

Are there features in the acoustic signal that correlate with these quality descriptors?

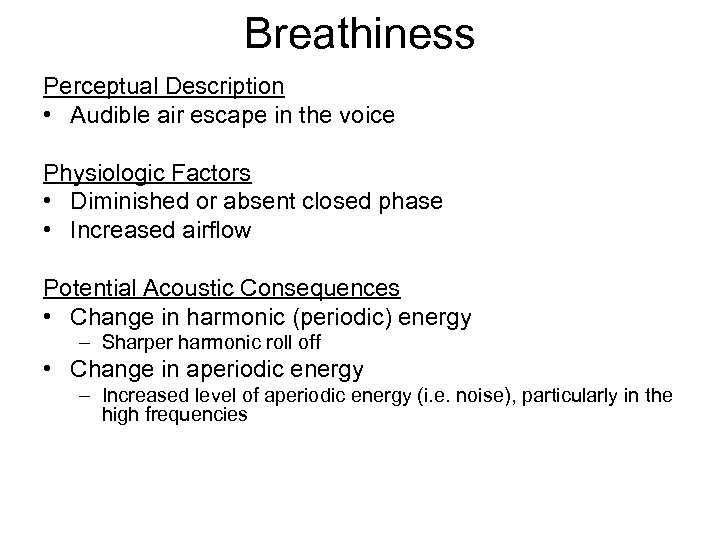

Breathiness Perceptual Description • Audible air escape in the voice Physiologic Factors • Diminished or absent closed phase • Increased airflow Potential Acoustic Consequences • Change in harmonic (periodic) energy – Sharper harmonic roll off • Change in aperiodic energy – Increased level of aperiodic energy (i. e. noise), particularly in the high frequencies

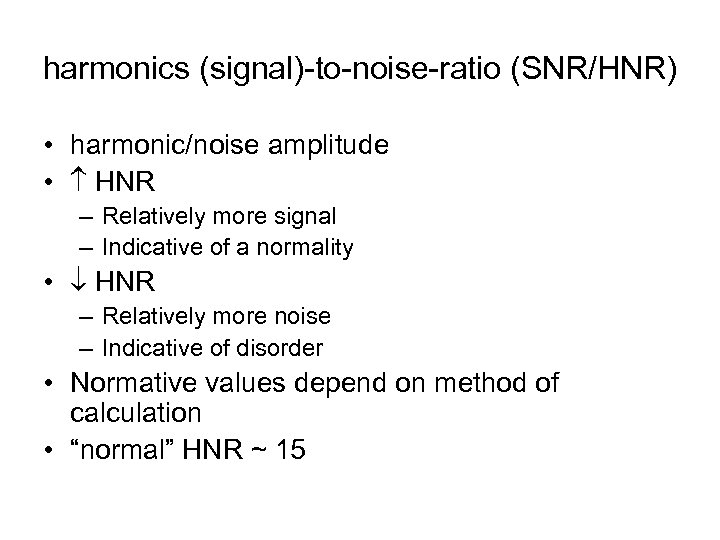

harmonics (signal)-to-noise-ratio (SNR/HNR) • harmonic/noise amplitude • HNR – Relatively more signal – Indicative of a normality • HNR – Relatively more noise – Indicative of disorder • Normative values depend on method of calculation • “normal” HNR ~ 15

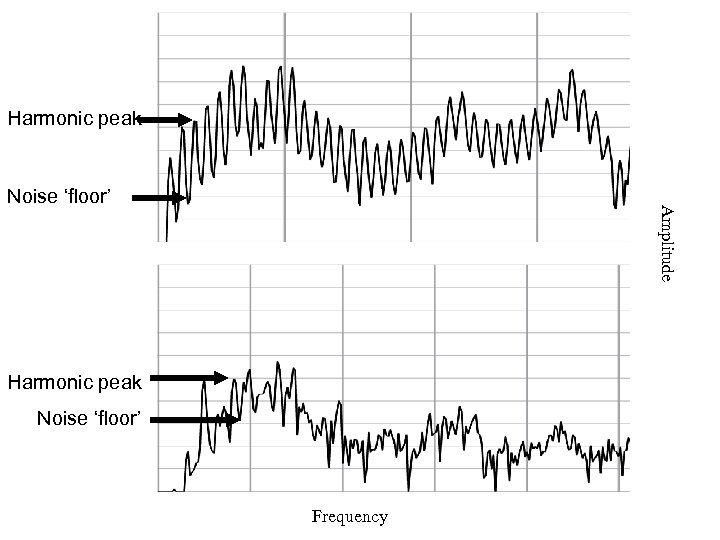

Harmonic peak Amplitude Noise ‘floor’ Harmonic peak Noise ‘floor’ Frequency

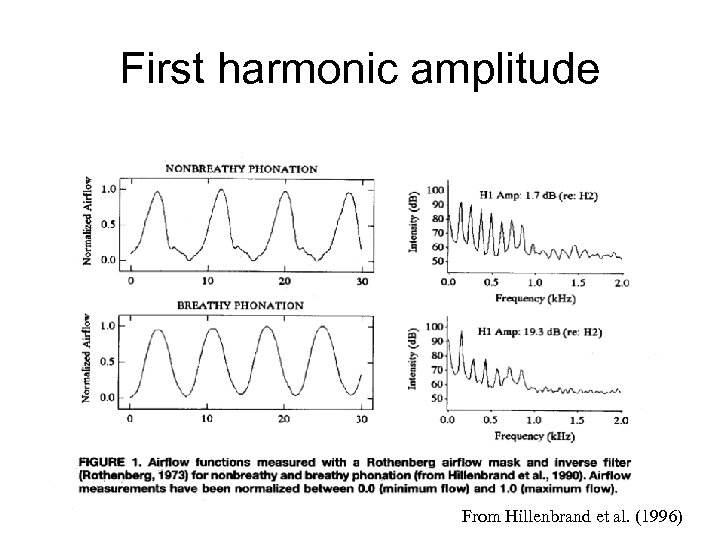

First harmonic amplitude From Hillenbrand et al. (1996)

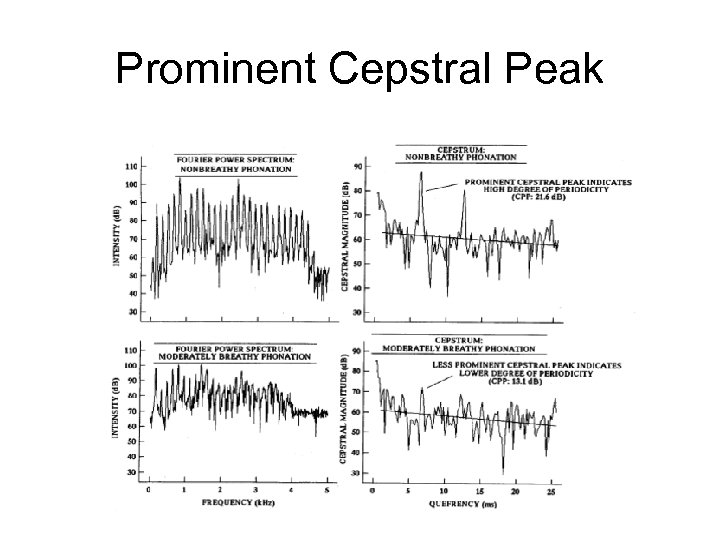

Prominent Cepstral Peak

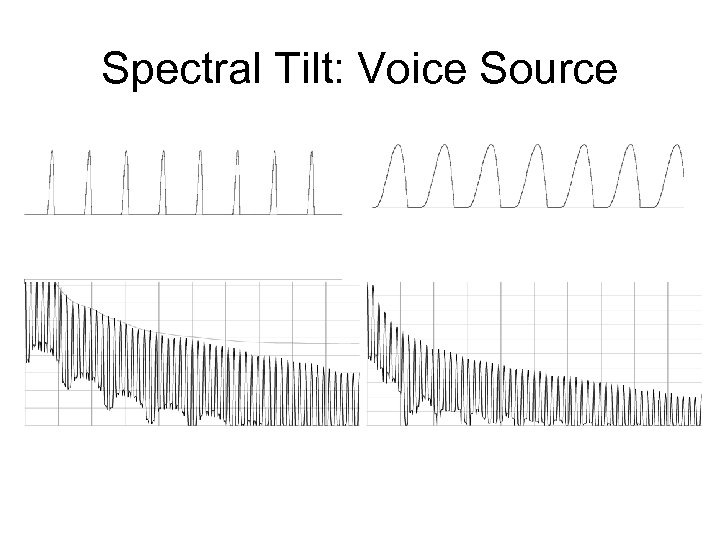

Spectral Tilt: Voice Source

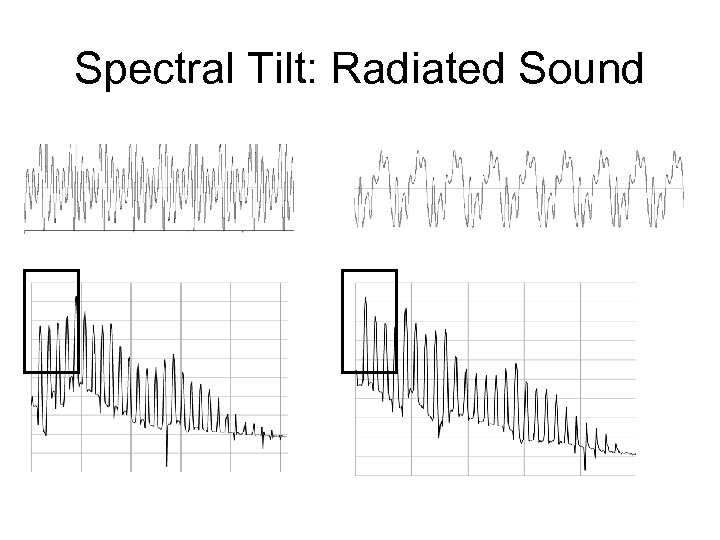

Spectral Tilt: Radiated Sound

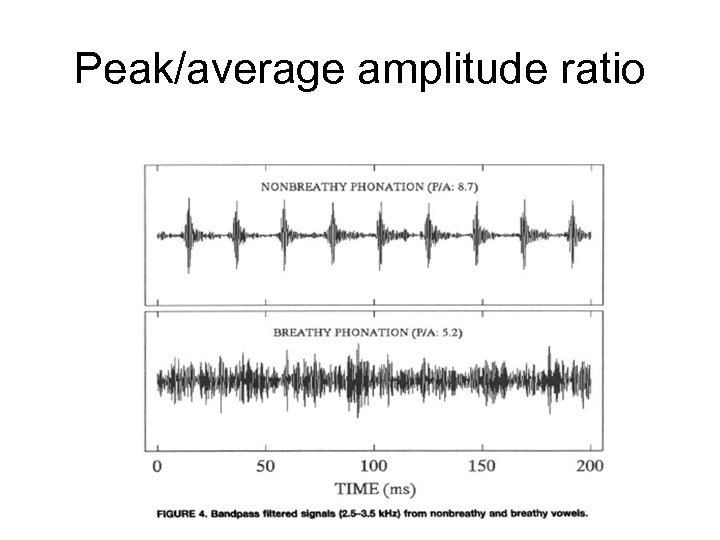

Peak/average amplitude ratio

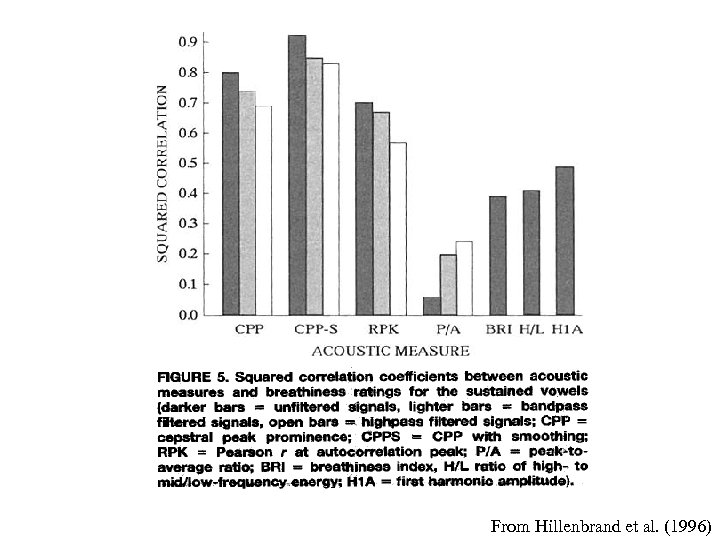

From Hillenbrand et al. (1996)

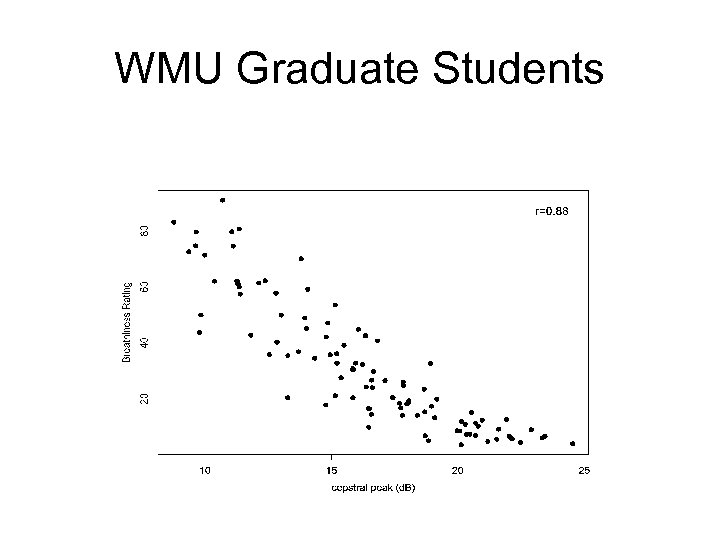

WMU Graduate Students

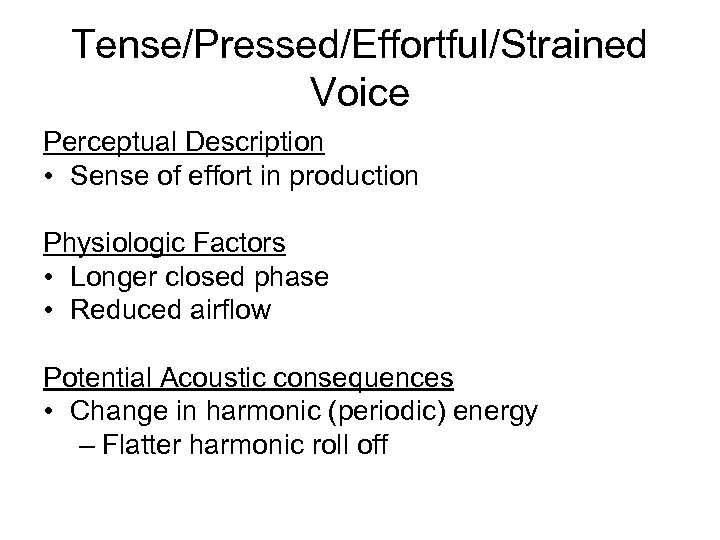

Tense/Pressed/Effortful/Strained Voice Perceptual Description • Sense of effort in production Physiologic Factors • Longer closed phase • Reduced airflow Potential Acoustic consequences • Change in harmonic (periodic) energy – Flatter harmonic roll off

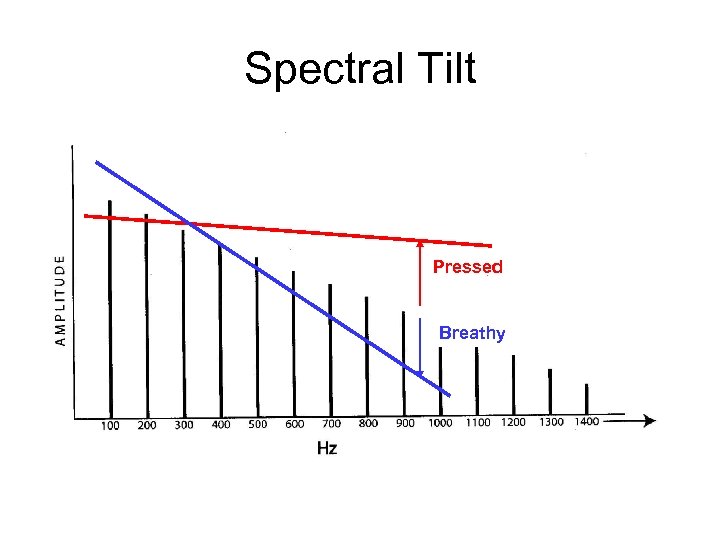

Spectral Tilt Pressed Breathy

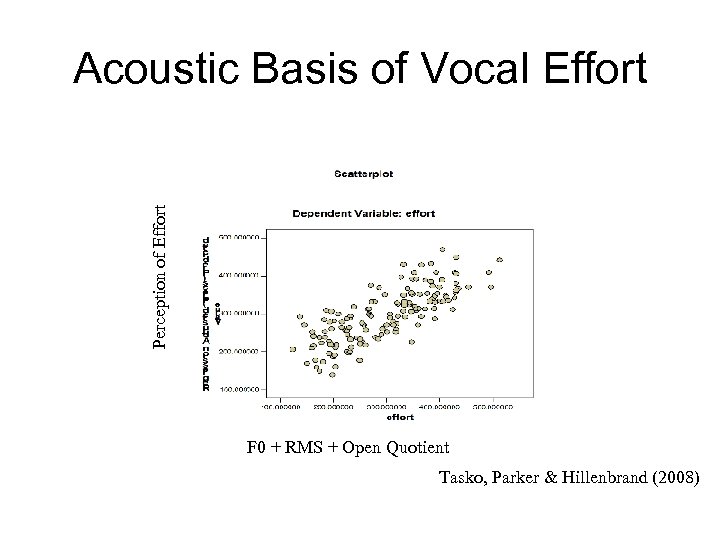

Perception of Effort Acoustic Basis of Vocal Effort F 0 + RMS + Open Quotient Tasko, Parker & Hillenbrand (2008)

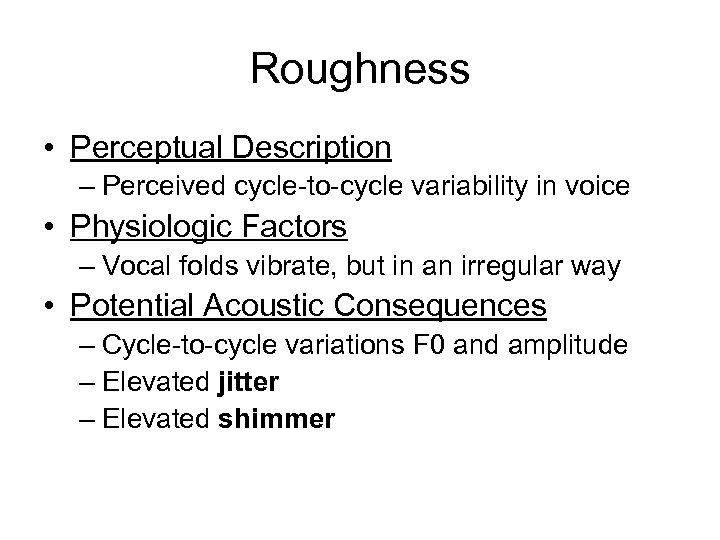

Roughness • Perceptual Description – Perceived cycle-to-cycle variability in voice • Physiologic Factors – Vocal folds vibrate, but in an irregular way • Potential Acoustic Consequences – Cycle-to-cycle variations F 0 and amplitude – Elevated jitter – Elevated shimmer

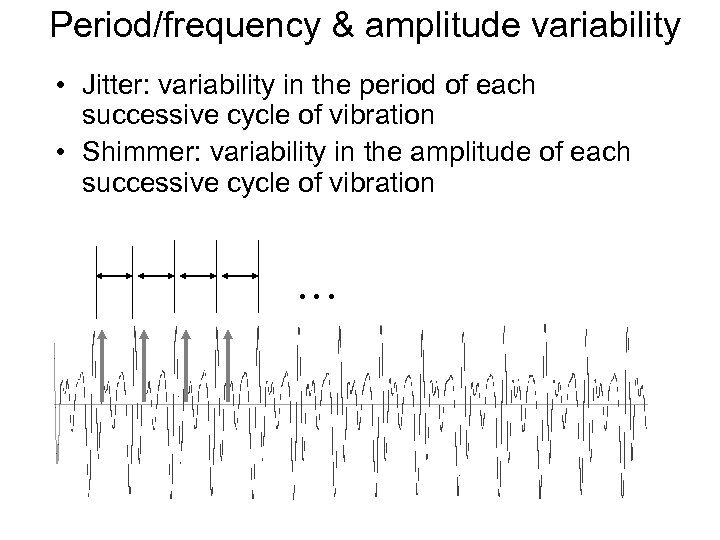

Period/frequency & amplitude variability • Jitter: variability in the period of each successive cycle of vibration • Shimmer: variability in the amplitude of each successive cycle of vibration …

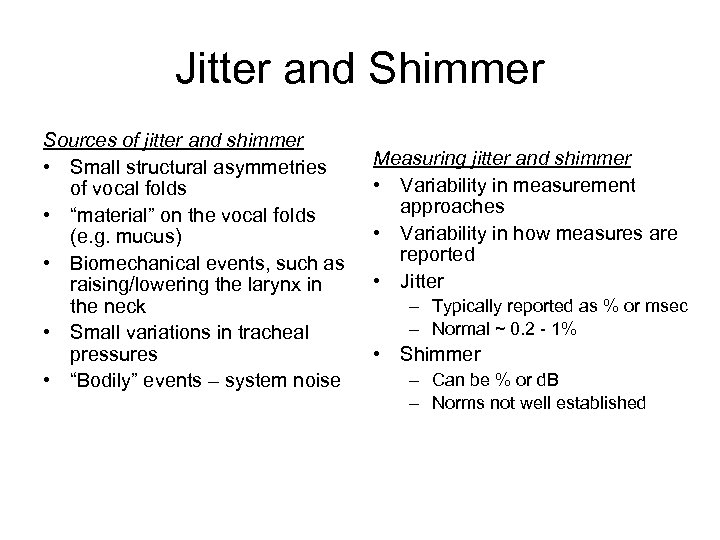

Jitter and Shimmer Sources of jitter and shimmer • Small structural asymmetries of vocal folds • “material” on the vocal folds (e. g. mucus) • Biomechanical events, such as raising/lowering the larynx in the neck • Small variations in tracheal pressures • “Bodily” events – system noise Measuring jitter and shimmer • Variability in measurement approaches • Variability in how measures are reported • Jitter – Typically reported as % or msec – Normal ~ 0. 2 - 1% • Shimmer – Can be % or d. B – Norms not well established
