Lab 2: Hominid Anatomy Key features to know Modified from www. iupui. edu
Lab Materials Skeletal Changes In Human Evolution The earliest humans evolved in a parallel track with other primates. To understand the anatomical differences from an paleoanthropological perspective, you have to look at the fossils. You also have to understand some basic skeletal anatomy. This discussion section should help you recognize and understand major features and changes as apparent from the skulls. In section, you can handle skull casts of some of the non-human primates and some of the fossil hominids. You'll also have a simple classification exercise based on the skeletal features. The list of terms below is certainly not a complete list of all the anatomical comparisons, but you should know what they mean and where possible, you should look at each specimen so you have a better understanding. In class, you’ll look at parts 1 -2 of the recent video series Ape Man which clearly shows the relationships and development of human evolution and anatomy. A book of the same title is also available. The terms listed below will all be explained in the class demonstrations and handson activities. Try to note what each term means and how the characteristics changed as our species evolved.
Terms to know Try to understand the relationship between these elements in terms of the trends for evolutionary change. Locomotion • Bipedal locomotion Upright posture Stride Great toe The Hand • Brachiation Opposable thumb Precision Grip Power Grip The Skull • For an excellent web presentation and tutorial on the human (H. s. s. ) skull, visit the Skull Module from the Department of Anthropology at CSU-Chico (http: //www. csuchico. edu/anth/Module/skull. html. • Crests (saggital, occipital) Foreman magnum Dental Arcade/Arch Y-5 Cusp pattern Supraorbital torus Zygomatic arch Mandible Vaulted forehead Cranial capacity Binocular vision Diastema
Erect posture Shape of spinal column

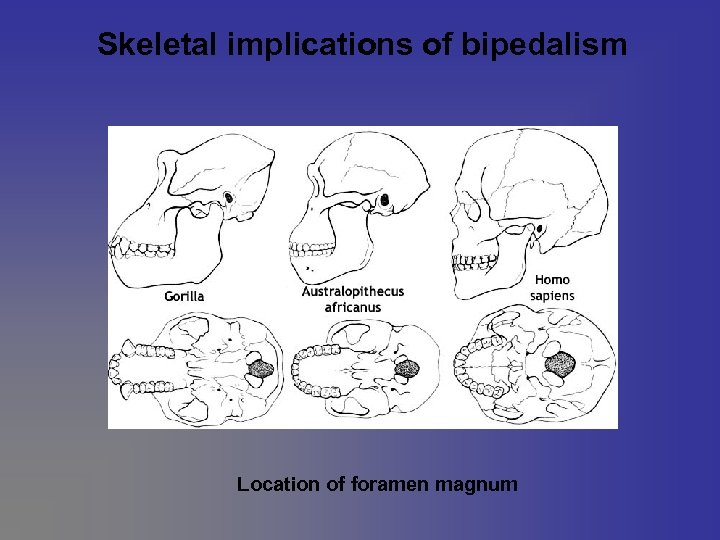

Skeletal implications of bipedalism Location of foramen magnum
Bipedal Locomotion Laetoli Footprints Chimp and human foot

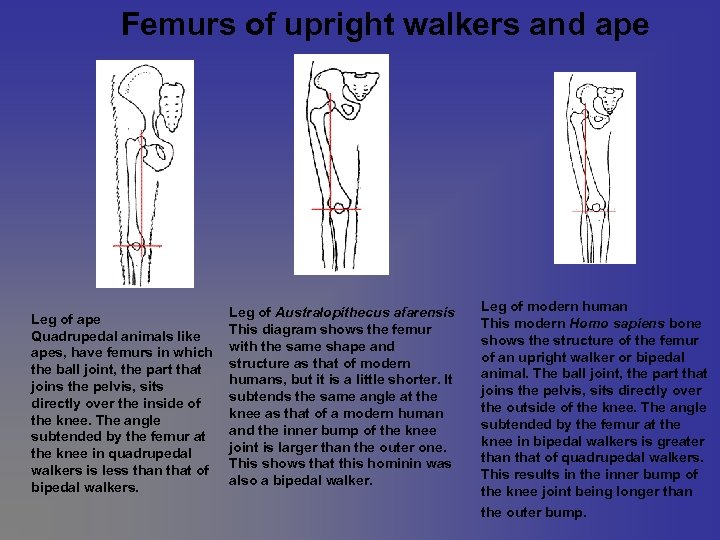

Femurs of upright walkers and ape Leg of ape Quadrupedal animals like apes, have femurs in which the ball joint, the part that joins the pelvis, sits directly over the inside of the knee. The angle subtended by the femur at the knee in quadrupedal walkers is less than that of bipedal walkers. Leg of Australopithecus afarensis This diagram shows the femur with the same shape and structure as that of modern humans, but it is a little shorter. It subtends the same angle at the knee as that of a modern human and the inner bump of the knee joint is larger than the outer one. This shows that this hominin was also a bipedal walker. Leg of modern human This modern Homo sapiens bone shows the structure of the femur of an upright walker or bipedal animal. The ball joint, the part that joins the pelvis, sits directly over the outside of the knee. The angle subtended by the femur at the knee in bipedal walkers is greater than that of quadrupedal walkers. This results in the inner bump of the knee joint being longer than the outer bump.
Skeletal implications of bipedalism Pelvis, femur feet

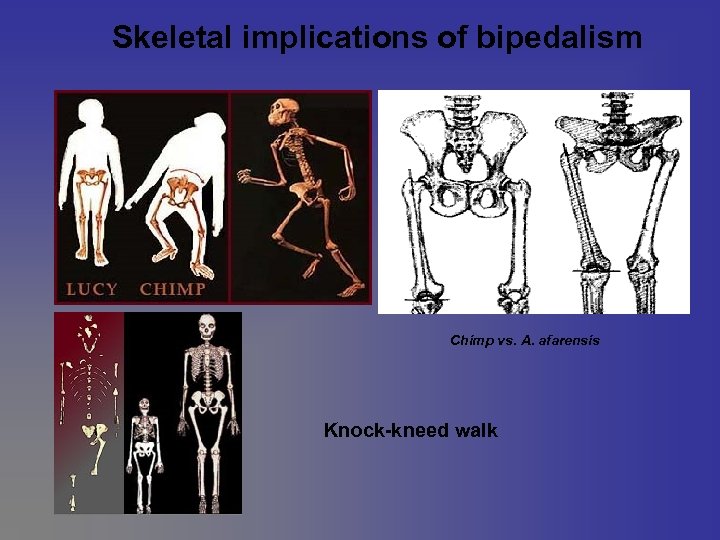

Skeletal implications of bipedalism Chimp vs. A. afarensis Knock-kneed walk

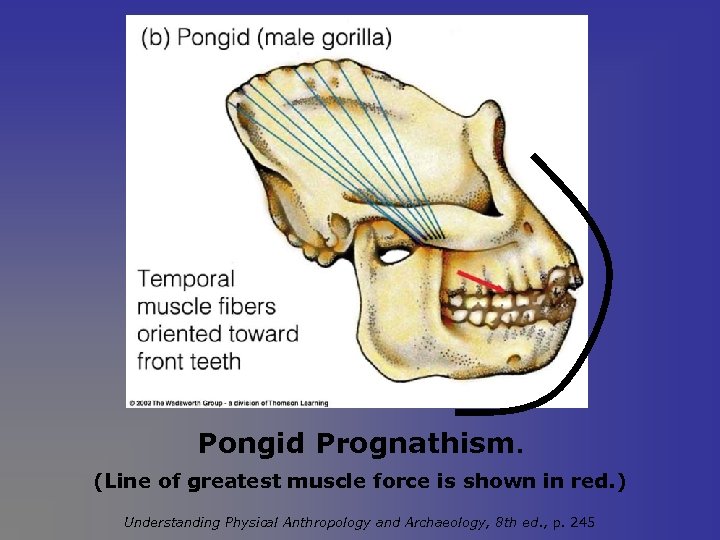

Pongid Prognathism. (Line of greatest muscle force is shown in red. ) Understanding Physical Anthropology and Archaeology, 8 th ed. , p. 245

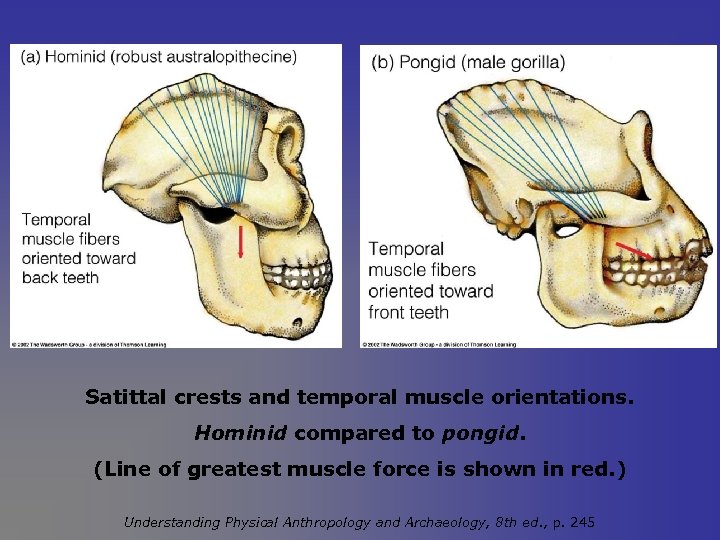

Satittal crests and temporal muscle orientations. Hominid compared to pongid. (Line of greatest muscle force is shown in red. ) Understanding Physical Anthropology and Archaeology, 8 th ed. , p. 245

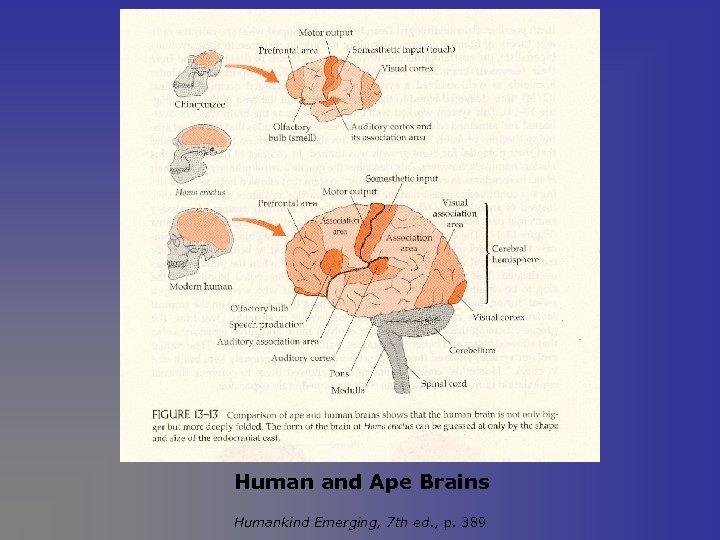

Human and Ape Brains Humankind Emerging, 7 th ed. , p. 389

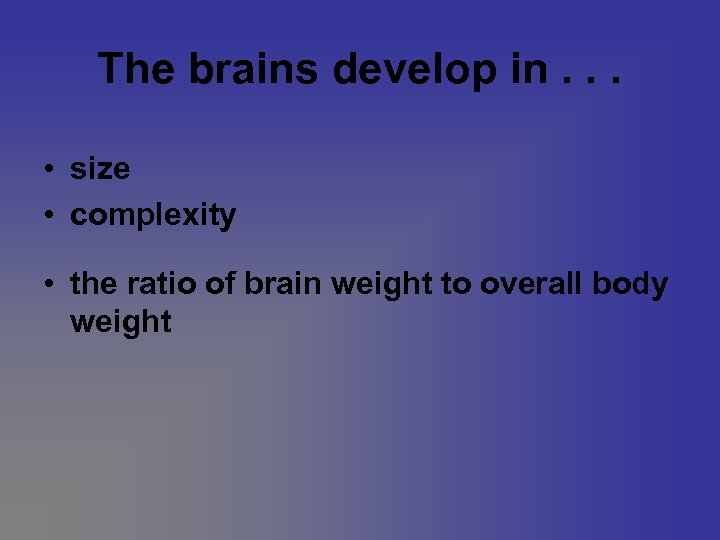

The brains develop in. . . • size • complexity • the ratio of brain weight to overall body weight
Cranial Capacity Understanding Physical Anthropology and Archaeology, 8 th ed. , p. 234
Cranial Capacity & Vaulted Forehead Australopithecus afarensis Homo (sapiens? ) neandthalensis Homo erectus Homo sapiens

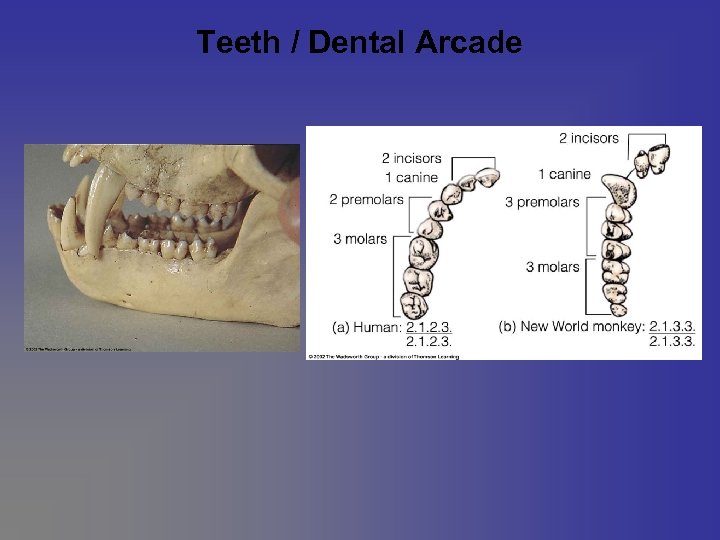

Teeth / Dental Arcade

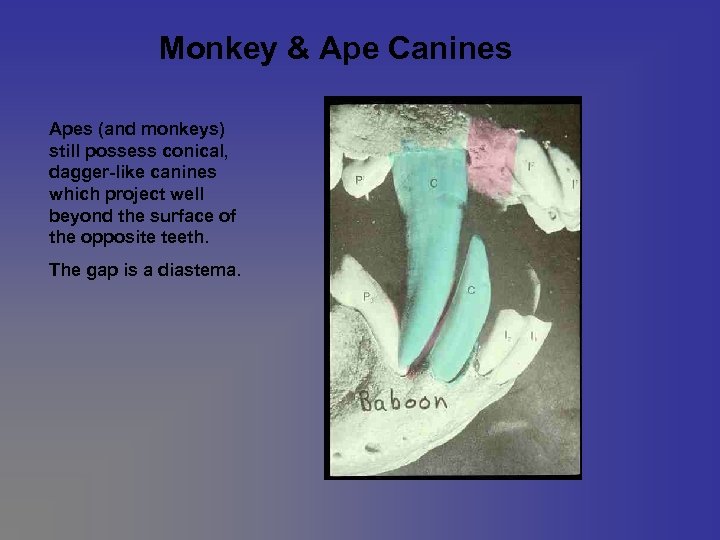

Monkey & Ape Canines Apes (and monkeys) still possess conical, dagger-like canines which project well beyond the surface of the opposite teeth. The gap is a diastema.

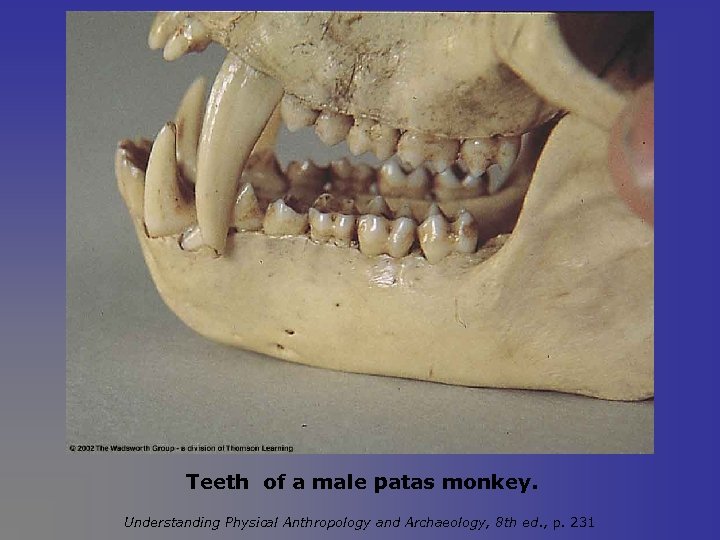

Teeth of a male patas monkey. Understanding Physical Anthropology and Archaeology, 8 th ed. , p. 231
Molar Cusp Patterns plus-4 Y-5

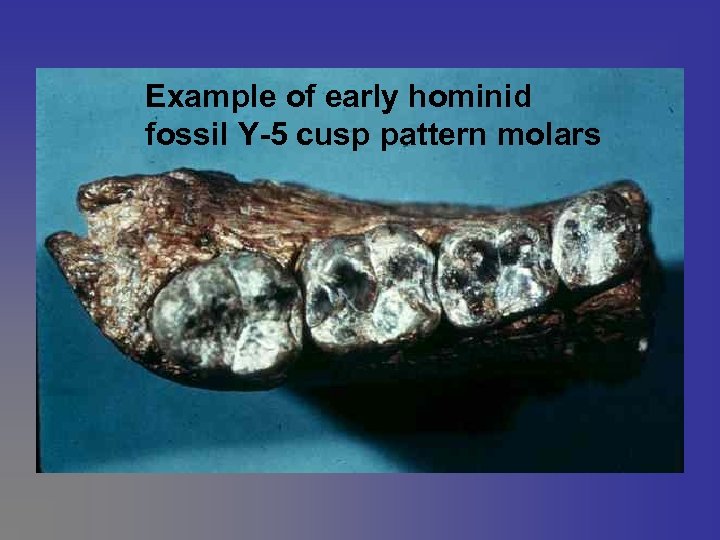

Example of early hominid fossil Y-5 cusp pattern molars

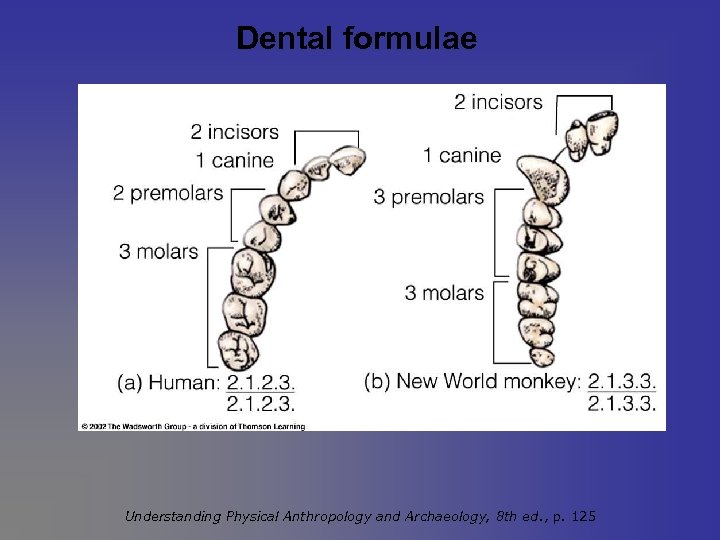

Dental formulae Understanding Physical Anthropology and Archaeology, 8 th ed. , p. 125

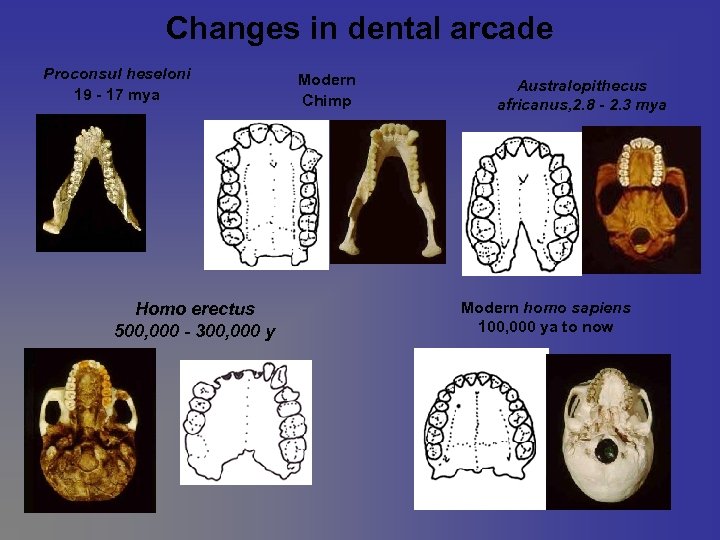

Changes in dental arcade Proconsul heseloni 19 - 17 mya Modern Chimp Australopithecus africanus, 2. 8 - 2. 3 mya Homo erectus 500, 000 - 300, 000 y Modern homo sapiens 100, 000 ya to now

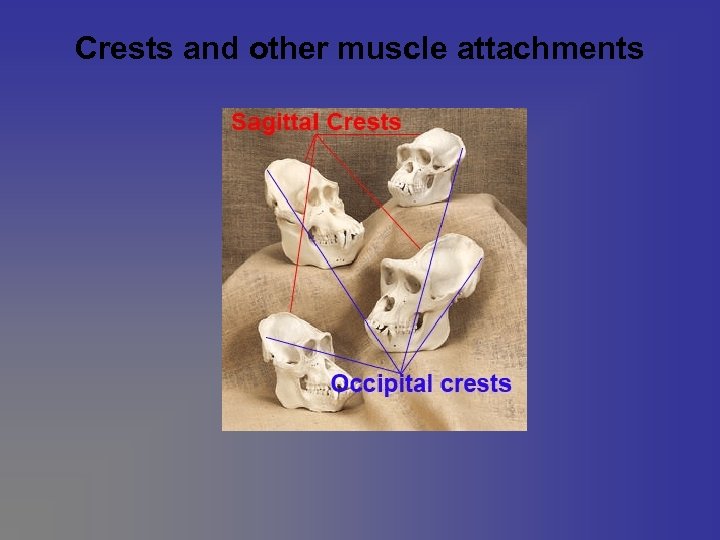

Crests and other muscle attachments
Crests and other muscle attachments zygomatic arch

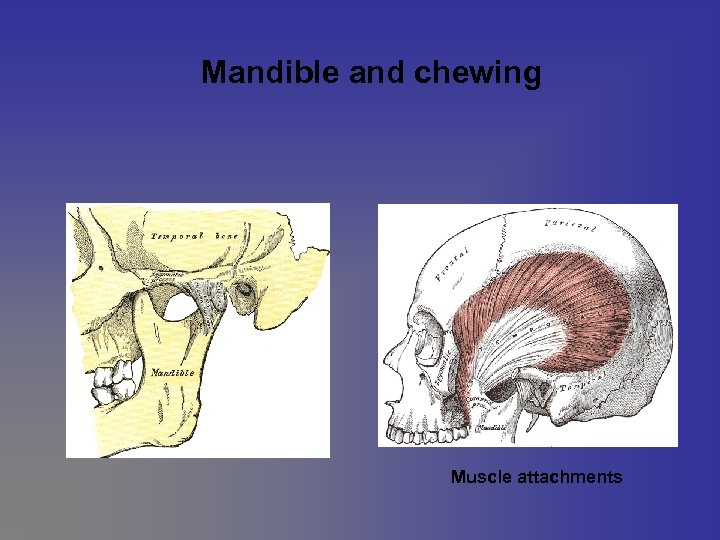

Mandible and chewing Muscle attachments

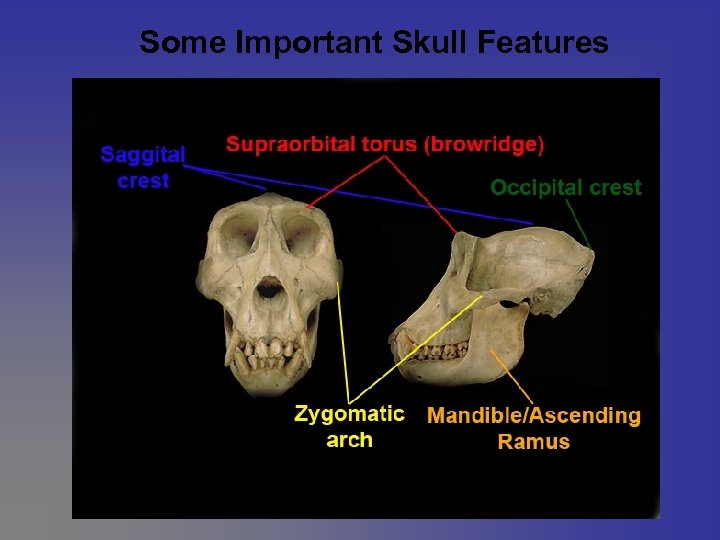

Some Important Skull Features
Modern human cranium. Understanding Physical Anthropology and Archaeology, 8 th ed. , p. 510

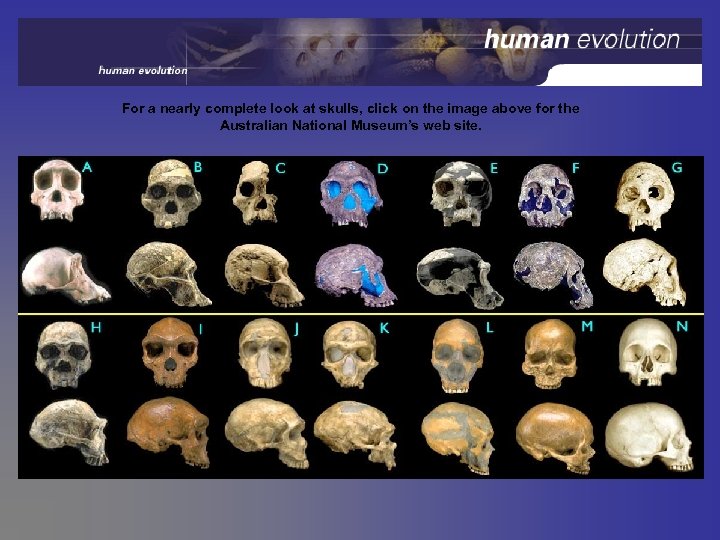

For a nearly complete look at skulls, click on the image above for the Australian National Museum’s web site.
Be sure to look at Becoming Human, the Institute for Human Origins broadband documentary and web site.
