KY Statewide Traffic Signal System ITS Mid-America 2005

KY Statewide Traffic Signal System ITS Mid-America 2005 Columbus, OH

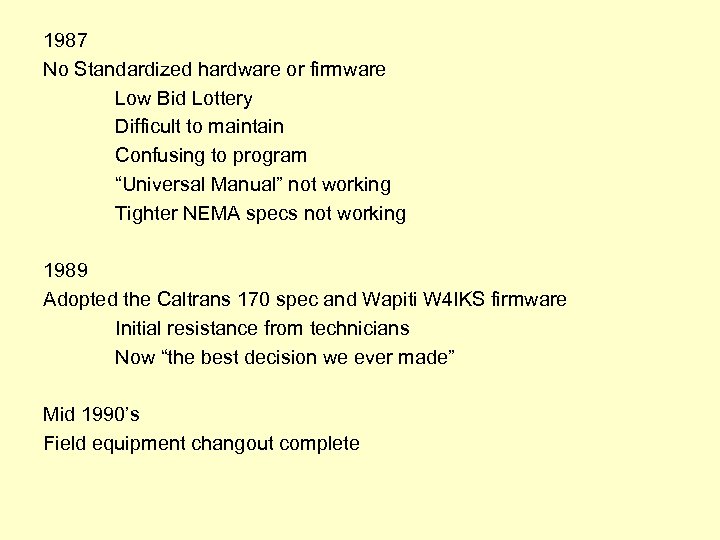

1987 No Standardized hardware or firmware Low Bid Lottery Difficult to maintain Confusing to program “Universal Manual” not working Tighter NEMA specs not working 1989 Adopted the Caltrans 170 spec and Wapiti W 4 IKS firmware Initial resistance from technicians Now “the best decision we ever made” Mid 1990’s Field equipment changout complete

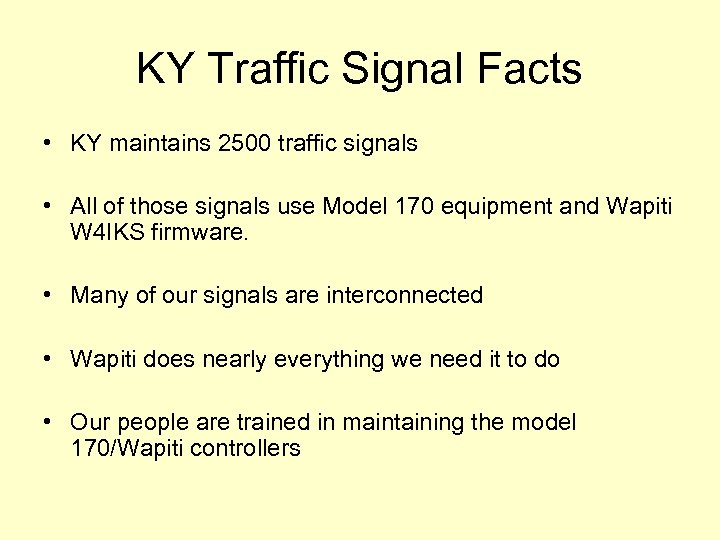

KY Traffic Signal Facts • KY maintains 2500 traffic signals • All of those signals use Model 170 equipment and Wapiti W 4 IKS firmware. • Many of our signals are interconnected • Wapiti does nearly everything we need it to do • Our people are trained in maintaining the model 170/Wapiti controllers

Is there something wrong in our world of Wapiti?

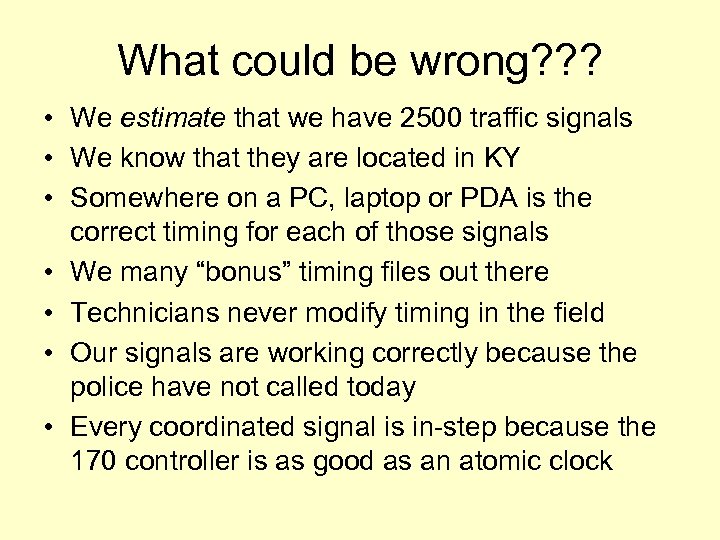

What could be wrong? ? ? • We estimate that we have 2500 traffic signals • We know that they are located in KY • Somewhere on a PC, laptop or PDA is the correct timing for each of those signals • We many “bonus” timing files out there • Technicians never modify timing in the field • Our signals are working correctly because the police have not called today • Every coordinated signal is in-step because the 170 controller is as good as an atomic clock

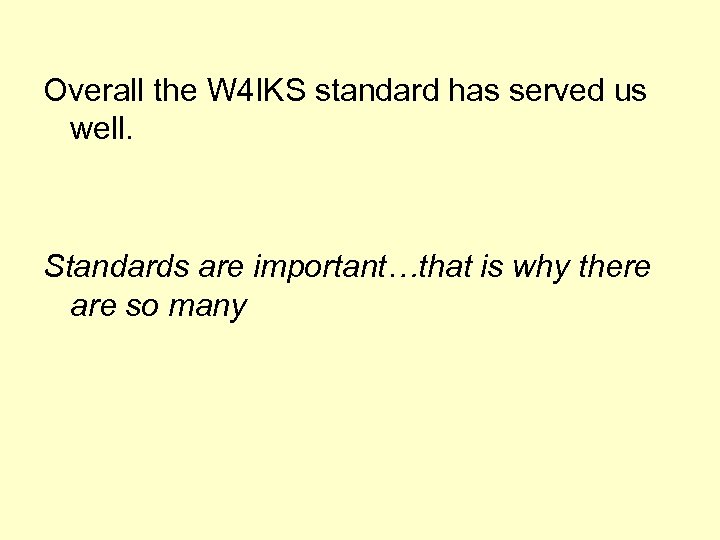

Overall the W 4 IKS standard has served us well. Standards are important…that is why there are so many

The world may be changing … but we are sticking with the Wapiti/170 standard

Nothing more can be added to the 170/Wapiti system

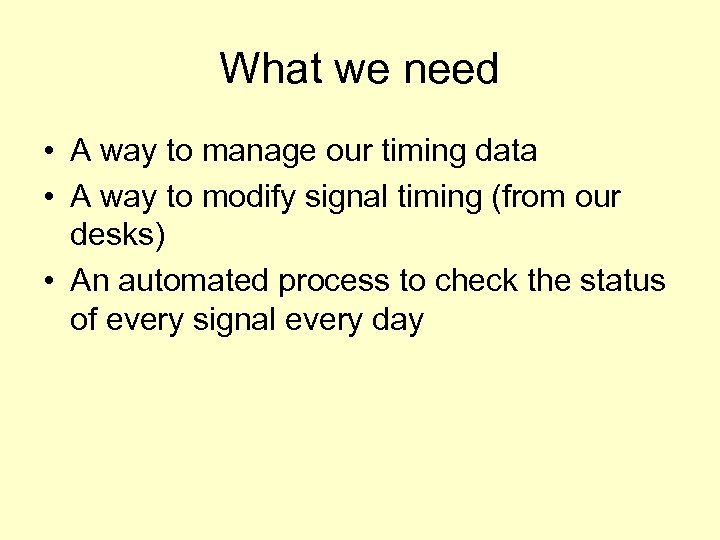

What we need • A way to manage our timing data • A way to modify signal timing (from our desks) • An automated process to check the status of every signal every day

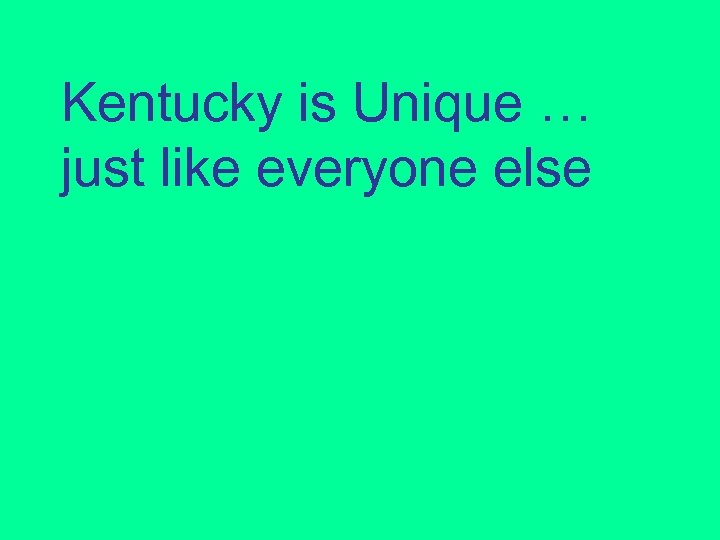

Kentucky is Unique … just like everyone else

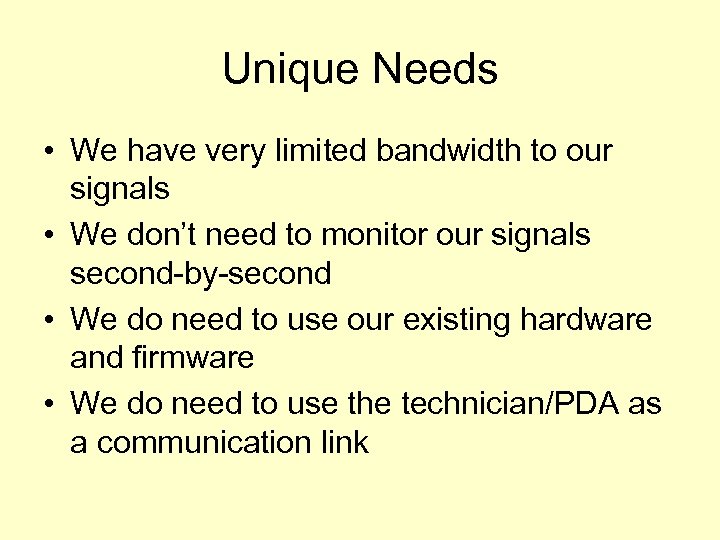

Unique Needs • We have very limited bandwidth to our signals • We don’t need to monitor our signals second-by-second • We do need to use our existing hardware and firmware • We do need to use the technician/PDA as a communication link

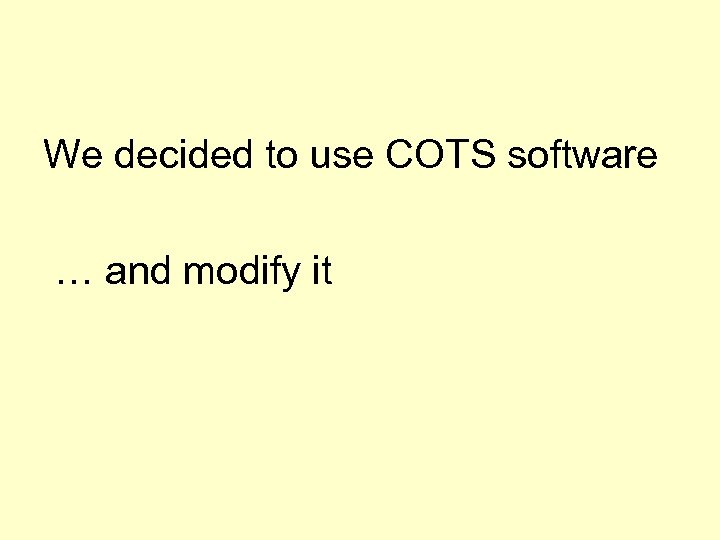

We decided to use COTS software … and modify it

We want an easy to understand user interface

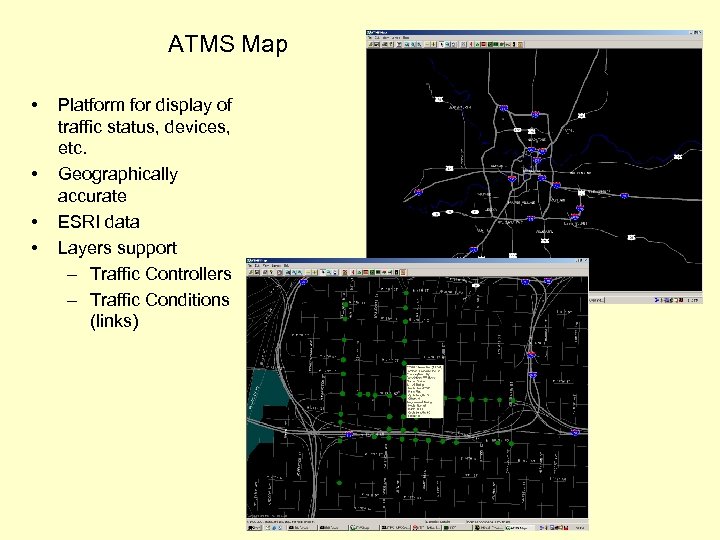

ATMS Map • • Platform for display of traffic status, devices, etc. Geographically accurate ESRI data Layers support – Traffic Controllers – Traffic Conditions (links)

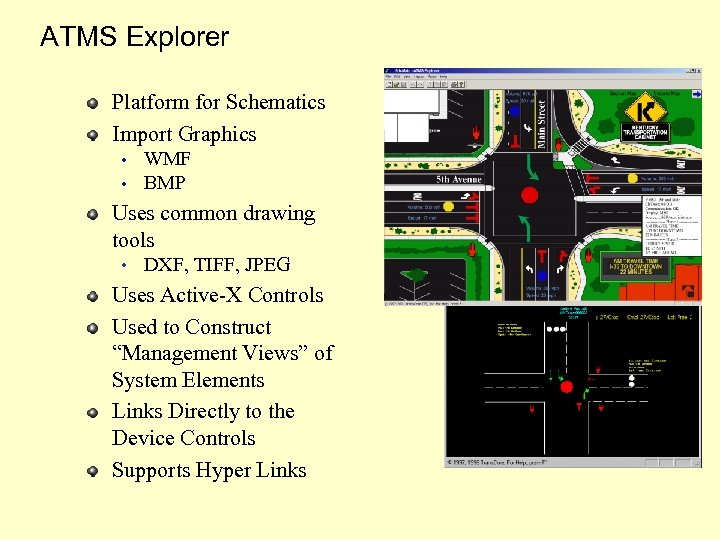

ATMS Explorer Platform for Schematics Import Graphics • • WMF BMP Uses common drawing tools • DXF, TIFF, JPEG Uses Active-X Controls Used to Construct “Management Views” of System Elements Links Directly to the Device Controls Supports Hyper Links

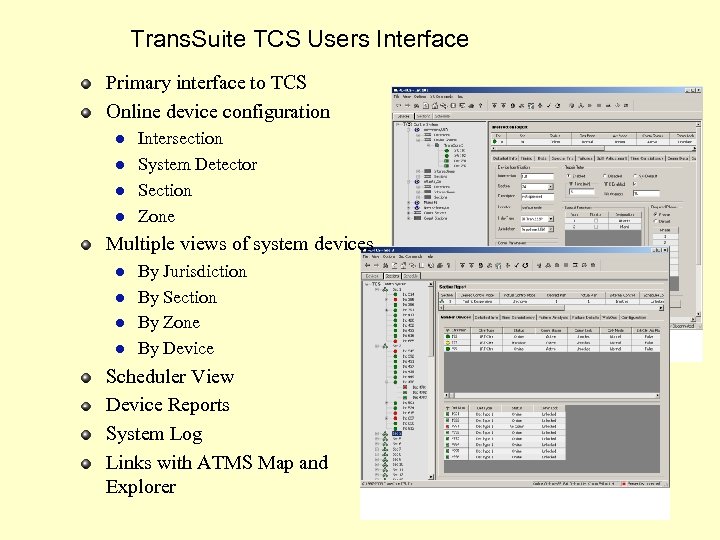

Trans. Suite TCS Users Interface Primary interface to TCS Online device configuration l l Intersection System Detector Section Zone Multiple views of system devices l l By Jurisdiction By Section By Zone By Device Scheduler View Device Reports System Log Links with ATMS Map and Explorer

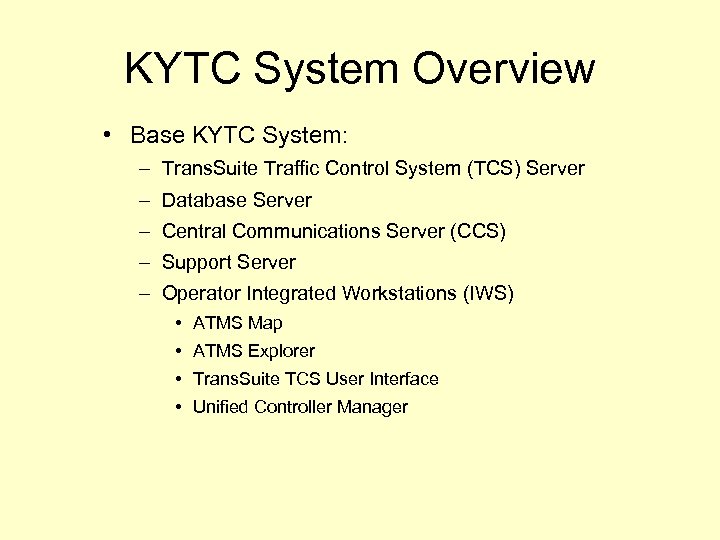

KYTC System Overview • Base KYTC System: – Trans. Suite Traffic Control System (TCS) Server – Database Server – Central Communications Server (CCS) – Support Server – Operator Integrated Workstations (IWS) • ATMS Map • ATMS Explorer • Trans. Suite TCS User Interface • Unified Controller Manager

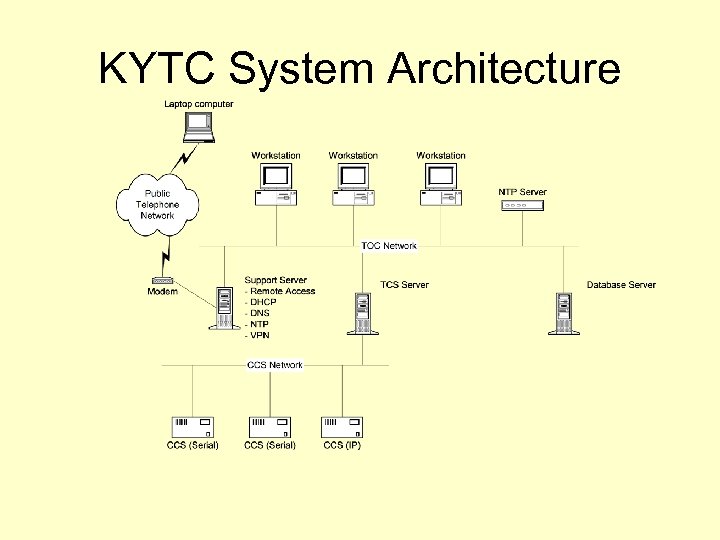

KYTC System Architecture

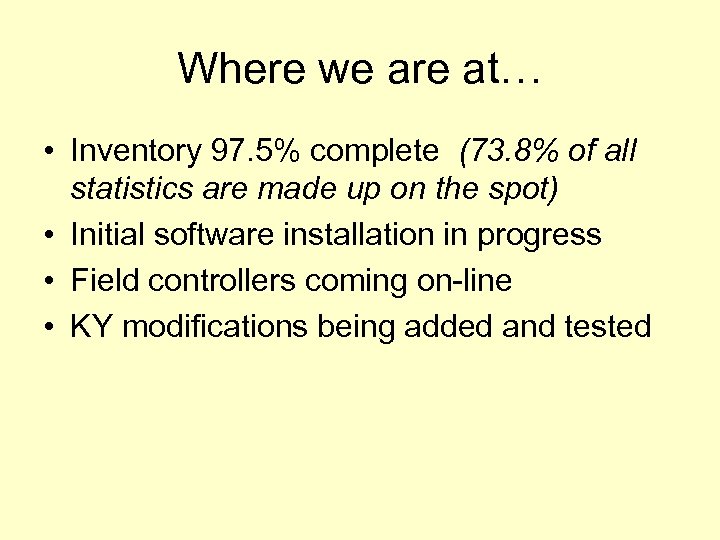

Where we are at… • Inventory 97. 5% complete (73. 8% of all statistics are made up on the spot) • Initial software installation in progress • Field controllers coming on-line • KY modifications being added and tested

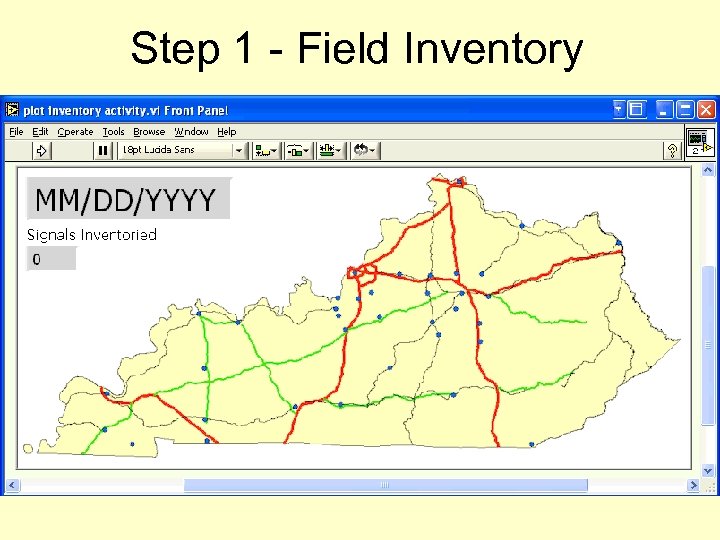

Step 1 - Field Inventory • Show signal inventory animation

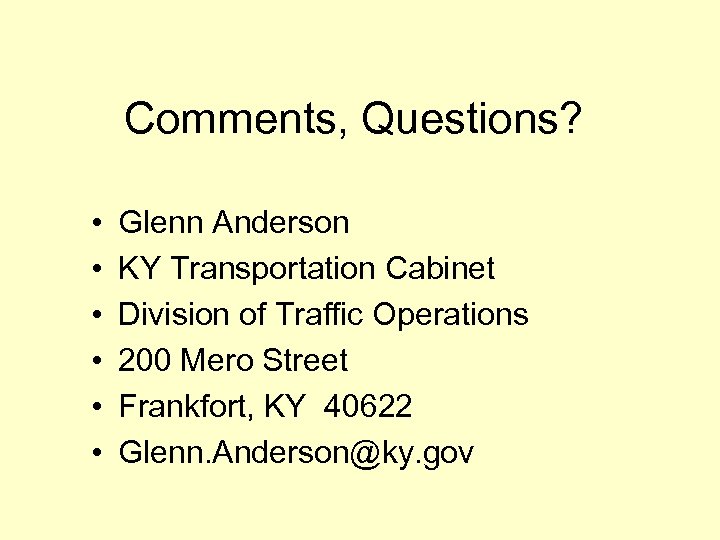

Comments, Questions? • • • Glenn Anderson KY Transportation Cabinet Division of Traffic Operations 200 Mero Street Frankfort, KY 40622 Glenn. Anderson@ky. gov
