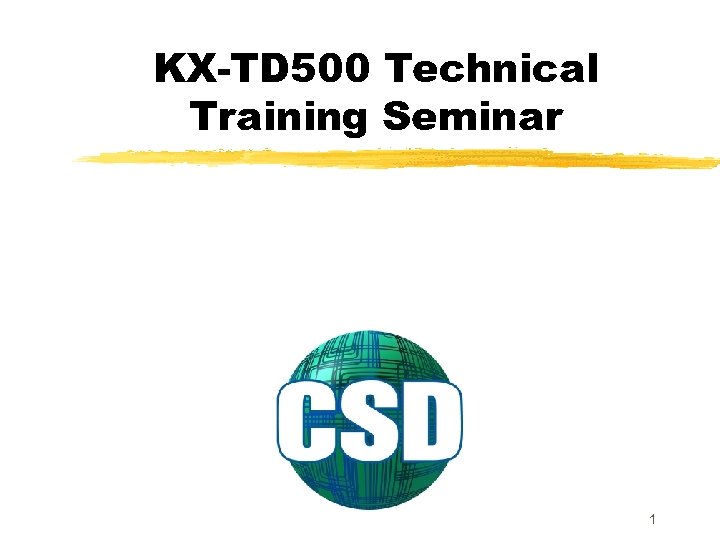

KX-TD 500 Technical Training Seminar 1

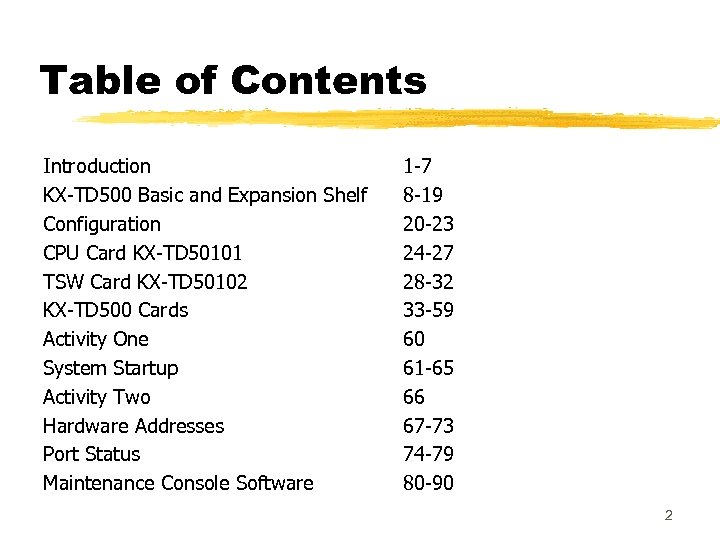

Table of Contents Introduction KX-TD 500 Basic and Expansion Shelf Configuration CPU Card KX-TD 50101 TSW Card KX-TD 50102 KX-TD 500 Cards Activity One System Startup Activity Two Hardware Addresses Port Status Maintenance Console Software 1 -7 8 -19 20 -23 24 -27 28 -32 33 -59 60 61 -65 66 67 -73 74 -79 80 -90 2

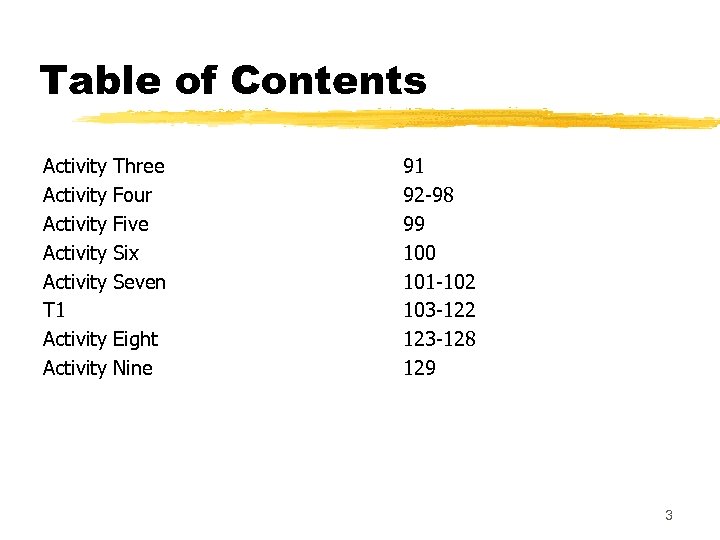

Table of Contents Activity Activity T 1 Activity Three Four Five Six Seven Eight Nine 91 92 -98 99 100 101 -102 103 -122 123 -128 129 3

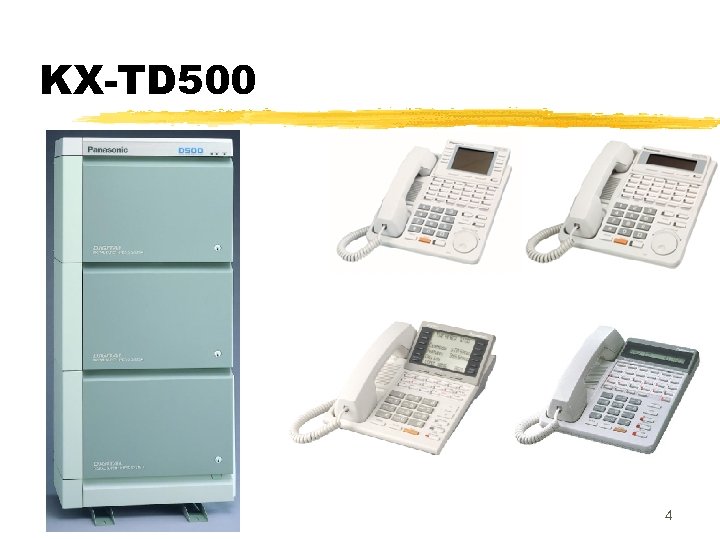

KX-TD 500 4

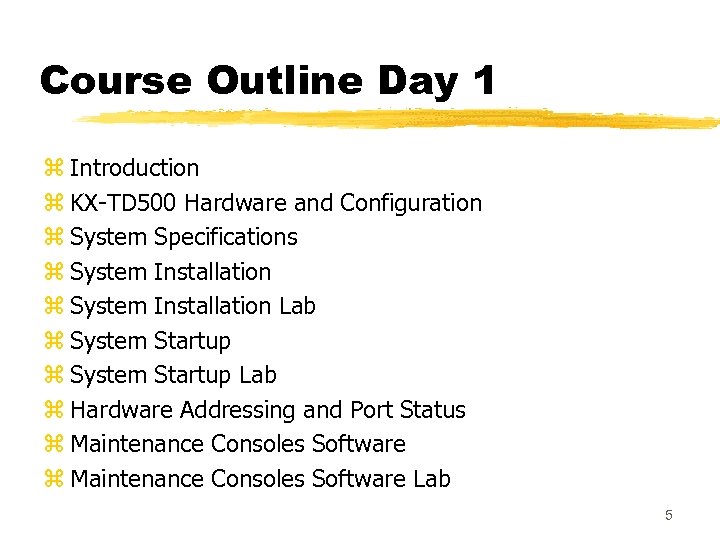

Course Outline Day 1 z Introduction z KX-TD 500 Hardware and Configuration z System Specifications z System Installation Lab z System Startup Lab z Hardware Addressing and Port Status z Maintenance Consoles Software Lab 5
Course Outline Day 2 z KX-TD 500 Features z Basic Programming Lab z Toll Restriction Lab z ARS Lab z Voice Processing Integration Lab 6

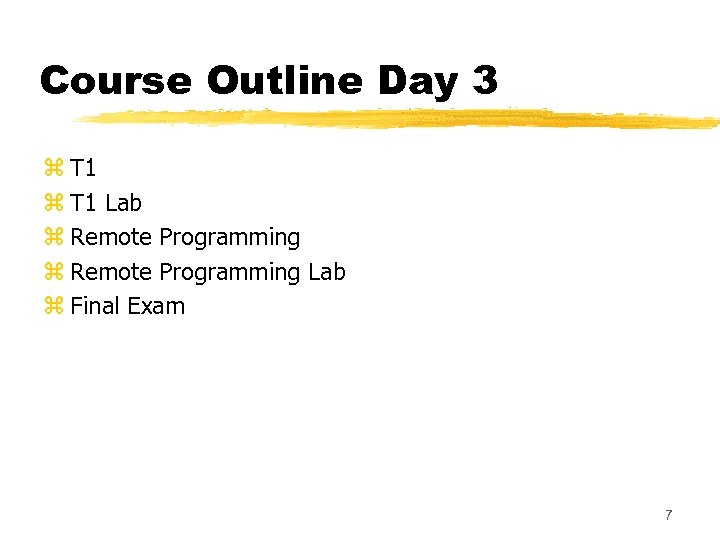

Course Outline Day 3 z T 1 Lab z Remote Programming Lab z Final Exam 7

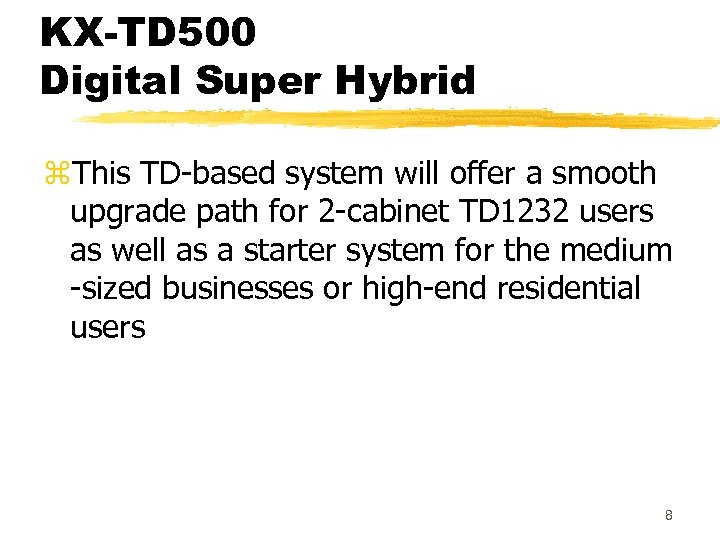

KX-TD 500 Digital Super Hybrid z. This TD-based system will offer a smooth upgrade path for 2 -cabinet TD 1232 users as well as a starter system for the medium -sized businesses or high-end residential users 8

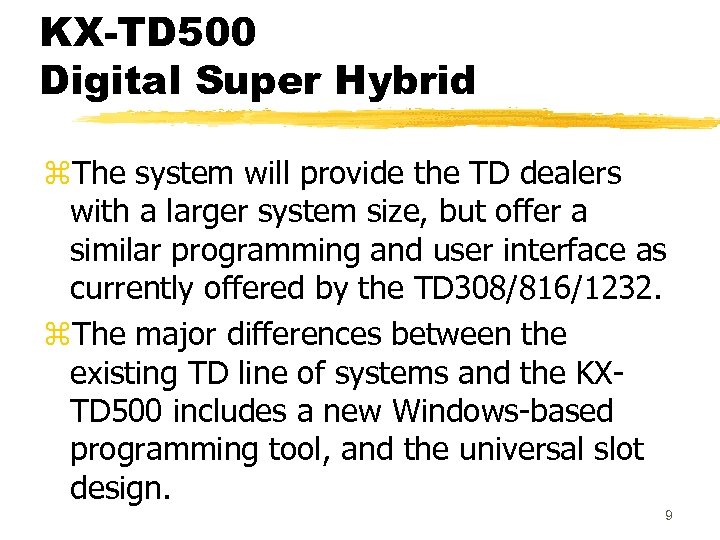

KX-TD 500 Digital Super Hybrid z. The system will provide the TD dealers with a larger system size, but offer a similar programming and user interface as currently offered by the TD 308/816/1232. z. The major differences between the existing TD line of systems and the KXTD 500 includes a new Windows-based programming tool, and the universal slot design. 9

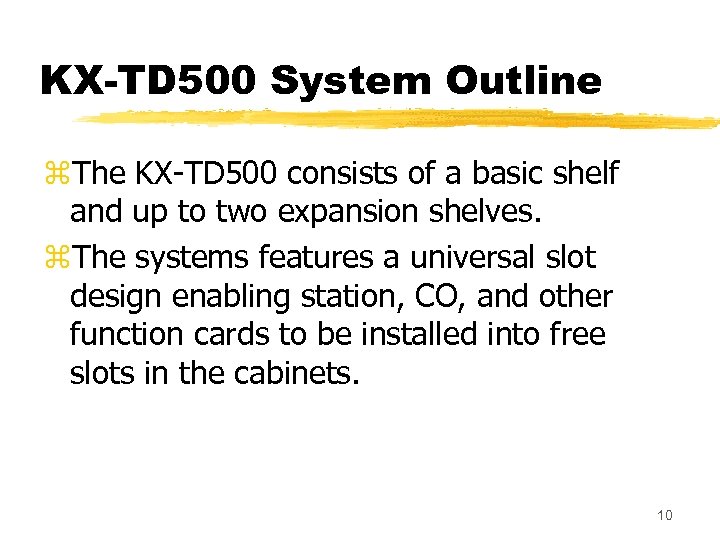

KX-TD 500 System Outline z. The KX-TD 500 consists of a basic shelf and up to two expansion shelves. z. The systems features a universal slot design enabling station, CO, and other function cards to be installed into free slots in the cabinets. 10
Basic Shelf KX-TD 500 z. The Basic Shelf is the initial building-block of the KX-TD 500 system allowing a singlecabinet system to be configured with up to a maximum of 192 ports. z. The Basic Shelf then provides the foundation on which the system can be expanded by use of expansion shelves to configure a system up a maximum of 512 ports. 11

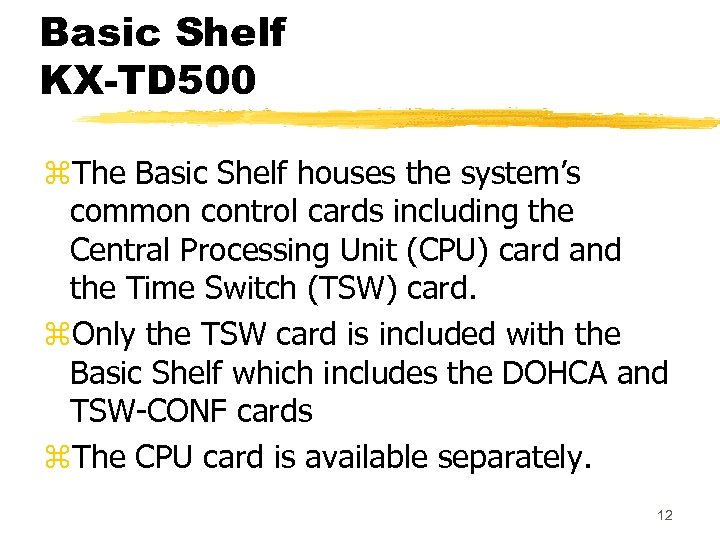

Basic Shelf KX-TD 500 z. The Basic Shelf houses the system’s common control cards including the Central Processing Unit (CPU) card and the Time Switch (TSW) card. z. Only the TSW card is included with the Basic Shelf which includes the DOHCA and TSW-CONF cards z. The CPU card is available separately. 12
Basic Shelf KX-TD 500 z 12 Free Slots (FS 1 -FS 12) are available in the Basic Shelf and can be carded with CO, station, or other function cards as required by the installations application. z. If the installation location requires more than the 12 slot configuration supports, the system can be expanded by attaching 2 additional Expansion Shelves to the upper portion of the Basic Shelf 13

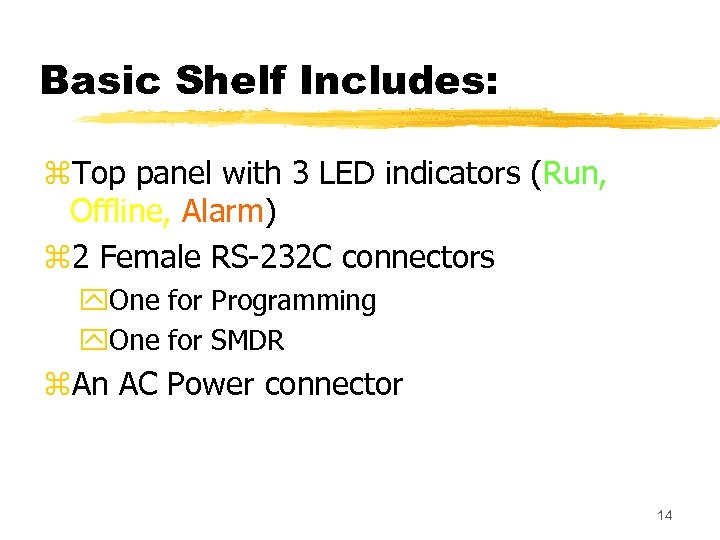

Basic Shelf Includes: z. Top panel with 3 LED indicators (Run, Offline, Alarm) z 2 Female RS-232 C connectors y. One for Programming y. One for SMDR z. An AC Power connector 14

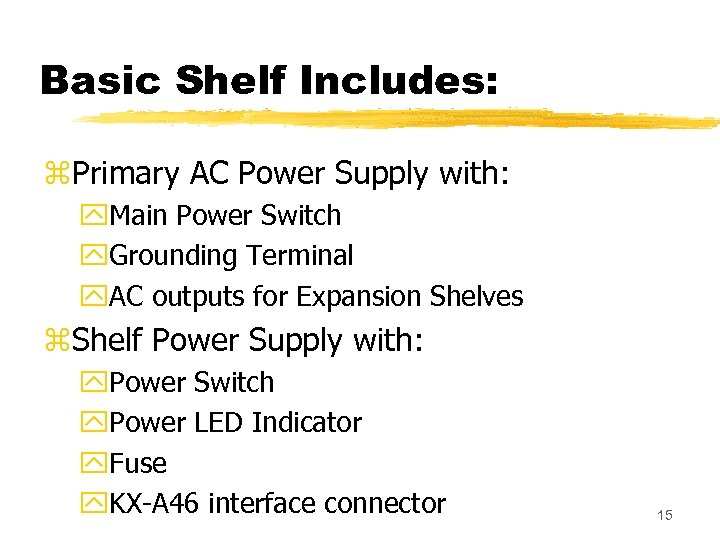

Basic Shelf Includes: z. Primary AC Power Supply with: y. Main Power Switch y. Grounding Terminal y. AC outputs for Expansion Shelves z. Shelf Power Supply with: y. Power Switch y. Power LED Indicator y. Fuse y. KX-A 46 interface connector 15

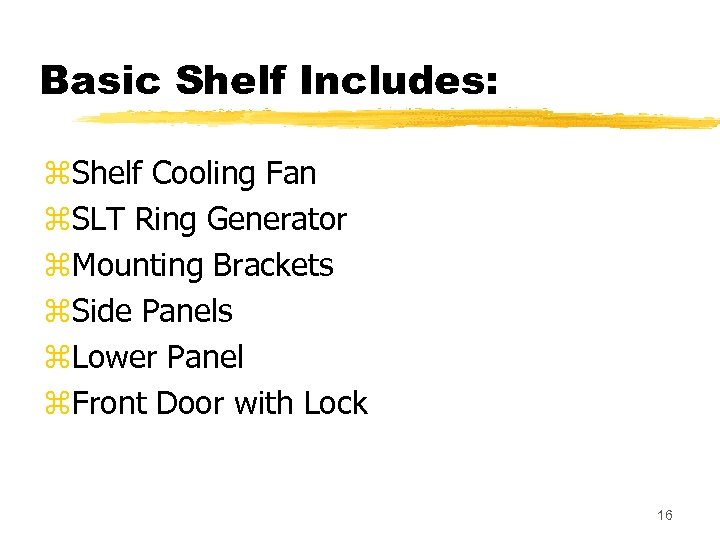

Basic Shelf Includes: z. Shelf Cooling Fan z. SLT Ring Generator z. Mounting Brackets z. Side Panels z. Lower Panel z. Front Door with Lock 16

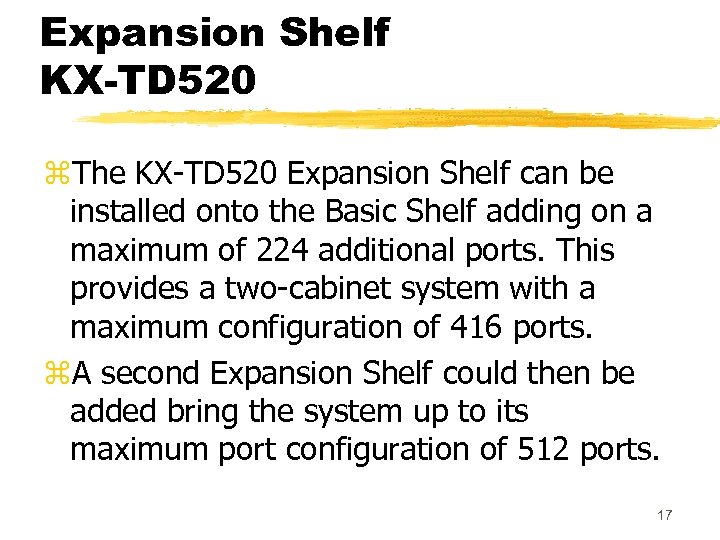

Expansion Shelf KX-TD 520 z. The KX-TD 520 Expansion Shelf can be installed onto the Basic Shelf adding on a maximum of 224 additional ports. This provides a two-cabinet system with a maximum configuration of 416 ports. z. A second Expansion Shelf could then be added bring the system up to its maximum port configuration of 512 ports. 17

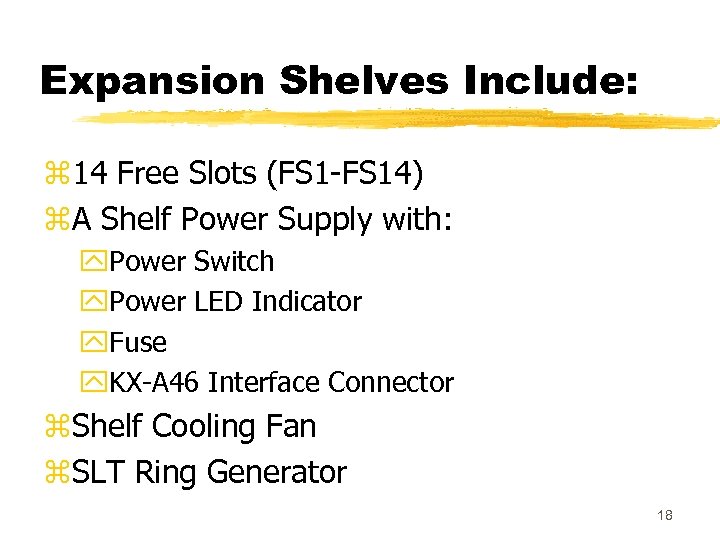

Expansion Shelves Include: z 14 Free Slots (FS 1 -FS 14) z. A Shelf Power Supply with: y. Power Switch y. Power LED Indicator y. Fuse y. KX-A 46 Interface Connector z. Shelf Cooling Fan z. SLT Ring Generator 18

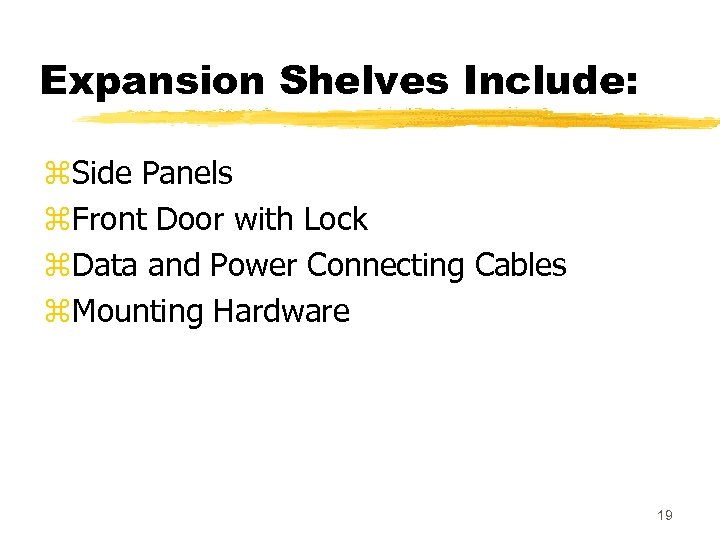

Expansion Shelves Include: z. Side Panels z. Front Door with Lock z. Data and Power Connecting Cables z. Mounting Hardware 19

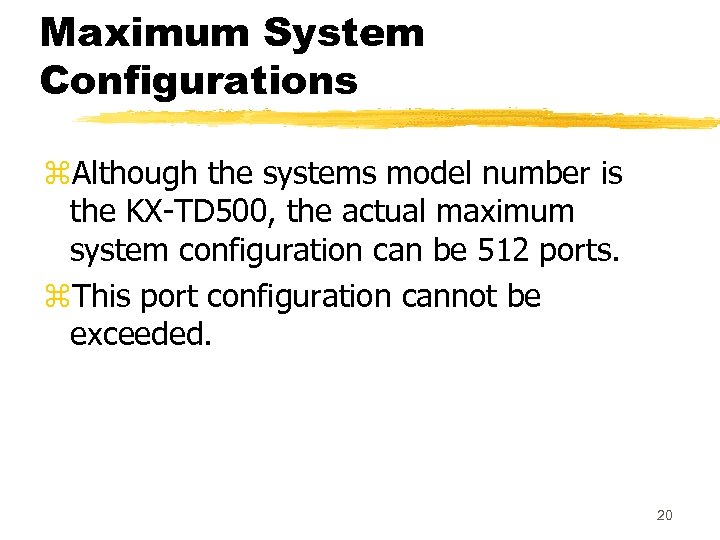

Maximum System Configurations z. Although the systems model number is the KX-TD 500, the actual maximum system configuration can be 512 ports. z. This port configuration cannot be exceeded. 20
Maximum System Configurations z. Things to remember about system configuration y 512 y 448 y 192 y 216 y 192 y 128 y 160 ports/system is the maximum allowed extensions/system is the maximum allowed CO Lines/system is the maximum allowed PT, SLT, & CO ports/expansion shelf PT and SLT ext. /shelf is the max. allowed PT/Shelf is the maximum allowed SLT/Shelf is the maximum allowed 21

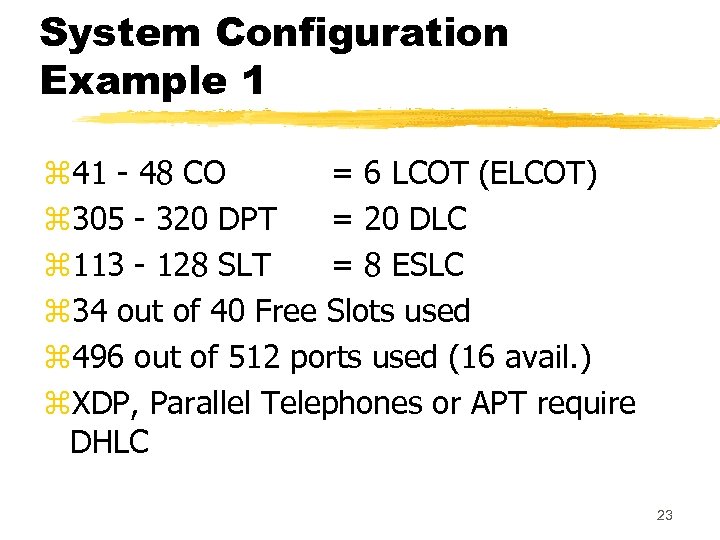

System Configuration Example 1 Final system configuration of (48) CO lines and (448) extensions (320 DPT & (128) SLT) = (496) Total 22
System Configuration Example 1 z 41 - 48 CO = 6 LCOT (ELCOT) z 305 - 320 DPT = 20 DLC z 113 - 128 SLT = 8 ESLC z 34 out of 40 Free Slots used z 496 out of 512 ports used (16 avail. ) z. XDP, Parallel Telephones or APT require DHLC 23

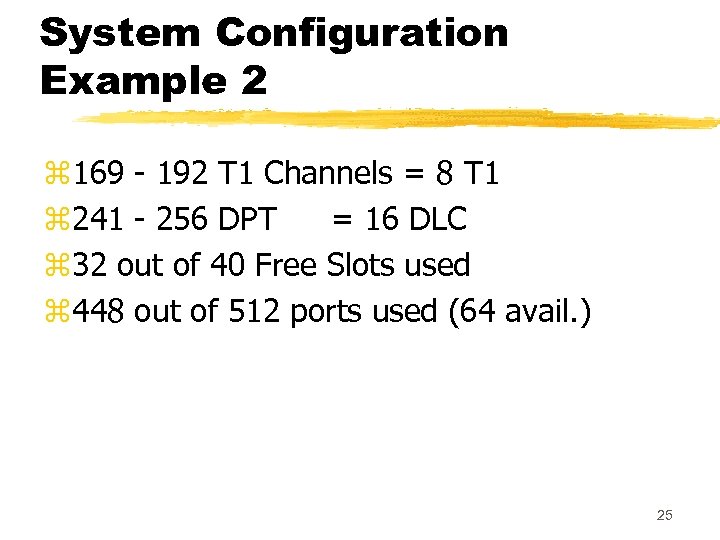

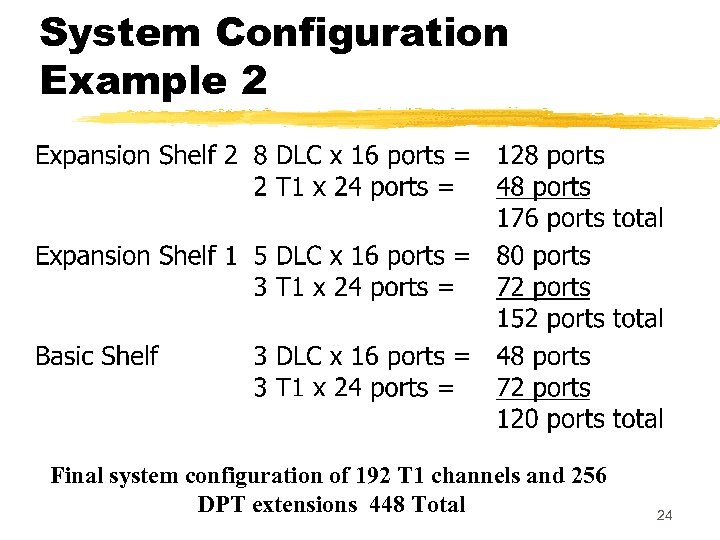

System Configuration Example 2 Final system configuration of 192 T 1 channels and 256 DPT extensions 448 Total 24
System Configuration Example 2 z 169 - 192 T 1 Channels = 8 T 1 z 241 - 256 DPT = 16 DLC z 32 out of 40 Free Slots used z 448 out of 512 ports used (64 avail. ) 25

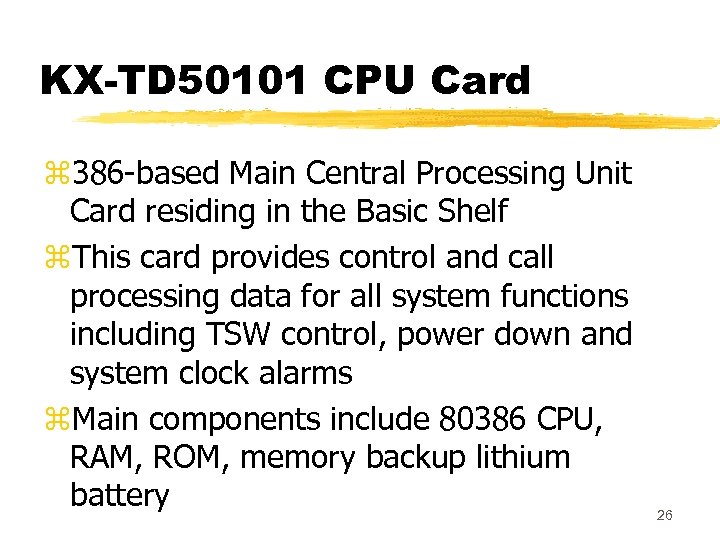

KX-TD 50101 CPU Card z 386 -based Main Central Processing Unit Card residing in the Basic Shelf z. This card provides control and call processing data for all system functions including TSW control, power down and system clock alarms z. Main components include 80386 CPU, RAM, ROM, memory backup lithium battery 26
KX-TD 50101 CPU Card z. CPU card also includes circuitry for the RS 232 C connectors z“System” and “Mode” switches are 10 position rotary switches located on the front edge of the CPU card along with the push reset switch. z. The “System” switch is not used in the US version. 27

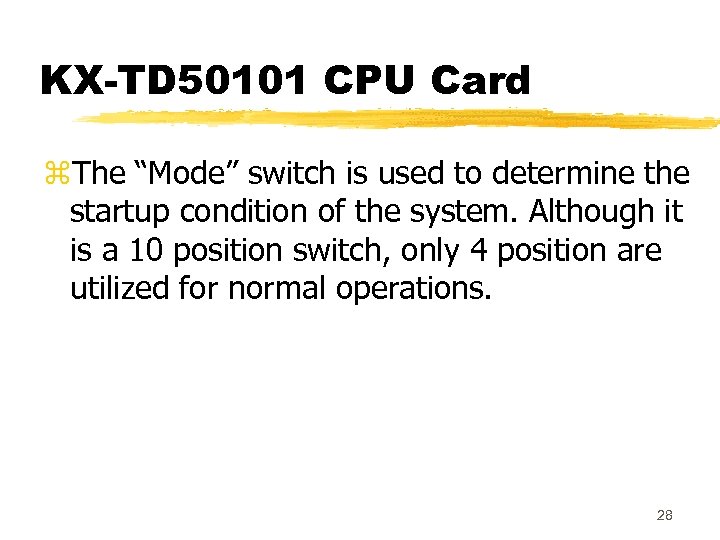

KX-TD 50101 CPU Card z. The “Mode” switch is used to determine the startup condition of the system. Although it is a 10 position switch, only 4 position are utilized for normal operations. 28

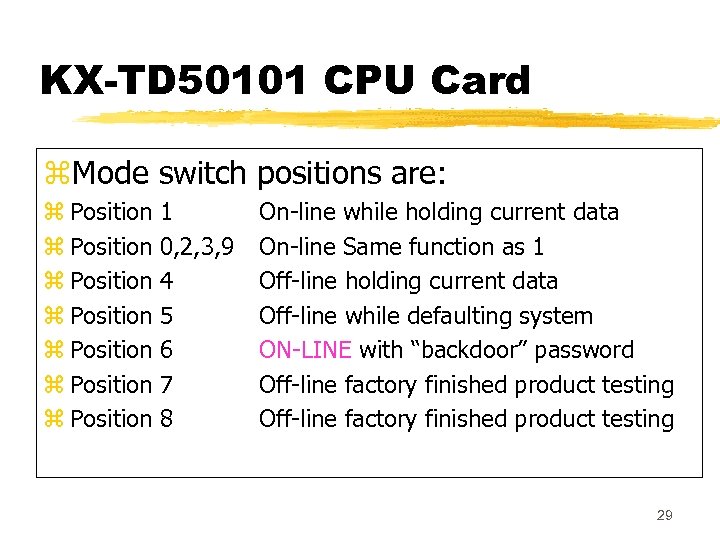

KX-TD 50101 CPU Card z. Mode switch positions are: z Position z Position 1 0, 2, 3, 9 4 5 6 7 8 On-line while holding current data On-line Same function as 1 Off-line holding current data Off-line while defaulting system ON-LINE with “backdoor” password Off-line factory finished product testing 29
KX-TD 50102 TSW Card z. The Time Switch (TSW) card provides the systems voice switching matrix including 72 3 party conferencing circuits z. The TSW card generates all audible call progress tones, including dial tone, busy tone, reorder and ringback tones 30
KX-TD 50102 TSW Card z. The TSW card also provides an interface for 2 Music on Hold inputs (9/64” mini-plug) and 2 External Paging output jacks (RCA plugs) with volume adjustments z. Two daughter boards are attached to the TSW card y. KX-TD 50104 y. KX-TD 50105 31

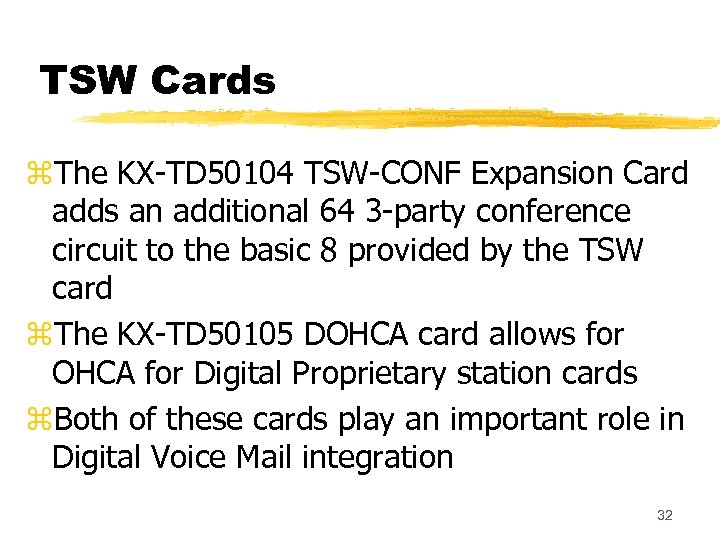

TSW Cards z. The KX-TD 50104 TSW-CONF Expansion Card adds an additional 64 3 -party conference circuit to the basic 8 provided by the TSW card z. The KX-TD 50105 DOHCA card allows for OHCA for Digital Proprietary station cards z. Both of these cards play an important role in Digital Voice Mail integration 32

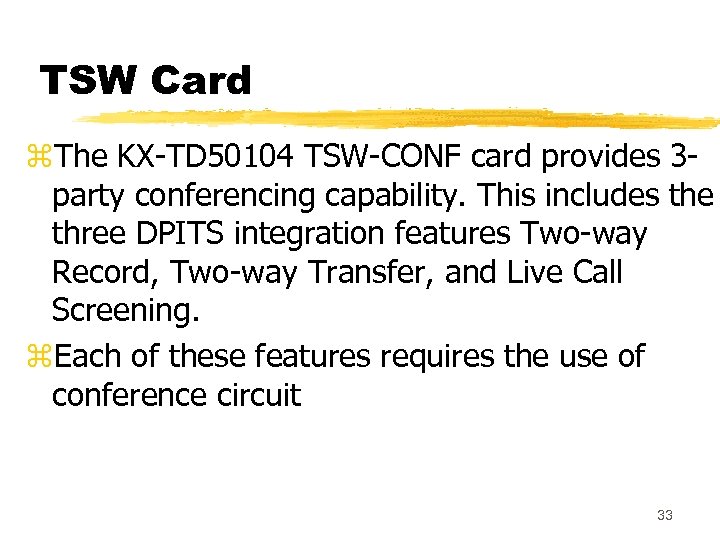

TSW Card z. The KX-TD 50104 TSW-CONF card provides 3 party conferencing capability. This includes the three DPITS integration features Two-way Record, Two-way Transfer, and Live Call Screening. z. Each of these features requires the use of conference circuit 33
TSW Card z. The KX-TD 50105 DOHCA card provides for DPT OHCA by providing TSW circuitry to support the second “B” channel for DPT telephones and DPITS integrated voice mail ports z. The KX-TD 50105 DOHCA card must be installed for DPITS voice mail integration to work 34

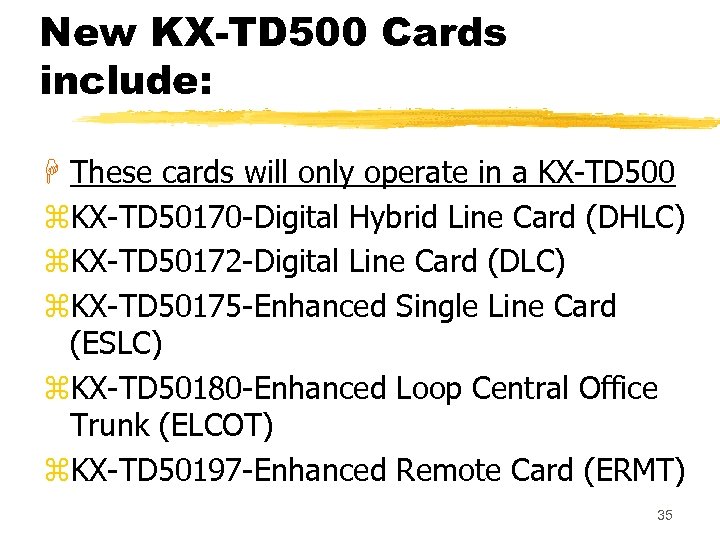

New KX-TD 500 Cards include: H These cards will only operate in a KX-TD 500 z. KX-TD 50170 -Digital Hybrid Line Card (DHLC) z. KX-TD 50172 -Digital Line Card (DLC) z. KX-TD 50175 -Enhanced Single Line Card (ESLC) z. KX-TD 50180 -Enhanced Loop Central Office Trunk (ELCOT) z. KX-TD 50197 -Enhanced Remote Card (ERMT) 35

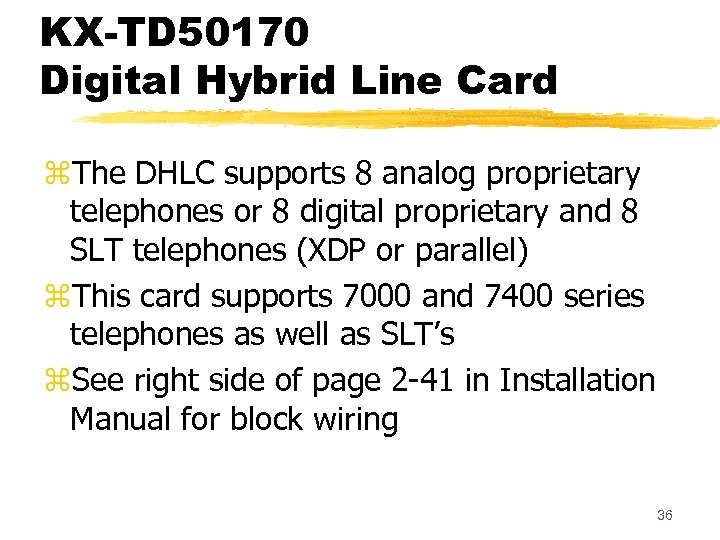

KX-TD 50170 Digital Hybrid Line Card z. The DHLC supports 8 analog proprietary telephones or 8 digital proprietary and 8 SLT telephones (XDP or parallel) z. This card supports 7000 and 7400 series telephones as well as SLT’s z. See right side of page 2 -41 in Installation Manual for block wiring 36

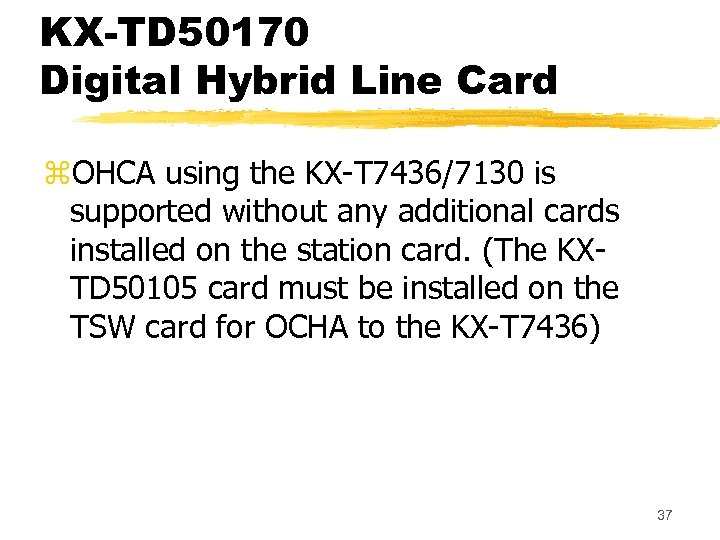

KX-TD 50170 Digital Hybrid Line Card z. OHCA using the KX-T 7436/7130 is supported without any additional cards installed on the station card. (The KXTD 50105 card must be installed on the TSW card for OCHA to the KX-T 7436) 37

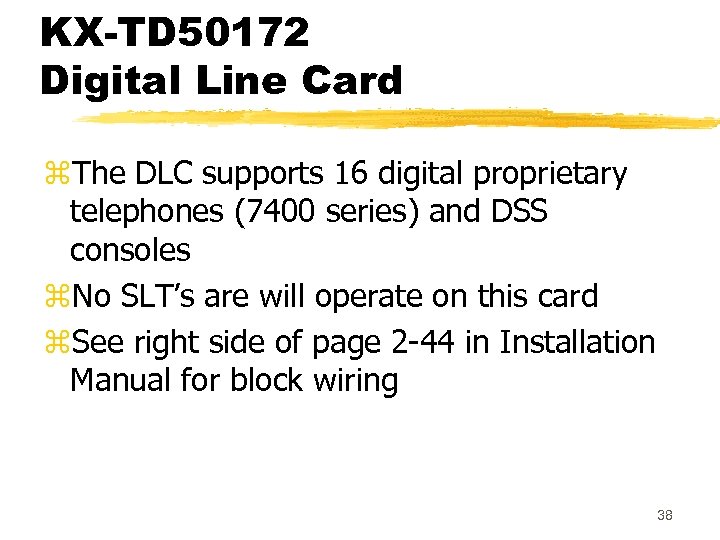

KX-TD 50172 Digital Line Card z. The DLC supports 16 digital proprietary telephones (7400 series) and DSS consoles z. No SLT’s are will operate on this card z. See right side of page 2 -44 in Installation Manual for block wiring 38

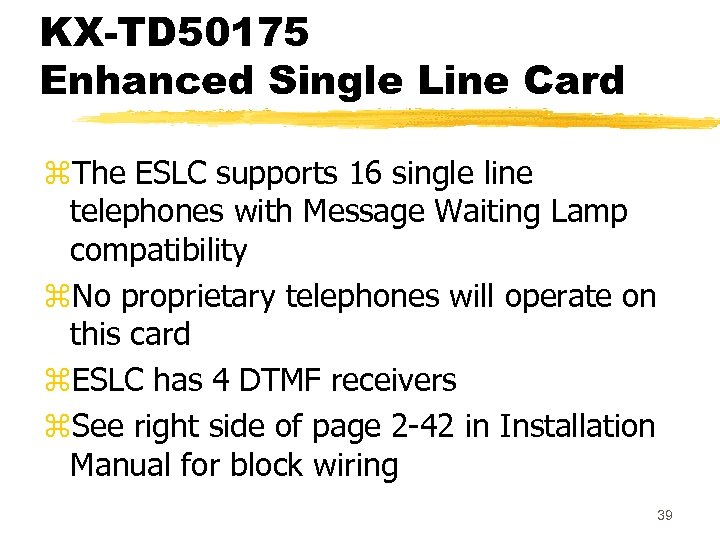

KX-TD 50175 Enhanced Single Line Card z. The ESLC supports 16 single line telephones with Message Waiting Lamp compatibility z. No proprietary telephones will operate on this card z. ESLC has 4 DTMF receivers z. See right side of page 2 -42 in Installation Manual for block wiring 39

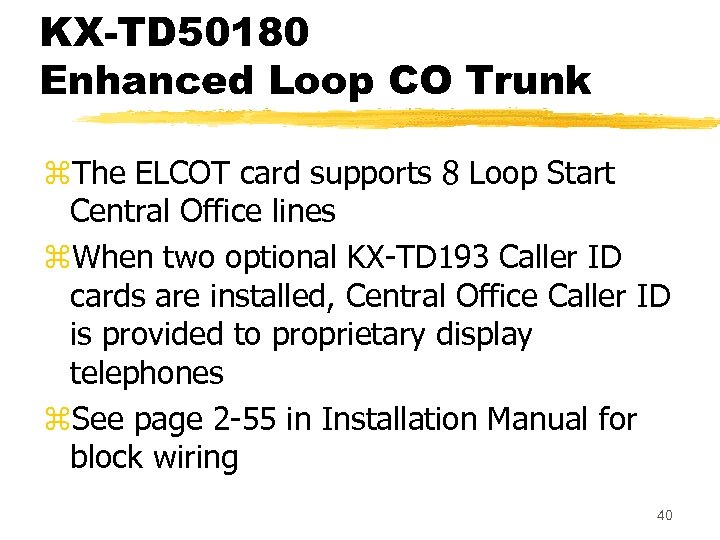

KX-TD 50180 Enhanced Loop CO Trunk z. The ELCOT card supports 8 Loop Start Central Office lines z. When two optional KX-TD 193 Caller ID cards are installed, Central Office Caller ID is provided to proprietary display telephones z. See page 2 -55 in Installation Manual for block wiring 40

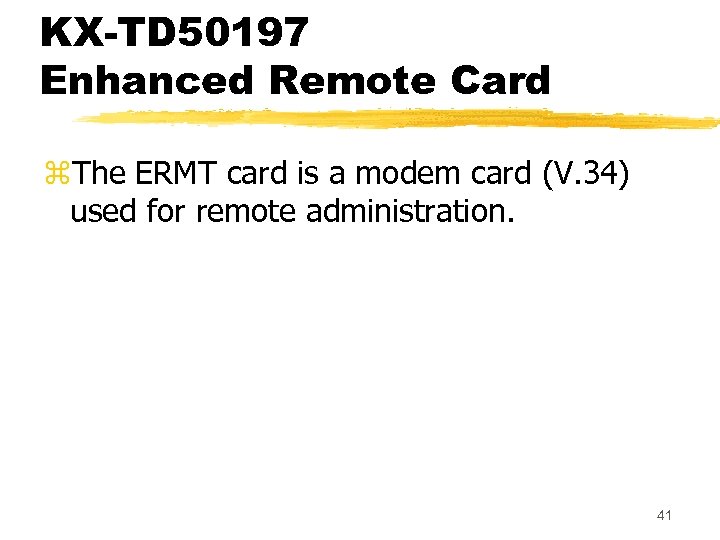

KX-TD 50197 Enhanced Remote Card z. The ERMT card is a modem card (V. 34) used for remote administration. 41

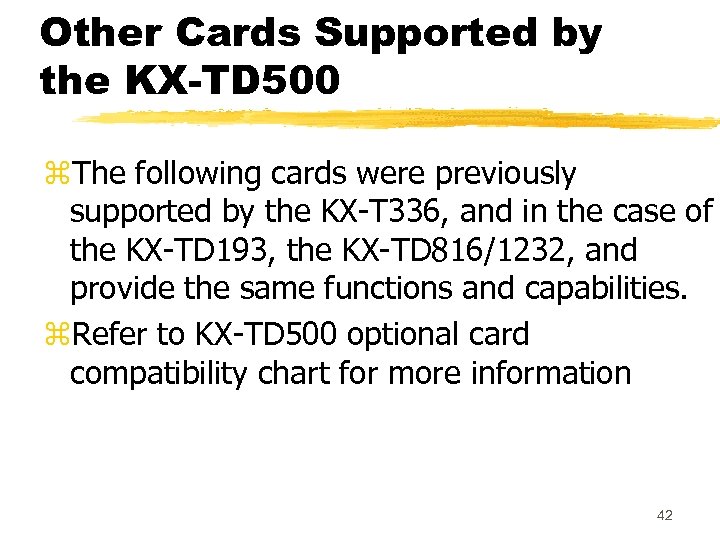

Other Cards Supported by the KX-TD 500 z. The following cards were previously supported by the KX-T 336, and in the case of the KX-TD 193, the KX-TD 816/1232, and provide the same functions and capabilities. z. Refer to KX-TD 500 optional card compatibility chart for more information 42

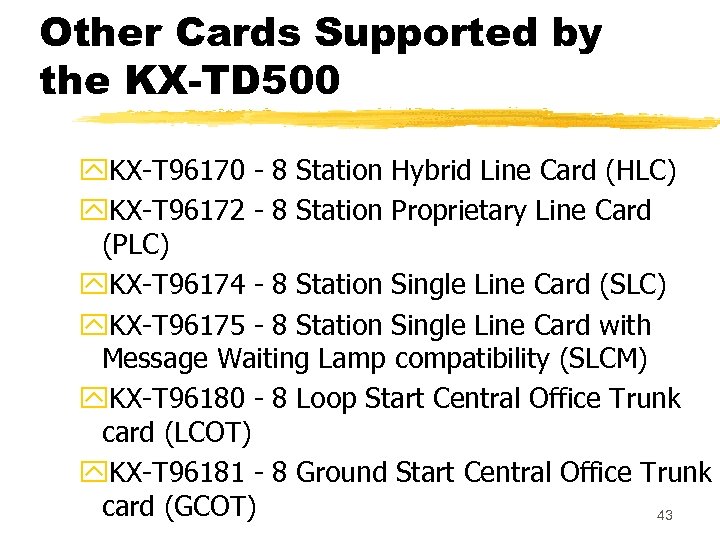

Other Cards Supported by the KX-TD 500 y. KX-T 96170 - 8 Station Hybrid Line Card (HLC) y. KX-T 96172 - 8 Station Proprietary Line Card (PLC) y. KX-T 96174 - 8 Station Single Line Card (SLC) y. KX-T 96175 - 8 Station Single Line Card with Message Waiting Lamp compatibility (SLCM) y. KX-T 96180 - 8 Loop Start Central Office Trunk card (LCOT) y. KX-T 96181 - 8 Ground Start Central Office Trunk card (GCOT) 43

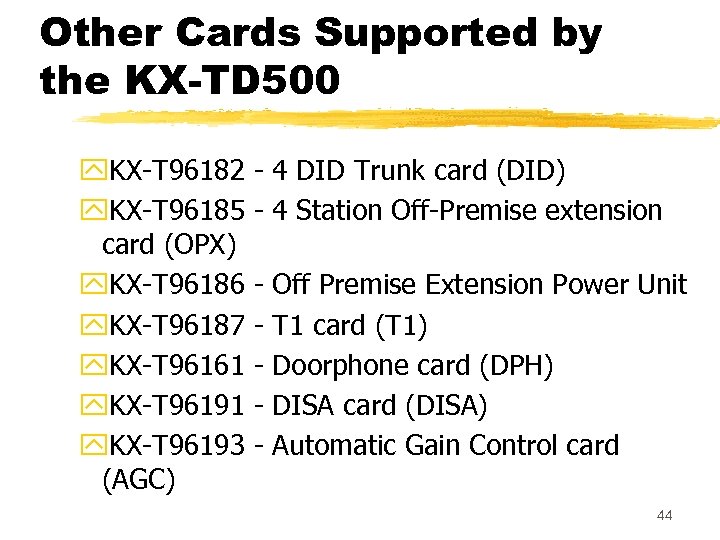

Other Cards Supported by the KX-TD 500 y. KX-T 96182 y. KX-T 96185 card (OPX) y. KX-T 96186 y. KX-T 96187 y. KX-T 96161 y. KX-T 96193 (AGC) - 4 DID Trunk card (DID) - 4 Station Off-Premise extension - Off Premise Extension Power Unit T 1 card (T 1) Doorphone card (DPH) DISA card (DISA) Automatic Gain Control card 44

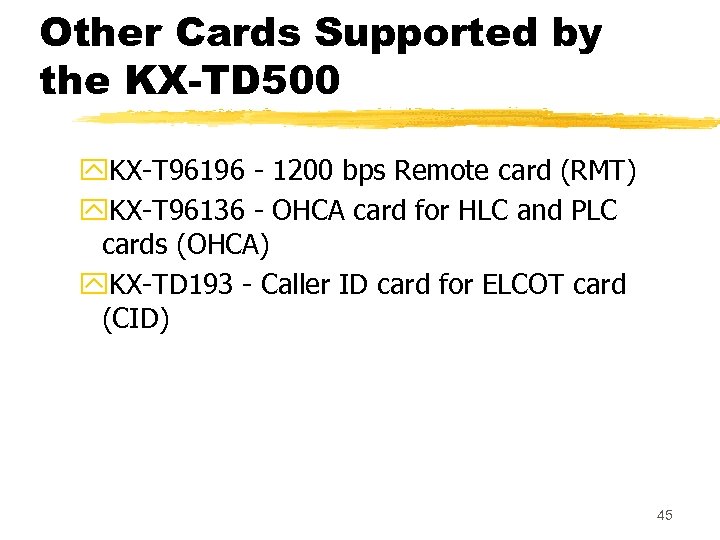

Other Cards Supported by the KX-TD 500 y. KX-T 96196 - 1200 bps Remote card (RMT) y. KX-T 96136 - OHCA card for HLC and PLC cards (OHCA) y. KX-TD 193 - Caller ID card for ELCOT card (CID) 45

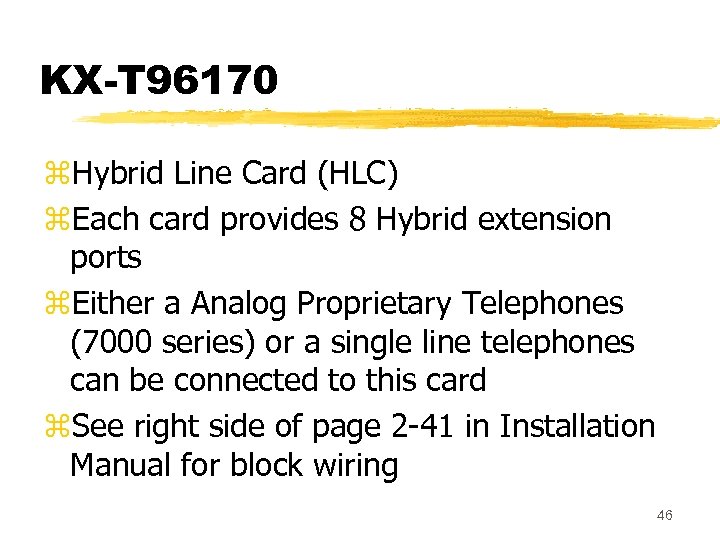

KX-T 96170 z. Hybrid Line Card (HLC) z. Each card provides 8 Hybrid extension ports z. Either a Analog Proprietary Telephones (7000 series) or a single line telephones can be connected to this card z. See right side of page 2 -41 in Installation Manual for block wiring 46

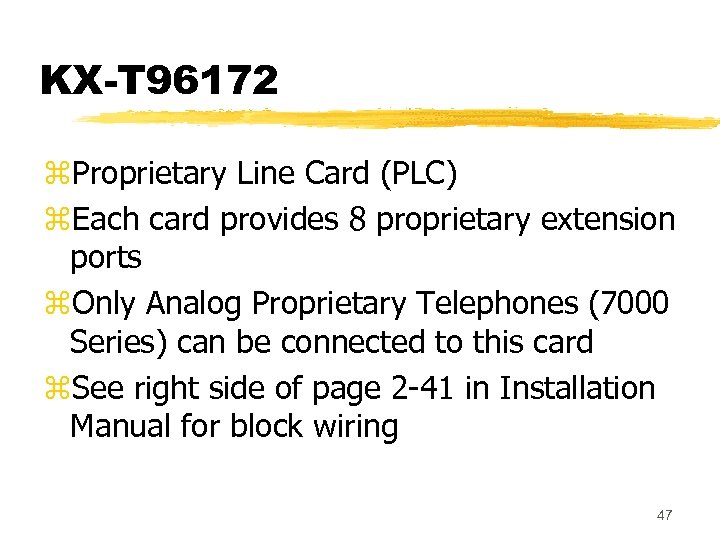

KX-T 96172 z. Proprietary Line Card (PLC) z. Each card provides 8 proprietary extension ports z. Only Analog Proprietary Telephones (7000 Series) can be connected to this card z. See right side of page 2 -41 in Installation Manual for block wiring 47

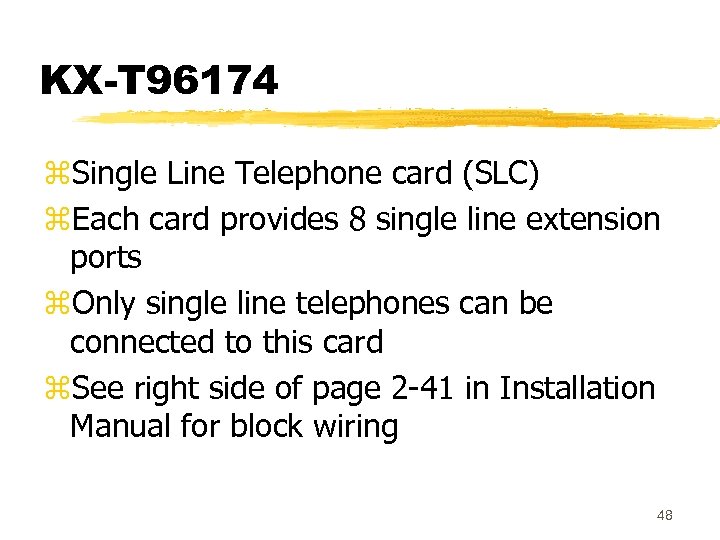

KX-T 96174 z. Single Line Telephone card (SLC) z. Each card provides 8 single line extension ports z. Only single line telephones can be connected to this card z. See right side of page 2 -41 in Installation Manual for block wiring 48

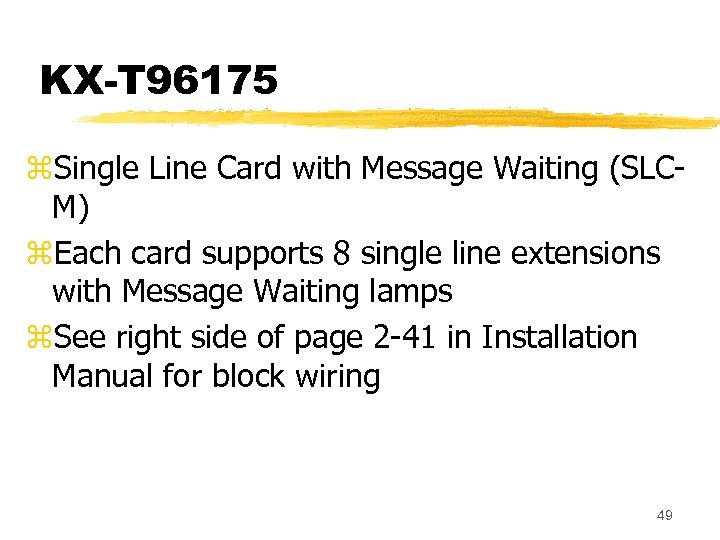

KX-T 96175 z. Single Line Card with Message Waiting (SLCM) z. Each card supports 8 single line extensions with Message Waiting lamps z. See right side of page 2 -41 in Installation Manual for block wiring 49

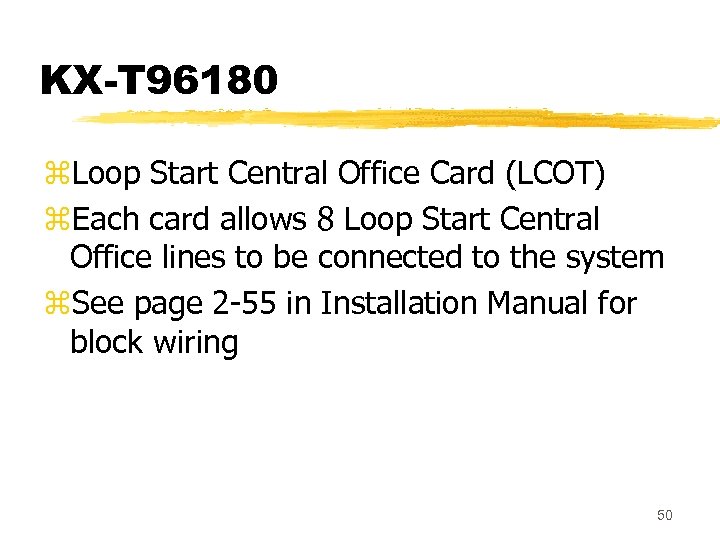

KX-T 96180 z. Loop Start Central Office Card (LCOT) z. Each card allows 8 Loop Start Central Office lines to be connected to the system z. See page 2 -55 in Installation Manual for block wiring 50

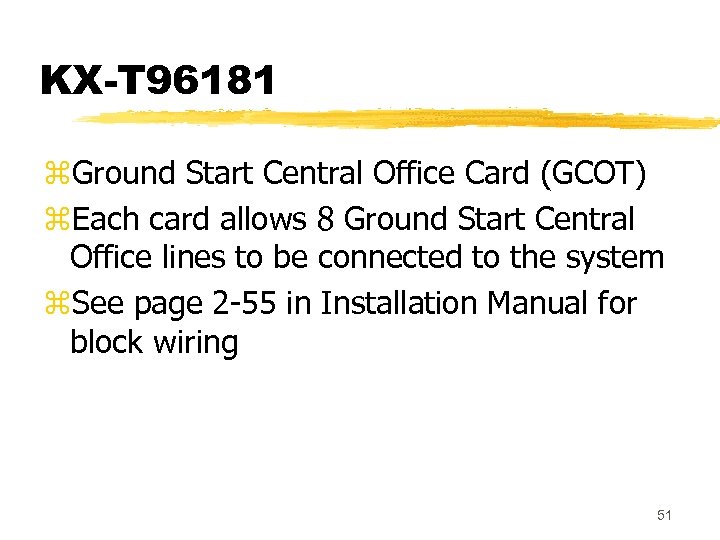

KX-T 96181 z. Ground Start Central Office Card (GCOT) z. Each card allows 8 Ground Start Central Office lines to be connected to the system z. See page 2 -55 in Installation Manual for block wiring 51

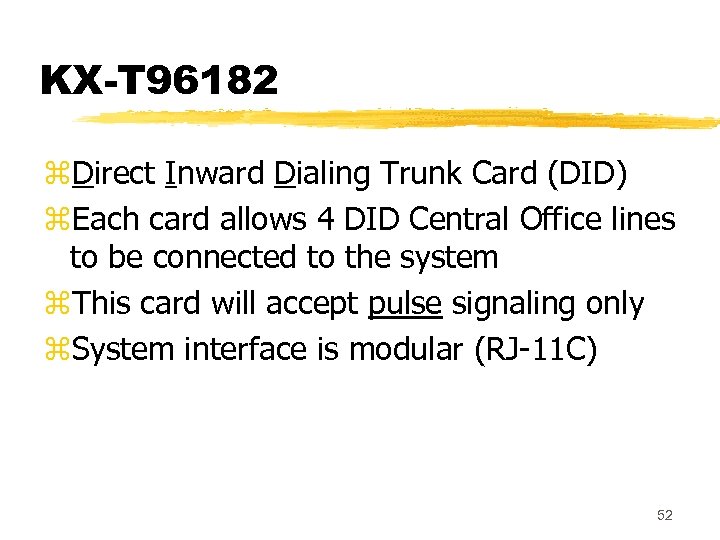

KX-T 96182 z. Direct Inward Dialing Trunk Card (DID) z. Each card allows 4 DID Central Office lines to be connected to the system z. This card will accept pulse signaling only z. System interface is modular (RJ-11 C) 52

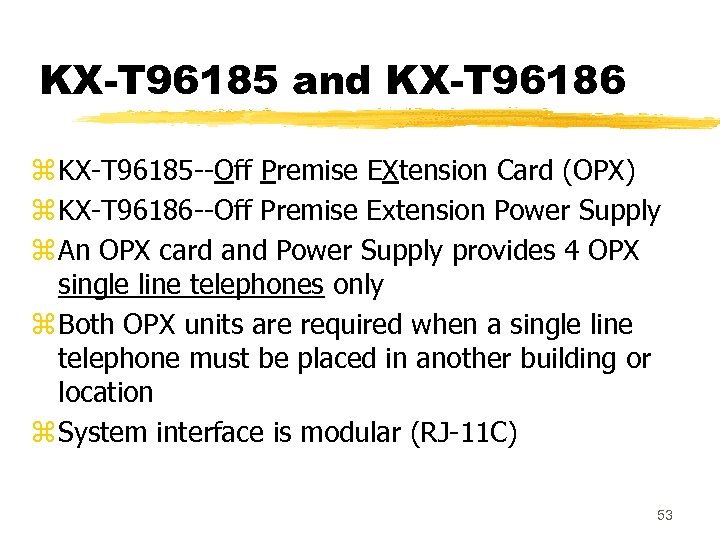

KX-T 96185 and KX-T 96186 z KX-T 96185 --Off Premise EXtension Card (OPX) z KX-T 96186 --Off Premise Extension Power Supply z An OPX card and Power Supply provides 4 OPX single line telephones only z Both OPX units are required when a single line telephone must be placed in another building or location z System interface is modular (RJ-11 C) 53

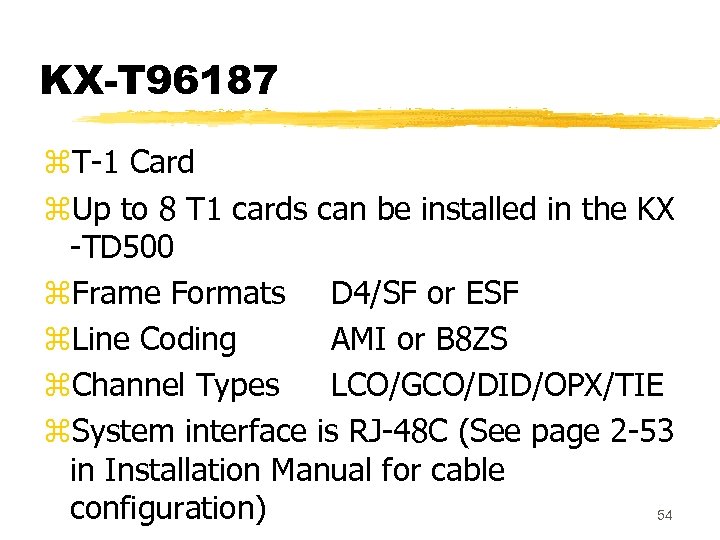

KX-T 96187 z. T-1 Card z. Up to 8 T 1 cards can be installed in the KX -TD 500 z. Frame Formats D 4/SF or ESF z. Line Coding AMI or B 8 ZS z. Channel Types LCO/GCO/DID/OPX/TIE z. System interface is RJ-48 C (See page 2 -53 in Installation Manual for cable configuration) 54

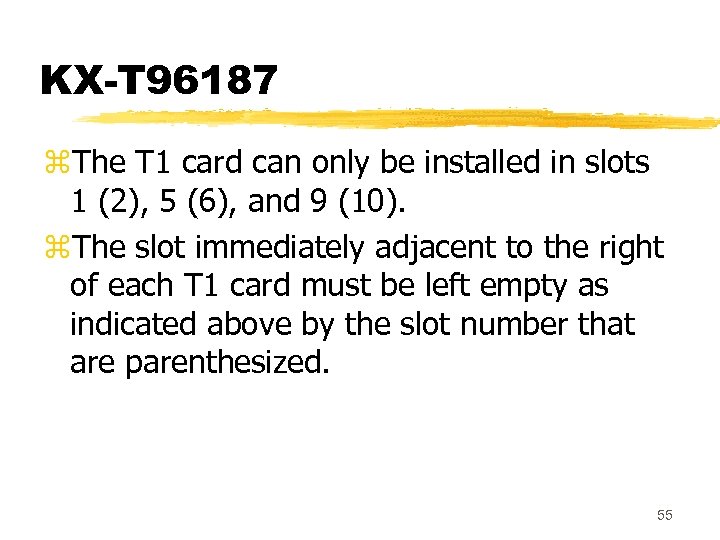

KX-T 96187 z. The T 1 card can only be installed in slots 1 (2), 5 (6), and 9 (10). z. The slot immediately adjacent to the right of each T 1 card must be left empty as indicated above by the slot number that are parenthesized. 55

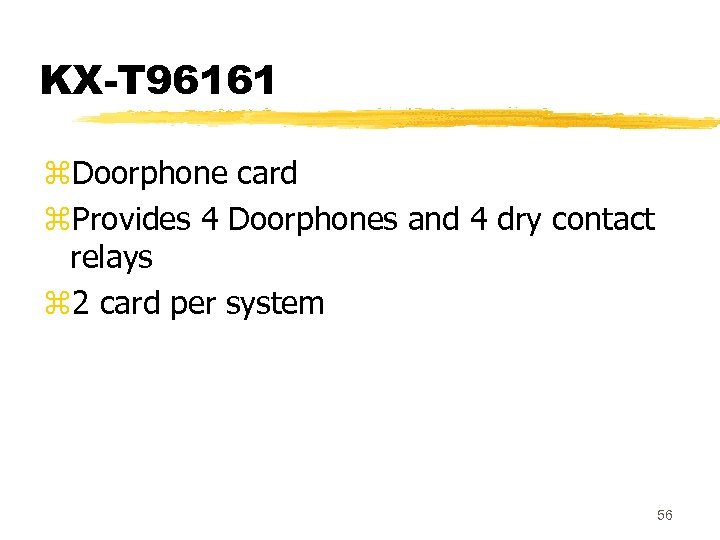

KX-T 96161 z. Doorphone card z. Provides 4 Doorphones and 4 dry contact relays z 2 card per system 56

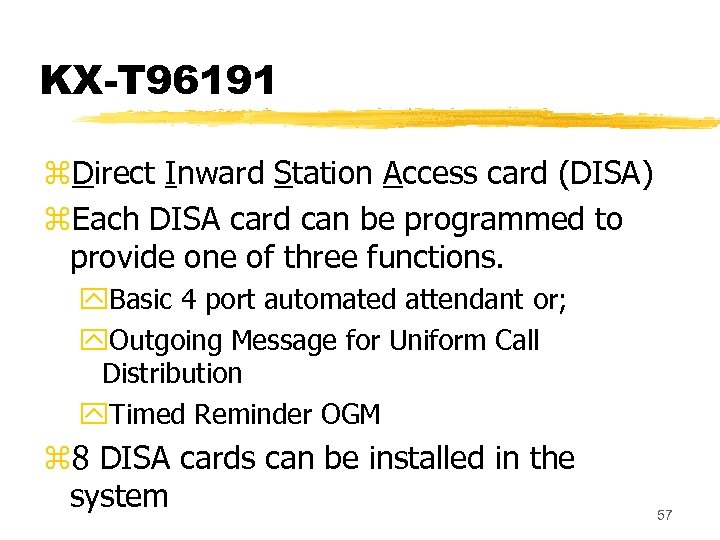

KX-T 96191 z. Direct Inward Station Access card (DISA) z. Each DISA card can be programmed to provide one of three functions. y. Basic 4 port automated attendant or; y. Outgoing Message for Uniform Call Distribution y. Timed Reminder OGM z 8 DISA cards can be installed in the system 57
KX-T 96193 z. Automatic Gain Control card (AGC) z. Each card provides 4 gain controlled CO to CO conference circuits z 8 AGC cards can be installed in the system 58

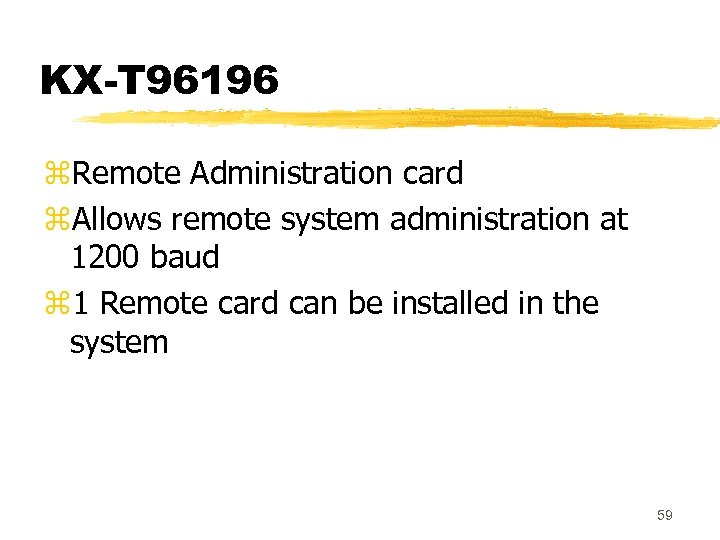

KX-T 96196 z. Remote Administration card z. Allows remote system administration at 1200 baud z 1 Remote card can be installed in the system 59

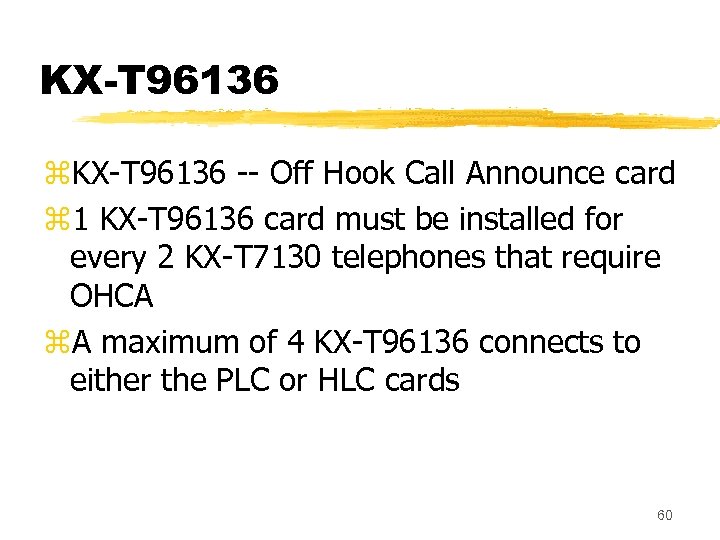

KX-T 96136 z. KX-T 96136 -- Off Hook Call Announce card z 1 KX-T 96136 card must be installed for every 2 KX-T 7130 telephones that require OHCA z. A maximum of 4 KX-T 96136 connects to either the PLC or HLC cards 60

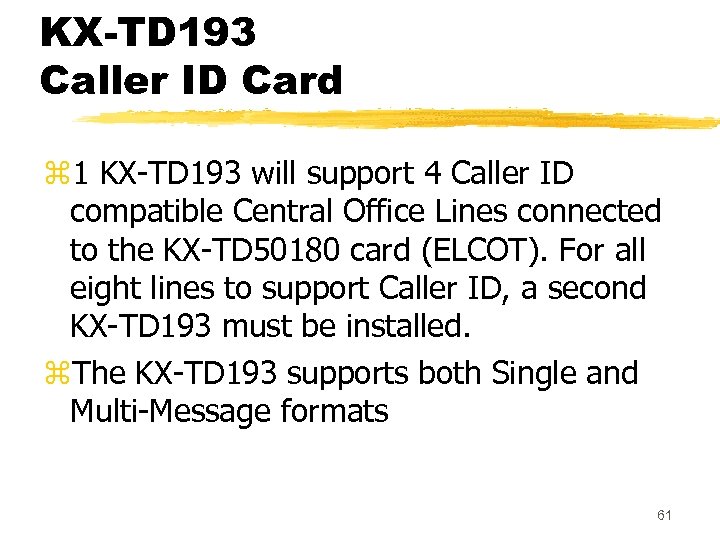

KX-TD 193 Caller ID Card z 1 KX-TD 193 will support 4 Caller ID compatible Central Office Lines connected to the KX-TD 50180 card (ELCOT). For all eight lines to support Caller ID, a second KX-TD 193 must be installed. z. The KX-TD 193 supports both Single and Multi-Message formats 61

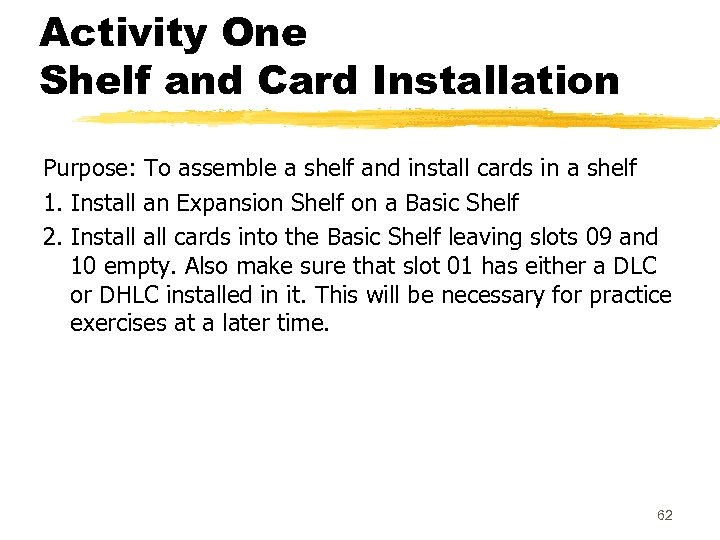

Activity One Shelf and Card Installation Purpose: To assemble a shelf and install cards in a shelf 1. Install an Expansion Shelf on a Basic Shelf 2. Install cards into the Basic Shelf leaving slots 09 and 10 empty. Also make sure that slot 01 has either a DLC or DHLC installed in it. This will be necessary for practice exercises at a later time. 62

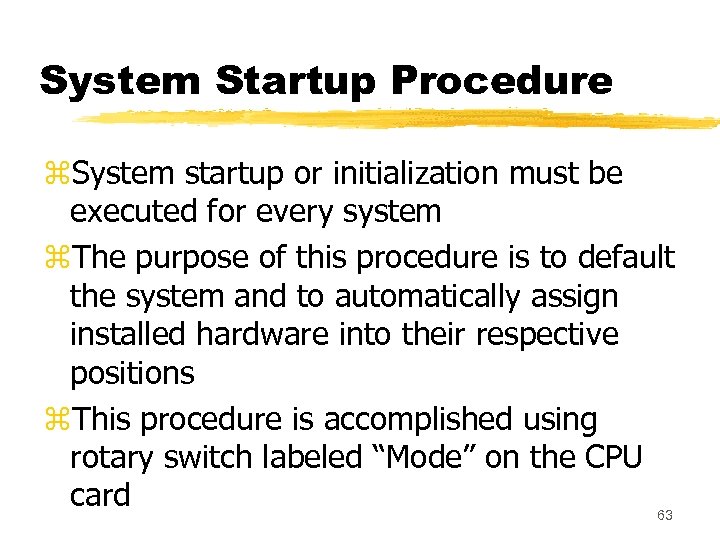

System Startup Procedure z. System startup or initialization must be executed for every system z. The purpose of this procedure is to default the system and to automatically assign installed hardware into their respective positions z. This procedure is accomplished using rotary switch labeled “Mode” on the CPU card 63

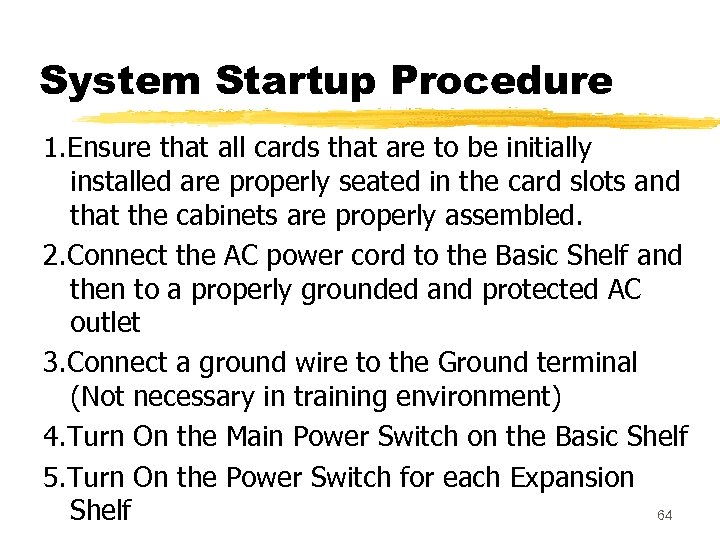

System Startup Procedure 1. Ensure that all cards that are to be initially installed are properly seated in the card slots and that the cabinets are properly assembled. 2. Connect the AC power cord to the Basic Shelf and then to a properly grounded and protected AC outlet 3. Connect a ground wire to the Ground terminal (Not necessary in training environment) 4. Turn On the Main Power Switch on the Basic Shelf 5. Turn On the Power Switch for each Expansion 64 Shelf

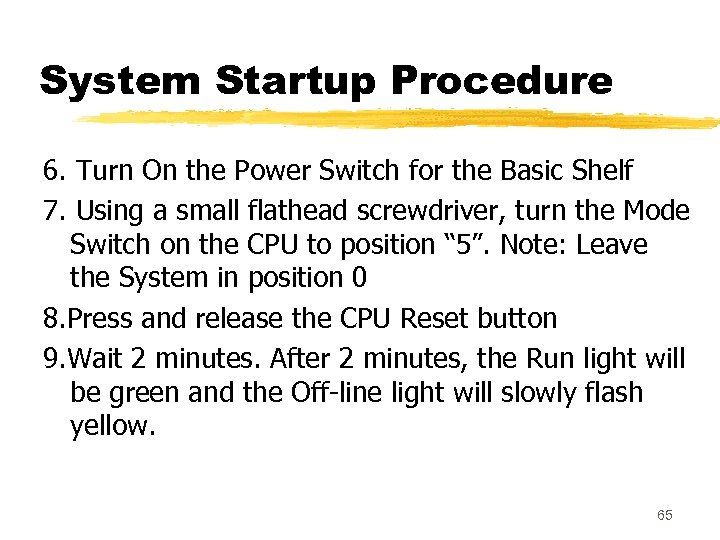

System Startup Procedure 6. Turn On the Power Switch for the Basic Shelf 7. Using a small flathead screwdriver, turn the Mode Switch on the CPU to position “ 5”. Note: Leave the System in position 0 8. Press and release the CPU Reset button 9. Wait 2 minutes. After 2 minutes, the Run light will be green and the Off-line light will slowly flash yellow. 65
System Startup Procedure 10. The system is now in the Off-line mode. Only system administration can be performed. 11. Turn the Mode Switch to position “ 1”. It is very important that the Mode Switch be placed in position ” 1” at this time. If the system were to be reset, or if the AC power were to be lost momentarily, the system would re-initialize and return to the default condition. Any programming changes that you may have been made would have been lost. 66

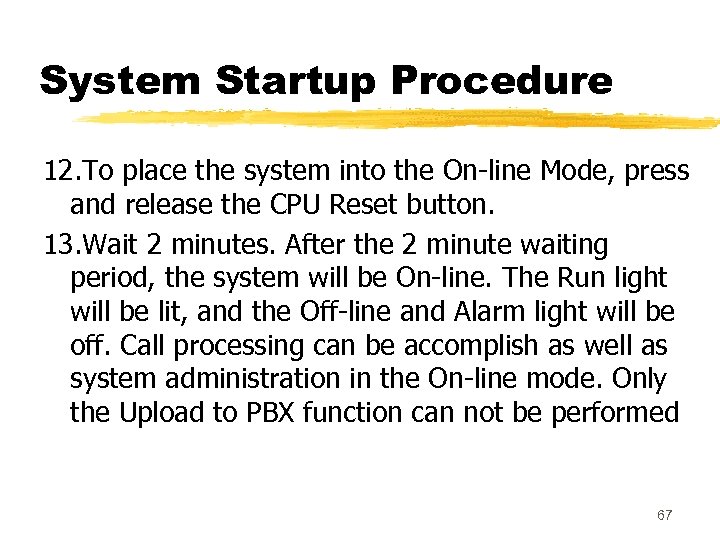

System Startup Procedure 12. To place the system into the On-line Mode, press and release the CPU Reset button. 13. Wait 2 minutes. After the 2 minute waiting period, the system will be On-line. The Run light will be lit, and the Off-line and Alarm light will be off. Call processing can be accomplish as well as system administration in the On-line mode. Only the Upload to PBX function can not be performed 67

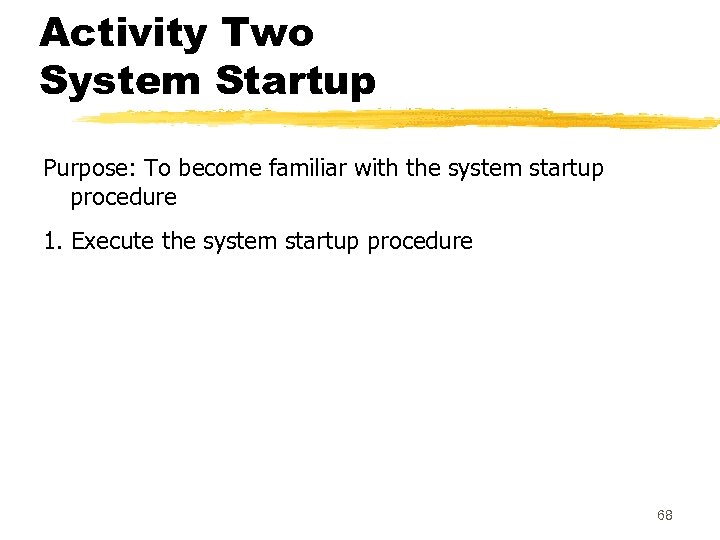

Activity Two System Startup Purpose: To become familiar with the system startup procedure 1. Execute the system startup procedure 68
KX-TD 500 Hardware Addresses z. The KX-TD 500, like most other universal free slot designed PBX’s, utilize a numbering system to identify ports, cards, and shelf locations. z. This is necessary when programming and maintaining the system 69

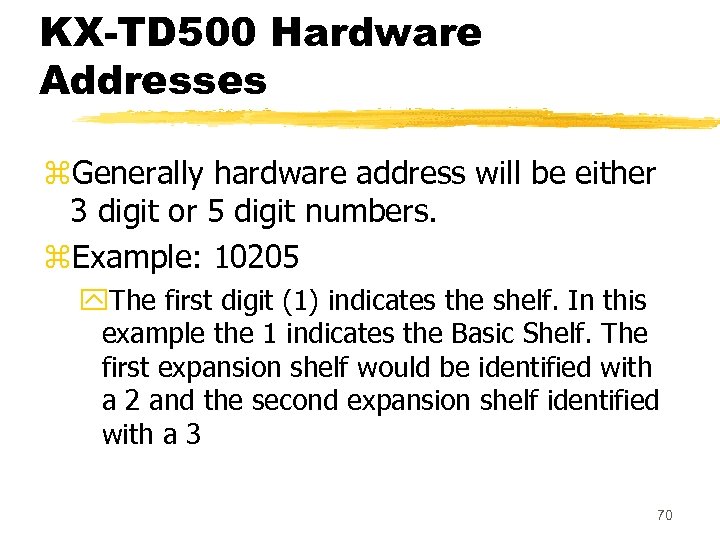

KX-TD 500 Hardware Addresses z. Generally hardware address will be either 3 digit or 5 digit numbers. z. Example: 10205 y. The first digit (1) indicates the shelf. In this example the 1 indicates the Basic Shelf. The first expansion shelf would be identified with a 2 and the second expansion shelf identified with a 3 70

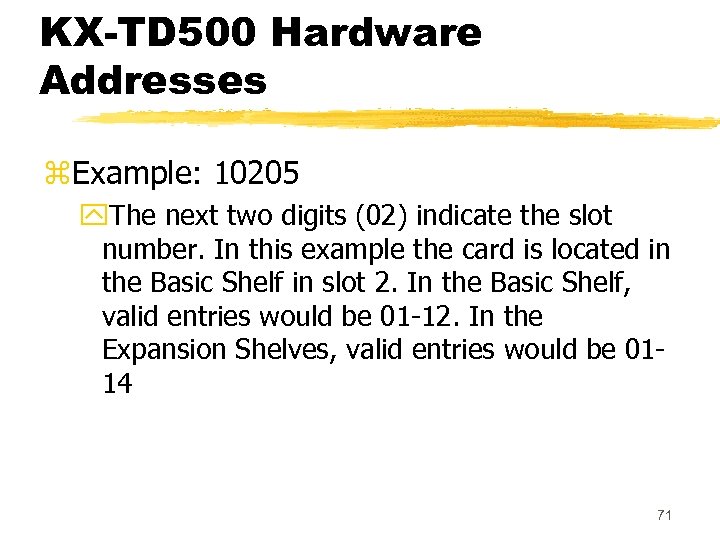

KX-TD 500 Hardware Addresses z. Example: 10205 y. The next two digits (02) indicate the slot number. In this example the card is located in the Basic Shelf in slot 2. In the Basic Shelf, valid entries would be 01 -12. In the Expansion Shelves, valid entries would be 0114 71

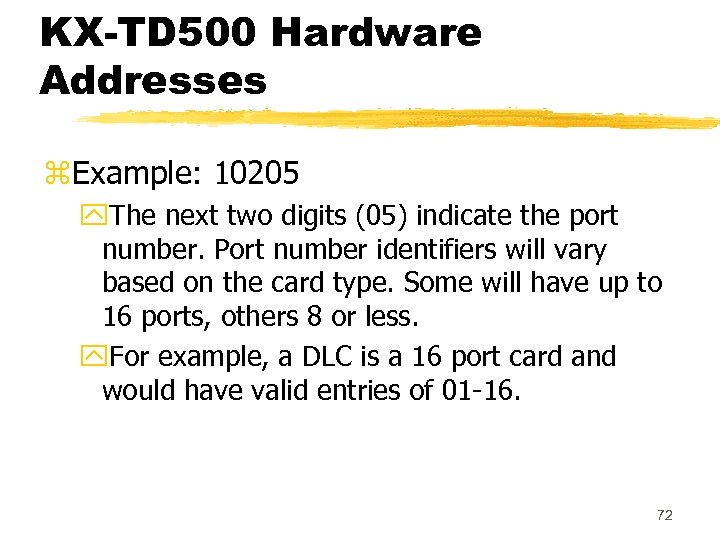

KX-TD 500 Hardware Addresses z. Example: 10205 y. The next two digits (05) indicate the port number. Port number identifiers will vary based on the card type. Some will have up to 16 ports, others 8 or less. y. For example, a DLC is a 16 port card and would have valid entries of 01 -16. 72

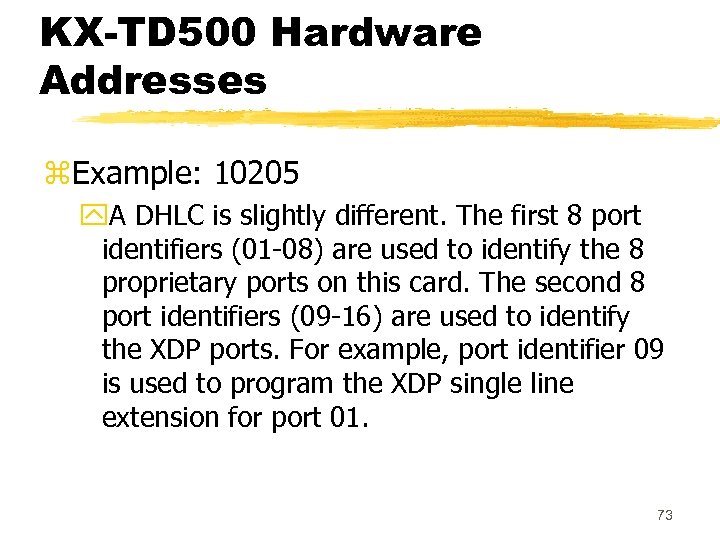

KX-TD 500 Hardware Addresses z. Example: 10205 y. A DHLC is slightly different. The first 8 port identifiers (01 -08) are used to identify the 8 proprietary ports on this card. The second 8 port identifiers (09 -16) are used to identify the XDP ports. For example, port identifier 09 is used to program the XDP single line extension for port 01. 73

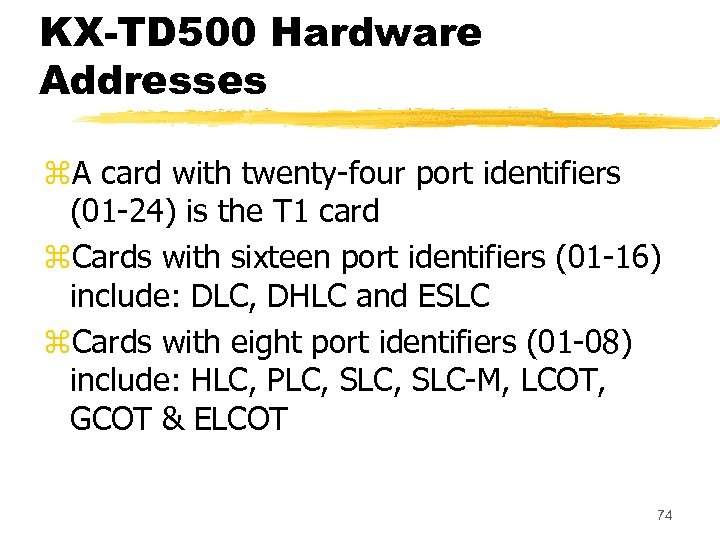

KX-TD 500 Hardware Addresses z. A card with twenty-four port identifiers (01 -24) is the T 1 card z. Cards with sixteen port identifiers (01 -16) include: DLC, DHLC and ESLC z. Cards with eight port identifiers (01 -08) include: HLC, PLC, SLC-M, LCOT, GCOT & ELCOT 74
KX-TD 500 Hardware Addresses z. Cards with four port identifiers (01 -04) include: OPX, DID, DISA, AGC & DPH z. Cards that only have no port identifier include: RMT and ERMT 75

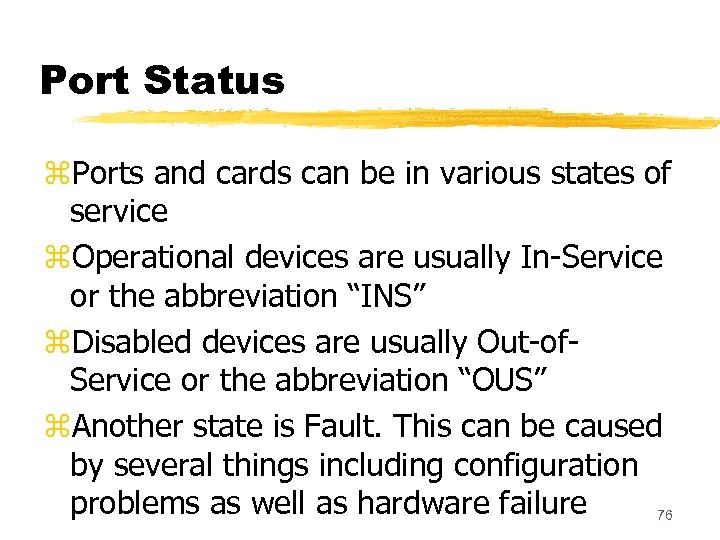

Port Status z. Ports and cards can be in various states of service z. Operational devices are usually In-Service or the abbreviation “INS” z. Disabled devices are usually Out-of. Service or the abbreviation “OUS” z. Another state is Fault. This can be caused by several things including configuration problems as well as hardware failure 76
Port Status z. The final state of service is called Busy-out. This occurs on CO ports that have been placed in the Busy-out state by a system administrator. z. Generally the “INS” and “OUS” states are most common. Changing from one to another is accomplished by using different screens from within the KX-TD 500 Maintenance Console programming tool 77
Port Status z. Within the Maintenance Console programming tool, the state of service can be identified and changed by clicking on the “Status” button. The text on the “Status” button indicates the current state, and the state can be toggled from one state, for example OUS, to the alternative state, in this case INS, by clicking on the “Status” button and then selecting OK. 78
79

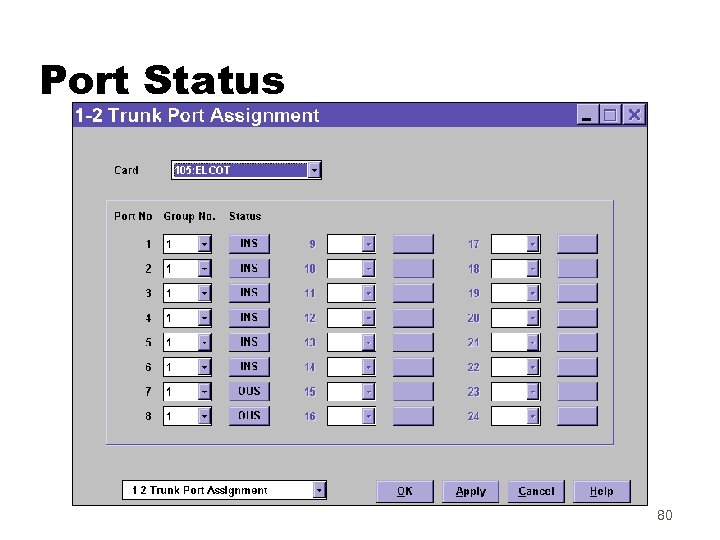

Port Status 80

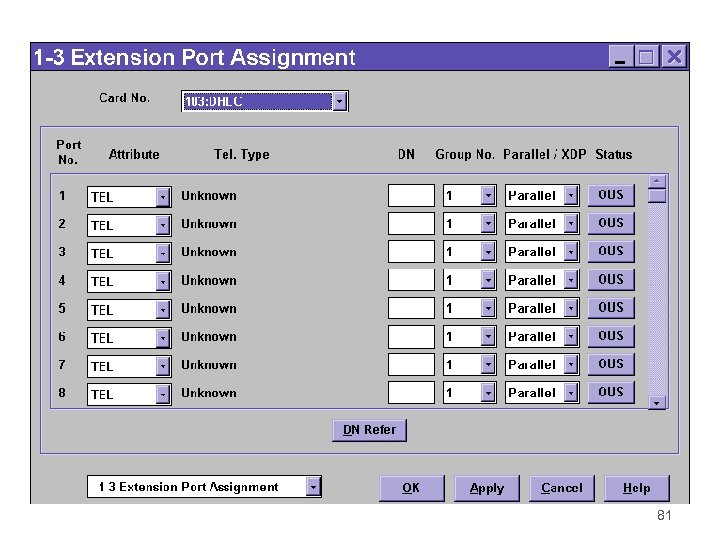

81

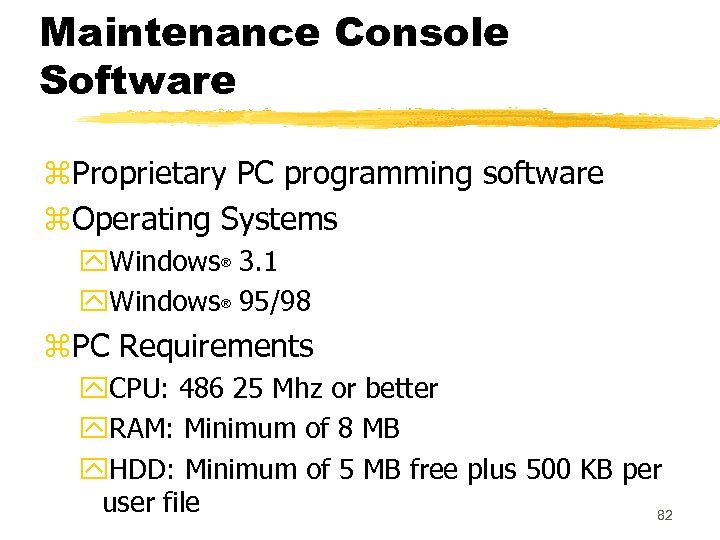

Maintenance Console Software z. Proprietary PC programming software z. Operating Systems y. Windows 3. 1 y. Windows 95/98 ® ® z. PC Requirements y. CPU: 486 25 Mhz or better y. RAM: Minimum of 8 MB y. HDD: Minimum of 5 MB free plus 500 KB per user file 82

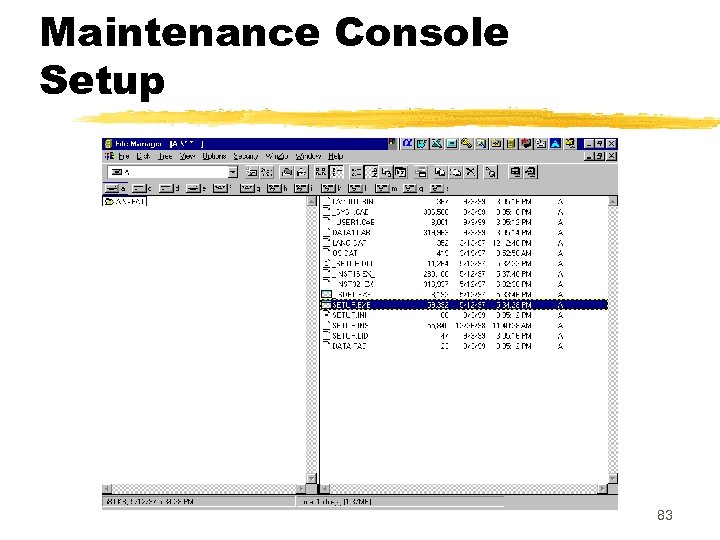

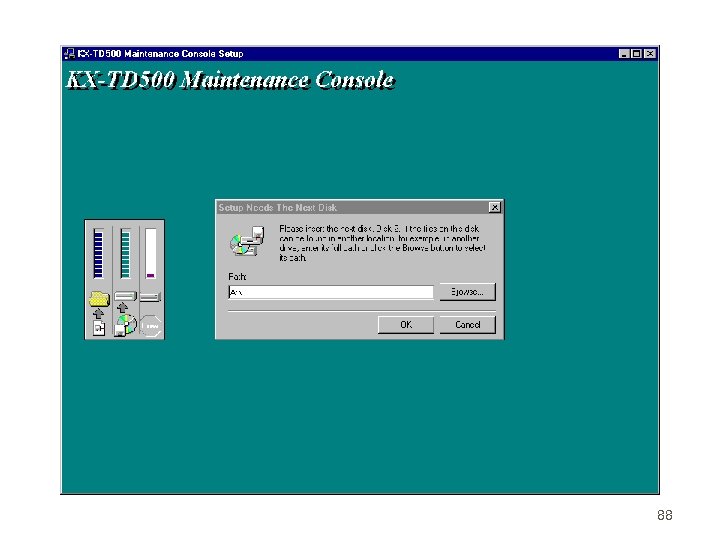

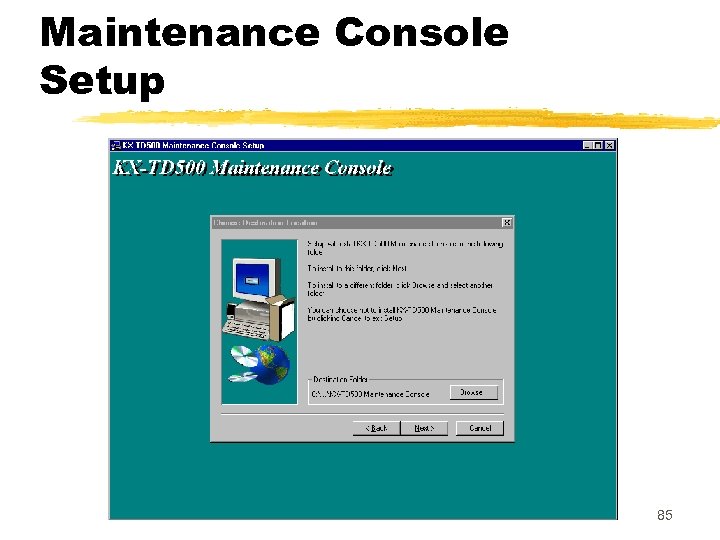

Maintenance Console Setup 83

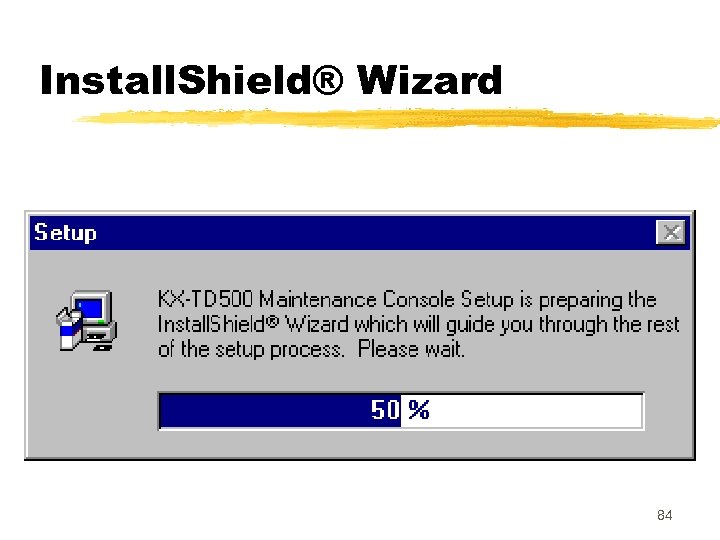

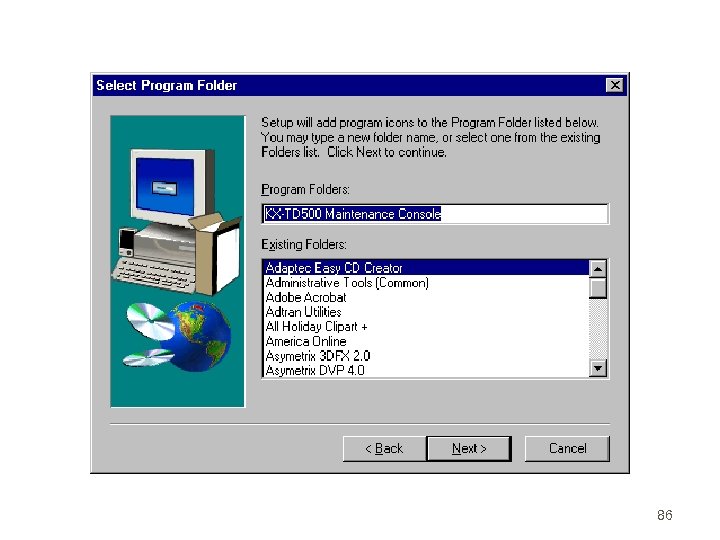

Install. Shield® Wizard 84
Maintenance Console Setup 85
86
87
88
89

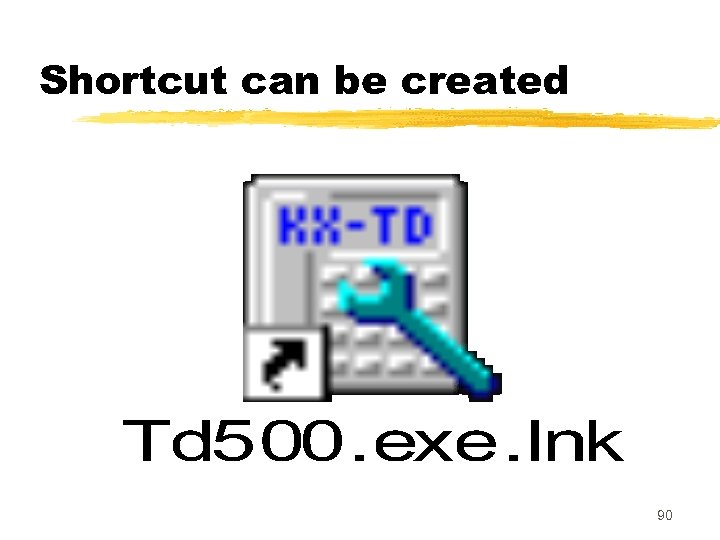

Shortcut can be created 90

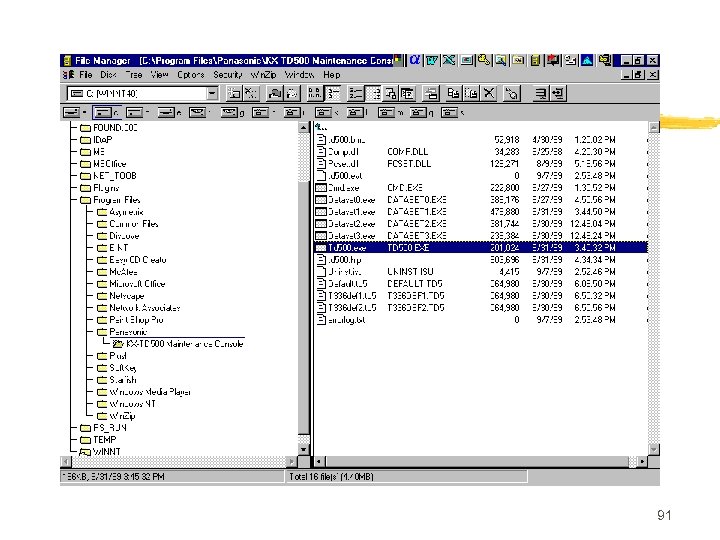

91
Maintenance Console Software 92

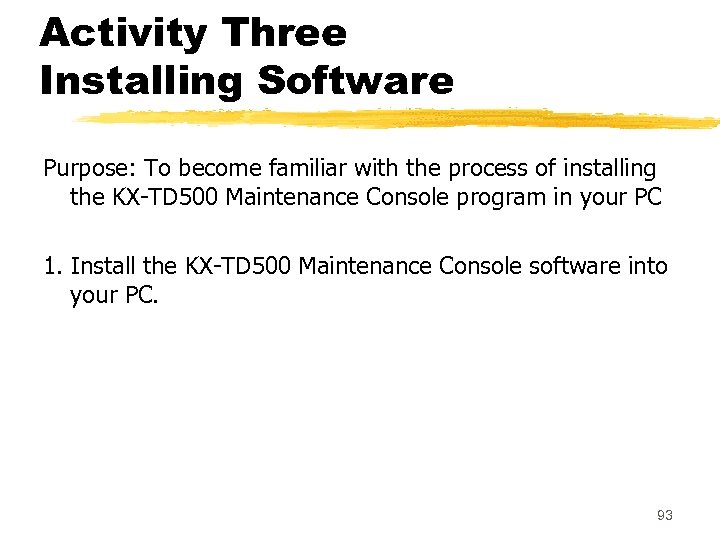

Activity Three Installing Software Purpose: To become familiar with the process of installing the KX-TD 500 Maintenance Console program in your PC 1. Install the KX-TD 500 Maintenance Console software into your PC. 93

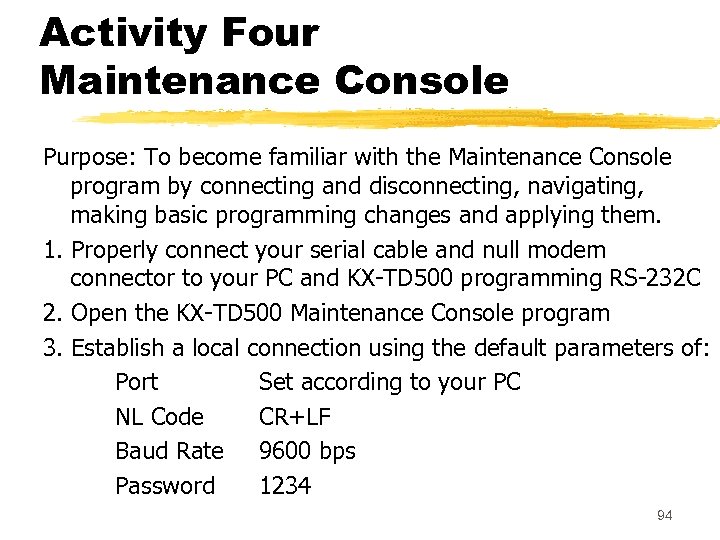

Activity Four Maintenance Console Purpose: To become familiar with the Maintenance Console program by connecting and disconnecting, navigating, making basic programming changes and applying them. 1. Properly connect your serial cable and null modem connector to your PC and KX-TD 500 programming RS-232 C 2. Open the KX-TD 500 Maintenance Console program 3. Establish a local connection using the default parameters of: Port Set according to your PC NL Code CR+LF Baud Rate 9600 bps Password 1234 94

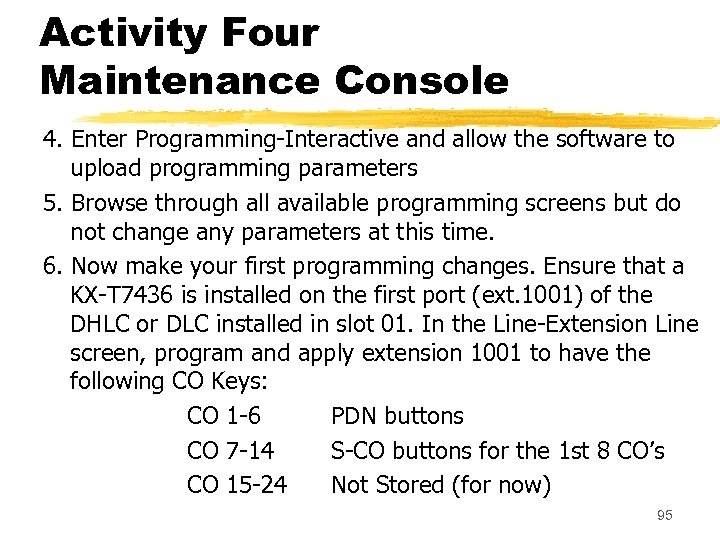

Activity Four Maintenance Console 4. Enter Programming-Interactive and allow the software to upload programming parameters 5. Browse through all available programming screens but do not change any parameters at this time. 6. Now make your first programming changes. Ensure that a KX-T 7436 is installed on the first port (ext. 1001) of the DHLC or DLC installed in slot 01. In the Line-Extension Line screen, program and apply extension 1001 to have the following CO Keys: CO 1 -6 PDN buttons CO 7 -14 S-CO buttons for the 1 st 8 CO’s CO 15 -24 Not Stored (for now) 95
Activity Four Maintenance Console 7. Next, program and apply another extension to have the following CO Keys: CO 1 -8 Single-CO CO 9 -18 Not Stored (for now) CO 19 -20 One-Touch buttons CO 21 -24 Not Stored (for now) 8. Now copy all parameters from the above extension to all other extension other than extension 1001 that was programmed in step 6. 9. Name the first 24 extensions 10. Set the Time and Date 96

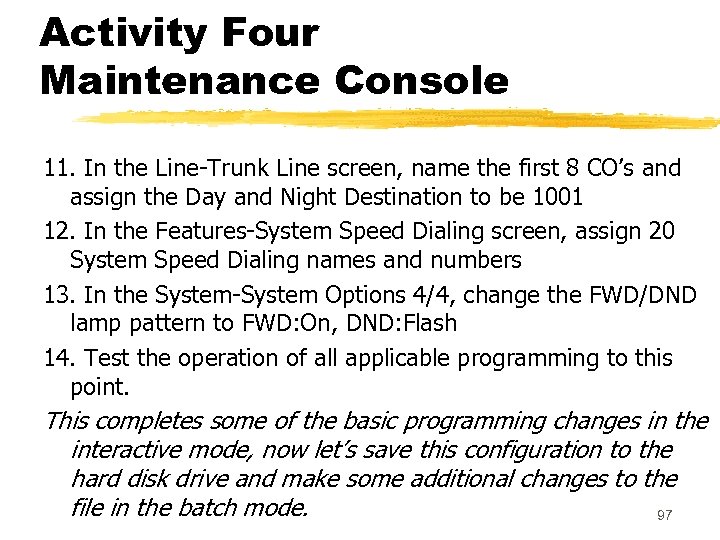

Activity Four Maintenance Console 11. In the Line-Trunk Line screen, name the first 8 CO’s and assign the Day and Night Destination to be 1001 12. In the Features-System Speed Dialing screen, assign 20 System Speed Dialing names and numbers 13. In the System-System Options 4/4, change the FWD/DND lamp pattern to FWD: On, DND: Flash 14. Test the operation of all applicable programming to this point. This completes some of the basic programming changes in the interactive mode, now let’s save this configuration to the hard disk drive and make some additional changes to the file in the batch mode. 97

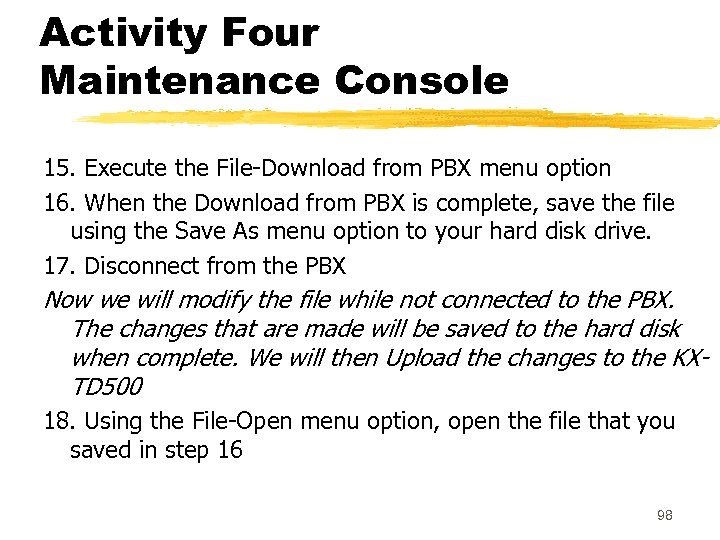

Activity Four Maintenance Console 15. Execute the File-Download from PBX menu option 16. When the Download from PBX is complete, save the file using the Save As menu option to your hard disk drive. 17. Disconnect from the PBX Now we will modify the file while not connected to the PBX. The changes that are made will be saved to the hard disk when complete. We will then Upload the changes to the KXTD 500 18. Using the File-Open menu option, open the file that you saved in step 16 98

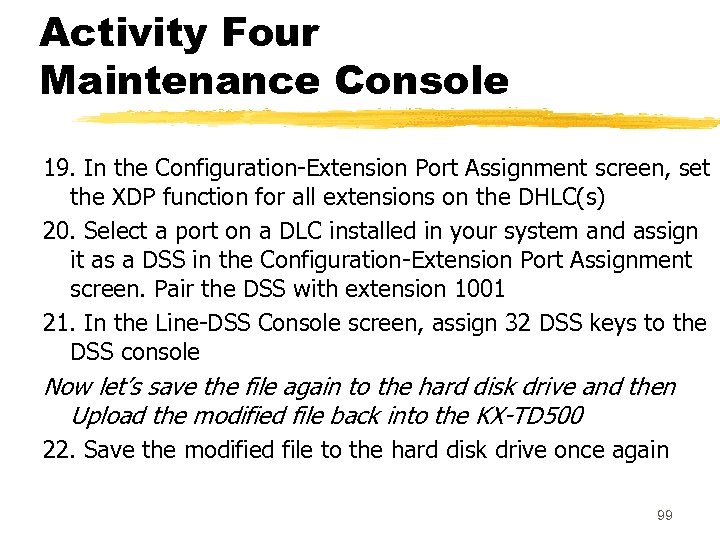

Activity Four Maintenance Console 19. In the Configuration-Extension Port Assignment screen, set the XDP function for all extensions on the DHLC(s) 20. Select a port on a DLC installed in your system and assign it as a DSS in the Configuration-Extension Port Assignment screen. Pair the DSS with extension 1001 21. In the Line-DSS Console screen, assign 32 DSS keys to the DSS console Now let’s save the file again to the hard disk drive and then Upload the modified file back into the KX-TD 500 22. Save the modified file to the hard disk drive once again 99

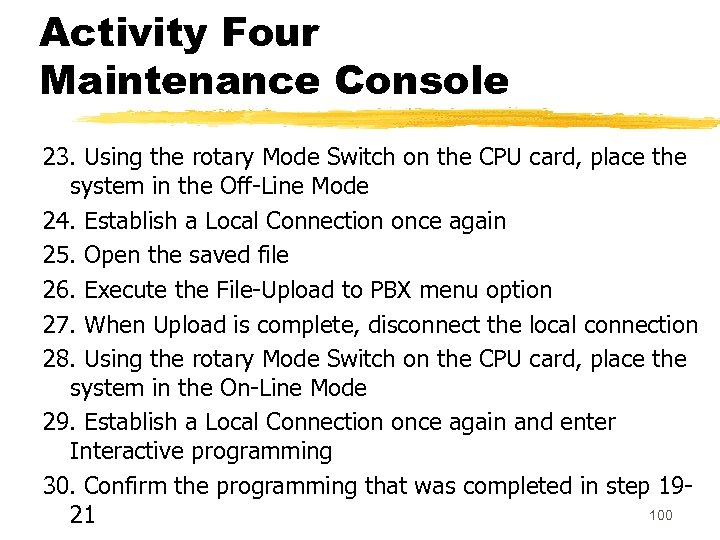

Activity Four Maintenance Console 23. Using the rotary Mode Switch on the CPU card, place the system in the Off-Line Mode 24. Establish a Local Connection once again 25. Open the saved file 26. Execute the File-Upload to PBX menu option 27. When Upload is complete, disconnect the local connection 28. Using the rotary Mode Switch on the CPU card, place the system in the On-Line Mode 29. Establish a Local Connection once again and enter Interactive programming 30. Confirm the programming that was completed in step 19100 21
Activity Five Toll Restriction Purpose: To understand the KX-TD 500 toll restriction capabilities 1. Restrict extension 1001 and 1002 from dialing 1 -900, 976, 1***976, 011 and 1 -411. Allow all other calls. 2. Allow extension 1003 to dial local calls and 1 -800 calls only. 101

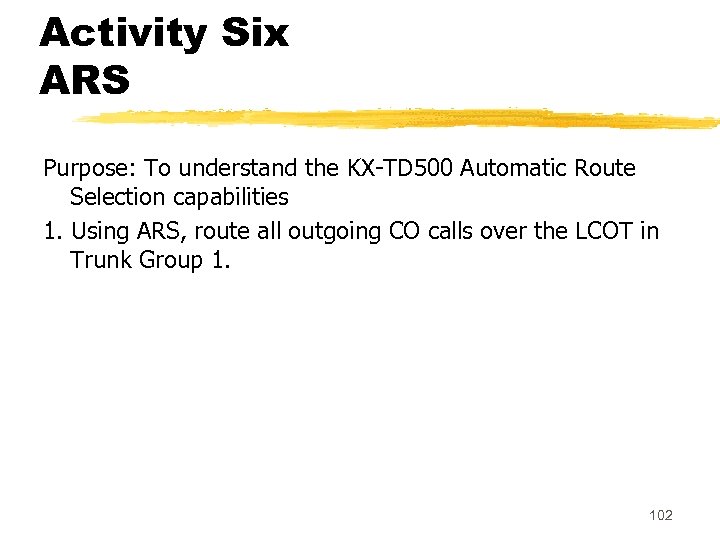

Activity Six ARS Purpose: To understand the KX-TD 500 Automatic Route Selection capabilities 1. Using ARS, route all outgoing CO calls over the LCOT in Trunk Group 1. 102

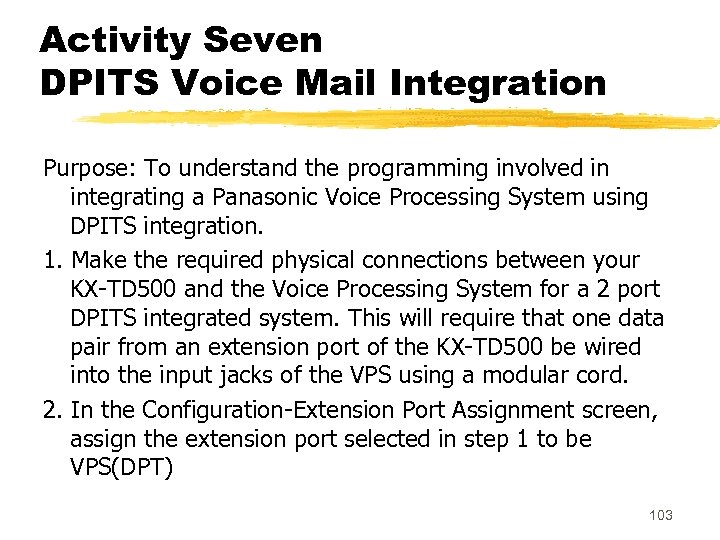

Activity Seven DPITS Voice Mail Integration Purpose: To understand the programming involved in integrating a Panasonic Voice Processing System using DPITS integration. 1. Make the required physical connections between your KX-TD 500 and the Voice Processing System for a 2 port DPITS integrated system. This will require that one data pair from an extension port of the KX-TD 500 be wired into the input jacks of the VPS using a modular cord. 2. In the Configuration-Extension Port Assignment screen, assign the extension port selected in step 1 to be VPS(DPT) 103

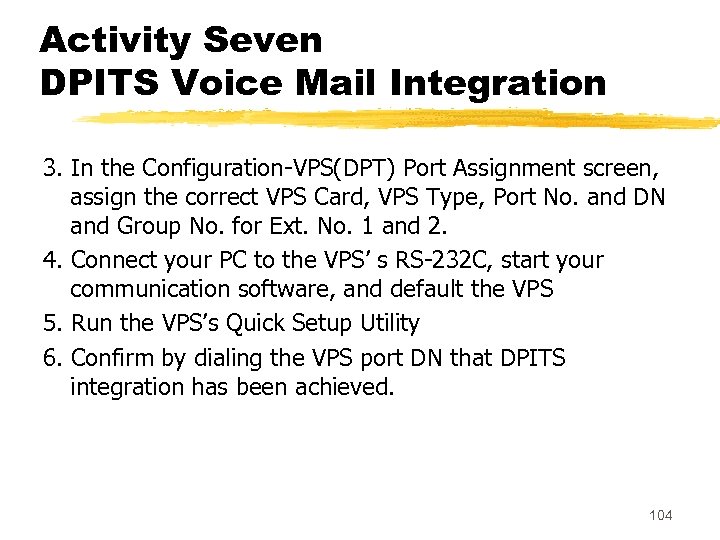

Activity Seven DPITS Voice Mail Integration 3. In the Configuration-VPS(DPT) Port Assignment screen, assign the correct VPS Card, VPS Type, Port No. and DN and Group No. for Ext. No. 1 and 2. 4. Connect your PC to the VPS’ s RS-232 C, start your communication software, and default the VPS 5. Run the VPS’s Quick Setup Utility 6. Confirm by dialing the VPS port DN that DPITS integration has been achieved. 104

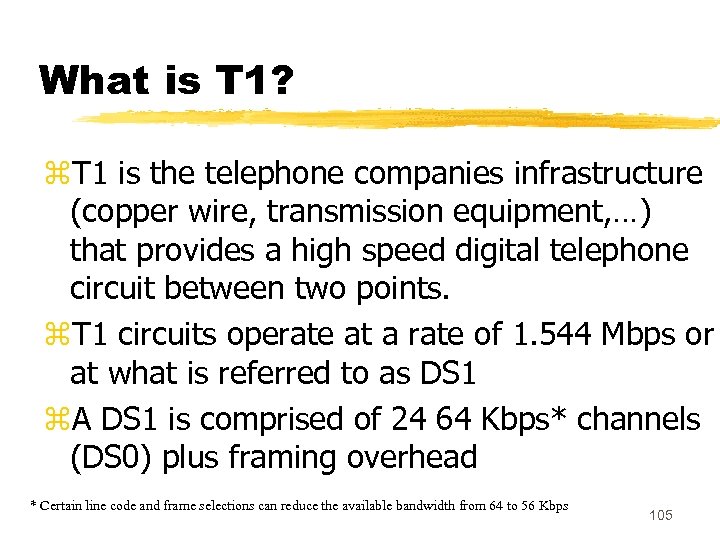

What is T 1? z. T 1 is the telephone companies infrastructure (copper wire, transmission equipment, …) that provides a high speed digital telephone circuit between two points. z. T 1 circuits operate at a rate of 1. 544 Mbps or at what is referred to as DS 1 z. A DS 1 is comprised of 24 64 Kbps* channels (DS 0) plus framing overhead * Certain line code and frame selections can reduce the available bandwidth from 64 to 56 Kbps 105

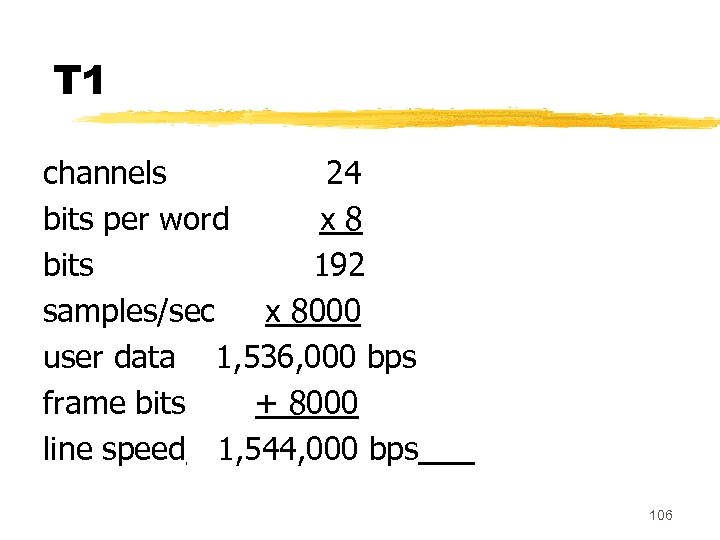

T 1 channels 24 bits per word x 8 bits 192 samples/sec x 8000 user data 1, 536, 000 bps frame bits + 8000 line speed 1, 544, 000 bps 106

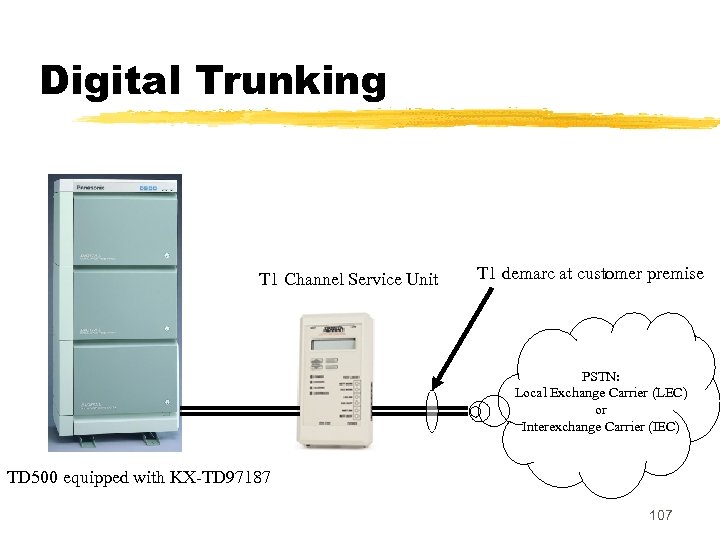

Digital Trunking T 1 Channel Service Unit T 1 demarc at customer premise PSTN: Local Exchange Carrier (LEC) or Interexchange Carrier (IEC) TD 500 equipped with KX-TD 97187 107

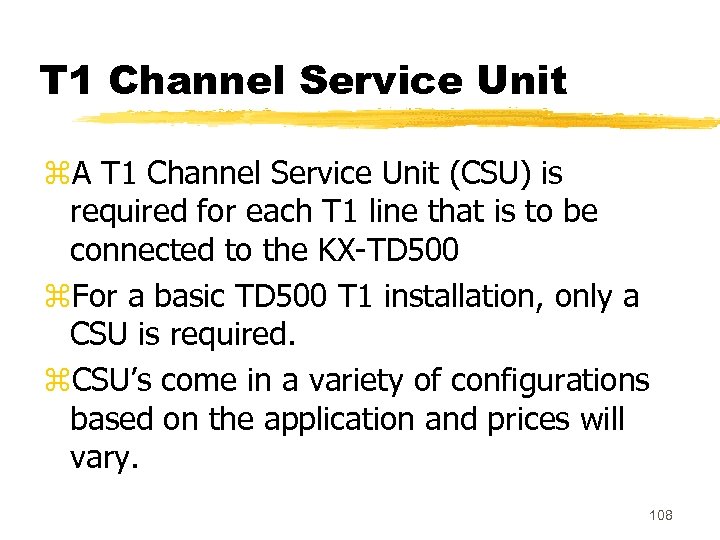

T 1 Channel Service Unit z. A T 1 Channel Service Unit (CSU) is required for each T 1 line that is to be connected to the KX-TD 500 z. For a basic TD 500 T 1 installation, only a CSU is required. z. CSU’s come in a variety of configurations based on the application and prices will vary. 108

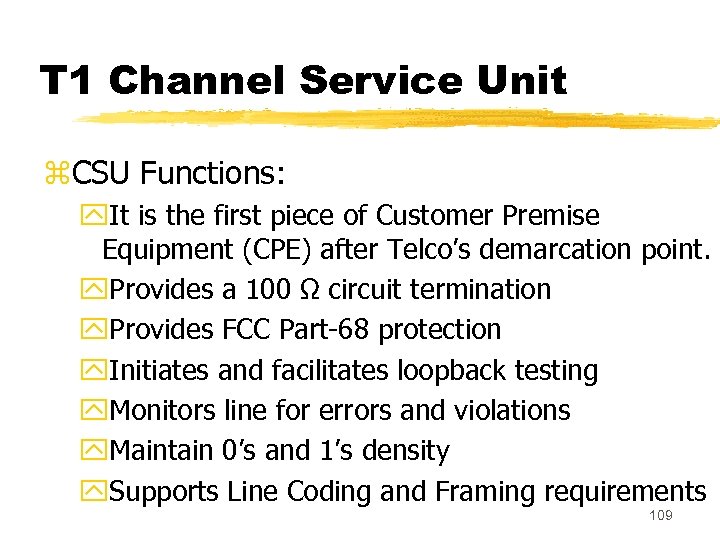

T 1 Channel Service Unit z. CSU Functions: y. It is the first piece of Customer Premise Equipment (CPE) after Telco’s demarcation point. y. Provides a 100 Ω circuit termination y. Provides FCC Part-68 protection y. Initiates and facilitates loopback testing y. Monitors line for errors and violations y. Maintain 0’s and 1’s density y. Supports Line Coding and Framing requirements 109

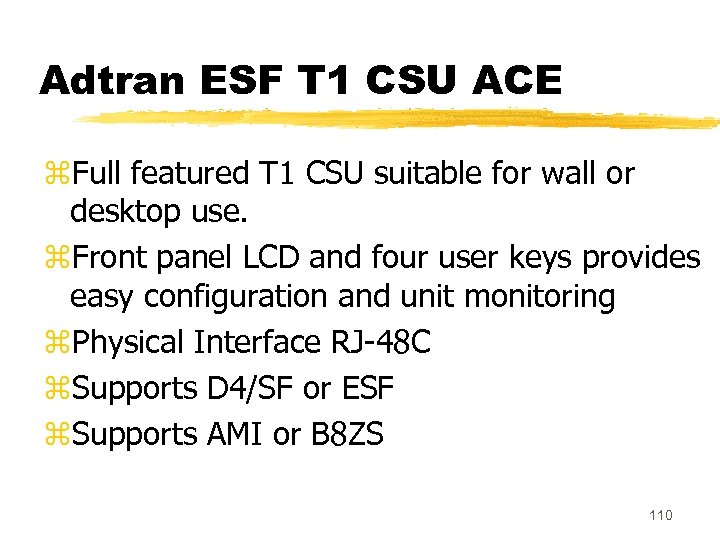

Adtran ESF T 1 CSU ACE z. Full featured T 1 CSU suitable for wall or desktop use. z. Front panel LCD and four user keys provides easy configuration and unit monitoring z. Physical Interface RJ-48 C z. Supports D 4/SF or ESF z. Supports AMI or B 8 ZS 110

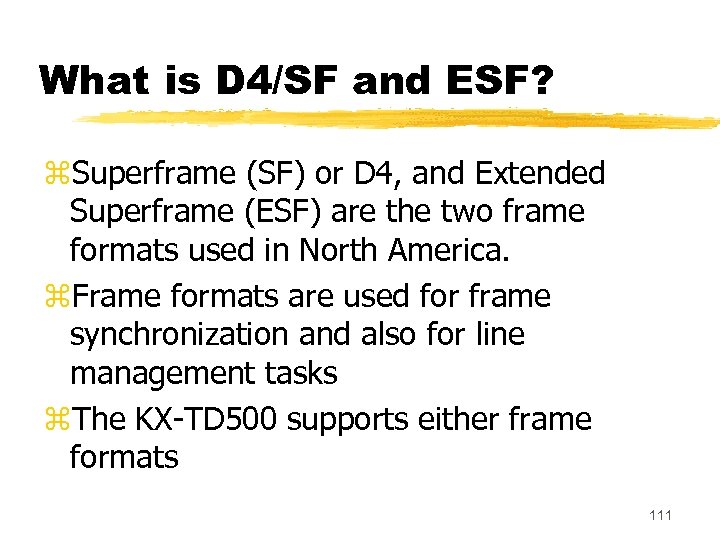

What is D 4/SF and ESF? z. Superframe (SF) or D 4, and Extended Superframe (ESF) are the two frame formats used in North America. z. Frame formats are used for frame synchronization and also for line management tasks z. The KX-TD 500 supports either frame formats 111

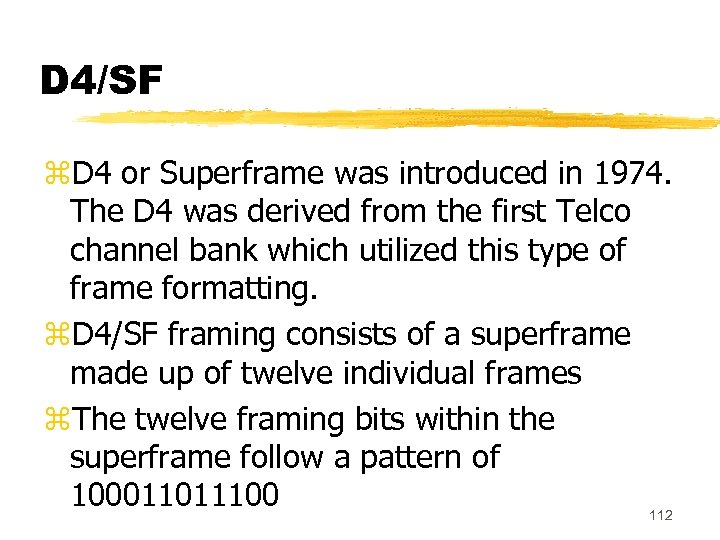

D 4/SF z. D 4 or Superframe was introduced in 1974. The D 4 was derived from the first Telco channel bank which utilized this type of frame formatting. z. D 4/SF framing consists of a superframe made up of twelve individual frames z. The twelve framing bits within the superframe follow a pattern of 100011011100 112

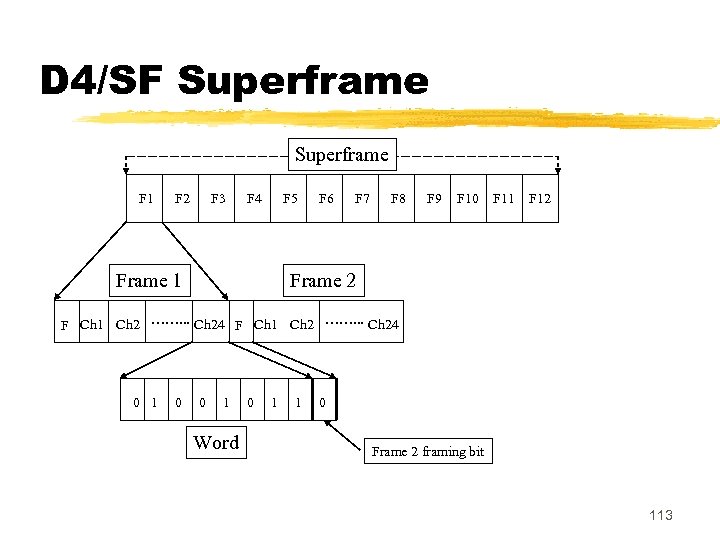

D 4/SF Superframe F 1 F 2 F 3 F 4 F 5 Frame 1 F 6 F 7 F 8 F 9 F 10 F 11 F 12 Frame 2 F Ch 1 Ch 2 ……. . . Ch 24 0 1 0 0 1 Word 0 1 1 0 Frame 2 framing bit 113

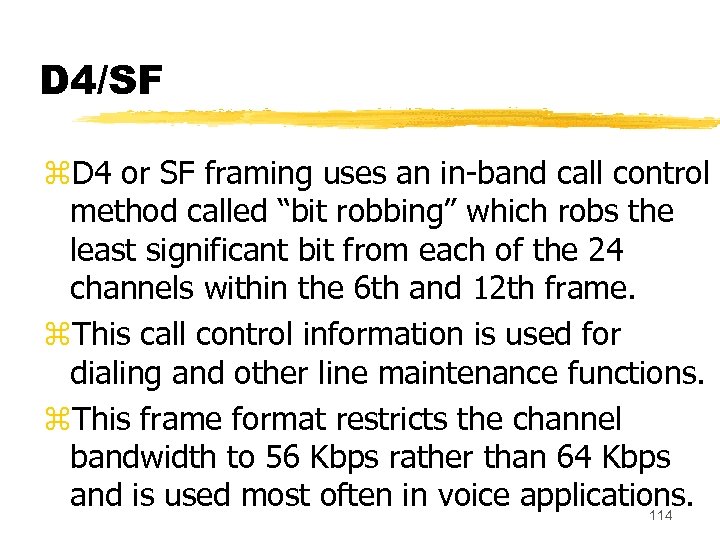

D 4/SF z. D 4 or SF framing uses an in-band call control method called “bit robbing” which robs the least significant bit from each of the 24 channels within the 6 th and 12 th frame. z. This call control information is used for dialing and other line maintenance functions. z. This frame format restricts the channel bandwidth to 56 Kbps rather than 64 Kbps and is used most often in voice applications. 114

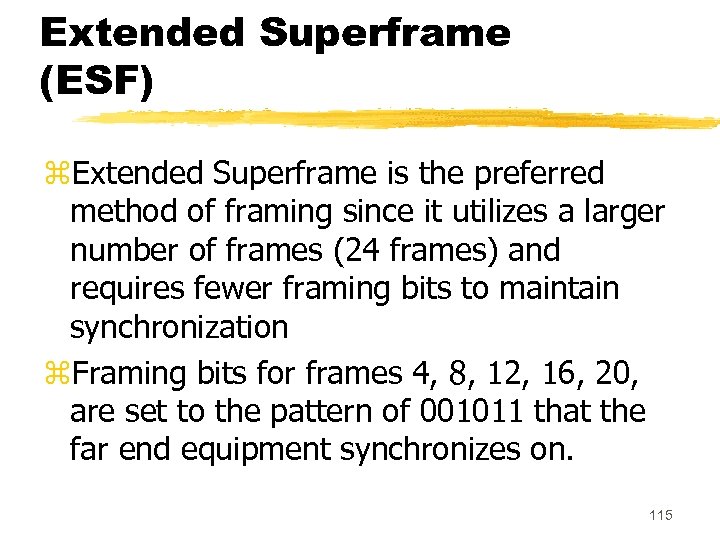

Extended Superframe (ESF) z. Extended Superframe is the preferred method of framing since it utilizes a larger number of frames (24 frames) and requires fewer framing bits to maintain synchronization z. Framing bits for frames 4, 8, 12, 16, 20, are set to the pattern of 001011 that the far end equipment synchronizes on. 115
Extended Superframe (ESF) z. Since fewer frames require framing bits, the excess framing bits for the other frames can be used for other functions such as Cyclic Redundancy Checks and for an Embedded Operations Channel z. The Embedded Operation Channel is an Out-of-Band call control method used for signaling, diagnostics as well as other functions. 116

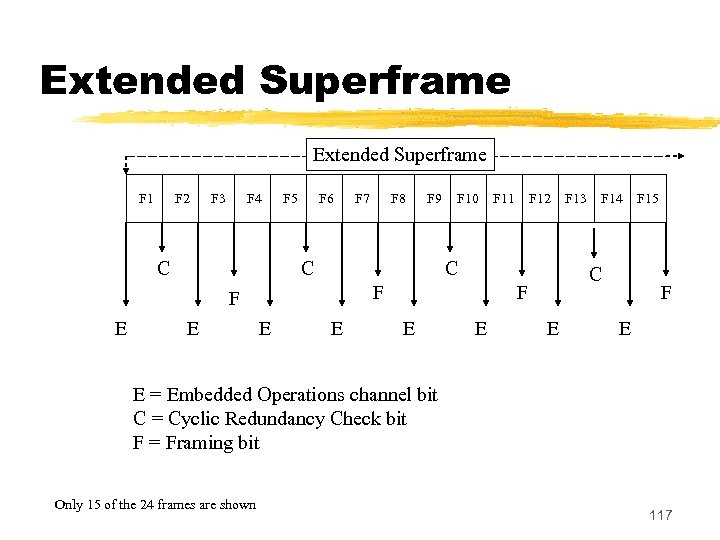

Extended Superframe F 1 F 2 F 3 F 4 C F 5 F 6 F 8 F 9 C E F 10 F E F 11 F 12 C F E F 7 E E F 14 C F E F 13 E F 15 F E E = Embedded Operations channel bit C = Cyclic Redundancy Check bit F = Framing bit Only 15 of the 24 frames are shown 117
Extended Superframe (ESF) z. ESF should be used whenever possible since it has a more sophisticated diagnostic and maintenance capability and allows for a 64 Kbps channel bandwidth. 118
What is AMI and B 8 ZS? z. Alternate Mark Inversion and Binary 8 Zero Substitution are the two Line Coding formats used in North America for T 1 lines z. The purpose of Line Coding is to maintains synchronization by ensuring that no more than 7 consecutive “ 0’s” are transmitted within a DS 0. 119
Signaling Formats z. Unipolar Signaling y. Used internally within most DTE equipment such as the KX-TD 500 and computers +5 v 0 1 1 0 0 0 v z. Bipolar Alternate Mark Inversion y. T 1 lines utilize this type of signaling format +3 v 0 1 1 0 0 0 v -3 v 120

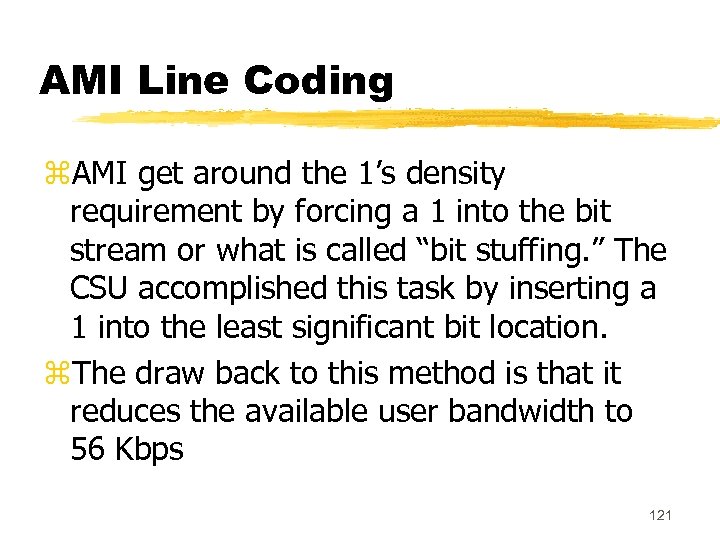

AMI Line Coding z. AMI get around the 1’s density requirement by forcing a 1 into the bit stream or what is called “bit stuffing. ” The CSU accomplished this task by inserting a 1 into the least significant bit location. z. The draw back to this method is that it reduces the available user bandwidth to 56 Kbps 121
AMI Line Coding +5 v DTE Sends 0 0 0 0 1 Ov -5 v CSU set for AMI sends +5 v Ov -5 v 122

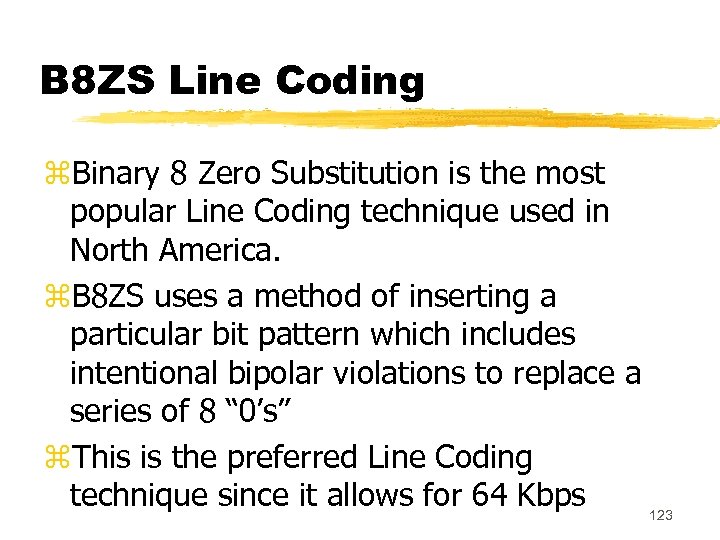

B 8 ZS Line Coding z. Binary 8 Zero Substitution is the most popular Line Coding technique used in North America. z. B 8 ZS uses a method of inserting a particular bit pattern which includes intentional bipolar violations to replace a series of 8 “ 0’s” z. This is the preferred Line Coding technique since it allows for 64 Kbps 123
B 8 ZS Line Coding +5 v DTE Sends 1 0 0 0 0 B 0 1 Ov -5 v Previous Word CSU set for B 8 ZS sends +5 v 1 1 0 Ov -5 v B = Bipoalar Violation 124

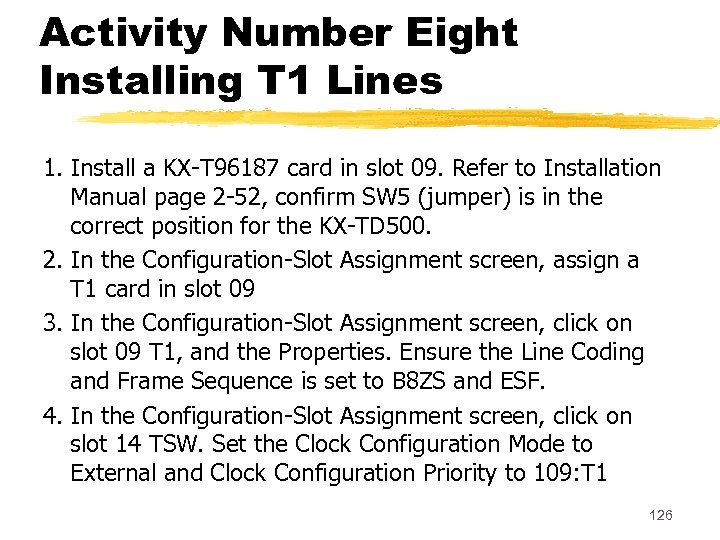

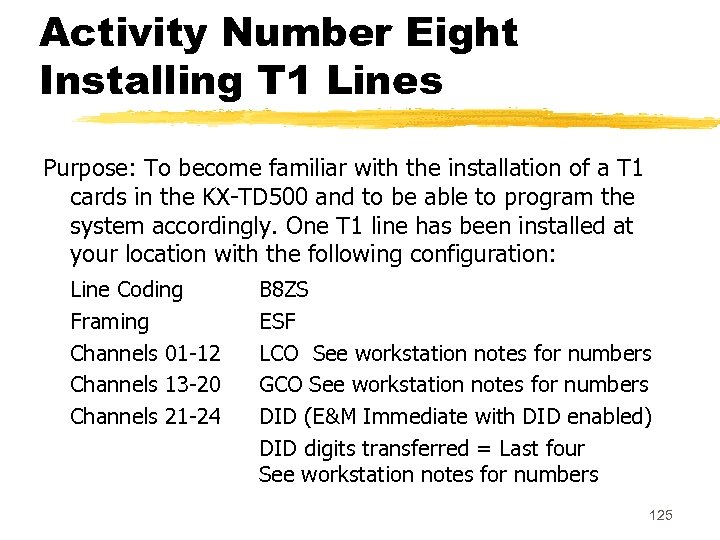

Activity Number Eight Installing T 1 Lines Purpose: To become familiar with the installation of a T 1 cards in the KX-TD 500 and to be able to program the system accordingly. One T 1 line has been installed at your location with the following configuration: Line Coding Framing Channels 01 -12 Channels 13 -20 Channels 21 -24 B 8 ZS ESF LCO See workstation notes for numbers GCO See workstation notes for numbers DID (E&M Immediate with DID enabled) DID digits transferred = Last four See workstation notes for numbers 125
Activity Number Eight Installing T 1 Lines 1. Install a KX-T 96187 card in slot 09. Refer to Installation Manual page 2 -52, confirm SW 5 (jumper) is in the correct position for the KX-TD 500. 2. In the Configuration-Slot Assignment screen, assign a T 1 card in slot 09 3. In the Configuration-Slot Assignment screen, click on slot 09 T 1, and the Properties. Ensure the Line Coding and Frame Sequence is set to B 8 ZS and ESF. 4. In the Configuration-Slot Assignment screen, click on slot 14 TSW. Set the Clock Configuration Mode to External and Clock Configuration Priority to 109: T 1 126

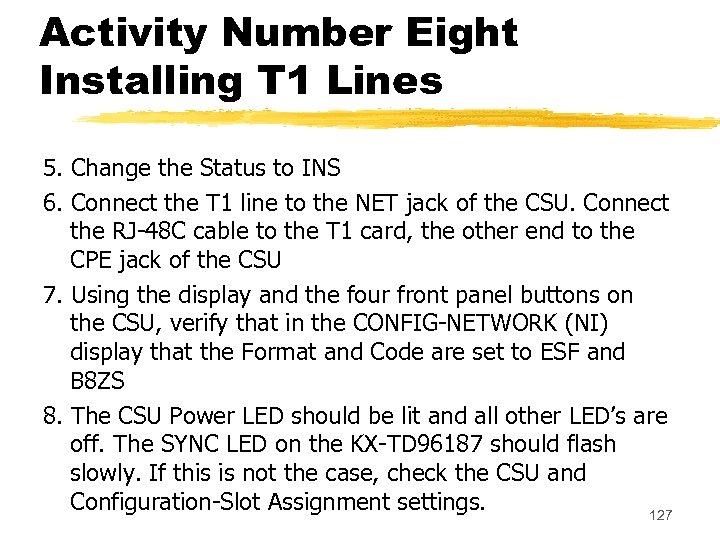

Activity Number Eight Installing T 1 Lines 5. Change the Status to INS 6. Connect the T 1 line to the NET jack of the CSU. Connect the RJ-48 C cable to the T 1 card, the other end to the CPE jack of the CSU 7. Using the display and the four front panel buttons on the CSU, verify that in the CONFIG-NETWORK (NI) display that the Format and Code are set to ESF and B 8 ZS 8. The CSU Power LED should be lit and all other LED’s are off. The SYNC LED on the KX-TD 96187 should flash slowly. If this is not the case, check the CSU and Configuration-Slot Assignment settings. 127

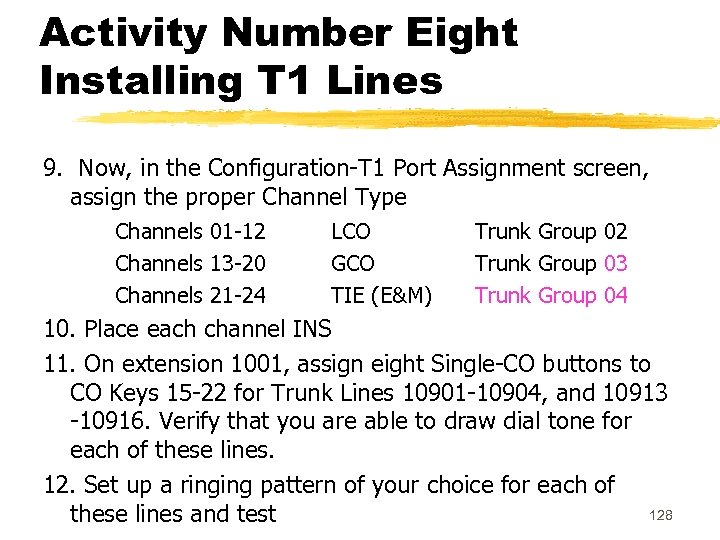

Activity Number Eight Installing T 1 Lines 9. Now, in the Configuration-T 1 Port Assignment screen, assign the proper Channel Type Channels 01 -12 Channels 13 -20 Channels 21 -24 LCO GCO TIE (E&M) Trunk Group 02 Trunk Group 03 Trunk Group 04 10. Place each channel INS 11. On extension 1001, assign eight Single-CO buttons to CO Keys 15 -22 for Trunk Lines 10901 -10904, and 10913 -10916. Verify that you are able to draw dial tone for each of these lines. 12. Set up a ringing pattern of your choice for each of 128 these lines and test

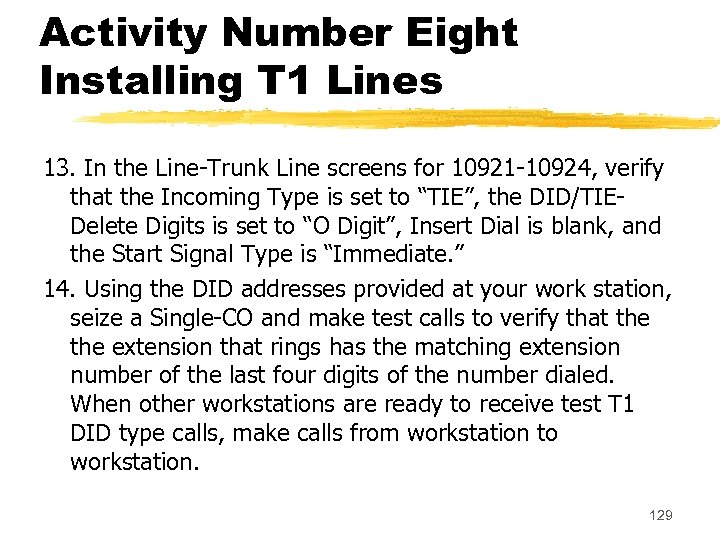

Activity Number Eight Installing T 1 Lines 13. In the Line-Trunk Line screens for 10921 -10924, verify that the Incoming Type is set to “TIE”, the DID/TIEDelete Digits is set to “O Digit”, Insert Dial is blank, and the Start Signal Type is “Immediate. ” 14. Using the DID addresses provided at your work station, seize a Single-CO and make test calls to verify that the extension that rings has the matching extension number of the last four digits of the number dialed. When other workstations are ready to receive test T 1 DID type calls, make calls from workstation to workstation. 129

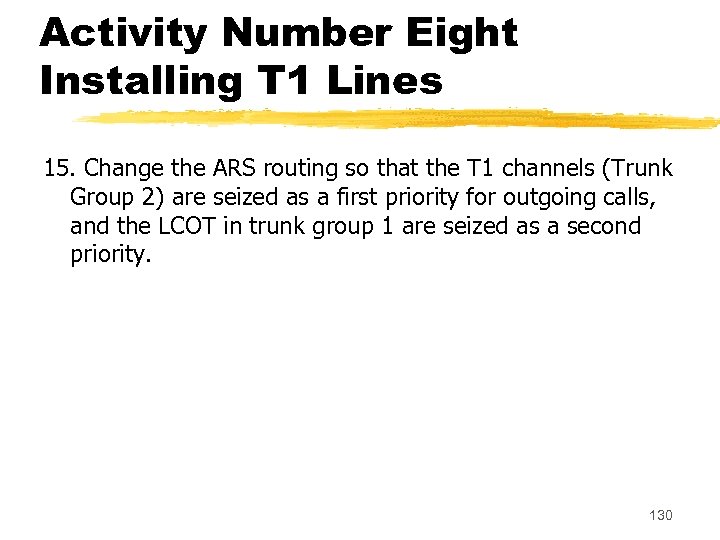

Activity Number Eight Installing T 1 Lines 15. Change the ARS routing so that the T 1 channels (Trunk Group 2) are seized as a first priority for outgoing calls, and the LCOT in trunk group 1 are seized as a second priority. 130

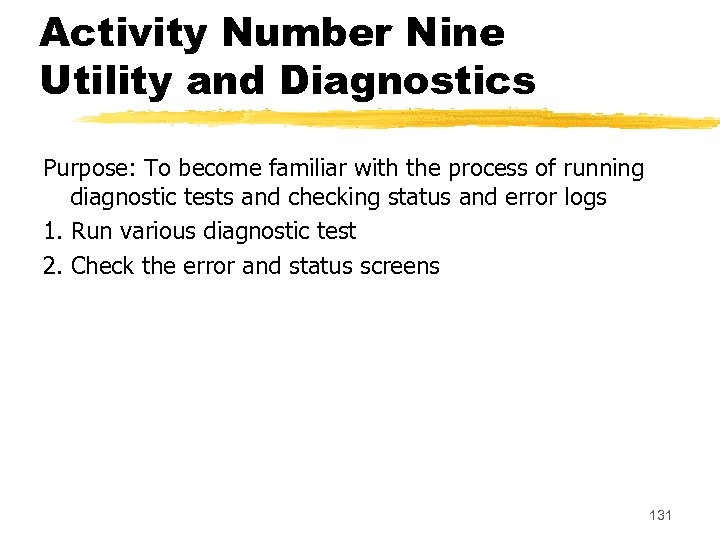

Activity Number Nine Utility and Diagnostics Purpose: To become familiar with the process of running diagnostic tests and checking status and error logs 1. Run various diagnostic test 2. Check the error and status screens 131
