Ko. FNet - Korea Future Network 제목이 한 줄인 경우 Testbed 날짜 u-Infrastructure Planning Team Sun-Moo Kang
Contents Ⅰ Overview II Projects on KOREN II Ko. FNet Activities IV Ko. FNet Roadmap 2

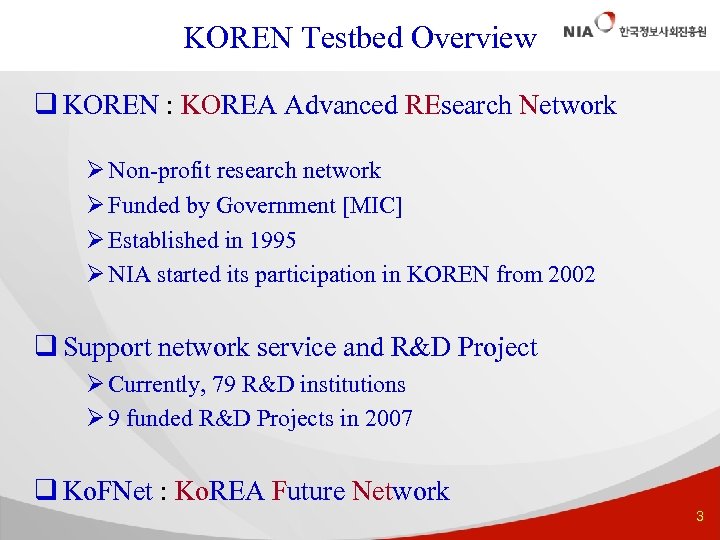

KOREN Testbed Overview q KOREN : KOREA Advanced REsearch Network Ø Non-profit research network Ø Funded by Government [MIC] Ø Established in 1995 Ø NIA started its participation in KOREN from 2002 q Support network service and R&D Project Ø Currently, 79 R&D institutions Ø 9 funded R&D Projects in 2007 q Ko. FNet : Ko. REA Future Network 3

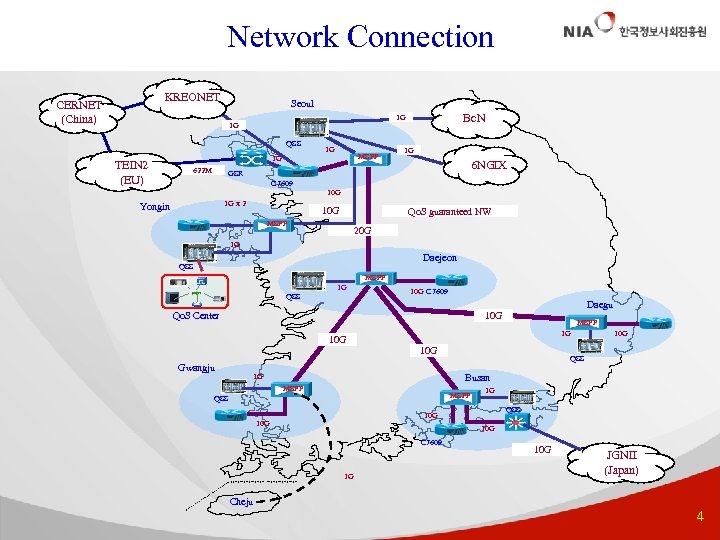

Network Connection KREONET CERNET (China) Seoul QSS TEIN 2 (EU) 1 G MSPP 1 G 622 M Bc. N 1 G 1 G 1 G 6 NGIX GSR C 7609 10 G 1 G x 2 Yongin 10 G Qo. S guaranteed NW MSPP ○ 20 G 1 G Daejeon QSS MSPP 1 G QSS 10 G C 7609 Daegu 10 G Qo. S Center MSPP 1 G 10 G Gwangju 10 G QSS Busan 1 G MSPP QSS 1 G QSS 10 G 10 G C 7609 1 G 10 G JGNII (Japan) Cheju 4

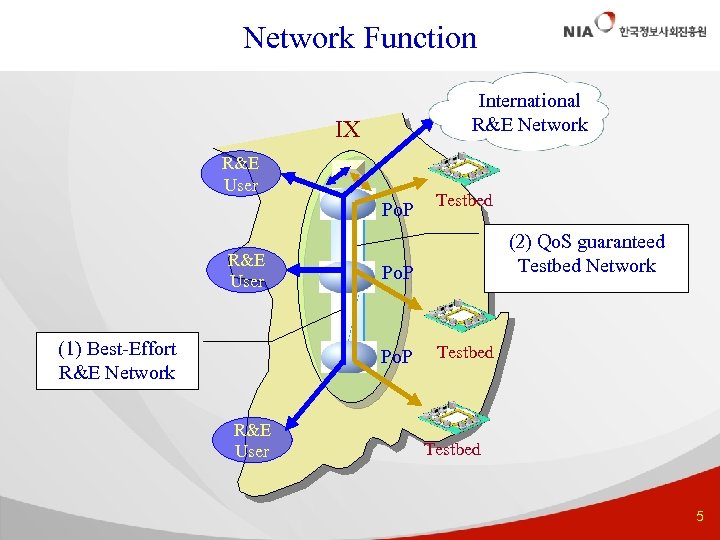

Network Function International R&E Network IX R&E User Po. P R&E User (1) Best-Effort R&E Network (2) Qo. S guaranteed Testbed Network Po. P R&E User Testbed 5

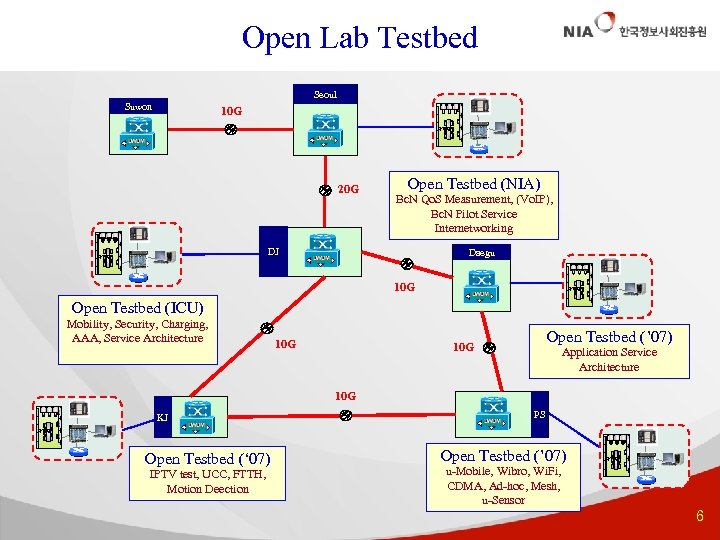

Open Lab Testbed Seoul Suwon 10 G 자재함 20 G Open Testbed (NIA) Bc. N Qo. S Measurement, (Vo. IP), Bc. N Pilot Service Internetworking DJ 자재함 Daegu 10 G 자재함 Open Testbed (ICU) Mobility, Security, Charging, AAA, Service Architecture 10 G Open Testbed (’ 07) 10 G Application Service Architecture 10 G KJ PS 자재함 Open Testbed (‘ 07) IPTV test, UCC, FTTH, Motion Deection Open Testbed (’ 07) 자재함 u-Mobile, Wibro, Wi. Fi, CDMA, Ad-hoc, Mesh, u-Sensor 6

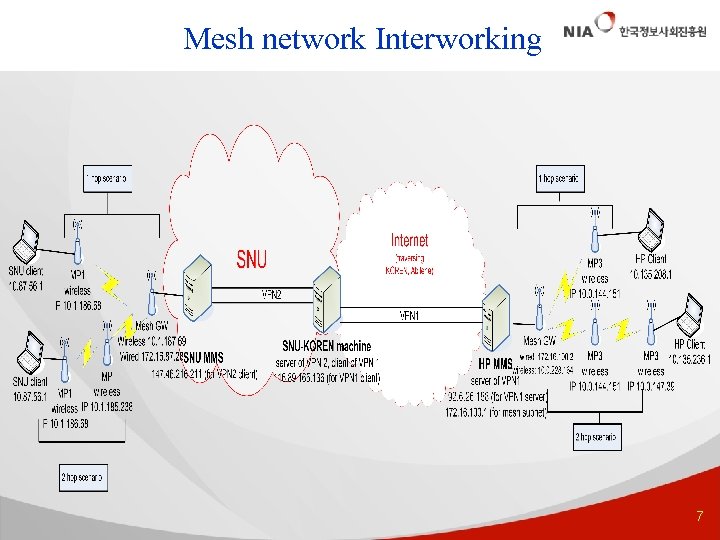

Mesh network Interworking 7

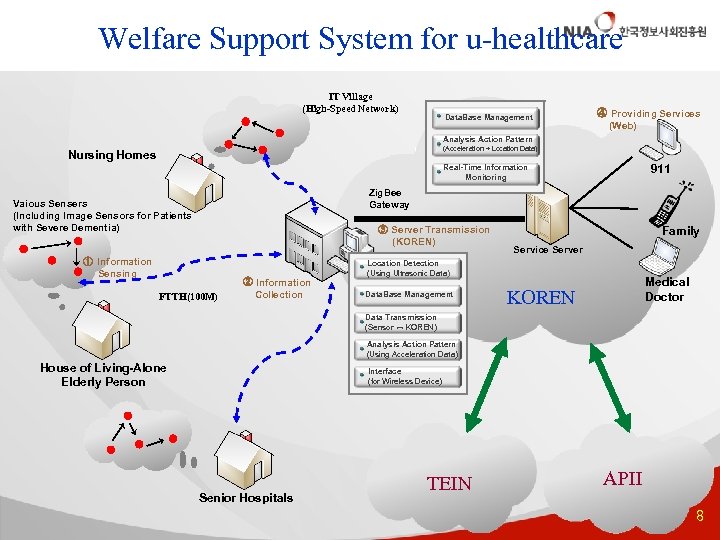

Welfare Support System for u-healthcare IT Village (High-Speed Network) Data. Base Management ④ Providing Services (Web) Analysis Action Pattern (Acceleration + Location Data) Nursing Homes 911 Real-Time Information Monitoring Zig. Bee Gateway Vaious Sensers (Including Image Sensors for Patients with Severe Dementia) ③ Server Transmission (KOREN) ① Information Sensing FTTH(100 M) ② Information Collection Family Service Server Location Detection (Using Ultrasonic Data) Data. Base Management Medical Doctor KOREN Data Transmission (Sensor ↔ KOREN) Analysis Action Pattern (Using Acceleration Data) House of Living-Alone Elderly Person Interface (for Wireless Device) Senior Hospitals TEIN APII 8

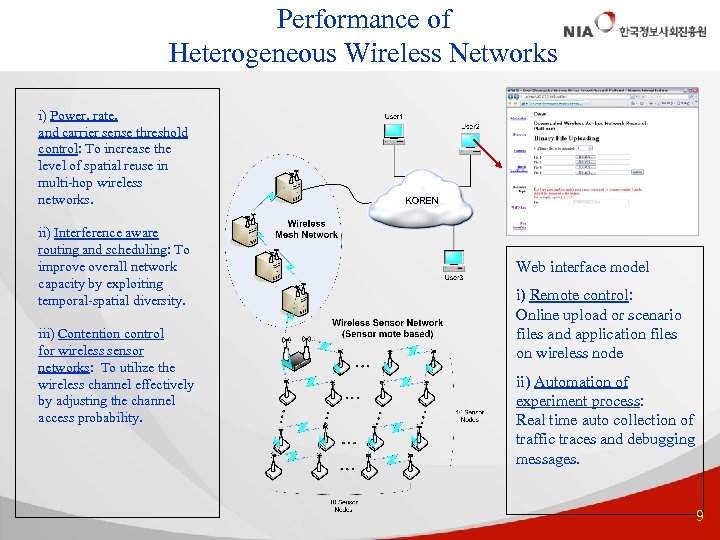

Performance of Heterogeneous Wireless Networks i) Power, rate, and carrier sense threshold control: To increase the level of spatial reuse in multi-hop wireless networks. ii) Interference aware routing and scheduling: To improve overall network capacity by exploiting temporal-spatial diversity. iii) Contention control for wireless sensor networks: To utilize the wireless channel effectively by adjusting the channel access probability. Web interface model i) Remote control: Online upload or scenario files and application files on wireless node ii) Automation of experiment process: Real time auto collection of traffic traces and debugging messages. 9

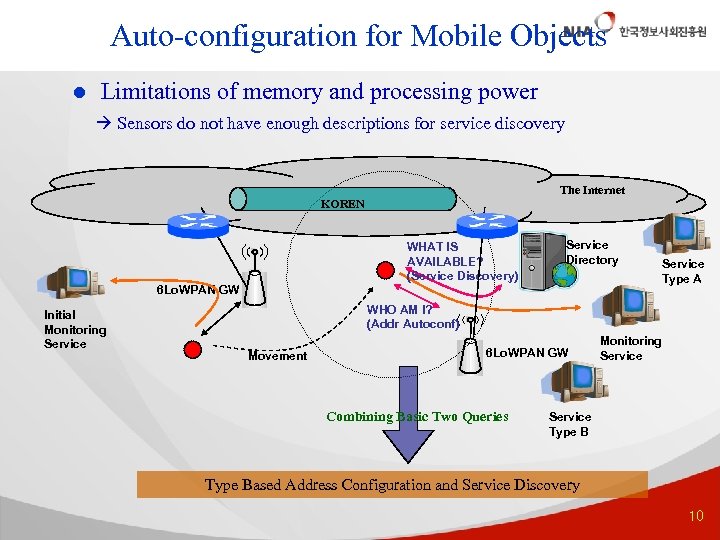

Auto-configuration for Mobile Objects l Limitations of memory and processing power Sensors do not have enough descriptions for service discovery The Internet KOREN WHAT IS AVAILABLE? (Service Discovery) Service Directory 6 Lo. WPAN GW Initial Monitoring Service Type A WHO AM I? (Addr Autoconf) Movement 6 Lo. WPAN GW Combining Basic Two Queries Monitoring Service Type Based Address Configuration and Service Discovery 10

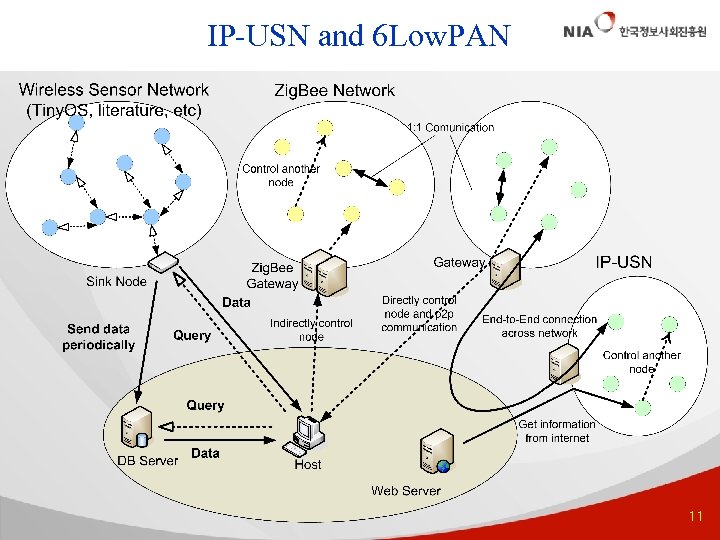

IP-USN and 6 Low. PAN 11

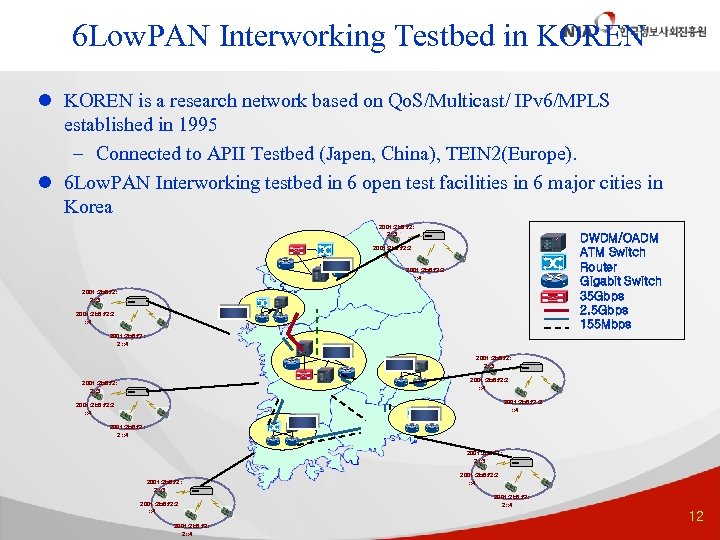

S D B G e u a w o w e s a u o j g a n l n e u g o j n u 6 Low. PAN Interworking Testbed in KOREN l KOREN is a research network based on Qo. S/Multicast/ IPv 6/MPLS established in 1995 – Connected to APII Testbed (Japen, China), TEIN 2(Europe). l 6 Low. PAN Interworking testbed in 6 open test facilities in 6 major cities in Korea 2001: 2 b 8: f 2: 2: : 3 DWDM/OADM ATM Switch Router Gigabit Switch 35 Gbps 2. 5 Gbps 155 Mbps 2001: 2 b 8: f 2: 2 : : 4 2001: 2 b 8: f 2: 2: : 3 2001: 2 b 8: f 2: 2 : : 4 2001: 2 b 8: f 2: 2: : 3 2001: 2 b 8: f 2: 2 : : 4 2001: 2 b 8: f 2: 2: : 4 12

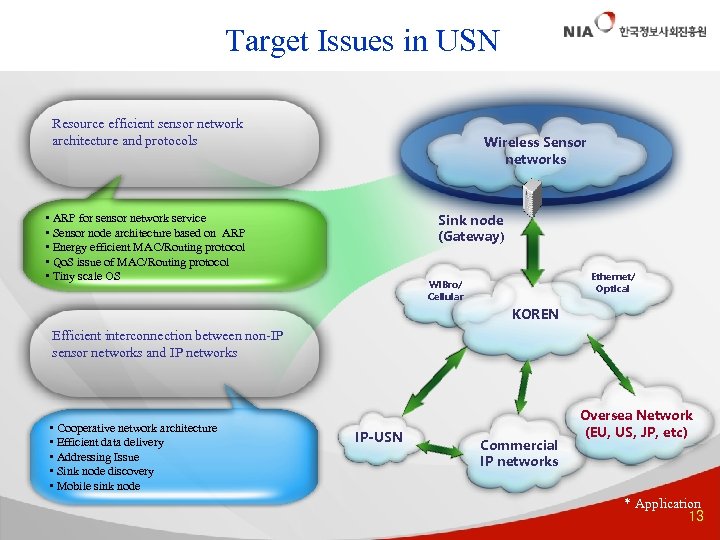

Target Issues in USN Resource efficient sensor network architecture and protocols Wireless Sensor networks Sink node (Gateway) • ARP for sensor network service • Sensor node architecture based on ARP • Energy efficient MAC/Routing protocol • Qo. S issue of MAC/Routing protocol • Tiny scale OS Ethernet/ Optical Wi. Bro/ Cellular KOREN Efficient interconnection between non-IP sensor networks and IP networks • Cooperative network architecture • Efficient data delivery • Addressing Issue • Sink node discovery • Mobile sink node IP-USN Commercial IP networks Oversea Network (EU, US, JP, etc) * Application 13

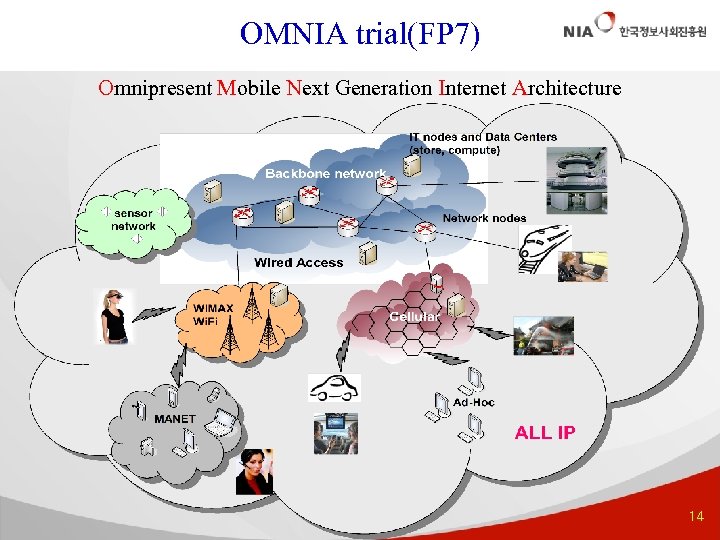

OMNIA trial(FP 7) Omnipresent Mobile Next Generation Internet Architecture 14
OMNIA - Map 15
Global Interconnection Testing for 6 Low. PAN(FP 7) 16

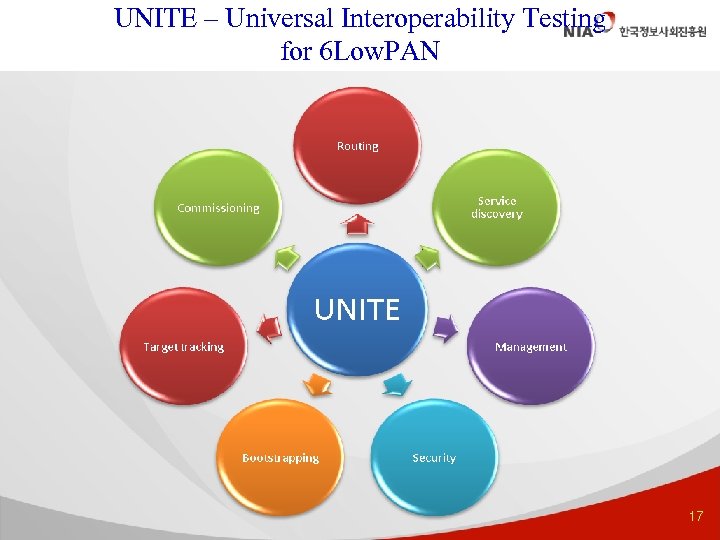

UNITE – Universal Interoperability Testing for 6 Low. PAN 17
Future Internet Forum • Established in 2006 to promote R&D collaborations in Future networking • Building research communities – Architecture – Wireless – Service – Testbed – Policy • http: //anf. ne. kr/fif/ 18
Testbed Working Group • Research areas include : developing Future Internet testbed (e. g. KOREN] in order to perform end-toend experiments over diverse, advanced technologies : interoperability, manageability, customization, accessibility, virtualization, and sliceability 19

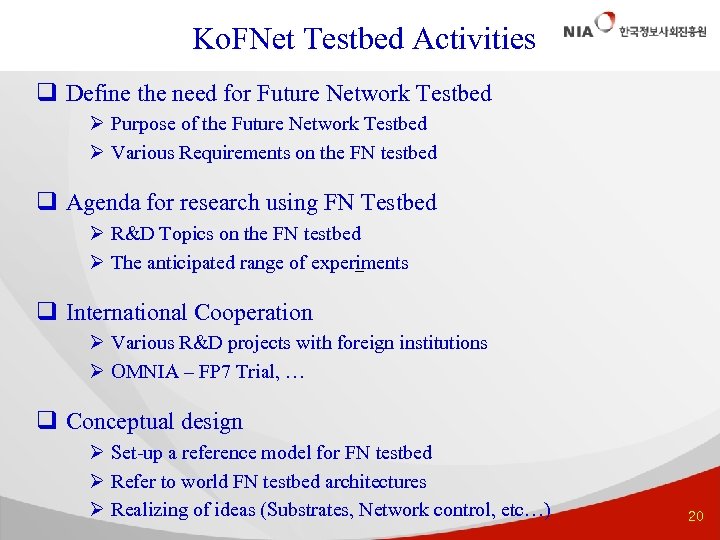

Ko. FNet Testbed Activities q Define the need for Future Network Testbed Ø Purpose of the Future Network Testbed Ø Various Requirements on the FN testbed q Agenda for research using FN Testbed Ø R&D Topics on the FN testbed Ø The anticipated range of experiments - q International Cooperation Ø Various R&D projects with foreign institutions Ø OMNIA – FP 7 Trial, … q Conceptual design Ø Set-up a reference model for FN testbed Ø Refer to world FN testbed architectures Ø Realizing of ideas (Substrates, Network control, etc…) 20

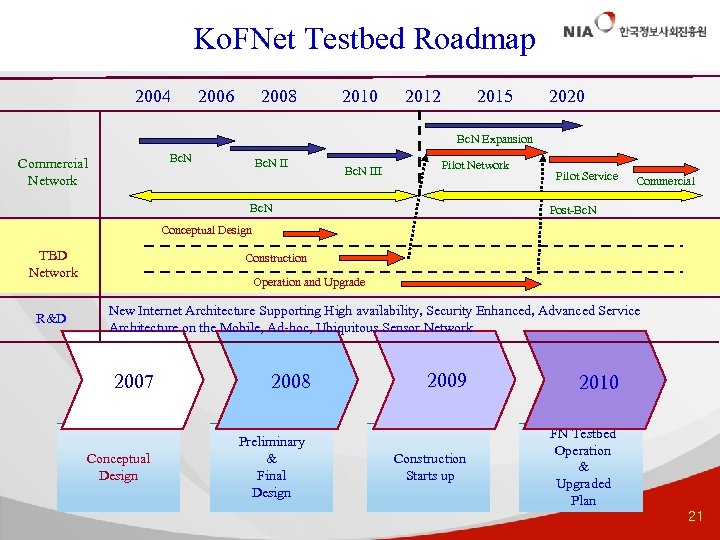

Ko. FNet Testbed Roadmap 2004 2006 2008 2010 2012 2015 2020 Bc. N Expansion Bc. N Commercial Network Bc. N III Pilot Network Bc. N Pilot Service Commercial Post-Bc. N Conceptual Design TBD Network R&D Construction Operation and Upgrade New Internet Architecture Supporting High availability, Security Enhanced, Advanced Service Architecture on the Mobile, Ad-hoc, Ubiquitous Sensor Network 2007 Conceptual Design 2008 Preliminary & Final Design 2009 2010 Construction Starts up FN Testbed Operation & Upgraded Plan 21
Thank You !! etxkang@nia. or. kr 22
