Kantara Paris October 2010 Presented By Kim Cameron

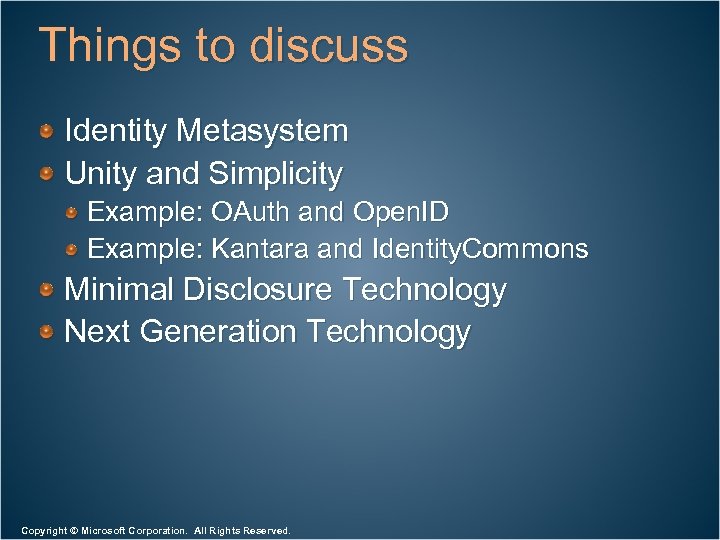

Things to discuss Identity Metasystem Unity and Simplicity Example: OAuth and Open. ID Example: Kantara and Identity. Commons Minimal Disclosure Technology Next Generation Technology Copyright © Microsoft Corporation. All Rights Reserved.

Problem #1: Security Compromise Id. P credential, access all RPs Phishing problem Strong authentication to Id. P is possible, but authentication to RP is weaker Issued tokens are software only (token hijacking attacks, transferability) Id. P is all powerful Id. P (insider, malicious code) can surreptitiously act on the users’ behalf Selectively deny access Copyright © Microsoft Corporation. All Rights Reserved.

Problem #2: Privacy Id. P can profile user’s activities Even if Id. P doesn’t learn the visited RP, profiling is possible by colluding parties (or insiders) Timing correlation Unique correlation handles (e. g. , digital signatures, serial numbers, etc. ) Copyright © Microsoft Corporation. All Rights Reserved.

Problem #3: Scalability All tokens are retrieved on-demand Id. P must be available 24/7 Id. P is a central point of failure Nice target for denial of service attack Id. P is a bottleneck for every user access Copyright © Microsoft Corporation. All Rights Reserved.

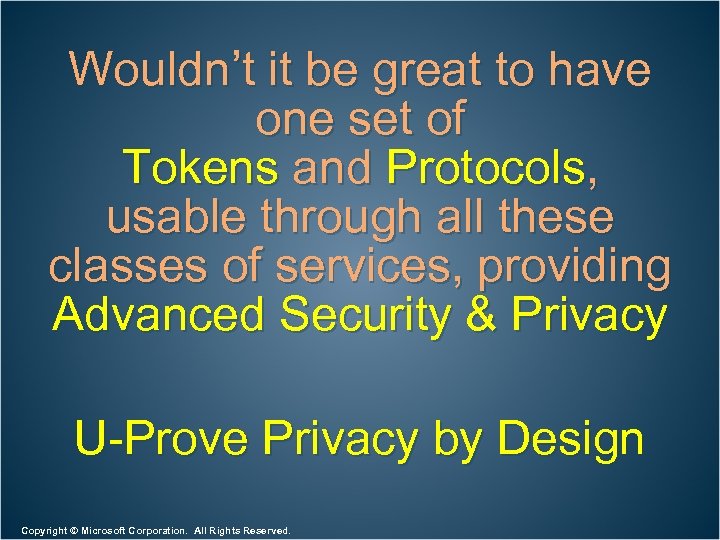

Wouldn’t it be great to have one set of Tokens and Protocols, usable through all these classes of services, providing Advanced Security & Privacy U-Prove Privacy by Design Copyright © Microsoft Corporation. All Rights Reserved.

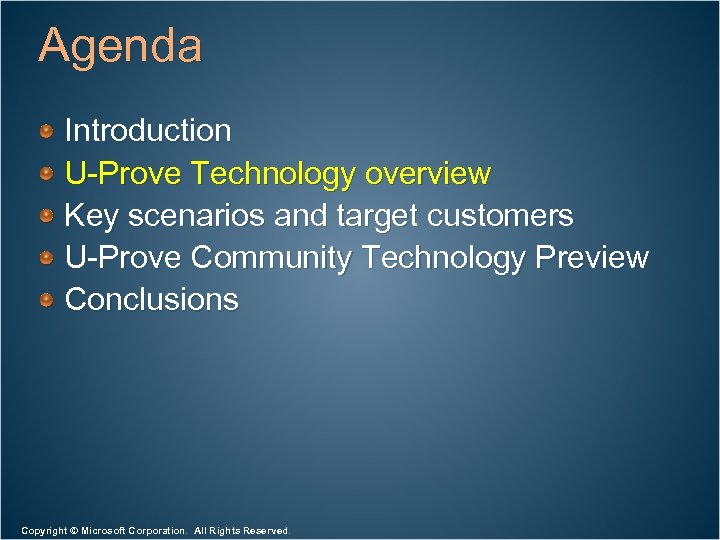

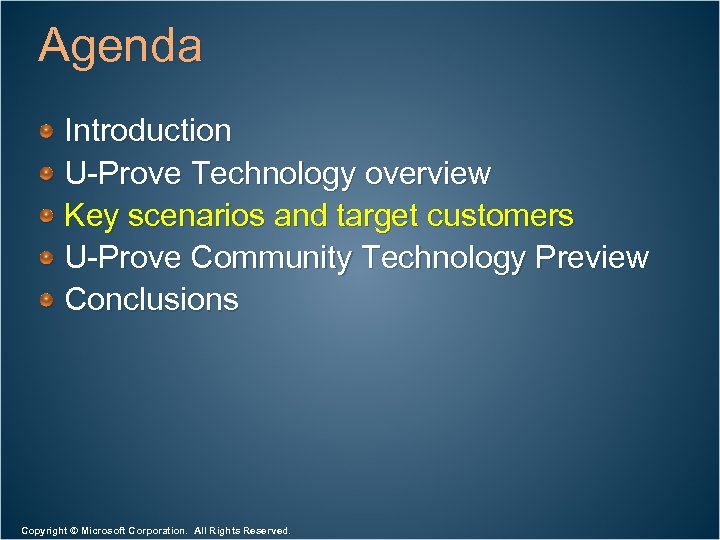

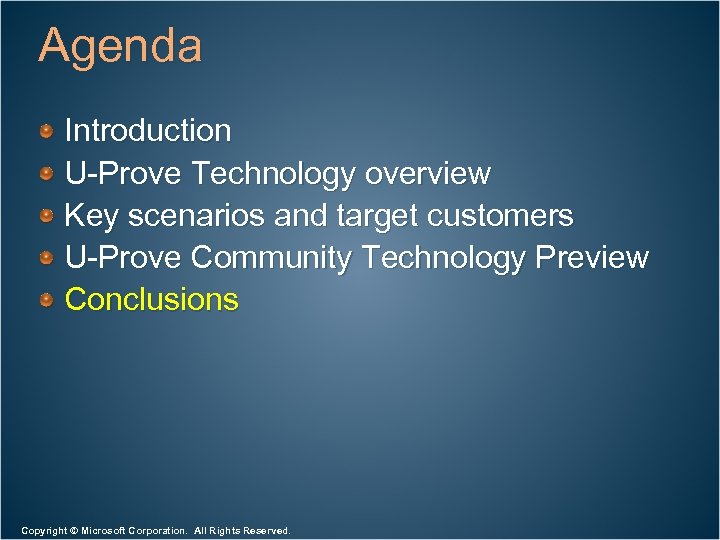

Agenda Introduction U-Prove Technology overview Key scenarios and target customers U-Prove Community Technology Preview

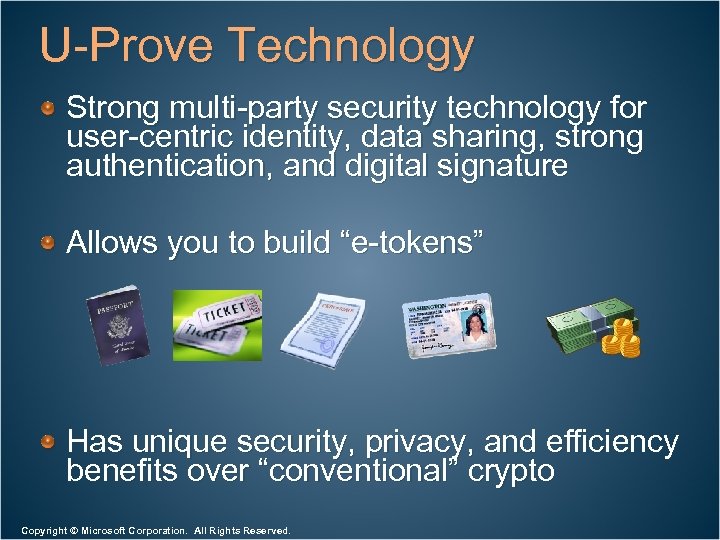

U-Prove Technology Strong multi-party security technology for user-centric identity, data sharing, strong authentication, and digital signature Allows you to build “e-tokens” Has unique security, privacy, and efficiency benefits over “conventional” crypto Copyright © Microsoft Corporation. All Rights Reserved.

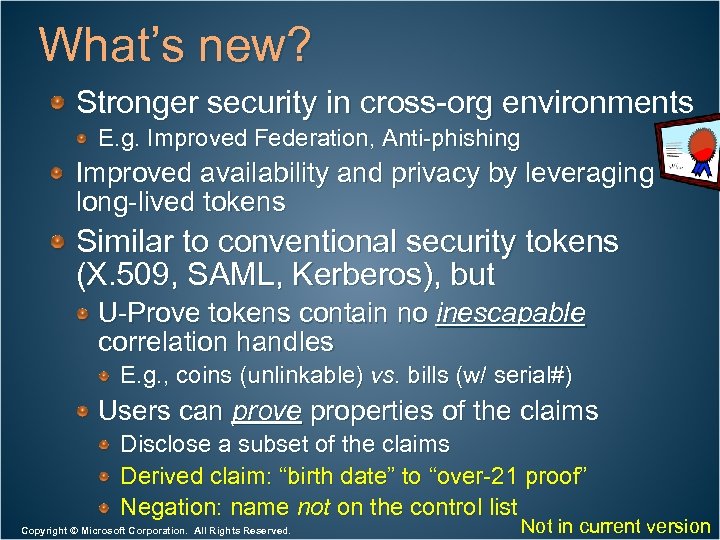

What’s new? Stronger security in cross-org environments E. g. Improved Federation, Anti-phishing Improved availability and privacy by leveraging long-lived tokens Similar to conventional security tokens (X. 509, SAML, Kerberos), but U-Prove tokens contain no inescapable correlation handles E. g. , coins (unlinkable) vs. bills (w/ serial#) Users can prove properties of the claims Disclose a subset of the claims Derived claim: “birth date” to “over-21 proof” Negation: name not on the control list Copyright © Microsoft Corporation. All Rights Reserved. Not in current version

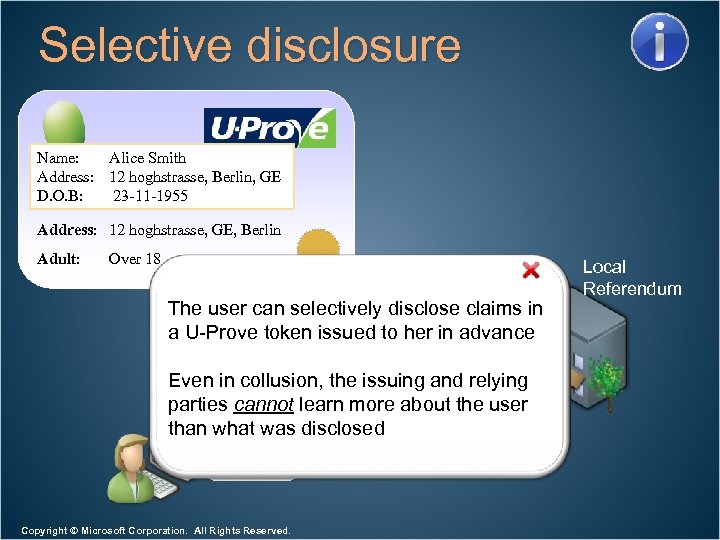

Selective disclosure Gov Name: Alice Smith Address: 12 hoghstrasse, Berlin, GE D. O. B: 23 -11 -1955 Name: Alice Smith Address: 12 hoghstrasse, GE, Berlin Adult: Over 18 The user can selectively disclose claims in a U-Prove token issued to her in advance Even in collusion, the issuing and relying parties cannot learn more about the user than what was disclosed Copyright © Microsoft Corporation. All Rights Reserved. Local Referendum

Selective disclosure in The user can selectively disclose claims a U-Prove token issued to her in advance Gov Even in collusion, the issuing and relying parties cannot learn more about the user than what was disclosed ? Name: Alice Smith Address: 12 hoghstrasse, GE, Berlin Adult: Over 18 Copyright © Microsoft Corporation. All Rights Reserved. Prove that you are over 18 and from Berlin Which adult from Berlin is this? Local Referendum

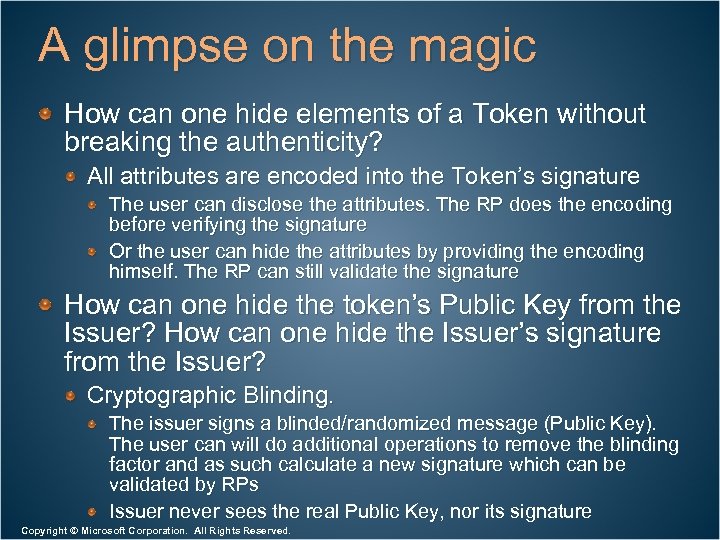

A glimpse on the magic How can one hide elements of a Token without breaking the authenticity? All attributes are encoded into the Token’s signature The user can disclose the attributes. The RP does the encoding before verifying the signature Or the user can hide the attributes by providing the encoding himself. The RP can still validate the signature How can one hide the token’s Public Key from the Issuer? How can one hide the Issuer’s signature from the Issuer? Cryptographic Blinding. The issuer signs a blinded/randomized message (Public Key). The user can will do additional operations to remove the blinding factor and as such calculate a new signature which can be validated by RPs Issuer never sees the real Public Key, nor its signature Copyright © Microsoft Corporation. All Rights Reserved.

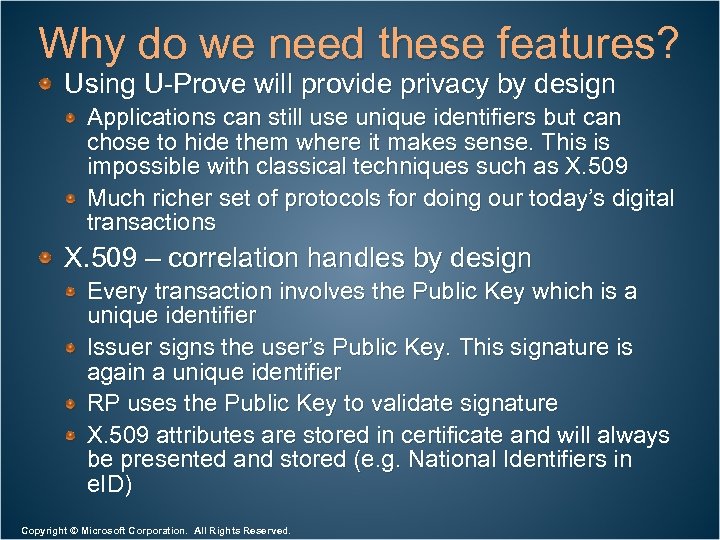

Why do we need these features? Using U-Prove will provide privacy by design Applications can still use unique identifiers but can chose to hide them where it makes sense. This is impossible with classical techniques such as X. 509 Much richer set of protocols for doing our today’s digital transactions X. 509 – correlation handles by design Every transaction involves the Public Key which is a unique identifier Issuer signs the user’s Public Key. This signature is again a unique identifier RP uses the Public Key to validate signature X. 509 attributes are stored in certificate and will always be presented and stored (e. g. National Identifiers in e. ID) Copyright © Microsoft Corporation. All Rights Reserved.

U-Prove Token Details Copyright © Microsoft Corporation. All Rights Reserved.

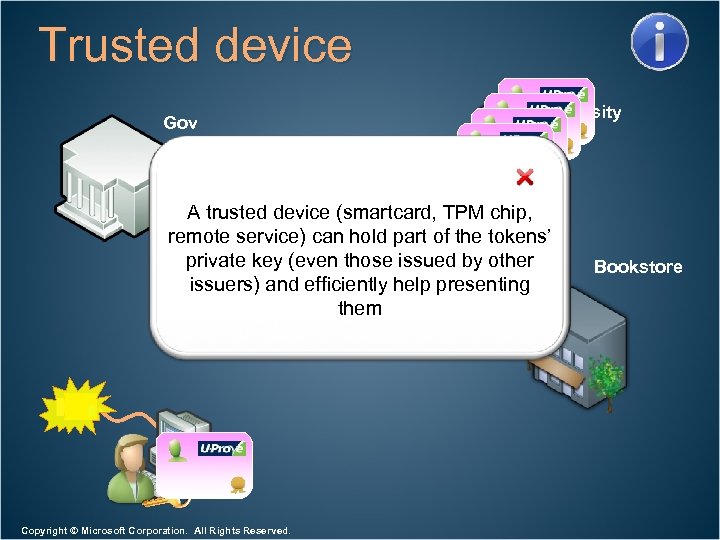

Trusted device Gov University A trusted device (smartcard, TPM chip, remote service) can hold part of the tokens’ private key (even those issued by other issuers) and efficiently help presenting them Copyright © Microsoft Corporation. All Rights Reserved. Bookstore

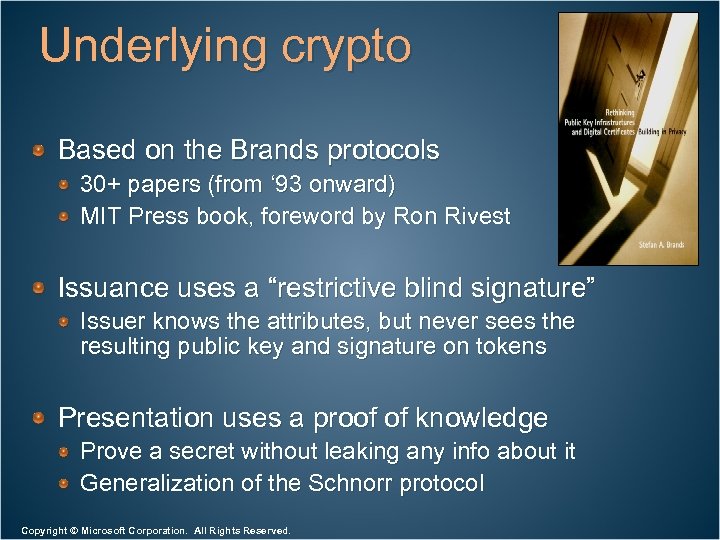

Underlying crypto Based on the Brands protocols 30+ papers (from ‘ 93 onward) MIT Press book, foreword by Ron Rivest Issuance uses a “restrictive blind signature” Issuer knows the attributes, but never sees the resulting public key and signature on tokens Presentation uses a proof of knowledge Prove a secret without leaking any info about it Generalization of the Schnorr protocol Copyright © Microsoft Corporation. All Rights Reserved.

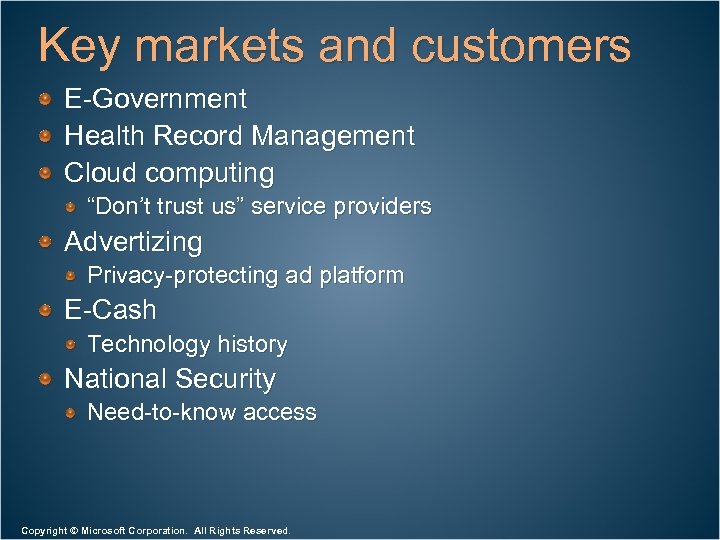

Key markets and customers E-Government Health Record Management Cloud computing “Don’t trust us” service providers Advertizing Privacy-protecting ad platform E-Cash Technology history National Security Need-to-know access Copyright © Microsoft Corporation. All Rights Reserved.

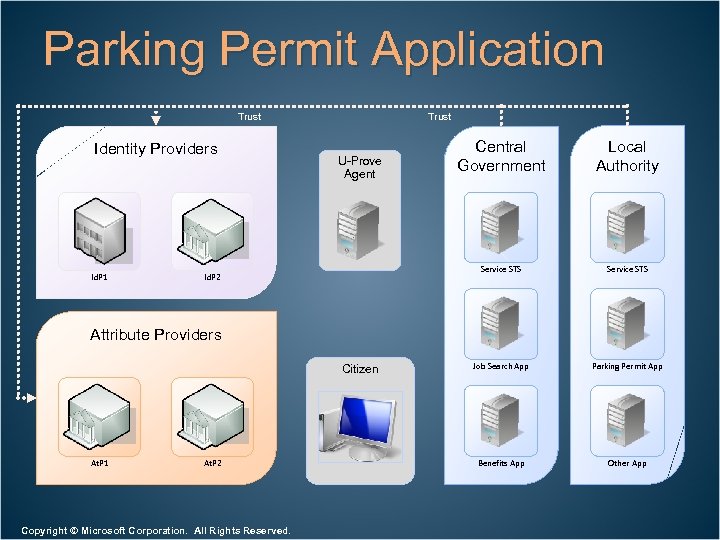

Parking Permit Application Trust Identity Providers Id. P 1 Trust Id. P 2 Local Authority Service STS U-Prove Agent Central Government Service STS Job Search App Parking Permit App Benefits App Other App Attribute Providers Citizen At. P 1 At. P 2 Copyright © Microsoft Corporation. All Rights Reserved.

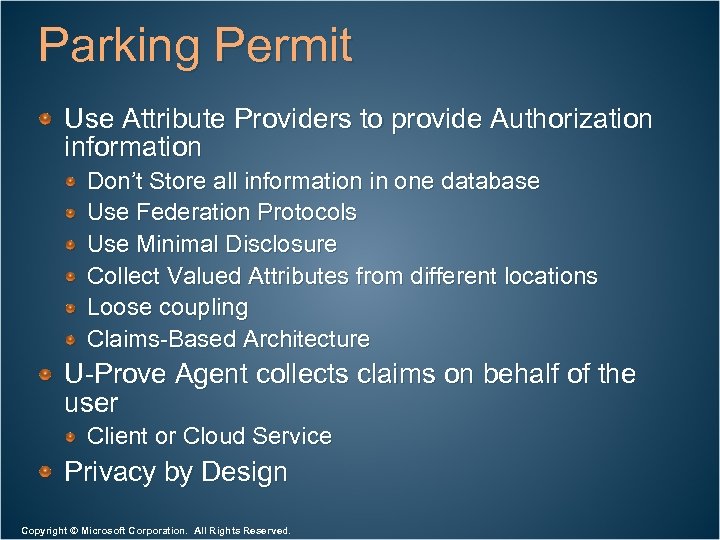

Parking Permit Use Attribute Providers to provide Authorization information Don’t Store all information in one database Use Federation Protocols Use Minimal Disclosure Collect Valued Attributes from different locations Loose coupling Claims-Based Architecture U-Prove Agent collects claims on behalf of the user Client or Cloud Service Privacy by Design Copyright © Microsoft Corporation. All Rights Reserved.

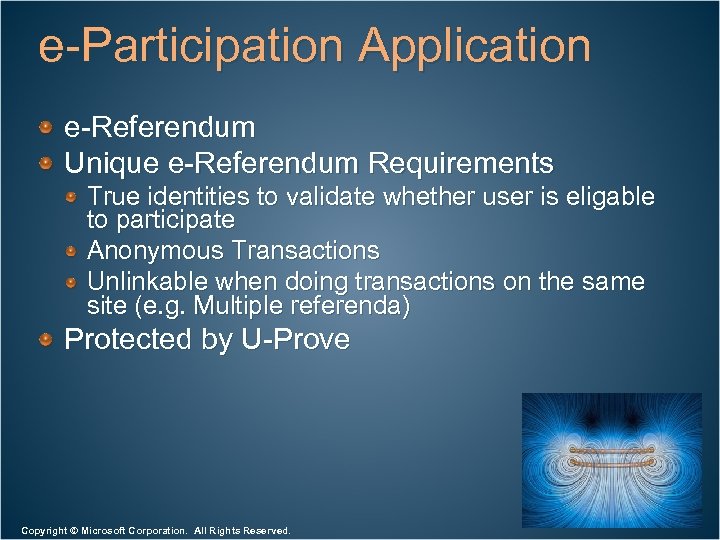

e-Participation Application e-Referendum Unique e-Referendum Requirements True identities to validate whether user is eligable to participate Anonymous Transactions Unlinkable when doing transactions on the same site (e. g. Multiple referenda) Protected by U-Prove Copyright © Microsoft Corporation. All Rights Reserved.

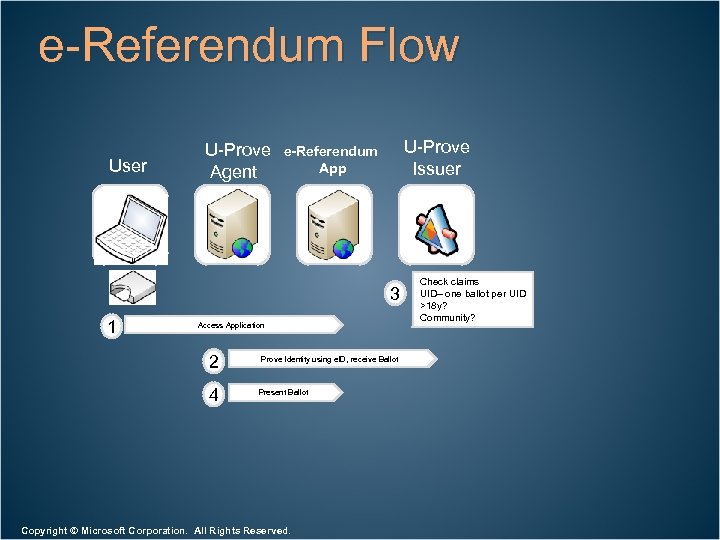

e-Referendum Flow User U-Prove Agent U-Prove Issuer e-Referendum App 3 1 Access Application 2 4 Prove Identity using e. ID, receive Ballot Present Ballot Copyright © Microsoft Corporation. All Rights Reserved. Check claims UID– one ballot per UID >18 y? Community?

e. Participation White Paper & Video http: //www. microsoft. com/mscorp/twc/endtoe ndtrust/vision/eid. aspx Copyright ©

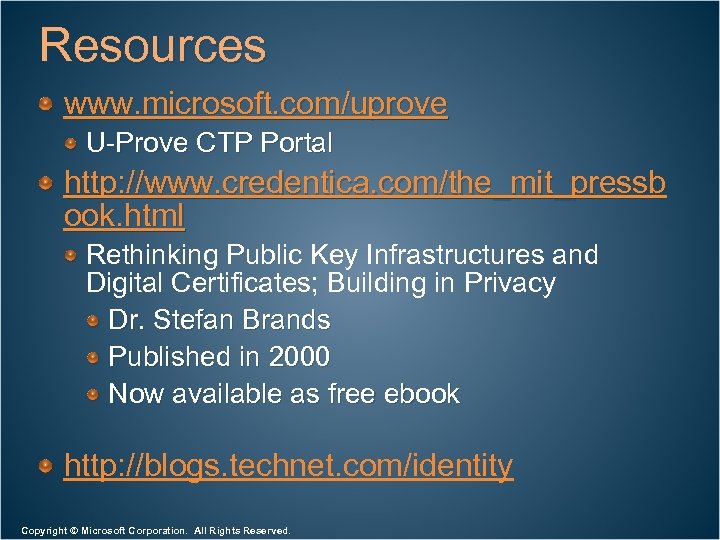

Resources www. microsoft. com/uprove U-Prove CTP Portal http: //www. credentica. com/the_mit_pressb ook. html Rethinking Public Key Infrastructures and Digital Certificates; Building in Privacy Dr. Stefan Brands Published in 2000 Now available as free ebook http: //blogs. technet. com/identity Copyright © Microsoft Corporation. All Rights Reserved.

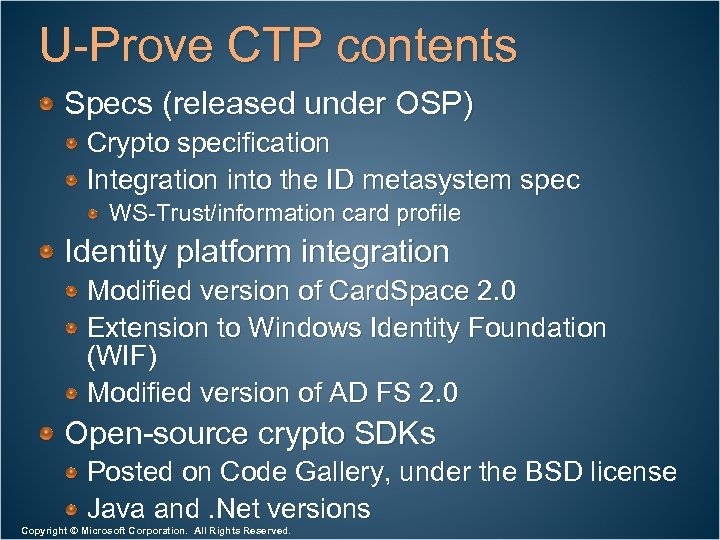

U-Prove CTP contents Specs (released under OSP) Crypto specification Integration into the ID metasystem spec WS-Trust/information card profile Identity platform integration Modified version of Card. Space 2. 0 Extension to Windows Identity Foundation (WIF) Modified version of AD FS 2. 0 Open-source crypto SDKs Posted on Code Gallery, under the BSD license Java and. Net versions Copyright © Microsoft Corporation. All Rights Reserved.

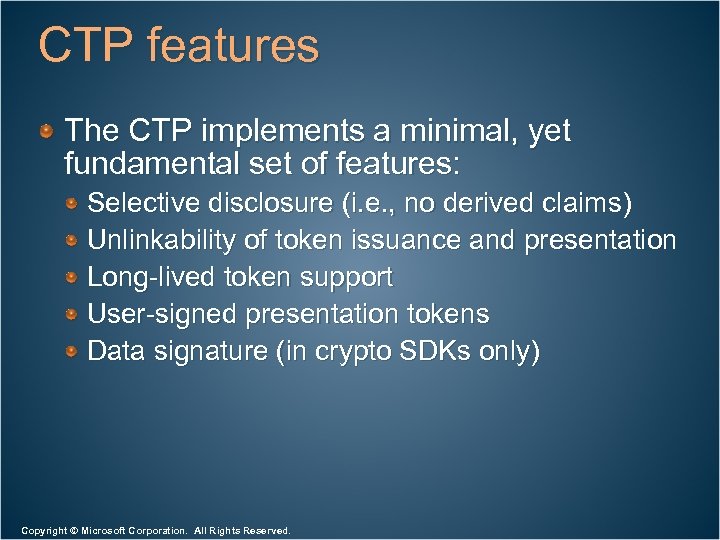

CTP features The CTP implements a minimal, yet fundamental set of features: Selective disclosure (i. e. , no derived claims) Unlinkability of token issuance and presentation Long-lived token support User-signed presentation tokens Data signature (in crypto SDKs only) Copyright © Microsoft Corporation. All Rights Reserved.

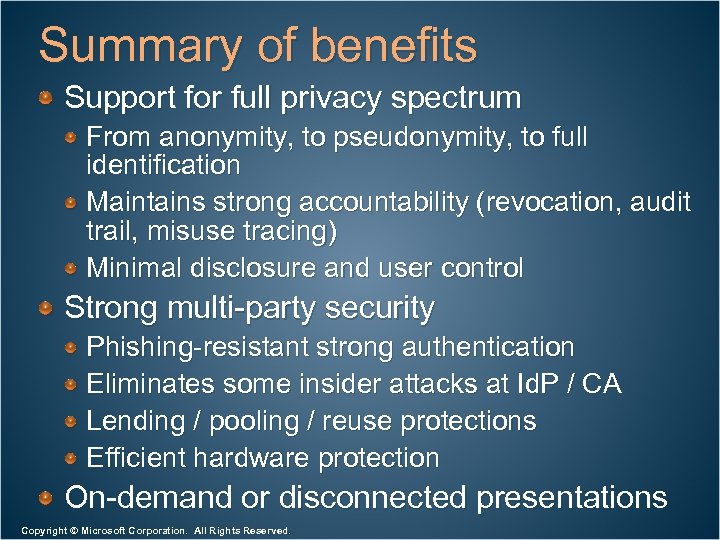

Summary of benefits Support for full privacy spectrum From anonymity, to pseudonymity, to full identification Maintains strong accountability (revocation, audit trail, misuse tracing) Minimal disclosure and user control Strong multi-party security Phishing-resistant strong authentication Eliminates some insider attacks at Id. P / CA Lending / pooling / reuse protections Efficient hardware protection On-demand or disconnected presentations Copyright © Microsoft Corporation. All Rights Reserved.

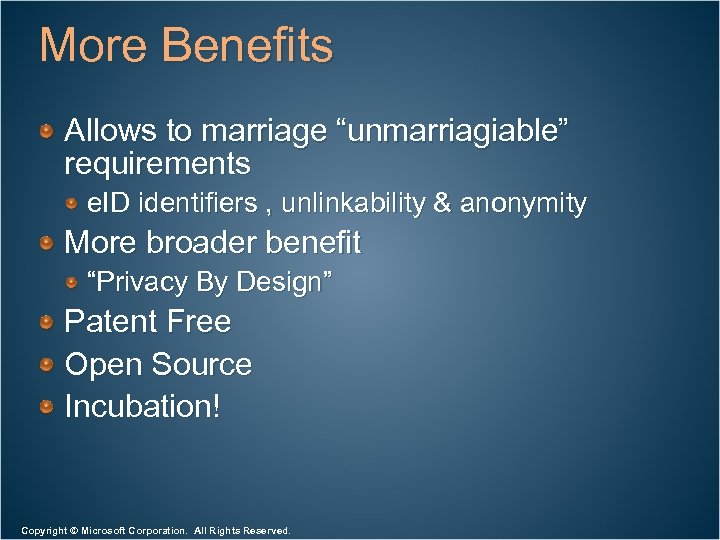

More Benefits Allows to marriage “unmarriagiable” requirements e. ID identifiers , unlinkability & anonymity More broader benefit “Privacy By Design” Patent Free Open Source Incubation! Copyright © Microsoft Corporation. All Rights Reserved.
