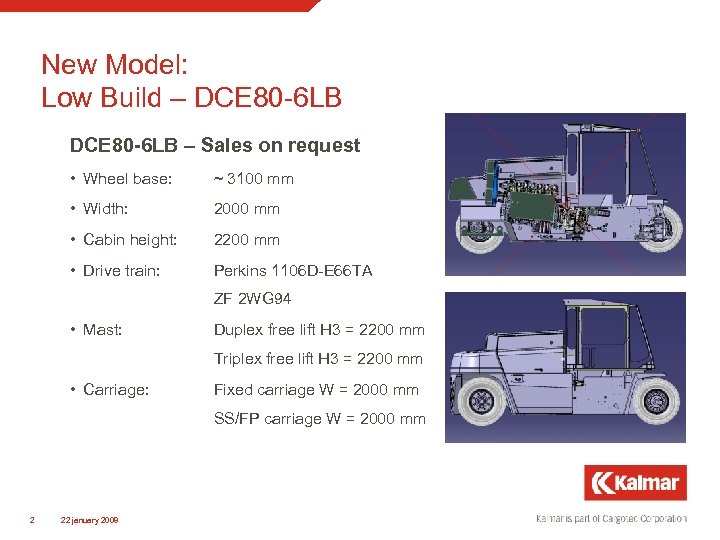

New Model: Low Build – DCE 80 -6 LB – Sales on request • Wheel base: ~ 3100 mm • Width: 2000 mm • Cabin height: 2200 mm • Drive train: Perkins 1106 D-E 66 TA ZF 2 WG 94 • Mast: Duplex free lift H 3 = 2200 mm Triplex free lift H 3 = 2200 mm • Carriage: Fixed carriage W = 2000 mm SS/FP carriage W = 2000 mm 2 22 january 2008

New Drive Train Step 3: Perkins 1104 D-E 44 T with ZF 2 WG 94 (2008 -01 -01) Perkins 1106 D-E 66 TA with ZF 2 WG 94 (2007 -01 -01) Benefits: • Improved driveability • Improved diagnostics • No electric connection box on engine needed • Same oil in both gearbox and engine 3 22 january 2008

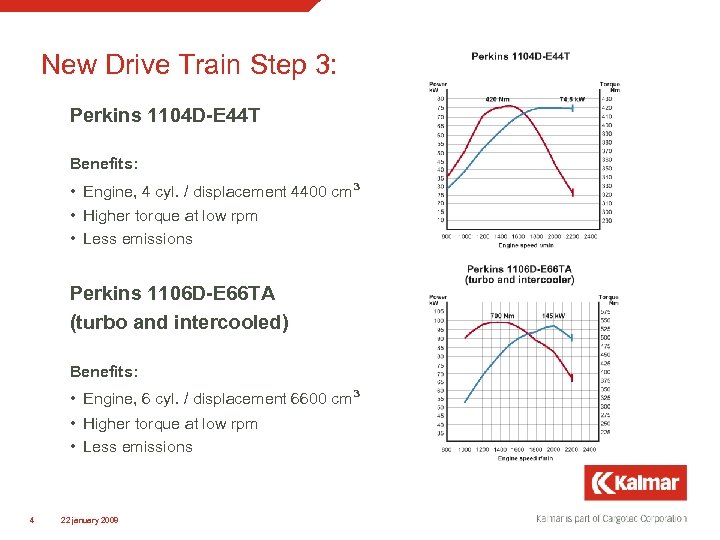

New Drive Train Step 3: Perkins 1104 D-E 44 T Benefits: • Engine, 4 cyl. / displacement 4400 cm³ • Higher torque at low rpm • Less emissions Perkins 1106 D-E 66 TA (turbo and intercooled) Benefits: • Engine, 6 cyl. / displacement 6600 cm³ • Higher torque at low rpm • Less emissions 4 22 january 2008

Test report Step 2 Noise level: EN 12053 LWAZ [d. B(A)], external Lp. AZ [d. B(A)], internal Step 3 4 cyl. 6 cyl. 101 d. B 72 d. B 102 d. B 72 d. B 101 d. B 71 d. B 102 d. B 72 d. B 104 d. B 106 d. B 105 d. B 2000/14/EC LWA [d. B(A)], external 5 22 january 2008

Exhaust emissions Allowed exhaust emissions of vehicles and machines Off-Road, according to exhaust directive 2004/26/EC Perkins 1104 D – E 44 T Perkins 1106 D – E 66 TA 6 74, 5 k. W 89 k. W 22 january 2008 3, 7 3, 63 0, 21

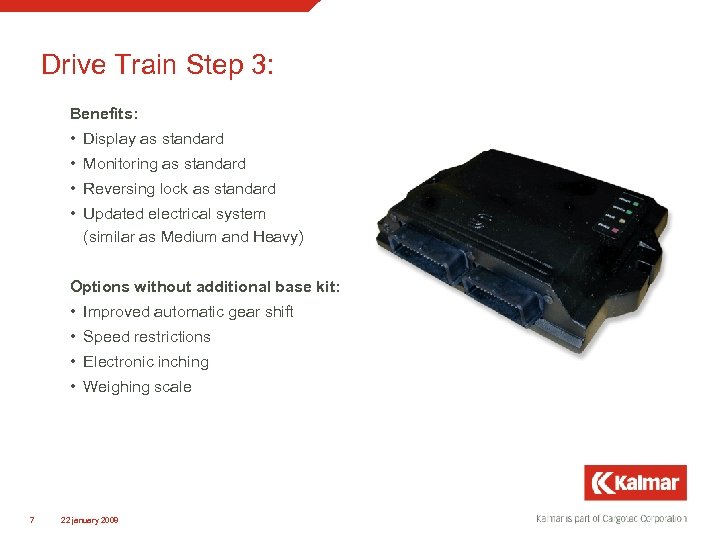

Drive Train Step 3: Benefits: • Display as standard • Monitoring as standard • Reversing lock as standard • Updated electrical system (similar as Medium and Heavy) Options without additional base kit: • Improved automatic gear shift • Speed restrictions • Electronic inching • Weighing scale 7 22 january 2008

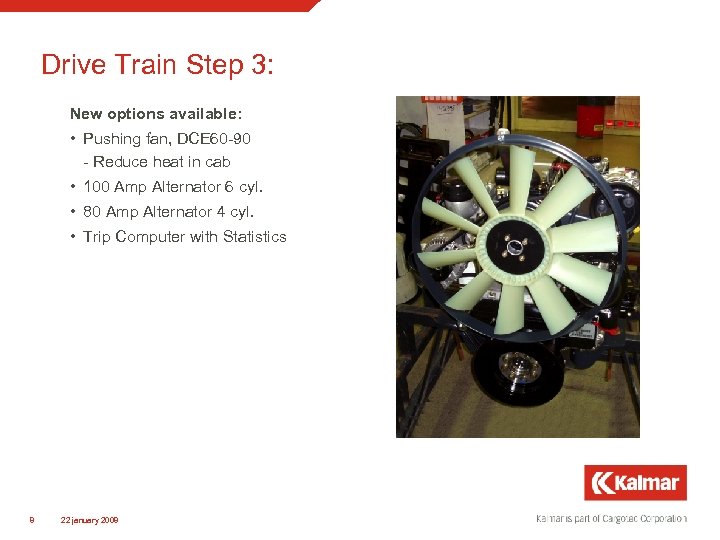

Drive Train Step 3: New options available: • Pushing fan, DCE 60 -90 - Reduce heat in cab • 100 Amp Alternator 6 cyl. • 80 Amp Alternator 4 cyl. • Trip Computer with Statistics 8 22 january 2008

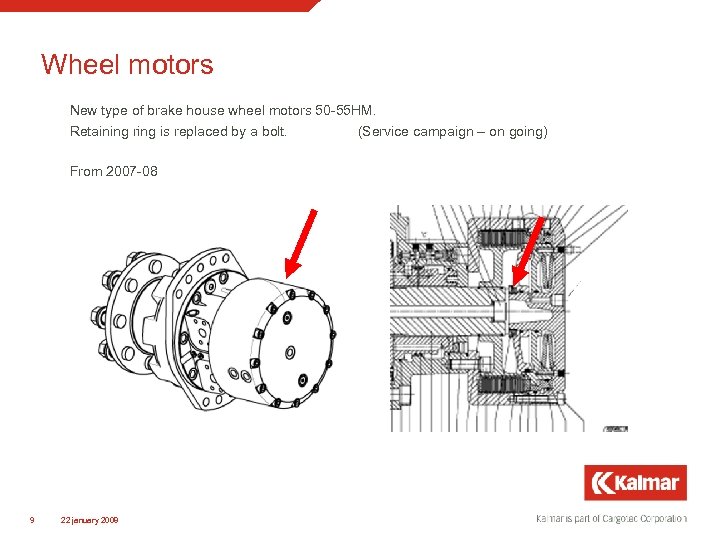

Wheel motors New type of brake house wheel motors 50 -55 HM. Retaining ring is replaced by a bolt. (Service campaign – on going) From 2007 -08 9 22 january 2008

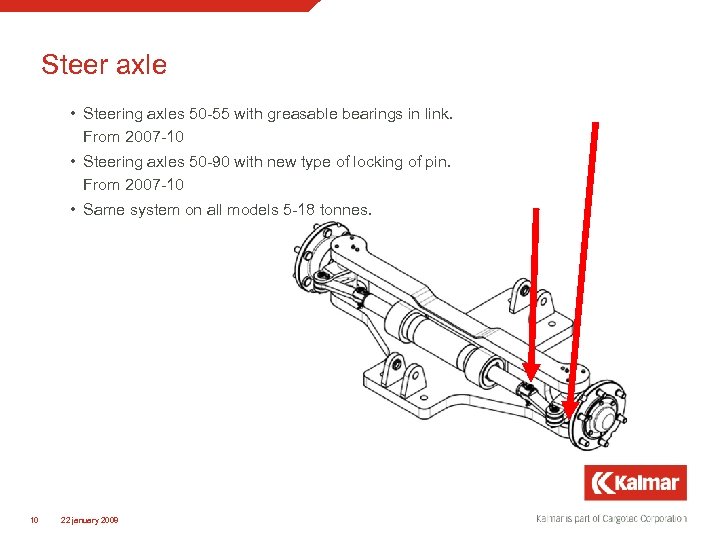

Steer axle • Steering axles 50 -55 with greasable bearings in link. From 2007 -10 • Steering axles 50 -90 with new type of locking of pin. From 2007 -10 • Same system on all models 5 -18 tonnes. 10 22 january 2008

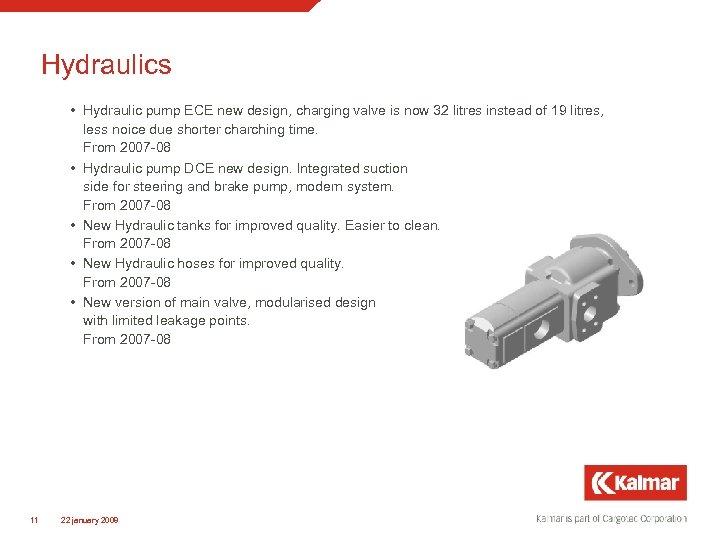

Hydraulics • Hydraulic pump ECE new design, charging valve is now 32 litres instead of 19 litres, less noice due shorter charching time. From 2007 -08 • Hydraulic pump DCE new design. Integrated suction side for steering and brake pump, modern system. From 2007 -08 • New Hydraulic tanks for improved quality. Easier to clean. From 2007 -08 • New Hydraulic hoses for improved quality. From 2007 -08 • New version of main valve, modularised design with limited leakage points. From 2007 -08 11 22 january 2008

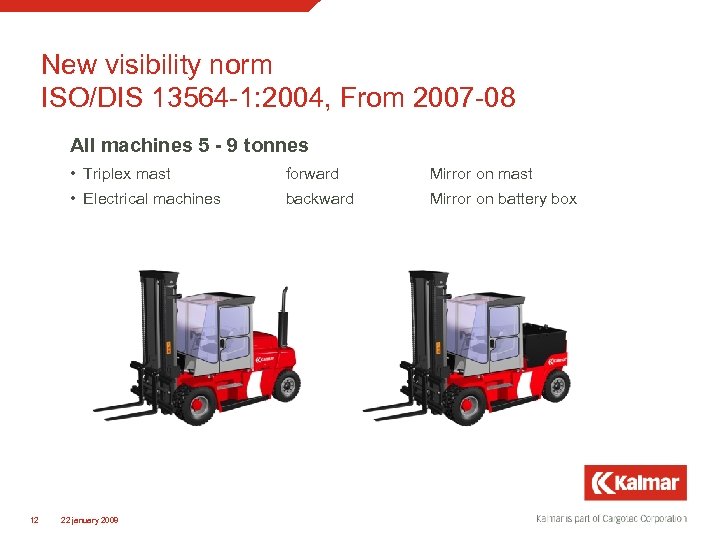

New visibility norm ISO/DIS 13564 -1: 2004, From 2007 -08 All machines 5 - 9 tonnes • Triplex mast Mirror on mast • Electrical machines 12 forward backward Mirror on battery box 22 january 2008
