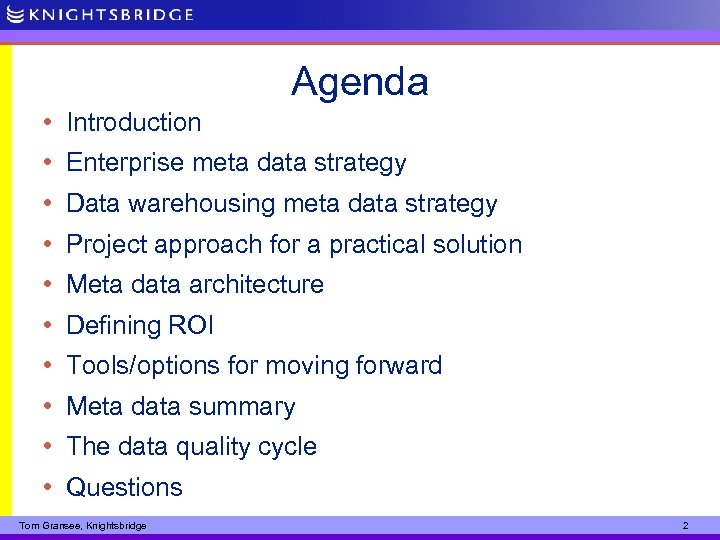

Agenda • Introduction • Enterprise meta data strategy • Data warehousing meta data strategy • Project approach for a practical solution • Meta data architecture • Defining ROI • Tools/options for moving forward • Meta data summary • The data quality cycle • Questions Tom Gransee, Knightsbridge 2
Everyone knows Meta data is: – Valuable – The right thing to do Meta Data – Important for long-term success So why isn’t everyone doing it? Tom Gransee, Knightsbridge Introduction 3
Why isn’t meta data being addressed? • Don’t know how to demonstrate the ROI • Too complex or we don’t know where to begin • Can’t agree on what should be done • Market is not mature enough – we’ll wait until it settles down Where do we start? How do we justify it? • We’ve tried and failed Tom Gransee, Knightsbridge Introduction 4

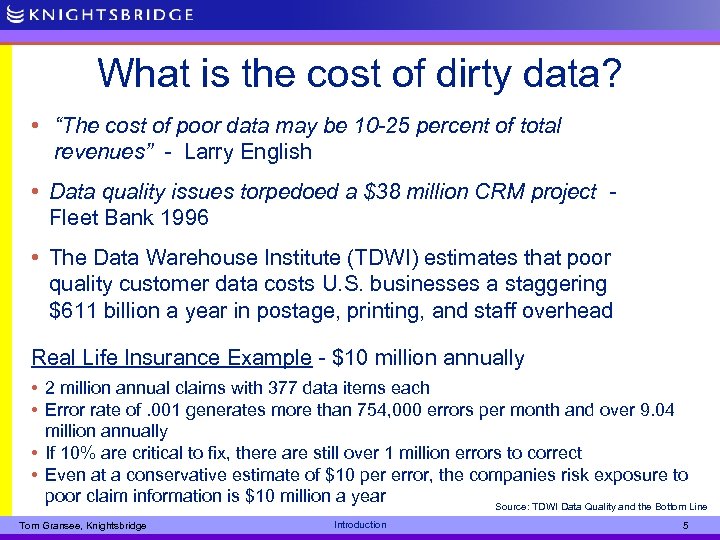

What is the cost of dirty data? • “The cost of poor data may be 10 -25 percent of total revenues” - Larry English • Data quality issues torpedoed a $38 million CRM project Fleet Bank 1996 • The Data Warehouse Institute (TDWI) estimates that poor quality customer data costs U. S. businesses a staggering $611 billion a year in postage, printing, and staff overhead Real Life Insurance Example - $10 million annually • 2 million annual claims with 377 data items each • Error rate of. 001 generates more than 754, 000 errors per month and over 9. 04 million annually • If 10% are critical to fix, there are still over 1 million errors to correct • Even at a conservative estimate of $10 per error, the companies risk exposure to poor claim information is $10 million a year Source: TDWI Data Quality and the Bottom Line Tom Gransee, Knightsbridge Introduction 5

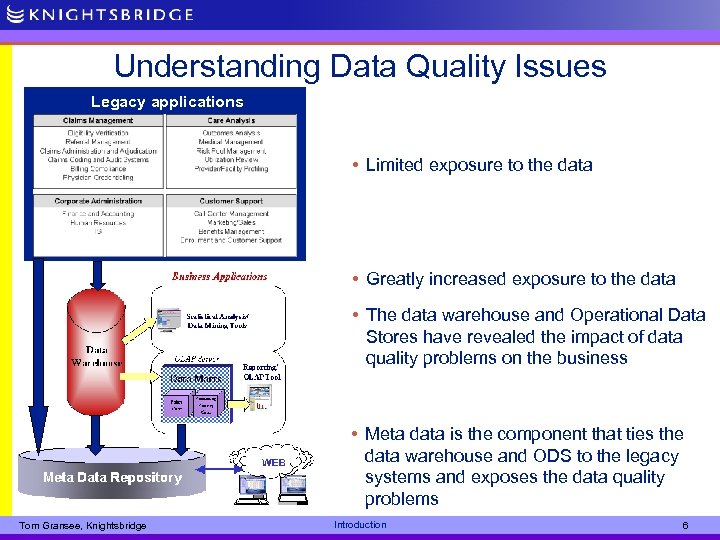

Understanding Data Quality Issues Legacy applications • Limited exposure to the data • Greatly increased exposure to the data • The data warehouse and Operational Data Stores have revealed the impact of data quality problems on the business • Meta data is the component that ties the data warehouse and ODS to the legacy systems and exposes the data quality problems Tom Gransee, Knightsbridge Introduction 6

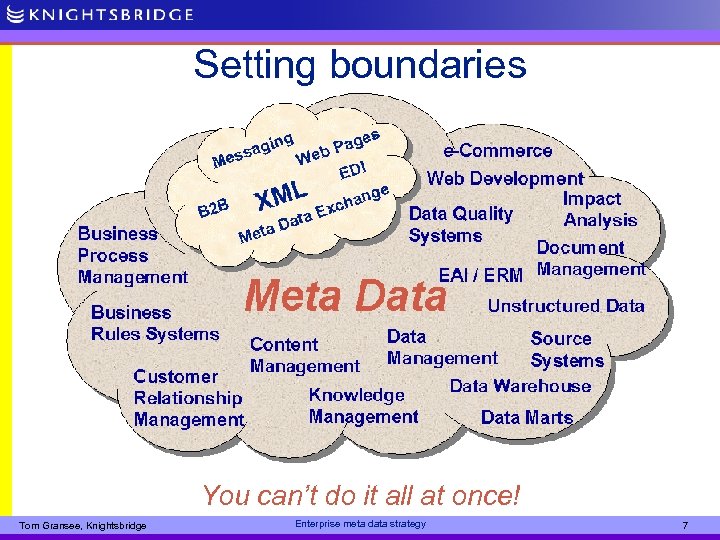

Setting boundaries You can’t do it all at once! Tom Gransee, Knightsbridge Enterprise meta data strategy 7

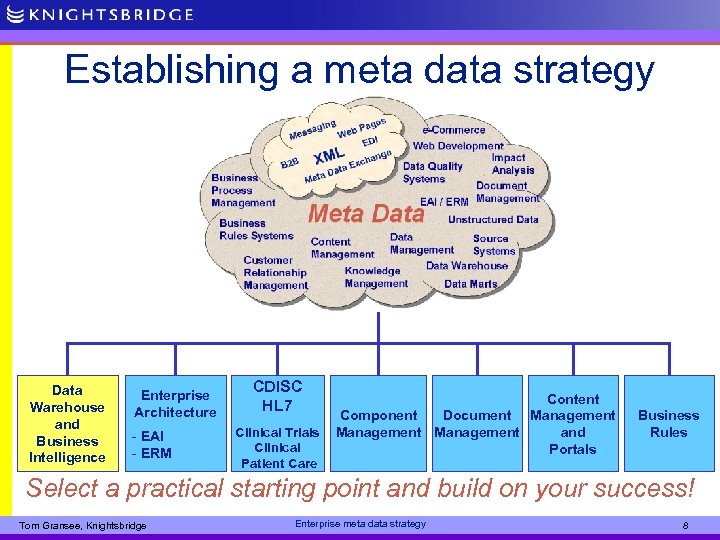

Establishing a meta data strategy Data Warehouse and Business Intelligence Enterprise Architecture - EAI - ERM CDISC HL 7 Clinical Trials Clinical Patient Care Content Component Document Management and Portals Business Rules Select a practical starting point and build on your success! Tom Gransee, Knightsbridge Enterprise meta data strategy 8

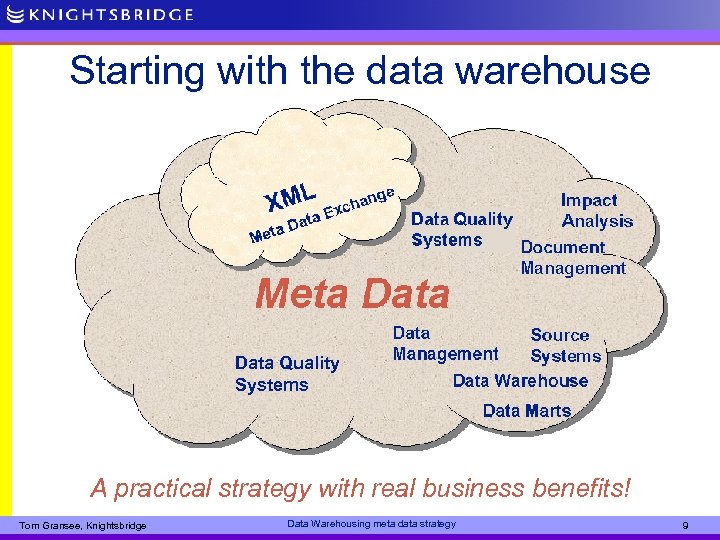

Starting with the data warehouse Data Quality Systems A practical strategy with real business benefits! Tom Gransee, Knightsbridge Data Warehousing meta data strategy 9
Why is the DW a good starting point? • DW typically focuses on the data that most needs to be shared • DW presents the greatest need to understand the data because it is crossfunctional • Real business benefit can be obtained for a practical investment • Existing DW are being re-architected • Meta data standards and tools are beginning to have an impact in this area • Challenges are created in a best-ofbreed development environment Tom Gransee, Knightsbridge Data Warehousing meta data strategy Built for today - architected for tomorrow 10

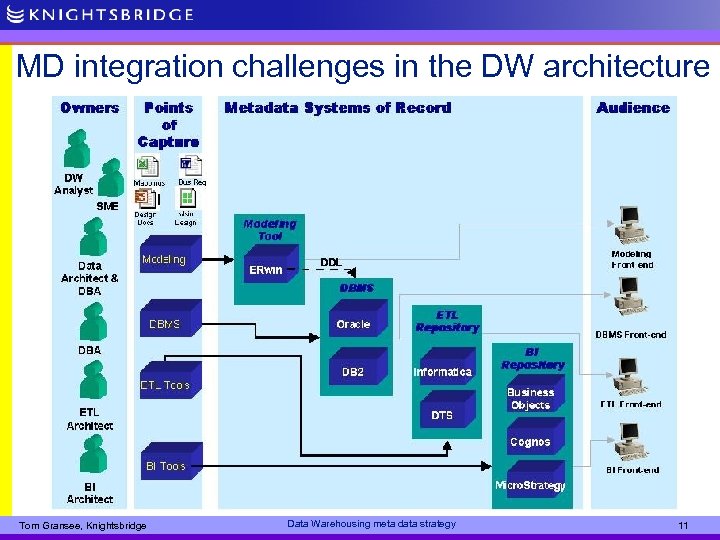

MD integration challenges in the DW architecture Tom Gransee, Knightsbridge Data Warehousing meta data strategy 11

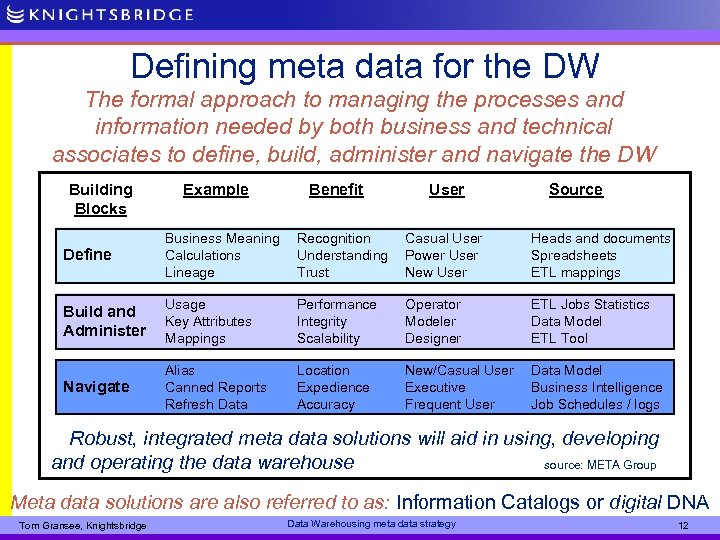

Defining meta data for the DW The formal approach to managing the processes and information needed by both business and technical associates to define, build, administer and navigate the DW Building Blocks Example Benefit User Source Define Business Meaning Calculations Lineage Recognition Understanding Trust Casual User Power User New User Heads and documents Spreadsheets ETL mappings Build and Administer Usage Key Attributes Mappings Performance Integrity Scalability Operator Modeler Designer ETL Jobs Statistics Data Model ETL Tool Navigate Alias Canned Reports Refresh Data Location Expedience Accuracy New/Casual User Executive Frequent User Data Model Business Intelligence Job Schedules / logs Robust, integrated meta data solutions will aid in using, developing and operating the data warehouse source: META Group Meta data solutions are also referred to as: Information Catalogs or digital DNA Tom Gransee, Knightsbridge Data Warehousing meta data strategy 12

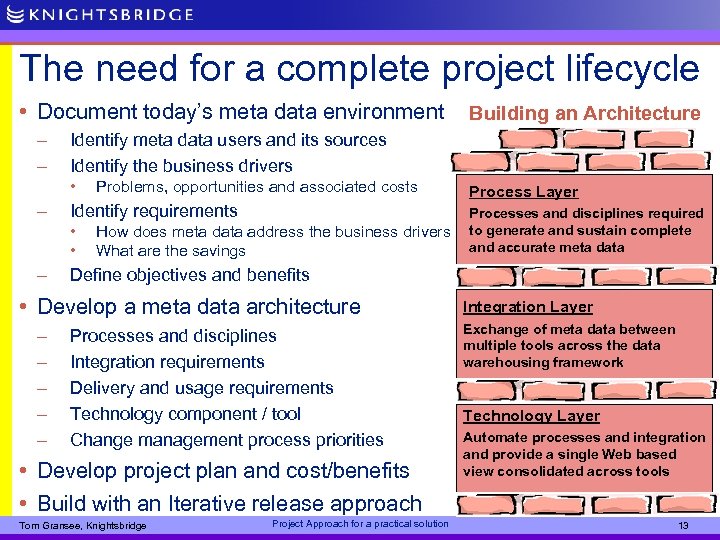

The need for a complete project lifecycle • Document today’s meta data environment – – Identify meta data users and its sources Identify the business drivers • – Problems, opportunities and associated costs Identify requirements • • – How does meta data address the business drivers What are the savings Process Layer Processes and disciplines required to generate and sustain complete and accurate meta data Define objectives and benefits • Develop a meta data architecture – – – Building an Architecture Processes and disciplines Integration requirements Delivery and usage requirements Technology component / tool Change management process priorities • Develop project plan and cost/benefits • Build with an Iterative release approach Tom Gransee, Knightsbridge Project Approach for a practical solution Integration Layer Exchange of meta data between multiple tools across the data warehousing framework Technology Layer Automate processes and integration and provide a single Web based view consolidated across tools 13

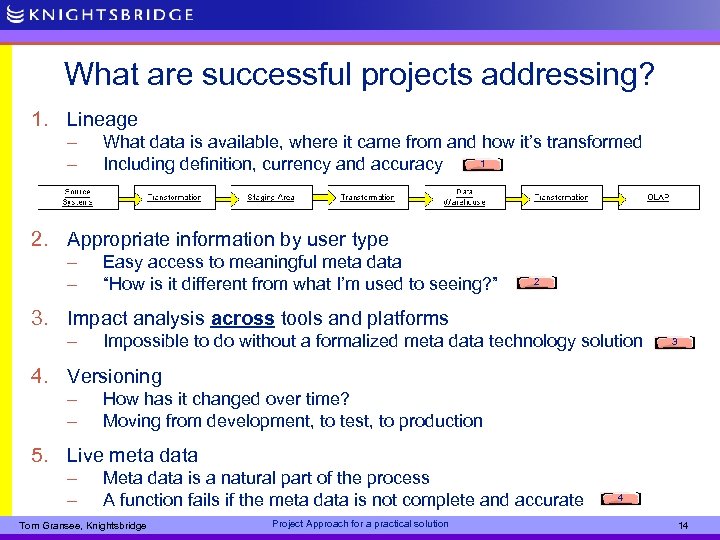

What are successful projects addressing? 1. Lineage – – What data is available, where it came from and how it’s transformed 1 Including definition, currency and accuracy 2. Appropriate information by user type – – Easy access to meaningful meta data “How is it different from what I’m used to seeing? ” 2 3. Impact analysis across tools and platforms – Impossible to do without a formalized meta data technology solution 3 4. Versioning – – How has it changed over time? Moving from development, to test, to production 5. Live meta data – – Meta data is a natural part of the process A function fails if the meta data is not complete and accurate Tom Gransee, Knightsbridge Project Approach for a practical solution 4 14

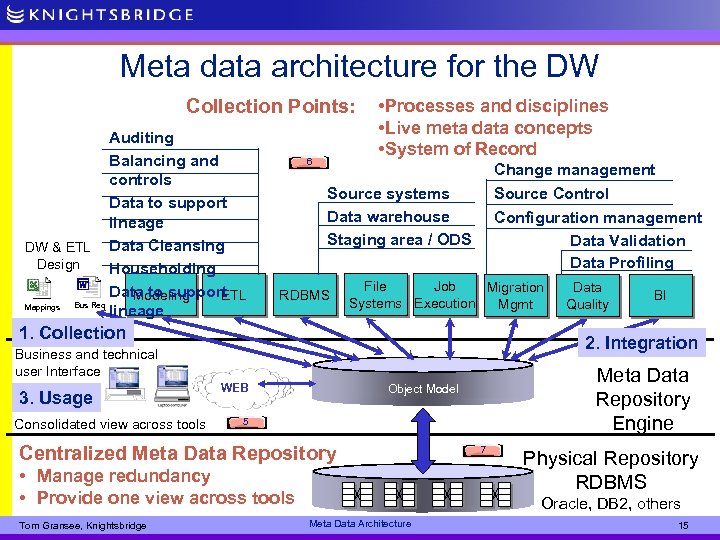

Meta data architecture for the DW Collection Points: Auditing Balancing and controls Data to support lineage DW & ETL Data Cleansing Design Householding Data to support Modeling ETL Bus Req Mappings lineage 6 • Processes and disciplines • Live meta data concepts • System of Record Change management Source Control Configuration management Data Validation Data Profiling Source systems Data warehouse Staging area / ODS RDBMS Job File Migration Systems Execution Mgmt 1. Collection Consolidated view across tools WEB Meta Data Repository Engine Object Model 5 Centralized Meta Data Repository • Manage redundancy • Provide one view across tools Tom Gransee, Knightsbridge BI 2. Integration Business and technical user Interface 3. Usage Data Quality 7 Physical Repository RDBMS Oracle, DB 2, others Meta Data Architecture 15
Components of a well-architected DW solution • Short- and long-term requirements are well-defined displaying clear business benefits • Meta tags required to support lineage, balancing and controls, etc. , are built into the DW architecture • Live meta data concepts are rigorously followed • A plug-and-play architecture is used – Support for multiple tools in a category, i. e. , Informatica and Ab Initio for ETL Built for today - architected for tomorrow – Simplifies future transitions to new technology and tools Tom Gransee, Knightsbridge Meta Data Architecture 16

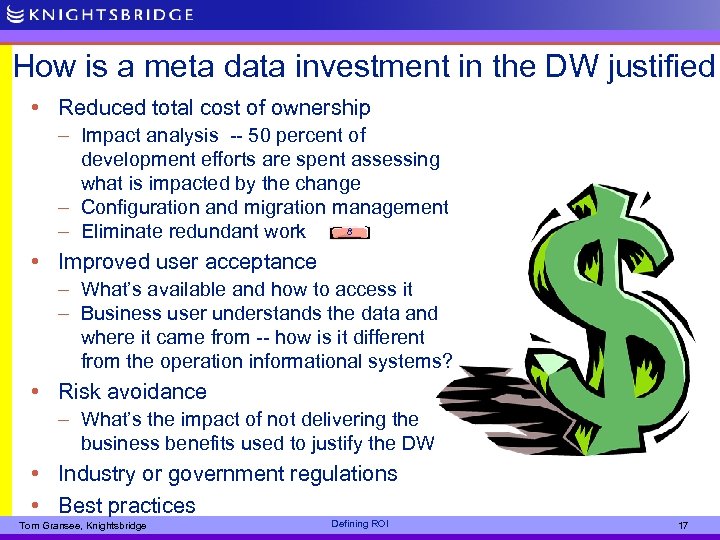

How is a meta data investment in the DW justified • Reduced total cost of ownership – Impact analysis -- 50 percent of development efforts are spent assessing what is impacted by the change – Configuration and migration management 8 – Eliminate redundant work • Improved user acceptance – What’s available and how to access it – Business user understands the data and where it came from -- how is it different from the operation informational systems? • Risk avoidance – What’s the impact of not delivering the business benefits used to justify the DW • Industry or government regulations • Best practices Tom Gransee, Knightsbridge Defining ROI 17
The CWM standard as an enabler 1. The Common Warehouse Metamodel 2. Model driven architecture • Based on object oriented modeling development • Building blocks: UML, MOF, XMI OCL • The model generates: – Repository data structure changes – APIs for models to interoperate – APIs to load and retrieve meta data – CORBA components 3. Meta data exchange format • Based on the CWM and Standard DTDs • XML data streams following the XMI standard Tom Gransee, Knightsbridge Tools / Options for moving forward and CWM is supported by: • Oracle • IBM • • • SAS Adaptive Hyperion 18

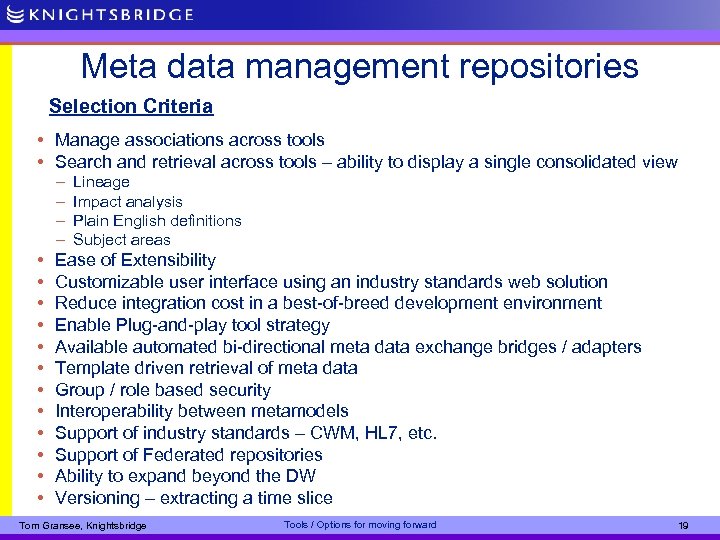

Meta data management repositories Selection Criteria • Manage associations across tools • Search and retrieval across tools – ability to display a single consolidated view – – • • • Lineage Impact analysis Plain English definitions Subject areas Ease of Extensibility Customizable user interface using an industry standards web solution Reduce integration cost in a best-of-breed development environment Enable Plug-and-play tool strategy Available automated bi-directional meta data exchange bridges / adapters Template driven retrieval of meta data Group / role based security Interoperability between metamodels Support of industry standards – CWM, HL 7, etc. Support of Federated repositories Ability to expand beyond the DW Versioning – extracting a time slice Tom Gransee, Knightsbridge Tools / Options for moving forward 19

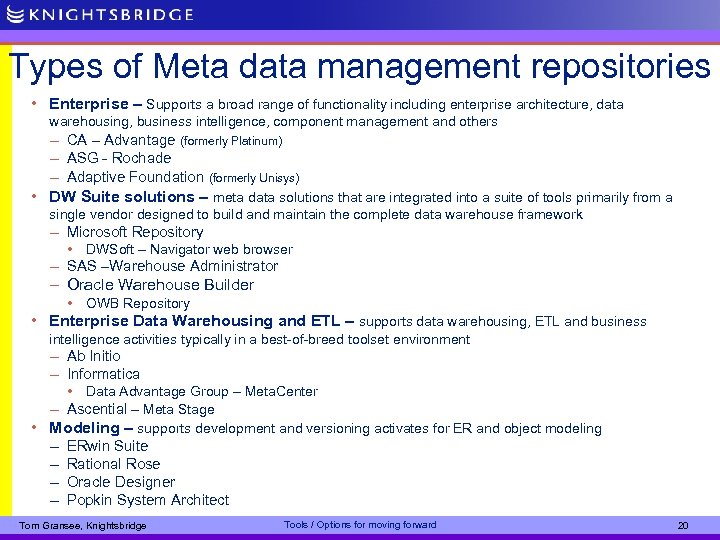

Types of Meta data management repositories • Enterprise – Supports a broad range of functionality including enterprise architecture, data warehousing, business intelligence, component management and others – CA – Advantage (formerly Platinum) – ASG - Rochade – Adaptive Foundation (formerly Unisys) • DW Suite solutions – meta data solutions that are integrated into a suite of tools primarily from a single vendor designed to build and maintain the complete data warehouse framework – Microsoft Repository • DWSoft – Navigator web browser – SAS –Warehouse Administrator – Oracle Warehouse Builder • OWB Repository • Enterprise Data Warehousing and ETL – supports data warehousing, ETL and business intelligence activities typically in a best-of-breed toolset environment – Ab Initio – Informatica • Data Advantage Group – Meta. Center – Ascential – Meta Stage • Modeling – supports development and versioning activates for ER and object modeling – ERwin Suite – Rational Rose – Oracle Designer – Popkin System Architect Tom Gransee, Knightsbridge Tools / Options for moving forward 20
Options for moving forward with a DW solution • Build from scratch using an RDBMS and custom web delivery application • Implement a repository tool and extend it as needed – Enterprise repository tool – Warehouse suite solutions – ETL tool repository No complete solution exists today. Establish a foundation and gradually develop a complete solution through a series of iterative releases! Tom Gransee, Knightsbridge Tools / Options for moving forward 21

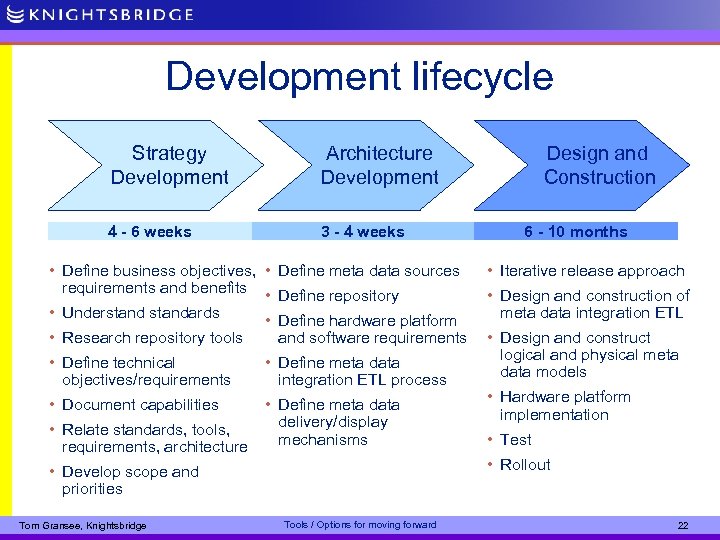

Development lifecycle Strategy Development Architecture Development 4 - 6 weeks 3 - 4 weeks • Define business objectives, • Define meta data sources requirements and benefits • Define repository • Understandards • Define hardware platform • Research repository tools Design and Construction 6 - 10 months • Iterative release approach • Design and construction of meta data integration ETL • Define technical objectives/requirements • Define meta data integration ETL process • Design and construct logical and physical meta data models • Document capabilities • Define meta data delivery/display mechanisms • Test • Relate standards, tools, requirements, architecture and software requirements • Rollout • Develop scope and priorities Tom Gransee, Knightsbridge • Hardware platform implementation Tools / Options for moving forward 22
Pitfalls to avoid • Selecting a repository tool without defining requirements first • Expecting the repository tool to solve process problems • Selecting an architecture that is not extensible or can’t scale • Underestimating the effort • Relying too much on manual entry • Selecting an initial project that does not deliver adequate business benefit Many meta data projects fail because they are either too big to be practical or too small to deliver real benefits • Selecting an initial project that is too complex to be practical Tom Gransee, Knightsbridge Meta data summary 23
One example of a hybrid solution Cubes, Hierarchy and Levels Field-to-Field Derivation DATA Business Definitions for Modeling Source-to-Target Mappings, Code Mappings, Business Rules, Data Quality, Access Contacts and Document Definitions Basic DW Attributes Oracle 8 i Logical & Physical DB Models Code & Data Mapping Cus ER/Win 3. 5 ty/ API Par Staging Area Data Warehouse Oracle 8 i SQL Server 2000 ed ac erf I Int AP tom 3 rd Meta Model Business Intelligenc e OLAP Cubes Pro Clarity Web Based Access API d API te Integra Physical RDBMS Info through OLE DB Codes Frequency Min/Max/Averages Cus tom API Microsoft Meta Data Services SQL Server 2000 DWSoft Web Browser XML and ASP DML Information Fast, inexpensive, low-risk approach implemented at a major insurance company Tom Gransee, Knightsbridge Meta data summary ETL Ab Initio 24

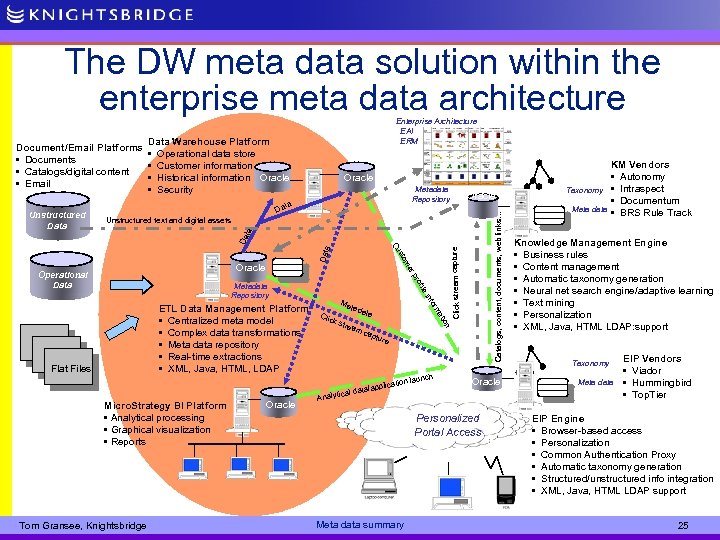

The DW meta data solution within the enterprise meta data architecture Enterprise Architecture EAI ERM Oracle Data Warehouse Platform Document/Email Platforms • Operational data store • Documents • Customer information • Catalogs/digital content • Historical information Oracle • Email • Security Metadata Repository ata Oracle Catalogs, content, documents, web links… D sto Data Cu rp me Oracle i rof Operational Data tad ata rea mc on k st ati Clic orm Flat Files Me inf ETL Data Management Platform • Centralized meta model • Complex data transformations • Meta data repository • Real-time extractions • XML, Java, HTML, LDAP le Metadata Repository aptu re unch ation la /applic al data Micro. Strategy BI Platform • Analytical processing • Graphical visualization • Reports Tom Gransee, Knightsbridge Oracle Click stream capture ta Unstructured text and digital assets Da Unstructured Data Oracle c Analyti Personalized Portal Access Meta data summary Taxonomy Meta data KM Vendors • Autonomy • Intraspect • Documentum • BRS Rule Track Knowledge Management Engine • Business rules • Content management • Automatic taxonomy generation • Neural net search engine/adaptive learning • Text mining • Personalization • XML, Java, HTML LDAP: support Taxonomy Meta data EIP Vendors • Viador • Hummingbird • Top. Tier EIP Engine • Browser-based access • Personalization • Common Authentication Proxy • Automatic taxonomy generation • Structured/unstructured info integration • XML, Java, HTML LDAP support 25

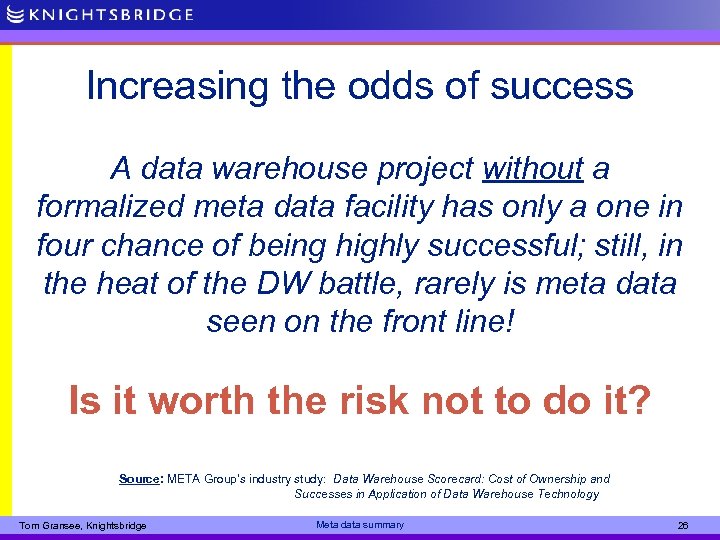

Increasing the odds of success A data warehouse project without a formalized meta data facility has only a one in four chance of being highly successful; still, in the heat of the DW battle, rarely is meta data seen on the front line! Is it worth the risk not to do it? Source: META Group’s industry study: Data Warehouse Scorecard: Cost of Ownership and Successes in Application of Data Warehouse Technology Tom Gransee, Knightsbridge Meta data summary 26

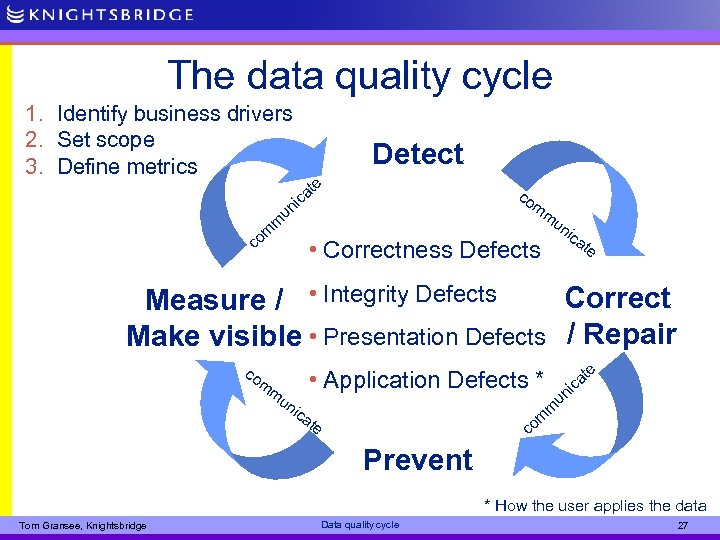

The data quality cycle 1. Identify business drivers 2. Set scope 3. Define metrics m co e t ca ni u m Detect co m m un ica te • Correctness Defects Correct Measure / • Integrity Defects Make visible • Presentation Defects / Repair co m • Application Defects * m un ica i un m e t ca m te co Prevent * How the user applies the data Tom Gransee, Knightsbridge Data quality cycle 27

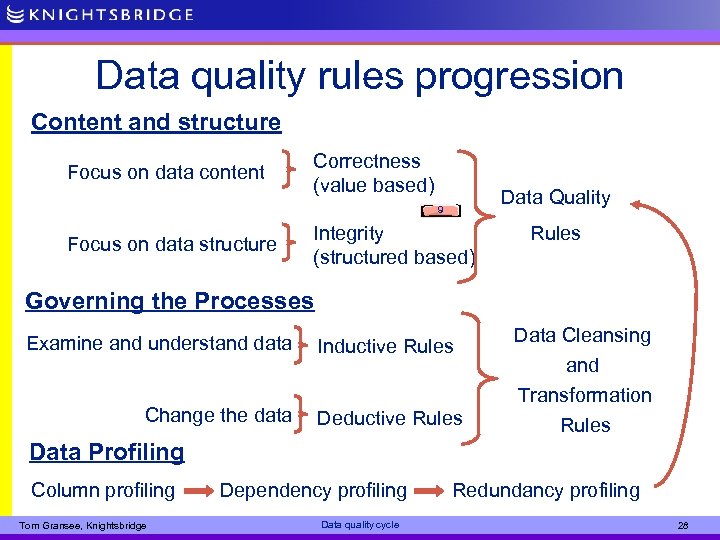

Data quality rules progression Content and structure Focus on data content Correctness (value based) Data Quality 9 Focus on data structure Integrity (structured based) Rules Governing the Processes Examine and understand data Change the data Inductive Rules Data Cleansing and Deductive Rules Transformation Rules Data Profiling Column profiling Tom Gransee, Knightsbridge Dependency profiling Data quality cycle Redundancy profiling 28

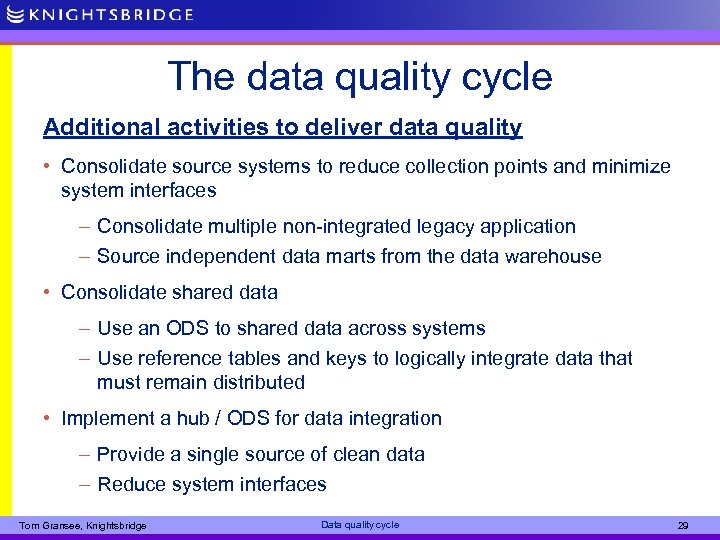

The data quality cycle Additional activities to deliver data quality • Consolidate source systems to reduce collection points and minimize system interfaces – Consolidate multiple non-integrated legacy application – Source independent data marts from the data warehouse • Consolidate shared data – Use an ODS to shared data across systems – Use reference tables and keys to logically integrate data that must remain distributed • Implement a hub / ODS for data integration – Provide a single source of clean data – Reduce system interfaces Tom Gransee, Knightsbridge Data quality cycle 29
How meta data supports data quality • The meta data solution manages many components needed to support a sustained data quality effort – – – – Navigation meta data Lineage Plain English Definitions Calculations and transformations Currency Identify owners and stewards Business rules Help identify redundency • The repository captures and exposes data quality statistics to a wide audience • The repository web interface can provide a mechanism for soliciting feedback Tom Gransee, Knightsbridge Data quality cycle 30

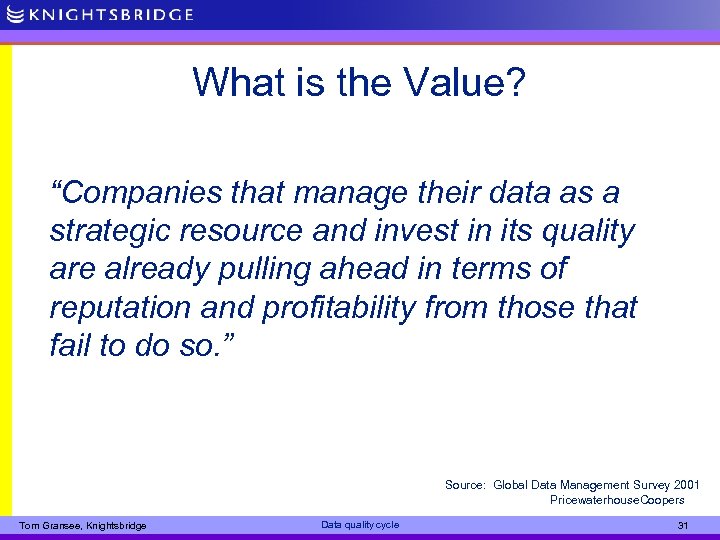

What is the Value? “Companies that manage their data as a strategic resource and invest in its quality are already pulling ahead in terms of reputation and profitability from those that fail to do so. ” Source: Global Data Management Survey 2001 Pricewaterhouse. Coopers Tom Gransee, Knightsbridge Data quality cycle 31

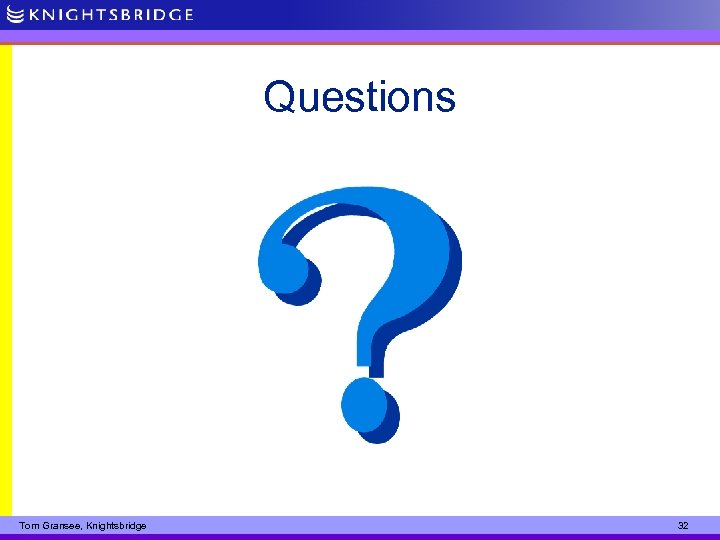

Questions Tom Gransee, Knightsbridge 32
Meta data usage – development samples Data lineage – from source or target List the fields in a source file Easily drill to: • Target data • Transformations • Additional source data Tom Gransee, Knightsbridge Example 1 a 33

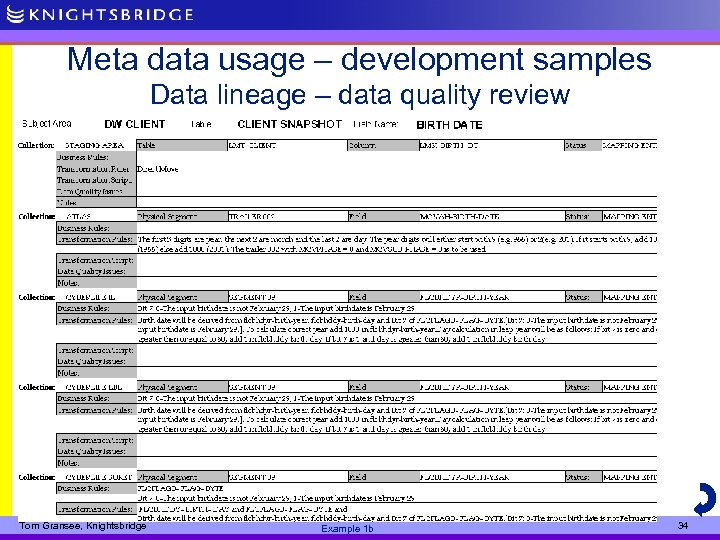

Meta data usage – development samples Data lineage – data quality review Tom Gransee, Knightsbridge Example 1 b 34

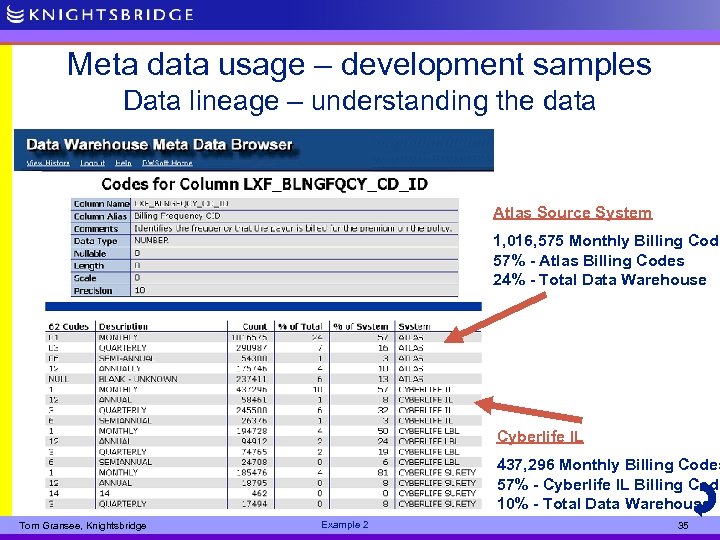

Meta data usage – development samples Data lineage – understanding the data Atlas Source System 1, 016, 575 Monthly Billing Code 57% - Atlas Billing Codes 24% - Total Data Warehouse Cyberlife IL 437, 296 Monthly Billing Codes 57% - Cyberlife IL Billing Code 10% - Total Data Warehouse Tom Gransee, Knightsbridge Example 2 35

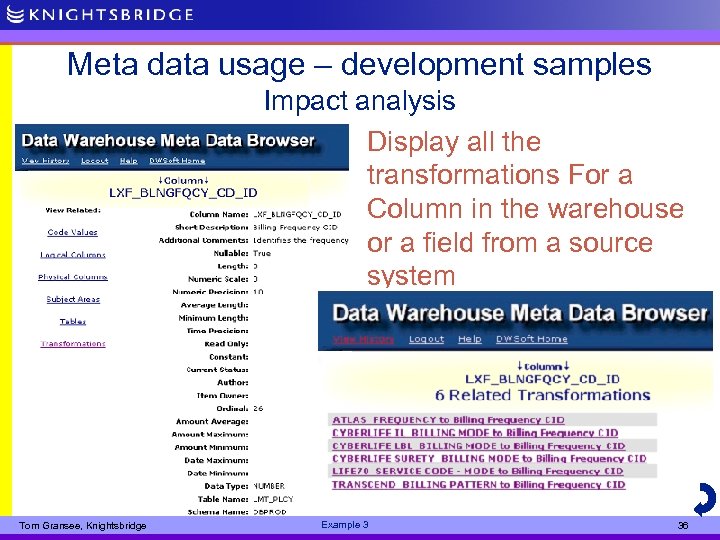

Meta data usage – development samples Impact analysis Display all the transformations For a Column in the warehouse or a field from a source system Tom Gransee, Knightsbridge Example 3 36

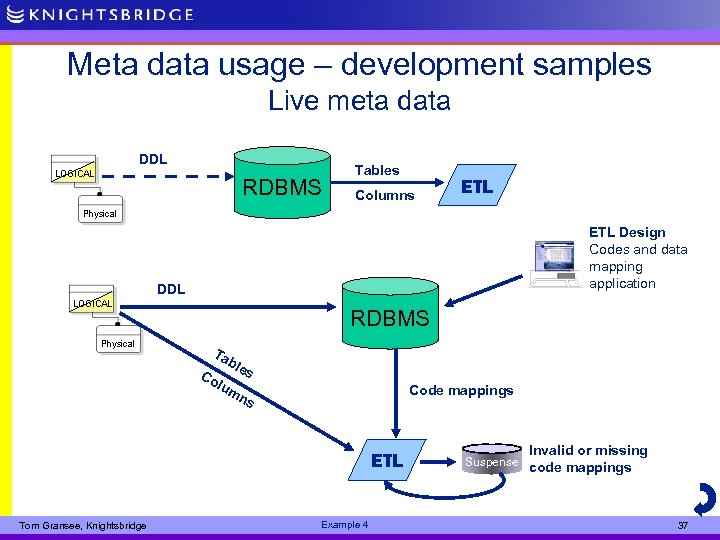

Meta data usage – development samples Live meta data DDL RDBMS Tables Columns ETL Design Codes and data mapping application DDL RDBMS Ta ble s lum ns Co Code mappings ETL Tom Gransee, Knightsbridge Example 4 Invalid or missing Suspense code mappings 37

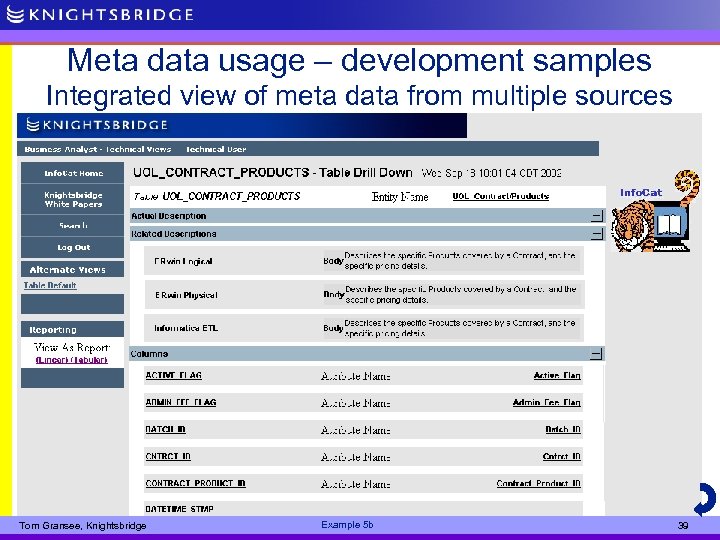

Meta data usage – development samples Integrated view of meta data from multiple sources • Extracted from the repository • Includes data from Oracle • Includes data from ERwin Tom Gransee, Knightsbridge Example 5 a 38
Meta data usage – development samples Integrated view of meta data from multiple sources Tom Gransee, Knightsbridge Example 5 b 39

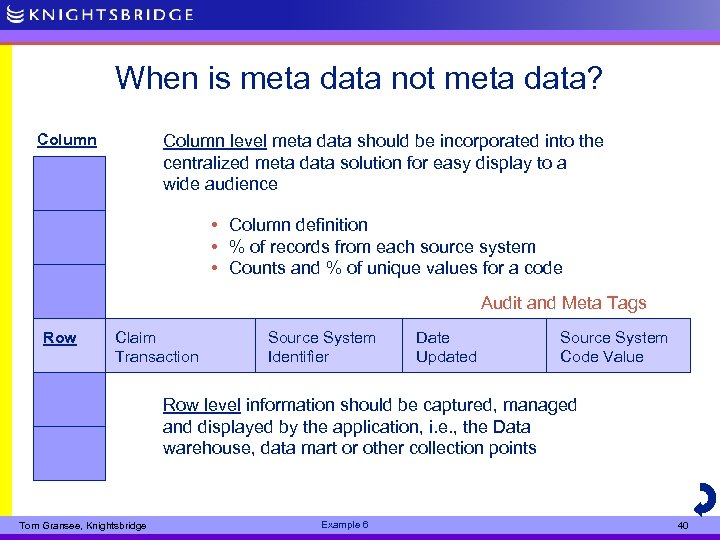

When is meta data not meta data? Column level meta data should be incorporated into the centralized meta data solution for easy display to a wide audience • Column definition • % of records from each source system • Counts and % of unique values for a code Audit and Meta Tags Row Claim Transaction Source System Identifier Date Updated Source System Code Value Row level information should be captured, managed and displayed by the application, i. e. , the Data warehouse, data mart or other collection points Tom Gransee, Knightsbridge Example 6 40
The importance of a meta data repository Legacy applications Limited exposure to the data An awareness of data quality issues Impact of problems not easy to see Few sustained activities to correct the problems • • • Greatly increased exposure to the data Impact of problems clearly felt Few sustained activities to correct data problems Awareness of meta data problems Few sustained activities to correct meta data • • Tom Gransee, Knightsbridge • • Greatly increase the exposure to meta data Navigation meta data increases data access Lineage Plain English Definitions Calculations and transformations Identify owners and stewards Business rules Example 7 41

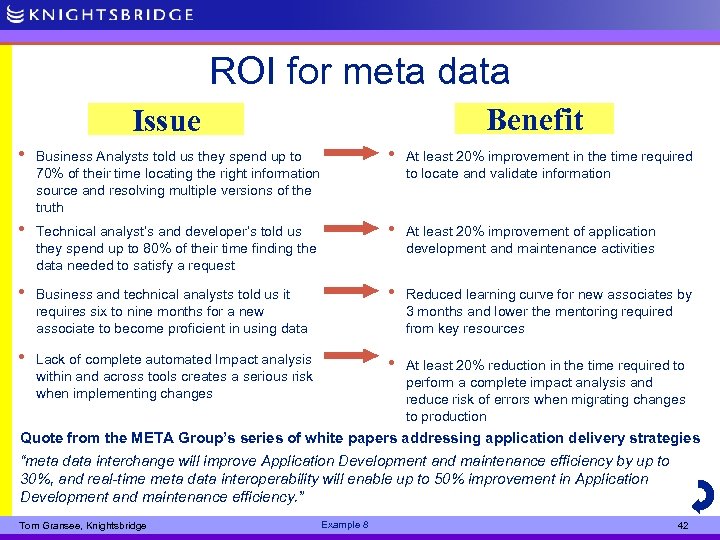

ROI for meta data Benefit Issue • Business Analysts told us they spend up to 70% of their time locating the right information source and resolving multiple versions of the truth • At least 20% improvement in the time required to locate and validate information • Technical analyst’s and developer’s told us they spend up to 80% of their time finding the data needed to satisfy a request • At least 20% improvement of application development and maintenance activities • Business and technical analysts told us it requires six to nine months for a new associate to become proficient in using data • Reduced learning curve for new associates by 3 months and lower the mentoring required from key resources • Lack of complete automated Impact analysis within and across tools creates a serious risk when implementing changes • At least 20% reduction in the time required to perform a complete impact analysis and reduce risk of errors when migrating changes to production Quote from the META Group’s series of white papers addressing application delivery strategies “meta data interchange will improve Application Development and maintenance efficiency by up to 30%, and real-time meta data interoperability will enable up to 50% improvement in Application Development and maintenance efficiency. ” Tom Gransee, Knightsbridge Example 8 42
What does correct mean Correctness Rules Activities • Accuracy Validation • Consistency Does it match the rules • Completeness Verification • Balancing Does it make sense as applied to other reliable sources • Continuity • Precedence • Currency • Duration • Retention • Precision • Granularity Tom Gransee, Knightsbridge Accurate Data can be valid but still not be accurate Inspection Can be as simple as spot checking or as thorough data-driven discovery inspection using techniques like: pattern recognition, classification and probability Example 9 43
