JWST-PRES-012897 Project Status for the James Webb Space Telescope Partner’s Workshop Phil Sabelhaus JWST Program Manager May 19, 2009

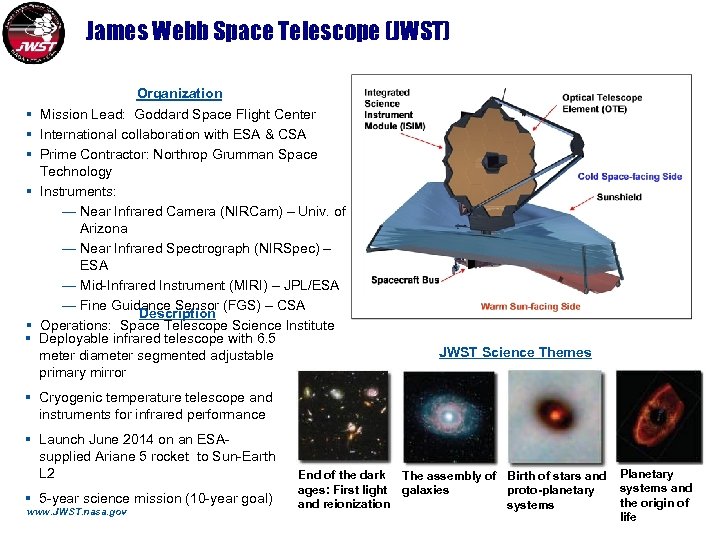

James Webb Space Telescope (JWST) § § § Organization Mission Lead: Goddard Space Flight Center International collaboration with ESA & CSA Prime Contractor: Northrop Grumman Space Technology Instruments: ― Near Infrared Camera (NIRCam) – Univ. of Arizona ― Near Infrared Spectrograph (NIRSpec) – ESA ― Mid-Infrared Instrument (MIRI) – JPL/ESA ― Fine Guidance Sensor (FGS) – CSA Description Operations: Space Telescope Science Institute Deployable infrared telescope with 6. 5 meter diameter segmented adjustable primary mirror JWST Science Themes § Cryogenic temperature telescope and instruments for infrared performance § Launch June 2014 on an ESAsupplied Ariane 5 rocket to Sun-Earth L 2 § 5 -year science mission (10 -year goal) www. JWST. nasa. gov End of the dark ages: First light and reionization The assembly of Birth of stars and galaxies proto-planetary systems Planetary systems and the origin of life
JWST Overview Schedule Needs to be updated for the June 2014 LRD 3 JWST_ISIM. May. QSR/3

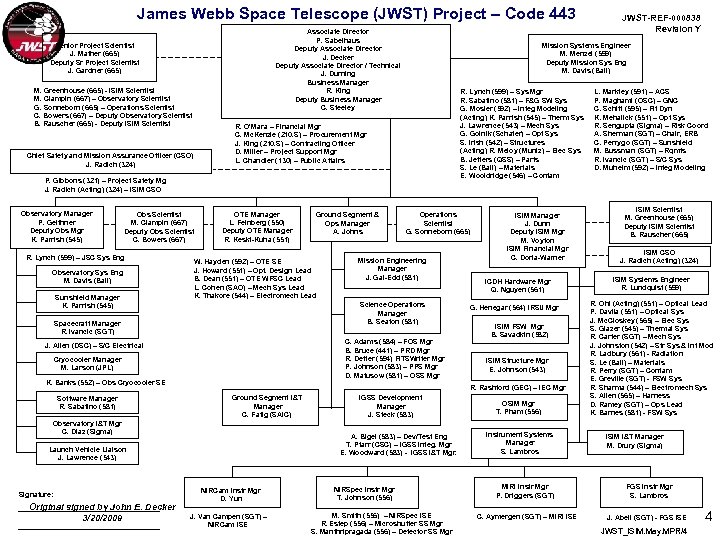

James Webb Space Telescope (JWST) Project – Code 443 Associate Director P. Sabelhaus Deputy Associate Director J. Decker Deputy Associate Director / Technical J. Durning Business Manager R. King Deputy Business Manager C. Steeley Senior Project Scientist J. Mather (665) Deputy Sr Project Scientist J. Gardner (665) M. Greenhouse (665) - ISIM Scientist M. Clampin (667) – Observatory Scientist G. Sonneborn (665) – Operations Scientist C. Bowers (667) – Deputy Observatory Scientist B. Rauscher (665) - Deputy ISIM Scientist Mission Systems Engineer M. Menzel (599) Deputy Mission Sys Eng M. Davis (Ball) R. Lynch (599) – Sys Mgr R. Sabatino (581) – F&G SW Sys G. Mosier (592) – Integ Modeling (Acting) K. Parrish (545) – Therm Sys J. Lawrence (543) – Mech Sys G. Golnik (Schafer) – Opt Sys S. Irish (542) – Structures (Acting) R. Meloy (Muniz) – Elec Sys B. Jeffers (QSS) – Parts S. Le (Ball) – Materials E. Wooldridge (546) – Contam R. O’Mara – Financial Mgr C. Mc. Kenzie (210. S) – Procurement Mgr J. King (210. S) – Contracting Officer D. Miller – Project Support Mgr L. Chandler (130) – Public Affairs Chief Safety and Mission Assurance Officer (CSO) J. Radich (324) P. Gibbons (321) – Project Safety Mg J. Radich (Acting) (324) – ISIM CSO Observatory Manager P. Geithner Deputy Obs Mgr K. Parrish (545) Obs Scientist M. Clampin (667) Deputy Obs Scientist C. Bowers (667) R. Lynch (599) – JSC Sys Eng Observatory Sys Eng M. Davis (Ball) Sunshield Manager K. Parrish (545) OTE Manager L. Feinberg (550) Deputy OTE Manager R. Keski-Kuha (551) W. Hayden (592) – OTE SE J. Howard (551) – Opt. Design Lead B. Dean (551) – OTE WFSC Lead L. Cohen (SAO) – Mech Sys Lead K. Thakore (544) – Electromech Lead Cryocooler Manager M. Larson (JPL) K. Banks (552) – Obs Cryocooler SE ISIM Manager J. Dunn Deputy ISIM Mgr M. Voyton ISIM Financial Mgr C. Doria-Warner ICDH Hardware Mgr Q. Nguyen (561) G. Henegar (564) IRSU Mgr ISIM FSW Mgr B. Savadkin (582) ISIM Structure Mgr E. Johnson (543) R. Rashford (GEC) – IEC Mgr Ground Segment I&T Manager C. Fatig (SAIC) Observatory I&T Mgr C. Diaz (Sigma) IGSS Development Manager J. Steck (583) A. Bigel (583) – Dev/Test Eng T. Pfarr (CSC) – IGSS Integ. Mgr E. Woodward (583) - IGSS I&T Mgr. Launch Vehicle Liaison J. Lawrence (543) Original signed by John E. Decker 3/20/2009 Mission Engineering Manager J. Gal-Edd (581) C. Adams (584) – FOS Mgr B. Bruce (441) – PRD Mgr R. Detter (594) FITSWriter Mgr P. Johnson (583) – PPS Mgr D. Matusow (581) – OSS Mgr J. Allen (DSC) – S/C Electrical Signature: Operations Scientist G. Sonneborn (665) Science Operations Manager B. Seaton (581) Spacecraft Manager R. Ivancic (SGT) Software Manager R. Sabatino (581) Ground Segment & Ops Manager A. Johns NIRCam Instr Mgr D. Yun J. Van Campen (SGT) – NIRCam ISE JWST-REF-000838 Revision Y NIRSpec Instr Mgr T. Johnson (556) M. Smith (556) – NIRSpec ISE R. Estep (556) – Microshutter SS Mgr S. Manthripragada (556) – Detector SS Mgr OSIM Mgr T. Pham (556) Instrument Systems Manager S. Lambros MIRI Instr Mgr P. Driggers (SGT) C. Aymergen (SGT) – MIRI ISE L. Markley (591) – ACS P. Maghami (OSC) – GNC C. Schiff (595) – Flt Dyn K. Mehalick (551) – Opt Sys R. Sengupta (Sigma) – Risk Coord A. Sherman (SGT) – Chair, ERB C. Perrygo (SGT) – Sunshield M. Bussman (SGT) – Rqmts R. Ivancic (SGT) – S/C Sys D. Muheim (592) – Integ Modeling ISIM Scientist M. Greenhouse (665) Deputy ISIM Scientist B. Rauscher (665) ISIM CSO J. Radich (Acting) (324) ISIM Systems Engineer R. Lundquist (599) R. Ohl (Acting) (551) – Optical Lead P. Davila (551) – Optical Sys J. Mc. Closkey (565) – Elec Sys S. Glazer (545) – Thermal Sys R. Carter (SGT) – Mech Sys J. Johnston (542) – Str Sys & Int Mod R. Ladbury (561) - Radiation S. Le (Ball) – Materials R. Perry (SGT) – Contam E. Greville (SGT) - FSW Sys R. Sharma (544) – Electromech Sys S. Allen (565) – Harness D. Ramey (SGT) – Ops Lead K. Barnes (581) - FSW Sys ISIM I&T Manager M. Drury (Sigma) FGS Instr Mgr S. Lambros J. Abell (SGT) - FGS ISE JWST_ISIM. May. MPR/4 4

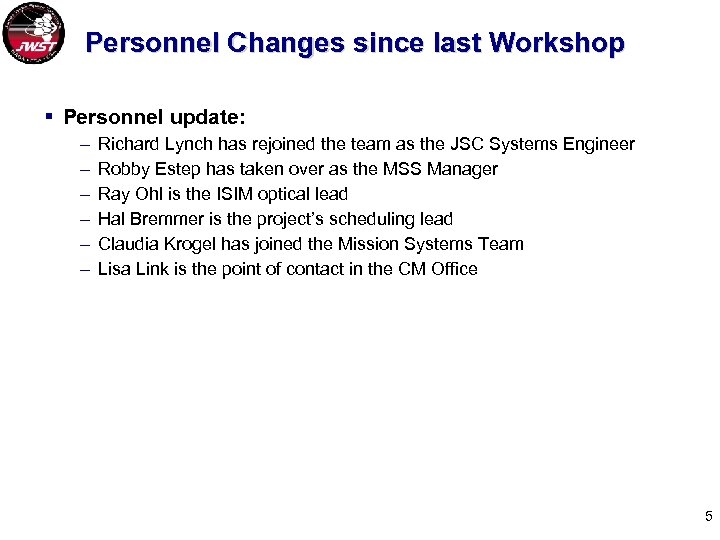

Personnel Changes since last Workshop § Personnel update: – – – Richard Lynch has rejoined the team as the JSC Systems Engineer Robby Estep has taken over as the MSS Manager Ray Ohl is the ISIM optical lead Hal Bremmer is the project’s scheduling lead Claudia Krogel has joined the Mission Systems Team Lisa Link is the point of contact in the CM Office 5

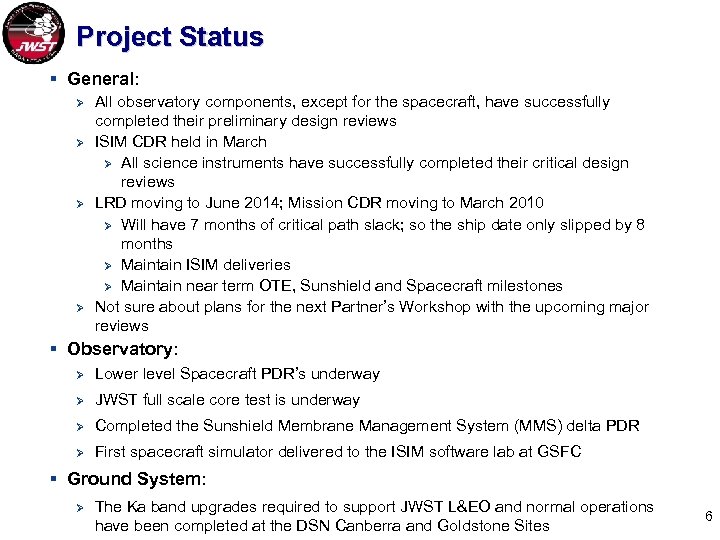

Project Status § General: Ø Ø All observatory components, except for the spacecraft, have successfully completed their preliminary design reviews ISIM CDR held in March Ø All science instruments have successfully completed their critical design reviews LRD moving to June 2014; Mission CDR moving to March 2010 Ø Will have 7 months of critical path slack; so the ship date only slipped by 8 months Ø Maintain ISIM deliveries Ø Maintain near term OTE, Sunshield and Spacecraft milestones Not sure about plans for the next Partner’s Workshop with the upcoming major reviews § Observatory: Ø Lower level Spacecraft PDR’s underway Ø JWST full scale core test is underway Ø Completed the Sunshield Membrane Management System (MMS) delta PDR Ø First spacecraft simulator delivered to the ISIM software lab at GSFC § Ground System: Ø The Ka band upgrades required to support JWST L&EO and normal operations have been completed at the DSN Canberra and Goldstone Sites 6

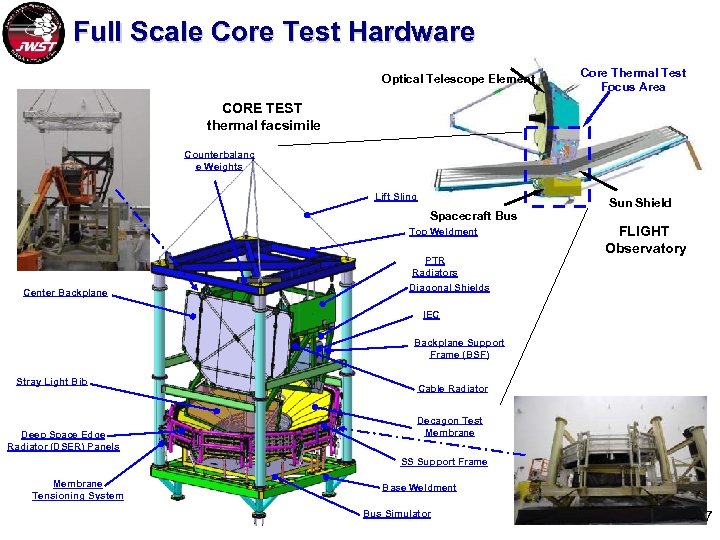

Full Scale Core Test Hardware Optical Telescope Element Core Thermal Test Focus Area CORE TEST thermal facsimile Counterbalanc e Weights Lift Sling Spacecraft Bus Top Weldment Center Backplane PTR Radiators Diagonal Shields Sun Shield FLIGHT Observatory IEC Backplane Support Frame (BSF) Stray Light Bib Deep Space Edge Radiator (DSER) Panels Cable Radiator Decagon Test Membrane SS Support Frame Membrane Tensioning System Base Weldment Bus Simulator 7

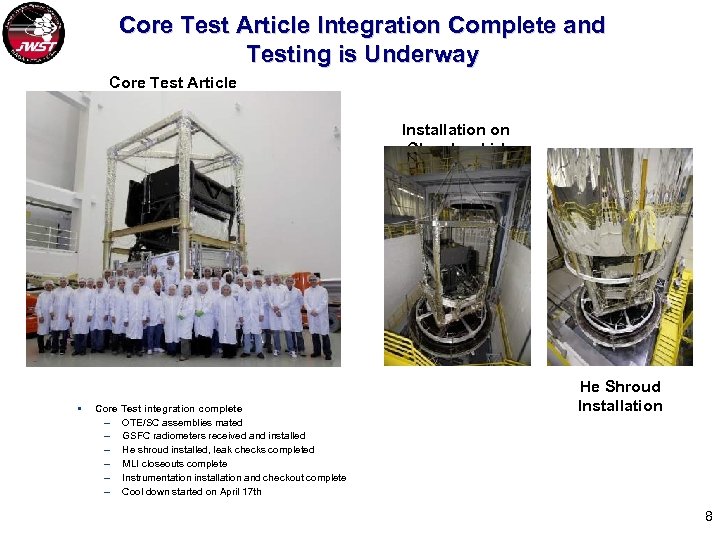

Core Test Article Integration Complete and Testing is Underway Core Test Article Installation on Chamber Lid § Core Test integration complete – OTE/SC assemblies mated – GSFC radiometers received and installed – He shroud installed, leak checks completed – MLI closeouts complete – Instrumentation installation and checkout complete – Cool down started on April 17 th He Shroud Installation 8

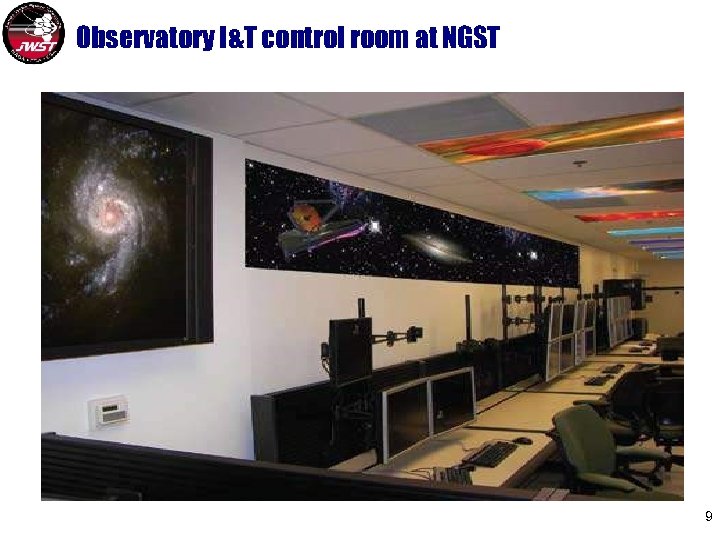

Observatory I&T control room at NGST 9

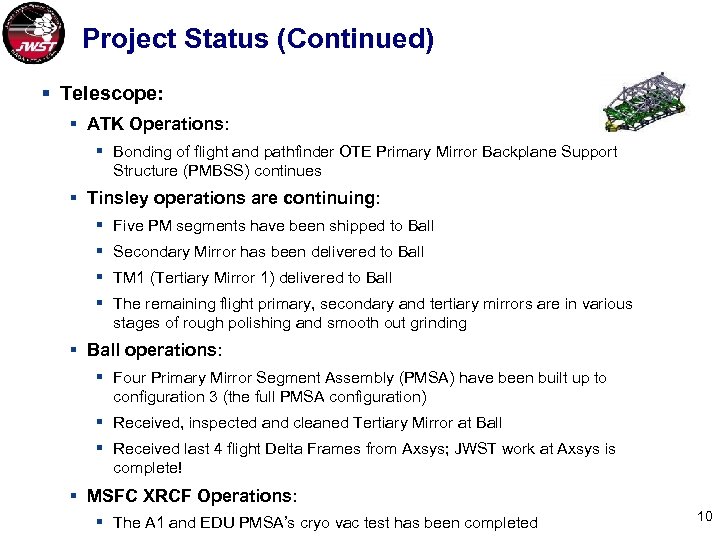

Project Status (Continued) § Telescope: § ATK Operations: § Bonding of flight and pathfinder OTE Primary Mirror Backplane Support Structure (PMBSS) continues § Tinsley operations are continuing: § Five PM segments have been shipped to Ball § Secondary Mirror has been delivered to Ball § TM 1 (Tertiary Mirror 1) delivered to Ball § The remaining flight primary, secondary and tertiary mirrors are in various stages of rough polishing and smooth out grinding § Ball operations: § Four Primary Mirror Segment Assembly (PMSA) have been built up to configuration 3 (the full PMSA configuration) § Received, inspected and cleaned Tertiary Mirror at Ball § Received last 4 flight Delta Frames from Axsys; JWST work at Axsys is complete! § MSFC XRCF Operations: § The A 1 and EDU PMSA’s cryo vac test has been completed 10

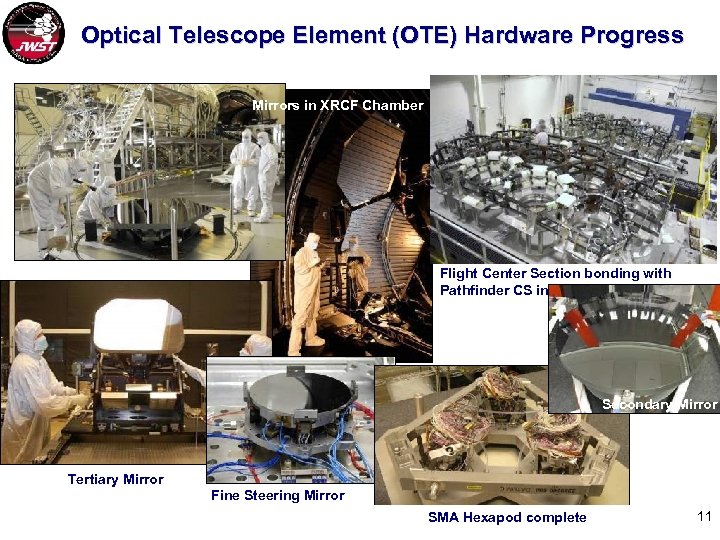

Optical Telescope Element (OTE) Hardware Progress Mirrors in XRCF Chamber Flight Center Section bonding with Pathfinder CS in foreground Secondary Mirror Tertiary Mirror Fine Steering Mirror SMA Hexapod complete 11

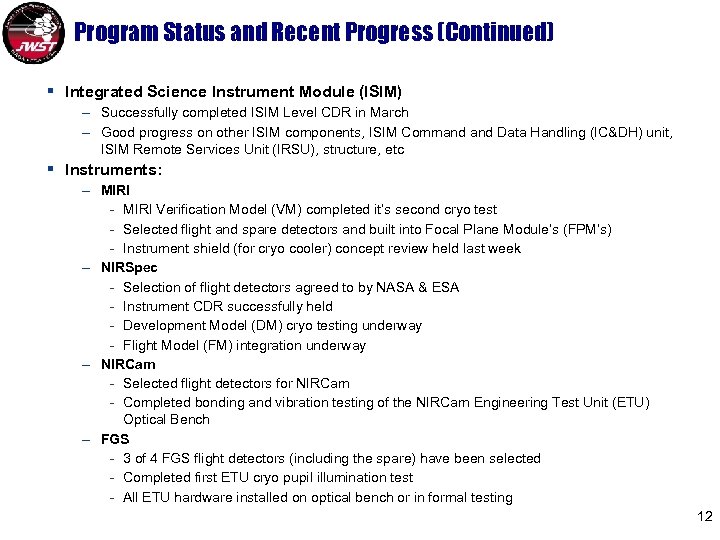

Program Status and Recent Progress (Continued) § Integrated Science Instrument Module (ISIM) – Successfully completed ISIM Level CDR in March – Good progress on other ISIM components, ISIM Command Data Handling (IC&DH) unit, ISIM Remote Services Unit (IRSU), structure, etc § Instruments: – MIRI - MIRI Verification Model (VM) completed it’s second cryo test - Selected flight and spare detectors and built into Focal Plane Module’s (FPM’s) - Instrument shield (for cryo cooler) concept review held last week – NIRSpec - Selection of flight detectors agreed to by NASA & ESA - Instrument CDR successfully held - Development Model (DM) cryo testing underway - Flight Model (FM) integration underway – NIRCam - Selected flight detectors for NIRCam - Completed bonding and vibration testing of the NIRCam Engineering Test Unit (ETU) Optical Bench – FGS - 3 of 4 FGS flight detectors (including the spare) have been selected - Completed first ETU cryo pupil illumination test - All ETU hardware installed on optical bench or in formal testing 12

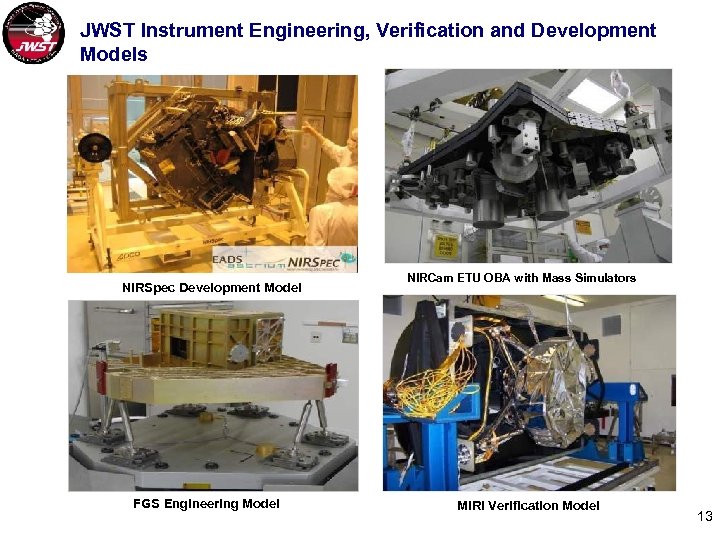

JWST Instrument Engineering, Verification and Development Models NIRSpec Development Model FGS Engineering Model NIRCam ETU OBA with Mass Simulators MIRI Verification Model 13

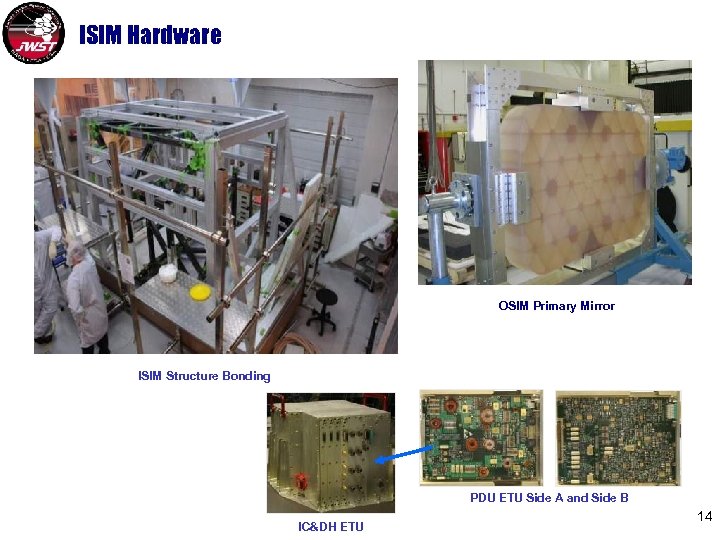

ISIM Hardware OSIM Primary Mirror ISIM Structure Bonding PDU ETU Side A and Side B IC&DH ETU 14

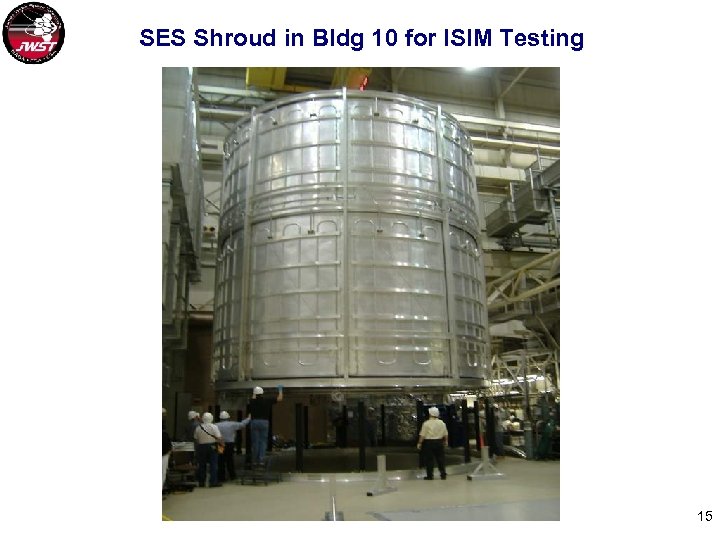

SES Shroud in Bldg 10 for ISIM Testing 15

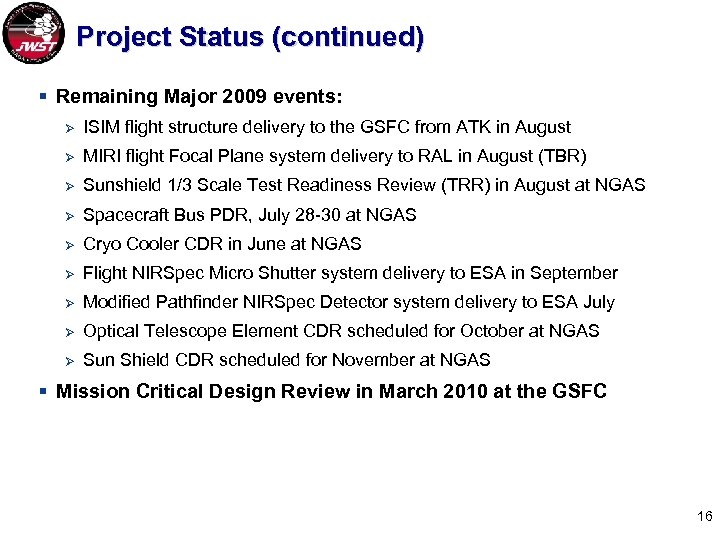

Project Status (continued) § Remaining Major 2009 events: Ø ISIM flight structure delivery to the GSFC from ATK in August Ø MIRI flight Focal Plane system delivery to RAL in August (TBR) Ø Sunshield 1/3 Scale Test Readiness Review (TRR) in August at NGAS Ø Spacecraft Bus PDR, July 28 -30 at NGAS Ø Cryo Cooler CDR in June at NGAS Ø Flight NIRSpec Micro Shutter system delivery to ESA in September Ø Modified Pathfinder NIRSpec Detector system delivery to ESA July Ø Optical Telescope Element CDR scheduled for October at NGAS Ø Sun Shield CDR scheduled for November at NGAS § Mission Critical Design Review in March 2010 at the GSFC 16

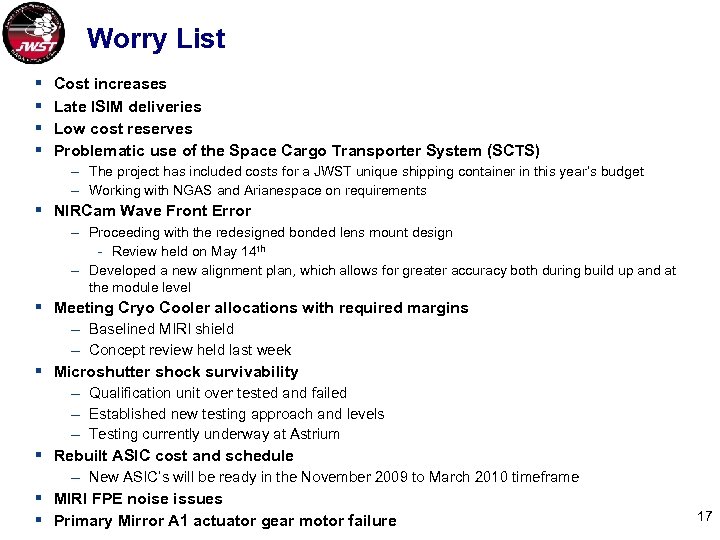

Worry List § § Cost increases Late ISIM deliveries Low cost reserves Problematic use of the Space Cargo Transporter System (SCTS) – The project has included costs for a JWST unique shipping container in this year’s budget – Working with NGAS and Arianespace on requirements § NIRCam Wave Front Error – Proceeding with the redesigned bonded lens mount design - Review held on May 14 th – Developed a new alignment plan, which allows for greater accuracy both during build up and at the module level § Meeting Cryo Cooler allocations with required margins § § – Baselined MIRI shield – Concept review held last week Microshutter shock survivability – Qualification unit over tested and failed – Established new testing approach and levels – Testing currently underway at Astrium Rebuilt ASIC cost and schedule – New ASIC’s will be ready in the November 2009 to March 2010 timeframe MIRI FPE noise issues Primary Mirror A 1 actuator gear motor failure 17
