June 2014 IBM Power. HA This is Power on a Smarter Planet Steven Finnes

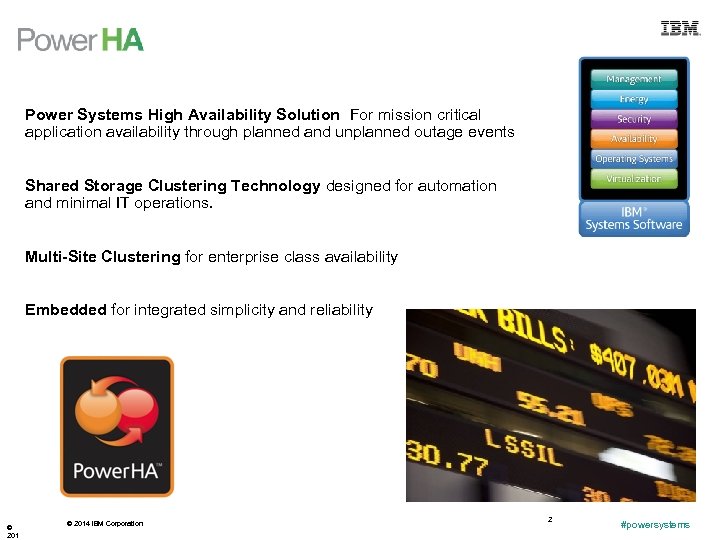

Power Systems High Availability Solution For mission critical application availability through planned and unplanned outage events Shared Storage Clustering Technology designed for automation and minimal IT operations. Multi-Site Clustering for enterprise class availability Embedded for integrated simplicity and reliability © 2014 IBM Corporation 2 #powersystems

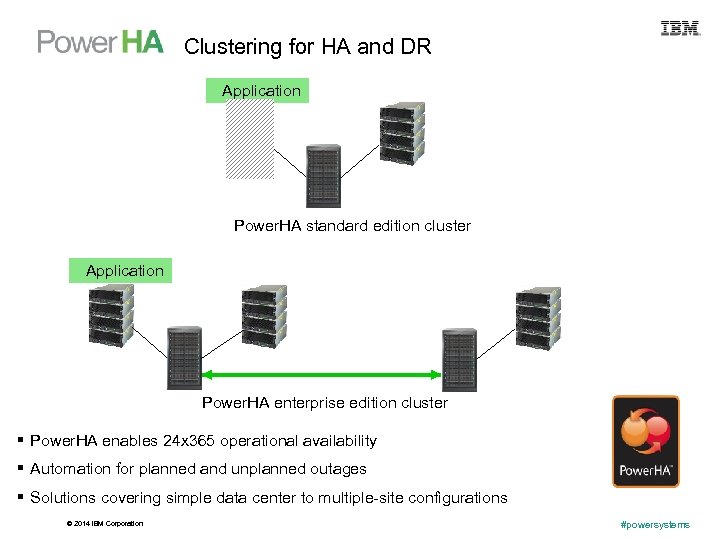

Clustering for HA and DR Application Power. HA standard edition cluster Application Power. HA enterprise edition cluster § Power. HA enables 24 x 365 operational availability § Automation for planned and unplanned outages § Solutions covering simple data center to multiple-site configurations © 2014 IBM Corporation #powersystems

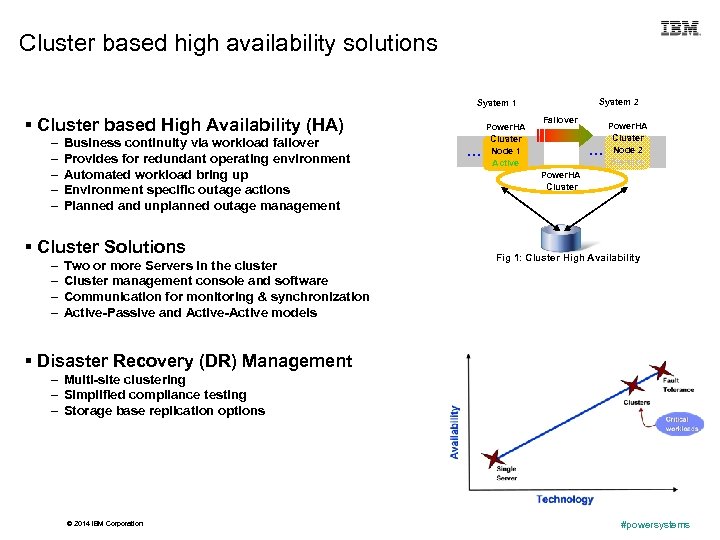

Cluster based high availability solutions System 2 System 1 § Cluster based High Availability (HA) – – – Business continuity via workload failover Provides for redundant operating environment Automated workload bring up Environment specific outage actions Planned and unplanned outage management § Cluster Solutions – – Two or more Servers in the cluster Cluster management console and software Communication for monitoring & synchronization Active-Passive and Active-Active models … Power. HA Cluster Node 1 Active Failover … Power. HA Cluster Node 2 Standby Power. HA Cluster Fig 1: Cluster High Availability § Disaster Recovery (DR) Management – Multi-site clustering – Simplified compliance testing – Storage base replication options © 2014 IBM Corporation #powersystems

Power. HA for AIX: evolution (from HACMP to now) Single server Clusters Site 1 Split Site Clusters Multi-site Disaster Recovery Split Site Mirror Site 1 Third Party Storage DR SAP Hot. Standby Hyper. Swap Site 2 Site 1 Site 2 SAP Hyper. Swap live. Cache Hot. Standby Site 1 Site 2 Active-Active 3 Sites Deployments Active Sites Site 1 Site 2 3 Site Deployments Site 1 Site 2 Site 3 1 1 1 2 1 0 1989 1992 § HACMP Cluster § Active-Passive Failover § Resource Group Management § Planned and unplanned outage handling 2000 § Disaster Recovery with § § Storage: DS 8 K, SVC Framework for OEM disk and FS support Location dependencies Low cost Host mirroring File Collections 1 1 9 220 31 85 74 6 1 29 38 47 5 6 support (Disk, Network, SCSI target, Token ring, Serial etc) § Integration with Tivoli Monitoring § VG failure handling § NFS HA management © 2014 IBM Corporation 1 1 9 220 31 85 74 6 1 29 38 47 5 6 2004 2010 § Fast Failure Detection § Framework for OEM disk § § § § § Fast Disk Takeover § Redundant communication 1 1 1 2 1 0 § §§ §§ §§ and FS support Capacity Optimized failovers Low cost Host mirroring GPFS Integration Two Node Rapid deployment assistant WPAR HA Management Browser based UI RG Dependencies Health Monitoring and Verification framework Flexible and uniform E 2 E integration for 1 or 2 failover policies Single point of control sites Application level granularity DR with EMC, Hitachi, XIV Distributed server h/w mgt NDU upgrades E 2 E RPO 0 -3 sec / RTO < 1 H Self healing § Power. HA v 7: Kernel based § § § § 2013 2012 clustering Power. HA federated Security Administration Enhanced Split/Merge handling Enhanced Middleware HA management (Smart Asists) SAP HA management SAP live. Cache Hot. Standby solution IBM Director: Graphical Management Full IPv 6 Support Stretched and Linked Clusters § § § Hyper. Swap with DS 8 K Active-Active Sites support Manual Failover DR Tie breaker Support 3 Site support through LVM Mirror+Hyper. Swap § 3 Site Support through LVM Mirror + GLVM Mirroring § Unicast clustering § Dynamic Host Name Change support #powersystems

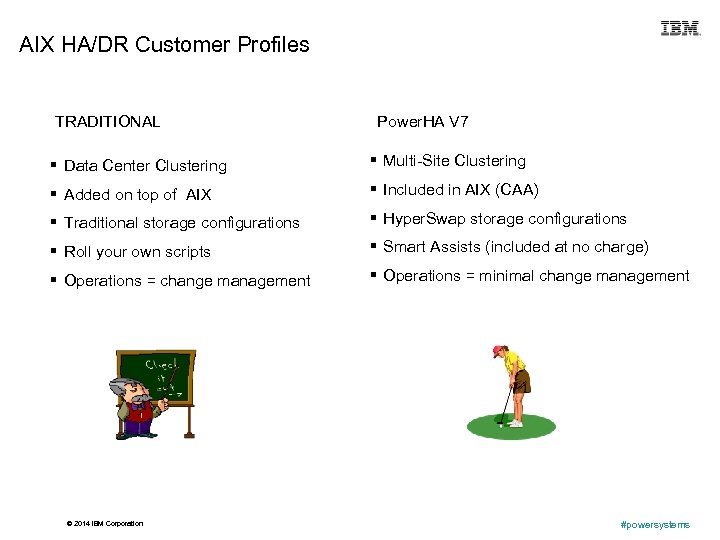

AIX HA/DR Customer Profiles TRADITIONAL Power. HA V 7 § Data Center Clustering § Multi-Site Clustering § Added on top of AIX § Included in AIX (CAA) § Traditional storage configurations § Hyper. Swap storage configurations § Roll your own scripts § Smart Assists (included at no charge) § Operations = change management § Operations = minimal change management © 2014 IBM Corporation #powersystems

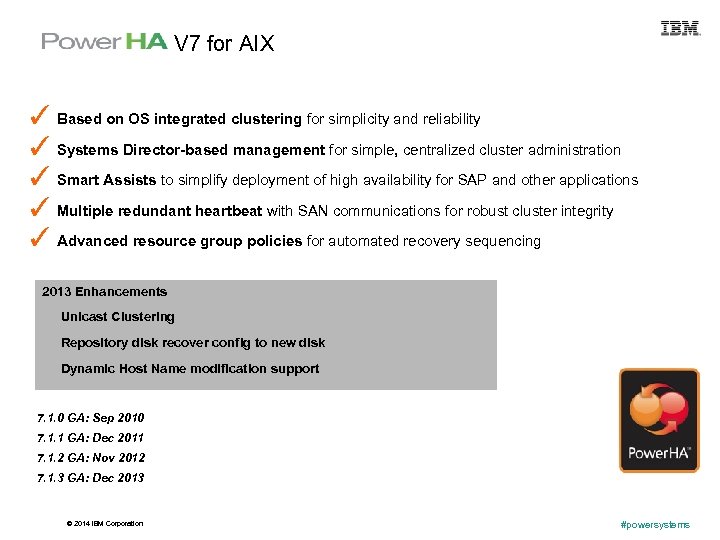

V 7 for AIX ✓ Based on OS integrated clustering for simplicity and reliability ✓ Systems Director-based management for simple, centralized cluster administration ✓ Smart Assists to simplify deployment of high availability for SAP and other applications ✓ Multiple redundant heartbeat with SAN communications for robust cluster integrity ✓ Advanced resource group policies for automated recovery sequencing 2013 Enhancements Unicast Clustering Repository disk recover config to new disk Dynamic Host Name modification support 7. 1. 0 GA: Sep 2010 7. 1. 1 GA: Dec 2011 7. 1. 2 GA: Nov 2012 7. 1. 3 GA: Dec 2013 © 2014 IBM Corporation #powersystems

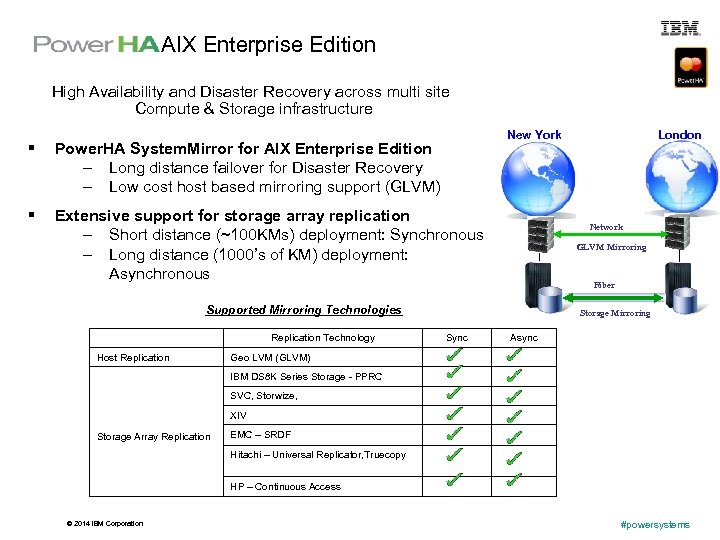

AIX Enterprise Edition High Availability and Disaster Recovery across multi site Compute & Storage infrastructure New York § Power. HA System. Mirror for AIX Enterprise Edition – Long distance failover for Disaster Recovery – Low cost host based mirroring support (GLVM) § Extensive support for storage array replication – Short distance (~100 KMs) deployment: Synchronous – Long distance (1000’s of KM) deployment: Asynchronous Network GLVM Mirroring Fiber Supported Mirroring Technologies Replication Technology Host Replication London Storage Mirroring Sync Async Geo LVM (GLVM) IBM DS 8 K Series Storage - PPRC SVC, Storwize, XIV Storage Array Replication EMC – SRDF Hitachi – Universal Replicator, Truecopy HP – Continuous Access © 2014 IBM Corporation #powersystems

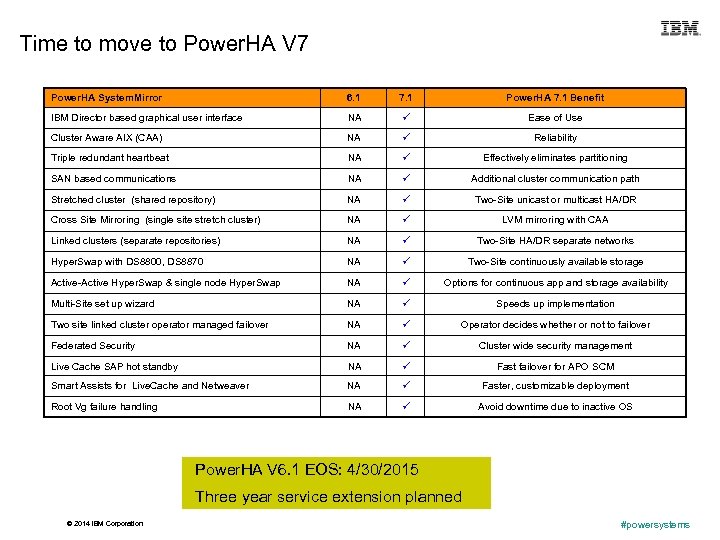

Time to move to Power. HA V 7 Power. HA System. Mirror 6. 1 7. 1 Power. HA 7. 1 Benefit IBM Director based graphical user interface NA ü Ease of Use Cluster Aware AIX (CAA) NA ü Reliability Triple redundant heartbeat NA ü Effectively eliminates partitioning SAN based communications NA ü Stretched cluster (shared repository) NA ü Two-Site unicast or multicast HA/DR Cross Site Mirroring (single site stretch cluster) NA ü LVM mirroring with CAA Linked clusters (separate repositories) NA ü Two-Site HA/DR separate networks Hyper. Swap with DS 8800, DS 8870 NA ü Two-Site continuously available storage Active-Active Hyper. Swap & single node Hyper. Swap NA ü Options for continuous app and storage availability Multi-Site set up wizard NA ü Speeds up implementation Two site linked cluster operator managed failover NA ü Operator decides whether or not to failover Federated Security NA ü Cluster wide security management Live Cache SAP hot standby NA ü Fast failover for APO SCM Smart Assists for Live. Cache and Netweaver NA ü Faster, customizable deployment Root Vg failure handling NA ü Avoid downtime due to inactive OS Additional cluster communication path Power. HA V 6. 1 EOS: 4/30/2015 Three year service extension planned © 2014 IBM Corporation #powersystems

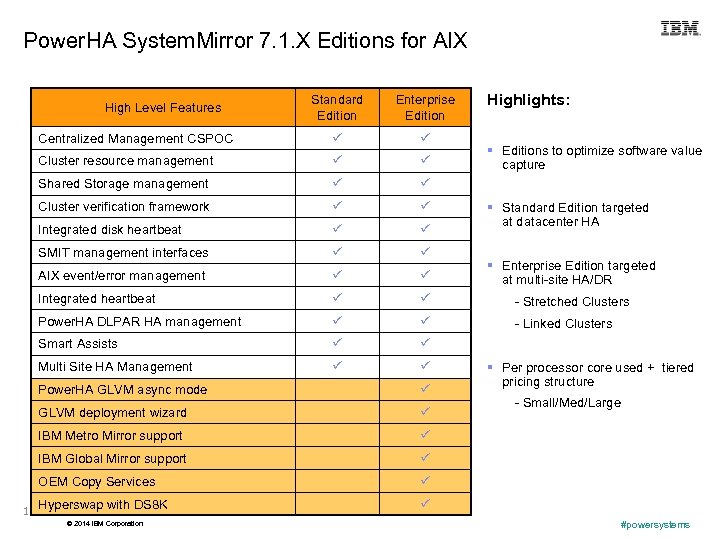

Power. HA System. Mirror 7. 1. X Editions for AIX Highlights: Standard Edition Enterprise Edition Centralized Management CSPOC ü ü Cluster resource management ü ü Shared Storage management ü ü Cluster verification framework ü ü Integrated disk heartbeat ü ü SMIT management interfaces ü ü AIX event/error management ü ü § Enterprise Edition targeted at multi-site HA/DR Integrated heartbeat ü ü - Stretched Clusters Power. HA DLPAR HA management ü ü - Linked Clusters Smart Assists ü ü Multi Site HA Management ü ü High Level Features Power. HA GLVM async mode GLVM deployment wizard ü IBM Metro Mirror support ü Hyperswap with DS 8 K § Per processor core used + tiered pricing structure ü OEM Copy Services § Standard Edition targeted at datacenter HA ü IBM Global Mirror support 10 ü § Editions to optimize software value capture ü © 2014 IBM Corporation - Small/Med/Large #powersystems

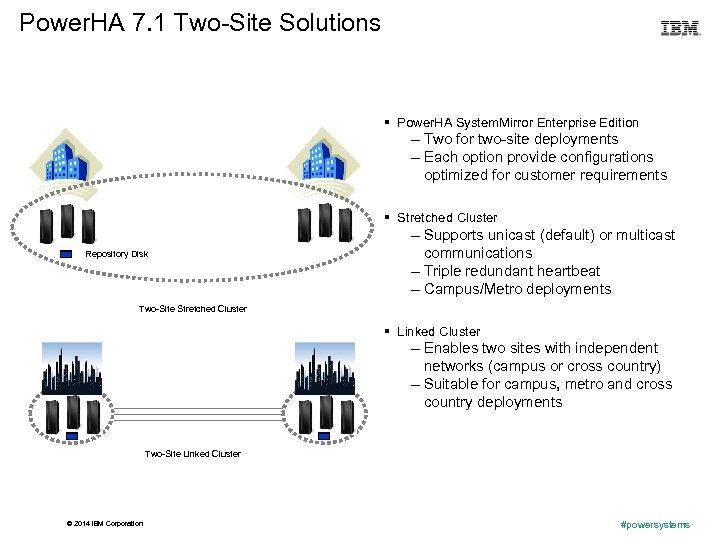

Power. HA 7. 1 Two-Site Solutions § Power. HA System. Mirror Enterprise Edition – Two for two-site deployments – Each option provide configurations optimized for customer requirements § Stretched Cluster Repository Disk – Supports unicast (default) or multicast communications – Triple redundant heartbeat – Campus/Metro deployments Two-Site Stretched Cluster § Linked Cluster – Enables two sites with independent networks (campus or cross country) – Suitable for campus, metro and cross country deployments Two-Site Linked Cluster © 2014 IBM Corporation #powersystems

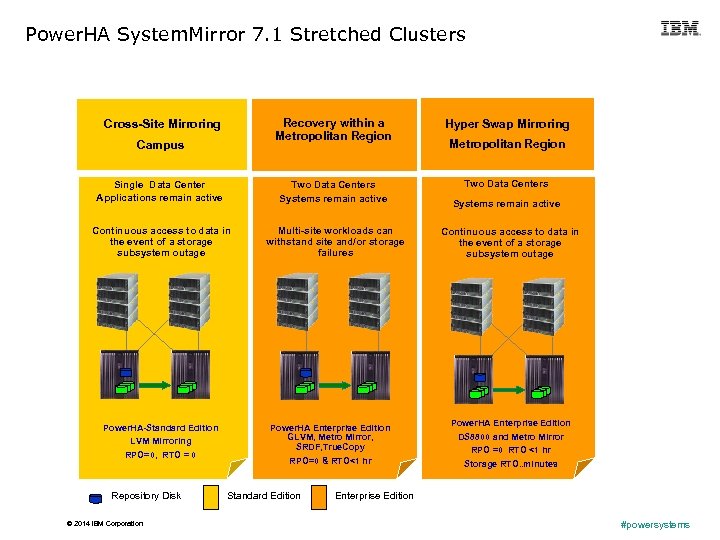

Power. HA System. Mirror 7. 1 Stretched Clusters Recovery within a Metropolitan Region Hyper Swap Mirroring Single Data Center Applications remain active Two Data Centers Systems remain active Two Data Centers Continuous access to data in the event of a storage subsystem outage Multi-site workloads can withstand site and/or storage failures Cross-Site Mirroring Campus Power. HA-Standard Edition LVM Mirroring RPO=0, RTO = 0 Repository Disk © 2014 IBM Corporation Power. HA Enterprise Edition GLVM, Metro Mirror, SRDF, True. Copy RPO=0 & RTO<1 hr Standard Edition Metropolitan Region Systems remain active Continuous access to data in the event of a storage subsystem outage Power. HA Enterprise Edition DS 8800 and Metro Mirror RPO =0 RTO <1 hr Storage RTO. . minutes Enterprise Edition #powersystems

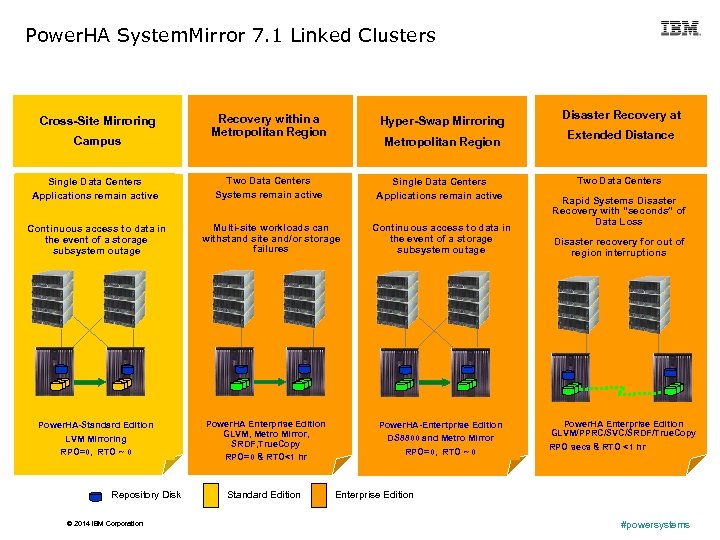

Power. HA System. Mirror 7. 1 Linked Clusters Recovery within a Metropolitan Region Hyper-Swap Mirroring Single Data Centers Applications remain active Two Data Centers Systems remain active Single Data Centers Applications remain active Continuous access to data in the event of a storage subsystem outage Multi-site workloads can withstand site and/or storage failures Continuous access to data in the event of a storage subsystem outage Cross-Site Mirroring Campus Power. HA-Standard Edition LVM Mirroring RPO=0, RTO ~ 0 Repository Disk © 2014 IBM Corporation Power. HA Enterprise Edition GLVM, Metro Mirror, SRDF, True. Copy RPO=0 & RTO<1 hr Standard Edition Metropolitan Region Power. HA-Entertprise Edition DS 8800 and Metro Mirror RPO=0, RTO ~ 0 Disaster Recovery at Extended Distance Two Data Centers Rapid Systems Disaster Recovery with “seconds” of Data Loss Disaster recovery for out of region interruptions Power. HA Enterprise Edition GLVM/PPRC/SVC/SRDF/True. Copy RPO secs & RTO <1 hr Enterprise Edition #powersystems

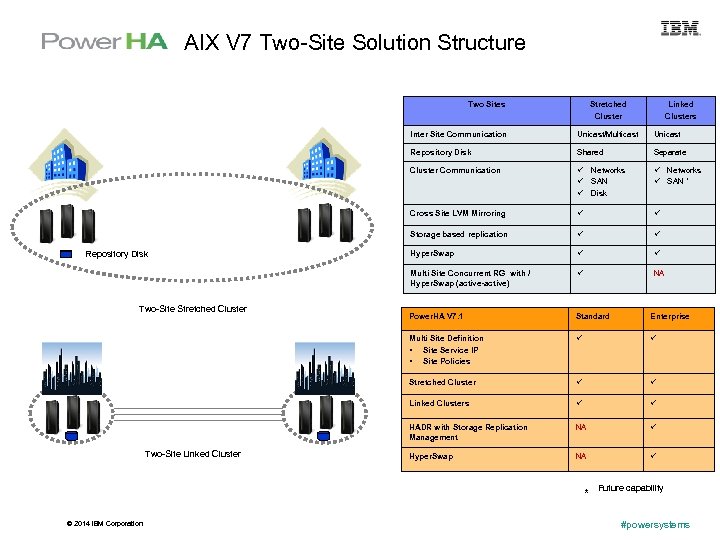

AIX V 7 Two-Site Solution Structure Two Sites Stretched Cluster Linked Clusters Inter Site Communication Separate ü Networks ü SAN ü Disk ü Networks ü SAN * Cross Site LVM Mirroring ü ü Storage based replication ü ü Hyper. Swap ü ü Multi Site Concurrent RG with / Hyper. Swap (active-active) ü NA Power. HA V 7. 1 Standard Enterprise Multi Site Definition • Site Service IP • Site Policies ü ü Stretched Cluster ü ü Linked Clusters ü ü HADR with Storage Replication Management Two-Site Linked Cluster Shared Cluster Communication Two-Site Stretched Cluster Unicast Repository Disk Unicast/Multicast NA ü Hyper. Swap NA ü * © 2014 IBM Corporation Future capability #powersystems

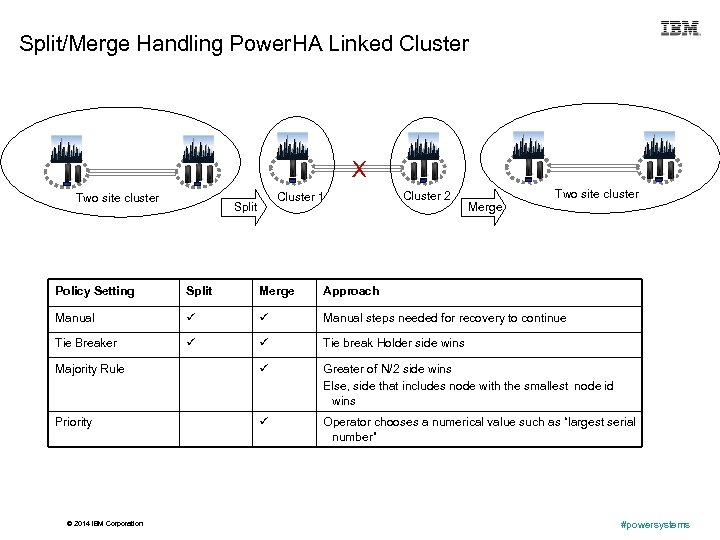

Split/Merge Handling Power. HA Linked Cluster X Two site cluster Cluster 1 Split Cluster 2 Merge Two site cluster Policy Setting Split Merge Approach Manual ü ü Manual steps needed for recovery to continue Tie Breaker ü ü Tie break Holder side wins Majority Rule ü Greater of N/2 side wins Else, side that includes node with the smallest node id wins Priority ü Operator chooses a numerical value such as “largest serial number” © 2014 IBM Corporation #powersystems

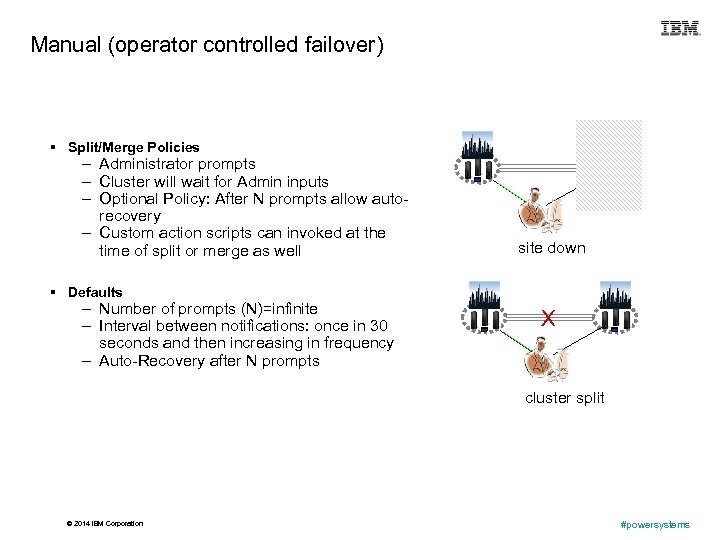

Manual (operator controlled failover) § Split/Merge Policies – Administrator prompts – Cluster will wait for Admin inputs – Optional Policy: After N prompts allow autorecovery – Custom action scripts can invoked at the time of split or merge as well site down § Defaults – Number of prompts (N)=infinite – Interval between notifications: once in 30 seconds and then increasing in frequency – Auto-Recovery after N prompts X cluster split © 2014 IBM Corporation #powersystems

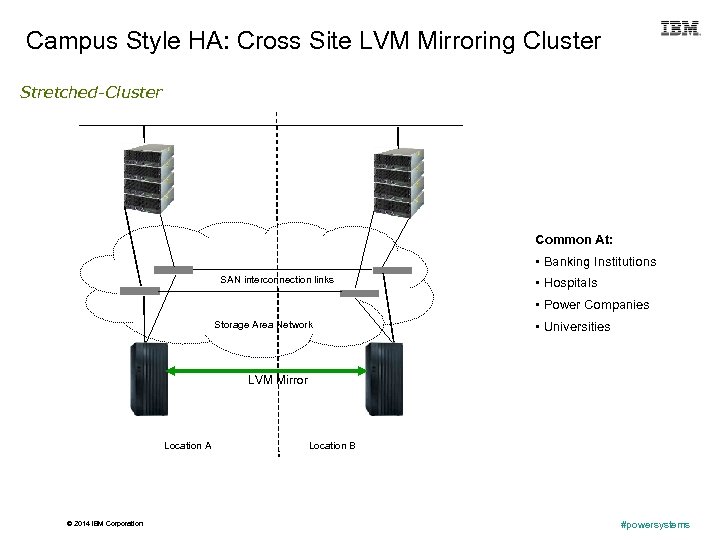

Campus Style HA: Cross Site LVM Mirroring Cluster Stretched-Cluster Common At: • Banking Institutions SAN interconnection links • Hospitals • Power Companies Storage Area Network • Universities LVM Mirror Location A © 2014 IBM Corporation Location B #powersystems

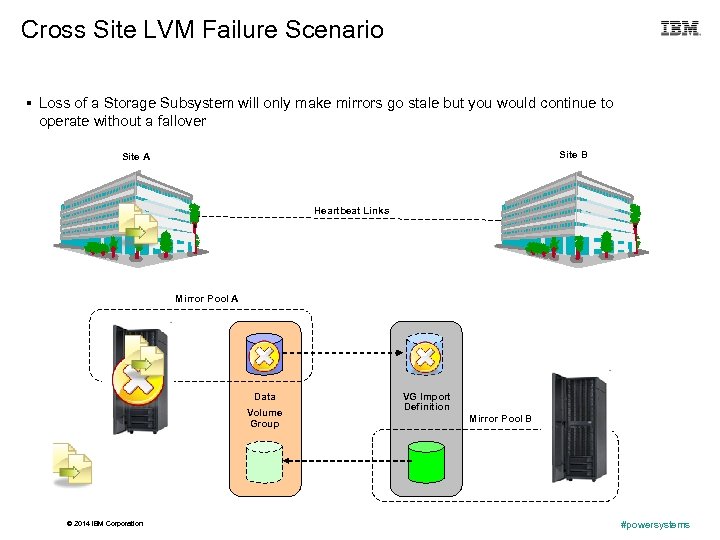

Cross Site LVM Failure Scenario § Loss of a Storage Subsystem will only make mirrors go stale but you would continue to operate without a fallover Site B Site A Heartbeat Links Mirror Pool A Data Volume Group © 2014 IBM Corporation VG Import Definition Mirror Pool B #powersystems

Hyper. Swap Support by AIX-Power. HA Hyper. Swap device configuration transparent to application Applications continue to use the devices as usual - storage switching is fast …seconds Application/LVM/Middleware /dev/hdisk. X /dev/hdisk. Y Metro Mirror Primary DS 8 K Secondary DS 8 K Traditional Metro Mirror Cluster © 2014 IBM Corporation /dev/hdisk. X /dev/hdisk. Y Metro Mirror Primary DS 8 K Secondary DS 8 K Hyper. Swap Cluster #powersystems

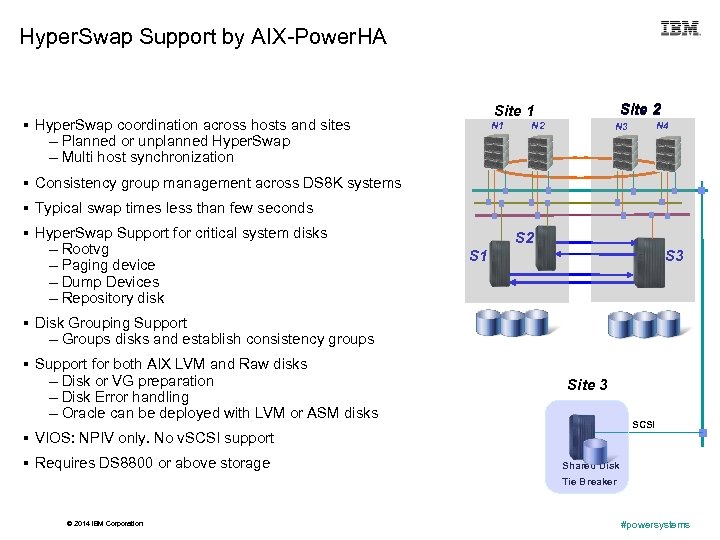

Hyper. Swap Support by AIX-Power. HA Site 2 Site 1 § Hyper. Swap coordination across hosts and sites – Planned or unplanned Hyper. Swap – Multi host synchronization N 1 N 2 N 4 N 3 § Consistency group management across DS 8 K systems § Typical swap times less than few seconds § Hyper. Swap Support for critical system disks – Rootvg – Paging device – Dump Devices – Repository disk S 2 S 1 S 3 § Disk Grouping Support – Groups disks and establish consistency groups § Support for both AIX LVM and Raw disks – Disk or VG preparation – Disk Error handling – Oracle can be deployed with LVM or ASM disks Site 3 SCSI § VIOS: NPIV only. No v. SCSI support § Requires DS 8800 or above storage Shared Disk Tie Breaker © 2014 IBM Corporation #powersystems

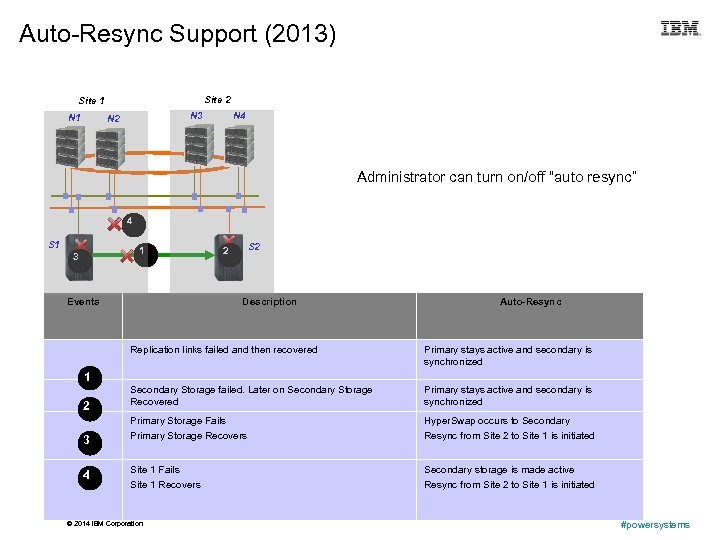

Auto-Resync Support (2013) Site 2 Site 1 N 3 N 2 N 4 42 Administrator can turn on/off “auto resync” 4 S 1 1 3 Events S 2 2 Description Auto-Resync Replication links failed and then recovered Primary stays active and secondary is synchronized Secondary Storage failed. Later on Secondary Storage Recovered Primary stays active and secondary is synchronized Primary Storage Fails Primary Storage Recovers Hyper. Swap occurs to Secondary Resync from Site 2 to Site 1 is initiated Site 1 Fails Site 1 Recovers Secondary storage is made active Resync from Site 2 to Site 1 is initiated 1 2 3 4 © 2014 IBM Corporation #powersystems

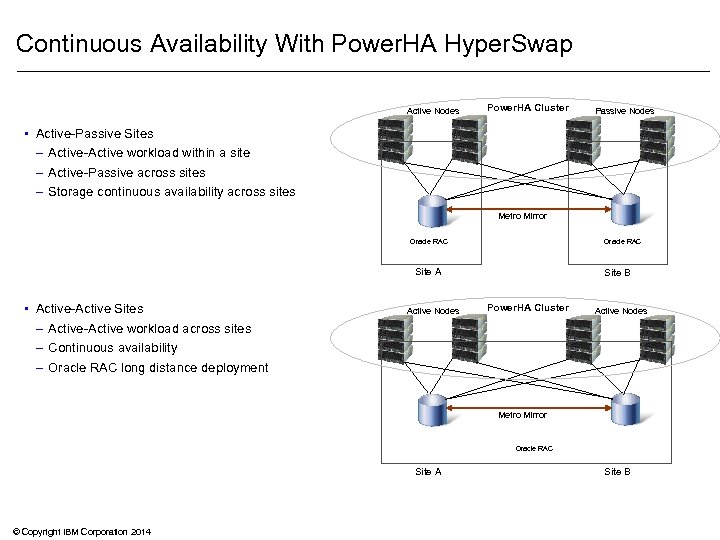

Continuous Availability With Power. HA Hyper. Swap Active Nodes Power. HA Cluster Passive Nodes • Active-Passive Sites – Active-Active workload within a site – Active-Passive across sites – Storage continuous availability across sites Metro Mirror Oracle RAC Site A • Active-Active Sites – Active-Active workload across sites – Continuous availability – Oracle RAC long distance deployment Active Nodes Site B Power. HA Cluster Active Nodes Metro Mirror Oracle RAC Site A © Copyright IBM Corporation 2014 Site B

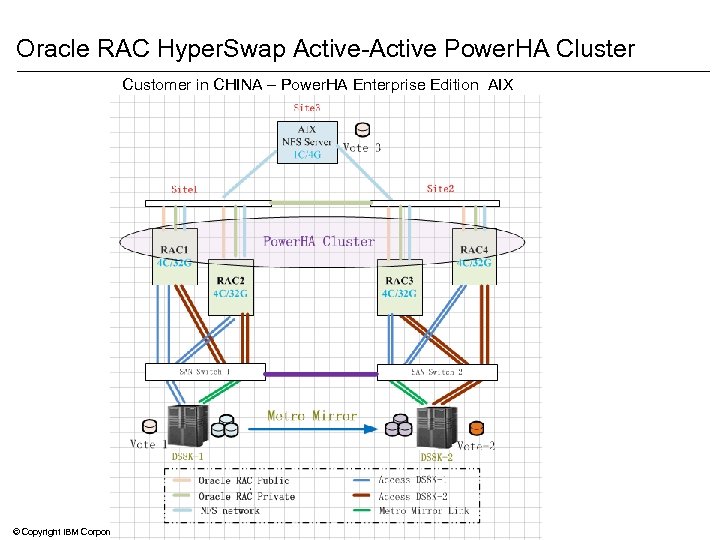

Oracle RAC Hyper. Swap Active-Active Power. HA Cluster Customer in CHINA – Power. HA Enterprise Edition AIX © Copyright IBM Corporation 2014

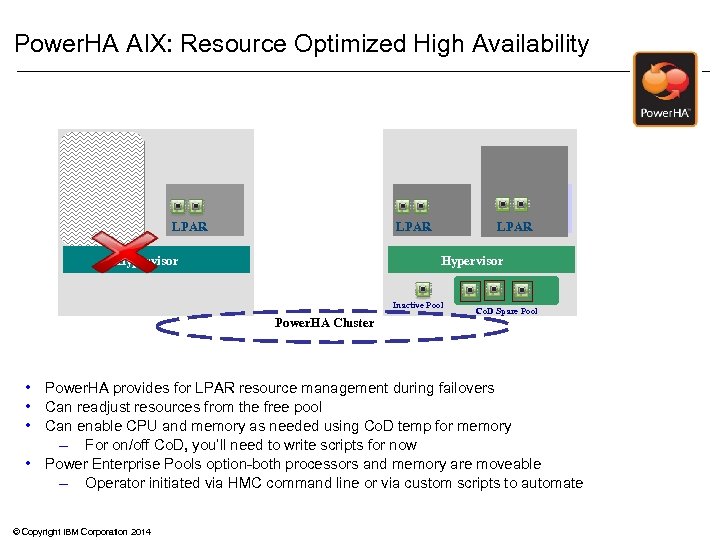

Power. HA AIX: Resource Optimized High Availability Application LPAR Hypervisor Inactive Pool Power. HA Cluster Co. D Spare Pool • Power. HA provides for LPAR resource management during failovers • Can readjust resources from the free pool • Can enable CPU and memory as needed using Co. D temp for memory – For on/off Co. D, you’ll need to write scripts for now • Power Enterprise Pools option-both processors and memory are moveable – Operator initiated via HMC command line or via custom scripts to automate © Copyright IBM Corporation 2014

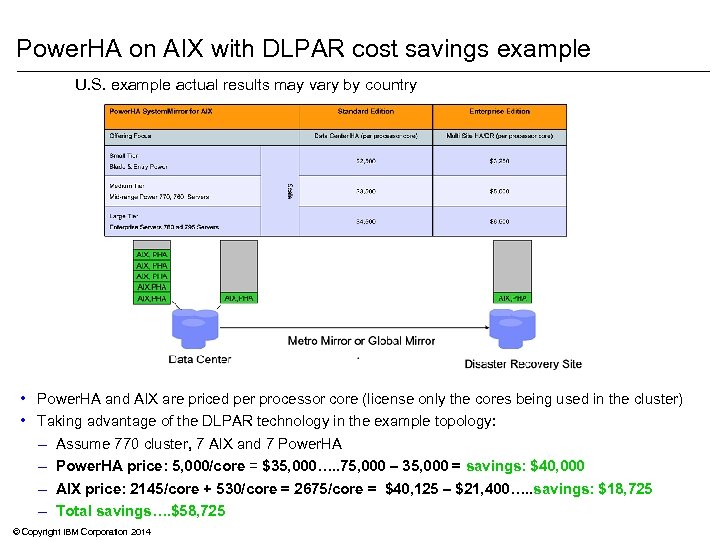

Power. HA on AIX with DLPAR cost savings example U. S. example actual results may vary by country • Power. HA and AIX are priced per processor core (license only the cores being used in the cluster) • Taking advantage of the DLPAR technology in the example topology: – Assume 770 cluster, 7 AIX and 7 Power. HA – Power. HA price: 5, 000/core = $35, 000…. . 75, 000 – 35, 000 = savings: $40, 000 – AIX price: 2145/core + 530/core = 2675/core = $40, 125 – $21, 400…. . savings: $18, 725 – Total savings…. $58, 725 © Copyright IBM Corporation 2014

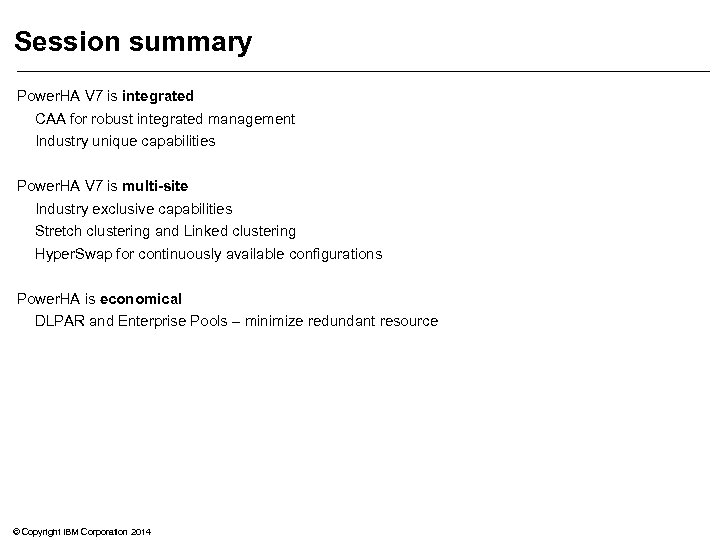

Session summary Power. HA V 7 is integrated CAA for robust integrated management Industry unique capabilities Power. HA V 7 is multi-site Industry exclusive capabilities Stretch clustering and Linked clustering Hyper. Swap for continuously available configurations Power. HA is economical DLPAR and Enterprise Pools – minimize redundant resource © Copyright IBM Corporation 2014

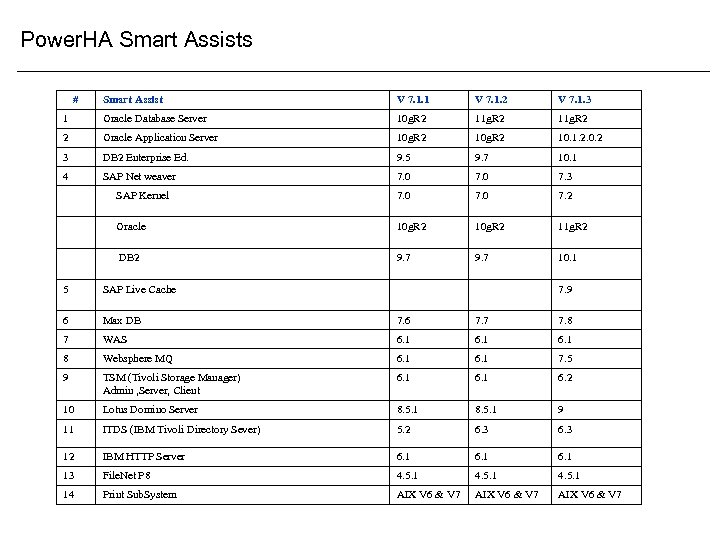

Power. HA Smart Assists # Smart Assist V 7. 1. 1 V 7. 1. 2 V 7. 1. 3 1 Oracle Database Server 10 g. R 2 11 g. R 2 2 Oracle Application Server 10 g. R 2 10. 1. 2. 0. 2 3 DB 2 Enterprise Ed. 9. 5 9. 7 10. 1 4 SAP Net weaver 7. 0 7. 3 SAP Kernel 7. 0 7. 2 Oracle 10 g. R 2 11 g. R 2 DB 2 9. 7 10. 1 5 SAP Live Cache 7. 9 6 Max DB 7. 6 7. 7 7. 8 7 WAS 6. 1 8 Websphere MQ 6. 1 7. 5 9 TSM (Tivoli Storage Manager) Admin , Server, Client 6. 1 6. 2 10 Lotus Domino Server 8. 5. 1 9 11 ITDS (IBM Tivoli Directory Sever) 5. 2 6. 3 12 IBM HTTP Server 6. 1 13 File. Net P 8 4. 5. 1 14 Print Sub. System AIX V 6 & V 7

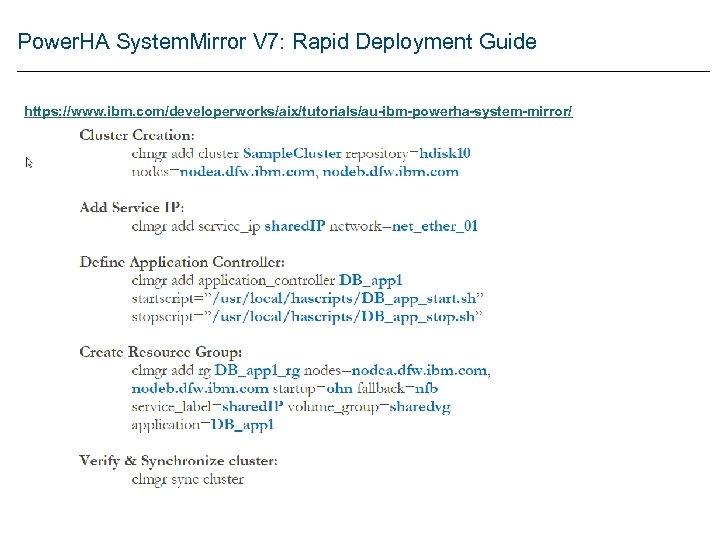

Power. HA System. Mirror V 7: Rapid Deployment Guide https: //www. ibm. com/developerworks/aix/tutorials/au-ibm-powerha-system-mirror/ Redbooks • SG 24 -7841 • SG 24 -7845 • SG 24 -7739

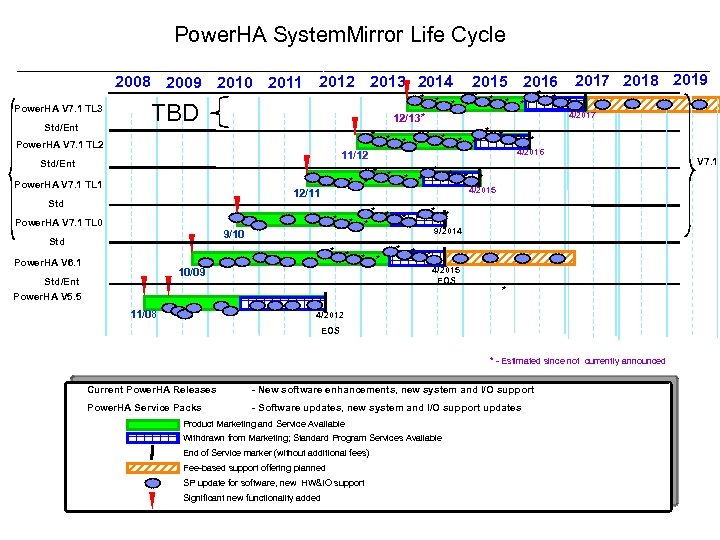

Power. HA System. Mirror Life Cycle 2008 2009 2010 2011 2012 2013 2014 Power. HA V 7. 1 TL 3 Std/Ent * * 12/13* TBD * * Power. HA V 7. 1 TL 2 11/12 Std/Ent Power. HA V 7. 1 TL 1 * * 12/11 Std * Power. HA V 7. 1 TL 0 9/10 Std * * Power. HA V 6. 1 * * * 10/09 Std/Ent * * * * 2017 2018 2019 * * 4/2017 * * 4/2016 * * 4/2015 * * 9/2014 * * * 4/2015 EOS Power. HA V 5. 5 11/08 * * * * 2015 2016 * 4/2012 EOS * - Estimated since not currently announced Current Power. HA Releases Power. HA Service Packs - New software enhancements, new system and I/O support - Software updates, new system and I/O support updates Product Marketing and Service Available Withdrawn from Marketing; Standard Program Services Available End of Service marker (without additional fees) Fee-based support offering planned SP update for software, new HW&IO support Significant new functionality added V 7. 1

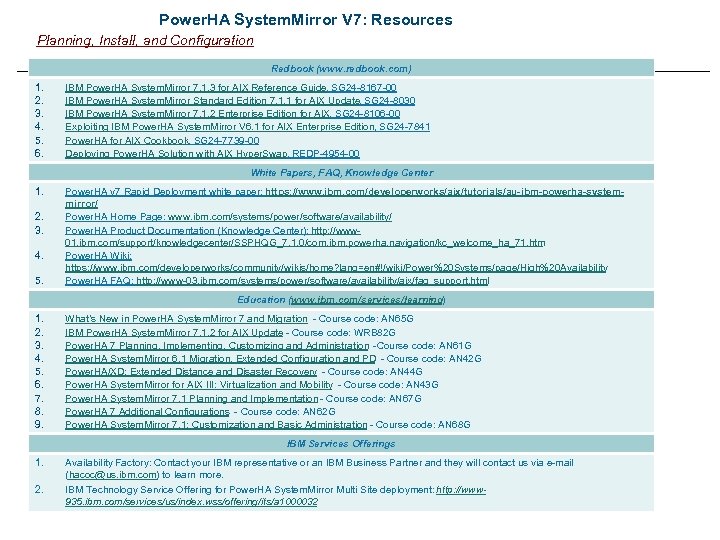

Power. HA System. Mirror V 7: Resources Planning, Install, and Configuration Redbook (www. redbook. com) 1. 2. 3. 4. 5. 6. IBM Power. HA System. Mirror 7. 1. 3 for AIX Reference Guide, SG 24 -8167 -00 IBM Power. HA System. Mirror Standard Edition 7. 1. 1 for AIX Update, SG 24 -8030 IBM Power. HA System. Mirror 7. 1. 2 Enterprise Edition for AIX, SG 24 -8106 -00 Exploiting IBM Power. HA System. Mirror V 6. 1 for AIX Enterprise Edition, SG 24 -7841 Power. HA for AIX Cookbook, SG 24 -7739 -00 Deploying Power. HA Solution with AIX Hyper. Swap, REDP-4954 -00 White Papers, FAQ, Knowledge Center 1. 2. 3. 4. 5. Power. HA v 7 Rapid Deployment white paper: https: //www. ibm. com/developerworks/aix/tutorials/au-ibm-powerha-systemmirror/ Power. HA Home Page: www. ibm. com/systems/power/software/availability/ Power. HA Product Documentation (Knowledge Center): http: //www 01. ibm. com/support/knowledgecenter/SSPHQG_7. 1. 0/com. ibm. powerha. navigation/kc_welcome_ha_71. htm Power. HA Wiki: https: //www. ibm. com/developerworks/community/wikis/home? lang=en#!/wiki/Power%20 Systems/page/High%20 Availability Power. HA FAQ: http: //www-03. ibm. com/systems/power/software/availability/aix/faq_support. html Education (www. ibm. com/services/learning) 1. 2. 3. 4. 5. 6. 7. 8. 9. What’s New in Power. HA System. Mirror 7 and Migration - Course code: AN 65 G IBM Power. HA System. Mirror 7. 1. 2 for AIX Update - Course code: WRB 82 G Power. HA 7 Planning, Implementing, Customizing and Administration -Course code: AN 61 G Power. HA System. Mirror 6. 1 Migration, Extended Configuration and PD - Course code: AN 42 G Power. HA/XD: Extended Distance and Disaster Recovery - Course code: AN 44 G Power. HA System. Mirror for AIX III: Virtualization and Mobility - Course code: AN 43 G Power. HA System. Mirror 7. 1 Planning and Implementation - Course code: AN 67 G Power. HA 7 Additional Configurations - Course code: AN 62 G Power. HA System. Mirror 7. 1: Customization and Basic Administration - Course code: AN 68 G IBM Services Offerings 1. Availability Factory: Contact your IBM representative or an IBM Business Partner and they will contact us via e-mail (hacoc@us. ibm. com) to learn more. 2. IBM Technology Service Offering for Power. HA System. Mirror Multi Site deployment: http: //www 935. ibm. com/services/us/index. wss/offering/its/a 1000032

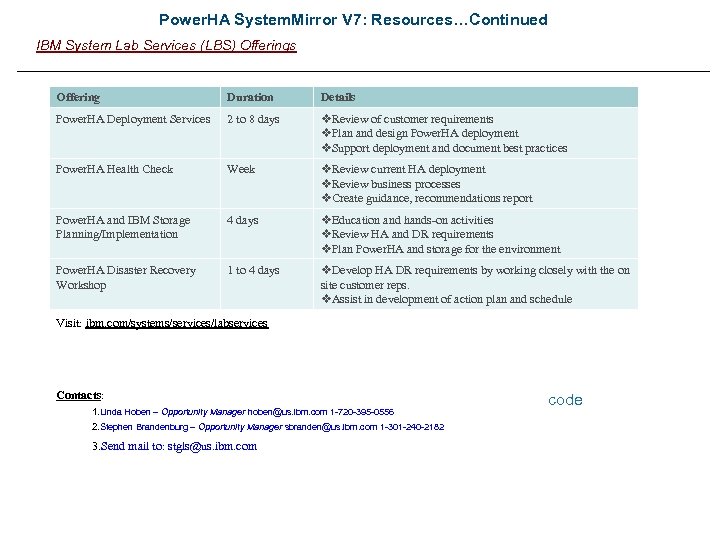

Power. HA System. Mirror V 7: Resources…Continued IBM System Lab Services (LBS) Offerings Offering Duration Details Power. HA Deployment Services 2 to 8 days Review of customer requirements Plan and design Power. HA deployment Support deployment and document best practices Power. HA Health Check Week Review current HA deployment Review business processes Create guidance, recommendations report Power. HA and IBM Storage Planning/Implementation 4 days Education and hands-on activities Review HA and DR requirements Plan Power. HA and storage for the environment Power. HA Disaster Recovery Workshop 1 to 4 days Develop HA DR requirements by working closely with the on site customer reps. Assist in development of action plan and schedule Visit: ibm. com/systems/services/labservices Contacts: 1. Linda Hoben – Opportunity Manager hoben@us. ibm. com 1 -720 -395 -0556 2. Stephen Brandenburg – Opportunity Manager sbranden@us. ibm. com 1 -301 -240 -2182 3. Send mail to: stgls@us. ibm. com code

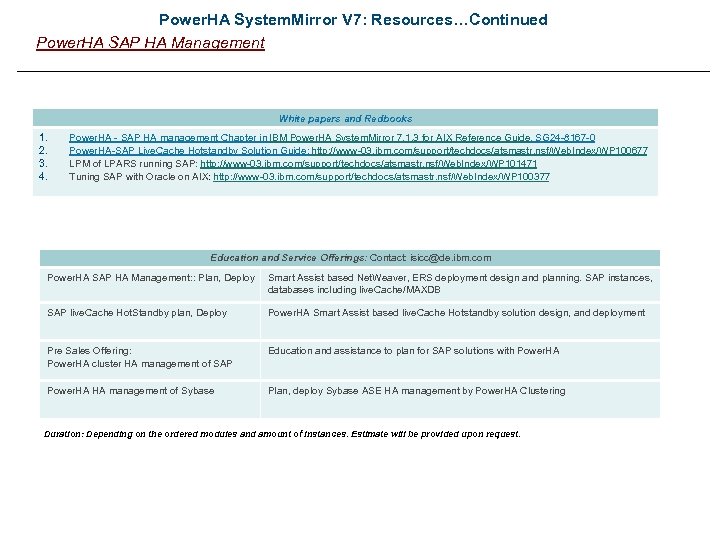

Power. HA System. Mirror V 7: Resources…Continued Power. HA SAP HA Management White papers and Redbooks 1. 2. 3. 4. Power. HA - SAP HA management Chapter in IBM Power. HA System. Mirror 7. 1. 3 for AIX Reference Guide, SG 24 -8167 -0 Power. HA-SAP Live. Cache Hotstandby Solution Guide: http: //www-03. ibm. com/support/techdocs/atsmastr. nsf/Web. Index/WP 100677 LPM of LPARS running SAP: http: //www-03. ibm. com/support/techdocs/atsmastr. nsf/Web. Index/WP 101471 Tuning SAP with Oracle on AIX: http: //www-03. ibm. com/support/techdocs/atsmastr. nsf/Web. Index/WP 100377 Education and Service Offerings: Contact: isicc@de. ibm. com Power. HA SAP HA Management: : Plan, Deploy Smart Assist based Net. Weaver, ERS deployment design and planning. SAP instances, databases including live. Cache/MAXDB SAP live. Cache Hot. Standby plan, Deploy Power. HA Smart Assist based live. Cache Hotstandby solution design, and deployment Pre Sales Offering: Power. HA cluster HA management of SAP Education and assistance to plan for SAP solutions with Power. HA HA management of Sybase Plan, deploy Sybase ASE HA management by Power. HA Clustering Duration: Depending on the ordered modules and amount of instances. Estimate will be provided upon request.

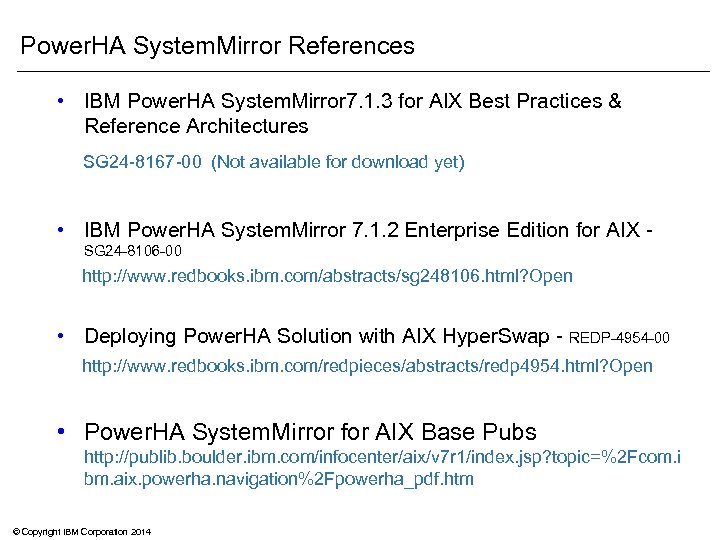

Power. HA System. Mirror References • IBM Power. HA System. Mirror 7. 1. 3 for AIX Best Practices & Reference Architectures SG 24 -8167 -00 (Not available for download yet) • IBM Power. HA System. Mirror 7. 1. 2 Enterprise Edition for AIX - SG 24 -8106 -00 http: //www. redbooks. ibm. com/abstracts/sg 248106. html? Open • Deploying Power. HA Solution with AIX Hyper. Swap - REDP-4954 -00 http: //www. redbooks. ibm. com/redpieces/abstracts/redp 4954. html? Open • Power. HA System. Mirror for AIX Base Pubs http: //publib. boulder. ibm. com/infocenter/aix/v 7 r 1/index. jsp? topic=%2 Fcom. i bm. aix. powerha. navigation%2 Fpowerha_pdf. htm © Copyright IBM Corporation 2014

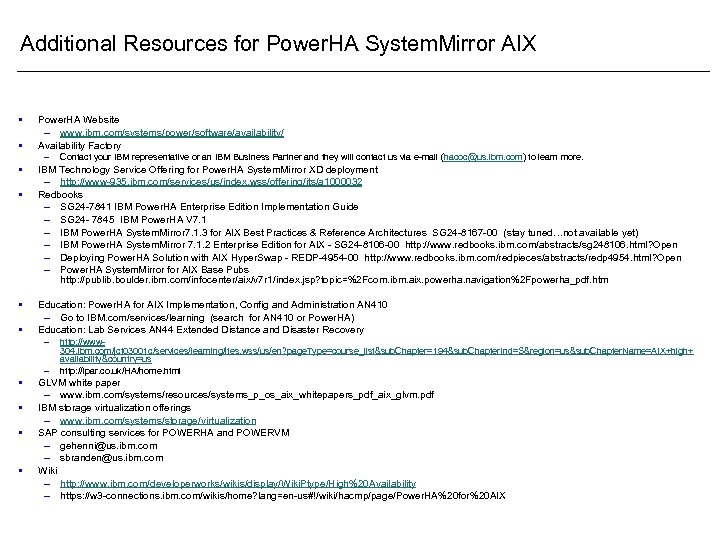

Additional Resources for Power. HA System. Mirror AIX • • Power. HA Website – www. ibm. com/systems/power/software/availability/ Availability Factory – • • Education: Power. HA for AIX Implementation, Config and Administration AN 410 – Go to IBM. com/services/learning (search for AN 410 or Power. HA) Education: Lab Services AN 44 Extended Distance and Disaster Recovery – – • • Contact your IBM representative or an IBM Business Partner and they will contact us via e-mail (hacoc@us. ibm. com) to learn more. IBM Technology Service Offering for Power. HA System. Mirror XD deployment – http: //www-935. ibm. com/services/us/index. wss/offering/its/a 1000032 Redbooks – SG 24 -7841 IBM Power. HA Enterprise Edition Implementation Guide – SG 24 - 7845 IBM Power. HA V 7. 1 – IBM Power. HA System. Mirror 7. 1. 3 for AIX Best Practices & Reference Architectures SG 24 -8167 -00 (stay tuned…not available yet) – IBM Power. HA System. Mirror 7. 1. 2 Enterprise Edition for AIX - SG 24 -8106 -00 http: //www. redbooks. ibm. com/abstracts/sg 248106. html? Open – Deploying Power. HA Solution with AIX Hyper. Swap - REDP-4954 -00 http: //www. redbooks. ibm. com/redpieces/abstracts/redp 4954. html? Open – Power. HA System. Mirror for AIX Base Pubs http: //publib. boulder. ibm. com/infocenter/aix/v 7 r 1/index. jsp? topic=%2 Fcom. ibm. aix. powerha. navigation%2 Fpowerha_pdf. htm http: //www- 304. ibm. com/jct 03001 c/services/learning/ites. wss/us/en? page. Type=course_list&sub. Chapter=194&sub. Chapter. Ind=S&region=us&sub. Chapter. Name=AIX+high+ availability&country=us http: //lpar. co. uk/HA/home. html GLVM white paper – www. ibm. com/systems/resources/systems_p_os_aix_whitepapers_pdf_aix_glvm. pdf IBM storage virtualization offerings – www. ibm. com/systems/storage/virtualization SAP consulting services for POWERHA and POWERVM – gehenni@us. ibm. com – sbranden@us. ibm. com Wiki – http: //www. ibm. com/developerworks/wikis/display/Wiki. Ptype/High%20 Availability – https: //w 3 -connections. ibm. com/wikis/home? lang=en-us#!/wiki/hacmp/page/Power. HA%20 for%20 AIX

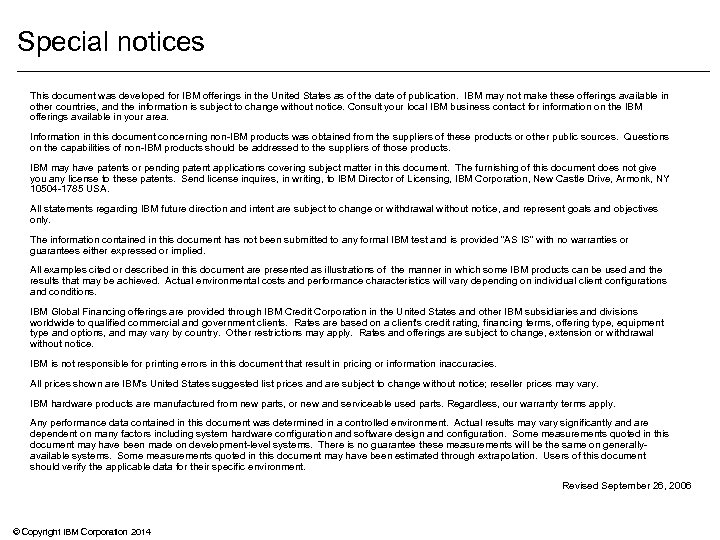

Special notices This document was developed for IBM offerings in the United States as of the date of publication. IBM may not make these offerings available in other countries, and the information is subject to change without notice. Consult your local IBM business contact for information on the IBM offerings available in your area. Information in this document concerning non-IBM products was obtained from the suppliers of these products or other public sources. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. IBM may have patents or pending patent applications covering subject matter in this document. The furnishing of this document does not give you any license to these patents. Send license inquires, in writing, to IBM Director of Licensing, IBM Corporation, New Castle Drive, Armonk, NY 10504 -1785 USA. All statements regarding IBM future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only. The information contained in this document has not been submitted to any formal IBM test and is provided "AS IS" with no warranties or guarantees either expressed or implied. All examples cited or described in this document are presented as illustrations of the manner in which some IBM products can be used and the results that may be achieved. Actual environmental costs and performance characteristics will vary depending on individual client configurations and conditions. IBM Global Financing offerings are provided through IBM Credit Corporation in the United States and other IBM subsidiaries and divisions worldwide to qualified commercial and government clients. Rates are based on a client's credit rating, financing terms, offering type, equipment type and options, and may vary by country. Other restrictions may apply. Rates and offerings are subject to change, extension or withdrawal without notice. IBM is not responsible for printing errors in this document that result in pricing or information inaccuracies. All prices shown are IBM's United States suggested list prices and are subject to change without notice; reseller prices may vary. IBM hardware products are manufactured from new parts, or new and serviceable used parts. Regardless, our warranty terms apply. Any performance data contained in this document was determined in a controlled environment. Actual results may vary significantly and are dependent on many factors including system hardware configuration and software design and configuration. Some measurements quoted in this document may have been made on development-level systems. There is no guarantee these measurements will be the same on generallyavailable systems. Some measurements quoted in this document may have been estimated through extrapolation. Users of this document should verify the applicable data for their specific environment. Revised September 26, 2006 © Copyright IBM Corporation 2014

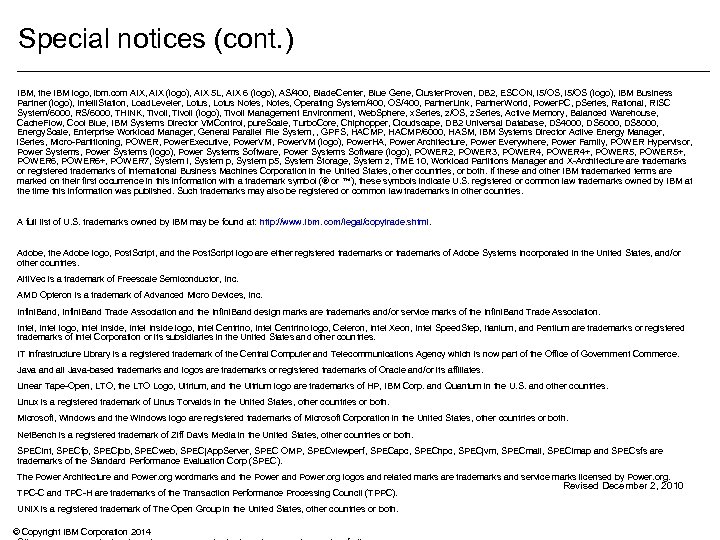

Special notices (cont. ) IBM, the IBM logo, ibm. com AIX, AIX (logo), AIX 5 L, AIX 6 (logo), AS/400, Blade. Center, Blue Gene, Cluster. Proven, DB 2, ESCON, i 5/OS (logo), IBM Business Partner (logo), Intelli. Station, Load. Leveler, Lotus Notes, Operating System/400, OS/400, Partner. Link, Partner. World, Power. PC, p. Series, Rational, RISC System/6000, RS/6000, THINK, Tivoli (logo), Tivoli Management Environment, Web. Sphere, x. Series, z/OS, z. Series, Active Memory, Balanced Warehouse, Cache. Flow, Cool Blue, IBM Systems Director VMControl, pure. Scale, Turbo. Core, Chiphopper, Cloudscape, DB 2 Universal Database, DS 4000, DS 6000, DS 8000, Energy. Scale, Enterprise Workload Manager, General Parallel File System, , GPFS, HACMP/6000, HASM, IBM Systems Director Active Energy Manager, i. Series, Micro-Partitioning, POWER, Power. Executive, Power. VM (logo), Power. HA, Power Architecture, Power Everywhere, Power Family, POWER Hypervisor, Power Systems, Power Systems (logo), Power Systems Software (logo), POWER 2, POWER 3, POWER 4+, POWER 5+, POWER 6, POWER 6+, POWER 7, System i, System p 5, System Storage, System z, TME 10, Workload Partitions Manager and X-Architecture are trademarks or registered trademarks of International Business Machines Corporation in the United States, other countries, or both. If these and other IBM trademarked terms are marked on their first occurrence in this information with a trademark symbol (® or ™), these symbols indicate U. S. registered or common law trademarks owned by IBM at the time this information was published. Such trademarks may also be registered or common law trademarks in other countries. A full list of U. S. trademarks owned by IBM may be found at: http: //www. ibm. com/legal/copytrade. shtml. Adobe, the Adobe logo, Post. Script, and the Post. Script logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States, and/or other countries. Alti. Vec is a trademark of Freescale Semiconductor, Inc. AMD Opteron is a trademark of Advanced Micro Devices, Inc. Infini. Band, Infini. Band Trade Association and the Infini. Band design marks are trademarks and/or service marks of the Infini. Band Trade Association. Intel, Intel logo, Intel Inside logo, Intel Centrino logo, Celeron, Intel Xeon, Intel Speed. Step, Itanium, and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. IT Infrastructure Library is a registered trademark of the Central Computer and Telecommunications Agency which is now part of the Office of Government Commerce. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Oracle and/or its affiliates. Linear Tape-Open, LTO, the LTO Logo, Ultrium, and the Ultrium logo are trademarks of HP, IBM Corp. and Quantum in the U. S. and other countries. Linux is a registered trademark of Linus Torvalds in the United States, other countries or both. Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation in the United States, other countries or both. Net. Bench is a registered trademark of Ziff Davis Media in the United States, other countries or both. SPECint, SPECfp, SPECjbb, SPECweb, SPECj. App. Server, SPEC OMP, SPECviewperf, SPECapc, SPEChpc, SPECjvm, SPECmail, SPECimap and SPECsfs are trademarks of the Standard Performance Evaluation Corp (SPEC). The Power Architecture and Power. org wordmarks and the Power and Power. org logos and related marks are trademarks and service marks licensed by Power. org. TPC-C and TPC-H are trademarks of the Transaction Performance Processing Council (TPPC). UNIX is a registered trademark of The Open Group in the United States, other countries or both. © Copyright IBM Corporation 2014 Revised December 2, 2010
