IVA Intelligent Video Analysis from Bosch Security Systems 1 Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

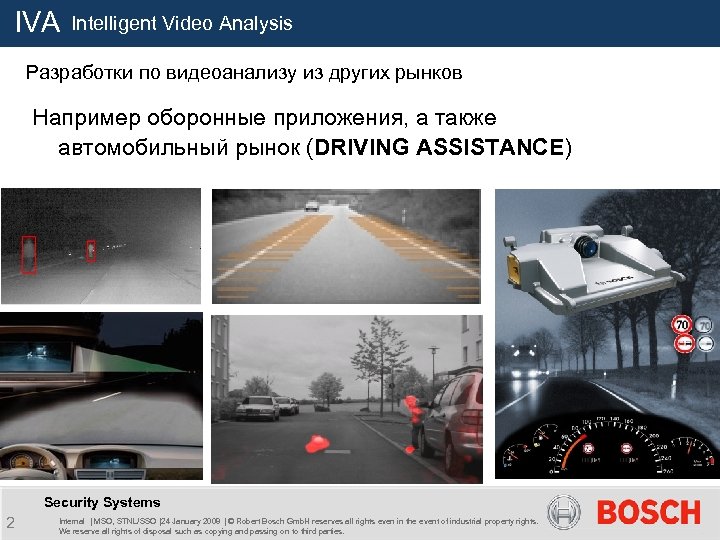

IVA Intelligent Video Analysis Разработки по видеоанализу из других рынков Например оборонные приложения, а также автомобильный рынок (DRIVING ASSISTANCE) Security Systems 2 Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

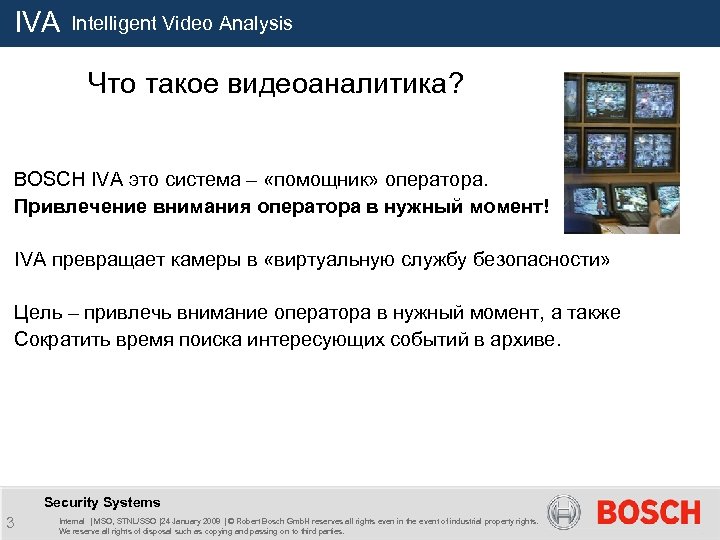

IVA Intelligent Video Analysis Что такое видеоаналитика? BOSCH IVA это система – «помощник» оператора. Привлечение внимания оператора в нужный момент! IVA превращает камеры в «виртуальную службу безопасности» Цель – привлечь внимание оператора в нужный момент, а также Сократить время поиска интересующих событий в архиве. Security Systems 3 Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
IVA Intelligent Video Analysis ФАКТ è Некоторые исследования показывают оператор способен пропустить до 95% событий только лишь после 22 минут непреывного мониторинга. è И это при наблюдении только за одним монитором. Security Systems Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
IVA Intelligent Video Analysis IVA – это математические программные алгоритмы В короткой технической демонстрации постараемся разобраться. В возможностях аналитики è Также важным моментом являются существующие ограничения. è è è Далеко не все маркетинговые обещания реалистичны. Итак…. Security Systems 5 Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

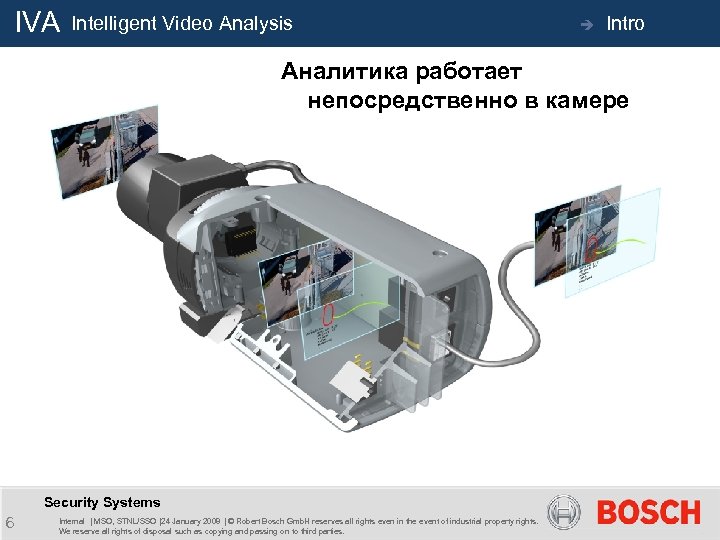

IVA Intelligent Video Analysis è Intro Аналитика работает непосредственно в камере Security Systems 6 Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

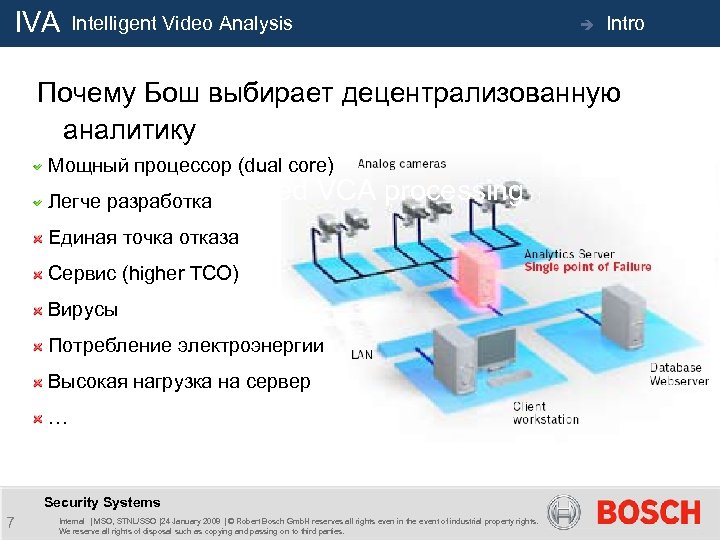

IVA Intelligent Video Analysis è Intro Почему Бош выбирает децентрализованную аналитику Мощный процессор (dual core) Why not centralized Легче разработка VCA processing Единая точка отказа Сервис (higher TCO) Вирусы Потребление электроэнергии Высокая нагрузка на сервер … Security Systems 7 Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

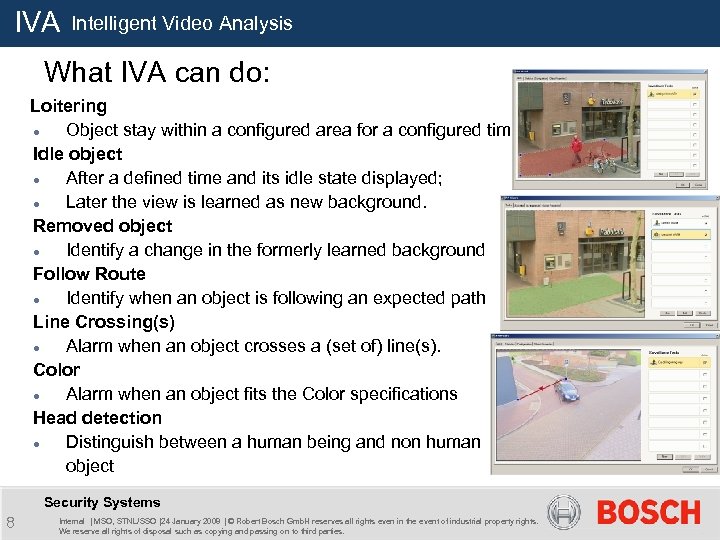

IVA Intelligent Video Analysis What IVA can do: Loitering Object stay within a configured area for a configured time. Idle object After a defined time and its idle state displayed; Later the view is learned as new background. Removed object Identify a change in the formerly learned background Follow Route Identify when an object is following an expected path Line Crossing(s) Alarm when an object crosses a (set of) line(s). Color Alarm when an object fits the Color specifications Head detection Distinguish between a human being and non human object Security Systems 8 Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

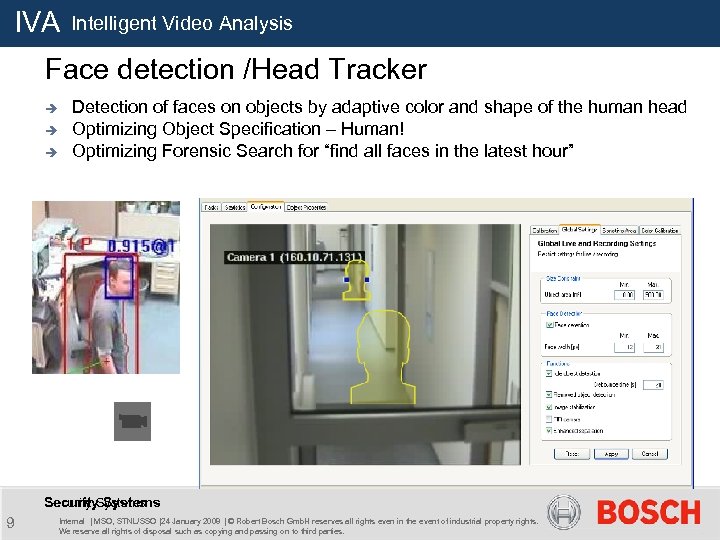

IVA Intelligent Video Analysis Face detection /Head Tracker è è è Detection of faces on objects by adaptive color and shape of the human head Optimizing Object Specification – Human! Optimizing Forensic Search for “find all faces in the latest hour” Security Systems 9 Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

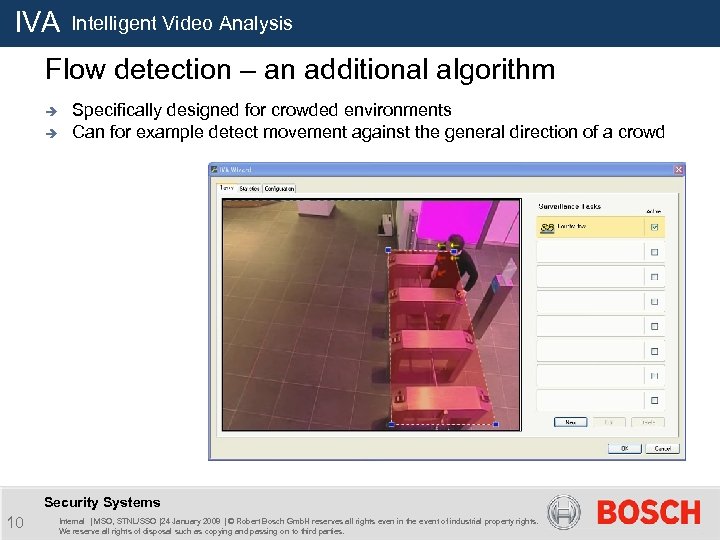

IVA Intelligent Video Analysis Flow detection – an additional algorithm è è Specifically designed for crowded environments Can for example detect movement against the general direction of a crowd Security Systems 10 Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
IVA Intelligent Video Analysis What VCA can’t do Detect intruders when visually limited Find the concealed weapon Detect pick pocketing Detect drugs usage Security Systems 11 ST-PRM/EU |Gerard STNL/SSO |24 January 200810/05/2009 | © Robert Bosch Gmb. H 2009. All rights reserved, also regarding any rights. Internal MSO, Otterspeer/Ruud Toonders | | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property disposal, exploitation, reproduction, editing, distribution, as well as onthethird parties. We reserve all rights of disposal such as copying and passing in to event of applications for industrial property rights.

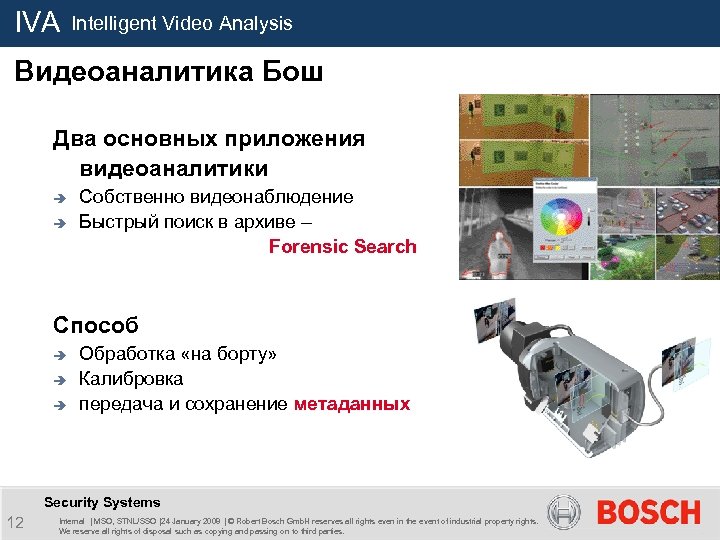

IVA Intelligent Video Analysis Видеоаналитика Бош Два основных приложения видеоаналитики è è Собственно видеонаблюдение Быстрый поиск в архиве – Forensic Search Способ è è è Обработка «на борту» Калибровка передача и сохранение метаданных Security Systems 12 Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

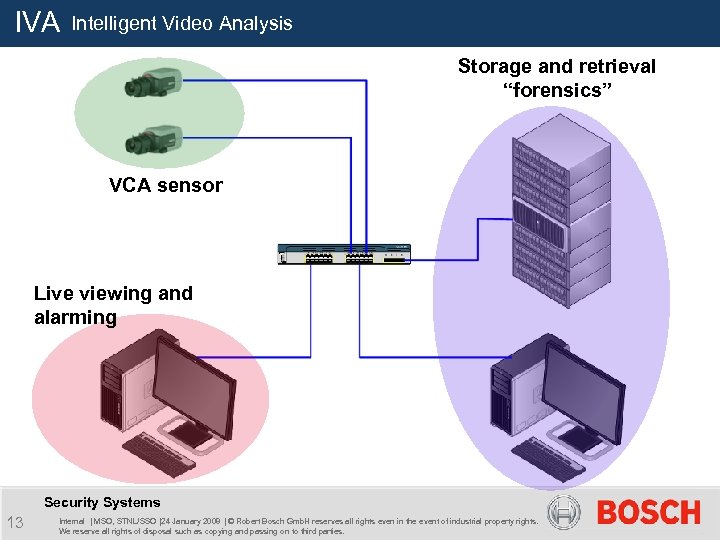

IVA Intelligent Video Analysis Storage and retrieval “forensics” VCA sensor Live viewing and alarming Security Systems 13 Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

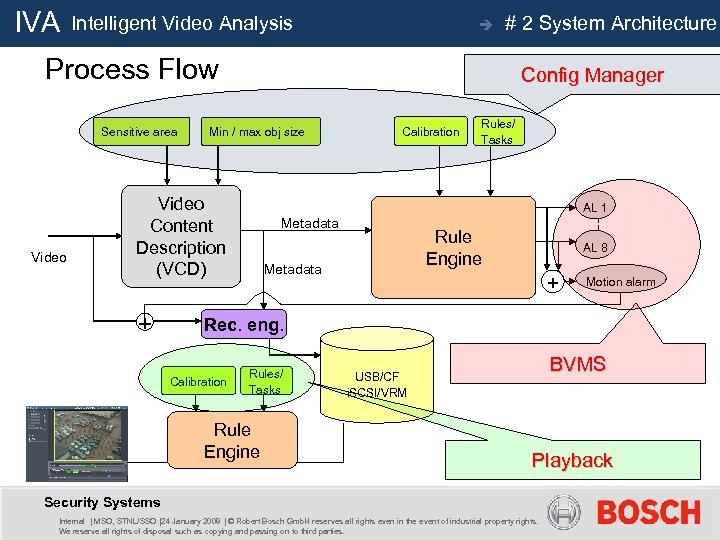

IVA Intelligent Video Analysis è # 2 System Architecture Process Flow Sensitive area Video Config Manager Min / max obj size Video Content Description (VCD) + Calibration Rules/ Tasks AL 1 Metadata Rule Engine Metadata AL 8 + Motion alarm Rec. eng. Calibration Rules/ Tasks Rule Engine BVMS USB/CF i. SCSI/VRM Playback Security Systems Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

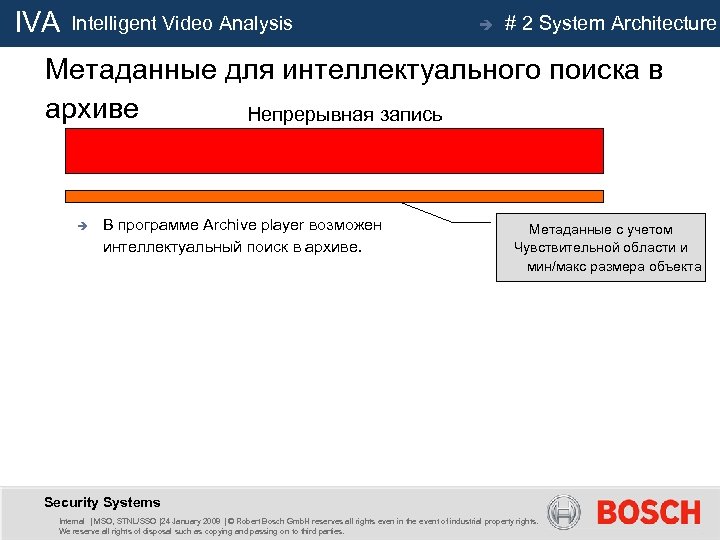

IVA Intelligent Video Analysis è # 2 System Architecture Метаданные для интеллектуального поиска в архиве Непрерывная запись è В программе Archive player возможен интеллектуальный поиск в архиве. Метаданные с учетом Чувствительной области и мин/макс размера объекта Security Systems Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

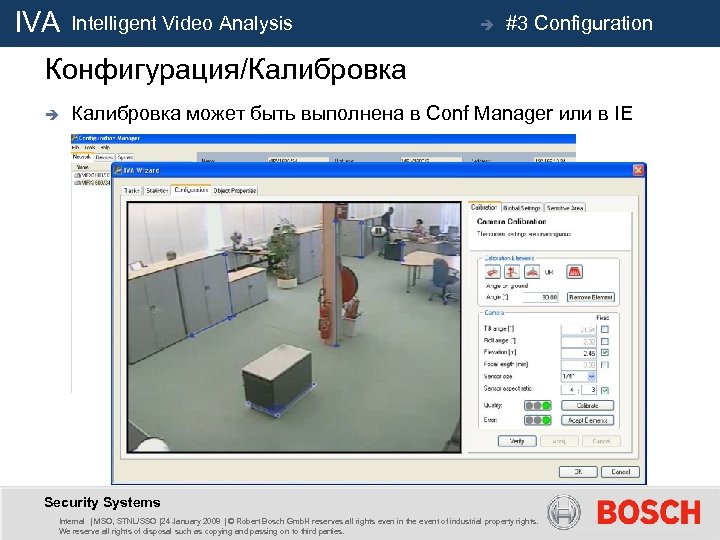

IVA Intelligent Video Analysis è #3 Configuration Конфигурация/Калибровка è Калибровка может быть выполнена в Conf Manager или в IE Security Systems Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

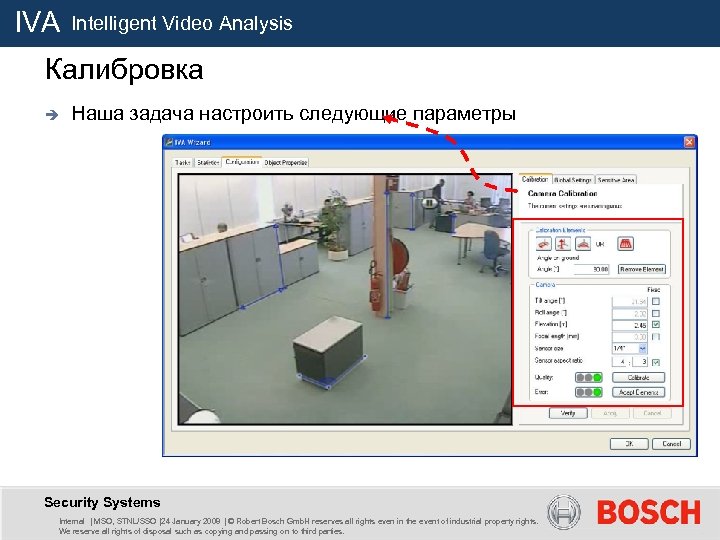

IVA Intelligent Video Analysis Калибровка è Наша задача настроить следующие параметры Security Systems Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

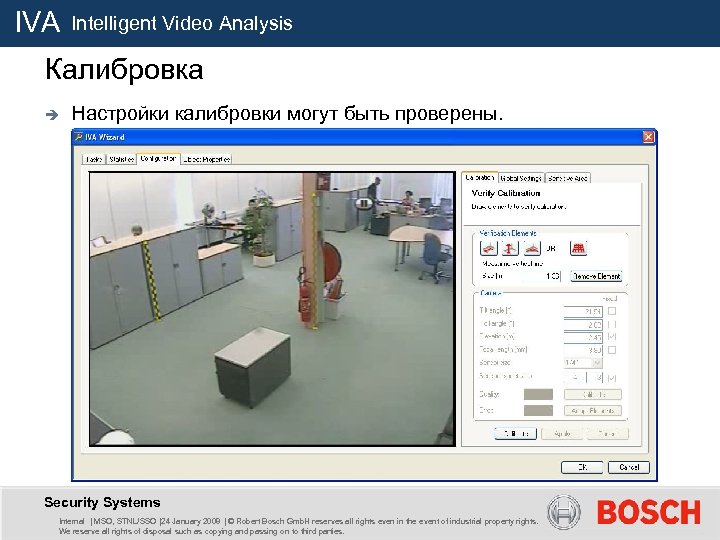

IVA Intelligent Video Analysis Калибровка è Настройки калибровки могут быть проверены. Security Systems Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

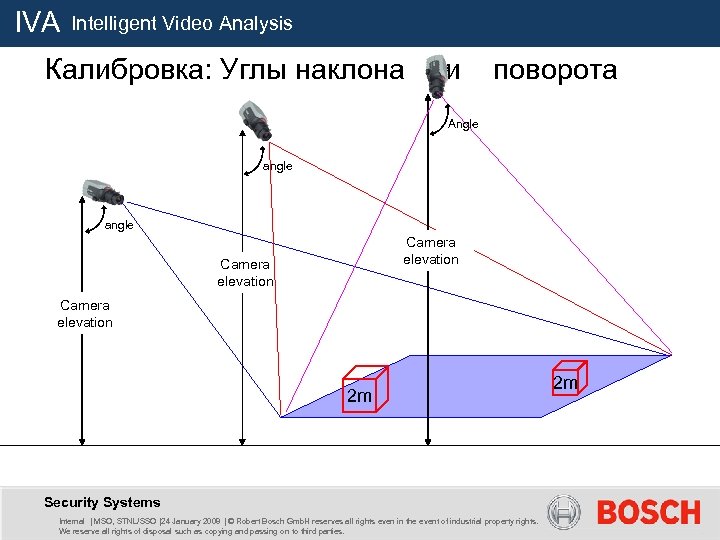

IVA Intelligent Video Analysis Калибровка: Углы наклона и поворота Angle angle Camera elevation 2 m Security Systems Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. 2 m

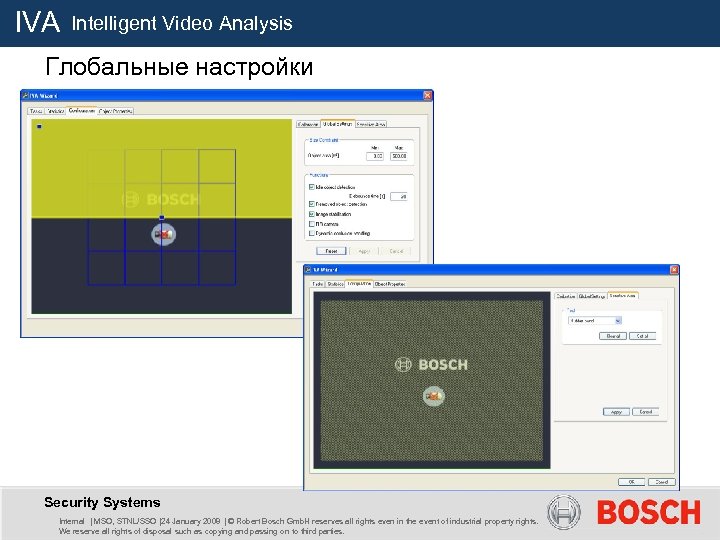

IVA Intelligent Video Analysis Глобальные настройки Security Systems Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

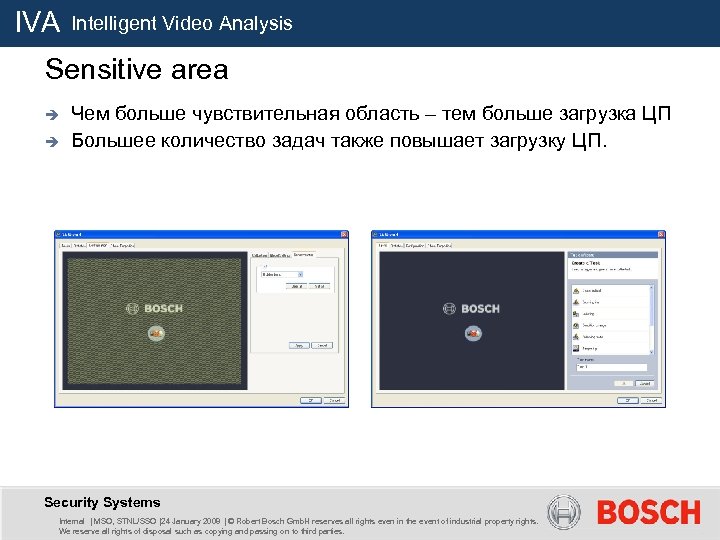

IVA Intelligent Video Analysis Sensitive area è è Чем больше чувствительная область – тем больше загрузка ЦП Большее количество задач также повышает загрузку ЦП. Security Systems Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

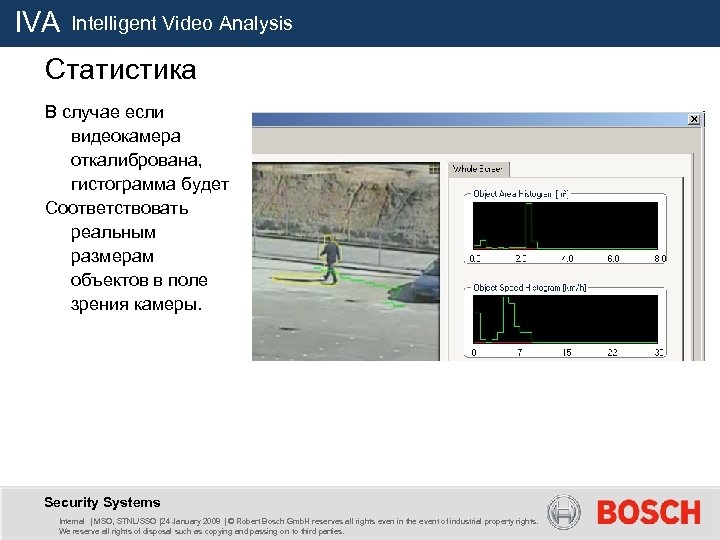

IVA Intelligent Video Analysis Статистика В случае если видеокамера откалибрована, гистограмма будет Соответствовать реальным размерам объектов в поле зрения камеры. Security Systems Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
IVA Intelligent Video Analysis Configuration of Tasks Каждая камера поддерживает максимум 8 задач. è Событие или задача привязаны к примитивам: -линия, поле, маршрут. è Security Systems Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
IVA Intelligent Video Analysis Алгоритм стабилизации изображении è Максимум ~16 пикселей на 4 CIF. (~ 2. 25%) Security Systems Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

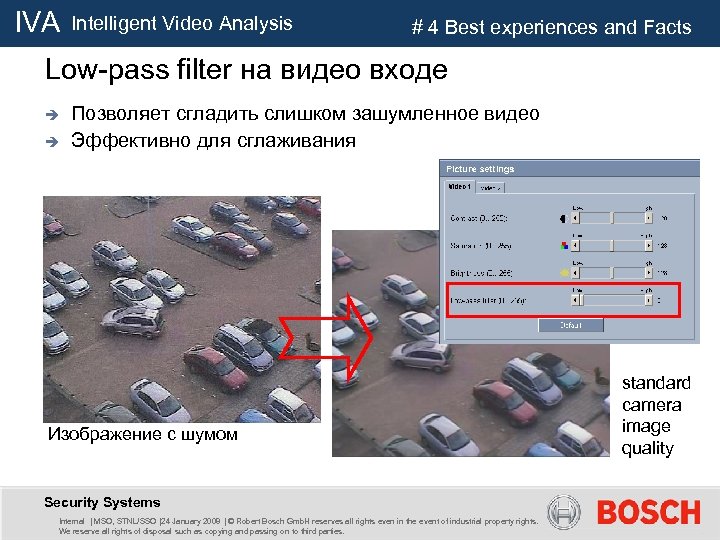

IVA Intelligent Video Analysis # 4 Best experiences and Facts Low-pass filter на видео входе è è Позволяет сгладить слишком зашумленное видео Эффективно для сглаживания Изображение с шумом Security Systems Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. standard camera image quality

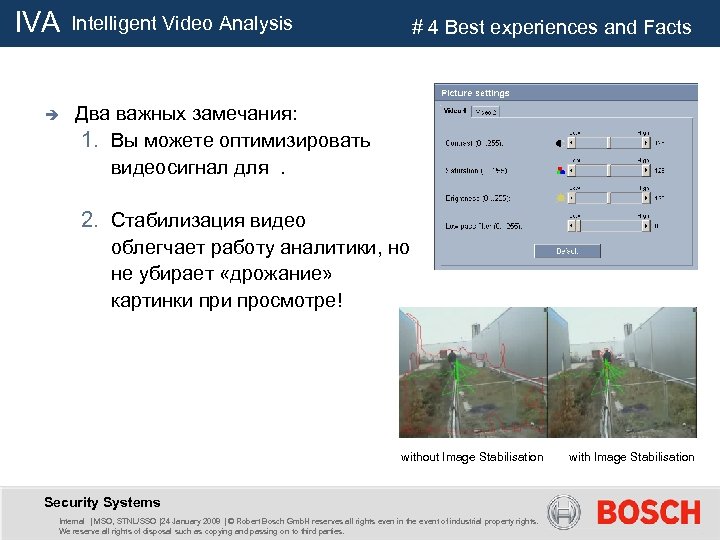

IVA è Intelligent Video Analysis # 4 Best experiences and Facts Два важных замечания: 1. Вы можете оптимизировать видеосигнал для. 2. Стабилизация видео облегчает работу аналитики, но не убирает «дрожание» картинки просмотре! without Image Stabilisation Security Systems Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. with Image Stabilisation
IVA Intelligent Video Analysis # 4 Best experiences and Facts Детектирование скорости Точность существенно выше Достаточно неточно Security Systems Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
IVA Intelligent Video Analysis # 4 Best experiences and Facts Тень – часть детектируемого объекта Security Systems Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

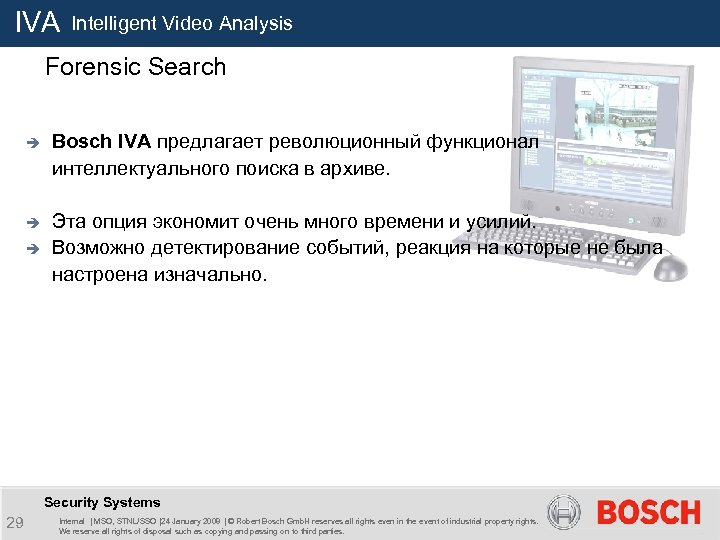

IVA Intelligent Video Analysis Forensic Search è Bosch IVA предлагает революционный функционал интеллектуального поиска в архиве. è Эта опция экономит очень много времени и усилий. Возможно детектирование событий, реакция на которые не была настроена изначально. è Security Systems 29 Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

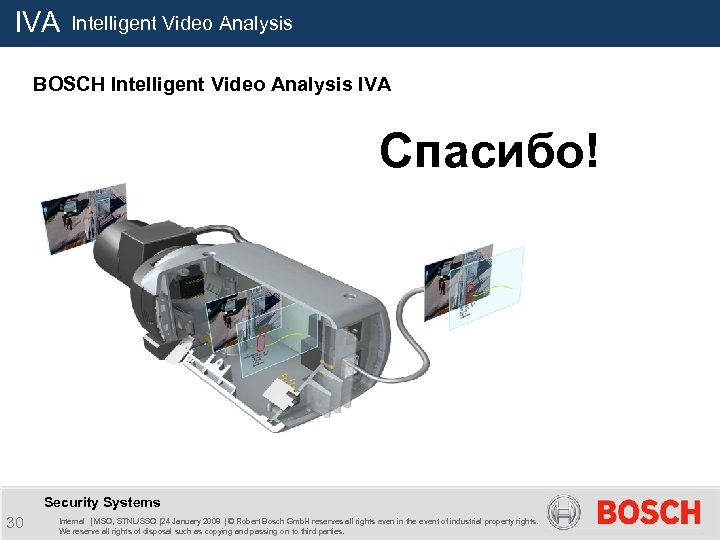

IVA Intelligent Video Analysis BOSCH Intelligent Video Analysis IVA Спасибо! Security Systems 30 Internal | MSO, STNL/SSO |24 January 2008 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
