ITU Workshop on “Cloud Computing” (Tunis, Tunisia, 18 -19 June 2012) Network Infrastructure for the Cloud Jean-Pierre Muzard, Sales Business Development Manager Cisco Global Service Provider Cloud & Managed Services jmuzard@cisco. com Tunis, Tunisia, 18 -19 June 2012

Agenda § § § Network Requirements for the Cloud Strategy and Differentiation Cloud Network Edge Services Cloud To Cloud Connect Cloud To Customer Connect Summary

Network requirements for the Cloud Scalability Performance Agility & Flexibility Convergence of Data & Storage Network Dynamic & Seamless migration of Virtual Machines Security IPV 4 / IPV 6 Support Cisco Confidential 3

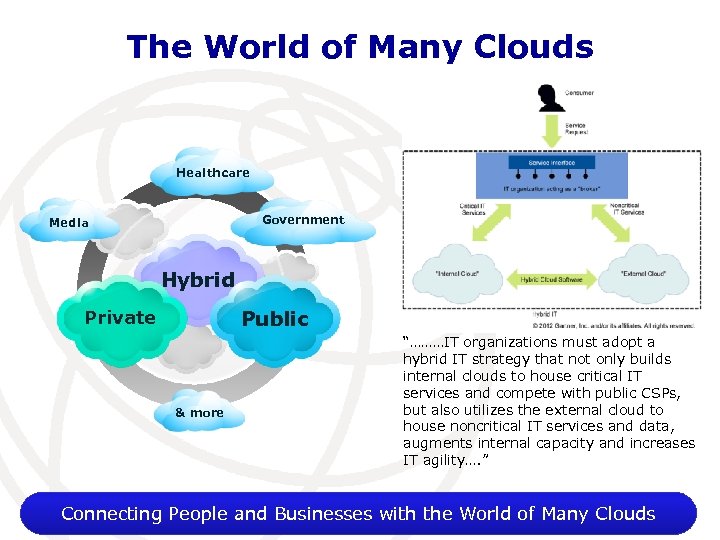

The World of Many Clouds Healthcare Government Media Hybrid Public Private & more “………IT organizations must adopt a hybrid IT strategy that not only builds internal clouds to house critical IT services and compete with public CSPs, but also utilizes the external cloud to house noncritical IT services and data, augments internal capacity and increases IT agility…. ” Connecting People and Businesses with the World of Many Clouds

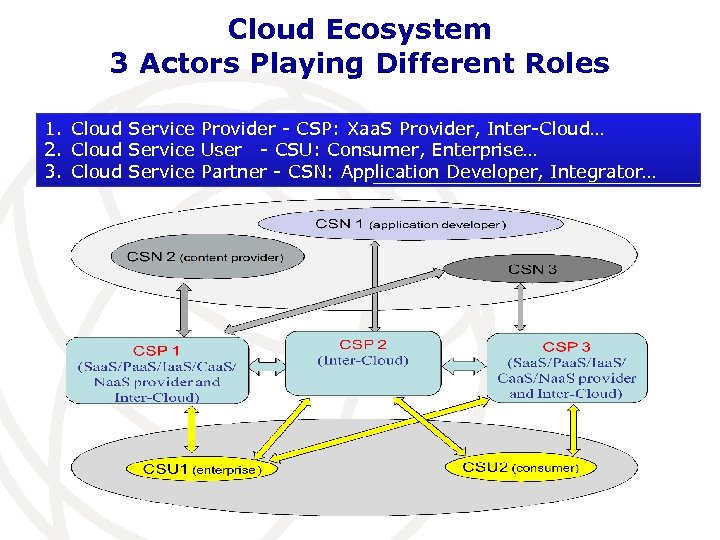

Cloud Ecosystem 3 Actors Playing Different Roles 1. Cloud Service Provider - CSP: Xaa. S Provider, Inter-Cloud… 2. Cloud Service User - CSU: Consumer, Enterprise… 3. Cloud Service Partner - CSN: Application Developer, Integrator…

Cisco Cloud Strategy Enabling Cloud Services by Uniquely Combining the Unified Data Center and Cloud Intelligent Network Tailored Solutions for Building Clouds Rich Ecosystem of Integrated Solutions Research In Motion Enable customers to build and operate private, public, or hybrid clouds Innovative Cloud Applications SAMSUN G Enable customers to deploy tested, bestin- class solutions Enable customers to deploy cloud services to collaborate and enhance their experience

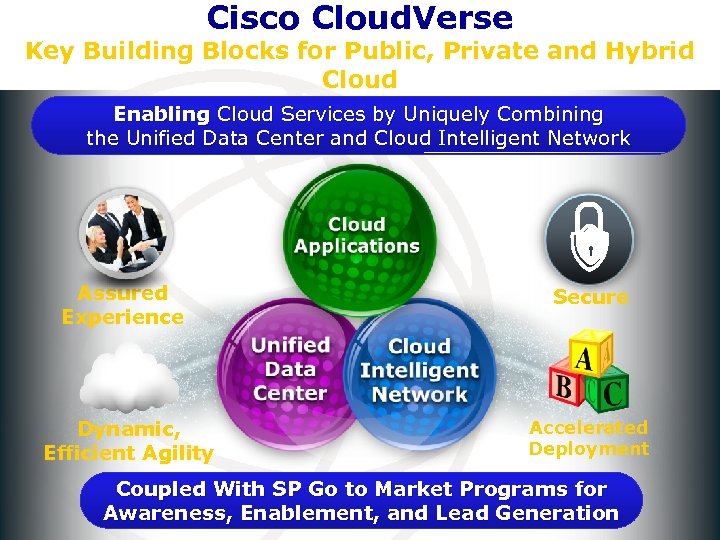

Cisco Cloud. Verse Key Building Blocks for Public, Private and Hybrid Cloud Enabling Cloud Services by Uniquely Combining the Unified Data Center and Cloud Intelligent Network Assured Experience Dynamic, Efficient Agility Secure Accelerated Deployment Coupled With SP Go to Market Programs for Awareness, Enablement, and Lead Generation

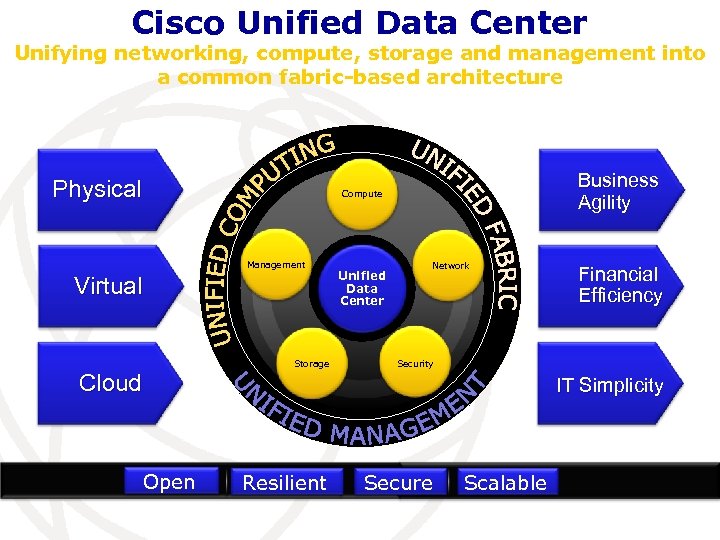

Cisco Unified Data Center Unifying networking, compute, storage and management into a common fabric-based architecture Physical Business Agility Compute Management Virtual Storage Unified Data Center Network Financial Efficiency Security Cloud IT Simplicity Open Resilient Secure Scalable

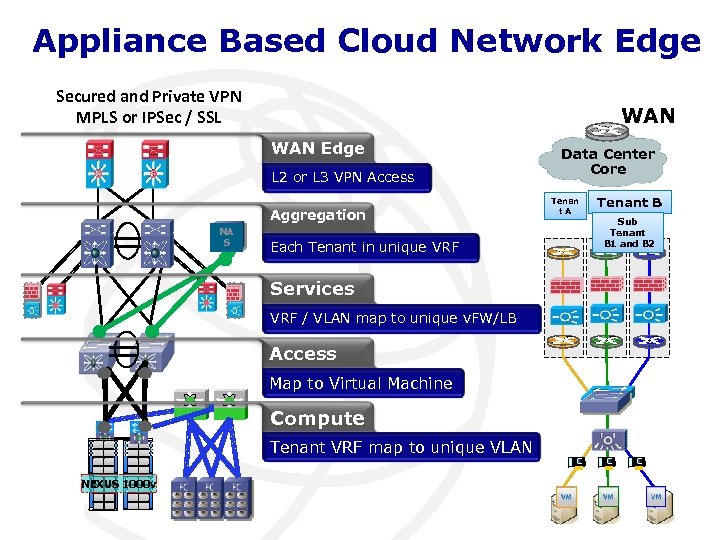

Appliance Based Cloud Network Edge Secured and Private VPN MPLS or IPSec / SSL WAN Edge L 2 or L 3 VPN Access Aggregation NA S Each Tenant in unique VRF Services VRF / VLAN map to unique v. FW/LB Access Map to Virtual Machine Compute Tenant VRF map to unique VLAN NEXUS 1000 v Data Center Core Tenan t. A Tenant B Sub Tenant B 1 and B 2

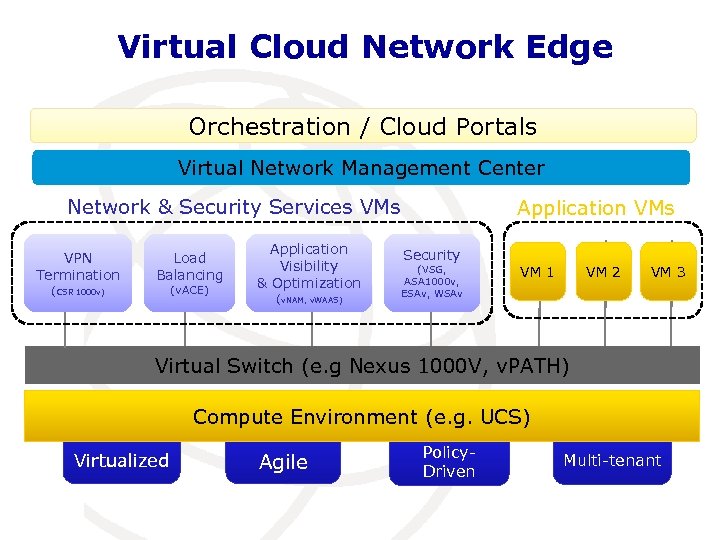

Virtual Cloud Network Edge Orchestration / Cloud Portals Virtual Network Management Center Network & Security Services VMs VPN Termination (CSR 1000 v) Load Balancing (v. ACE) Application Visibility & Optimization (v. NAM, v. WAAS) Application VMs Security (VSG, ASA 1000 v, ESAv, WSAv VM 1 VM 2 VM 3 Virtual Switch (e. g Nexus 1000 V, v. PATH) Compute Environment (e. g. UCS) Virtualized Agile Policy. Driven Multi-tenant

Cloud-to-Cloud Connect Optimized Interactions between Clouds ü LAN extension (VPLS, E-VPN, OTV) ü VM Mobility (LISP, DWS) Dynamic Resource Identification, Allocation, Interconnect over High Speed Transport

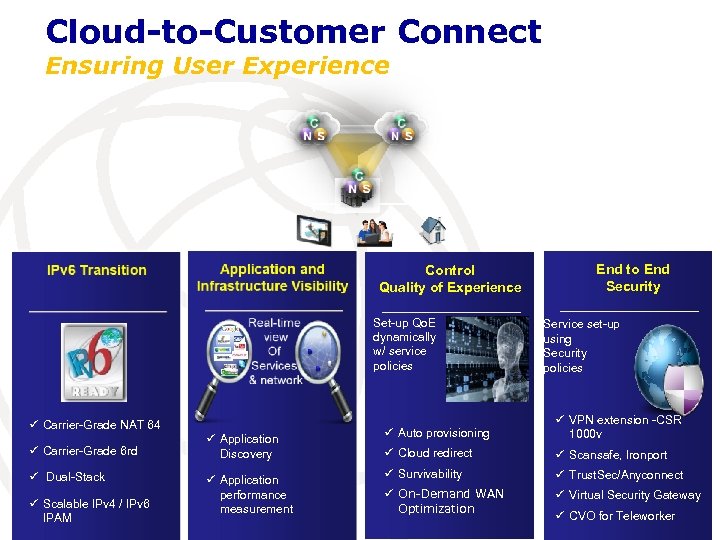

Cloud-to-Customer Connect Ensuring User Experience Control Quality of Experience Set-up Qo. E dynamically w/ service policies ü Carrier-Grade NAT 64 ü Carrier-Grade 6 rd ü Dual-Stack ü Scalable IPv 4 / IPv 6 IPAM ü Application Discovery ü Application performance measurement End to End Security Service set-up using Security policies ü Auto provisioning ü VPN extension -CSR 1000 v ü Cloud redirect ü Scansafe, Ironport ü Survivability ü Trust. Sec/Anyconnect ü On-Demand WAN Optimization ü Virtual Security Gateway ü CVO for Teleworker

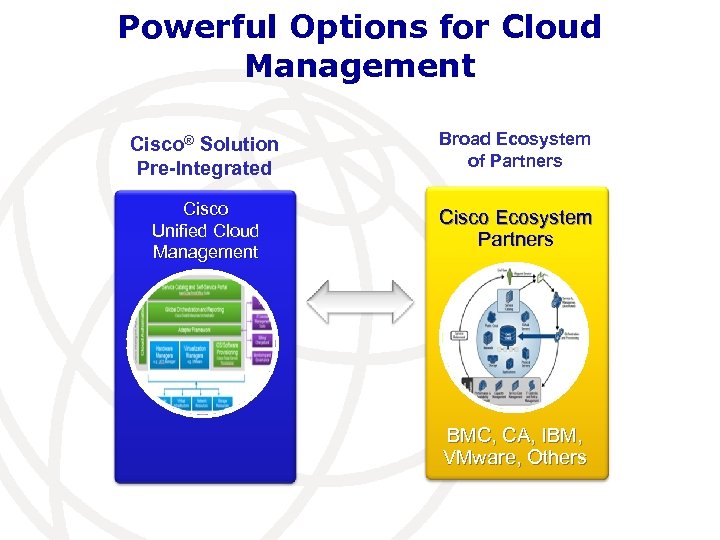

Powerful Options for Cloud Management Cisco® Solution Pre-Integrated Broad Ecosystem of Partners Cisco Unified Cloud Management Cisco Ecosystem Partners BMC, CA, IBM, VMware, Others

Cloud Mega Test 2012 An Independent Analysis – Scale, Performance, Quality “In the Industry’s first public cloud test, Light Reading and EANTC have found that Cloud infrastructure from Cisco really does deliver. ” – Carsten Rossenhoevel, Director EANTC 100% Isolation of tenants from DC to Core network with ZERO loss Multi-tiered cloud services with Application specific SLA and iron clad security 4 Million IPv 6 to Ipv 4 translations/sec scaling to 67 million total 10 times the number of mobile subscribers in Canada or more than all of US in <2 min 300 GB/sec of traffic within DC ~0. 1% of Global within-DC traffic (by 2011 measures) in ONE hour 1 Infra for all Business (Collab, CRM, Iaa. S) & Consumer (Video) Apps Better Economics With Common Infrastructure for Business and Consumer Cloud Applications

Enabling the Journey to Cloud Summary 1 Cloud momentum is accelerating. 2 The market is evolving as a World of Many Clouds. 3 Cisco’s strategy is to enable cloud providers. 4 Cisco uniquely combines Unified Data Center and Cloud Intelligent Network to deliver cloud services. 5 Cisco is best positioned to Connect People and Businesses with the World of Many Clouds.
