Italian Ministry of Foreign Affairs ADRICOSM Italian Ministry for the Environment and Territory IOC - UNESCO ADRICOSM – EXT ADRIatic sea integrated Coastal area. S and river basin Management system pilot project – EXTension 21 -22 November 2006 , Italy CNR – ISMAR – Bologna M. Ravaioli, G. Bortoluzzi, F. Frascari, P. Giordano, S. Picone

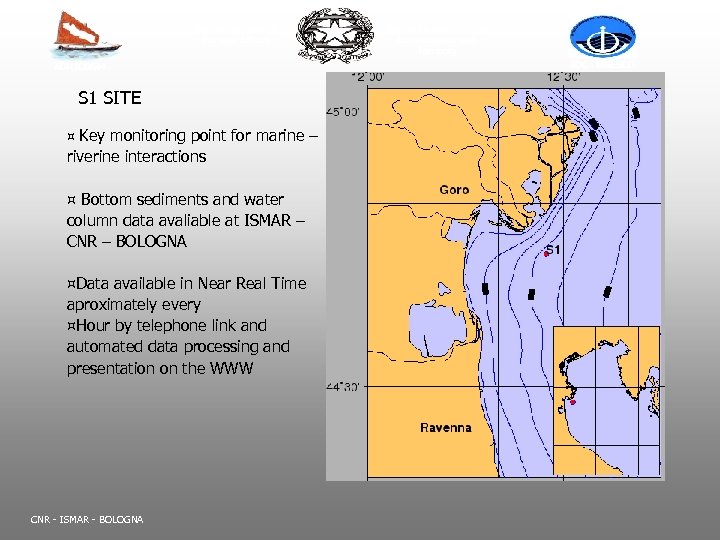

Italian Ministry of Foreign Affairs ADRICOSM Italian Ministry for the Environment and Territory IOC - UNESCO S 1 SITE ¤ Key monitoring point for marine – riverine interactions ¤ Bottom sediments and water column data avaliable at ISMAR – CNR – BOLOGNA ¤Data available in Near Real Time aproximately every ¤Hour by telephone link and automated data processing and presentation on the WWW CNR - ISMAR - BOLOGNA S 1

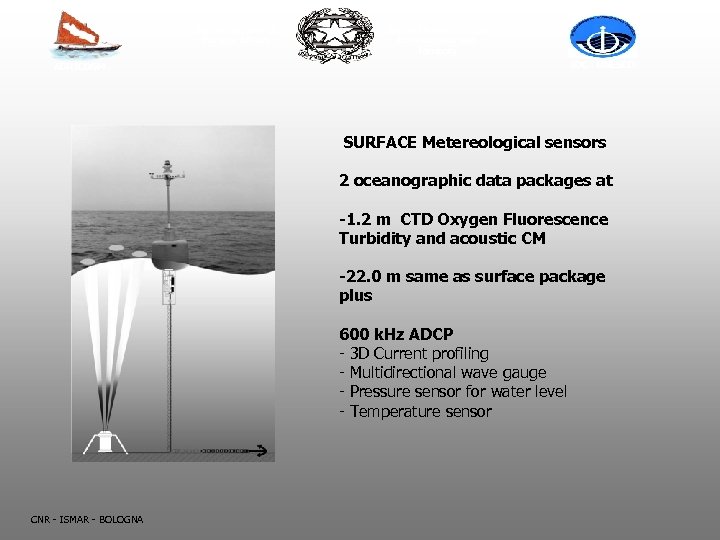

Italian Ministry of Foreign Affairs Italian Ministry for the Environment and Territory IOC - UNESCO ADRICOSM SURFACE Metereological sensors 2 oceanographic data packages at -1. 2 m CTD Oxygen Fluorescence Turbidity and acoustic CM -22. 0 m same as surface package plus 600 k. Hz ADCP - 3 D Current profiling - Multidirectional wave gauge - Pressure sensor for water level - Temperature sensor CNR - ISMAR - BOLOGNA

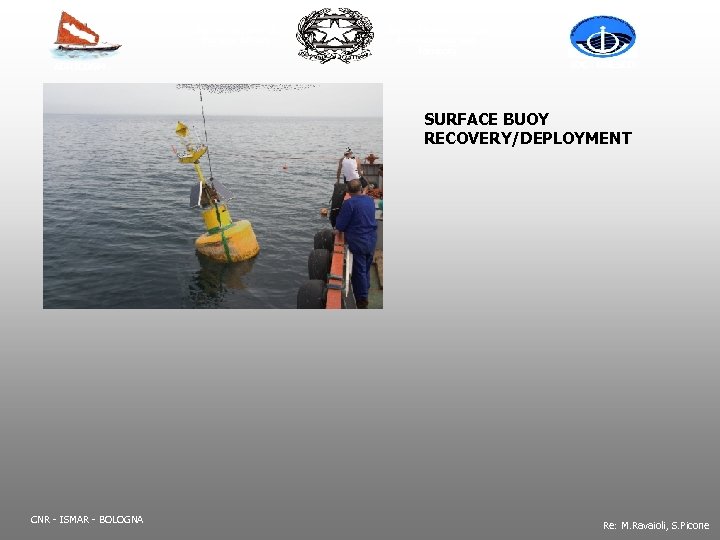

Italian Ministry of Foreign Affairs ADRICOSM Italian Ministry for the Environment and Territory IOC - UNESCO SURFACE BUOY RECOVERY/DEPLOYMENT CNR - ISMAR - BOLOGNA Re: M. Ravaioli, S. Picone

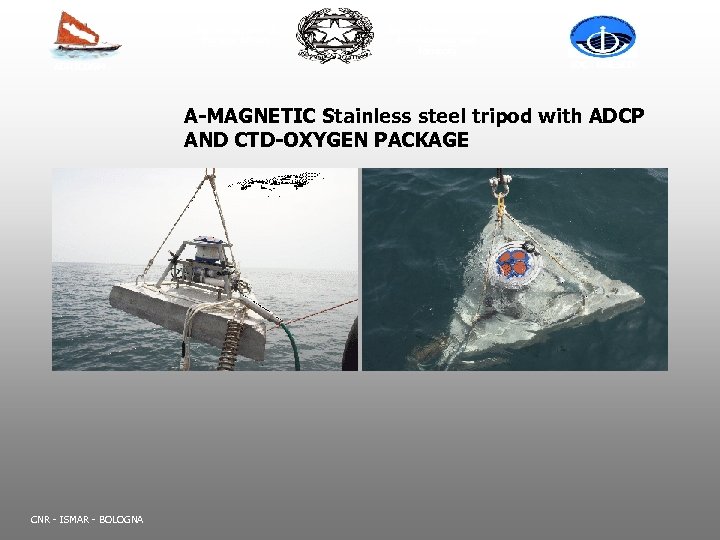

Italian Ministry of Foreign Affairs ADRICOSM Italian Ministry for the Environment and Territory IOC - UNESCO A-MAGNETIC Stainless steel tripod with ADCP AND CTD-OXYGEN PACKAGE CNR - ISMAR - BOLOGNA

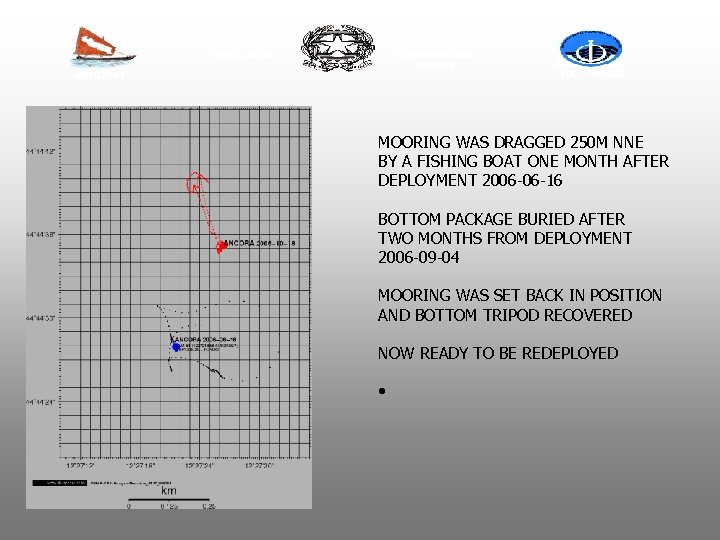

Italian Ministry of Foreign Affairs ADRICOSM Italian Ministry for the Environment and Territory IOC - UNESCO MOORING WAS DRAGGED 250 M NNE BY A FISHING BOAT ONE MONTH AFTER DEPLOYMENT 2006 -06 -16 BOTTOM PACKAGE BURIED AFTER TWO MONTHS FROM DEPLOYMENT 2006 -09 -04 MOORING WAS SET BACK IN POSITION AND BOTTOM TRIPOD RECOVERED NOW READY TO BE REDEPLOYED •

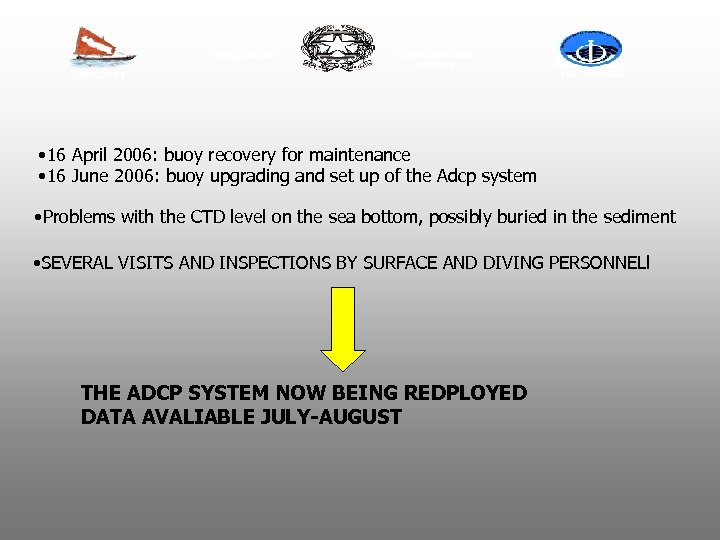

Italian Ministry of Foreign Affairs ADRICOSM Italian Ministry for the Environment and Territory IOC - UNESCO • 16 April 2006: buoy recovery for maintenance • 16 June 2006: buoy upgrading and set up of the Adcp system • Problems with the CTD level on the sea bottom, possibly buried in the sediment • SEVERAL VISITS AND INSPECTIONS BY SURFACE AND DIVING PERSONNELl THE ADCP SYSTEM NOW BEING REDPLOYED DATA AVALIABLE JULY-AUGUST

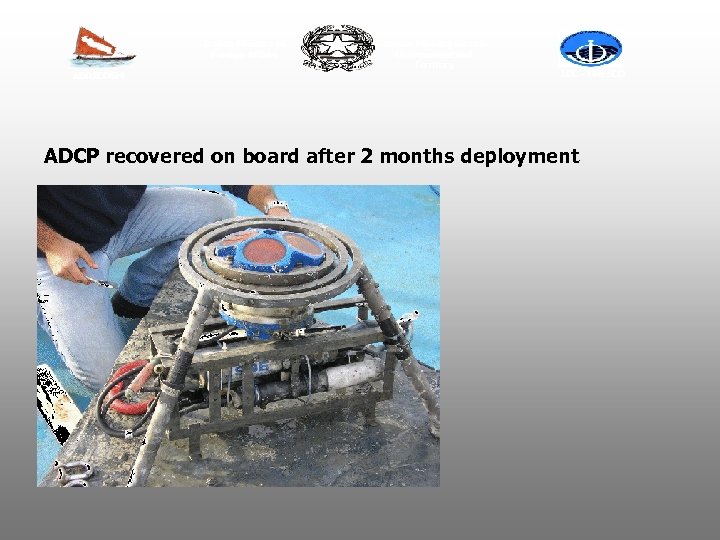

Italian Ministry of Foreign Affairs ADRICOSM Italian Ministry for the Environment and Territory IOC - UNESCO ADCP recovered on board after 2 months deployment

TWO MONTHS OF ADCP DATA

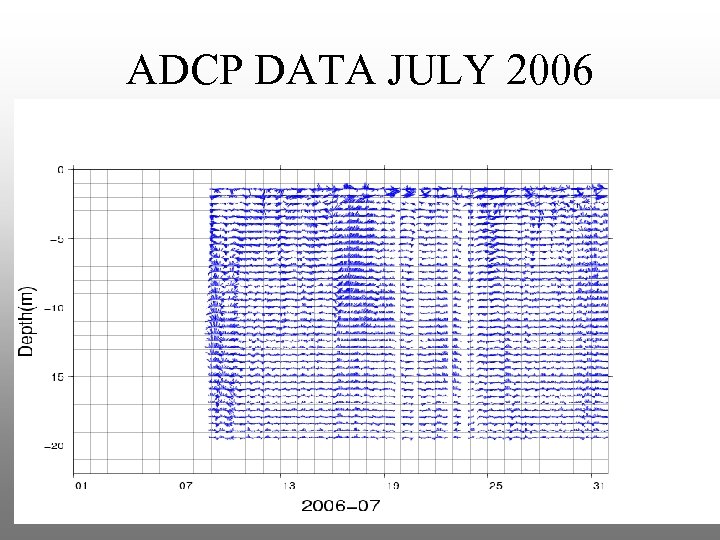

ADCP DATA JULY 2006

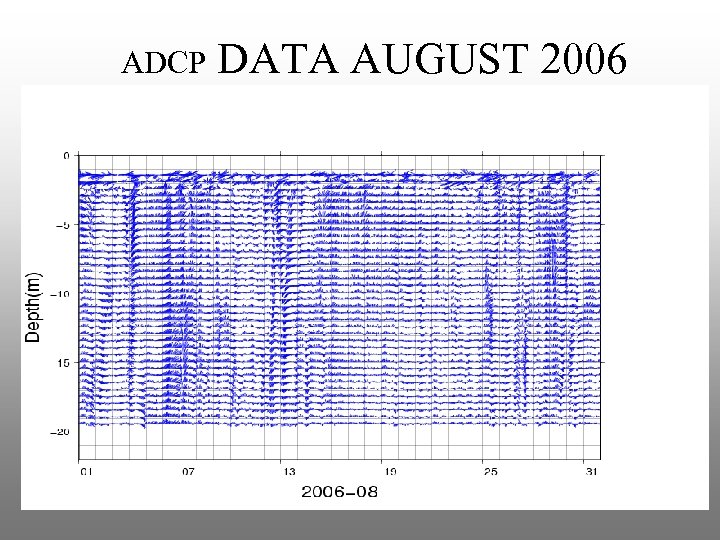

ADCP DATA AUGUST 2006

BUOY-DATA ADRICOSM MODEL PRESENTATION ON THE WEB WEEKLY OPERATIONAL PROCEDURE

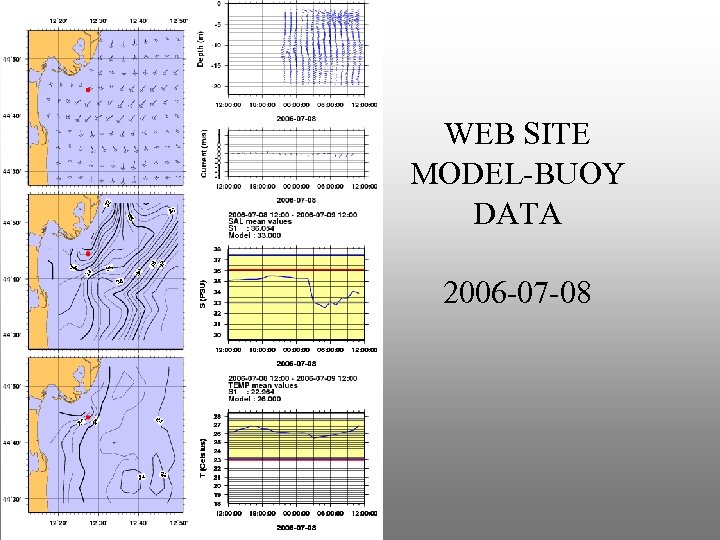

WEB SITE MODEL-BUOY DATA 2006 -07 -08

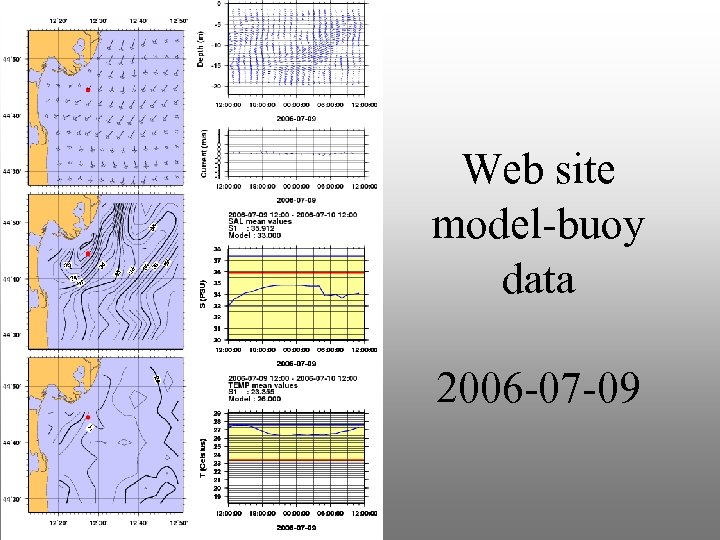

Web site model-buoy data 2006 -07 -09

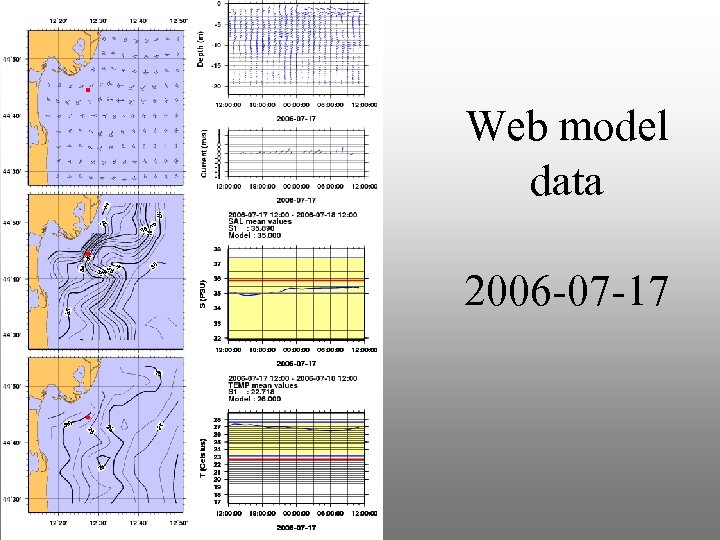

Web model data 2006 -07 -17

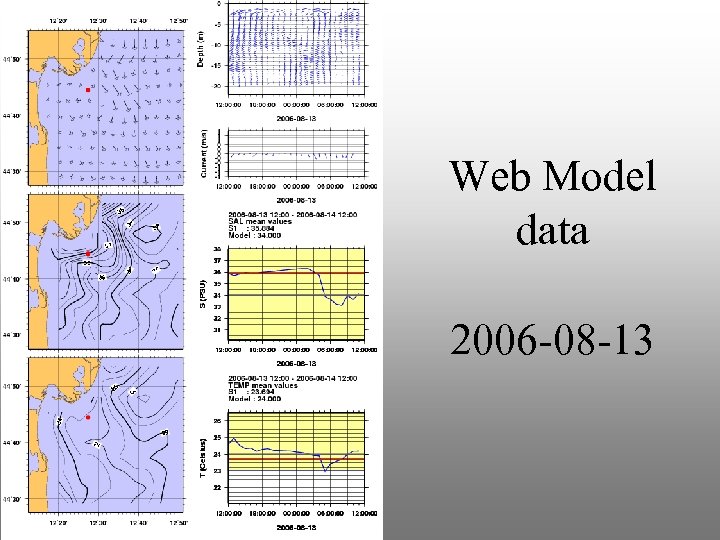

Web Model data 2006 -08 -13

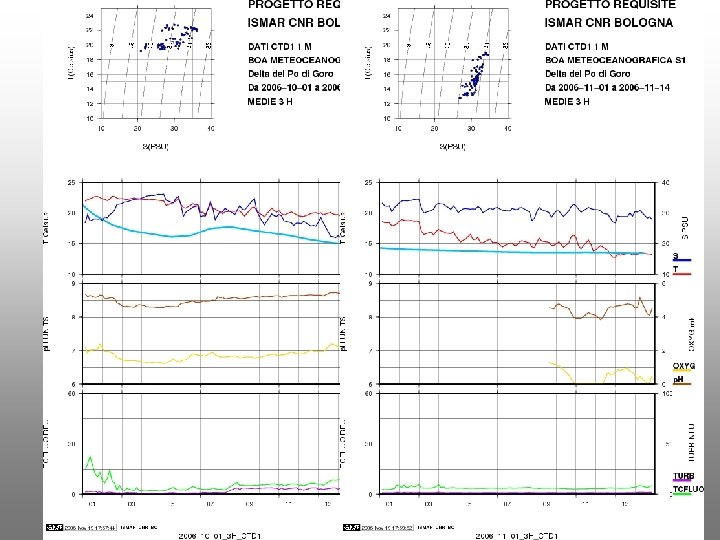

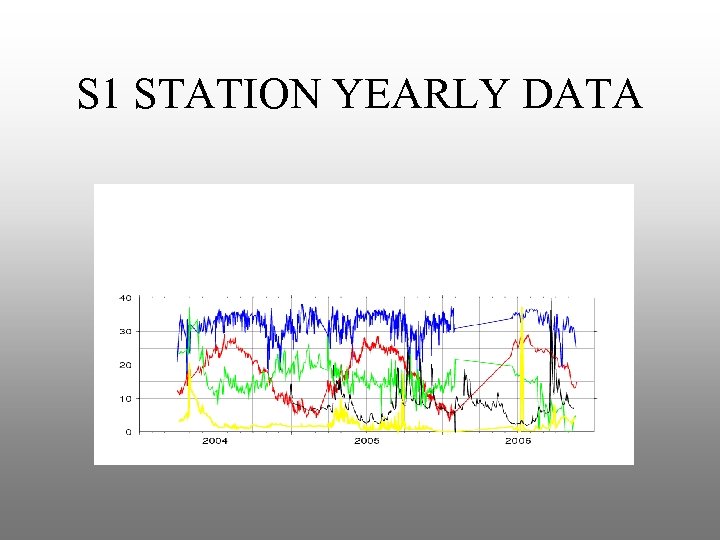

S 1 STATION YEARLY DATA

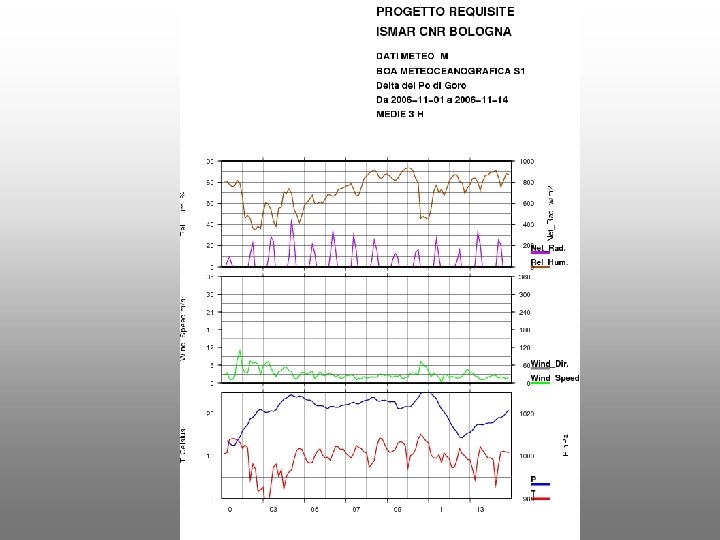

BI-WEEKLY BULLETIN DATA METEO AND OCEANOGRAPHIC

FUTURE: SETTING OF WAVE GAUGE AND ADCP BOTTOM TRIPOD OTHER STATIONS E 1 WAS DEPLOYED NEAR RIMINI 2006 -08 -09

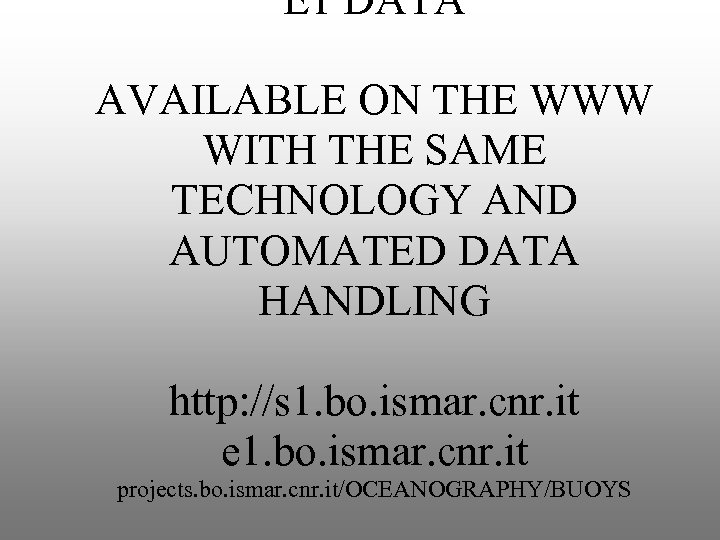

E 1 DATA AVAILABLE ON THE WWW WITH THE SAME TECHNOLOGY AND AUTOMATED DATA HANDLING http: //s 1. bo. ismar. cnr. it e 1. bo. ismar. cnr. it projects. bo. ismar. cnr. it/OCEANOGRAPHY/BUOYS

Italian Ministry of Foreign Affairs ADRICOSM Italian Ministry for the Environment and Territory IOC - UNESCO THANK YOU FOR THE ATTENTION We wish to thank: COMMUNICATION TECHNOLOGY (Cesena, IT) CSVM Rimini, IT Crew of the M/N Dalla Porta Capitanerie di Porto di Ravenna, Porto Garibaldi e Goro For their support in the operational phases
