IS 220 d 250 New Technology NM 25 Customer

IS 220 d/250 New Technology NM 25 Customer Service Training Department September 2005

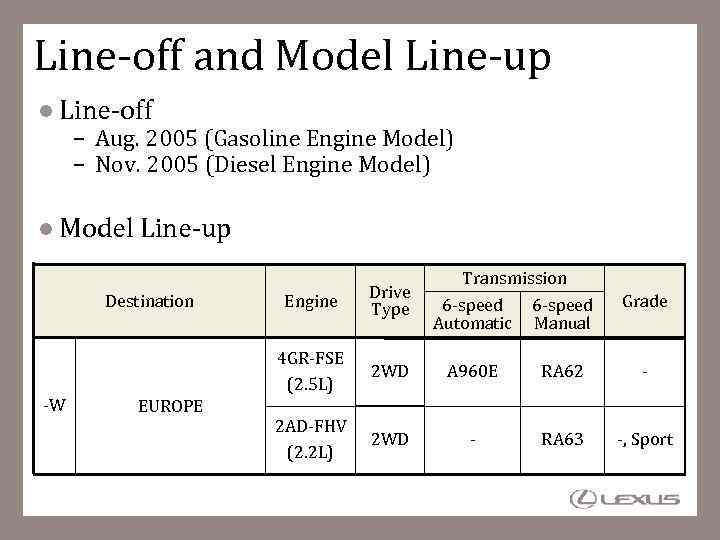

Line-off and Model Line-up Line-off – Aug. 2005 (Gasoline Engine Model) – Nov. 2005 (Diesel Engine Model) Model Line-up -W EUROPE Engine Drive Type 4 GR-FSE (2. 5 L) Destination 2 AD-FHV (2. 2 L) Transmission 6 -speed Automatic 6 -speed Manual Grade 2 WD A 960 E RA 62 - 2 WD - RA 63 -, Sport

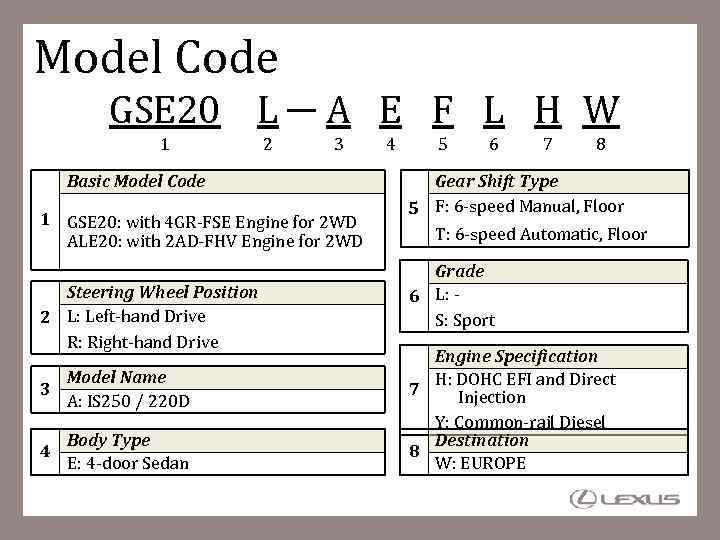

Model Code GSE 20 L － A E F L H W 1 2 3 Basic Model Code 1 GSE 20: with 4 GR-FSE Engine for 2 WD ALE 20: with 2 AD-FHV Engine for 2 WD Steering Wheel Position 2 L: Left-hand Drive R: Right-hand Drive 3 Model Name A: IS 250 / 220 D 4 Body Type E: 4 -door Sedan 4 5 6 7 8 Gear Shift Type 5 F: 6 -speed Manual, Floor T: 6 -speed Automatic, Floor Grade 6 L: S: Sport Engine Specification H: DOHC EFI and Direct 7 Injection Y: Common-rail Diesel Destination 8 W: EUROPE

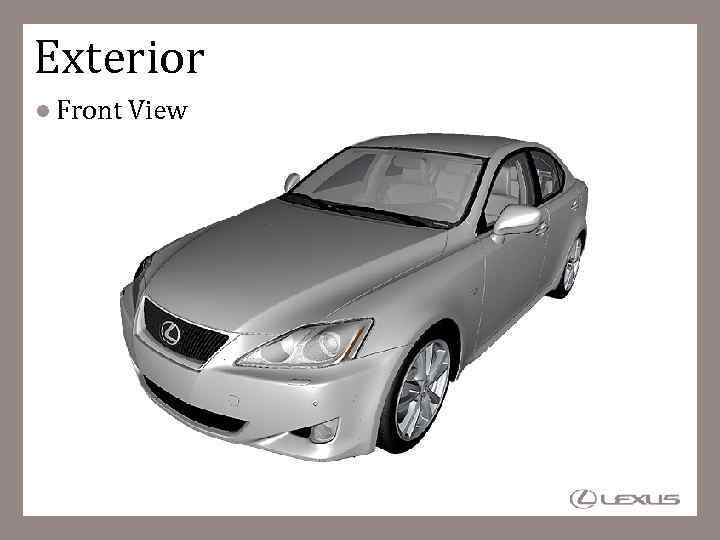

Exterior Front View

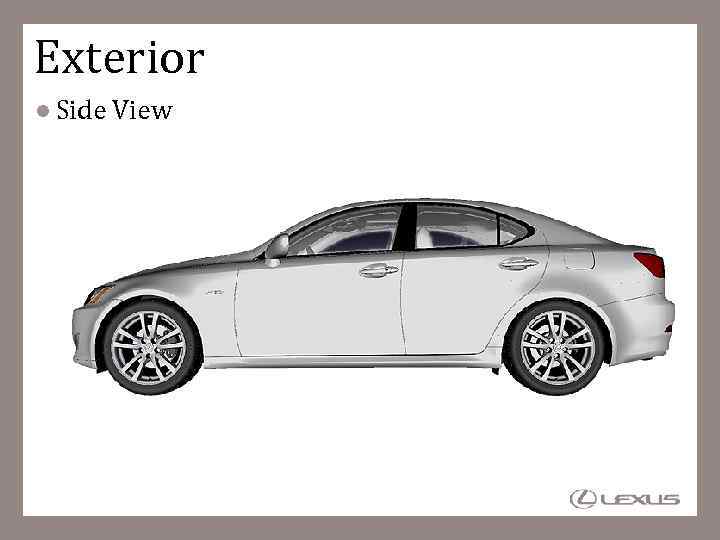

Exterior Side View

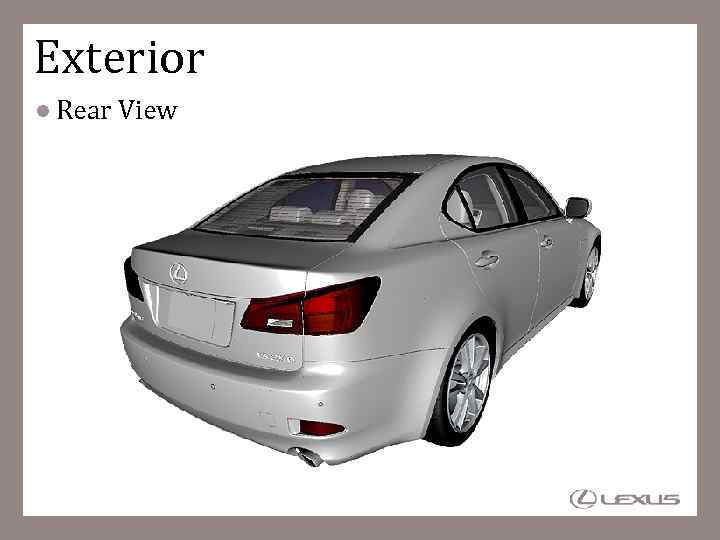

Exterior Rear View

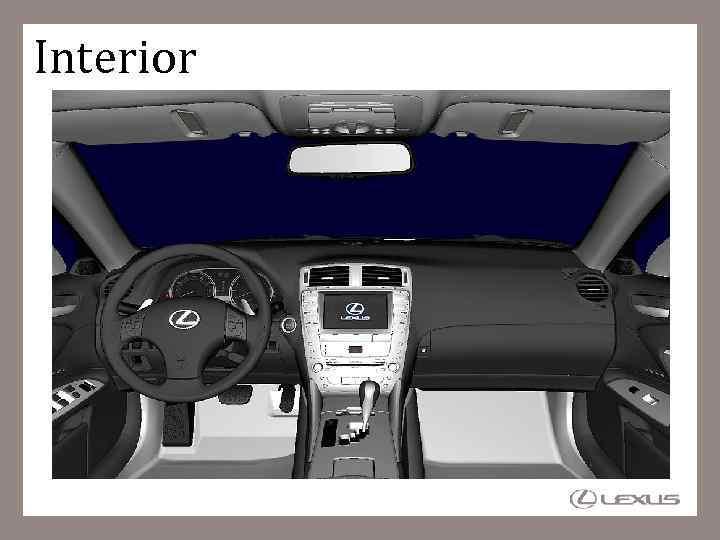

Interior

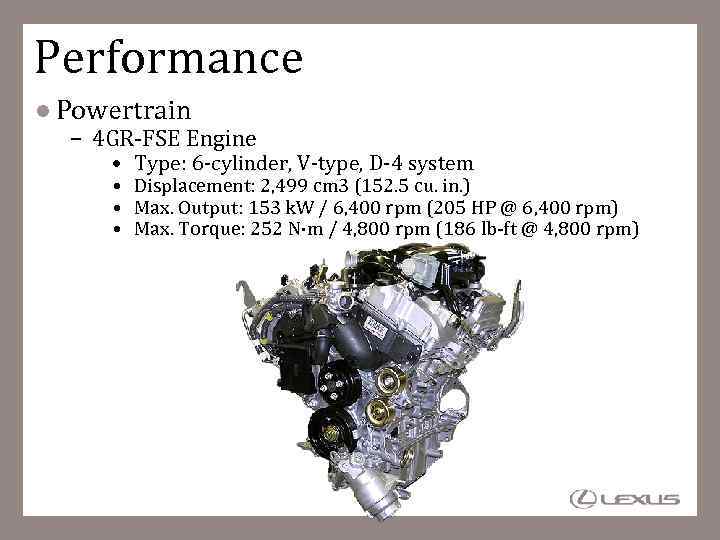

Performance Powertrain – 4 GR-FSE Engine • Type: 6 -cylinder, V-type, D-4 system • Displacement: 2, 499 cm 3 (152. 5 cu. in. ) • Max. Output: 153 k. W / 6, 400 rpm (205 HP @ 6, 400 rpm) • Max. Torque: 252 N·m / 4, 800 rpm (186 lb-ft @ 4, 800 rpm)

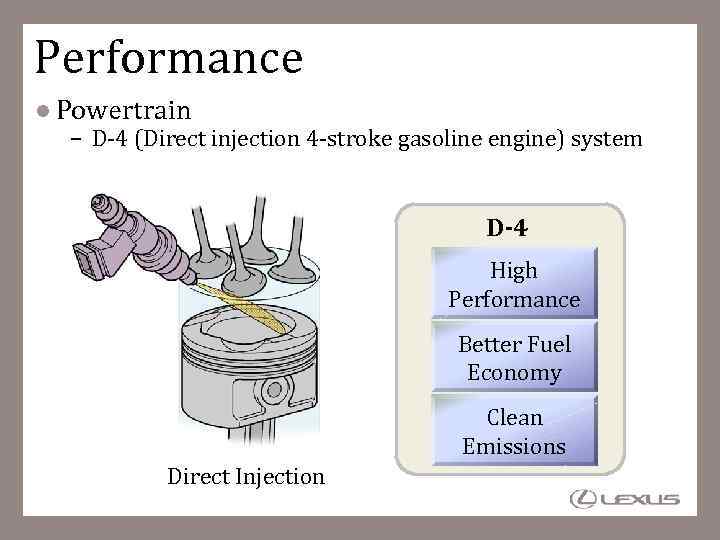

Performance Powertrain – D-4 (Direct injection 4 -stroke gasoline engine) system D-4 High Performance Better Fuel Economy Clean Emissions Direct Injection

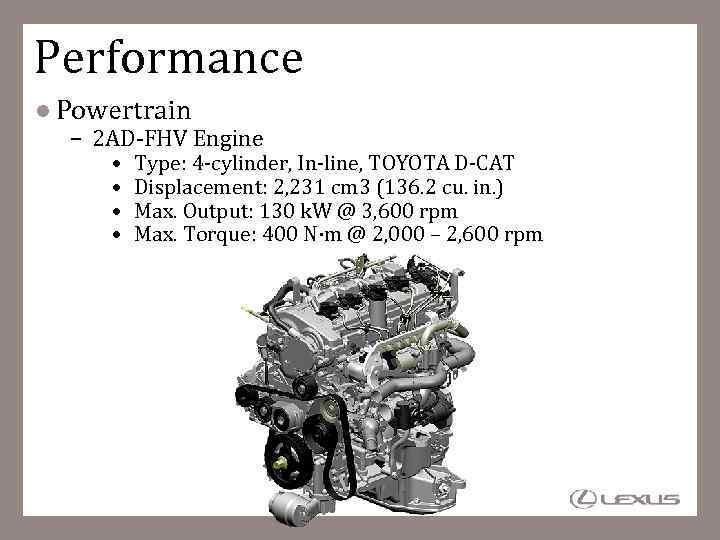

Performance Powertrain – 2 AD-FHV Engine • • Type: 4 -cylinder, In-line, TOYOTA D-CAT Displacement: 2, 231 cm 3 (136. 2 cu. in. ) Max. Output: 130 k. W @ 3, 600 rpm Max. Torque: 400 N·m @ 2, 000 – 2, 600 rpm

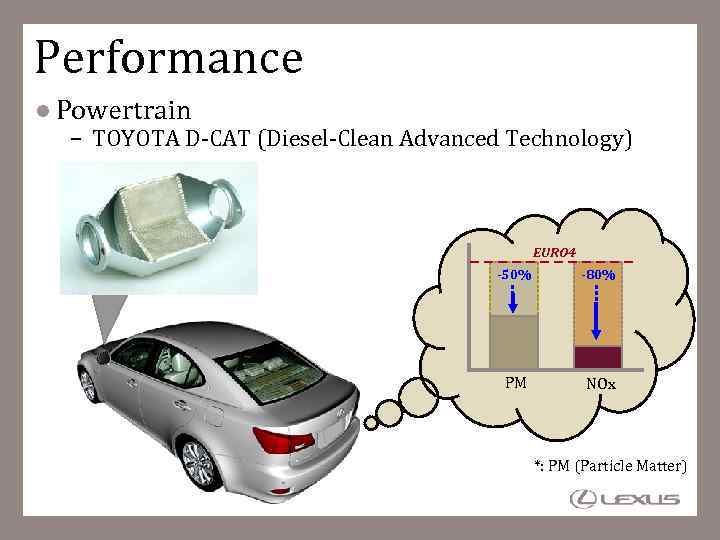

Performance Powertrain – TOYOTA D-CAT (Diesel-Clean Advanced Technology) EURO 4 -50% -80% PM NOx *: PM (Particle Matter)

Performance Power Train – RA 62 / RA 63 Manual Transmission • 6 -speed Manual Transmission

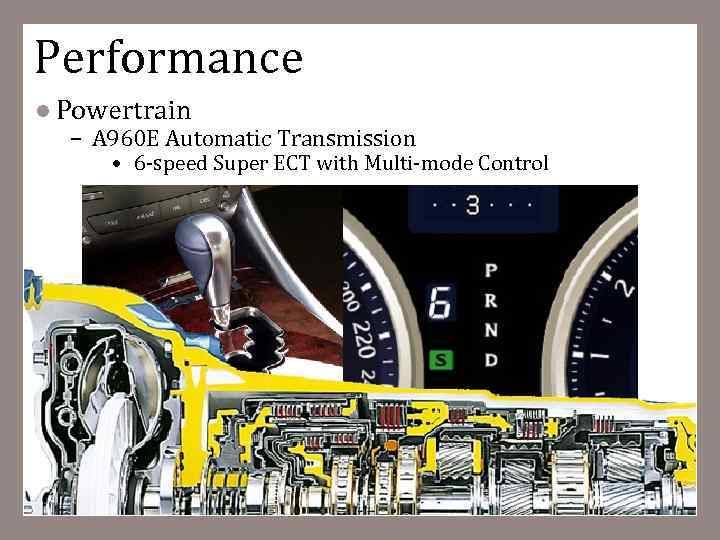

Performance Powertrain – A 960 E Automatic Transmission • 6 -speed Super ECT with Multi-mode Control

Performance Powertrain – Up / Down the shift range by paddle operation Paddle Down Up

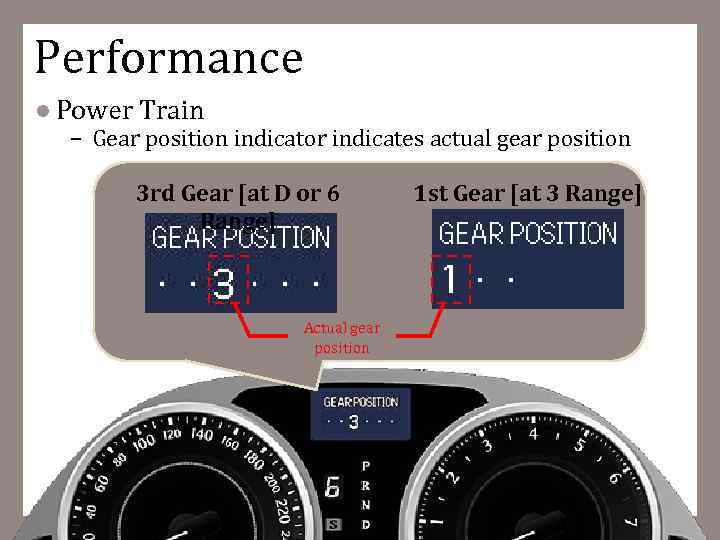

Performance Power Train – Gear position indicator indicates actual gear position 3 rd Gear [at D or 6 Range] Actual gear position 1 st Gear [at 3 Range]

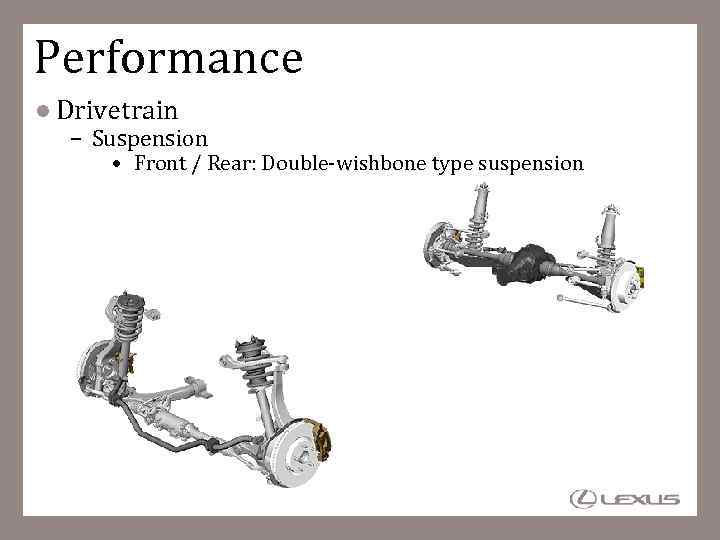

Performance Drivetrain – Suspension • Front / Rear: Double-wishbone type suspension

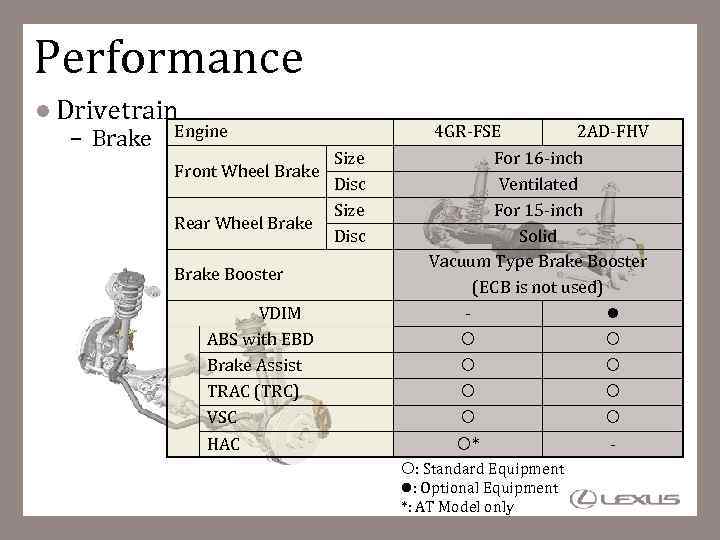

Performance Drivetrain – Brake Engine Size Front Wheel Brake Disc Size Rear Wheel Brake Disc Brake Booster VDIM ABS with EBD Brake Assist TRAC (TRC) VSC HAC 4 GR-FSE 2 AD-FHV For 16 -inch Ventilated For 15 -inch Solid Vacuum Type Brake Booster (ECB is not used) * : Standard Equipment : Optional Equipment *: AT Model only

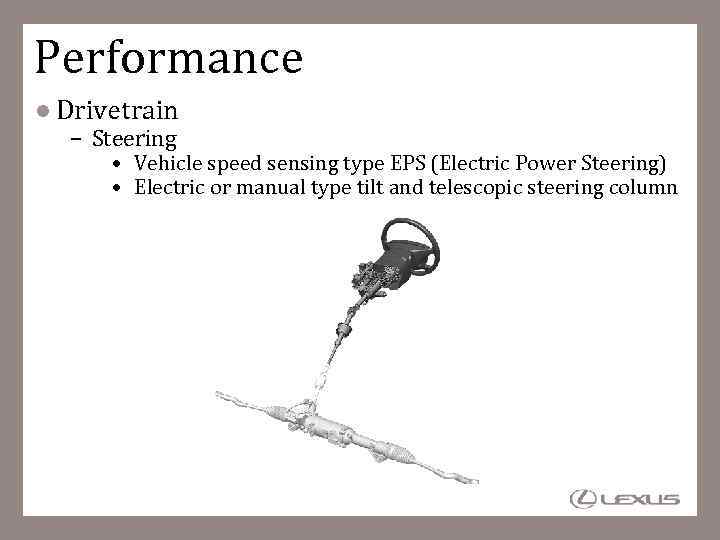

Performance Drivetrain – Steering • Vehicle speed sensing type EPS (Electric Power Steering) • Electric or manual type tilt and telescopic steering column

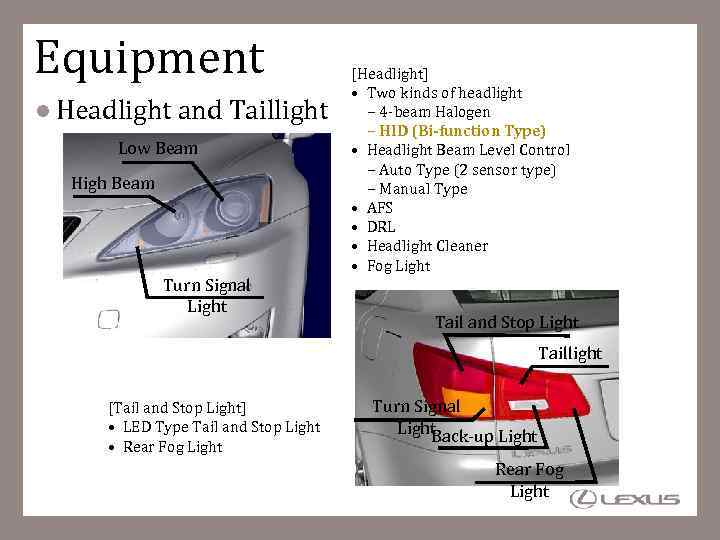

Equipment Headlight and Taillight Low Beam High Beam Turn Signal Light [Headlight] • Two kinds of headlight – 4 -beam Halogen – HID (Bi-function Type) • Headlight Beam Level Control – Auto Type (2 sensor type) – Manual Type • AFS • DRL • Headlight Cleaner • Fog Light Tail and Stop Light Taillight [Tail and Stop Light] • LED Type Tail and Stop Light • Rear Fog Light Turn Signal Light Back-up Light Rear Fog Light

Equipment Combination Meter – 2 -dial Optitron meter Multi-information Display (increase display items) Light Saver Pointer (Interpretation Function) This is a combination meter for 4 GR-FE Ambient Indicator (Interpretation Function)

Equipment Combination Meter (Multi-information Display) – Displays Cruise Information, Warning, Multi-switch, Dynamic Radar Cruise display, Clearance Sonar display and DTC in Multi-information Display Cruise Information Warning Display Multi-switch Mode Dynamic Radar Cruise Display Clearance Sonar Display DTC DIAG OK VSC DIAG 23 VSC

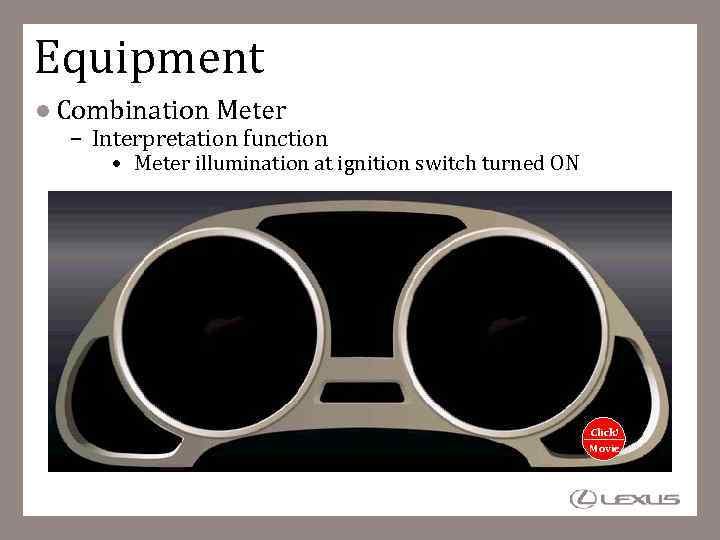

Equipment Combination Meter – Interpretation function • Meter illumination at ignition switch turned ON Click! Movie

Equipment Combination Meter – Interpretation function • Speed / Tachometer Indicator lights up when the vehicle Setting Range speed or engine speed reaches a set speed Initial Range (Amber) (Red) Click! Movie NOTE: Indicate this is a sample movie Movie Setup Speed Meter (Amber): 90 km/h Tachometer (Amber): 5, 000 r. p. m (Red): Red Zone

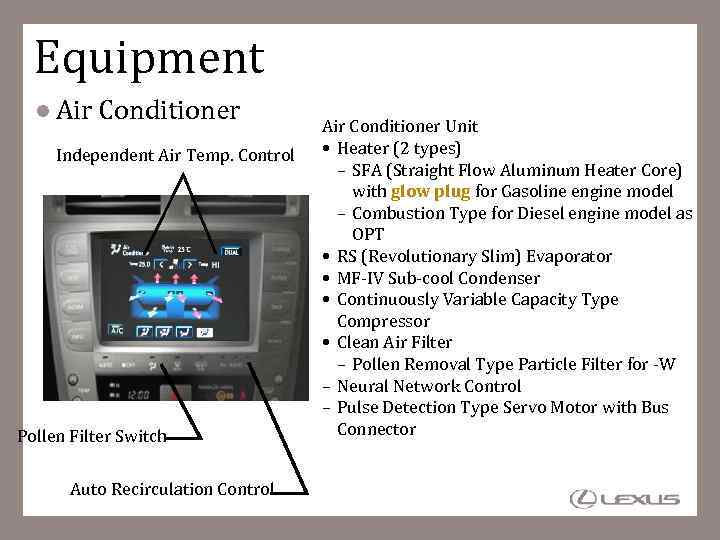

Equipment Air Conditioner Independent Air Temp. Control Pollen Filter Switch Auto Recirculation Control Air Conditioner Unit • Heater (2 types) – SFA (Straight Flow Aluminum Heater Core) with glow plug for Gasoline engine model – Combustion Type for Diesel engine model as OPT • RS (Revolutionary Slim) Evaporator • MF-IV Sub-cool Condenser • Continuously Variable Capacity Type Compressor • Clean Air Filter – Pollen Removal Type Particle Filter for -W – Neural Network Control – Pulse Detection Type Servo Motor with Bus Connector

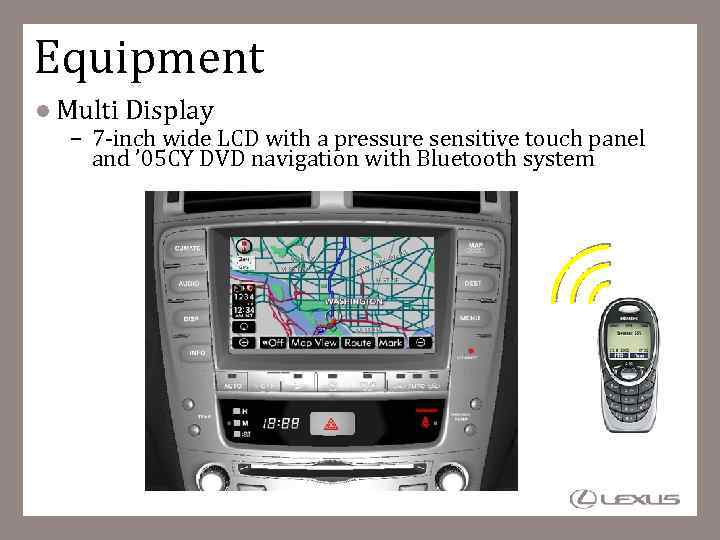

Equipment Multi Display – 7 -inch wide LCD with a pressure sensitive touch panel and ’ 05 CY DVD navigation with Bluetooth system

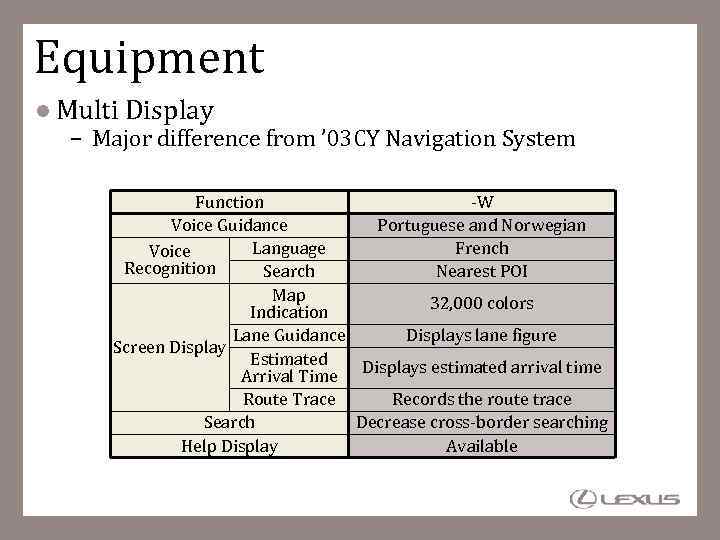

Equipment Multi Display – Major difference from ’ 03 CY Navigation System Function -W Voice Guidance Portuguese and Norwegian Language French Voice Recognition Search Nearest POI Map 32, 000 colors Indication Lane Guidance Displays lane figure Screen Display Estimated Arrival Time Displays estimated arrival time Route Trace Records the route trace Search Decrease cross-border searching Help Display Available

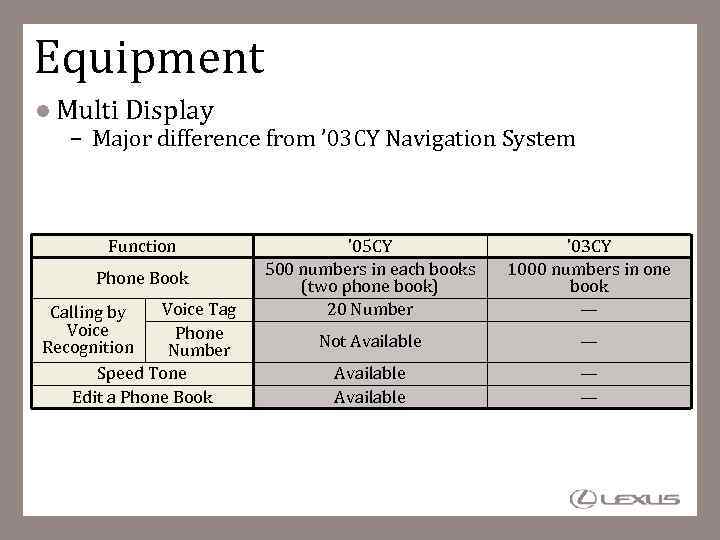

Equipment Multi Display – Major difference from ’ 03 CY Navigation System Function Phone Book Voice Tag Calling by Voice Phone Recognition Number Speed Tone Edit a Phone Book ’ 05 CY 500 numbers in each books (two phone book) 20 Number ’ 03 CY 1000 numbers in one book — Not Available — —

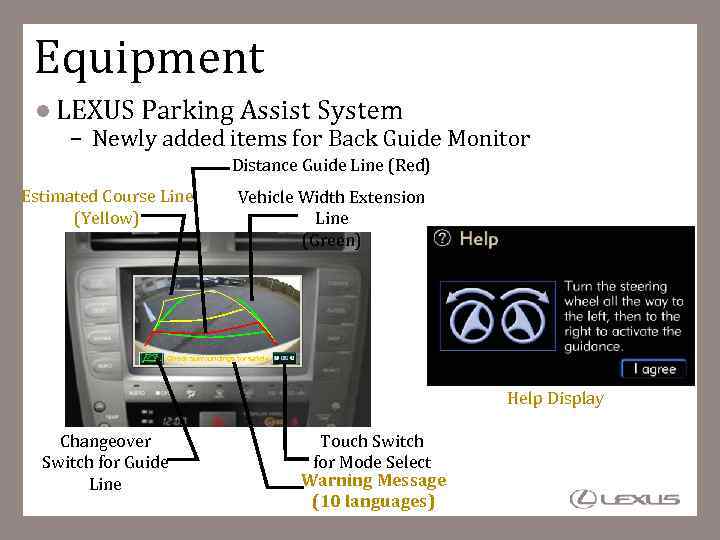

Equipment LEXUS Parking Assist System – Newly added items for Back Guide Monitor Distance Guide Line (Red) Estimated Course Line (Yellow) Vehicle Width Extension Line (Green) Check surroundings for safety. Help Display Changeover Switch for Guide Line Touch Switch for Mode Select Warning Message (10 languages)

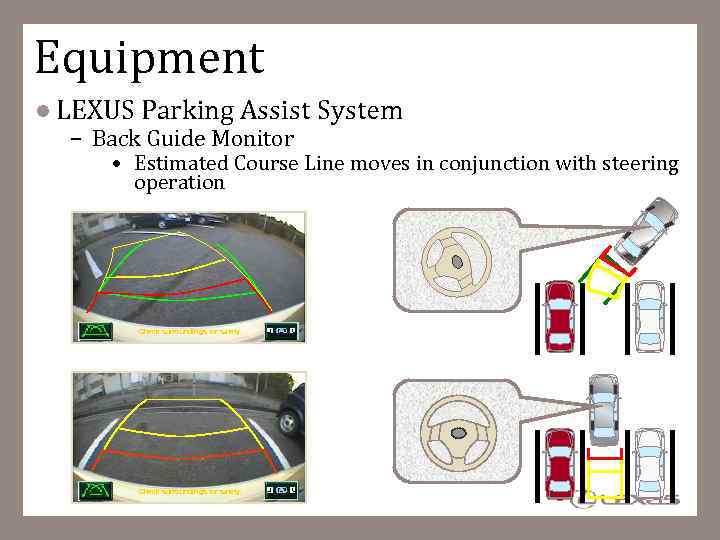

Equipment LEXUS Parking Assist System – Back Guide Monitor • Estimated Course Line moves in conjunction with steering operation Check surroundings for safety.

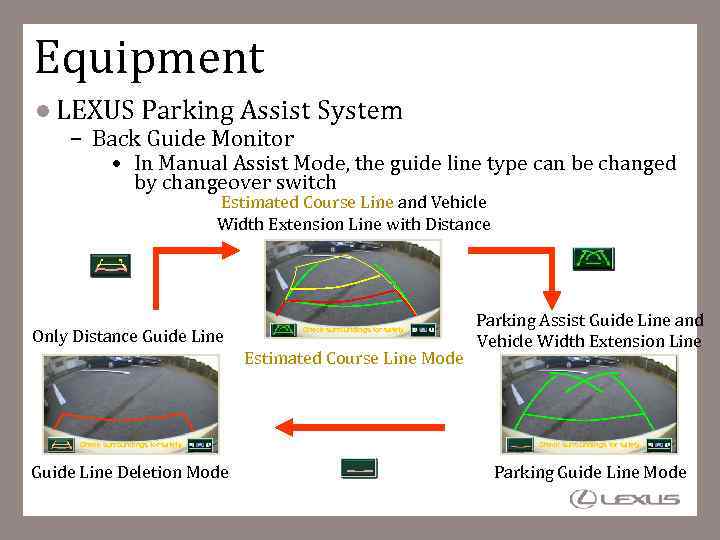

Equipment LEXUS Parking Assist System – Back Guide Monitor • In Manual Assist Mode, the guide line type can be changed by changeover switch Estimated Course Line and Vehicle Width Extension Line with Distance Guide Line Only Distance Guide Line Check surroundings for safety. Estimated Course Line Mode Check surroundings for safety. Guide Line Deletion Mode Parking Assist Guide Line and Vehicle Width Extension Line Check surroundings for safety. Parking Guide Line Mode

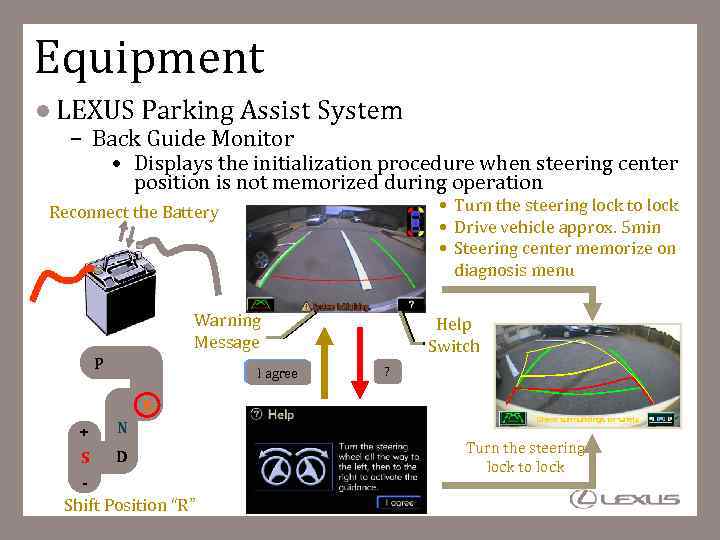

Equipment LEXUS Parking Assist System – Back Guide Monitor • Displays the initialization procedure when steering center position is not memorized during operation • Turn the steering lock to lock • Drive vehicle approx. 5 min • Steering center memorize on diagnosis menu Reconnect the Battery Warning Message P I agree Help Switch ? R + N S D - Shift Position “R” Check surroundings for safety. Turn the steering lock to lock

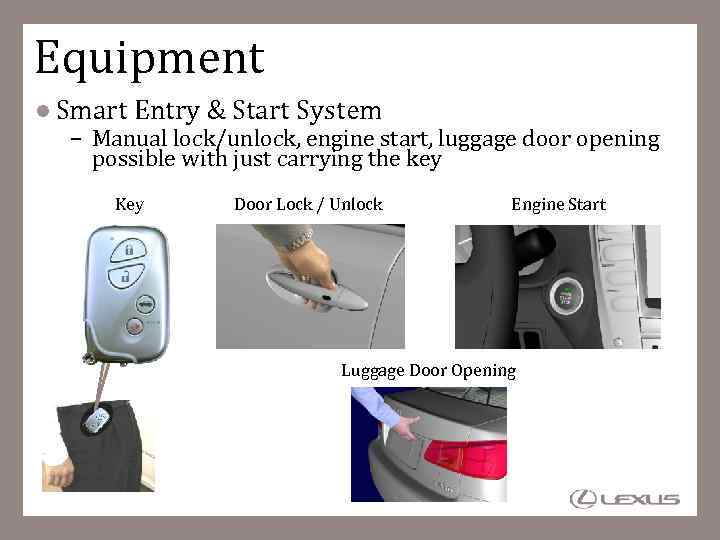

Equipment Smart Entry & Start System – Manual lock/unlock, engine start, luggage door opening possible with just carrying the key Key Door Lock / Unlock Engine Start Luggage Door Opening

Equipment Sliding Roof – Sliding roof auto open-and-close with jam protection – Dial and push type Sliding Roof Switch with 9 stage adjustment is used to enhance the usability Full Open Position Comfort Position Manual Open Position Adjustabl e Position (5 stage) • Full Close Position • Auto Position Tilt Up Position NOTE: The Dial knob of the Sliding Roof Switch can be pushed only full close position

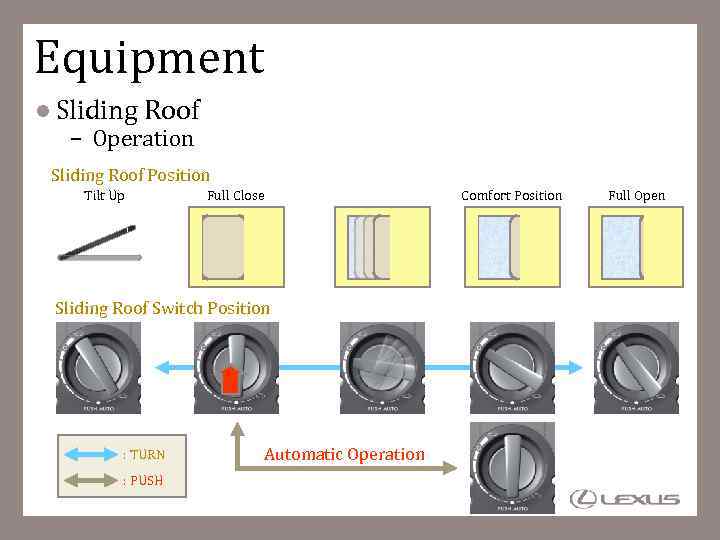

Equipment Sliding Roof – Operation Sliding Roof Position Tilt Up Full Close Sliding Roof Switch Position : TURN : PUSH Automatic Operation Comfort Position Full Open

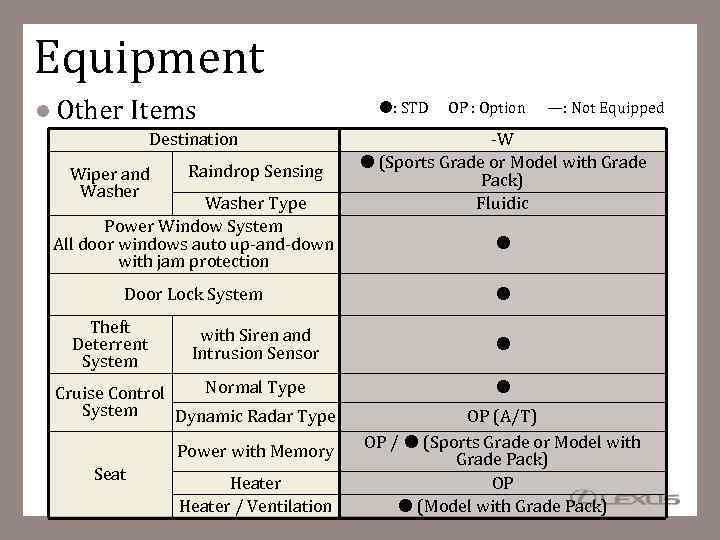

Equipment Other Items Destination Wiper and Washer Raindrop Sensing Washer Type Power Window System All door windows auto up-and-down with jam protection Door Lock System Theft Deterrent System with Siren and Intrusion Sensor Normal Type Cruise Control System Dynamic Radar Type Power with Memory Seat Heater / Ventilation : STD OP : Option —: Not Equipped -W (Sports Grade or Model with Grade Pack) Fluidic OP (A/T) OP / (Sports Grade or Model with Grade Pack) OP (Model with Grade Pack)

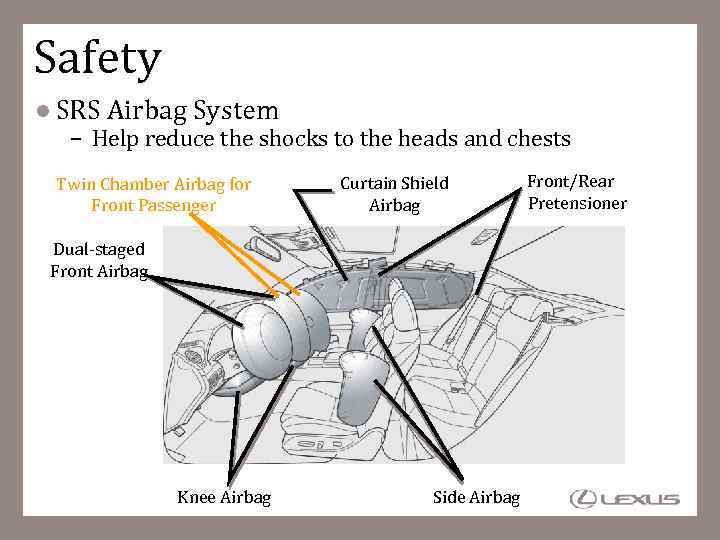

Safety SRS Airbag System – Help reduce the shocks to the heads and chests Twin Chamber Airbag for Front Passenger Curtain Shield Airbag Dual-staged Front Airbag Knee Airbag Side Airbag Front/Rear Pretensioner

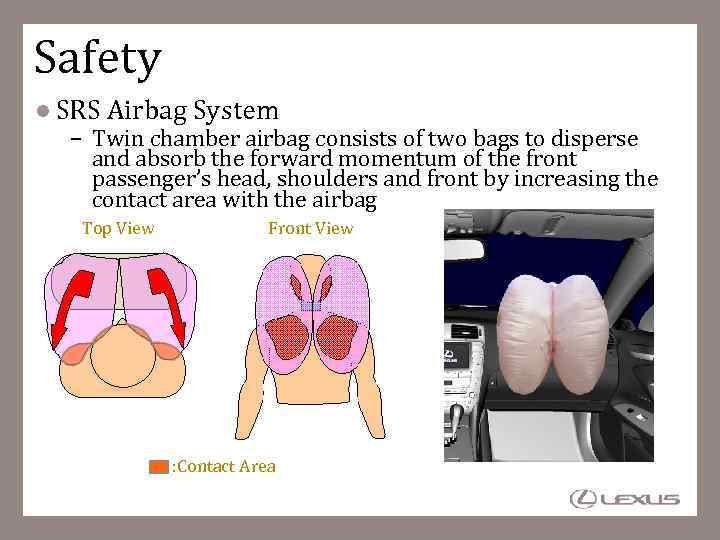

Safety SRS Airbag System – Twin chamber airbag consists of two bags to disperse and absorb the forward momentum of the front passenger’s head, shoulders and front by increasing the contact area with the airbag Top View Front View : Contact Area
