IP revisited Taekyoung Kwon tkkwon@snu. ac. kr Courtesy of Kevin Lai and Ion Stoica IP revisited Taekyoung Kwon [email protected] ac. kr Courtesy of Kevin Lai and Ion Stoica with Berkeley Jim Kurose with Umass Henning Schulzrinne with Columbia

Network Core: Circuit Switching network resources (e. g. , bandwidth) divided into “pieces” • Network Core: Circuit Switching network resources (e. g. , bandwidth) divided into “pieces” • pieces allocated to calls • resource piece idle if not used by owning call (no sharing) • dividing link bandwidth into “pieces” – frequency division – time division

Network Core: Packet Switching each end-end data stream divided into packets • user A, Network Core: Packet Switching each end-end data stream divided into packets • user A, B packets share network resources • each packet uses full link bandwidth • resources used as needed, Bandwidth division into “pieces” Dedicated allocation Resource reservation resource contention: • aggregate resource demand can exceed amount available • congestion: packets queue, wait for link use • store and forward: packets move one hop at a time – transmit over link – wait turn at next link

Network Core: Packet Switching 10 Mbs Ethernet A B statistical multiplexing C 1. 5 Network Core: Packet Switching 10 Mbs Ethernet A B statistical multiplexing C 1. 5 Mbs queue of packets waiting for output link D 45 Mbs E Packet-switching versus circuit switching: human restaurant analogy • other human analogies?

Packet switching versus circuit switching Packet switching allows more users to use network! • Packet switching versus circuit switching Packet switching allows more users to use network! • 1 Mbit link • each user: – 100 Kbps when “active” – active 10% of time • circuit-switching: – 10 users • packet switching: N users 1 Mbps link – with 35 users, probability > 10 active less than. 0004 What is statistical multiplexing gain?

Packet switching versus circuit switching Is packet switching a “slam dunk winner? ” • Packet switching versus circuit switching Is packet switching a “slam dunk winner? ” • Great for bursty data – resource sharing – no call setup • Excessive congestion: packet delay and loss – protocols needed for reliable data transfer, congestion control • Q: How to provide circuit-like behavior? – bandwidth guarantees needed for audio/video apps – still an unsolved problem

Packet-switched networks: routing • Goal: move packets among routers from source to destination • Packet-switched networks: routing • Goal: move packets among routers from source to destination • datagram network: – destination address determines next hop – routes may change during session – analogy: driving, asking directions • virtual circuit network: – each packet carries tag (virtual circuit ID), tag determines next hop – fixed path determined at call setup time, remains fixed thru call – routers maintain per-call state

Delay in packet-switched networks packets experience delay on end-to-end path • four sources of Delay in packet-switched networks packets experience delay on end-to-end path • four sources of delay at each hop • nodal processing: – check bit errors – determine output link • queueing transmission A propagation B nodal processing – time waiting at output link for transmission – depends on congestion level of router queueing Which delay corresponds to bandwidth?

Delay in packet-switched networks Transmission delay: • R=link bandwidth (bps) • L=packet length (bits) Delay in packet-switched networks Transmission delay: • R=link bandwidth (bps) • L=packet length (bits) • time to send bits into link = L/R transmission A Propagation delay: • d = length of physical link • s = propagation speed in medium (~2 x 108 m/sec) • propagation delay = d/s Note: s and R are very different quantities! propagation B nodal processing queueing High-speed network? High-bandwidth network?

Queueing delay (revisited) • R=link bandwidth (bps) • L=packet length (bits) • a=average packet Queueing delay (revisited) • R=link bandwidth (bps) • L=packet length (bits) • a=average packet arrival rate traffic intensity = La/R • La/R ~ 0: average queueing delay small • La/R -> 1: delays become large • La/R > 1: more “work” arriving than can be serviced, average delay infinite!

Internet structure: network of networks • roughly hierarchical • national/international backbone providers (NBPs) [tier Internet structure: network of networks • roughly hierarchical • national/international backbone providers (NBPs) [tier 1] – e. g. BBN/GTE, Sprint, AT&T, IBM, UUNet – interconnect (peer) with each other privately, or at public Network Access Point (NAPs) • regional ISPs [tier 2] local ISP regional ISP NBP B NAP NBP A – connect into NBPs • local ISP [tier 3], company – connect into regional ISPs • a point-of-presence (POP) is an access point from one place to the rest of the Internet regional ISP local ISP

National Backbone Provider e. g. Sprint US backbone network National Backbone Provider e. g. Sprint US backbone network

Layered approach • What is layering? – A technique to organize a network system Layered approach • What is layering? – A technique to organize a network system into a succession of logically distinct entities, such that the service provided by one entity is solely based on the service provided by the previous (lower level) entity

Why layering? Application Transmission Media Telnet FTP Coaxial cable NFS Fiber optic HTTP Packet Why layering? Application Transmission Media Telnet FTP Coaxial cable NFS Fiber optic HTTP Packet radio • No layering: each new application has to be reimplemented for every network technology!

Why Layering? • Solution: introduce an intermediate layer that provides a unique abstraction for Why Layering? • Solution: introduce an intermediate layer that provides a unique abstraction for various network technologies Application Telnet FTP NFS HTTP Intermediate layer Transmission Media Coaxial cable Fiber optic Packet radio

Layering • Advantages – Modularity – protocols easier to manage and maintain – Abstract Layering • Advantages – Modularity – protocols easier to manage and maintain – Abstract functionality: lower layers can be changed without affecting the upper layers – Reuse – upper layers can reuse the functionality provided by lower layers • Disadvantages – Information hiding – inefficient implementations

Key Design Decision • How do you divide functionality across the layers? Key Design Decision • How do you divide functionality across the layers?

Layering: Hop-by-Hop vs. End-to-End • Think twice before implementing a functionality that you believe Layering: Hop-by-Hop vs. End-to-End • Think twice before implementing a functionality that you believe that is useful to an application at a lower layer • If the application can implement a functionality correctly, implement it a lower layer only as a performance enhancement

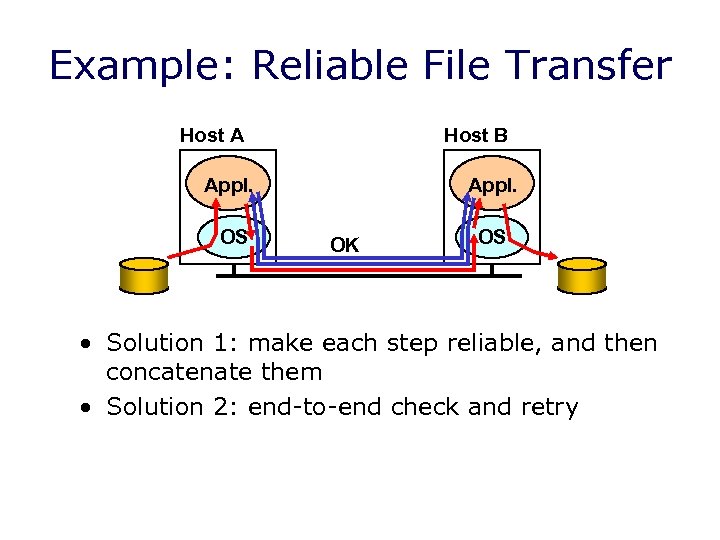

Example: Reliable File Transfer Host A Host B Appl. OS Appl. OK OS • Example: Reliable File Transfer Host A Host B Appl. OS Appl. OK OS • Solution 1: make each step reliable, and then concatenate them • Solution 2: end-to-end check and retry

Discussion • Solution 1 not complete – What happens if the sender or/and receiver Discussion • Solution 1 not complete – What happens if the sender or/and receiver misbehave? • The receiver has to do the check anyway! • Thus, full functionality can be entirely implemented at application layer; no need for reliability from lower layers • Is there any need to implement reliability at lower layers?

Discussion • Yes, but only to improve performance • Example: – Assume a high Discussion • Yes, but only to improve performance • Example: – Assume a high error rate on communication network – Then, a reliable communication service at data link layer might help

Trade-offs • Application has more information about the data and the semantic of the Trade-offs • Application has more information about the data and the semantic of the service it requires (e. g. , can check only at the end of each data unit) • A lower layer has more information about constraints in data transmission (e. g. , packet size, error rate) • Note: these trade-offs are a direct result of layering!

Rule of Thumb • Implementing a functionality at a lower level should have minimum Rule of Thumb • Implementing a functionality at a lower level should have minimum performance impact on the application that do not use the functionality

Internet & End-to-End Argument • Provides one simple service: best effort datagram (packet) delivery Internet & End-to-End Argument • Provides one simple service: best effort datagram (packet) delivery • Only one higher level service implemented at transport layer: reliable data delivery (TCP) – Performance enhancement; used by a large variety of applications (Telnet, FTP, HTTP) – Does not impact other applications (can use UDP) • Everything else implemented at application level

Key Advantages • The service can be implemented by a large variety of network Key Advantages • The service can be implemented by a large variety of network technologies • Does not require routers to maintain any fined grained state about traffic. Thus, network architecture is – Robust – Scalable

What About Other Services? • Multicast? • Quality of Service (Qo. S)? What About Other Services? • Multicast? • Quality of Service (Qo. S)?

Summary: Layering • Key technique to implement communication protocols; provides – Modularity – Abstraction Summary: Layering • Key technique to implement communication protocols; provides – Modularity – Abstraction – Reuse • Key design decision: what functionality to put in each layer?

Summary: End-to-End Argument • If the application can do it, don’t do it at Summary: End-to-End Argument • If the application can do it, don’t do it at a lower layer -- anyway the application knows the best what it needs – Add functionality in lower layers iff it is (1) used and improves performances of a large number of applications, and (2) does not hurt other applications • Success story: Internet

Summary • Challenge of building a good (network) system: find the right balance between: Summary • Challenge of building a good (network) system: find the right balance between: Reuse, implementation effort (apply layering concepts) Performance § End-to-end argument No universal answer: the answer depends on the goals and assumptions!

How Internet started? How Internet started?

The Problem • Before Internet – different packet-switching networks (e. g. , ARPANET, ARPA The Problem • Before Internet – different packet-switching networks (e. g. , ARPANET, ARPA packet radio) – only nodes on the same physical/link layer network could communicate – want to share room-size computers, storage to reduce expense

The Challenge • Interconnect existing networks • … but, packet switching networks differ widely The Challenge • Interconnect existing networks • … but, packet switching networks differ widely – different services • e. g. , degree of reliability – different interfaces • e. g. , length of the packet that can be transmitted, address format – different protocols • e. g. , routing protocols

Possible solutions • Reengineer and develop one global packet switching network standard – not Possible solutions • Reengineer and develop one global packet switching network standard – not economically feasible – not deployable • Have every host implement the protocols of any network it wants to communicate with – Complexity/node = O(n) – O(n 2) global complexity

Solution • Add an extra layer: inter-networking layer – hosts: • understand one network Solution • Add an extra layer: inter-networking layer – hosts: • understand one network protocol • understand one physical/link protocol – gateways: • understand one network protocol • understand the physical/link protocols of the networks they gateway – Complexity to add a node/network: O(1) with respect to number of existing nodes

Solution Gateways Solution Gateways

Common Intermediate Representation • Examples: – telnet, IP, strict HTML, I-mode c. HTML • Common Intermediate Representation • Examples: – telnet, IP, strict HTML, I-mode c. HTML • Who ignored this: – US cell phone providers (pairwise roaming agreements) – IE HTML, Netscape HTML, etc. – WAP (WML same purpose as HTML, but not compatible) • network value = O(n 2), (Metcalfe's Law) • pairwise translation: cost = O(n 2), utility = O(1) • CIR: cost = O(n), utility = O(n)

Challenge 1: Different Address Formats • Options: – Map one address format to another. Challenge 1: Different Address Formats • Options: – Map one address format to another. Why not? – Provide one common format • map lower level addresses to common format • Format: – Initially: 8 b network 16 b host 24 b total – Before Classless Inter. Domain Routing (CIDR): • 7 b/24 b, 14 b/16 b, or 21 b/8 b 32 b total – After CIDR: Arbitrary division 32 b total – NAT: 32 b + 16 b simultaneously active – IPv 6: 128 b total

Address Formats • • • 256 networks? What were they thinking? Why CIDR? What Address Formats • • • 256 networks? What were they thinking? Why CIDR? What happens if they run out before IPv 6? Why 128 b for IPv 6? 248=281 trillion. Why not variable length addresses?

Challenge 2: Different Packet Sizes • Need to define maximum packet size • Options: Challenge 2: Different Packet Sizes • Need to define maximum packet size • Options: – Take the minimum of the maximum packets sizes over all networks – Implement fragmentation/reassembly • Flexibility to adjust packet sizes as new technologies arrive • IP: fragment at routers, reassemble at host • Why not reassemble at routers? – Still stuck with 1500 B as de facto maximum

Other Challenges • Errors require end-to-end reliability – Thought to be rarely invoked, but Other Challenges • Errors require end-to-end reliability – Thought to be rarely invoked, but necessary • Different (routing) protocols coordinate these protocols • Accounting – Did not envision script kiddies • Quality of Service – Not addressed

Transmission Control Program • Original TCP/IP (Cerf & Kahn) – no separation between transport Transmission Control Program • Original TCP/IP (Cerf & Kahn) – no separation between transport (TCP) and network (IP) layers – one common header (vestige? ) – flow control, but not congestion control (why not? ) – fragmentation handled by TCP • Today’s TCP/IP – – separate transport (TCP) and network (IP) layer (why? ) split the common header in: TCP and UDP headers fragmentation reassembly done by IP congestion control

Devil’s Advocate • Who cares about resource sharing? – 1974: cheap – 2002: – Devil’s Advocate • Who cares about resource sharing? – 1974: cheap – 2002: – 1974: – 2002: sell cycles, storage, bandwidth expensive, people resources cheap, people expensive Share computer resources Communicate with people, access documents, buy, • Does it still make sense to make processes the endpoint?

Back to the big picture Back to the big picture

Goals (Clark’ 88) 0 Connect existing networks – initially ARPANET and ARPA packet radio Goals (Clark’ 88) 0 Connect existing networks – initially ARPANET and ARPA packet radio network 1. Survivability - ensure communication service even in the presence of network and router failures 2. Support multiple types of services 3. Must accommodate a variety of networks 4. 5. 6. 7. Allow distributed management Allow host attachment with a low level of effort Be cost effective Allow resource accountability

1. Survivability • continue to operate even in the presence of network failures (e. 1. Survivability • continue to operate even in the presence of network failures (e. g. , link and router failures) – failures (excepting network partition) should be transparent to endpoints • maintain state only at end-points (fatesharing) – no need to replicate and restore router state – disadvantages? • Internet: stateless network architecture – no per-flow state, still have state in address allocation, DNS

2. Types of Services • Add UDP to TCP to better support other types 2. Types of Services • Add UDP to TCP to better support other types of applications – e. g. , “real-time” applications • Probably main reason for separating TCP and IP • Provide datagram abstraction: lower common denominator on which other services can be built – service differentiation considered (To. S header bits) – was not widely deployed (why? )

Application Assumptions • Who made them: – Telephone network: voice (web, video? ) – Application Assumptions • Who made them: – Telephone network: voice (web, video? ) – Cable: broadcast (2 -way? ) – X. 25: remote terminal access (file transfer? ) – BBS: centralized meeting place (web, p 2 p? ) – NAT: client/server model (p 2 p, IM, IP Telephony? ) • Who didn't: Internet – Caveat: best-effort, unicast, fixed location (real-time, multicast, mobility? ) • Allows development of unforeseen applications: – Web, p 2 p, distributed gaming

3. Variety of Networks • Very successful – because the minimalist service; it requires 3. Variety of Networks • Very successful – because the minimalist service; it requires from underlying network only to deliver a packet with a “reasonable” probability of success • …does not require: – reliability, in-order delivery, single delivery, Qo. S guarantees • The mantra: IP over everything – Then: ARPANET, X. 25, DARPA satellite network. . – Now: ATM, SONET, WDM, PPP, USB, 802. 11 b, GSM, GPRS, DSL, cable modems, power lines

Internet Architecture • Packet-switched datagram network • IP is the glue • Hourglass architecture Internet Architecture • Packet-switched datagram network • IP is the glue • Hourglass architecture – all hosts and routers run IP • Common Intermediate Representation TCP UDP IP Satellite Ethernet ATM

Other Goals • Allow distributed management – each network can be managed by a Other Goals • Allow distributed management – each network can be managed by a different organization – different organizations need to interact only at the boundaries – doesn’t work so well for routing, accounting • Cost effective – sources of inefficiency • • • header overhead retransmissions routing – …but routers relatively simple to implement (especially software side)

Other Goals (Cont) • Low cost of attaching a new host – not a Other Goals (Cont) • Low cost of attaching a new host – not a strong point higher than other architecture because the intelligence is in hosts (e. g. , telephone vs. computer) • Moore’s law made this moot point, both <$100 – bad implementations or malicious users can produce considerably harm (remember fate-sharing? ) • DDo. S possibly biggest threat to Internet • Accountability – very little so far

What About the Future? • Datagram not the best abstraction for: – resource management, What About the Future? • Datagram not the best abstraction for: – resource management, accountability, Qo. S • A new abstraction: flow? • Routers require to maintain per-flow state (what is the main problem with this raised by Clark? ) – state management • Solution – soft-state: end-hosts responsible to maintain the state

Summary: Minimalist Approach • Dumb network – IP provide minimal functionalities to support connectivity Summary: Minimalist Approach • Dumb network – IP provide minimal functionalities to support connectivity – addressing, forwarding, routing • Smart end system – transport layer or app does more sophisticated functionalities – flow control, error control, congestion control • Advantages – accommodate heterogeneous technologies – support diverse applications (telnet, ftp, Web, X windows) – decentralized network administration • Disadvantages – poor realtime performance – poor accountability

Textbook Internet vs. real Internet end-to-end (application only in 2 places) middle boxes (proxies, Textbook Internet vs. real Internet end-to-end (application only in 2 places) middle boxes (proxies, ALGs, …) permanent interface identifier (IP address) time-varying (DHCP) globally unique and routable network address translation (NAT) multitude of L 2 protocols dominance of Ethernet, but (ATM, ARCnet, Ethernet, FDDI, also L 2’s not designed for modems, …) networks (1394 Firewire, Fibre Channel, …)

Textbook Internet vs. real Internet mostly trusted end users hackers, spammers, con artists, pornographers, Textbook Internet vs. real Internet mostly trusted end users hackers, spammers, con artists, pornographers, … small number of manufacturers, making expensive boxes Linksys, Dlink, Netgear, …, available at Radio Shack technical users, excited about new technology grandma, frustrated if email doesn’t work 4 layers (link, network, transport, application) layer splits transparent network firewalls, L 7 filters, “transparent proxies”

The Internet Protocol Hourglass (Deering) email WWW phone. . . SMTP HTTP RTP. . The Internet Protocol Hourglass (Deering) email WWW phone. . . SMTP HTTP RTP. . . TCP UDP… IP ethernet PPP… CSMA async sonet. . . copper fiber radio. . .

Why the hourglass architecture? • Why an internet layer? – make a bigger network Why the hourglass architecture? • Why an internet layer? – make a bigger network – global addressing – virtualize network to isolate end-to-end protocols from network details/changes • Why a single internet protocol? – maximize interoperability – minimize number of service interfaces • Why a narrow internet protocol? – assumes least common network functionality to maximize number of usable networks Deering, 1998

Putting on Weight email WWW phone. . . SMTP HTTP RTP. . . TCP Putting on Weight email WWW phone. . . SMTP HTTP RTP. . . TCP UDP… IP + mcast + Qo. S +. . . ethernet PPP… CSMA async sonet. . . copper fiber radio. . . • requires more functionality from underlying networks

Mid-Life Crisis email WWW phone. . . SMTP HTTP RTP. . . TCP UDP… Mid-Life Crisis email WWW phone. . . SMTP HTTP RTP. . . TCP UDP… IP 4 IP 6 ethernet PPP… CSMA async sonet. . . copper fiber radio. . . • doubles number of service interfaces • requires changes above & below • major interoperability issues

Layer splitting • Traditionally, L 2 (link), L 3 (network = IP), L 4 Layer splitting • Traditionally, L 2 (link), L 3 (network = IP), L 4 (transport = TCP), L 7 (applications) • Layer 2: Ethernet PPPo. E (DSL) • Layer 2. 5: MPLS, L 2 TP • Layer 3: tunneling (e. g. , GPRS) • Layer 4: UDP + RTP • Layer 7: HTTP + real application

Internet acquires presentation layer • All learn about OSI 7 -layer model • OSI: Internet acquires presentation layer • All learn about OSI 7 -layer model • OSI: ASN. 1 as common rendering of application data structures – used in LDAP and SNMP (and H. 323) • Internet never really had presentation layer – approximations: common encoding (TLV, RFC 822 styles) • Now, XML as the design choice by default

Internet acquires session layer • Originally, meant for data sessions • Example (not explicit): Internet acquires session layer • Originally, meant for data sessions • Example (not explicit): ftp control connection • Now, separate data delivery from session setup – address and application configuration – deal with mobility – E. g. , RTSP, SIP and H. 323

Standards • Mandatory vs. voluntary • Telecommunications and networking always focus of standardization • Standards • Mandatory vs. voluntary • Telecommunications and networking always focus of standardization • Five major organizations: – Allowed to use vs. likely to sell – Example: health & safety standards UL listing for electrical appliances, fire codes – 1865: International Telegraph Union (ITU) – 1956: International Telephone and Telegraph Consultative Committee (CCITT) – – – ITU for lower layers, multimedia collaboration IEEE for LAN standards (802. x) IETF for network, transport & some applications W 3 C for web-related technology (XML, SOAP) ISO for media content (MPEG)

Who makes the rules? - ITU • ITU = ITU-T (telecom standardization) + ITU-R Who makes the rules? - ITU • ITU = ITU-T (telecom standardization) + ITU-R (radio) + development – http: //www. itu. int – 14 study groups – produce Recommendations: • E: overall network operation, telephone service (E. 164) • G: transmission system and media, digital systems and networks (G. 711) • H: audiovisual and multimedia systems (H. 323) • I: integrated services digital network (I. 210); includes ATM • V: data communications over the telephone network (V. 24) • X: Data networks and open system communications • Y: Global information infrastructure and internet protocol aspects

ITU • Initially, national delegations • Members: state, sector, associate – Membership fees (> ITU • Initially, national delegations • Members: state, sector, associate – Membership fees (> 10, 500 SFr) • Now, mostly industry groups doing work • Initially, mostly (international) telephone services • Now, transition from circuit-switched to packetswitched universe & lower network layers (optical) • Documents cost SFr, but can get three freebies for each email address

IETF • IETF (Internet Engineering Task Force) – see RFC 3233 (“Defining the IETF”) IETF • IETF (Internet Engineering Task Force) – see RFC 3233 (“Defining the IETF”) • Formed 1986, but earlier predecessor organizations (1979 -) • RFCs date back to 1969 • Initially, largely research organizations and universities, now mostly R&D labs of equipment vendors and ISPs • International, but 2/3 United States – meetings every four months – about 300 companies participating in meetings • but Cisco, Ericsson, Lucent, Nokia, etc. send large delegations

IETF • • Supposed to be engineering, i. e. , translation of well-understood technology IETF • • Supposed to be engineering, i. e. , translation of well-understood technology standards – make choices, ensure interoperability – reality: often not so well defined Most development work gets done in working groups (WGs) – – – specific task, then dissolved (but may last 10 years…) typically, small clusters of authors, with large peanut gallery open mailing list discussion for specific problems interim meetings (1 -2 days) and IETF meetings (few hours) published as Internet Drafts (I-Ds) • • anybody can publish draft-somebody-my-new-protocol also official working group documents (draft-ietf-wg-*) versioned (e. g. , draft-ietf-avt-rtp-10. txt) automatically disappear (expire) after 6 months

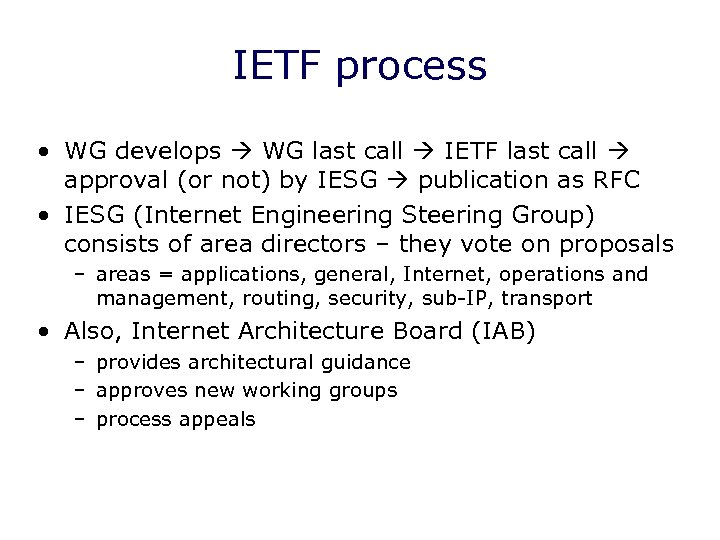

IETF process • WG develops WG last call IETF last call approval (or not) IETF process • WG develops WG last call IETF last call approval (or not) by IESG publication as RFC • IESG (Internet Engineering Steering Group) consists of area directors – they vote on proposals – areas = applications, general, Internet, operations and management, routing, security, sub-IP, transport • Also, Internet Architecture Board (IAB) – provides architectural guidance – approves new working groups – process appeals

IETF activities • general (3): ipr, nomcom, problem • applications (25): crisp, geopriv, impp, IETF activities • general (3): ipr, nomcom, problem • applications (25): crisp, geopriv, impp, ldapbis, lemonade, opes, provreg, simple, tn 3270 e, usefor, vpim, webdav, xmpp • internet (18) = IPv 4, IPv 6, DNS, DHCP: dhc, dnsext, ipoib, itrace, mip 4, nemo, pana, zeroconf • oam (22) = SNMP, RADIUS, DIAMETER: aaa, v 6 ops, netconf, … • routing (13): forces, ospf, ssm, udlr, … • security (18): idwg, ipsec, openpgp, sasl, smime, syslog, tls, xmldsig, … • subip (5) = “layer 2. 5”: ccamp, ipo, mpls, tewg • transport (26): avt (RTP), dccp, enum, ieprep, iptel, megaco, mmusic (RTSP), nsis, rohc, sipping (SIP), spirits, tsvwg

RFCs • • • Originally, “Request for Comment” now, mostly standards documents that are RFCs • • • Originally, “Request for Comment” now, mostly standards documents that are well settled published RFCs never change always ASCII (plain text), sometimes Post. Script anybody can submit RFC, but may be delayed by review (“end run avoidance”) • see April 1 RFCs (RFC 1149, 3251, 3252) • accessible at http: //www. ietf. org/rfc/ and http: //www. rfceditor. org/

IETF process issues • Can take several years to publish a standard – see IETF process issues • Can take several years to publish a standard – see draft-ietf-problem-issue-statement • Relies on authors and editors to keep moving – often, busy people with “day jobs” spurts three times a year • Lots of opportunities for small groups to delay things • Original idea of RFC standards-track progression: – Proposed Standard (PS) = kind of works – Draft Standard (DS) = solid, interoperability tested (2 interoperable implementations for each feature), but not necessarily widely used – Standard (S) = well tested, widely deployed

IETF process issues • Reality: very few protocols progress beyond PS – and some IETF process issues • Reality: very few protocols progress beyond PS – and some widely-used protocols are only I-Ds • In addition: Informational, Best Current Practice (BCP), Experimental, Historic • Early IETF: simple protocols, stand-alone – TCP, HTTP, DNS, BGP, … • Now: systems of protocols, with security, management, configuration and scaling – lots of dependencies wait for others to do their job

Other Internet standards organizations • ISOC (Internet Society) – legal umbrella for IETF, development Other Internet standards organizations • ISOC (Internet Society) – legal umbrella for IETF, development work • IANA (Internet Assigned Numbers Authority) – assigns protocol constants • NANOG (North American Network Operators Group) (http: //www. nanog. org) – operational issues – holds nice workshop with measurement and “real world” papers • RIPE, ARIN, APNIC – regional IP address registries dole out chunks of address space to ISPs – routing table management

ICANN • Internet Corporation for Assigned Names and Numbers – manages IP address space ICANN • Internet Corporation for Assigned Names and Numbers – manages IP address space (at top level) – DNS top-level domains (TLD) • • cc. TLD (country codes): . us, . uk, . kr, … g. TLDs (generic): . com, . edu, . gov, . int, . mil, . net, and. org u. TLD (unsponsored): . biz, . info, . name, and. pro s. TLD (sponsored): . aero, . coop, and. museum • actual domains handled by registrars
