IP 500 OEM Alliance — IP 500 Alliance

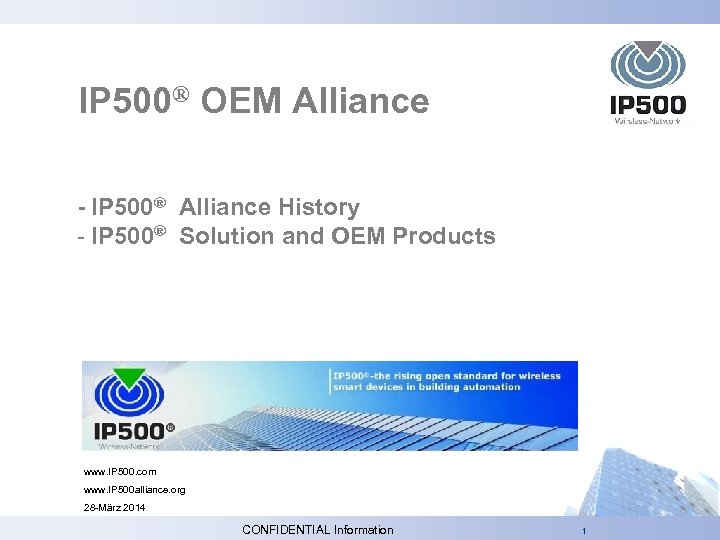

IP 500® OEM Alliance - IP 500® Alliance History - IP 500® Solution and OEM Products www. IP 500. com www. IP 500 alliance. org 28 -März 2014 CONFIDENTIAL Information 1

IP 500® Goal – Solve key owners issues & meet safety & security regulations! + Alliance Approach Interoperability Security Regulations ? ? ? = Only OEMs, Top Down / From Application = EN, Vd. S, UL, FCC, ETSI … Performance Highest Coverage, Data Rate and battery life time Installation & Security Easy to install, TCIP / IPv 6 & encryption! CONFIDENTIAL Information 2

IP 500® – Address the needs of „OEMs, Suppliers & Installers“ Safety & Security • Interoperability with other OEM products • Complexity of the network - no Gateways • Flexibility & mobility • Regulations (EN, Vd. S) Perfromance • Complete Solution • Performance & Reliability of network • Second Source • Price dynamics OEMs & Building Users Installers & Planners, Integrators User IP 500 Interoperability • Easy Installation in existing IP Infrastructure • Installation Tools available at location • Product integration • Maintenance RF & NWL Suppliers CONFIDENTIAL Information 3

IP 500® – Full interoperability between OEM products -> Address M 2 M security applications first, then energy, comfort and location / asset tracking CONFIDENTIAL Information 4

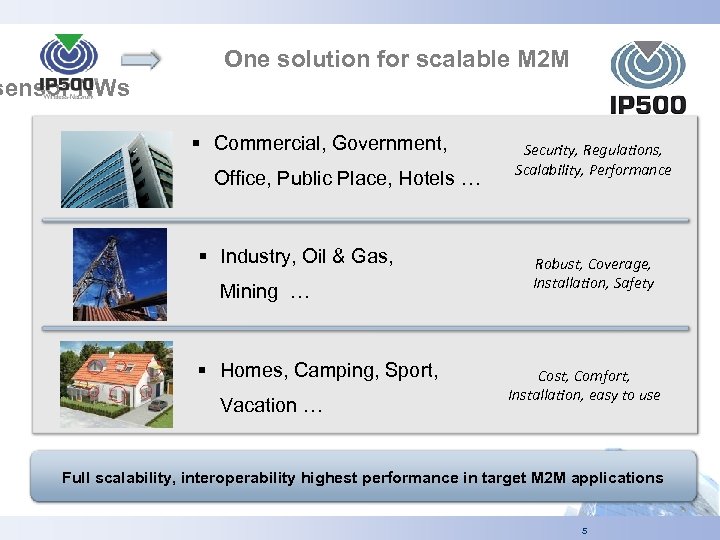

One solution for scalable M 2 M sensor NWs § Commercial, Government, Office, Public Place, Hotels … § Industry, Oil & Gas, Mining … § Homes, Camping, Sport, Vacation … Security, Regulations, Scalability, Performance Robust, Coverage, Installation, Safety Cost, Comfort, Installation, easy to use Full scalability, interoperability highest performance in target M 2 M applications 5

Provides freedom to OEMs § Highest Performance in Sub 1 GHz -> 500 kbps at -105 d. Bm (RF Chip) -> Real & asynchronized Mesh -> Scalable & interoperable (BACnet IP) Best Power Consumtion 10 years bettary life time 60. 000+ sensors in network § Highest Security & Robustness -> Meets worldwide Regulations -> Multi Band hopping (UL & Vd. S) -> Acknowledgement & Encryption Robust, Best Coverage, Installation, Highest Network Security § Lowest Cost (combined Volume) complete Chip & Protocol Stack -> Lowest price per node -> IPv 6 at each device -> Io. T Lowest Cost of Ownership & Installation, full second source from PHY to Protocol Stack IP 500 provides freedom by full interoperability & trun-key solution to OEMs … like it is the case with WLAN today. 6

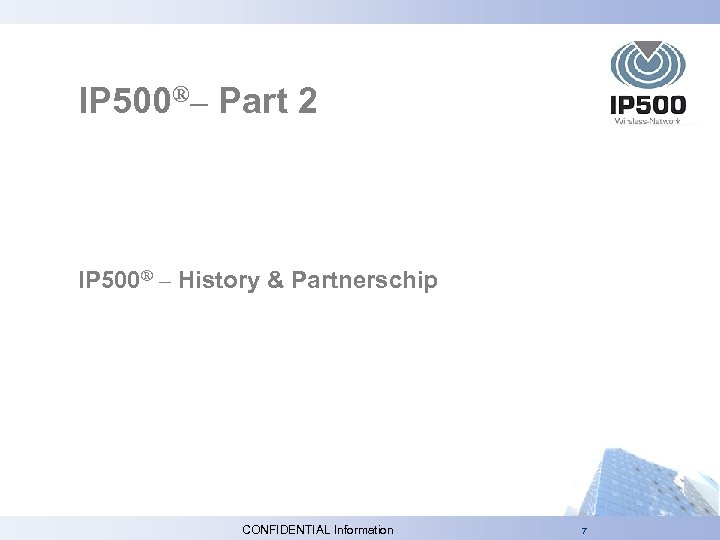

IP 500®– Part 2 IP 500® – History & Partnerschip CONFIDENTIAL Information 7

IP 500® : History & Goal Phase III Build IP 500 Alliance Body and define IP 500 SPEC Attract Partners, Finalize SPEC and build IP 500 OEM Products Set ww IP 500 Standard for Safety & Security Segment 2014 … 2005 … 2009 2010 … 2013 Development IP 500 World Standard Foundation § IP 500 SPEC (v 1. 0) § IEEE 802. 15. 4, 2006 § OEM Interest Group § IP 500 Partners § IP 500 SPEC (v 2. 0) § First IP 500 prototype (two Chip) § First IP 500 OEM Products *Europe* § Expension in global product portfolio § IP 500 Single Chip § WW Standard for M 2 M Security § Location Features § Energy Harvesting § IP 500 in Mobile Applications 8

IP 500® - Founding OEM Members Partnering: CONFIDENTIAL Information 9

IP 500® Alliance: New Partners IP 500 establish partnership with key players: - Agreed with TÜV Rheinland top Management to define, establish and operate IP 500 Certification process and provider of batteries - To define, establish and operate IP 500 worldwide distribution process -> in final discussions with: CONFIDENTIAL Information 10

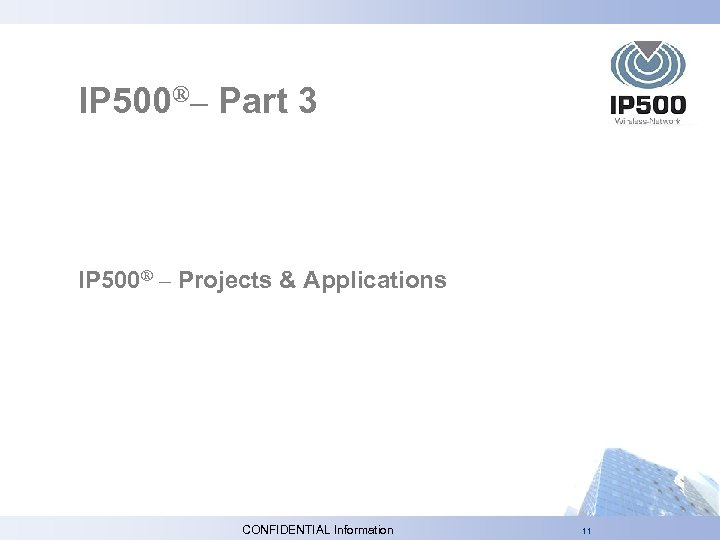

IP 500®– Part 3 IP 500® – Projects & Applications CONFIDENTIAL Information 11

IP 500® Application for Smoke Detection P 500 M esh NW Building Automation Facility Control Unit IP 500 § Safety & Security § Energy § Comfort Service § Mobility / Location Netwo rk Mobile / GPRS / LTE Technical Alarm Service Alarm Mobile / GPRS / LTE Fire Alarm Facility. Control Unit with Touch Display and access to IP 500 & GPRS CONFIDENTIAL Information 12

IP 500® Application for Asset Tracking e. g. Health. Care M 2 M Location Awareness Key Issues: IP Address for each Asset Active IP 500 Mesh Network § Location / Tracking § Messaging § Logistics § Mobility - Cost of process Cost of maintanance Cost of inventory Organisation of assets Match between asset and person - Reaction time - …. IP 500 Solution: - Use existing IP 500 Mesh Network (access and nodes) - Active in-door localization - Precision of 1 -3 meter - 10 year bettary life time - …. CONFIDENTIAL Information 13

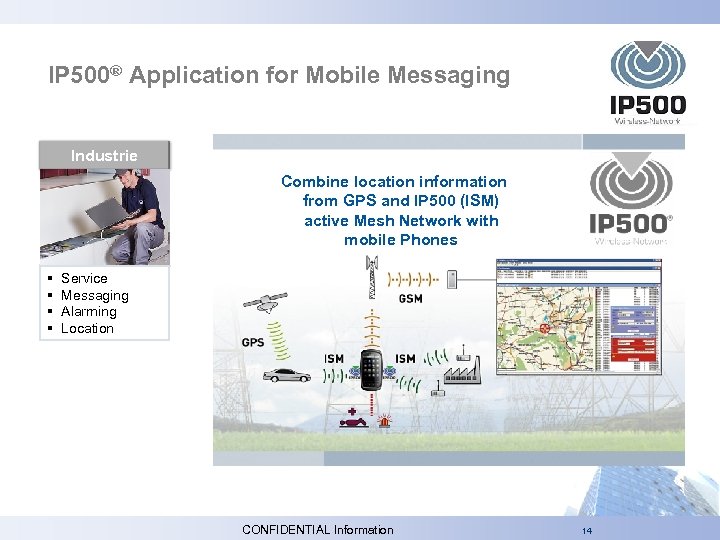

IP 500® Application for Mobile Messaging Industrie Combine location information from GPS and IP 500 (ISM) active Mesh Network with mobile Phones § § Service Messaging Alarming Location CONFIDENTIAL Information 14

IP 500®– Part 4 IP 500 Solution (RF Module) Performance Overview CONFIDENTIAL Information 15

IP 500®– Full Mesh-Network for low-power sensors (asynchronized – ad hoc – supports mobility) N N N F R A 1 A 2 N N TCP/IP CONFIDENTIAL Information 16

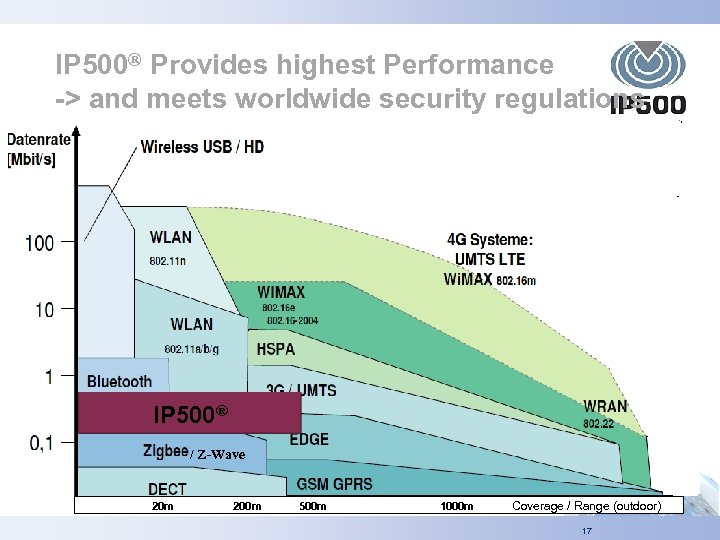

IP 500® Provides highest Performance -> and meets worldwide security regulations ® IP 500® Coverage / Range Z-Wave // Z-Wave 20 m 200 m 500 m 1000 m Coverage / Range (outdoor) 17

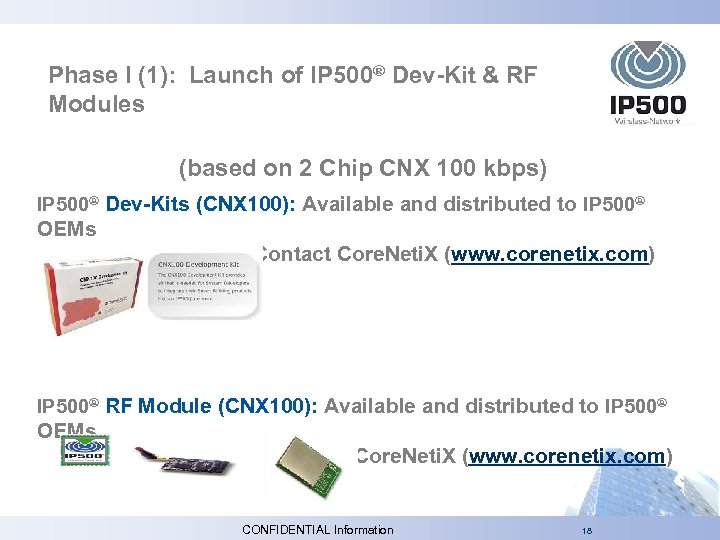

Phase I (1): Launch of IP 500® Dev-Kit & RF Modules (based on 2 Chip CNX 100 kbps) IP 500® Dev-Kits (CNX 100): Available and distributed to IP 500® OEMs Contact Core. Neti. X (www. corenetix. com) IP 500® RF Module (CNX 100): Available and distributed to IP 500® OEMs Contact Core. Neti. X (www. corenetix. com) CONFIDENTIAL Information 18

IP 500 Partnership with Core. Neti. X, TÜV, VARTA etc. www. corenetix. co m 19

IP 500® Update – Part 5 IP 500® Product Availability CONFIDENTIAL Information 20

Availability of IP 500® Infrastructure Reduced Function Devices Smoke Detector IP Router Full Function Devices HVAC Drive IP 500 Router IP Access-Point / PAN Coordinator IP 500 Access / GSM Gateway TCP/IP CONFIDENTIAL Information 21

IP 500® - OEM Product Launch of OEM Systems e. g. (Bau 2013 in Munich) 22

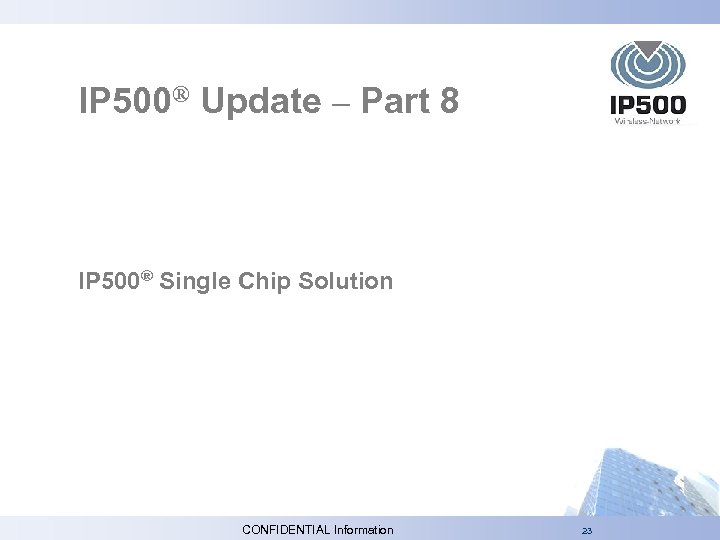

IP 500® Update – Part 8 IP 500® Single Chip Solution CONFIDENTIAL Information 23

IP 500® Single Chip Program (Si. P & So. C) for M 2 M & Io. T IP 500 Module IP 500® 100 kbps / 2 Chip IP 500® 500 kbps / Single Chip IP 500® with location 500 kbps @ -105 d. Bm (O-QPSK & CNX 500 BB) IP 500® with Energy Harvesting Si. P So. C IP 500 OEM Products IP 500® 100 kbps Products 2013 IP 500® 500 kbps Products 2014 CONFIDENTIAL Information 2015 24

Thank You! Questions? Helmut Adamski IP 500 CEO & Chairman Markus Link IP 500 Co-Chairman Marc Boebe IP 500 CFO Chris Carnevale, IP 500 Representative, North America Tadashi Yamato, IP 500 Representative, Japan Vinay Agarwal, IP 500 Representative, India info@IP 500 alliance. org 25
