Ioannis Papadopoulos CERN-IT-PSS Status of CORAL. . . and the public release version 1. Ioannis Papadopoulos CERN-IT-PSS Status of CORAL. . . and the public release version 1. 0. 0 LCG Applications Area Meeting Wednesday 23/11/2005

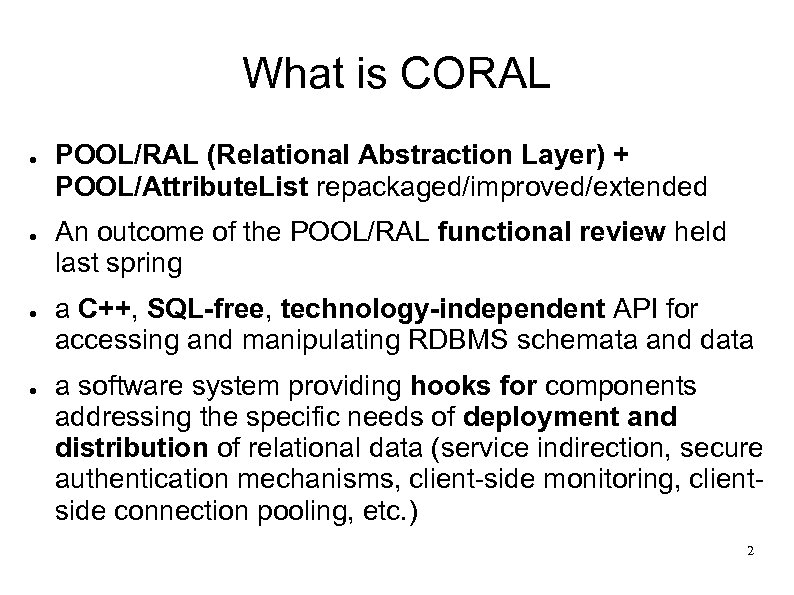

What is CORAL ● ● POOL/RAL (Relational Abstraction Layer) + POOL/Attribute. List repackaged/improved/extended An What is CORAL ● ● POOL/RAL (Relational Abstraction Layer) + POOL/Attribute. List repackaged/improved/extended An outcome of the POOL/RAL functional review held last spring a C++, SQL-free, technology-independent API for accessing and manipulating RDBMS schemata and data a software system providing hooks for components addressing the specific needs of deployment and distribution of relational data (service indirection, secure authentication mechanisms, client-side monitoring, clientside connection pooling, etc. ) 2

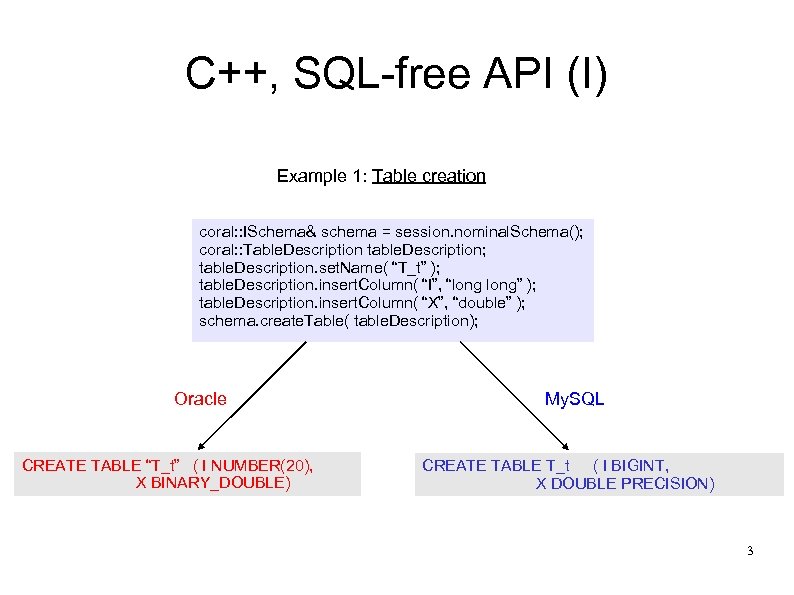

C++, SQL-free API (I) Example 1: Table creation coral: : ISchema& schema = session. C++, SQL-free API (I) Example 1: Table creation coral: : ISchema& schema = session. nominal. Schema(); coral: : Table. Description table. Description; table. Description. set. Name( “T_t” ); table. Description. insert. Column( “I”, “long” ); table. Description. insert. Column( “X”, “double” ); schema. create. Table( table. Description); Oracle CREATE TABLE “T_t” ( I NUMBER(20), X BINARY_DOUBLE) My. SQL CREATE TABLE T_t ( I BIGINT, X DOUBLE PRECISION) 3

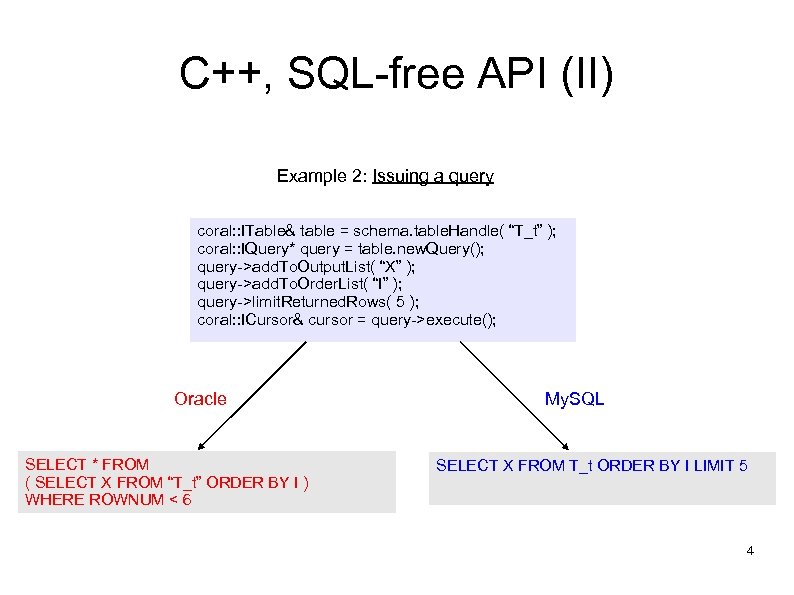

C++, SQL-free API (II) Example 2: Issuing a query coral: : ITable& table = C++, SQL-free API (II) Example 2: Issuing a query coral: : ITable& table = schema. table. Handle( “T_t” ); coral: : IQuery* query = table. new. Query(); query->add. To. Output. List( “X” ); query->add. To. Order. List( “I” ); query->limit. Returned. Rows( 5 ); coral: : ICursor& cursor = query->execute(); Oracle SELECT * FROM ( SELECT X FROM “T_t” ORDER BY I ) WHERE ROWNUM < 6 My. SQL SELECT X FROM T_t ORDER BY I LIMIT 5 4

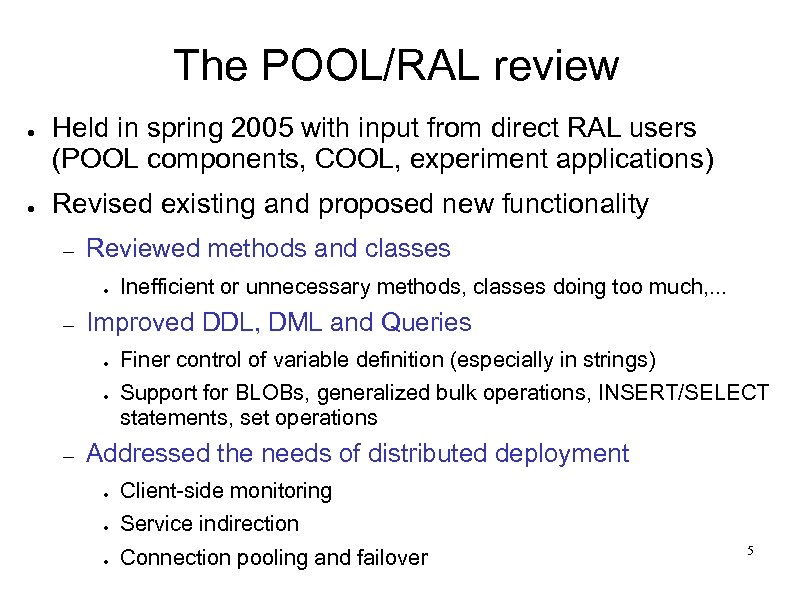

The POOL/RAL review ● ● Held in spring 2005 with input from direct RAL The POOL/RAL review ● ● Held in spring 2005 with input from direct RAL users (POOL components, COOL, experiment applications) Revised existing and proposed new functionality – Reviewed methods and classes ● – Improved DDL, DML and Queries ● ● – Inefficient or unnecessary methods, classes doing too much, . . . Finer control of variable definition (especially in strings) Support for BLOBs, generalized bulk operations, INSERT/SELECT statements, set operations Addressed the needs of distributed deployment ● Client-side monitoring ● Service indirection ● Connection pooling and failover 5

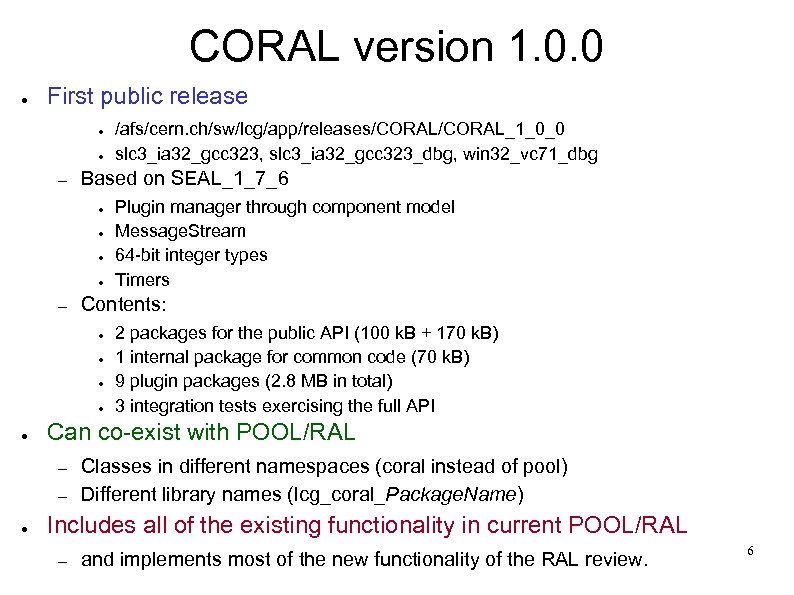

CORAL version 1. 0. 0 ● First public release ● ● – Based on CORAL version 1. 0. 0 ● First public release ● ● – Based on SEAL_1_7_6 ● ● – ● ● ● 2 packages for the public API (100 k. B + 170 k. B) 1 internal package for common code (70 k. B) 9 plugin packages (2. 8 MB in total) 3 integration tests exercising the full API Can co-exist with POOL/RAL – – ● Plugin manager through component model Message. Stream 64 -bit integer types Timers Contents: ● ● /afs/cern. ch/sw/lcg/app/releases/CORAL_1_0_0 slc 3_ia 32_gcc 323, slc 3_ia 32_gcc 323_dbg, win 32_vc 71_dbg Classes in different namespaces (coral instead of pool) Different library names (lcg_coral_Package. Name) Includes all of the existing functionality in current POOL/RAL – and implements most of the new functionality of the RAL review. 6

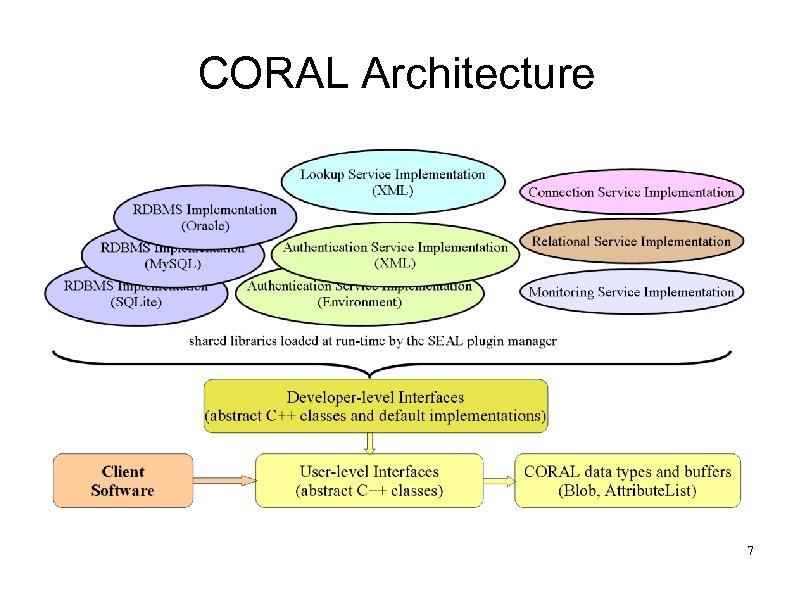

CORAL Architecture 7 CORAL Architecture 7

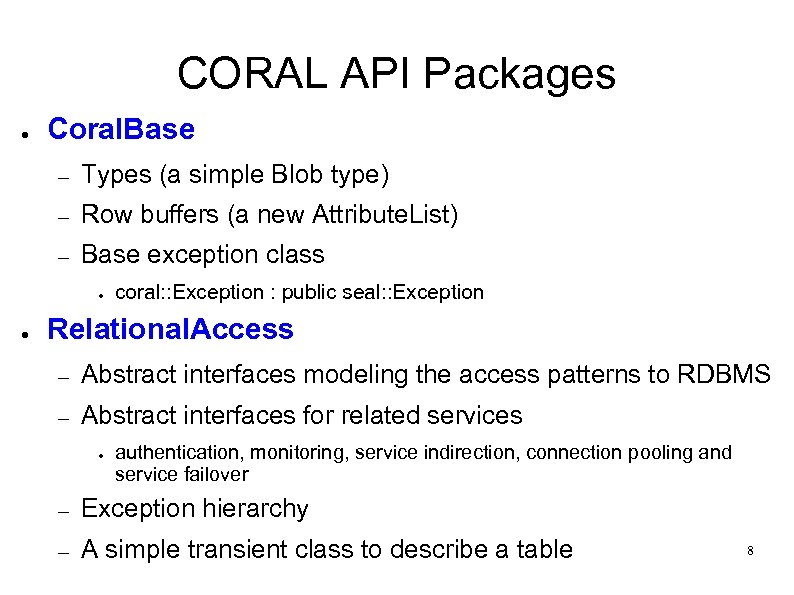

CORAL API Packages ● Coral. Base – Types (a simple Blob type) – Row CORAL API Packages ● Coral. Base – Types (a simple Blob type) – Row buffers (a new Attribute. List) – Base exception class ● ● coral: : Exception : public seal: : Exception Relational. Access – Abstract interfaces modeling the access patterns to RDBMS – Abstract interfaces for related services ● authentication, monitoring, service indirection, connection pooling and service failover – Exception hierarchy – A simple transient class to describe a table 8

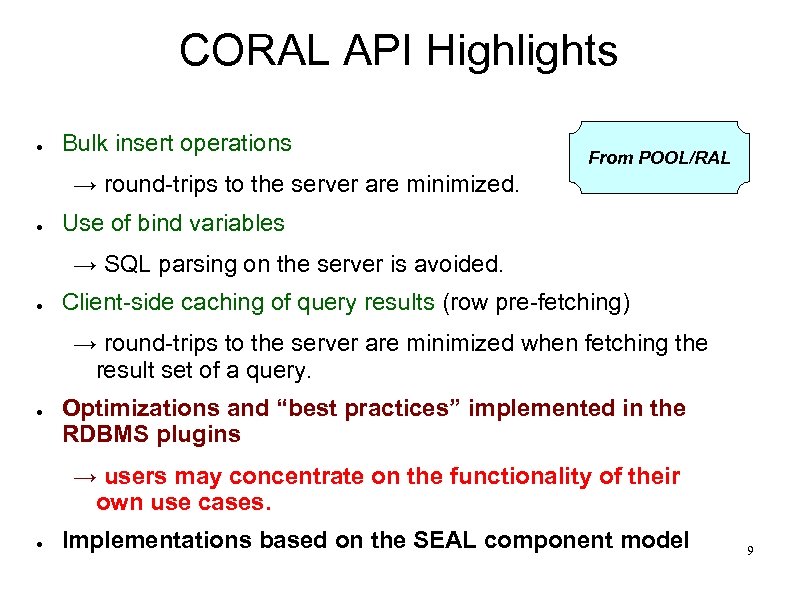

CORAL API Highlights ● Bulk insert operations From POOL/RAL → round-trips to the server CORAL API Highlights ● Bulk insert operations From POOL/RAL → round-trips to the server are minimized. ● Use of bind variables → SQL parsing on the server is avoided. ● Client-side caching of query results (row pre-fetching) → round-trips to the server are minimized when fetching the result set of a query. ● Optimizations and “best practices” implemented in the RDBMS plugins → users may concentrate on the functionality of their own use cases. ● Implementations based on the SEAL component model 9

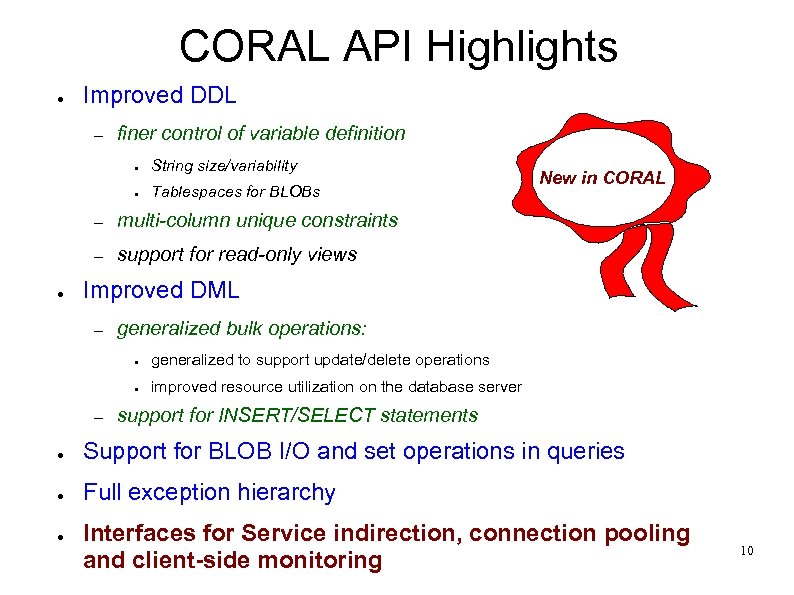

CORAL API Highlights ● Improved DDL – finer control of variable definition ● String CORAL API Highlights ● Improved DDL – finer control of variable definition ● String size/variability ● Tablespaces for BLOBs – ● multi-column unique constraints – New in CORAL support for read-only views Improved DML – generalized bulk operations: ● ● – generalized to support update/delete operations improved resource utilization on the database server support for INSERT/SELECT statements ● Support for BLOB I/O and set operations in queries ● Full exception hierarchy ● Interfaces for Service indirection, connection pooling and client-side monitoring 10

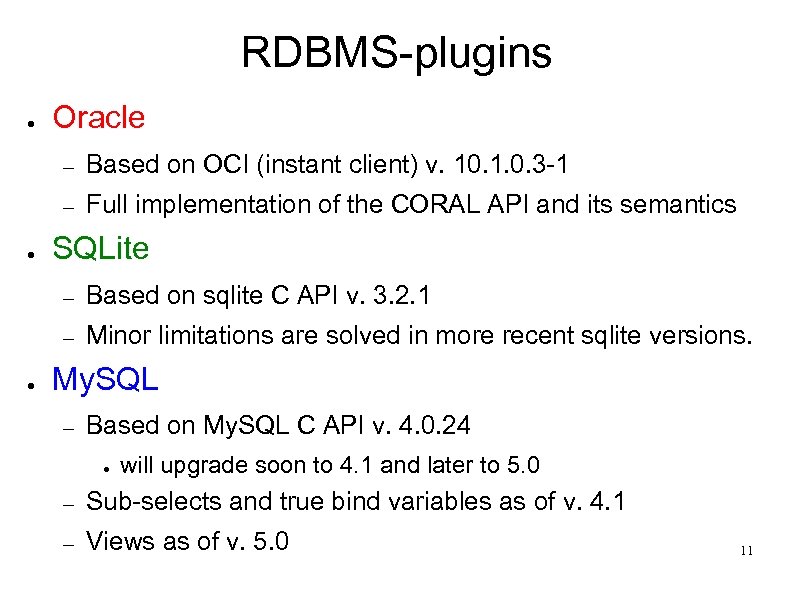

RDBMS-plugins ● Oracle – – ● Based on OCI (instant client) v. 10. 1. RDBMS-plugins ● Oracle – – ● Based on OCI (instant client) v. 10. 1. 0. 3 -1 Full implementation of the CORAL API and its semantics SQLite – – ● Based on sqlite C API v. 3. 2. 1 Minor limitations are solved in more recent sqlite versions. My. SQL – Based on My. SQL C API v. 4. 0. 24 ● will upgrade soon to 4. 1 and later to 5. 0 – Sub-selects and true bind variables as of v. 4. 1 – Views as of v. 5. 0 11

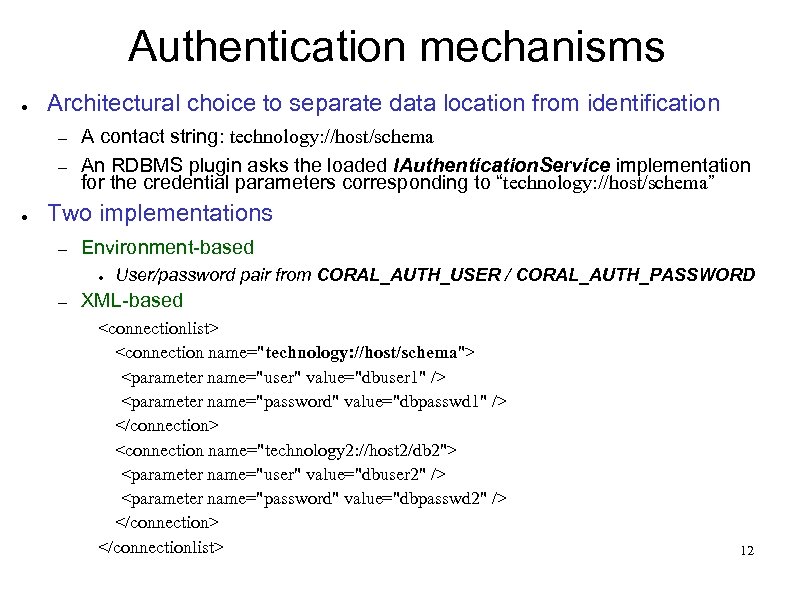

Authentication mechanisms ● Architectural choice to separate data location from identification – – ● Authentication mechanisms ● Architectural choice to separate data location from identification – – ● A contact string: technology: //host/schema An RDBMS plugin asks the loaded IAuthentication. Service implementation for the credential parameters corresponding to “technology: //host/schema” Two implementations – Environment-based ● – User/password pair from CORAL_AUTH_USER / CORAL_AUTH_PASSWORD XML-based 12

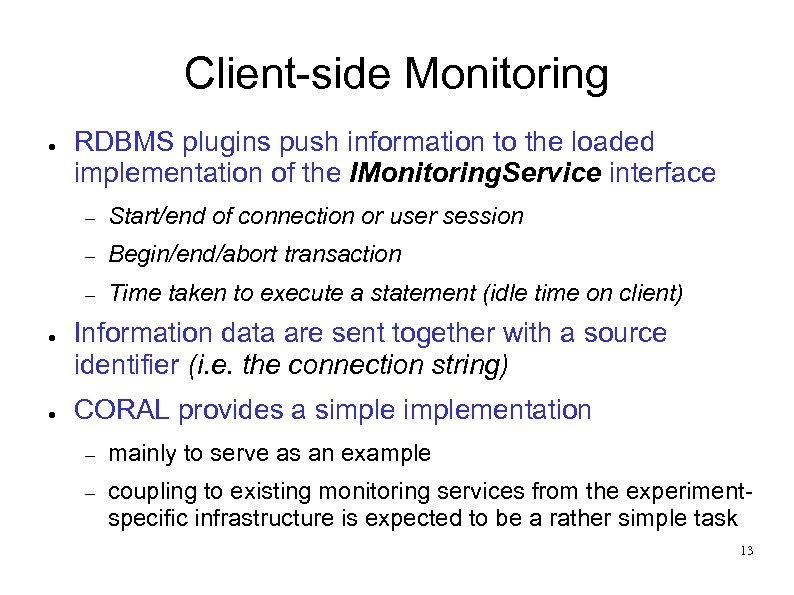

Client-side Monitoring ● RDBMS plugins push information to the loaded implementation of the IMonitoring. Client-side Monitoring ● RDBMS plugins push information to the loaded implementation of the IMonitoring. Service interface – – ● Begin/end/abort transaction – ● Start/end of connection or user session Time taken to execute a statement (idle time on client) Information data are sent together with a source identifier (i. e. the connection string) CORAL provides a simplementation – mainly to serve as an example – coupling to existing monitoring services from the experimentspecific infrastructure is expected to be a rather simple task 13

Database service indirection ● The ILookup. Service interface acts like a “file catalog” for Database service indirection ● The ILookup. Service interface acts like a “file catalog” for database services – For a given “logical service name” return the available replicas saticfying the criteria on ● ● ● The access pattern (read-only or update) The authentication scheme (user/passwd pair, certificate) CORAL provides an XML-based implementation 14

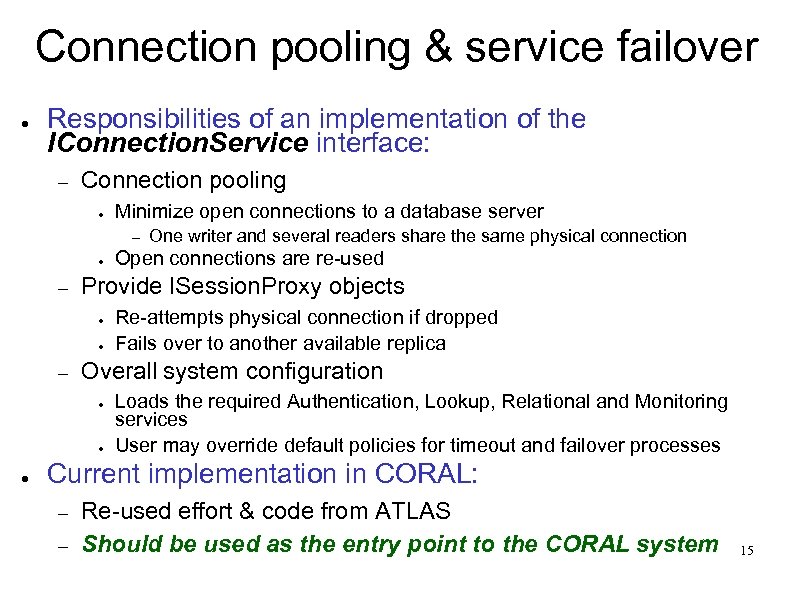

Connection pooling & service failover ● Responsibilities of an implementation of the IConnection. Service Connection pooling & service failover ● Responsibilities of an implementation of the IConnection. Service interface: – Connection pooling ● Minimize open connections to a database server – ● Re-attempts physical connection if dropped Fails over to another available replica Overall system configuration ● ● ● Open connections are re-used Provide ISession. Proxy objects ● – One writer and several readers share the same physical connection Loads the required Authentication, Lookup, Relational and Monitoring services User may override default policies for timeout and failover processes Current implementation in CORAL: – – Re-used effort & code from ATLAS Should be used as the entry point to the CORAL system 15

Connecting to a database schema (I) 16 Connecting to a database schema (I) 16

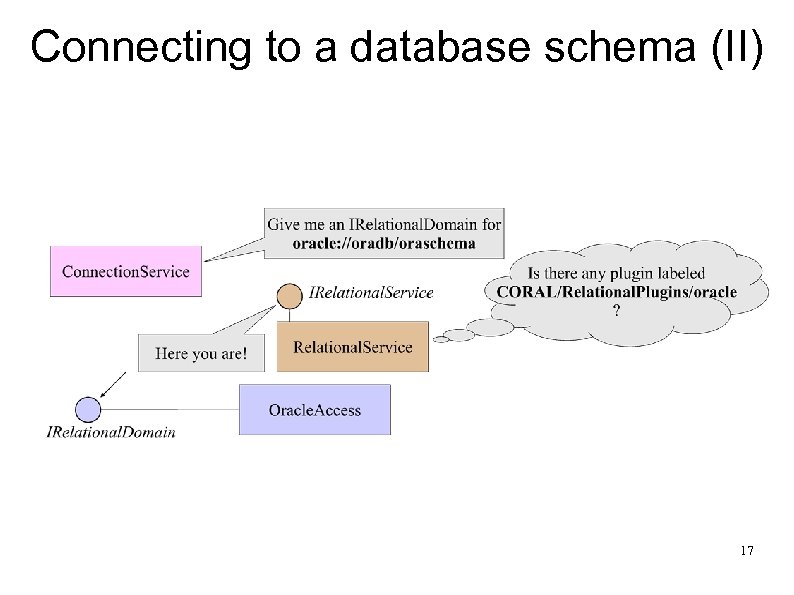

Connecting to a database schema (II) 17 Connecting to a database schema (II) 17

Connecting to a database schema (III) 18 Connecting to a database schema (III) 18

Connecting to a database schema (IV) Or simply: coral: : ISession. Proxy* session= connection. Connecting to a database schema (IV) Or simply: coral: : ISession. Proxy* session= connection. Service->connect(“/my/logical/database”); 19

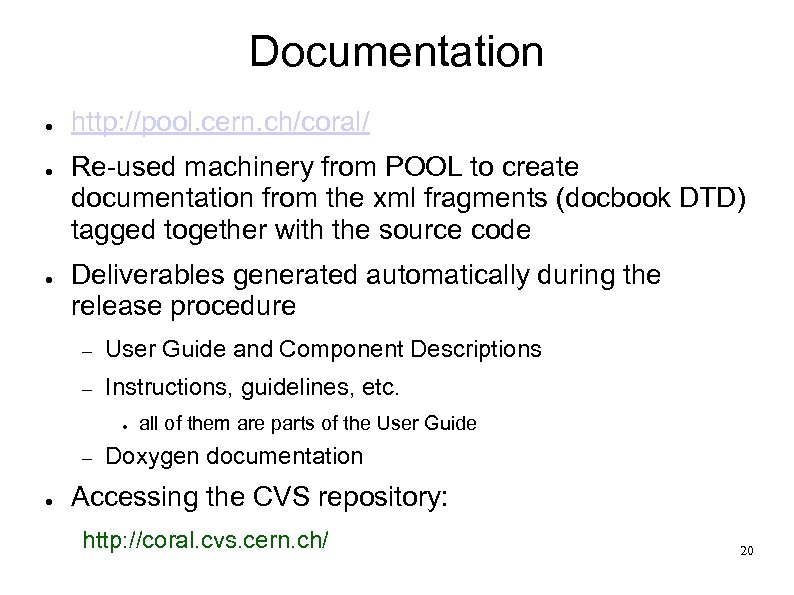

Documentation ● ● ● http: //pool. cern. ch/coral/ Re-used machinery from POOL to create Documentation ● ● ● http: //pool. cern. ch/coral/ Re-used machinery from POOL to create documentation from the xml fragments (docbook DTD) tagged together with the source code Deliverables generated automatically during the release procedure – User Guide and Component Descriptions – Instructions, guidelines, etc. ● – ● all of them are parts of the User Guide Doxygen documentation Accessing the CVS repository: http: //coral. cvs. cern. ch/ 20

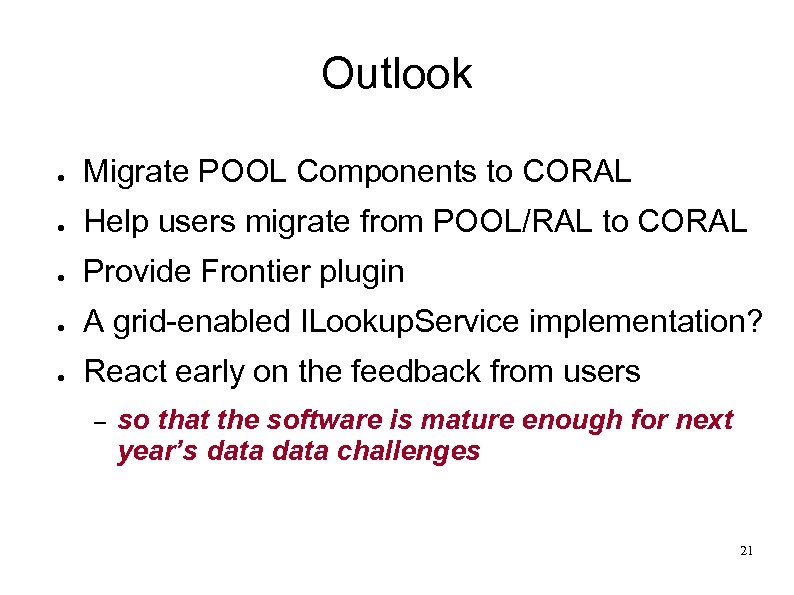

Outlook ● Migrate POOL Components to CORAL ● Help users migrate from POOL/RAL to Outlook ● Migrate POOL Components to CORAL ● Help users migrate from POOL/RAL to CORAL ● Provide Frontier plugin ● A grid-enabled ILookup. Service implementation? ● React early on the feedback from users – so that the software is mature enough for next year’s data challenges 21

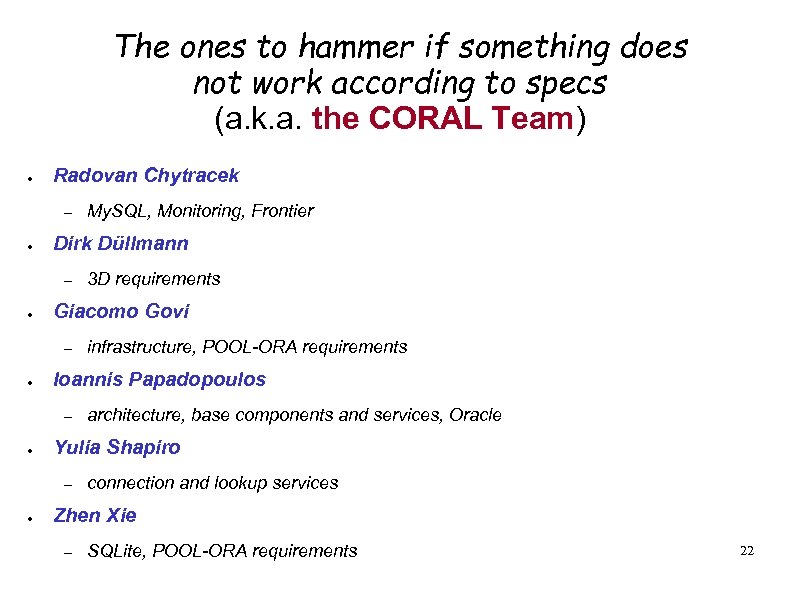

The ones to hammer if something does not work according to specs (a. k. The ones to hammer if something does not work according to specs (a. k. a. the CORAL Team) ● Radovan Chytracek – ● Dirk Düllmann – ● architecture, base components and services, Oracle Yulia Shapiro – ● infrastructure, POOL-ORA requirements Ioannis Papadopoulos – ● 3 D requirements Giacomo Govi – ● My. SQL, Monitoring, Frontier connection and lookup services Zhen Xie – SQLite, POOL-ORA requirements 22
