IO io 8000 8001 IO io

IO [io] 8000 / 8001

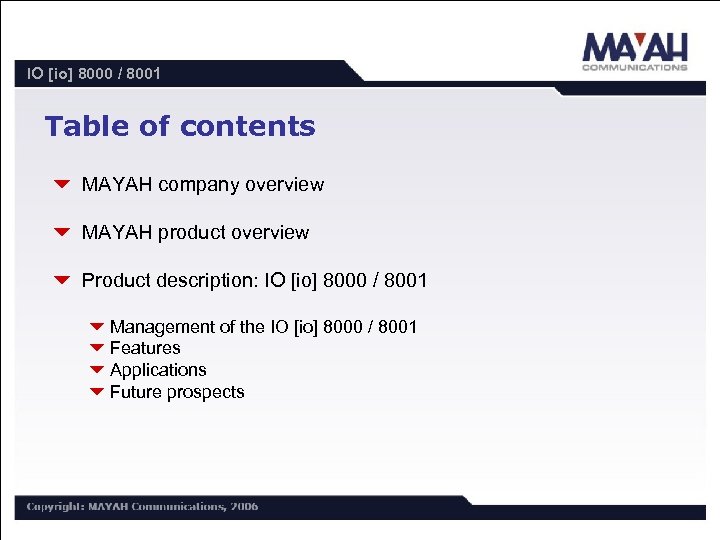

IO [io] 8000 / 8001 Table of contents 6 MAYAH company overview 6 MAYAH product overview 6 Product description: IO [io] 8000 / 8001 6 Management of the IO [io] 8000 / 8001 6 Features 6 Applications 6 Future prospects

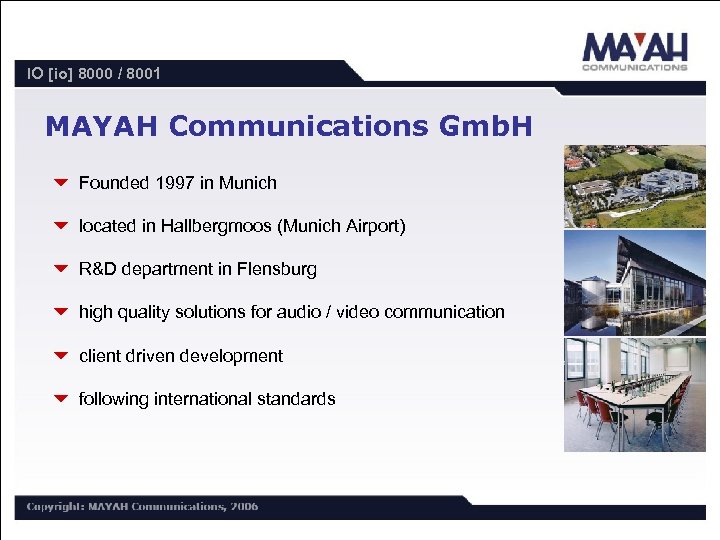

IO [io] 8000 / 8001 MAYAH Communications Gmb. H 6 Founded 1997 in Munich 6 located in Hallbergmoos (Munich Airport) 6 R&D department in Flensburg 6 high quality solutions for audio / video communication 6 client driven development 6 following international standards

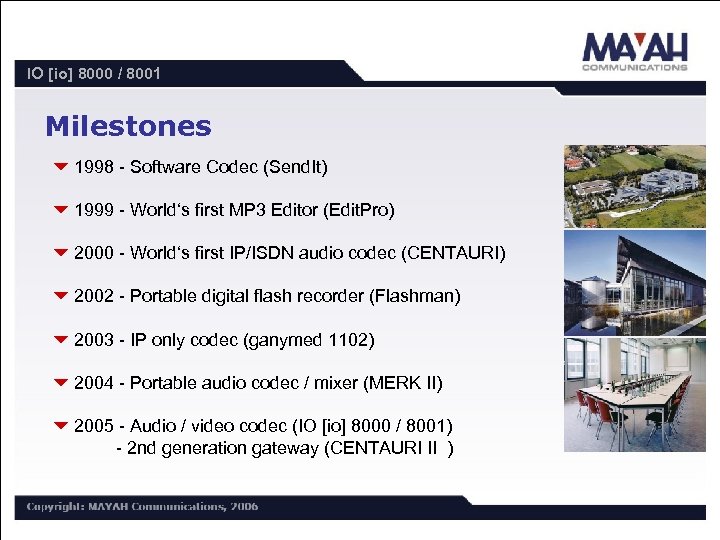

IO [io] 8000 / 8001 Milestones 61998 - Software Codec (Send. It) 61999 - World‘s first MP 3 Editor (Edit. Pro) 62000 - World‘s first IP/ISDN audio codec (CENTAURI) 62002 - Portable digital flash recorder (Flashman) 62003 - IP only codec (ganymed 1102) 62004 - Portable audio codec / mixer (MERK II) 62005 - Audio / video codec (IO [io] 8000 / 8001) - 2 nd generation gateway (CENTAURI II )

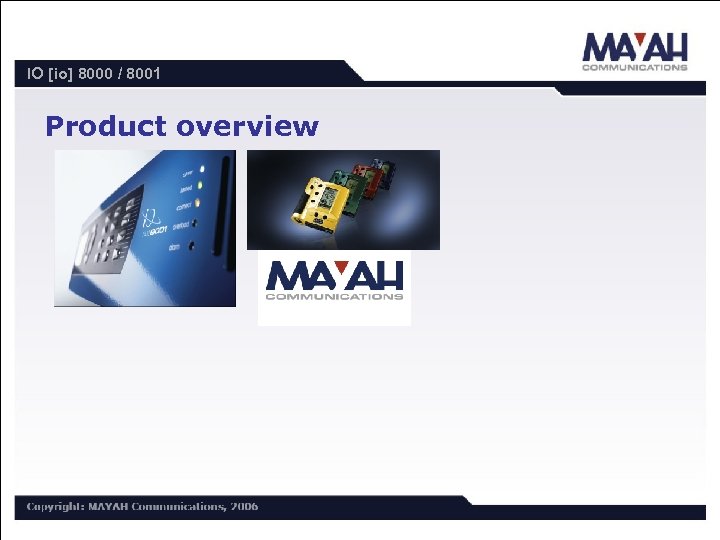

IO [io] 8000 / 8001 Product overview

IO [io] 8000 / 8001 Product description 6 Management of the IO [io] 8000 / 8001 6 Windows Remote Control 6 Web Remote 6 Telnet 6 Frontpanel

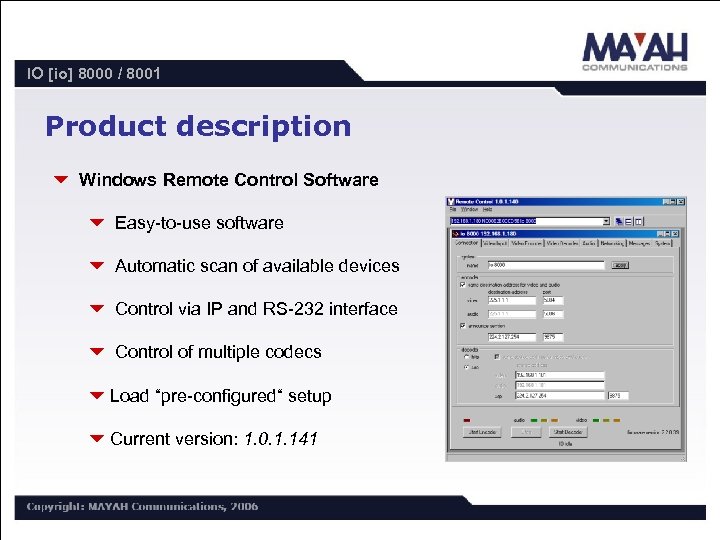

IO [io] 8000 / 8001 Product description 6 Windows Remote Control Software 6 Easy-to-use software 6 Automatic scan of available devices 6 Control via IP and RS-232 interface 6 Control of multiple codecs 6 Load “pre-configured“ setup 6 Current version: 1. 0. 1. 141

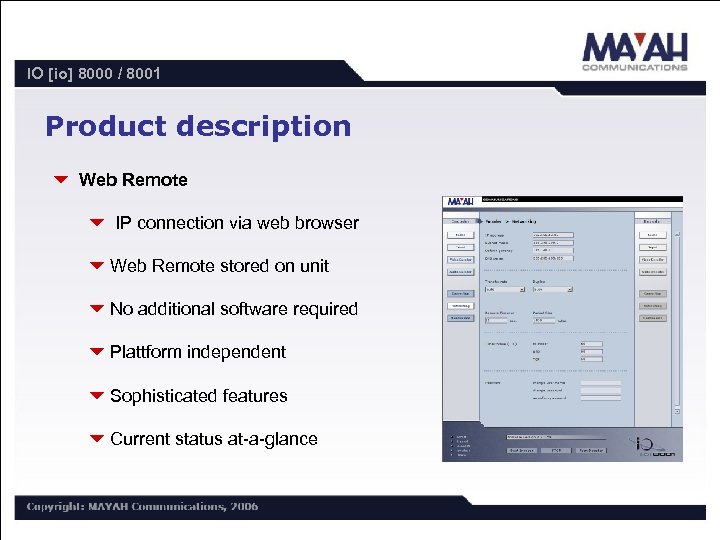

IO [io] 8000 / 8001 Product description 6 Web Remote 6 IP connection via web browser 6 Web Remote stored on unit 6 No additional software required 6 Plattform independent 6 Sophisticated features 6 Current status at-a-glance

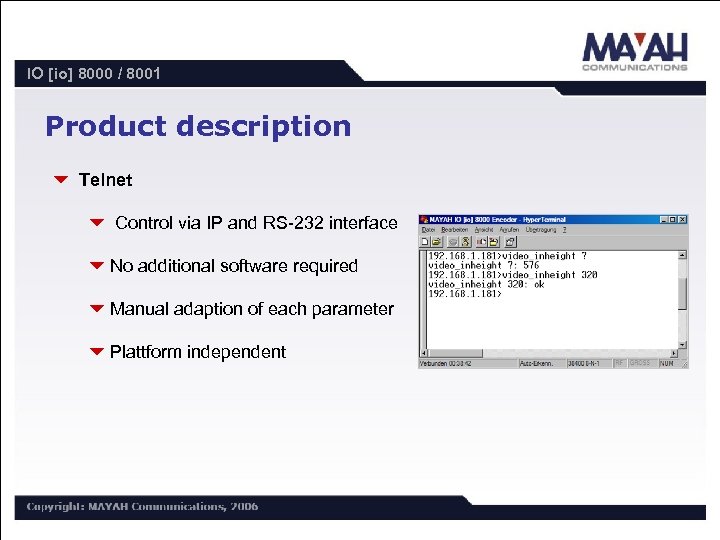

IO [io] 8000 / 8001 Product description 6 Telnet 6 Control via IP and RS-232 interface 6 No additional software required 6 Manual adaption of each parameter 6 Plattform independent

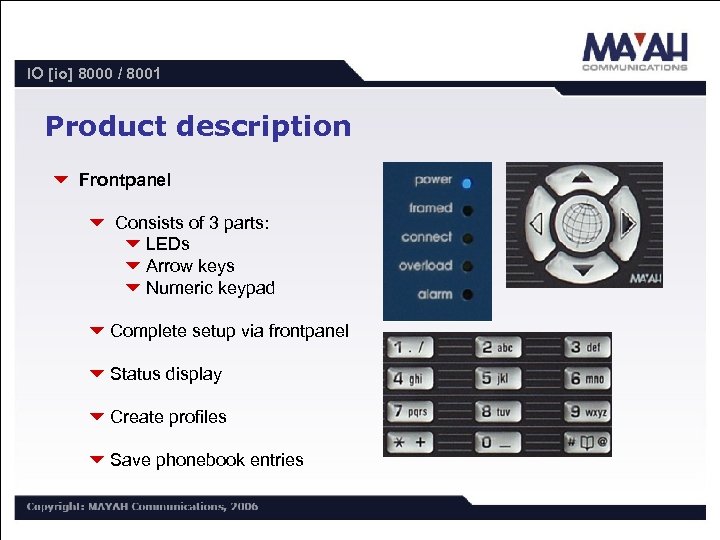

IO [io] 8000 / 8001 Product description 6 Frontpanel 6 Consists of 3 parts: 6 LEDs 6 Arrow keys 6 Numeric keypad 6 Complete setup via frontpanel 6 Status display 6 Create profiles 6 Save phonebook entries

IO [io] 8000 / 8001 Product description 6 Features 6 Supported formats: 6 MPEG-4 part 2 6 MPEG-4 part 10 (H. 264 / AVC) 6 AAC LC 6 AAC HEv 2 6 Supported interfaces: 6 SDI (incl. embedded audio) 6 Composite and SVideo 6 Analoge audio (balanced XLR) 6 AES / EBU

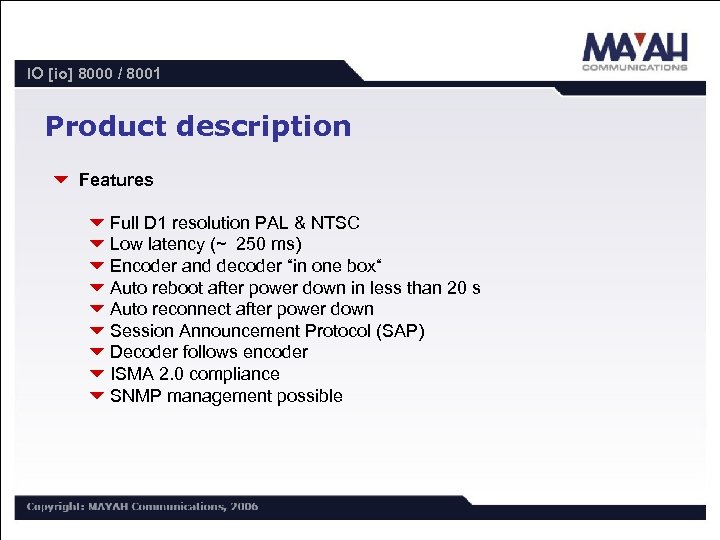

IO [io] 8000 / 8001 Product description 6 Features 6 Full D 1 resolution PAL & NTSC 6 Low latency (~ 250 ms) 6 Encoder and decoder “in one box“ 6 Auto reboot after power down in less than 20 s 6 Auto reconnect after power down 6 Session Announcement Protocol (SAP) 6 Decoder follows encoder 6 ISMA 2. 0 compliance 6 SNMP management possible

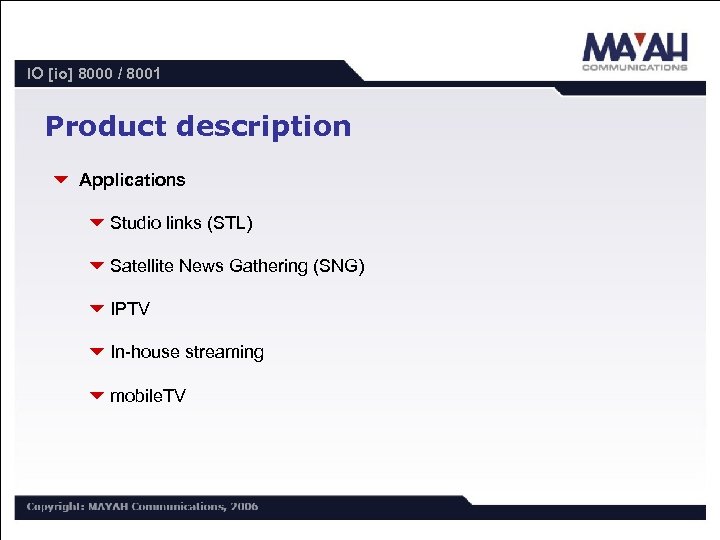

IO [io] 8000 / 8001 Product description 6 Applications 6 Studio links (STL) 6 Satellite News Gathering (SNG) 6 IPTV 6 In-house streaming 6 mobile. TV

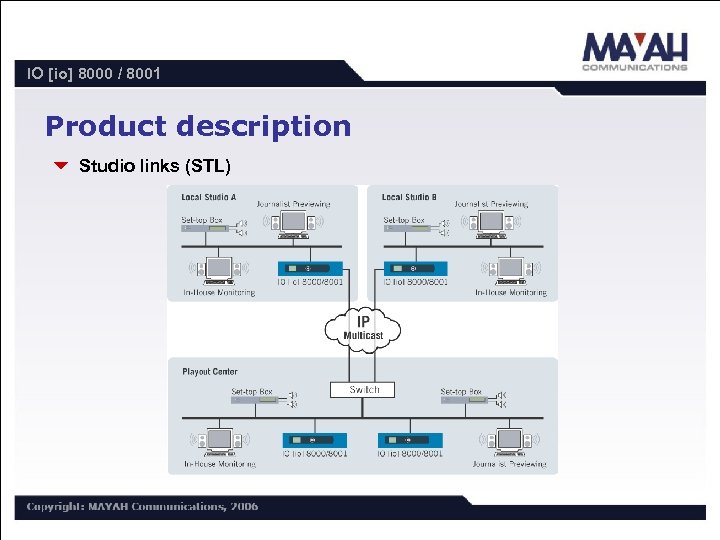

IO [io] 8000 / 8001 Product description 6 Studio links (STL)

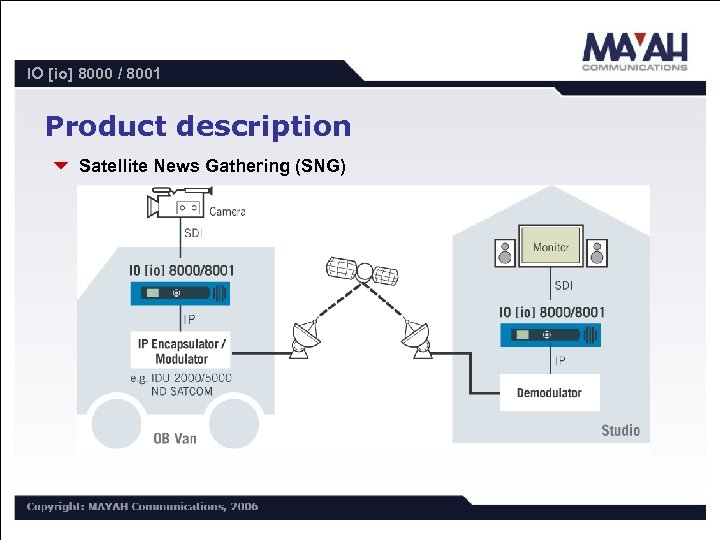

IO [io] 8000 / 8001 Product description 6 Satellite News Gathering (SNG)

IO [io] 8000 / 8001 Product description 6 IPTV 6 New set-top box 6 Low-cost decoder solution 6 Ouput: break-out cable 6 Composite 6 SVideo 6 Analog audio 6 Low-cost decoder solution 6 Supporting: MPEG-4 ASP, H 264, AAC

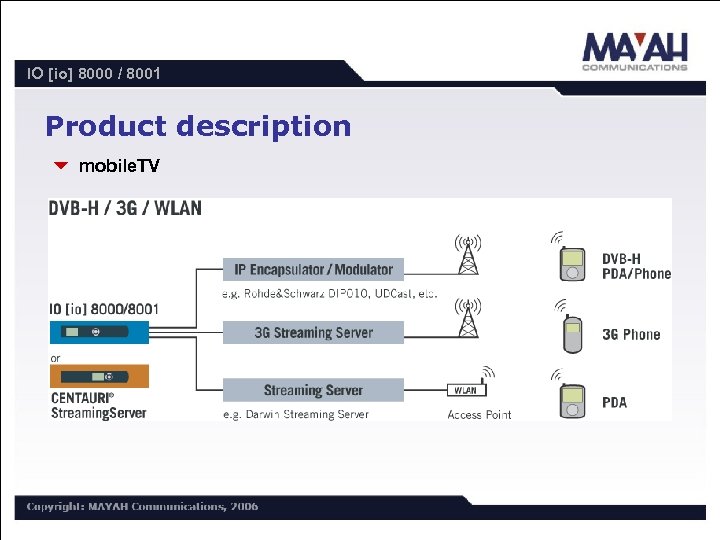

IO [io] 8000 / 8001 Product description 6 mobile. TV

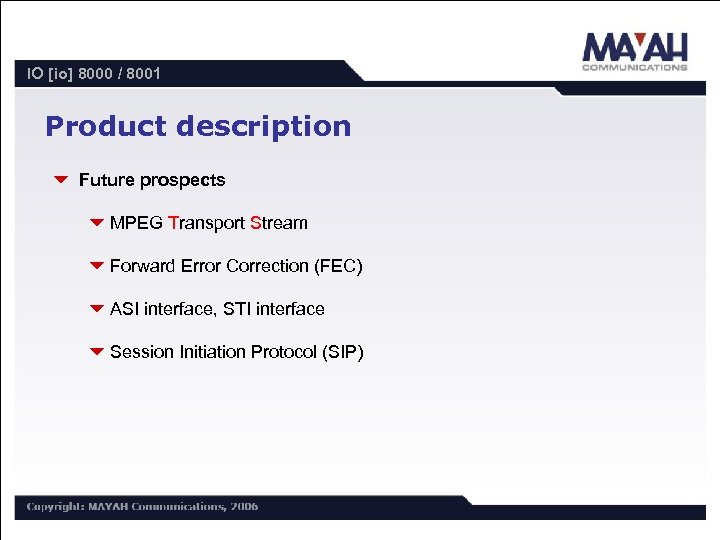

IO [io] 8000 / 8001 Product description 6 Future prospects 6 MPEG Transport Stream 6 Forward Error Correction (FEC) 6 ASI interface, STI interface 6 Session Initiation Protocol (SIP)
