Introduction to Locating Systems in Ubiquitous Computing and

Introduction to Locating Systems in Ubiquitous Computing and Sensor Networks Amir Haghighat

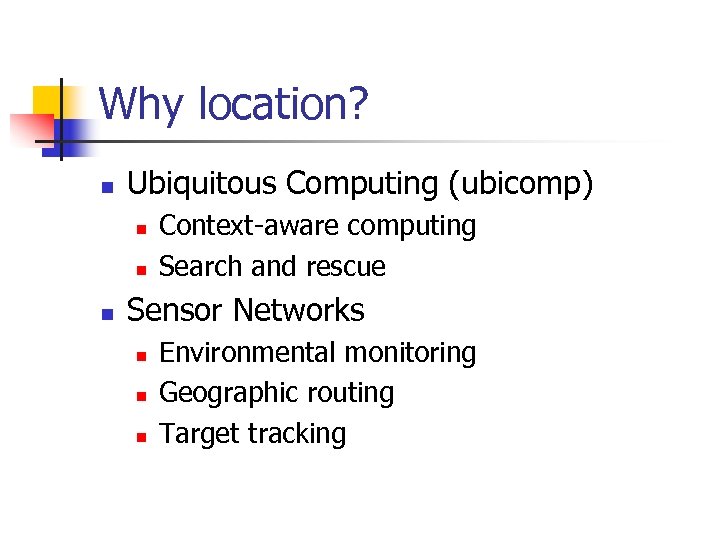

Why location? n Ubiquitous Computing (ubicomp) n n n Context-aware computing Search and rescue Sensor Networks n n n Environmental monitoring Geographic routing Target tracking

Man discovers mobile computing… Now, where’s the nearest place I can buy shoulder pads? ! …and quickly wants location-enhanced computing.

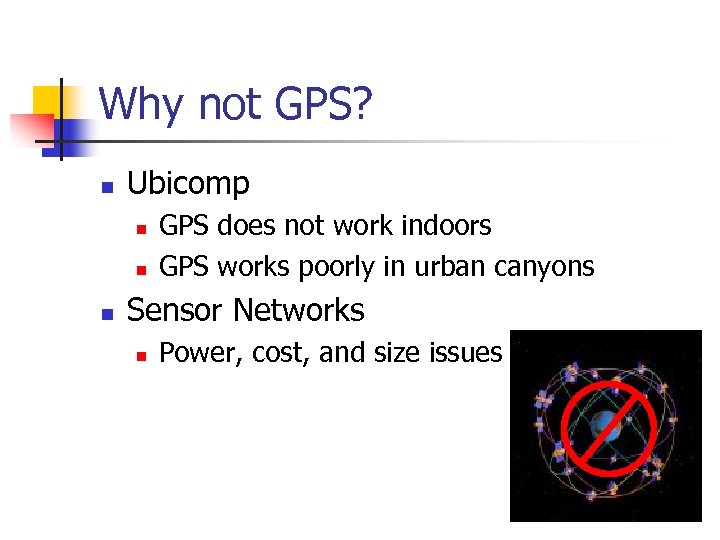

Why not GPS? n Ubicomp n n n GPS does not work indoors GPS works poorly in urban canyons Sensor Networks n Power, cost, and size issues

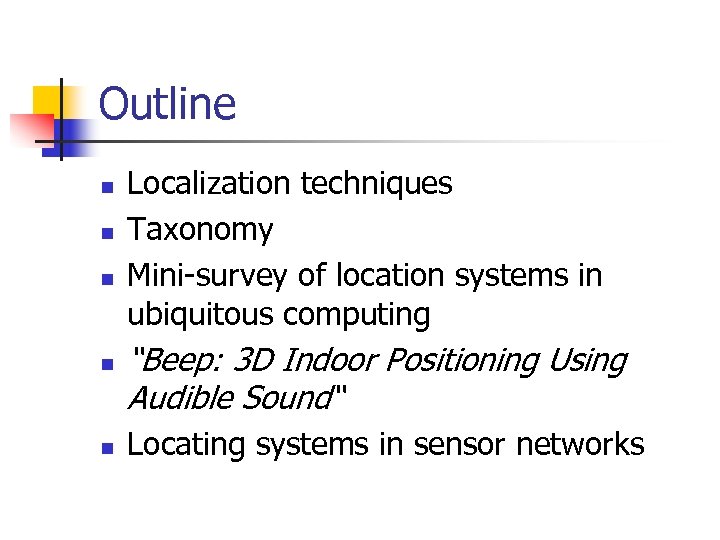

Outline n n n Localization techniques Taxonomy Mini-survey of location systems in ubiquitous computing “Beep: 3 D Indoor Positioning Using Audible Sound“ Locating systems in sensor networks

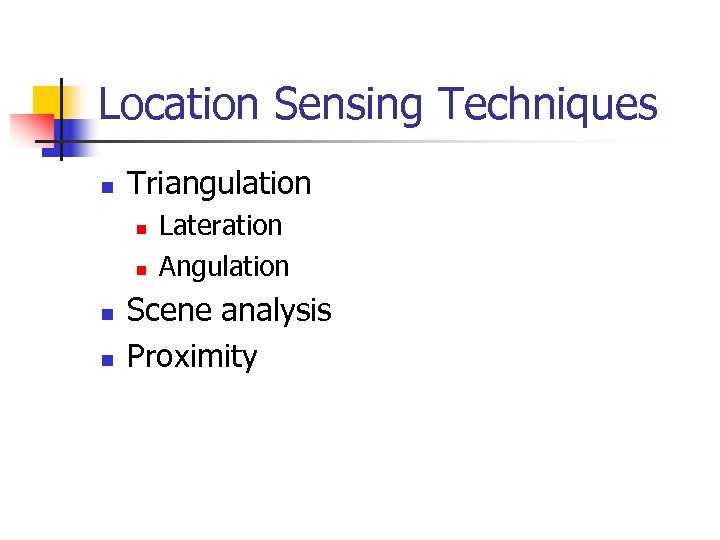

Location Sensing Techniques n Triangulation n n Lateration Angulation Scene analysis Proximity

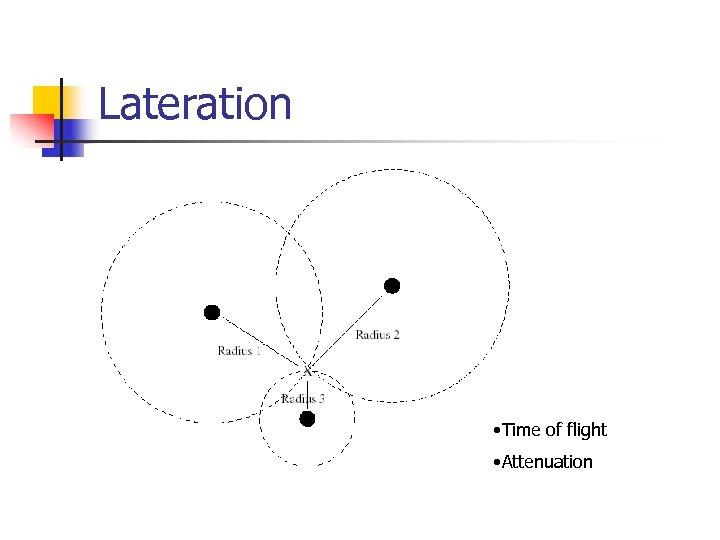

Lateration • Time of flight • Attenuation

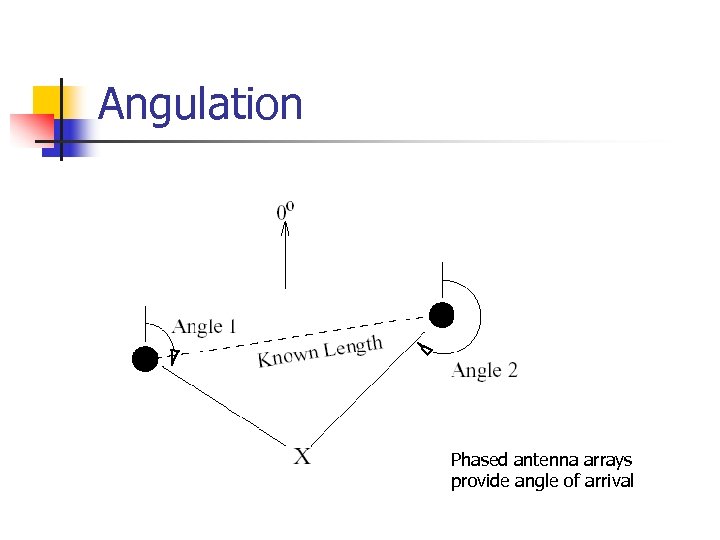

Angulation Phased antenna arrays provide angle of arrival

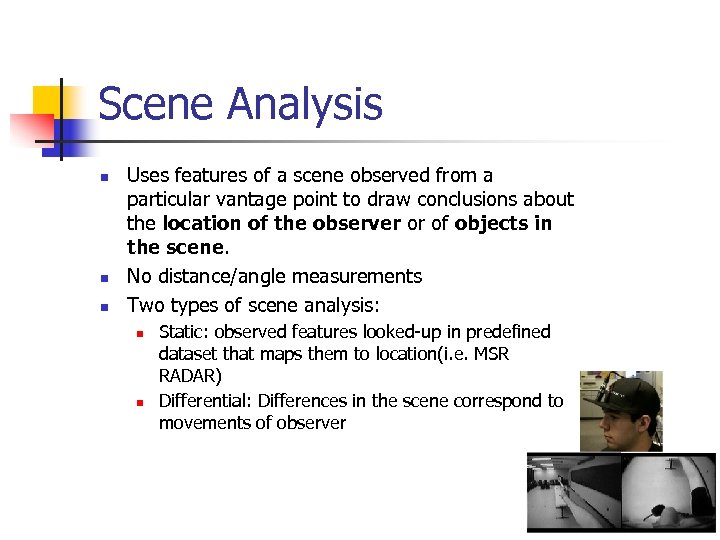

Scene Analysis n n n Uses features of a scene observed from a particular vantage point to draw conclusions about the location of the observer or of objects in the scene. No distance/angle measurements Two types of scene analysis: n n Static: observed features looked-up in predefined dataset that maps them to location(i. e. MSR RADAR) Differential: Differences in the scene correspond to movements of observer

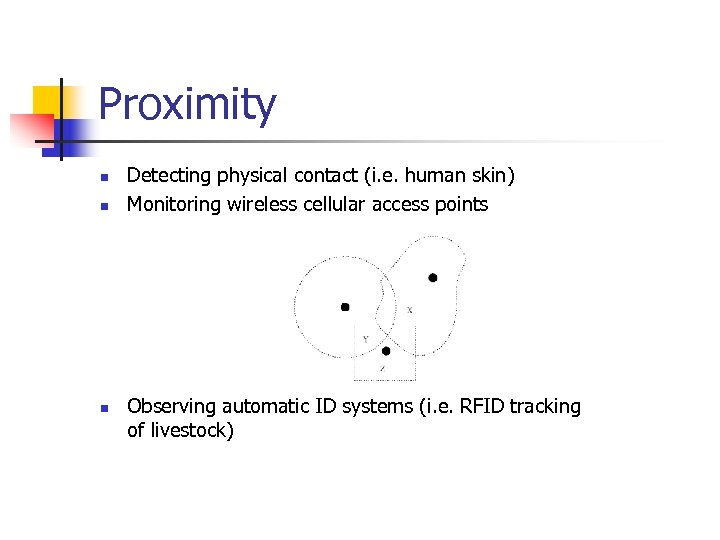

Proximity n n n Detecting physical contact (i. e. human skin) Monitoring wireless cellular access points Observing automatic ID systems (i. e. RFID tracking of livestock)

Location System Properties n n Physical Position vs. Symbolic Location Absolute vs. Relative Localized location computation (privacy and power issues) Accuracy and Precision n n Scale Recognition Cost n n i. e. 1 meter accuracy, 90% of time Time and money Limitations

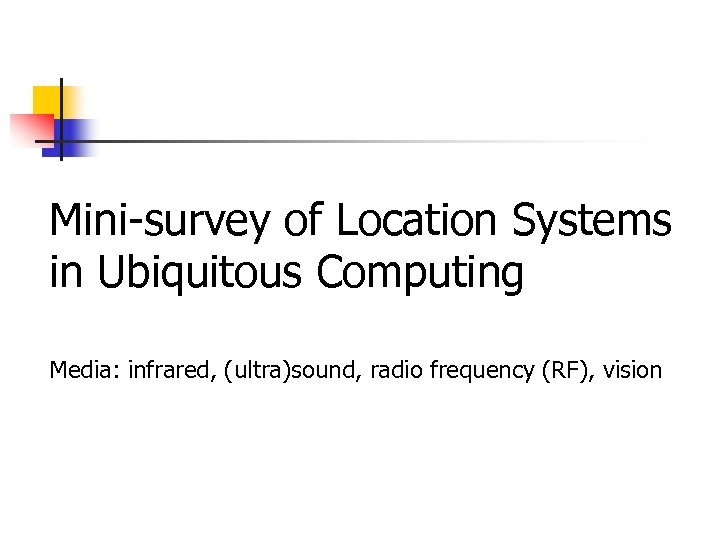

Mini-survey of Location Systems in Ubiquitous Computing Media: infrared, (ultra)sound, radio frequency (RF), vision

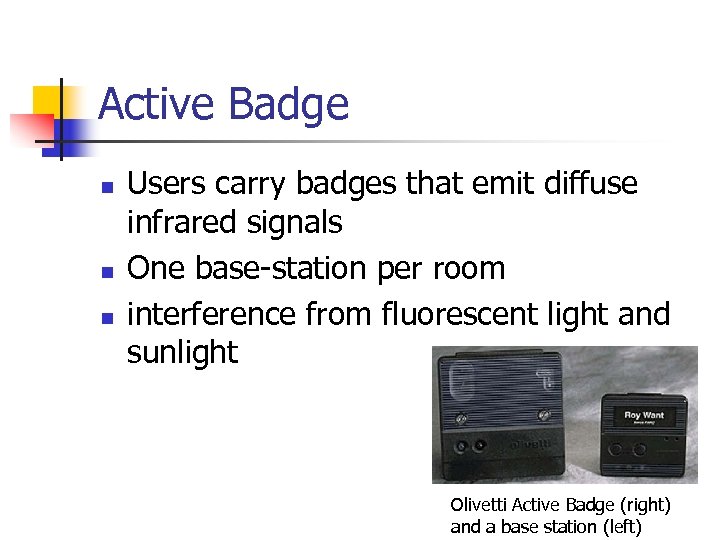

Active Badge n n n Users carry badges that emit diffuse infrared signals One base-station per room interference from fluorescent light and sunlight Olivetti Active Badge (right) and a base station (left)

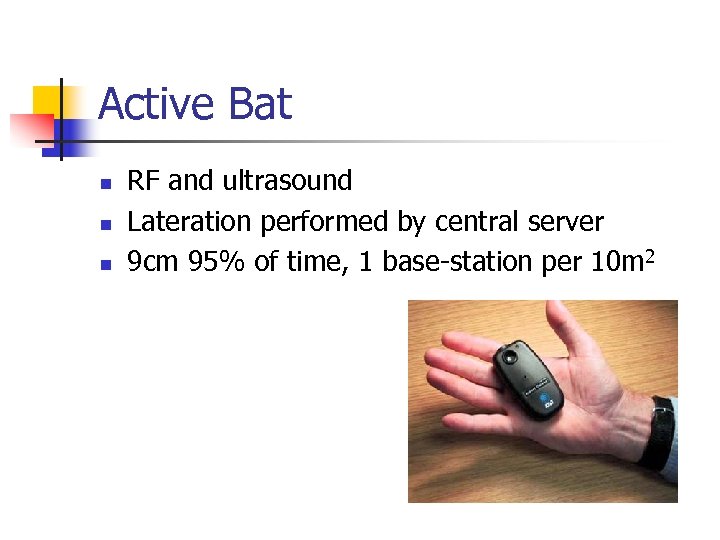

Active Bat n n n RF and ultrasound Lateration performed by central server 9 cm 95% of time, 1 base-station per 10 m 2

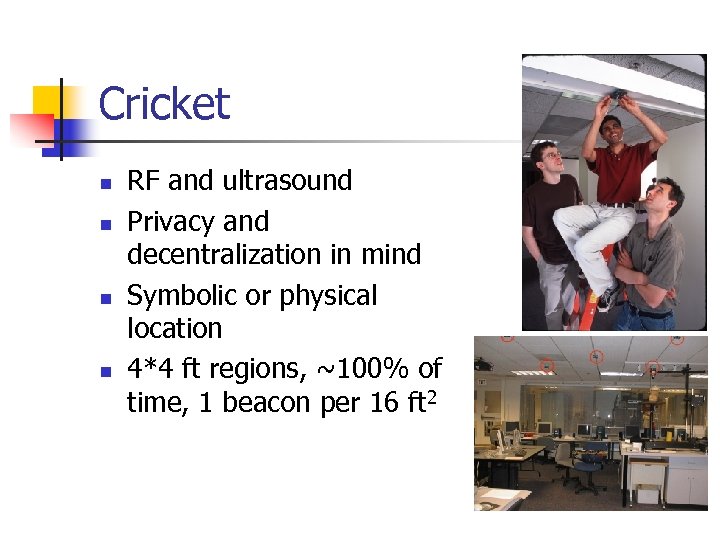

Cricket n n RF and ultrasound Privacy and decentralization in mind Symbolic or physical location 4*4 ft regions, ~100% of time, 1 beacon per 16 ft 2

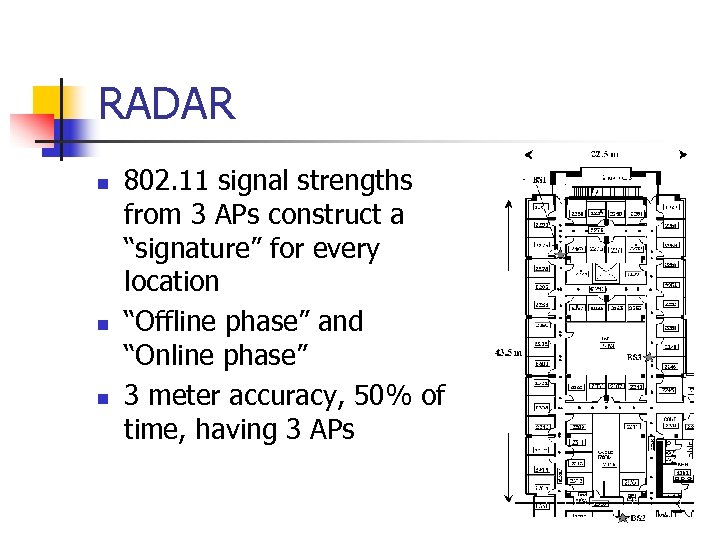

RADAR n n n 802. 11 signal strengths from 3 APs construct a “signature” for every location “Offline phase” and “Online phase” 3 meter accuracy, 50% of time, having 3 APs

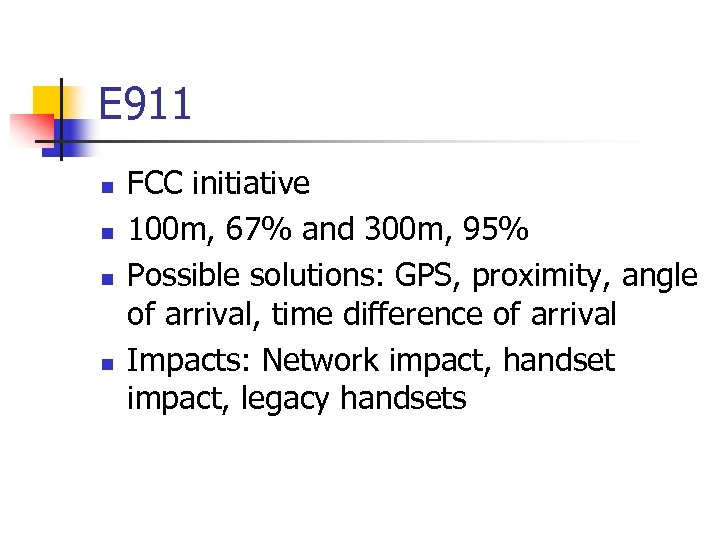

E 911 n n FCC initiative 100 m, 67% and 300 m, 95% Possible solutions: GPS, proximity, angle of arrival, time difference of arrival Impacts: Network impact, handset impact, legacy handsets

Place Lab n Uses 802. 11 and GSM beacons, whose positions are known n 802. 11 AP locations from war drivers n n n Over 2 million known AP positions GSM tower locations from FCC’s database 20 -30 m median accuracy, 100% coverage in Seattle n GPS works less accurately in urban areas (i. e. downtown)

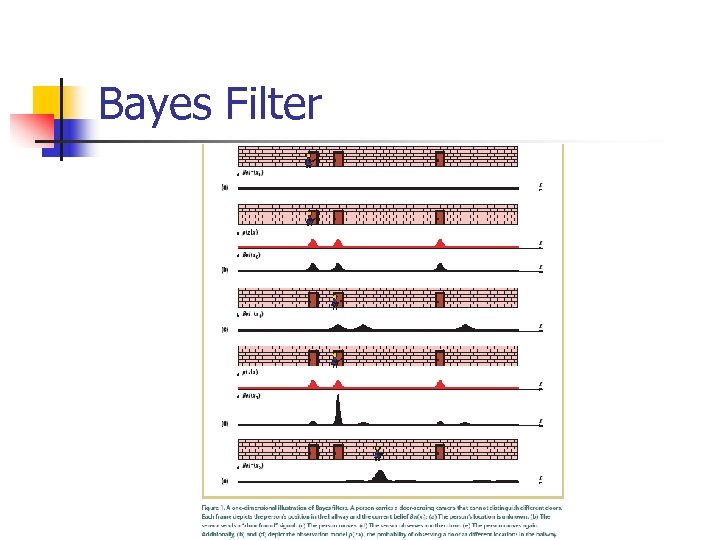

Bayes Filter

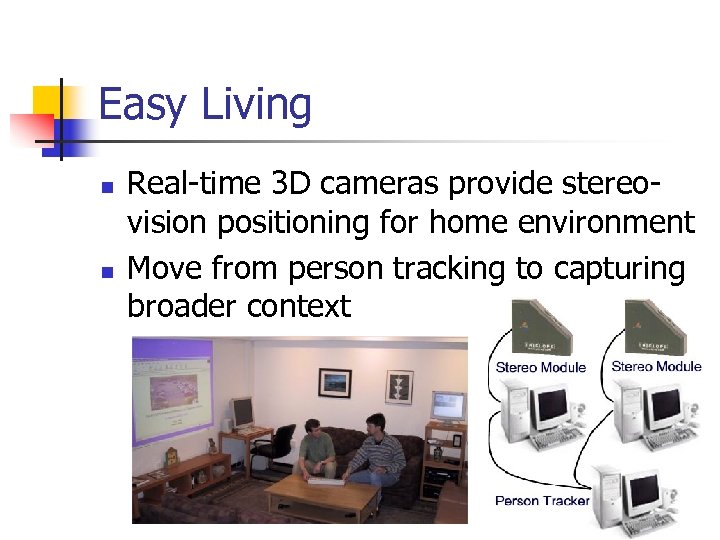

Easy Living n n Real-time 3 D cameras provide stereovision positioning for home environment Move from person tracking to capturing broader context

CSEM n (www. csem. ch) The camera emits an RF modulated optical radiation field (typically 20 MHz or higher) in the infra-red spectrum. This signal is diffusely backscattered by the scene and detected by the camera. Every pixel is able to demodulate the signal and detect its phase, which is proportional to the distance of the reflecting object.

Beep: 3 D Indoor Positioning Using Audible Sound Atri Mandal, Cristina V. Lopes, Tony Givargis, Amir Haghighat, Raja Jurdak, Pierre Baldi School of Information and Computer Sciences University of California, Irvine Presented by: Amir Haghighat

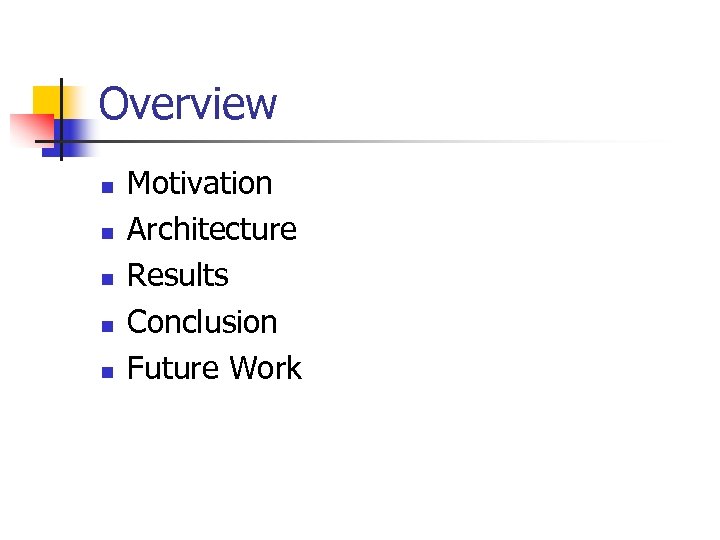

Overview n n n Motivation Architecture Results Conclusion Future Work

Introduction and Motivation + Virtual World = Physical World or

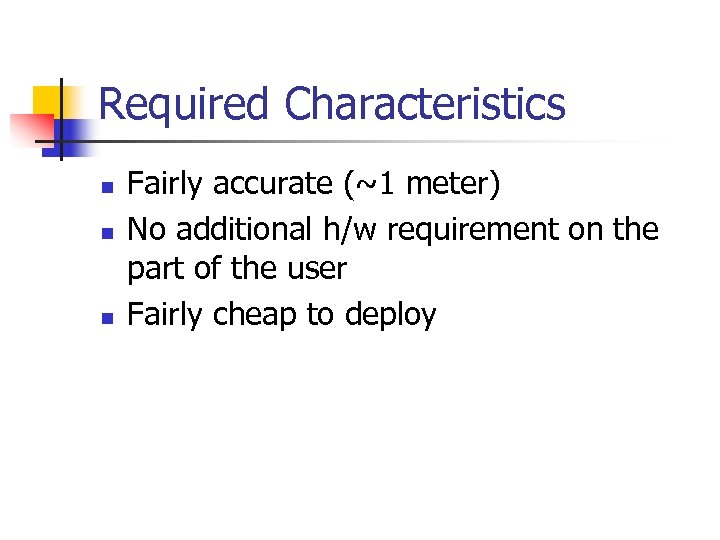

Required Characteristics n n n Fairly accurate (~1 meter) No additional h/w requirement on the part of the user Fairly cheap to deploy

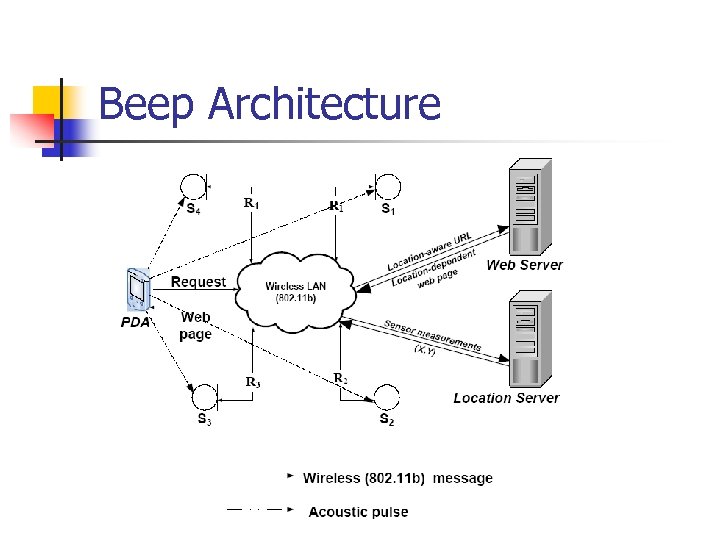

Beep Architecture

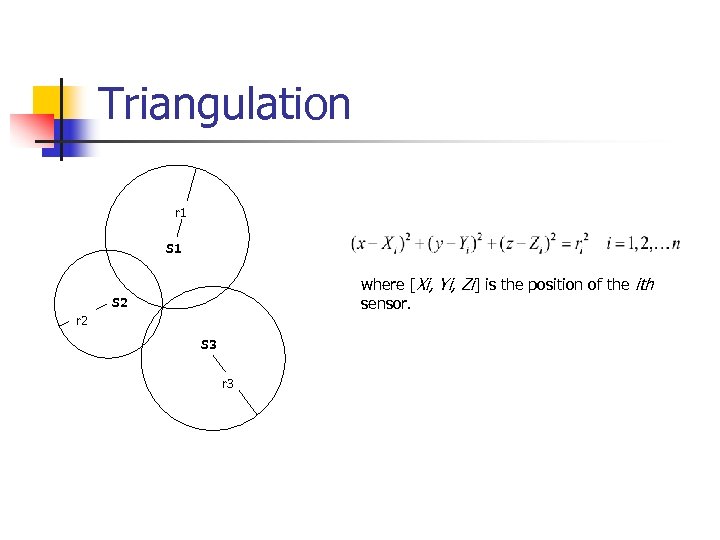

Triangulation r 1 S 1 where [Xi, Yi, Zi] is the position of the ith sensor. S 2 r 2 S 3 r 3

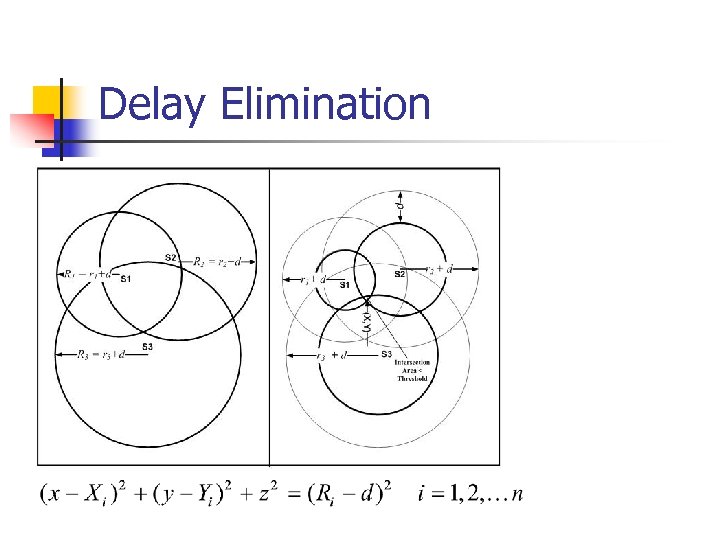

Delay Elimination

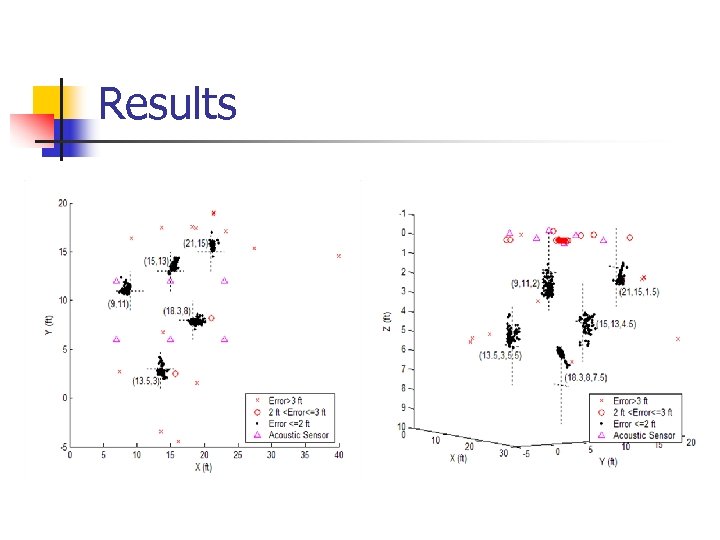

Results

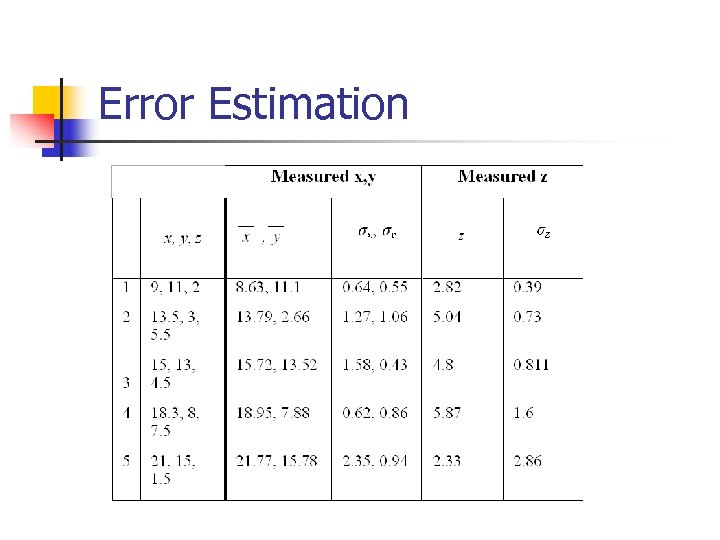

Error Estimation

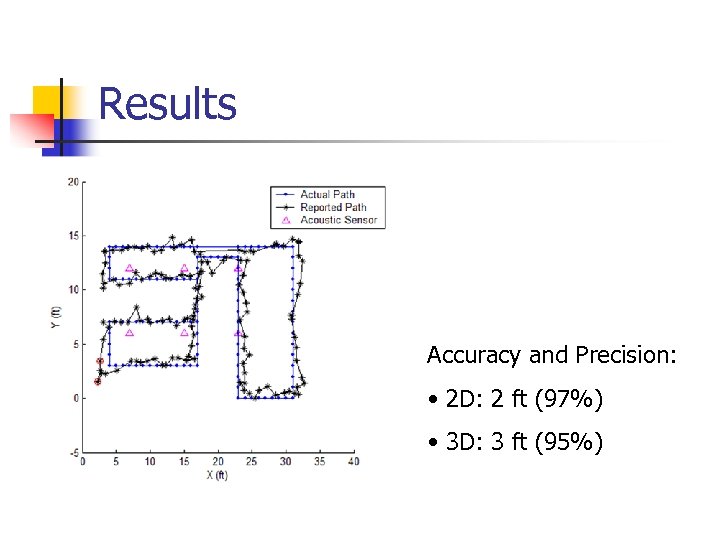

Results Accuracy and Precision: • 2 D: 2 ft (97%) • 3 D: 3 ft (95%)

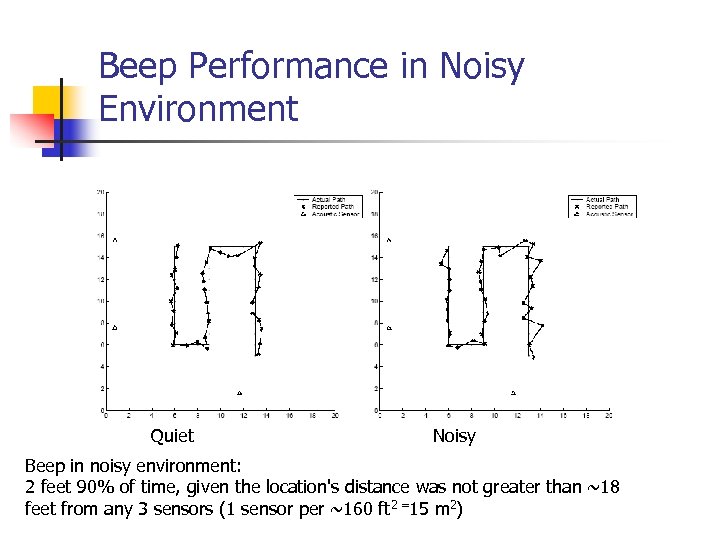

Beep Performance in Noisy Environment Quiet Noisy Beep in noisy environment: 2 feet 90% of time, given the location's distance was not greater than ~18 feet from any 3 sensors (1 sensor per ~160 ft 2 =15 m 2)

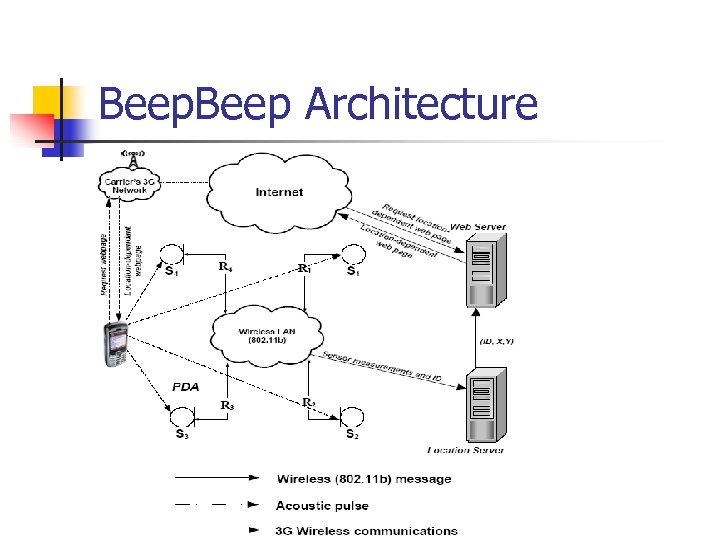

Beep Architecture

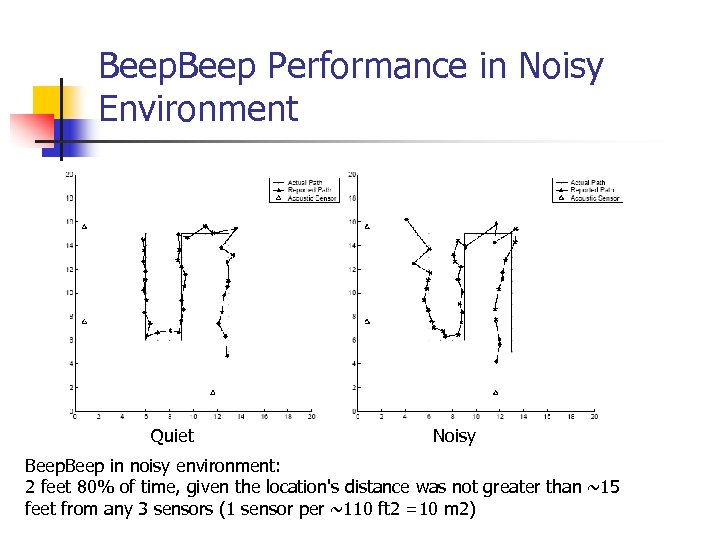

Beep Performance in Noisy Environment Quiet Noisy Beep in noisy environment: 2 feet 80% of time, given the location's distance was not greater than ~15 feet from any 3 sensors (1 sensor per ~110 ft 2 =10 m 2)

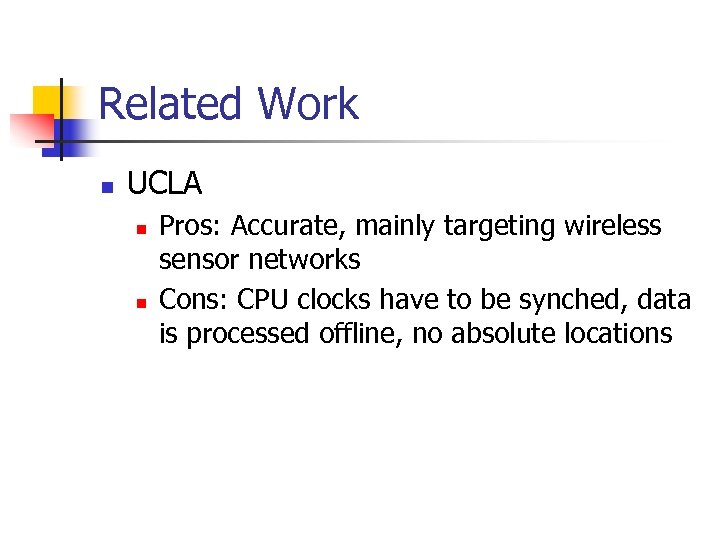

Related Work n UCLA n n Pros: Accurate, mainly targeting wireless sensor networks Cons: CPU clocks have to be synched, data is processed offline, no absolute locations

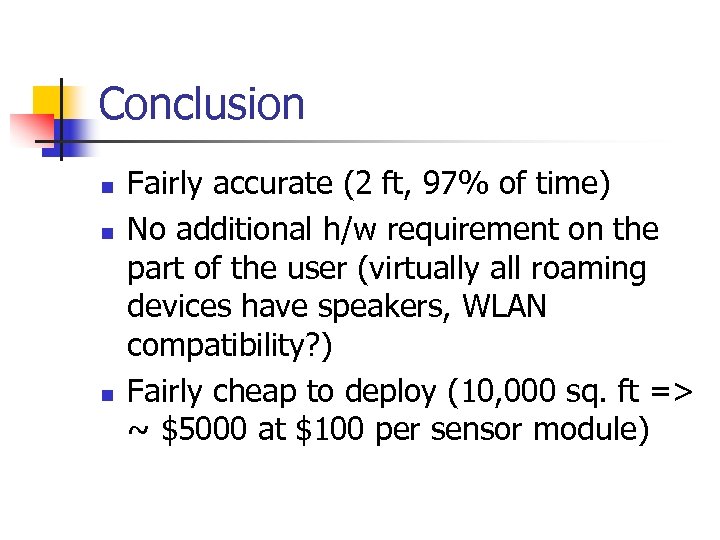

Conclusion n Fairly accurate (2 ft, 97% of time) No additional h/w requirement on the part of the user (virtually all roaming devices have speakers, WLAN compatibility? ) Fairly cheap to deploy (10, 000 sq. ft => ~ $5000 at $100 per sensor module)

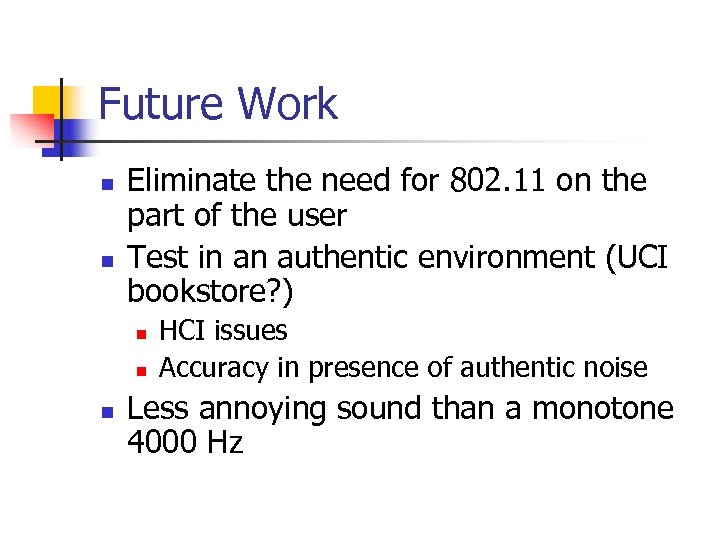

Future Work n n Eliminate the need for 802. 11 on the part of the user Test in an authentic environment (UCI bookstore? ) n n n HCI issues Accuracy in presence of authentic noise Less annoying sound than a monotone 4000 Hz

GPS-Less Low-Cost Outdoor Localization for Small Devices, UCLA, 2000 n n n Node localizes itself as the centroid of the reference points, from which it can receive beacon signals (proximity-based) Beacon signals are assumed to overlap in space, not in time Location of a node is estimated, using the locations of k reference points whose beacon signals are received n Xest = (Xi 1 + Xi 2 + … + Xik) / k n Yest = (Yi 1 + Yi 2 + … + Yik) / k

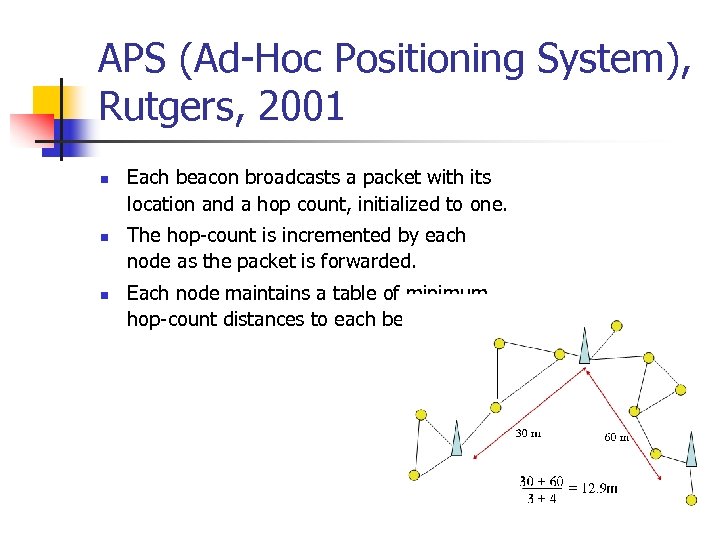

APS (Ad-Hoc Positioning System), Rutgers, 2001 n n n Each beacon broadcasts a packet with its location and a hop count, initialized to one. The hop-count is incremented by each node as the packet is forwarded. Each node maintains a table of minimum hop-count distances to each beacon

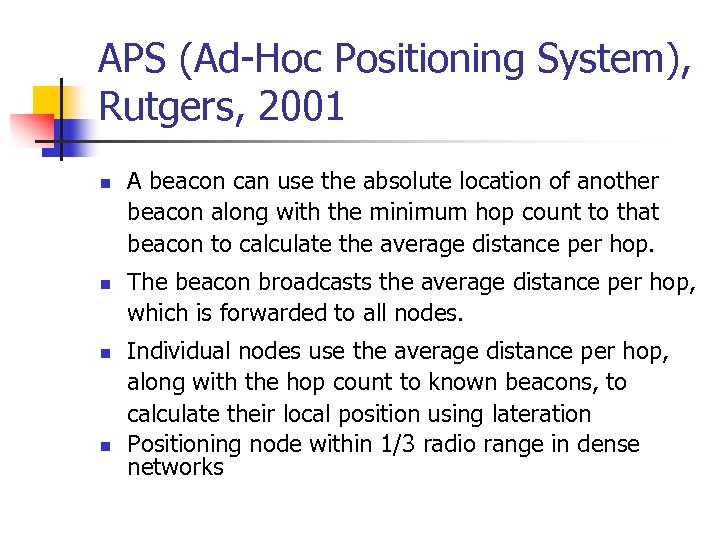

APS (Ad-Hoc Positioning System), Rutgers, 2001 n n A beacon can use the absolute location of another beacon along with the minimum hop count to that beacon to calculate the average distance per hop. The beacon broadcasts the average distance per hop, which is forwarded to all nodes. Individual nodes use the average distance per hop, along with the hop count to known beacons, to calculate their local position using lateration Positioning node within 1/3 radio range in dense networks

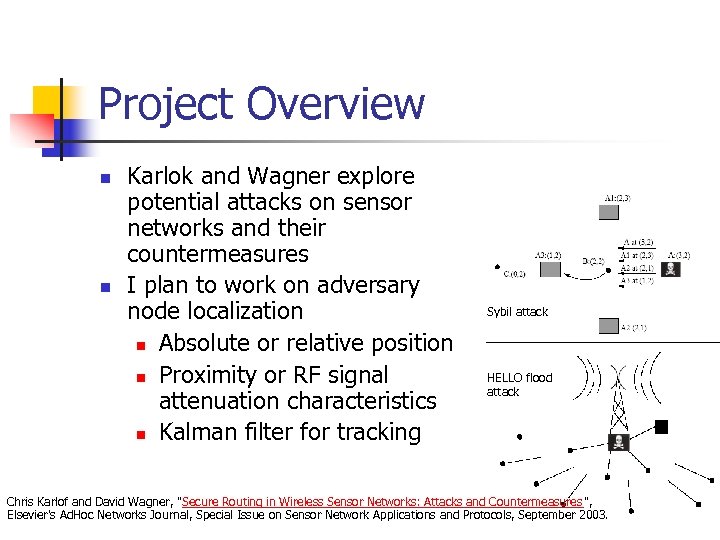

Project Overview n n Karlok and Wagner explore potential attacks on sensor networks and their countermeasures I plan to work on adversary node localization n Absolute or relative position n Proximity or RF signal attenuation characteristics n Kalman filter for tracking Sybil attack HELLO flood attack Chris Karlof and David Wagner, "Secure Routing in Wireless Sensor Networks: Attacks and Countermeasures ", Elsevier's Ad. Hoc Networks Journal, Special Issue on Sensor Network Applications and Protocols, September 2003.
