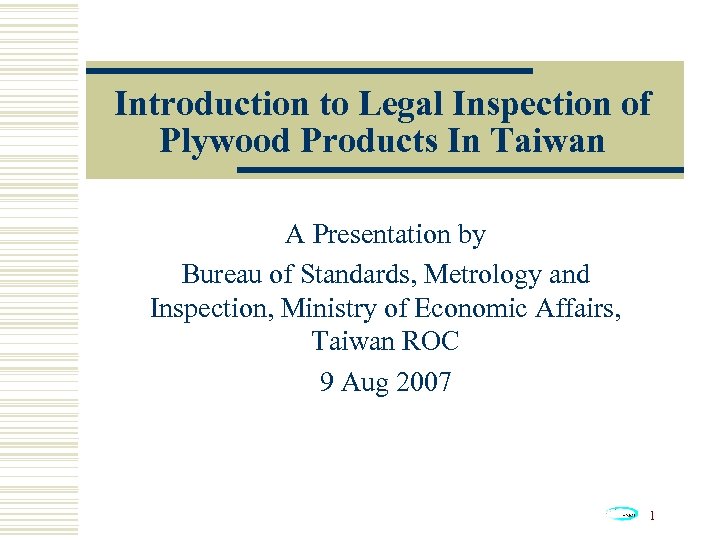

Introduction to Legal Inspection of Plywood Products In Taiwan A Presentation by Bureau of Standards, Metrology and Inspection, Ministry of Economic Affairs, Taiwan ROC 9 Aug 2007 1

Table of Content n Legal Requirements n Conformity Assessment Procedures n Market Surveillance n Penal Provision n Contact Person 2

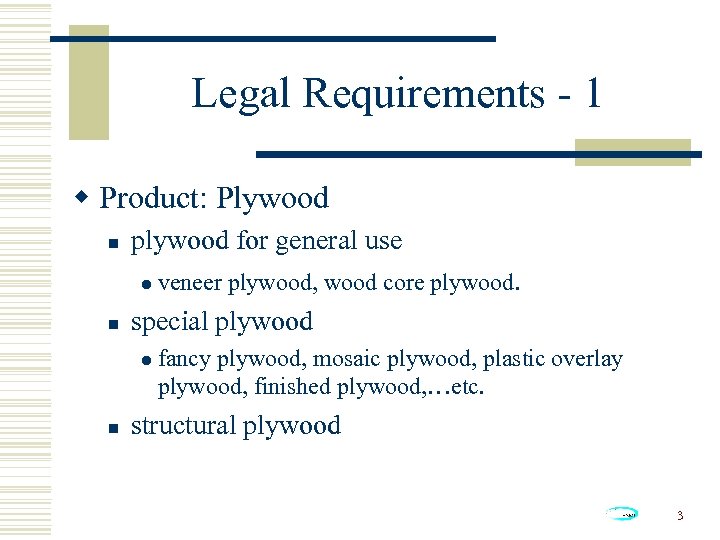

Legal Requirements - 1 w Product: Plywood n plywood for general use l n special plywood l n veneer plywood, wood core plywood. fancy plywood, mosaic plywood, plastic overlay plywood, finished plywood, …etc. structural plywood 3

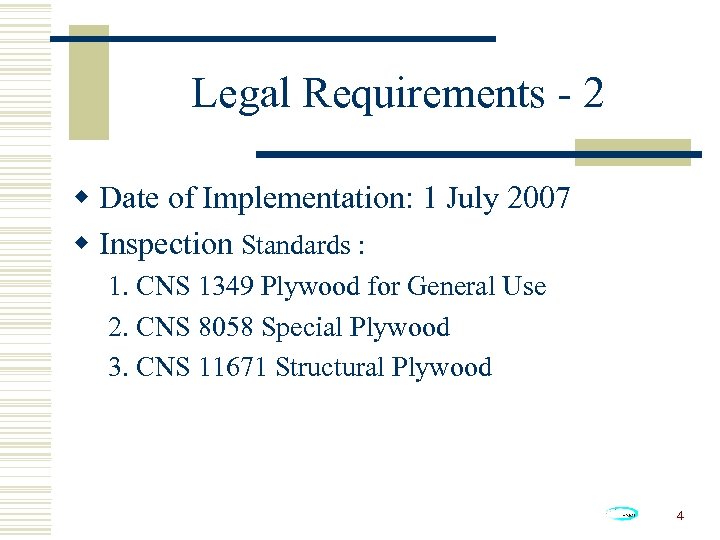

Legal Requirements - 2 w Date of Implementation: 1 July 2007 w Inspection Standards : 1. CNS 1349 Plywood for General Use 2. CNS 8058 Special Plywood 3. CNS 11671 Structural Plywood 4

Legal Requirements - 3 w Conformity Assessment Procedures: Choose one of the followings 1. Registration of Product Certification (RPC) Scheme 2. Type-Approved Batch Inspection (TABI) Scheme 5

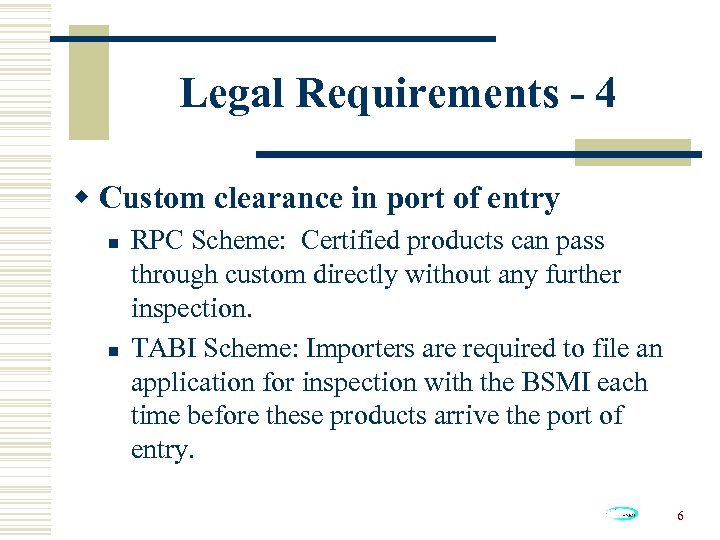

Legal Requirements - 4 w Custom clearance in port of entry n n RPC Scheme: Certified products can pass through custom directly without any further inspection. TABI Scheme: Importers are required to file an application for inspection with the BSMI each time before these products arrive the port of entry. 6

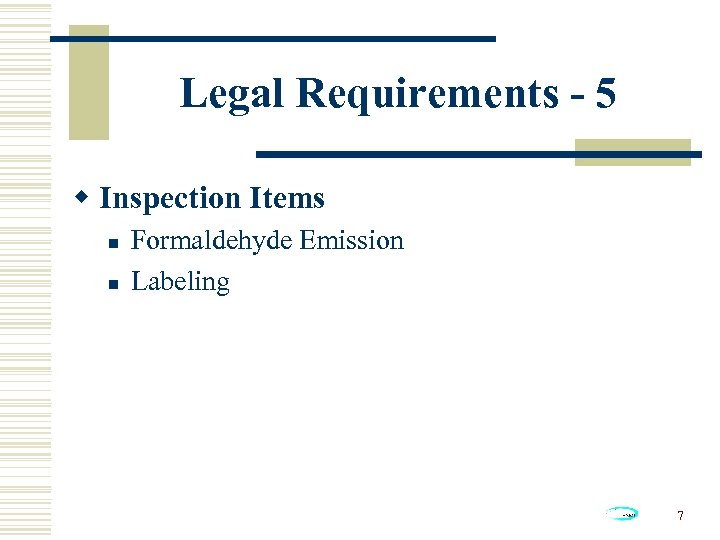

Legal Requirements - 5 w Inspection Items n n Formaldehyde Emission Labeling 7

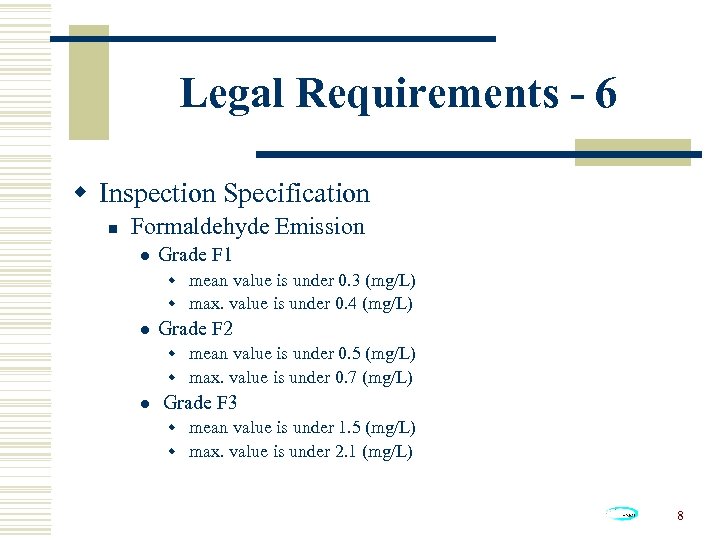

Legal Requirements - 6 w Inspection Specification n Formaldehyde Emission l Grade F 1 w mean value is under 0. 3 (mg/L) w max. value is under 0. 4 (mg/L) l Grade F 2 w mean value is under 0. 5 (mg/L) w max. value is under 0. 7 (mg/L) l Grade F 3 w mean value is under 1. 5 (mg/L) w max. value is under 2. 1 (mg/L) 8

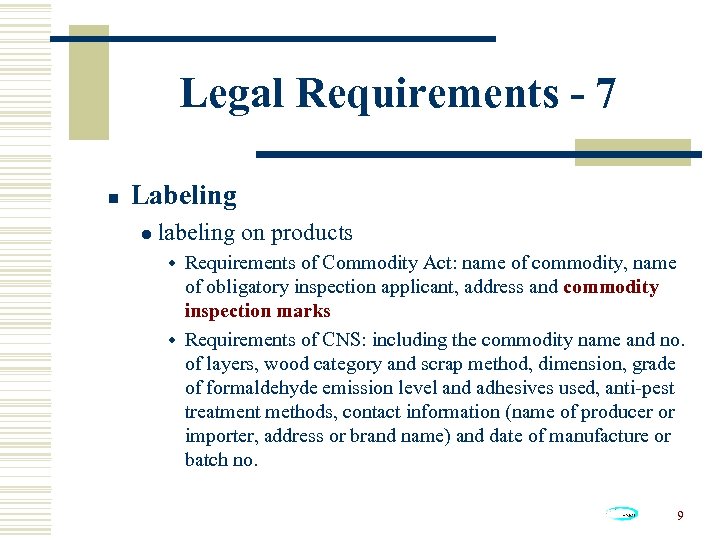

Legal Requirements - 7 n Labeling l labeling on products w Requirements of Commodity Act: name of commodity, name of obligatory inspection applicant, address and commodity inspection marks w Requirements of CNS: including the commodity name and no. of layers, wood category and scrap method, dimension, grade of formaldehyde emission level and adhesives used, anti-pest treatment methods, contact information (name of producer or importer, address or brand name) and date of manufacture or batch no. 9

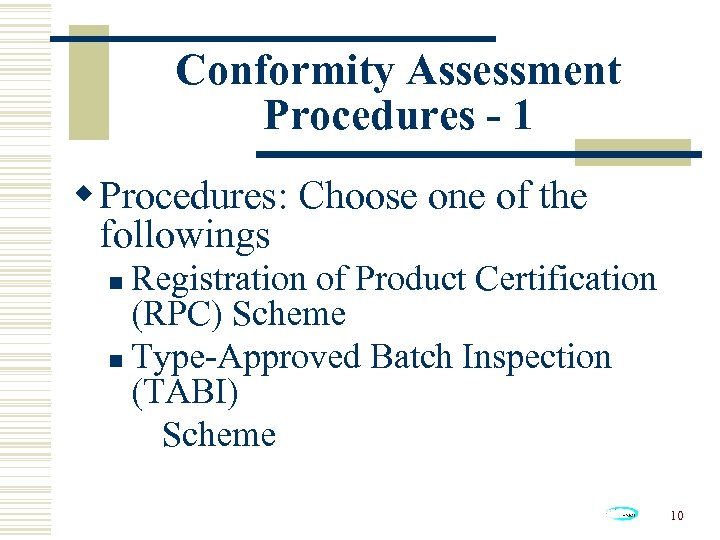

Conformity Assessment Procedures - 1 w Procedures: Choose one of the followings Registration of Product Certification (RPC) Scheme n Type-Approved Batch Inspection (TABI) Scheme n 10

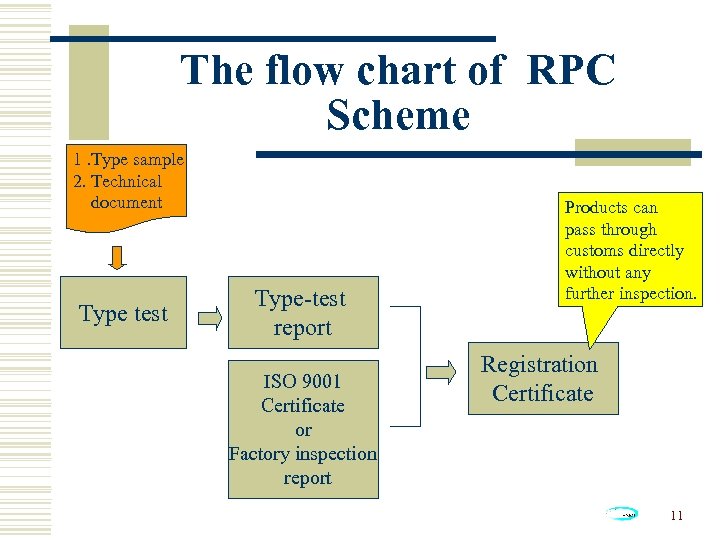

The flow chart of RPC Scheme 1. Type sample 2. Technical document Type test Type-test report ISO 9001 Certificate or Factory inspection report Products can pass through customs directly without any further inspection. Registration Certificate 11

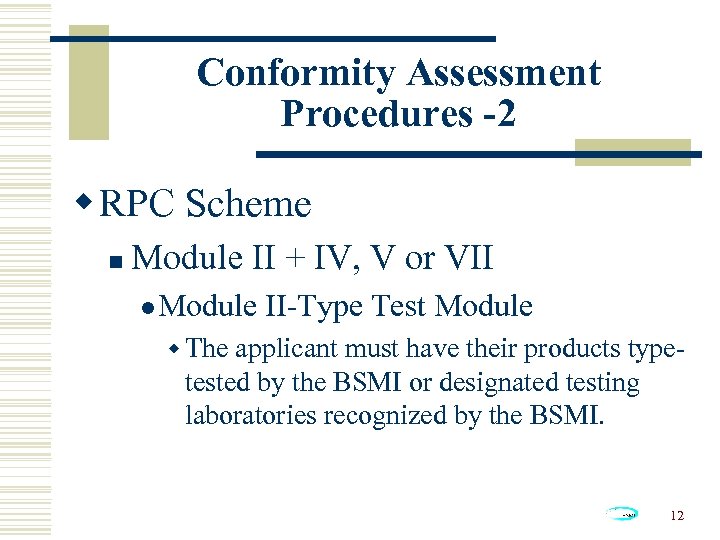

Conformity Assessment Procedures -2 w RPC Scheme n Module II + IV, V or VII l Module II-Type Test Module w The applicant must have their products type- tested by the BSMI or designated testing laboratories recognized by the BSMI. 12

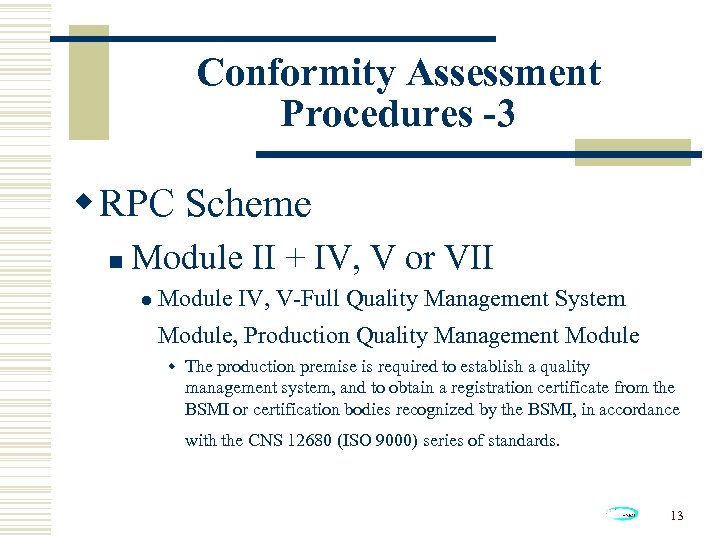

Conformity Assessment Procedures -3 w RPC Scheme n Module II + IV, V or VII l Module IV, V-Full Quality Management System Module, Production Quality Management Module w The production premise is required to establish a quality management system, and to obtain a registration certificate from the BSMI or certification bodies recognized by the BSMI, in accordance with the CNS 12680 (ISO 9000) series of standards. 13

Conformity Assessment Procedures - 4 w RPC Scheme n Module II + IV, V or VII l Module VII-Factory Inspection Module w The production premise is required to establish a quality management system that complies with the requirements stipulated by the BSMI, and to obtain a factory inspection report issued by the BSMI, or organizations recognized by the BSMI. 14

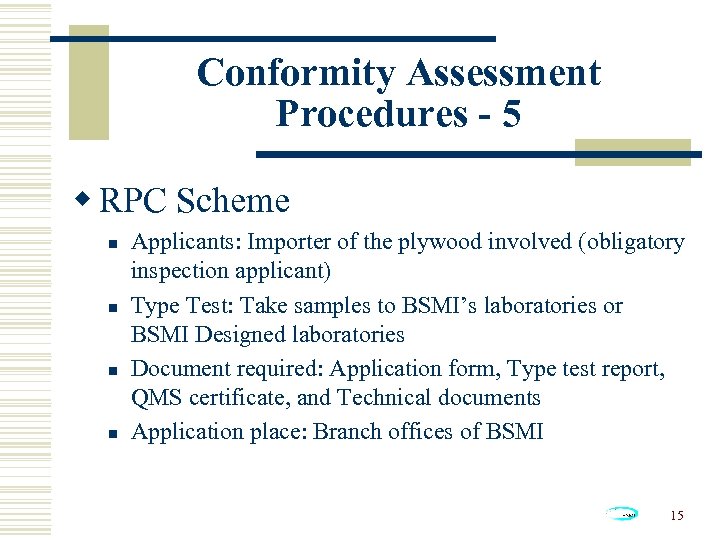

Conformity Assessment Procedures - 5 w RPC Scheme n n Applicants: Importer of the plywood involved (obligatory inspection applicant) Type Test: Take samples to BSMI’s laboratories or BSMI Designed laboratories Document required: Application form, Type test report, QMS certificate, and Technical documents Application place: Branch offices of BSMI 15

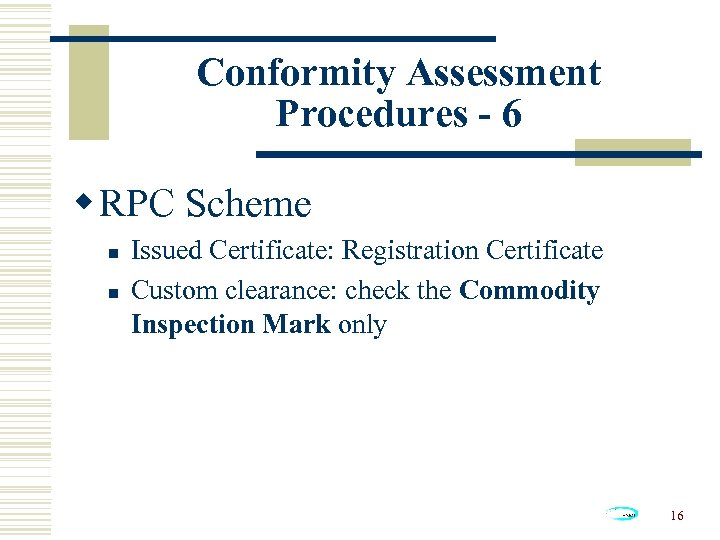

Conformity Assessment Procedures - 6 w RPC Scheme n n Issued Certificate: Registration Certificate Custom clearance: check the Commodity Inspection Mark only 16

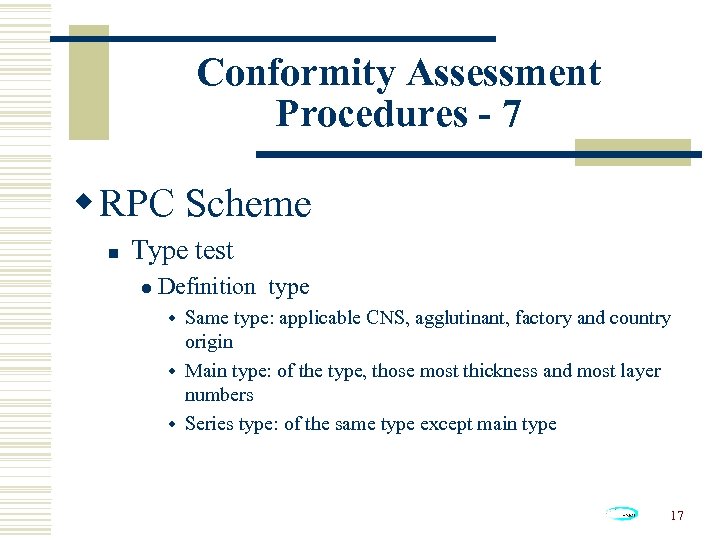

Conformity Assessment Procedures - 7 w RPC Scheme n Type test l Definition type w Same type: applicable CNS, agglutinant, factory and country origin w Main type: of the type, those most thickness and most layer numbers w Series type: of the same type except main type 17

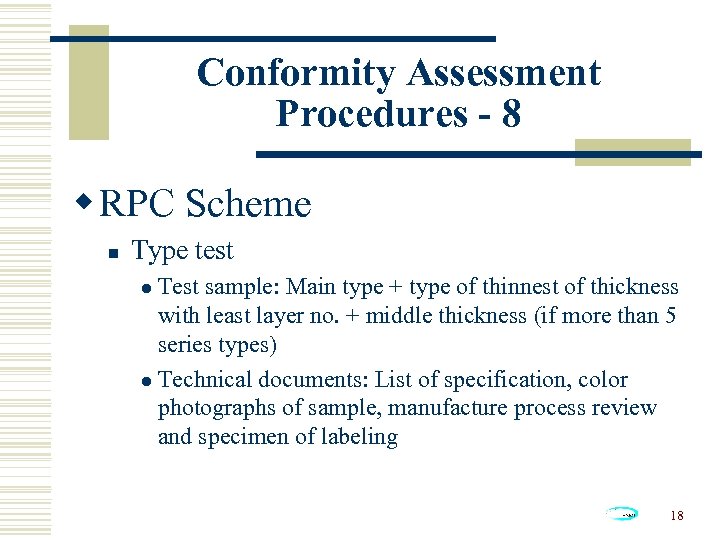

Conformity Assessment Procedures - 8 w RPC Scheme n Type test Test sample: Main type + type of thinnest of thickness with least layer no. + middle thickness (if more than 5 series types) l Technical documents: List of specification, color photographs of sample, manufacture process review and specimen of labeling l 18

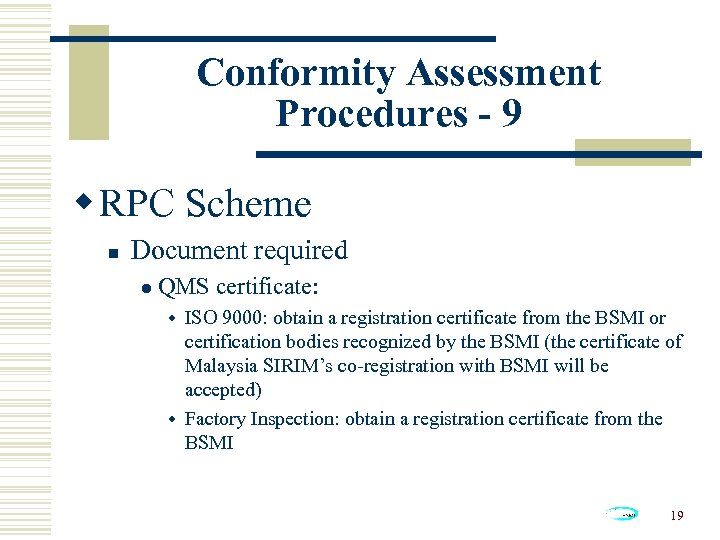

Conformity Assessment Procedures - 9 w RPC Scheme n Document required l QMS certificate: w ISO 9000: obtain a registration certificate from the BSMI or certification bodies recognized by the BSMI (the certificate of Malaysia SIRIM’s co-registration with BSMI will be accepted) w Factory Inspection: obtain a registration certificate from the BSMI 19

Conformity Assessment Procedures - 10 w RPC Scheme n Custom clearance: l Commodity Inspection Mark checked by custom w place the mark (Including R XXXXX, the R letter with designated code) printed by manufacture on the plywood’s body l Sample of RPC Commodity Inspection Mark R XXXXX 20

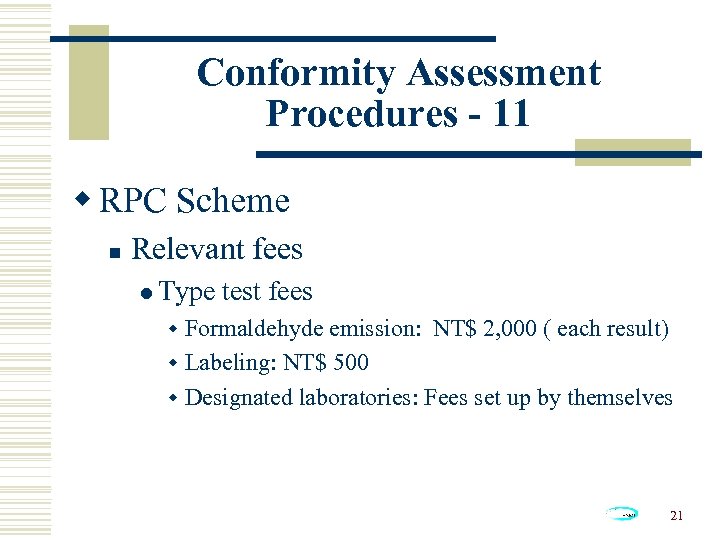

Conformity Assessment Procedures - 11 w RPC Scheme n Relevant fees l Type test fees w Formaldehyde emission: NT$ 2, 000 ( each result) w Labeling: NT$ 500 w Designated laboratories: Fees set up by themselves 21

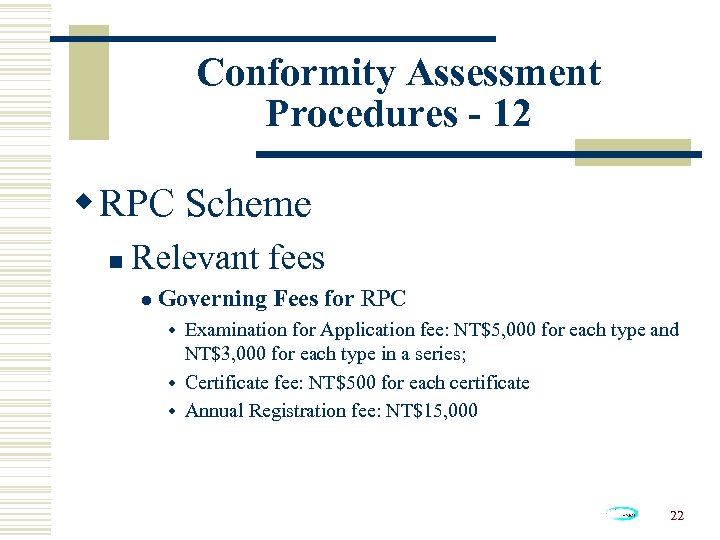

Conformity Assessment Procedures - 12 w RPC Scheme n Relevant fees l Governing Fees for RPC w Examination for Application fee: NT$5, 000 for each type and NT$3, 000 for each type in a series; w Certificate fee: NT$500 for each certificate w Annual Registration fee: NT$15, 000 22

The flow chart of TABI Scheme 1. type sample 2. technical document Type test each time before the products are to be released from the production premises or arrive at the port of entry. Type-test report Type approval certificate Type approval batch inspection Inspection certificate 23

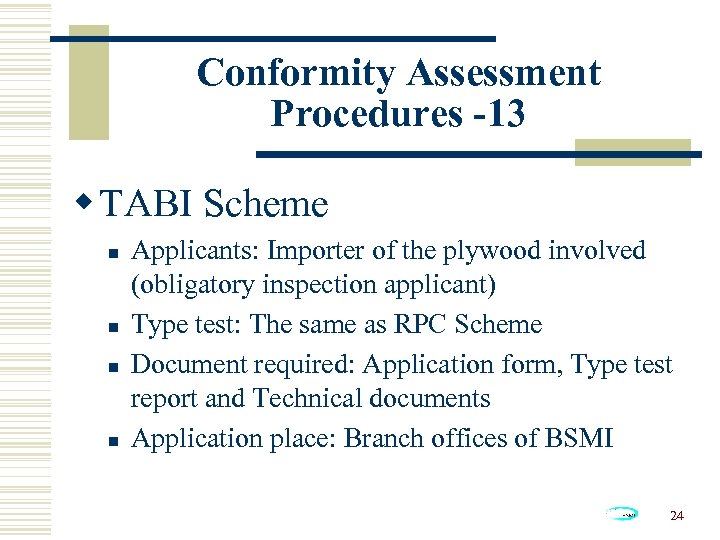

Conformity Assessment Procedures -13 w TABI Scheme n n Applicants: Importer of the plywood involved (obligatory inspection applicant) Type test: The same as RPC Scheme Document required: Application form, Type test report and Technical documents Application place: Branch offices of BSMI 24

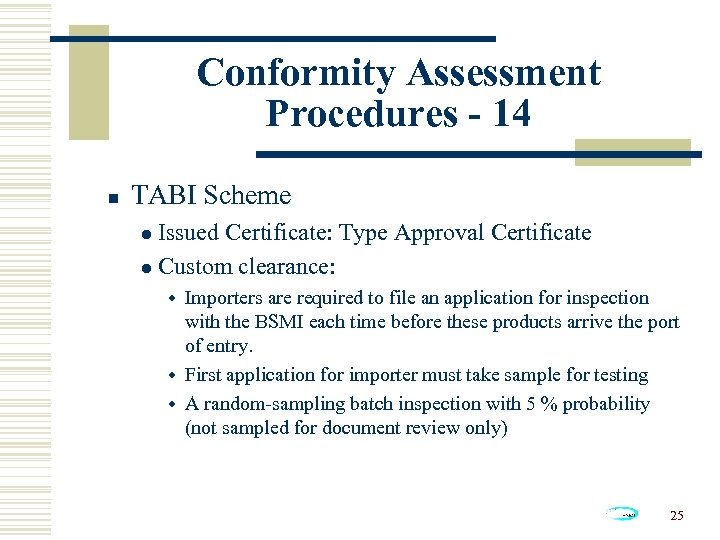

Conformity Assessment Procedures - 14 n TABI Scheme Issued Certificate: Type Approval Certificate l Custom clearance: l w Importers are required to file an application for inspection with the BSMI each time before these products arrive the port of entry. w First application for importer must take sample for testing w A random-sampling batch inspection with 5 % probability (not sampled for document review only) 25

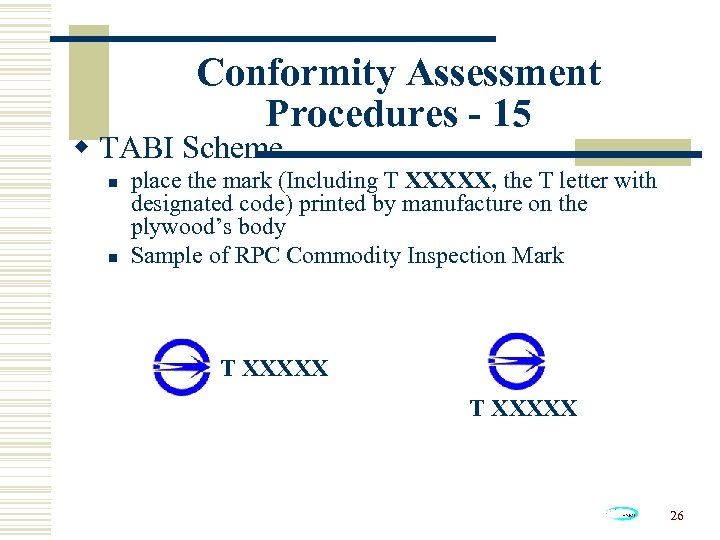

Conformity Assessment Procedures - 15 w TABI Scheme n n place the mark (Including T XXXXX, the T letter with designated code) printed by manufacture on the plywood’s body Sample of RPC Commodity Inspection Mark T XXXXX 26

Conformity Assessment Procedures - 16 w TABI Scheme n Relevant fees l Type l test fee (the same as RPC Scheme) Governing Fees for TABI w Examination for Application fee: NT$ 3, 500 for each main type and NT$ 2, 000 for each type in a series; w Certificate fee: NT$ 500 for each certificate l The fees for application of TABI inspection as entry in the port will be collected with rate of 0. 25% based on the CIF prices. 27

Market Surveillance w BSMI will setup annual market surveillance plan for plywood. The plywood samples will be taken from market for testing. w The test results fail to meet the requirements the certificates shall be abolished. 28

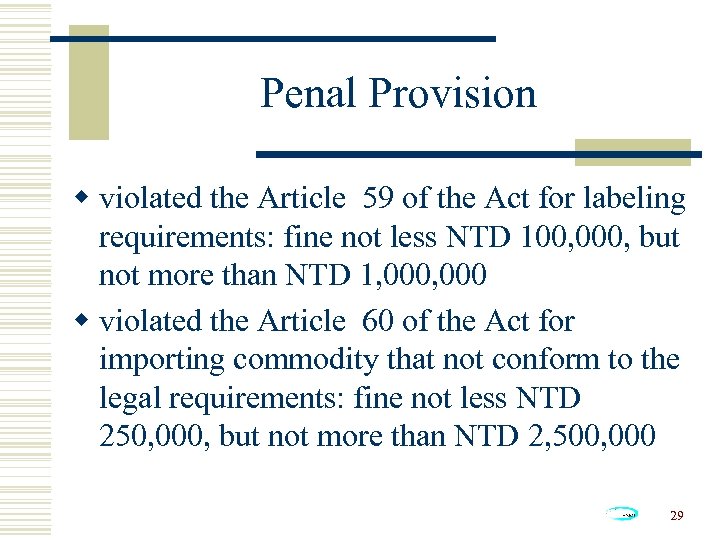

Penal Provision w violated the Article 59 of the Act for labeling requirements: fine not less NTD 100, 000, but not more than NTD 1, 000 w violated the Article 60 of the Act for importing commodity that not conform to the legal requirements: fine not less NTD 250, 000, but not more than NTD 2, 500, 000 29

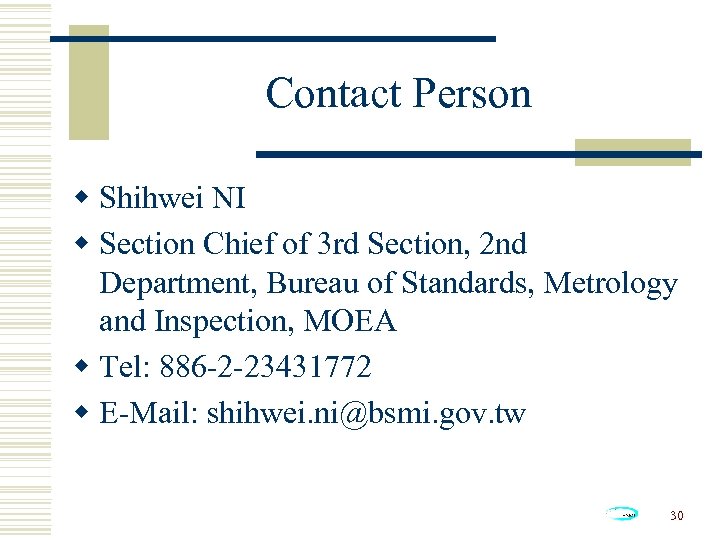

Contact Person w Shihwei NI w Section Chief of 3 rd Section, 2 nd Department, Bureau of Standards, Metrology and Inspection, MOEA w Tel: 886 -2 -23431772 w E-Mail: shihwei. ni@bsmi. gov. tw 30

Thank You for Your Attention！ 31
