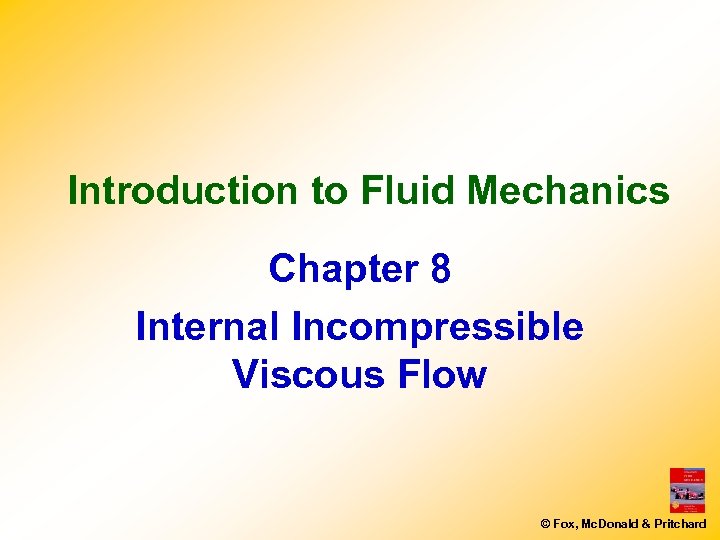

Introduction to Fluid Mechanics Chapter 8 Internal Incompressible Viscous Flow © Fox, Mc. Donald & Pritchard

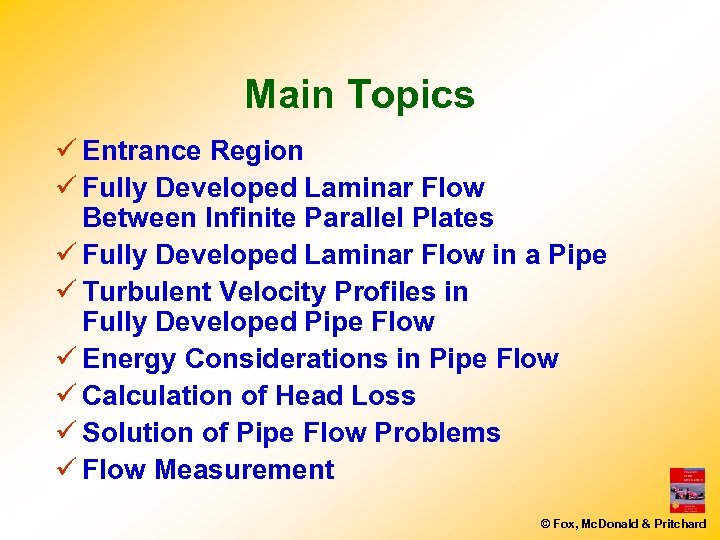

Main Topics ü Entrance Region ü Fully Developed Laminar Flow Between Infinite Parallel Plates ü Fully Developed Laminar Flow in a Pipe ü Turbulent Velocity Profiles in Fully Developed Pipe Flow ü Energy Considerations in Pipe Flow ü Calculation of Head Loss ü Solution of Pipe Flow Problems ü Flow Measurement © Fox, Mc. Donald & Pritchard

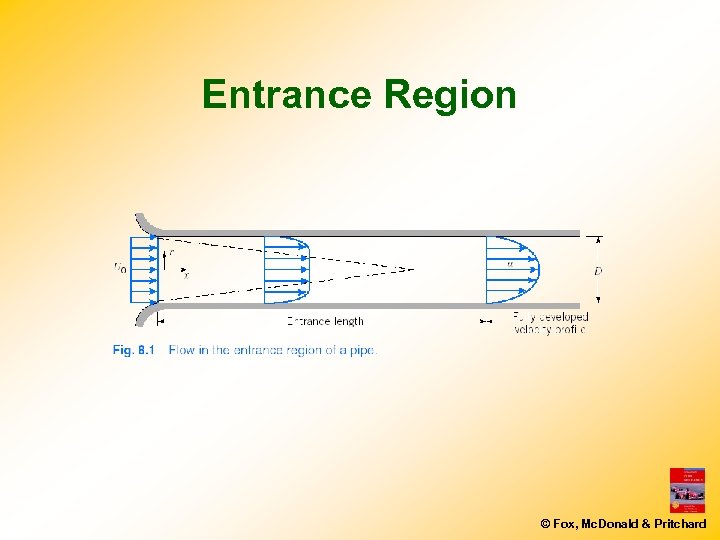

Entrance Region © Fox, Mc. Donald & Pritchard

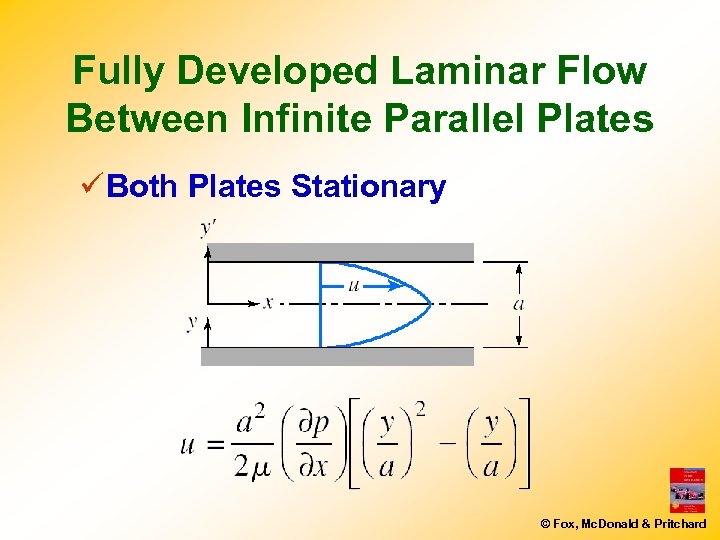

Fully Developed Laminar Flow Between Infinite Parallel Plates ü Both Plates Stationary © Fox, Mc. Donald & Pritchard

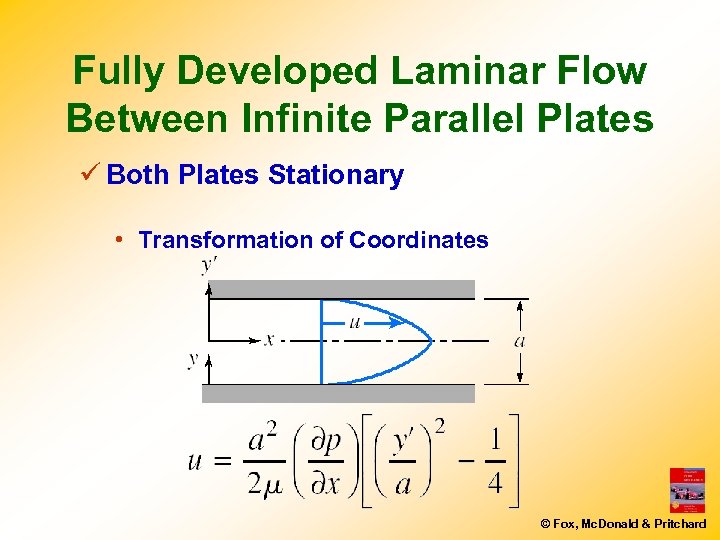

Fully Developed Laminar Flow Between Infinite Parallel Plates ü Both Plates Stationary • Transformation of Coordinates © Fox, Mc. Donald & Pritchard

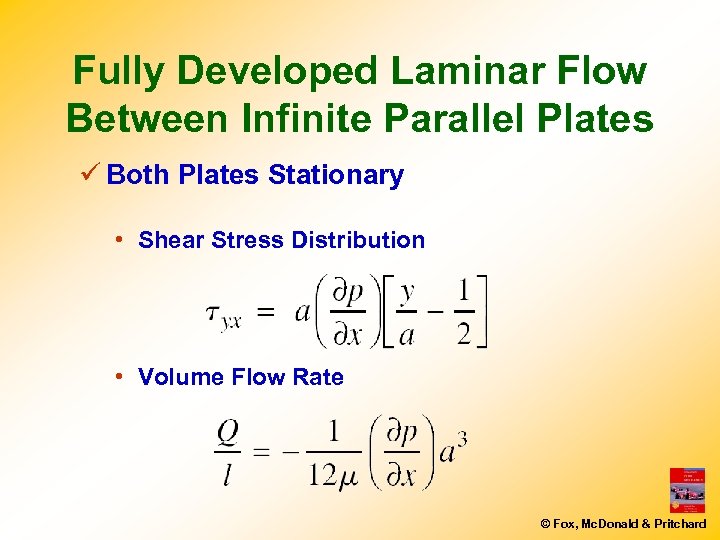

Fully Developed Laminar Flow Between Infinite Parallel Plates ü Both Plates Stationary • Shear Stress Distribution • Volume Flow Rate © Fox, Mc. Donald & Pritchard

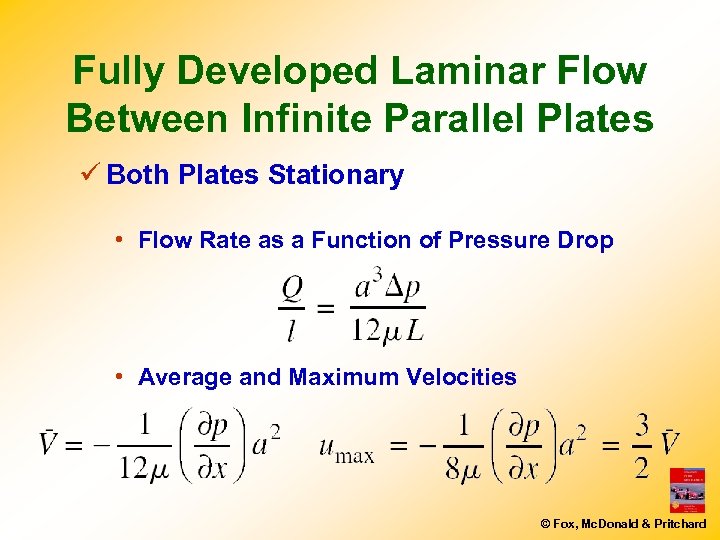

Fully Developed Laminar Flow Between Infinite Parallel Plates ü Both Plates Stationary • Flow Rate as a Function of Pressure Drop • Average and Maximum Velocities © Fox, Mc. Donald & Pritchard

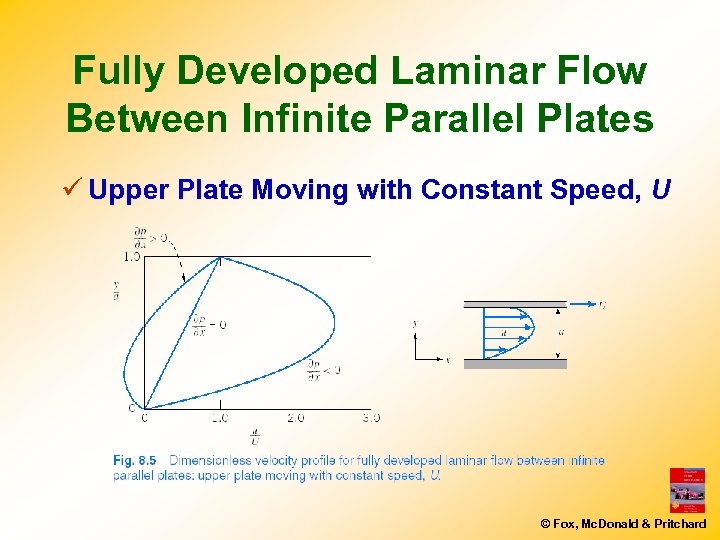

Fully Developed Laminar Flow Between Infinite Parallel Plates ü Upper Plate Moving with Constant Speed, U © Fox, Mc. Donald & Pritchard

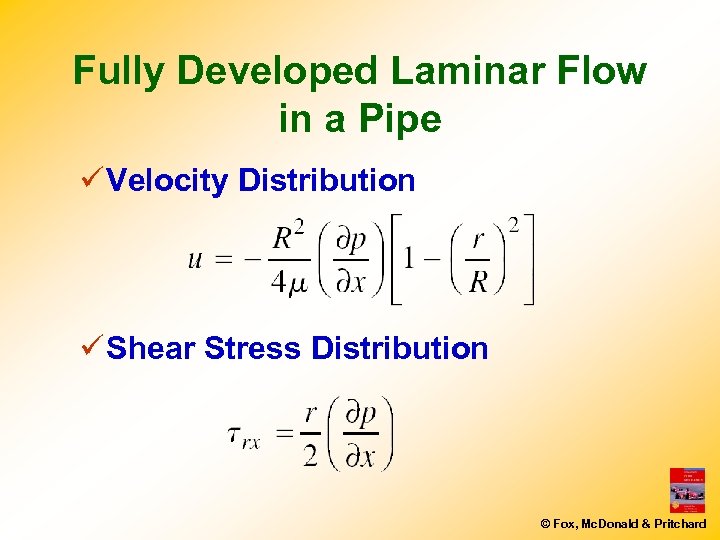

Fully Developed Laminar Flow in a Pipe ü Velocity Distribution ü Shear Stress Distribution © Fox, Mc. Donald & Pritchard

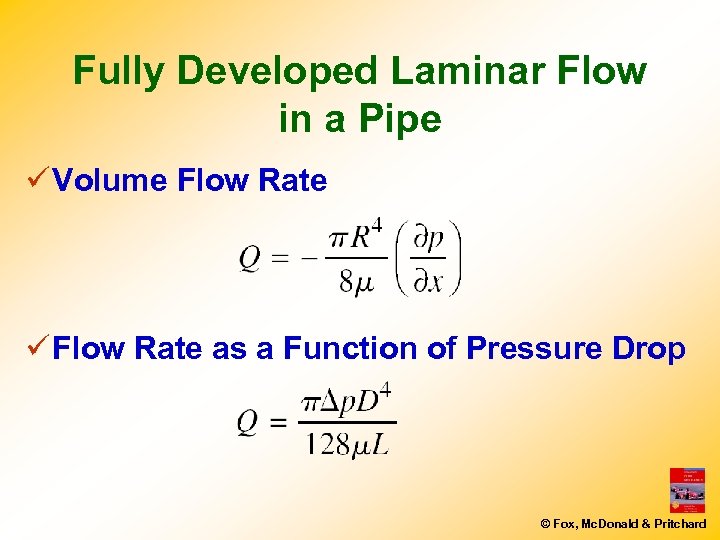

Fully Developed Laminar Flow in a Pipe ü Volume Flow Rate ü Flow Rate as a Function of Pressure Drop © Fox, Mc. Donald & Pritchard

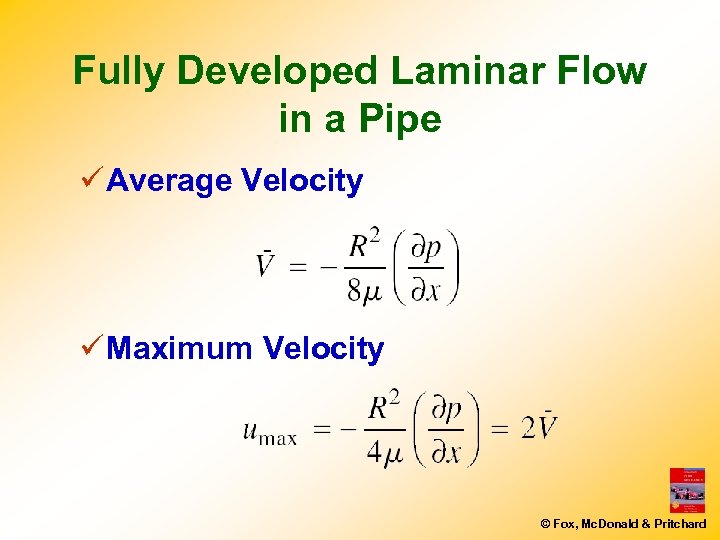

Fully Developed Laminar Flow in a Pipe ü Average Velocity ü Maximum Velocity © Fox, Mc. Donald & Pritchard

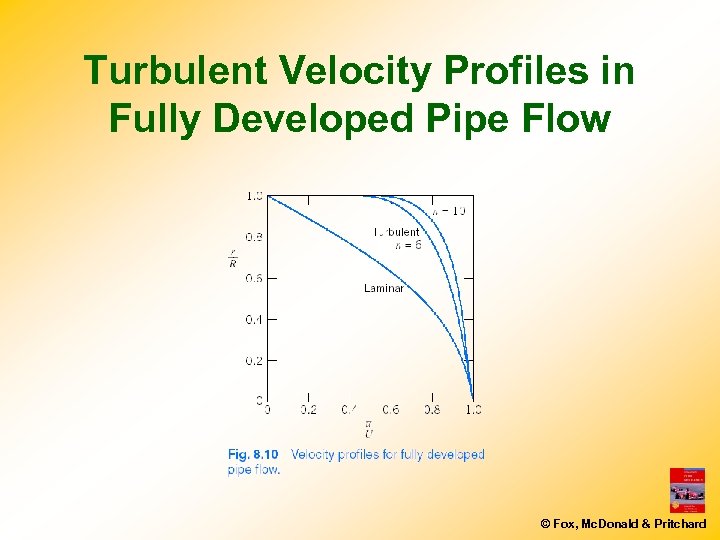

Turbulent Velocity Profiles in Fully Developed Pipe Flow © Fox, Mc. Donald & Pritchard

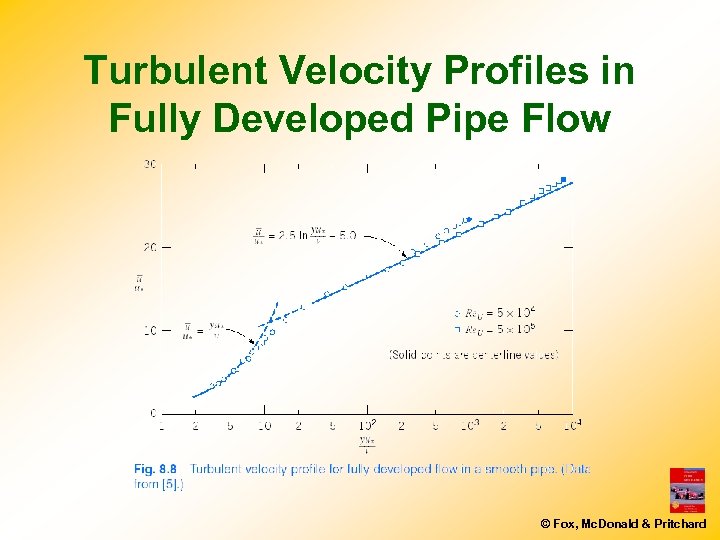

Turbulent Velocity Profiles in Fully Developed Pipe Flow © Fox, Mc. Donald & Pritchard

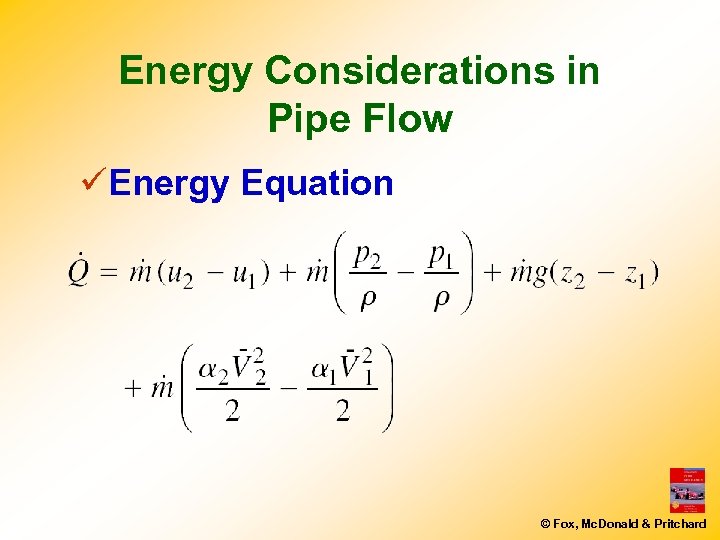

Energy Considerations in Pipe Flow üEnergy Equation © Fox, Mc. Donald & Pritchard

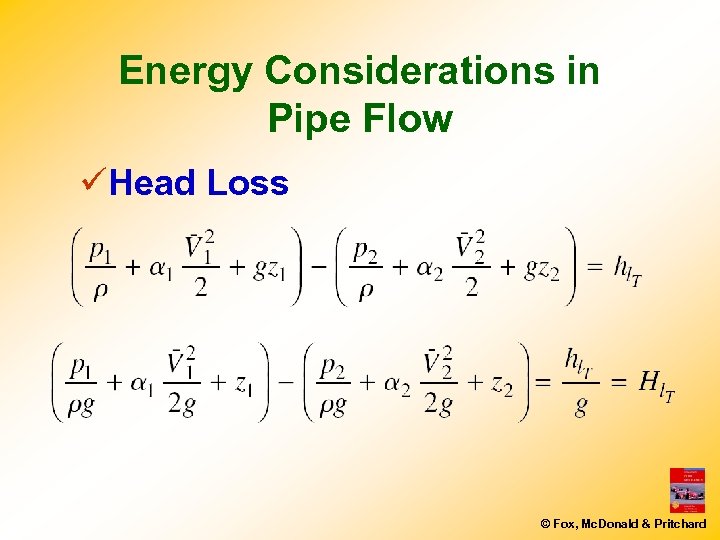

Energy Considerations in Pipe Flow üHead Loss © Fox, Mc. Donald & Pritchard

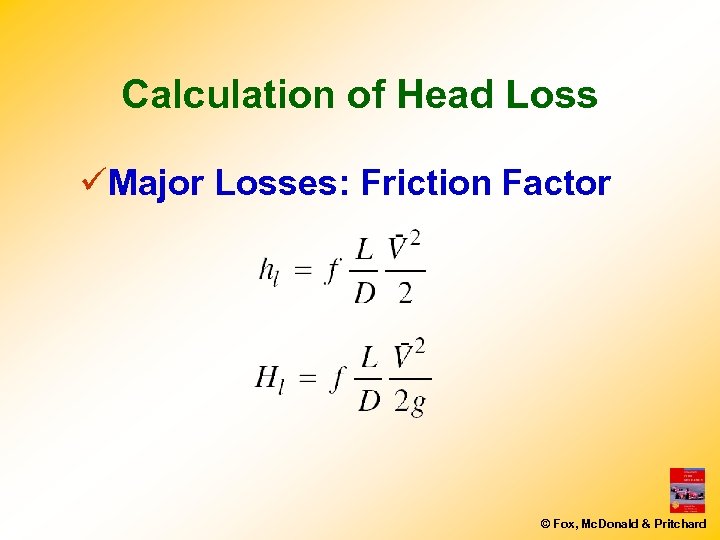

Calculation of Head Loss üMajor Losses: Friction Factor © Fox, Mc. Donald & Pritchard

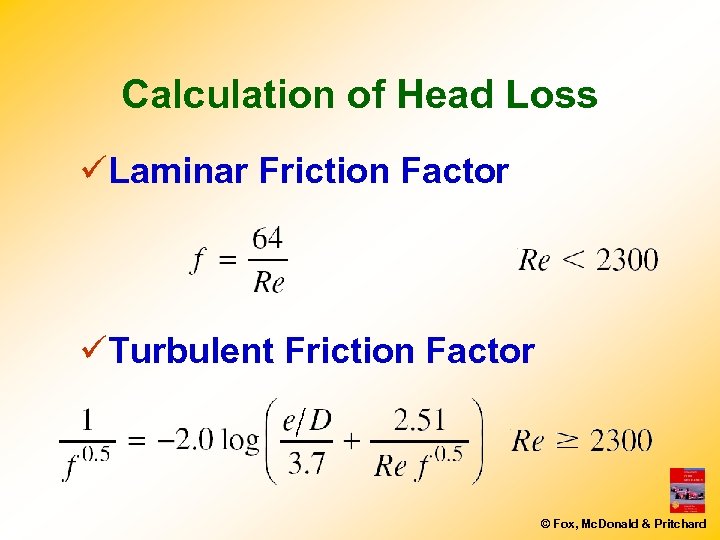

Calculation of Head Loss üLaminar Friction Factor üTurbulent Friction Factor © Fox, Mc. Donald & Pritchard

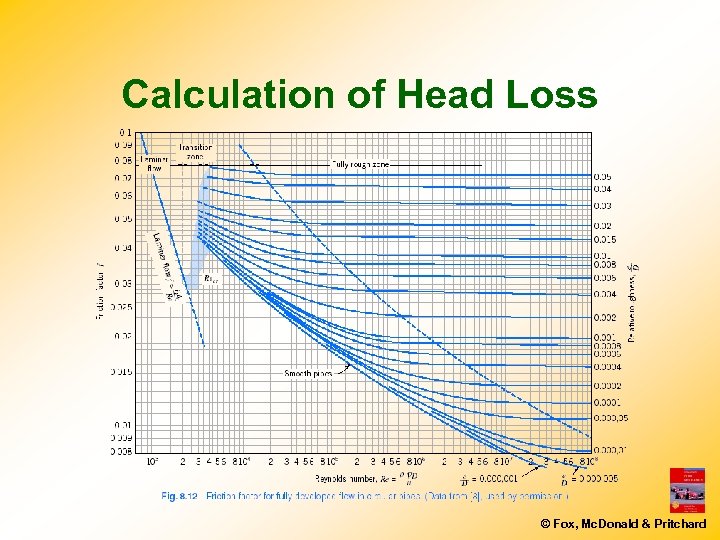

Calculation of Head Loss © Fox, Mc. Donald & Pritchard

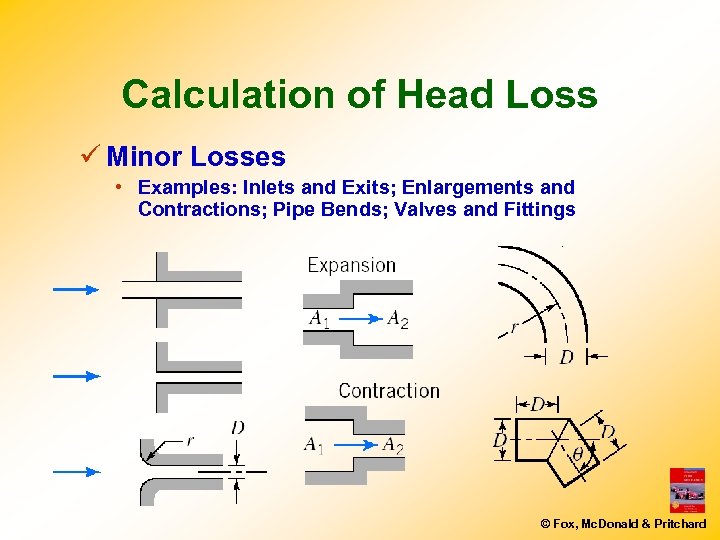

Calculation of Head Loss ü Minor Losses • Examples: Inlets and Exits; Enlargements and Contractions; Pipe Bends; Valves and Fittings © Fox, Mc. Donald & Pritchard

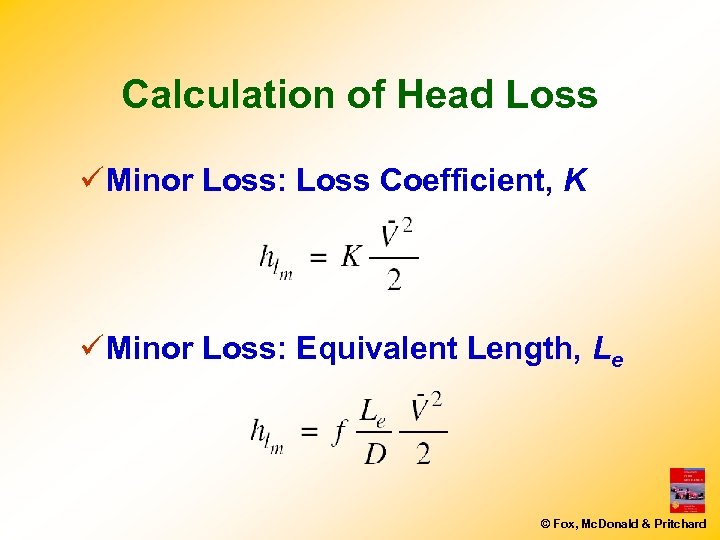

Calculation of Head Loss ü Minor Loss: Loss Coefficient, K ü Minor Loss: Equivalent Length, Le © Fox, Mc. Donald & Pritchard

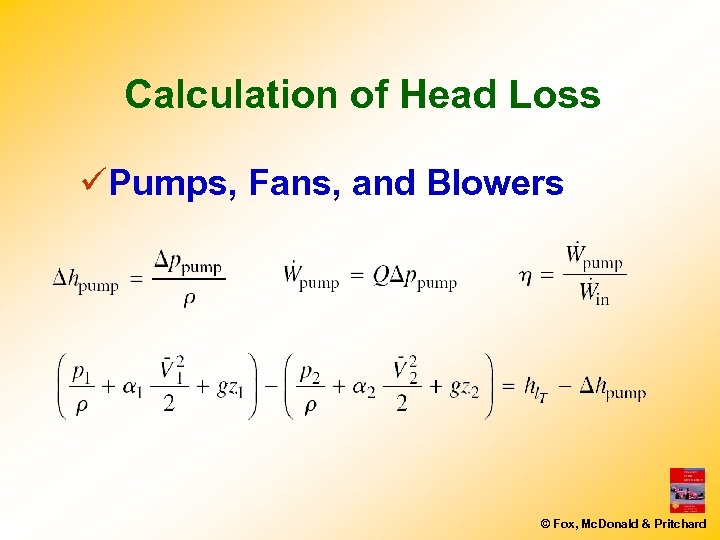

Calculation of Head Loss üPumps, Fans, and Blowers © Fox, Mc. Donald & Pritchard

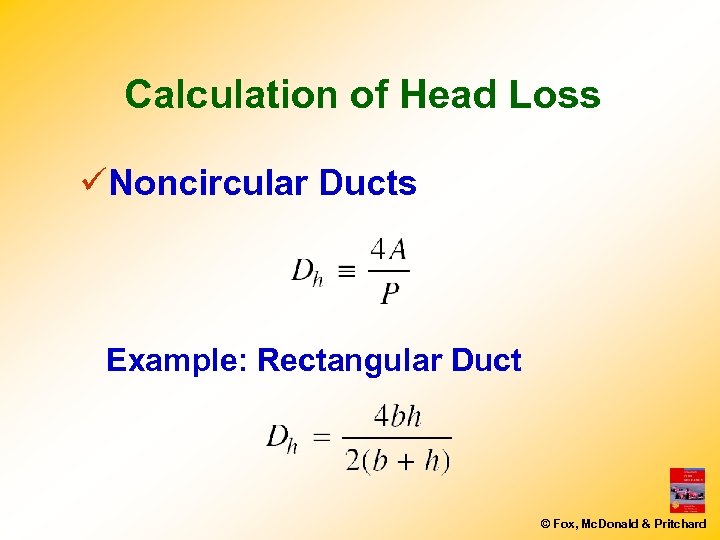

Calculation of Head Loss üNoncircular Ducts Example: Rectangular Duct © Fox, Mc. Donald & Pritchard

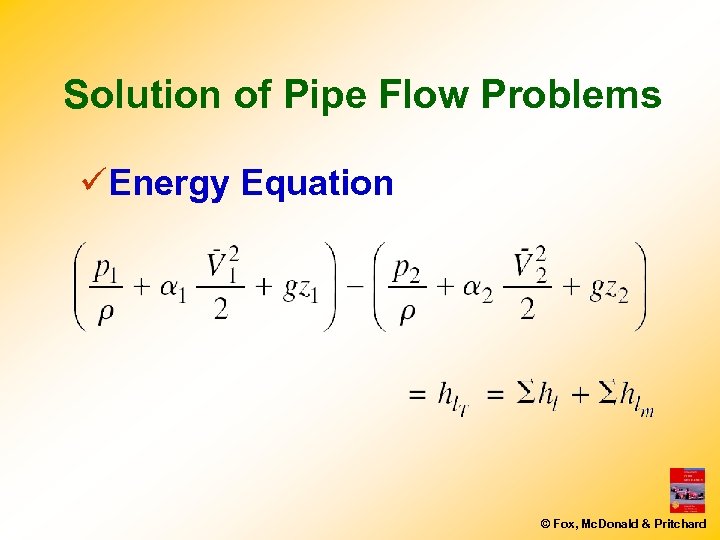

Solution of Pipe Flow Problems üEnergy Equation © Fox, Mc. Donald & Pritchard

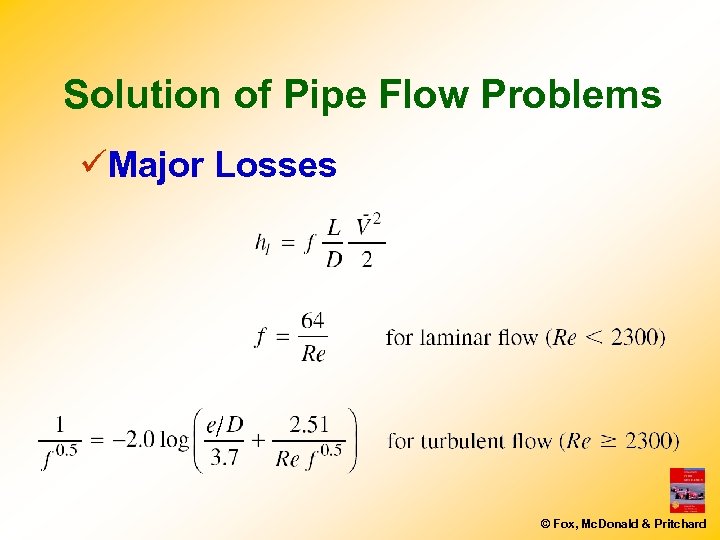

Solution of Pipe Flow Problems üMajor Losses © Fox, Mc. Donald & Pritchard

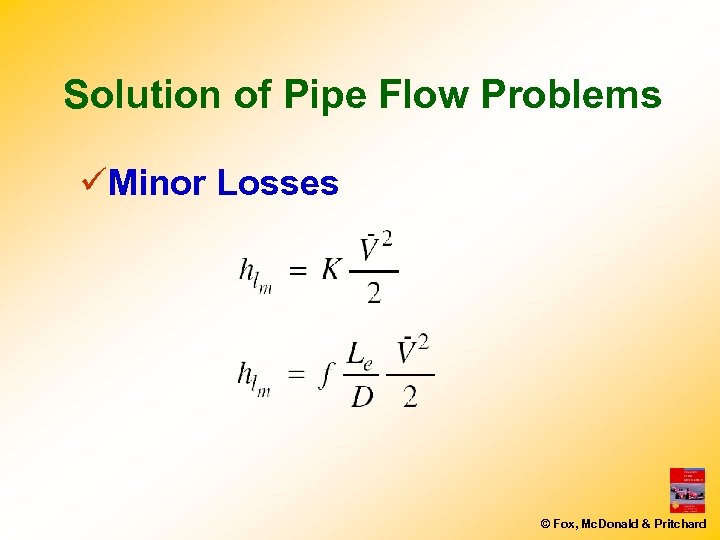

Solution of Pipe Flow Problems üMinor Losses © Fox, Mc. Donald & Pritchard

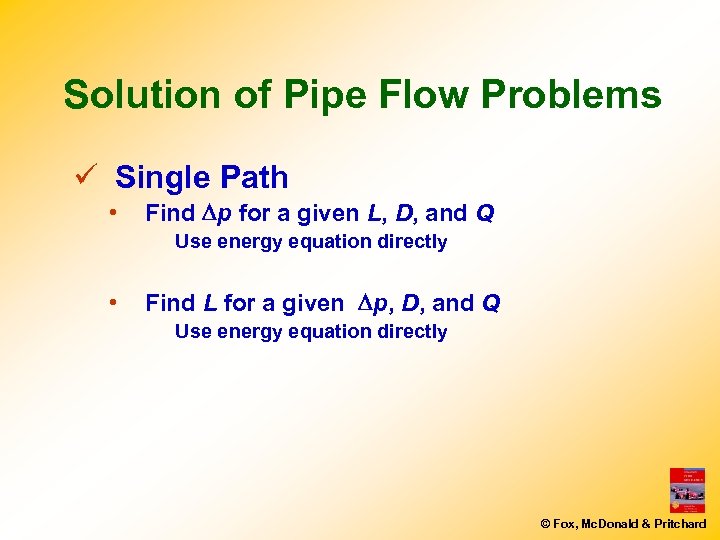

Solution of Pipe Flow Problems ü Single Path • Find Dp for a given L, D, and Q Use energy equation directly • Find L for a given Dp, D, and Q Use energy equation directly © Fox, Mc. Donald & Pritchard
Solution of Pipe Flow Problems ü Single Path (Continued) • Find Q for a given Dp, L, and D 1. Manually iterate energy equation and friction factor formula to find V (or Q), or 2. Directly solve, simultaneously, energy equation and friction factor formula using (for example) Excel • Find D for a given Dp, L, and Q 1. Manually iterate energy equation and friction factor formula to find D, or 2. Directly solve, simultaneously, energy equation and friction factor formula using (for example) Excel © Fox, Mc. Donald & Pritchard

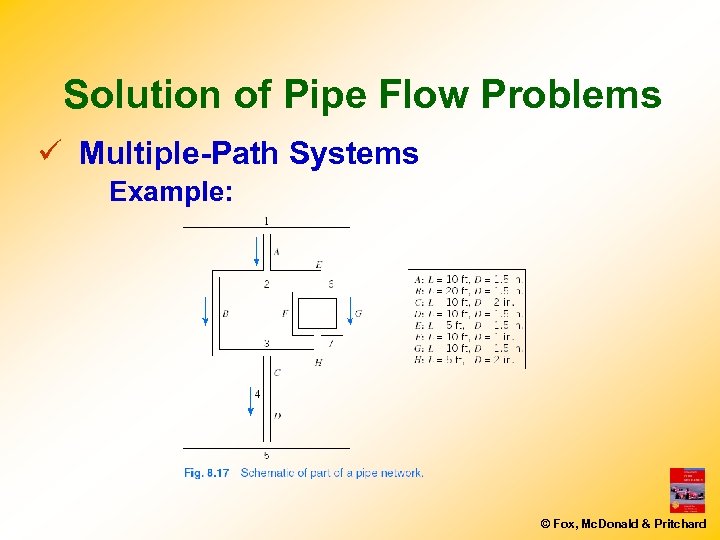

Solution of Pipe Flow Problems ü Multiple-Path Systems Example: © Fox, Mc. Donald & Pritchard

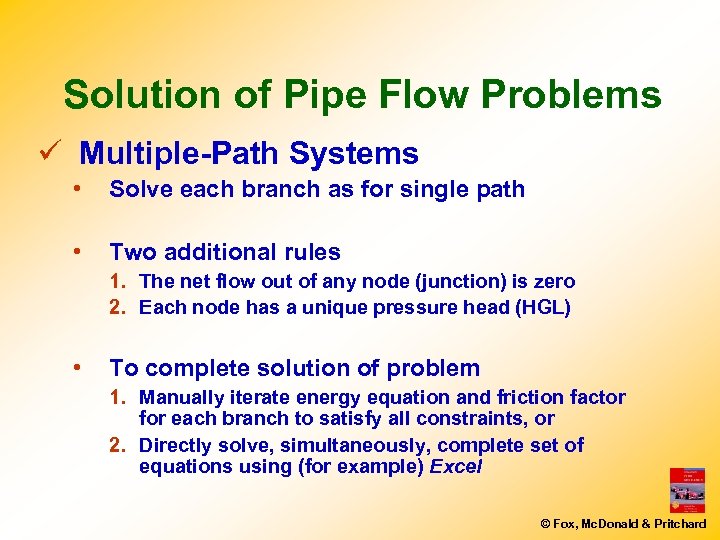

Solution of Pipe Flow Problems ü Multiple-Path Systems • Solve each branch as for single path • Two additional rules 1. The net flow out of any node (junction) is zero 2. Each node has a unique pressure head (HGL) • To complete solution of problem 1. Manually iterate energy equation and friction factor for each branch to satisfy all constraints, or 2. Directly solve, simultaneously, complete set of equations using (for example) Excel © Fox, Mc. Donald & Pritchard

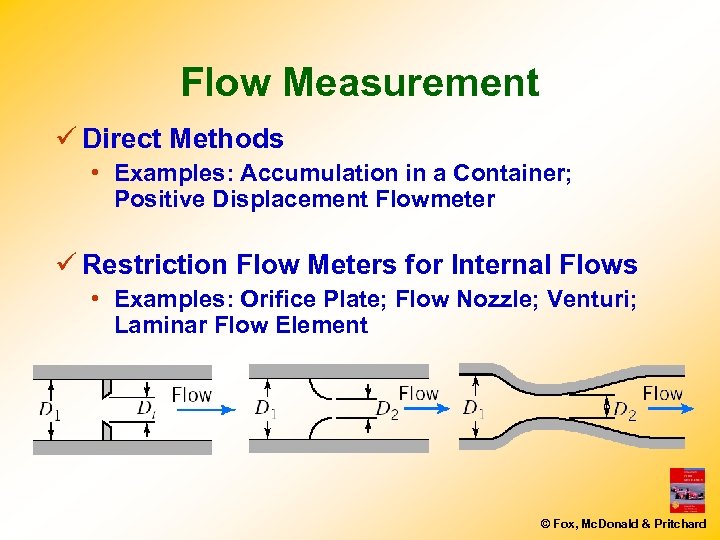

Flow Measurement ü Direct Methods • Examples: Accumulation in a Container; Positive Displacement Flowmeter ü Restriction Flow Meters for Internal Flows • Examples: Orifice Plate; Flow Nozzle; Venturi; Laminar Flow Element © Fox, Mc. Donald & Pritchard

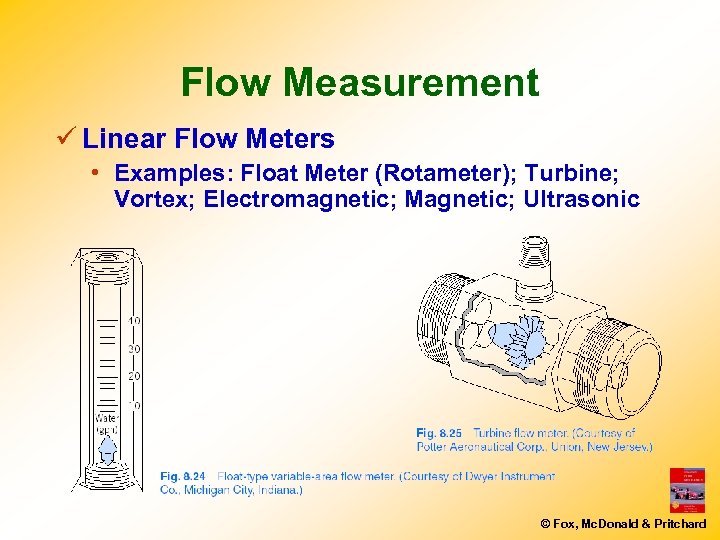

Flow Measurement ü Linear Flow Meters • Examples: Float Meter (Rotameter); Turbine; Vortex; Electromagnetic; Magnetic; Ultrasonic © Fox, Mc. Donald & Pritchard

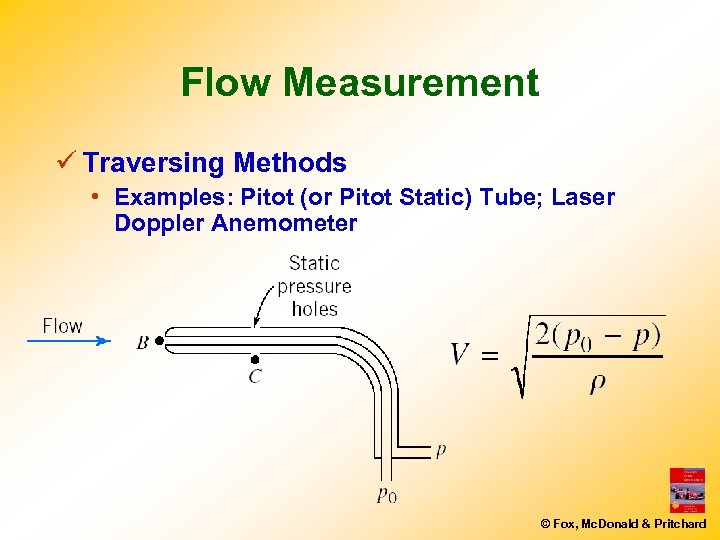

Flow Measurement ü Traversing Methods • Examples: Pitot (or Pitot Static) Tube; Laser Doppler Anemometer © Fox, Mc. Donald & Pritchard
