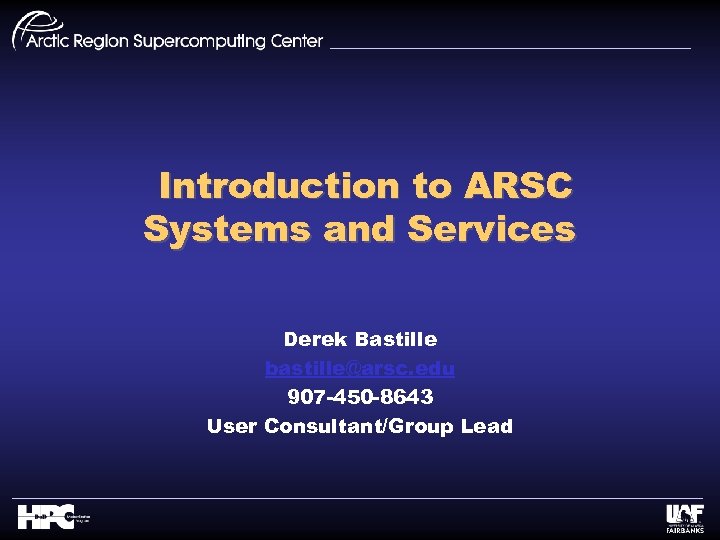

Introduction to ARSC Systems and Services Derek Bastille bastille@arsc. edu 907 -450 -8643 User Introduction to ARSC Systems and Services Derek Bastille [email protected] edu 907 -450 -8643 User Consultant/Group Lead

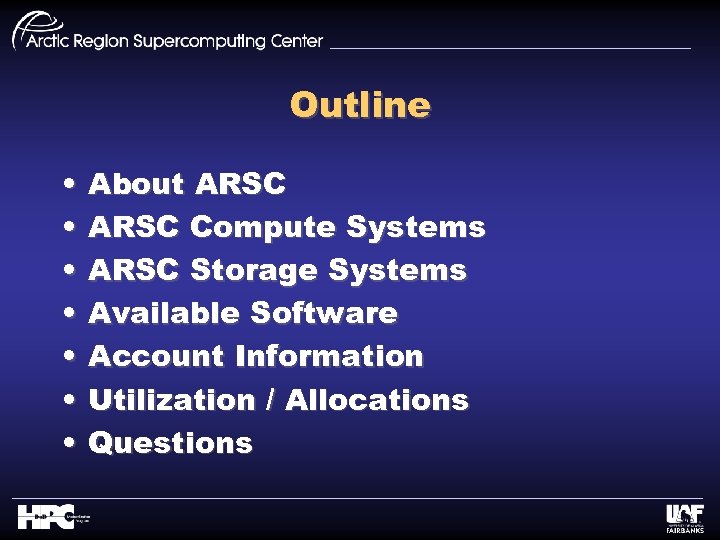

Outline • • About ARSC Compute Systems ARSC Storage Systems Available Software Account Information Outline • • About ARSC Compute Systems ARSC Storage Systems Available Software Account Information Utilization / Allocations Questions

About ARSC • We are not a government site. – Owned and operated by About ARSC • We are not a government site. – Owned and operated by the University of Alaska Fairbanks. – Focus on Arctic and other Polar regions • Involved in the International Polar Year – Host a mix of HPCMP and non-Do. D users – On-site staff and faculty perform original research in fields like Oceanography, Space Weather Physics, Vulcanology and Large Text Retrieval

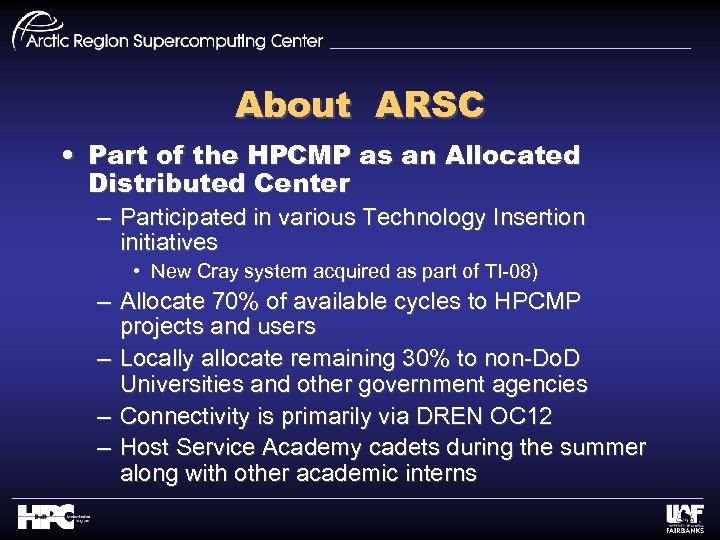

About ARSC • Part of the HPCMP as an Allocated Distributed Center – Participated About ARSC • Part of the HPCMP as an Allocated Distributed Center – Participated in various Technology Insertion initiatives • New Cray system acquired as part of TI-08) – Allocate 70% of available cycles to HPCMP projects and users – Locally allocate remaining 30% to non-Do. D Universities and other government agencies – Connectivity is primarily via DREN OC 12 – Host Service Academy cadets during the summer along with other academic interns

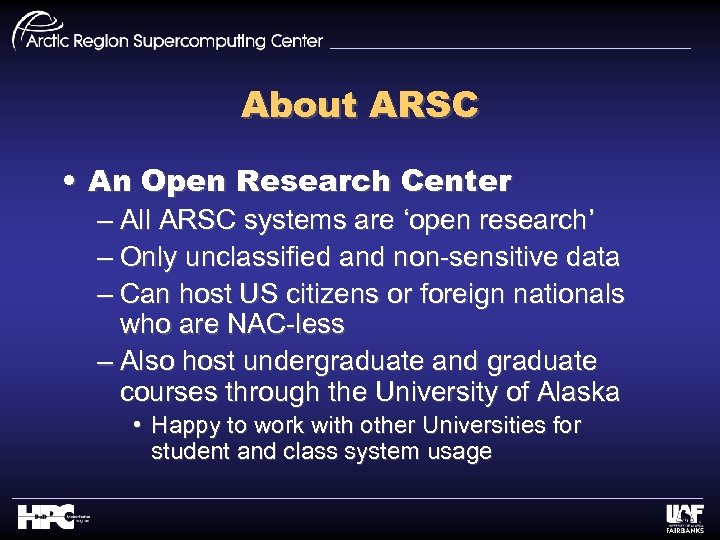

About ARSC • An Open Research Center – All ARSC systems are ‘open research’ About ARSC • An Open Research Center – All ARSC systems are ‘open research’ – Only unclassified and non-sensitive data – Can host US citizens or foreign nationals who are NAC-less – Also host undergraduate and graduate courses through the University of Alaska • Happy to work with other Universities for student and class system usage

About ARSC • Wide variety of Projects – Computational Technology Areas About ARSC • Wide variety of Projects – Computational Technology Areas

About ARSC # of Projects # of Jobs CPU Hrs About ARSC # of Projects # of Jobs CPU Hrs

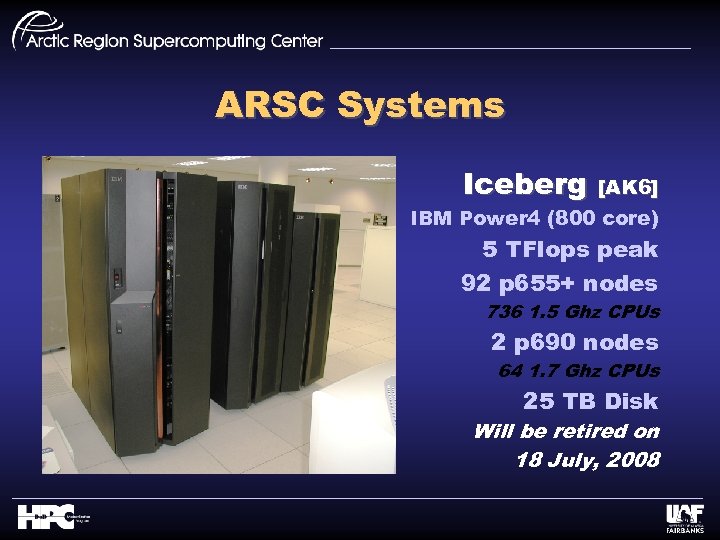

ARSC Systems Iceberg [AK 6] IBM Power 4 (800 core) 5 TFlops peak 92 ARSC Systems Iceberg [AK 6] IBM Power 4 (800 core) 5 TFlops peak 92 p 655+ nodes 736 1. 5 Ghz CPUs 2 p 690 nodes 64 1. 7 Ghz CPUs 25 TB Disk Will be retired on 18 July, 2008

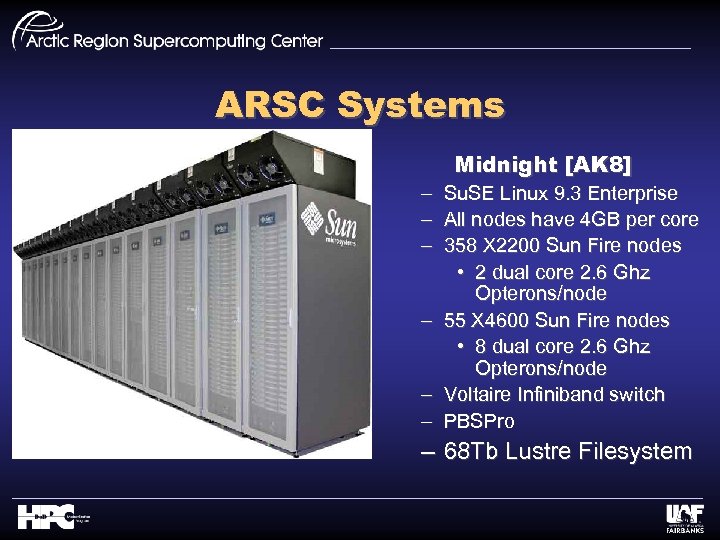

ARSC Systems Midnight [AK 8] – – – Su. SE Linux 9. 3 Enterprise ARSC Systems Midnight [AK 8] – – – Su. SE Linux 9. 3 Enterprise All nodes have 4 GB per core 358 X 2200 Sun Fire nodes • 2 dual core 2. 6 Ghz Opterons/node 55 X 4600 Sun Fire nodes • 8 dual core 2. 6 Ghz Opterons/node Voltaire Infiniband switch PBSPro – 68 Tb Lustre Filesystem

ARSC Systems Pingo – Cray XT 5 – 3, 456 2. 6 Ghz Opteron ARSC Systems Pingo – Cray XT 5 – 3, 456 2. 6 Ghz Opteron Cores • 4 Gb per core • 13. 5 TB total memory – – – 432 Nodes 31. 8 TFlops peak Sea. Star interconnect 150 TB storage Working towards FY 2009 availability (October 2008)

ARSC Systems - Storage Seawolf / Nanook – Sun. Fire 6800 – 8 900 ARSC Systems - Storage Seawolf / Nanook – Sun. Fire 6800 – 8 900 Mhz CPUs • 16 GB total memory – – 20 TB local (seawolf) 10 TB local (nanook) Fibre Channel to STK silo $ARCHIVE NFS mounted Storage Tek Silo – – – SL 8500 > 3 PB theoretical capacity STK T 10000 & T 9940 drives

ARSC Systems - Data Analysis – – – Discovery Lab MD Flying Flex Multichannel ARSC Systems - Data Analysis – – – Discovery Lab MD Flying Flex Multichannel audio and video Located on UAF campus Other Linux / OSX workstations available for post-production, data analysis, animation and rendering Access Grid Nodes Collaborations with many UAF departments

ARSC Systems - Software • All the usual suspects – Matlab, ABAQUS, NCAR, Fluent, ARSC Systems - Software • All the usual suspects – Matlab, ABAQUS, NCAR, Fluent, etc – GNU tools, various libraries, etc. – Several HPCMP Consolidated Software Initiative packages and tools • Several compilers on Midnight – Pathscale, GNU, Sun Studio www. arsc. edu/support/resources/software. phtml

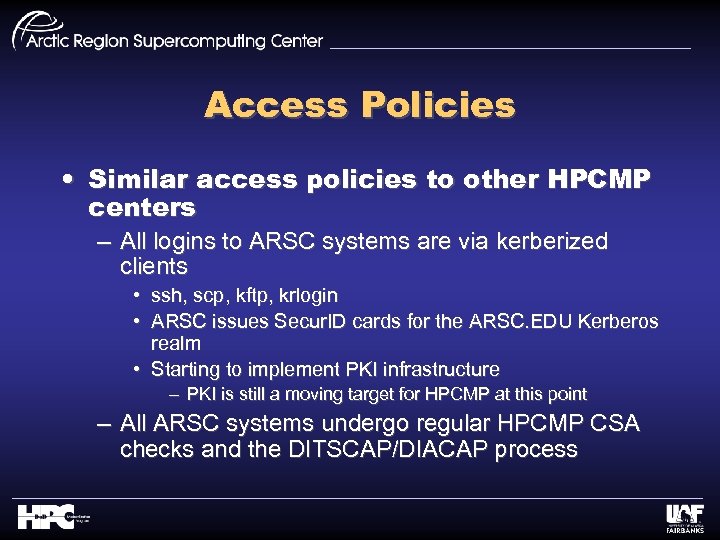

Access Policies • Similar access policies to other HPCMP centers – All logins to Access Policies • Similar access policies to other HPCMP centers – All logins to ARSC systems are via kerberized clients • ssh, scp, kftp, krlogin • ARSC issues Secur. ID cards for the ARSC. EDU Kerberos realm • Starting to implement PKI infrastructure – PKI is still a moving target for HPCMP at this point – All ARSC systems undergo regular HPCMP CSA checks and the DITSCAP/DIACAP process

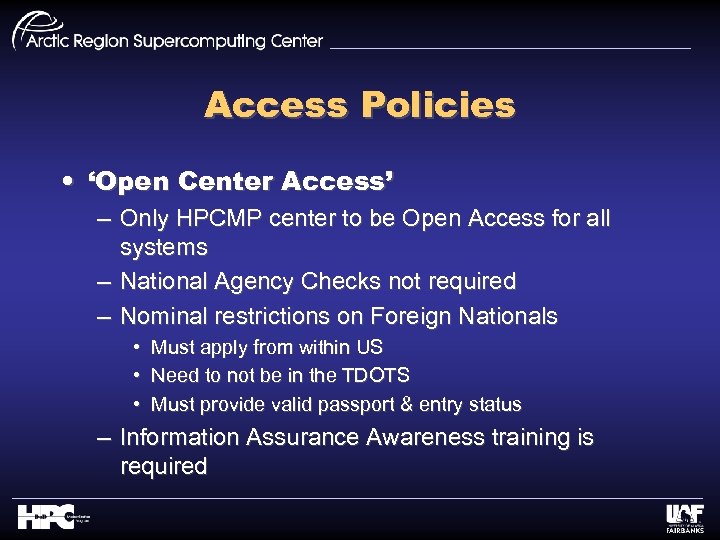

Access Policies • ‘Open Center Access’ – Only HPCMP center to be Open Access Access Policies • ‘Open Center Access’ – Only HPCMP center to be Open Access for all systems – National Agency Checks not required – Nominal restrictions on Foreign Nationals • Must apply from within US • Need to not be in the TDOTS • Must provide valid passport & entry status – Information Assurance Awareness training is required

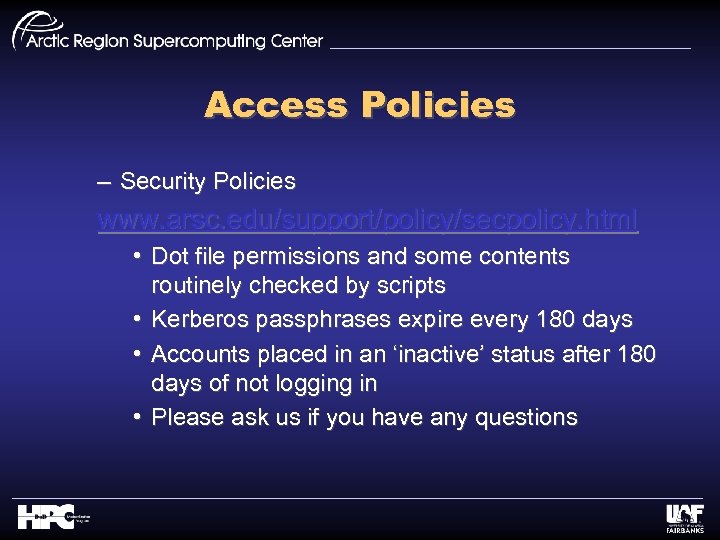

Access Policies – Security Policies www. arsc. edu/support/policy/secpolicy. html • Dot file permissions and Access Policies – Security Policies www. arsc. edu/support/policy/secpolicy. html • Dot file permissions and some contents routinely checked by scripts • Kerberos passphrases expire every 180 days • Accounts placed in an ‘inactive’ status after 180 days of not logging in • Please ask us if you have any questions

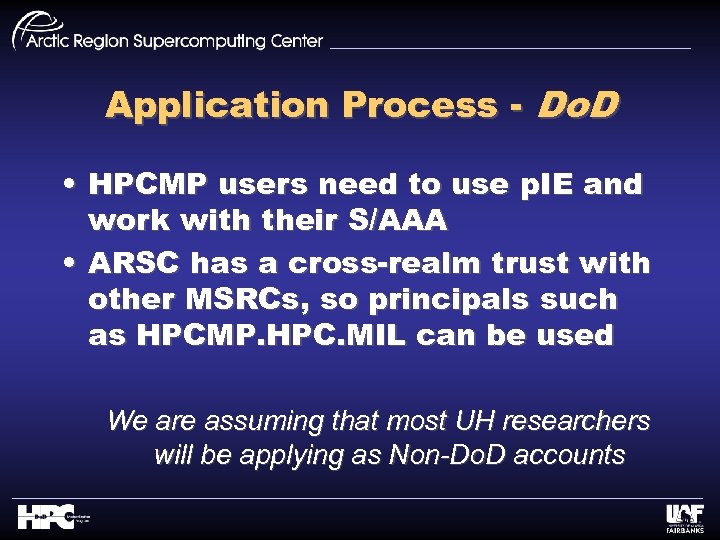

Application Process - Do. D • HPCMP users need to use p. IE and Application Process - Do. D • HPCMP users need to use p. IE and work with their S/AAA • ARSC has a cross-realm trust with other MSRCs, so principals such as HPCMP. HPC. MIL can be used We are assuming that most UH researchers will be applying as Non-Do. D accounts

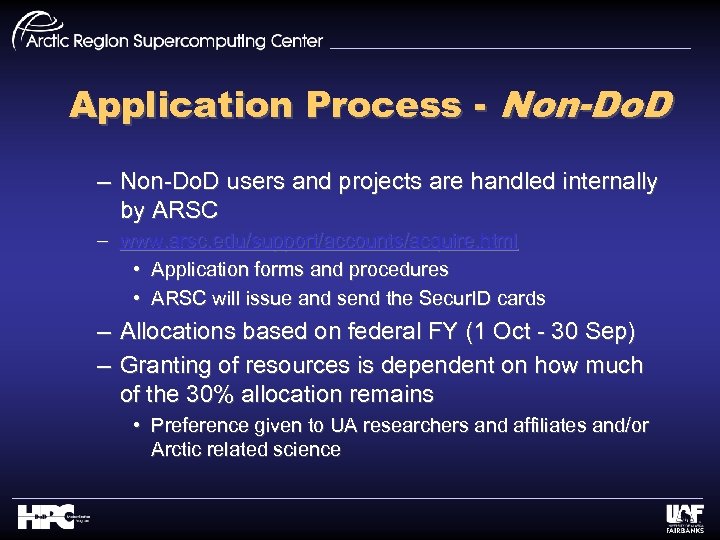

Application Process - Non-Do. D – Non-Do. D users and projects are handled internally Application Process - Non-Do. D – Non-Do. D users and projects are handled internally by ARSC – www. arsc. edu/support/accounts/acquire. html • Application forms and procedures • ARSC will issue and send the Secur. ID cards – Allocations based on federal FY (1 Oct - 30 Sep) – Granting of resources is dependent on how much of the 30% allocation remains • Preference given to UA researchers and affiliates and/or Arctic related science

Application Process - Non-Do. D – You may apply for a project if you Application Process - Non-Do. D – You may apply for a project if you are a qualified faculty member or researcher • Students can not be a Primary Investigator – Faculty sponsor is required, but the sponsor does not need to be an actual ‘user’ of the systems – Students are then added to the project as a user • PIs are requested to provide a short annual report outlining project progress and any published results • Allocations of time are granted to projects – Start-up accounts have a nominal allocation – Production projects have allocations based on need and availability

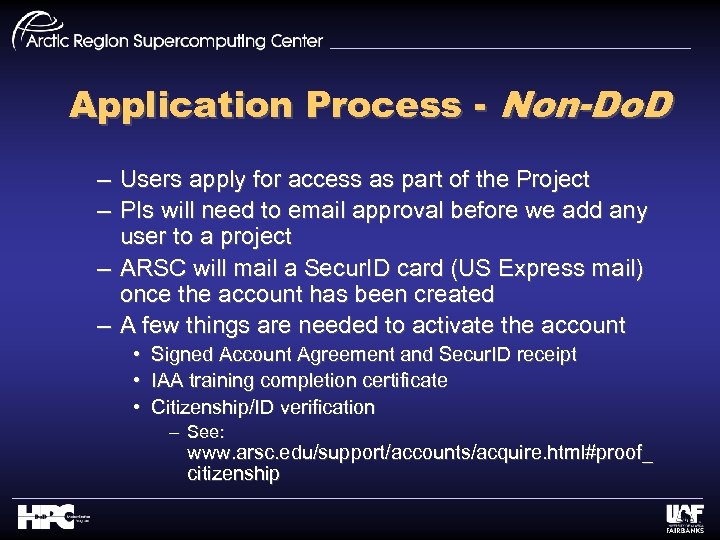

Application Process - Non-Do. D – Users apply for access as part of the Application Process - Non-Do. D – Users apply for access as part of the Project – PIs will need to email approval before we add any user to a project – ARSC will mail a Secur. ID card (US Express mail) once the account has been created – A few things are needed to activate the account • Signed Account Agreement and Secur. ID receipt • IAA training completion certificate • Citizenship/ID verification – See: www. arsc. edu/support/accounts/acquire. html#proof_ citizenship

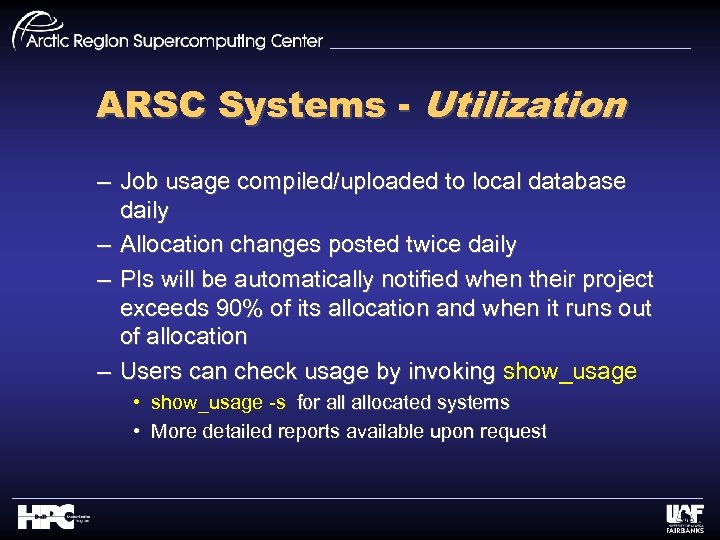

ARSC Systems - Utilization – Job usage compiled/uploaded to local database daily – Allocation ARSC Systems - Utilization – Job usage compiled/uploaded to local database daily – Allocation changes posted twice daily – PIs will be automatically notified when their project exceeds 90% of its allocation and when it runs out of allocation – Users can check usage by invoking show_usage • show_usage -s for allocated systems • More detailed reports available upon request

ARSC Systems - Utilization To: <the PI> From: ARSC Accounts <hpc-accounts@arsc. edu> Subject: ARSC: ARSC Systems - Utilization To: From: ARSC Accounts Subject: ARSC: midnight Project Utilization and Allocation Summary Consolidated CPU Utilization Report ==================== FY: 2008 ARSC System: midnight ARSC Group ID: Primary Investigator: Cumulative usage summary for October 1, 2007 through 15 Mar 2008. Foreground Background Total ----------Allocation 150000. 00 Hours Used 126432. 97 2. 59 126435. 56 ================= Remaining 23567. 03 ( 15. 71%) NOTE: In order to monitor the usage of your project on a regular basis, you can invoke the show_usage command on any allocated ARSC system. If you have any questions about your allocation and/or usage, please contact us. Regards, ARSC HPC Accounts [email] [email protected] edu [email protected] [voice] 907 -450 -8602 [fax] 907 -450 -8601

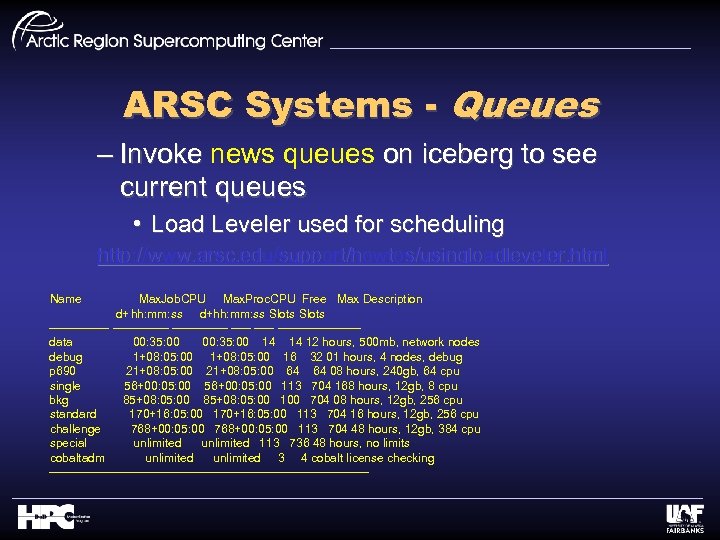

ARSC Systems - Queues – Invoke news queues on iceberg to see current queues ARSC Systems - Queues – Invoke news queues on iceberg to see current queues • Load Leveler used for scheduling http: //www. arsc. edu/support/howtos/usingloadleveler. html Name Max. Job. CPU Max. Proc. CPU Free Max Description d+hh: mm: ss Slots -------------- ----------data 00: 35: 00 14 14 12 hours, 500 mb, network nodes debug 1+08: 05: 00 16 32 01 hours, 4 nodes, debug p 690 21+08: 05: 00 64 64 08 hours, 240 gb, 64 cpu single 56+00: 05: 00 113 704 168 hours, 12 gb, 8 cpu bkg 85+08: 05: 00 100 704 08 hours, 12 gb, 256 cpu standard 170+16: 05: 00 113 704 16 hours, 12 gb, 256 cpu challenge 768+00: 05: 00 113 704 48 hours, 12 gb, 384 cpu special unlimited 113 736 48 hours, no limits cobaltadm unlimited 3 4 cobalt license checking ----------------------------------------

ARSC Systems - Queues – Invoke news queues on Midnight to see current queues ARSC Systems - Queues – Invoke news queues on Midnight to see current queues • PBS Pro used for scheduling Queue Min Max Procs Walltime Notes -------- -----------standard 1 16 84: 00 See (A) 17 256 16: 00 257 512 12: 00 challenge 1 16 96: 00 See (B) 17 256 96: 00 See (C) 257 512 12: 00 background debug 1 512 12: 00 1 32 00: 30: 00 See (D)

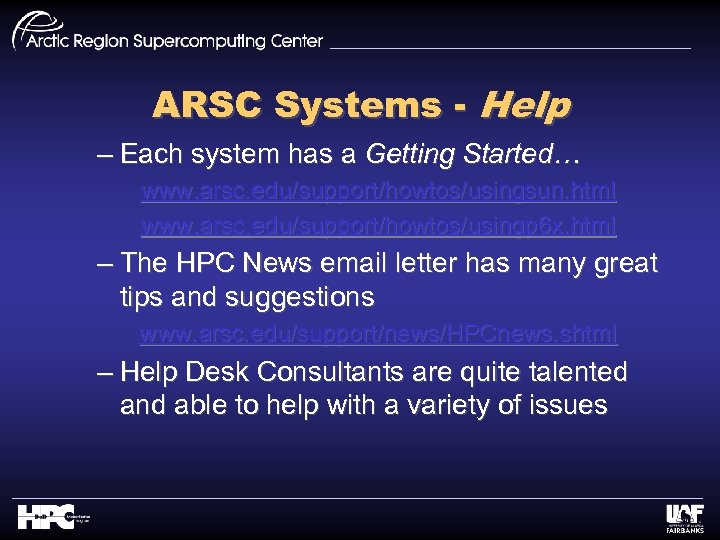

ARSC Systems - Help – Each system has a Getting Started… www. arsc. edu/support/howtos/usingsun. ARSC Systems - Help – Each system has a Getting Started… www. arsc. edu/support/howtos/usingsun. html www. arsc. edu/support/howtos/usingp 6 x. html – The HPC News email letter has many great tips and suggestions www. arsc. edu/support/news/HPCnews. shtml – Help Desk Consultants are quite talented and able to help with a variety of issues

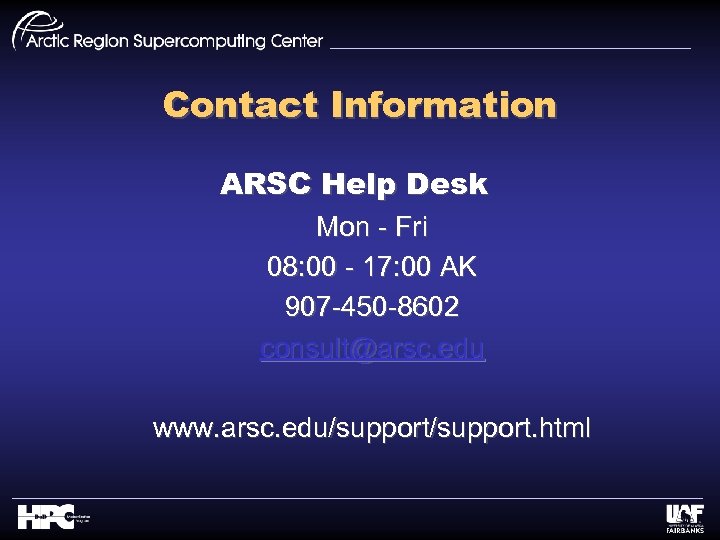

Contact Information ARSC Help Desk Mon - Fri 08: 00 - 17: 00 AK Contact Information ARSC Help Desk Mon - Fri 08: 00 - 17: 00 AK 907 -450 -8602 [email protected] edu www. arsc. edu/support. html

Questions? Michelle Phillips (2007 Quest) Finished 4 th in 2008 Quest (11 days, 10 Questions? Michelle Phillips (2007 Quest) Finished 4 th in 2008 Quest (11 days, 10 hrs, 21 mins) Photo by: Carsten Thies Yukonquest. com
