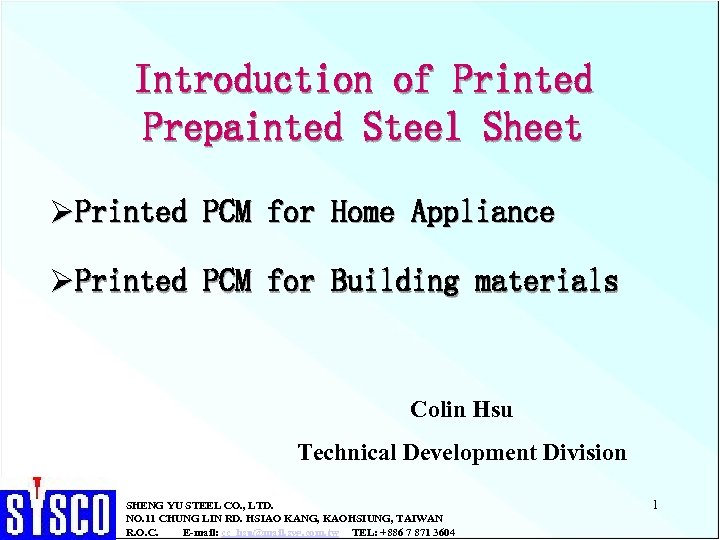

Introduction of Printed Prepainted Steel Sheet ØPrinted PCM for Home Appliance ØPrinted PCM for Introduction of Printed Prepainted Steel Sheet ØPrinted PCM for Home Appliance ØPrinted PCM for Building materials Colin Hsu Technical Development Division SHENG YU STEEL CO. , LTD. NO. 11 CHUNG LIN RD. HSIAO KANG, KAOHSIUNG, TAIWAN R. O. C. E-mail: [email protected], syg, com. tw TEL: +886 7 871 3604 1

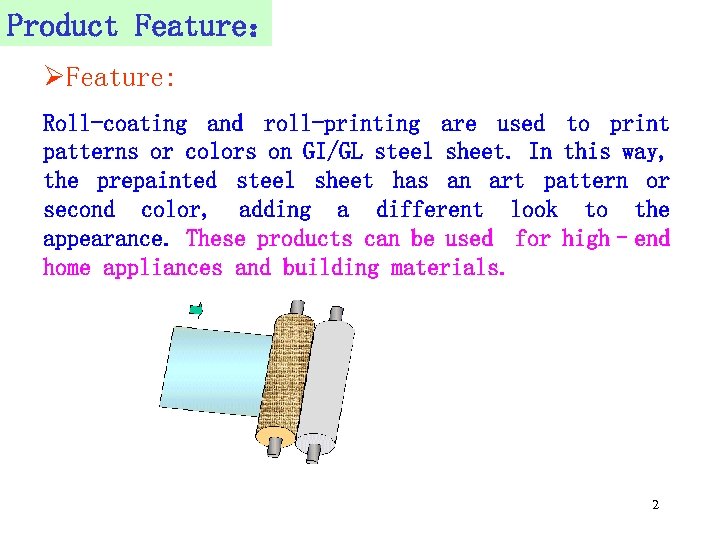

Product Feature: ØFeature: Roll-coating and roll-printing are used to print patterns or colors on Product Feature: ØFeature: Roll-coating and roll-printing are used to print patterns or colors on GI/GL steel sheet. In this way, the prepainted steel sheet has an art pattern or second color, adding a different look to the appearance. These products can be used for high–end home appliances and building materials. 2

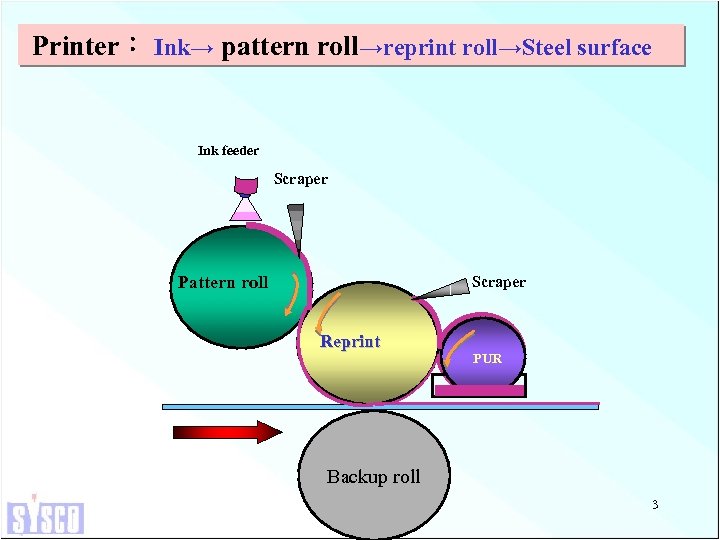

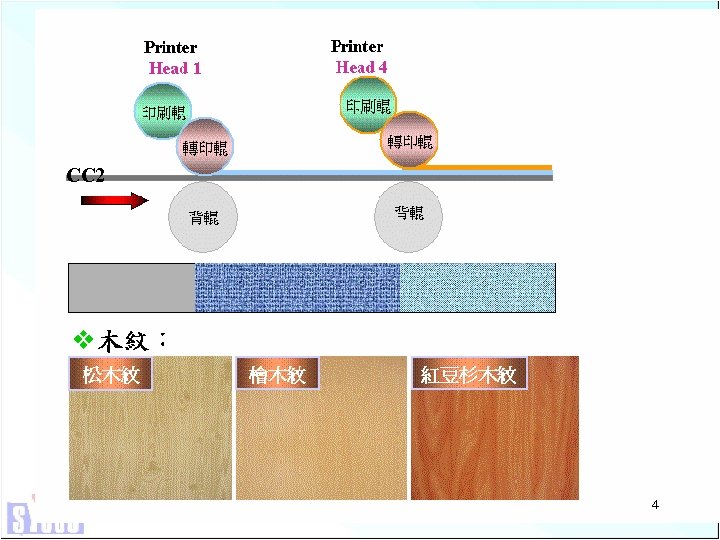

Printer: Ink→ pattern roll→reprint roll→Steel surface Ink feeder Scraper Pattern roll Scraper Reprint PUR Printer: Ink→ pattern roll→reprint roll→Steel surface Ink feeder Scraper Pattern roll Scraper Reprint PUR Backup roll 3

CC 2 4 CC 2 4

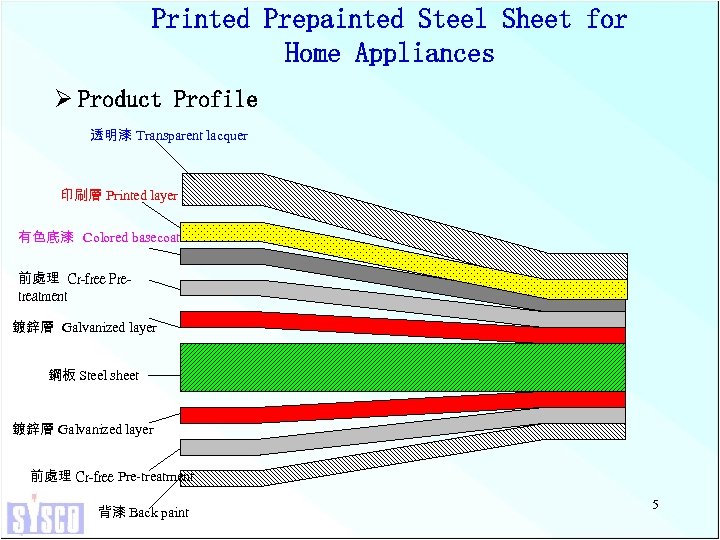

Printed Prepainted Steel Sheet for Home Appliances Ø Product Profile 透明漆 Transparent lacquer 印刷層 Printed Prepainted Steel Sheet for Home Appliances Ø Product Profile 透明漆 Transparent lacquer 印刷層 Printed layer 有色底漆 Colored basecoat 前處理 Cr-free Pretreatment 鍍鋅層 Galvanized layer 鋼板 Steel sheet 鍍鋅層 Galvanized layer 前處理 Cr-free Pre-treatment 背漆 Back paint 5

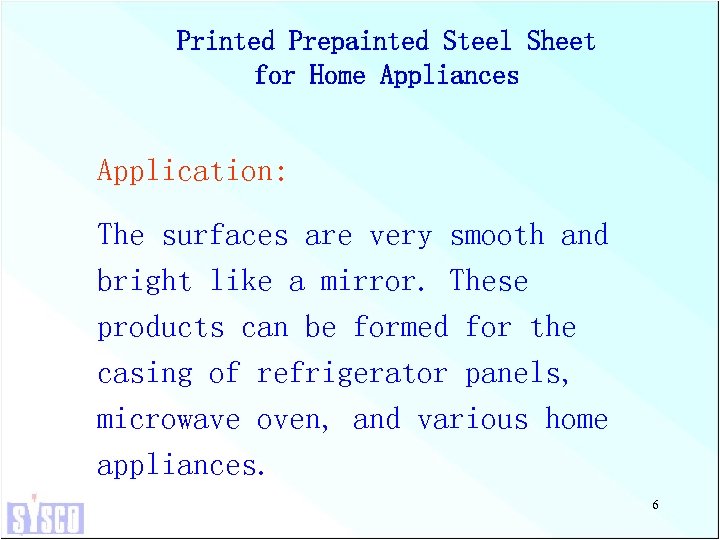

Printed Prepainted Steel Sheet for Home Appliances Application: The surfaces are very smooth and Printed Prepainted Steel Sheet for Home Appliances Application: The surfaces are very smooth and bright like a mirror. These products can be formed for the casing of refrigerator panels, microwave oven, and various home appliances. 6

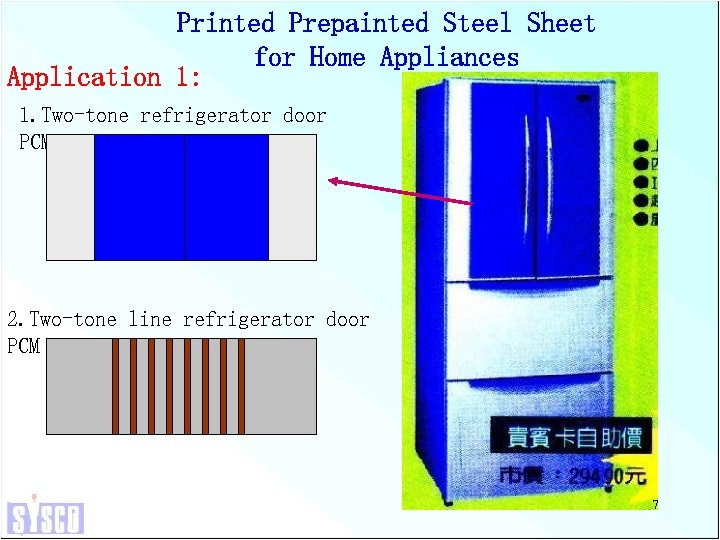

Printed Prepainted Steel Sheet for Home Appliances Application 1: 1. Two-tone refrigerator door PCM Printed Prepainted Steel Sheet for Home Appliances Application 1: 1. Two-tone refrigerator door PCM 2. Two-tone line refrigerator door PCM 7

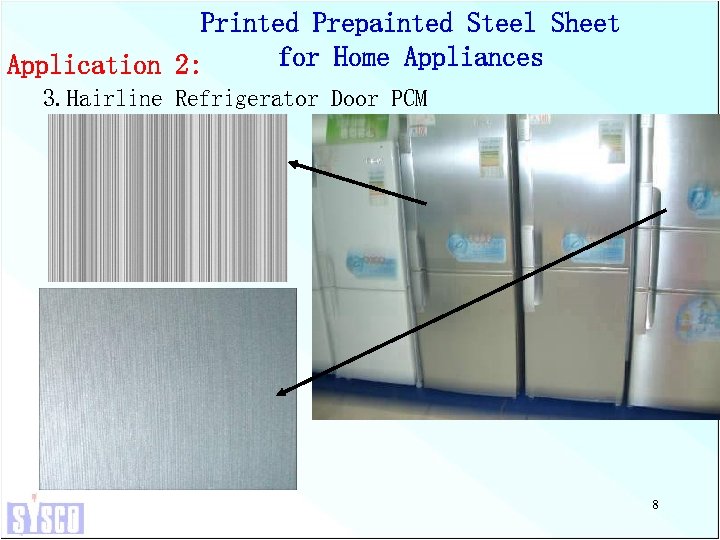

Printed Prepainted Steel Sheet for Home Appliances Application 2: 3. Hairline Refrigerator Door PCM Printed Prepainted Steel Sheet for Home Appliances Application 2: 3. Hairline Refrigerator Door PCM 8

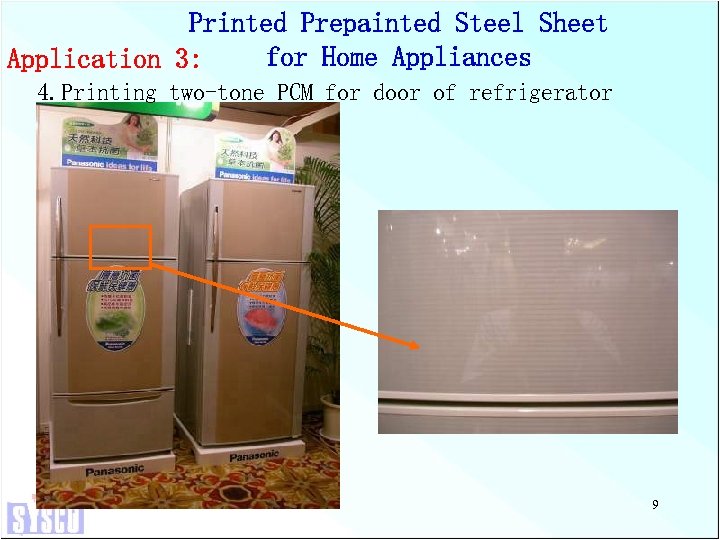

Printed Prepainted Steel Sheet for Home Appliances Application 3: 4. Printing two-tone PCM for Printed Prepainted Steel Sheet for Home Appliances Application 3: 4. Printing two-tone PCM for door of refrigerator 9

Printed Prepainted Steel Sheet for Building Materials Printed PCM steel sheets are used in Printed Prepainted Steel Sheet for Building Materials Printed PCM steel sheets are used in construction of little log cabins in place of wood to reduce consumption of natural resources. This is a construction material with the best 10 environmentally-friendly concept.

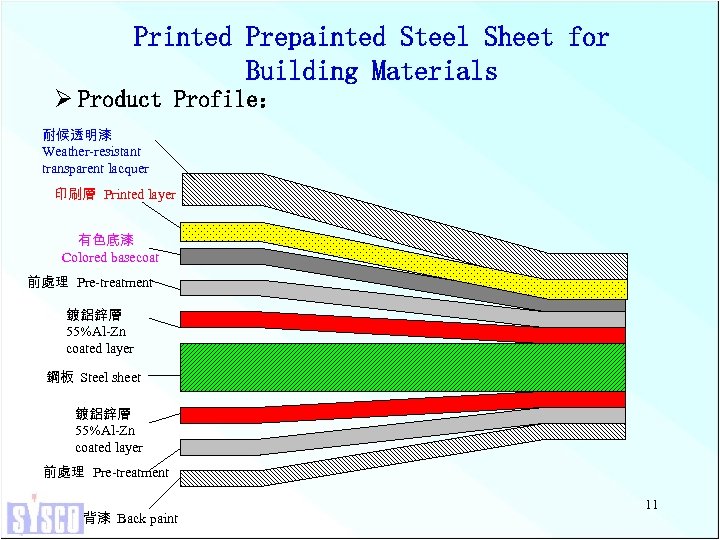

Printed Prepainted Steel Sheet for Building Materials Ø Product Profile: 耐候透明漆 Weather-resistant transparent lacquer Printed Prepainted Steel Sheet for Building Materials Ø Product Profile: 耐候透明漆 Weather-resistant transparent lacquer 印刷層 Printed layer 有色底漆 Colored basecoat 前處理 Pre-treatment 鍍鋁鋅層 55%Al-Zn coated layer 鋼板 Steel sheet 鍍鋁鋅層 55%Al-Zn coated layer 前處理 Pre-treatment 背漆 Back paint 11

Printed Prepainted Steel Sheet for Building Materials ØApplication: As the paint films are designed Printed Prepainted Steel Sheet for Building Materials ØApplication: As the paint films are designed with better weather resistance, these products can be used for outdoor face walls of buildings that stress style, interior partition, residential doors, etc 12

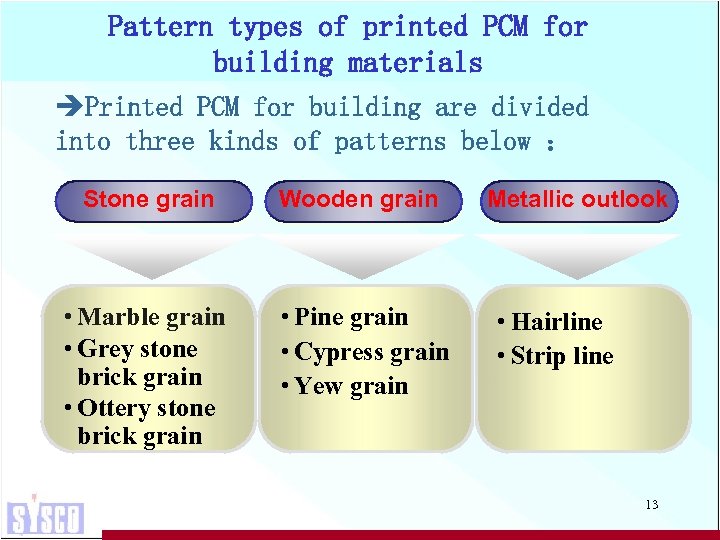

Pattern types of printed PCM for building materials èPrinted PCM for building are divided Pattern types of printed PCM for building materials èPrinted PCM for building are divided into three kinds of patterns below : Stone grain Wooden grain • Marble grain • Grey stone brick grain • Ottery stone brick grain • Pine grain • Cypress grain • Yew grain Metallic outlook • Hairline • Strip line 13

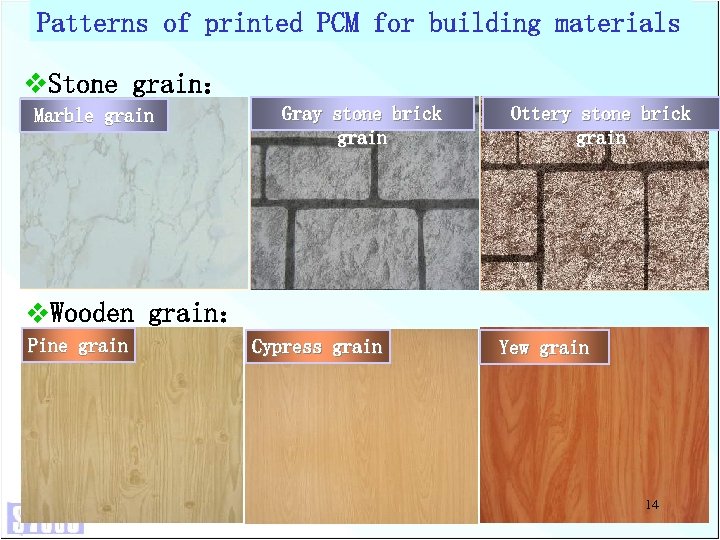

Patterns of printed PCM for building materials v. Stone grain: Marble grain Gray stone Patterns of printed PCM for building materials v. Stone grain: Marble grain Gray stone brick grain Ottery stone brick grain v. Wooden grain: Pine grain Cypress grain Yew grain 14

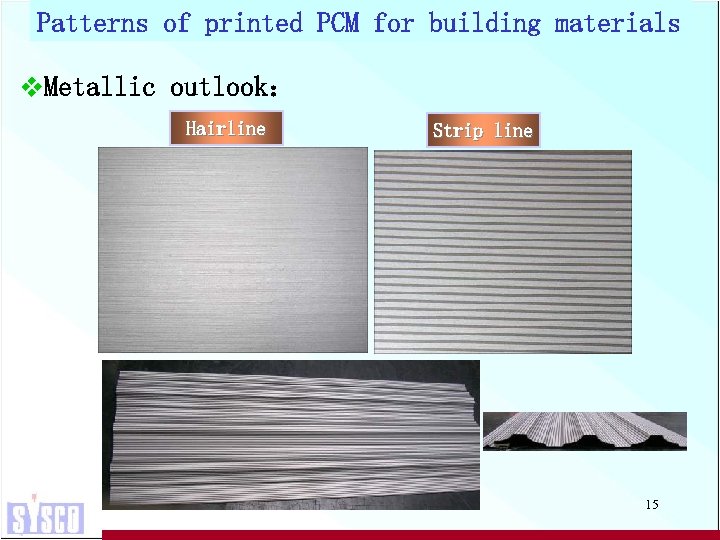

Patterns of printed PCM for building materials v. Metallic outlook: 发丝 Hairline 直条纹 Strip Patterns of printed PCM for building materials v. Metallic outlook: 发丝 Hairline 直条纹 Strip line 15

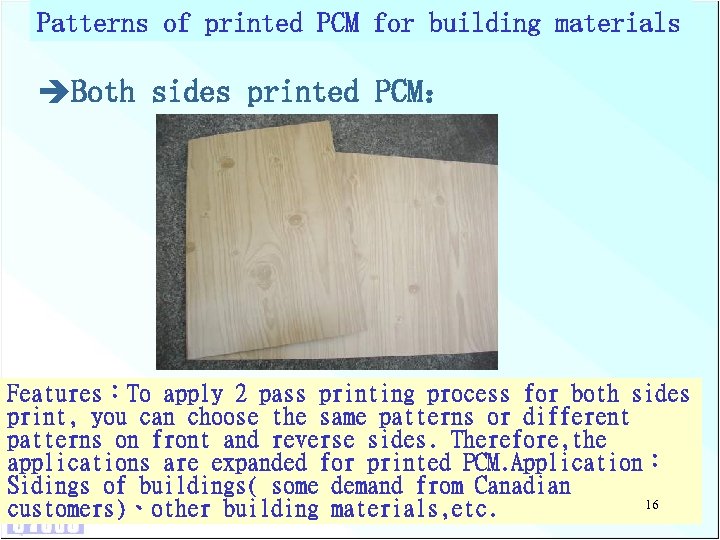

Patterns of printed PCM for building materials èBoth sides printed PCM: Features:To apply 2 Patterns of printed PCM for building materials èBoth sides printed PCM: Features:To apply 2 pass printing process for both sides print, you can choose the same patterns or different patterns on front and reverse sides. Therefore, the applications are expanded for printed PCM. Application: Sidings of buildings( some demand from Canadian 16 customers)、other building materials, etc.

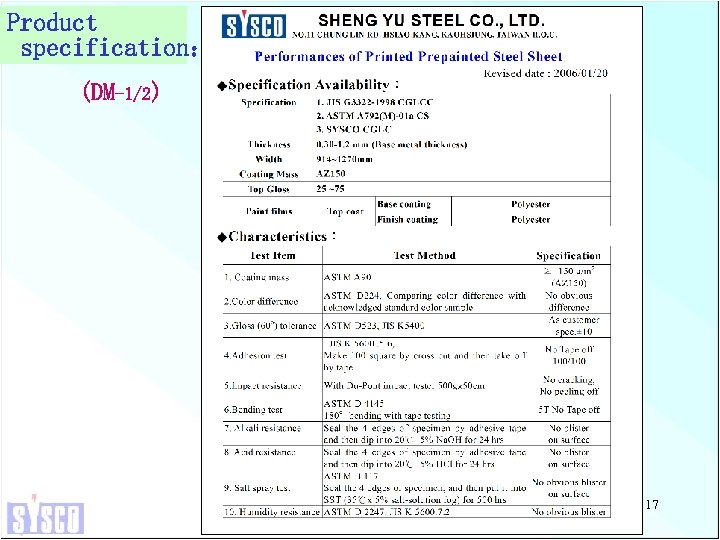

Product specification: (DM-1/2) 17 Product specification: (DM-1/2) 17

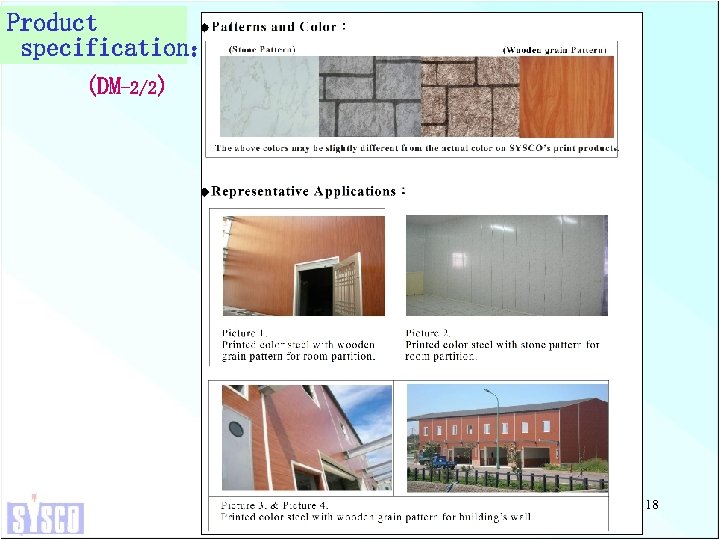

Product specification: (DM-2/2) 18 Product specification: (DM-2/2) 18

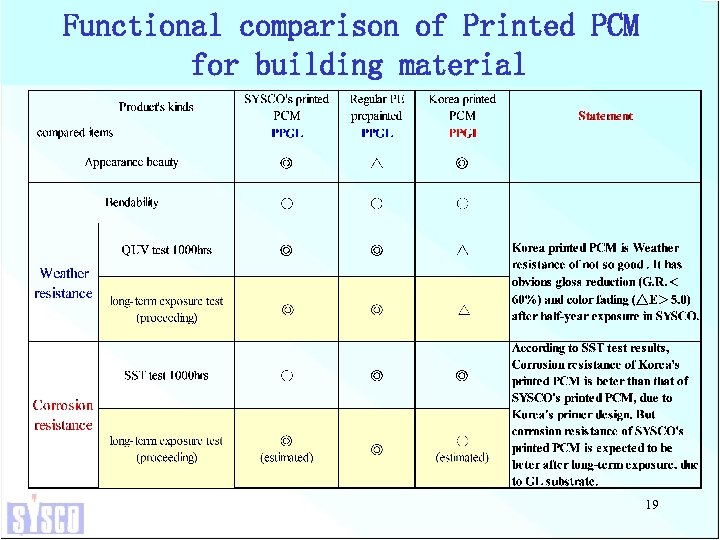

Functional comparison of Printed PCM for building material 19 Functional comparison of Printed PCM for building material 19

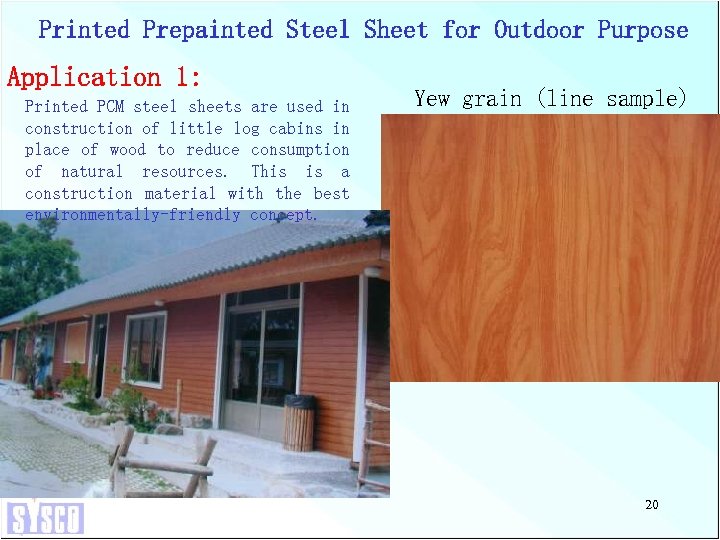

Printed Prepainted Steel Sheet for Outdoor Purpose Application 1: Printed PCM steel sheets are Printed Prepainted Steel Sheet for Outdoor Purpose Application 1: Printed PCM steel sheets are used in construction of little log cabins in place of wood to reduce consumption of natural resources. This is a construction material with the best environmentally-friendly concept. Yew grain (line sample) 20

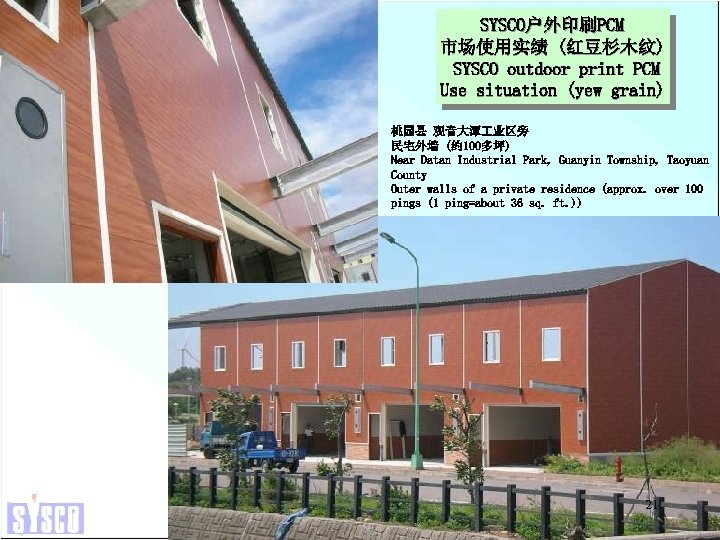

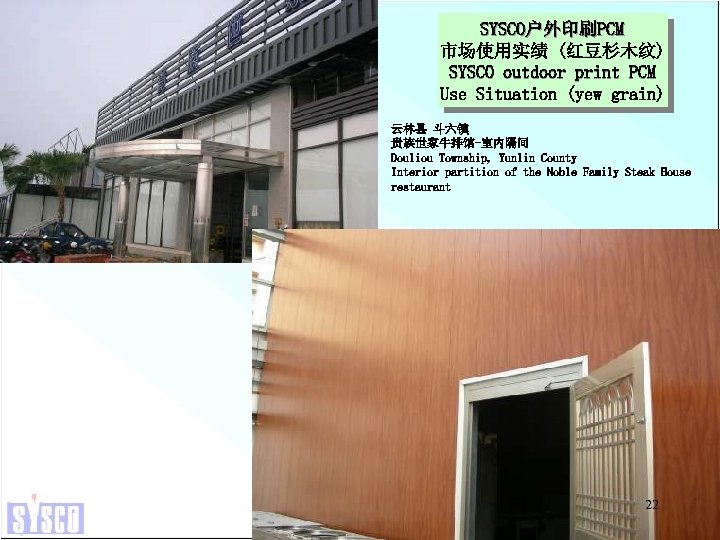

SYSCO户外印刷PCM 市场使用实绩 (红豆杉木纹) SYSCO outdoor print PCM Use situation (yew grain) 桃园县 观音大潭 业区旁 SYSCO户外印刷PCM 市场使用实绩 (红豆杉木纹) SYSCO outdoor print PCM Use situation (yew grain) 桃园县 观音大潭 业区旁 民宅外墙 (约 100多坪) Near Datan Industrial Park, Guanyin Township, Taoyuan County Outer walls of a private residence (approx. over 100 pings (1 ping=about 36 sq. ft. )) 21

SYSCO户外印刷PCM 市场使用实绩 (红豆杉木纹) SYSCO outdoor print PCM Use Situation (yew grain) 云林县 斗六镇 贵族世家牛排馆-室内隔间 SYSCO户外印刷PCM 市场使用实绩 (红豆杉木纹) SYSCO outdoor print PCM Use Situation (yew grain) 云林县 斗六镇 贵族世家牛排馆-室内隔间 Douliou Township, Yunlin County Interior partition of the Noble Family Steak House restaurant 22

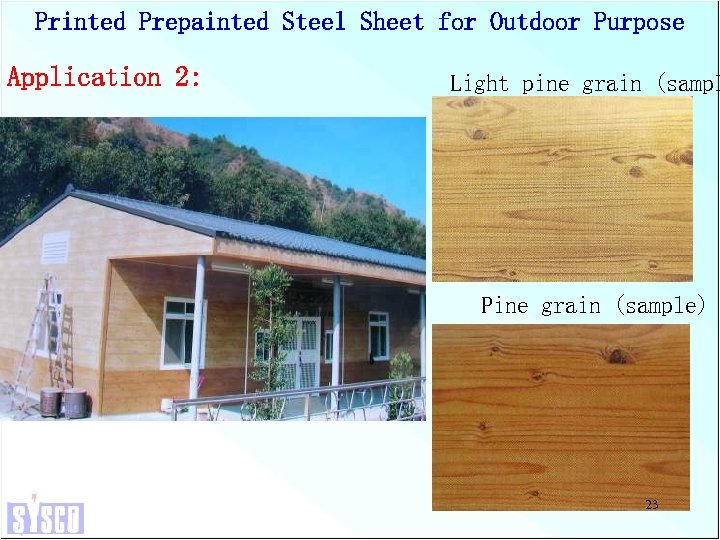

Printed Prepainted Steel Sheet for Outdoor Purpose Application 2: Light pine grain (sampl Pine Printed Prepainted Steel Sheet for Outdoor Purpose Application 2: Light pine grain (sampl Pine grain (sample) 23

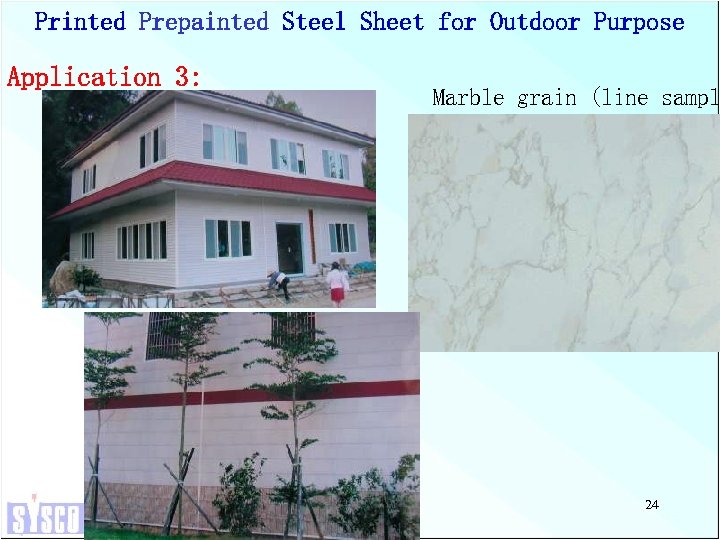

Printed Prepainted Steel Sheet for Outdoor Purpose Application 3: Marble grain (line sampl 24 Printed Prepainted Steel Sheet for Outdoor Purpose Application 3: Marble grain (line sampl 24

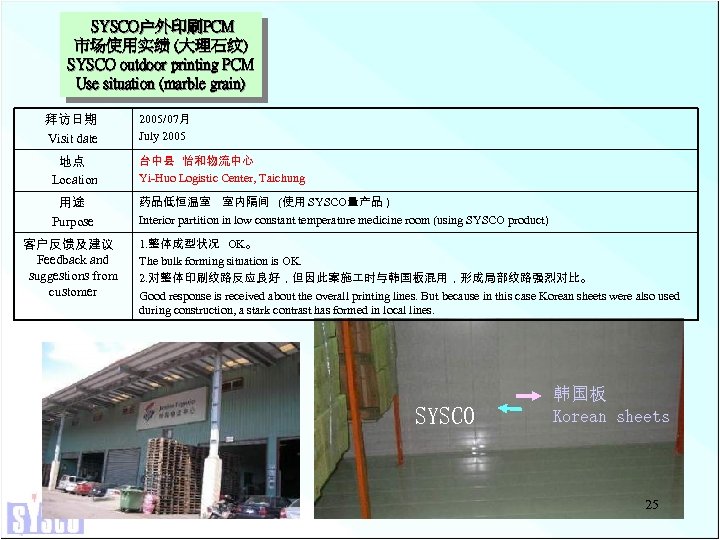

SYSCO户外印刷PCM 市场使用实绩 (大理石纹) SYSCO outdoor printing PCM Use situation (marble grain) 拜访日期 Visit date SYSCO户外印刷PCM 市场使用实绩 (大理石纹) SYSCO outdoor printing PCM Use situation (marble grain) 拜访日期 Visit date 2005/07月 July 2005 地点 Location 台中县 怡和物流中心 Yi-Huo Logistic Center, Taichung 用途 Purpose 药品低恒温室 室内隔间 (使用 SYSCO量产品 ) Interior partition in low constant temperature medicine room (using SYSCO product) 客户反馈及建议 Feedback and suggestions from customer 1. 整体成型状况 OK。 The bulk forming situation is OK. 2. 对整体印刷纹路反应良好,但因此案施 时与韩国板混用,形成局部纹路强烈对比。 Good response is received about the overall printing lines. But because in this case Korean sheets were also used during construction, a stark contrast has formed in local lines. SYSCO 韩国板 Korean sheets 25

Printed Prepainted Steel Sheet for Outdoor Purpose Application 4: Grey stone brick grain (line Printed Prepainted Steel Sheet for Outdoor Purpose Application 4: Grey stone brick grain (line sample) Ottery stone brick grain (sample 26
