Introduction Course Objectives This course gives a

Introduction

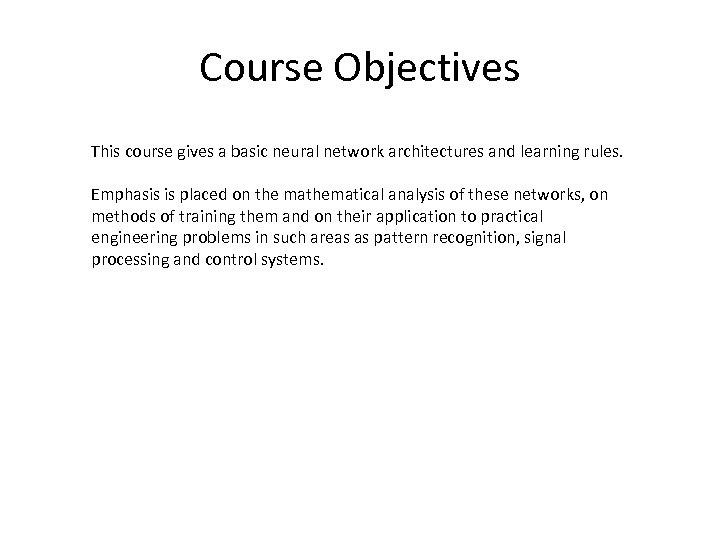

Course Objectives This course gives a basic neural network architectures and learning rules. Emphasis is placed on the mathematical analysis of these networks, on methods of training them and on their application to practical engineering problems in such areas as pattern recognition, signal processing and control systems.

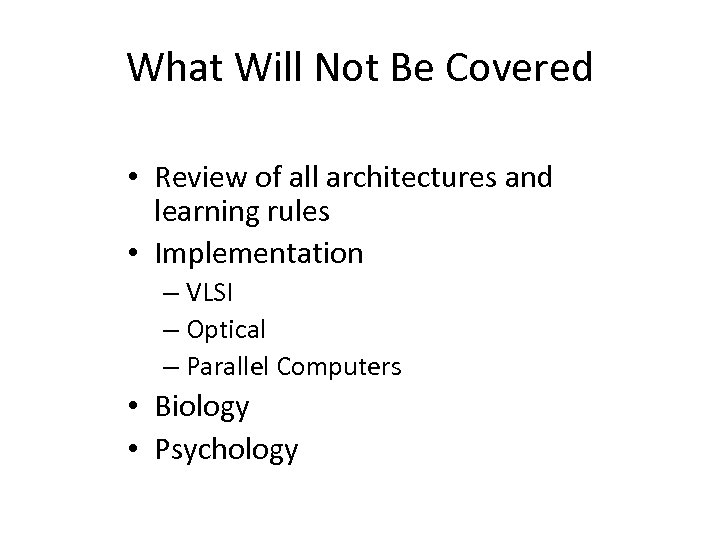

What Will Not Be Covered • Review of all architectures and learning rules • Implementation – VLSI – Optical – Parallel Computers • Biology • Psychology

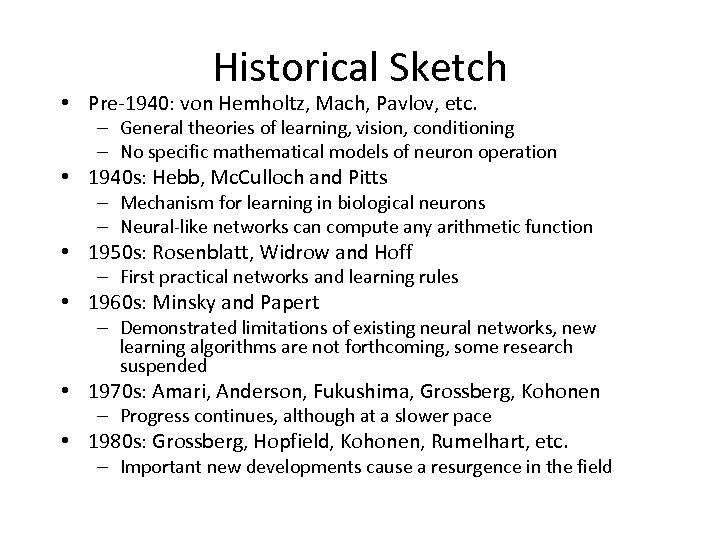

Historical Sketch • Pre-1940: von Hemholtz, Mach, Pavlov, etc. – General theories of learning, vision, conditioning – No specific mathematical models of neuron operation • 1940 s: Hebb, Mc. Culloch and Pitts – Mechanism for learning in biological neurons – Neural-like networks can compute any arithmetic function • 1950 s: Rosenblatt, Widrow and Hoff – First practical networks and learning rules • 1960 s: Minsky and Papert – Demonstrated limitations of existing neural networks, new learning algorithms are not forthcoming, some research suspended • 1970 s: Amari, Anderson, Fukushima, Grossberg, Kohonen – Progress continues, although at a slower pace • 1980 s: Grossberg, Hopfield, Kohonen, Rumelhart, etc. – Important new developments cause a resurgence in the field

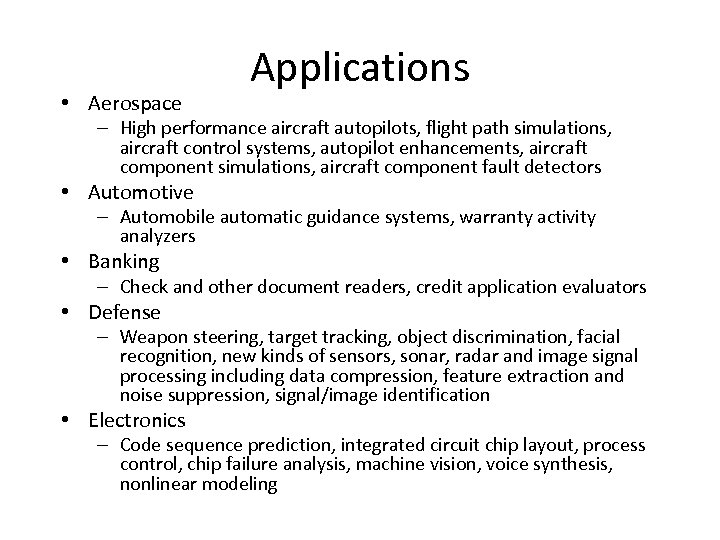

• Aerospace Applications – High performance aircraft autopilots, flight path simulations, aircraft control systems, autopilot enhancements, aircraft component simulations, aircraft component fault detectors • Automotive – Automobile automatic guidance systems, warranty activity analyzers • Banking – Check and other document readers, credit application evaluators • Defense – Weapon steering, target tracking, object discrimination, facial recognition, new kinds of sensors, sonar, radar and image signal processing including data compression, feature extraction and noise suppression, signal/image identification • Electronics – Code sequence prediction, integrated circuit chip layout, process control, chip failure analysis, machine vision, voice synthesis, nonlinear modeling

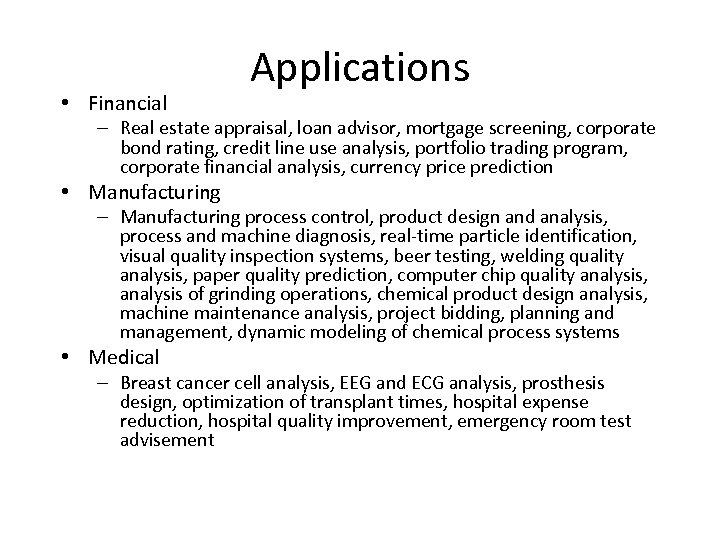

• Financial Applications – Real estate appraisal, loan advisor, mortgage screening, corporate bond rating, credit line use analysis, portfolio trading program, corporate financial analysis, currency price prediction • Manufacturing – Manufacturing process control, product design and analysis, process and machine diagnosis, real-time particle identification, visual quality inspection systems, beer testing, welding quality analysis, paper quality prediction, computer chip quality analysis, analysis of grinding operations, chemical product design analysis, machine maintenance analysis, project bidding, planning and management, dynamic modeling of chemical process systems • Medical – Breast cancer cell analysis, EEG and ECG analysis, prosthesis design, optimization of transplant times, hospital expense reduction, hospital quality improvement, emergency room test advisement

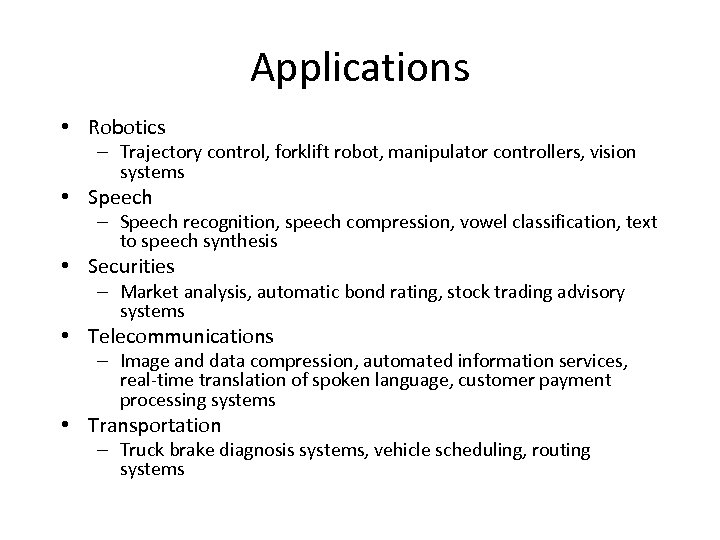

Applications • Robotics – Trajectory control, forklift robot, manipulator controllers, vision systems • Speech – Speech recognition, speech compression, vowel classification, text to speech synthesis • Securities – Market analysis, automatic bond rating, stock trading advisory systems • Telecommunications – Image and data compression, automated information services, real-time translation of spoken language, customer payment processing systems • Transportation – Truck brake diagnosis systems, vehicle scheduling, routing systems

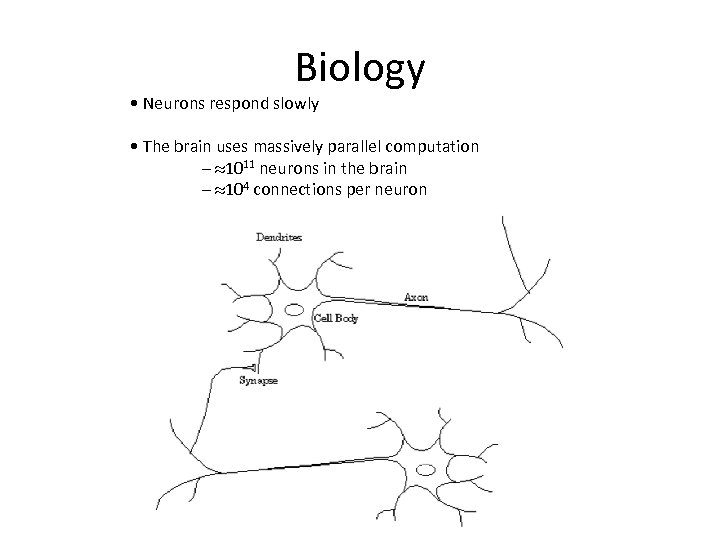

Biology • Neurons respond slowly • The brain uses massively parallel computation – » 1011 neurons in the brain – » 104 connections per neuron

Biology The dendrites are tree-like receptive networks of nerve fibers that carry electrical signals into the cell body The cell body effectively sums and thresholds these incoming signals. The axon is a single long fiber that carries the signal from the cell body out to other neurons. The point of contact between an axon of one cell and a dendrite of another cell is called a synapse.

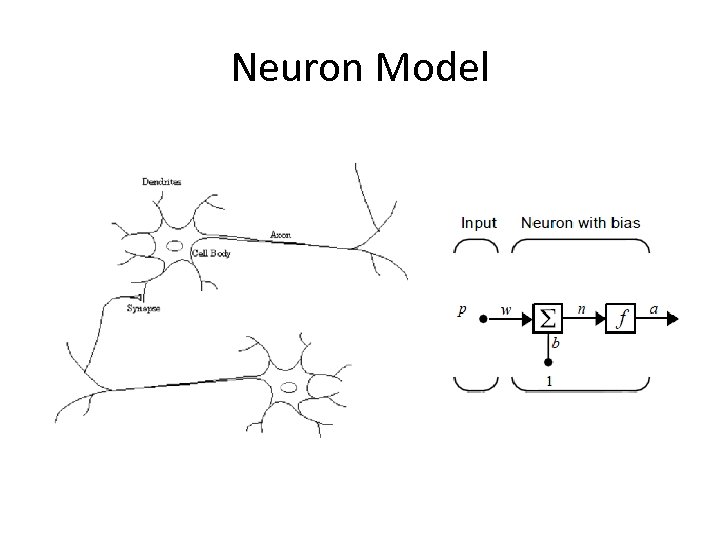

Neuron Model

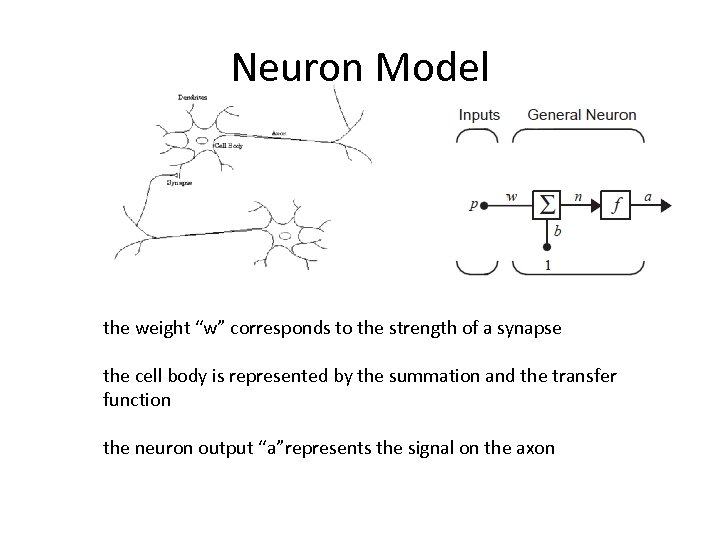

Neuron Model the weight “w” corresponds to the strength of a synapse the cell body is represented by the summation and the transfer function the neuron output “a”represents the signal on the axon

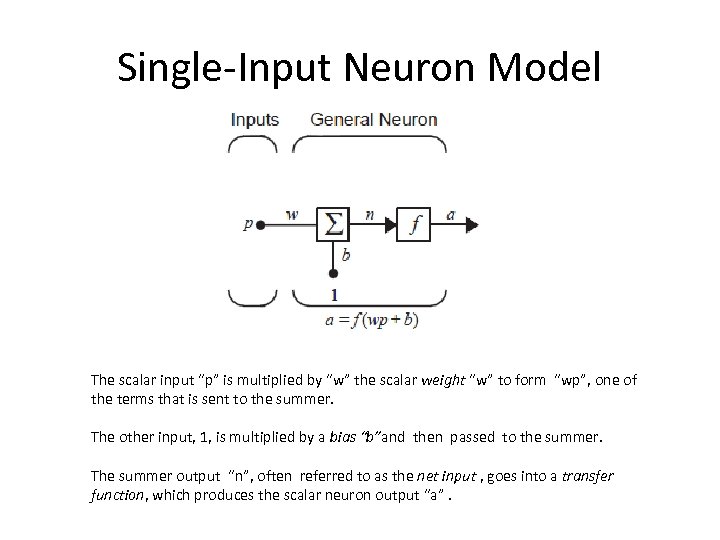

Single-Input Neuron Model The scalar input “p” is multiplied by “w” the scalar weight “w” to form “wp”, one of the terms that is sent to the summer. The other input, 1, is multiplied by a bias “b”and then passed to the summer. The summer output “n”, often referred to as the net input , goes into a transfer function, which produces the scalar neuron output “a”.

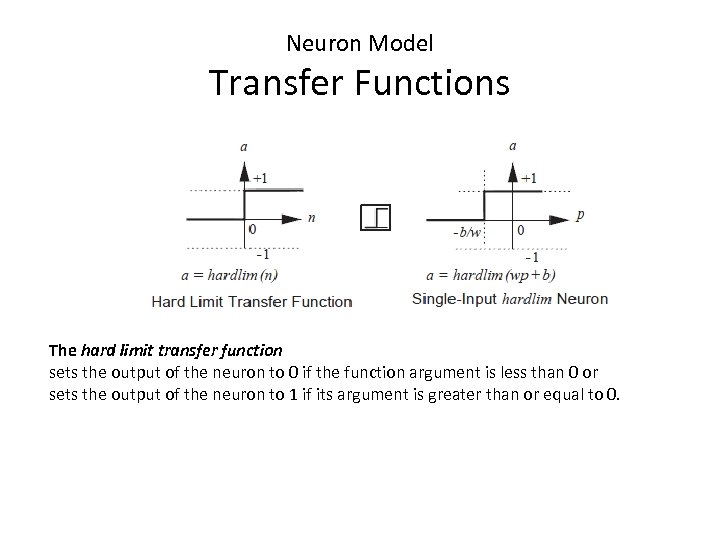

Neuron Model Transfer Functions The hard limit transfer function sets the output of the neuron to 0 if the function argument is less than 0 or sets the output of the neuron to 1 if its argument is greater than or equal to 0.

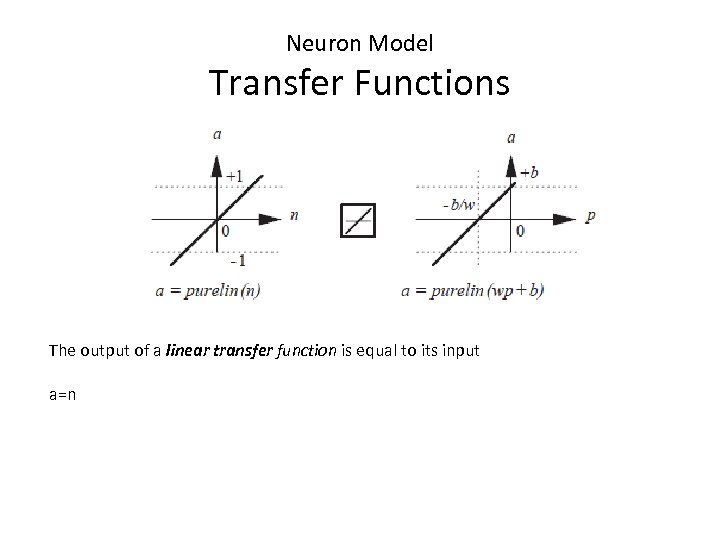

Neuron Model Transfer Functions The output of a linear transfer function is equal to its input a=n

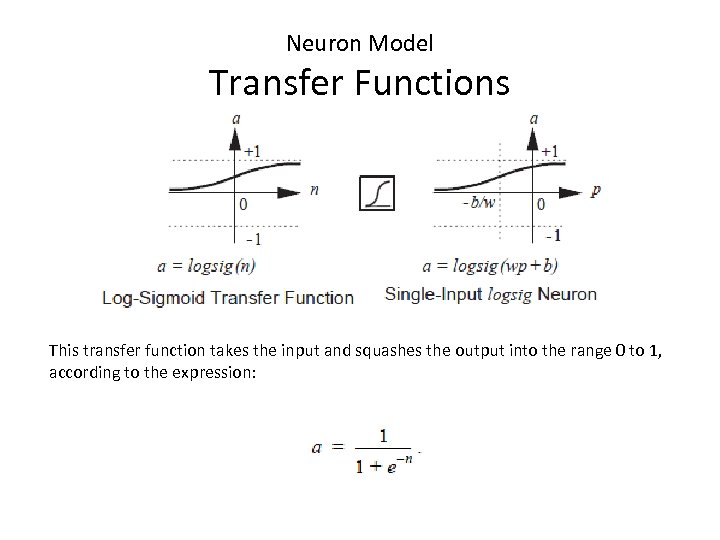

Neuron Model Transfer Functions This transfer function takes the input and squashes the output into the range 0 to 1, according to the expression:

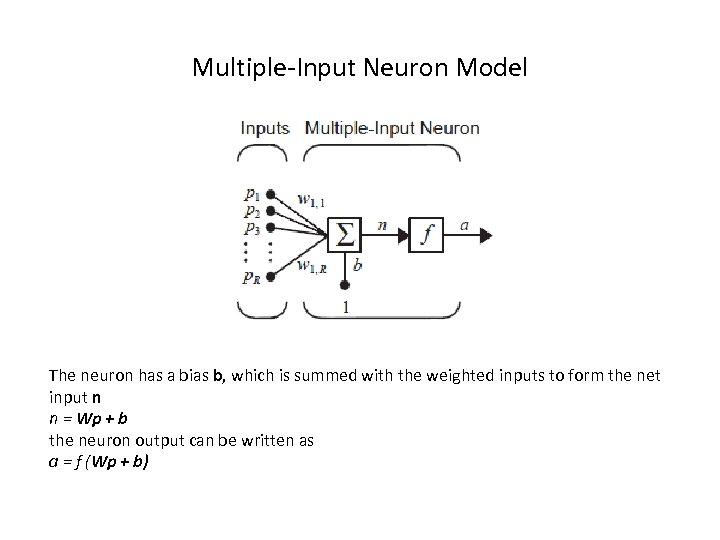

Multiple-Input Neuron Model The neuron has a bias b, which is summed with the weighted inputs to form the net input n n = Wp + b the neuron output can be written as a = f (Wp + b)

Multiple-Input Neuron Model The neuron has a bias b, which is summed with the weighted inputs to form the net input n n = Wp + b the neuron output can be written as a = f (Wp + b) The first index indicates the particular neuron destination for that weight. The second index indicates the source of the signal fed to the neuron.

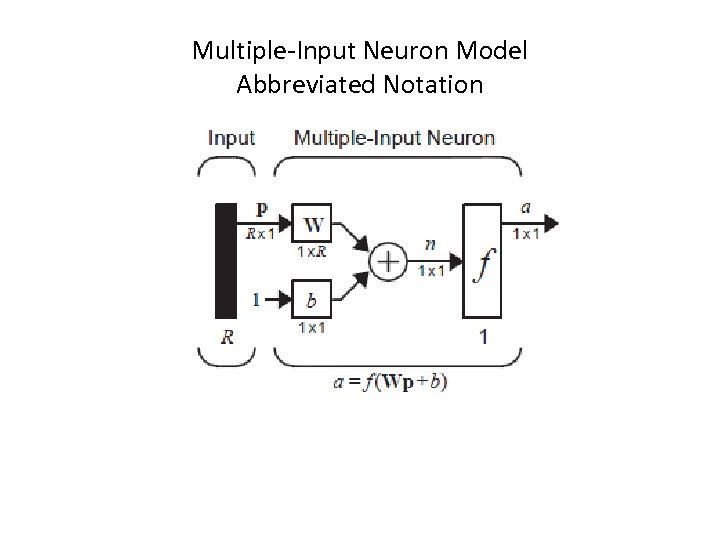

Multiple-Input Neuron Model Abbreviated Notation

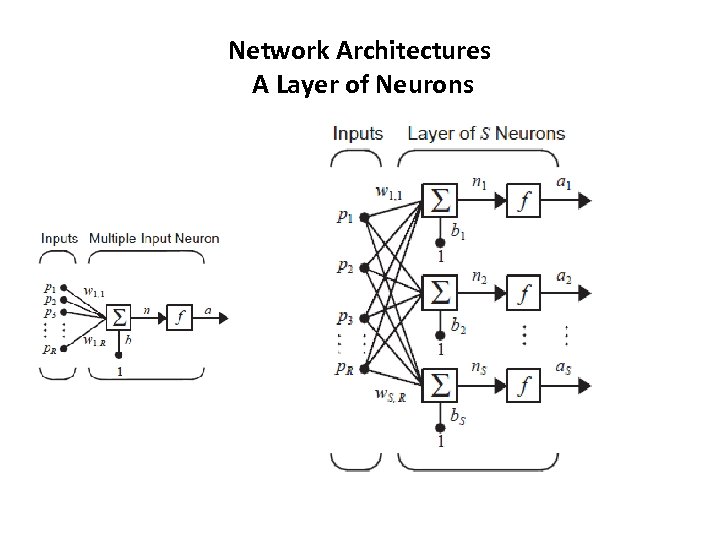

Network Architectures A Layer of Neurons

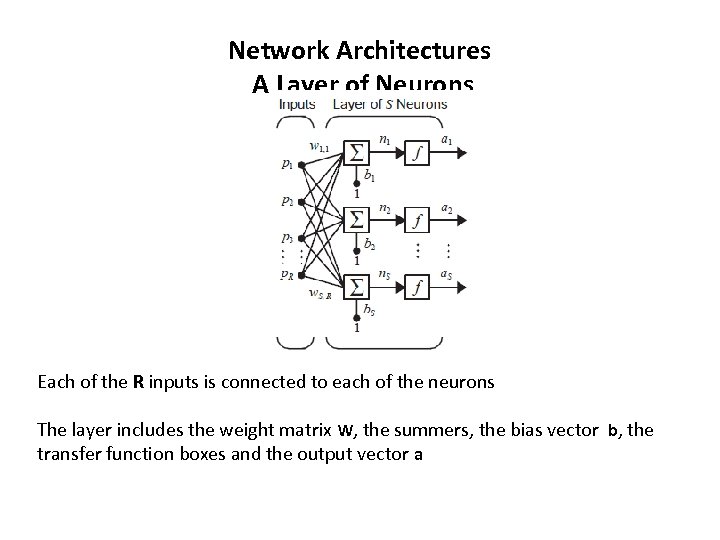

Network Architectures A Layer of Neurons Each of the R inputs is connected to each of the neurons The layer includes the weight matrix W, the summers, the bias vector b, the transfer function boxes and the output vector a

Network Architectures A Layer of Neurons Abbreviated Notation

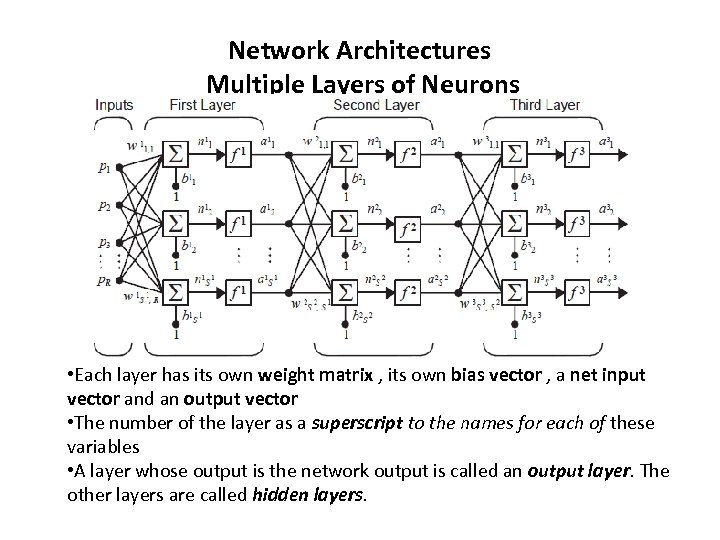

Network Architectures Multiple Layers of Neurons • Each layer has its own weight matrix , its own bias vector , a net input vector and an output vector • The number of the layer as a superscript to the names for each of these variables • A layer whose output is the network output is called an output layer. The other layers are called hidden layers.

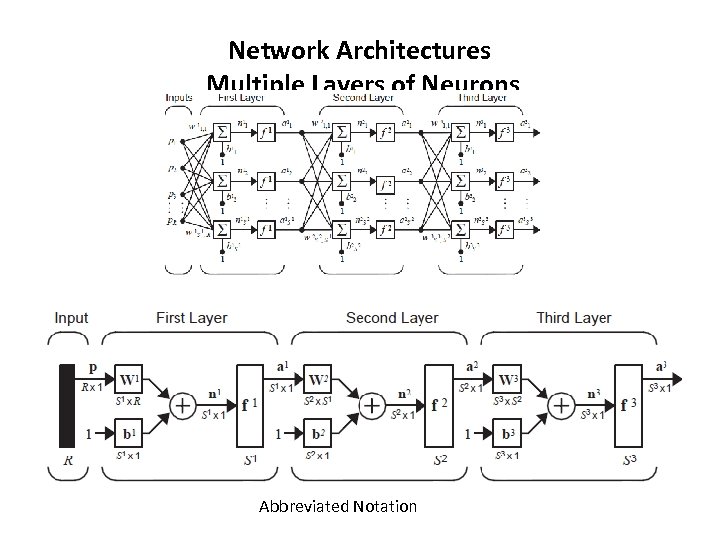

Network Architectures Multiple Layers of Neurons Abbreviated Notation

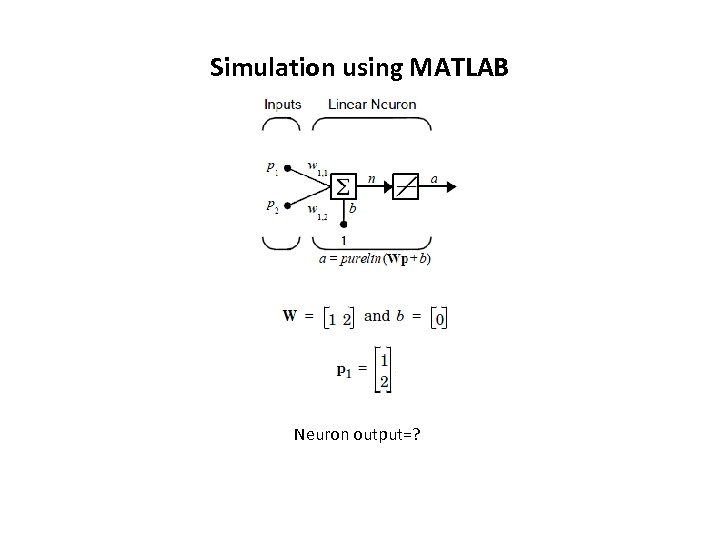

Simulation using MATLAB Neuron output=?

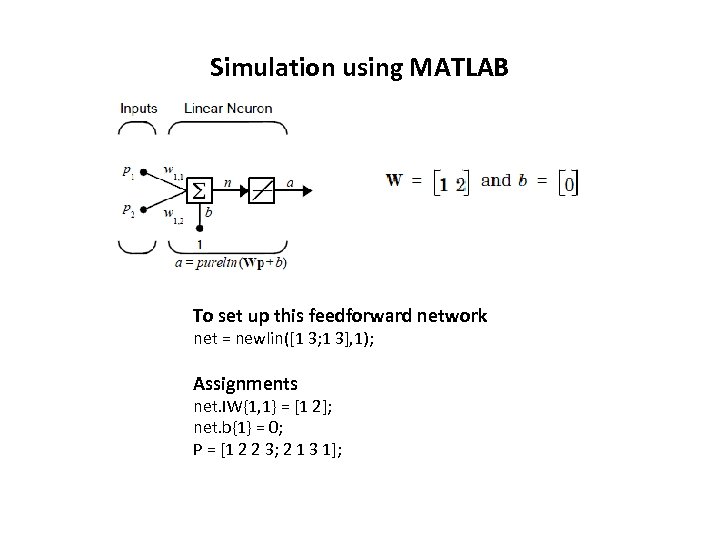

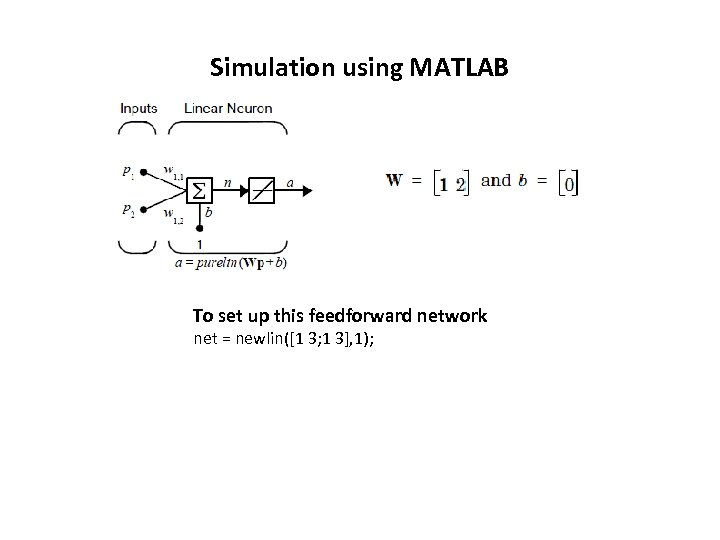

Simulation using MATLAB To set up this feedforward network net = newlin([1 3; 1 3], 1);

Simulation using MATLAB To set up this feedforward network net = newlin([1 3; 1 3], 1); Assignments net. IW{1, 1} = [1 2]; net. b{1} = 0; P = [1 2 2 3; 2 1 3 1];

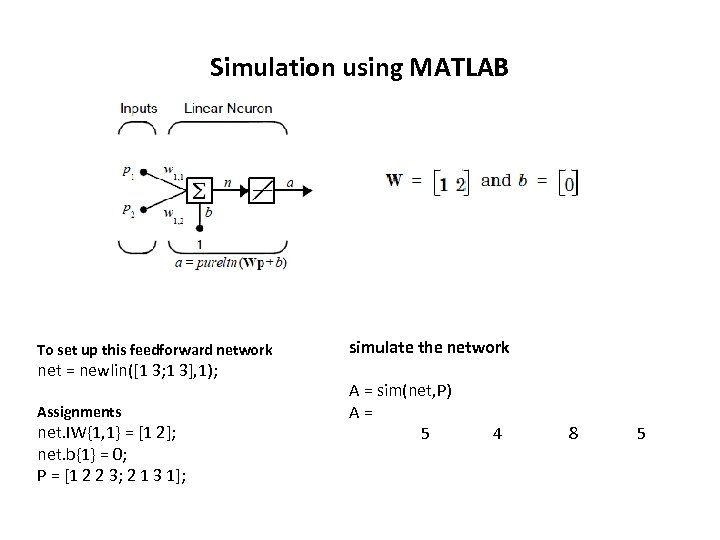

Simulation using MATLAB To set up this feedforward network simulate the network Assignments A = sim(net, P) A= 5 net = newlin([1 3; 1 3], 1); net. IW{1, 1} = [1 2]; net. b{1} = 0; P = [1 2 2 3; 2 1 3 1]; 4 8 5
