Intravenous Sedation Monitoring 59 AMDG Dental Squadron Technician Orientation

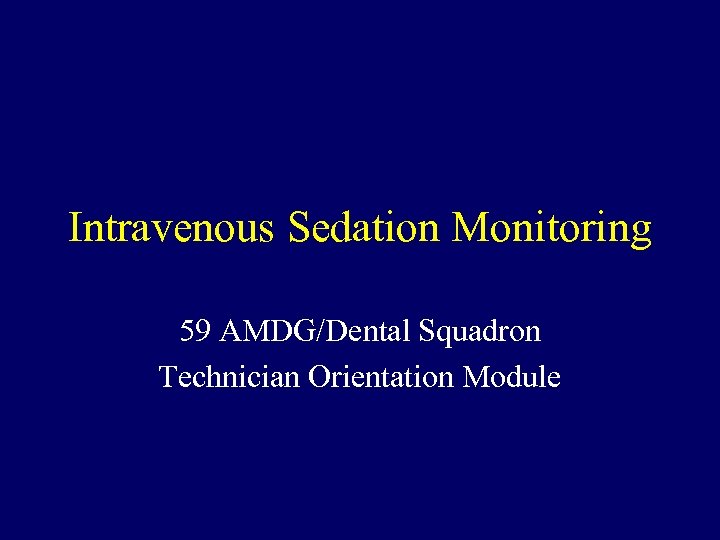

Intravenous Sedation Monitoring 59 AMDG/Dental Squadron Technician Orientation Module

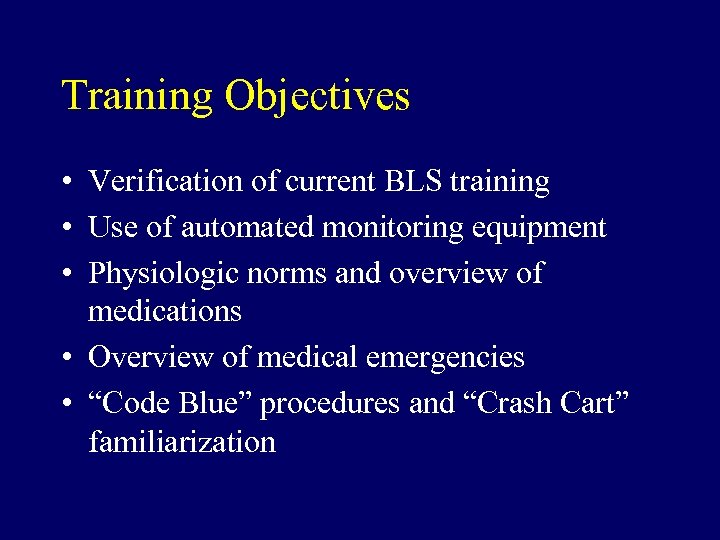

Training Objectives • Verification of current BLS training • Use of automated monitoring equipment • Physiologic norms and overview of medications • Overview of medical emergencies • “Code Blue” procedures and “Crash Cart” familiarization

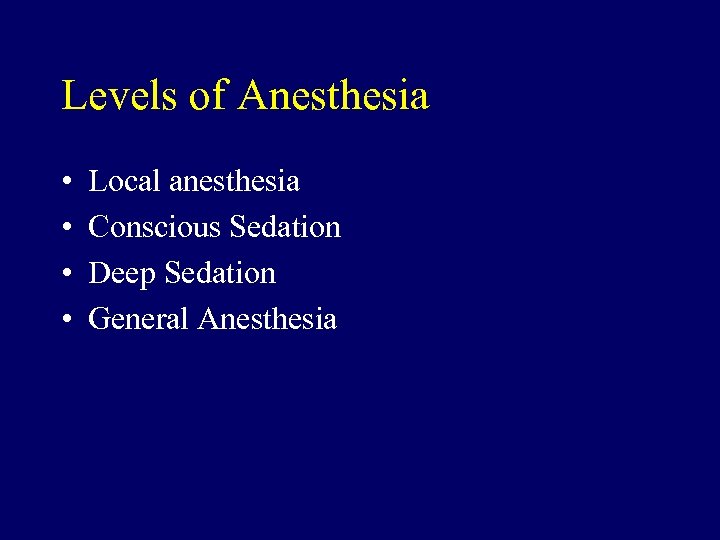

Levels of Anesthesia • • Local anesthesia Conscious Sedation Deep Sedation General Anesthesia

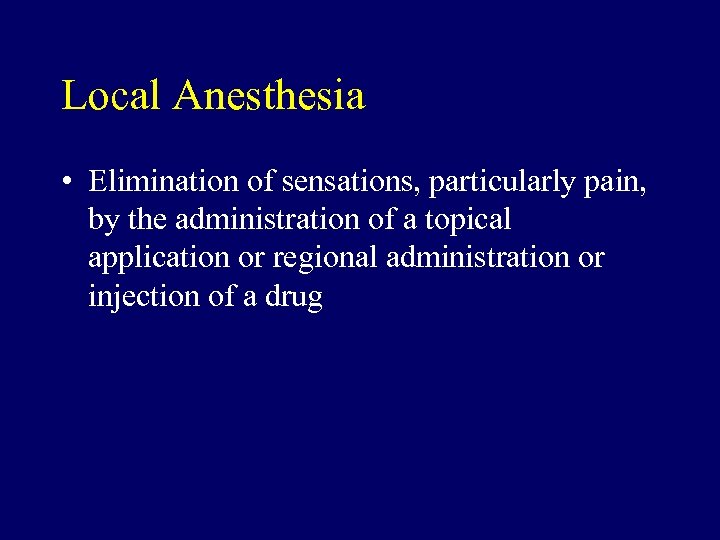

Local Anesthesia • Elimination of sensations, particularly pain, by the administration of a topical application or regional administration or injection of a drug

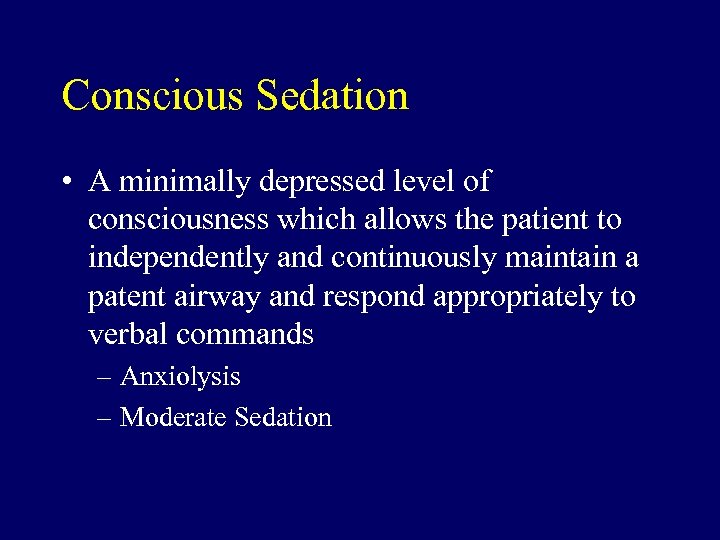

Conscious Sedation • A minimally depressed level of consciousness which allows the patient to independently and continuously maintain a patent airway and respond appropriately to verbal commands – Anxiolysis – Moderate Sedation

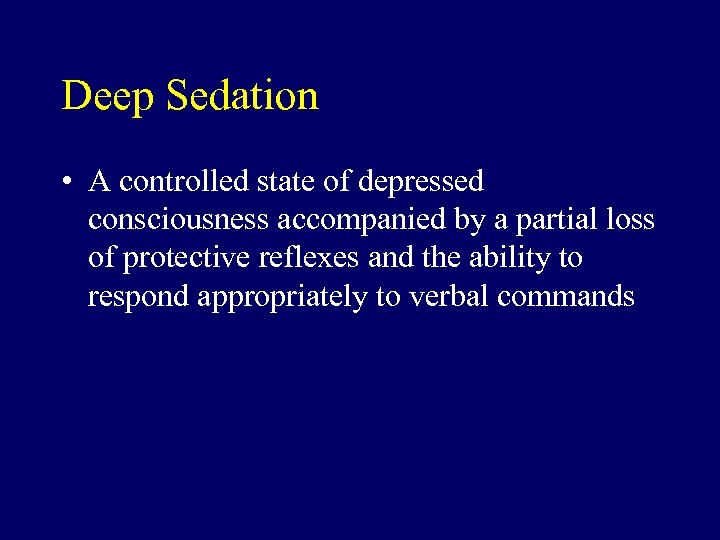

Deep Sedation • A controlled state of depressed consciousness accompanied by a partial loss of protective reflexes and the ability to respond appropriately to verbal commands

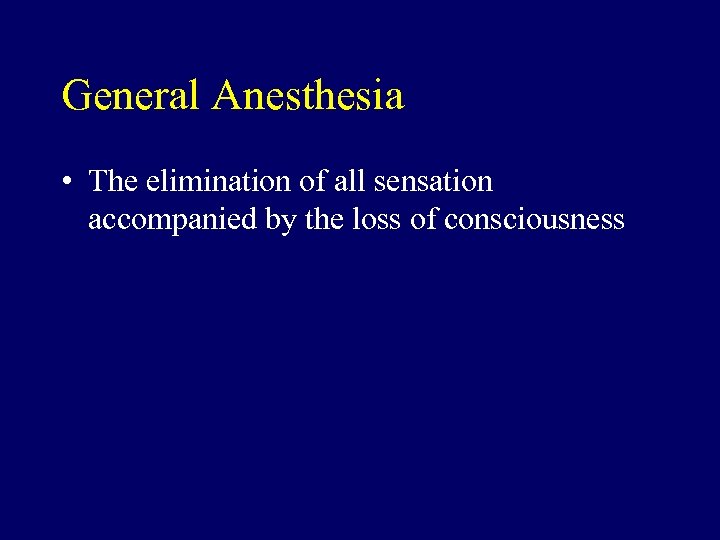

General Anesthesia • The elimination of all sensation accompanied by the loss of consciousness

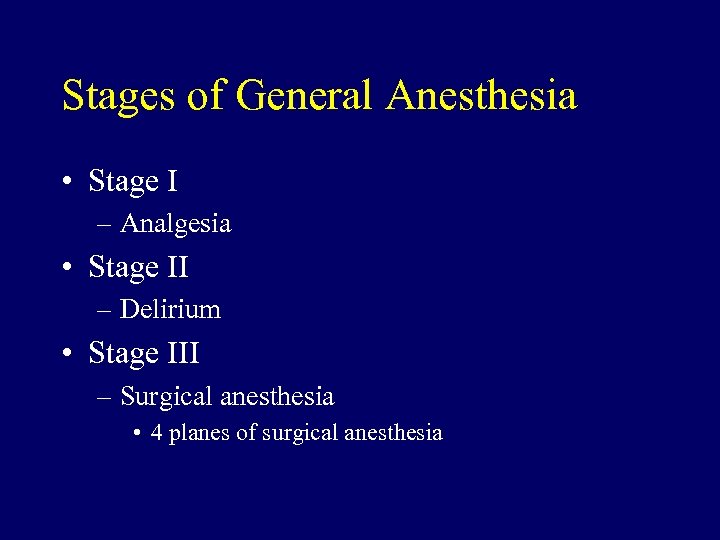

Stages of General Anesthesia • Stage I – Analgesia • Stage II – Delirium • Stage III – Surgical anesthesia • 4 planes of surgical anesthesia

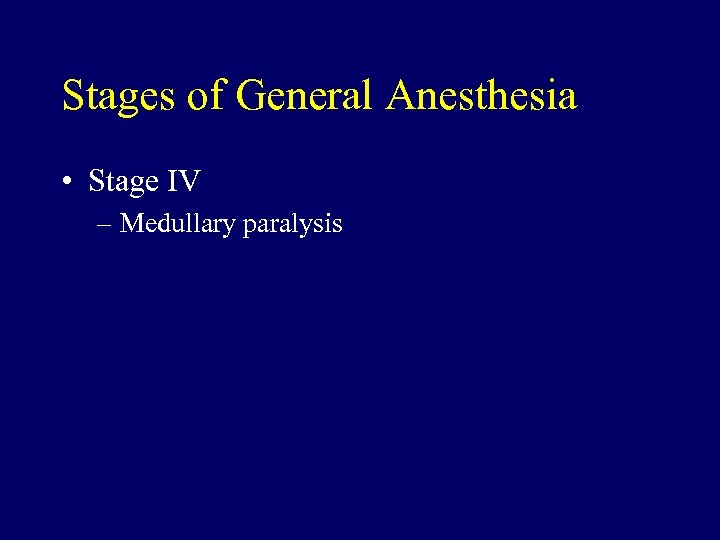

Stages of General Anesthesia • Stage IV – Medullary paralysis

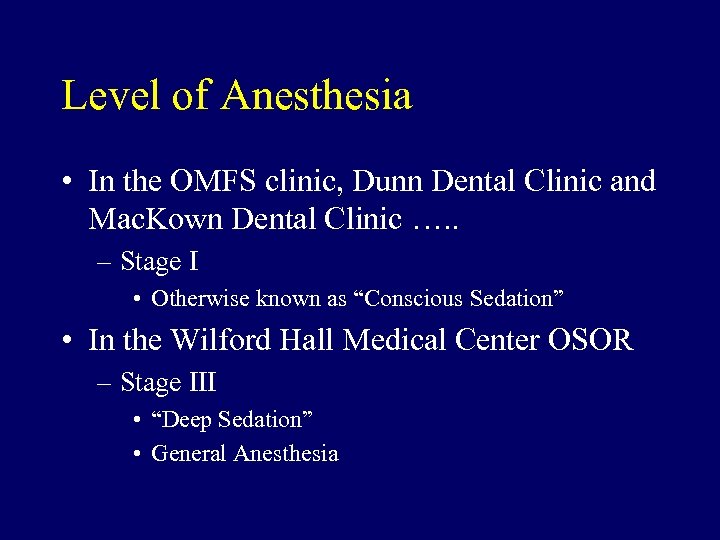

Level of Anesthesia • In the OMFS clinic, Dunn Dental Clinic and Mac. Kown Dental Clinic …. . – Stage I • Otherwise known as “Conscious Sedation” • In the Wilford Hall Medical Center OSOR – Stage III • “Deep Sedation” • General Anesthesia

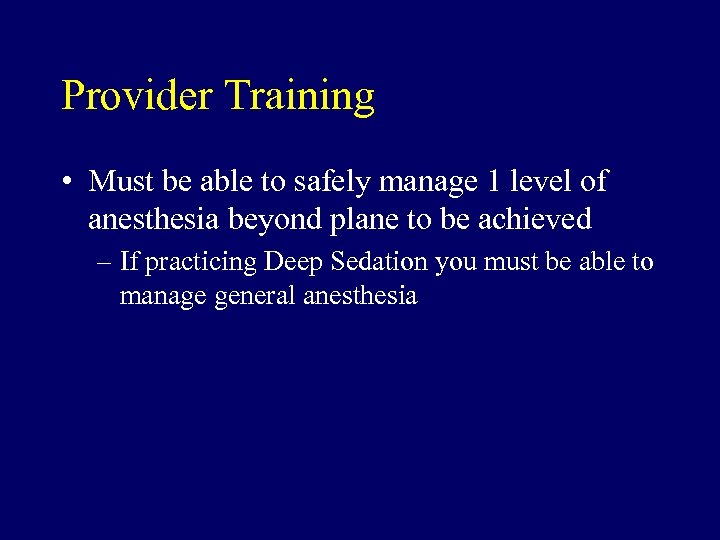

Provider Training • Must be able to safely manage 1 level of anesthesia beyond plane to be achieved – If practicing Deep Sedation you must be able to manage general anesthesia

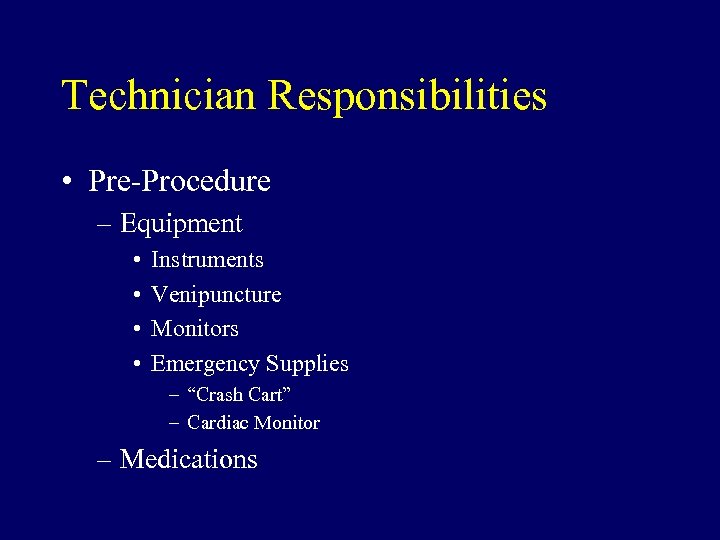

Technician Responsibilities • Pre-Procedure – Equipment • • Instruments Venipuncture Monitors Emergency Supplies – “Crash Cart” – Cardiac Monitor – Medications

Technician Responsibilities • Pre-Procedure Patient Assessment – Vital Signs – Allergies – Contacts/Dentures – NPO status – Changes in medical history • URI • Hospitalizations • Sick family members

Special Considerations • Pediatric patients – Not “little adults” • Geriatric patients – Unique subclass of patients with physiological changes complicating treatment

“Show Stoppers” • Food or fluid intake 6 hours prior to surgery • Clear fluid intake within 2 hours of surgery – Can read newspaper print when looking through liquid • • Recent alcohol ingestion Recreational drug use Pregnancy Thyroid Dysfunction

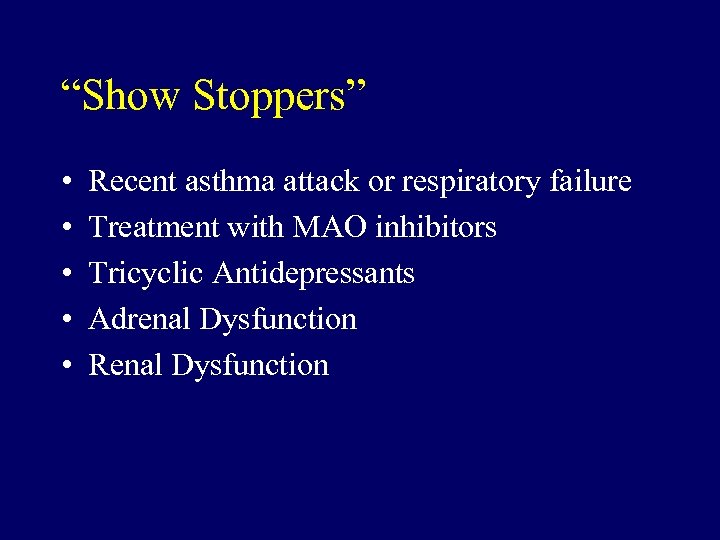

“Show Stoppers” • • • Recent asthma attack or respiratory failure Treatment with MAO inhibitors Tricyclic Antidepressants Adrenal Dysfunction Renal Dysfunction

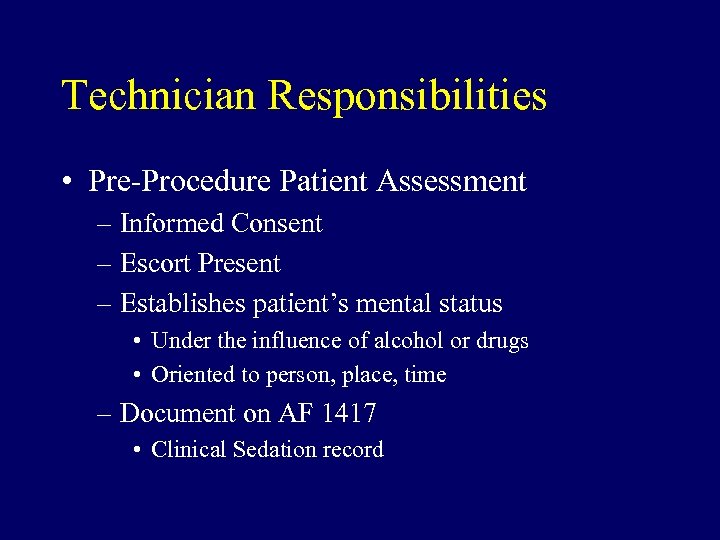

Technician Responsibilities • Pre-Procedure Patient Assessment – Informed Consent – Escort Present – Establishes patient’s mental status • Under the influence of alcohol or drugs • Oriented to person, place, time – Document on AF 1417 • Clinical Sedation record

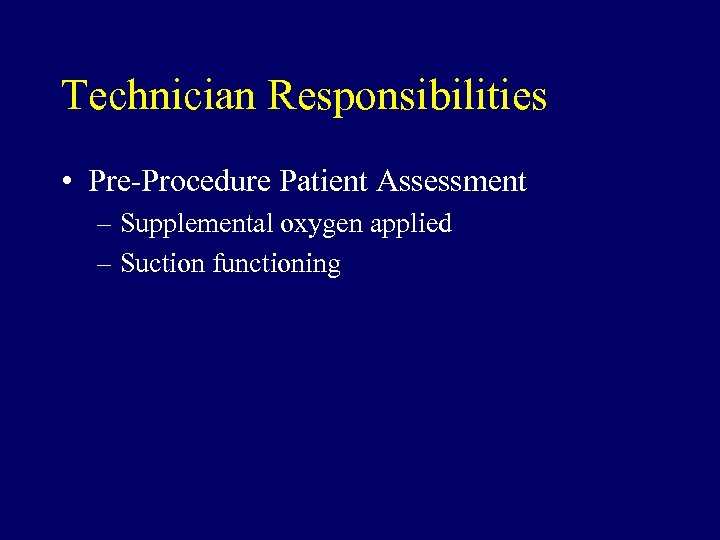

Technician Responsibilities • Pre-Procedure Patient Assessment – Supplemental oxygen applied – Suction functioning

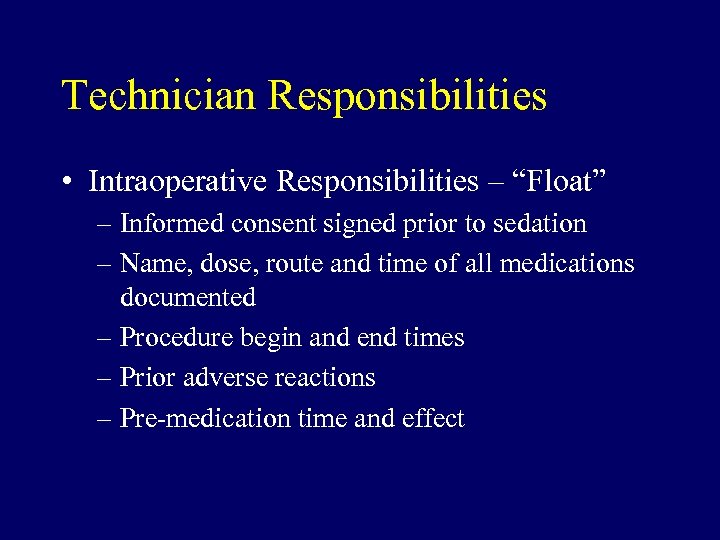

Technician Responsibilities • Intraoperative Responsibilities – “Float” – Informed consent signed prior to sedation – Name, dose, route and time of all medications documented – Procedure begin and end times – Prior adverse reactions – Pre-medication time and effect

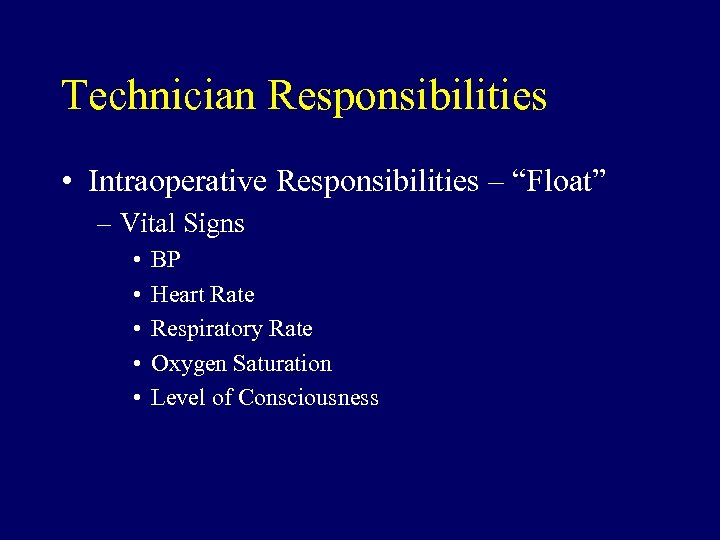

Technician Responsibilities • Intraoperative Responsibilities – “Float” – Vital Signs • • • BP Heart Rate Respiratory Rate Oxygen Saturation Level of Consciousness

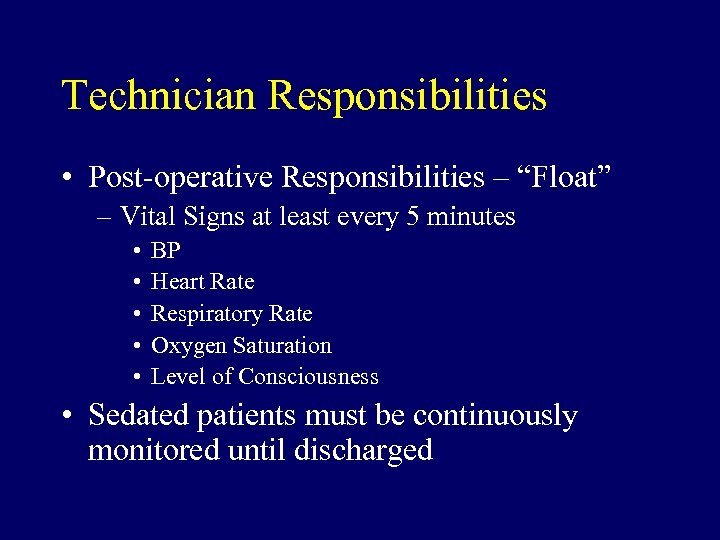

Technician Responsibilities • Post-operative Responsibilities – “Float” – Vital Signs at least every 5 minutes • • • BP Heart Rate Respiratory Rate Oxygen Saturation Level of Consciousness • Sedated patients must be continuously monitored until discharged

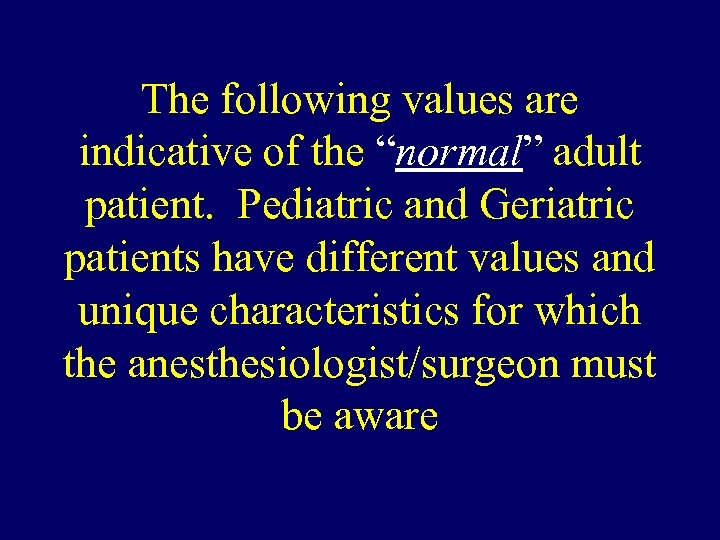

The following values are indicative of the “normal” adult patient. Pediatric and Geriatric patients have different values and unique characteristics for which the anesthesiologist/surgeon must be aware

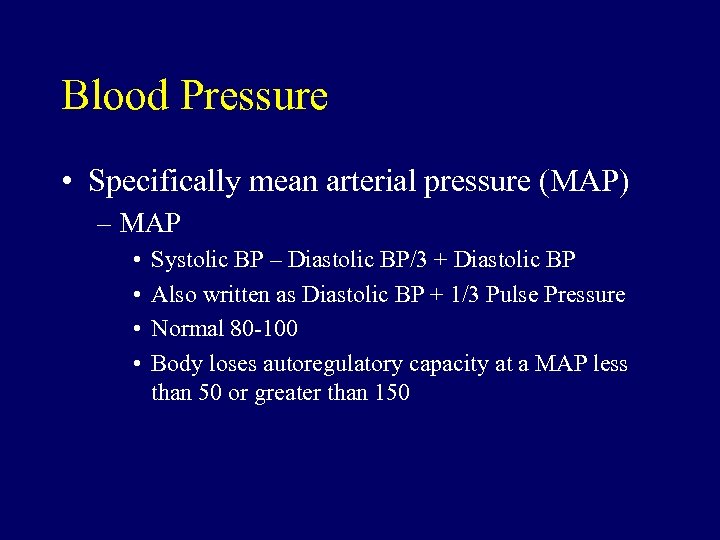

Blood Pressure • Specifically mean arterial pressure (MAP) – MAP • • Systolic BP – Diastolic BP/3 + Diastolic BP Also written as Diastolic BP + 1/3 Pulse Pressure Normal 80 -100 Body loses autoregulatory capacity at a MAP less than 50 or greater than 150

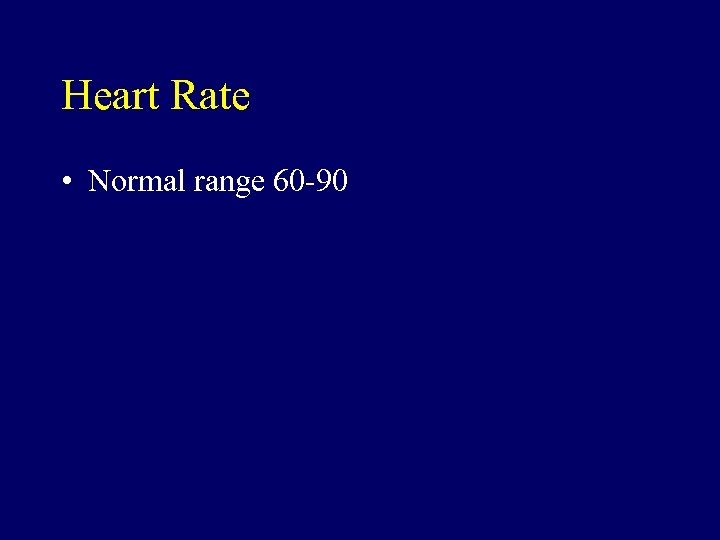

Heart Rate • Normal range 60 -90

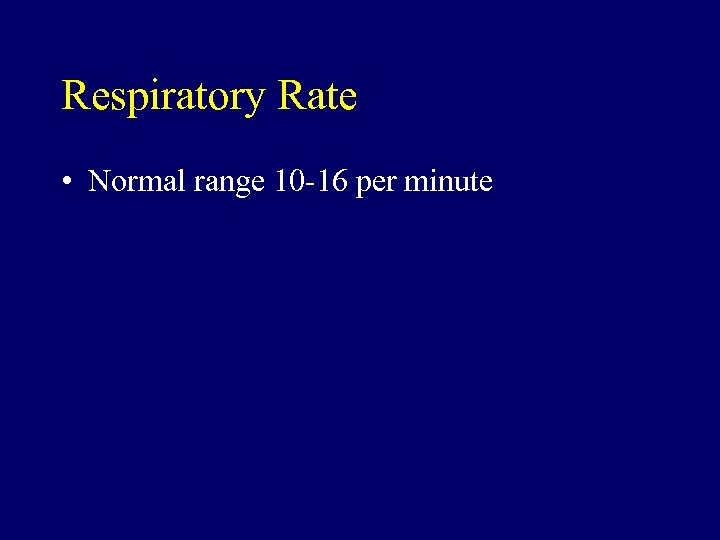

Respiratory Rate • Normal range 10 -16 per minute

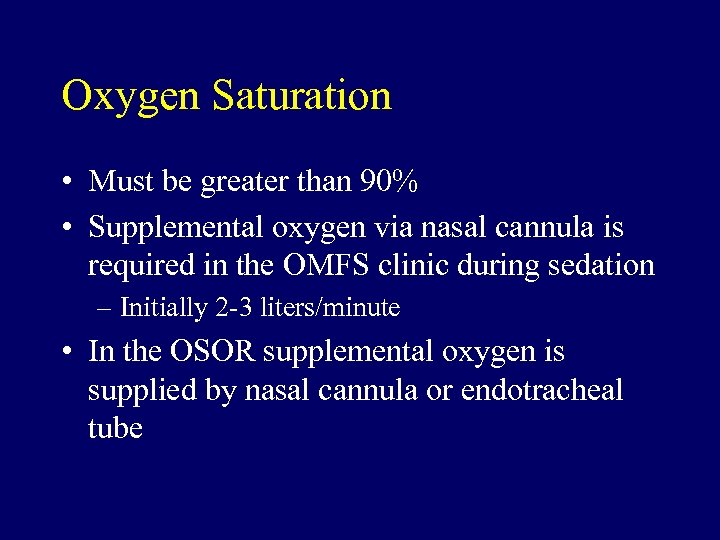

Oxygen Saturation • Must be greater than 90% • Supplemental oxygen via nasal cannula is required in the OMFS clinic during sedation – Initially 2 -3 liters/minute • In the OSOR supplemental oxygen is supplied by nasal cannula or endotracheal tube

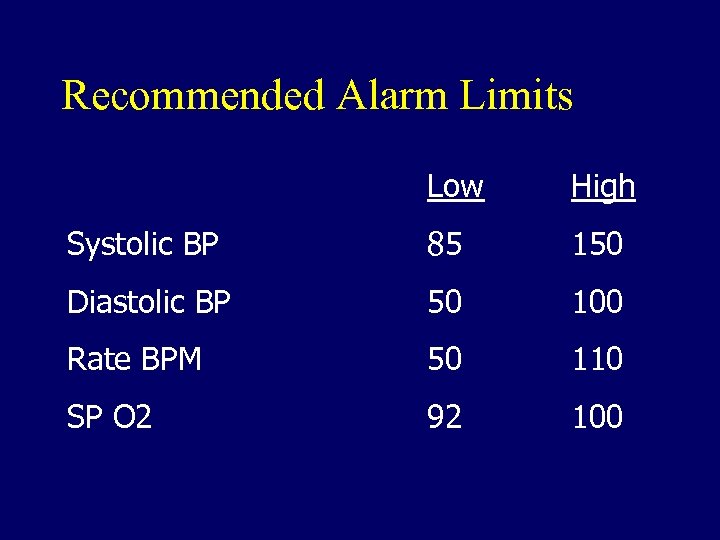

Recommended Alarm Limits Low High Systolic BP 85 150 Diastolic BP 50 100 Rate BPM 50 110 SP O 2 92 100

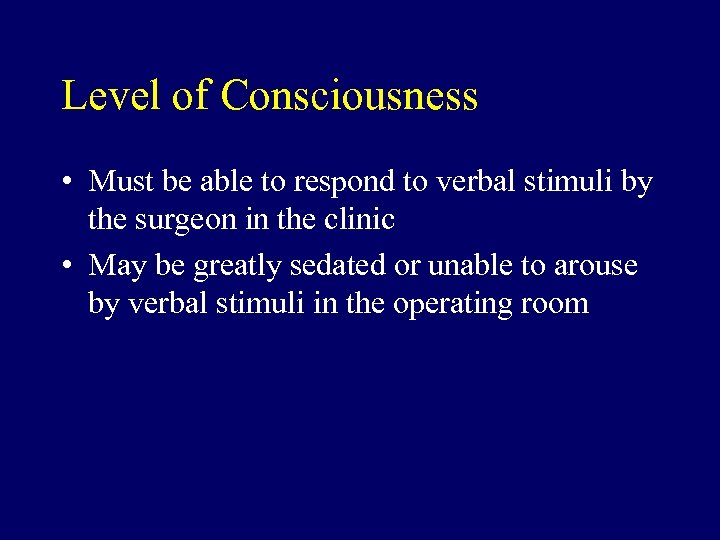

Level of Consciousness • Must be able to respond to verbal stimuli by the surgeon in the clinic • May be greatly sedated or unable to arouse by verbal stimuli in the operating room

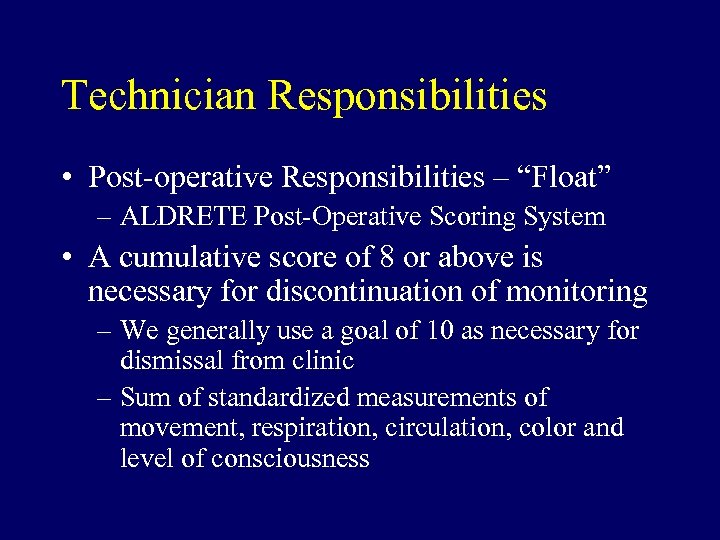

Technician Responsibilities • Post-operative Responsibilities – “Float” – ALDRETE Post-Operative Scoring System • A cumulative score of 8 or above is necessary for discontinuation of monitoring – We generally use a goal of 10 as necessary for dismissal from clinic – Sum of standardized measurements of movement, respiration, circulation, color and level of consciousness

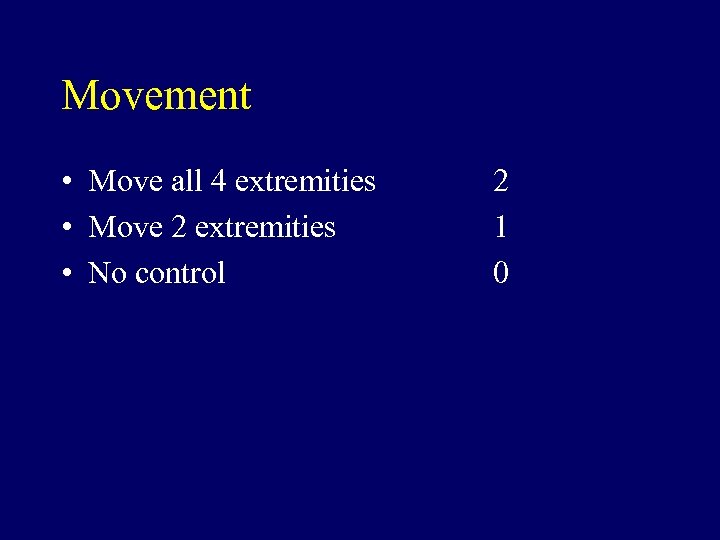

Movement • Move all 4 extremities • Move 2 extremities • No control 2 1 0

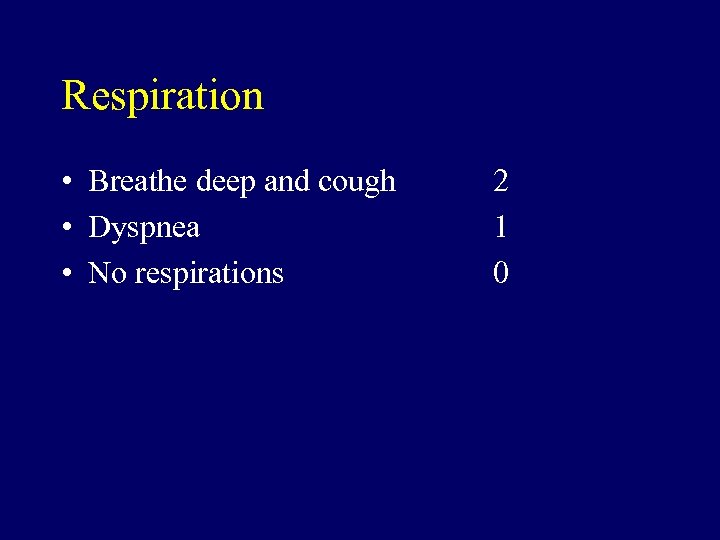

Respiration • Breathe deep and cough • Dyspnea • No respirations 2 1 0

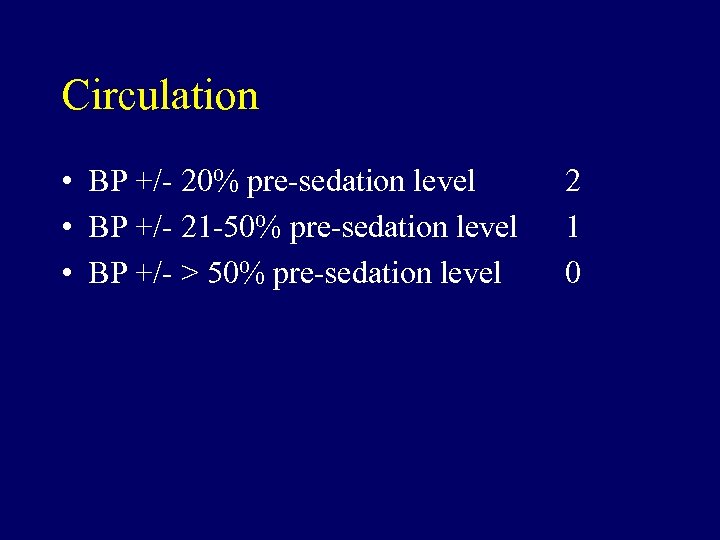

Circulation • BP +/- 20% pre-sedation level • BP +/- 21 -50% pre-sedation level • BP +/- > 50% pre-sedation level 2 1 0

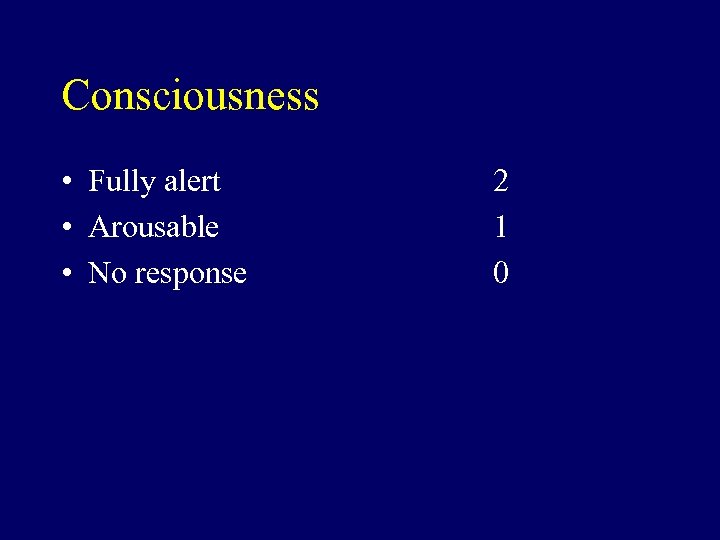

Consciousness • Fully alert • Arousable • No response 2 1 0

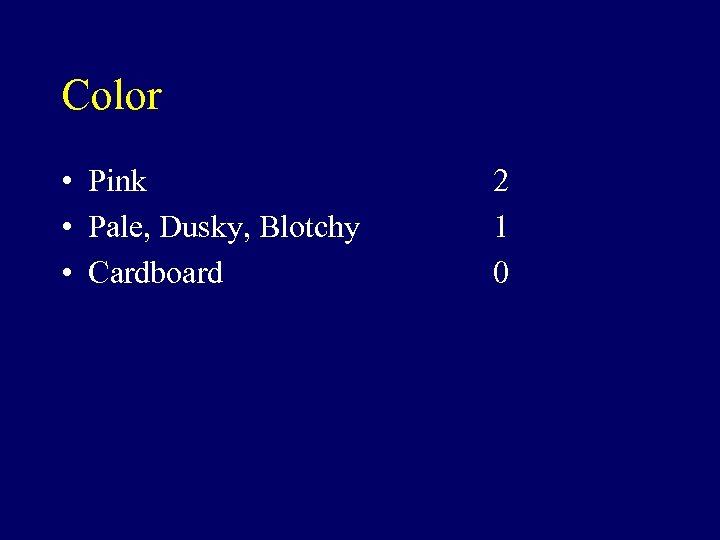

Color • Pink • Pale, Dusky, Blotchy • Cardboard 2 1 0

The Key to Sedation • Local Anesthesia – If a poor local anesthetic block has been given, the patient will continue to feel pain throughout the procedure

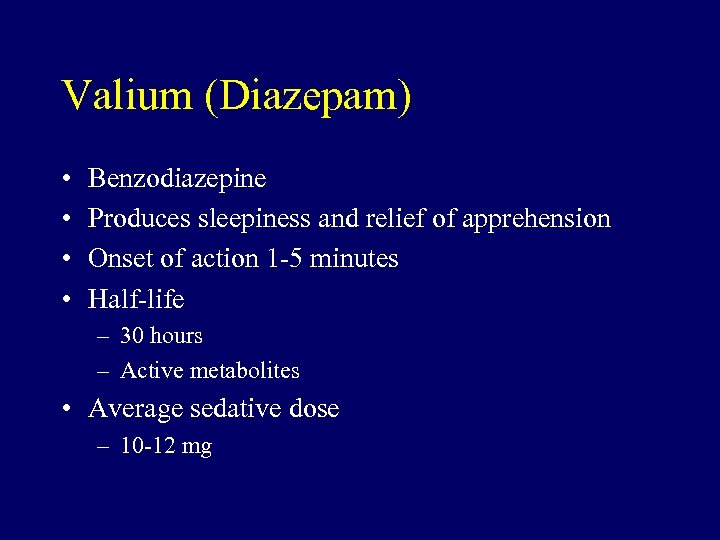

Valium (Diazepam) • • Benzodiazepine Produces sleepiness and relief of apprehension Onset of action 1 -5 minutes Half-life – 30 hours – Active metabolites • Average sedative dose – 10 -12 mg

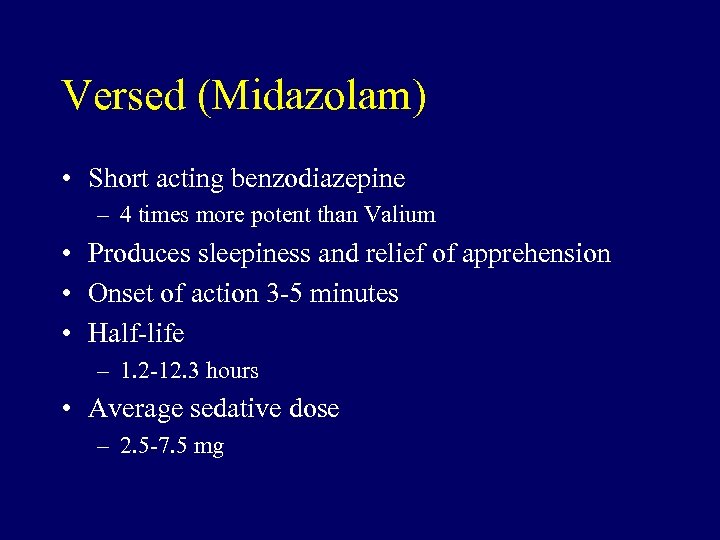

Versed (Midazolam) • Short acting benzodiazepine – 4 times more potent than Valium • Produces sleepiness and relief of apprehension • Onset of action 3 -5 minutes • Half-life – 1. 2 -12. 3 hours • Average sedative dose – 2. 5 -7. 5 mg

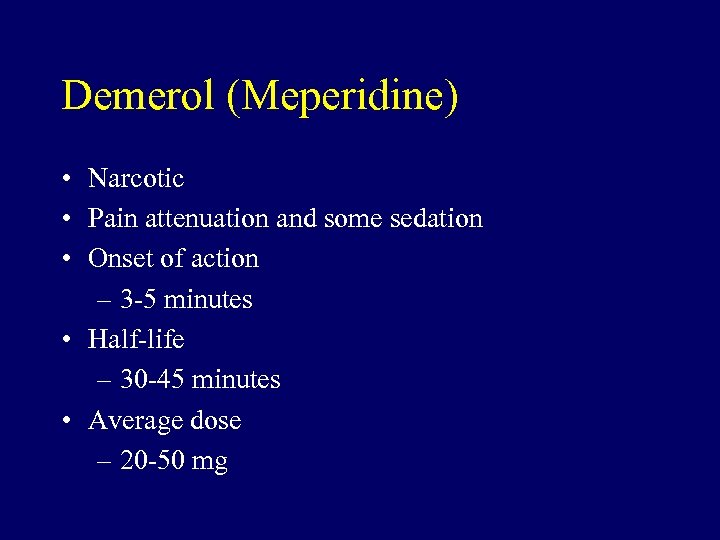

Demerol (Meperidine) • Narcotic • Pain attenuation and some sedation • Onset of action – 3 -5 minutes • Half-life – 30 -45 minutes • Average dose – 20 -50 mg

Fentanyl (Sublimaze) • Narcotic/Opiod agonist – 100 times more potent than Morphine • Pain attenuation and some sedation • Onset of action around 1 minute • Half-life – 30 -60 minutes • Average dose – 0. 05 – 0. 06 mg

Additional Medications • Likely to be seen in scenarios where deeper levels of sedation are being performed – Propofol (Diprivan) – Robinul (Glycopyrrolate)

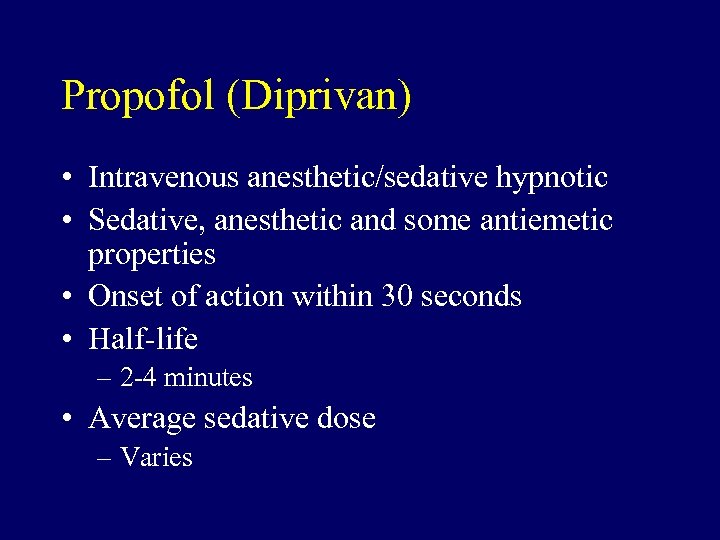

Propofol (Diprivan) • Intravenous anesthetic/sedative hypnotic • Sedative, anesthetic and some antiemetic properties • Onset of action within 30 seconds • Half-life – 2 -4 minutes • Average sedative dose – Varies

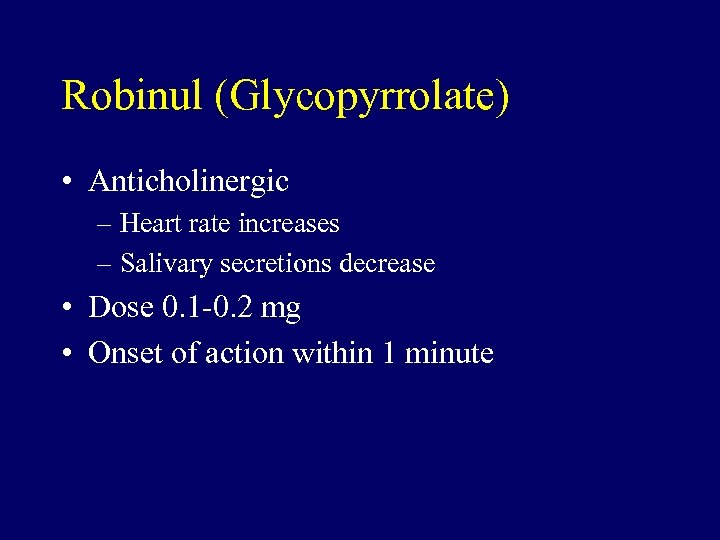

Robinul (Glycopyrrolate) • Anticholinergic – Heart rate increases – Salivary secretions decrease • Dose 0. 1 -0. 2 mg • Onset of action within 1 minute

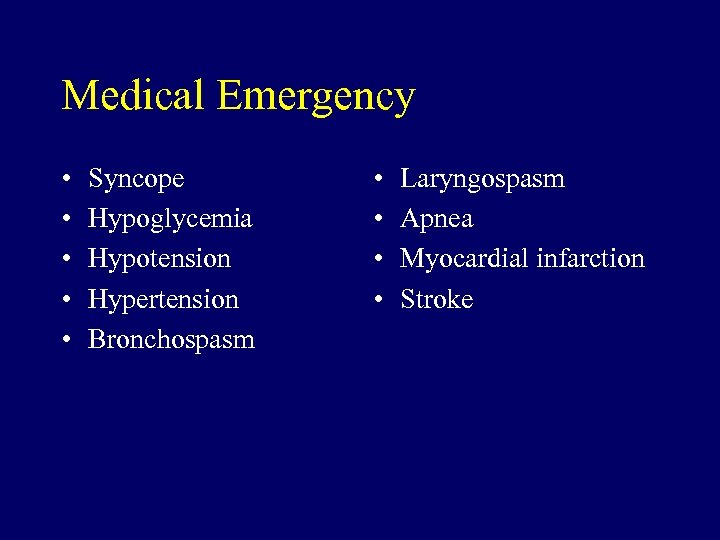

Medical Emergency • • • Syncope Hypoglycemia Hypotension Hypertension Bronchospasm • • Laryngospasm Apnea Myocardial infarction Stroke

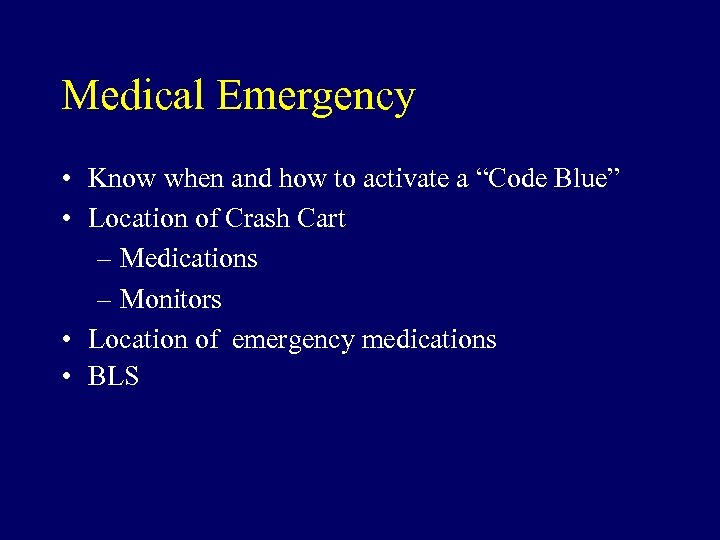

Medical Emergency • Know when and how to activate a “Code Blue” • Location of Crash Cart – Medications – Monitors • Location of emergency medications • BLS

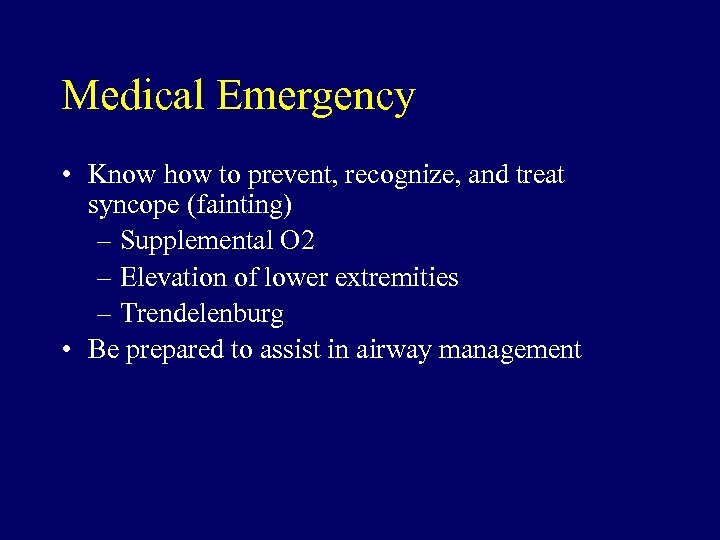

Medical Emergency • Know how to prevent, recognize, and treat syncope (fainting) – Supplemental O 2 – Elevation of lower extremities – Trendelenburg • Be prepared to assist in airway management

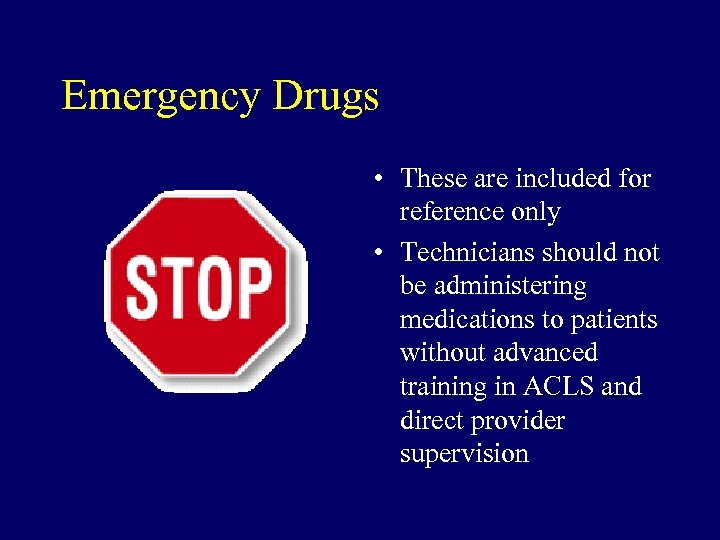

Emergency Drugs • These are included for reference only • Technicians should not be administering medications to patients without advanced training in ACLS and direct provider supervision

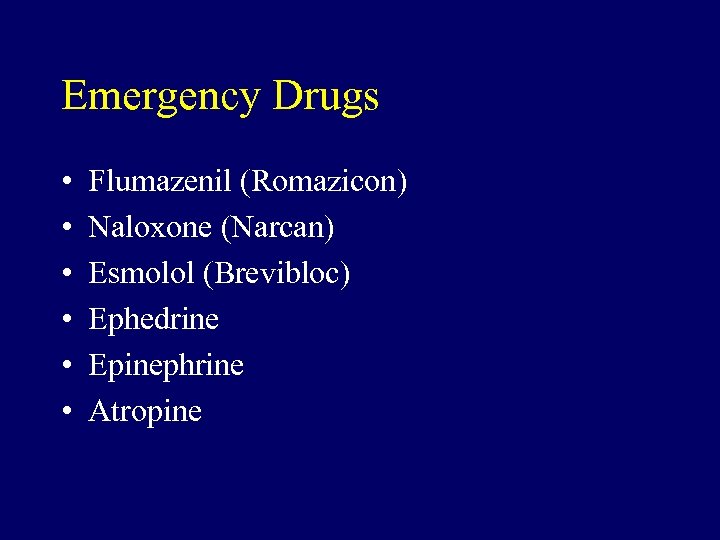

Emergency Drugs • • • Flumazenil (Romazicon) Naloxone (Narcan) Esmolol (Brevibloc) Ephedrine Epinephrine Atropine

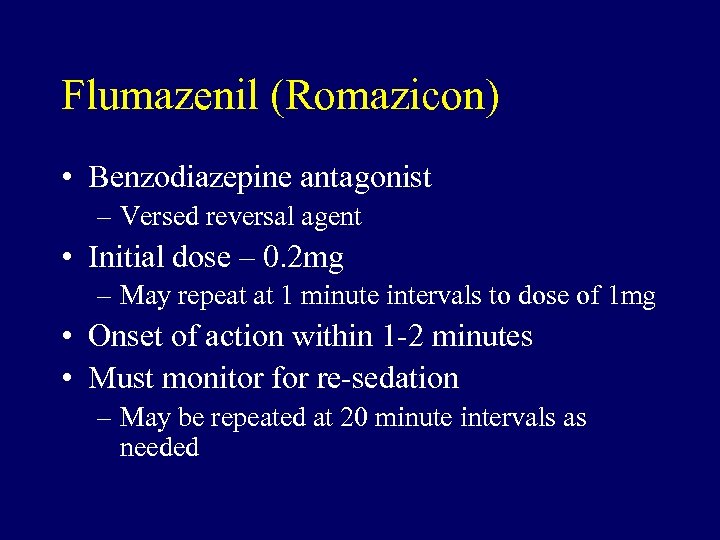

Flumazenil (Romazicon) • Benzodiazepine antagonist – Versed reversal agent • Initial dose – 0. 2 mg – May repeat at 1 minute intervals to dose of 1 mg • Onset of action within 1 -2 minutes • Must monitor for re-sedation – May be repeated at 20 minute intervals as needed

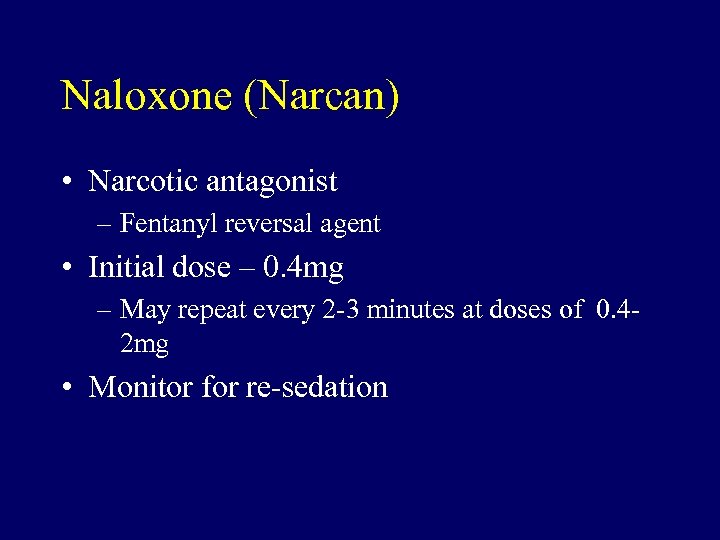

Naloxone (Narcan) • Narcotic antagonist – Fentanyl reversal agent • Initial dose – 0. 4 mg – May repeat every 2 -3 minutes at doses of 0. 42 mg • Monitor for re-sedation

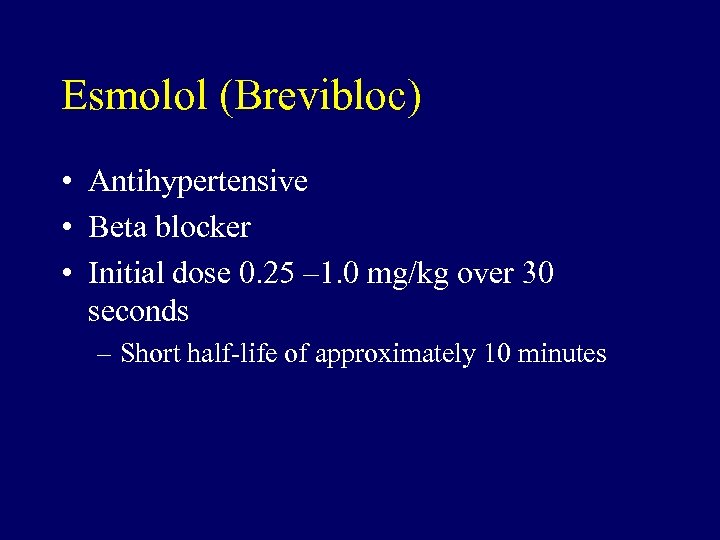

Esmolol (Brevibloc) • Antihypertensive • Beta blocker • Initial dose 0. 25 – 1. 0 mg/kg over 30 seconds – Short half-life of approximately 10 minutes

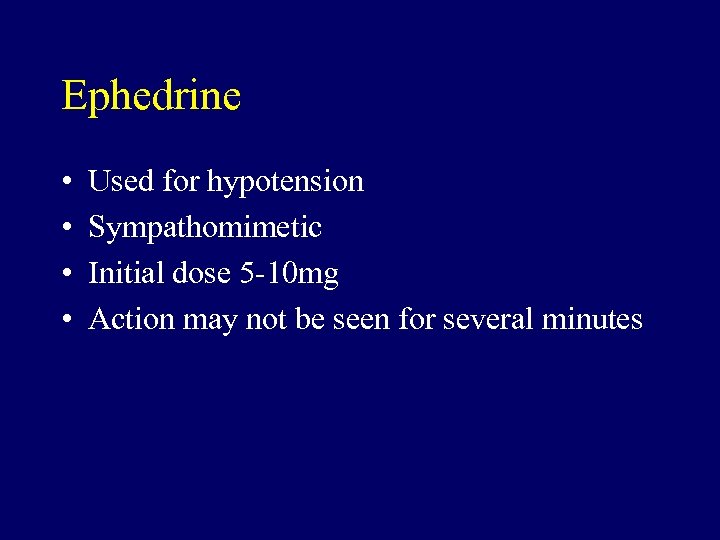

Ephedrine • • Used for hypotension Sympathomimetic Initial dose 5 -10 mg Action may not be seen for several minutes

Atropine • Significant bradycardia or asystole – Slow heart beat or NO heartbeat • Anticholinergic • Initial dose 0. 25 – 1. 0 mg – May repeat every 3 -5 minutes – Maximum total dose. 03 mg/kg

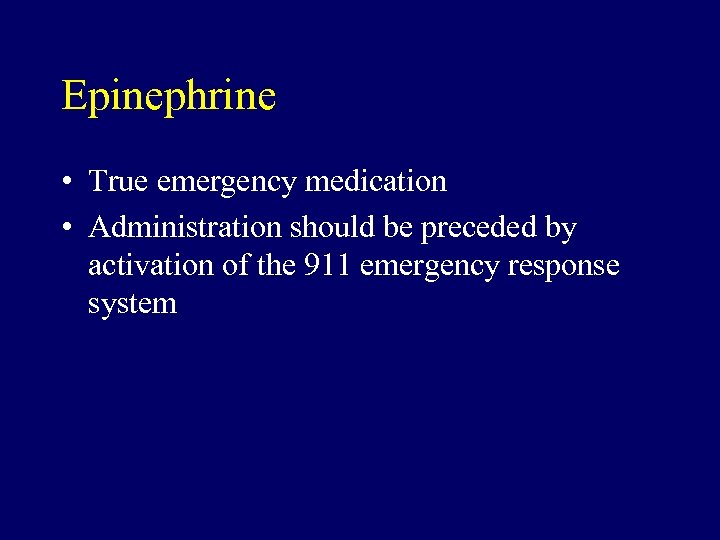

Epinephrine • True emergency medication • Administration should be preceded by activation of the 911 emergency response system

Questions
