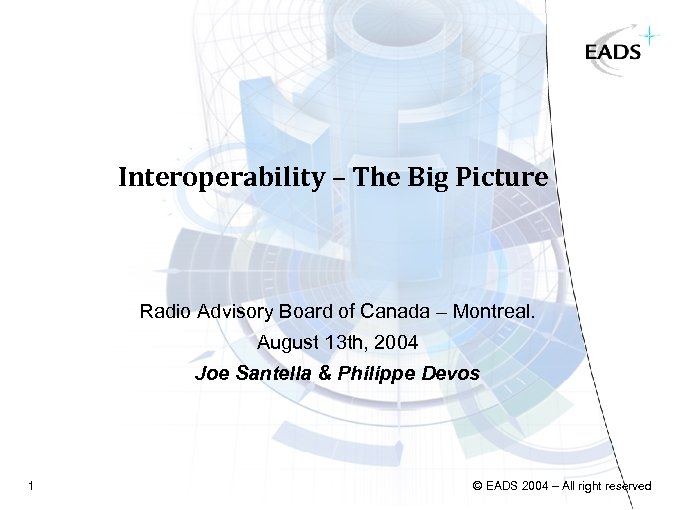

Interoperability The Big Picture Radio Advisory Board

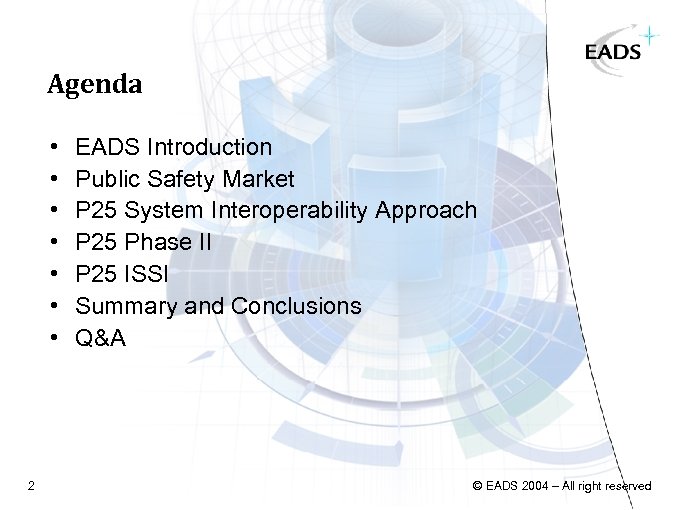

Agenda • • 2 EADS Introduction Public Safety Market P 25 System Interoperability Approach

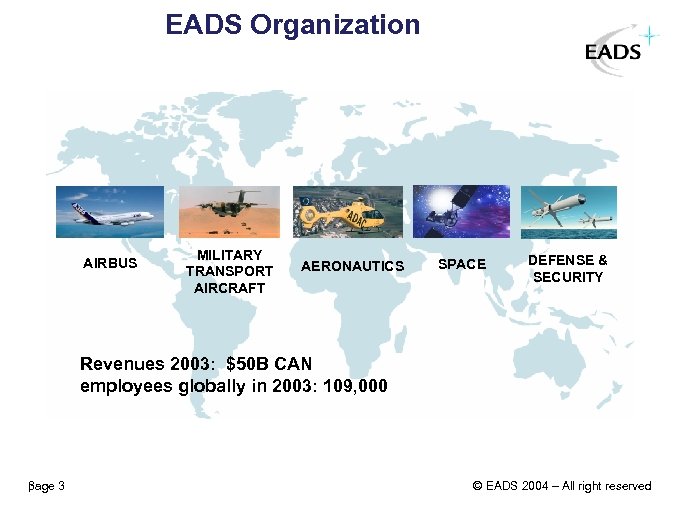

EADS Organization AIRBUS MILITARY TRANSPORT AIRCRAFT AERONAUTICS SPACE DEFENSE & SECURITY Revenues 2003: $50

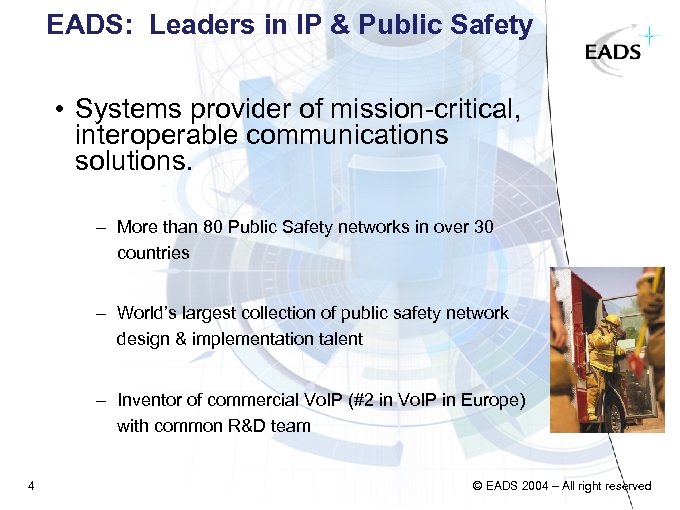

EADS: Leaders in IP & Public Safety • Systems provider of mission-critical, interoperable communications solutions. – More than 80 Public Safety networks in over 30 countries – World’s largest collection of public safety network design & implementation talent – Inventor of commercial Vo. IP (#2 in Vo. IP in Europe) with common R&D team 4 © EADS 2004 – All right reserved

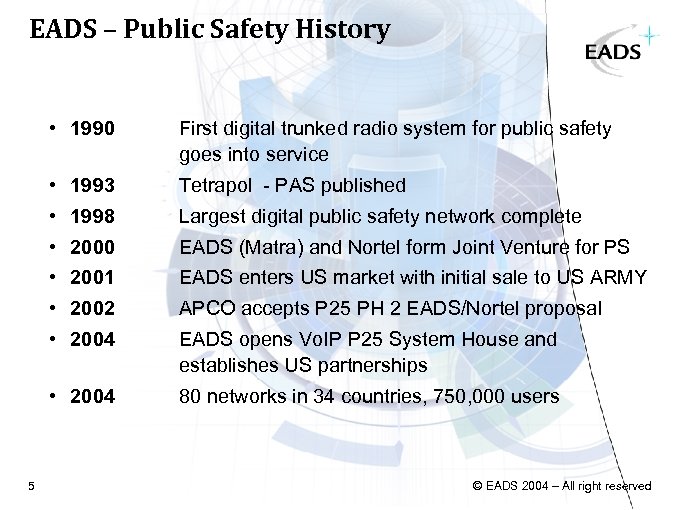

EADS – Public Safety History • 1990 • 1993 Tetrapol - PAS published • 1998 Largest digital public safety network complete • 2000 EADS (Matra) and Nortel form Joint Venture for PS • 2001 EADS enters US market with initial sale to US ARMY • 2002 APCO accepts P 25 PH 2 EADS/Nortel proposal • 2004 EADS opens Vo. IP P 25 System House and establishes US partnerships • 2004 5 First digital trunked radio system for public safety goes into service 80 networks in 34 countries, 750, 000 users © EADS 2004 – All right reserved

A strategic technology partnership with Nortel Networks, world leader of high performance internet • Provides EADS TELECOM access to a long term strategic technology partnership • Access to Nortel assets – Patent portfolio and IPR – A complete range of products and Internet solutions • Standards cooperation 6 © EADS 2004 – All right reserved

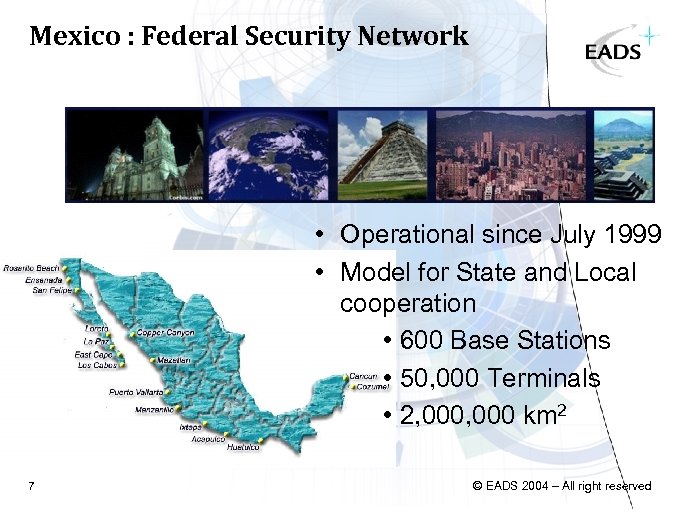

Mexico : Federal Security Network • Operational since July 1999 • Model for State

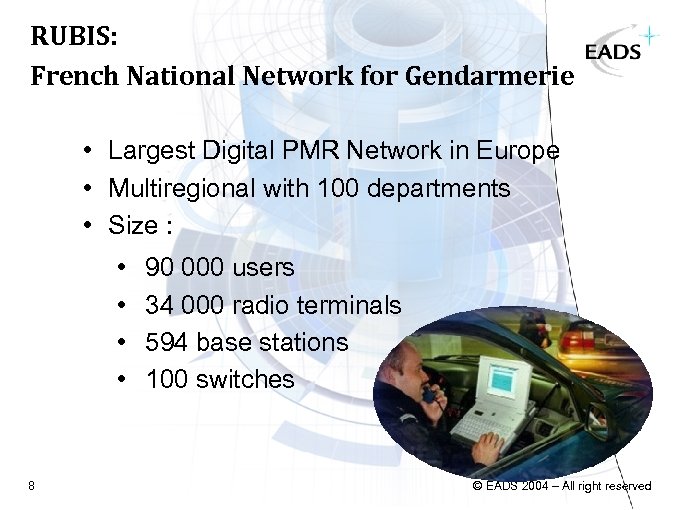

RUBIS: French National Network for Gendarmerie • Largest Digital PMR Network in Europe • Multiregional with 100 departments • Size : • • 8 90 000 users 34 000 radio terminals 594 base stations 100 switches © EADS 2004 – All right reserved

ACROPOL French National Police Network • Operational since 1994 • Major event coverage – G 7 summit – Worldcup Soccer • After completion of contract – 130 000 users – 45 000 radio terminals – 390 base stations – 100 switches 9 © EADS 2004 – All right reserved

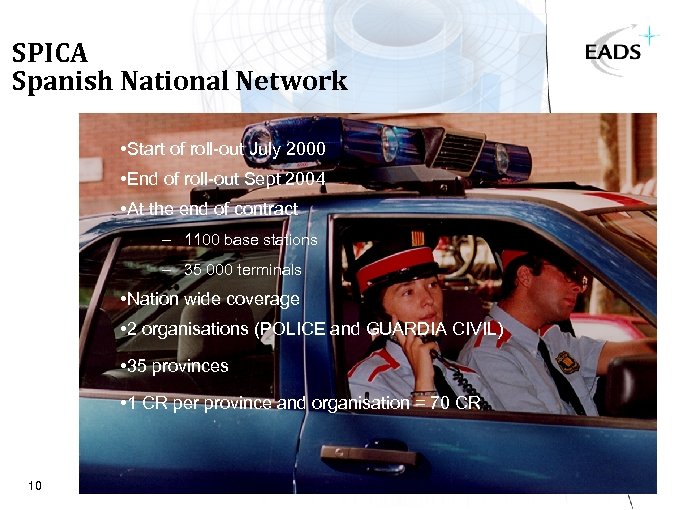

SPICA Spanish National Network • Start of roll-out July 2000 • End of roll-out Sept 2004 • At the end of contract – 1100 base stations – 35 000 terminals • Nation wide coverage • 2 organisations (POLICE and GUARDIA CIVIL) • 35 provinces • 1 CR per province and organisation = 70 CR 10 © EADS 2004 – All right reserved

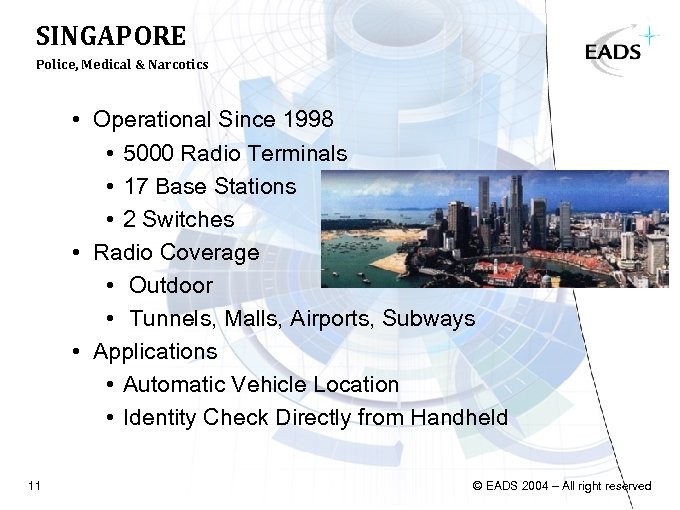

SINGAPORE Police, Medical & Narcotics • Operational Since 1998 • 5000 Radio Terminals • 17 Base Stations • 2 Switches • Radio Coverage • Outdoor • Tunnels, Malls, Airports, Subways • Applications • Automatic Vehicle Location • Identity Check Directly from Handheld 11 © EADS 2004 – All right reserved

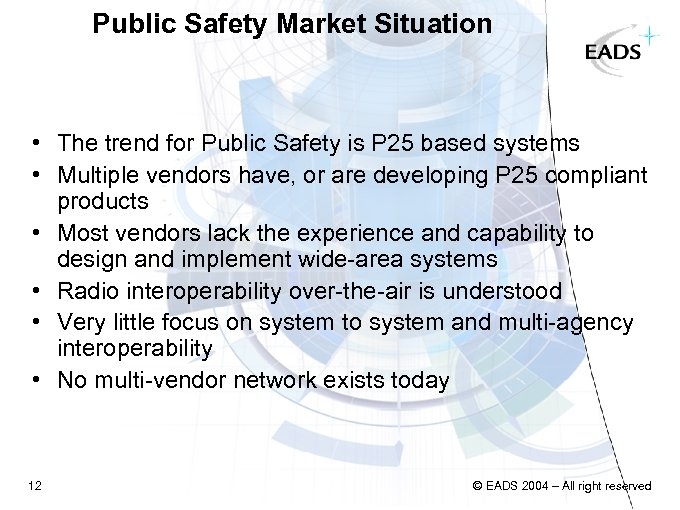

Public Safety Market Situation • The trend for Public Safety is P 25 based systems • Multiple vendors have, or are developing P 25 compliant products • Most vendors lack the experience and capability to design and implement wide-area systems • Radio interoperability over-the-air is understood • Very little focus on system to system and multi-agency interoperability • No multi-vendor network exists today 12 © EADS 2004 – All right reserved

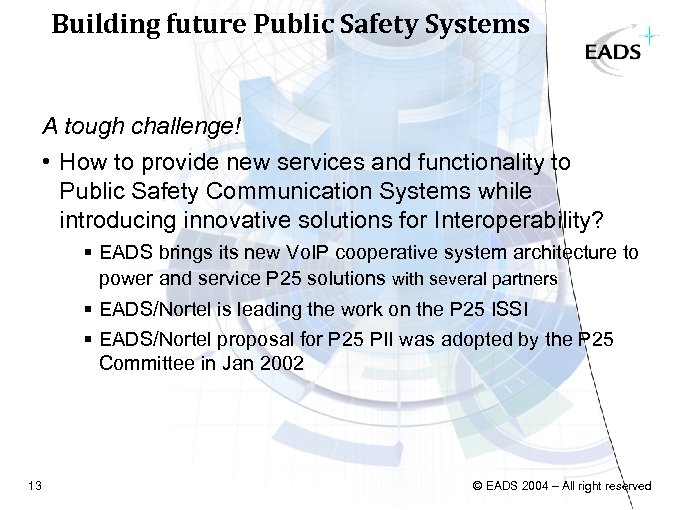

Building future Public Safety Systems A tough challenge! • How to provide new services and functionality to Public Safety Communication Systems while introducing innovative solutions for Interoperability? § EADS brings its new Vo. IP cooperative system architecture to power and service P 25 solutions with several partners § EADS/Nortel is leading the work on the P 25 ISSI § EADS/Nortel proposal for P 25 PII was adopted by the P 25 Committee in Jan 2002 13 © EADS 2004 – All right reserved

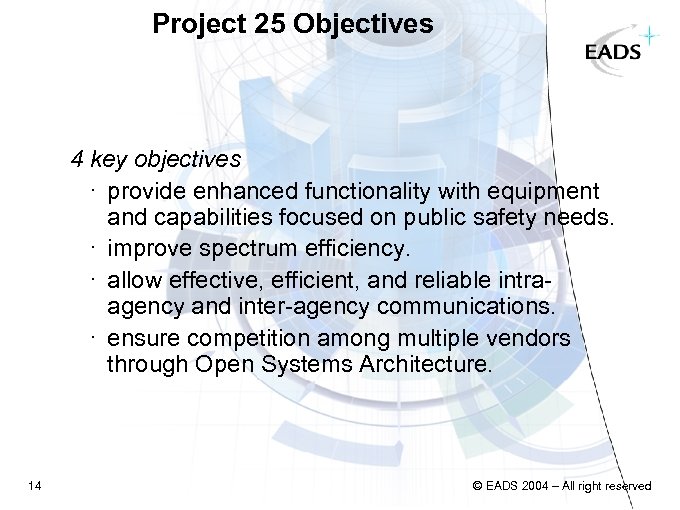

Project 25 Objectives 4 key objectives · provide enhanced functionality with equipment and capabilities focused on public safety needs. · improve spectrum efficiency. · allow effective, efficient, and reliable intraagency and inter-agency communications. · ensure competition among multiple vendors through Open Systems Architecture. 14 © EADS 2004 – All right reserved

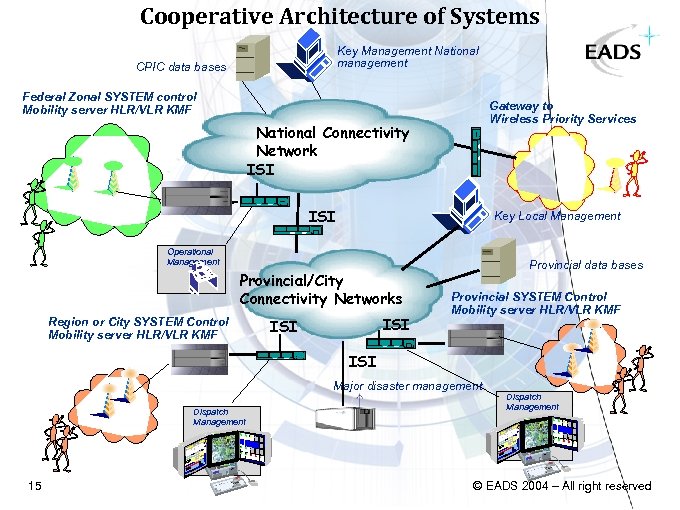

Cooperative Architecture of Systems Key Management National management CPIC data bases Federal Zonal SYSTEM control Mobility server HLR/VLR KMF Gateway to Wireless Priority Services National Connectivity Network ISI Key Local Management Operational Management Provincial/City Connectivity Networks Region or City SYSTEM Control Mobility server HLR/VLR KMF ISI Provincial data bases Provincial SYSTEM Control Mobility server HLR/VLR KMF ISI Major disaster management Dispatch Management 15 Dispatch Management © EADS 2004 – All right reserved

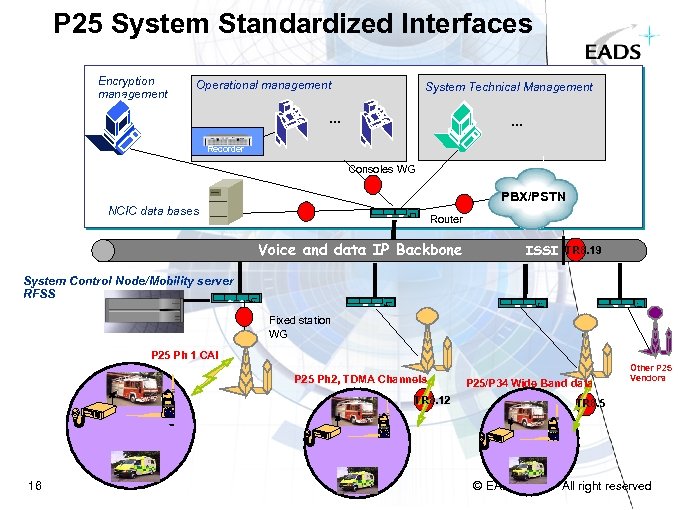

P 25 System Standardized Interfaces Encryption management Operational management . . . System Technical Management . . . Recorder Consoles WG PBX/PSTN NCIC data bases Router Voice and data IP Backbone FAX PABX ISSI TR 8. 19 System Control Node/Mobility server RFSS Fixed station WG P 25 Ph 1 CAI P 25 Ph 2, TDMA Channels TR 8. 12 16 P 25/P 34 Wide Band data Other P 25 Vendors TR 8. 5 © EADS 2004 – All right reserved

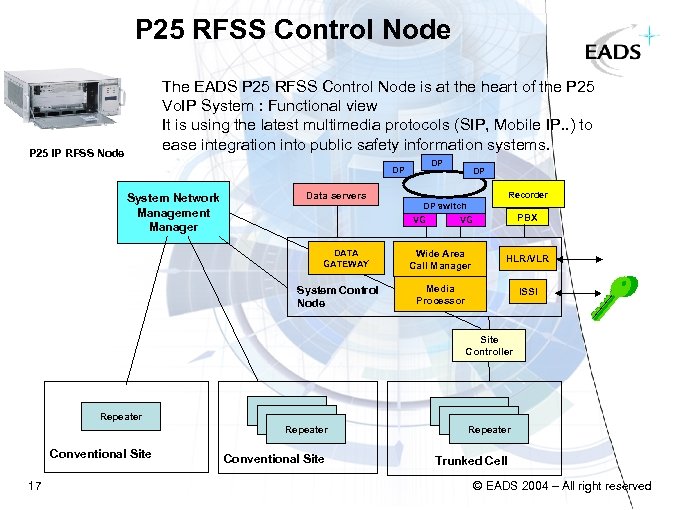

P 25 RFSS Control Node The EADS P 25 RFSS Control Node is at the heart of the P 25 Vo. IP System : Functional view It is using the latest multimedia protocols (SIP, Mobile IP. . ) to ease integration into public safety information systems. P 25 IP RFSS Node DP DP System Network Management Manager Data servers Recorder DP switch VG DATA GATEWAY System Control Node DP PBX VG Wide Area Call Manager HLR/VLR Media Processor ISSI Site Controller Repeater Conventional Site 17 Repeater Conventional Site Repeater Trunked Cell © EADS 2004 – All right reserved

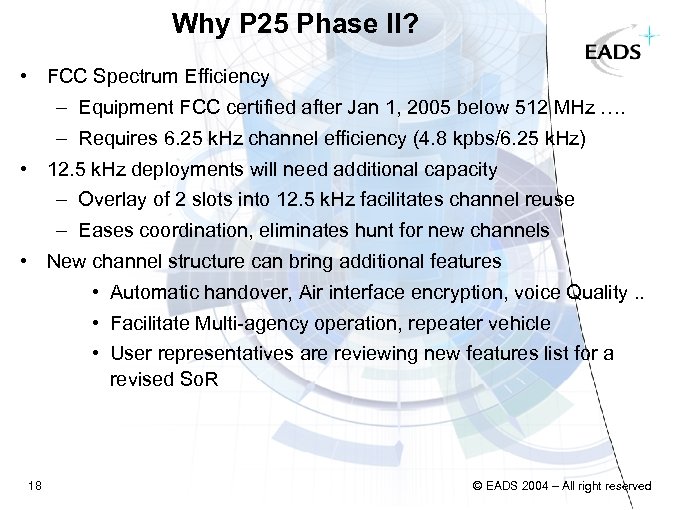

Why P 25 Phase II? • FCC Spectrum Efficiency – Equipment FCC certified after Jan 1, 2005 below 512 MHz …. – Requires 6. 25 k. Hz channel efficiency (4. 8 kpbs/6. 25 k. Hz) • 12. 5 k. Hz deployments will need additional capacity – Overlay of 2 slots into 12. 5 k. Hz facilitates channel reuse – Eases coordination, eliminates hunt for new channels • New channel structure can bring additional features • Automatic handover, Air interface encryption, voice Quality. . • Facilitate Multi-agency operation, repeater vehicle • User representatives are reviewing new features list for a revised So. R 18 © EADS 2004 – All right reserved

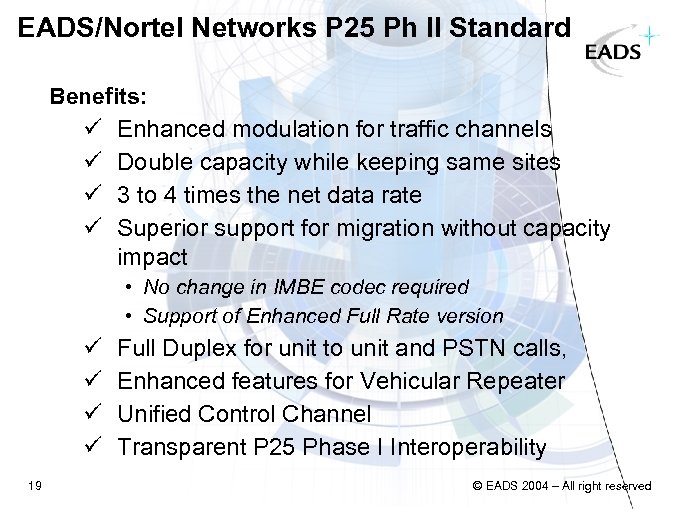

EADS/Nortel Networks P 25 Ph II Standard Benefits: ü Enhanced modulation for traffic channels ü Double capacity while keeping same sites ü 3 to 4 times the net data rate ü Superior support for migration without capacity impact • No change in IMBE codec required • Support of Enhanced Full Rate version ü ü 19 Full Duplex for unit to unit and PSTN calls, Enhanced features for Vehicular Repeater Unified Control Channel Transparent P 25 Phase I Interoperability © EADS 2004 – All right reserved

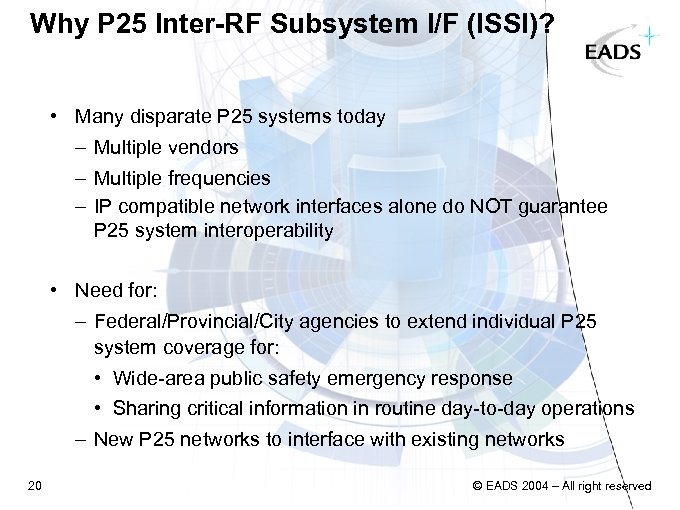

Why P 25 Inter-RF Subsystem I/F (ISSI)? • Many disparate P 25 systems today – Multiple vendors – Multiple frequencies – IP compatible network interfaces alone do NOT guarantee P 25 system interoperability • Need for: – Federal/Provincial/City agencies to extend individual P 25 system coverage for: • Wide-area public safety emergency response • Sharing critical information in routine day-to-day operations – New P 25 networks to interface with existing networks 20 © EADS 2004 – All right reserved

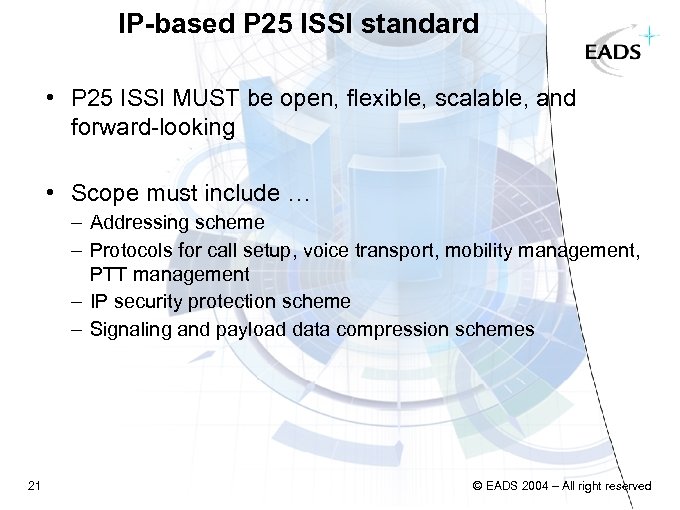

IP-based P 25 ISSI standard • P 25 ISSI MUST be open, flexible, scalable, and forward-looking • Scope must include … – Addressing scheme – Protocols for call setup, voice transport, mobility management, PTT management – IP security protection scheme – Signaling and payload data compression schemes 21 © EADS 2004 – All right reserved

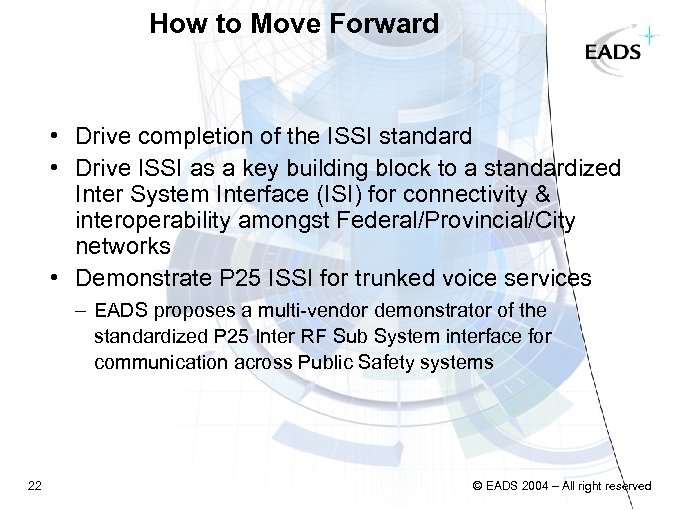

How to Move Forward • Drive completion of the ISSI standard • Drive ISSI as a key building block to a standardized Inter System Interface (ISI) for connectivity & interoperability amongst Federal/Provincial/City networks • Demonstrate P 25 ISSI for trunked voice services – EADS proposes a multi-vendor demonstrator of the standardized P 25 Inter RF Sub System interface for communication across Public Safety systems 22 © EADS 2004 – All right reserved

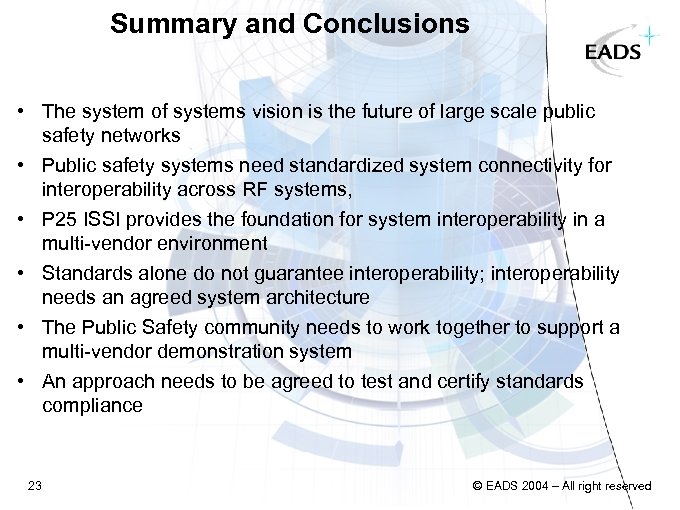

Summary and Conclusions • The system of systems vision is the future of large scale public safety networks • Public safety systems need standardized system connectivity for interoperability across RF systems, • P 25 ISSI provides the foundation for system interoperability in a multi-vendor environment • Standards alone do not guarantee interoperability; interoperability needs an agreed system architecture • The Public Safety community needs to work together to support a multi-vendor demonstration system • An approach needs to be agreed to test and certify standards compliance 23 © EADS 2004 – All right reserved

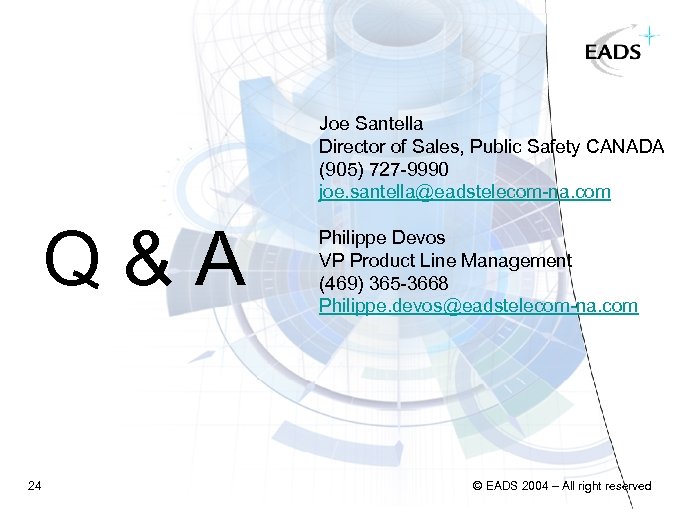

Joe Santella Director of Sales, Public Safety CANADA (905) 727 -9990 joe. santella@eadstelecom-na. com Q&A 24 Philippe Devos VP Product Line Management (469) 365 -3668 Philippe. devos@eadstelecom-na. com © EADS 2004 – All right reserved
