Internet Telephony PBX System IPX-300 Series PBX with FXO and GSM GW Configuration www.

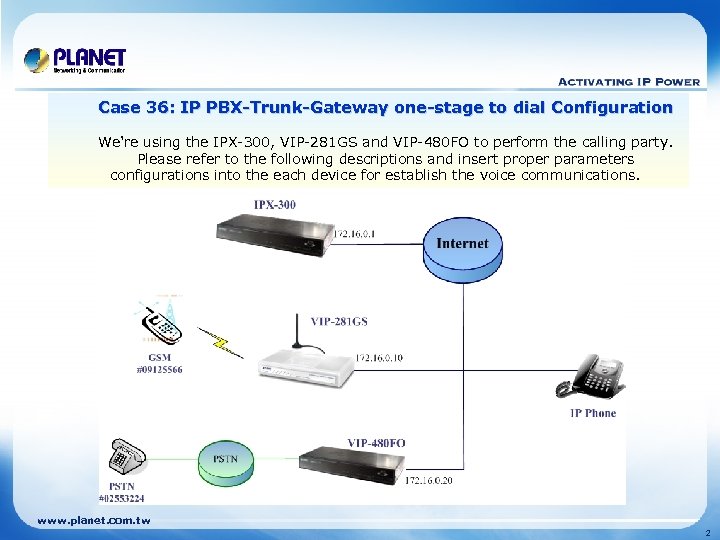

Case 36: IP PBX-Trunk-Gateway one-stage to dial Configuration We're using the IPX-300, VIP-281 GS and VIP-480 FO to perform the calling party. Please refer to the following descriptions and insert proper parameters configurations into the each device for establish the voice communications. www. planet. com. tw 2

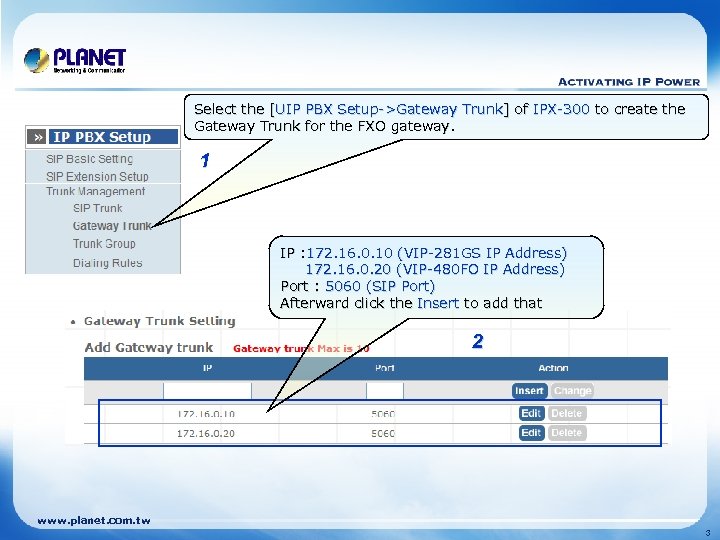

Select the [UIP PBX Setup->Gateway Trunk] of IPX-300 to create the Gateway Trunk for the FXO gateway. 1 IP : 172. 16. 0. 10 (VIP-281 GS IP Address) 172. 16. 0. 20 (VIP-480 FO IP Address) Port : 5060 (SIP Port) Afterward click the Insert to add that 2 www. planet. com. tw 3

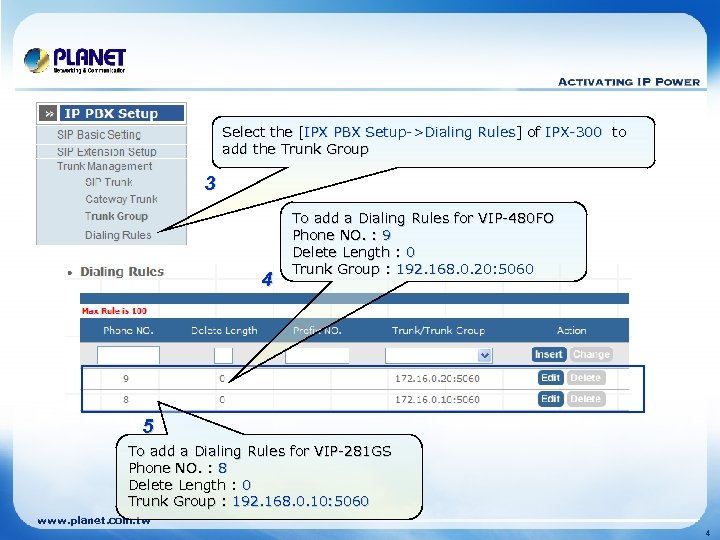

Select the [IPX PBX Setup->Dialing Rules] of IPX-300 to add the Trunk Group 3 4 To add a Dialing Rules for VIP-480 FO Phone NO. : 9 Delete Length : 0 Trunk Group : 192. 168. 0. 20: 5060 5 To add a Dialing Rules for VIP-281 GS Phone NO. : 8 Delete Length : 0 Trunk Group : 192. 168. 0. 10: 5060 www. planet. com. tw 4

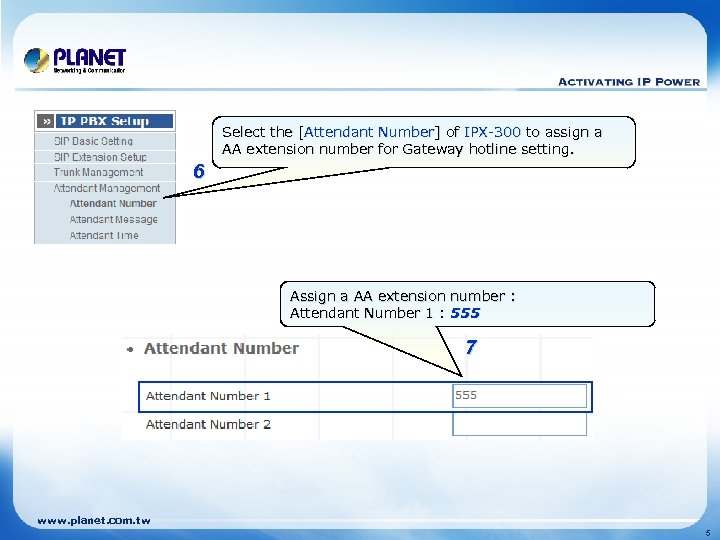

Select the [Attendant Number] of IPX-300 to assign a AA extension number for Gateway hotline setting. 6 Assign a AA extension number : Attendant Number 1 : 555 7 www. planet. com. tw 5

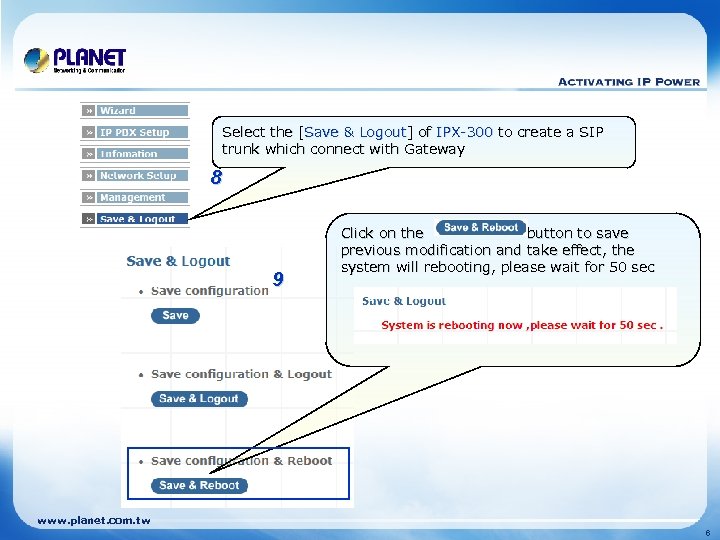

Select the [Save & Logout] of IPX-300 to create a SIP trunk which connect with Gateway 8 9 Click on the button to save previous modification and take effect, the system will rebooting, please wait for 50 sec www. planet. com. tw 6

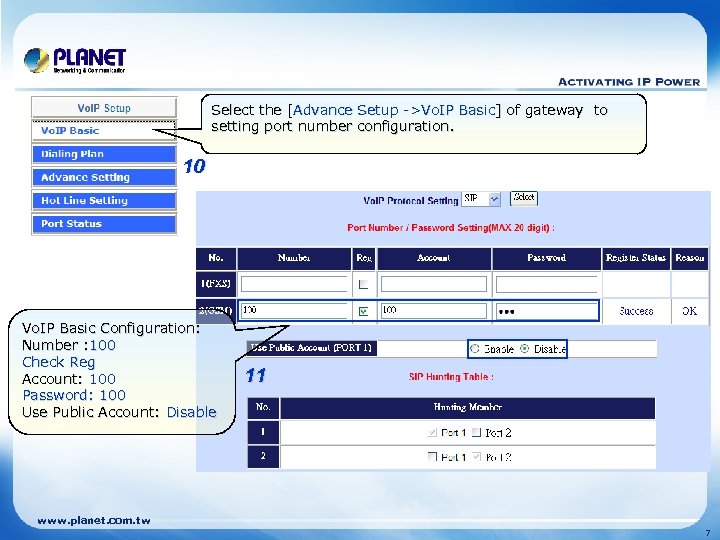

Select the [Advance Setup ->Vo. IP Basic] of gateway to setting port number configuration. 10 Vo. IP Basic Configuration: Number : 100 Check Reg Account: 100 Password: 100 Use Public Account: Disable 11 www. planet. com. tw 7

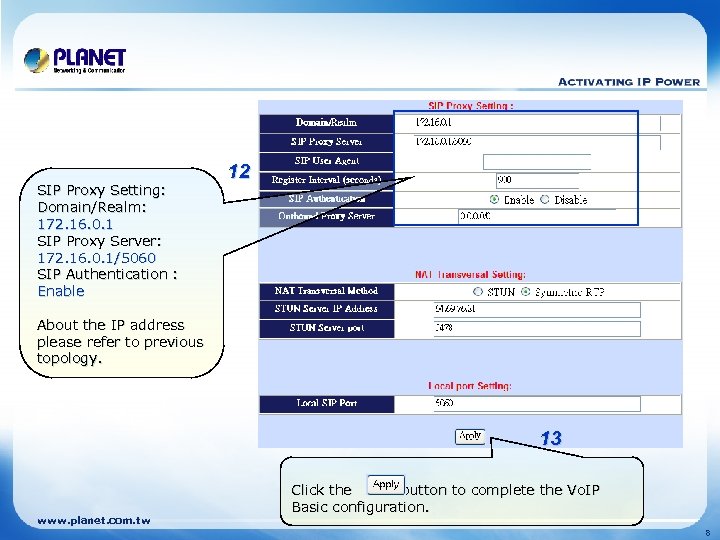

SIP Proxy Setting: Domain/Realm: 172. 16. 0. 1 SIP Proxy Server: 172. 16. 0. 1/5060 SIP Authentication : Enable 12 About the IP address please refer to previous topology. 13 www. planet. com. tw Click the button to complete the Vo. IP Basic configuration. 8

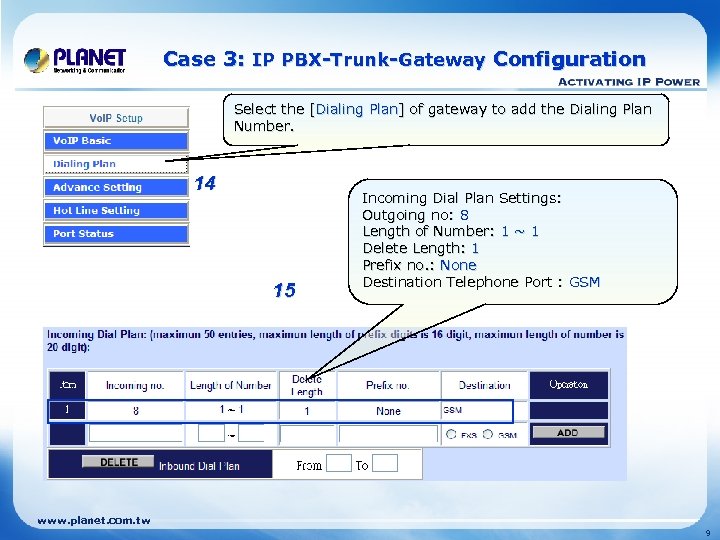

Case 3: IP PBX-Trunk-Gateway Configuration Select the [Dialing Plan] of gateway to add the Dialing Plan Number. 14 15 Incoming Dial Plan Settings: Outgoing no: 8 Length of Number: 1 ~ 1 Delete Length: 1 Prefix no. : None Destination Telephone Port : GSM www. planet. com. tw 9

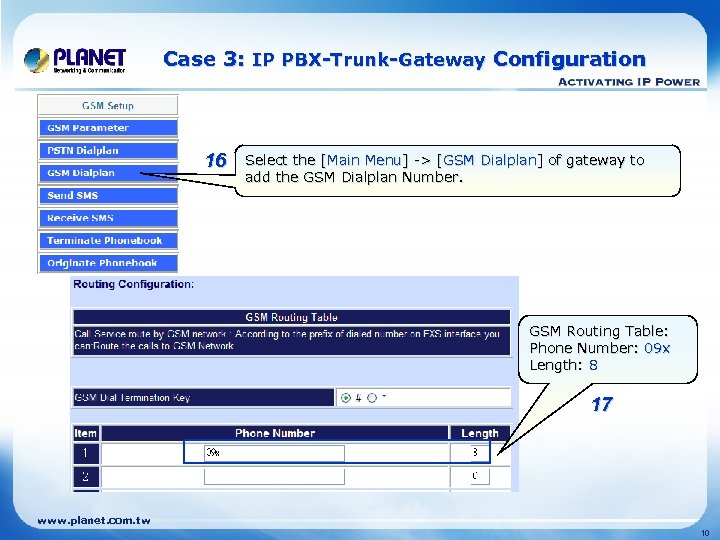

Case 3: IP PBX-Trunk-Gateway Configuration 16 Select the [Main Menu] -> [GSM Dialplan] of gateway to add the GSM Dialplan Number. GSM Routing Table: Phone Number: 09 x Length: 8 17 www. planet. com. tw 10

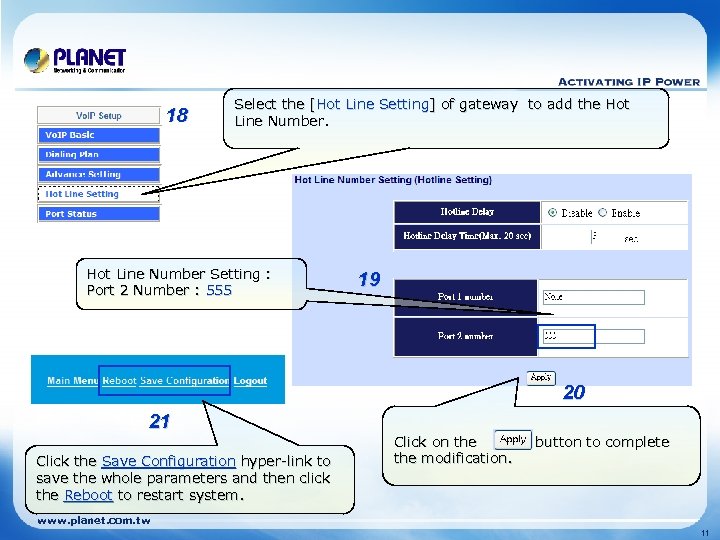

18 Select the [Hot Line Setting] of gateway to add the Hot Line Number Setting : Port 2 Number : 555 19 20 21 Click the Save Configuration hyper-link to save the whole parameters and then click the Reboot to restart system. Click on the modification. button to complete www. planet. com. tw 11

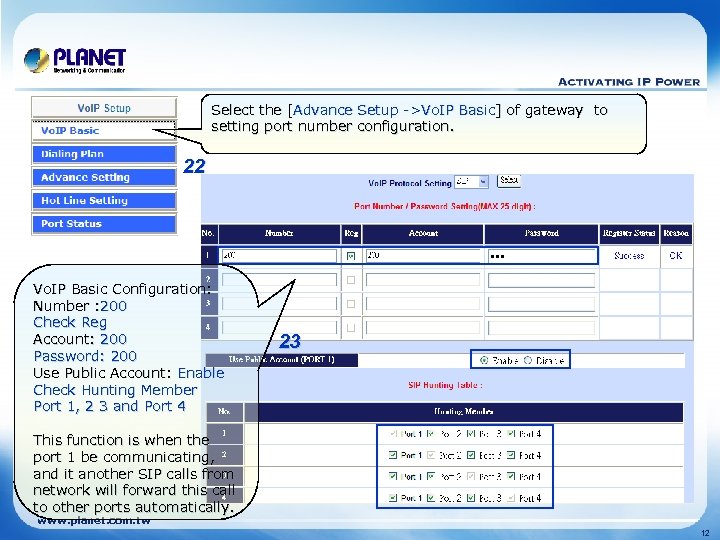

Select the [Advance Setup ->Vo. IP Basic] of gateway to setting port number configuration. 22 Vo. IP Basic Configuration: Number : 200 Check Reg Account: 200 Password: 200 Use Public Account: Enable Check Hunting Member Port 1, 2 3 and Port 4 23 This function is when the port 1 be communicating, and it another SIP calls from network will forward this call to other ports automatically. www. planet. com. tw 12

SIP Proxy Setting: Domain/Realm: 172. 16. 0. 1 SIP Proxy Server: 172. 16. 0. 1/5060 SIP Authentication : Enable 24 About the IP address please refer to previous topology. 25 www. planet. com. tw Click the button to complete the Vo. IP Basic configuration. 13

Case 3: IP PBX-Trunk-Gateway Configuration 26 Select the [Dialing Plan] of gateway to add the Dialing Plan Number. Incoming Dial Plan Settings: Outgoing no: 9 Length of Number: 1 ~ 1 Delete Length: 1 Prefix no. : Null Destination Telephone Port : 1 27 www. planet. com. tw 14

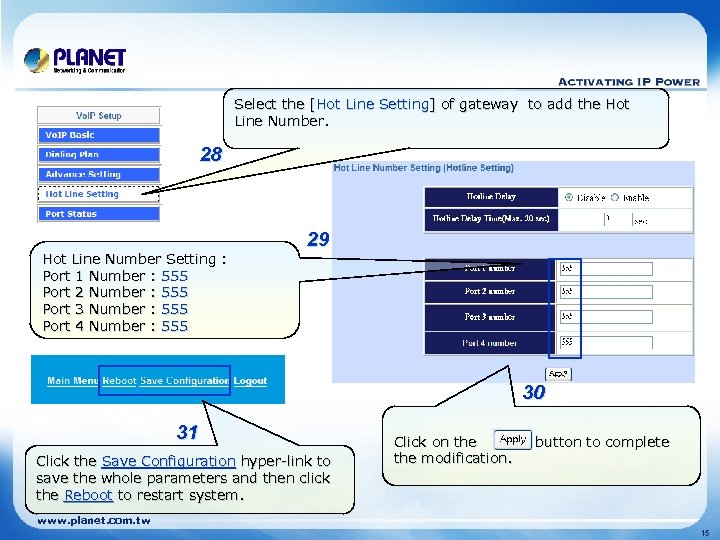

Select the [Hot Line Setting] of gateway to add the Hot Line Number. 28 Hot Line Number Setting : Port 1 Number : 555 Port 2 Number : 555 Port 3 Number : 555 Port 4 Number : 555 29 30 31 Click the Save Configuration hyper-link to save the whole parameters and then click the Reboot to restart system. Click on the modification. button to complete www. planet. com. tw 15

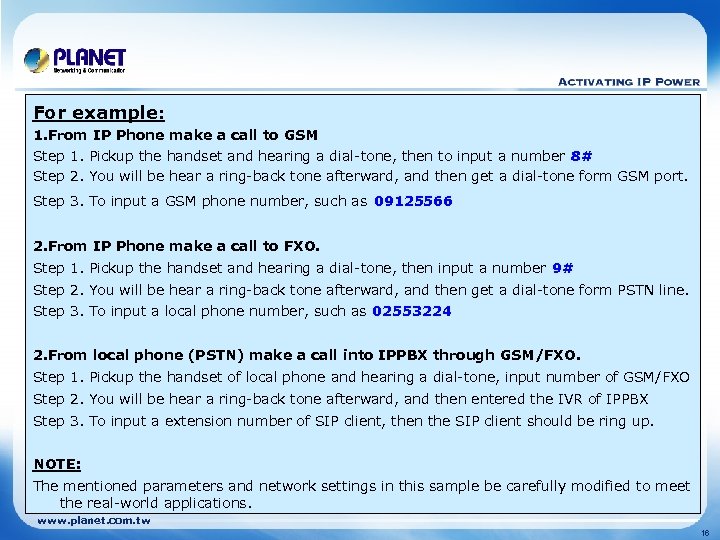

For example: 1. From IP Phone make a call to GSM Step 1. Pickup the handset and hearing a dial-tone, then to input a number 8# Step 2. You will be hear a ring-back tone afterward, and then get a dial-tone form GSM port. Step 3. To input a GSM phone number, such as 09125566 2. From IP Phone make a call to FXO. Step 1. Pickup the handset and hearing a dial-tone, then input a number 9# Step 2. You will be hear a ring-back tone afterward, and then get a dial-tone form PSTN line. Step 3. To input a local phone number, such as 02553224 2. From local phone (PSTN) make a call into IPPBX through GSM/FXO. Step 1. Pickup the handset of local phone and hearing a dial-tone, input number of GSM/FXO Step 2. You will be hear a ring-back tone afterward, and then entered the IVR of IPPBX Step 3. To input a extension number of SIP client, then the SIP client should be ring up. NOTE: The mentioned parameters and network settings in this sample be carefully modified to meet the real-world applications. www. planet. com. tw 16
