Internet Look inside ООО Милеком Шишканов Денис технический

Internet. Look inside ООО «Милеком» Шишканов Денис, технический директор Беликов Сергей, руководитель спд

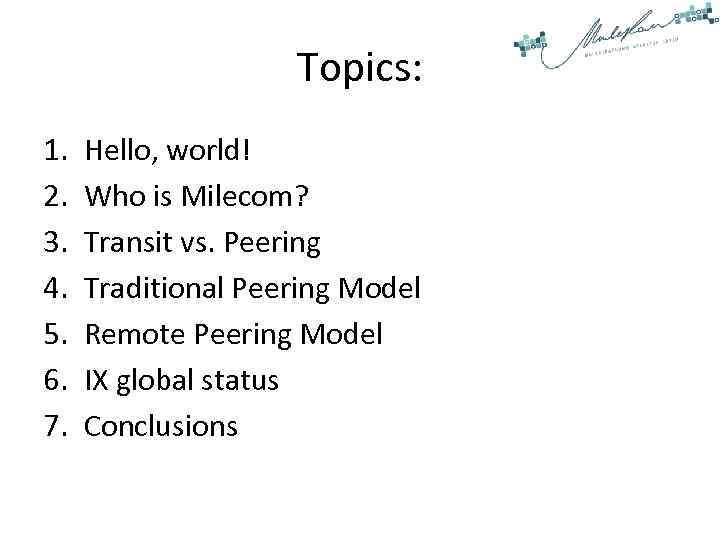

Topics: 1. 2. 3. 4. 5. 6. 7. Hello, world! Who is Milecom? Transit vs. Peering Traditional Peering Model Remote Peering Model IX global status Conclusions

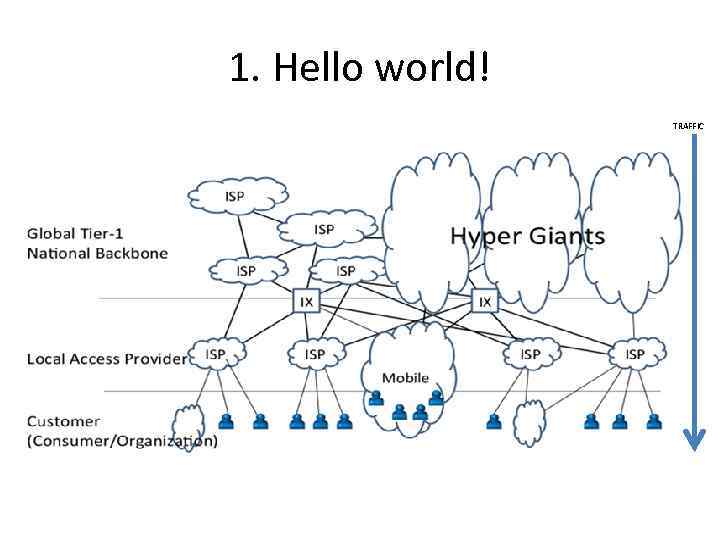

1. Hello world! TRAFFIC

2. Who is Milecom?

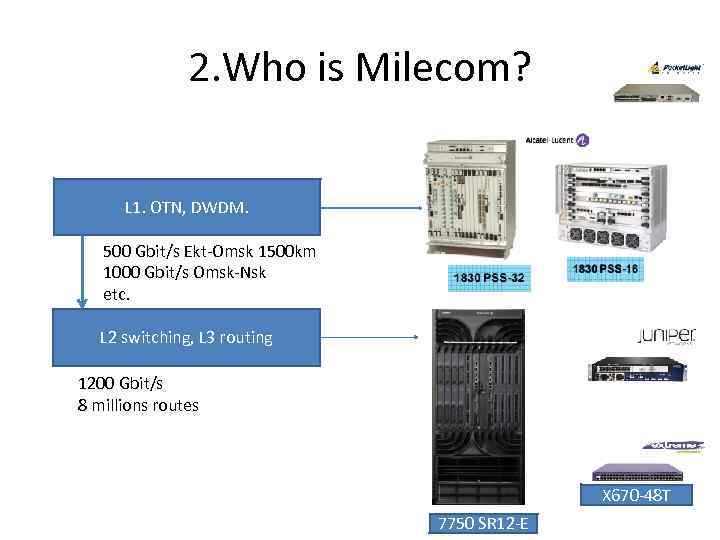

2. Who is Milecom? L 1. OTN, DWDM. 500 Gbit/s Ekt-Omsk 1500 km 1000 Gbit/s Omsk-Nsk etc. L 2 switching, L 3 routing 1200 Gbit/s 8 millions routes X 670 -48 T 7750 SR 12 -E

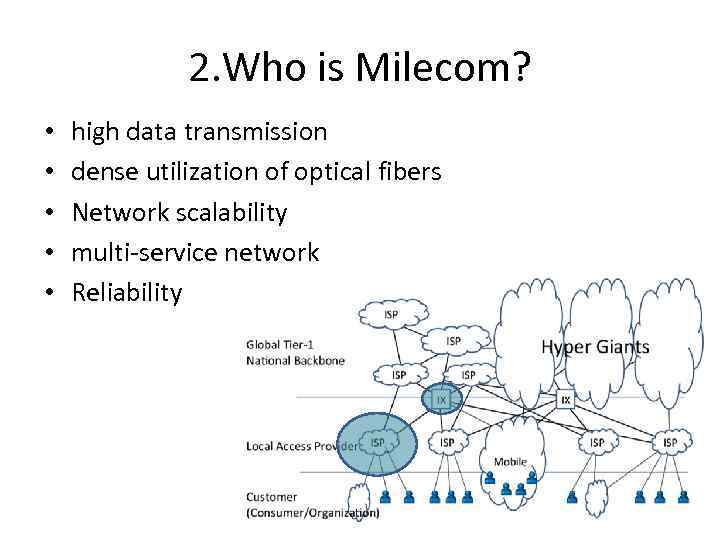

2. Who is Milecom? • • • high data transmission dense utilization of optical fibers Network scalability multi-service network Reliability

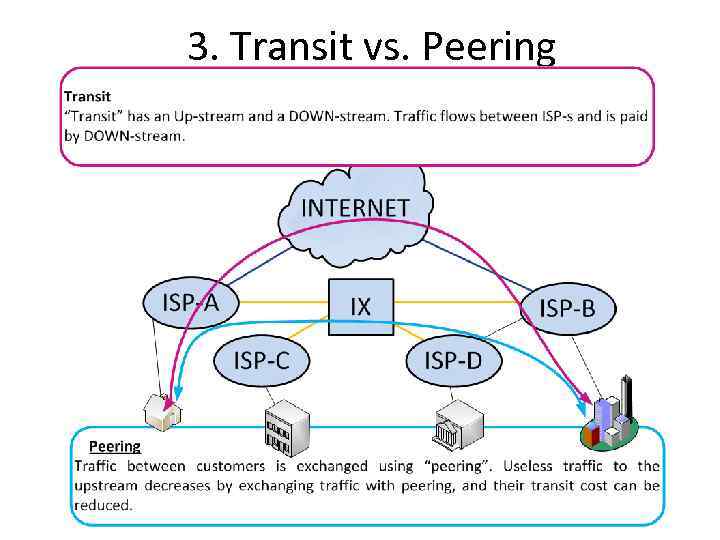

3. Transit vs. Peering

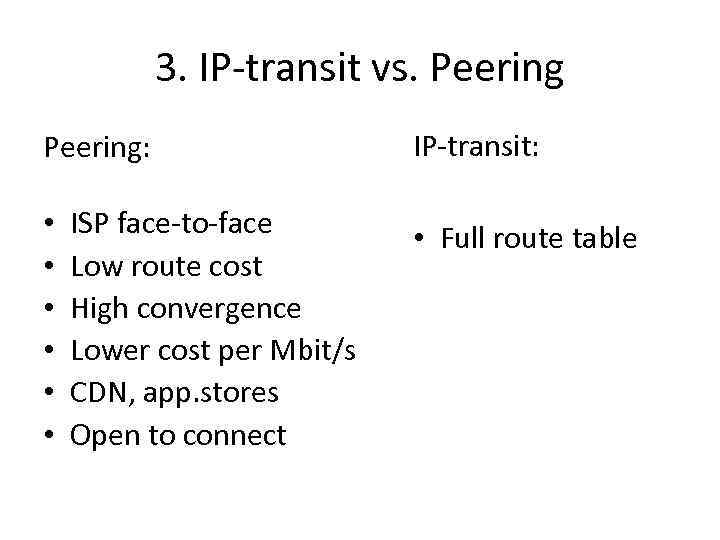

3. IP-transit vs. Peering: • • • ISP face-to-face Low route cost High convergence Lower cost per Mbit/s CDN, app. stores Open to connect IP-transit: • Full route table

4. Traditional Peering Model P e. BG Traffic across RS p t-ho Nex e. BGP

5. Remote peering model tldp ISP – internet service provider ASN – autonomous system number MPLS – Multiprotocol label switching LSP – label service path VPRN – virtual private routed network VPLS – virtual private lan service SAP – service access point TLDP- targeted lable distribut. protocol BGP – border gateway protocol

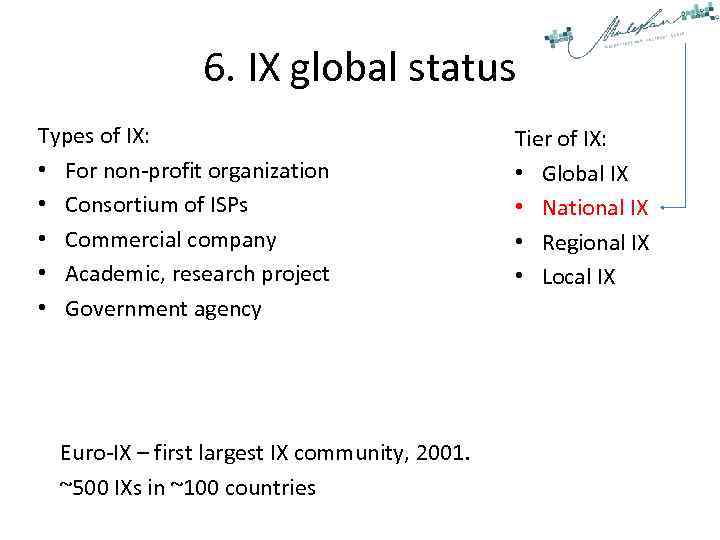

6. IX global status Types of IX: • For non-profit organization • Consortium of ISPs • Commercial company • Academic, research project • Government agency Euro-IX – first largest IX community, 2001. ~500 IXs in ~100 countries Tier of IX: • Global IX • National IX • Regional IX • Local IX

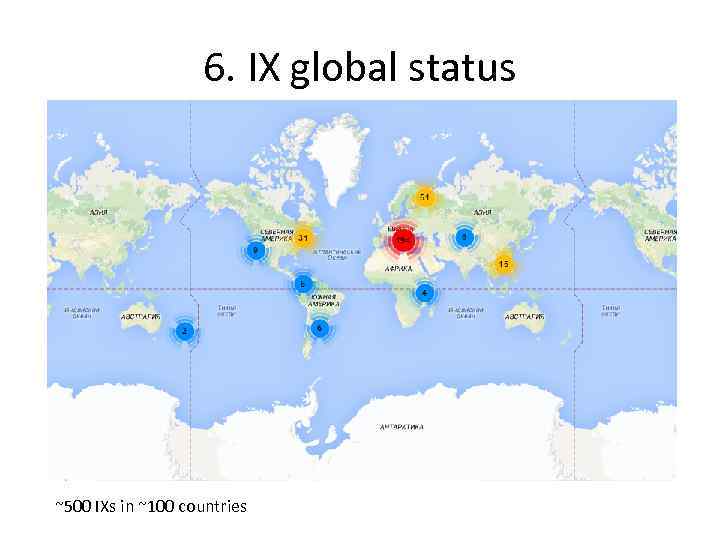

6. IX global status ~500 IXs in ~100 countries

6. IX global status. List of Internet exchange points by size Short name 3000 Name City DE-CIX Deutscher Commercial Internet 2500 Exchange Frankfurt, Hamburg, Munich AMS-IX Amsterdam Internet Exchange LINX London Internet Exchange 2000 MSK-IX Data IX Netnod Internet Exchange in Sweden 500 . . . 1 2 United Kingdom Russia 1000 0 W-IX LTD Netherlands London, Manchester, Edinburgh, North Virginia Equinix Exchange W-IX Germany Amsterdam, Haarlem, Schiphol-Rijk MSK-IX 1500 Equinix Country 3 Moscow, Saint-Petersburg, Novosibirsk, Rostov-on. Don, Stavropol, Samara, Kazan, Ekaterinburg, Vladivostok Members Paris, Zürich, New York, Ashburn, USA, Europe, Asia - Pacific Throughput (Gbit/s) Virginia, Chicago, Dallas, Los Angeles, San Jose, Tokyo, Hong Kong, Singapore, Sydney Moscow, Saint Russia, Germany, Ukraine Petersburg, Novosibirsk, Ekaterinburg, Frankfurt am Main, Stockholm Sweden Stockholm, Malmö, Sundsvall, Gothenburg, Luleå Moscow, Saint. Petersburg, Frankfurt, London, Amsterdam, Russia, Europe, Ukraine Ashburn, Omsk, Perm, Chelyabinsk, Kiev, Voronezh, Samara, Cheboksary, Kazan, Novosibirsk, Tyumen, Ekaterinburg, Vla dimir, Ufa 4 5 6 7 8 Establis Throughput Members hed (Gbit/s) 1995 600 2523 1997 697 2293 1994 596 1720 605 727 768 990 130 756 64 510 143 469 1995 1998 2009 1997 2008

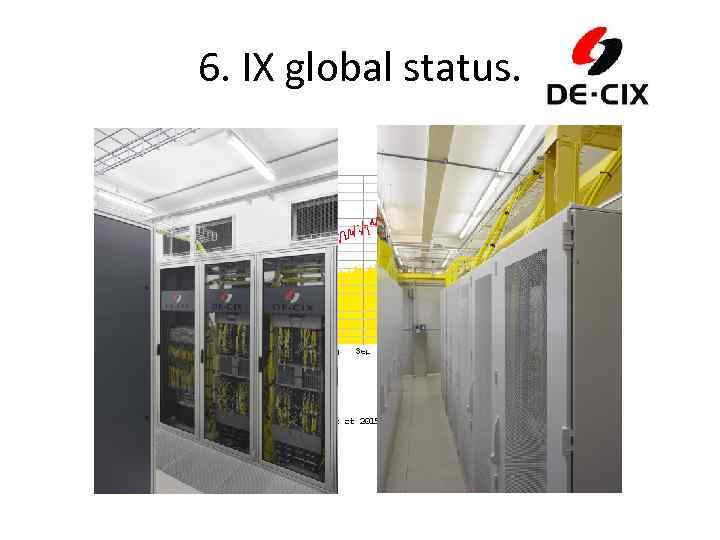

6. IX global status.

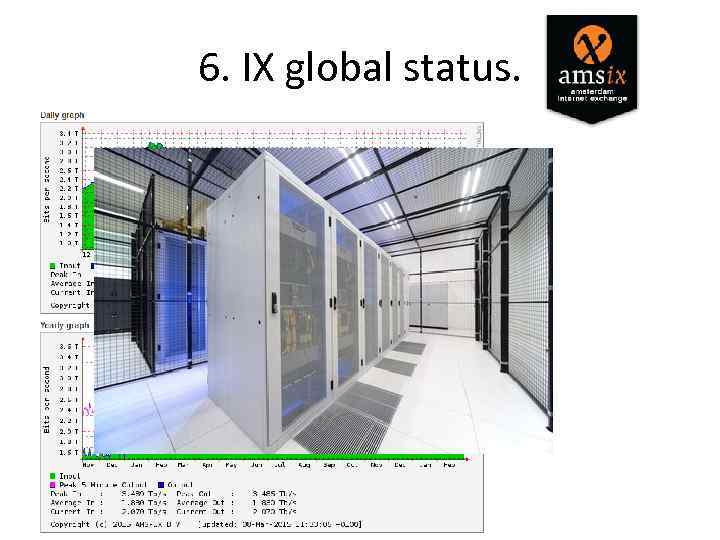

6. IX global status.

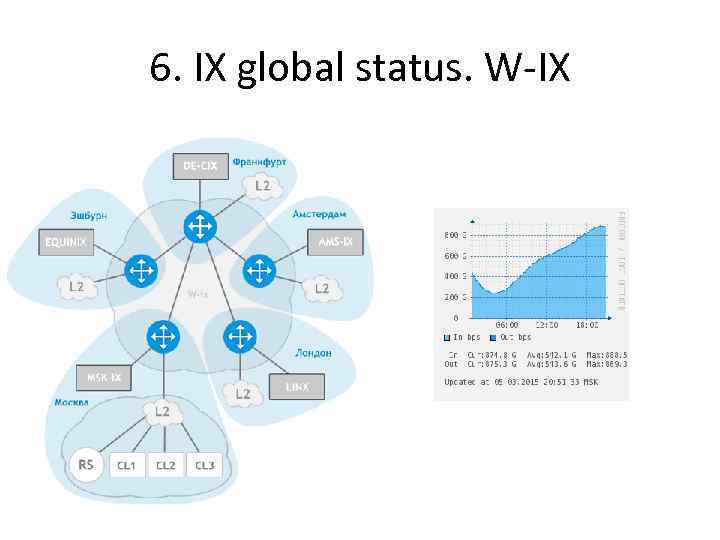

6. IX global status. W-IX

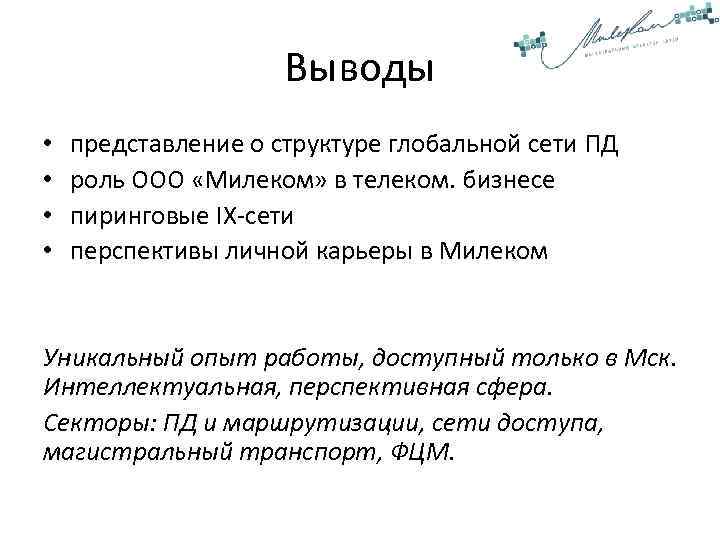

Выводы • • представление о структуре глобальной сети ПД роль ООО «Милеком» в телеком. бизнесе пиринговые IX-сети перспективы личной карьеры в Милеком Уникальный опыт работы, доступный только в Мск. Интеллектуальная, перспективная сфера. Секторы: ПД и маршрутизации, сети доступа, магистральный транспорт, ФЦМ.

?
