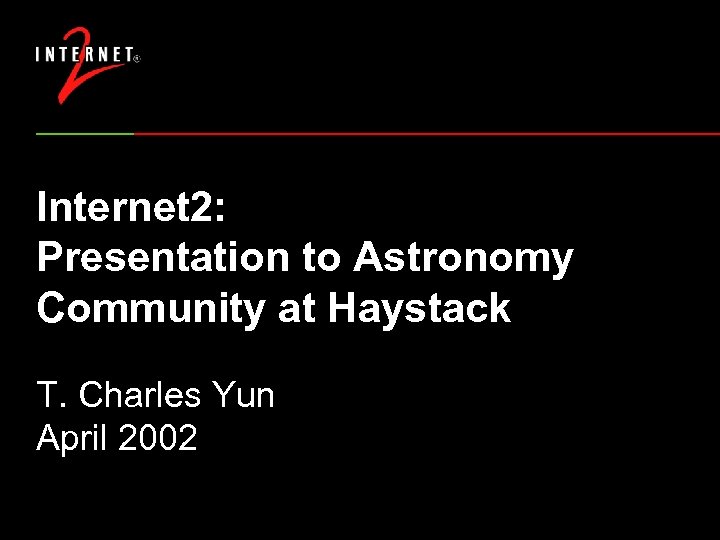

Internet 2: Presentation to Astronomy Community at Haystack T. Charles Yun April 2002

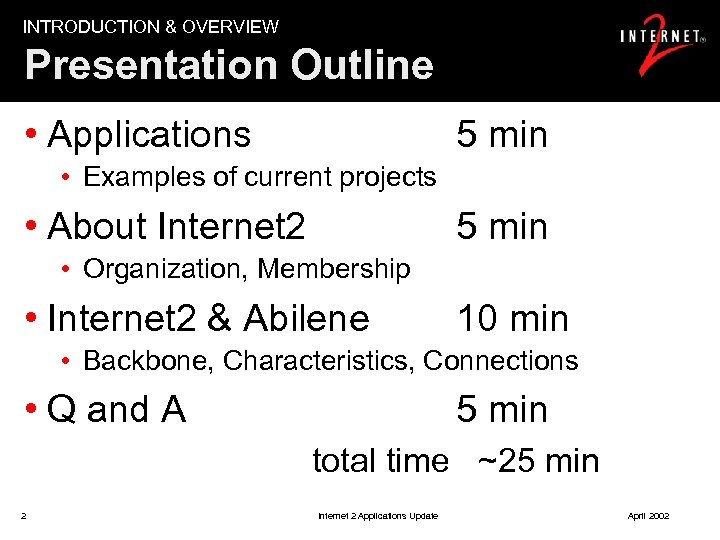

INTRODUCTION & OVERVIEW Presentation Outline • Applications 5 min • Examples of current projects • About Internet 2 5 min • Organization, Membership • Internet 2 & Abilene 10 min • Backbone, Characteristics, Connections • Q and A 5 min total time ~25 min 2 Internet 2 Applications Update April 2002

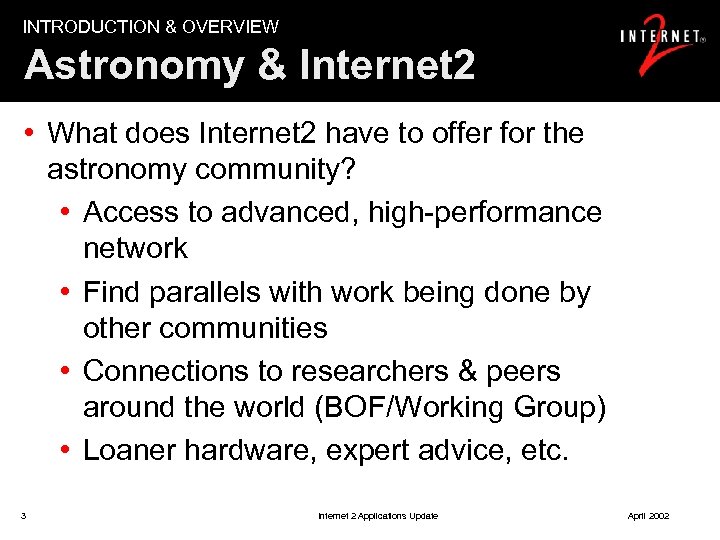

INTRODUCTION & OVERVIEW Astronomy & Internet 2 • What does Internet 2 have to offer for the astronomy community? • Access to advanced, high-performance network • Find parallels with work being done by other communities • Connections to researchers & peers around the world (BOF/Working Group) • Loaner hardware, expert advice, etc. 3 Internet 2 Applications Update April 2002

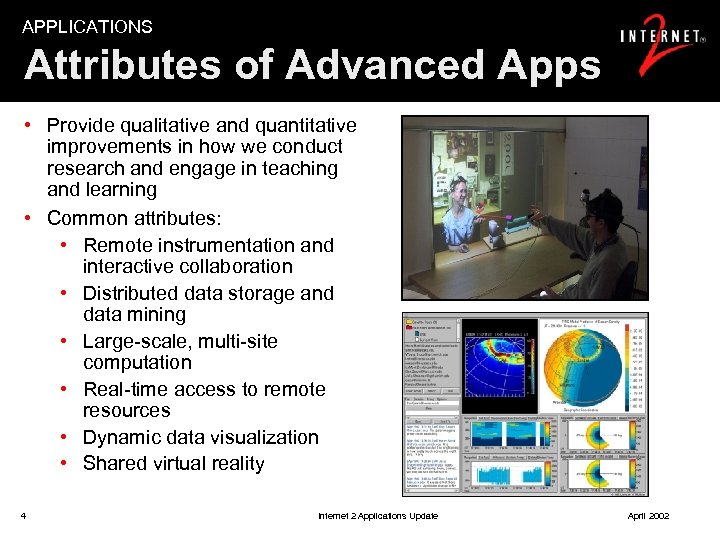

APPLICATIONS Attributes of Advanced Apps • Provide qualitative and quantitative improvements in how we conduct research and engage in teaching and learning • Common attributes: • Remote instrumentation and interactive collaboration • Distributed data storage and data mining • Large-scale, multi-site computation • Real-time access to remote resources • Dynamic data visualization • Shared virtual reality 4 Internet 2 Applications Update April 2002

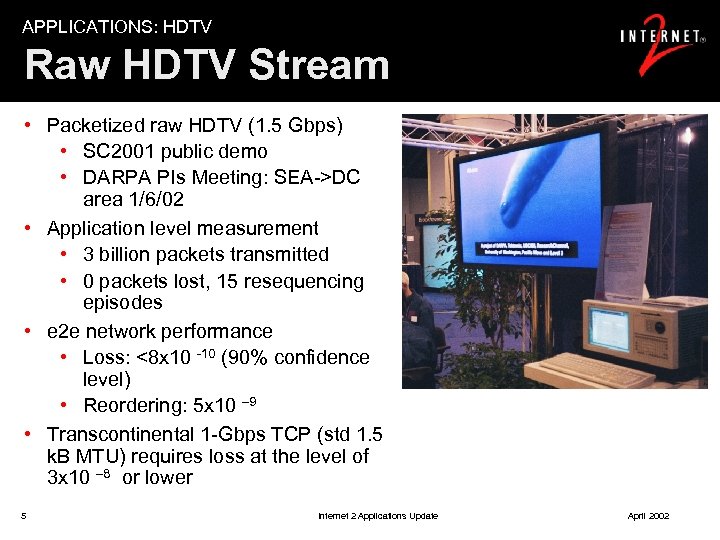

APPLICATIONS: HDTV Raw HDTV Stream • Packetized raw HDTV (1. 5 Gbps) • SC 2001 public demo • DARPA PIs Meeting: SEA->DC area 1/6/02 • Application level measurement • 3 billion packets transmitted • 0 packets lost, 15 resequencing episodes • e 2 e network performance • Loss: <8 x 10 -10 (90% confidence level) • Reordering: 5 x 10 – 9 • Transcontinental 1 -Gbps TCP (std 1. 5 k. B MTU) requires loss at the level of 3 x 10 – 8 or lower 5 Internet 2 Applications Update April 2002

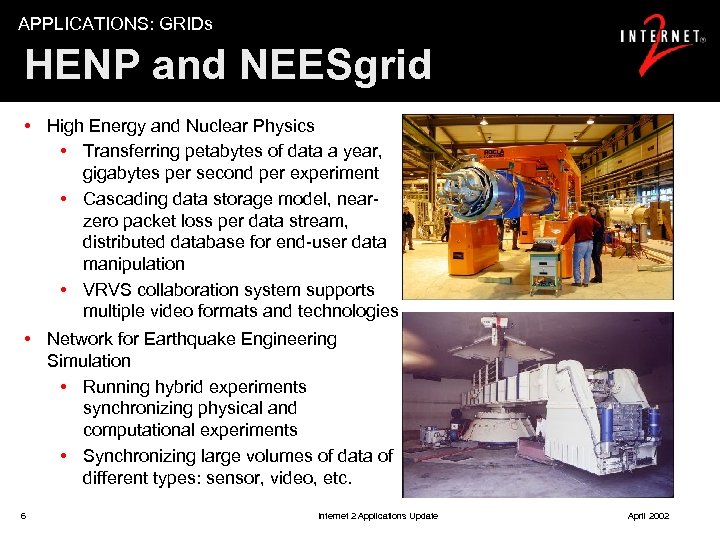

APPLICATIONS: GRIDs HENP and NEESgrid • High Energy and Nuclear Physics • Transferring petabytes of data a year, gigabytes per second per experiment • Cascading data storage model, nearzero packet loss per data stream, distributed database for end-user data manipulation • VRVS collaboration system supports multiple video formats and technologies • Network for Earthquake Engineering Simulation • Running hybrid experiments synchronizing physical and computational experiments • Synchronizing large volumes of data of different types: sensor, video, etc. 6 Internet 2 Applications Update April 2002

ORGANIZATION Internet 2 Mission • Develop and deploy advanced network applications and technologies for research and higher education, accelerating the creation of tomorrow’s internet. Commercialization • Supporting advanced service efforts Internet 2 such as: • Multicast Research and Development • IPv 6 • Qo. S • Measurement • Security 7 Internet 2 Applications Update Privatization Today’s Internet Partnerships April 2002

ORGANIZATION Internal Organization • Advanced Network Infrastructure • Applications • Engineering • Middleware • Partnerships • Internet 2 is primarily an organization driven by our membership 8 Internet 2 Applications Update April 2002

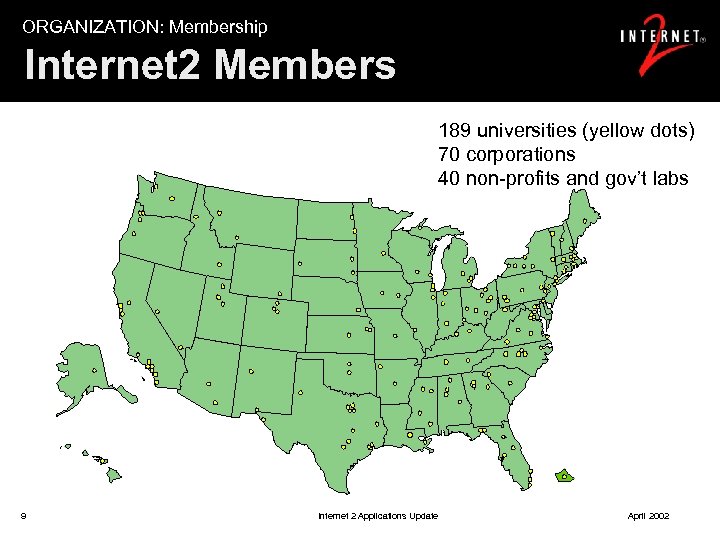

ORGANIZATION: Membership Internet 2 Members 189 universities (yellow dots) 70 corporations 40 non-profits and gov’t labs 9 Internet 2 Applications Update April 2002

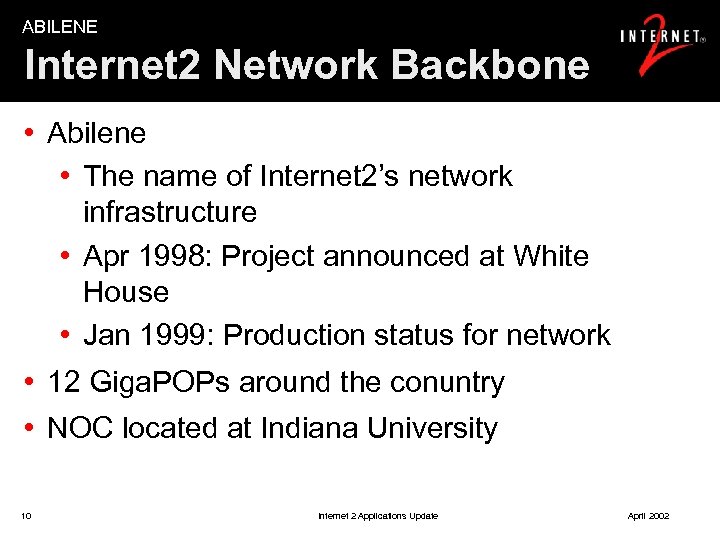

ABILENE Internet 2 Network Backbone • Abilene • The name of Internet 2’s network infrastructure • Apr 1998: Project announced at White House • Jan 1999: Production status for network • 12 Giga. POPs around the conuntry • NOC located at Indiana University 10 Internet 2 Applications Update April 2002

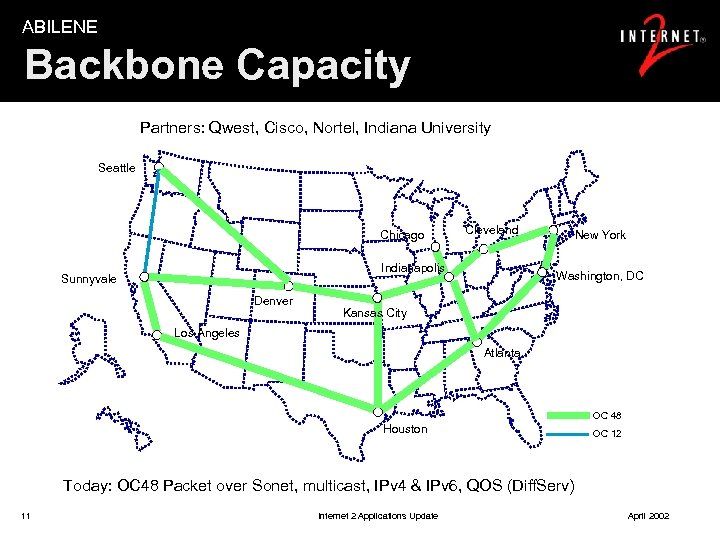

ABILENE Backbone Capacity Partners: Qwest, Cisco, Nortel, Indiana University Seattle Chicago Sacramento Cleveland Indianapolis Sunnyvale Denver Los Angeles New York Washington, DC Kansas City Los Angeles Atlanta OC 48 Houston OC 12 Today: OC 48 Packet over Sonet, multicast, IPv 4 & IPv 6, QOS (Diff. Serv) 11 Internet 2 Applications Update April 2002

12 Internet 2 Applications Update April 2002

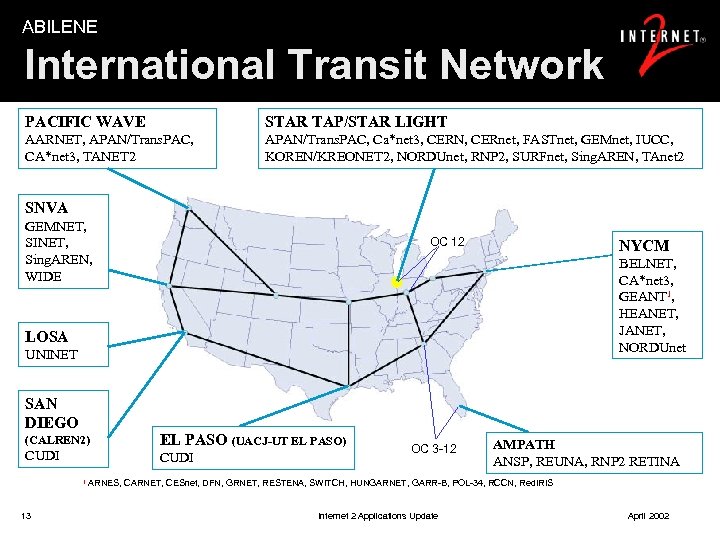

ABILENE International Transit Network PACIFIC WAVE STAR TAP/STAR LIGHT AARNET, APAN/Trans. PAC, CA*net 3, TANET 2 APAN/Trans. PAC, Ca*net 3, CERN, CERnet, FASTnet, GEMnet, IUCC, KOREN/KREONET 2, NORDUnet, RNP 2, SURFnet, Sing. AREN, TAnet 2 SNVA GEMNET, SINET, Sing. AREN, WIDE OC 12 NYCM BELNET, CA*net 3, GEANT 1, HEANET, JANET, NORDUnet LOSA UNINET SAN DIEGO (CALREN 2) CUDI 1 13 EL PASO (UACJ-UT EL PASO) OC 3 -12 AMPATH ANSP, REUNA, RNP 2 RETINA ARNES, CARNET, CESnet, DFN, GRNET, RESTENA, SWITCH, HUNGARNET, GARR-B, POL-34, RCCN, Red. IRIS Internet 2 Applications Update April 2002

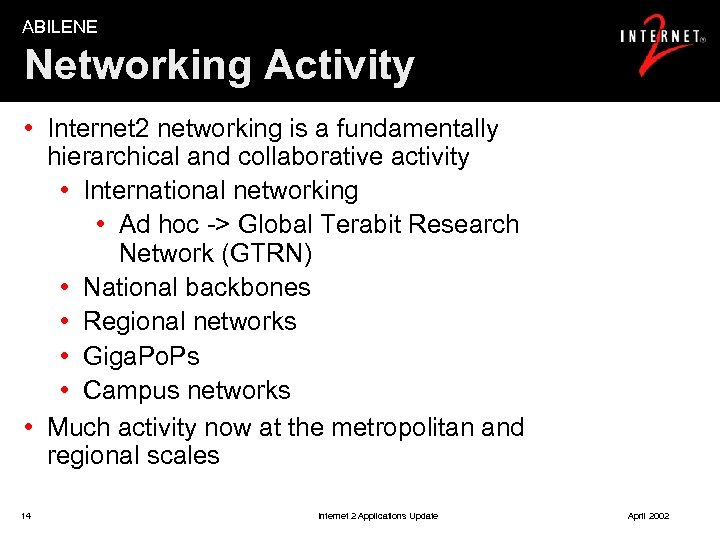

ABILENE Networking Activity • Internet 2 networking is a fundamentally hierarchical and collaborative activity • International networking • Ad hoc -> Global Terabit Research Network (GTRN) • National backbones • Regional networks • Giga. Po. Ps • Campus networks • Much activity now at the metropolitan and regional scales 14 Internet 2 Applications Update April 2002

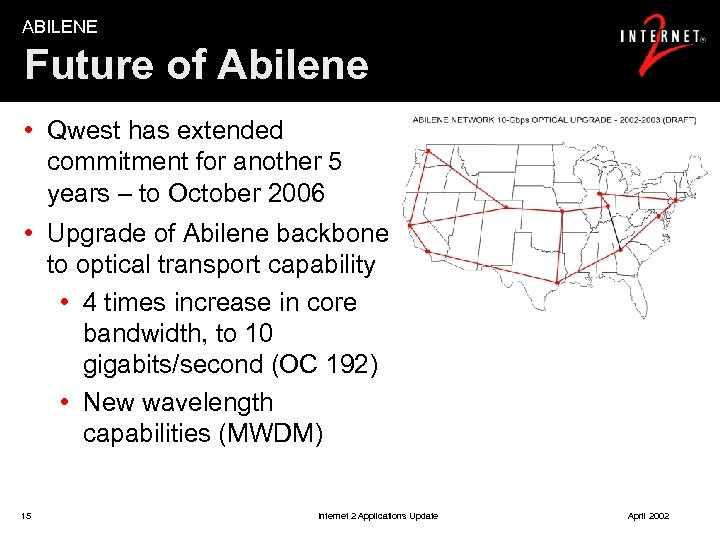

ABILENE Future of Abilene • Qwest has extended commitment for another 5 years – to October 2006 • Upgrade of Abilene backbone to optical transport capability • 4 times increase in core bandwidth, to 10 gigabits/second (OC 192) • New wavelength capabilities (MWDM) 15 Internet 2 Applications Update April 2002

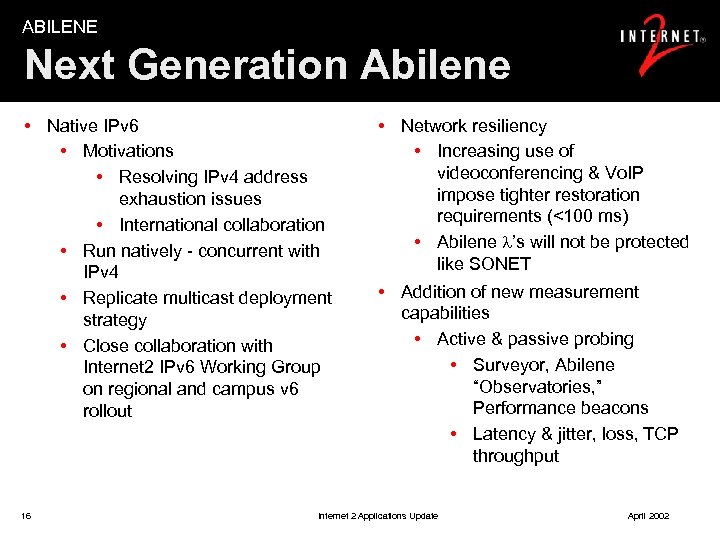

ABILENE Next Generation Abilene • Native IPv 6 • Motivations • Resolving IPv 4 address exhaustion issues • International collaboration • Run natively - concurrent with IPv 4 • Replicate multicast deployment strategy • Close collaboration with Internet 2 IPv 6 Working Group on regional and campus v 6 rollout 16 • Network resiliency • Increasing use of videoconferencing & Vo. IP impose tighter restoration requirements (<100 ms) • Abilene ’s will not be protected like SONET • Addition of new measurement capabilities • Active & passive probing • Surveyor, Abilene “Observatories, ” Performance beacons • Latency & jitter, loss, TCP throughput Internet 2 Applications Update April 2002

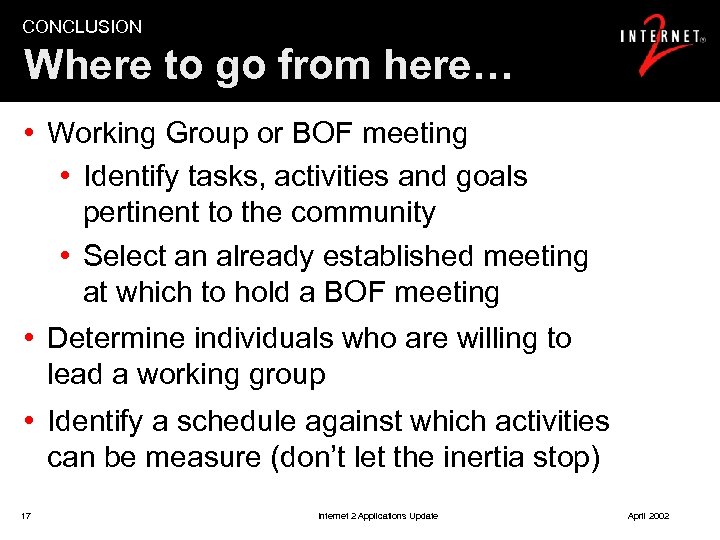

CONCLUSION Where to go from here… • Working Group or BOF meeting • Identify tasks, activities and goals pertinent to the community • Select an already established meeting at which to hold a BOF meeting • Determine individuals who are willing to lead a working group • Identify a schedule against which activities can be measure (don’t let the inertia stop) 17 Internet 2 Applications Update April 2002

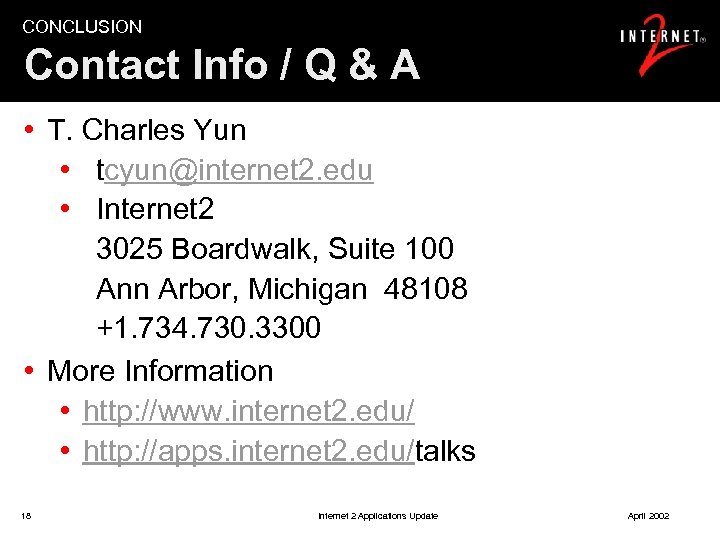

CONCLUSION Contact Info / Q & A • T. Charles Yun • tcyun@internet 2. edu • Internet 2 3025 Boardwalk, Suite 100 Ann Arbor, Michigan 48108 +1. 734. 730. 3300 • More Information • http: //www. internet 2. edu/ • http: //apps. internet 2. edu/talks 18 Internet 2 Applications Update April 2002
