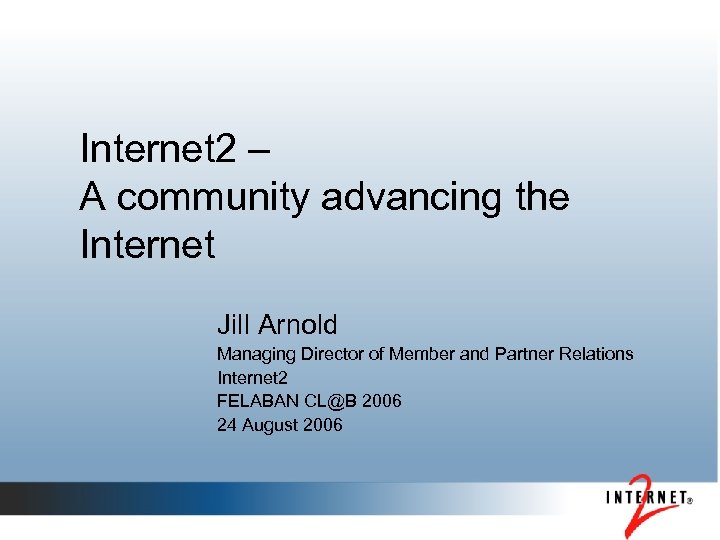

Internet 2 – A community advancing the Internet Jill Arnold Managing Director of Member and Partner Relations Internet 2 FELABAN CL@B 2006 24 August 2006

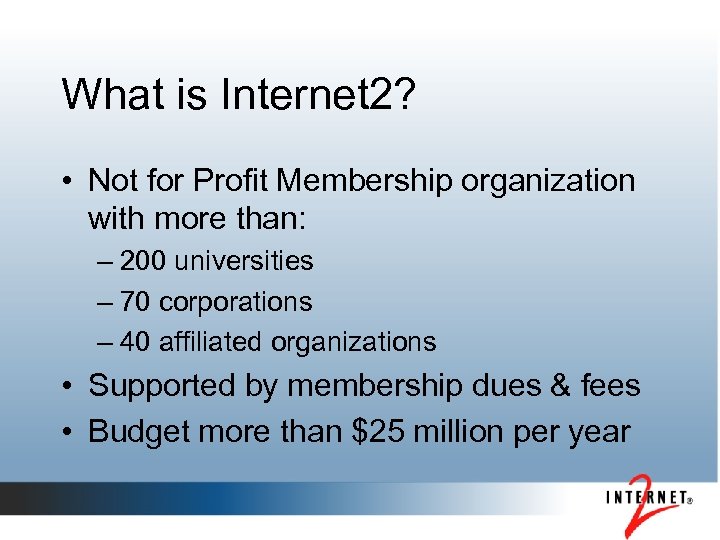

What is Internet 2? • Not for Profit Membership organization with more than: – 200 universities – 70 corporations – 40 affiliated organizations • Supported by membership dues & fees • Budget more than $25 million per year

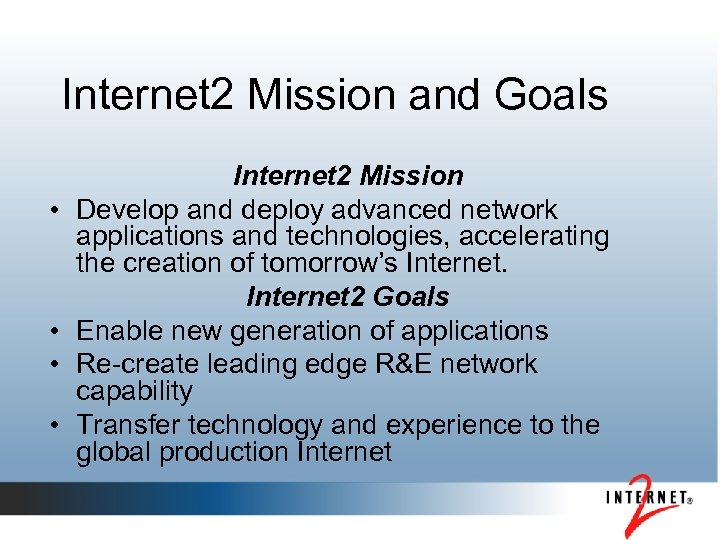

Internet 2 Mission and Goals • • Internet 2 Mission Develop and deploy advanced network applications and technologies, accelerating the creation of tomorrow’s Internet 2 Goals Enable new generation of applications Re-create leading edge R&E network capability Transfer technology and experience to the global production Internet

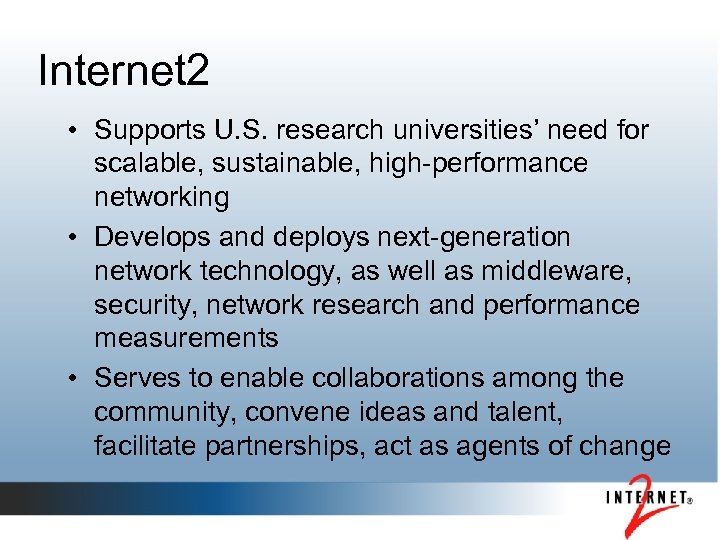

Internet 2 • Supports U. S. research universities’ need for scalable, sustainable, high-performance networking • Develops and deploys next-generation network technology, as well as middleware, security, network research and performance measurements • Serves to enable collaborations among the community, convene ideas and talent, facilitate partnerships, act as agents of change

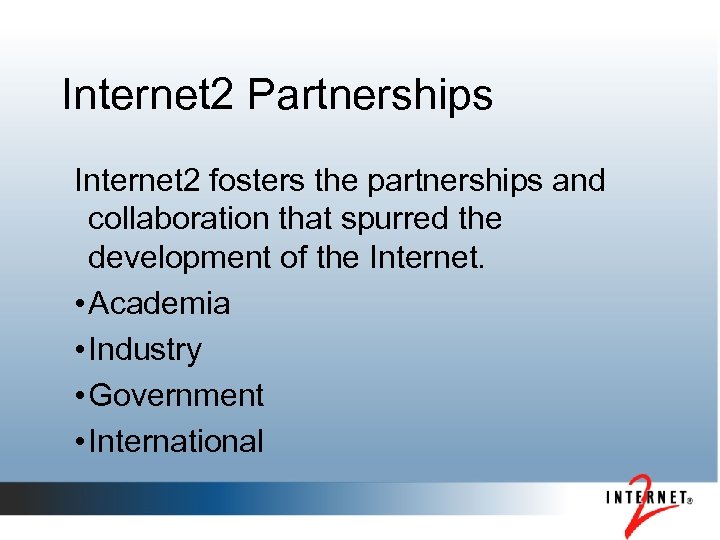

Internet 2 Partnerships Internet 2 fosters the partnerships and collaboration that spurred the development of the Internet. • Academia • Industry • Government • International

Internet 2 Universities 208 University Members, May 2006

Internet 2 Industry Participation • Over 70 corporate members – IT Companies • Representing all layers of the protocol stack • Microsoft Research, IBM, Qwest, Level 3, Verizon, Infinera, Ciena, Nortel, Polycom, etc. – Content Providers • Napster, EBSCO, Proquest, Gale • Growing interest from Google, Yahoo, – IT Consumers -- numbers increasing • Ford, Caterpillar, Schlumberger, Northrup Grumman, Johnson and Johnson, Eli Lilly, The Thomson Corporation, Warner Brothers, MPAA, RIAA… • Growing Interest from Financial industry – Knowledge / Tech transfer from R&E – Window into the future of the Internet – Window into customer expectations in the future

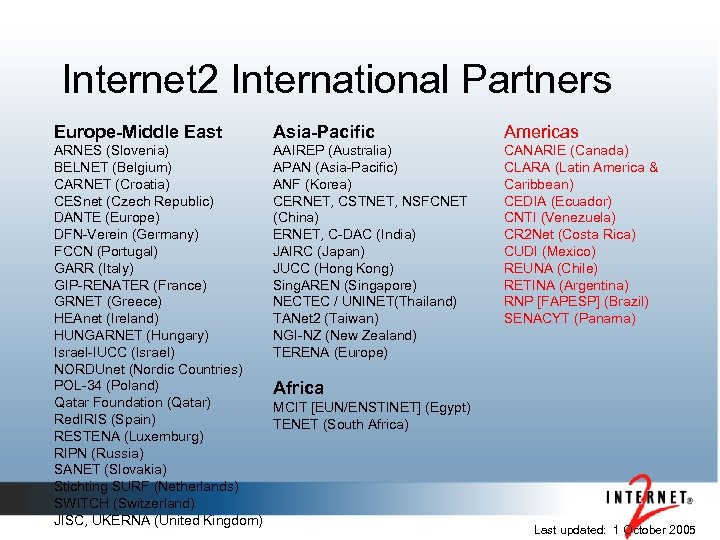

Internet 2 International Partners Europe-Middle East Asia-Pacific Americas ARNES (Slovenia) BELNET (Belgium) CARNET (Croatia) CESnet (Czech Republic) DANTE (Europe) DFN-Verein (Germany) FCCN (Portugal) GARR (Italy) GIP-RENATER (France) GRNET (Greece) HEAnet (Ireland) HUNGARNET (Hungary) Israel-IUCC (Israel) NORDUnet (Nordic Countries) POL-34 (Poland) Qatar Foundation (Qatar) Red. IRIS (Spain) RESTENA (Luxemburg) RIPN (Russia) SANET (Slovakia) Stichting SURF (Netherlands) SWITCH (Switzerland) JISC, UKERNA (United Kingdom) AAIREP (Australia) APAN (Asia-Pacific) ANF (Korea) CERNET, CSTNET, NSFCNET (China) ERNET, C-DAC (India) JAIRC (Japan) JUCC (Hong Kong) Sing. AREN (Singapore) NECTEC / UNINET(Thailand) TANet 2 (Taiwan) NGI-NZ (New Zealand) TERENA (Europe) CANARIE (Canada) CLARA (Latin America & Caribbean) CEDIA (Ecuador) CNTI (Venezuela) CR 2 Net (Costa Rica) CUDI (Mexico) REUNA (Chile) RETINA (Argentina) RNP [FAPESP] (Brazil) SENACYT (Panama) Africa MCIT [EUN/ENSTINET] (Egypt) TENET (South Africa) Last updated: 1 October 2005

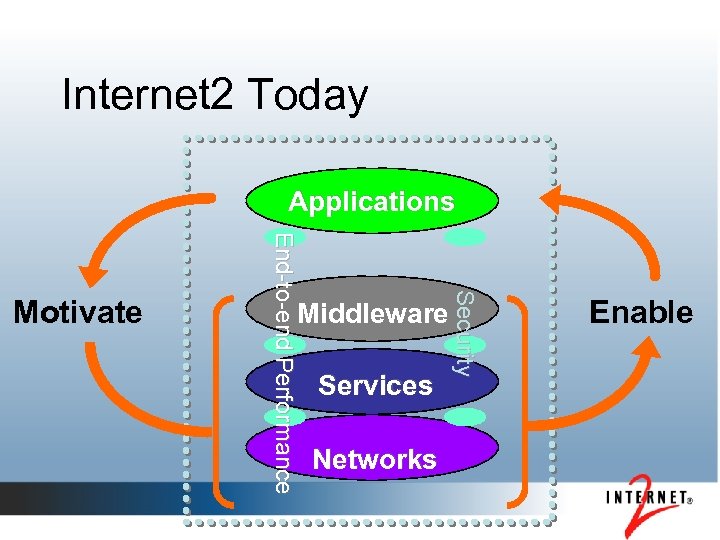

Internet 2 Today Applications Middleware Services Networks Secur ty Securiity End-to-end Performance Motivate Enable

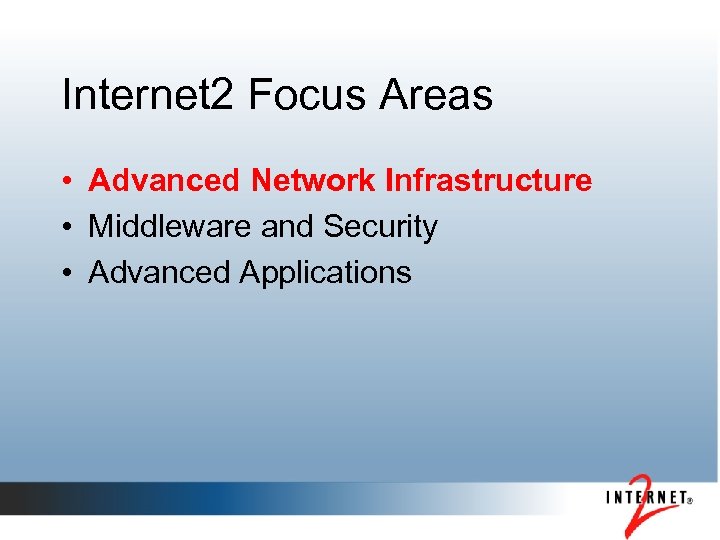

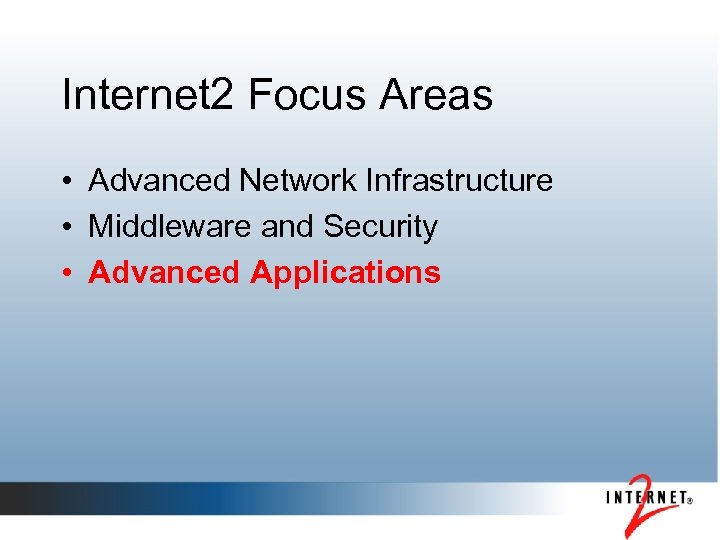

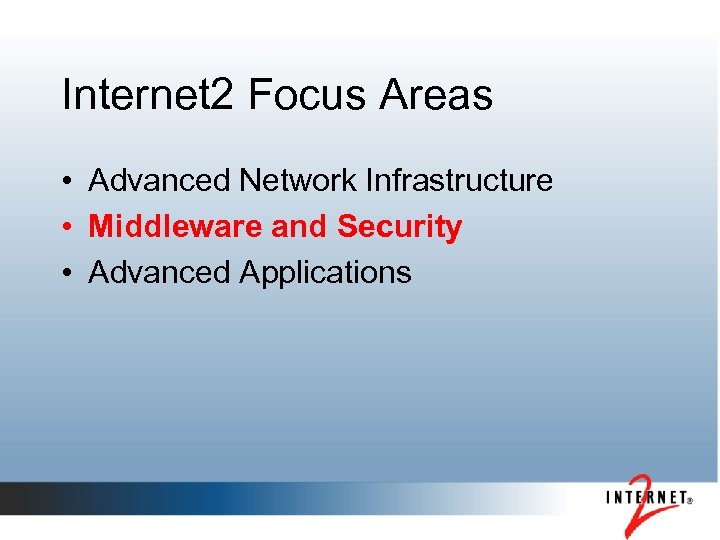

Internet 2 Focus Areas • Advanced Network Infrastructure • Middleware and Security • Advanced Applications

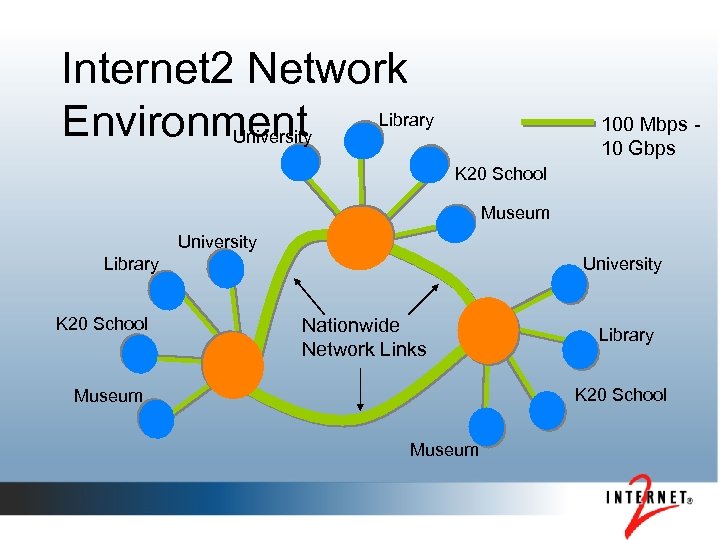

Internet 2 Network Library Environment University 100 Mbps 10 Gbps K 20 School Museum University Library K 20 School University Nationwide Network Links Library K 20 School Museum

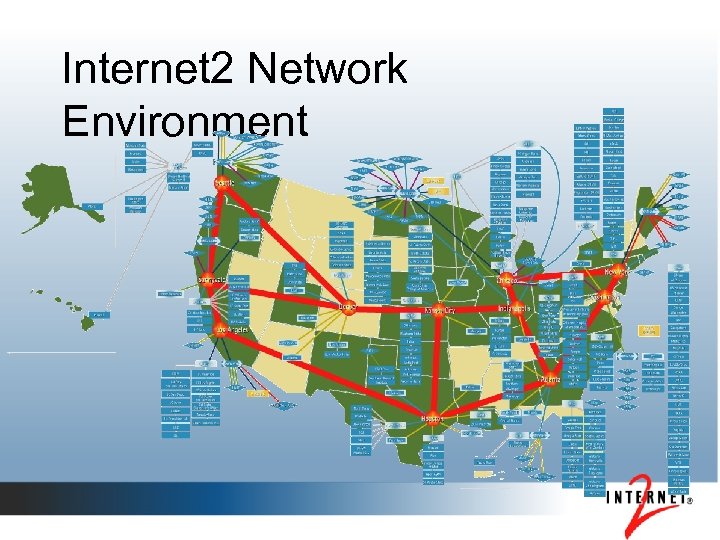

Internet 2 Network Environment

Advanced Networking Organizations around the World

Internet 2 Network Infrastructure • Abilene backbone operates at 10 gigabits per second capacity today • Giga. Po. Ps provide regional high-performance aggregation points • Local campus networks provide 100 Mbps to the desktop • National Lambda. Rail (NLR) provides access to multiple wavelengths on dedicated national fiber facility • Fiber. Co provides dark fiber nationwide

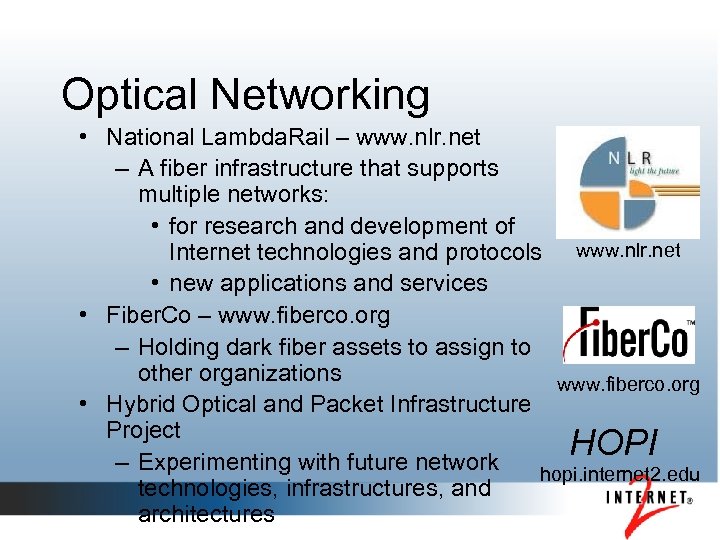

Optical Networking • National Lambda. Rail – www. nlr. net – A fiber infrastructure that supports multiple networks: • for research and development of Internet technologies and protocols www. nlr. net • new applications and services • Fiber. Co – www. fiberco. org – Holding dark fiber assets to assign to other organizations www. fiberco. org • Hybrid Optical and Packet Infrastructure Project HOPI – Experimenting with future network hopi. internet 2. edu technologies, infrastructures, and architectures

End-to-End Performance Initiative Goals and Deployment • Provide performance information to end-users and network operators • Develop new performance test options and tools for network engineers • Make performance data publicly available • Establish an interoperable performance framework

Internet 2 Focus Areas • Advanced Network Infrastructure • Middleware and Security • Advanced Applications

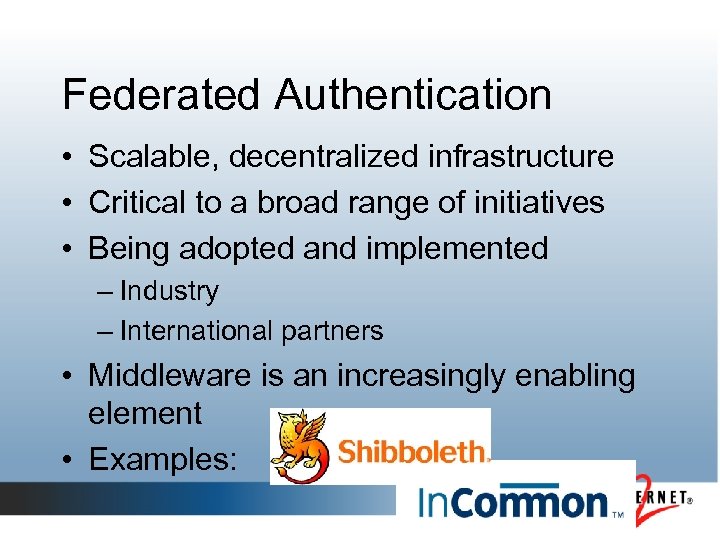

Federated Authentication • Scalable, decentralized infrastructure • Critical to a broad range of initiatives • Being adopted and implemented – Industry – International partners • Middleware is an increasingly enabling element • Examples:

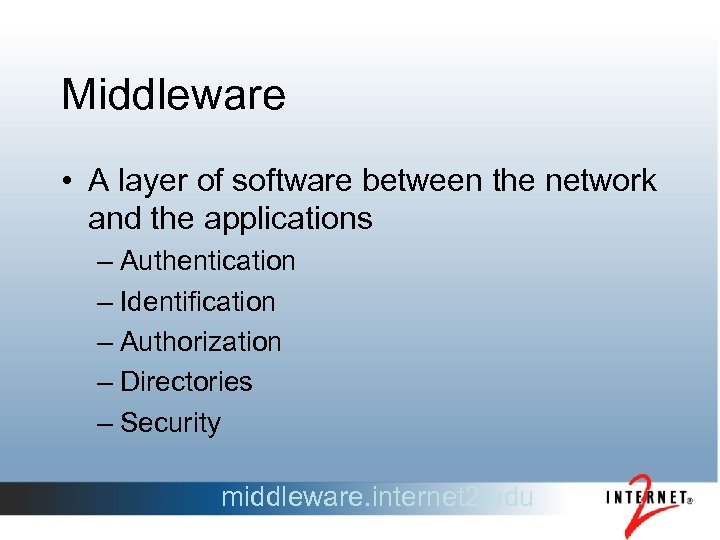

Middleware • A layer of software between the network and the applications – Authentication – Identification – Authorization – Directories – Security middleware. internet 2. edu

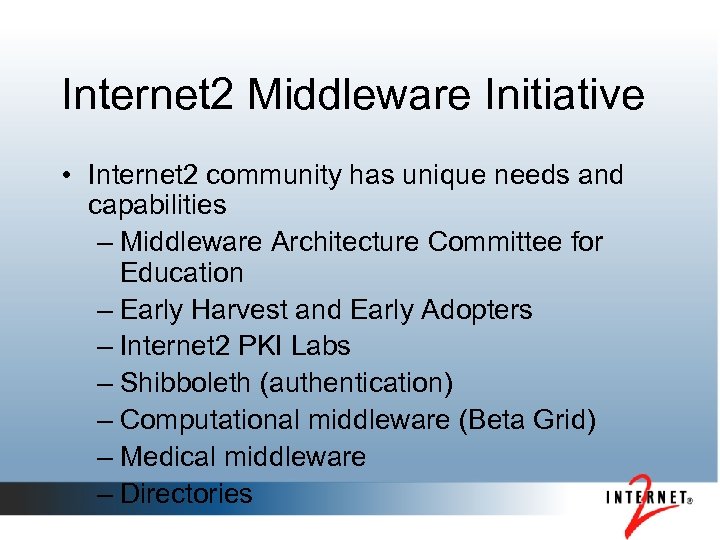

Internet 2 Middleware Initiative • Internet 2 community has unique needs and capabilities – Middleware Architecture Committee for Education – Early Harvest and Early Adopters – Internet 2 PKI Labs – Shibboleth (authentication) – Computational middleware (Beta Grid) – Medical middleware – Directories

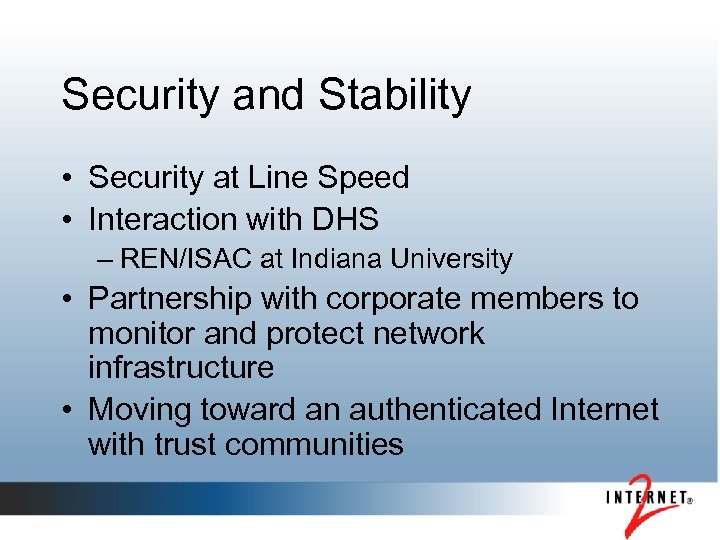

Security and Stability • Security at Line Speed • Interaction with DHS – REN/ISAC at Indiana University • Partnership with corporate members to monitor and protect network infrastructure • Moving toward an authenticated Internet with trust communities

Internet 2 Focus Areas • Advanced Network Infrastructure • Middleware and Security • Advanced Applications

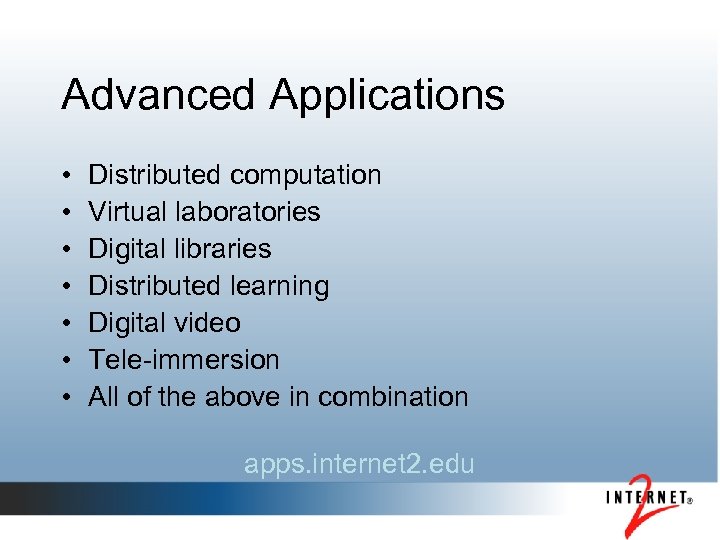

Advanced Applications • • Distributed computation Virtual laboratories Digital libraries Distributed learning Digital video Tele-immersion All of the above in combination apps. internet 2. edu

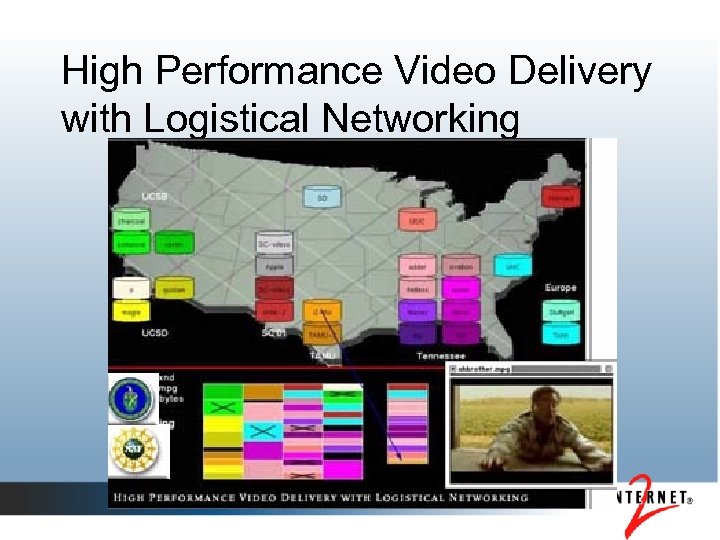

High Performance Video Delivery with Logistical Networking

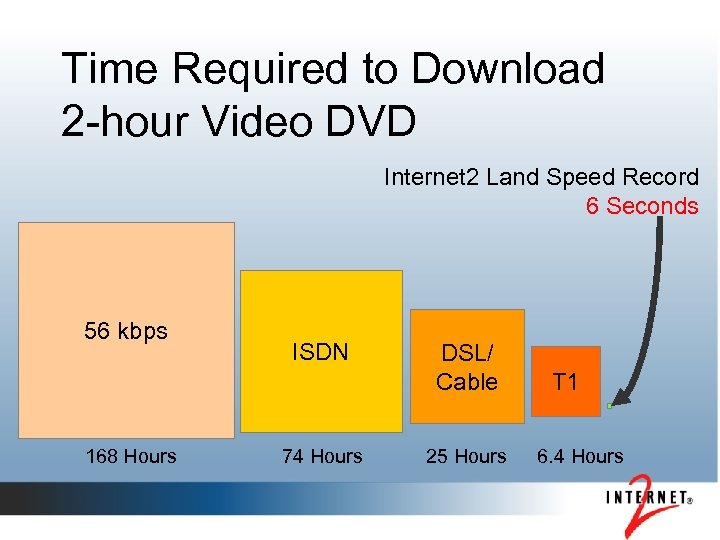

Time Required to Download 2 -hour Video DVD Internet 2 Land Speed Record 6 Seconds 56 kbps 168 Hours ISDN 74 Hours DSL/ Cable 25 Hours T 1 6. 4 Hours

Collaboration and Communication

Real-time Access to Remote Resources

Fine Arts Rehearsal and Performance

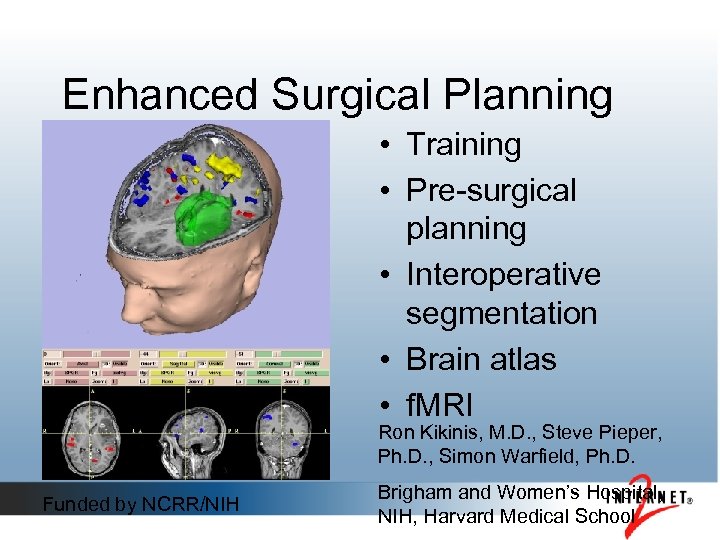

Enhanced Surgical Planning • Training • Pre-surgical planning • Interoperative segmentation • Brain atlas • f. MRI Ron Kikinis, M. D. , Steve Pieper, Ph. D. , Simon Warfield, Ph. D. Funded by NCRR/NIH Brigham and Women’s Hospital, NIH, Harvard Medical School

Improved Medical Training • High bandwidth human interaction • Low latency virtual reality • Reliable access to computational resources • Secure retrieval of medical images and data Source: Parvati Dev Stanford

New Instruments for Astronomy

Undersea Oceanography Images National Geographic

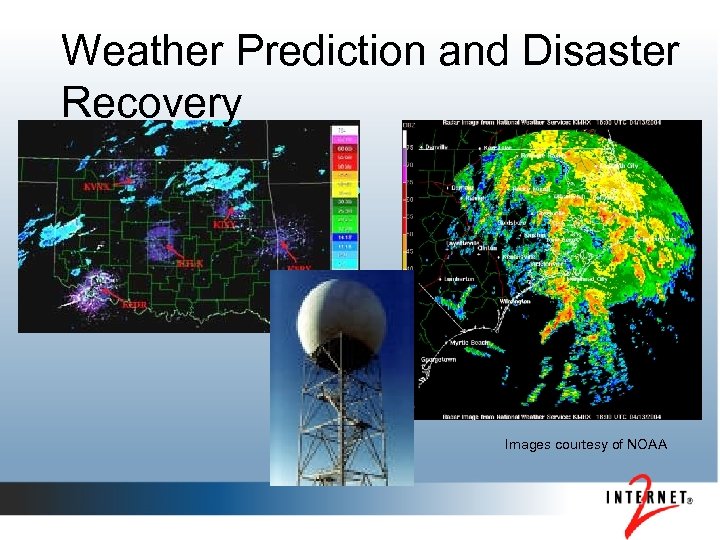

Weather Prediction and Disaster Recovery Images courtesy of NOAA

High-energy Nuclear Physics Images courtesy of CERN

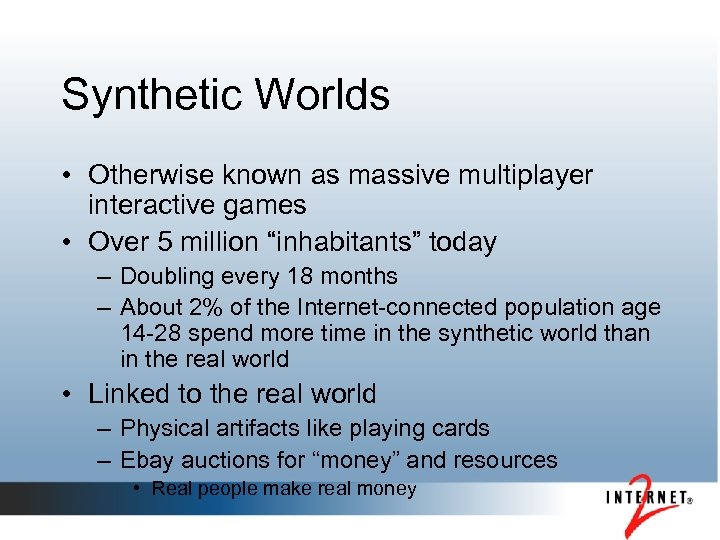

Synthetic Worlds • Otherwise known as massive multiplayer interactive games • Over 5 million “inhabitants” today – Doubling every 18 months – About 2% of the Internet-connected population age 14 -28 spend more time in the synthetic world than in the real world • Linked to the real world – Physical artifacts like playing cards – Ebay auctions for “money” and resources • Real people make real money

Learning and Peer-to-Peer • The classroom is the same, but learning is transformed – Faculty define the objectives, but students create the learning environment • Prospects for hybrid media products – Texts with online extensions?

Tomorrow’s Internet 2 Networking and Applications

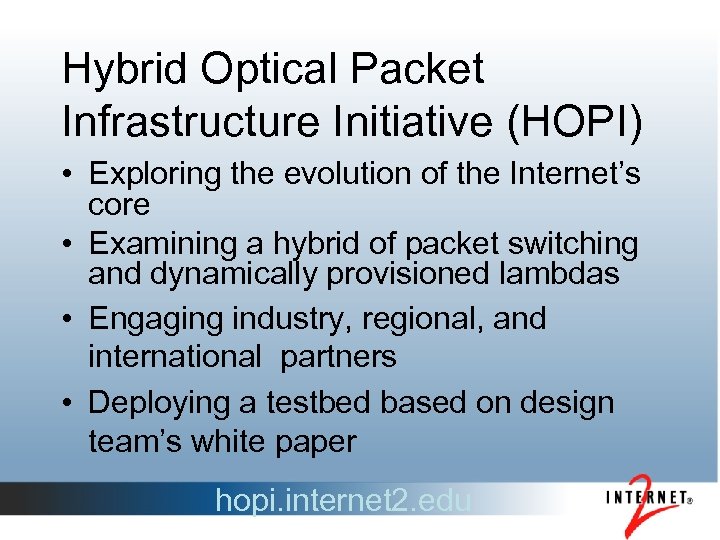

Hybrid Optical Packet Infrastructure Initiative (HOPI) • Exploring the evolution of the Internet’s core • Examining a hybrid of packet switching and dynamically provisioned lambdas • Engaging industry, regional, and international partners • Deploying a testbed based on design team’s white paper hopi. internet 2. edu

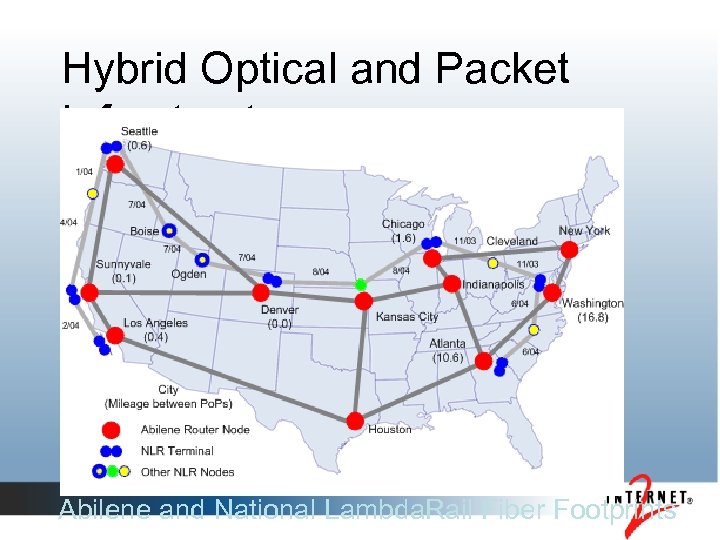

Hybrid Optical and Packet Infrastructure Abilene and National Lambda. Rail Fiber Footprints

Photo: Jason Project Photo: NASA Photo: CERN Photo: Opt. IPuter

Internet 2’s Network - 2007 Deployment • System uses dedicated fiber footprint from Level 3 • Built on Infinera platform providing innovative optical technology • Hybrid network providing both IP and point-to-point services that can be rapidly provisioned • Initially provisioned with ten 10 -Gbps wavelengths (100 Gbps) • Wavelength Scalability – unlimited availability of additional wavelengths, through additional fiber pairs • Flexibility: support for dynamic provisioning and wavelength switching • Community control at Layer 1 • Supports a diverse set of services including both production and experimental capabilities • Will enhance the technical leadership and innovation of the Internet 2 community.

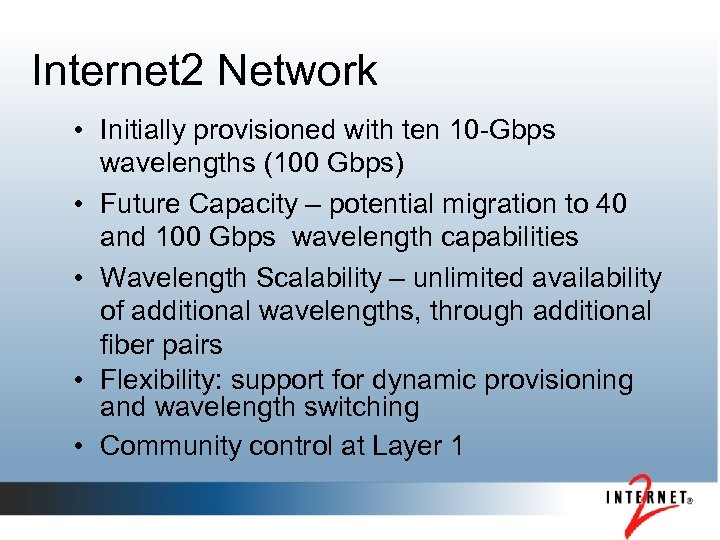

Internet 2 Network • Initially provisioned with ten 10 -Gbps wavelengths (100 Gbps) • Future Capacity – potential migration to 40 and 100 Gbps wavelength capabilities • Wavelength Scalability – unlimited availability of additional wavelengths, through additional fiber pairs • Flexibility: support for dynamic provisioning and wavelength switching • Community control at Layer 1

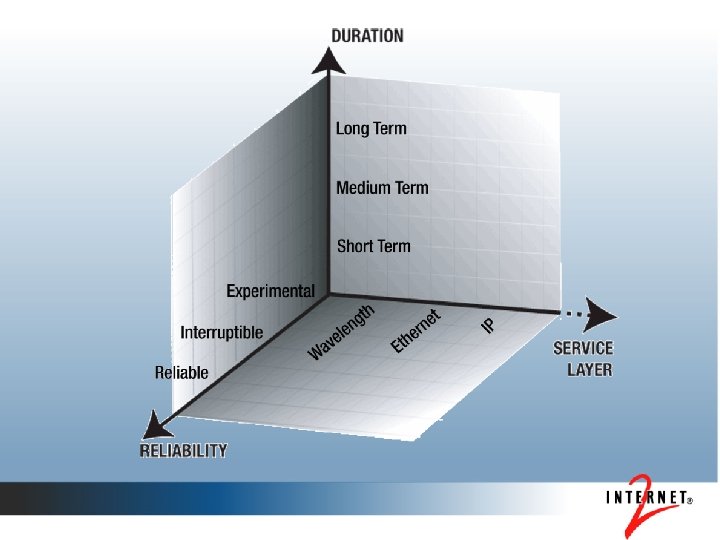

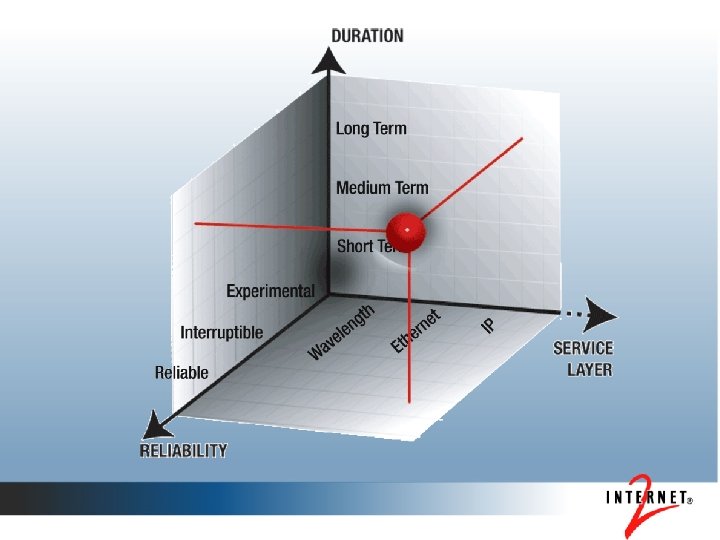

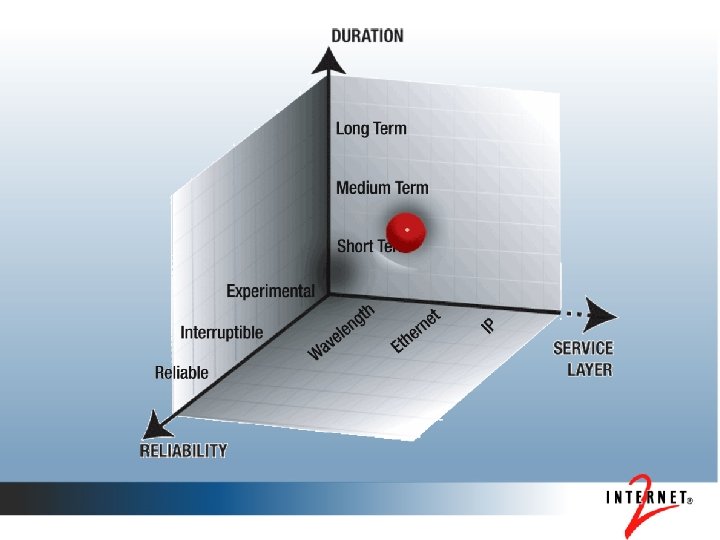

Lightpath Capabilities

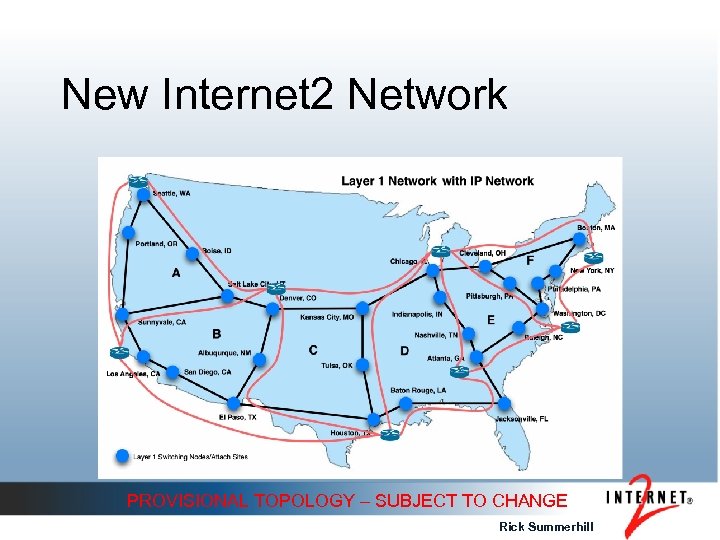

New Internet 2 Network PROVISIONAL TOPOLOGY – SUBJECT TO CHANGE Rick Summerhill

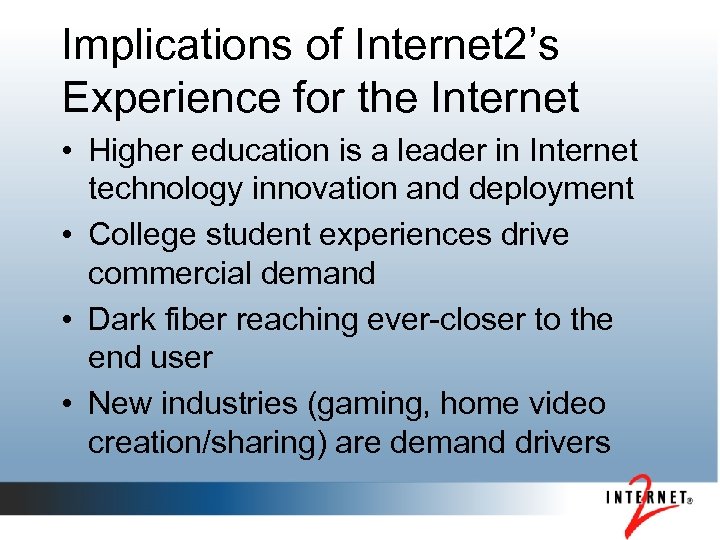

Implications of Internet 2’s Experience for the Internet • Higher education is a leader in Internet technology innovation and deployment • College student experiences drive commercial demand • Dark fiber reaching ever-closer to the end user • New industries (gaming, home video creation/sharing) are demand drivers

The Broadband Home of Tomorrow

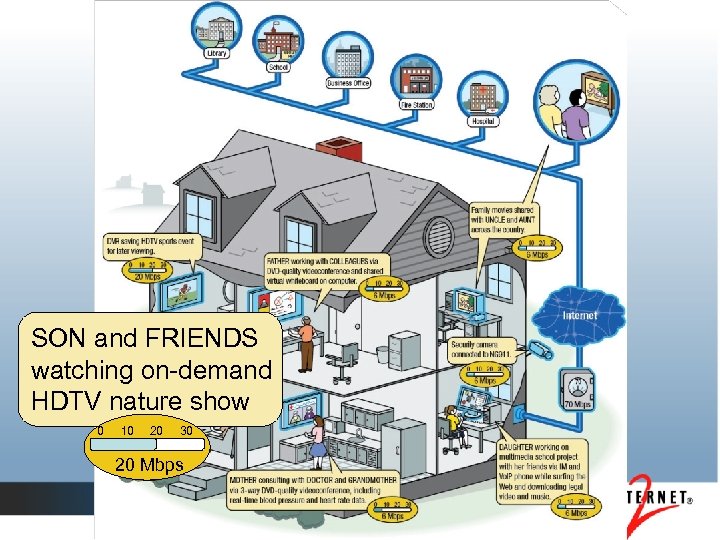

SON and FRIENDS watching on-demand HDTV nature show 0 10 20 30 20 Mbps

DVR saving HDTV sports event for later viewing 0 10 20 30 20 Mbps

Family movies shared with UNCLE and AUNT across the country. 0 10 20 30 6 Mbps

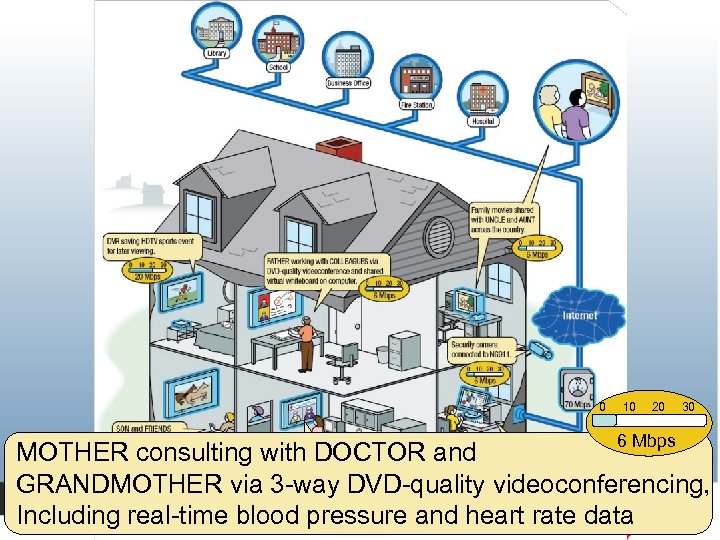

0 10 20 30 6 Mbps MOTHER consulting with DOCTOR and GRANDMOTHER via 3 -way DVD-quality videoconferencing, Including real-time blood pressure and heart rate data

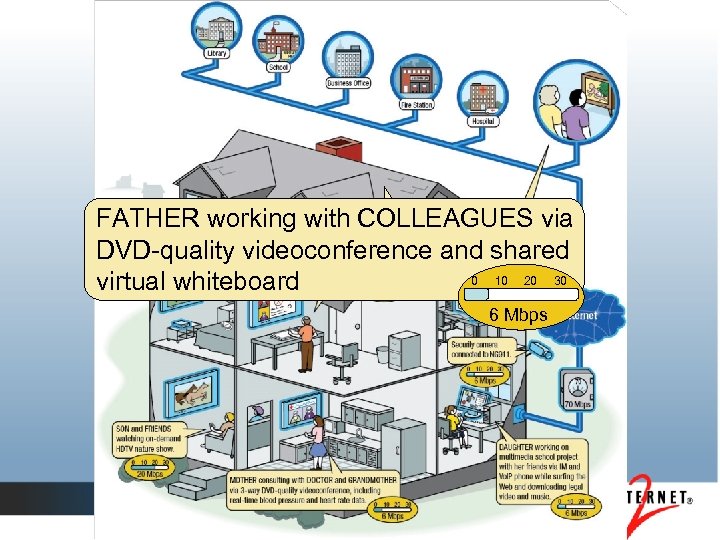

FATHER working with COLLEAGUES via DVD-quality videoconference and shared 0 10 20 30 virtual whiteboard 6 Mbps

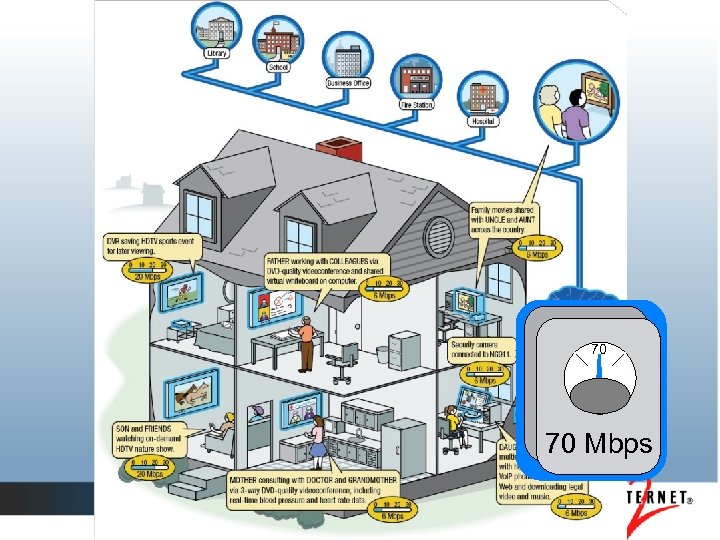

70 70 Mbps

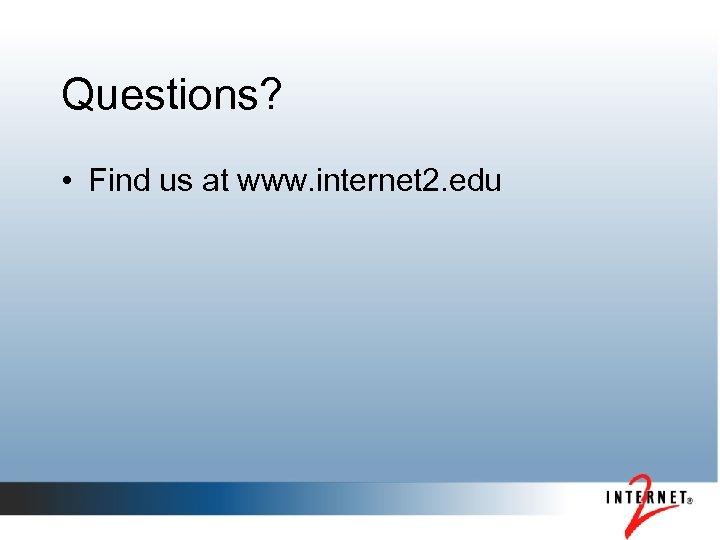

Questions? • Find us at www. internet 2. edu
